| Product Type | LED Television with DVD Player |
| Brand | Technika |
| Model | 22E21B-FHD/DVD |
| Screen Size | 22 inches (approx. 56 cm) |
| Resolution | 1920 x 1080 (Full HD) |
| Built-in DVD Player | Yes |
| Tuner | DVB-T/T2/C (Digital Terrestrial and Cable) |
| Dimensions (with stand) | Approx. 510 x 380 x 180 mm |
| Weight (with stand) | Approx. 3.5 kg |
| Power Supply | AC 100-240V, 50/60Hz |
| Power Consumption (typical) | 30 W |
| Key Features | Full HD display, built-in DVD player, multiple connectivity options (HDMI, USB, SCART), energy-saving mode |
| Cleaning and Maintenance | Wipe with a soft, dry cloth. Avoid harsh chemicals and excess moisture. |
| Safety Warnings | Do not expose to rain or moisture. Do not open the casing. Keep ventilation slots clear. |
| Spare Parts and Repairability | Contact authorized service center for spare parts. Repairability index not available but estimated as moderate. |
| General Information | Ideal for small rooms or kitchens. Remote control included. Wall-mountable (VESA 100x100). |
Frequently Asked Questions - 22E21B-FHD/DVD Technika
How do I connect an external device like a game console or Blu-ray player?
Use an HDMI cable to connect the device to any available HDMI port on the TV. Then press the Source button on the remote and select the corresponding HDMI input.
How do I play a DVD on this TV?
Insert the DVD into the built-in slot or tray (depending on model) with the label facing up. The TV should automatically detect the disc and begin playback. If not, press the Source button and select DVD.
Why is there no sound coming from the TV?
First, check that the volume is not muted or set too low. Verify that external speakers are not connected and interfering. Try switching to a different source. If the issue persists, perform a power cycle by unplugging the TV for 30 seconds.
How do I tune digital channels for the first time?
Go to the Menu and navigate to Channel Setup or Installation. Select Auto Tuning or Auto Scan. Choose your region and signal type (DVB-T for antenna, DVB-C for cable). The TV will search and store all available channels.
Can I connect headphones to this TV?
Yes, there is a 3.5mm headphone jack on the side or rear panel. Insert your headphones and the TV speakers will be muted automatically. You can adjust the headphone volume separately in the audio settings.
What should I do if the remote control stops working?
First, check the batteries and replace them if needed. Make sure there are no obstructions between the remote and the TV sensor. If the TV has a Panel Lock feature, it may disable the remote. Try turning off the panel lock in the settings menu.
How do I update the TV's firmware?
Check the Support or Software Update section in the menu. If an update is available via USB, download the firmware file from the Technika website to a USB drive, insert it into the TV, and follow on-screen instructions. Some models may update over the air (OTA).
Is it possible to mount this TV on the wall?
Yes, this TV is VESA compatible with a 100x100mm mounting pattern. Use a suitable wall mount kit and follow the instructions. Ensure the wall can support the weight of the TV (approx. 3.5 kg).
How do I reset the TV to factory settings?
Go to Menu > Settings > System or General and look for Factory Reset or Restore Defaults. Confirm the action. This will erase all personal settings and channels, so make sure you have your region and tuning details.
What type of USB devices are supported?

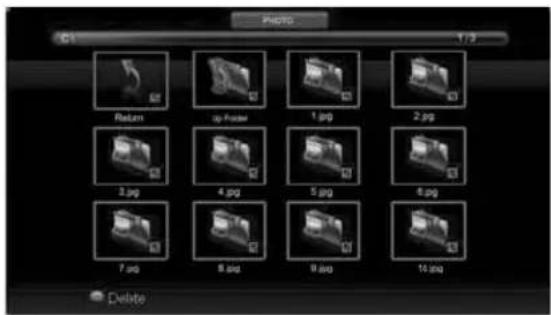

The TV supports USB flash drives and external hard drives formatted in FAT32 or NTFS. You can play media files such as photos, music, and video. Supported formats include MP4, AVI, MKV for video; MP3 for audio; and JPEG for photos.
