USER MANUAL LED22-248COMIW Technika

HD Ready LED TV with Saorview, DVD & USB Media Player

User Guide

Line drawing of a flat-screen computer monitor with no text or symbols on the screen or side

Model No

19-248COMI

22-248COMI

22-248COMIW

24-E242COMI

IMPORTANT GUARANTEE INFORMATION

Congratulations on purchasing this television. We hope you have many years of trouble free enjoyment from your purchase.

Your product is covered under the manufacturers guarantee for 12 months from date of purchase.

In the event of a fault being diagnosed, please refer to the frequently asked questions/troubleshooting section at the rear of this user guide.

If you are still unable to remedy the fault, try resetting the TV to factory settings, (details in this user guide) or contact the helpline.

In the event that a fault is diagnosed, the helpline will arrange to collect the TV from your home or work address, return it to our service centre, repair the item and then return it to you.

If we believe we cannot offer a permanent repair, we will replace the item.

Sky Media UK LTD – Helpline Information

Telephone UK 0871 2000 463, ROI 01443 3940

Web support: www.skymediauk.co.uk

The telephone opening hours are Monday to Friday 8.30am to 6pm, Saturday 9am – 5pm.

You must retain all packaging materials, in addition to your proof of purchase/receipt, as you will need these in the event of warranty/service support.

This guarantee is in addition to and does not affect your statutory rights.

If you need to call the helpline, you will need the following information.

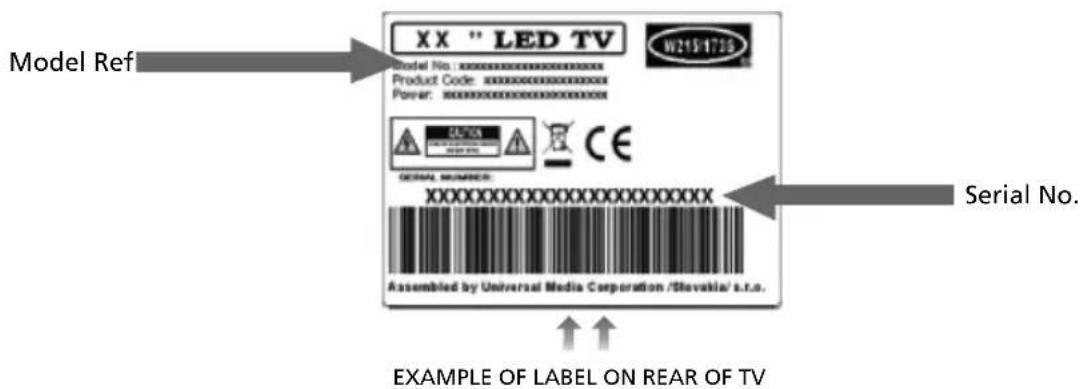

1) Model Ref ____ (You can find this on the rear of the TV)

2) Date of purchase ____ (You can find this on your sales receipt)

3) Serial Number ____ (You can find this on the rear of the TV)

XX "LED TV Model No:XXXXXXXXXXXXXX Product Code:XXXXXXXXXXXXXX Power:XXXXXXXXXXXXXX CEL-CA CE SERIAL NUMBER: XXXXXXXXXXXXXXXXXXXXXX Assembled by Universal Media Corporation /Slovakia/ s.r.o. Serial No. EXAMPLE OF LABEL ON REAR OF TV

IMPORTANT SAFETY INSTRUCTIONS

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

Please read these instructions. All the safety and operating instructions should be read before the appliance is operated.

Warnings

• To reduce the risk of fire, electric shock or damage to the television, do not expose it to dust, rain or moisture, or place any objects filled with liquids on or near the television.
- Do not place the television in a confined space, ensure that nothing can obstruct the ventilation openings at the rear of the television.
- Dispose of this television and any components including batteries in an environmentally friendly manner. If in doubt, please contact your local authority for details of recycling.

To prevent spread of fire, keep candles or other open flames away from this product at all times

Safety

• For your safety, this appliance is fitted with a fused moulded 3 pin mains plug. Should the fuse need to be replaced, ensure that any replacement is of the same amperage and approved with the BSI mark.
• Never try and replace the mains plug unless you have adequate qualifications and are legally authorised to do so. In the event that a replacement Mains cable is required, contact the manufacturer for a suitable replacement.
• Never use the television if it is damaged in any way.
• Always place the television on a flat level surface avoiding anywhere which may be subject to strong vibration.
• Ensure the television is not placed on top of the power cable as the weight of the television may damage the cable and cause a safety hazard.
• Never place mobile phones, speakers or any other device which may cause magnetic or radio interference with the television. If interference is apparent, move the device causing the interference away from the television.
• To disconnect the apparatus from the mains, please use the all pole mains switch located on the side, underside or rear of the TV. The switch shall remain readily operable.
  • Install the product keeping the specified distance (more than 5 cm) from the wall

Maintenance

- To clean this unit, wipe with a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth dipped in a soap and water solution or a weak detergent solution.

- Use eyeglass cleaner to remove stubborn dirt from the LCD/LED Screen.

- Never use alcohol, paint thinner or benzene to clean this unit.

- Before using a chemically treated cloth, read the instructions that came with the cloth carefully.

CAUTION: If water or other liquid enters the television through the display panel surface, a malfunction may occur.

Mild detergent

Packaging

• The safest way to transport your item is in the original box/packaging - please save your packaging for this.
• You will need original box/packaging in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package it correctly.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

Please read these instructions. All the safety and operating instructions should be read before the appliance is operated.

Important Information Regarding Use of Video Games, Computers, Captions or Other Fixed Image Displays

The extended use of fi xed image program material can cause a permanent "shadow image" on the LCD panel.

This background image is viewable on normal programs in the form of a stationary fi xed image. This type of irreversible LCD/LED panel deterioration can be limited by observing the following steps:

1. Reduce the brightness/contrast setting to a minimum viewing level.
2. Do not display the fixed image for extended periods of time.
3. Turn the power off when not in actual use.

Examples of images that you need to watch out for are as follows (this is not an exhaustive list):

• TV Channel Logos: e.g. Shopping channel logos and pricing displays-especially if they are bright and stationary. Moving or low-contrast graphics are less likely to cause ageing of the screen.
- Time Displays
- Teletext: Do not view a stationary page for long period of time
• TV/DVD Menus: e.g. Listings of DVD disk content
- Pause Mode: Do not leave the TV in pause mode for long periods of time, e.g. When watching DVDs or videos.

Important - Once 'shadow image/screen burn' occurs, it will never disappear and is not repairable under warranty.

How do I dispose of this product?

UK: Waste electrical products should not be disposed of with household waste. Separate disposal facilities exist. For your nearest facilities, please see www.recycle-more.co.uk or in store for details.

ROI: Waste electrical products should not be disposed of with household waste. Separate disposal facilities exist. Check with your Local Authority or retailer for recycling advice.

Two identical diagrams showing a trash bin with no visible text or symbols, each containing a crossed-out box and a horizontal bar (no text or symbols present)

Cd

Batteries

• Do not expose batteries to high temperatures, excessive heat, prolonged sunshine, fire etc as may cause leakage, explosion or ignition.
• Observe the correct polarity when inserting batteries.
• Do not use different types of batteries together or mix old and new batteries.
• Dispose of batteries in an environmentally friendly way.
• Certain regions may regulate the disposal of batteries.
  Please consult your local authority.

CAUTION:

This caution label is located on the rear panel of the unit

THIS UNIT IS A CLASS 1 LASER PRODUCT. HOWEVER THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE PLAYER CORRECTLY AS INSTRUCTED. WHEN THIS UNIT IS PLUGGED INTO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENINGS TO LOOK INTO THE INSIDE OF THIS UNIT. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CONTENTS

Manufacturers Guarantee Information....3

Important Safety Instructions....4-5

What is included in the box....8

Attaching/Detaching the stand and wall mounting....9

Getting Started - Initial Set Up....11

TV Buttons and Input Source Menu....12

Remote Control....13

Connections....14-15

TV Menu Operation 16-21

Channel Menu 16

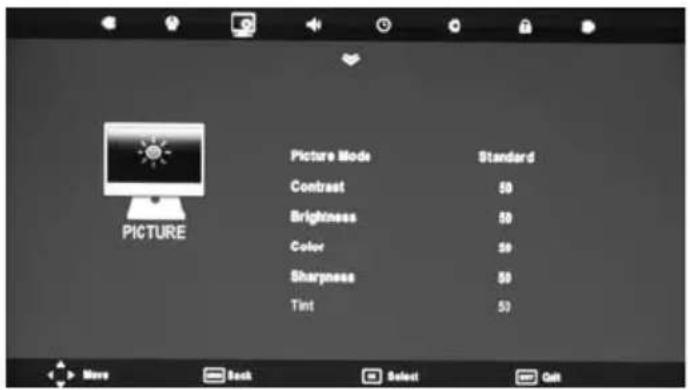

Picture Menu 17-18

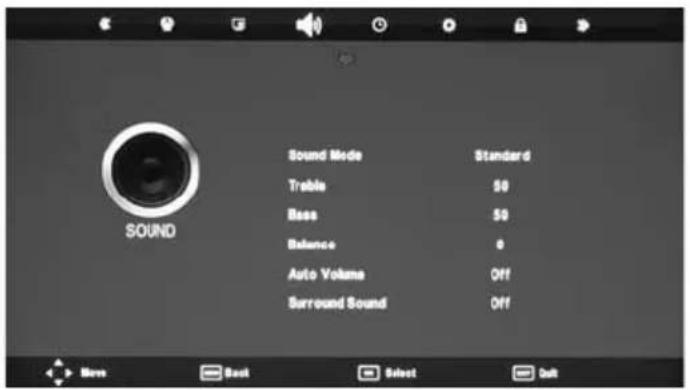

Sound Menu 19

Time Menu 20

Lock Menu 21

Option Menu 22

DVD Menu....23

PC Operation....24-25

7 Day TV Guide 26

USB Mode / Media Player 27

General Information....28-31

Using your TV with a digital set top box 28

Frequently Asked Questions 29

Technical Specifications 30

Index 31

WHAT IS INCLUDED IN THE BOX

Accessories

Included with this TV are the following accessories

1 x User Guide

User Guide

1 x Quick Start Guide

Quick Start Guide

1 x Stand

Front Back

1 x RF Cable

Coiled black cable with two connectors (no text or symbols visible)

1 x Remote Control

2 x AAA Batteries

1 x TV

Line drawing of a flat-screen computer monitor (no text or symbols)

1 x Stand neck plus screws

Please save your packaging as you will need this in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package it correctly. The safest way to package your item in the event of warranty/service repair is in its original box/packaging.

ATTACHING/DETACHING THE STAND

a b c, 4 x M4x10 (M4x8) 45° d 90° e

For the assembly you will need a screwdriver.

Place TV body on fl at surface panel facing downwards to avoid damage to the panel.

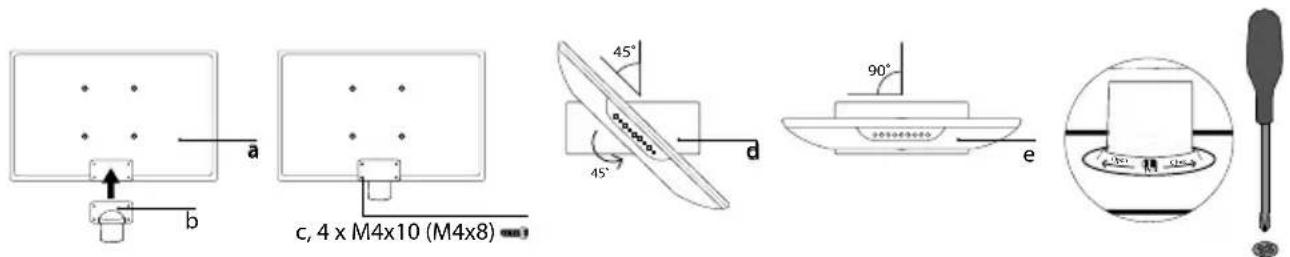

1. Attach the stand neck (b) to the body of TV unit (a) with 4 screws (c).
2. Insert the TV into the stand at 45 degrees (d).
3. Twist the TV into the CLOSE position until it clicks into place (e).

Please follow the instructions described in the instructions for safe placing your TV!

Detaching the Stand

1) To remove the base, press close and rotate 45 degrees.
2) Remove the screws highlighted

Front view of a flat-screen computer monitor with ventilation slots and a circular button at the base (no visible text or symbols)

IMPORTANT - Before drilling any holes in the wall ensure you are not drilling where there could be any electric wires, water or gas pipes.

Wall mounting the TV

1) Remove the four screws highlighted below.
2) The wall mount can now be easily attached to the mounting holes on the rear of the TV. These holes are indicated in the picture below.

Front view of a black computer monitor with four circular buttons on the front panel (no visible text or symbols)

For optimum viewing, if wall mounting the TV higher than eye level, the TV should be tilted downwards so that the TV's screen is 'face on'. See fig 1 and 2

Important – If wall mounting this TV, only use the screws already provided in the wall mounting holes. Using other screws which are longer could cause irreparable damage to internal parts.

fi g 1 INCORRECT

RRECT Viewing angle

fi g 2 CORRECT

ECT Viewing angle TV

GETTING STARTED - INITIAL SET UP

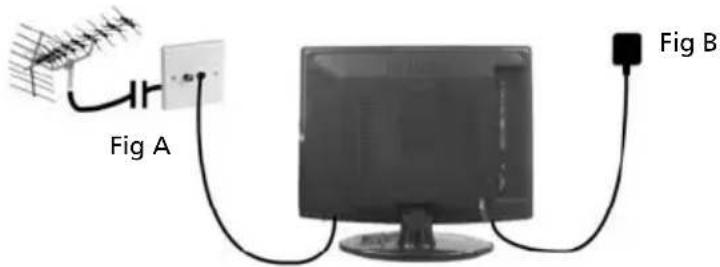

1) Using the RF cable supplied, connect the TV to the TV Aerial wall socket (Fig A)

2) Connect the power cable to the Electrical outlet (Fig B)

Fig A Fig B

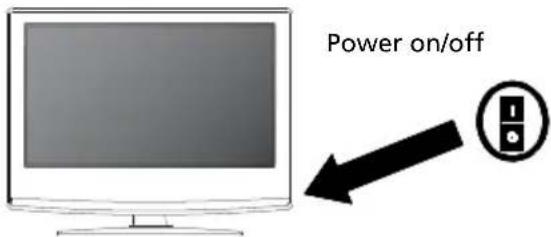

3) Switch on the television using the power on/off switch located on the side of the TV.

4) Insert the batteries supplied into the Remote control and press the Standby button to power on the TV

Power on/off

STANDBY MUTE TV/RADIO TV GUIDE ATV USB

5) You will now be welcomed with the initial set-up screen.

If it does not appear, on the remote control, please press [MENU] then 8-8-8-8 and the menu will appear.

Press OK on the remote control and tuning will start.

Installation Guide Please set the following options, then press OK button to begin auto using. QSD Language English Country UK Tune Type ATV + DTV More Select Quit

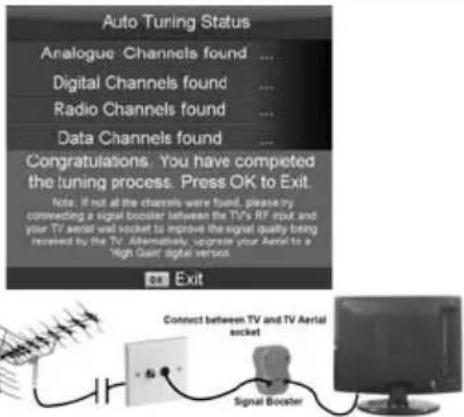

6) After tuning the following screen will appear.

Auto Tuning Status Analogue Channels found ... Digital Channels found ... Radio Channels found ... Data Channels found ... Congratulations. You have completed the tuning process. Press OK to Exit. Note: If not all the channels were found, please try connecting a signal booster between the TV's RF input and your TV aerial wall socket to improve the signal quality being received by the TV. Alternatively, upgrade your Aerial to a high Qair digital versus Exit Connect between TV and TV Aerial socket Signal Booster

If you are missing channels, the reason for this is likely to be signal strength, you should consider connecting signal booster and re-tuning the TV.

Tip: If the TV fi nds some, but not all, of the Digital channels, the TV is functioning correctly but the signal being received is not strong enough. (The signal strength needs to be above 85% - you can see the signal strength the TV is receiving when you change channels/ programmes) you will need to increase the signal reception in order to receive all of the channels available. The most economical way to do this is by purchasing and connecting a 'signal booster' in between the TV and the TV aerial socket. If this does not solve the problem, you will need to upgrade the TV aerial to a digital hi-gain compatible aerial

TV BUTTONS & SOURCE MENU

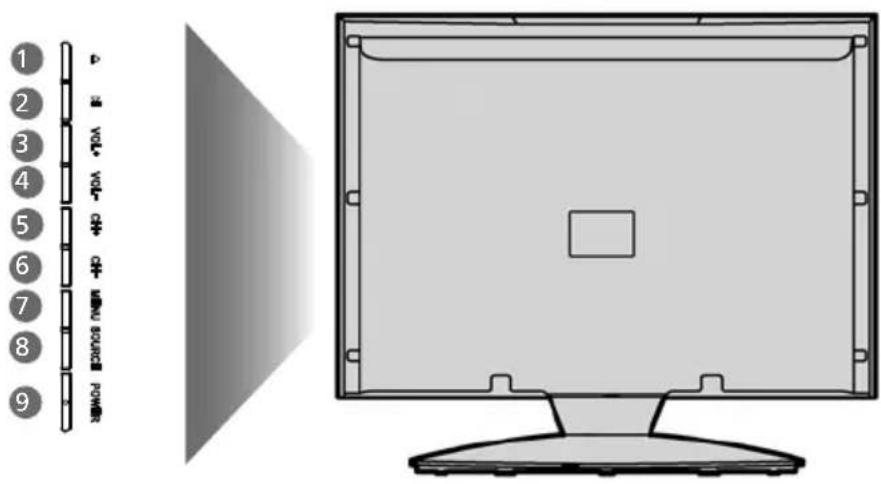

1 2 3 4 5 6 7 8 9

1 Eject Disc
2 Play/Pause Disc
3 Volume up and menu right
4 Volume down and menu left
5 Programme/Channel up and menu up
6 Programme/Channel down and menu down
7 Displays Menu/OSD
8 Displays the input source menu
9 Standby Power On/Off

Choosing Mode Input/Source

To switch between the different input/ connections.

A) Using the buttons on the remote control:

1) Press [SOURCE/ AV] - The source menu will appear
2) Press [V] or [A] to select the input you require.
3) Press [OK]

B) Using the buttons on the Television:

1) Press [SOURCE]
2) Scroll up / down using CH+/CH- buttons to the input/source you require
3) Press Vol+ to change input/source to the one selected.

Input Source

SAORVIEW

ANALOGUE

SCART

COMPONENT

DVD

HDMI1

HDMI2

VIDEO

USB MEDIA

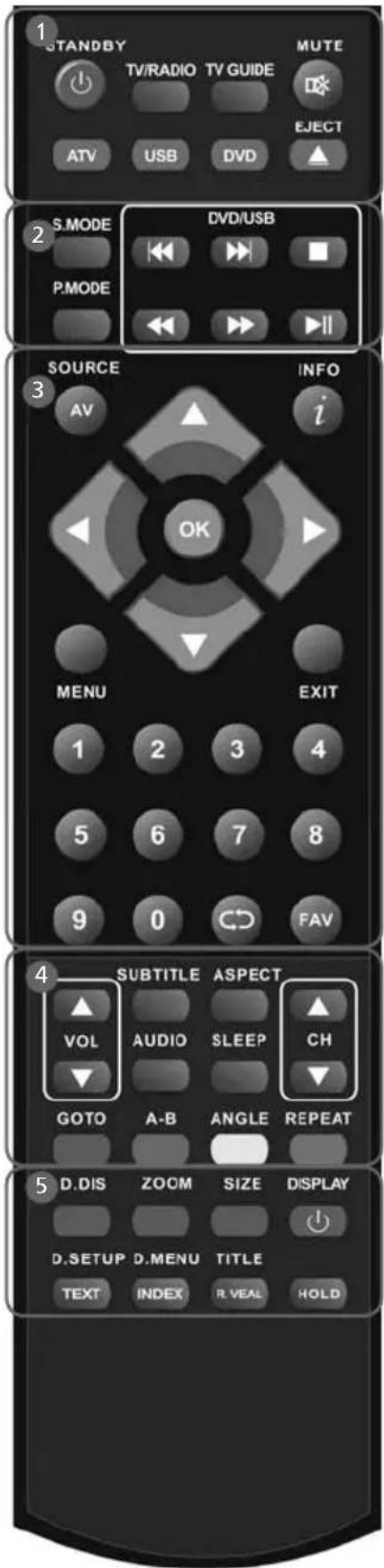

1 STANDBY - Switch on TV when in standby or vice versa MUTE - Mute the sound or vice versa
TV/RADIO - Switch to Digital and switch between TV and radio in Digital mode
TV GUIDE - Opens the 7 Day TV Guide (Digital mode)
ATV - Switch to analogue TV source
USB - Switch to USB Source
DVD - Switch to DVD source
EJECT - Eject disc in DVD mode

2 S.MODE - Scrolls through sound mode options P.MODE - Scrolls through picture mode options

• To restart the current chapter
• To advance forward to the next chapter
• To stop the playback
• To play in fast rewind mode
• To play in fast forward mode
• To play/pause

3 SOURCE/AV - To display the input/source menu

INFO - Press once for now/next channel information

Press twice for programme information about current

programme

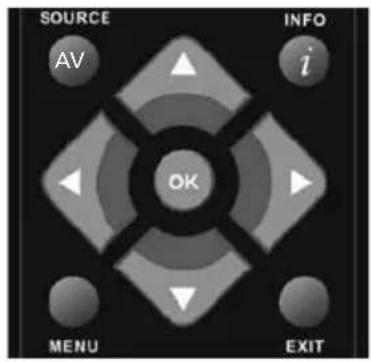

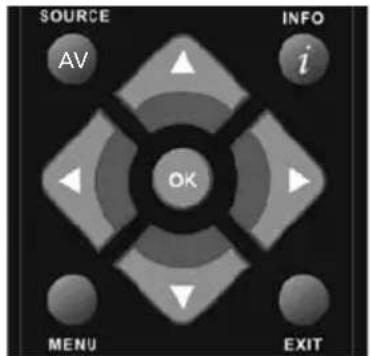

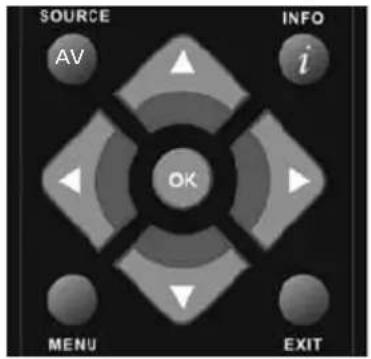

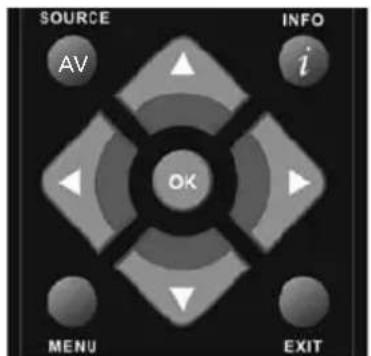

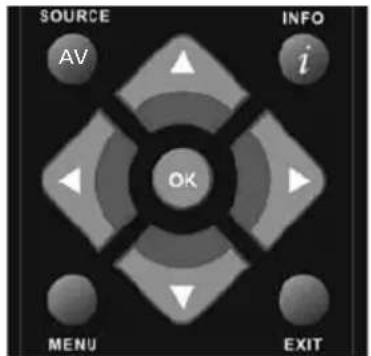

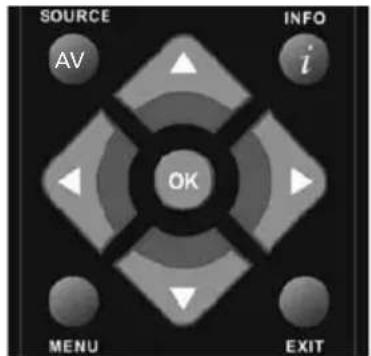

(▲/▼/◄/►/OK) - Allows you to navigate the on-screen menus and adjust the system settings to your preference

MENU - To display OSD menu

EXIT - To exit all menus

NUMBER BUTTONS - 0 - 9 to select a TV channel directly.

- To return to the previous channel viewed

FAV - To display favourites menu

VOL ▲To increase / decrease the sound level

SUBTITLE - To switch the dialogue at the bottom of the screen (on/off)

ASPECT - To switch the screen between the different picture formats

AUDIO - To change the audio language (if available)

SLEEP - Press repeatedly to cycle through the sleep options

CH ▲To increase or decrease the channel being watched

GOTO - DVD mode - To go to a specific chapter

A-B Repeat - DVD mode - Press once to set point, press a second time to return to point

ANGLE - DVD mode - Select different angle of DVD (if available)

REPEAT - DVD mode - To repeat playback

5 D.DIS - DVD mode - To display the current disc information ZOOM - DVD mode - To zoom in

**SIZE - Teletext mode - To change the display size in Teletext mode

DISPLAY - To switch off the screen when listening to radio

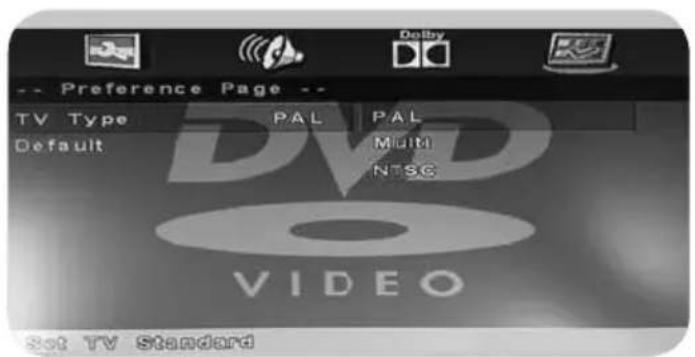

DVD SETUP/TEXT - DVD mode - To display the DVD setup menu

**Teletext mode - To enter Teletext

D.MENU/INDEX - DVD mode - To display the DVD disc menu

**Teletext mode - To display the index page

TITLE/REVEAL - DVD mode - To display the DVD title menu

**Teletext mode - To reveal or hide the hidden words.

HOLD - Teletext mode - Hold current page which is displayed

1 STANDBY TV/RADIO TV GUIDE MUTE ATV USB DVD 2 S.MODE DVD/USB P.MODE SOURCE INFO AV i MENU EXIT 1 2 3 4 5 6 7 8 9 0 C FAV 4 SUBTITLE ASPECT VOL AUDIO SLEEP CH GOTO A-B ANGLE REPEAT 5 D.DIS ZOOM SIZE DISPLAY D.SETUP D MENU TITLE TEXT INDEX R VEAL HOLD

CONNECTIONS

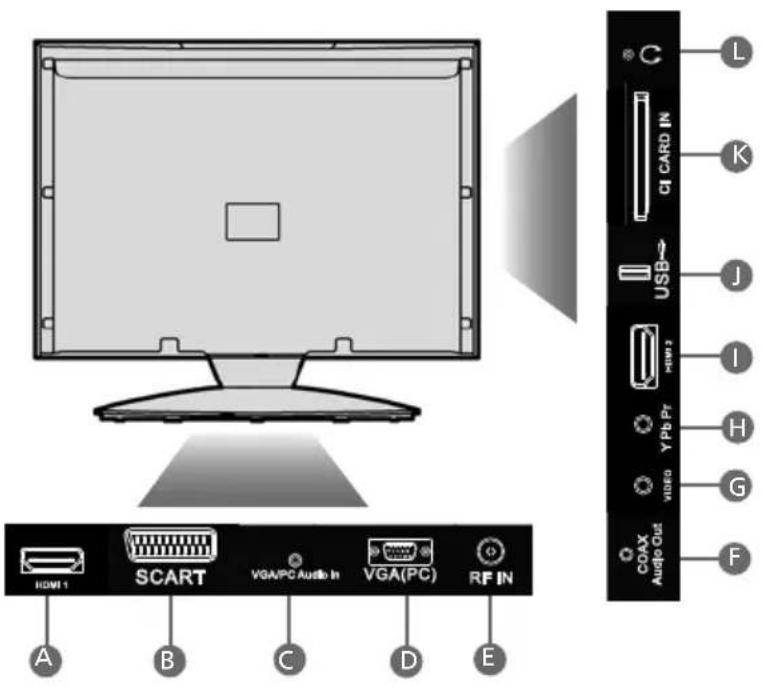

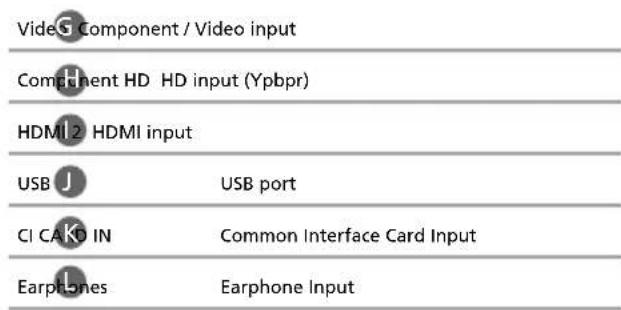

HDMI 1 A SCART B VGA/PC Audio In C VGA(PC) D RF IN COAX Audio Out F G H VIDEO Y Pb Pr HW3 USB J K L CI CARD IN

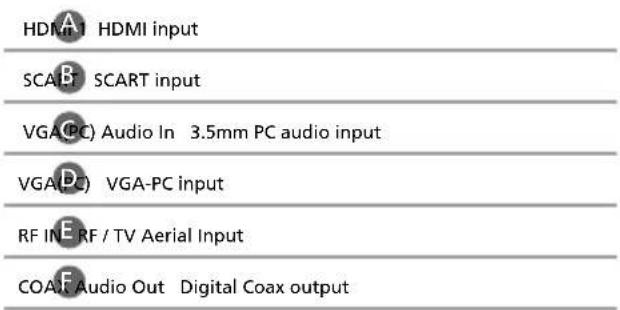

HDMI HDMI input SCART SCART input VGAPC) Audio In 3.5mm PC audio input VGA(PC) VGA-PC input RF IN RF / TV Aerial Input COAF Audio Out Digital Coax output

VideS Component / Video input Complement HD HD input (Ypbpr) HDMI 2 HDMI input USB J USB port CI CAKO IN Common Interface Card Input Earphones Earphone Input

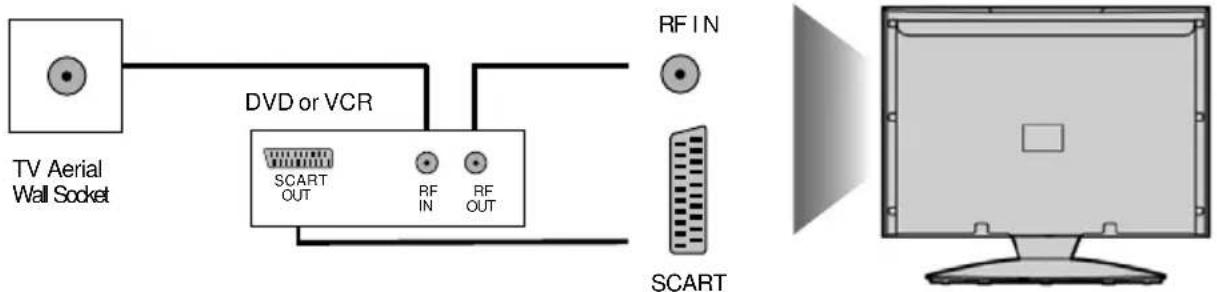

Connecting a DVD Player/Recorder, Video Recorder or Cable/Satellite Box

TVs Input/Source should be set to SCART

CONNECTIONS

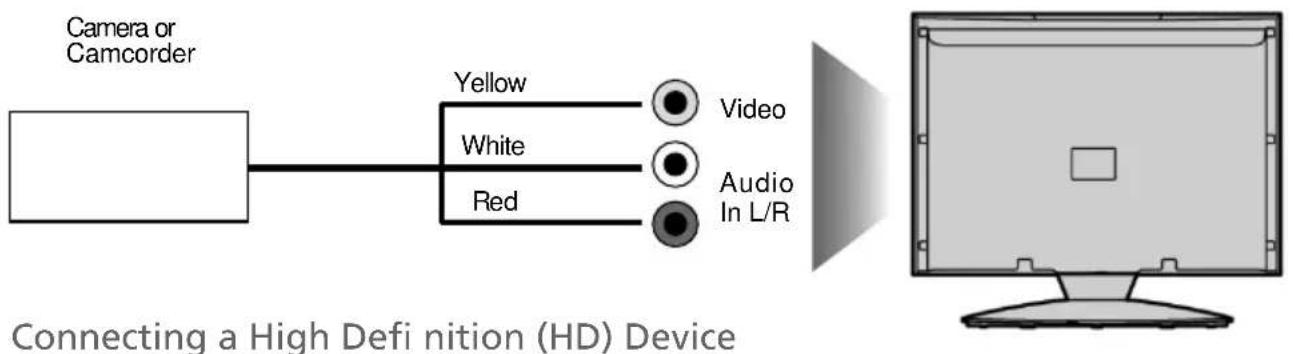

Connecting a Camcorder, Camera or Games Console

Source should be set to Video

Option 1 - via HDMI to HDMI cable

A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio with minimal loss of quality.

TVs Input/Source should be set to HDMI.

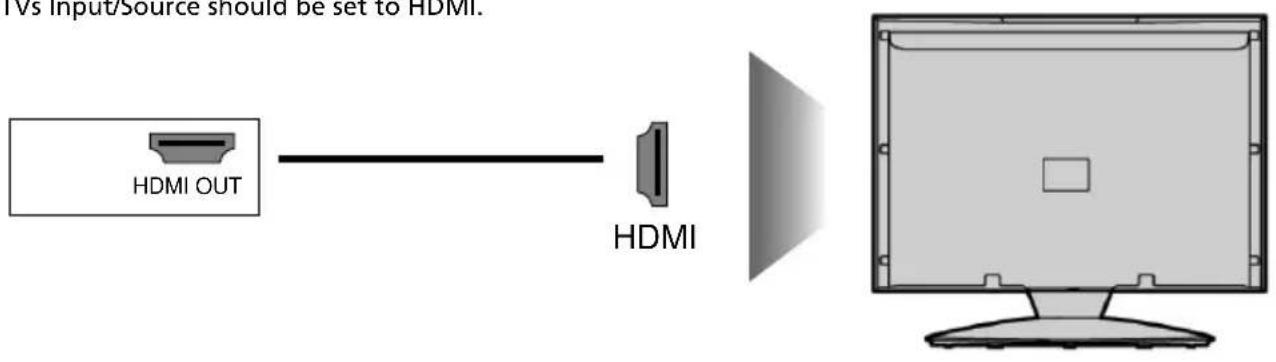

TVs Input/source should be set to HDMI. HDMI OUT HDMI

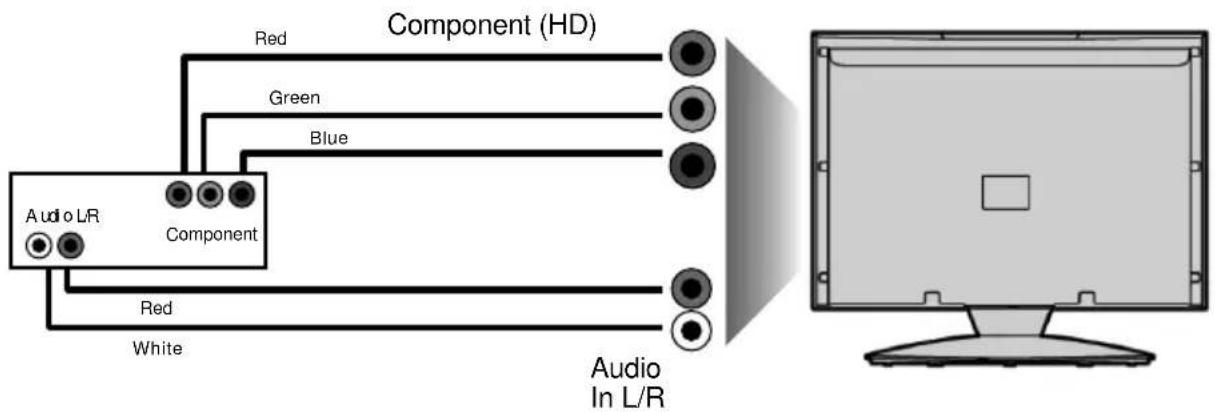

Option 2 - via Component cable

If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors you must connect via Component (for picture) and by phono cable (for sound).

TV Source should be set to Component.

Component (HD) Red Green Blue Audio In L/R Audio L/R Component Red White

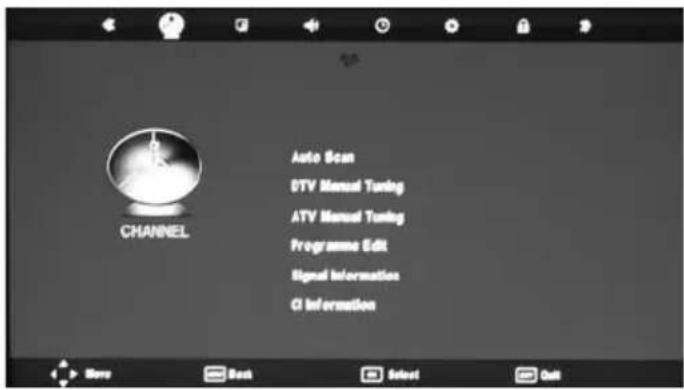

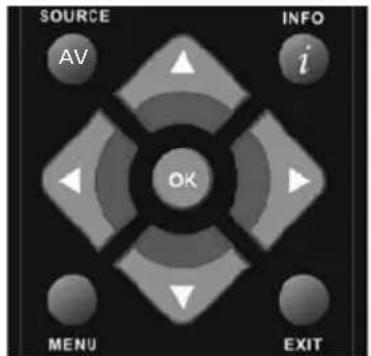

CHANNEL MENU

CHANNEL Auto Scan DTV Manual Tuning ATV Manual Tuning Programme Edit Signal Information CI Information

SOURCE AV INFO i OK MENU EXIT

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll any settings press [OK] button.

buttons. To confi rm

To exit this menu at anytime, press [EXIT] button.

Auto Tuning - Allows you to retune the television for all digital channels, digital radio stations and analogue channels.

Digital Manual Tuning- Allows you to manually tune your digital signal

Analogue Manual Tuning - Allows you to manually tune your analogue signal

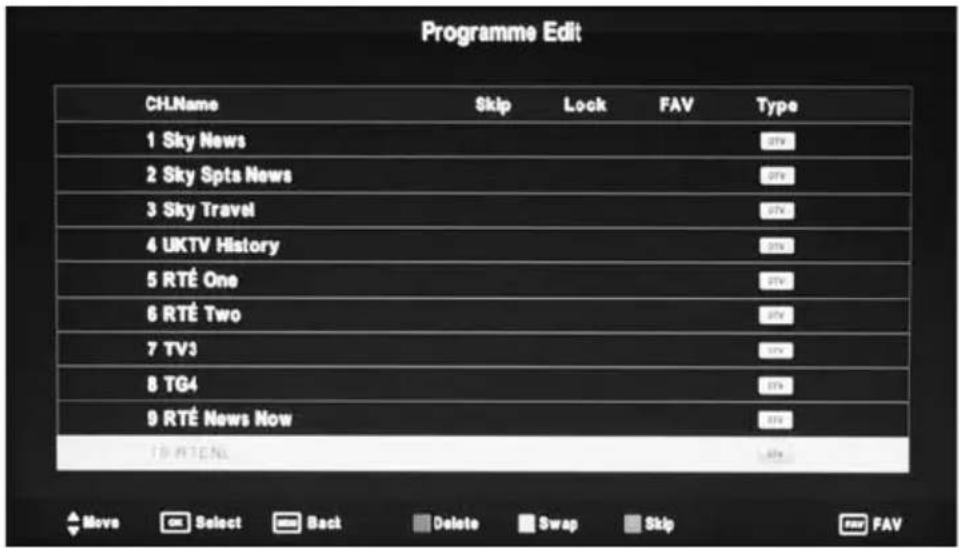

Programme Edit - Allows you to delete, skip and add favourite channels.

Programme Edit CH.Name Skip Lock FAV Type 1 Sky News 2 Sky Spts News 3 Sky Travel 4 UKTV History 5 RTÉ One 6 RTÉ Two 7 TV3 8 TG4 9 RTÉ News Now 10 RTEL Move Select Back Delete Swap Skip FAV

Signal Info -Displays signal strength and quality information.

CI Information - Pay per view services require a "smartcard" to be inserted into the TV.

If you subscribe to a pay per view service the provider will issue you with a 'CAM' and a "smartcard". The CAM can then be inserted into the COMMON INTERFACE PORT (CI Card In).

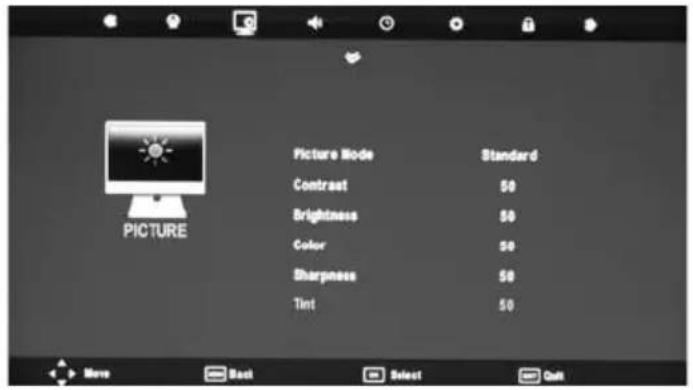

PICTURE MENU

Picture Mode Standard Contrast 50 Brightness 50 Color 50 Sharpness 50 Tint 50

SOURCE AV INFO i OK MENU EXIT

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▼▶◀ buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Picture Mode - Choose from the following presets

Standard	Default	settings
Dynamic	Recommended settings for fast moving pictures
Mild	Set to be lighter in colour and less bright
User	Lets you manually alter all the settings
Ecohome	Power saving mode which reduces the energy used by up to 25% (by reducing the power to the LED/LCD panel).
	In Ecohome mode, the TV will switch itself to Standby mode after 4-5 hours in the event that the TV buttons or remote control buttons are not pressed (see the time menu to de-activate this function).

Contrast - Switch the balance between black and white

Brightness - Increase or decrease the brightness of the picture

Colour - Increases the colour from black and white

Sharpness - Increase or decrease the sharpness of the picture

Tint - Lets you increase or decrease the level of tint within the picture

Noise Reduction - Choose from the following presets

Off Turns noise reduction off

Low Minor system adjustment

Middle Medium system adjustments

High Maximum system adjustments

Tip: If you do not press any buttons for 10 seconds, the menu will automatically exit. You can change the length of time before the menu exits automatically - see 'Menu Duration' section.

PICTURE MENU

Picture Mode Contrast Brightness Color Sharpness Tint Standard 50 50 50 50 50 More Back Select Quit

SOURCE AV INFO i OK MENU EXIT

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▼▶◀ buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

4:3

Aspect Ratio - Within the UK the picture format varies depending on the channel/broadcast. There are a number of different options to best meet your needs

Auto

Automatically displays the best picture format. So the picture is in the correct position. May have black lines At the top/bottom and/or sides.

Original

Will display the picture from the broadcaster without any change

Zoom 1-2

Illustration of a computer monitor with a blank screen and abstract geometric patterns on the sides (no text or symbols)

The picture is the correct proportion but zoomed in to fill the screen

16:9

Illustration of a computer monitor with a central screen and surrounding circular elements (no text or symbols)

Displays the 4:3 picture in its original size. Side bars are shown to fi ll the 16:9 screen

Illustration of a computer monitor with five circular windows on the screen (no text or symbols)

Fills the screen with a regular 16:9 signal and 4:3 picture format will be stretched to fill the screen

Panorama

Illustration of a computer monitor with a central blank screen and surrounding circular elements (no text or symbols)

Displays the 14:9 picture in the correct proportion. As a result side bars are shown on the screen

SOUND MENU

Sound Mode Trable Base Balance Auto Volume Surround Sound Standard 50 50 0 Off Off

SOURCE AV INFO i OK MENU EXIT

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Sound Mode - Choose from the following presets

User	Default	settings
Music	Emphasises music over voices
Movie	Provides live and full sound for movies
Personal	Selects your personal sound settings
Sports	Emphasises sound for sports

Tip: Treble and bass levels can only be adjusted when the sound mode 'Personal' is selected.

Treble - To adjust the amount of high frequency within the sound

Bass - To adjust the amount of low frequency within the sound

Balance - To switch the sound between the left and right speakers

Auto Volume Level (AVL) - When 'on' is selected, the volume will stay at a constant level regardless of input/source

Surround Sound - Allows you to turn surround sound ON or OFF

AD Volume - Increase or decrease the Audio Description volume

Audio Delay - Allows you to sync sound and picture on Digital source.

SPDIF Mode - This is the digital COAX Audio output. Choose from the following options:

Off	Off
Bitstream via coax cable (True digital signal)	Select this option if you are connecting to a Dolby Digital 5.1 surround sounds amplifier
PCM Select this option if you are connecting to a Stereo Hi-fi via coax cable (Pulse-code modulation (PCM) is a digital representation of an analogue signal)

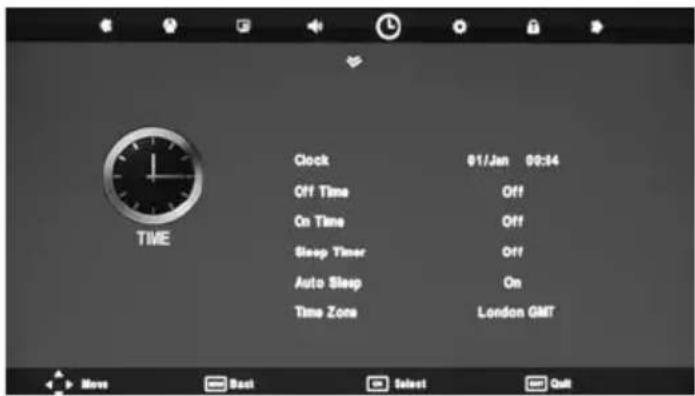

TIME MENU

Clock 01/Jun 00:34 Off Time Off On Time Off Sleep Timer Off Auto Sleep On Time Zone London GMT

SOURCE AV INFO i OK MENU EXIT

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▶▶ buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Clock - Set the date and time

Off Time - Allows you to set a specific time for your TV to turn off

On Time - Allows you to set a specific time for your TV to turn on, the channel it will then display, the source it will be on and also the volume. This function can then be toggled to repeat every day or a certain day.

Sleep Timer - Lets you set the sleep timer so the television automatically switches off after a set amount of time. Off -> 10min -> 20min -> 30min -> 60min -> 90min -> 120min -> 180min -> 240min

Auto sleep - If no signal is received after a period of time the Television will turn itself off

Time Zone - Change your current time zone

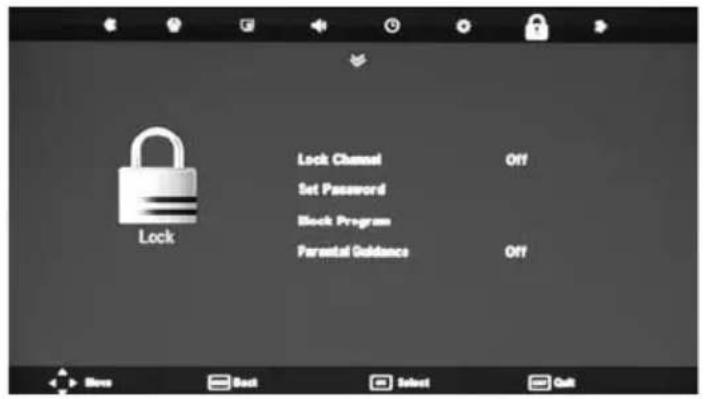

LOCK MENU

Lock Lock Channel Off Set Password Block Program Parental Guidance Off

SOURCE AV INFO i OK MENU EXIT

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Lock Channel - Allows you to lock or unlock specific channels.

Set Password - You will be asked to enter a 4 digit password use the ◀ button to quit the password input.

Use the ▶ button to clear. Default password is 0000

Block Program - Allows to completely block certain channels

Parental Guidance - Turns the parental guidance function on and off

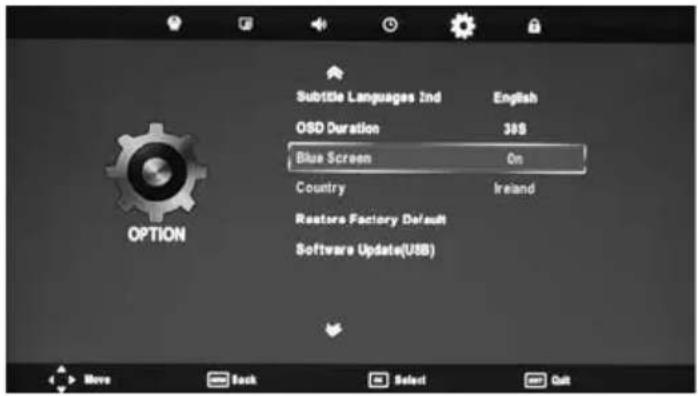

OPTION MENU

Subtile Languages Ind English OSD Duration 388 Blue Screen On Country Ireland Restore Factory Default Software Update(USB) OPTION

SOURCE AV INFO i OK MENU EXIT

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▲▲▲ buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

OSD language - Allows you to change the language of the menu

Audio Languages - In certain situations you will be given the ability to change audio language

Subtitle Languages - In certain situations you will be given the ability to change subtitle language

OSD Duration - Lets you adjust the amount of time the On Screen Menu stays on the screen before disappearing

Blue Screen - Changes the background when there is no input between clear and a blue background (Only available on some sources)

Country - Allows you the change the

Reset Factory default

Reset Menu System - This resets the menus to factory settings.

Reset Menu System - This clears all the TV channels from the television

Software Update (USB) - From time to time we may release new firmware to improve the operation of the television (available to download). This menu lets you install the new software/fi rmware onto the television. Further details of how to do this will be issued with the fi rmware. Contact the helpline or refer to the 'product support' section of the website.

DVD MENU

-- Preference Page -- TV Type PAL PAL Default Multi NTSC VIDEO Set TV Standard

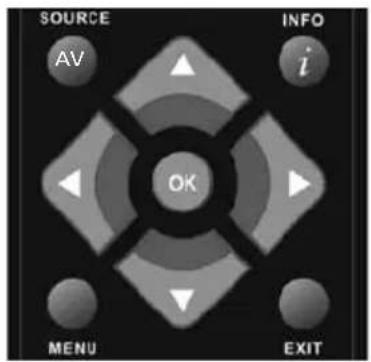

SOURCE AV INFO i OK MENU EXIT

If you wish to make changes to any of the default settings, use the scroll To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

TV Display - Choose from the following options

16:9 Full screen picture format

4:3 Pan scan PS Traditional picture format, often used on old fi lm

4:3 Letter box LB Traditional picture which has been adapted for widescreen

Wide Widescreen picture format

TV Type - Choose from the following options

PAL	The standard for discs from UK/Europe, most of Asia, Australia etc
Multi	The standard for discs from UK/Europe, most of Asia, Australia etc
NTSC	Normally used for discs from North America, Japan etc

Default - This option allows you reset all DVD settings to factory settings.

Downmix- - Choose from the following options

LT/RT	Converts from multi-channel sound to mono
Stereo	Converts from multi-channel sound to stereo

Dynamic Range - This is the difference between the quietest and loudest sounds. This setting works only with DVD discs recorded in Dolby digital.

Full	Set this to listen with the range recorded on the disc
3/4	Set this to listen with a range equivalent to a normal television
1/2	Set this to listen with a smaller difference between the maximum and minimum volume
1/4	Set this to listen with a smaller difference between the maximum and minimum volume
Off	Set dynamic range to off

Dual Mono

Stereo	Outputs 2 channels of sound both left and right
Mono L	Outputs left side sound
Mono R	Outputs right side sound
Mix Mono	Outputs a single channel of sound but mix between right and left

Tip: This TV/DVD player is pre-set to play Region 2 DVDs. In the event you wish to use the TV/DVD in another country that uses different region discs, please visit www.skymediauk.co.uk. Select 'Product Support', 'Changing Region'.

USING THE TELEVISION AS A COMPUTER MONITOR

IMPORTANT – Before connecting the computer to the television you must ensure the computer settings are correct for the television. You MUST do this using your old monitor.

How to set up for Windows XP & Windows Vista (connecting via VGA cable to the TV)

1) Switch on your computer
2) When fi nished booting up right click your mouse anywhere on the screen

Avango Icons By Refresh Paste Paste Image Save As Scheme... Graphics Options Display Modes Now Properties

XP Screen

View Stop Bar Refresh Paste Paste Abouture Undo Copy Ctrl+2 Graphics Properties... Graphics Options None No Personalize

VISTA Screen

4) Left click your mouse on Setting/Display Settings. Ensure the screen resolution is set to what is shown in the technical specifications section toward the rear of this user guide. To correct the resolution to that of the television move the slider.

Display Parameters 1 2 Display Size 3 OK Cancel Apply

XP Screen

Balance Low High Data set to the next page 1 Data set to the next page OK Cancel

VISTA Screen

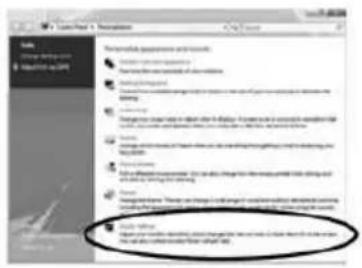

3) Left click your mouse on Properties/Personalise

Options Properties Name: Windows Notepad (*.NET) A small set of desktops or files are selected to be used in the Internet Explorer. It is not available for any other system or device. The chart is currently empty. Name: Windows Notepad (*.NET) Browse... Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web Browse Web B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B C10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

XP Screen

New Product New Product New Product New Product New Product New Product New Product New Product New Product New Product New Product New Product New Product New Product New Product New Product New Product New Product New Product New Product New Product New Product New Product New Product New Product New Product New Product New Product New Product New Product New Product New Product New Product New Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Product Old Products

VISTA Screen

5) Left click your mouse on Advance/Advanced Settings and left click on Monitor

Play and Play Elements and Enable STOP/RESET Mode... Control Settings Name: 100% Name: 100% Play and Play Elements Current settings Show available space C:\Users Active settings for the audio format display Drawing the audio file about the key speaker mode in the Windows Command Window. This is also an open dialog and by opening the window.

XP Screen

Resource Resource Name: 10.0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name Resource Name

VISTA Screen

6) Left click on the drop down for Screen refresh rate and select 60 Hertz, if you experience picture noise or 'fl ickering', select 50 hertz or 70 hertz.

7) Click on Apply, then click Yes and the settings will be saved.

8) Now switch off your computer and connect the television (as shown)

9) Switch on the TV, select the input/source to VGA/PC and re-start your PC.

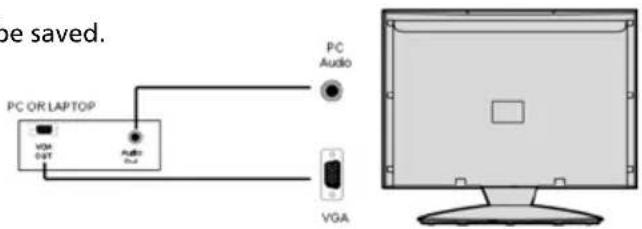

be saved. PC OR LAPTOP VGA DHT Audio VGA PC Audio

Connecting a Laptop

In addition to the above if you are connecting a laptop to the television you will also need to activate the VGA connection on the laptop. This can vary based on the brand of laptop you have, on many brands/models, it is as per below.

1) Connect the laptop to the television
2) On the Laptop push buttons The screen will now switch to the television.

Fn + F5 B/O

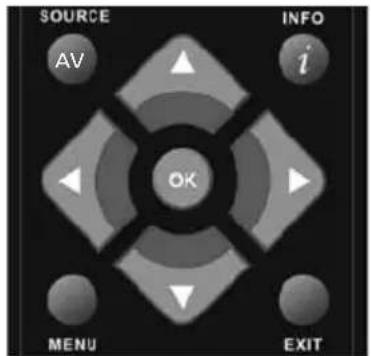

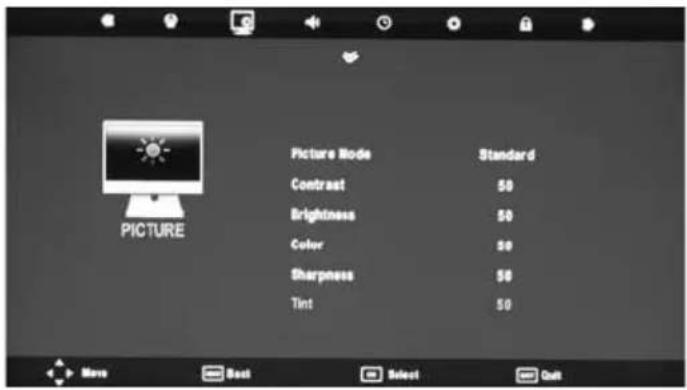

PC SETTINGS

Picture Mode Standard Contrast 50 Brightness 50 Color 50 Sharpness 50 Tint 50

SOURCE AV INFO i OK MENU EXIT

To access this menu, you need to navigate to the PICTURE menu and press [OK]. You then need to scroll down to the menu item called SCREEN and press [OK

If you wish to make changes to any of the default settings, use the scroll ▲▼▶◀ buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Auto Adjust - Lets you automatically confi gure the television to be used as a computer monitor

H Offset - Changes the horizontal position of the picture

V Offset - Changes the vertical position of the picture

Size - increase picture size

Phase - To adjust delay time of phase in order to reduce the noise of picture

Tip: If the computer is left in-active for a period of time, the television will switch into a 'sleep' state (the screen will power off to save power). To switch back on press the standby button.

7 DAY TV GUIDE

TV Guide is available in Digital TV mode. It provides information about forthcoming programmes (where supported by the freeview channel). You can view the start and end time of all programmes and on all channels for the next 7 days and set reminders.

1) Press [TV GUIDE]. The following 7 Day TV Guide will appear.

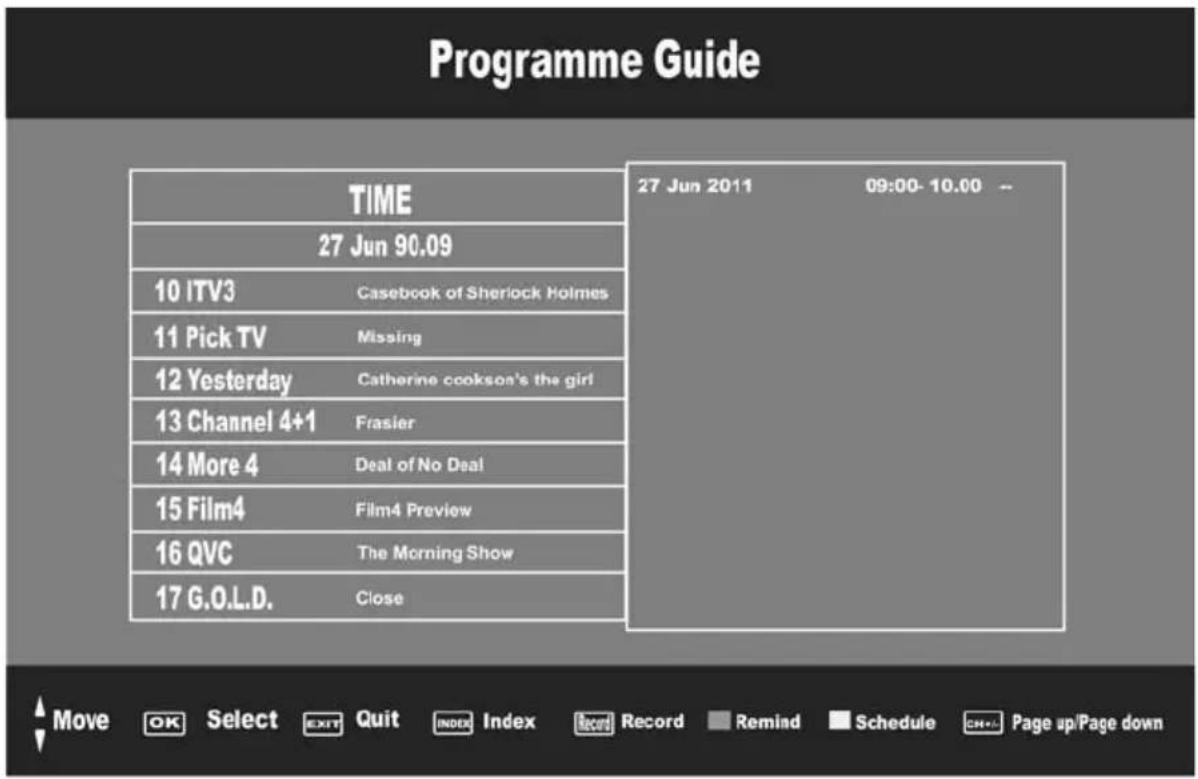

Programme Guide TIME 27 Jun 90.09 10 ITV3 Casebook of Sherlock Holmes 11 Pick TV Missing 12 Yesterday Catherine cookson's the girl 13 Channel 4+1 Fasier 14 More 4 Deal of No Deal 15 Film4 Film4 Preview 16 QVC The Morning Show 17 G.O.L.D. Close 27 Jun 2011 09:00- 10.00 -- Move OK Select EXIT Quit INDEX Index Record Record Remind Schedule CH... Page up/Page down

2) Navigate through the menu using

You can now:

Set a reminder by pressing GREEN

View a previous day by pressing YELLOW

View the next day by pressing BLUE

3) Press [EXIT] to exit the 7 day TV Guide.

USB MODE / MEDIA PLAYER

USB mode offers playback of various different types of content that you have saved on your USB Memory Stick.

On switching to USB source the above menu screen will appear. The content will be divided into Photo, Music, Movie and Text based on file type.

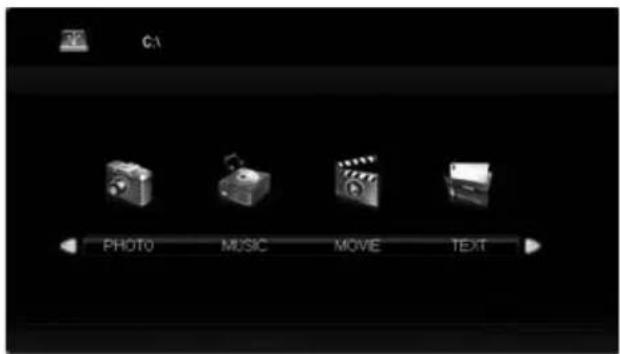

C:1 PHOTO MUSIC MOVE TEXT

1) You can navigate through the menus using the scroll ▲▼▶◀ buttons. To confirm the item you wish to play/view press [OK] button.

PHOTO Return C

2) Select the drive you require. (If your drive only has 1 partition you will only see 1 item).

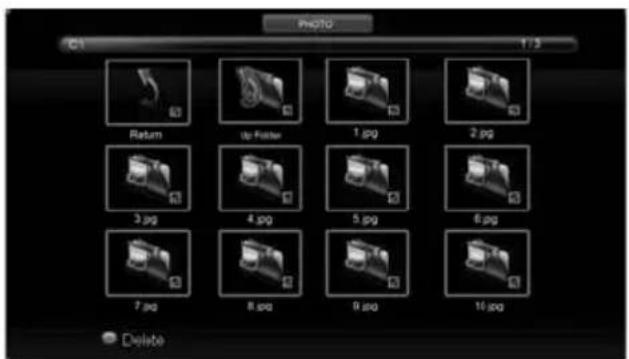

PHOTO C1 1:3 Return Up Folder 1.jpg 2.jpg 3.jpg 4.jpg 5.jpg 6.jpg 7.jpg 8.jpg 9.jpg 10.jpg Delete

3) You can now access the item. Press OK to view. 4) While viewing you control the item using or by pressing (i) and using ▲ and (OK)

DSCP1588.JPG Pause Prev Next Stop Rep.ALL Music Playlist info.

USING YOUR TV WITH A SKY DIGITAL SET TOP BOX

Option 1) Connecting your TV to your Sky box (when both the TV and Sky Box are located in the same room)

Depending on your Sky Box & TV model, connect either by SCART or HDMI cables (available separately)

If connecting by SCART, select the 'Input source' on the TV as SCART.

If connecting by HDMI, select the 'Input source' on the TV as HDMI (if the TV has more than 1 HDMI port, ensure you select the input source to match the HDMI numbered port on the rear of the TV)

If you wish to use your Sky remote to operate the TV's functions, you will need a Sky remote control (Revision 9 or later) and you will need to programme a 4 digit code into it. See bottom of this page.

SCART or HDMI cable Sky Box

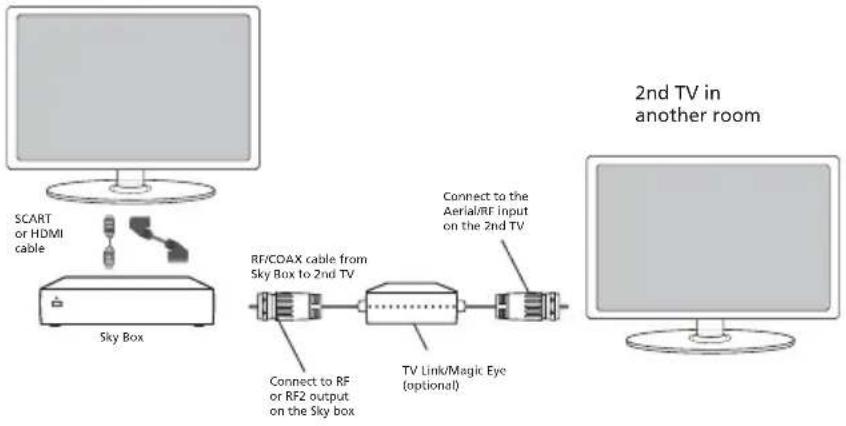

Option 2) Connecting your TV to your Sky box (when your Sky box is located in a different room to the TV)

Please note, if you are adding a 'Magic Eye/TV Link' to your system so that you can use your Sky remote control to change the Sky channel in the room where the 2nd TV is located, please refer to the instructions included with the TV link/magic eye in order to ensure the RF or RF2 output on your Sky box is powered on. (The red LED light on the TV link/magic eye will light up if the RF / RF2 output is correctly set up) If you do not have the instructions that came with the TV link/magic eye, instructions on how to do it can be found on our web site.

1) To tune the TV to the Sky box, on the 2nd TV, select the 'Analogue' input source.
2) Select the channel that you wish to store the Sky box/channel on. (If you do not use channels 1-5 because you no longer have analogue terrestrial channels after digital switchover, you may choose to select channel 1 to store the Sky box/channel, if you still have and use analogue channels 1-5, you may for example decide that channel 6 is the best option for you)
3) Press the corresponding number on the remote control to select the desired analogue channel chosen as per point 2 above.
4) On the TV remote control, press Menu. Now navigate through the menus to select Manual Tuning or Analogue Manual tuning (refer to the Tuning/Channel menu section of this user guide if necessary)
5) Manually tune in the channel (usually, the Sky box is at a frequency between 800Mhz and 850Mhz) once the Sky box/channel is found, press 'OK' to store it.

If you wish to use your Sky remote to operate the TV's functions, you will need a Sky remote control (Revision 9 or later) and you will need to programme a 4 digit code into it. See below.

Using a Sky Remote or a Universal Remote to operate your TV

Sky Remote Control, If you wish to use your Sky remote to operate the basic functions of your TV, you need to programme a 4 digit code into it. Please note. you will need the latest Sky Revision 9 remote control as this is the only version that includes the latest software/fi rmware necessary to operate this model of TV. All codes can be found on our website. If you wish to upgrade/replace your existing Sky remote control to the latest version, you can do so on our web site.

Universal Remote Control, If you wish to use a Universal remote control to operate your TV, please refer to the web site for a full list of codes. (Please note we only have codes for One for All branded remote controls, if you have an alternative brand of Universal remote, please refer to the manufacturer for the code.)

FREQUENTLY ASKED QUESTIONS

General I would	like to have louder sound by connecting additional speakers	Use the 3.5mm headphone output and a 3.5mm to phono cable (available separately) to connect to an amplifi er/surround sound system
General Why are	some options in the menu unavailable and greyed out	Some options are only available in certain sources, i.e. HDMI. They are unavailable in the other sources where they have no affect.
General Can I stop	my TV turning off after 4hrs?	Yes1) In the picture settings menu, de-select Eco-home2) In the time settings menu, scroll down to Auto standby and select OFF
TV I have tuned in	Digital TV but I am not receiving any or all of the channels and/or the channels I receive are breaking up	1) Check you are in an area that can receive saorview.Visit www.saorview.ie2) Check you are using an aerial that is able to receive a good digital signal. In most cases, you will need an outdoor digital hi-gain/wideband aerial. In areas that have excellent digital coverage, you may be able to use a loft type aerial but it is highly likely that you will also need to connect a booster between the back of the TV and the TV aerial wall socket. Unfortunately, to receive a good enough digital signal, it is not possible to use a portable/indoor type aerial. This may change once the analogue signal is switched off in 2012 and the Digital signal strength is increased.
TV I have re-tuned	my television but when I switch it off it is not storing the channels	Complete a fi rst time installation, please refer to the set-up menu section of the manual of how to do this
VCR/DVD Recorder	I have connected the TV to my VCR or DVD Recorder via SCART but it is not recording	In addition to connecting via SCART, you should connect the aerial cable from the wall socket to your VCR/DVD Recorder and another aerial cable from the VCR/DVD Recorder to the TV
General Can I stop	my TV turning off after 4hrs?	Yes1) In the picture settings menu, de-select Eco-home2) In the time settings menu, scroll down to Auto standby and select OFF
DVD I have inserted	a disc but it is not playing	1) Ensure you have inserted put the disc in facing the correct way forward2) Ensure the disc is clean and is not scratched3) Some copied discs will not play.4) Check the DVD is a region 2 disc – to change the region of the DVD player, refer to section ‘Changing Regions’.
Game Consoles I	have connected my PS3 to the TV via HDMI, but I am not receiving any pictures or sound on my Television	1) Ensure the TVs source is on HDMI2) Check your settings on your PS3 are as per the PS3 instruction manual
Game Consoles I	have connected my Xbox 360 to the TV via Component Cables (Red, Green & Blue) but I am not receiving any sound	Component cables only provide HD Pictures. For the sound you will need to connect the Red & White audio cables on the Xbox to the Red & White phono inputs on the rear of the TV. Please refer to the ‘Connections’ pages.
USB Mode I have	inserted a USB Memory Key, but the TV does not recognise it	Ensure the USB Memory Key is formatted to type FAT32.
USB Mode Using	a USB portable hard drive	If you wish to use a portable hard drive larger than 32GB, please note that it must be formatted to the FAT32 fi le system in order to operate on this TV. Windows XP/Vista computers are only capable of formatting up to 32GB, therefore, you will need a software programme/utility to format larger hard drives. Please refer to the web site for more information.
System Lock I have	changed the password on the television and now forgotten it	There is a master password of 4711, to gain access to the TV menu and reset the normal password

TECHNICAL SPECIFICATION

Model	19-248COMI	22-248COM /22-248COMIW	24-E242COMI
Screen size (diagonal)	18.5"/47cm	21.5"/55cm	23.6"/60cm
Resolution	1366 x 768	1920 x 1080	1920 x 1080
Contrast Ratio	1000:1	1000:1	1000:1
Brightness cd/m2	250 cd/m2	250 cd/m2	280 cd/m2
PC RGB	Yes
RF	75 ohm Antenna / PAL-SECAM
Video Inputs	1 x SCART, 1 x Mini Video, 1 x Mini Component (YPbPr - 1080i)2 x HDMI (upto 1080P)
Sound Inputs	1 x 3.5mm jack for PC audio input, 1 x 3.5 mini AV - Audio input shared for Video&Component(YPbPr)
Sound Outputs	1 x Coax Audio output, 1 x Headphone output
Sound power, watts (RMS)	2 x 3
Voltage and power consumption	110 - 240V ~ 50/60Hz17W/45W (ecomode/max) /<0,5W in StandBy	110 - 240V ~ 50/60Hz20/50W (ecomode/max) <0,5W in StandBy	110 - 240V ~ 50/60Hz25/50W (ecomode/max) <0,5W in StandBy
Dimensions including stand (mm)	457W x 360H x 170D 530W x 395H x 170D 583W x 410H x 195D
Net weight (Kgs)	3.6	4.0	4.7

Compatible files in USB Mode

Media File Ext.	Codec
		Video Audio
Movie .mpg Mpeg-1, Mpeg-2			1920x1080MP3, WMA	Max Resolution: 1920x1080Max Data rate: 40Mbps
		.avi Xvid, MJPEG,MPEG-4 SP/ASP
		.ts Mpeg-2 Max Resolution: 1920x1080		Max Data rate: 40Mbps
		.mov Mpeg-4 SP/ASP
		.mkv
		.dat Mpeg-1
		.mp4 Mpeg-1, Mpeg-2 Max Resolution: 1024x768		Max Data rate: 40Mbps
Music .vob Mpeg-2
		.mp3 - MP3 Sample Rate 16K-48KHz		Bit rate: 32K - 442Kbps
		.wma - WMA
Picture	.jpg	Progressive JPEG Max Resolution: 1024x768
	.jpeg Baseline JPEG Max Resolution: 8192x8192
	.bmp BMP			Max Resolution: 6500x6500

INDEX

Aspect Ratio 18

Auto Conf i guration of screen (PC) 25

Auto Tuning 16

Auto Volume Level 19

Balance 19

Bass 19

Blue Screen 22

Brightness 17

Clock 20

Colour 17

Colour Temperature 17

Common Interface 16

Connections....14-15

Contrast 17

Detaching the base/stand 9

Digital Output 19

Dual Mono (DVD) 23

Dynamic Range (DVD) 23

First Time Installation 11

Frequently Asked Questions 29

Getting Started 11

Horizontal Position (PC) 25

Language 22

Manual Search 16

Noise Reduction 17

Phase (PC) 25

Picture Mode 17

Remote control 13

Reset to default 22

Returning to Default (DVD) 23

Sharpness 17

Sleep Timer 20

Sound Mode 19

Source Menu 12

System Lock 21

Technical Specifications 30

Tone (DVD) 23

Treble 19

TV buttons 12

TV System (DVD) 23

TV Type (DVD) 23

TV Guide 26

USB Mode / Media Player 27

Using the television as a computer monitor 24

Using your TV with a Sky Digital set top box 28

Vertical Position (PC) 25

Wall mounting 9

What is included in the box 8
