USER MANUAL L5SSTB12 Logik

Black LOGIK remote control device with a flat-screen unit and a black remote control with keypad (no visible text or symbols)

Gradient gray background with no text, symbols, or identifiable objects

Unpacking....5

Product Overview......6

Front View 6

Rear View....6

Remote Control....7

Battery Replacement of the Remote Control....9

- Handling the Batteries....9

- Handling the Remote Control....9

Remote Control Operation Range....9

Initial Set Up....11

Plug In and Switch On 11

Standby Modes....11

Auto Standby Mode 11

First Time Installation....12

Low Power Standby Mode 12

Target Region Descriptor....13

Programme Guide (EPG)....14

Switch On / Off Programme Guide 14

Button Functions in a 7 Days Guide ....14

Programme Options....15

- Select Channel....15

- Record Programme / Delete Timer....15

- Record Series / Delete Series Number 15

- Check Conflicts....15

- Set Reminder / Delete Reminder ....16

- Split Record....16

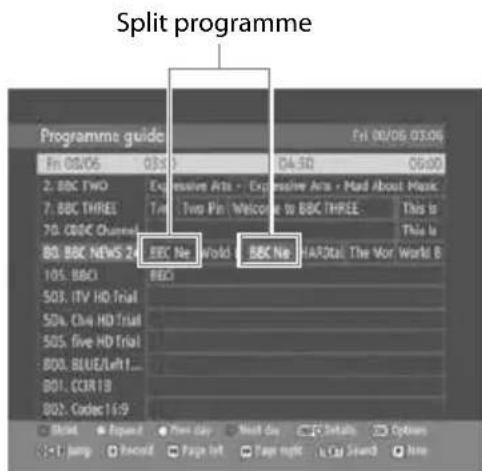

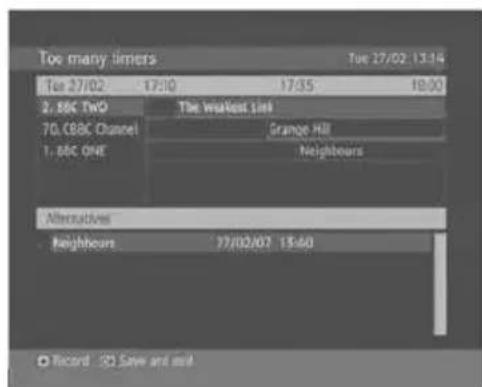

- Alternative Timer Record....16

Guide Search....17

Basic Features ....18

Information Bar....18

Volume Adjustment ....18

Channel Select....18

Teletext Selection....19

Aspect Ratio 19

Audio Selection....19

Favourite List....19

PIP (Picture in Picture) 19

Recording....20

Instant Recording....20

EPG Recording....20

Time Shift Recording ....21

Manual Timer Programming 22

- Add Timer....22

Play Recorded Programme 23

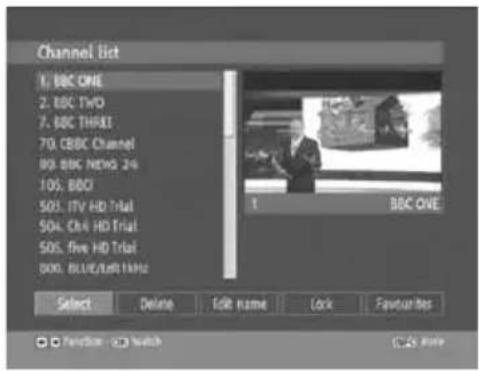

Channel List Setting 24

Select Channel....24

Delete Channel....24

Rename Channel 25

Lock Channel 25

Favourite Channel....25

Info....25

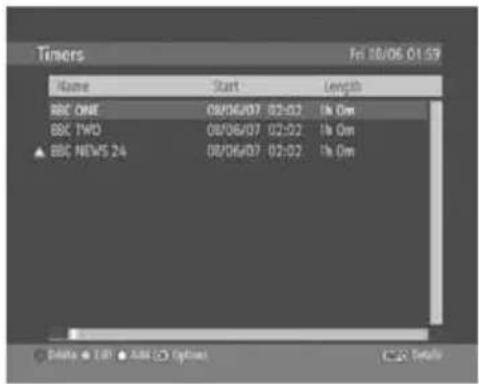

Timers Setting....26

Delete Timer....26

Edit Timer 26

Add Timer....26

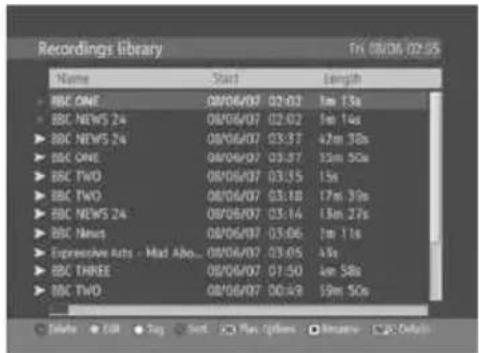

Recordings Library Setting....27

Delete Recording....27

Edit Recording....28

Tag Recording....28

Sort Recording....28

Resume Playback Recording....28

Recording Information....28

Play Options....29

Play from Start....29

Resume 29

Play from Offset 29

Manage Chapters....29

Create Archive 29

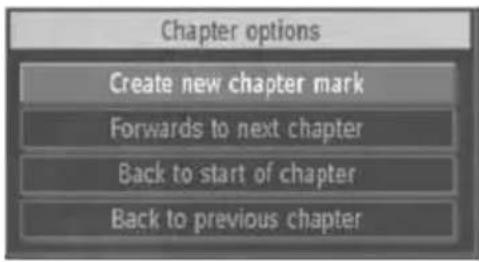

Chapters Options....30

Archive Management....30

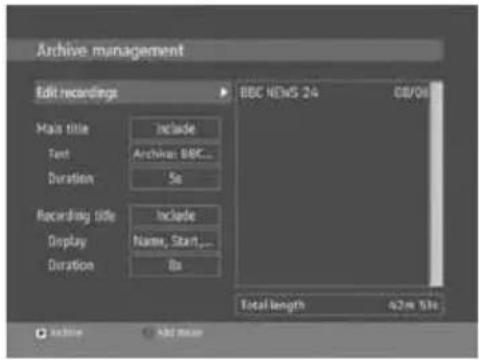

Edit Recording....31

Main Title....31

Recording Title 32

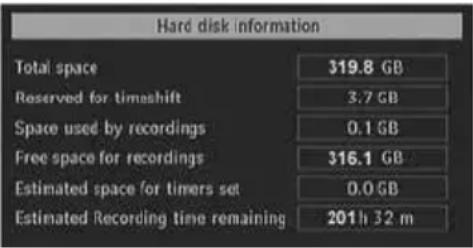

Recording Setup ....33

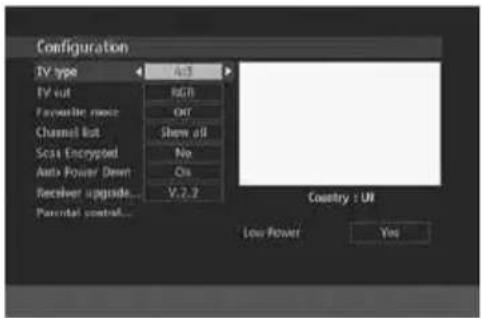

Configuration Setup....35

Language Setup....37

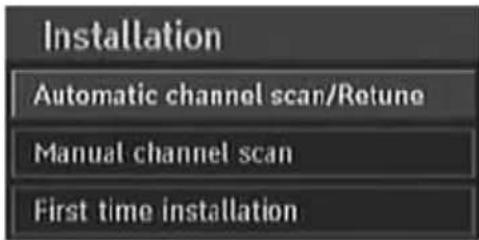

Installation Setup 38

Hints and Tips 39

Specifications....40

Safety Warnings....41

Thank you for purchasing your new Logik 500GB Freeview SD TV Recorder.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

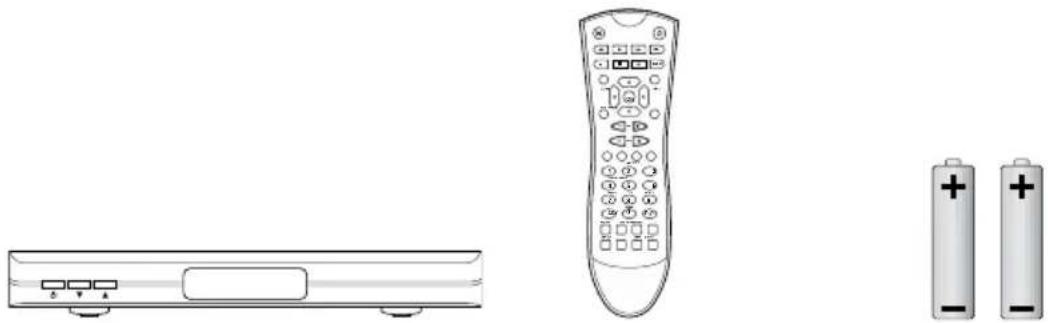

The following items are included:

Main unit AAA Batteries X 2Remote Control

Quick Start Guidelnstruction ManualMains Adapte

If items are missing, or damaged please contact Partmaster (UK only). Tel: [phone] for assistance.

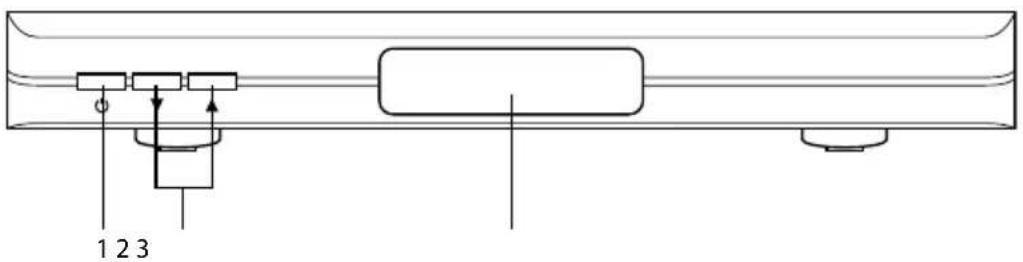

Front View

1. Button

Switch the unit between on and standby mode.

2. ▲▼ Button

To change channels.

3. LED Display

- Displays the current time in active standby, switches off in low power standby.

• Displays the current programme number after the unit is turned on.

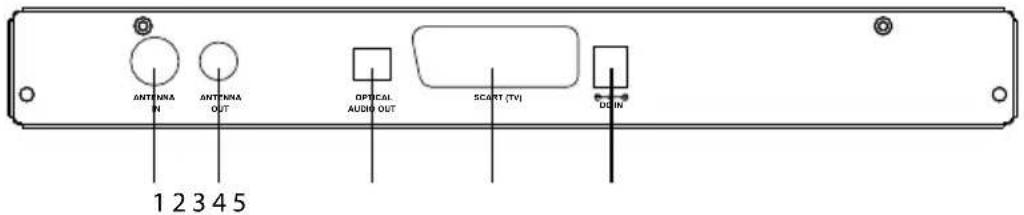

Rear View

1. ANTENNA IN Socket

2. SCART (TV) Socket

3. ANTENNA OUT Socket

4. DC IN

5. OPTICAL AUDIO OUT Socket

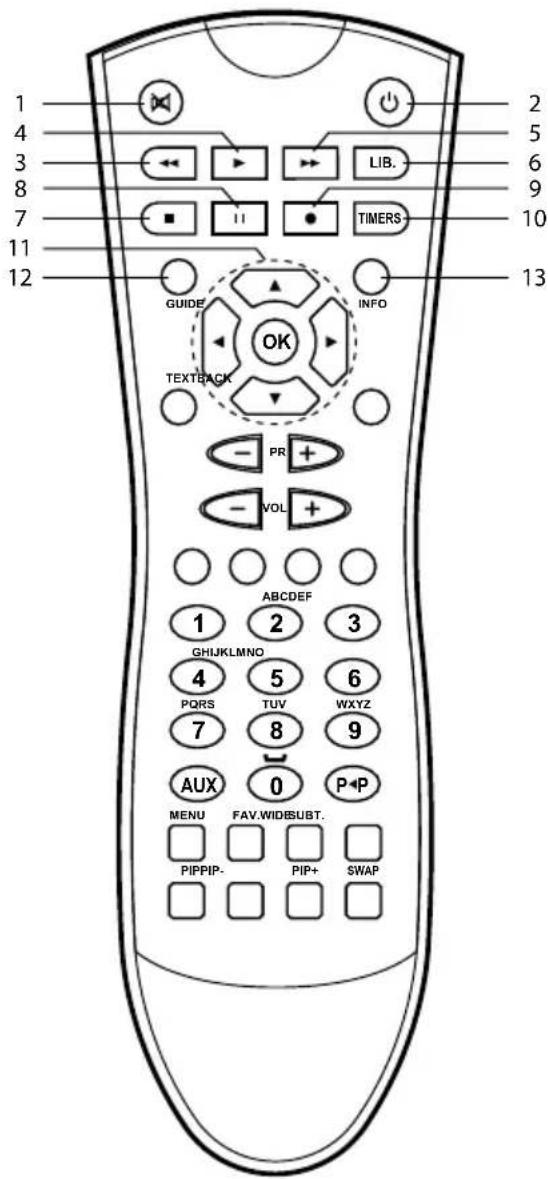

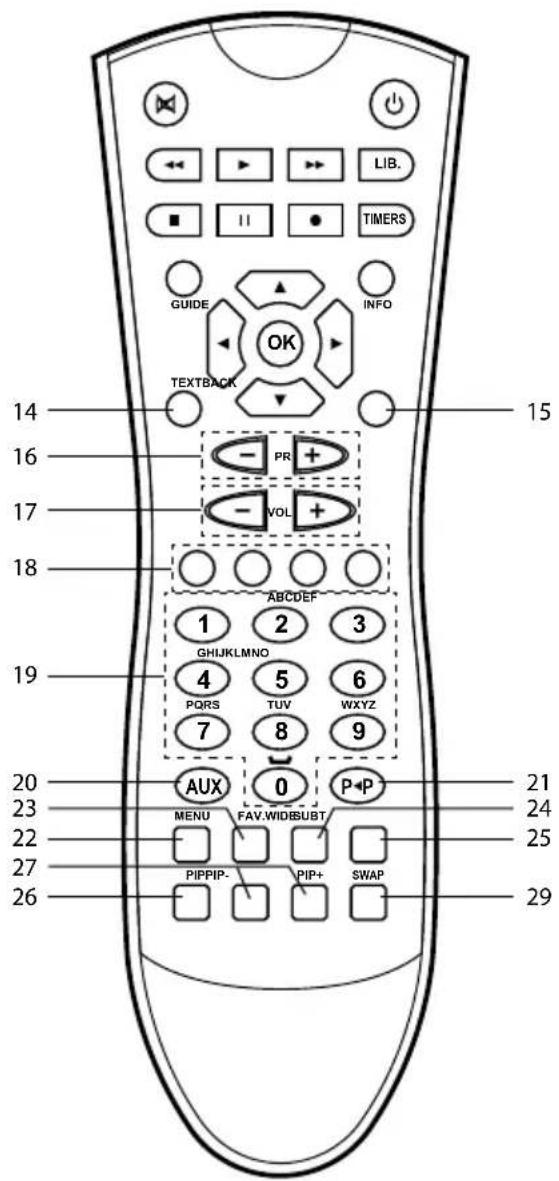

Remote Control

1. Button

Mute and restore your unit's sound.

2. ⏻ Button

Switches the unit on and off.

3. Button

Allows fast reversing of the recorded programmes.

4. ▶ PLAY Button

Start /resume playback.

5. ▶▶ Button

Allows fast forwarding of the recorded programmes.

6. LIB. Button

Displays the library menu where your programmes are recorded.

7. ■ Button

Stops playback or recording.

8. II Button

• Pauseplayback.
• Start time-shift function.
• Play the playback forward frame by frame.

9. ●Button

Records programme and scheduled recordings.

10. TIMERS Button

Allows you to view, edit or add timer events.

11. ▲▲▶ttons

Navigates menus and programme guides.

OK Button

• Confirms a selection in the OSD menu
• Displays the channel list.

12. GUIDE Button

Displays the EPG Electronic Programme Guide.

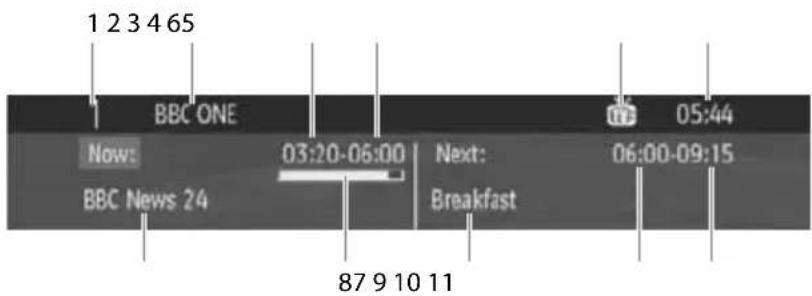

13. INFO Button

Displays channel and programme information.

14. TEXT Button

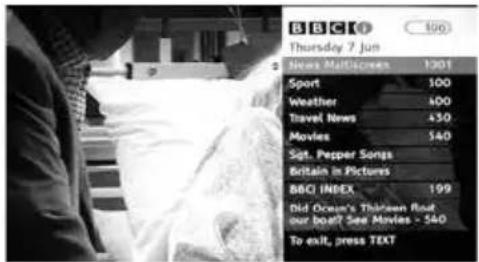

Displays interactive and digital text services (where available).

15. BACK Button

Return to the previous menu.

16. PR + / - Button

• Switches to the next or previous channel.
- Moves one page up or down in the channel list.

17. VOL + / - Button

Adjusts the volume up and down.

18. Coloured Buttons (RED / GREEN / YELLOW / BLUE)

• For interactive functions.
- To access the teletext item or select the group channel.

19. 0-9 Buttons

• Selects a channel.
• Enter numeric values in the set-up menus.
• Selects characters for renaming.

20. AUX Button

No function for this button.

21. P ◀P Button

Switches back to the last channel watched.

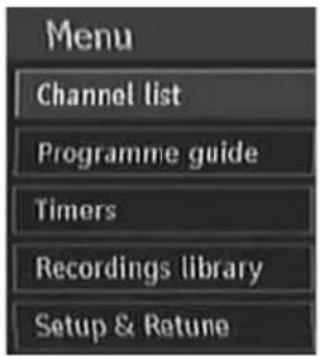

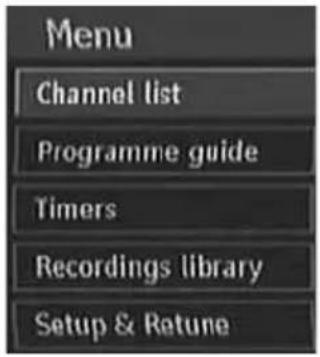

22. MENU Button

Displays the Main menu.

23. FAV. Button

Displays the favourite menu.

24. SUBT. Button

To select subtitles which are broadcast with the programme (if available).

25. WIDE Button

To switch aspect ratio.

26. PIP Button

Turn PIP (Picture in Picture) function on or off.

27. PIP + / - Button

Switches to the next or previous channel in PIP frame.

28. SWAP button

Swaps the pictures between the main and PIP frame in PIP mode.

Battery Replacement of the Remote Control

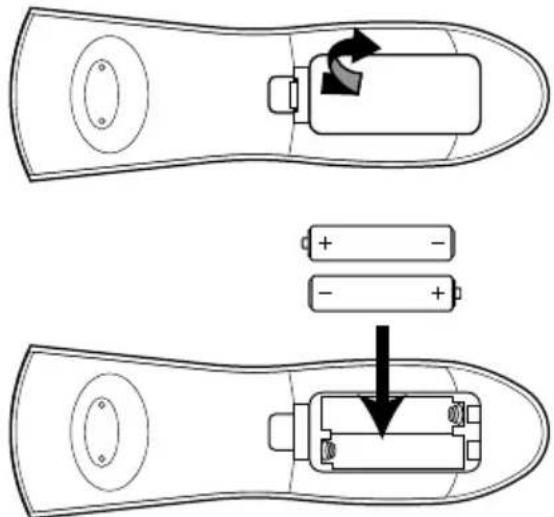

1. Squeeze the cover lever and lift the battery cover to access the battery compartment of the remote control.

2. Insert two AAA size batteries (included). Ensure the polarities (+ and -) of the batteries match the (+) and (-) ends indicated in the battery compartment.

3. Close the battery compartment cover.

Handling the Batteries

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.
• Only use the battery type indicated in this manual.
• When the batteries are exhausted, the remote will not function. Replace both batteries at the same time with new ones.
• Do not install new batteries with used ones and do not mix different types of batteries.
• Do not dispose of used batteries as domestic waste. Dispose of them in accordance with local regulations.

Handling the Remote Control

• Take care of your fingernails when you press and hold the battery release tab.
- Do not drop or cause impact to the remote control.
- Do not spill water or any liquid on the remote control.
- Do not place the remote control on a wet object.
- Do not place the remote control under direct sunlight or near sources of excessive heat.
- Remove the battery from the remote control when not in use for a long period of time, as it could cause corrosion or battery leakage and may result in physical injury and/or property damage including fire.

Remote Control Operation Range

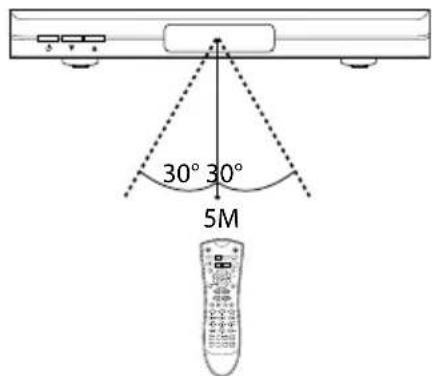

Point the remote control unit within approx. 5 metres from the remote control sensor on the unit and within 60° in front of the unit. The operating distance may vary depending on the brightness of the room.

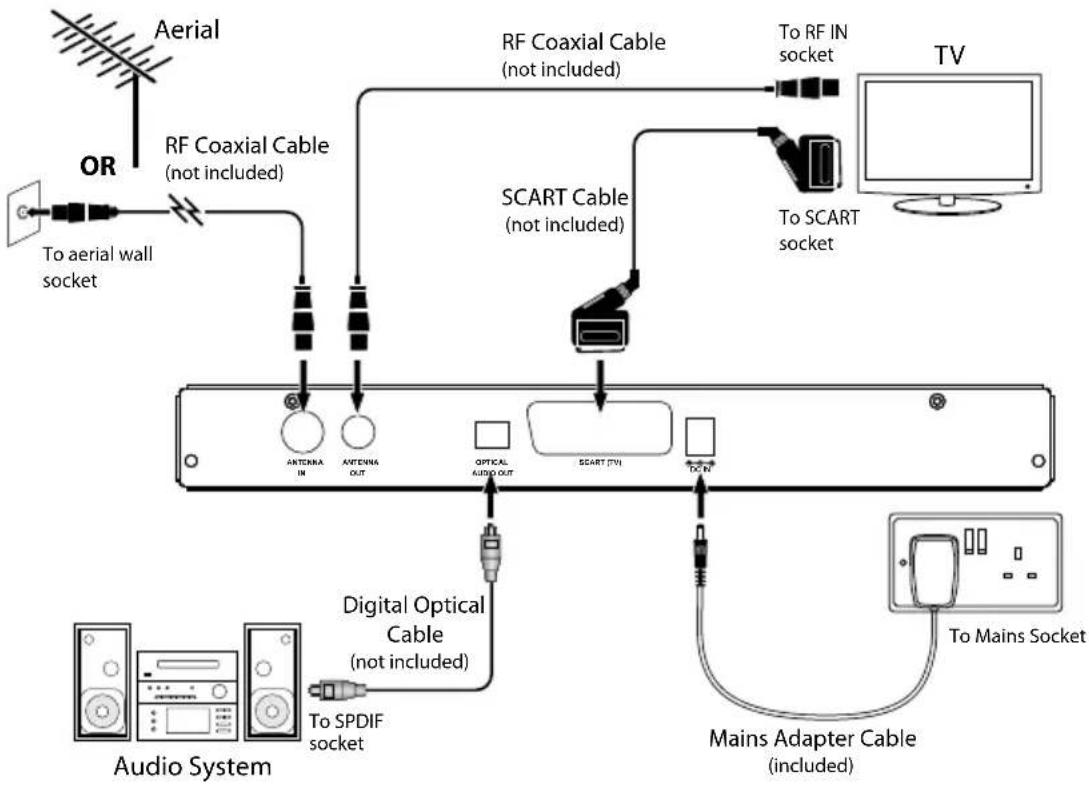

System Connection

1. Ensure your TV and any other equipment you are connecting to are switched off.
2. Connect one end of the RF coaxial cable (not supplied) to the aerial socket on the wall and the other end to the ANTENNA IN socket on the rear panel of the unit.
3. Connect another RF coaxial cable (not supplied) to the ANTENNA OUT socket on the rear panel of the unit and the other end to your TV.
4. Connect one end of the SCART cable (not supplied) to the SCART (TV) socket on the rear panel of the unit and the other end to the SCART socket on your TV.
5. You can also connect the unit to a stereo or surround sound system, so that you can listen to the TV sound through the sound system instead of (or as well as) the TV's speakers. You will connect one end of the Digital Optical cable (not supplied) to the SPDIF socket on the rear panel of the unit and the other end to the audio system.

Your SCART cable must be connected to your TV to watch digital TV from your unit.

If you require additional assistance please call our UK Call Centre on 0844 561 1234. Our UK Customer Contact Centre is open Monday-Saturday 8am-8pm and Sunday 8am-6pm.

Plug In and Switch On

1. Connect the mains adapter cable to the mains socket after you have completed all the connections and switch on. At this stage, the unit switches to standby mode. The red LED indicator will illuminate on the front panel of the unit.
2. Switch your TV on and select the SCART input.
3. Press the ⏻ button on the unit or on the remote control to turn the unit on. The red LED indicator will turn green. The first installation screen will show on the television screen.

The unit will take a while for loading.

Diagram of a plug inserted into a wall socket with arrows indicating direction (no text or symbols)

Standby Modes

This unit contains 2 standby modes.

Auto Standby Mode

The unit will automatically switch to standby mode 3 hours after the last time the remote control was used. A reminder screen will pop up and count down before the unit switches to standby mode.

To turn off the auto standby function, press the MENU button to display the main menu. Press the ▲▼ buttons to select the Setup & Retune option and then press the OK button to enter the Setup & Retune menu. Press the ▲▼ buttons to select the Configuration option and then press the OK button. Press the ▲▼ buttons to select Auto Power Down option and the press the ◀▶ buttons to select "Off". Press the EXIT button to exit the main menu.

Low Power Standby Mode

When the unit is in On mode, press the button once, the unit will enter the active standby mode and the power indicator will illuminate red. To turn the unit on again, press the button again. The power indicator will illuminate green.

The unit enters into the low power standby mode approximately 2-3 minutes. The clock will switch off when the unit enters low power standby mode.

To turn the unit on again, press the ⏻ button to turn the unit on, the power indicator will illuminate green. It may take a minute until the unit is initialised.

• If you press the button during recording or if any EPG programme recordings and/or manual recordings are set, the unit does not switch to low power mode and remains in active standby mode until recording tasks have been finished.
• The unit initializes from time to time to receive updates from the EPG broadcast in order to synchronize EPG recording tasks properly. After getting updates, the unit switches to low power mode automatically. This takes a short while and it is not a malfunction.

First Time Installation

1. When your unit is switched on for the first time, a menu message will be displayed.

The unit will take a while for loading.

1. After hard disk initializing process, First Time Installation Menu window is displayed on the screen. Press the ◀▶buttons to select the TV type and then press the OK button to confirm.

2. Press the ◀▶ buttons to select Yes and then press the OK button to begin automatic channel scan.

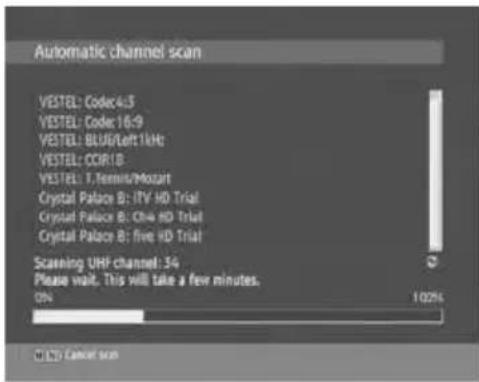

1. The tuning progress screen will be displayed, showing you how many channels have been found and saved. The tuning may take several minutes to complete. You can press the MENU button to cancel the auto tuning.

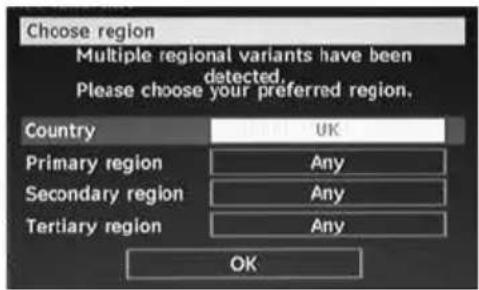

Target Region Descriptor

During tuning your TV may have received signals from more than one transmitter. If this has occurred the Target Region Descriptor screen will be displayed. This will enable you to select the correct regional transmission for the local news service that you require.

1. Press the ◀buttons to adjust each option's setting and then press the OK button to confirm.

Country	This will be shown as GBR for the UK.
Primary Region	This will show the regional country (e.g. England, Wales, Scotland, NI).
Secondary Region	This will allow you to set the region for your local news service.
Tertiary Region	You may receive signals from more than one transmitter within the Secondary Region (e.g Beds and Cambs may have Luton or Sandy Heath).

1. When the tuning is complete, a message will be displayed on the screen. Press the OK button to restart the unit after 3-5 seconds. The channels are arranged in a preset order. When the search progress is completed, you can watch saved broadcasts after the restart process.

This system has an Electronic Programme Guide (EPG) to help you navigate through all the possible viewing options. The Programme Guide supplies information such as programme listings, start and end times for all available services (the availability and amount of programme information will vary, depending on the particular broadcaster). The Programme Guide displays the programme details for the next 7 days.

Switch On / Off Programme Guide

• Press the GUIDE button or press the MENU button and then press the ▲▼ buttons to switch on Programme Guide.
• Press the GUIDE button again or press the BACK button to switch off Programme Guide and return to normal TV viewing.

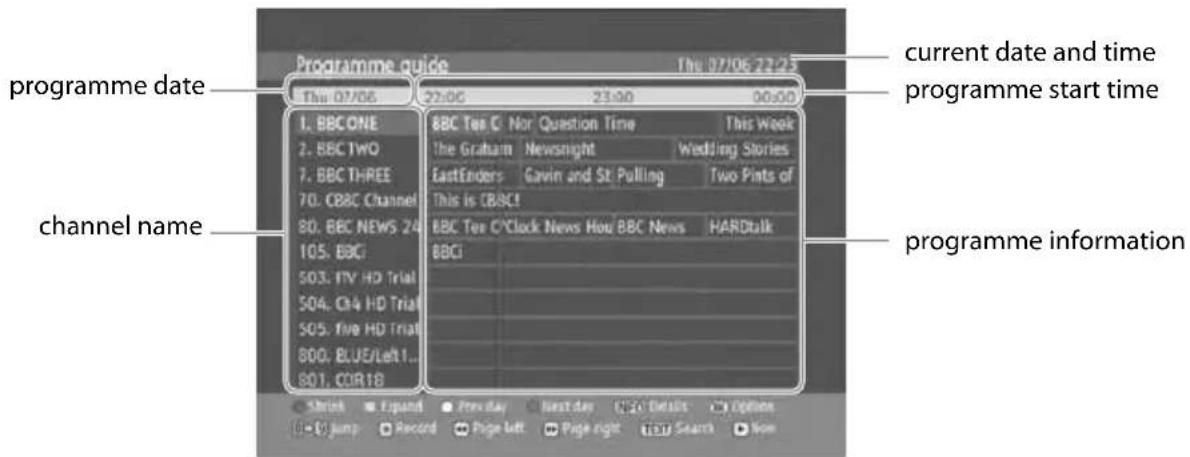

Button Functions in a 7 Days Guide

Remote Control Button Function
▲ or ▼ Selects a channel.
◀ or ▶ Selects a channel programme.
◀◀ or ▶▶	Displays previous or next page.
OK	Displays the programme options. (For more details, please refer to section Programme Options.)
INFO Displays the detail Information for the selected programme.
RED (Shrink) Make the info boxes smaller.
Green (Expand) Make the info boxes larger.
Yellow (Prev Day) Displays the programmes of previous day.
Blue (Next Day) Displays the programmes of next day.
TEXT (Search)	Displays Search menu. (For more details, please refer to section Guide Search.)
●	Record the selected programme.
▶ PLAY	Shows the current programme.
GUIDE / BACK	Exit Programme Guide and return to normal TV viewing.

Programme Options

1. Press the buttons to select the desired channel and then press the ◀ buttons to select the desired programme.
2. Press the OK button to display the Programme Options.

Select Channel

Press the ▲▼ buttons to select Select Channel and then press the OK button to switch to channel of the programme which is selected.

Record Programme / Delete Timer

Press the ▲buttons to select the programme to be recorded, then press the button to set the recording.

To cancel an already set recording, select that programme and press the OK button to display the Programme Options. Press the ▲▼ buttons to select Delete Timer and then press the OK button again to confirm.

Record Series / Delete Series Number

Press the ▲buttons to select Record Series and then press the OK button to record a programme and all of it's following parts within 7 days. The information belonging to the selected programme will be saved from the software and following parts of the selected programme which are not included in the period of 7 days, will be automatically added day by day. The letter "s" denotes that these recordings are series recordings.

Series programme information, where available, will be broadcast by the broadcaster.

To cancel a series that has been set to record, select that programme and press the OK button to display the Programme Options. Press the ▲▼ buttons to select Delete Series Timer and then press the OK button again to confirm.

Check Conflicts

If more than two programmes are set for recording in the same time interval or if more than two reminders have the same starting time, a conflict is caused.

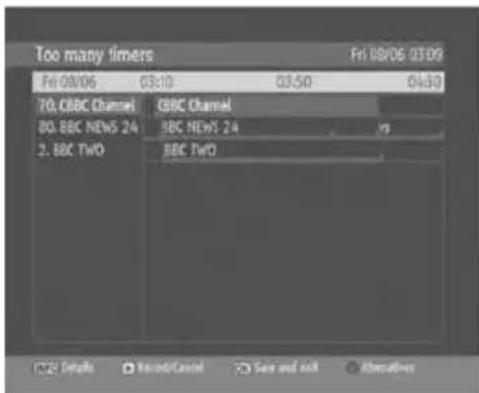

The Too Many Timers window will automatically open. (For more details, please refer to the section Alternative Timer Record.)

Set Reminder / Delete Reminder

Press the ▲▼ buttons to select Set Reminder and then press the OK button to set a reminder for future programs. The reminder setting will be indicated as a yellow surround to the programme listing.

To cancel an already set reminder, select that programme and press the OK button to display the Programme Options. Press the ▲▼ buttons to select Delete Reminder and then press the OK button again to confirm.

Split Record

If you select a programme to be recorded, with this feature, if there is another part of the programme available, it will also be set to automatically record.

For example if you see the programme with a red underline, the following episode is also underlined. To do this, you have to press only the ● button once. The

Split programme information, where available, will be broadcast by the broadcaster.

rest will be done automatically.

Alternative Timer Record

If more than two programmes are set for recording in the same time interval or if more than two reminders have the same starting time, a conflict is caused.

The Too Many Timers window will automatically open. Press the Red button to display the Alternative Window. Select an alternative for one of those programmes or cancel one of the reminders.

If there is still a conflict and you leave this menu by pressing the OK button, you will see the warning message: "There are still conflicts!".

If you fail to resolve the conflicts, the two earliest programmes will be recorded and any later conflicting programme will fail.

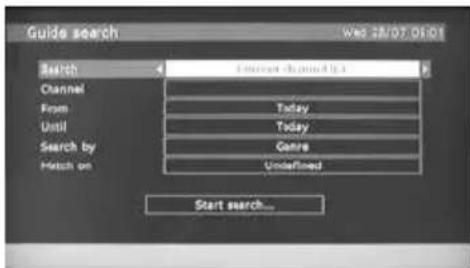

Guide Search

You can search the EPG for upcoming programmes. From the EPG view, press the TEXT button to display the Guide Search menu.

Press the ▲▼ buttons to select the following options:

Search	Select from: Current Channel List / Single channel / All channels / All TV channels / All Radio channels.
Channel Select the channel for a single channel search.
From Select the day to start the search.
Until Select the day to finish the search.
Search by Select from: Genre / Name match
Match on	If Genre is selected above then select from the Genre list. If Name match is selected above then enter the name using the 0-9 buttons as you would when entering text on a mobile phone.

Information Bar

Press the INFO button to display information about the current programme.

1. Channel number currently viewed
2. Channel name currently viewed
3. Current programme start time
4. Current programme end time
5. Programme mode (TV or Radio)

6. Current time

7. Current programme name

8. Programme progress bar
9. Next programme name
10. Next programme start time
11. Next programme end time

Volume Adjustment

1. Press the VOL + / - buttons on the remote control to adjust the volume.

1. Press the ☒ button on the remote control to switch the sound off. Press the ☒ button again or press the VOL + / - buttons to cancel this function.

Channel Select

1. Press the PR + / - buttons on the remote control repeatedly or the 0-9 buttons on the remote control to select the channel.

2. Press the OK button to enter the Channels List. Then use the ▲▼ buttons to select the channel and then press the OK button to watch.

• When a channel is locked, a valid password must be entered. The default password is "0000".
• If you change the password, be sure to remember the new password! If you forget the new password, press the master password "4725".

Teletext Selection

Digital teletext can access special digital teletext services and specific services which broadcast digital teletext.

1. First, ensure the Subtitle function is turned off. Press the TEXT button to enter Teletext. (If Teletext is transmitted.)

2. Follow the instructions on digital teletext and move onto the next step by pressing OK, ▲◀▶▼, RED, GREEN, YELLOW, BLUE or 0-9 buttons etc.

3. To change digital teletext service, select a different service by pressing the 0-9 buttons.

4. Press the INFO button to display the INFO bar or bring up a menu, this will be displayed over the teletext screen.

5. Press the TEXT button again to exit the Teletext.

Aspect Ratio

The WIDE button is disabled on this product. To change the aspect ratio see the Configuration settings on Page 35.

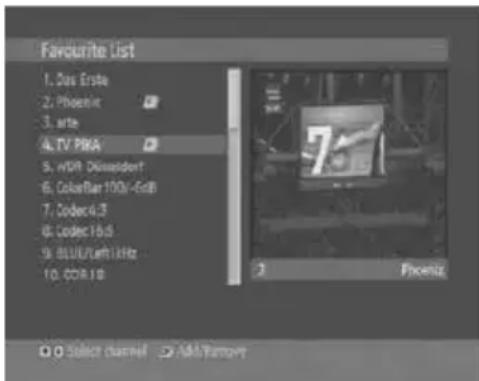

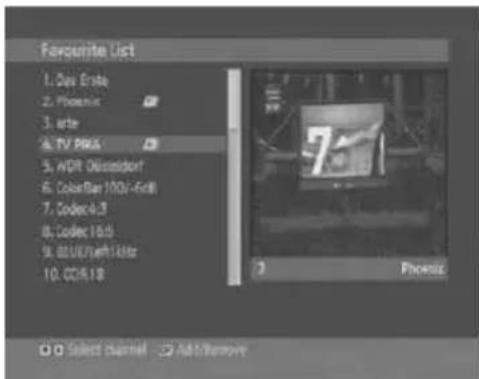

Favourite List

1. To create your Favourite List, press the OK button to display the Channel List.

2. Press the ▲▼ buttons to select your desired channel to be set as favourite. Press the OK button to confirm. The favourite programme icon will be display.

3. To remove the favourite channel from the Favourite List. Press the FAV. button to display the Favourite List and then press the▲▼ buttons to select your desired favourite channel. Press the OK button to cancel.

Press the FAV. button to display your Favourite List.

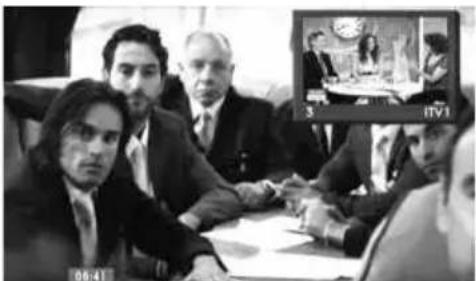

PIP (Picture in Picture)

This feature allows you to view 2 channel at once.

1. Press the PIP button. Press PIP+ or PIP- to change the channel in the PIP window.
2. Press the SWAP button to swap the two channels over so the small display becomes full screen and vice versa.

Make sure that the unit's built-in HDD has enough available memory space.

Instant Recording

Use this function to record the DTV programme you are watching on the main screen and save them for future viewing.

1. Press the ● button to record the programme that you are currently watching, a message will appear on the TV screen and the Record icon will appear briefly in the top left hand corner of the TV screen.

2. Press the ■ button to stop recording. A message will appear on screen asking you if you want to stop recording. Select 'Yes' and press OK.

• If you want to turn off your unit during recording, press the 📄 button. The LED display will show the time.
• When the programme is recording, please do not unplug the unit from the mains socket as this will damage the unit's HDD.

EPG Recording

This allows you to preset some programmes to be recorded in standby mode or on mode. For more details, please refer to the section Programme Guide (EPG).

Time Shift Recording

This function allows the unit to virtually record the live viewing broadcast programme.

• Time shift and recording functions may not work if the signal strength is weak.
• Recording will stop automatically when the disk is full.
• During time shift, changing channels will cause time shift to terminate.
• The duration of time shift can be adjusted from Recordings in the Setup & Retune menu. (For more details, please refer section Recording Setting.)

During normal TV viewing, you may press the I button to virtually pause the live viewing broadcast programme if you want to go out for a while (e.g. going to the bathroom / kitchen). "I" will be shown in the time shift progress bar and display on the screen for a short while. Press the INFO button to display the time shift progress bar again.

When you have returned, press the ▶ PLAY button to play the missed broadcast programme. The Time Shift progress bar will be displayed on the screen again.

There may be a few seconds delay in video and sound when the unit starts to playback the missed broadcast programme. It will return to normal.

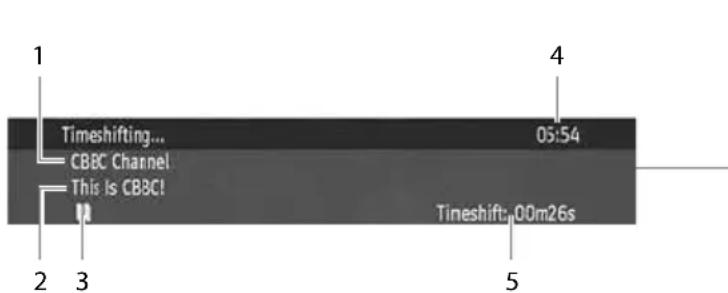

Time Shift Progress Bar

1. Channel name
2. Programme name
3. Indicates the status of the currently displayed programme
4. Indicates the total recording time
5. Indicates the time lagging behind the live broadcast

Remote Control Button	Function
II	During playback, press the I button to display a still screen and then press the ▶PLAY button again to resume playback.
◀ or ▶	When playing,Press the ◀ button repeatedly to speed up ◀2 / x 4 / x 8 / x 16 / x 32.Press the ▶ button repeatedly to speed up ▶2 / x 4 / x 8 / x 16 / x 32.During fast forward / fast backward state, press the ▶ PLAY button to return to normal playback.
▶ PLAY	Press the ▶ button to resume playback from a still screen.During fast forward / fast backward state, press the ▶ PLAY button to return to normal playback.
■	If you want to exit the time shift and return to the current live broadcast, press the I button.

Manual Timer Programming

This function is used to perform scheduled recording.

The recording from timer programme or direct recording may have a little bit of delay when it starts to record the broadcast programme.

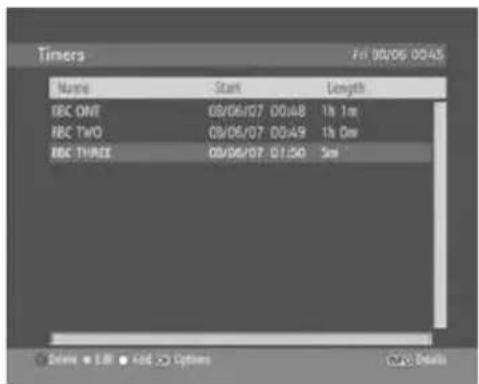

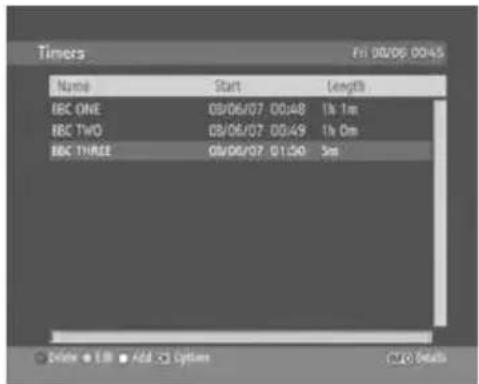

1. Press the Timers button to display the Timers menu.

1. You can edit the Timers menu by using the following Colour buttons:

Remote Control Button	Function
Red (Delete) Delete the timer event.
Green (Edit) Edit the timer event.
Yellow (Add) Add a new timer event.
Blue (Sort) Sort timer events by time or alphabetical order.

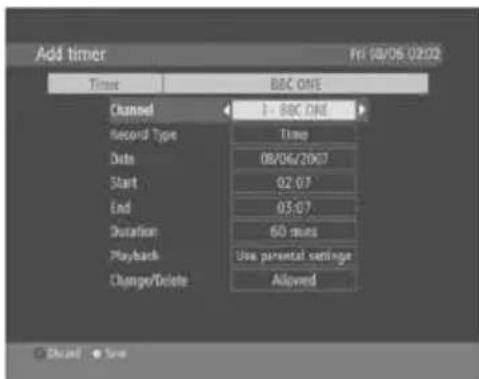

Add Timer

1. Press the Timers button to display the Timers menu.

2. Press the Yellow button to enter the Add Timer menu.

3. Press the buttons to select the following options and the ◀ or 0-9 buttons to change the settings.

Channel Navigate through the TV or Radio list.
Record Type Display the recording type.
Date Start Date.
Start Start Time.
End End Time.
Duration Displays the duration of the recording.
Playback	Permit or block playback for other users. ("Use parental settings" is default.)
Change / Delete	Permit or prohibit any modifications for other users.

1. Press the Green button again to save the timer or the RED button to discard the settings and exit the menu.

If you enter too many timers that overlap each other the 'Too Many Timers' screen will be displayed. This shows that you have a conflict (see Alternative timer record Page 16).

Play Recorded Programme

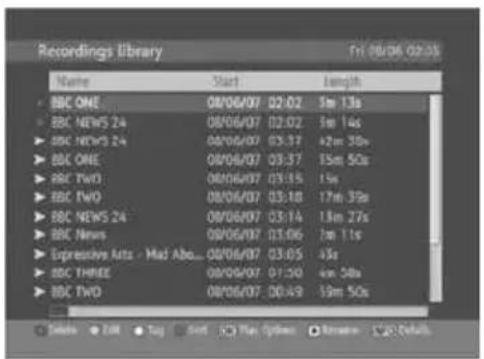

You can play a recorded programme from the Recordings Library.

1. Press the LIB. button to display the Recording Library.
2. Press the ▲▼ buttons to select your recorded programme and then press the▶PLAY button to start playback from the last stopped position or press the OK to enter Play Options menu. (For more details, please refer to section Play Options.)
3. Press the ■ button to stop the current playback.

A "Playback Progress Bar" will be displayed only during fast-forward/-rewind mode.

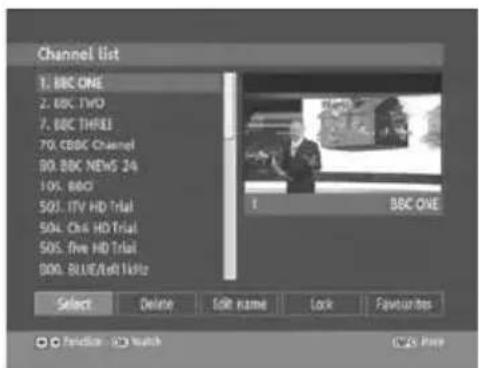

Channel List Setting

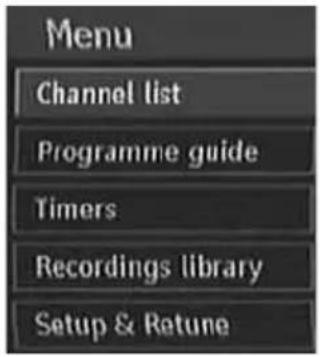

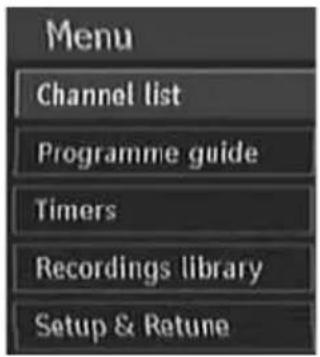

1. Press the MENU button to display the main menu.

1. Press the buttons to select Channel List and then press the OK button. The Channel List menu will be displayed.

You can press the OK button to display the Channel List directly.

Select Channel

1. Press the buttons to select the channel.
2. Press the ◀buttons to select Select and then press the OK button to watch.

• When a channel is locked, a valid password must be entered. The default password is "0000".
• If you change the password, be sure to remember the new password! If you forget the new password, press the master password "4725".

Delete Channel

1. Press the buttons to select the desired channel you want to delete.
2. Press the ◀buttons to select Delete and then press the OK button.
3. A message will be displayed on the screen. Press the ◀buttons to select YES to confirm or NO to exit the menu.

Rename Channel

1. Press, press the buttons to select the desired channel you want to rename.
2. Press the ◀buttons to select Edit name and then press the OK button.
3. The name appears on the middle of the screen with the first character highlighted. Use the ◀buttons to move to the previous/next character and the use the 🔊buttons to toggle the current character. Or use 0-9 buttons replaces the highlighted character with the characters printed above the button one by one as the button is press.
4. Press the OK button to confirm the new name or press the MENU button to cancel the editing.

Lock Channel

Lock Channel is designed to prevent children watching unsuitable programmes. When a channel is blocked, a valid password must be entered.

1. Press the ▲▼ buttons to select the desired channel you want to lock.
2. Press the ◀buttons to select Lock and then press the OK button.
3. Use the 0-9 buttons to input a 4-digit password and then press the OK button. The lock icon will be displayed in the front of the selected channel.

• When a channel is locked, a valid password must be entered. The default password is "0000".

• If you change the password, be sure to remember the new password! If you forget the new password, press the master password "4725".

• To cancel the lock channel, repeat the steps 1-4.

Favourite Channel

1. Press the buttons to select the desired channel.
2. Press the ◀▶buttons to select Favourites and then press the OK button. The favourite programme icon will be display.
3. To remove the favourite channel from the Favourite List. Press the FAV button to display the Favourite List and then press the▲▼ buttons to select your desired favourite channel. Press the OK button to cancel.

Info

1. Press the buttons to select the desired channel.
2. Press the INFO button to display the information of the channel.

This function is used to perform scheduled recording.

The recording from timer programme or direct recording may have a little bit of delay when it starts to record the broadcast programme.

1. Press the MENU button to display the main menu.

1. Press the buttons to select Timers and then press the OK button. The Timers menu will be displayed.

You can press the TIMERS button to access the Timers menu directly.

Delete Timer

1. Press the buttons to select the desired programme you want to delete.
2. Press the RED button to delete the timer.

Edit Timer

1. Press the buttons to select the desired programme you want to edit.
2. Press the Green button to edit the saved timers.

Add Timer

For more details, please refer to the section Manual Timer Recording.

Recordings Library Setting

1. Press the MENU button to display the main menu.

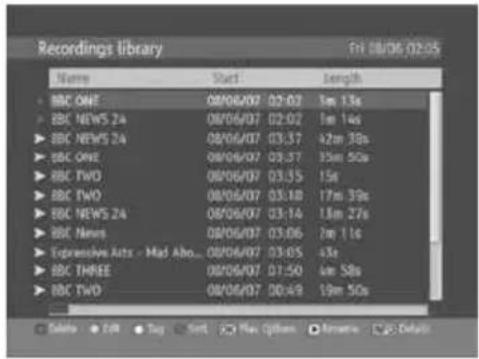

1. Press the ▲▼ buttons to select Recordings library and then press the OK button. The Recordings library menu will be displayed the saved recorded programme.

You can press the LIB. button to access the Recording library menu directly.

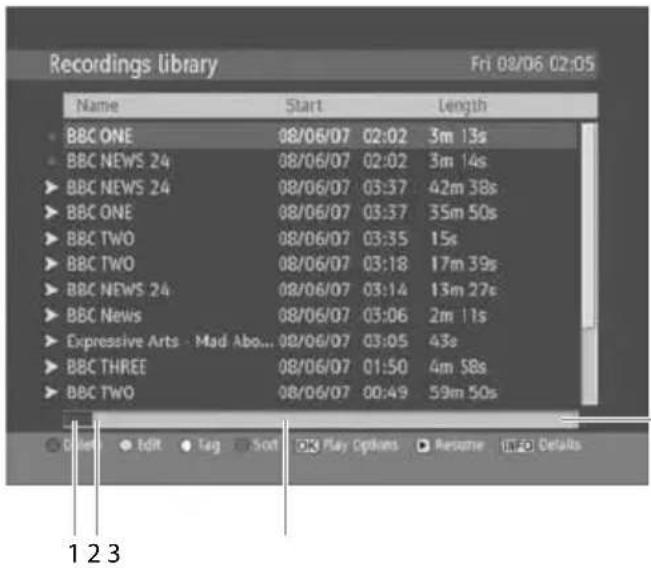

Capacity Space of Hard Disk

1. Red bar: indicates the used space of the recordings on the hard disk.
2. Yellow bar: displays the approximate capacity required for the timers currently set.
3. Green bar: shows the free space on the hard disk.

Delete Recording

1. Press the buttons to select the recorded programme you want to delete.
2. Press the RED button to delete recording.

Edit Recording

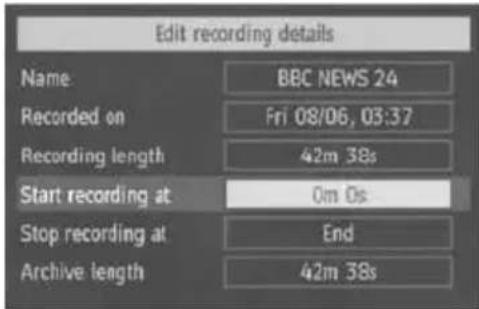

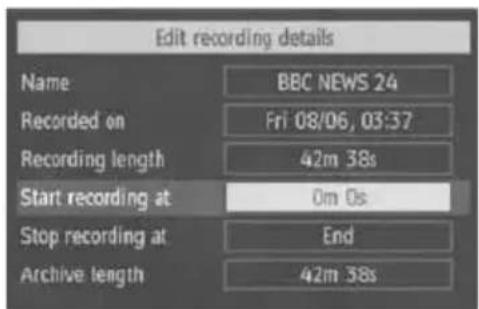

1. Press the buttons to select the recorded programme you want to edit.
2. Press the GREEN button to enter Edit Recording Details menu.
3. Only the Start recording at and Stop recording at options are active. If you have already separated recording, you could select any chapter to begin with the archiving and stop it. If it is not separated in chapters, the beginning and ending time of the recording will automatically be the beginning and ending time of the archiving.

Tag Recording

1. Press the buttons to select the recorded programme you want to tag.
2. Press the YELLOW button to mark the recorded programme for archiving. (For more details, please refer to section Create Archive (Archive Management).)

Sort Recording

1. Press the buttons to select the recorded programme you want to sort.
2. Press the BLUE button and the ▲▼ buttons to move to the selected programme and then press the BLUE button to confirm.

Resume Playback Recording

1. Press the buttons to select the recorded programme you want to play.
2. Press the ▶ PLAY button to start playback from the last stopped position.

Recording Information

1. Press the buttons to select the recorded programme.

2. Press the INFO button to display the programme in detail.

3. Press the MENU button and then press the ▲▼ buttons to select Recordings Library or the LIB. button to display the Recording Library menu.

1. In Recordings library menu, press the ▲▼ buttons to select the recorded programme you want to play.

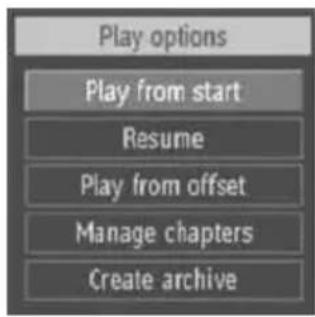

2. Press the OK button to enter Play Options menu.

Play from Start

Press the ▲▼ buttons to select Play from start and then press the OK button to play the recorded programme from the beginning.

Resume

Press the ▲▼ buttons to select Resume and then press the OK button to play the recorded programme from the last stopped position.

Play from Offset

Press the ▲▼ buttons to select Play from offset and then press the OK button to play the recorded programme from the time which is entered.

Manage Chapters

Press the ▲▼ buttons to select Manage chapters and then press the OK button. It will display any marked chapters (for more details on marked chapters, please refer to section Chapter Options) and begin with playback from the selected chapter.

Create Archive

To archive the recorded programmes to an external device like a DVD player. (For more details, please refer to section Achieve Management.)

Chapters Options

1. During playback, press the MENU button to display the Chapter Options menu.
2. Press the ▲▼ buttons to select the following options and then press the OK button.

Create New Chapter Mark	Set a chapter mark anywhere your want.
Forwards to Next Chapter	If there is more than one chapter, go to the next chapter.
Back to Start of Chapter	Go to the beginning of the current chapter.
Back to Previous Chapter	Back to the previous Chapter.

1. Press the MENU button to exit the menu.

Archive Management

1. Press MENU button and then press the ▲▼ buttons to select Recordings Library or the LIB. button to display the Recording Library menu.
2. Press the ▲▼ buttons to select a recorded programme you want to archive. Press the YELLOW button to mark the recorded programme.
3. Press the OK button to enter the Play Options menu.

1. Press the ▲▼ buttons to select the Create Archive and the press the OK button to display Archive Management menu.

Edit Recording

1. Press the buttons in Edit recordings tab to go to recorded programme list on the right side of the menu.

1. Press the buttons and then press the OK button to select the recorded programme you want to edit. The Edit Recording Details menu will be displayed.

2. Only the Start recording at and Stop recording at options are active. If you have already separated recording, you could select any chapter to begin with the archiving and stop it. If it is not separated in chapters, the beginning and ending time of the recording will automatically be the beginning and ending time of the archiving.

3. Press the BACK button to return to the previous menu or the MENU button to exit.

Main Title

1. Press the buttons to select Main title.
2. Press the ◀▶ buttons to select Include to display a main title or Skip to disable.

If you select Skip in Main Title tab, the options Text and Duration below will be also disable.

1. Use the buttons to select the following options and then press the OK button.

Text Edit the main title.
Duration Set	the duration of the appearances of the main title on the screen.

Recording Title

1. Press the buttons to select Recording title.
2. Press the ◀▶ buttons to select Include to display a recording title or Skip to disable.

• If you select Skip in Recording Title tab, the options Display and Duration below will be also disable.

• While archiving, you could decide to show the names of the saved recordings on the screen.

• Press the buttons to select the desired options and then press the OK button.

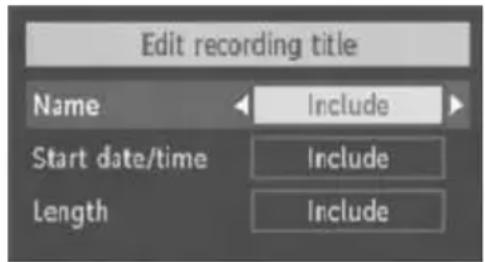

Display: You could decide, which of the following items should be displayed in the recording title: Name, Start date/time, Length. Press the ▲▼ buttons to select the options and the ◀buttons to select Include or Skip.

Duration: Set the duration of the appearance of the Edit recording title menu main title on the screen.

To stop archiving, press the function.

■ button. During archiving, no other button will

Recording Setup

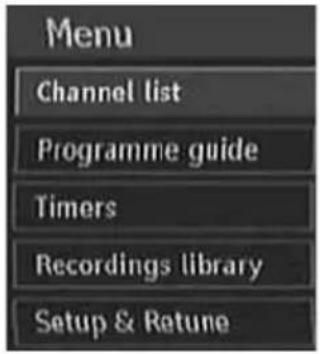

1. Press the MENU button to display the main menu.

1. Press the ▲▼ buttons to select Setup & Retune and then press the OK button. The Setup & Retune menu will be displayed.

1. Press the buttons to select Recordings and then press the OK button. The Recording Configuration menu will be displayed.

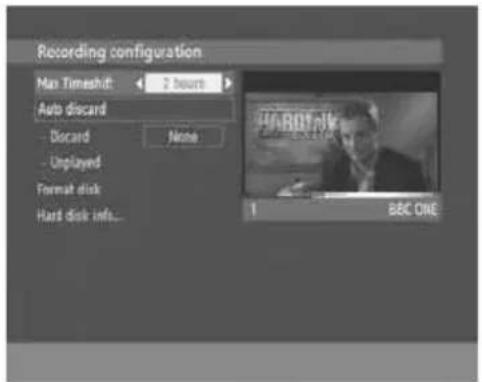

1. Use the buttons to select the following options and the buttons to adjust the settings.

Max Timeshift	Select the maximum time allowed for timeshifting. For more details, please refer the section Time Shift Recording.
Auto Discard	Discard	When the HDD is full and a timer is set to record, the unit will automatically discard previous recordings based on this setting. The options are as follows:
		None	The unit will not discard any recordings and the timer will not record the requested programme.
		Oldest	Starting with the oldest, recordings will be deleted to make space for the requested timer.
		Longest	Starting with the longest, recordings will be deleted to make space for the requested timer.
		Shortest	Starting with the shortest, recordings will be deleted to make space for the requested timer.
	Unplayed	Excluded	Unplayed recordings WILL NOT be deleted.
		Included	Unplayed recordings WILL be deleted.
Format Disk	On rare occasions the Hard Disk may malfunction, in most cases formatting the Hard Disk will restore normal operation however ALL the data stored on the Hard Disk will be lost.
	A valid password must be entered. The default password is "0000".If you change the password, be sure to remember the new password! If you forget the new password, press the master password "4725".Ensure to duplicate important recordings onto Video or DVD before you format the hard disk.
Hard Disk Info	Total Space The total size of the hard disk.
	Reserved for timeshift	Display the space reserve for use by the timeshift function. It is dependant on the setting in Max timeshift.
	Space used by recordings	The space used by the recordings that are on the hard disk.
	Free Space Available space for future recordings.
	Estimated space for times set	The estimated space on the hard disk that will be used for the any timers that are currently set.
	Estimated Recording Time remaining	This is the estimated remaining time left available for recordings. The settings of the recordings are configured in this menu, press the OK button to display the menu.

1. Press the BACK button to return to the previous menu or the MENU button to exit.

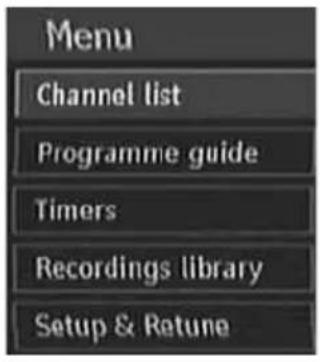

2. Press the MENU button to display the main menu.

1. Press the ▲▼ buttons to select Setup & Retune and then press the OK button. The Setup & Retune menu will be displayed.

1. Press the buttons to select Configuration and then press the OK button. The Configuration menu will be displayed.

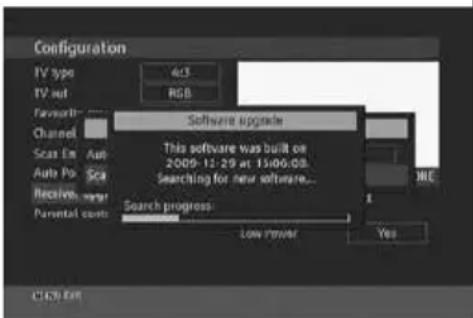

1. Use the buttons to select the following options and the buttons to adjust the settings.

TV Type	Allows you to select 16:9 / 4:3.
	16:9 Widescreen picture shown in the full screen.
	4:3	Widescreen picture shown in the full screen with black bars on the top and bottom of the screen.
TV Out	Allows you to select from CVBS / RGB from the SCART socket.Note: Select CVBS to output a standard composite video. Select RGB to output a better picture quality.
Favourite Mode	Allows you to enable or disable the favourite channel list mode.
Channel List	Allows you to select TV Only / Radio Only / Text Only / Show All.
Scan Encrypted	Allow you to enable or disable to search encrypted channels.
Auto Power Down	The unit will automatically switch to standby mode 3 hours after the last time the remote control was used. A reminder screen will pop up and count down before the unit switches to standby mode.
Receiver Upgrade	Auto OAD (Over Air Download)The unit auto detects the latest firmware through the DTV signal and allows you to accept or refuse the firmware upgrade service. The unit automatically powers up at 3.00 A.M. each day and searches for any new information which may be broadcast and will download this to your receiver automatically. This operation will normally take approximately 30 minutes. If you have an important recording to make at 3.00 A.M. which must not have a 30 minutes interrupt then you can disable the auto OAD.Scan for UpgradePress the ▲▼ buttons to select Scan for upgrade and then press the OK button to upgrade the receiver.
Parental Control	The Lock System is designed to prevent accidental retuning of the TV / losing channels and prevent children watching unsuitable programmes. To access the menus, you must enter the password. Enter the default password "0000" for first time use. If you change the password, be sure to remember the new password! If you forget the new password, press the master password "4725".Menu LockDisable: All menus are unlocked.All Menus: The user cannot add, delete, rename channels and set timers.Installation Menu: The user cannot add channels.Set PINUse 0-9 buttons to input the New Pin. Re-enter new password for confirmation.
Low Power	In low power mode, the power consumption is less then 1 W and the front display will show no time information in standby mode.If low power mode is deactivated, all functions will be reactivated.

1. Press the BACK button to return to the previous menu or the MENU button to exit.

2. Press the MENU button to display the main menu.

1. Press the ▲▼ buttons to select Setup & Retune and then press the OK button. The Setup & Retune menu will be displayed.

1. Press the buttons to select Language and then press the OK button. The Language settings menu will be displayed.

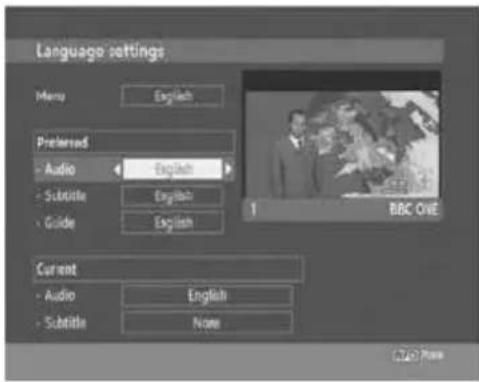

1. Use the buttons to select the following options and the buttons to adjust the settings.

Menu Displays the language of the system.
Preferred	Audio	Select your desired primary audio language. (Available for digital channels if multiple audio languages are broadcast.)
	Subtitle	Select your desired primary subtitle language. (Available for digital channels if multiple subtitle languages are broadcast.)
	Guide Select the guide language.
Current	Audio	Select your desired secondary audio language. (Available for digital channels if multiple audio languages are broadcast.)
	Subtitle	Select your desired secondary subtitle language. (Available for digital channels if multiple subtitle languages are broadcast.)

1. Press the BACK button to return to the previous menu or the MENU button to exit.

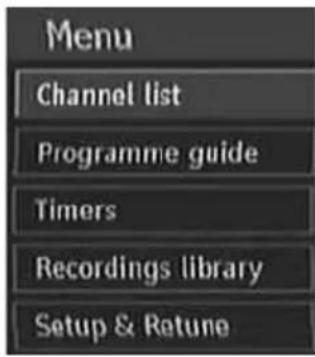

2. Press the MENU button to display the main menu.

1. Press the ▲▼ buttons to select Setup & Retune and then press the OK button. The Setup & Retune menu will be displayed.

1. Press the buttons to select Installation & Retune and then press the OK button. The Installation menu will be displayed.

1. Use the buttons to select the following options and the buttons to adjust the settings.

Automatic Channel Scan / Retune	Use this to automatically find and store all available channels. This is normally recommended if some channels have been added or removed by the broadcaster or if you have moved house.
Manual Channel Scan	Allows you to make manual fine tuning adjustments to the channel.
First Time Installation	Restores all settings to the factory defaults. All channel and user settings will be lost and the unit will revert to "First Time Installation".

1. Press the BACK button to return to the previous menu or the MENU button to exit.

If a problem does occur, it may often be due to something very minor. The following table contains various tips. If you require additional assistance please call our UK Call Centre on 0844 561 1234. Our UK Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.

Problem Possible Cause Solution
Standby Indicator Off	· Mains adapter disconnected ·	Check mains adapter connection on unit and mains socket
“No signal” message	· Aerial cable is disconnected ·	Check the aerial cable connection at the unit. Consult your installer if necessary
No picture or sound	· Unit not switched on· SCART cable disconnected· TV not switched to SCART input	· Switch on unit· Check SCART cable connections at the unit and the TV· Select TV’s SCART input
Picture appears in wrong ratio	· Mismatched TV screen aspect ratio	· Choose the correct TV Type to suit your TV
Picture freeze or has block effects	· Bad record signal · Reposition	the aerial for better reception
No response with remote control	· Unit in standby mode· Remote control not aimed at the unit correctly· Remote sensor on the front of the unit is obstructed· Out of battery	· Switch on the unit· Aim remote control at the unit· Check for obstructions in front of the unit· Install new batteries. Ensure that the batteries are installed with the correct polarity (+ to +, - to -)
The unit switches off after 3 hours	· Auto Power Down is on · Turn	off the Auto Power Down in the Configuration menu
Cannot view a channel	· Wrong channel number used· Channel locked	· Choose the channel from the channel list· Enter the PIN.
No digital text or interactive services	· Services not available on chosen channel	· Switch to a channel broadcasting interactive services
Can’t record a channel	· Insufficient hard disc space ·	Delete some old files.· Refer to the section Recording Setup for details.

Specifications

Model L5SSTB12
General Characteristics
Supply Voltage 220-240V AC ~50Hz
Input Frequency 470 Mhz - 862 Mhz
Maximum Power Consumption 18 W
Standby Power Consumption 1 W
Operating Temperature 5°C to +40°C
Storage Temperature -15°C to +55°C
Humidity 25 to 75 % rel
Physical Dimensions 307 x 210 x 46 mm
Weight 1.3 kg
Standby Low Power Consumption ≥ 1 W
Hardware Configuration
Main Processor STI5100
Flash Memory 8 MB
DDRRAM	64 MB
Digital Capabilities
Transmission Standards	DVB, MPEG2
Demodulation
COFDM	with 2K/8K FFT mode
FEC	for all DVB Modes.(Automatically found)
Video
All MPEG-2 MP@ML Video Decoder
Aspect Ratio	4:3, 16:9 with pan vector
RGB Analogue Outputs	BW ≥ 5MHz at 0.5 to 5 MHz sweep signal
CVBS Analogue Output
Audio
MPEG Layer 1 and 2
Sampling Frequencies Supported	32 kHz (Stereo), 44.1 kHz (Left Only) or 48 kHz (Right Only)
Wide Dynamic Range	16-bit resolution
Hard Disk	500 GB

Features and specifications are subject to change without prior notice.

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your adapter voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains adapter and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
• This unit is designed for indoor, domestic use only.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires.
• Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains

adapter and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting/disconnecting other devices or moving the unit.
• Unplug the unit from the mains socket during a lightning storm.

Mains Adapter Cable

• Make sure the unit or unit stand is not resting on top of the mains cable, as the weight of the unit may damage the mains cable and create a safety hazard.
• If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted picture or sound.

Standby

- The Button on the remote control does not switch off the unit completely. The unit will continue to draw electricity from the mains supply while in standby. In the interests of safety and to avoid unnecessary energy consumption, never leave the unit in standby while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains adapter from the mains socket.

Batteries

• Batteries used in the remote control for this unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the remote control. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.
• The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

Supervision

• Children should be supervised to ensure that they do not play with the unit and the remote control.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

• Ensure to unplug the unit from the mains socket before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
• Do not use liquids to clean the unit.
• The wall socket plug is used as a disconnect device, the disconnect device should be readily accessible.

get set for digital

How the digital switchover may affect you:

Television in the UK is going digital, bringing us all more choice and new services. Starting in late 2007 and ending in 2012, television services in the UK will go completely digital, TV region by TV region.

The map shows when your area will switchover to digital. When the TV switchover happens in your area, there are at least two occasions when you will need to re-tune your unit in order to continue receiving your existing TV channels, and also to pick up new ones.

Digital UK, the body leading the digital TV switchover, will advise you when you need to re-tune during the switchover.

For re-tuning instructions for this unit please see page 38 of this instruction manual.

If you find you can't receive the extra digital channels, it may be because your area is not covered by Freeview yet or that you need an aerial upgrade.

Visit www.digitaluk.co.uk to check.

If you have any questions, please contact your equipment supplier or call Digital UK on 0845 6 50 50 50 or visit www.digitaluk.co.uk.

Visit us at digitaluk.co.uk call us on 0845 6 50 50 50 ^+

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door

the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only). Calls charged at National Rate.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

Notes for battery disposal

The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste.

For more information, please contact the local authority or your retailer where you purchased the product.

The FREEVIEW word and logo are trademarks of DTV Services LTD and are used under licence. © DTV Services Ltd 2002.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories

All trademarks are the property of their respective owners and all rights are acknowledged.

Gradient gray background with no text, symbols, or identifiable objects

Gradient gray background with no text, symbols, or identifiable objects
