Product Type	AV Extender (HDMI over Ethernet)
Model	WyreStorm RXV-35-4K
Video Resolution Support	Up to 4K@60Hz (3840x2160)
Transmission Distance	Up to 35m (115ft) over CAT6 cable
Input Interface	1x HDMI (Type A female)
Output Interface	1x HDMI (Type A female) + 1x RJ45 (out)
Extension Method	Single CAT5e/6 cable (point-to-point)
HDCP Support	HDCP 2.2 and 1.4 compliant
IR Pass-Through	Yes (20-60kHz bidirectional)
Power Supply	DC 5V / 1A (adapter included)
Power Consumption	Typical 2.5W
Dimensions (W x D x H)	85mm x 60mm x 20mm (each unit)
Weight (per unit)	Approx. 100g
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Enclosure Material	Metal (aluminum alloy)
LED Indicators	Power, Link, Signal
Maintenance	Clean with dry cloth; no liquid solvents
Safety Certifications	CE, FCC, RoHS
Spare Parts Available	Power adapter, mounting brackets
Repairability	Not user-serviceable; contact support
Warranty	2 years (varies by region)
Package Contents	Transmitter + Receiver, power adapters, IR cables, user manual

Frequently Asked Questions - RXV-35-4K WyreStorm

What is the maximum transmission distance of the WyreStorm RXV-35-4K?

The maximum transmission distance is up to 35 meters (115 feet) when using a CAT6 cable. For CAT5e, distance may be slightly shorter.

Does this extender support 4K resolution?

Yes, it supports 4K@60Hz (3840x2160) with HDCP 2.2 compliance.

How do I connect the RXV-35-4K?

Connect the HDMI source to the transmitter (input), then connect the transmitter and receiver via a single CAT5e/6 cable. Finally, connect the receiver to the display via HDMI. Power both units with the included adapters.

Does it support IR pass-through?

Yes, it supports bidirectional IR pass-through at frequencies 20-60kHz. Use the included IR cables to extend remote control signals.

What type of cable should I use?

Use STP (shielded twisted pair) CAT6 cable for best performance. CAT5e works but may limit distance and 4K stability.

The display shows no signal. What should I do?

Check that both units are powered (LEDs should be on). Ensure the HDMI cables are firmly connected. Try a different Ethernet cable or shorter distance. Verify the source output resolution is set to 1080p or 4K and HDCP compatible.

Can I daisy-chain multiple extenders?

No, the RXV-35-4K is designed for point-to-point extension only. For multiple displays, use a matrix switch or additional sets.

Is this extender compatible with all HDMI devices?

It works with most HDMI sources and displays that support HDMI 2.0 and HDCP 2.2. Some older devices may require a resolution downscale.

How do I clean the unit?

Unplug the power. Gently wipe with a soft dry cloth. Do not use liquids or abrasive cleaners to avoid damage.

What is the warranty period?

The standard warranty is 2 years from date of purchase. Contact WyreStorm support for details and extension options.

USER MANUAL RXV-35-4K WyreStorm

WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the installation process.

IMPORTANT! Installation Requirements

• Visit the product page to download the latest firmware, document version, additional documentation, and configuration tools.
• Read through the Wiring and Connections section for important wiring guidelines before creating or choosing premade cables.
• While this product supports CEC, WyreStorm cannot guarantee compatibility with all forms of CEC communication.

In the Box

1x RXV-35-4K Receiver
1x IR Emitter
1x IR Receiver
2x Mounting Brackets
1x 3-pin Terminal Block
1x Quickstart Guide (this document)

Basic Wiring Diagram


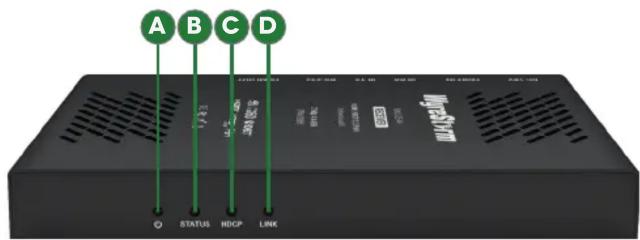

Front Panel Rear Panel

A	Power LED	Solid: The receiver is powered OnOff: The receiver is powered Off
B	Status LED	Flashing: The receiver is operating normally.Off: The receiver is Not operating normally.
C	HDCP LED	Solid: HDCP content is present.Flashing: HDCP content is not present.Off: No signal.
D	LINK LED	Solid: Link to receiver has been established.Flashing: Link to receiver has not been established.

A	Power Input	5.5mm Screw Down Barrel JackConnect to the included 18V DC 1A power supply to the transmitter or receiver. A power supply is not required on the other end as it will be powered using PoH.
B	HDBT InHDBT Out	8-pin RJ-45 femaleConnect the matrixHDBT Outto receiversHDBT In.
C	IR TXIR RX	IR TX- 3.5mm (1/8in) Mono Jack: Connect to the supplied IR emitter to control a local device from the remote display location via HDBaseT.IR RX- 3.5mm (1/8in) Stereo Jack: Connect to the supplied IR receiver to send IR to the remote display location via HDBaseT.See IR TX/RX Guidelines for more information.
D	RS-232 1x RS-232: 3-pin Terminal Block
E	HDMI InHDMI Out	19-pin type A HDMI femaleSupports HDMI and DVI/D with adapter

Wiring and Connections

WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in its entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.

IMPORTANT! Wiring Guidelines

• The use of patch panels, wall plates, cable extenders, kinks in cables, and electrical or environmental interference will have an adverse effect on signal transmission which may limit performance. Steps should be taken to minimize or remove these factors completely during installation for best results.
• WyreStorm recommends the use of shielded category cable to minimize signal noise and interference.
• WyreStorm recommends using pre-terminated HDMI cables due to the complexity of these connector types. Using pre-terminated cables will ensure that these connections are accurate and will not interfere with the performance of the product.

IR TX/RX Guidelines

• Using WyreStorm infrared emitters and receivers is the best way to ensure that most IR coding formats are transmitted and received by the NetworkHD system. Other 3rd party emitters and receivers can be used; however, these devices must operate in the same manner as the WyreStorm devices.
• Due to differences in IR across 3rd party control systems their IR ports should never be connected directly to a NetworkHD system as an incompatibility may exist. WyreStorm offers a cable that compensates for voltage differences as well adjusts for differences in the pins used within the port. Refer to the CAB-IR-LINK product page for more information.

RS-232 Wiring

The RXV-35-4K uses a 3-pin RS-232 with no hardware flow control. Most control systems and computers are DTE where pin 2 is RX, this can vary from device to device. Refer to the documentation for the connected device for pin functionally to ensure that the correct connections can be made.

Troubleshooting

No or Poor Quality Picture (snow or noisy image)

• Verify that power is being supplied to the transmitter and receiving device
• Verify that all HDMI and HDBaseT connections are not loose and are functioning properly
• Verify that the HDBaseT cable is properly terminated following EIA568B standard
• Verify that the output resolution of the source and display is supported by this matrix and receiver.
• If transmitting 3D or 4K, verify that the HDMI cables used are 3D or 4K rated.

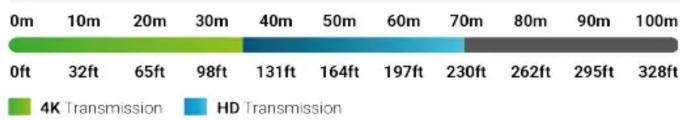

Cat6 Cable Performance Guide

WyreStorm recommends the use of shielded cable to minimize signal noise and interference

IR TX Port Pinout

Connection for IR TX (transmit) uses a 3.5mm (1/8in) mono plug.

IR RX Port Pinout

Connection for IR RX (receive) uses a 3.5mm (1/8in) stereo jack that outputs +5V DC to power the included IR receiver.

WyreStorm Connector			3rd Party Device
Pin 1 TX (Transmit) --->		To ---> RX (Receive)
Pin 2 RX (Receive) --->		To ---> TX (Transmit)
Pin 3 G (Ground)		---> To --->	G (Ground)

No or Intermittent 3rd party Device Control

- Verify that the IR and RS-232 cables are properly terminated following the Wiring and Connections section.

Troubleshooting Tips:

- WyreStorm recommends using a cable tester or connecting the cable to other devices to verify functionality.

Specifications

Audio and Video
Inputs 1x HDBT In: 8-pin RJ-45 Female
Outputs 1x HDMI Out: 19-pin type A
Output Video Encoding HDBaseT Class B
Encoding Data Rate 9.2Gbps
End to End Latency (Max) 10μs (micro seconds)
Audio Formats	Analog: 2ch AnalogS/PDIF: 2ch LPCM | Dolby Digital/DTS up to 5.1chHDMI: 2ch LPCM | Multichannel up to Dolby Atmos and DTS-X
Video Resolutions (Max)	Video Resolution HDMI Cat6 Cat6a/7
	1920x1080p @60Hz 12bit 15m/49ft 60m/197ft 70m/230ft
	1920x1080p @60Hz 16bit 7m/23ft 60m/115ft 70m/131ft
	3840x2160p @24Hz 10bit 4:2:0 HDR 3m/10ft 35m/115ft 40m/131ft
	3840x2160p @30Hz 8bit 4:4:4 7m/23ft Input 15m/49ft Output 35m/115ft 40m/131ft
	3840x2160p @60Hz 10bit 4:2:0 HDR 3m/10ft 35m/115ft 40m/131ft
	4096x2160p @60Hz 8bit 4:2:0 7m/23ft 35m/115ft 40m/131ft
	4096x2160p @60Hz 8bit 4:4:4 3m/10ft 35m/115ft 40m/131ft
	Note: WyreStorm recommends the use of shielded category cable to minimize signal noise and interference
Supported Standards	DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100
Maximum Pixel Clock	HDMI: 600MHz | HDBaseT: 297MHz
Communication and Control
HDMI	HDMI 2.0 | HDCP 2.2 | EDID | CEC | DVI/D supported with adapter (not included)
HDBaseT	HDMI 2.0 | HDCP 2.2 | EDID | CEC | 1-way PoH | Bidirectional IR
CEC	CEC power triggering for connected screens – Requires CEC compatibility
IR	1x IR TX: 3.5mm (1/8in) TS Mono1x IR RX: 3.5mm (1/8in) TRS StereoBidirectional over HDBaseT
RS-232	1x RS-232: 3-pin Terminal Block - 3.5mm
Power
Power Supply	18V DC (Optional)
PoH	1-way Matrix to Receiver
Max Power Consumption	12.42W
Environmental
Operating Temperature	0 to +45°C (32 to +113 °F), 10% to 90%, non-condensing
Storage Temperature	-20 to +70°C (-4 to +158 °F), 10% to 90%, non-condensing
Maximum BTU/hr	43 BTU/hr
Dimensions and Weight
Rack Units/Wall Box	<1U
Height	15.2mm/0.6in
Width	136.4mm/5.38in
Depth	74.2mm/2.93in
Weight	0.24kg/0.53lbs
Regulatory
Safety and Emission	CE | FCC | RoHS | RCM

Note: WyreStorm reserves the right to change product specification, appearance or dimensions of this product at any time without prior notice.

Warranty Information

WyreStorm Technologies LLC warrants that its products to be free from defects in material and workmanship under normal use for a period of five (5) years from the date of purchase. Refer to the Product Warranty page on wyrestorm.com for more details on our limited product warranty.
