Product Type	AV Extender (Receiver)
Brand	WyreStorm
Model	RXV-70-4K-G2
Video Resolutions (Max)	3840x2160p @60Hz 4:2:0 HDR over Cat6a/7 up to 100m; 1920x1080p @60Hz up to 100m over Cat6a/7
Audio Formats	HDMI: 2ch LPCM, Multichannel up to Dolby Atmos and DTS-X
HDBaseT	Class A, 9.2Gbps data rate, max latency 10μs
HDMI	HDMI 2.0, HDCP 2.2, EDID, CEC, DVI/D supported with adapter
IR Control	Bidirectional over HDBaseT; 1x IR TX (3.5mm TS mono), 1x IR RX (3.5mm TRS stereo)
RS-232	1x RS-232 via 3-pin Terminal Block
Power Supply	18V DC (optional power supply not required when powered via PoH)
Power Consumption (Max)	12.42W / 43 BTU/hr
PoH (Power over HDBaseT)	1-way from Matrix to Receiver
Dimensions (H x W x D)	15.2mm x 136.4mm x 74.2mm (0.6in x 5.38in x 2.93in)
Weight	0.24kg / 0.53lbs
Operating Temperature	0 ~ +45°C (32 ~ 113°F), 10% ~ 90% RH non-condensing
Storage Temperature	-20 ~ +70°C (-4 ~ 158°F), 10% ~ 90% RH non-condensing
Certifications	CE, FCC, RoHS, RCM
Warranty	5-year limited parts and labor
In the Box	1x Receiver, 1x Wide-band IR Emitter, 1x Wide-band IR Receiver, 2x Mounting Brackets, 1x 3-pin Terminal Block, 1x Quickstart Guide
Maintenance	Keep device clean and dry; avoid exposure to moisture or extreme temperatures. No user-serviceable parts inside.
Safety	Complies with CE, FCC, RoHS, RCM regulations. Use only supplied or compatible power supply.
Spare Parts / Repairability	No spare parts listed; repair or replacement covered under 5-year warranty. Contact WyreStorm support.

Frequently Asked Questions - RXV-70-4K-G2 WyreStorm

What is the maximum video resolution supported by the RXV-70-4K-G2?

The extender supports 4K resolutions up to 3840x2160p @60Hz 4:2:0 HDR over Cat6a/7 cables at distances up to 100m (328ft). It also supports 1080p @60Hz up to 100m.

How far can I extend 4K video?

For 4K at 60Hz 4:2:0 HDR, the maximum distance over Cat6a/7 is 100m (328ft). For 4K at 30Hz 4:4:4, the distance is 70m (230ft) over Cat6a/7. Distances vary with cable quality and resolution.

Does the RXV-70-4K-G2 support HDR?

Yes, it supports HDR including HDR10 and Dolby Vision (up to 30Hz), as well as HLG, BT.2020, and BT.2100.

How is IR control implemented?

The extender provides bidirectional IR control over HDBaseT. It has an IR TX port (3.5mm mono jack) for sending IR signals to control local devices and an IR RX port (3.5mm stereo jack) to receive IR from the remote location.

What is PoH and how does it work?

PoH stands for Power over HDBaseT. The RXV-70-4K-G2 supports 1-way PoH from the matrix to the receiver, meaning the receiver can be powered via the HDBaseT cable if the transmitter supplies power. Otherwise, a separate 18V DC power supply can be used.

Is CEC supported?

Yes, the extender supports CEC (Consumer Electronics Control) for power triggering of connected screens. However, WyreStorm cannot guarantee compatibility with all CEC implementations.

What type of cabling is recommended?

WyreStorm recommends using shielded category cable (Cat6a/7) to minimize signal noise and interference. For HDMI, pre-terminated cables are recommended. The HDBaseT connection should follow EIA568B wiring standard.

What is the warranty period?

The RXV-70-4K-G2 is covered by a 5-year limited parts and labor warranty. During this period, repair or replacement is free for defects in materials or workmanship.

How do I troubleshoot no picture or poor quality?

Check that both transmitter and receiver are powered. Verify the HDBaseT cable is properly terminated (EIA568B). Ensure the source and display support the output resolution. Use HDMI cables rated for 3D/4K if needed. Also check all connections are secure.

Does the extender support Dolby Vision?

Yes, it supports Dolby Vision up to 30Hz as part of the HDR standards. It also supports HDR10 and HLG.

USER MANUAL RXV-70-4K-G2 WyreStorm

WyreStorm recommends reading through this document in its entirety to become familiar with the product's features before beginning the installation process.

IMPORTANT! Installation Requirements

• Visit the product page to download the latest firmware, document versions, additional documentation, and configuration tools.
• Read through the Wiring and Connections section for important wiring guidelines before creating or choosing premade cables.
• While this product supports CEC, WyreStorm cannot guarantee compatibility with all forms of CEC communication.

In the Box

1x RXV-70-4K-G2 Receiver
1x Wide-band IR Emitter
1x Wide-band IR Receiver (30-50KHz)
2x Mounting Brackets
1x 3-pin Terminal Block
1x Quickstart Guide (this document)

Basic Wiring Diagram


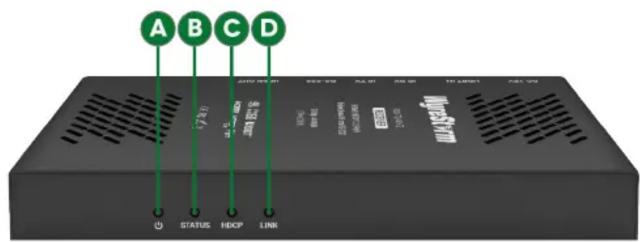

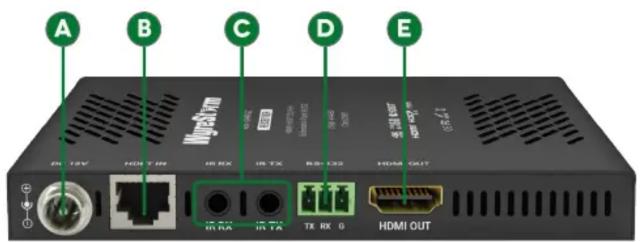

Front Panel Rear Panel

A	Power LED	Solid: The receiver is powered OnOff: The receiver is powered Off
B	Status LED	Flashing: The receiver is operating normally.Off: The receiver is Not operating normally.
C	HDCP LED	Solid: HDCP content is present.Flashing: HDCP content is not present.Off: No signal.
D	LINK LED	Solid: Link to receiver has been established.Flashing: Link to receiver has not been established.

A	Power Input	5.5mm Screw Down Barrel JackConnect to the included 18V DC 1A power supply to the transmitter or receiver. A power supply is not required on the other end as it will be powered using PoH.
B	HDBT In	8-pin RJ-45 femaleConnect the matrix HDBT Out to receivers HDBT In.
C	IR TX IR RX	IR TX - 3.5mm (1/8in) Mono Jack: Connect to the supplied IR emitter to control a local device from the remote display location via HDBaseTIR RX - 3.5mm (1/8in) Stereo Jack: Connect to the supplied IR receiver to send IR to the remote display location via HDBaseT.See IR TX/RX Guidelines for more information.
D	RS-232	1x RS-232: 3-pin Phoenix
E	HDMI Out	19-pin type A HDMI femaleSupports HDMI and DVI/D with adapter

Wiring and Connections

WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in its entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.

IMPORTANT! Wiring Guidelines

• The use of patch panels, wall plates, cable extenders, kinks in cables, and electrical or environmental interference will have an adverse effect on signal transmission which may limit performance. Steps should be taken to minimize or remove these factors completely during installation for best results.
• WyreStorm recommends the use of shielded category cable to minimize signal noise and interference.
• WyreStorm recommends using pre-terminated HDMI cables due to the complexity of these connector types. Using pre-terminated cables will ensure that these connections are accurate and will not interfere with the performance of the product.

IR TX/RX Guidelines

• Using WyreStorm infrared emitters and receivers is the best way to ensure that most IR coding formats are transmitted and received Other 3rd party emitters and receivers can be used; however, these devices must operate in the same manner as the WyreStorm devices.
• Due to differences in IR across 3rd party control systems their IR ports should never be connected directly to a NetworkHD system as an incompatibility may exist. WyreStorm offers a cable that compensates for voltage differences as well adjusts for differences in the pins used within the port. Refer to the CAB-IR-LINK product page for more information.

RS-232 Wiring

The RXV-70-4K-G2 uses a 3-pin RS-232 with no hardware flow control. Most control systems and computers are DTE where pin 2 is RX, this can vary from device to device. Refer to the documentation for the connected device for pin functionally to ensure that the correct connections can be made.

Troubleshooting

No or Poor Quality Picture (snow or noisy image)

• Verify that power is being supplied to the transmitter and receiver.
• Verify that the HDBaseT cable is properly terminated following EIA568B standard.
• Verify that the output resolution of the source and display is supported by this extender.
• If transmitting 3D or 4K, verify that the HDMI cables used are 3D or 4K rated.
• Verify that all source and HDBaseT connections are not loose and are functioning properly.

Cat6 Cable Performance Guide

0m	10m	20m	30m	40m	50m	60m	70m	80m	90m	100m
0ft	32ft	65ft	98ft	131ft	164ft	197ft	230ft	262ft	295ft	328ft

WyreStorm recommends the use of shielded cable to minimize signal noise and interference

IR TX Port Pinout

Connection for IR TX (transmit) uses a 3.5mm (1/8in) mono plug.

IR RX Port Pinout

Connection for IR RX (receive) uses a 3.5mm (1/8in) stereo jack that outputs +5V DC to power the included IR receiver.

WyreStorm Connector			3rd Party Device
Pin 1	TX (Transmit) --->	To ---> RX (Receive)
Pin 2	RX (Receive) --->	To ---> TX (Transmit)
Pin 3	G (Ground)	---> To --->	G (Ground)

No or Intermittent 3rd party Device Control

• Verify that the RS-232/Ethernet cables are properly terminated.
• Verify that emitters/receivers are compatible with WyreStorm IR.
• If using an IR control system, verify that it is connected using the CAB-IR-LINK cable.

Specifications

Audio and Video
Inputs 1x HDBT In: 8-pin RJ-45 Female
Outputs 1x HDMI Out: 19-pin type A
Output Video Encoding HDBaseT Class A
Encoding Data Rate 9.2Gbps
End to End Latency (Max) 10μs (micro seconds)
Audio Formats HDMI: 2ch LPCM | Multichannel up to Dolby Atmos and DTS-X
Video Resolutions (Max)	Video Resolution HDMI Cat6 Cat6a/7
	1920x1080p @60Hz 12bit 15m/49ft 100m/328ft 100m/328ft
	1920x1080p @120Hz 12bit 7m/22ft 70m/230ft 100m/328ft
	3840x2160p @24Hz 10bit 4:2:0 HDR 15m/49ft 100m/328ft 100m/328ft
	3840x2160p @30Hz 8bit 4:4:4 7m/22ft 70m/230ft 100m/328ft
	3840x2160p @60Hz 10bit 4:2:0 HDR 5m/16ft 70m/230ft 100m/328ft
	3840x2160p @60Hz 12bit 4:2:2 HDR 5m/16ft 70m/230ft 100m/328ft
	4096x2160p @60Hz 8bit 4:2:0 7m/22ft 70m/230ft 100m/328ft
	Note: WyreStorm recommends the use of shielded category cable to minimize signal noise and interference
Supported Standards	DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100
Maximum Pixel Clock	HDMI: 600MHz | HDBaseT: 297MHz
Communication and Control
HDMI	HDMI 2.0 | HDCP 2.2 | EDID | CEC | DVI/D supported with adapter (not included)
HDBaseT	HDMI 2.0 | HDCP 2.2 | EDID | CEC | 1-way PoH | Bidirectional IR
CEC	CEC power triggering for connected screens – Requires CEC compatibility
IR	1x IR TX: 3.5mm (1/8in) TS Mono | 1x IR RX: 3.5mm (1/8in) TRS Stereo | Bidirectional over HDBaseT
RS-232	1x RS-232: 3-pin Terminal Block - 3.5mm
Power
Power Supply	18V DC (Optional)
PoH	1-way Matrix to Receiver
Max Power Consumption	12.42W
Environmental
Operating Temperature	0 ~ +45°C (32 ~ +113 °F), 10% ~ 90%, non-condensing
Storage Temperature	-20 ~ +70°C (-4 ~ +158 °F), 10% ~ 90%, non-condensing
Maximum BTU/hr	43 BTU/hr
Dimensions and Weight
Rack Units/Wall Box	<1U
Height	15.2mm/0.6in
Width	136.4mm/5.38in
Depth	74.2mm/2.93in
Weight	0.24kg/0.53lbs
Regulatory
Safety and Emission	CE | FCC | RoHS | RCM

Note: WyreStorm reserves the right to change product specification, appearance or dimensions of this product at any time without prior notice.

Warranty Information

This product is covered by a 5-year limited parts and labor warranty. During this period there will be no charge for unit repair, component replacement or complete product replacement in the event of malfunction. The decision to repair or replace will be made by the manufacturer. This limited warranty only covers defects in materials or workmanship and excludes normal wear and tear or cosmetic damage.

Visit the product page located at wyrestorm.com for additional information on this product including important technical information not provided in this document and warranty terms & conditions.
