BWMD 742 (EU) - Washing machine HOTPOINT - Free user manual and instructions

Product Type	Washing machine
Brand	Hotpoint
Model	BWMD 742 (EU)
Dimensions (W x H x D)	59.5 cm x 81.5 cm x 54.5 cm
Capacity	1 to 7 kg
Maximum Spin Speed	1400 rpm
Water Pressure Range	0.05 MPa (0.5 bar) to 1 MPa (10 bar)
Drum Capacity	52 litres
Power Consumption (off-mode)	0.5 W
Power Consumption (left-on)	0.5 W
Wash Cycles	Standard Cotton 60°C, Standard Cotton 40°C, Standard Cotton 20°C, Synthetics, Fastwash 60', Fastwash 30', Anti Allergy, Woolmark Platinum, Delicates, Rinse, Spin, Pump out, My Cycle
Functions	Super Wash, Extra Rinse, Easy Iron, Prewash, Eco Wash, Delayed Start, Memory, Control Panel Lock
Display	Digital display with phase indicators, temperature, spin speed, time, delay, door lock symbol
Safety Features	Door lock, child lock (control panel lock), automatic standby
Installation	Adjustable front feet, water inlet hose (3/4" gas thread), drain hose connection (65-100 cm height)
Care and Maintenance	Self-cleaning pump, removable detergent drawer, clean pump pre-chamber, check inlet hose annually
Manual Languages	English, Spanish, Italian, Russian, and many others available online
Compliance	EC Directives 2004/108/EC, 2006/95/EC, 2002/96/EC

Frequently Asked Questions - BWMD 742 (EU) HOTPOINT

What should I do if the washing machine does not start?

Ensure the appliance is plugged in, the door is closed properly, the water tap is open, and the ON/OFF and START/PAUSE buttons have been pressed. Also check if a delayed start has been set.

How do I clean the detergent dispenser drawer?

Remove the drawer by raising it and pulling it out. Wash it under running water. This should be done frequently to prevent buildup.

What does the 'NO WATER' error mean?

This indicates the machine is not taking in water. Check that the water tap is open, the inlet hose is not bent or blocked, and there is water supply in the house. Also ensure the inlet hose is properly connected.

How can I open the door if there is a power cut?

Unplug the machine, ensure water level is below door opening (drain via hose if needed), then pull the tab outward to release the plastic tie-rod and pull downward to open the door.

Why is the washing machine vibrating excessively?

Check that the machine is level (adjust front feet), the protective transport screws are removed, and it is not too close to walls or cabinets. Also ensure the load is balanced.

Can I use liquid detergent?

Yes, but pour it into compartment 2 immediately before starting the wash cycle. Do not use hand washing detergents as they create too much foam.

What is the 'Easy Iron' function?

This function modifies the wash and spin cycles to reduce creases. At the end, the drum rotates slowly. To complete the cycle, press the START/PAUSE or EASY IRON button to drain the water.

How do I set a delayed start?

Press the DELAYED START button repeatedly until the desired delay time (in hours) appears on the display. The symbol lights up. To cancel, press until 'OFF' appears.

What does the 'Door Locked' symbol mean?

The symbol indicates the door is locked to prevent accidental opening during a cycle. Wait for it to turn off before opening. If delayed start is set, pause the machine to open.

How do I clean the pump?

The pump is self-cleaning. However, if small objects fall into the pre-chamber, unplug the machine, unscrew the lid anticlockwise, clean inside, and screw the lid back on.

USER MANUAL BWMD 742 (EU) HOTPOINT

Installation, 2-3-4-5

Unpacking and levelling

Connecting the electricity and water supplies

Español,29 Italiano,15 The first wash cycle

Technical data

Instructions for the fitter

CIS

Русский,43

Description of the washing machine, 6-7

Control panel

Display

Running a wash cycle, 8

Wash cycles and functions, 9

Table of wash cycles

Wash functions

BWMD 742

Detergents and laundry, 10

Detergent dispenser drawer

Preparing the laundry

Special wash cycles

Load balancing system

Precautions and tips, 11

General safety

Disposal

Opening the porthole door manually

Care and maintenance, 12

Cutting off the water or electricity supply

Cleaning the washing machine

Cleaning the detergent dispenser drawer

Caring for the door and drum of your appliance

Cleaning the pump

Checking the water inlet hose

Troubleshooting, 13

Service, 14

! This instruction manual should be kept in a safe place for future reference. If the washing machine is sold, transferred or moved, make sure that the instruction manual remains with the machine so that the new owner is able to familiarise himself/herself with its operation and features.
! Read these instructions carefully: they contain vital information relating to the safe installation and operation of the appliance.

Unpacking and levelling

Unpacking

1. Remove the washing machine from its packaging.
2. Make sure that the washing machine has not been damaged during the transportation process. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

Technical line drawing of a mechanical or electrical component with concentric rings and directional arrows (no text or symbols)

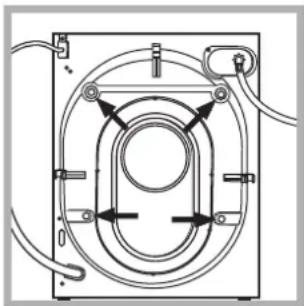

1. Remove the 4 protective screws (used during transportation) and the rubber washer with the corresponding spacer, located on the rear part of the appliance (see figure).

2. Close off the holes using the plastic plugs provided.

3. Keep all the parts in a safe place: you will need them again if the washing machine needs to be moved to another location.
   ! Packaging materials should not be used as toys for children.

Levelling

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or anything else.

Line drawing of a washing machine with a circular button and a scroll wheel, showing a rotation arrow (no text or symbols)

1. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured in relation to the worktop, must not exceed 2^ .

Levelling the machine correctly will provide it with stability, help to avoid vibrations and excessive noise and prevent it from shifting while it is operating. If it is placed on carpet or a rug, adjust the feet in such a way as to allow a sufficient ventilation space underneath the washing machine.

Connecting the electricity and water supplies

Connecting the water inlet hose

Technical line drawing of two mechanical components: a hexagonal nut and a cylindrical pin (no text or symbols)

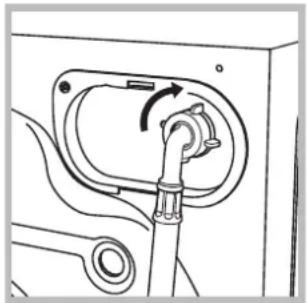

1. Connect the supply pipe by screwing it to a cold water tap using a 34 gas threaded connection (see figure). Before performing the connection, allow the water to run freely until it is perfectly clear.

Technical line drawing of a mechanical component with a valve and handle (no text or symbols)

1. Connect the inlet hose to the washing machine by screwing it onto the corresponding water inlet of the appliance, which is situated on the top right-hand side of the rear part of the appliance (see figure).

2. Make sure that the hose is not folded over or bent.

! The water pressure at the tap must fall within the values indicated in the Technical details table (see next page).
! If the inlet hose is not long enough, contact a specialised shop or an authorised technician.
! Never use second-hand hoses.
! Use the ones supplied with the machine.

Connecting the drain hose

Connect the drain hose, without bending it, to a drainage duct or a wall drain located at a height between 65 and 100 cm from the floor;

Diagram of a pipe connection with a bulb above it, no text or symbols present

alternatively, rest it on the side of a washbasin or bathtub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

! We advise against the use of hose extensions; if it is absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electricity socket, make sure that:

• the socket is earthed and complies with all applicable laws;
• the socket is able to withstand the maximum power load of the appliance as indicated in the Technical data table (see opposite);
• the power supply voltage falls within the values indicated in the Technical data table (see opposite);
• the socket is compatible with the plug of the washing machine. If this is not the case, replace the socket or the plug.

! The washing machine must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions.

! When the washing machine has been installed, the electricity socket must be within easy reach.

! Do not use extension cords or multiple sockets.
! The cable should not be bent or compressed.
! The power supply cable must only be replaced by authorised technicians.

Warning! The company shall not be held responsible in the event that these regulations are not respected.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using the wash cycle (60°C).

Technical data
Model	BWMD 742
Dimensions	width 59.5 cmheight 81.5 cmdepth 54.5 cm
Capacity	from 1 to 7 kg
Electrical connections	please refer to the technical data plate fixed to the machine
Water connections	maximum pressure 1 MPa (10 bar)minimum pressure 0.05 MPa (0.5 bar)drum capacity 52 litres
Spin speed	up to 1400 rotations per minute
Test wash cycles in accordance with directives 1061/2010 and 1015/2010	programme (60^) (1st press of the button);Standard Cotton 60°C.programme (40^) (2nd press of the button);Standard Cotton 40°C.
	This appliance conforms to the following EC Directives:- 2004/108/EC (Electromagnetic Compatibili- 2006/95/EC (Low Voltage)- 2002/96/EC

Instructions for the fitter

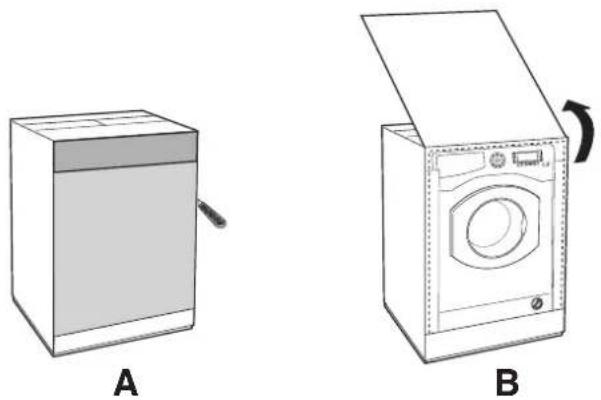

Mounting the wooden panel onto the door and inserting the machine into cabinets:

In the case where the machine must be shipped for final installation after the wooden panel has been mounted, we suggest leaving it in its original packaging. The packaging was designed to make it possible to mount the wooden panel onto the machine without removing it completely (see figures below).

The wooden panel that covers the face of the machine must not be less than 18 mm in thickness and can be hinged on either the right or left. For the sake of practicality when using the machine, we recommend that the panel be hinged on the same side as the door for the machine itself - the left.

Line drawing of a front-loading washing machine with vent and door (no text or symbols)

C

Diagram of a washing machine with a door open, showing internal components and directional arrows (no text or symbols)

Diagram of a rectangular box with a roller and directional arrows indicating force or movement (no text or symbols)

E

Door Mounting Accessories (Fig. 1-2-3-4-5).

Fig. 1

Fig. 2

Technical drawing of a flange-shaped mechanical component with concentric circular features and two mounting holes (no text or symbols)

Simple line drawing of a rectangular magnet plate with two mounting holes (no text or symbols)

Magnet plate

Fig. 3 Fig. 4

Simple line drawing of a rubber plug (no text or symbols on the diagram itself)

Fig. 5

Simple line drawing of a circular component with three holes and two internal square features, labeled 'N° 4 Spacers' below (no other text or symbols)

Fig. 4/B

• No. 6 type A self-threading screws, l=13 mm.
• No. 2 type B metric, countersunk screws, l=25; for fastening the magnet plate to the cabinet.
• No. 4 type C metric screws, l=15 mm; for mounting the hinge supports to the cabinet.
• No. 4 type D metric screws, l =7 mm; for mounting the hinges on the supports.

Mounting the Parts onto the Face of the Machine.

• Fit the hinge supports to the appliance front panel, positioning the hole marked with an arrow in fig. 1 so that it is on the inner side of the front panel. Fit a spacer (fig. 4/B) between the surfaces using type C screws.
• Fit the magnet plate at the top of the opposite side, using type B screws to fix two spacers (fig. 4/B) between the plate and the surface.

Using the Drilling Template.

- To trace the positions of the holes on the left-hand side of the panel, align the drilling template to the top left side of the panel using the lines traced on the extremities as a reference.

- To trace the positions of the holes on the right-hand side of the panel, align the drilling template to the top right side of the panel.

- Use an appropriately sized router to mill the holes for the two hinges, the rubber plug and the magnet.

Mounding the Parts onto the Wooden Panel (Door).

• Insert the hinges into the holes (the movable part of the hinge must be positioned facing away from the panel) and fasten them with the 4 type A screws.
• Insert the magnet into the top hole on the opposite side of the hinges and fasten it with the two type B screws.
• Insert the rubber plug into the bottom hole.

The panel is now ready to be mounted onto the machine.

Mounting the Panel into the machine.

Insert the nib of the hinge (indicated by the arrow in fig. 2) into the hole for the hinge and push the panel towards the front of the machine. Fasten the two hinges with the type D screws.

Fastening the plinth guide.

If the machine is installed at the end of a set of modular cabinets, mount either one or both of the guides for the base molding (as shown in fig. 8). Adjust them for depth based on the position of the base molding, and, if necessary, fasten the base to the guides (fig. 9).

This is how to assemble the plinth guide (fig. 8):

Fasten angle P using screw R, insert plinth guide Q into the special slot and once it is in the desired position, lock it in place using angle P and screw R.

Inserting the machine into the Cabinet.

• Push the machine into the opening, aligning it with the cabinets (fig. 6).
• Regulate the adjustable feet to raise the machine to the appropriate height.
• To adjust the position of the wooden panel in both the vertical and horizontal directions, use the C and D screws, as shown in fig. 7.

Important: close the lower part of the appliance front by ensuring that the plinth rests against the floor.

Fig. 6 Fig. 7

Diagram showing a mechanical component with a circular component and directional arrows indicating motion (no text or symbols)

Fig. 8 Fig. 9

Accessories provided for the height adjustment.

The following can be found inside the polystyrene lid (fig. 10): 2 crossbars (G), 1 strip (M)

the following can be found inside the appliance drum:

4 additional feet (H),
4 screws (I),
4 screws (R),
4 nuts (L),
2 plinth guides (Q)

Fig. 10

Adjusting the appliance height.

The height of the appliance can be adjusted (from 815 mm to 835 mm), by turning the 4 feet.

Should you require the appliance to be placed higher than the above height, you need to use the following accessories to raise it to up to 870 mm:

the two crossbars (G); the 4 feet (H); the 4 screws (I); the 4 nuts (L) then perform the following operations (fig. 11):

remove the 4 original feet, place a crossbar G at the front of the appliance, fastening it in place using screws I (screwing them in where the original feet were) then insert the new feet H.

Repeat the same operation at the back of the appliance.

Now adjust feet H to raise or lower the appliance from 835 mm to 870 mm.

Once you have reached the desired height, lock nuts L onto crossbar G.

To adjust the appliance to a height between 870 mm and 900 mm, you need to mount strip M, adjusting feet H to the required height.

Insert the strip as follows:

loosen the three screws N situated at the front of the Top cover of the appliance, insert strip M as shown in fig. 12, then fasten screws N.

Fig. 11 Fig. 12

Description of the washing machine

GB

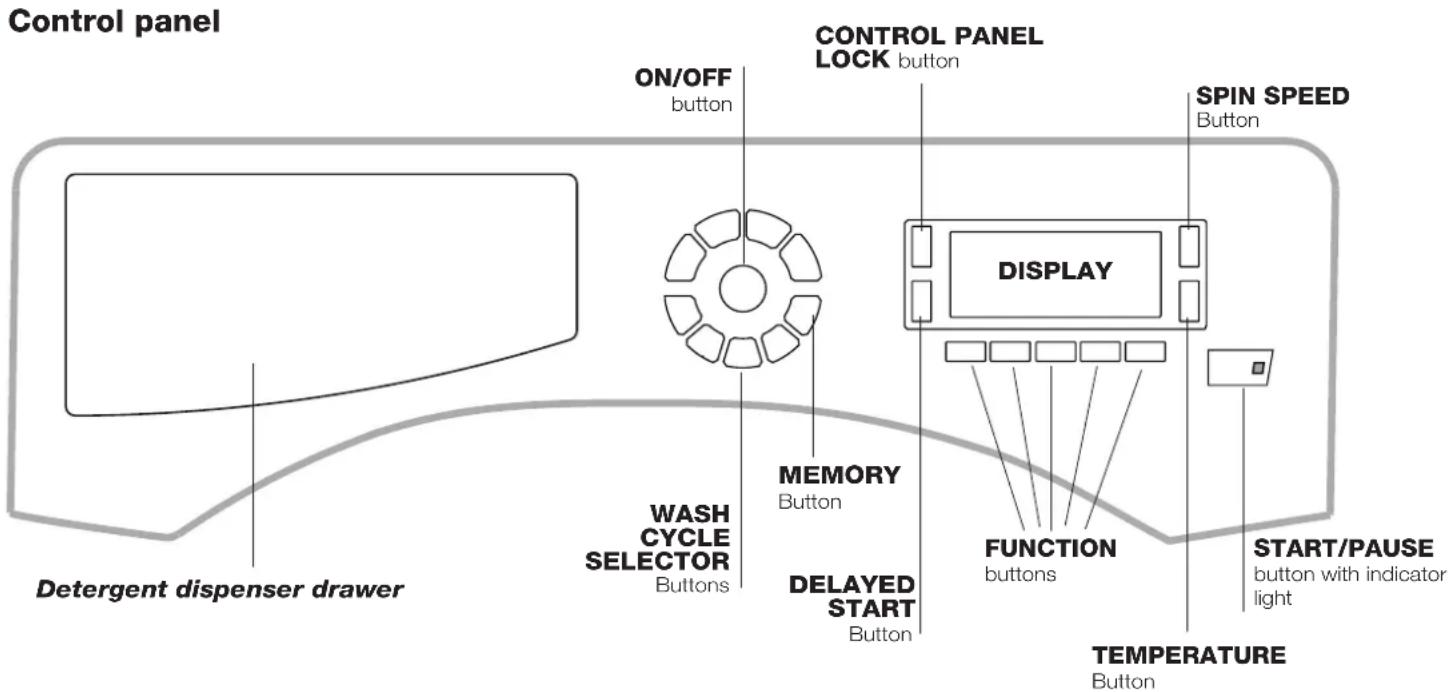

Detergent dispenser drawer: used to dispense detergents and washing additives (see "Detergents and laundry").

ON/OFF button press this briefly to switch the machine on or off. The START/PAUSE indicator light, which flashes slowly in a green colour shows that the machine is switched on. To switch off the washing machine during the wash cycle, press and hold the button for approximately 2 seconds; if the button is pressed briefly or accidentally the machine will not switch off. If the machine is switched off during a wash cycle, this wash cycle will be cancelled.

WASH CYCLE SELECTOR buttons: used to set the desired wash cycle (see "Table of wash cycles").

MEMORY button: press and hold the button to store a cycle with your own set of preferences in the memory of the machine. To recall a previously stored cycle, press the MEMORY button.

FUNCTION buttons: press the button to select the desired function. The corresponding indicator light on the display will switch on.

SPIN button press to reduce or completely exclude the spin cycle - the value is indicated on the display.

TEMPERATURE button press to decrease the temperature: the value will be shown on the display.

CONTROL PANEL LOCK button ☐ to activate the control panel lock, press and hold the button for approximately 2 seconds. When the symbol is illuminated, the control panel is locked. This means it is possible to prevent wash cycles from being modified accidentally, especially where there are children in the home. To deactivate the control panel lock, press and hold the button for approximately 2 seconds.

DELAYED START button press to set a delayed start time for the selected wash cycle. The delay time will be shown on the display.

START/PAUSE button with indicator light: when the green indicator light flashes slowly, press the button to start a wash cycle. Once the cycle has begun the indicator light will remain lit in a fixed manner. To pause the wash cycle, press the button again; the indicator light will flash in an orange colour. If the symbol is not illuminated, the door may be opened. To start the wash cycle from the point at which it was interrupted, press the button again.

Standby mode

This washing machine, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF button briefly and wait for the machine to start up again.

Consumption in off-mode: 0,5 W

Consumption in Left-on: 0,5 W

Display

GB

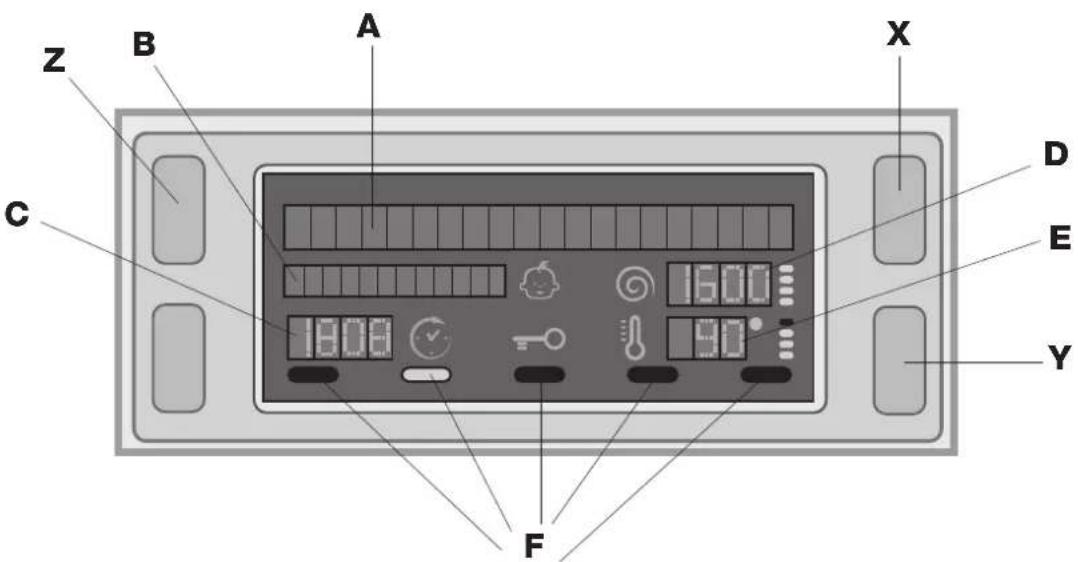

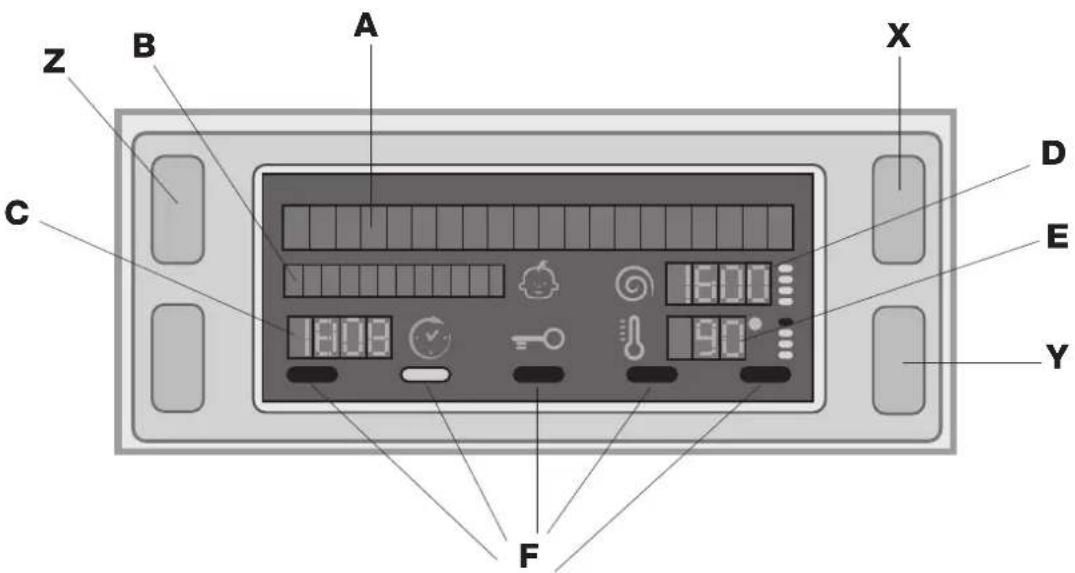

The display is useful when programming the machine and provides a great deal of information.

The two upper strings A and B provide details of the wash cycle selected, the wash cycle phase in progress and all information relating to the progress status of the wash cycle.

String C shows the time remaining until the end of the wash cycle in progress and, if a DELAYED START has been set, the time remaining until the start of the selected wash cycle.

String D shows the maximum spin speed value (this depends on the selected wash cycle); if the wash cycle does not include a spin cycle, the string remains unused.

String E shows the maximum temperature value which may be selected (this depends on the wash cycle used); if the temperature of the wash cycle cannot be modified, the string remains unused.

Indicator lights F correspond to the functions and light up when the selected function is compatible with the set wash cycle.

Door locked symbol =0

If the symbol is lit, this indicates that the washing machine door is blocked to prevent it from being opened accidentally. To prevent any damage from occurring, wait for the symbol to switch itself off before opening the appliance door.

N.B.: if the DELAYED START function has been activated, the door cannot be opened; pauses the machine by pressing the START/PAUSE button if you wish to open it.

! The first time the machine is switched on, you will be asked to select the language and the display will automatically show the language selection menu.

To select the desired language press the X and Y buttons; to confirm the selection press the Z button.

To change the language switch off the machine and press buttons X, Y, Z simultaneously until an alarm is heard: the language-selection menu will be displayed again.

1. SWITCH THE MACHINE ON. Press the ⏻ button; the text HELLO will appear on the display and the START/PAUSE indicator light will flash slowly in a green colour.
2. LOAD THE LAUNDRY. Open the porthole door. Load the laundry, making sure you do not exceed the maximum load value indicated in the table of programmes on the following page.
3. MEASURE OUT THE DETERGENT. Pull out the detergent dispenser drawer and pour the detergent into the relevant compartments as described in "Detergents and laundry".
4. CLOSE THE DOOR.
5. SELECT THE WASH CYCLE. Press one of the WASH CYCLE SELECTOR buttons to select the required wash cycle; the name of the wash cycle will appear on the display. A temperature and spin speed is set for each wash cycle; these may be adjusted. The duration of the cycle will appear on the display.
6. CUSTOMISE THE WASH CYCLE. Use the relevant buttons:

Modifying the temperature and/or spin

speed. The machine automatically selects the maximum temperature and spin speed set for the selected wash cycle; these values cannot therefore be increased. The temperature can be decreased by pressing the button, until the cold wash "OFF" setting is reached. The spin speed may be progressively reduced by pressing the button, until it is completely excluded (the "OFF" setting). If these buttons are pressed again, the maximum values are restored.

! Exception: if the (60^) (1st press of the button) programme is selected, the temperature can be increased up to a value of 90^ .

Setting a delayed start.

To set a delayed start for the selected programme, press the corresponding button repeatedly until the required delay period has been reached. When this option is enabled, the symbol lights up on the display. To remove the delayed start function press the button until the text "OFF" appears on the display.

Modifying the cycle settings.

• Press the button to enable the function; the indicator light corresponding to the button will switch on.
• Press the button again to disable the function; the indicator light will switch off.

! If the selected function is not compatible with the programmed wash cycle, the indicator light will flash and the function will not be activated.

! If the selected function is not compatible with another function which has been selected previously,

the indicator light corresponding to the first function selected will flash and only the second function will be activated; the indicator light corresponding to the enabled function will remain lit.

! The functions may affect the recommended load value and/or the duration of the cycle.

1. START THE PROGRAMME. Press the START/PAUSE button. The corresponding indicator light will become green, remaining lit in a fixed manner, and the door will be locked (the DOOR LOCKED symbol will be on). During the wash cycle, the name of the phase in progress will appear on the display. To change a wash cycle while it is in progress, pause the washing machine using the START/PAUSE button (the START/PAUSE indicator light will flash slowly in an orange colour); then select the desired cycle and press the START/PAUSE button again.

To open the door while a cycle is in progress, press the START/PAUSE button; if the DOOR LOCKED 🔍 symbol is switched off the door may be opened. Press the START/PAUSE button again to restart the wash cycle from the point at which it was interrupted.

1. THE END OF THE WASH CYCLE. This will be indicated by the text "END OF CYCLE" on the display; when the DOOR LOCKED symbol switches off the door may be opened. Open the door, unload the laundry and switch off the machine.

! If you wish to cancel a cycle which has already begun, press and hold the ⏻ button. The cycle will be stopped and the machine will switch off.

Wash cycles and functions

Table of wash cycles

Wash cycles	Description of the wash cycle	Max. temp.(°C)	Max. speed(rpm)	Detergents				Max. load(kg)	Residual dam-ness %	Energy con-sumption kWh	Total water It	Cycle duration
				Prewash	Wash	Fabric softener	Bleach
	Anti Stain	40°	1400	●	●	●	●	4	-	-	-	180'
	Standard Cotton 60° (1) (1st press of the button): heavily soiled whites and delicate colours.	60°(Max. 90°)	1400	●(3)	●	●	●	7	53	1,158	190'
	Standard Cotton 40° (2) (2nd press of the button): lightly soiled whites and delicate colours.	40°	1400	-	●	●	●	7	53	0,99	82	185'
	Standard Cotton 20° (3rd press of the button): lightly soiled whites and delicate colours.	20°	1400	-	●	●	●	7	-	-	-	170'
	Synthetics Resistant (1st press of the button): heavily soiled resistant colours.	60°	800	●	●	●	●	3	44	0,93	47	10'
	Synthetics Resistant (4) (1st press of the button): lightly soiled resistant colours.	40°	800	●	●	●	●	3	44	0,57	46	95'
	Synthetics Delicate (2nd press of the button): lightly soiled resistant colours.	40°	800	●	●	●	●	3	-	-	-	70'
	Fastwash 60' (1st press of the button): to refresh normal soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand)	60°	1400	-	●	●	-	3,5	53	081	4060
	Fastwash 30' (2nd press of the button): to refresh lightly soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand)	30°	800	-	●	●	-	3	71	0,15	35	30'
M My Cycle: allows for any wash cycle to be stored.
	Anti Allergy	60°	1400	-	●	●	-	4	-	-	-	195'
	Woolmark Platinum (Wool): for wool, cashmere, etc.	40°	800	-	●	●	-	1,5	-	-	-	70'
	Delicates	30°	0	-	●	●	-	1	-	-	-	80'
	Spin (1st press of the button)	-	1400	-	-	-	-	7	-	-	-	16'
	Rinse (2nd press of the button)	-	1400	-	-	●	●	7	-	-	-	36'
	Pump out (3rd press of the button)	-	0	-	-	-	-	7	-	-	-	2'

The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary according to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.
1) Test wash cycle in compliance with directive 1061/2010: set wash cycle □ 60°C (1st press of the button).
This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 60°C. The actual washing temperature may differ from the indicated value.
2) Test wash cycle in compliance with directive 1061/2010: set wash cycle □ 40°C (2nd press of the button).
This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 40°C. The actual washing temperature may differ from the indicated value.
3) At 60 °C the "Prewash" function cannot be selected.

For all Test Institutes:

2) Long wash cycle for cottons: set wash cycle 40°C (2nd press of the button).

4) Long wash cycle for synthetics: set wash cycle 60°C (1st press of the button); temperature of 40°C (press TEMPERATURE button).

Wash functions

Super Wash

This option offers a high-performance wash due to the greater quantity of water used in the initial phase of the cycle, and due to the increased wash cycle duration, is particularly useful for the removal of stubborn stains. It can be used with or without bleach. If you desire bleaching, insert the extra tray compartment (4) into compartment 1. When pouring in the bleach, be careful not to exceed the "max" level marked

on the central pivot (see figure). To bleach laundry without carrying out a full wash cycle, pour the bleach into the extra compartment 4, select the "Rinse" cycle and activate the "Super Wash" option.

! The use of extra compartment 4 excludes the "Pre-wash" function.

! It cannot be used with the ☑, ✕, 📄Spin", "Pump out".

Extra Rinse

By selecting this option, the efficiency of the rinse is increased and optimal detergent removal is guaranteed. It is particularly useful for sensitive skin.

! It cannot be used with the "Fastwash 30", ♢, "Spin", "Pump out".

Easy Iron

By selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases. At the end of the cycle the washing machine will perform slow rotations of the drum; the EASY IRON and START/PAUSE indicator lights will flash (orange) and the text "END OF CYCLE" will appear on the display. To end the cycle, press the START/PAUSE button or the EASY IRON button. To drain the water so that the laundry may be removed, press the START/PAUSE button or the EASY IRON button.

! It cannot be used with the "Fastwash 30",

Prewash

If this function is selected, the pre-wash cycle will run; this is useful for removing stubborn stains.

N.B.: put the detergent in the relevant compartment.

! It cannot be used with the Ⓞ, ⚙, ⚡, ⚠, □(60°), □(40°).

Eco Wash

The Eco Wash function saves energy by not heating the water used to wash your laundry – an advantage both to the environment and to your energy bill. Instead, intensified wash action and water optimisation ensure great wash results in the same average time of a standard cycle.

For the best washing results we recommend the usage of a liquid detergent.

! It cannot be used with the 🎨, 📋, ✉, 🌐, 🍃, 🍄

Detergent dispenser drawer

Good washing results also depend on the correct dose of detergent: adding too much detergent will not necessarily result in a more efficient wash, and may in fact cause build up on the inside of your appliance and contribute to environmental pollution.

! Use powder detergent for white cotton garments, for pre-washing, and for washing at temperatures over 60°C.
! Follow the instructions given on the detergent packaging.
! Do not use hand washing detergents because these create too much foam.

Open the detergent dispenser drawer and pour in the detergent or washing additive, as follows.

compartment 1: Pre-wash detergent (powder)

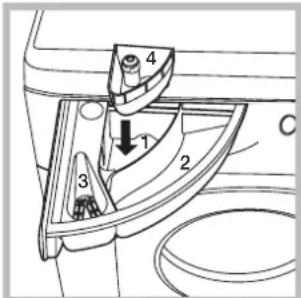

Before pouring in the detergent, make sure that extra compartment 4 has been removed.

compartment 2: Detergent for the wash cycle (powder or liquid)

Liquid detergent should only be poured in immediately prior to the start of the wash cycle.

compartment 3: Additives (fabric softeners, etc.)

The fabric softener should not overflow the grid.

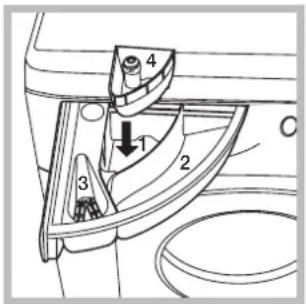

extra compartment 4: Bleach

Preparing the laundry

• Divide the laundry according to:
• the type of fabric/the symbol on the label
• the colours: separate coloured garments from whites
• Empty all garment pockets and check the buttons.
• Do not exceed the listed values, which refer to the weight of the laundry when dry:
  Durable fabrics: max. 7 kg
  Synthetic fabrics: max. 3 kg
  Wool: max. 1,5 kg
  Silk: max. 1 kg

How much does your laundry weigh?

1 sheet 400-500 g
1 pillow case 150-200 g
1 tablecloth 400-500 g
1 bathrobe 900-1200 g
1 towel 150-250 g

Special wash cycles

Anti Stain this programme is suitable to heavily-soiled garments with resistant colours. It ensures a washing class that is higher than the standard class (A class). When running the programme, do not mix garments of different colours. We recommend the use of powder detergent. Pre-treatment with special additives is recommended if there are obstinate stains.

Standard Cotton 20°: ideal for heavily soiled cotton loads. The effective performance levels achieved at cold temperatures, which are comparable to washing at 40°, are guaranteed by a mechanical action which operates at varying speed, with repeated and frequent peaks.

Anti Allergy: use programme to remove major allergens such as pollen, mites, cat's and dog's hair.

Wool: the wool wash cycle on this Hotpoint/Ariston machine has been tested and approved by The Woolmark Company for washing wool garments labelled as hand washable provided that the garments are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. Hotpoint/Ariston is the first washing machine brand to be approved by The Woolmark Company for Apparel Care- Platinum for its washing performance and consumption of energy and water. (M1126)

Delicates: use programme ✦ to wash very delicate garments with decorative features, such as diamantes and sequins.

We recommend turning the garments inside out before washing and placing small items into the special bag for washing delicates. Use liquid detergent on delicate garments for best results.

To wash Silk garments and Curtains, select cycle and then function (in this case it will also be possible to enable the "Extra Rinse" function); the machine will end the cycle while the laundry is soaking and the indicator light will flash. To drain the water so that the laundry may be removed, press the START/PAUSE button or the button.

Load balancing system

Before every spin cycle, to avoid excessive vibrations and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.

! This washing machine was designed and constructed in accordance with international safety regulations. The following information is provided for safety reasons and must therefore be read carefully.

General safety

• This appliance was designed for domestic use only.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Do not touch the machine when barefoot or with wet or damp hands or feet.
• Do not pull on the power supply cable when unplugging the appliance from the electricity socket. Hold the plug and pull.
• Do not open the detergent dispenser drawer while the machine is in operation.
• Do not touch the drained water as it may reach extremely high temperatures.
• Never force the porthole door. This could damage the safety lock mechanism designed to prevent accidental opening.
• If the appliance breaks down, do not under any circumstances access the internal mechanisms in an attempt to repair it yourself.
• Always keep children well away from the appliance while it is operating.
• The door can become quite hot during the wash cycle.
• If the appliance has to be moved, work in a group of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.
• Before loading laundry into the washing machine, make sure the drum is empty.

Disposal

• Disposing of the packaging materials: observe local regulations so that the packaging may be re-used.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Opening the porthole door manually

In the event that it is not possible to open the porthole door due to a powercut, and if you wish to remove the laundry, proceed as follows:

1. remove the plug from the electrical socket.
2. make sure the water level inside the machine is lower than the door opening; if it is not, remove excess water using the drain hose, collecting it in a bucket as indicated in the figure.
3. pull outwards using the tab as indicated in the figure, until the plastic tie-rod is freed from its stop position; pull downwards and open the door at the same time.

Hand holding a small electronic component with a black arrow pointing to it (no text or symbols visible)

Hand inserting a component into a device (no text or symbols visible)

Cutting off the water and electricity supplies

• Turn off the water tap after every wash cycle. This will limit wear on the hydraulic system inside the washing machine and help to prevent leaks.
• Unplug the washing machine when cleaning it and during all maintenance work.

Cleaning the washing machine

The outer parts and rubber components of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Cleaning the detergent dispenser drawer

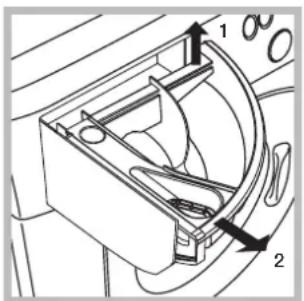

Remove the dispenser by raising it and pulling it out (see figure).

Wash it under running water; this operation should be repeated frequently.

Caring for the door and drum of your appliance

- Always leave the porthole door ajar in order to prevent unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber which protects the pump, situated in its bottom part.

! Make sure the wash cycle has finished and unplug the appliance.

To access the pre-chamber:

Pure technical line drawing of a mechanical component with no text or symbols

1. unscrew the lid by rotating it anti-clockwise (see figure): a little water may trickle out. This is perfectly normal;

2. clean the inside thoroughly;

3. screw the lid back on;

Checking the water inlet hose

Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! Never use second-hand hoses.

Your washing machine could fail to work. Before contacting the Technical Assistance Centre (see “Assistance”), make sure that the problem cannot be solved easily using the following list.

GB

Problem:

The washing machine does not switch on.

The wash cycle does not start.

The washing machine does not take in water (the text “NO WATER, CHECK SUPPLY” appears on the display).

The washing machine continuously takes in and drains water.

The washing machine does not drain or spin.

The washing machine vibrates a lot during the spin cycle.

The washing machine leaks.

The machine is locked and the display flashes, indicating an error code (e.g. F-01, F-..).

There is too much foam.

Possible causes / Solutions:

- The appliance is not plugged into the socket fully, or is not making contact. - There is no power in the house.

- The washing machine door is not closed properly. - The ON/OFF button has not been pressed. - The START/PAUSE button has not been pressed. - The water tap has not been opened. - A delayed start has been set (see "Running a wash

- The water inlet hose is not connected to the tap. - The hose is bent. - The water tap has not been opened. - There is no water supply in the house. - The pressure is too low. - The START/PAUSE button has not been pressed

- The drain hose is not fitted at a height between 65 and 100cm from the floor (see "Installation"). - The free end of the hose is under water (see "Installation"). - The wall drainage system is not fitted with a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and contact the Assistance Service. If the dwelling is on one of the upper floors of a building, there may be problems relating to water drainage, causing the washing machine to fill with water and drain continuously. Special anti-draining valves are available in shops and help to avoid this inconvenience.

- The wash cycle does not include draining: some wash cycles require the drain phase to be started manually (see "Wash cycles and functions"). - The EASY IRON function has been activated: To complete the wash cycle, press the START/PAUSE button (see "Wash cycles and functions"). - The drain hose is bent (see "Installation"). - The drainage duct is clogged.

- The drum was not unlocked correctly during installation (see "Installation"). - The washing machine is not level (see "Installation"). - The washing machine is trapped between cabinets and walls (see "Installation").

- The water inlet hose is not screwed on properly (see "Installation"). - The detergent dispenser drawer is blocked (for cleaning instructions, see "Care and maintenance"). - The drain hose is not fixed properly (see "Installation").

- Switch off the machine and unplug it, wait for approximately 1 minute and then switch it back on again. If the problem persists, contact the Technical Assistance Service.

- The detergent is not suitable for machine washing (it should display the text "for washing machines" or "hand and machine wash", or the like). - Too much detergent was used.

Before calling for Assistance:

• Check whether you can solve the problem alone (see "Troubleshooting");
• Restart the programme to check whether the problem has been solved;
• If this is not the case, contact an authorised Technical Assistance Centre using the telephone number provided on the guarantee certificate.

! Always request the assistance of authorised technicians.

Have the following information to hand:

• the type of problem;
  • the appliance model (Mod.);
  • the serial number (S/N).
  This information can be found on the data plate applied to the rear of the washing machine, and can also be found on the front of the appliance by opening the door.

Italiano

Sommario

Technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a washing machine with a circular button and a scroll wheel, showing a rotational arrow (no text or symbols)

Technical line drawings of two mechanical components: a hexagonal nut and a flanged pin (no text or symbols)

Line drawing of a mechanical component with a valve and handle (no text or symbols)

Diagram of a pipe connection with a bulb above it, no text or symbols present

Simple line drawing of a box with a handle, no text or symbols present

A

Line drawing of a front-loading washing machine with open lid and side panel (no text or symbols)

B

Line drawing of a front-loading washing machine with visible door, vent, and side panel (no text or labels)

C

Diagram of a washing machine with a door open, showing internal components and directional arrows (no text or symbols)

Diagram of a rectangular box with a side panel and directional arrows indicating movement or force (no text or symbols)

E

Accessori montaggio portina (Fig. 1-2-3-4-5).

Fig. 1

Fig. 2

Technical drawing of a flange with a central circular hole and two mounting holes (no text or symbols)

1

Fig. 3 Fig. 4

Simple line drawing of a cylindrical object labeled 'N° 1 Tassello in gomma' (no other text or symbols)

Fig. 5

Simple line drawing of a circular object with three holes and two square cutouts, labeled 'N° 4 Distanziali' below (no other text or symbols)

Fig. 4/B

Fig. 6 Fig. 7

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Fig. 8 Fig. 9

Consumo in off-mode: 0,5 W

Consumo in Left-on: 0,5 W

Display

Hand holding a device with a black arrow pointing to a component (no text or symbols visible)

Hand holding a small electronic component, no visible text or symbols

Pure technical line drawing of a mechanical component with no text or symbols

Pure technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a washing machine with a circular button and a scroll wheel (no text or symbols)

Two technical line drawings of mechanical components, one with a hexagonal head and the other a flanged base (no text or symbols)

Technical line drawing of a mechanical component with a valve and handle (no text or symbols)

Diagram of a pipe connection with a bulb and connector (no text or symbols)

Line drawing of a front-loading washing machine with labeled component C (no text or symbols on the device itself)

Diagram of a washing machine with a door open, showing internal components and directional arrows (no text or symbols)

Diagram of a rectangular box with a side panel and directional arrows indicating movement, labeled 'E' at the bottom (no text or symbols on the diagram itself)

Technical drawing of a mechanical component with an arrow pointing to a rectangular cutout (no text or symbols on the part itself)

Fig. 1

Fig. 2

Technical drawing of a mechanical flange component with circular center and four mounting holes (no text or symbols)

Fig. 3 Fig. 4

Simple line drawing of a circular object with three holes and a rectangular slot, labeled 'N° 4 Riostras' below (no other text or symbols)

Simple line drawing of a 3D cylinder labeled 'N° 1 Taco de goma' (no other text or symbols)

Fig. 5
Fig. 4/B

Fig. 6 Fig. 7

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Fig. 8 Fig. 9

Hand pressing a button on a device component (no text or symbols visible)

Hand inserting a component into a device (no text or symbols visible)

Pure technical line drawing of a mechanical component with no text or symbols

Pure technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a washing machine with a circular button and a rotary knob, no text or symbols present

Technical line drawing of two mechanical components: a hexagonal bolt and a flanged knob (no text or symbols)

Line drawing of a mechanical component with a valve and handle (no text or symbols)

Diagram of a pipe connection with a hanging object, no text or symbols present

Diagram of a rectangular box with a side panel and directional arrows indicating movement or force (no text or symbols)

E

Diagram of a mechanical or electrical component with directional arrows indicating movement (no text or symbols)

Hand holding a small object with a black arrow pointing to it, no visible text or symbols

Hand inserting a small component into a device (no text or symbols visible)

Simple line drawing of a circular mechanical component mounted on a rectangular base (no text or symbols)
