S110MSG11 - TV Stand Logik - Free user manual and instructions

Product Type	TV Stand
Brand	Logik
Model Number	S110MSG11
Width	120 cm (approx)
Depth	40 cm (approx)
Height	45 cm (approx)
Weight	15 kg (approx)
Material	Engineered Wood with Melamine Finish
Color	Black
Max TV Size	Up to 55 inches
Weight Capacity (Shelf)	30 kg (approx)
Assembly Required	Yes
Tools Included	Allen Key
Adjustable Feet	Yes
Anti-Tip Safety Strap	Included
Cleaning Instructions	Wipe with soft damp cloth
Usage	Indoor use only

Frequently Asked Questions - S110MSG11 Logik

What are the dimensions of the Logik S110MSG11 TV stand?

The approximate dimensions are 120 cm (width) x 40 cm (depth) x 45 cm (height). Please verify before assembly.

How much weight can the shelves hold?

Each shelf can support up to 30 kg, but distribute weight evenly.

Is assembly required? Are tools included?

Yes, assembly is required. An Allen key is included for assembly.

What is the maximum TV size this stand can support?

It is designed for TVs up to 55 inches, but always check the weight and VESA pattern.

How do I clean the TV stand?

Clean with a soft damp cloth. Avoid harsh chemicals.

Does it come with an anti-tip safety feature?

Yes, an anti-tip strap is included to secure the stand to the wall.

Can I adjust the height of the stand?

No, the height is fixed, but adjustable feet allow leveling on uneven floors.

What type of material is the stand made of?

It is made of engineered wood with a melamine finish for durability.

Are there any specific VESA requirements?

No specific VESA requirements, but ensure your TV's width fits the stand's top surface.

What do I do if some parts are missing?

Check the manual for part list, then contact Logik customer service for replacements.

USER MANUAL S110MSG11 Logik

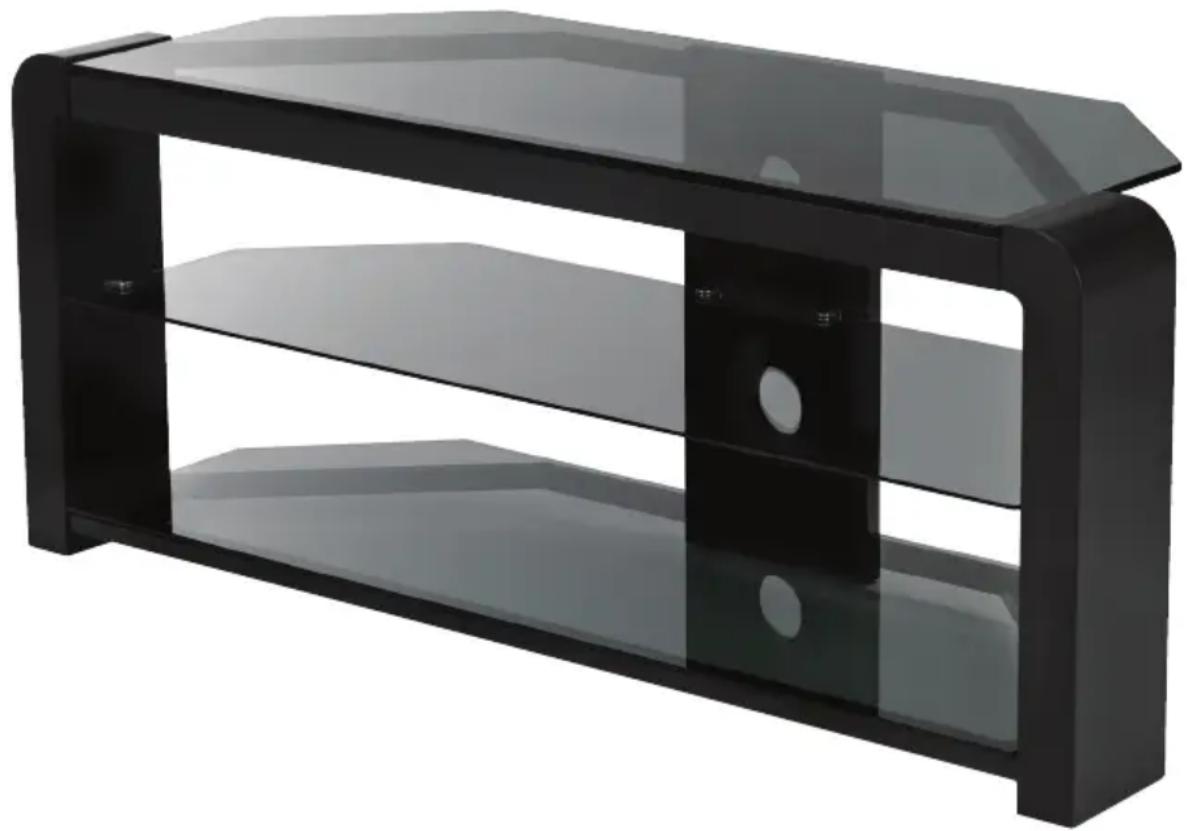

Premium Smoked Glass TV Stand

S110MSG11

Black and white photo of a modern glass-walled TV shelf with two shelves and a top panel (no text or symbols visible)

CUSTOMER HELPLINE (UK Customers Only) 0844 561 1234

MAX 47"

MAX LOAD 50 kg

• Suitable for flat screen TVs with screen sizes up to 47"
• Stand Dimensions: Height 45.4 x Length 110 x Depth 40 cm
• Maximum TV Load: 50 kg
• 3 Shelves
- Cable management

ATTENTION - Please note before assembling your TV stand

• Check that you have all the parts and familiarise yourself with this installation guide.
  • Make sure you have enough space to layout all the parts. Keep children and pets away from the work area, small parts could choke them if swallowed.
• Assemble the TV stand on a soft level surface as close to its final position as possible.

WARNING

• We do not recommend the use of power drills. Only use hand screwdrivers and do not overtighten the components unnecessarily.
- Do not stand or sit on the TV stand, this could cause damage.
• Only use this product when fully assembled.
- Do not place very hot or cold items on any part of the TV stand unless adequately thick table mats are used.
- When cleaning the TV stand use a damp cloth with washing-up liquid or soap. Do not use washing powder or any other substances containing abrasives.
• Do not place TV near to the front of the tv stand.
• Always site the TV stand on firm level ground and ensure that the base is fully in contact with the ground.

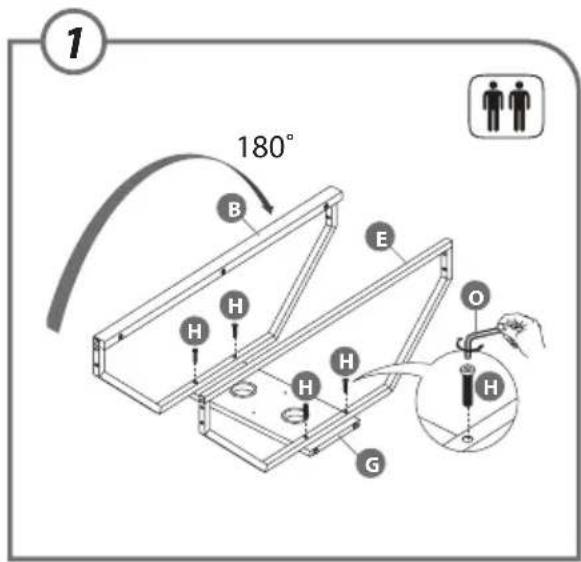

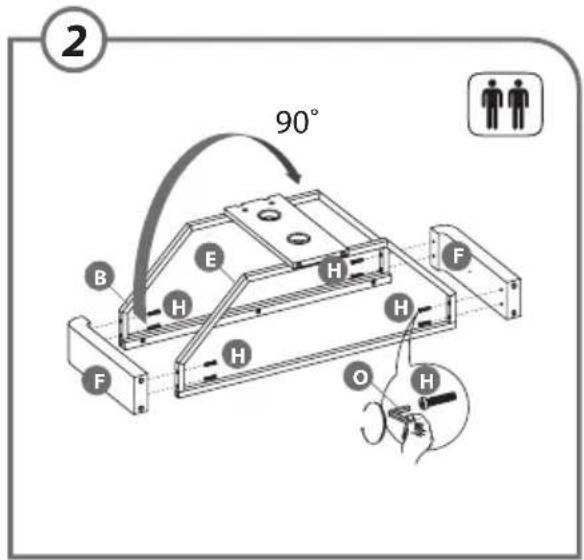

2 people are required to lift the unit during assembly.

Icon of an open box with a rising arrow, symbolizing upload or send (no text or symbols present)

A x 1

B x 1

960 x 366.5 x 40mm 958 x 400 x 8mm

C x 1

990 × 361 × 5mm

D × 1

998 × 369 × 5mm 1000 × 366 × 20mm

E x 1

F x 2

450 x 130 x 70mm

G x 1

442 × 200 × 18mm

H x 12

M8 x 35mm

1×4

25×19×19.5mm

J x4

M8 x 9.5mm

K×4

L x 2

∅7 x 40mmM5 x 14mm

M×2

∅15 x 12mm

N x 8

∅10×2mm

0x1

5mm

Technical line drawing of a mechanical assembly with two hands holding parts, no text or symbols present

Technical line drawing of a two-tiered mechanical housing or enclosure with mounting holes and internal components (no text or symbols)
