003-275 - Loudspeaker Marquant - Free user manual and instructions

Product Type	Portable Bluetooth Speaker
Model	003-275
Brand	Marquant
Manufacturer	Jula AB, Box 363, 532 24 SKARA, Sweden
Dimensions (W x H x D)	260 x 150 x 148 mm
Weight	1.9 kg
Power Output	50 W (25 W RMS)
Battery Capacity	4400 mAh
Battery Life	4 hours
Charging Time	2 hours
Bluetooth Version	4.2
Wireless Range	10 m
Frequency Response	150-16000 Hz
Audio Inputs	3.5 mm AUX, Bluetooth
Controls	Power switch, Volume knob with LED, Play/Pause, Previous track, Next track, Input selector (Bluetooth/AUX)
Charging Port	DC charging outlet (back)
Status Lights	Charging: red on; Fully charged: red off; Pairing: blue fast flash; Connected: blue on; Playback: blue slow flash
Pairing Name	M1
PIN Code (if required)	0000
Safety	Protect from heat, sun, water, sharp edges. Do not insert metal objects. Avoid extremely dry air. Do not expose to flames. Unauthorised modifications void warranty. Do not repair yourself.
Environmental	Do not discard with household waste; recycle electrical/electronic components.
CE Marked Year	2017

Frequently Asked Questions - 003-275 Marquant

How do I pair the speaker with my phone?

Place the speaker within 9 metres of your phone. Turn the power switch ON. The blue light will flash rapidly to indicate pairing mode. On your phone, search for Bluetooth devices and select M1. If asked for a PIN, enter 0000. Once paired, the blue light will stay on.

How long does the battery last and how do I charge it?

The battery lasts approximately 4 hours on a full charge. To charge, connect the adapter cable to the speaker's charging port. The red light turns on during charging and goes off when fully charged. Charging time is about 2 hours.

Can I use the speaker while charging?

Yes, you can use the speaker while it is charging. However, note that the product can become warm during charging, which is normal.

What does the blue light mean?

The blue status light indicates: fast flashing – pairing mode; slow flashing – playback; steady on – connected to a device.

How do I switch between Bluetooth and AUX input?

Use the Selector Bluetooth/AUX input button on the speaker to toggle between the two sources.

Why is there no sound?

Check that the speaker is turned on (power switch ON) and Bluetooth is connected or AUX cable is properly plugged. Ensure volume is turned up on both the speaker and your device. Also check if your device is playing audio.

How do I reset or factory reset the speaker?

The manual does not mention a factory reset. To troubleshoot, turn the speaker off and on again, or delete the 'M1' from your phone's Bluetooth list and pair again.

Can I use the speaker outdoors?

Yes, it is portable but avoid exposure to water, extreme heat, or direct sunlight as it is not waterproof. Protect from moisture and sharp edges.

How do I clean the speaker?

Use a soft, dry cloth to wipe the exterior. Do not use water, solvents, or abrasive cleaners. Avoid poking objects into the grille.

What should I do if the speaker does not charge?

Ensure the charging cable is connected securely. Try a different power outlet. If the red light does not come on, the cable or battery may be faulty. Contact an authorised service centre.

USER MANUAL 003-275 Marquant

Black portable electronic device with mesh grille and two small buttons on top (no visible text or symbols)

SE BLUETOOTH-HÖGTALARE

Bruksanvisning i original

Operating instructions

(Translation of the original instructions)

Important! Read the user instructions carefully before use.

Save them for future reference.

Värna om miljön!

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

Jula reserves the right to make changes. In the event of problems, please contact our service department.

www.jula.com

Tillverkare/ Produsent/ Producenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Distributör/ Distributør/ Dystrybutor/ Distributor

Jula Poland Sp. z o.o., ul.

This product was CE marked in year -17

Skara 2017-08-30

MATTIAS LIF BUSINESS AREA MANAGER

1


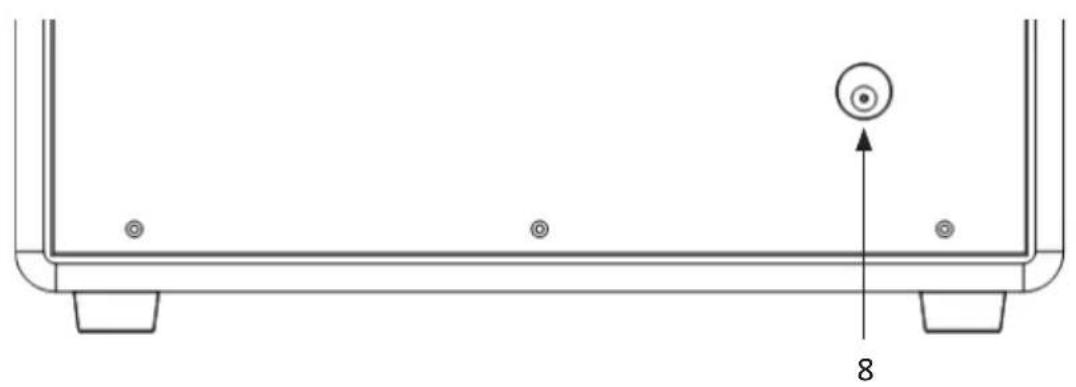

Technical line drawing of a mechanical component with mounting feet and a circular feature, labeled with dimension 8 (no text or symbols beyond basic geometry)

SÄKERHETSANVISNINGAR

• Protect the speaker and power cord from heat, sunlight, water and sharp edges.
• Never poke any metal objects into the speaker – risk of short circuiting.
• Do not use the speaker in extremely dry air – risk of static electricity.
• Do not expose the product to strong heat or naked flames.
• The product can become warm when charging.
• Do not modify the product – the manufacturer cannot accept liability for any damage caused by unauthorised modifications.
• The product and aerials must not be placed or used together with other aerials or transmitters.
• Do not attempt to repair the speaker. Any repairs must be carried out by an authorised service centre or other qualified personnel.

TECHNICAL DATA

Connection 3.5 mm, Bluetooth (v 4.2)

Output 50 W (25 W RMS)

Range 10 m

Frequency range 150-16000 Hz

Battery capacity 4400 mAh

Battery life 4 h

Charging time 2 h

Dimensions W260xH150xD148 mm

Weight 1.9 kg

DESCRIPTION

1. Selector Bluetooth/AUX input
2. Volume knob with LED indicator
3. Play/Pause
4. Power switch
5. Previous track
6. Next track
7. AUX input
8. Charging outlet (back)

FIG. 1

USE

Fully charge the product before using for the first time.

1. Connect the adapter cable to the speaker's charging port.

— The red status light comes on to show that the product is charging.
— The red status light goes off when product is fully charged.

PAIRING

1. Place the speaker within 9 metres of the Bluetooth device.
2. Put the switch in the ON position.

EN

- The blue status light flashes slowly 3 times and then flashes rapidly to indicate pairing mode.

1. Follow the instructions on the Bluetooth device to search for the speaker.

- The speaker designation during pairing is M1. If asked for a PIN code, enter 0000.

- The blue status light flashes when pairing is complete.

START

1. Set the switch in the ON position to start the speaker.

- An audio prompt is given and the blue status light flashes slowly.

- The blue status light goes on during playback.

STATUS LIGHTS

Charging Red light on

Fully charged Red light off

Pairing mode Blue light flashes quickly

Connected Blue light on

Playback Blue light flashes slowly
