USER MANUAL DS35520 SANYO

Welcome to the World of Sanyo

Thank you for purchasing a Sanyo Color Television. You made an excellent choice for Performance, Styling, Reliability, and Value. The TV is designed with easy on-screen set-up instructions and operating features. To meet the growing needs of our customers, this television has a “V-Chip” for parental controlled viewing. “Read this manual before assembling (or using) this product.” Need assistance? Visit our Web site at www.sanyoctv.com or call toll free 1-800-877-5032.

CONTENTS

Important Safety Tips 2

Features 3

Specifications 3

Basic Setup 3

Basic Hookup Methods 4

Rear Panel 5

Using the Backlit-Multimedia

Remote Control 5 \~ 9

TV Adjustment and Setup 10 \~ 13

Resetting the TV 13

Using Audio Out Jacks 13

Using Audio/Video In Jacks 14

Using Component Video and Audio (AV2) In Jacks ....

Setting the Sleep Timer 15

V-Guide Information 16

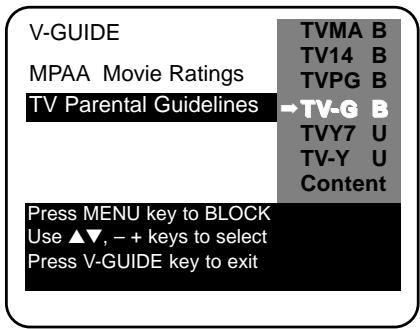

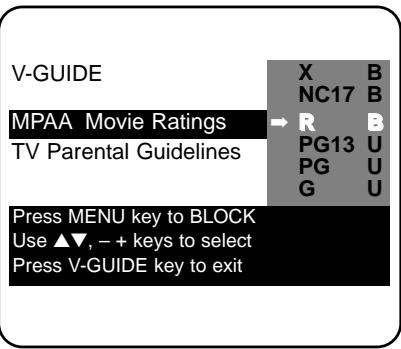

V-Guide Operation (Parental Control) ..... 16 \~ 17

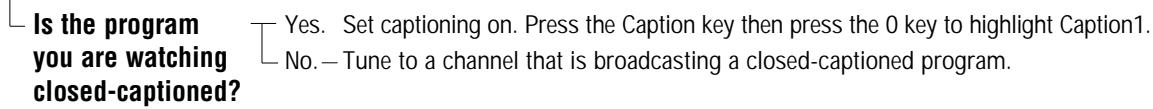

Closed-Captioning 18

Troubleshooting 19 \~ 21

Care and Cleaning 21

Warranty (Mexico) 22

Warranty (U.S.A. and Canada) 23

Child Safety Matters .... Back cover

FRANÇAIS 24 \~ 44

Black-and-white photo of a female athlete jumping over a hurdle on a TV (no visible text or symbols)

TV screen image / Image de télévision / Imagen de la Pantalla del Televisor © 2003 PhotoDisc, Inc.

energy

"As an ENERGY STAR® Partner, Sanyo Manufacturing Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency."

Importado Por :

Col. Santa Cruz Acayucan

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THIS UNIT.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE ADHERE TO ALL WARNINGS ON THE PRODUCT AND IN THE OPERATING INSTRUCTIONS. BEFORE OPERATING THE PRODUCT, PLEASE READ ALL OF THE SAFETY AND OPERATING INSTRUCTIONS. RETAIN THIS LITERATURE FOR REFERENCE. Follow all instructions...

Positioning the appliance

1. Do not place your appliance on an unstable cart, stand, shelf or table. Serious injury to an individual, and damage to the appliance, may result if it should fall. Your salesperson can recommend approved carts and

stands or shelf and wall mounting instructions. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

1. Slots and openings in the cabinet and in the back or bottom are provided for ventilation. To ensure reliable operation of the appliance and to protect it from overheating, these openings must not be blocked or covered. The openings should never be covered with a cloth or other material, and the bottom openings should not be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This appliance should never be placed near or over a radiator or heat register. This appliance should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.
2. Do not expose the appliance to rain or use near water . . . for example, near a bathtub, swimming pool, kitchen sink, in a wet basement, etc.

Hooking Up Outdoor Antenna

LIGHTNING PROTECTION FOR YOUR ANTENNA AND SET AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS.

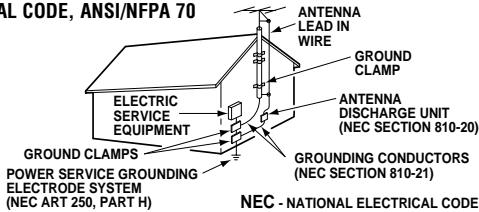

EXAMPLE OF ANTENNA GROUNDING ACCORDING TO NATIONAL ELECTRICAL CODE, ANSI/NFPA 70 ANTENNA

AL CODE, ANSI/NFPA 70 ELECTRIC SERVICE EQUIPMENT GROUNDS CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) ANTENNA LEAD IN WIRE GROUND CLAMP ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUNDING CONDUCTORS (NEC SECTION 810-21) NEC - NATIONAL ELECTRICAL CODE

"Note to CATV system installer:
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical."

1. If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

Plug in the power cord

1. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. This product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of this polarized plug. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
2. Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

Cleaning

1. Before cleaning, unplug the unit from the wall outlet. Do not apply liquid cleaners or aerosol cleaners directly to the unit. Use a dry cloth for cleaning.

Service & Repair

1. Unplug the appliance from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. If the power cord or plug is damaged or frayed.
B. If liquid has been spilled into the appliance.
C. If the appliance has been exposed to rain or water.
D. If the appliance has been dropped or the cabinet has been damaged.
E. If the appliance exhibits a distinct change in performance.
F. If the appliance does not operate normally by following the operating instructions, adjust only those controls that are covered in the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the appliance to normal operation.

1. Upon completion of any service or repair, request the service technician's assurance that only Factory Authorized Replacement Parts that have the same characteristics as the original parts were used, and that routine safety checks have been performed to determine that the appliance is in safe operating condition. Unauthorized substitutions may result in fire, electrical shock, or other hazards.

2. Never add accessories that have not been specifically designed for use with this appliance as they may cause hazards.

3. For added protection during a lightning storm, or when the set is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the set due to lightning or power line surges.
4. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

FEATURES

◆ Trilingual On-Screen Menu

◆ Automatic Channel Search

◆ Auto Shut Off

◆ Closed-Captioning/QuikCap

◆ 3-Line Digital Comb Filter

◆ Velocity Modulator

◆ Digital picture controls with on-screen display

◆MTS stereo/dbx®/SAP Decoder

◆ Color Enhancer

◆ Auto Flesh Tone

◆ XDS (Extended data service) station call letters, title of show, ratings

◆ Factory preset adjustments for picture/sound

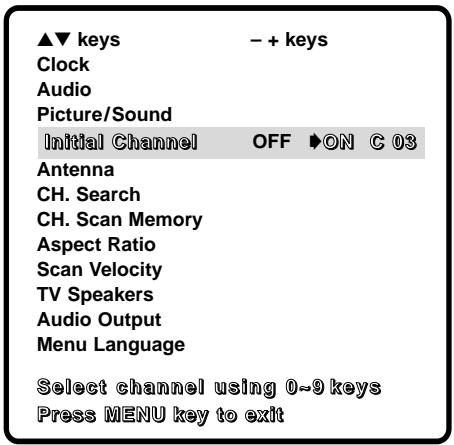

◆ Initial Channel

◆ Bass/Treble

◆ Audio/Video Input Jacks (2 sets)

◆ S-Video Input Jack

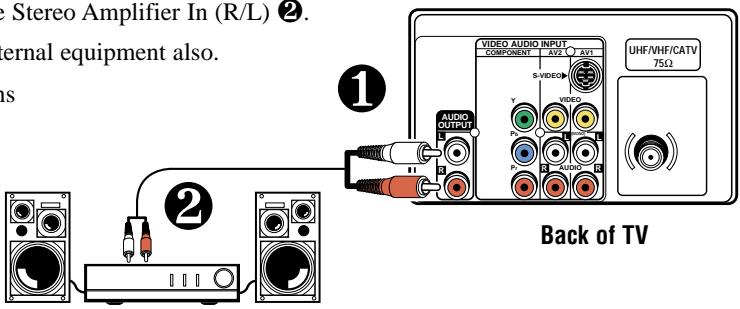

◆ Audio Output Jacks

◆ Component Video Input Jacks

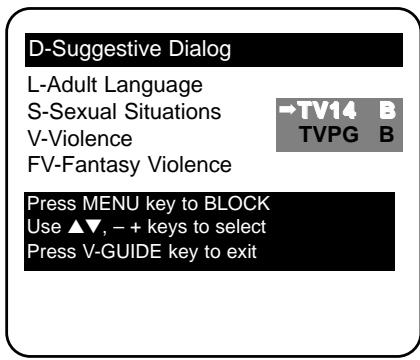

◆ V-Guide (Parental Control)

◆ Aspect Ratio
◆ Auto Clock
◆ Sleep Timer (3 hours)
◆ TV Reset

181 Channel Tuning System

VHF Channels 2-13

UHF Channels 14-69

Cable TV (CATV) 1, 14-125

Automatic Fine Tuning

VHF and Cable Channels

Backlit Multimedia Remote Control

VCR/TV/CABLE/DVD/SAT/AUX, Large Glow-in-the-Dark basic operating keys

Numbered Channel

Selection

Channel Scanning

Volume Mute

Power Enter

Recall Display

Sleep Caption

Reset Menu

V-Guide Input

VCR/DVD keys

dbx® is a registered trademark of Carillon Electronics Corporation

SPECIFICATIONS

PICTURE TUBE SIZE

(Measured Diagonally) ..... 35-inch screen

PICTURE RESOLUTION 330 Lines

Video Input 700 Lines

Component Video Input .... 800 Lines

ANTENNA INPUT UHF/VHF/CATV 75Ω

POWER REQUIREMENT ..... 120VAC 60Hz

POWER 105.8 watts

HORIZONTAL DIM. (Width) 33.4 in. (848mm)

VERTICAL DIM. (Height) ..... 29.6 in. (751mm)

DEPTH DIM. (Thickness) ..... 24.3 in. (618mm)

WEIGHT (Approx.) 146.3 lbs. (66.4 Kg.)

SOUND 2 Speakers, Size 6x12 cm

AMPLIFIER .... Built-in with 3.0W

A/V INPUT JACKS ...... Video Input and Audio Input (2 sets-R/L), S-Video Input

COMPONENT A/V INPUT JACKS ..... Digital Input (Y-Pb-Pr)

AUDIO OUTPUT JACKS ..... Audio Output (R/L-Fixed and Variable) (RCA Connectors)

CAUTION: FCC Regulations state that improper modifications or unauthorized changes to this unit may void the user's authority to operate the unit.

BASIC SETUP

UHF/VHF/CATV 75 Ω ②

(See Hookup on page 4.)

First

Please connect cable system or an antenna to the terminal on the back

Then press the MENU key

SANYO

SMT5

Diagram showing electrical connection with a hand holding a switch and a plug inserted into an outlet, labeled with number 3.

3

4

Illustration of a hand pointing at a grid of squares on a dotted background (no text or symbols)

(Switch on Power.)

Quick Tips

■ Do not position the TV in a confined area. Allow normal air circulation for electronic parts.

■ Position your TV at least 2 feet from stereo speakers. The magnets in the speakers may affect the picture quality.

■ The TV will automatically select the correct Antenna mode for the type of signal you connect.

Need help?

Visit our Web site at

www.sanyoctv.com

or Call 1-800-877-5032

(Install batteries, see page 5.)

Quick Tips

■ The TV will automatically select the correct Antenna mode for the type of signal you connect.
■ TV will switch off automatically after 15 minutes if there is no signal reception (cable out or station not broadcasting).

Exception—When the Video mode is selected, the TV will not automatically switch off when signal reception has stopped for 15 minutes.

Need help?

Visit our Web site at

www.sanyoctv.com

or Call 1-800-877-5032

CATV FRANCHISE NOTE: Cable companies, like public utilities, are franchised by local government authorities. To receive cable programs, even with equipment which is capable of receiving cable channels, the consumer must subscribe to the cable company's service.

BASIC HOOKUP METHODS

Use one of these methods to connect a signal to your TV. Select 1a—if you have cable service and a VCR, 1b—if you have a cable box and a VCR, 1c—if you have an outdoor or indoor antenna and a VCR, or 1d—if you have a satellite dish and a VCR. Connect your cable or antenna directly to the TV if you don’t have any optional accessories.

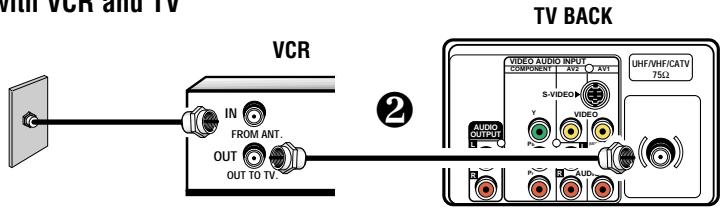

1a Cable with VCR and TV

VCR IN FROM ANT. OUT OUT TO TV. ② TV BACK VIDEO AUDIO INPUT COMPONENT AV2 AV1 S-VIDEO VIDEO AUDIO OUTPUT UHF/WHF/CATV 75Ω

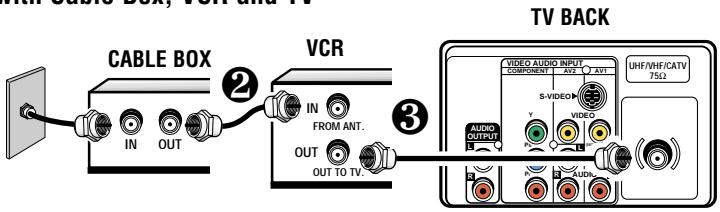

1b Cable with Cable Box, VCR and TV

CABLE BOX VCR IN FROM ANT. OUT OUT TO TV. ② ③ TV BACK VIDEO AUDIO INPUT COMPONENT AV2 AV1 UHF/NHF/CATV 75Ω S-VIDEO VIDEO AUDIO OUTPUT Audi

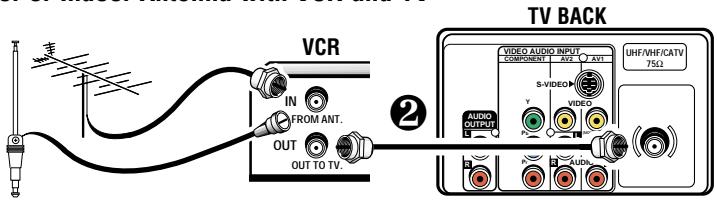

1c Outdoor or Indoor Antenna with VCR and TV

VCR IN FROM ANT. OUT OUT TO TV. ② TV BACK VIDEO AUDIO INPUT COMPONENT AV2 AV1 S-VIDEO VIDEO AUDIO OUTPUT UHF/MF/CATV 75Ω

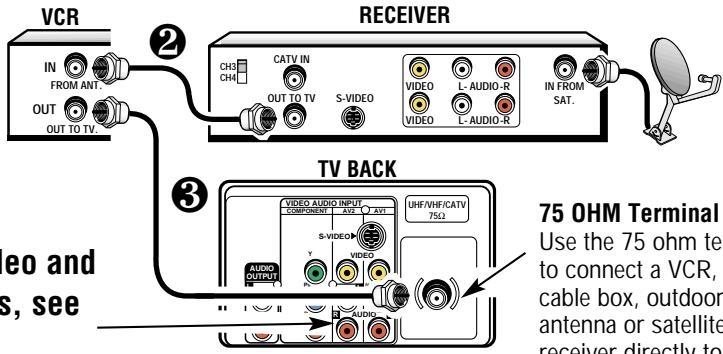

1d Satellite Dish with Receiver, VCR and TV

VCR IN FROM ANT. OUT OUT TO TV. ② RECEIVER CH3 CH4 CATV IN OUT TO TV S-VIDEO VIDEO L-AUDIO-R VIDEO L-AUDIO-R IN FROM SAT. ③ TV BACK VIDEO AUDIO INPUT COMPONENT AV2 AV1 UHF/VHF/CATV 75Ω S-VIDEO Y VIDEO AUDIO Audio 75 OHM Terminal Use the 75 ohm te to connect a VCR, cable box, outdoor antenna or satellite receiver directly to eo and s, see

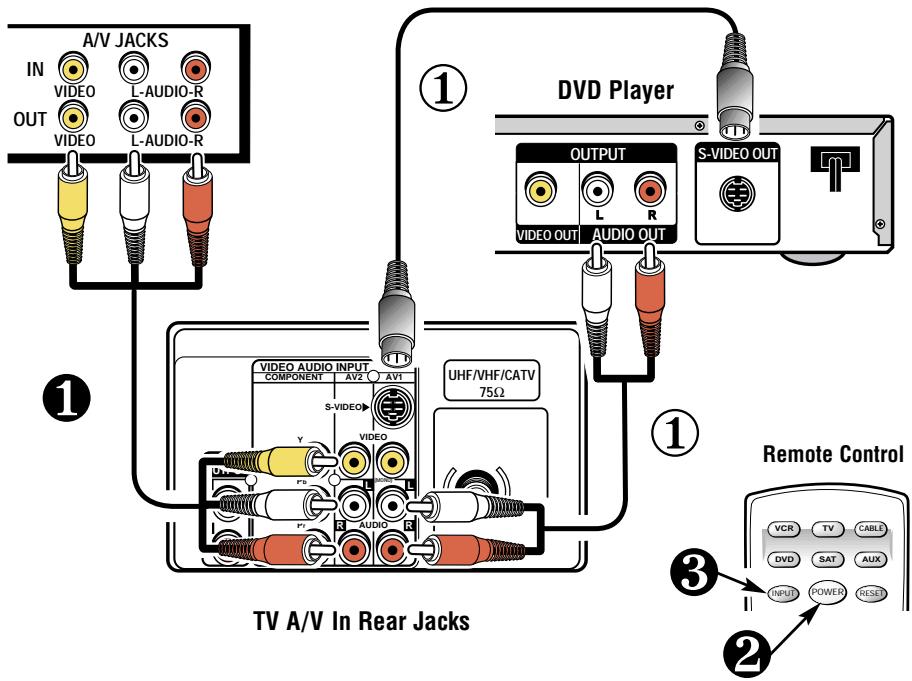

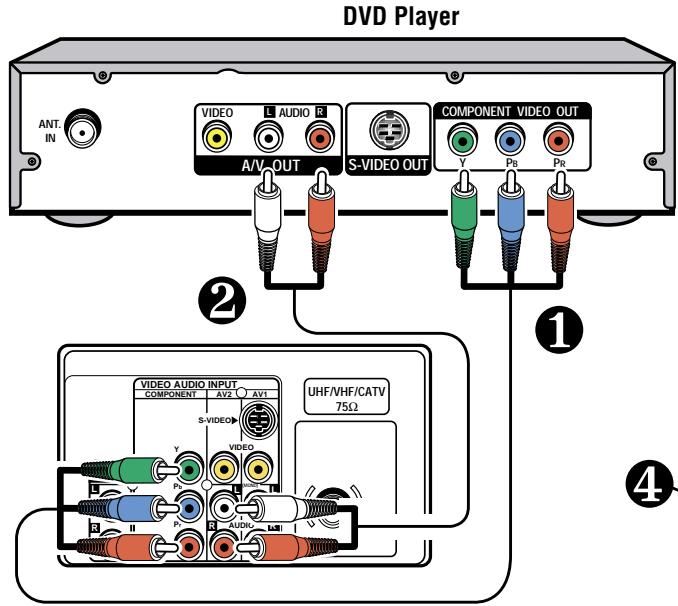

Using the Audio/Video and Components In jacks, see pages 14\~15.

75 OHM Terminal

Use the 75 ohm terminal to connect a VCR, cable, cable box, outdoor/indoor antenna or satellite receiver directly to the TV.

REAR PANEL

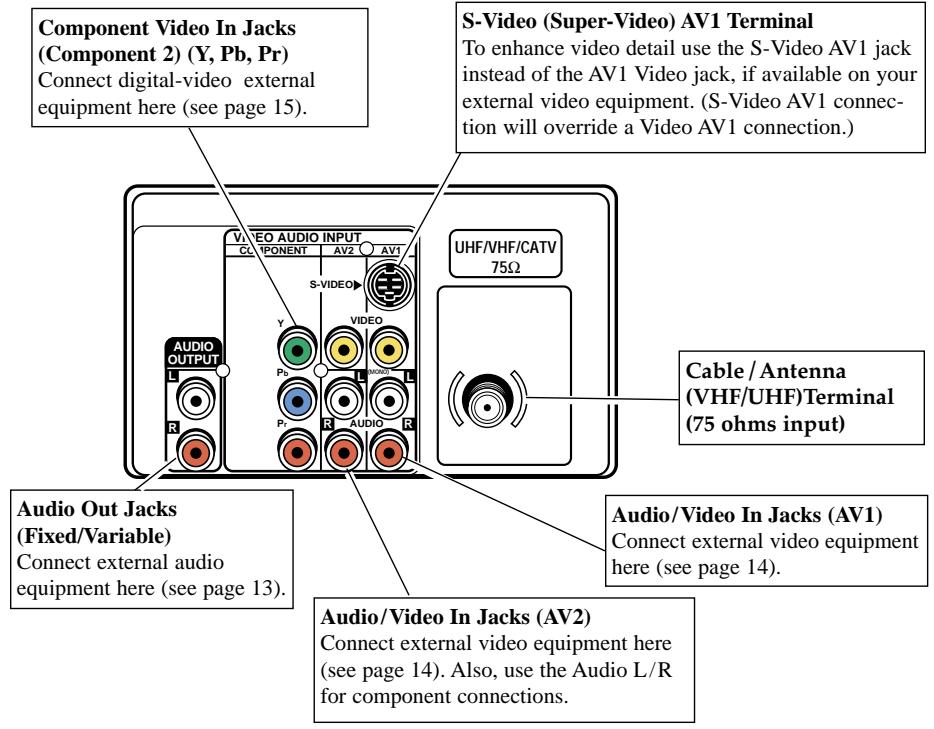

Component Video In Jacks (Component 2) (Y, Pb, Pr) Connect digital-video external equipment here (see page 15). S-Video (Super-Video) AV1 Terminal To enhance video detail use the S-Video AV1 jack instead of the AV1 Video jack, if available on your external video equipment. (S-Video AV1 connec- tion will override a Video AV1 connection.) Audio Out Jacks (Fixed/Variable) Connect external audio equipment here (see page 13). Audio/Video In Jacks (AV1) Connect external video equipment here (see page 14). UHF/VHF/CATV 75Ω Cable / Antenna (VHF/UHF)Terminal (75 ohms input) Audio/Video In Jacks (AV2) Connect external video equipment here (see page 14). Also, use the Audio L/R for component connections.

USING THE MULTIMEDIA REMOTE CONTROL

Operates your TV, VCR, Cable Converter Box, DVD, and Satellite Receiver. Simply program it according to the directions on pages 7\~9.

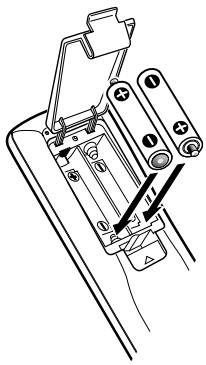

INSTALLING BATTERIES (2 AA not included)

1. Remove the battery cover by pressing the tab and tilting the cover upward. Insert batteries. Make sure you match
   signs on the batteries with marks inside the remote

1. Replace battery cover. The remote control is ready!

Notes:

- Do not mix old batteries with new ones or mix different types of batteries together.

- Remove the batteries if the remote control will not be used for a month or more. Weak batteries may leak and cause damage.

Technical diagram of a mechanical assembly with labeled parts and directional arrows indicating motion or movement.

IMPORTANT NOTE: Spent or discharged batteries must be recycled or disposed of properly in compliance with all applicable laws. For detailed information, contact your local County Solid Waste Authority.

Quick Tips

■ Make sure all cable connectors are fully seated on jacks. See pages 13 \~ 15 before connecting external audio/video equipment.

■ Cables are not supplied for connecting your external equipment.

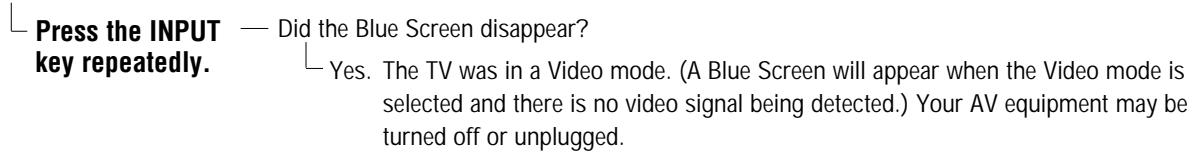

■ A solid Blue screen with the word Video1, Video2, or Component 2 displayed means that a Video mode is selected, but no signal is being detected at the Video jacks. Check connections, and turn on external equipment.

■ Be sure batteries are installed correctly.

■ Point the remote control toward the equipment you want to operate. Objects between the remote control and the equipment may cause misoperation of the remote control function.

Need help?

Visit our Web site at

www.sanyoctv.com

or Call 1-800-877-5032

MULTIMEDIA REMOTE CONTROL KEYS


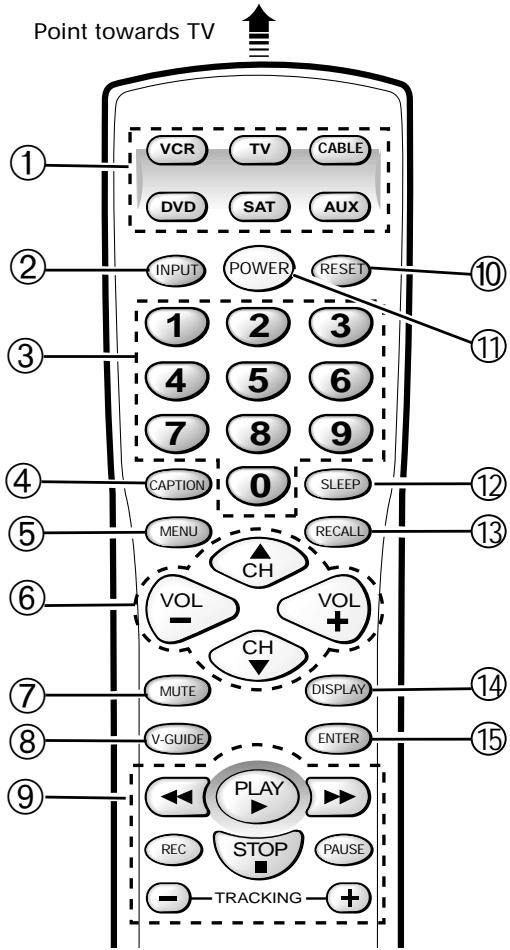

① Mode Keys—Use these keys to program the remote control and to select the operating mode (VCR, TV, CABLE, DVD, SAT, or AUX). To Operate Your... VCR—Press the VCR key; Television—Press the TV key; Cable Box—Press the CABLE key; DVD Player—Press the DVD key; and Satellite Receiver—Press the SAT key.

Note: Make sure you hold down the mode key while entering a code number, see page 7.

② Input Key—In the TV and Satellite modes, this key selects the program source to display on the screen (TV signal or signal from equipment connected to the AV jacks). In the VCR mode, this key functions as a VCR’s TV/VCR key.

③ Number Keys—Two keys must be pressed to select a channel. Example: Press 0 then 6 to select channel 6. For cable channels 100 through 125, press and hold the 1 key until C1-- appears. Then press the other two numbers.

④ Caption Key—See page 18.

⑤ Menu Key—Use this key with the VOL / VOL and CH / CH keys to navigate and adjust features of the on-screen menu system (see pages 10 \~ 13). Use it to display the Satellite Guide in the Satellite mode.

⑥ Channel (CH) Scanning ( CH/CH ) and Volume ( Vol/Vol ) Keys—Press to scan through the channels in memory and to adjust the volume.

⑦Mute Key—Press once to turn off the volume. Press again to restore. Note: When using the audio out jacks this key will not mute the sound in the fixed mode, but will mute the sound in the variable mode.

⑧ V-Guide Key—See pages 16 \~ 17.

⑨ VCR/DVD Keys—These keys control VCR and/or DVD functions for Fast Forward (◀◀), Rewind (▶▶), Play (▶), Record (Rec), Stop (■), Tracking (−/+), and Pause.

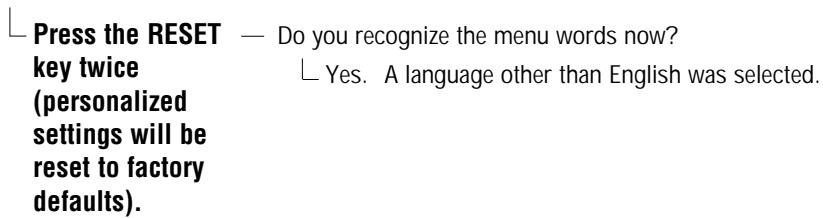

⑩ Reset Key—Press this key twice to restore factory settings. The TV will automatically start Channel Search and clear all customized settings. (See page 13.)

⑪Power Key—Press to turn TV on or off.

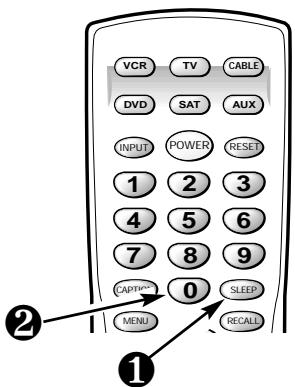

⑫ Sleep Key—Use this key with the “0” key to set the Sleep Timer (see page 15).

⑬ Recall Key—Select a channel then select another channel using the number keys. Press Recall to switch between the channels.

⑭ Display Key—Press once to display the channel number and time. Press twice to display the channel number continuously. Press again to remove the display.

⑮ Enter Key—Use this key to activate menu selections on your DVD Player, Cable Box, Satellite Receiver, or VCR.

PROGRAMMING THE REMOTE CONTROL

① Find your VCR, Cable Box, DVD Player, and Satellite Receiver brand codes in the charts at the right and on page 8.
② Press and hold the VCR, CABLE, DVD, SAT (Satellite Receiver), or AUX (Auxiliary) mode key while entering a three-digit code number. Then release the mode key.

If the code was accepted, the mode key will flash 5 times after it is released. If you entered an invalid code, the mode key will not flash. Check the code number and repeat Step 2.

The VCR, Cable Box, DVD, and Satellite modes will accept only each mode's specific code type.

The AUX mode will accept all code types, but only one code at a time.

Perform Steps 1 and 2 for each piece of equipment you have. After entering each code number check the unit's operation by pressing the POWER and/or CHANNEL keys. If these keys operate your equipment, you have probably entered the correct code number for that device. If not, follow Step 2 and enter another code, if available.

After you have programmed the remote control and confirmed its operation, enter your codes in the spaces provided below for easy reference.

VCR Code:
Cable BoxCode:
DVD PlayerCode:
Satellite Code:
AUX ____LIST DEVICE HERE

DVD CODES

BRAND NAME	CODES	BRAND NAME	CODES
Akai	529	Oritron	522
Apex	525, 527,	Panasonic	501, 518
	528, 523	Philips	508, 502
Daewoo	529	Pioneer	511, 505, 518
Denon	501, 520	Proscan	504
Emerson	521, 524, 527	RCA	504
Fisher	500	Samsung	512
GE	504	Sanyo	500, 526
Harman/Kardon	513	Sharp	531, 517
Hitachi	530	Sherwood	519
JVC	515, 510	Sony	506
Kenwood	507	Sylvania	524
Magnavox	508, 502	Symphonic	524
Marantz	508	Technics	501
Mitsubishi	503	Theta Digital	511
Onkyo	516, 502	Toshiba	502, 526
Optimus	511	Yamaha	501, 509
Orion	526	Zenith	521, 514, 502

SATELLITE RECEIVER CODES

BRAND NAME	CODES	BRAND NAME	CODES
AlphaStar	431	Next Level	415
Echostar	432, 410, 416	Optimus	430
ExpressVU	432	Panasonic	428, 400
Fujitsu	404	Philips	429, 430
GE	426, 436, 437, 423	Primestar	425, 427
		Proscan	426, 436, 437, 423
General		Radio Shack	415
Instruments	425, 427, 415, 435, 405	RCA	426, 436, 437, 423
		Sony	420
Hitachi	407, 421	Star Choice	415, 435
HTS	432	Toshiba	422, 405
Hughes	407	Uniden	429, 430, 406, 409, 412
Janeil	404
Jerrold	425, 427	Video Pall	404
JVC	432	Viewstar	418
Magnavox	429, 430	Zenith	434, 404
Memorex	430

BRAND NAME	CODES	BRAND NAME	CODES	BRAND NAME	CODES	BRAND NAME	CODES
Admiral	234, 239, 243, 247,224, 229, 222, 215	Goldstar	223, 238, 248, 226,206, 208, 215, 217	Multitech	228, 217NEC	Samtron	208, 248Sansui
Adventura	228	Go Video	248, 249, 208, 212,213, 219		201, 203, 206, 209,215, 217, 248	Sanky	243, 226, 228, 235,209, 219, 220, 225
Aiko	240, 205						239, 229, 224
Aiwa	228, 217	Gradiente	228	Olympus	232	Sanyo	200, 201, 202, 203
Akai	209, 215	Garrard	228	Optimus	239, 245, 248, 223, 224,229, 201, 203, 208	Scott	234, 247, 223, 227, 211
America Action	205, 240	Harley Davidson	228			Sears	232, 223, 228, 230, 221,200, 201, 202, 203, 206,211, 216, 217
America High	232	Headquarter	200	Orion	243, 227, 234, 240,205, 206, 210, 211
Bell & Howell	203, 201	Hitachi	228, 230, 246, 226,221, 222, 209, 217	Panasonic	245, 232, 235, 236, 223,202, 211, 216, 219	Semp	211Shintom
Broksonic	234, 243, 247, 227, 204						219, 227, 235
Candle	233, 240, 248, 222,223, 204, 205, 208,211, 216, 217	Hughes	221, 230			Sharp	239, 229, 224
		JBL	237	Penny	230, 232, 235, 248, 221,223, 208, 211, 216, 219	Signature	228, 217, 239, 229,224, 200
Canon	232, 216	JVC	220, 225, 238, 226,201, 203, 209, 221, 230	Pentax	238, 221, 230	Sony	214, 218, 232, 237,226, 228
CCE	240, 205			Philco	204, 232, 243, 228,216, 217
Cineral	240, 205	KEC	240, 205
Citizen	233, 240, 222, 205,211, 216, 217	Kenwood	220, 225, 226, 238,201, 203, 209	Philips	204, 232, 228, 211,216, 217	STS	221, 230
Craig	223, 235, 202, 219	Kodak	232	Pioneer	242, 204, 207, 220, 225	Sylvania	228, 232, 244, 204,216, 217
Craver	204	Lloyd's	228	Proscan	222, 241, 246, 230,236, 221, 226	Symphonic	228, 217, 233, 226, 202
Curtis Mathes	232, 236, 238, 248,222, 228, 208, 209,211, 216, 217	Logik	235, 219			Yamaha	238, 226
		LXI	232, 221, 228, 230, 201,202, 203, 206, 211, 217	Proton	219, 235,	Tatung	226, 209
Daewoo	205, 240, 211	Magnasonic	223, 235, 240, 205, 219		208, 216, 217	Teac	228, 209, 214, 217
Daytron	240, 205	Magnavox	204, 232, 235, 228, 211,216, 217, 219, 220, 225	Quarter	200	Technics	232
Denon	221, 230			Quartz	200	Teknika	232, 223, 228, 216, 217
Dynatech	228	Marta	206	Quasar	245, 232, 236, 223, 216	Toshiba	211, 240, 244, 202,205, 210
Emerex	214	Matsushita	232, 216	Radio Shack	228, 245, 223	Tomas	228, 217
Emerson	228, 243, 234, 236,240, 247, 223, 227,201, 203, 204, 205,206, 210, 211, 217	MEI	232	RCA	222, 241, 246, 248, 230,232, 236, 239, 224, 226,229, 221, 201, 203,207, 208, 210, 216	Vector	211Video Concept
		Memorex	227, 232, 239, 243, 245,223, 224, 228, 229,230, 221, 200, 201,202, 203, 206, 215	Realistic	232, 239, 240, 248,223, 224, 228, 229	Wards	230, 232, 239, 248,223, 224, 228, 229,221, 202, 204, 208,211, 217
Fisher	200, 201, 202, 203, 211
Fuji	232	Minolta	221, 230		200, 201, 202, 203,206, 208, 216, 217	White
Funai	228, 233, 217	Mitsubishi	231, 239, 244, 224,226, 229, 210, 223			Westinghouse	240, 243, 205
GE	222, 246, 248, 232, 236,239, 226, 229, 224,208, 212, 213, 216	Motorola	232, 239, 229, 224MTC	Samsung	248, 208, 233, 211,217, 222	XR-1000	228, 232Zenith

CABLE BOX CODES

BRAND NAME	CODES	BRAND NAME	CODES	BRAND NAME	CODES	BRAND NAME	CODES
ABC	312, 304, 306, 308,309,311, 313, 314, 318, 319,321, 322, 323, 324,327, 329	Hamlin	330, 320	Philips	325, 329, 301, 308,309, 311, 313, 314,319, 322, 323	Stargate	309, 310, 311, 321,322, 334
		Hitachi	309, 308, 311, 319,322, 323
		Hytex	318	Pioneer	312, 327, 335, 333,317, 324	Teleview	310
AIM	321	Jerrold	300, 303, 308, 309,311, 313, 314, 319,320, 321, 322, 323, 329	Proscan	327	Tocom	300, 303, 305, 304,306, 307
Archer	334			Quasar	331, 302, 307, 317	Toshiba	331, 309, 308, 311,316, 319, 322, 323
Bell & Howell	313, 314, 329			RCA	328, 302, 307	Unika	314, 313, 329
Contec	305, 302, 307, 308,309,311, 318, 319, 320,322, 323, 324, 327	Magnavox	325, 329, 301, 308,309, 311, 313, 314,319, 322, 323	Regal	330, 307, 320	United Artists	318
CPI	319, 308, 309, 311,322, 323	Memorex	331, 332, 313, 314, 329	Rembrandt	305, 309, 308, 311,319, 322, 323	United Cable	309, 308, 311, 319,322, 323
		Motorola	338, 303, 300, 308,309, 311, 319, 320,321, 322, 323	Radio Shack	334	U.S. Electronics	309, 308, 311, 319,322, 323, 324, 327
Diamond	320			Samsung	312, 310
Eagle	313, 314, 329			Scientific Atlanta	335, 327, 307, 324	Viewstar	326, 313, 315, 314, 329
Emerson	334	Movie Time	306, 310, 314, 313, 329	Signal	310	Wards	321, 322, 308, 309,311, 319, 323
Gemini	334	Northcoast	316	Signature	300, 309, 308, 311,319, 321, 322, 323	Warner	312
General Instruments	303, 300, 308, 309, 311,319, 320,321, 322, 323	NSC	305, 306, 314, 313, 329	Sprucer	302, 307, 316	Zenith	331, 336, 337, 308, 309,311, 316, 319, 322, 323,324, 327
		Oak	305, 318, 320	Starcom	332, 309, 308, 311,319, 321, 322, 323
Goldstar	312	Paragon	331, 313, 314, 329
Goodmind	334	Panasonic	331, 324, 302, 307,317, 327

MULTIMEDIA REMOTE CONTROL KEYS FUNCTIONS CHART

REMOTE KEYS	TV MODE	VCR MODE	CABLE MODE	DVD MODE	SATELLITE MODE
POWER	Turns Unit On/Off	Turns Unit On/Off	Turns Unit On/Off	Turns Unit On/Off	Turns Unit On/Off
NUMBER KEYS (0 ~ 9)	Used to Select Channels	Used to Select Channels	Used to Select Channels	No Function	Used to Select Channels
INPUT	Selects TV/Video mode	Selects TV/VCR mode	No Function	No Function	Selects TV/DSS mode
RECALL	Selects Previous Channel	Selects Previous Channel	Selects Previous Channel	Select Repeat Function	Selects Previous Channel
MENU	Displays Setup Menu	Displays Setup Menu	Displays Setup Menu	Displays Setup Menu	Displays Setup Menu
CHANNEL ▲ (UP)	Channel/Cursor* Up	Channel/Cursor* Up	Channel/Cursor* Up	Next/Cursor* Up	Channel/Cursor* Up
CHANNEL ▼ (DOWN)	Channel/Cursor* Down	Channel/Cursor* Down	Channel/Cursor* Down	Previous/Cursor* Down	Channel/Cursor* Down
VOLUME - (DOWN)	Audio Down/Cursor* Left	Audio Down/Cursor* Left	Audio Down/Cursor* Left	Audio Down/Cursor* Left	Audio Down/Cursor* Left
VOLUME + (UP)	Audio Up/Cursor* Right	Audio Up/Cursor* Right	Audio Up/Cursor* Right	Audio Up/Cursor* Right	Audio Up/Cursor* Right
MUTE	Switches TV sound Off/On	Switches TV sound Off/On	Switches TV sound Off/On	Switches TV sound Off/On	Switches TV sound Off/On
DISPLAY	Shows/Clears display	No Function	No Function	Zoom Function	No Function
RESET	Operates TV ONLY	No Function	No Function	No Function	No Function
CAPTION	Operates TV ONLY	No Function	No Function	Accesses Audio Options	No Function
SLEEP	Operates TV ONLY	No Function	No Function	No Function	No Function
V-GUIDE	Operates TV ONLY	No Function	No Function	No Function	No Function
ENTER	Makes Selection	Makes Selection	Makes Selection	Makes Selection	Makes Selection
PLAY (▶)	Selects VCR/DVD Play Mode	Selects VCR Play	Selects VCR/DVD Play	Selects DVD Play	Selects VCR/DVD Play
FAST FORWARD (▶▶)	Operates VCR/DVD	Operates VCR	Operates VCR/DVD	Operates DVD	Operates VCR/DVD
REWIND (◀◀)	Operates VCR/DVD	Operates VCR	Operates VCR/DVD	Operates DVD	Operates VCR/DVD
STOP (■)	Selects VCR/DVD Stop	Selects VCR Stop	Selects VCR/DVD Stop	Selects DVD Stop	Selects VCR/DVD Stop
PAUSE	Selects VCR/DVD Pause	Selects VCR Pause	Selects VCR/DVD Pause	Selects DVD Pause	Selects VCR/DVD Pause
RECORD (REC)	No Function	Selects VCR Record	No Function	No Function	No Function
TRACKING - / +	Adjusts VCR Head Tacking	Adjusts VCR Head Tacking	Adjusts VCR Head Tacking	Still Frame Step Fwd/Rev	Adjusts VCR Head Tacking
MODE KEYS	Press these keys (VCR/TV/CABLE/DVD/SAT/AUX) when programming the remote control and to choose an operating mode.

Notes:
- Many of the keys on this remote control are multifunctional. Please refer to the chart for a generic description of the keys and their functions. Refer to your original operating manuals for specific feature operation.
- This remote control cannot add keys or features to your equipment. Your equipment's manufacturer must have originally provided them.
- The CHANNEL (▲/▼) and VOLUME (-/+) keys become CURSOR keys when the MENU key is pressed. This operating state remains active for 10 seconds after pressing the MENU key or either of the CHANNEL or VOLUME keys. After 10 seconds, these keys will revert to normal channel and volume operation.

- Some equipment brands use the CHANNEL and VOLUME keys instead of CURSOR keys to navigate through their menu system. If, after pressing the MENU key, the CHANNEL and VOLUME keys do not move the cursor, wait 10 seconds then try them again. If the menu leaves the screen, press the MENU key again then wait 10 seconds before pressing the CHANNEL and VOLUME keys.

- Operations in the chart that are marked with an asterisk (*) work when the menu is displayed (after pressing the MENU key).

- The AUX mode can be programmed to operate a, DVD Player, Cable Box, Satellite Receiver, or second VCR, but only one device at a time.

Quick Tips

■ Always follow on-screen instructions.
■ The menu will display on the screen for approximately 20 seconds. Press MENU again to redisplay.
■ All TV adjustments are controlled through the menu.

■ Use the CHANNEL CH / CH and VOLUME VOL / VOL

keys to navigate through the menus and to make selections from the menus.

■ Ⓤ To see the time of day after setting the clock, press the DISPLAY key.

■ Extended Data Service (XDS) signal may not be transmitted by all broadcasters.

■ Under weak stereo signal conditions, you may receive better quality sound in the “Mono” position.

Need help? Visit our Web site at www.sanyoctv.com or Call 1-800-877-5032

TV ADJUSTMENT AND SETUP

The on-screen menu provides the viewer with easy access to adjustments and settings. Just use the keys on the remote control and follow the instructions.

HOW TO MAKE ADJUSTMENTS

1. Press MENU key.
2. Use the / keys to highlight the desired feature.
3. Use the / keys to choose desired option (indicates selected item).
4. Press the MENU key to exit.

Items with submenus requires additional steps.

SETTING THE CLOCK

To use the Auto Clock feature, a local PBS station that is broadcasting an XDS signal must be received. The Auto Clock searches for the transmitted signal and automatically sets the clock.

▲▼ keys	- + keys
Clock	►Manual	Auto
Audio	►Stereo	Mono SAP
Picture/Sound	►Sports	Movie
	News	Manual
Initial Channel	OFF	ON C---
Antenna	►Cable	VHF/UHF
CH. Search	►NO	Start
CH. Scan Memory	C 34	Added
Aspect Ratio	►4:3	16:9
Scan Velocity	OFF	Low High
TV Speakers	►ON	OFF
Audio Output	►Fixed	Variable Espanol
Menu Language	►English	Francais
Press MENU key to exit

To set the clock automatically:

1. Press MENU key.
2. Use the VOL + key to activate Auto setting.

Notes:

- The clock will be cleared after a power interruption. When power is restored, the TV will display the Auto Clock setup menu on the screen automatically.

- Cable Box and Satellite users must set the clock manually.

To set the clock manually:

1. Press the CH or CH key to select Clock.

2. Press the Vol+ key to choose Manual, if necessary.

3. Use the ⏻ key to set the hour and the ⏻ key to set the minutes.

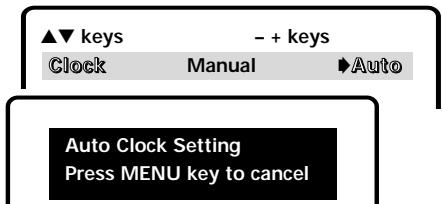

▲▼ keys - + keys Clock Manual Auto Auto Clock Setting Press MENU key to cancel

▲▼ keys - + keys Clock ►Manual Auto 10:30

SETTING AUDIO MODE

Select desired sound setting, Stereo, Mono, or SAP (secondary audio program).

Note: Stereo and SAP must be part of the broadcast signal.

1. Choose Stereo, Mono, or SAP from the Audio options.

Note: The TV will automatically reset to stereo if unplugged or a power interruption occurs.

▲▼ keys		- + keys
Clock
Audio	►Stereo	Mono	SAP

ADJUSTING PICTURE/SOUND

For automatic picture/sound adjustment:

Choose Sports, Movie, or News from the Picture/Sound options.

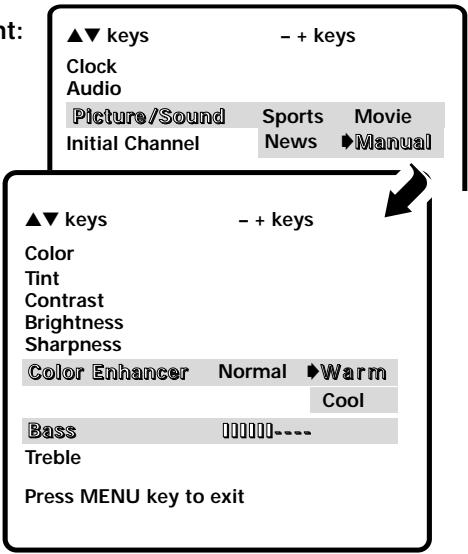

Adjust the picture/sound manually:

1. Choose Manual from the Picture/Sound options.
2. Press the MENU key to open the picture/sound settings submenu.
3. Use the / keys to highlight the picture or sound setting you want to change.
4. Use the VOL / VOL keys to adjust settings.

INITIAL CHANNEL SETUP

The TV can be programmed to tune to your favorite channel each time it is turned on, such as, a news or sports network, or the output of your VCR.

1. Press MENU key.
2. Use the / keys to highlight Initial Channel.
3. Press the 🔊 key to choose ON. Select favorite channel (example): C03. To select cable channels above 99, press and hold the 1 key until C1-- appears.

▲▼ keys - + keys Clock Audio Picture/Sound Sports Movie Initial Channel News ►Manual ▲▼ keys - + keys Color Tint Contrast Brightness Sharpness Color Enhancer Normal►Warm Cool Bass ||||| Treble Press MENU key to exit

▲▼ keys - + keys Clock Audio Picture/Sound Initial Channel OFF ▶ON C 03 Antenna CH. Search CH. Scan Memory Aspect Ratio Scan Velocity TV Speakers Audio Output Menu Language Select channel using 0~9 keys Press MENU key to exit

RESETTING THE ANTENNA/CABLE MODE AND CHANNEL SEARCH

Resetting the Antenna/Cable Mode or CH. (Channel) Search is required only if additional channels become available, such as moving to another city or having a cable service installed.

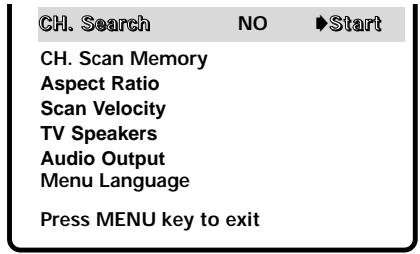

1. Choose Start from the Ch. Search menu options.

CH. Search NO Start CH. Scan Memory Aspect Ratio Scan Velocity TV Speakers Audio Output Menu Language Press MENU key to exit

Quick Tips

■ To expand your viewing experience select Sports, Movie, or News to match the program you are watching.

■ Use the color enhancer feature to highlight the picture flesh tones and color highlights. Selecting warm will deepen the picture red tints and cool will highlight the picture blue tints.

■ When Initial Channel is set to OFF the TV will tune to the last channel selected when powered on.

■ When setting the Antenna mode, choose Cable if your TV is connected to a cable system, otherwise choose VHF/UHF.

Need help?

Visit our Web site at www.sanyoctv.com

or Call 1-800-877-5032

Quick Tips

■ Channels deleted from scan memory can be selected with the number keys.
■ The channel number area must be highlighted before pressing the VOL + key to add or delete.
■ Restoring deleted channels, use the on-screen menu to manually add channels or start CH. (Channel) Search from the menu.
■ Press the RESET key twice to automatically start Channel Search and clear all customized settings.

Need help?

Visit our Web site at

www.sanyoctv.com

or Call 1-800-877-5032

ADDING OR DELETING CHANNELS

1. Press MENU key.
2. Use the CH/CH keys to highlight CH. Scan Memory.

3. Press the key to highlight the channel number entry area.

4. Enter the channel number you want to add or delete (example): C34. For cable channels above 99, press and hold the 1 key until C1-- appears. Then enter the other two numbers.

5. Press the 🔊 key to change the present setting. Example: Added will change to Deleted.

CH. Scan Memory	C 34	Deleted
Aspect Ratio
Scan Velocity
TV Speakers
Audio Output
Menu Language

ASPECT RATIO

Use this feature when digital equipment is connected to the component input jacks. The 4:3 setting is for normal viewing. The 16:9 setting changes the picture image to widescreen viewing with minimal portion of top and bottom compressed.

1. Press MENU key.
2. Use the / keys to highlight Aspect Ratio.
3. Press the VOL / VOL + keys to select 4:3 or 16:9.

Aspect Ratio ▶4:3 16:9

Scan Velocity

TV Speakers

Audio Output

Menu Language

Press MENU key to exit

SCAN VELOCITY

This unit features an electronic circuit that regulates the scan speed of the electron beam creating sharp transitions between the light and dark portions of the picture. The result is crisp edges and sharply defined clarity.

1. Press MENU key.
2. Use the / keys to highlight Scan Velocity.
3. Press the / keys to select Low or High.

Scan Velocity OFF ▶ Low

TV Speakers

Audio Output

Menu Language

Press MENU key to exit

TV SPEAKERS

1. Press MENU key.
2. Use the CH/CH keys to highlight TV Speakers.
3. Press the / keys to turn the speakers ON or OFF.

Note: Sound will not be produced through your TV speakers if the OFF mode is selected.

TV Speakers ▶ON OFF

Audio Output

Menu Language

Press MENU key to exit

AUDIO OUTPUT

This convenient menu option enables you to select a fixed or variable audio signal.

1. Press MENU key.
2. Use the / keys to highlight Audio Output.
3. Press the / keys to select Fixed or Variable.

Fixed Mode (Constant audio output level from TV):

Use external equipment's volume control to adjust sound level.

Variable Mode (Output from TV varies with volume):

Use the TV and external equipment's volume controls to adjust the sound level.

RESETTING THE TV

Press the RESET key to automatically reset the television to factory settings. These features will automatically reset:

• Picture/Sound Adjustments: Color, Tint, Contrast, Brightness, Sharpness, Color Enhancer, Bass, and Treble
• Channel Memory
• Audio to Stereo
• Initial Channel to OFF
• Caption to OFF
  • V-Guide to OFF
  • TV Speakers to ON
  • Audio Output to FIXED
• Aspect Ratio to 4:3 (normal)
• Scan Velocity to HIGH
  • Language to English
• Auto Clock and Sleep Timer (if previously set)

If desired, personal settings can be made again using the menu options.

TV Speakers

Audio Output Fixed Variable

Menu Language

Press MENU key to exit

Press RESET key again to return factory preset and begin channel search

Auto Clock was cleared Begin setup procedures?

NO YES

Use -/+ keys to select Then press the MENU Key

Quick Tips

■ Make sure all cable connectors are fully seated on jacks.
■ Always match cables according to the colors; RED for right audio and WHITE for left audio.
■ Position your TV at least 2 feet from stereo speakers. The magnets in the speakers may affect the picture quality.
■ Do not connect external speakers directly to the TV.

Need help?

Visit our Web site at

www.sanyoctv.com

or Call 1-800-877-5032

USING THE AUDIO OUT JACKS

CONNECTING A STEREO AMPLIFIER TO AUDIO OUT JACKS

1. Connect the TV Audio Output (R/L) ① to the Stereo Amplifier In (R/L) ②.
2. Press POWER to turn on the TV. Turn on external equipment also.
3. Use the AUDIO OUT on-screen menu options to select Fixed or Variable output signal.

Notes: When TV Speakers is in the ON mode, sound will be produced through your TV and external speakers.

When TV Speakers is in the OFF mode, sound will be produced only through external speakers.

e Stereo Amplifier In (R/L) ②. external equipment also. as Back of TV

Stereo Amplifier

Quick Tips

■ Make sure all cable connectors are fully seated on jacks.
■ Always match cables according to the colors; RED for right audio, WHITE for left audio and YELLOW for video.

■ A/V1 and A/V2 jacks have identical functions. Any compatible video equipment can be connected to either set of jacks.

■ A solid Blue screen with the word Video1 or Video2 displayed means that the Video mode is selected, but no signal is being detected at the Video jack. Check connection, and turn on external equipment.

■ You may be able to use the remote control to operate your VCR, DVD, Cable Box, Satellite Receiver, and TV. (See pages 7\~9.)

Need help? Visit our Web site at www.sanyoctv.com or Call 1-800-877-5032

USING THE AUDIO/VIDEO IN JACKS

CONNECTING A VCR OR OTHER EXTERNAL EQUIPMENT

Switch off TV and external equipment before connecting cables. (Cables are not supplied.)

1. Connect VCR, DVD, DSS, or other equipment's Audio Video Out to the TV Audio Video Input ①.

For Mono VCR (Single Audio Jack) connect VCR Audio Out to TV Audio (L) Input.

Follow the same procedure to connect other compatible video equipment to the second set of A/V jacks.

Optional

Connect VCR, DVD, or other equipment's S-Video Out to the TV S-Video In (AV1) Jack ①.

Note: Using the S-Video In (AV1) jack overrides the Video 1 jack.

1. Press POWER ② to turn on the TV. Turn on external equipment also.
2. Press the INPUT key ③ to select program source: TV signal or signal from the equipment you have connected to the A/V1 or A/V2 jacks.

Back View of a VCR

A/V JACKS IN VIDEO L-AUDIO-R OUT VIDEO L-AUDIO-R ① DVD Player OUTPUT L R VIDEO OUT AUDIO OUT ① TV A/V In Rear Jacks UHF/VHF/CATV 75Ω ② Remote Control VCR TV CABLE DVD SAT AUX INPUT POWER RESET

USING THE COMPONENT VIDEO AND AUDIO (AV2) IN JACKS

CONNECTING A DVD OR OTHER DIGITAL EXTERNAL EQUIPMENT

Switch off TV and external equipment before connecting cables. (Cables are not supplied.)

1. Connect a DVD or other digital equipment's Component Video Out to the TV Component Video In (Y-Pb-Pr) Jacks ①.
2. Connect the DVD's Audio Out to the TV AV2 Audio In (L/R) Jacks ②.
3. Press POWER ③ to turn on the TV. Turn on external equipment also.
4. Press the INPUT ④ key to select Component 2.

DVD Player ANT IN VIDEO L AUDIO R A/V OUT S-VIDEO OUT COMPONENT VIDEO OUT Y Pb Pr ② ① VIDEO AUDIO INPUT COMPONENT AV2 AV1 S-VIDEO VIDEO UHF/VHF/CATV 75Ω ④

TV Component Video (Y-Pb-Pr) Jacks

Remote Control

VCR TV CABLE DVD SAT AUX INPUT POWER RESET ④ ③

Quick Tips

■ Always match cables according to the colors.
■ You may be able to use the TV remote control to operate your DVD. (See pages 7\~9.)
■ A solid Blue screen with the word Component 2 displayed means that this Video mode is selected, but no signal is being detected at the Component jacks. Check connections, and turn on external equipment.

Need help?

Visit our Web site at

www.sanyoctv.com

or Call 1-800-877-5032

SETTING THE SLEEP TIMER

The Sleep Timer will switch off the TV automatically.

1. Press the SLEEP key.
2. Use the 0 key to select the desired time (from 30 minutes up to 3 hours).

Note: The Sleep Timer cancels when the TV is turned off or if a power failure occurs.

VCR TV CABLE DVD SAT AUX INPUT POWER RESET 1 2 3 4 5 6 7 8 9 CAPT** 0 SLEEP MENU RECALE ② ①


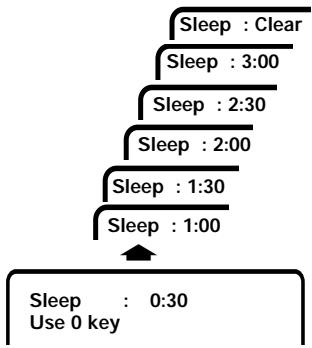

    A["Sleep : 0:30\nUse 0 key"] --> B["Sleep : 1:00"]
    B --> C["Sleep : 1:30"]
    C --> D["Sleep : 2:00"]
    D --> E["Sleep : 2:30"]
    E --> F["Sleep : 3:00"]
    F --> G["Sleep : Clear"]

Quick Tips

■ Use the CHANNEL CH / CH keys and the VOLUME VOL / VOL keys to navigate through the menus and to make selec- tions from the menus.

■ V-Guide feature is accessible only from the remote control.

■ The TV guidelines rating icon will generally appear in the upper left hand corner of your TV screen.

■ The V-Guide display remains on screen for approximately 20 seconds. If it disappears, press the V-GUIDE key.

Need help? Visit our Web site at www.sanyoctv.com or Call 1-800-877-5032

C 34 10:00

XYZ TITLE: THE SHOW Rating: TVPG-V

V-GUIDE INFORMATION

NOTE: THIS FEATURE IS DESIGNED TO COMPLY WITH THE UNITED STATES OF AMERICA'S FCC V-CHIP REGULATIONS. THEREFORE, IT MAY NOT FUNCTION WITH BROADCASTS THAT ORIGINATE IN OTHER COUNTRIES.

This Sanyo television is equipped with an electronic V-Chip to interpret MPAA and TV Parental Guidelines rating codes. When these codes are detected, the TV will automatically display or block the program, depending upon choices you make when setting up the V-Guide system.

PAA he yes

ABOUT MPAA AND TV PARENTAL GUIDELINES

MPAA and TV Parental Guidelines are rating systems that provide advance cautionary information to parents about the content of movie and television programming.

MPAA is a voluntary rating system used by the movie industry. TV Parental Guidelines are modeled after the MPAA ratings and were designed to be simple to use, easy to understand, and easy to find.

TV Parental Guidelines contain both age-based and content-based information. This gives parents discretionary ways of choosing appropriate material for their children to view.

Content ratings are represented by the initials D (Suggestive Dialog), L (Adult Language), S (Sexual Situations), V (Violence), and FV (Fantasy Violence). When programming contains any or all of these conditions, these letters become part of the icon that is displayed on the TV screen.

A rating icon will generally appear in the upper left hand corner of the TV screen for fifteen seconds at the beginning of a program and should be repeated at the beginning of the second hour of a long program. It may also appear when returning from commercials. There may be other instances when these icons will be displayed as well. Parents are encouraged to become familiar with these icons and their meanings.

WHERE CAN I FIND ADVANCE NOTICE OF PROGRAM RATING

Publishers of programming guides have been asked to include these ratings along with other information they publish. You can expect to find this information in newspapers, magazines, and on-screen listings and guides.

TYPES OF PROGRAMS TO RECEIVE RATING

The TV Parental Guidelines will apply to various types of TV programming, including: specials, mini-series, and movies. Sports and news shows do not currently carry guidelines.

V-GUIDE OPERATION

Use this feature to supervise television viewing for young children. This television can be set to automatically block programs with content you deem as inappropriate for your children to view, including: suggestive dialog, adult language, sexual situations, violence, and fantasy violence.

The ability of the television to block the reception of specific programming content depends upon several conditions: 1) The program must be rated, 2) Networks must broadcast the rating code data, 3) Cable companies must transmit the rating code signal, and 4) The TV must be properly setup to decode the signal.

SETTING MPAA MOVIE RATING

1. Press the V-GUIDE key on the remote control to display menu.
2. Press the VOL + key to switch V-Guide ON.
3. Press the VOL key again. Then use the CH/CH keys to highlight rating.
4. Press the MENU key to Block (B) or Unblock (U) selected rating. (→ Arrow indicates selection.)
5. Press the ⬆ key to return to the V-Guide Options menu.

SETTING AGE-BASED GUIDELINES

1. Use the / keys to highlight TV Parental Guidelines.
2. Press the VOL + key. Then use the CH / CH keys to highlight rating.
3. Press the MENU key to Block (B) or Unblock (U) selected rating. (→ Arrow indicates selection.)

SETTING CONTENT-BASED GUIDELINES

1. Follow steps 6 and 7. Use the / keys to highlight Content.
2. Press the MENU key to display the Content Option menu.
3. Use the ⬤️/⩽ keys to highlight a category (D-Suggestive Dialog, L-Adult Language, S-Sexual Situations, V-Violence, FV-Fantasy Violence).
4. Press the VOL + key. Then use the CH / CH keys to highlight a rating.
5. Press the MENU key to Block (B) or Unblock (U) selected rating. (→ Arrow indicates selection.)
6. Press the V-GUIDE key to exit; or press the vol key to return to the Content Options menu.
7. Repeat steps 11 through 13 to Block (B) or Unblock (U) additional content ratings, if desired.

TURNING OFF THE V-GUIDE

1. Press the V-GUIDE key.
2. Use the VOL / VOL + keys to select OFF.

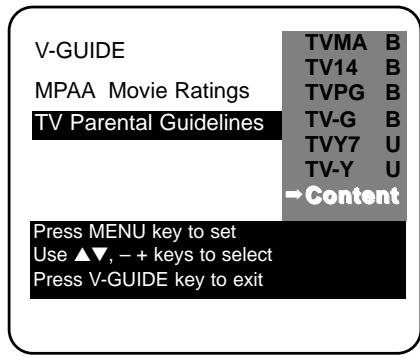

V-GUIDE MPAA Movie Ratings TV Parental Guidelines Press MENU key to BLOCK Use ▲▼, - + keys to select Press V-GUIDE key to exit

V-GUIDE MPAA Movie Ratings TV Parental Guidelines Press MENU key to BLOCK Use ▲▼, - + keys to select Press V-GUIDE key to exit TVMA B TV14 B TVPG B →TV-G B TVY7 U TV-Y U Content

V-GUIDE MPAA Movie Ratings TV Parental Guidelines Press MENU key to set Use ▲▼, - + keys to select Press V-GUIDE key to exit

D-Suggestive Dialog L-Adult Language S-Sexual Situations V-Violence FV-Fantasy Violence →TV14 B TVPG B Press MENU key to BLOCK Use ▲▼, - + keys to select Press V-GUIDE key to exit

Note: Networks and local stations may or may not include the content ratings portion of the TV Parental Guidelines.

Quick Tips

■ The TV will automatically block (B) ratings above or unblock (U) ratings below selection. For example, if you block rating R, NC17 and X will be blocked as well.
■ Blocking TVY7 does not block higher ratings.
■ You can block a content rating such as TVPG-V and still be able to watch TVPG programs with ratings of S-L-D provided TVPG is unblocked (U).
■ To view Blocked (B) programs, set V-GUIDE to OFF, or press the RESET key twice to clear all Blocked (B) ratings and customized settings.
■ When in the V-Guide menu system, the VOL / VOL keys allows you to navigate between the ratings and the options menu.

Need help?

Visit our Web site at

www.sanyoctv.com

or Call 1-800-877-5032

Quick Tips

■ If Caption Text mode is selected and no captioned text is broadcasted, a black box may appear and remain on the TV screen.

To remove this black box, set captioning to any mode other than Text1 or Text2 or press the RESET key to cancel captioning and customized settings.

■ Channel number continuous display mode is not available when captioning is on.

Need help? Visit our Web site at www.sanyoctv.com or Call 1-800-877-5032

CLOSED-CAPTIONING

Captioning is textual information transmitted along with the picture and sound so it can be displayed on the TV screen. Because different types of captions can be transmitted with the TV signal, separate captioning modes are provided. The captioning modes recognized by this model are: Caption1, Caption2, Text1, and Text2. Local broadcasters decide which caption signals to transmit. They may not choose to provide captions or may provide captions in one or all of the available modes.

Caption1: This is the main mode used for program captioning (words match the program you are watching). Almost all broadcasters will use Caption1 to transmit program captions. These captions are generally one or two lines.

Caption2: This is an alternative mode for program captioning. Caption2 may be used by the broadcaster to provide captions in another language, such as, Spanish or French.

Text1: This mode is used to display large amounts of text. This text will appear within a black box that may be nearly as large as the TV screen. Text displayed in this manner does not generally relate to the program. These captions may be used by broadcasters to provide weather reports, community bulletins, stock quotes, etc.

Text2: This is an alternative mode used to display large amounts of text. The same types of information displayed in Text1 can be displayed in Text2.

Quikcap: Quikcap allows captions to toggle on and off with the Mute function. For example, the phone rings; you press the MUTE key on the remote control to block the TV sound; the captions display automatically. When you finish your conversation and press the MUTE key again to restore the sound, the captions will disappear.

Quikcap displays program captions in the Caption1 mode.

SETTING CAPTIONS

1. Press the CAPTION key on the remote control.
2. Use the 0 key to select OFF, Caption1, Caption2, Text1, Text2, or Quikcap.

TWO OUTS AND TWO STRIKES

Caption1/ Caption2

TONIGHT: BECOMING MOSTLY CLOUDY WITH A 40 PERCENT CHANCE OF RAIN. COLD WITH A LOW IN THE UPPER 30'S WEST WIND AROUND 20 MPH. SHIFTING TO NORTHWEST AROUND MIDNIGHT. FRIDAY: MOSTLY CLOUDY AND COLDER WITH A 50 PERCENT CHANCE OF RAIN. HIGH IN THE MID 50's.

Text1/Text2

VCR TV CABLE DVD SAT AUX INPUT POWER RESET 1 2 3 4 5 6 7 8 9 CAPTION 0 SLEEP CH VOL + - CH + MUTE DISPLAY V-GUIDE ENTER PLAY REC STOP PAUSE - TRACKING +

TROUBLESHOOTING

Before calling for assistance, please look for the condition that most closely resembles your problem in the following charts, then follow the instructions for that condition. Visit our Web site at www.sanyoctv.com or call toll free 1-800-877-5032.

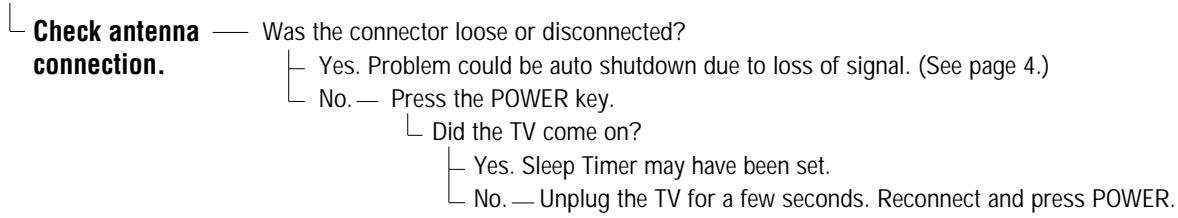

TV Turns off by itself

Check antenna — Was the connector loose or disconnected? connection. Yes. Problem could be auto shutdown due to loss of signal. (See page 4.) No. — Press the POWER key. Did the TV come on? Yes. Sleep Timer may have been set. No. — Unplug the TV for a few seconds. Reconnect and press POWER.

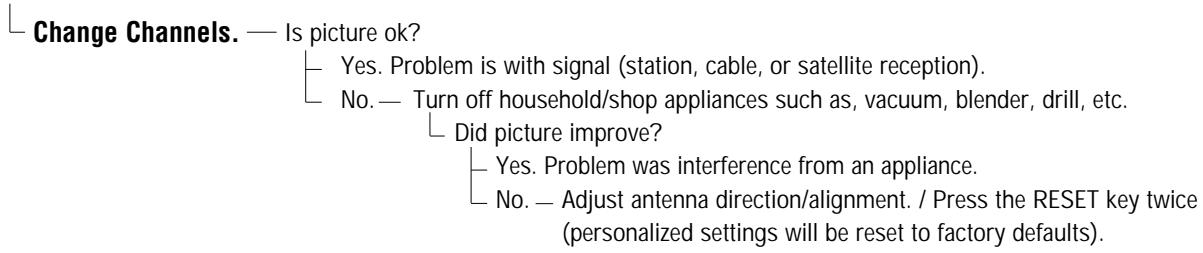

No Picture or Poor Picture

Change Channels. — Is picture ok? Yes. Problem is with signal (station, cable, or satellite reception). No. — Turn off household/shop appliances such as, vacuum, blender, drill, etc. Did picture improve? Yes. Problem was interference from an appliance. No. — Adjust antenna direction/alignment. / Press the RESET key twice (personalized settings will be reset to factory defaults).

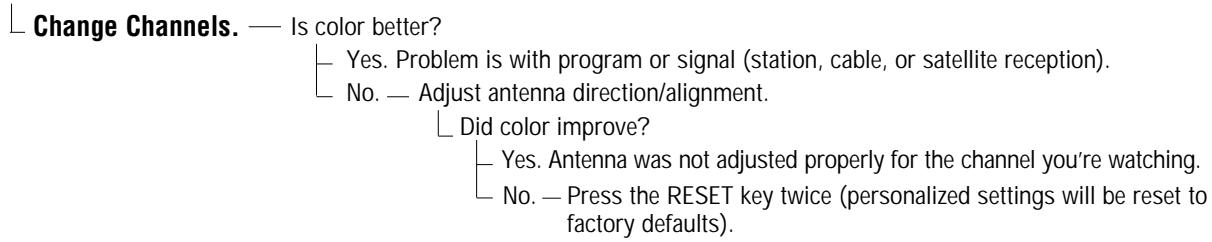

Poor color or no color

Change Channels. — Is color better? Yes. Problem is with program or signal (station, cable, or satellite reception). No. — Adjust antenna direction/alignment. Did color improve? Yes. Antenna was not adjusted properly for the channel you're watching. No. — Press the RESET key twice (personalized settings will be reset to factory defaults).

My TV screen is solid blue

Press the INPUT — Did the Blue Screen disappear? key repeatedly. Yes. The TV was in a Video mode. (A Blue Screen will appear when the Video mode is selected and there is no video signal being detected.) Your AV equipment may be turned off or unplugged.

(Continued on next page.)

TROUBLESHOOTING (Continued)

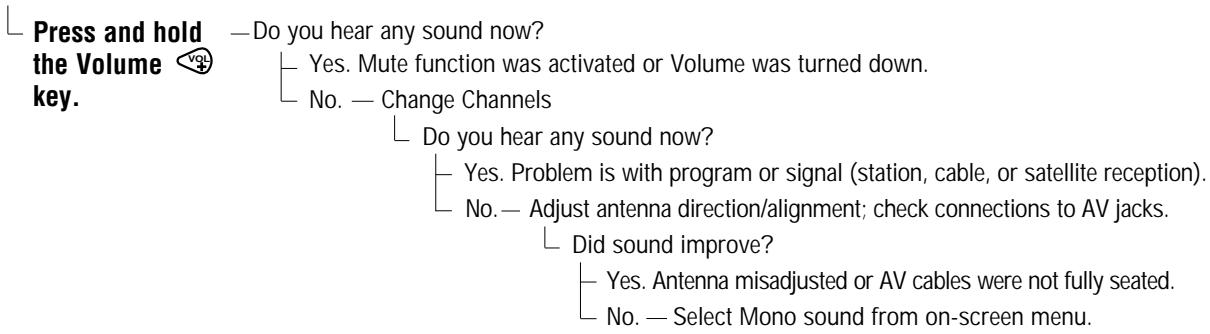

No sound, Poor Stereo sound

Press and hold the Volume vol key. —Do you hear any sound now? Yes. Mute function was activated or Volume was turned down. No. — Change Channels Do you hear any sound now? Yes. Problem is with program or signal (station, cable, or satellite reception). No. — Adjust antenna direction/alignment; check connections to AV jacks. Did sound improve? Yes. Antenna misadjusted or AV cables were not fully seated. No. — Select Mono sound from on-screen menu.

No Captioning

Is the program you are watching closed-captioned? Yes. Set captioning on. Press the Caption key then press the 0 key to highlight Caption1. No.— Tune to a channel that is broadcasting a closed-captioned program.

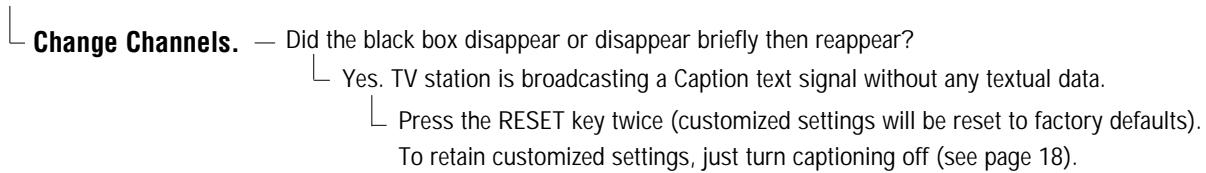

A Black box appears on the screen

Change Channels. — Did the black box disappear or disappear briefly then reappear? Yes. TV station is broadcasting a Caption text signal without any textual data. Press the RESET key twice (customized settings will be reset to factory defaults). To retain customized settings, just turn captioning off (see page 18).

I don't recognize words in the on-screen menu

Press the RESET — Do you recognize the menu words now? key twice (personalized settings will be reset to factory defaults).

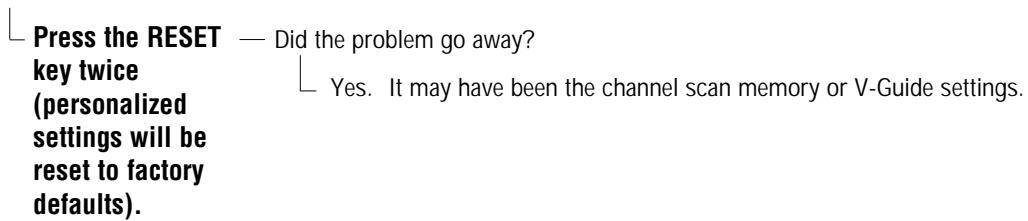

Cannot select or scan some channels

Press the RESET — Did the problem go away? key twice (personalized settings will be reset to factory defaults).

My remote control will not operate my Television

Press the TV key

on the Remote Control. Then try it again. Be sure to point the remote control at the TV.

Does the remote control work now?

Yes. Another mode was selected. Press the appropriate key to operate the different types of equipment. (Remote must be programmed. See pages 7\~9.) No. — Replace the batteries or confirm that they are properly installed.

My remote control will not operate my VCR, Cable Box, DVD, or Satellite Receiver

Press the appropriate

key: VCR, CABLE, DVD, or SAT key on the Remote Control. Then try it again. (Make sure the equipment is turned on.)

Does the remote control operate the equipment now?

— Yes. Another mode was selected. Press the appropriate button to operate the different types of equipment. (Remote must be programmed. See pages 7\~9.) No. — Reprogram the remote control.

The cabinet makes a popping sound

This is a normal condition during the warm-up and cool down of the plastic cabinet parts.

CARE AND CLEANING

The surface of the cabinet can be damaged if not properly maintained. Many common household aerosol sprays, cleaning agents, solvents and polishes will cause permanent damage to the fine surface.

1. Unplug the power cord before cleaning the television.

2. Clean the screen and cabinet with a soft dry cloth.

Note: Never spray liquids on the screen because they can run down and drip onto the chassis. This may cause component failure not covered under Warranty.

This symbol on the nameplate means the product is Listed by Underwriters' Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

MEXICO GUARANTEE

IMPORTADOR:

COMERCIALIZADORA MEXICO

AMERICANA, S.DE R.L. DE C.V.

AV. NEXTENGO N° 78

COL. SANTA CRUZ ACAYUCAN

DEL. AZCAPOTZALCO, MÉXICO, D.F. C.P. 02770

RFC: CMA9109119L0

DESCRIPTION: Television

BRAND: SANYO

MODEL: DS35520

GUARANTEE

THE APPARATUS THAT YOU HAVE ACQUIRED HAS A ONE YEAR GUARANTEE FOR MANUFACTURING DEFECTS AND A ONE YEAR SERVICE WARRANTY FROM THE DATE OF PURCHASE GRANTED BY:

COMERCIALIZADORA MEXICO-AMERICANA, S. DE R.L. DE C.V.

UNDER THE FOLLOWING CONDITIONS:

1. TO MAKE THE GUARANTEE EFFECTIVE, SIMPLY SHOW THIS POLICY FILLED OUT BY THE STORE OR SUPPLIER UNIT OR THIS SALES INVOICE, WITH THE APPARATUS IN ANY OF THE SERVICE CENTERS INDICATED ON THIS GUARANTEE.
2. IF THE FAULT IS ATTRIBUTED TO A MANUFACTURING DEFECT, THE APPARATUS WILL BE REPLACED OR YOUR MONEY REFUNDED. DURING THE 30 DAYS SUBSEQUENT TO THE PURCHASE THE GUARANTEE WILL BE VALID AT THE STORE WERE THE APPARATUS WAS PURCHASED, PRESENTING THE ABOVE DOCUMENTS.
3. REPAIR TIME WILL NEVER BE MORE THAN 30 DAYS. IF THIS TIME HAS ELAPSED, AND THE PRODUCT ISN'T REPAIRED, COMERCIALIZADORA MEXICO AMERICANA, S. DE R.L. DE C.V. WILL PROCEED TO EFFECTUATE THE EXCHANGE FOR AN EQUIVALENT APPARATUS OR THE RETURN OF THE BUYING-SALE COST RESPECTIVELY.
4. THIS GUARANTEE WILL COVER ITS TOTALITY OF PIECES, COMPONENTS AND SERVICE REPAIR OF PRODUCT, AND THE RESPECTIVE COST OF TRANSPORTATION.

THIS GUARANTEE WILL BE NULL AND VOID IN THE FOLLOWING CIRCUMSTANCES:

* WHEN PRODUCT HAS BEEN USED IN A DIFFERENT CONDITION THAN ITS NORMAL USE.
* WHEN PRODUCT HASN'T BEEN OPERATING CORRECTLY ACCORDING TO THE INSTRUCTIONS IN THIS MANUAL.
* WHEN PRODUCT HAS BEEN CHANGED OR REPAIRED BY PERSONS NOT AUTHORIZED FROM THE MANUFACTURER, IMPORTER, OR MERCHANT RESPONSIBLE RESPECTIVE.

CENTRO DE SERVICIO Y LUGAR DONDE OBTENER PARTES, COMPONENTES, CONSUMIBLES Y ACCESORIOS:

SUCURSAL VALLEJO

STAMP, DATE AND SIGNATURE

OF

STORE

DESCRIPTION:

BRAND:

MODEL:

CLIENT'S NAME:

ADDRESS:

EXTERIOR NUMBER:

INTERIOR NUMBER:

SUB DIVISION:

STATE/DELEGATION:

TELEPHONE:

United States and Canada Warranty

ONE-YEAR LIMITED WARRANTY

THIS LIMITED WARRANTY IS VALID ONLY ON SANYO TELEVISIONS PURCHASED AND USED IN THE UNITED STATES OF AMERICA, CANADA, AND PUERTO RICO, EXCLUDING THE UNITED STATES' OTHER TERRITORIES AND PROTECTORATES. THIS LIMITED WARRANTY APPLIES ONLY TO THE ORIGINAL PURCHASER, AND DOES NOT APPLY TO PRODUCTS USED FOR INDUSTRIAL OR COMMERCIAL PURPOSES.

FOR ONE YEAR from the date of purchase, Sanyo Manufacturing Corporation will replace any defective TV.

To insure proper warranty exchange, keep the original sales receipt for evidence of purchase. Return the defective TV to the retailer along with the receipt and the included accessories, such as the remote control. The defective TV will be exchanged for the same model, or a replacement model of equal value, if necessary. Replacement model will be contingent on availability and at the sole discretion of Sanyo Manufacturing Corporation.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

OBLIGATIONS

For one year from the date of purchase, Sanyo Manufacturing Corporation warrants this product to be free from defects in material and workmanship under normal use and conditions. Should replacement be necessary under this warranty for any reason due to manufacturing defect or malfunction during the first year from date of original purchase, Sanyo Manufacturing Corporation will provide a new TV via exchange at the retailer.

For customer assistance, whether during or out of the warranty period, call toll free 1-800-877-5032.

Weekdays 7:30 AM – 7:00 PM Central Time

Saturday 7:30 AM – 4:00 PM Central Time

This warranty expresses specific contractual rights; retail purchasers may have additional statutory rights which vary from state to state.

(EFFECTIVE: August 1, 2002)

For your protection in the event of theft or loss of this product, please fill in the information requested below and KEEP IN A SAFE PLACE FOR YOUR OWN PERSONAL RECORDS.

Model No.

Serial No.

(Located on back of unit)

Date of Purchase ____

Purchase Price ____

Where Purchased ____

SANYO

Sanyo Manufacturing Corp.

3333 Sanyo Road, Forrest City, AR 72335

CONSOMMATION 105.8 watts

DIMENSION HORIZONTALE (LARGEUR) .. 33.4 in. (848mm)

DIMENSION VERTICALE (HAUTEUR) .... 29.6 in. (751mm)

PROFONDEUR 24.3 in. (618mm)

POIDS APPROX. (KG/LB) 146.3 lbs. (66.4 Kg.)

INSTALLATION DES PILES (2 AA, non fournies)

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or movement.

Conseils

Antenne ▶Cable VHF/UHF

Recherche ▶NON Debut

Memoire balayage C 34 Ajoute

Touches ▲▼ Touches - + Horloge Audio Image/Son Sports Film Antenne Nouvelle Manuel Touches ▲▼ Touches - + Couleur Teinte Contraste Luminosite Nettete Enrichis Couleur Normal Chaud Frais Graves I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I Aigues Prss MENU pour sortir

Prohibition sign with prohibition symbol and computer screen icon, commonly used for monitoring or surveillance

GARANTIE LIMITÉE D'UN AN

LA PRÉSENTE GARANTIE LIMITÉE N'EST ACCORDÉE QU'AUX TÉLÉCOULEURS SANYO ACHETÉS ET UTILISÉS AU CANADA, AUX ÉTATS-UNIS ET À PORTO RICO, MAIS À L'EXCEPTION DES AUTRES TERRITOIRES ET PROTECTORATS DES ÉTATS-UNIS. CETTE GARANTIE LIMITÉE NE S'APPLIQUE QU'À L'ACHETEUR INITIAL; ELLE NE COUVRE PAS LES ARTICLES UTILISÉS À DES FINS INDUSTRIELLES OU COMMERCIALES.

Sanyo Manufacturing Corp.

3333 Sanyo Road, Forrest City, AR 72335

ESPAÑOL

PESO (APROX.) 146.3 lbs. (66.4 Kg.)

Technical line drawing of a mechanical assembly with no visible text or symbols

Consejos Rápidos

Diagram showing audio setup with two speakers, a audio amplifier, and labeled connection point ②

Consejos Rápidos

Black-and-white photo of a person standing in front of a large screen (no visible text or symbols)

Prohibition sign with prohibition symbol and computer screen icon, indicating no use or absence of a device.

Two baby babies sitting side by side, one covering face with hand on cheek, the other lying down (no text or symbols visible)

It Makes A Difference Where Your TV Stands

Congratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind:

The Issue

☐ If you are like most Americans, you have a television in your home. Many homes, in fact, have more than one television.
The home theater entertainment experience is a growing trend, and larger televisions are popular purchases and are not always supported on the proper TV stands.
Sometimes televisions are improperly secured or inappropriately situated on dressers, bookcases, shelves, desks, audio speakers, chests, or carts. As a result, TV sets may fall over and may cause unnecessary injury.

Child sitting at a desk with stuffed animals, enclosed in a red prohibition symbol (no text or symbols on objects)

Something dressers result, 1 large electroni 2 Use approp

Sanyo Cares!

☐ The industry is committed to making home entertainment enjoyable and safe.
The Consumer Electronics Association formed the Home Entertainment Support Safety Committee comprised of television and consumer electronics furniture manufacturers to advocate children's safety and educate customers and their families about television safety.

Tune Into Safety

1 One size does NOT fit all. Use the appropriate furniture that is large enough to support the weight of your television (and other electronic components).

2 Use appropriate angle braces, straps, and anchors to secure your furniture to the wall (but never screw anything directly into the TV).

3 Carefully read and understand the other enclosed instructions for proper use of this product.
4 Don't allow children to climb on or play with furniture and television sets.
5 Avoid placing any items on top of TVs such as VCRs and remotes that may pique the children's curiosity.
6 Remember that children can become excited while watching a program and can potentially push or pull a TV over.
7 Share our safety message on this hidden hazard of the home with your family and friends. Thank you!

Computer setup with a black monitor and a yellow rubber duck, enclosed in a red prohibition symbol (no text or symbols on the main objects)
