USER MANUAL DS32424 SANYO

"Read this manual before assembling (or using) this product."

Contents

Important Safety Instructions 2

Welcome to the World of Sanyo 3

Features 3

Specifications 3

Basic Set-up and Connections 4

Using the Audio / Video Input Jacks 5

Connecting a VCR or DVD Player 5

Using the Component Audio / Video Input Jacks 6

Connecting a DVD 6

Using the Audio Output Jacks 6

Connecting Stereo Amplifier 6

Using the Multimedia Remote Control 7~11

Programming the Remote 9

DVD /Satellite Receiver Codes 9

VCR/Cable Box Codes 10

Keys Functions Chart 11

TV Adjustment and Setup 12~14

How to operate the On-Screen Menu 12

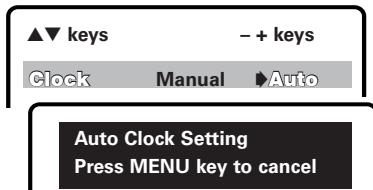

Setting the Clock, Audio Mode 12

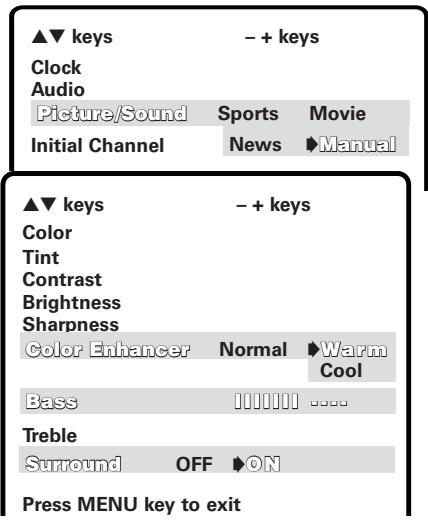

Adjusting Picture/Sound 13

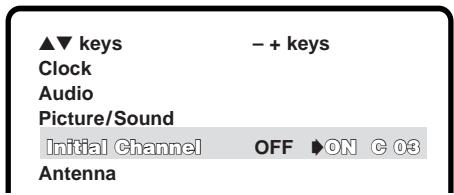

Setting the Initial Channel 13

Adding or Deleting a Channel 14

Adjusting Aspect Ratio and Scan Velocity 14

TV Speakers and Audio Output Settings 14

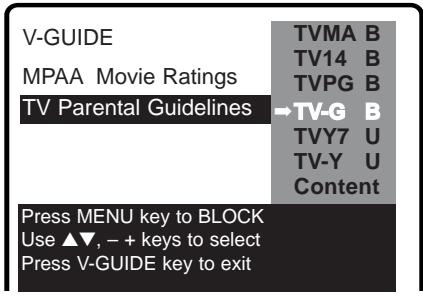

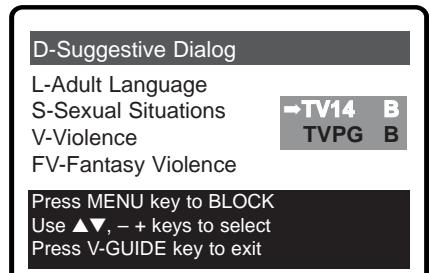

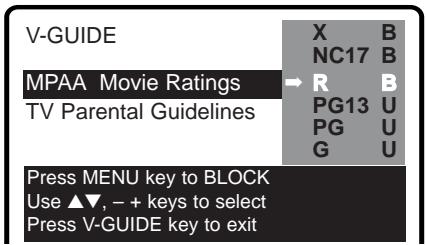

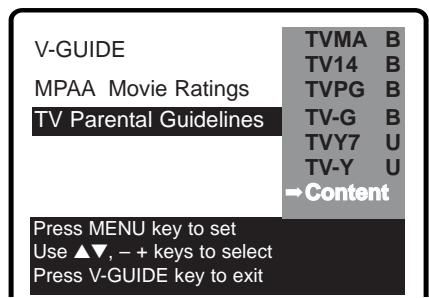

V-Guide Operation (Parental Control) 15 ~ 16

Closed-Captioning 17

Care and Cleaning 17

Helpful Hints (problems/solutions) 18

Warranty (Mexico) 19

Warranty (U.S.A. and Canada) 20

Child Safety Matters Back cover

ESPANOL 21~41

Contenido 21

FRANCAIS 42~59

Table des matieres 42

ENERGY STAR

"As an ENERGY STAR® Partner, Sanyo Manufacturing Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency."

Importado Por :

Comercializadora Mexico

Americana, S. DE R.L. DE C.V.

Col. Santa Cruz Acayucan

Del. Azcapotzalco, Mexico D.F.C.P.

02770, RFC CMA 9109119L0

Telefono: 55-5328-3500

Printed in U.S.A. SMC, March 2004

Part No. / No. de Parte/

NO de piece: 1JC6P1P0163--

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THIS UNIT.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE ADHERE TO ALL WARNINGS ON THE PRODUCT AND IN THE OPERATING INSTRUCTIONS. BEFORE OPERATING THE PRODUCT, PLEASE READ ALL OF THE SAFETY AND OPERATING INSTRUCTIONS. RETAIN THIS LITERATURE FOR REFERENCE. Follow all instructions...

Positioning the appliance

1. Do not place your appliance on an unstable cart, stand, shelf or table. Serious injury to an individual, and damage to the appliance, may result if it should fall. Your salesperson can recommend approved carts and

stands or shelf and wall mounting instructions. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

1. Slots and openings in the cabinet and in the back or bottom are provided for ventilation. To ensure reliable operation of the appliance and to protect it from overheating, these openings must not be blocked or covered. The openings should never be covered with a cloth or other material, and the bottom openings should not be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This appliance should never be placed near or over a radiator or heat register. This appliance should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.
2. Do not expose the appliance to rain or use near water . . . for example, near a bathtub, swimming pool, kitchen sink, in a wet basement, etc.

Hooking Up Outdoor Antenna

LIGHTNING PROTECTION FOR YOUR ANTENNA AND SET AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS.

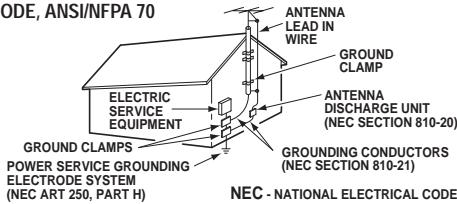

EXAMPLE OF ANTENNA GROUNDING ACCORDING TO NATIONAL

ELECTRICAL CODE, ANSI/NFPA 70

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical."

1. If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

Plug in the power cord

1. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. This product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of this polarized plug. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
2. Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

Cleaning

1. Before cleaning, unplug the unit from the wall outlet. Do not apply liquid cleaners or aerosol cleaners directly to the unit. Use a dry cloth for cleaning.

Service & Repair

1. Unplug the appliance from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. If the power cord or plug is damaged or frayed.
B. If liquid has been spilled into the appliance.
C. If the appliance has been exposed to rain or water.
D. If the appliance has been dropped or the cabinet has been damaged.
E. If the appliance exhibits a distinct change in performance.
F. If the appliance does not operate normally by following the operating instructions, adjust only those controls that are covered in the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the appliance to normal operation.

1. Upon completion of any service or repair, request the service technician's assurance that only Factory Authorized Replacement Parts that have the same characteristics as the original parts were used, and that routine safety checks have been performed to determine that the appliance is in safe operating condition. Unauthorized substitutions may result in fire, electrical shock, or other hazards.
2. Never add accessories that have not been specifically designed for use with this appliance as they may cause hazards.
3. For added protection during a lightning storm, or when the set is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the set due to lightning or power line surges.
4. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

Welcome to the World of Sanyo

Thank you for purchasing a Sanyo Color Television. You made an excellent choice for Performance, Styling, Reliability, and Value. The TV is designed with easy to use on-screen set-up instructions and operating features.

Need assistance? Visit our Web site at www.sanyoctv.com or call toll free 1-800-877-5032.

Features

Trilingual On-Screen Menu
Automatic Channel Search
Auto Shut Off
Closed-Captioning/Quikcap
3-Line Digital Comb Filter
Scan Velocity Modulator
Scan Velocity settings
Aspect Ratio settings
Digital picture controls with on-screen display
MTS stereo / SAP Decoder
Auto Flesh Tone
Color Enhancer
Factory preset adjustments for picture / sound
Front Surround Sound
Bass / Treble

Initial Channel
V-Guide (Parental Control)
XDS Extended data service) station call letters, title of show, ratings
480i Component AV Input Jacks
Audio / Video Input Jacks (2 sets, R/L)
Audio Out Jacks Switchable (Fixed/Variable)
S-Video In Jack (2)
Auto Clock
Sleep Timer (3 hours)
TV Reset
181 Channel Tuning System

VHF Channels 2-13

UHF Channels 14-69

Cable TV (CATV) 1, 14-125

Automatic Fine Tuning VHF and Cable Channels
Multimedia Remote Control VCR/TV/CABLE/DVD/SAT/AUX Large Glow-in-the-Dark basic operating keys

0~9 Numbered Channel Selection Channel Scanning

Volume Mute

Power Recall

Display Sleep

Caption Reset

Menu V-Guide

Input VCR/DVD keys

Enter

Specifications

PICTURE TUBE SIZE (True Flat Screen) (Measured Diagonally)

DS27930 27-inches

DS32424 32-inches

PICTURE RESOLUTION 330 Lines

Video Input 800 Lines

ANTENNA INPUT .. UHF/VHF/CATV 75Ω

POWER REQUIREMENT . 120VAC 60Hz

POWER

DS27930 95 watts

DS32424 100 watts

HORIZONTAL DIM. (Width)

VERTICAL DIM. (Height)

DEPTH DIM. (Thickness)

AMPLIFIER .Built-in with 3W/ch

AUDIO/VIDEO INPUT JACKS.. Video Input Audio Input (2 sets, R/L) S-Video Input (2)

480i COMPONENT AV INPUT

JACKS Input (Y, Pb, Pr-R/L)

AUDIO OUTPUT

JACKS Fixed and Variable Audio Out (R/L) (RCA Connectors)

CAUTION: FCC Regulations state that improper modifications or unauthorized changes to this unit may void the user's authority to operate the unit.

QuickTips

The TV will automatically select the correct Antenna mode for the type of RF signal you connect.
TV will switch off automatically after 15 minutes if there is no signal reception (cable out or station not broadcasting).

Exception—When the Video mode is selected, the TV will not automatically switch off when signal reception has stopped for 15 minutes.
If you move the TV to a new location, press the RESET key twice after connecting the signal and turning on the TV.

Need help? Visit our Web site at www.sanyoctv.com or Call 1-800-877-5032

CATV FRANCHISE NOTE: Cable companies, like public utilities, are franchised by local government authorities. To receive cable programs, even with equipment which is capable of receiving cable channels, the consumer must subscribe to the cable company's service.

Initial Set-up

1. Install batteries in remote control, see page 7.
2. Connect signal, see below.
3. Plug in AC power cord.
4. Press POWER key to turn on TV.
5. Follow on-screen instructions.

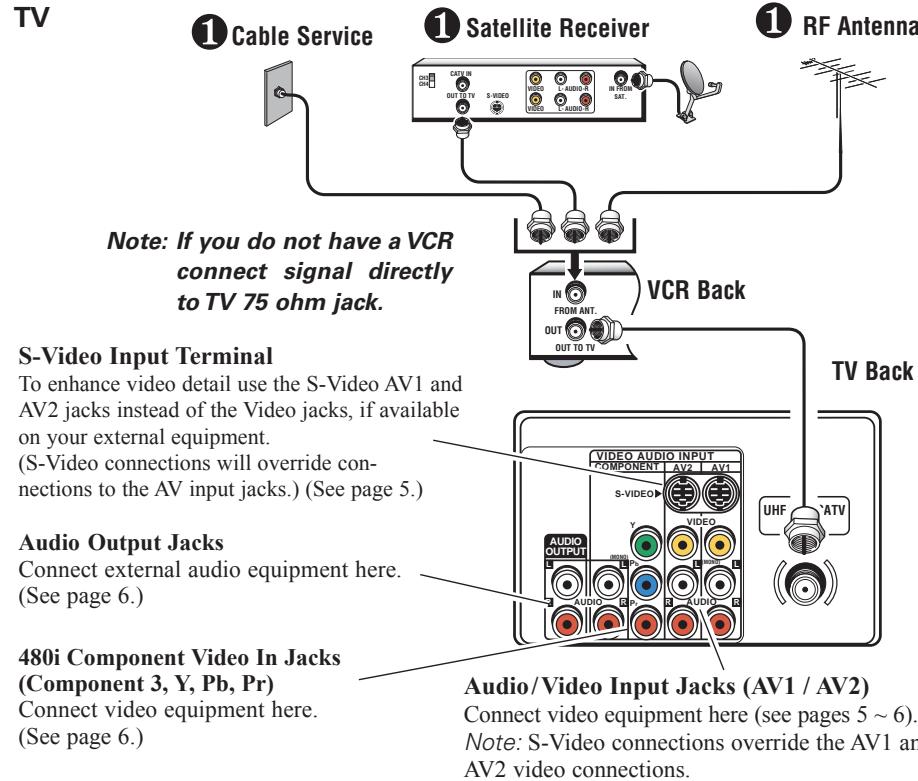

Connecting Cable Service, RF Antenna, or Satellite Dish Receiver to

Operational Tip for No Signal Connection:

If the TV is used as a monitor only, with a DVD player or some other type of external equipment, and no cable or antenna signal is available, the following setup is necessary:

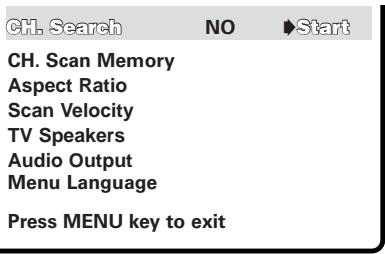

Your TV is designed to automatically search for available channels. Therefore, the initial start up requires that you press the MENU key, enabling the TV to automatically go through the channel search process before you can operate the TV. After the initial channel search is completed, you must press the MENU key again to complete the channel search process (may take several minutes).

After the channel search process is complete (2 searches), you can press the INPUT key on the remote control to use the TV as a monitor.

Using the Audio/Video Input Jacks

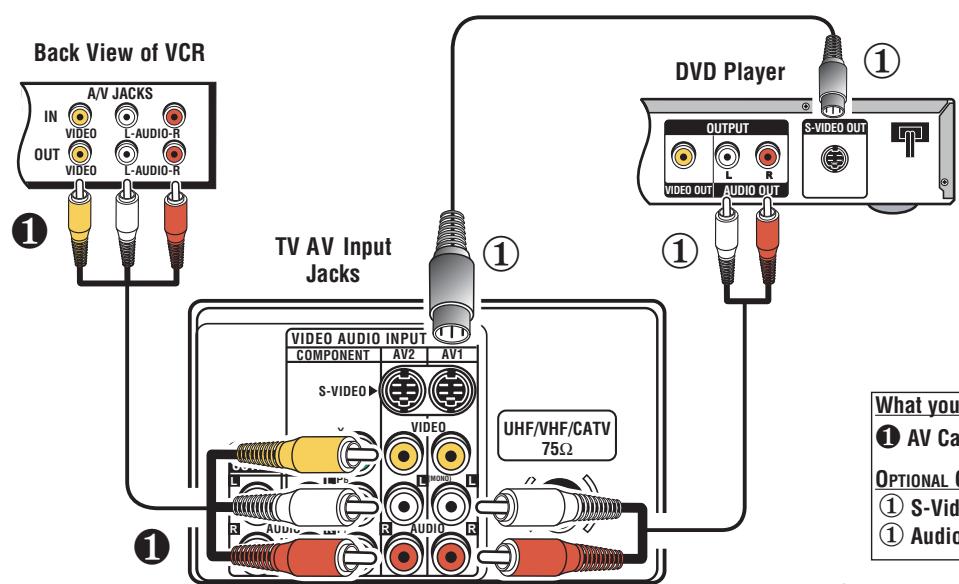

Connecting a VCR or DVD PLAYER

Switch off TV and external equipment before connecting cables. (Cables are not supplied.)

Connect VCR, DVD Player, or other equipment's Audio Video Output to the TV Audio Video Input.

For Mono VCR (Single Audio Jack) connect VCR Audio Output to TV Audio (L) Input.

① Optional

Connect DVD Player or other equipment's S-Video Output to the TV S-Video Input Jack. Using the S-Video jack overrides the Video jack.

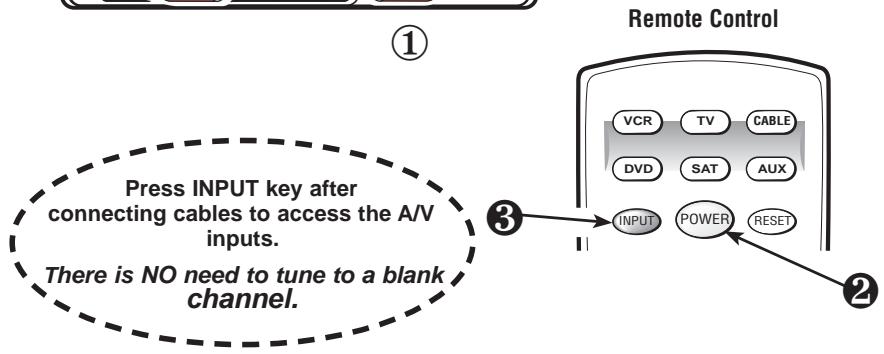

Press POWER to turn on the TV. Turn on external equipment also.
3 Press the INPUT key to select VIDEO1 or VIDEO2.

1

Quick Tips

Make sure all cable connectors are fully seated on jacks.
Always match A/V cables according to the colors; RED for right audio, WHITE for left audio and YELLOW for video.
A solid Blue screen with VIDE01 or VIDE02, displayed means that a Video mode is selected, but no signal is being detected at the Video jacks. Check connections, and turn on external equipment.

Need help? Visit our Web site at www.sanyoctv.com or Call 1-800-877-5032

Quick Tips

You may be able to use the TV remote control to operate your DVD Player. (See pages 9~11).
- A solid Blue screen with COMPONENT3 displayed means that the Component Video mode is selected, but no signal is being detected at the Component jacks. Check connection, and turn on external equipment.
Position your TV at least 2 feet from stereo speakers. The magnets in the speakers may affect the picture quality.

Need help? Visit our Web site at www.sanyoctv.com or Call 1-800-877-5032

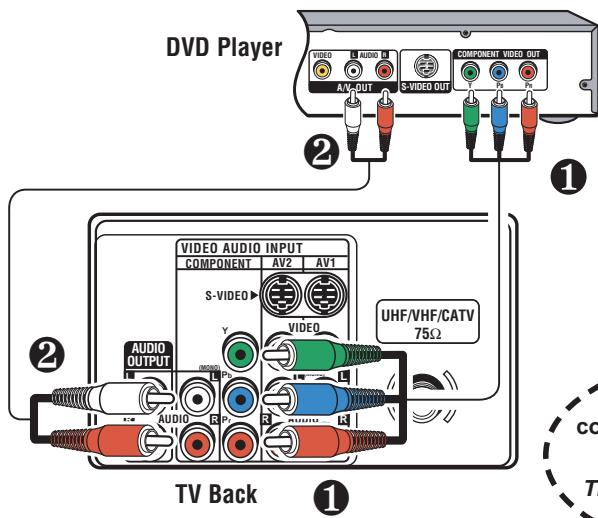

Connecting a DVD Player or other equipment

Switch off TV and external equipment before connecting cables. (Cables are not supplied.)

Connect a DVD Player or other equipment's interlaced Component Video Output to the TV Component Video Input (Y-Pb-Pr) Jacks.
Connect the DVD Player's Audio Output to the TV Component L/R Jacks.

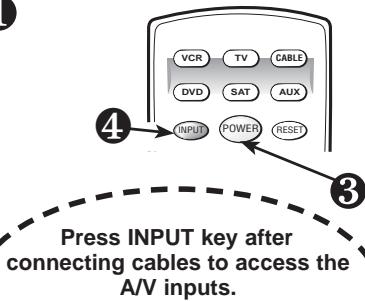

3 Press POWER to turn on the TV. Turn on external equipment also.
4 Press the INPUT key to select COMPONENT3.

Note: DVD Player component output must be set to Interlaced (480i).

What you will need for connections:

1 Component video cable - 1
2 Audio Cable - 1

Remote Control

There is NO need to tune to a blank channel.

Using the Audio Output Jacks

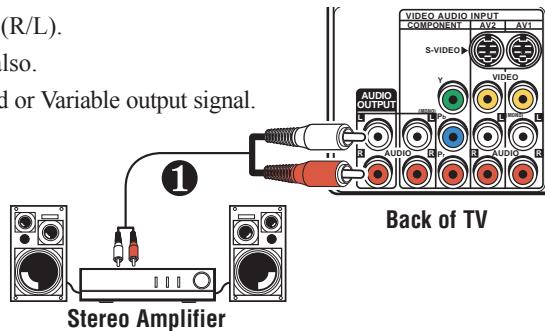

Connecting Audio Output Jacks to a Stereo Amplifier

Switch off TV and external equipment before connecting cables. (Cables are not supplied.)

1 Connect the TV Audio Output (R/L) to the Stereo Amplifier In (R/L).
Press POWER to turn on the TV. Turn on external equipment also.
Use the AUDIO OUTPUT on-screen menu options to select Fixed or Variable output signal.

Notes: DO NOT connect external speakers directly to the TV.

When TV Speakers is in the ON mode, sound will be produced through your TV and stereo amplifier.

When TV Speakers is in the OFF mode, sound will be produced only through the stereo amplifier.

(See page 14 to set TV speakers.)

Using the Multimedia Remote Control

Operates your TV, VCR, DVD, Cable converter box, and Satellite Receiver. To program the remote control, see pages 9 11

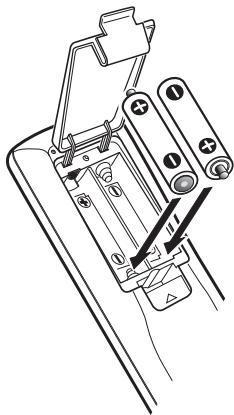

Install Batteries as shown (2 AA, not included)

Notes:

• Do not mix old batteries with new ones or mix different types of batteries together.
• Remove the batteries if the remote control will not be used for a month or more. Weak batteries may leak and cause damage. (Normal battery life is roughly six months.)

IMPORTANT NOTE: Spent or discharged batteries must be recycled or disposed of properly in compliance with all applicable laws. For detailed information, contact your local County Solid Waste Authority.

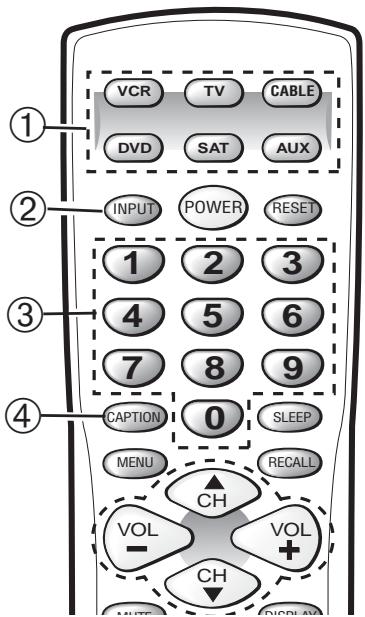

Remote Control Keys

1 Mode Keys—Use these keys to program the remote control and to select the operating mode (VCR, TV, CABLE, DVD, SAT, or AUX). To Operate Your... VCR—Press the VCR key; Television—Press the TV key; Cable Box—Press the CABLE key; DVD Player—Press the DVD key; and Satellite Receiver—Press the SAT key.
Note: Make sure you hold down the mode key while entering a code number, see page 9.
② Input Key—In the TV and Satellite modes, this key selects the program source to display on the screen (TV signal or signal from equipment connected to the AV jacks). In the VCR mode, this key functions as a VCR's TV/VCR key.
③ Number Keys—Two keys must be pressed to select a channel. Example: Press 0 then 6 to select channel 6. For cable channels 100 through 125, press and hold the 1 key until C1-- appears. Then press the other two numbers.
④ CaptionKey—Seepage17.

QuickTips

• Be sure batteries are installed correctly.
• Point the remote control toward the equipment you want to operate. Objects between the remote control and the equipment may cause misoperation of the remote control function.
  If the remote control does not work: Press TV key (see item 1).
  The remote control must be programmed before it will operate your VCR, DVD Player, Satellite Receiver, or Cable Box. See pages 9~11.
  Cannot select channel with number keys. Press "0" in front of numbers 1~9. Example: Channel 05.
  Adjusting the volume level: Flashing Right arrow indicates volume is increasing and flashing Left arrow indicates volume is decreasing.

Need help? Visit our Web site at www.sanyoctv.com or Call 1-800-877-5032

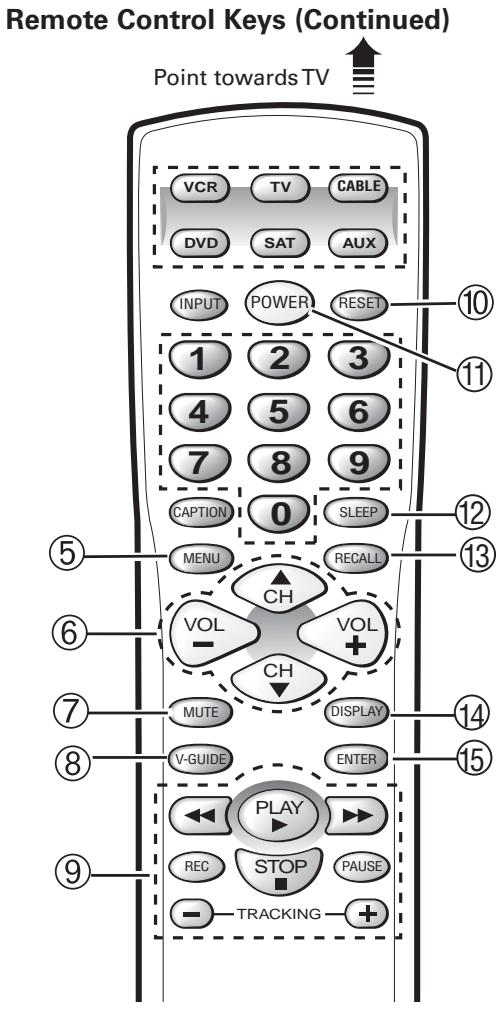

(Continued on page 8.)

⑤ Menu Key—Use this key with the / and - / + keys to navigate and adjust features of the on-screen menu system (see pages 12 14 ).
⑥ Channel Scanning (CH ▲/▼) and Volume (VOL - /+) Keys—Press to scan through the channels in memory and to adjust the volume.
⑦ Mute Key—Press once to minimize the volume. Press again to restore. Note: When using the audio out jacks this key will not mute the sound in the fixed mode, but will mute the sound in the variable mode.
V-Guide Key—See pages 15 16

⑨ VCR/DVD Keys—These keys control VCR or DVD functions for Fast Forward (▶), Rewind (▲), Play (▶), Record (REC), Stop (■), Tracking ( / +) , and Pause.
⑩ Reset Key—Press this key twice to restore factory settings. The TV will automatically start Channel Search and clear all customized settings. These features will automatically reset:

• Picture/Sound Adjustments: Color, Tint, Contrast, Brightness, Sharpness, Color Enhancer, Bass, Treble, and Surround Sound
• Channel Memory
• Initial Channel to OFF
  Audio to Stereo
• Caption to OFF
  V-Guide to OFF
  TV Speakers to ON
  Audio Output to FIXED
• Aspect Ratio to 4:3 (normal)
• Scan Velocity to HIGH
• Menu Language to English
• Clock and Sleep Timer (if previously set)
  Video to TV (if previously set)

If desired, personal settings can be made again using the menu options.

11 Power Key—Press to turn TV on or off.
⑫ Sleep Key—Press this key, then press the “0” key to set the Sleep Timer. The desired time can be set from 30 minutes up to 3 hours in 30 minutes increments. Sleep Timer will switch off the TV automatically. Note: The Sleep Timer cancels when the TV is turned off or if a power failure occurs.
⑬Recall Key—Select a channel then select another channel using the number keys. Press Recall to switch between the channels.
14 Display Key—Press once to display the channel number and time. Press twice to display the channel number continuously. Press again to remove the display.
⑤Enter Key—Use this key to activate menu selections on your DVD Player, Cable Box, Satellite Receiver, or VCR.

Programming the Remote Control

1 Find your VCR, Cable Box, DVD Player, and Satellite Receiver brand codes in the charts at the right and on page 10.
Press and hold the VCR, CABLE, DVD, SAT (Satellite Receiver), or AUX (Auxiliary) mode key while entering a three-digit code number. Then release the mode key.

If the code was accepted, the mode key will flash 5 times after it is released. If you entered an invalid code, the mode key will not flash. Check the code number and repeat Step 2.

After entering each code number check the unit's operation by pressing the POWER and/or CHANNEL keys. If these keys operate your equipment, you have probably entered the correct code number for that device. If not, follow Step 2 and enter another code, if available.

Perform Steps 1 and 2 for each piece of equipment you have.

The VCR mode will accept only VCR codes.

The AUX mode will accept code types for DVD Players, Cable Boxes, or a second VCR, but only one code at a time.

For programmed key functions, see chart on page 11.

After you have programmed the remote control and confirmed its operation, enter your codes in the spaces provided below for easy reference.

VCR Code:
Cable Box Code:
DVD Player Code:
Satellite Code:
AUX_LIST DEVICE HERE

DVD CODES

BRAND NAME	CODES	BRAND NAME	CODES
Akai	529	Oritron	522
Apex	525, 527, 528, 523	Panasonic	501, 518
		Philips	508, 502
Daewoo	529	Pioneer	511, 505, 518
Denon	501, 520	Proscan	504
Emerson	521, 524, 527	RCA	504
Fisher	500	Samsung	512
GE	504	Sanyo	500, 526
Harman/Kardon	513	Sharp	531, 517
Hitachi	530	Sherwood	519
JVC	515, 510	Sony	506
Kenwood	507	Sylvania	524
Koss	522	Symphonic	524
Magnavox	508, 502	Technics	501
Marantz	508	Theta Digital	511
Mitsubishi	503	Toshiba	502, 526
Onkyo	516, 502	Yamaha	501, 509
Optimus	511	Zenith	521, 514, 502
Orion	526

SATELLITE RECEIVER CODES

BRAND NAME	CODES	BRAND NAME	CODES
AlphaStar	431	Next Level	415
Echostar	432, 410, 416	Optimus	430
ExpressVU	432	Panasonic	428, 400
Fujitsu	404	Philips	429, 430
GE	426, 436, 437, 423	Primestar	425, 427
General		Proscan	426, 436, 437, 423
		Radio Shack	415
Instruments	425, 427, 415, 435, 405	RCA	426, 436, 437, 423
		Sony	420
Hitachi	407, 421	Star Choice	415, 435
HTS	432	Toshiba	422, 405
Hughes	407	Uniden	429, 430, 406, 409, 412
Janeil	404
Jerrold	425, 427	Video Pall	404
JVC	432	Viewstar	418
Magnavox	429, 430	Zenith	434, 404
Memorex	430

VCR CODES

BRAND NAME	CODES	BRAND NAME	CODES	BRAND NAME	CODES	BRAND NAME	CODES
Admiral	234, 239, 243, 247, 224, 229, 222, 215	Goldstar	223, 238, 248, 226, 206, 208, 215, 217	Multitech	228, 217	Samtron	208, 248
				NEC	238, 208, 223, 226, 201, 203, 206, 209, 215, 217, 248	Sansui	243, 226, 228, 235, 209, 219, 220, 225
Adventura	228	Go Video	248, 249, 208, 212, 213, 219
Aiko	240, 205					Sanky	239, 229, 224
Aiwa	228, 217	Gradiente	228	Olympus	232	Sanyo	200, 201, 202, 203
Akai	209, 215	Garrard	228	Optimus	239, 245, 248, 223, 224, 229, 201, 203, 208	Scott	234, 247, 223, 227, 211
America Action	205, 240	Harley Davidson	228			Sears	232, 223, 228, 230, 221, 201, 202, 203, 206, 211, 216, 217
America High	232	Headquarter	200	Orion	243, 227, 234, 240, 205, 206, 210, 211	200, 201, 202, 203, 206, 211, 216, 217
Bell & Howell	203, 201	Hitachi	228, 230, 246, 226, 221, 222, 209, 217	Panasonic	245, 232, 235, 236, 223, 202, 211, 216, 219	Semp	211
Broksonic	234, 243, 247, 227, 204					Shintom	219, 227, 235
Candle	233, 240, 248, 222, 223, 204, 205, 208, 211, 216, 217	Hughes	221, 230			Sharp	239, 229, 224
		JBL	237	Penny	230, 232, 235, 248, 221, 223, 208, 211, 216, 219	Signature	228, 217, 239, 229, 244, 204, 205, 206, 211, 216, 217
Canon	232, 216					224, 200
CCE	240, 205					Sony	214, 218, 232, 237, 238, 239, 240, 244, 204, 205, 206, 211, 216, 217
Cineral	240, 205	KEC	240, 205			226, 228
Citizen	233, 240, 222, 205, 211, 216, 217	Kenwood	220, 225, 226, 238, 201, 203, 209			STS	221, 230
Craig	223, 235, 202, 219	Kodak	232	Pentax	238, 221, 230	Sylvania	228, 232, 244, 204, 205, 216, 217
Craver	204	Lloyd's	228	Philco	204, 232, 243, 228, 216, 217	Symphonic	228, 217, 233, 226, 202
Curtis Mathes	232, 236, 238, 248, 222, 228, 208, 209, 211, 216, 217	Logik	235, 219			Yamaha	238, 226
		LXI	232, 221, 228, 230, 201, 202, 203, 206, 211, 217	Proton	219, 235, 236, 221, 226	Tatung	226, 209
				Pulsar	233, 240, 248, 205, 206, 216, 217	Teac	228, 209, 214, 217
Daewoo	205, 240, 211	Magnasonic	223, 235, 240, 205, 219			Technics	232
Daytron	240, 205	Magnavox	204, 232, 235, 228, 211, 216, 217, 219, 220, 225	Quarter	200	Teknika	232, 223, 228, 216, 217
Denon	221, 230					Toshiba	211, 240, 244, 202, 205, 210
Dynatech	228	Marta	206	Quasar	245, 232, 236, 223, 216	Tomas	228, 217
Emerex	214	Matsushita	232, 216	Radio Shack	228, 245, 223	Vector	211
Emerson	228, 243, 234, 236, 240, 247, 223, 227, 201, 203, 204, 205, 206, 210, 211, 217	MEI	232	RCA	222, 241, 246, 248, 230, 232, 236, 239, 224, 226, 229, 221, 201, 203, 207, 208, 210, 216	Video Concept	211
		Memorex	227, 232, 239, 243, 245, 223, 224, 228, 229, 230, 231, 232, 236, 239, 243, 245, 223, 224, 228, 229, 230, 231, 232, 236, 239, 243, 245, 223, 224, 228, 229, 230, 230, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 230, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 230, 230, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 230, 231, 230, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 230, 230, 230, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 235, 236, 237, 238, 239, 240, 241, 244, 245, 246, 247, 248, 249, 250, 251, 252, 253, 254, 255, 256, 257, 258, 259, 260, 261, 262, 263, 264, 265, 266, 267, 268, 269, 270, 271, 272	Samsung	232, 239, 240, 248, 249, 250, 251, 252, 253, 254, 255, 256, 257, 258, 259, 260, 261, 262, 263, 264, 265, 266, 269, 270, 271, 272
Fisher	200, 201, 202, 203, 211
Fuji	232	Minolta	221, 230			White
Funai	228, 233, 217	Mitsubishi	231, 239, 244, 224, 226, 229, 210, 223			Westinghouse	240, 243, 205
GE	222, 246, 248, 232, 236, 239, 226, 229, 244, 208, 212, 213, 216					XR-1000	228, 232
		Motorola	232, 239, 229, 224			Zenith	206, 215, 237, 243, 220, 230, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 231, 240, 241, 244, 245, 246, 247, 248, 249, 250, 251, 252, 253, 254, 255, 256, 257, 258, 259, 260, 260, 261, 262, 263, 264, 265, 266, 267, 268, 269, 270, 271, 272

CABLE BOX CODES

BRAND NAME	CODES	BRAND NAME	CODES	BRAND NAME	CODES	BRAND NAME	CODES
ABC	312, 304, 306, 308,309,311, 313, 314, 318, 319,321, 322, 323, 324,327, 329	Hamlin	330, 320	Philips	325, 329, 301, 308,309, 311, 313, 314,319, 322, 323	Stargate	309, 310, 311, 321,322, 334
		Hitachi	309, 308, 311, 319,322, 323			Teleview	310
		Hylex	318	Pioneer	312, 327, 335, 333,317, 324	Tocom	300, 303, 305, 304,306, 307
AIM	321	Jerrold	300, 303, 308, 309,311, 313, 314,319, 320, 321, 322, 323, 329	Proscan	327	Toshiba	331, 309, 308, 311,316, 319, 322, 323
Archer	334			Quasar	331, 302, 307, 317	Unika	314, 313, 329
Bell & Howell	313, 314, 329			RCA	328, 302, 307	United Artists	318
Contec	305, 302, 307, 308,309,311, 318, 319, 320,322, 323, 324, 327	Magnavox	325, 329, 301, 308,309, 311, 313, 314,319, 322, 323	Regal	330, 307, 320Rembrandt	United Artists	318
						United Cable	309, 308, 311, 319,322, 323
CPI	319, 308, 309, 311,322, 323	Memorex	331, 332, 313, 314, 329Motorola	Radio Shack	319, 322, 323	U.S. Electronics	309, 308, 311, 319,322, 323, 324,327
Diamond	320		338, 303, 300, 308,309, 311, 319, 320,321, 322, 323	Samsung	312, 310	Viewstar	326, 313, 315, 314, 329
Eagle	313, 314, 329			Scientific Atlanta	335, 327, 307, 324	Wards	321, 322, 308, 309,311, 319, 323
Emerson	334	Movie Time	306, 310, 314, 313, 329Northcoast	Signal	310	Warner	312
Gemini	334			Signature	300, 309, 308, 311,	Zenith	331, 336, 337, 308, 309,311, 316, 319, 322, 323
General	303, 300, 308, 309, 311,319, 320,321, 322, 323	NSC	305, 306, 314, 313, 329Oak	Sprucer	302, 307, 316	Zenith	331, 336, 337, 308, 309,311, 316, 319, 322, 323
Instruments	312	Paragon	331, 313, 314, 329Panasonic	Starcom	332, 309, 308, 311,319, 321, 322, 323	324, 327
Goodmind	334		331, 324, 302, 307,317, 327

Multimedia Remote Control Keys' Functions Chart

REMOTE KEYS	TV MODE	VCR MODE	CABLE MODE	DVD MODE	SATELLITE MODE
POWER	Turns Unit On/Off	Turns Unit On/Off	Turns Unit On/Off	Turns Unit On/Off	Turns Unit On/Off
NUMBER KEYS (0 ~ 9)	Used to Select Channels	Used to Select Channels	Used to Select Channels	No Function	Used to Select Channels
INPUT	Selects TV/Video mode	Selects TV/VCR mode	No Function	No Function	Selects TV/DSS mode
RECALL	Selects Previous Channel	Selects Previous Channel	Selects Previous Channel	Select Repeat Function	Selects Previous Channel
MENU	Displays Setup Menu	Displays Setup Menu	Displays Setup Menu	Displays Setup Menu	Displays Setup Menu
CHANNEL ▲ (UP)	Channel/Cursor* Up	Channel/Cursor* Up	Channel/Cursor* Up	Next/Cursor* Up	Channel/Cursor* Up
CHANNEL ▼ (DOWN)	Channel/Cursor* Down	Channel/Cursor* Down	Channel/Cursor* Down	Previous/Cursor* Down	Channel/Cursor* Down
VOLUME - (DOWN)	Audio Down/Cursor* Left	Audio Down/Cursor* Left	Audio Down/Cursor* Left	Audio Down/Cursor* Left	Audio Down/Cursor* Left
VOLUME + (UP)	Audio Up/Cursor* Right	Audio Up/Cursor* Right	Audio Up/Cursor* Right	Audio Up/Cursor* Right	Audio Up/Cursor* Right
MUTE	Switches TV sound Off/On	Switches TV sound Off/On	Switches TV sound Off/On	Switches TV sound Off/On	Switches TV sound Off/On
DISPLAY	Shows/Clears display	No Function	No Function	Zoom Function	No Function
RESET	Operates TV ONLY	No Function	No Function	No Function	No Function
CAPTION	Operates TV ONLY	No Function	No Function	Accesses Audio Options	No Function
SLEEP	Operates TV ONLY	No Function	No Function	No Function	No Function
V-GUIDE	Operates TV ONLY	No Function	No Function	No Function	No Function
ENTER	Makes Selection	Makes Selection	Makes Selection	Makes Selection	Makes Selection
PLAY (▶)	Selects VCR/DVD Play Mode	Selects VCR Play	Selects VCR/DVD Play	Selects DVD Play	Selects VCR/DVD Play
FAST FORWARD (▶)	Operates VCR/DVD	Operates VCR	Operates VCR/DVD	Operates DVD	Operates VCR/DVD
REWIND (▲)	Operates VCR/DVD	Operates VCR	Operates VCR/DVD	Operates DVD	Operates VCR/DVD
STOP (■)	Selects VCR/DVD Stop	Selects VCR Stop	Selects VCR/DVD Stop	Selects DVD Stop	Selects VCR/DVD Stop
PAUSE	Selects VCR/DVD Pause	Selects VCR Pause	Selects VCR/DVD Pause	Selects DVD Pause	Selects VCR/DVD Pause
RECORD (REC)	No Function	Selects VCR Record	No Function	No Function	No Function
TRACKING - / +	Adjusts VCR Head Tacking	Adjusts VCR Head Tacking	Adjusts VCR Head Tacking	Still Frame Step Fwd/Rev	Adjusts VCR Head Tacking
MODE KEYS	Press these keys (VCR/TV/CABLE/DVD/SAT/AUX) when programming the remote control and to choose an operating mode.

Notes:

Many of the keys on this remote control are multifunctional. Please refer to the chart for a generic description of the keys and their functions. Refer to your original operating manuals for specific feature operation.

This remote control cannot add keys or features to your equipment. Your equipment's manufacturer must have originally provided them.

The CHANNEL ( /) and VOLUME (- + ) keys become CURSOR keys when the MENU key is pressed. This operating state remains active for 10 seconds after pressing the MENU key or either of the CHANNEL or VOLUME keys. After 10 seconds, these keys will revert to normal channel and volume operation.

Some equipment brands use the CHANNEL and VOLUME keys instead of CURSOR keys to navigate through their menu system. If, after pressing the MENU key, the CHANNEL and VOLUME keys do not move the cursor, wait 10 seconds then try them again. If the menu leaves the screen, press the MENU key again then wait 10 seconds before pressing the CHANNEL and VOLUME keys.

Operations in the chart that are marked with an asterisk (*) work when the menu is displayed (after pressing the MENU key).

The AUX mode can be programmed to operate a, DVD Player, Cable Box, Satellite Receiver, or second VCR, but only one device at a time.

QuickTips

The menu will display on the screen for approximately 20 seconds. Press MENU again to redisplay.
Use the CHANNEL I keys and the VOLUME- + + keys to navigate through the menus and to make selections from the menus.
To see the time of day after setting the clock, press the DISPLAY key.
- Extended Data Service (XDS) signal may not be transmitted by all broadcasters.
Under weak stereo signal conditions, you may receive better quality sound in the "Mono" position.

Need help? Visit our Web site at www.sanyoctv.com or Call 1-800-877-5032

The on-screen menu provides the viewer with easy access to adjustments and settings. Just use the keys on the remote control and follow the on-screen instructions.

How to operate the On-screen Menu

1. Press MENU key.
2. Use the / keys to highlight the desired feature.
3. Use the - / + keys to choose desired option. ( indicates selected item.)
4. Press the MENU key to exit.

Items with submenus requires additional steps.

Setting the Clock

To use the Auto Clock feature, a local PBS station that is broadcasting an XDS signal must be received. The Auto Clock searches for the transmitted signal and automatically sets the clock. (This may take several seconds.)

▲▼ keys	- + keys
Clock	Manual	Auto
Audio	Stereo	Mono SAP
Picture/Sound	Sports	Movie
	News	Manual
Initial Channel	OFF	ON C---
Antenna	Cable	VHF/UHF
CH. Search	NO	Start
CH. Scan Memory	C 34	Added
Aspect Ratio	4:3	16:9
Scan Velocity	OFF	Low
		High
TV Speakers	ON	OFF
Audio Output	Fixed	Variable
		Espanol
Menu Language	English	Francais

To set the clock automatically

1. Press MENU key.
2. Use the ^+ key to activate Auto setting.

Notes:

The clock will be cleared after a power interruption. When power is restored, the TV will display the Auto Clock setup menu on the screen automatically.

Cable Box and Satellite users must set the clock manually.

To set the clock manually

1. Press the MENU key.
2. Press the or key to select Clock.
3. Press the MENU key to choose Manual.
4. Use the - key to set the hour and the + key to set the minutes.

Setting Audio Mode

Select desired sound setting, Stereo, Mono, or SAP (secondary audio program).

Note: Stereo and SAP must be part of the broadcast signal.

1. Choose Stereo, Mono, or SAP from the Audio options.

Note: The TV will automatically reset to stereo if unplugged or a power failure occurs.

Adjusting Picture/Sound

For automatic picture/sound adjustment

Choose Sports, Movie, or News from the Picture/Sound options.

Adjust the picture/sound manually

1. Choose Manual from the Picture/Sound options.
2. Press the MENU key to open the picture/sound settings submenu.
3. Use the / keys to highlight the picture or sound setting you want to change.
4. Use the - / + keys to adjust settings.

Initial Channel Setup

The TV can be programmed to tune to your favorite channel each time it is turned on, such as, a news or sports network, or the output of your VCR.

1. Press MENU key.
2. Use the / keys to highlight Initial Channel.
3. Press the + key to choose ON. Select favorite channel using remote number keys 0~9 (example): C03. To select cable channels above 99, press and hold the 1 key until C1-- appears.

Resetting the Antenna/Cable Mode and Channel Search

Resetting the Antenna/Cable Mode or CH. (Channel) Search is required only if additional channels become available, such as moving to another city or having a cable service installed.

1. Choose Start from the Ch. Search menu options.

(Continued on page 14.)

QuickTips

To expand your viewing experience select Sports, Movie, or News to match the program you are watching.
Use the Color Enhancer feature to highlight the picture flesh tones and color highlights. Selecting warm will deepen the picture red tints and cool will highlight the picture blue tints.
- Surround sound will be automatically on when Sports or Movie is selected. Surround expands the sound effect while receiving MTS stereo signals.
- When Initial Channel is set to OFF the TV will tune to the last channel selected when powered on.
- When setting the Antenna mode, choose Cable if your TV is connected to a cable system, otherwise choose VHF/UHF.

Need help?

Visit our Web site at

www.sanyoctv.com

or Call 1-800-877-5032

QuickTips

Channels deleted from scan memory can be selected with the number keys.
- Restoring deleted channels, use the on-screen menu to manually add channels or start CH. (Channel) Search from the menu. It may take a few minutes to search thru the available channels, or press RESET key twice.

Need help? Visit our Web site at www.sanyoctv.com or Call 1-800-877-5032

Adding or Deleting Channels

1. Press MENU key.
2. Use the / keys to highlight CH. Scan Memory.
3. Press the + key to highlight channel number entry area.

4. Enter the channel number you want to add or delete (example): C34. For cable channels above 99, press and hold the 1 key until C1-- appears. Then enter the other two numbers.

5. Press the ^+ key to change the present setting. Example: Added will change to Deleted. This takes about three seconds. During that time, the word "Added" or "Deleted" will become yellow.

6. Use the 0 9 or keys to choose other channels to delete or add, or press the MENU key to exit.

CH. Scan Memory	G 34	Deleted
Aspect Ratio
Scan Velocity
TV Speakers
Audio Output
Menu Language
Select channel using △V, 0~9 keys
Press MENU key to exit

Aspect Ratio

Use this feature when digital equipment is connected to the component input jacks. The 4:3 setting is for normal viewing. The 16:9 setting changes the picture image to wide-screen

viewing with minimal portion of top and bottom compressed.

1. Press MENU key.
2. Use the / keys to highlight Aspect Ratio.
3. Press the - / + keys to select 4:3 or 16:9.

Aspect Ratio ▲4:3 16:9

Scan Velocity

TV Speakers

Audio Output

Menu Language

Press MENU key to exit

Scan Velocity

This unit features an electronic circuit that regulates the scan speed of the electron beam creating sharp transitions between the light and dark portions of the picture. The result is crisp edges and sharply-defined clarity.

1. Press MENU key.
2. Use the / keys to highlight Scan Velocity.
3. Press the - / + keys to select Off, Low, or High.

Scan Velocity OFF Low TV Speakers High

Audio Output Menu Language

Press MENU key to exit

TV Speakers

1. Press MENU key.
2. Use the / keys to highlight TV Speakers.
3. Press the - / + keys to turn the speakers ON or OFF.

TV Speakers

Audio Output Menu Language

Press MENU key to exit

ON

OFF

Note: Sound will not be produced through your TV speakers if the OFF mode is selected.

Audio Output

This convenient menu option enables you to select a fixed or variable audio signal.

1. Press MENU key.
2. Use the / keys to highlight Audio Output.
3. Press the - / + keys to select Fixed or Variable.

Fixed Mode (Constant audio output level from TV)

Use external equipment's volume control to adjust sound level.

Variable Mode (Output from TV varies with volume)

Use the TV and external equipment's volume controls to adjust the sound level.

TV Speakers

Audio Output Fixed Variable

Menu Language

Press MENU key to exit

NOTE: THIS FEATURE IS DESIGNED TO COMPLY WITH THE UNITED STATES OF AMERICA'S FCC V-CHIP REGULATIONS. THEREFORE, IT MAY NOT FUNCTION WITH BROADCASTS THAT ORIGINATE IN OTHER COUNTRIES.

This Sanyo television is equipped with an electronic V-Chip to interpret MPAA and TV Parental Guidelines rating codes. When these codes are detected, the TV will automatically display or block the program, depending upon choices you make when setting up the V-Guide system.

The V-Guide system contains both age-based and content-based settings. This gives parents discretionary ways of choosing appropriate material for their children to view.

Content ratings are represented by the initials D (Suggestive Dialog), L (Adult Language), S (Sexual Situations), V (Violence), and FV (Fantasy Violence). When programming contains any or all of these conditions, these letters become part of the icon that is displayed on the TV screen.

A rating icon will generally appear in the upper left hand corner of the TV screen for about fifteen seconds.

V-Guide Operation

Use this feature to supervise television viewing for young children. This television can be set to automatically block programs with content you deem as inappropriate for your children to view, including: suggestive dialog, adult language, sexual situations, violence, and fantasy violence.

The ability of the television to block the reception of specific programming content depends upon several conditions: 1) The program must be rated, 2) Networks must broadcast the rating code data, 3) Cable companies must transmit the rating code signal, and 4) The TV must be properly setup to decode the signal.

QuickTips

Use the CHANNEL

/ keys

and the VOLUME

-/+ keys to

navigate through

the menus and to

make selections

from the menus.

V-Guide feature is accessible only from the remote control.
The TV guidelines

rating icon will

appear generally in

the upper left hand

corner of your TV

screen.

The V-Guide display

remains on screen

for approximately

20 seconds. If it

disappears, press

the V-GUIDe key.

Need help?

Visit our Web site at

www.sanyoctv.com

or Call 1-800-877-5032

Setting MPAA Movie Rating

1. Press the V-Guide key on the remote control to display menu.
2. Press the ^+ key to switch V-Guide ON.
3. Press the ^+ key again. Then use the / keys to highlight rating.
4. Press the MENU key to Block (B) or Unblock (U) selected rating. () Arrow indicates selection.)
5. Press the - key to return to the V-Guide Options menu.

(Continued on page 16.)

QuickTips

• When in the V-Guide menu system, the -I+ keys allow you to navigate between the ratings and the options menu.
  The TV will automatically block (B) ratings above or unblock (U) ratings below selection. For example, if you block rating R, NC17 and X will be blocked as well.
• Blocking TVY7 does not block higher ratings.
• You can block a content rating such as TVPG-V and still be able to watch TVPG programs with ratings of S-L-D provided TVPG is unblocked (U).
  To temporarily unblock or view blocked (B) programs, set V-Guide to OFF, or press the RESET key twice to clear all blocked (B) ratings and other customized settings.

Need help? Visit our Web site at www.sanyoctv.com or Call 1-800-877-5032

Setting TV Parental guidelines

1. Use the / keys to highlight TV Parental Guidelines.
2. Press the ^+ key. Then use the / keys to highlight rating.
3. Press the MENU key to Block (B) or Unblock (U) selected rating. Arrow indicates selection.)

Setting Content-Based Guidelines

1. Follow steps 6 and 7. Use the / keys to highlight Content.
2. Press the MENU key to display the Content Option menu.
3. Use the / keys to highlight a category (D-Suggestive Dialog, L-Adult Language, S-Sexual Situations, V-Violence, FV-Fantasy Violence).
4. Press the ^+ key. Then use the / keys to highlight a rating.
5. Press the MENU key to Block (B) or Unblock (U) selected rating. ( Arrow indicates selection.)
6. Press the V-GUIke key to exit; or press the -key to return to the Content Options menu.
7. Repeat steps 11 through 13 to Block (B) or Unblock (U) additional content ratings, if desired.

Turning Off the V-Guide

1. Press the V-Guide key.
2. Use the - / + keys to select OFF.

Note: Networks and local stations may or may not include the content ratings portion of the TV Parental Guidelines.

Closed-Captioning

Captioning is text information transmitted along with the picture and sound so it can be displayed on the TV screen. Because different types of captions can be transmitted with the TV signal, separate captioning modes are provided. The captioning modes recognized by this model are: Caption1, Caption2, Text1, and Text2. Local broadcasters decide which caption signals to transmit.

CAPTION1: This is the main mode used for program captioning (words match the program you are watching). These captions are generally one or two lines.

CAPTION2: This is an alternative mode for program captioning. Caption2 may be used by the broadcaster to provide captions in another language, such as, Spanish or French.

TEXT1: This mode is used to display large amounts of text. This text will appear within a black box that may be nearly as large as the TV screen. Text displayed in this manner does not generally relate to the program. These captions may be used by broadcasters to provide weather reports, community bulletins, etc.

TEXT2: This is an alternative mode used to display large amounts of text (same as Text1).

Caption1/2
Text1/2

QUIKCAP: Allows captions to toggle on and off with the Mute function. Press the MUTE key on the remote control to block the TV sound; the captions display automatically. Press the MUTE key again to restore the sound, the captions will disappear. Quikcap displays program captions in the Caption1 mode.

Setting Captions

1. Press the CAPTION key on the remote control.
2. Press the 0 key to select options: OFF, CAPTION1, CAPTION2, TEXT1, TEXT2, or QUIKCAP.

Care and Cleaning

QuickTips

If Caption Text mode is selected and NO captioned text is broadcasted, a black box may appear and remain on the TV screen as shown below.

To remove this black box, set captioning to any mode other than Text1 or Text2 or press the RESET key to cancel captioning and other customized settings.

• Channel number will not display continuously when captioning is on.

Need help?

Visit our Web site at

www.sanyoctv.com

or Call 1-800-877-5032

Cleaning the Cabinet

The surface of the cabinet can be damaged if not properly maintained. Many common household aerosol sprays, cleaning agents, solvents and polishes will cause permanent damage to the fine surface.

1. Unplug the power cord before cleaning the television.
2. Clean the cabinet with a soft dry cloth.

Cleaning the Television Screen

1. Use a soft cloth moistened with a non-alkaline diluted soap solution. Gently rub surface until it is fully dry.

Notes: Never spray liquids on the screen because they can run down and drip onto the chassis. This may cause component failure not covered under Warranty.

Never try to polish away any stain or other blemish, or use an abrasive material on the screen surface as this action may permanently damage the surface of the picture tube.

Helpful Hints (Problems / Solutions)

Before calling for assistance, please check the condition that most closely resembles your problem in the following chart, then try the solutions for that condition. Visit our Web site at www.sanyoctv.com or call toll free 1-800-877-5032.

Problem	Check these Conditions	Try these Solutions	Page No.
TV turns off automatically. • Check signal (Cable/Ant.) connection. • Power surge protection feature.	• Press POWER key. • The sleep timer may have been set. • Unplug TV momentarily.	4
No picture, poor picture or wavy lines in picture. • Check antenna/external equipment connections. • May be station trouble, No signal broadcast. • Brightness or Contrast misadjusted. • Possible interference from household appliance.	• Adjust antenna. • Try a different channel. • Press RESET key or restart channel search. • Turn off Mixer, Drill, Blender, etc.	4, 13
No sound, poor. No sound on some channels. • May be station trouble. • Maybe MUTE function is on. • Check Audio/Video connections.	• Try a different channel. • Adjust volume.	8, 13~14
Black Box on screen. • Caption Text mode without display information.	• Press RESET key twice, or switch OFF Captioning.	17
No Captioning. • Check if station is broadcasting a Closed-Caption signal. Select another channel.	• Select Caption1 or Caption2.	17
Poor Color or no color. • Check if program is in color. • Check antenna/external equipment connections. • Color or Tint misadjusted. • May be station trouble.	• Try a different channel. • Adjust antenna. • Press RESET key to restart channel search.	4, 13
Blue Screen with Video1, Video2, or Component3 displayed. • Check Audio/Video connections. • Check external equipment connections. • Check external equipment setting. • Check DVD setting.	• Press INPUT key. • Switch on external equipment. • Set DVD component output to interlaced.	5~7
No TV Stereo or SAP Sound. • Check if station is broadcasting a true MTS stereo signal or a SAP signal.	• Select Stereo or SAP from Audio on-screen menu.	12
Cannot select or scan some channels. • Channel may be removed from memory. • Check antenna connections. • V-Guide is set to block programming.	• Select CH. Scan Memory and manually add channels or start CH. (channel) search. • Turn V-Guide to OFF or press RESET key to clear all settings.	14 15~16
Remote Control will not work TV or other equip-ment (VCR, Cable Box, and DVD). • Press TV key to operate the TV. Press VCR to operate VCR; CABLE to operate cable; DVD to operate DVD Player; SAT to operate Satellite Receiver. • Check batteries; see if TV is plugged in.	• Check external equipment. • Replace batteries. • Aim remote control at front of TV and external equipment.	8~11
Menu words seem misspelled. • Maybe a different language is selected.	• Reselect menu language choice using the on-screen menu.	12
Cabinet makes popping sound. • This is a normal condition during warm-up and cool down of the plastic cabinet parts.

IMPORTADOR:

COMERCIALIZadora MEXICO

AMERICANA, S.DE R.L. DE C.V.

AV. NEXTENO No 78

COL. SANTA CRUZ ACAYUCAN

DEL. AZCAPOTZALCO, MEXICO, D.F. C.P. 02770

RFC: CMA9109119L0

DESCRIPTION: Television

BRAND: SANYO

MODELS: DS27930

DS32424

GUARANTEE

THE APPARATUS THAT YOU HAVE ACQUIRED HAS A ONE YEAR GUARANTEE FOR MANUFACTURING DEFECTS AND A ONE YEAR SERVICE WARRANTY FROM THE DATE OF PURCHASE GRANTED BY:

COMERCIALIZadora MEXICO-AMERICANA, S. DE R.L. DE C.V.

UNDER THE FOLLOWING CONDITIONS:

1. TO MAKE THE GUARANTEE EFFECTIVE, SIMPLY SHOW THIS POLICY Filled OUT BY THE STORE OR SUPPLIER UNIT OR THIS SALES INVOICE, WITH THE APPARATUS IN ANY OF THE SERVICE CENTERS INDICATED ON THIS GUARANTEE.
2. IF THE FAULT IS ATTRIBUTED TO A MANUFACTURING DEFECT, THE APPARATUS WILL BE REPLACED OR YOUR MONEY REFUNDED. DURING THE 30 DAYS SUBSEQUENT TO THE PURCHASE THE GUARANTEE WILL BE VALID AT THE STORE WERE THE APPARATUS WAS PURCHASED, PRESENTING THE ABOVE DOCUMENTS.
3. REPAIR TIME WILL NEVER BE MORE THAN 30 DAYS. IF THIS TIME HAS ELAPSED, AND THE PRODUCT IS NOT REPAIRED, COMERCIALIZadora MEXICO AMERICANA, S. DE R.L. DE C.V. WILL PROCEED TO EFFECTUATE THE EXCHANGE FOR AN EQUIVALENT APPARATUS OR THE RETURN OF THE BUYING-SALE COST RESPECTIVELY.
4. THIS GUARANTEE WILL COVER ITS TOTALITY OF PIECES, COMPONENTS AND SERVICE REPAIR OF PRODUCT, AND THE RESPECTIVE COST OF TRANSPORTATION.

THIS GUARANTEE WILL BE NULL AND VOID IN THE FOLLOWING CIRCUMSTANCES:

• WHEN PRODUCT HAS BEEN USED IN A DIFFERENT CONDITION THAN ITS NORMAL USE.
• WHEN PRODUCT HASN'T BEEN OPERATING CORRECTLY ACCORDING TO THE INSTRUCTIONS IN THIS MANUAL.
• WHEN PRODUCT HAS BEEN CHANGED OR REPAIRED BY PERSONS NOT AUTHORIZATION FROM THE MANUFACTURER, IMPORTER, OR MERCHANT RESPONSIBLE RESPECTIVE.

CENTRO DE SERVICIO Y LUGAR DONDE OBTENER PARTES, COMPONENTES, CONSUMIBLES Y ACCESORIOS:

SUCURSAL VALLEJO

Silos No 135, Col. Minerva

Deleg. Iztapalapa

Mexico, D.F. 09810

Tels. 5646-4551

5646-4550

STAMP, DATE AND SIGNATURE OF

STORE

DESCRIPTION: BRAND: MODEL:

CLIENT S NAME:

ADDRESS:

EXTERIOR NUMBER: INTERIOR NUMBER:

SUB DIVISION: STATE/DELEGATION:

TELEPHONE:

ONE-YEAR LIMITED WARRANTY

THIS LIMITED WARRANTY IS VALID ONLY ON SANYO TELEVISIONS PURCHASED AND USED IN THE UNITED STATES OF AMERICA, CANADA, AND PUERTO RICO, EXCLUDING THE UNITED STATES OTHER TERRITORIES AND PROTECTORATES. THIS LIMITED WARRANTY APPLIES ONLY TO THE ORIGINAL PURCHASER, AND DOES NOT APPLY TO PRODUCTS USED FOR INDUSTRIAL OR COMMERCIAL PURPOSES.

FOR ONE YEAR from the date of purchase, Sanyo Manufacturing Corporation will replace any defective TV.

To insure proper warranty exchange, keep the original sales receipt for evidence of purchase. Return the defective TV to the retailer along with the receipt and the included accessories, such as the remote control. The defective TV will be exchanged for the same model, or a replacement model of equal value, if necessary. Replacement model will be contingent on availability and at the sole discretion of Sanyo Manufacturing Corporation.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

OBLIGATIONS

For one year from the date of purchase, Sanyo Manufacturing Corporation warrants this product to be free from defects in material and workmanship under normal use and conditions. Should replacement be necessary under this warranty for any reason due to manufacturing defect or malfunction during the first year from date of original purchase, Sanyo Manufacturing Corporation will provide a new TV via exchange at the retailer.

For customer assistance, whether during or out of the warranty period, call toll free 1-800-877-5032.

Weekdays 7:30 AM - 7:00 PM Central Time

Saturday 7:30 AM - 4:00 PM Central Time

This warranty expresses specific contractual rights; retail purchasers may have additional statutory rights which vary from state to state.

(EFFECTIVE: August 1, 2002)

For your protection in the event of theft or loss of this product, please fill in the information requested below and KEEP IN A SAFE PLACE FOR YOUR OWN PERSONAL RECORDS.

Model No.

Date of Purchase

Serial No.

Purchase Price

(Located on back of unit)

Where Purchased

Sanyo Manufacturing Corp. 3333 Sanyo Road, Forrest City, AR 72335

This symbol on the nameplate means the product is Listed by Underwiers' Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

Silos No 135, Col. Minerva

Deleg. Iztapalapa

Mexico, D.F. 09810

Tels. 5646-4551

5646-4550

SELLO, FECHA Y FIRMA
DE
TIENDA

DESCRIPCION: MARCA: MODELO:

NOMBRE DEL CLIENTE:

DOMICILIO: No Ext. No Int.

Col. __ Estado/Deleg: ____

Tel.

GARANTÍA LIMITADA POR UN ANO

ESTA GARANTÍA LIMITADA ES VALIDA UNICAMENTE EN TELEVISORES SANYO COMPRADOS Y USADOS EN LOS ESTADOS UNIDOS DE AMERICA, CANADÁ Y PUERTO RICO, EXCLUYENDO OTROS TERRITORIOS Y PROTECTORADOS. ESTA GARANTÍA LIMITADA APLICA SOLAMENTE AL COMPRADOR ORIGINAL, Y NO APLICA A OTROS PRODUCTOS USADOS CON PROPÓSITOS INDUSTRIALES Y COMERCIALES.

POR UN ANO, a partir de la Fecha de compra, Sanyo Manufacturing Corporation, reemplazarárialquier TV.

Sanyo Manufacturing Corp.

3333 Sanyo Road, Forrest City, AR 72335

POIDS APPROX. (KG/LB)

INSTALLATION DES PILES (2 AA, non fournies)

Remarques :

Sanyo Manufacturing Corp. 3333 Sanyo Road, Forrest City, AR 72335

Child Safety:

It Makes A Difference Where Your TV Stands

Congratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind:

The Issue

If you are like most Americans, you have a television in your home. Many homes, in fact, have more than one television.
The home theater entertainment experience is a growing trend, and larger televisions are popular purchases and are not always supported on the proper TV stands.
Sometimes televisions are improperly secured or inappropriately situated on dressers, bookcases, shelves, desks, audio speakers, chests, or carts. As a result, TV sets may fall over and may cause unnecessary injury.

Sanyo Cares!

The industry is committed to making home entertainment enjoyable and safe.
The Consumer Electronics Association formed the Home Entertainment Support Safety Committee comprised of television and consumer electronics furniture manufacturers to advocate children's safety and educate customers and their families about television safety.

Tune Into Safety

1 One size does NOT fit all. Use the appropriate furniture that is large enough to support the weight of your television (and other electronic components).

2 Use appropriate angle braces, straps, and anchors to secure your furniture to the wall (but never screw anything directly into the TV).

3 Carefully read and understand the other enclosed instructions for proper use of this product.
4 Don't allow children to climb on or play with furniture and television sets.
5 Avoid placing any items on top of TVs such as VCRs and remotes that may pique the children's curiosity.
6 Remember that children can become excited while watching a program and can potentially push or pull a TV over.
7 Share our safety message on this hidden hazard of the home with your family and friends. Thank you!
