USER MANUAL DS27530 SANYO

“Read this manual before assembling (or using) this product.” “As an ENERGY STAR® Partner, Sanyo Manufacturing Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.” RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THIS UNIT.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE ADHERE TO ALL WARNINGS ON THE PRODUCT AND IN THE OPERATING INSTRUCTIONS. BEFORE OPERATING THE PRODUCT, PLEASE READ ALL OF THE SAFETY AND OPERATING INSTRUCTIONS. RETAIN THIS LITERATURE FOR REFERENCE. Follow all instructions... Positioning the appliance Plug in the power cord

1. Do not place your appliance on an unstable cart, stand, shelf or table.

Serious injury to an individual, and damage to the appliance, may result if it should fall. Your salesperson can recommend approved carts and stands or shelf and wall mounting instructions. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

2. Slots and openings in the cabinet and in the back or bottom are

provided for ventilation. To ensure reliable operation of the appliance and to protect it from overheating, these openings must not be blocked or covered. The openings should never be covered with a cloth or other material, and the bottom openings should not be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This appliance should never be placed near or over a radiator or heat register. This appliance should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.

3. Do not expose the appliance to rain or use near water . . . for example,

near a bathtub, swimming pool, kitchen sink, in a wet basement, etc. 5. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. This product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of this polarized plug. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

6. Power-supply cords should be routed so that they are not likely to be

walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product. “Note to CATV system installer: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.”

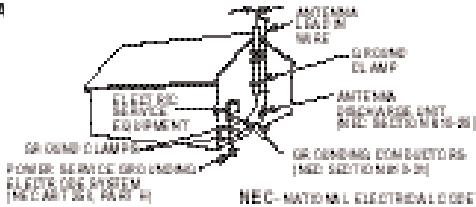

4. If an outside antenna is connected to the receiver, be sure the antenna

system is grounded so as to provide some protection against voltage surges and built up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. Cleaning 7. Before cleaning, unplug the unit from the wall outlet. Do not apply liquid cleaners or aerosol cleaners directly to the unit. Use a dry cloth for cleaning. Service & Repair

8. Unplug the appliance from the wall outlet and refer servicing to

qualified service personnel under the following conditions: A. If the power cord or plug is damaged or frayed. B. If liquid has been spilled into the appliance. C. If the appliance has been exposed to rain or water. D. If the appliance has been dropped or the cabinet has been damaged. E. If the appliance exhibits a distinct change in performance. F. If the appliance does not operate normally by following the operating instructions, adjust only those controls that are covered in the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the appliance to normal operation.

9. Upon completion of any service or repair, request the service technician’s

assurance that only Factory Authorized Replacement Parts that have the same characteristics as the original parts were used, and that routine safety checks have been performed to determine that the appliance is in safe operating condition. Unauthorized substitutions may result in fire, electrical shock, or other hazards.

10. Never add accessories that have not been specifically designed for use

with this appliance as they may cause hazards.

11. For added protection during a lightning storm, or when the set is left

unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the set due to lightning or power line surges.

12. Never push objects of any kind into this product through openings as

they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THIS UNIT.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE ADHERE TO ALL WARNINGS ON THE PRODUCT AND IN THE OPERATING INSTRUCTIONS. BEFORE OPERATING THE PRODUCT, PLEASE READ ALL OF THE SAFETY AND OPERATING INSTRUCTIONS. RETAIN THIS LITERATURE FOR REFERENCE. Follow all instructions... Positioning the appliance Plug in the power cord

1. Do not place your appliance on an unstable cart, stand, shelf or table.

Serious injury to an individual, and damage to the appliance, may result 5. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power Welcome to the World of Sanyo Thank you for purchasing a Sanyo Color Television. You made an excellent choice for Performance, Styling, Reliability, and Value. The TV is designed with easy to use on-screen set-up instructions and operating features. Need assistance? Visit our Web site at www.sanyoctv.com or call toll free 1-800-877-5032. Trilingual On-Screen Menu Automatic Channel Search Auto Shut Off Closed-Captioning/Quikcap Digital picture controls with on-screen display MTS stereo/dbx ®/SAP Decoder Auto Flesh Tone Factory preset adjustments for picture/sound Front Surround Sound Tone V-Guide (Parental Control)

Front (AV1) and Rear (AV2) Audio/Video In Jacks Audio Out Jacks S-Video In Jack

181 Channel Tuning System VHF Channels 2-13 UHF Channels 14-69 Cable TV (CATV) 1, 14-125

Automatic Fine Tuning VHF and Cable Channels Multimedia Remote Control

VCR/TV/AUX

Large Glow-in-the-Dark basic operating keys 0~9 Numbered Channel Selection Channel Scanning Volume Mute Power Recall Display Sleep Caption Reset Menu V-Guide Input VCR/DVD keys dbx® is a registered trademark of Carillon Electronics Corporation SPECIFICATIONS

PICTURE TUBE SIZE

SOUND (2 Speakers) VERTICAL DIM. (Height) AMPLIFIER . . . . . . . . . Built-in with 1W/ch DEPTH DIM. (Thickness) CAUTION: FCC Regulations state that improper modifications or unauthorized changes to this unit may void the user’s authority to operate the unit.

Welcome to the World of Sanyo Thank you for purchasing a Sanyo Color Television. You made an excellent choice for Performance, Styling, Reliability, and Value. The TV is designed with easy to use on-screen set-up instructions and operating features. Need assistance? Visit our Web site at www.sanyoctv.com or call toll free 1-800-877-5032. FEATURES

Trilingual On-Screen Menu Automatic Channel Search Auto Shut Off

Closed-Captioning/Quikcap

Front (AV1) and Rear (AV2) Audio/Video In Jacks Audio Out Jacks S-Video In Jack

Multimedia Remote Control

VCR/TV/AUX

Large Glow-in-the-Dark basic operating keys 0~9 Numbered Channel Selection The TV will automatically select the correct Antenna mode for the type of signal you connect.

TV will switch off automatically after 15 minutes if there is no signal reception (cable out or station not broadcasting). Exception—When the Video mode is selected, the TV will not automatically switch off when signal reception has stopped for 15 minutes.

If you move the TV to a new location, press the RESET key twice after connecting the signal and turning on the TV. INITIAL SET-UP

1. Install batteries in remote control, see page 7.

2. Connect signal, see below.

3. Plug in AC power cord.

4. Press POWER key to turn on TV.

5. Follow on-screen instructions.

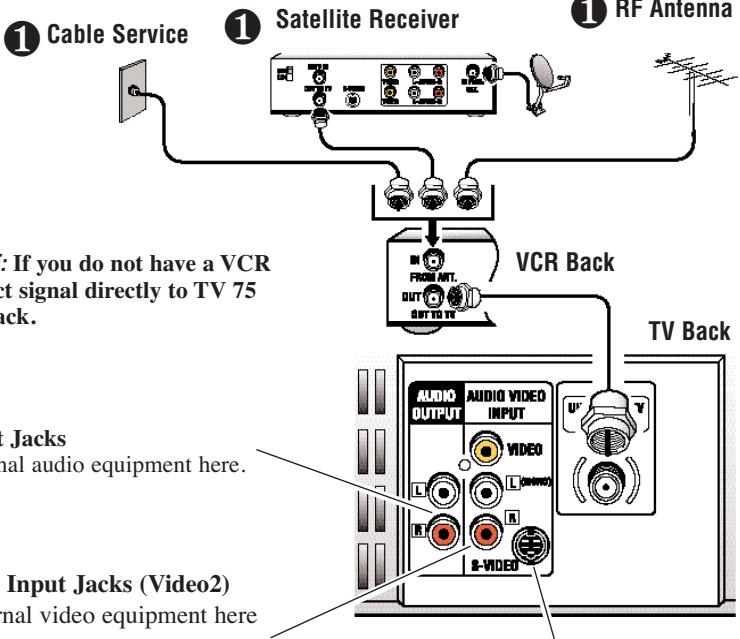

CONNECTING CABLE SERVICE, RF ANTENNA, OR SATELLITE DISH

RECEIVER TO TV

Satellite Receiver Cable Service RF Antenna VCR Back NOTE: If you do not have a VCR connect signal directly to TV 75 ohm jack. TV Back Audio Output Jacks Connect external audio equipment here. Need help? Visit our Web site at CATV FRANCHISE NOTE: Cable companies, like public utilities, are franchised by local government authorities. To receive cable programs, even with equipment which is capable of receiving cable channels, the consumer must subscribe to the cable company’s service. Audio/Video Input Jacks (Video2) Connect external video equipment here (see page 6). Note: For your convenience this TV is designed with front A/ V Jacks (Video1) to connect your video game, camcorder, and other external video equipment as shown on page 5. S-Video Input Terminal To enhance video detail use the S-Video jack instead of the Video jack, if available on your external equipment. (S-Video connection will override a connection to the rear Video jack.) See page 6.

POSITIONING THE TV

Do not position the TV in a confined area. Allow space for normal air circulation around electronic parts.

The TV will automatically select the correct Antenna mode for the type of signal you connect.

TV will switch off automatically after 15 minutes if there is no signal reception (cable INITIAL SET-UP

1. Install batteries in remote control, see page 7.

2. Connect signal, see below.

3. Plug in AC power cord.

4. Press POWER key to turn on TV.

5. Follow on-screen instructions.

CONNECTING CABLE SERVICE, RF ANTENNA, OR SATELLITE DISH

RECEIVER TO TV

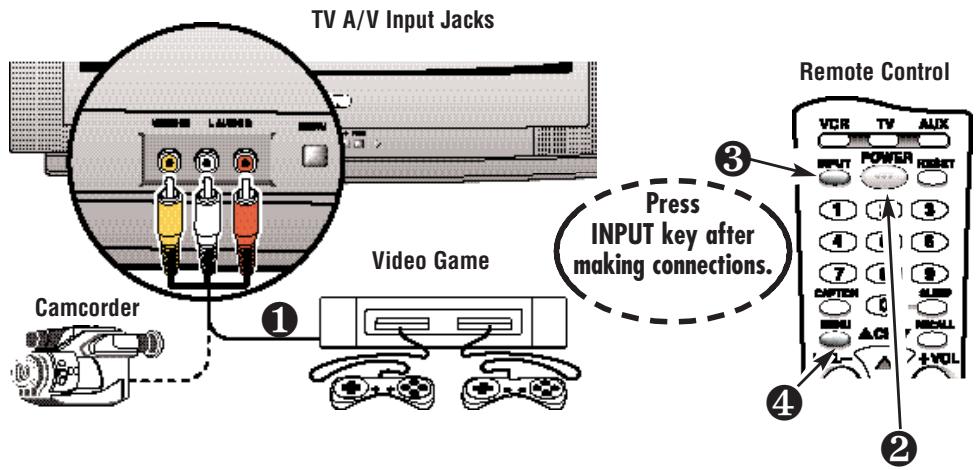

RF Antenna Switch off TV and video game before connecting cables. Connect game Audio Output (R/L) to the TV Audio Input (R/L). Then connect game

Make sure all cable connectors are fully seated on jacks.

A solid Blue screen with the word VIDEO1 or VIDEO2 displayed means that the Game/Video mode is selected, but no signal is being detected at the Video jacks. Check connections, turn on external equipment.

Position your TV at least 2 feet from stereo speakers. The magnets in the speakers may affect the picture quality. Press POWER key to turn on the TV. Turn on video game. Press the INPUT key to select program source: TV signal or signal from the video game connected to the A/V jacks. Press the MENU key and select Game from the onscreen menu. The TV will automatically change the screen and sound to factory preset game settings. TV A/V Input Jacks Remote Control

Video Game Camcorder Press INPUT key after making connections.

Visit our Web site at

USING THE AUDIO OUTPUT JACKS

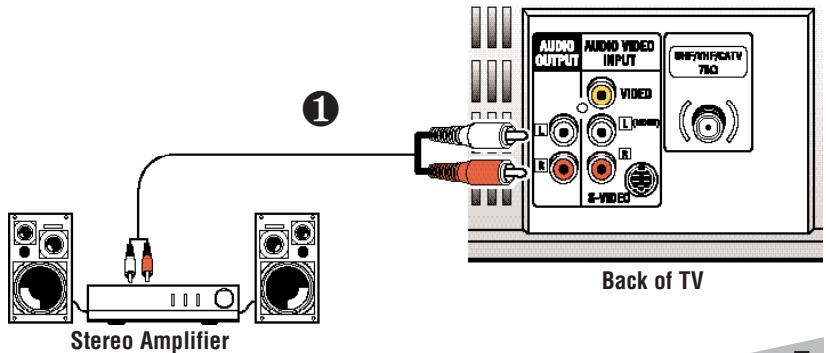

CONNECTING AUDIO OUT JACKS TO A STEREO AMPLIFIER Switch off TV and external equipment before connecting cables. (Cables are not supplied.) Connect the TV Audio Out (R/L) to the Stereo Amplifier In (R/L).

Press POWER to turn on the TV. Turn on external equipment also. Note: Do not connect external speakers directly to the TV. Back of TV Stereo Amplifier

Switch off TV and video game before connecting cables. Connect game Audio Output (R/L) to the TV Audio Input (R/L). Then connect game

Make sure all cable connectors are fully seated on jacks.

A solid Blue screen with the word VIDEO1 or VIDEO2 displayed means that the Game/Video mode is Press POWER key to turn on the TV. Turn on video game. Press the INPUT key to select program source: TV signal or signal from the video game connected to the A/V jacks. Press the MENU key and select Game from the onscreen menu. The TV will automatically change the screen and sound to factory preset game settings.

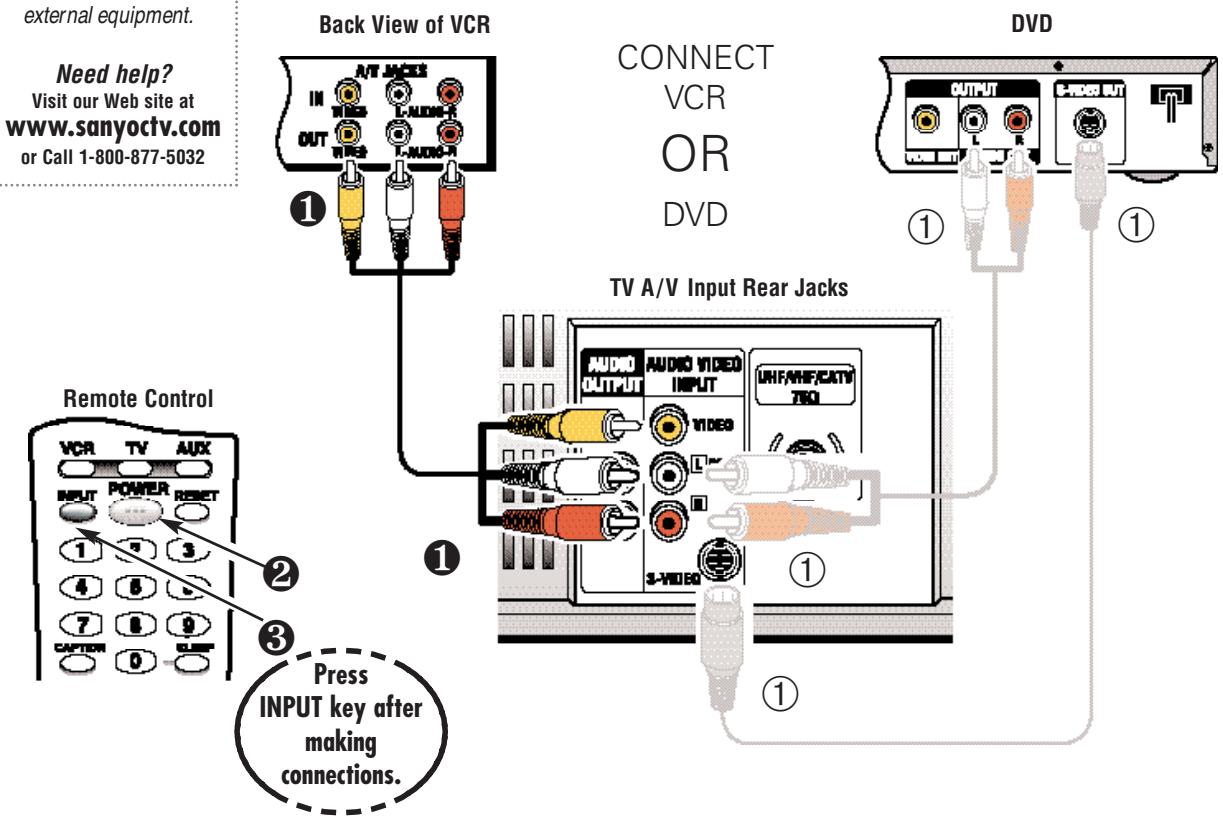

CONNECTING A VCR OR DVD PLAYER

Switch off TV and external equipment before connecting cables. (Cables are not supplied.)

Always match cables according to the colors; RED for right audio, WHITE for left audio and YELLOW for video. A solid Blue screen with the word VIDEO1 or VIDEO2 displayed means that the Game/Video mode is selected, but no signal is being detected at the Video jacks. Check connections, turn on external equipment.

Connect VCR, DVD, or other equipment’s Audio Video Out to the TV Audio Video Input. For Mono VCR (Single Audio Jack) connect VCR Audio Out to TV Audio (L) Input. Optional Connect DVD, or other equipment’s S-Video Out to the TV S-Video In Jack. Using the S-Video jack overrides the rear Video jack.

Press POWER to turn on the TV. Turn on external equipment also. Press the INPUT key to select VIDEO2. Note: Only one device at a time can be connected to these jacks. DVD Back View of VCR CONNECT VCR Need help? Visit our Web site at www.sanyoctv.com

or Call 1-800-877-5032

TV A/V Input Rear Jacks Remote Control

Press INPUT key after making connections.

CONNECTING A VCR OR DVD PLAYER

Switch off TV and external equipment before connecting cables. (Cables are not supplied.)

Always match cables according to the colors; RED for right audio, WHITE for left audio and YELLOW for video. A solid Blue screen with the word VIDEO1 or VIDEO2 displayed means that the

Connect VCR, DVD, or other equipment’s Audio Video Out to the TV Audio Video Input. For Mono VCR (Single Audio Jack) connect VCR Audio Out to TV Audio (L) Input. Optional Connect DVD, or other equipment’s S-Video Out to the TV S-Video In Jack. Using the S-Video jack overrides the rear Video jack.

Press POWER to turn on the TV. Turn on external equipment also.

USING THE MULTIMEDIA REMOTE CONTROL

Operates your TV, VCR, DVD, and Cable converter box. To program the remote control, see pages 8 ~ 10. QuickTips INSTALL BATTERIES AS SHOWN (2 AA, not included)

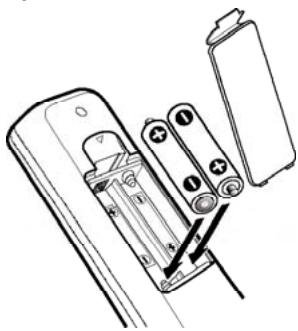

Notes: – Do not mix old batteries with new ones or mix different types of batteries together. Be sure batteries are installed correctly.

Point the remote control toward the equipment you want to operate. Objects between the remote control and the equipment may cause misoperation of the remote control function.

If the remote control does not work: Press T V key (see item 1).

The remote control must be programmed before it will operate your VCR, DVD, or Cable Box. See pages 8~10.

Cannot select channel with number keys. Press “0 ”in front of numbers 1 ~ 9. Example: Channel 05.

Adjusting the volume level: Right flashing arrow indicates volume is increasing and Left flashing arrow indicates volume is decreasing. – Remove the batteries if the remote control will not be used for a month or more. Weak batteries may leak and cause damage. (Normal battery life is roughly six months.) IMPORTANT NOTE: Spent or discharged batteries must be recycled or disposed of properly in compliance with all applicable laws. For detailed information, contact your local County Solid Waste Authority.

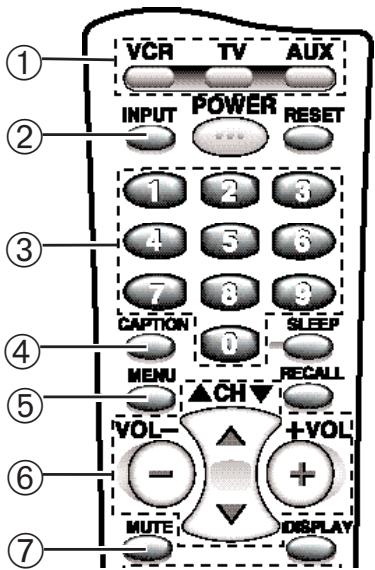

REMOTE CONTROL KEYS

Keys—Use these keys to program the remote Mode control and to select the operating mode (VCR, TV, or AUX). To Operate Your... VCR—Press the VCR key; Cable Box or DVD Player—Press the AUX key; and Television—Press the TV key. Note: Make sure you hold down the mode key while entering a code number, see page 8. Input Key—Press to select the program source to watch: TV signal or signal from the DVD Player or other equipment you have connected to the A / V jacks.

Number Keys—Two keys must be pressed to select a channel. Example: Press 0 then 6 to select channel

6. For cable channels 100 through 125, press and

hold the 1 key until C1–– appears. Then press the other two numbers. Caption Key (See page 12.) Menu Key—Use this key with the / and – /+ keys to navigate and adjust features of the on-screen menu system (see pages 11 ~ 12). Channel Scanning (CH / ) and Volume (VOL +) Keys—Press to scan through the

Need help? Visit our Web site at channels in memory and to adjust the volume. Key—Press once to minimize the volume. Mute Press again to restore. Note: When using the audio (Continued on page 8.) out jacks this key will not mute the sound.

USING THE MULTIMEDIA REMOTE CONTROL

Operates your TV, VCR, DVD, and Cable converter box. To program the remote control, see pages 8 ~ 10. QuickTips INSTALL BATTERIES AS SHOWN (2 AA, not included)

Notes: – Do not mix old batteries with new ones or mix different types of batteries together. Be sure batteries are installed correctly.

Point the remote control toward the equipment you want to operate. Objects between the remote control and the equip- – Remove the batteries if the remote control will not be used for a month or more. Weak batteries may leak and cause damage. (Normal battery life is roughly six months.)

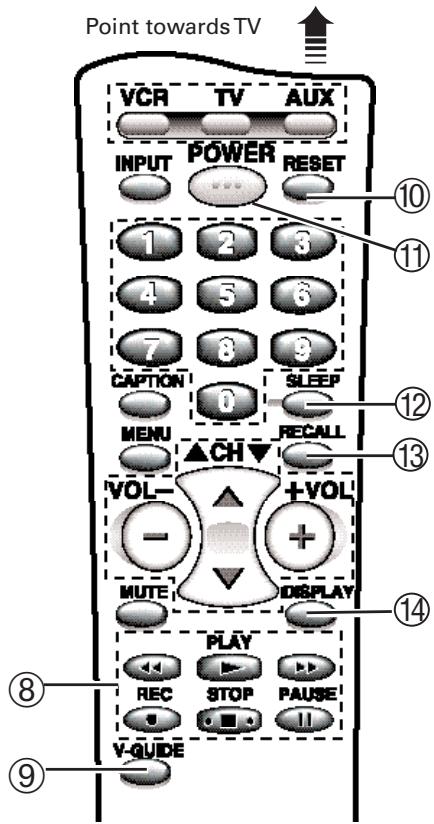

Point towards TV 11 Power Key—Press to turn TV on or off. 12 Sleep Key—Press this key, then press the “0” key to

set the Sleep Timer. The desired time can be set from 30 minutes up to 3 hours in 30 minutes increments. Sleep Timer will switch off the TV automatically. Note: The Sleep Timer cancels when the TV is turned off or if a power failure occurs. 13 Recall Key—Select a channel then select another channel using the number keys. Press Recall to switch between the channels.

14 Display Key—Press once to display the channel

number. Press twice to display the channel number continuously. Press again to remove the display.

PROGRAMMING THE REMOTE CONTROL

Find your VCR, DVD, and Cable Box, brand codes in the charts on page 9. Press and hold the VCR or AUX (Auxiliary) mode key

while entering a three-digit code number. Then release the mode key.

Keys—These keys control VCR or DVD VCR/DVD functions for Fast Forward ( ), Rewind ( ), Play ( ), Record (REC •), Stop ( ), and Pause ( ll ). V-Guide Key (See pages 13 ~ 14.) Key—Press this key twice to restore factory setReset tings. The TV will automatically start Channel Search

and clear all customized settings. These features will automatically reset:

• Picture/Sound Adjustments: Color, Sharpness, Bright, Contrast, Tint, Tone, and Surround Channel Memory Audio Stereo Caption OFF V-Guide OFF Language English Sleep Timer (if previously set)

• Game/ Video to TV (if previously set) If the code was accepted, the mode key will flash 5 times after it is released. If you entered an invalid code, the mode key will not flash. Check the code number and repeat Step 2. The VCR modes will accept only VCR’s code type. The AUX mode will accept code types for DVD Players, Cable Boxes, or a second VCR, but only one code at a time. Perform Steps 1 and 2 for each piece of equipment you have. After entering each code number check the unit’s operation by pressing the POWER and/or CHANNEL keys. If these keys operate your equipment, you have probably entered the correct code number for that device. If not, follow Step 2 and enter another code, if available. After you have programmed the remote control and confirmed its operation, enter your codes in the spaces provided below for easy reference. VCR Code: Cable Box Code: DVD Player Code: If desired, personal settings can be made again using the menu options. Point towards TV

11 Power Key—Press to turn TV on or off. 12 Sleep Key—Press this key, then press the “0” key to

set the Sleep Timer. The desired time can be set from 30 minutes up to 3 hours in 30 minutes increments. Sleep Timer will switch off the TV automatically. Note: The Sleep Timer cancels when the TV is turned off or if a power failure occurs. 13 Recall Key—Select a channel then select another channel using the number keys. Press Recall to switch between the channels.

14 Display Key—Press once to display the channel

MULTIMEDIA REMOTE CONTROL KEYS FUNCTIONS CHART

REMOTE KEYS TV MODE VCR MODE

CABLE BOX MODE

DVD MODE POWER Turns unit On/Off Turns unit On/Off Turns unit On/Off Turns unit On/Off NUMBER KEYS (0 ~ 9) Used to Select Channels Used to Select Channels Used to Select Channels No Function INPUT Selects TV/Video Selects TV/VCR No Function No Function RECALL Selects previous channel Selects previous channel Selects previous channel Select Repeat function MENU Selects VCR/DVD Play Selects VCR Play Selects VCR/DVD Play Selects DVD Play Selects VCR/DVD Stop Selects VCR Stop Selects VCR/DVD Stop Selects DVD Stop PAUSE (ll) Selects DVD Pause

Selects VCR/DVD Pause Selects VCR Pause Selects VCR/DVD Pause RECORD (REC ) No Function Selects VCR Record No Function MUTE Switches TV sound Off/On Switches TV sound Off/On Switches TV sound Off/On DISPLAY Shows/Clears display No Function No Function Zoom Function RESET Accesses Audio Options SLEEP Press these keys (VCR/TV/AUX) when programming the remote control and to choose an operating mode.

No Function Switches TV sound Off/On Notes: – Many of the keys on this remote control are multi-functional. Please refer to the chart for a generic description of the keys and their functions. Refer to your original operating manuals for specific feature operation. – This remote control cannot add keys or features to your equipment. Your equipment's manufacturer must have originally provided them. – The CHANNEL ( /) and VOLUME (-/+) keys become CURSOR keys when the MENU key is pressed. This operating state remains active for 10 seconds after pressing the MENU key or either of the CHANNEL or VOLUME keys. After 10 seconds, these keys will revert to normal channel and volume operation. – Some equipment brands use the CHANNEL and VOLUME keys instead of CURSOR keys to navigate through their menu system. If, after pressing the MENU key, the CHANNEL and VOLUME keys do not move the cursor, wait 10 seconds then try them again. If the menu leaves the screen, press the MENU key again then wait 10 seconds before pressing the CHANNEL and VOLUME keys. – Operations in the chart that are marked with an asterisk (*) work when the menu is displayed (after pressing the MENU key). – The AUX mode can be programmed to operate a, DVD Player, Cable Box, or second VCR, but only one device at a time.

MULTIMEDIA REMOTE CONTROL KEYS FUNCTIONS CHART

REMOTE KEYS TV MODE VCR MODE

CABLE BOX MODE

DVD MODE POWER Turns unit On/Off Turns unit On/Off Turns unit On/Off Turns unit On/Off NUMBER KEYS (0 ~ 9) Used to Select Channels Used to Select Channels Used to Select Channels No Function INPUT Selects TV/Video Selects TV/VCR No Function No Function RECALL Selects previous channel Selects previous channel Selects previous channel Select Repeat function MENU CHANNEL (DOWN) Channel/Cursor* Down VOLUME – (DOWN) Selects VCR/DVD Play Selects VCR Play Selects VCR/DVD Play Selects DVD Play

TV ADJUSTMENT AND SETUP

QuickTips The on-screen menu provides the viewer with easy access to adjustments and settings. Just use the keys on the remote control and follow the on-screen instructions.

/ keys to highlight the desired + keys to choose desired

3. Use the – /+

option. ( indicates selected item.)

4. Press the MENU key to exit.

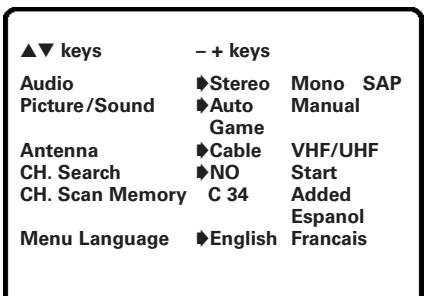

Items with submenus requires additional steps. keys – + keys Stereo Auto Game Cable Antenna CH. Search CH. Scan Memory C 34 Audio Picture/Sound Menu Language VHF/UHF Start Added Espanol English Francais

SETTING AUDIO MODE

Select desired sound setting, Stereo, Mono, or SAP (secondary audio program). Note: Stereo and SAP must be part of the broadcast signal. keys

1. Choose Stereo, Mono, or SAP from the Audio options.

Au d i o Note: The TV will automatically reset to stereo if unplugged or a power interruption occurs. – + keys S t e re o Mono SAP

ADJUSTING PICTURE/SOUND

keys Factory preset adjustments for automatic picture/sound: – + keys Choose Auto from the Picture/Sound options. Adjust the picture/sound manually:

1. Choose Manual from the Picture/Sound options.

Audio P i c t u re / S o u n d Antenna keys

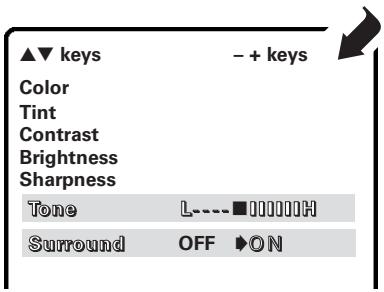

– + keys Color Tint Contrast Brightness Sharpness

2. Press the MENU key to open the picture/sound

3. Use the / keys to highlight the picture or

sound setting. + keys to adjust settings.

4. Use the – /+

To n e The menu will display on the screen for approximately 20 seconds. Press MENU again to redisplay. Use the CHANNEL / keys and the + keys to VOLUME – /+ navigate through the menus and to make selections from the menus. Under weak stereo signal conditions, you may receive better quality sound in the “Mono” position. Use the Surround feature to expand the sound effect while receiving MTS stereo signals as well as enhancing video games sounds. When setting the Antenna mode, choose Cable if your TV is connected to a cable system, otherwise choose VHF/UHF.

Need help? For automatic game settings:

1. Choose Game from the Picture/Sound menu options.

The screen and sound will automatically change to factory preset settings. Visit our Web site at keys – + keys Note: Select the front A/V input jacks by pressing the INPUT key on the remote control. RESETTING THE ANTENNA/CABLE MODE OR CHANNEL SEARCH Resetting the Antenna/Cable Mode or CH. (Channel) Search is required only if additional channels become available, such as moving to another city or having a cable service installed. C H . S e a rc h NO S S t a rt

1. Choose Start from the Ch. Search menu options.

TV ADJUSTMENT AND SETUP

QuickTips The on-screen menu provides the viewer with easy access to adjustments and settings. Just use the keys on the remote control and follow the on-screen instructions.

/ keys to highlight the desired + keys to choose desired

3. Use the – /+

option. ( indicates selected item.)

4. Press the MENU key to exit.

Items with submenus requires additional steps. keys – + keys Stereo Auto Game Cable Antenna CH. Search CH. Scan Memory C 34 Audio Picture/Sound Menu Language VHF/UHF Start Added Espanol English Francais

The menu will display on the screen for approximately 20 seconds. Press MENU again to redisplay. Use the CHANNEL / keys and the + keys to VOLUME – /+ navigate through the menus and to make QuickTips

Channels deleted from scan memory can be selected with the number keys. Restoring deleted channels, use the on-screen menu to manually add channels or start CH. (Channel) Search from the menu. It may take a few minutes to search thru the available channels.

ADDING OR DELETING CHANNELS

1. Press MENU key.

2. Use the / keys to highlight CH. Scan Memory.

3. Press the + key to highlight channel number entry area.

4. Enter the channel number you want to add or delete (example): C34. For cable channels

above 99, press and hold the 1 key until C1– – appears. Then enter the other two numbers.

5. Press the + key to change the present setting. Example: Added will change to Deleted.

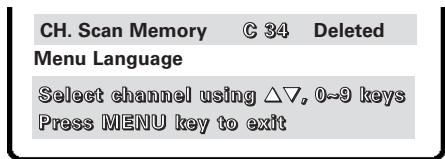

This takes about three seconds. During that CH. Scan Memory C 3 4 Deleted time, the word “Added” or “Deleted” will Menu Language become yellow.

6. Use the 0~9 or keys to choose other

channels to delete or add, or press the MENU key to exit. Press the RESET key twice. CLOSED-CAPTIONING

If Caption Text mode is selected and NO captioned text is broadcasted, a black box may appear and remain on the TV screen as shown below. Captioning is text information transmitted along with the picture and sound so it can be displayed on the TV screen. Because different types of captions can be transmitted with the TV signal, separate captioning modes are provided. The captioning modes recognized by this model are: Caption1, Caption2, Text1, and Text2. Local broadcasters decide which caption signals to transmit. To remove this black box, set captioning to any mode other than Text1 or Text2 or press the RESET key to cancel captioning and other customized settings.

Channel number will not display continuously when captioning is on. Need help? Visit our Web site at CAPTION1: This is the main mode used for program captioning (words match the program you are watching). These captions are generally one or two lines. CAPTION2: This is an alternative mode for program captioning. Caption2 may be used by the broadcaster to provide captions in another language, such as, Spanish or French. Caption1/ 2 TEXT1: This mode is used to display large amounts of text. This text will appear within a black box that may be nearly as large as the TV screen. Text displayed in this manner does not generally relate to the program. These captions may be used by broadcasters to provide weather reports, community bulletins, etc. TEXT2: This is an alternative mode used to display large amounts of text same as Text1. Text1/ 2 QUIKCAP: Quikcap allows captions to toggle on and off with the Mute function. Press the MUTE key on the remote control to block the TV sound; the captions display automatically. Press the MUTE key again to restore the sound, the captions will disappear. Quikcap displays program captions in the Caption1 mode. SETTING CAPTIONS

1. Press the Caption key on the remote control.

2. Press the 0 key to select options: OFF, CAPTION1, CAPTION2, TEXT1, TEXT2, or

Channels deleted from scan memory can be selected with the number keys. Restoring deleted channels, use the on-screen menu to manually add channels or start CH. (Channel) Search from the menu. It may take a few minutes to search thru

ADDING OR DELETING CHANNELS

1. Press MENU key.

2. Use the / keys to highlight CH. Scan Memory.

3. Press the + key to highlight channel number entry area.

4. Enter the channel number you want to add or delete (example): C34. For cable channels

above 99, press and hold the 1 key until C1– – appears. Then enter the other two numbers.

5. Press the + key to change the present setting. Example: Added will change to Deleted.

This takes about three seconds. During that CH. Scan Memory C 3 4 Deleted time, the word “Added” or “Deleted” will Menu Language become yellow.

6. Use the 0~9 or keys to choose other

channels to delete or add, or press the MENU key to exit.

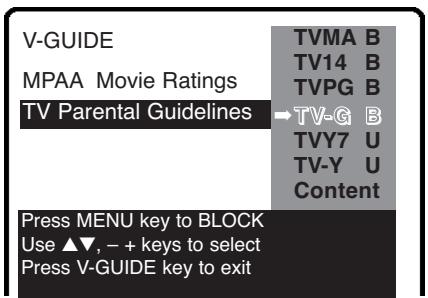

V-GUIDE (PARENTAL CONTROL) INFORMATION

NOTE: THIS FEATURE IS DESIGNED TO COMPLY WITH THE UNITED STATES OF AMERICA’S FCC V-CHIP REGULATIONS. THEREFORE, IT MAY NOT FUNCTION WITH BROADCASTS THAT ORIGINATE IN OTHER COUNTRIES. QuickTips This Sanyo television is equipped with an electronic V-Chip to interpret MPAA and TV Parental Guidelines rating codes. When these codes are detected, the TV will automatically display or block the program, depending upon choices you make when setting up the V-Guide system.

ABOUT MPAA AND TV PARENTAL GUIDELINES

MPAA and TV Parental Guidelines are rating systems that provide advance cautionary information to parents about the content of movie and television programming. Use the CHANNEL / keys and the VOLUME + keys to navigate through the menus and to make selections from the menus. The V-Guide system contain both age-based and content-based settings. This gives parents discretionary ways of choosing appropriate material for their children to view.

Content ratings are represented by the initials D (Suggestive Dialog), L (Adult Language), S (Sexual Situations), V (Violence), and FV (Fantasy Violence). When programming contains any or all of these conditions, these letters become part of the icon that is displayed on the TV screen. V-Guide feature is accessible only from the remote control.

The TV guidelines rating icon will appear generally in the upper left hand corner of your TV screen.

The V-Guide display remains on screen for approximately 20 seconds. If it disappears, press the V-GUIDE key. A rating icon will generally appear in the upper left hand corner of the TV screen for about fifteen seconds at the beginning of a program and should be repeated at the beginning of the second hour of a long program. It may also appear when returning from commercials. There may be other instances when these icons will be displayed as well. Parents are encouraged to become familiar with these icons and their meanings. V-GUIDE OPERATION Use this feature to supervise television viewing for young children. This television can be set to automatically block programs with content you deem as inappropriate for your children to view, including: suggestive dialog, adult language, sexual situations, violence, and fantasy violence. Need help? Visit our Web site at The ability of the television to block the reception of specific programming content depends upon several conditions: 1) The program must be rated, 2) Networks must broadcast the rating code data, 3) Cable companies must transmit the rating code signal, and 4) The TV must be properly setup to decode the signal.

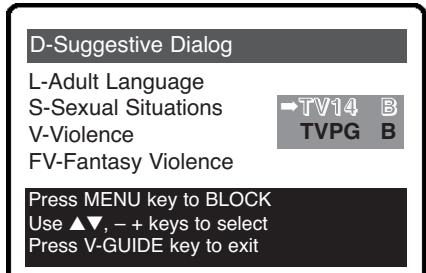

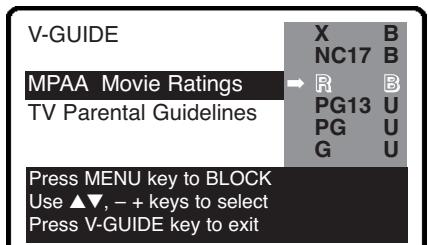

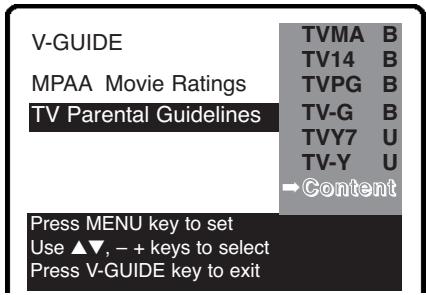

SETTING MPAA MOVIE RATING

2. Press the + key to switch V-Guide ON.

3. Press the + key again. Then use the

1. Press the V-GUIDE key on the remote control to display menu.

MPAA Movie Ratings TV Parental Guidelines / keys to highlight rating.

4. Press the MENU key to Block (B) or Unblock (U) selected rating.

( Arrow indicates selection.)

Press MENU key to BLOCK Use , – + keys to select Press V-GUIDE key to exit (Continued on page 14.)

V-GUIDE (PARENTAL CONTROL) INFORMATION

NOTE: THIS FEATURE IS DESIGNED TO COMPLY WITH THE UNITED STATES OF AMERICA’S FCC V-CHIP REGULATIONS. THEREFORE, IT MAY NOT FUNCTION WITH BROADCASTS THAT ORIGINATE IN OTHER COUNTRIES. This Sanyo television is equipped with an electronic V-Chip to interpret MPAA and TV Parental Guidelines rating codes. When these codes are detected, the TV will automatically display or block the program, depending upon choices you make when setting up the V-Guide system. QuickTips

ABOUT MPAA AND TV PARENTAL GUIDELINES

MPAA and TV Parental Guidelines are rating systems that provide advance cautionary information to parents about the content of movie and television programming. The V-Guide system contain both age-based and content-based settings. This gives parents

Use the CHANNEL / keys and the VOLUME + keys to navigate through the menus and to make selections from the menus. QuickTips

When in the V-Guide menu system, the + keys allow you to navigate between the ratings and the options menu. The TV will automatically block (B) ratings above or unblock (U) ratings below selection. For example, if you block rating R, NC17 and X will be blocked as well. Blocking TVY7 does not block higher ratings. You can block a content rating such as TVPG-V and still be able to watch TVPG programs with ratings of S-L-D provided TVPG is unblocked (U). To temporarily unblock or view Blocked (B) programs, set V-GUIDE to OFF, or press the RESET key twice to clear all Blocked (B) ratings and other customized settings.

SETTING TV PARENTAL GUIDELINES

6. Use the

/ keys to highlight TV Parental Guidelines.

7. Press the + key. Then use the

keys to highlight rating.

8. Press the MENU key to Block (B) or

Unblock (U) selected rating. ( Arrow indicates selection.) TVMA B TV14 B MPAA Movie Ratings TVPG B TV Parental Guidelines T V- G B TVY7 U TV-Y U Content V-GUIDE Press MENU key to BLOCK Use , – + keys to select Press V-GUIDE key to exit SETTING CONTENT-BASED GUIDELINES

9. Follow steps 6 and 7. Use the

keys to highlight Content.

10. Press the MENU key to display the

Content Option menu.

11. Use the / keys to highlight a category

(D-Suggestive Dialog, L-Adult Language, S-Sexual Situations, V-Violence, FV-Fantasy Violence).

12. Press the + key. Then use the

to highlight a rating. Press MENU key to set Use , – + keys to select Press V-GUIDE key to exit / keys

13. Press the MENU key to Block (B) or

Unblock (U) selected rating. ( Arrow indicates selection.)

14. Press the V-GUIDE key to exit; or press the

– key to return to the Content Options menu.

15. Repeat steps 11 through 13 to Block (B) or

Unblock (U) additional content ratings, if desired. TVMA B TV14 B MPAA Movie Ratings TVPG B TV-G B TV Parental Guidelines TVY7 U TV-Y U Content V-GUIDE Press the V-GUIDE key. + keys to select OFF. Use the – /+ D-Suggestive Dialog L-Adult Language S-Sexual Situations V-Violence FV-Fantasy Violence

TV14 B TVPG B Press MENU key to BLOCK Use , – + keys to select Press V-GUIDE key to exit Note: Networks and local stations may or may not include the content ratings portion of the TV Parental Guidelines. Need help? Visit our Web site at

CARE AND CLEANING

The surface of the cabinet can be damaged if not properly maintained. Many common household aerosol sprays, cleaning agents, solvents, and polishes will cause permanent damage to the fine surface.

1. Unplug the power cord before cleaning the television.

2. Clean the screen and cabinet with a soft dry cloth.

Note: Never spray liquids on the screen because it can run down and drip onto the chassis. This may cause component failure not covered under Warranty.

When in the V-Guide menu system, the + keys allow you to navigate between the ratings and the options menu. The TV will automatically block (B) ratings above or unblock (U) ratings below selection. For example, if

SETTING TV PARENTAL GUIDELINES

6. Use the

/ keys to highlight TV Parental Guidelines.

7. Press the + key. Then use the

keys to highlight rating.

8. Press the MENU key to Block (B) or

Unblock (U) selected rating. ( Arrow indicates selection.) TVMA B TV14 B MPAA Movie Ratings TVPG B TV Parental Guidelines T V- G B TVY7 U TV-Y U Content V-GUIDE Press MENU key to BLOCK Use , – + keys to select Press V-GUIDE key to exit SETTING CONTENT-BASED GUIDELINES

9. Follow steps 6 and 7. Use the

keys to highlight Content.

V-GUIDE MPAA Movie Ratings HELPFUL HINTS (Problems/Solutions) Before calling for assistance, please check the condition that most closely resembles your problem in the following chart, then try the solutions for that condition. Visit our Web site at www.sanyoctv.com or call toll free 1-800-877-5032. Problem: Check these Conditions: TV turns off automatically.

No picture, poor picture, or wavy lines in picture.

Check signal (Cable/Ant.) connection. Power surge protection feature. Try these Solutions:

Black box on screen. Poor color or no color.

Check antenna connections. May be station trouble. Brightness or Contrast misadjusted. Possible interference from household appliance.

Check if program is in color. Check antenna connections. Color or Tint misadjusted. May be station trouble.

Check Audio/Video connections. Check external equipment.

May be station trouble. May be MUTE function. Check Audio/ Video connections.

Press POWER key. The sleep timer may have been set. Unplug TV momentarily. Adjust antenna. Try a different channel. Select Auto from Picture/Sound on-screen menu or press RESET key. Turn off Mixer, Drill, Blender, etc. Press RESET key. Switch OFF Captions (see page 12). Try a different channel. Adjust antenna. Select Auto from Picture/Sound on-screen menu or press RESET key. Blue Screen with Video1 or Video2 displayed.

No sound, poor sound. No sound on some channels.

Check if station is broadcasting a true MTS stereo signal.

Check if station is broadcasting a SAP signal.

Select SAP from Audio on-screen menu. No Cable channels above number 13.

Cable Channel Indicator C should appear next to channel number.

Select Cable from Antenna on-screen menu; then start CH. (channel) Search using the menu. No UHF channels, VHF OK.

Cable Channel Indicator C should not appear next to channel number.

Select VHF/UHF from Antenna on-screen menu; then start CH. (channel) Search using the menu. Cannot select or scan some channels.

Channel may be removed from memory. Check antenna connections. V-Guide is set to block programming (see pages 13 ~ 14).

Press INPUT key. Switch on external equipment. Try a different channel. Adjust Volume. Press RESET key twice. Select Stereo from Audio on-screen menu.

Select CH. Scan Memory and manually add channels or start CH. (channel) search. Press RESET key to clear setting. Set V-Guide to OFF or press RESET key. No Captioning.

Check if station is broadcasting a ClosedCaption signal.

Menu System words seem misspelled

May be a different language is selected.

Reselect menu language choice using the on-screen menu or press RESET key. Remote Control will not work TV.

Check batteries. Check if TV is plugged in. Press TV key.

Replace batteries. Aim remote control at front of TV. Remote Control will not operate VCR, DVD, and Cable Box. Cabinet makes popping sound.

Re-enter brand code (see pages 8~10).

Press VCR or AUX key. Check external equipment.

This is a normal condition during warm-up and cool down of the plastic cabinet parts.

HELPFUL HINTS (Problems/Solutions) Before calling for assistance, please check the condition that most closely resembles your problem in the following chart, then try the solutions for that condition. Visit our Web site at www.sanyoctv.com or call toll free 1-800-877-5032. Problem: Check these Conditions: TV turns off automatically.

No picture, poor picture, or wavy lines in picture.

Check signal (Cable/Ant.) connection. Power surge protection feature. Try these Solutions:

Black box on screen.

Check antenna connections. May be station trouble. Brightness or Contrast misadjusted. Possible interference from household appliance.

Press POWER key. The sleep timer may have been set. Unplug TV momentarily. Adjust antenna. Try a different channel. Select Auto from Picture/Sound on-screen menu or press RESET key. Turn off Mixer, Drill, Blender, etc. MEXICO GUARANTEE IMPORTADOR: DESCRIPTION: Television BRAND: SANYO MODELS: DS25520 DS27530 THE APPARATUS THAT YOU HAVE ACQUIRED HAS A ONE YEAR GUARANTEE FOR MANUFACTURING DEFECTS AND A ONE YEAR SERVICE WARRANTY FROM THE DATE OF PURCHASE GRANTED BY: COMERCIALIZADORA MEXICO-AMERICANA, S. DE R.L. DE C.V. UNDER THE FOLLOWING CONDITIONS:

TO MAKE THE GUARANTEE EFFECTIVE, SIMPLY SHOW THIS POLICY FILLED OUT BY THE STORE OR SUPPLIER UNIT OR THIS SALES INVOICE, WITH THE APPARATUS IN ANY OF THE SERVICE CENTERS INDICATED ON THIS GUARANTEE.

IF THE FAULT IS ATTRIBUTED TO A MANUFACTURING DEFECT, THE APPARATUS WILL BE REPLACED OR YOUR MONEY REFUNDED. DURING THE 30 DAYS SUBSEQUENT TO THE PURCHASE THE GUARANTEE WILL BE VALID AT THE STORE WERE THE APPARATUS WAS PURCHASED, PRESENTING THE ABOVE DOCUMENTS.

REPAIR TIME WILL NEVER BE MORE THAN 30 DAYS. IF THIS TIME HAS ELAPSED, AND THE PRODUCT ISN’T REPAIRED, COMERCIALIZADORA MEXICO AMERICANA, S. DE R.L. DE C.V. WILL PROCEED TO EFFECTUATE THE EXCHANGE FOR AN EQUIVALENT APPARATUS OR THE RETURN OF THE BUYING-SALE COST RESPECTIVELY.

THIS GUARANTEE WILL COVER ITS TOTALITY OF PIECES, COMPONENTS AND SERVICE REPAIR OF PRODUCT, AND THE RESPECTIVE COST OF TRANSPORTATION. THIS GUARANTEE WILL BE NULL AND VOID IN THE FOLLOWING CIRCUMSTANCES:

WHEN PRODUCT HAS BEEN USED IN A DIFFERENT CONDITION THAN ITS NORMAL USE. WHEN PRODUCT HASN’T BEEN OPERATING CORRECTLY ACCORDING TO THE INSTRUCTIONS IN THIS MANUAL. WHEN PRODUCT HAS BEEN CHANGED OR REPAIRED BY PERSONS NOT AUTHORIZED FROM THE MANUFACTURER, IMPORTER, OR MERCHANT RESPONSIBLE RESPECTIVE.

STAMP, DATE AND SIGNATURE

DESCRIPTION: ________________________________ BRAND: __________________ MODEL:__________________

CLIENT’S NAME: __________________________________________________________________________________

ADDRESS: ______________________________________________________________________________________

EXTERIOR NUMBER: _______________________ INTERIOR NUMBER: _______________________

SUB DIVISION: ____________________________________________ STATE/DELEGATION: _______________________

TELEPHONE: _____________________________________________

GUARANTEE THE APPARATUS THAT YOU HAVE ACQUIRED HAS A ONE YEAR GUARANTEE FOR MANUFACTURING DEFECTS AND A ONE YEAR SERVICE WARRANTY FROM THE DATE OF PURCHASE GRANTED BY: COMERCIALIZADORA MEXICO-AMERICANA, S. DE R.L. DE C.V. United States and Canada Warranty

ONE-YEAR LIMITED WARRANTY

THIS LIMITED WARRANTY IS VALID ONLY ON SANYO TELEVISIONS PURCHASED AND USED IN THE UNITED STATES OF AMERICA, CANADA, AND PUERTO RICO, EXCLUDING THE UNITED STATES’ OTHER TERRITORIES AND PROTECTORATES. THIS LIMITED WARRANTY APPLIES ONLY TO THE ORIGINAL PURCHASER, AND DOES NOT APPLY TO PRODUCTS USED FOR INDUSTRIAL OR COMMERCIAL PURPOSES. FOR ONE YEAR from the date of purchase, Sanyo Manufacturing Corporation will replace any defective TV. To insure proper warranty exchange, keep the original sales receipt for evidence of purchase. Return the defective TV to the retailer along with the receipt and the included accessories, such as the remote control. The defective TV will be exchanged for the same model, or a replacement model of equal value, if necessary. Replacement model will be contingent on availability and at the sole discretion of Sanyo Manufacturing Corporation. THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. OBLIGATIONS For one year from the date of purchase, Sanyo Manufacturing Corporation warrants this product to be free from defects in material and workmanship under normal use and conditions. Should replacement be necessary under this warranty for any reason due to manufacturing defect or malfunction during the first year from date of original purchase, Sanyo Manufacturing Corporation will provide a new TV via exchange at the retailer. For customer assistance, whether during or out of the warranty period, call toll free 1-800-877-5032. Weekdays 7:30 AM – 7:00 PM Central Time Saturday 7:30 AM – 4:00 PM Central Time This warranty expresses specific contractual rights; retail purchasers may have additional statutory rights which vary from state to state. (EFFECTIVE: August 1, 2002) For your protection in the event of theft or loss of this product, please fill in the information requested below and KEEP IN A SAFE PLACE FOR YOUR OWN PERSONAL RECORDS. Model No.______________________________ Date of Purchase _________________________ Serial No.______________________________ (Located on back of unit) Purchase Price ___________________________ Where Purchased_________________________

Sanyo Manufacturing Corp. 3333 Sanyo Road, Forrest City, AR 72335 This symbol on the nameplate means the product is Listed by Underwriters’ Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

United States and Canada Warranty

ONE-YEAR LIMITED WARRANTY

THIS LIMITED WARRANTY IS VALID ONLY ON SANYO TELEVISIONS PURCHASED AND USED IN THE UNITED STATES OF AMERICA, CANADA, AND PUERTO RICO, EXCLUDING THE UNITED STATES’ OTHER TERRITORIES AND PROTECTORATES. THIS LIMITED WARRANTY APPLIES ONLY TO THE ORIGINAL PURCHASER, AND DOES NOT APPLY TO PRODUCTS USED FOR INDUSTRIAL OR COMMERCIAL PURPOSES. FOR ONE YEAR from the date of purchase, Sanyo Manufacturing Corporation will replace any defective TV. To insure proper warranty exchange, keep the original sales receipt for evidence of purchase. Return the defective TV to the retailer along with the receipt and the included accessories, such as the remote control. The defective TV will be exchanged for the same model, or a replacement model of equal value, if necessary. Replacement model will be contingent on availability and at the sole discretion of Sanyo CONECTE LA VIDEOCASETERA

NC17 MPAA Seleccion Peliculas R PG13 TV Supervision Paternal

Sanyo Manufacturing Corp. 3333 Sanyo Road, Forrest City, AR 72335

POIDS APPROX. (KG/LB) INSTALLATION DES PILES (2 AA, non fournies) Remarques :

MODE TÉLÉ PAR CÂBLE

MODE TÉLÉ PAR CÂBLE

Touches Audio Image/Son Audio I m a ge / S o n Antenne Audio I m a ge / S o n Antenne Touches Audio Image/Son
