Product Type	Submersible Water Pump
Model	731-062
Brand	Meec Tools
Power Supply	230V ~ 50Hz
Rated Power	800 W
Max Flow Rate	10,000 L/h
Max Head	8 m
Max Immersion Depth	7 m
Outlet Diameter	1 1/2" (39 mm)
Weight	5.2 kg
Dimensions (L x W x H)	25 x 20 x 35 cm
Cable Length	10 m
Protection Class	IPX8
Pumping Fluids	Clean or slightly dirty water up to 35°C
Max Particle Size	5 mm
Thermal Protection	Automatic shut-off with restart
Float Switch	Automatic on/off for dry running prevention
Maintenance	Clean filter regularly; check seals annually
Spare Parts Available	Impeller, seal kit, float switch, cable
Warranty	2 years (parts and labor)

Frequently Asked Questions - 731-062 Meec Tools

How do I prime the pump before first use?

Ensure the pump is fully submerged in water. Submerge it at an angle to let air escape. Plug in and wait a few seconds for the pump to self-prime. If not priming, check the outlet for obstructions.

What type of water can this pump handle?

The pump is designed for clean or slightly dirty water up to 35°C. It can handle particles up to 5 mm in size. Do not use for corrosive, flammable, or sewage water.

Can the pump run dry?

No, running dry can damage the pump. The integrated float switch automatically stops the pump when water level drops too low to prevent dry running.

How do I clean the pump after use?

Disconnect power and rinse the exterior with clean water. Remove the filter cover and clean the filter. For stubborn debris, use a soft brush. Dry before storage.

Why does the pump keep turning on and off?

This is normal with the float switch. If cycling too frequently, check if the float is obstructed or if the water level fluctuates rapidly. Adjust the float position if possible.

What is the maximum head height?

The pump can lift water up to 8 meters vertically. Actual performance depends on hose length and diameter.

How do I store the pump in winter?

Empty all water from the pump and hose. Dry thoroughly and store in a frost-free location. Ensure the float switch is free to move.

Can I replace the power cord if damaged?

Yes, the power cord is replaceable. Use only a cord with same specifications (H05RN-F 3G1.0mm²). Consult a qualified electrician if unsure.

What spare parts are available?

Available spare parts include impeller, seal kit, float switch, and cable. Contact Meec Tools support or authorized dealers.

How often should I service the pump?

For regular use, service annually: replace seals if leaking, clean filter, and check impeller for wear. After heavy use or pumping dirty water, inspect sooner.

USER MANUAL 731-062 Meec Tools

Operating Instructions for Fountain Pump

731-062

Product photo of a portable industrial vacuum cleaner with four small components (no visible text or symbols)

SV Bruksanvisning i original

NO Bruksanvisning i original

EN Operating instructions in original

SÄKERHETSANVISNINGAR

Read the Operating Instructions carefully before use!

• Save these Operating Instructions for future reference.
• The pump must only be used with a residual current device with a maximum tripping rated current of 30 mA.
• The pump must be connected to an earthed mains supply.
• The pump must not be used in pools, ponds or streams where there is a risk of people being present.
• The pump is intended for outdoor use only.
• Disconnect the pump from the mains supply before servicing or similar.
  • A damaged power cord must not be repaired. If the power cord is damaged it must be discarded.
  • The pump may only be used with water.
• The pump must not hang from the pressure pipe or power cord.
• The pump must be protected from frost and freezing conditions.
• The pump must be positioned so that it is out of the reach of children.
• The water temperature must not fall below 4^ and rise above 35^ .
• Sand and contaminated water can wear out the pump's mechanical parts. Keep the pond clean to maximize pump life.

TECHNICAL DATA

Rated voltage	230 V/50 Hz
Power	50 W
Speed	2800 rpm
Max. flow	1900 l/h
Max. delivery height	2.5 m
Max. submersion depth	3 m
Protection rating	IP68
Length of connecting cable	10 m

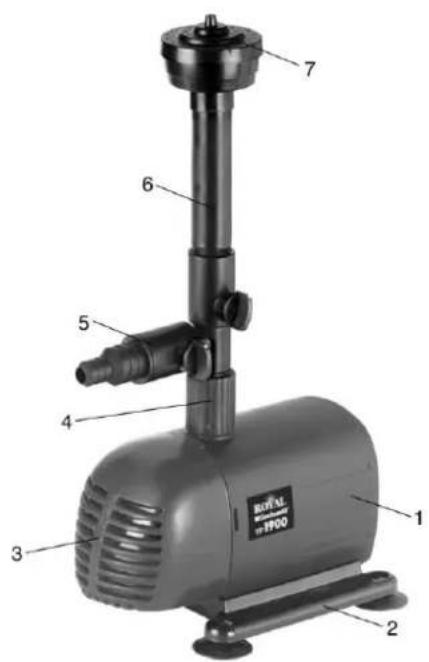

DESCRIPTION

1. Pump
2. Base
3. Filter container
4. Sleeve
5. Water spout connection
6. Fountain pipe
7. Cascade fountain

OPERATION

NOTE: Do not start the pump if it is not placed in water. Dry running can cause the pump to overheat.

1. Place the pump on a flat surface at the bottom of the pond. Make sure the pump is placed slightly higher than the surrounding pond bed to prevent sludge entering the pump.
2. Plug the power cord into an earthed mains supply.

Fountain pump options

• Fountain only
• Fountain with water spout connection
  • Water spout connection only

Operation with fountain only

Position the pump with the fountain head above the surface of the water. The stopcock on the water spout connection (A) must be closed (see Figure). The stopcock for the fountain (B) must be open.

Fountain with water spout connection

Position the pump with the fountain head above the surface of the water. The stopcock on the water spout connection (A) and the stopcock for the fountain (B) must be open (see Figure).

Water spout connection only

The stopcock on the water spout connection (A) must be open (see Figure). The stopcock for the fountain (B) must be closed. All water will now flow through the spout connection.

MAINTENANCE

NOTE: Make sure the pump is disconnected from the mains when cleaning or servicing.

• Clean the filter with lukewarm water when the delivery height or the pumped water volume decreases.
• Clean the pump's rotating parts at regular intervals if you have hard water.

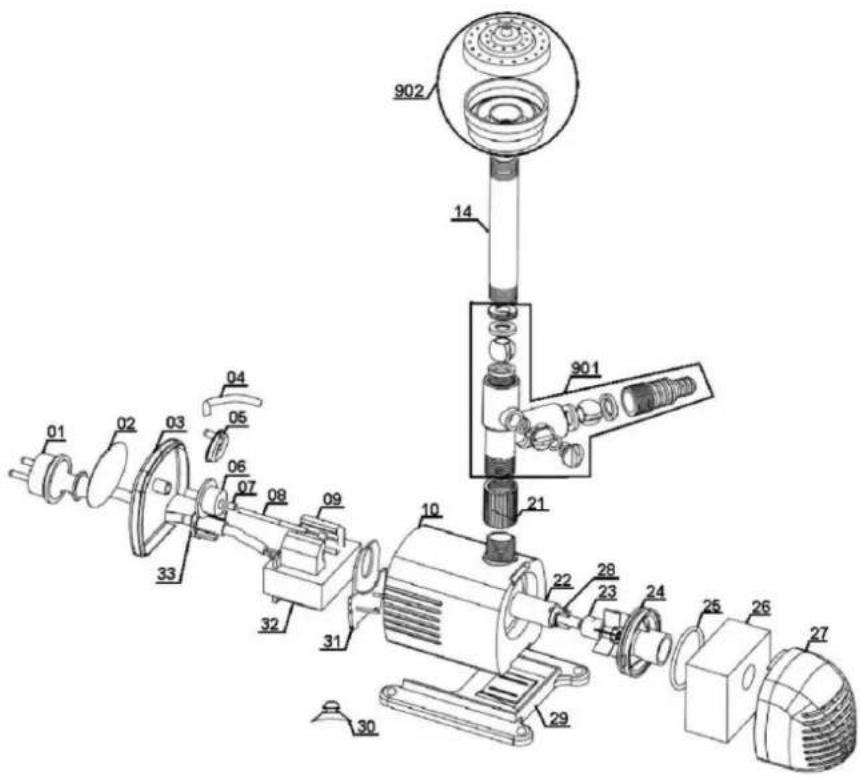

EXPLODED DIAGRAM

Subject to printing errors and design changes over which we have no control. In the event of problems, please contact our service department. www.jula.com

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled.

Leave the product for recycling at the designated station e.g. the local authority's recycling station.
