MSH601W - Range hood MATSUI - Free user manual and instructions
Find the device manual for free MSH601W MATSUI in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Range Hood |
| Brand | Matsui |
| Model | MSH601W |
| Width | 600 mm |
| Depth | 500 mm |
| Height | 150 mm (without chimney) |
| Net Weight | 10 kg |
| Power Supply | 220-240 V ~ 50 Hz |
| Max Power Consumption | 150 W |
| Motor Power | 120 W |
| Extraction Rate (max) | 600 m³/h |
| Number of Speeds | 3 |
| Noise Level (max) | 65 dB(A) |
| Controls | Push buttons |
| Illumination | 2 x 3 W LED |
| Grease Filter | Aluminum, washable |
| Charcoal Filter | Optional (sold separately) |
| Air Discharge | Ducted (150 mm diameter) |
| Installation Type | Wall-mounted or under cabinet |
| Safety Features | Overheating protection, auto shut-off |
| Cleaning | Wipe exterior with damp cloth; wash metal filters monthly |
| Spare Parts Available | Filters, bulbs, motor (contact support) |
| Warranty | 2 years (parts and labor) |
Frequently Asked Questions - MSH601W MATSUI

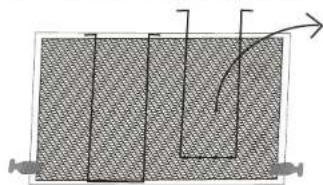

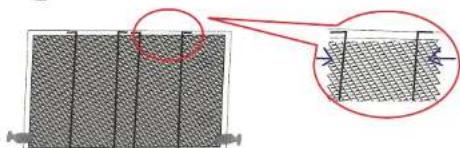

How do I clean the grease filters?
Remove the aluminum filters and wash them with warm soapy water or in the dishwasher (low temperature). Allow to dry completely before reinserting. Clean monthly for optimal performance.
Can I use the hood in recirculation mode?
Yes, but you need to install a charcoal filter (sold separately). The hood can be used either ducted (air expelled outside) or recirculated (air filtered and returned to kitchen).
What type of light bulbs does the hood use?
The hood uses LED bulbs (2 x 3 W). They are integrated and must be replaced by a qualified technician if faulty.
How do I reduce noise level?
Ensure the hood is properly installed and the duct is not blocked. Using lower speeds reduces noise. Also check that the unit is level and securely fixed.
What is the recommended installation height above the hob?
For electric hobs, install at least 650 mm above; for gas hobs, at least 750 mm. Follow the manual for precise measurements to ensure safety and efficiency.
Why is the hood not extracting properly?
Check that the grease filters are clean and the charcoal filter (if used) is replaced regularly. Ensure the duct is not kinked or blocked. Also verify the motor speed setting.
How do I change the charcoal filter?
The charcoal filter is located behind the grease filter. Remove the grease filter, then the charcoal filter (if present). Replace it once a year or more often if used heavily.
What should I do if the hood stops working?
First check the power supply and plug. If the fuse/circuit breaker is fine, contact Matsui customer support. Do not attempt to repair the motor yourself.
Can I install the hood myself?
Installation should be done by a qualified professional due to electrical connections and wall drilling. The manual provides instructions but improper installation may void warranty.
What is the warranty period?
The Matsui MSH601W comes with a 2-year warranty covering parts and labor. Register your product online to activate the warranty.
User questions about MSH601W MATSUI
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Range hood in PDF format for free! Find your manual MSH601W - MATSUI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MSH601W by MATSUI.
