Product Type	Range Hood
Brand	Matsui
Model	MCH60SS
Width	60 cm (23.6 inches)
Depth	50 cm (19.7 inches)
Height	15 cm (5.9 inches) without chimney; extendable to 110 cm with chimney
Weight	Approximately 10 kg
Power Supply	230 V ~ 50 Hz
Rated Power	220 W (motor + lighting)
Extraction Rate (max)	600 m³/h
Noise Level (max)	65 dB(A)
Controls	3-speed push button
Lighting	2 x 1.5 W LED
Grease Filter	Aluminum mesh, washable
Carbon Filter	Optional for recirculation mode
Ducting Options	Exhaust (ducted) or recirculation (ductless)
Chimney Included	Yes, telescopic stainless steel
Maintenance	Clean grease filter monthly; replace carbon filter every 3-6 months
Safety Features	Anti-flame back draft damper, thermal fuse
Spare Parts Availability	Filters, LED bulbs, motor, switches available via customer service
Repairability Index	7/10 (easy filter and bulb replacement)
Warranty	2 years

Frequently Asked Questions - MCH60SS MATSUI

How do I clean the grease filter?

Remove the aluminum mesh filter and wash it with warm soapy water or in the dishwasher. Dry thoroughly before reinstalling. Clean monthly for optimal performance.

Can this hood be used without ducting?

Yes, it can be used in recirculation mode with an optional carbon filter to absorb odors. The air is filtered and returned into the kitchen.

What is the size of the duct?

The exhaust duct diameter is 120 mm (4.7 inches). Ensure your ducting matches this size for efficient airflow.

How do I replace the LED lights?

LED bulbs are integrated and may require professional replacement. Contact Matsui support for authorized service to avoid damage.

Why is the hood noisy?

Noise can increase if filters are clogged or ducting is blocked. Clean filters and check ducts. The normal noise level is up to 65 dB(A) at high speed.

What is the maximum extraction rate?

The maximum extraction rate is 600 m³/h. Use the highest speed for strong odors but note higher noise levels.

Can I install a carbon filter?

Yes, a carbon filter is sold separately. Install it behind the grease filter for recirculation mode. Replace every 3-6 months.

How do I adjust the chimney height?

The telescopic chimney can be extended by sliding the upper section upward. Secure it with screws to fit your ceiling height (between 65 and 110 cm).

What type of ducting material should I use?

Use rigid or flexible ducting with 120 mm diameter. Ensure smooth interior surfaces and minimize bends for best performance.

Is the hood compatible with induction cooktops?

Yes, the hood works with all cooktops including induction. Maintain a minimum distance of 65 cm between hob and hood for safety.

USER MANUAL MCH60SS MATSUI

3D rendering of a kitchen range hood with chimney and base (no text or symbols)

Instruction Book

Cod:0103071747

Safety

• The appliance must be installed according to the manufacturer's instructions. Improper installation may result in injury or damage, for which the manufacturer cannot be held responsible.
• The electrical safety of this appliance is guaranteed only if it is connected to a properly earthed system which complies with the electrical safety standards in force. If you cannot verify that this fundamental safety requirement is in place, consult a qualified electrician. The manufacturer cannot be held responsible for an appliance which has not been correctly earthed.
• Check that the voltage (230 Volts AC) printed on the rating label at the back of the Cooker hood corresponds to the mains voltage in your home. If in doubt call a qualified electrician.

• Never replace the power supply cable yourself. Damaged cables must only be replaced by an authorised service centre.

• Adaptors, multiple sockets and/or extension leads must not be used.
  • To avoid electrical shock, never touch the Cooker hood or plug with wet hands.

• Ventilation outlets on the Cooker hood should never be covered, as obstructions may cause overheating or fire.
  • Always disconnect the plug from the mains supply before cleaning the Cooker hood or carrying out maintenance work.
• Do not flambé under the Cooker hood as this may cause a fire hazard.
• Avoid leaving a gas hob on when there is no pan on the stove.

Two triangular warning symbols: a lightning bolt symbol and an exclamation mark symbol.

WARNING!

It is hazardous for anyone other than authorised service personnel to carry out Servicing or repairs which involves the removal of covers.

To avoid the risk of an electric shock do not attempt to repair this appliance yourself.

Disposal

Old appliances still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. Up to date information concerning options for disposing of your old appliance and packaging from the new one can be obtained from your local council office.

Introducing Your New Cooker Hood

Before use

Please read these instructions carefully before using your new Matsui Cooker hood. The Cooker hood is for indoor, domestic use only. WARNING- Please be careful when unpacking and installing this appliance as sheet metal can cause injury if not handled with care.

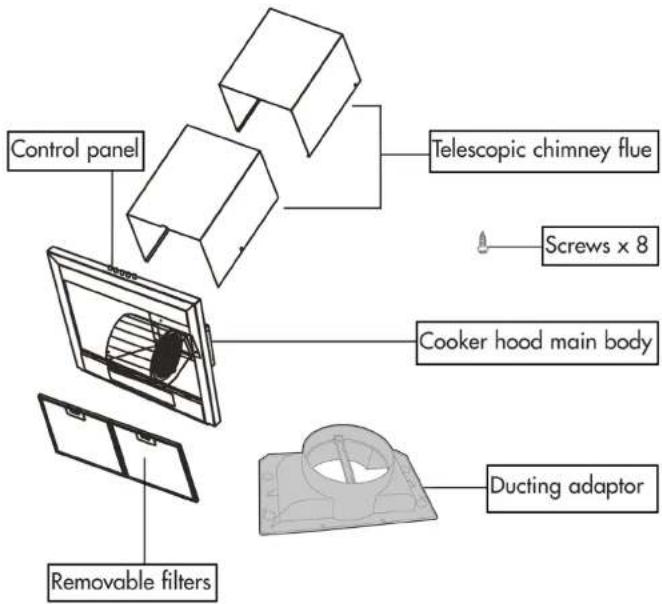

Control panel Telescopic chimney flue Screws x 8 Cooker hood main body Removable filters Ducting adaptor

Install Your New Cooker Hood

Installation and electrical wiring must be carried out by a qualified engineer to ensure all applicable codes and standards are followed. Before installing check that the voltage indicated on the rating plate is suitable for your home.

Location

The Cooker hood is designed to be a permanent fixture in the home, therefore needs to be located in a place that the lowest part of the hood will be set at least 70cm above the hob. The Cooker hood will need to be positioned with adequate ventilation directly over the cooker. The air that is discharged from the Cooker hood should NOT be filtered into a flue that is used for other appliances that use gas or other fuels. Regulations concerning the discharge of air MUST be fulfilled.

IMPORTANT: The Cooker hood flue MUST not be connected to a previously installed appliance i.e. water heaters, boilers or cooker. The Cooker hood MUST have a separate flue and MUST NOT be installed above a cooker with eye-level grills.

IMPORTANT: Easy access to the electrical socket must be maintained to ensure that you can carry out simple maintenance.

Before plugging in YOU MUST Check that you have a socket, which is compatible with the Cooker hood. If not see the section called ELECTRICAL CONNECTIONS on page 6.

Installation

Before beginning any installation work ensure the mains power has been turned off.

Ducting

1 Using a Phillips screwdriver fix the ducting hose connector onto the air outlet of the hood.

2 Connect the hose to the air duct. Use the adaptor provided to connect to a 125mm hose.

3 The ducting can pass through your wall. Alternatively if your kitchen has a soffit, then the ducting can be positioned to run horizontally through an outside wall directly to a wall cap. NOTE: A soffit is the underside of the roof overhang, normally wood or plastic.

Stencil

Use the stencil provided to help position the hood onto the wall directly below the ducting. NOTE: Take extreme care when drilling holes into your wall to avoid hidden electrical wiring.

1 With the stencil positioned on the wall, drill 4 holes onto the back wall. Push 4 raw plugs into the drill holes and then first screw in the top 2 screws.

2 Fix the hood onto the wall by positioning the upper 2 screws through the key holes on the back of the hood.

3 Attach the lower part of the hood by removing the filter panels to gain access to the lower screw holes.

Attaching the Chimney flue wall bracket

1 Using the wall bracket as a template, drill 2 holes into the wall and push raw plugs into the drill holes.

2 Place the wall bracket over the raw plugs and screw into position.

Technical line drawing of a mechanical assembly with no visible text or symbols

3 Screw the inner chimney flue section to the wall bracket.

Adjusting the telescopic hood

The telescopic chimney flue can be adjusted in height to fit your ceiling once fully attached to the wall.

Installation

Re-Circulation using Carbon filters

Two carbon filters can also be added to your Cooker hood, when air is to be re-circulated instead of external ducting. Attach to either side of the motor.

Please see the Partmaster Direct details on the back cover to order one.

(2 carbon filters required)

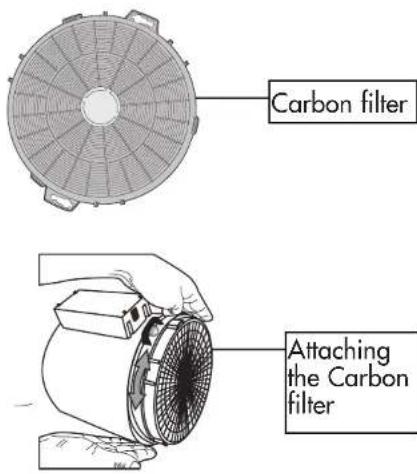

Carbon filter Attaching the Carbon filter

In Use

Control panel

0

1

2

3

0 = Switches the Cooker hood off.

1 = Low speed. Is suitable when low levels of steam are created whilst cooking.
2 = Medium speed.
3 = High speed. Is suitable when high levels of steam are created whilst cooking.
☀️ = Switches the overhead light on.

The Cooker hood should be left on for at least 15 minutes after cooking has finished to ensure efficient filtering of the air.

Cleaning

Regular cleaning will help to maintain the effectiveness of your Cooker hood.

1 Switch off and unplug the Cooker hood before cleaning.
2 Clean the outside of the Cooker hood with a damp cloth and a mild detergent.

NOTE: Do not use solvents or abrasives as this may damage the Cooker hood.

Cleaning the filters

To ensure the filters do not become a fire hazard we recommend they are washed every 3 months. Do not check the filter panels whilst the Cooker hood is in use.

1 Before cleaning the filters always switch off and disconnect the electrical supply.
2 Remove the filter panels by holding down the buttons on each panel and lifting towards you. They can then be taken out of the cooker hood.

3 Wash each filter in warm water and a mild detergent, leave to soak and drain. Ensure it is completely dry before replacing into the Cooker hood.
4 Place the bottom of each panel into the back of the Cooker hood and raise the top to click into position.

NOTE: The filter panels are also dishwasher proof. The filter panels may alter in colour slightly after several washes, this is not a fault.

Maintenance and Troubleshooting

Changing the internal light

Allow the Cooker hood to cool for at least 30 minutes after use before changing the light bulb.

1 Before carrying out the bulb replacement always switch off and disconnect the electrical supply.
2 Remove the removable filters by holding down the buttons on each panel and lifting towards you. They can then be taken out of the Cooker hood.
3 Remove the old bulb by unscrewing it in an anti-clockwise direction.
4 Replace with a new bulb (maximum 40w) by screwing it in a clockwise direction. Make sure that it is secure in the bulb holder (your cooker hood is fitted with 2x 40w bulbs).

5 Replace the filters.

The Cooker hood is not working

• Check it is plugged in and switched on.
• Check that the fuse in the plug has not blown.
• Plug in another appliance, such as a lamp, to see if the socket is working.

Servicing

Only an authorised, qualified technician should perform repairs and maintenance of the appliance.

Technical specifications

Electrical information

Model

MCH60SS

MCH90SS

MCH60BLK

MCH90BLK

Rated Voltage 230 230

(V)

Rated Frequency 50 50

(Hz)

Rated Power 160 160

(W)

Weight 9.5 12

(kg)

Product Dimension

h/w/d 26x60x50 28x90x50

(cm)

Bulbs 2x40W max 2x40W max

(E14)

Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice.

THIS APPLIANCE MUST BE EARTHED.

This appliance is fitted with a fused three pin plug to BS 1363 which will be suitable for use in all houses fitted with sockets to current specifications.

If the fitted plug is not suitable for your socket outlets, it should be cut off and carefully disposed of. To avoid a possible shock hazard, do not insert the discarded plug into a socket.

Fitting a new plug

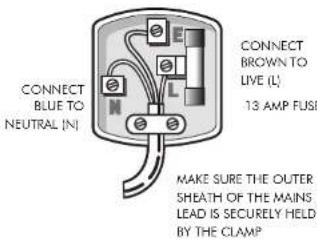

If for any reason you need to fit a new plug, the flexible mains lead must be connected as shown here. The wires in the mains lead fitted to this appliance are coloured in accordance with the following code

CONNECT GREEN AND YELLOW TO EARTH (E)

CONNECT BLUE TO NEUTRAL (N) CONNECT BROWN TO LIVE (L) 13 AMP FLUSE MAKE SURE THE OUTER SHEATH OF THE MAINS LEAD IS SECURELY HELD BY THE CLAMP

CE

If the colours of the wires in the mains lead of this appliance do not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured Green and Yellow MUST be connected to the terminal which is marked with the letter E (Earth) or symbol 12 or coloured Green. The wire which is coloured Blue MUST be connected to the terminal which is marked with the letter N or coloured Black. The wire which is coloured Brown MUST be connected to the terminal which is marked with the letter L or coloured Red.

Before refitting the plug cover, check that there are no cut or stray strands of wire inside the plug. Use a 13 Amp BS1362 fuse, only BSI or ASTA approved fuses should be used. If you are in any way unsure which plug or fuse to use, always refer to a qualified electrician.

Note: After replacing or changing a fuse on a moulded plug which has a fuse cover, the cover must be refitted to the plug, the appliance must not be used without a fuse cover. If lost, replacement fuse covers can be obtained from an electrical shop.

This appliance complies with the following EEC Directives:

73 / 23 EEC (Low Voltage Directive)

89 / 336 EEC (EMC Directive).
