SPG9075S - Splashback SMEG - Free user manual and instructions

Product Type	Kitchen Backsplash
Brand	Smeg
Model	SPG9075S
Material	Tempered glass
Dimensions (approx.)	90 x 75 cm (width x height)
Thickness	4-6 mm
Weight	Approx. 8-10 kg
Color	Stainless steel / Silver finish
Installation Type	Wall-mounted adhesive or screws
Cleaning	Wipe with soft cloth and mild detergent
Heat Resistance	Up to 150°C
Scratch Resistance	Yes, tempered glass
Moisture Resistance	Splash-proof
Compatibility	Most Smeg hobs and cooktops
Package Includes	Backsplash panel, mounting kit, user manual
Warranty	2 years (manufacturer)

Frequently Asked Questions - SPG9075S SMEG

What is the Smeg SPG9075S backsplash made of?

The Smeg SPG9075S backsplash is made of tempered glass, offering durability and resistance to heat and scratches.

What are the dimensions of the Smeg SPG9075S?

The approximate dimensions are 90 cm wide by 75 cm tall (varies slightly by batch).

How do I clean the Smeg SPG9075S backsplash?

Clean with a soft cloth and mild detergent. Avoid abrasive cleaners to prevent scratches.

Can I install the backsplash myself?

Yes, it is designed for DIY installation. Use the included adhesive or screws. Ensure the wall is clean and level before mounting.

Is the Smeg SPG9075S heat-resistant?

Yes, the tempered glass can withstand temperatures up to 150°C, making it safe behind cooktops.

Does the backsplash come with a warranty?

The product includes a 2-year manufacturer warranty against defects in materials and workmanship.

What color is the Smeg SPG9075S?

It has a stainless steel/silver finish that complements modern kitchen appliances.

Can I cut the backsplash to fit my space?

No, the glass is pre-sized and should not be cut. If needed, measure your space carefully before purchase or consult a professional.

Is the backsplash splash-proof?

Yes, it is designed to be splash-proof and easy to wipe clean, protecting your wall from grease and moisture.

What appliances is this backsplash compatible with?

It works with most Smeg hobs and cooktops, and can also be used as a standalone decorative panel.

USER MANUAL SPG9075S SMEG

Modern kitchen interior with black oven, fluted pan, and white bottles (no visible text or symbols)

BEFORE STARTING:

• Read the checklist at the back of these instructions.
• Read the assembly guide overleaf.
• Check that you have all the tools needed (see overleaf).

FITTING STEPS – SPLASHBACKS / UPSTANDS

Isometric line drawing of a kitchen oven with cabinetry and stove (no text or symbols)

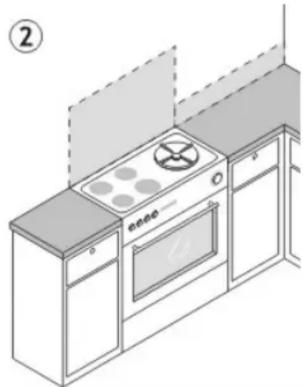

First check the dimensions.

Isometric line drawing of a kitchen oven with ovens and cabinetry (no text or symbols)

Ensure the surface being fixed to is flat, non-porous, dry and dust free.

Hold up the back of the splashback/upstand to the worktop/ wall to check fit. Use the spacers to achieve a good fit.

Two technical illustrations of a monitor and a rack device, shown from different angles (no text or symbols)

Take the splashback/ upstands away making sure to keep all corners safe from hard surfaces and then remove the covering from self adhesive backing. Fit the splashback on top of the spacers.

Illustration of a kitchen appliance with an oven and door, showing hand gesture (no text or symbols)

Place the bottom edge of the splashback/ upstand on the spacers, then push the splashback/ upstand to the wall and apply firm pressure evenly over the whole surface area. Ensure that a 2mm space is left. Finally (2-3 hours) remove spacers.

Seal the edges of the splashback/upstand with a bead of silicone sealant not less than 2.5 mm in thickness.

Isometric illustration of a kitchen interior with oven, cabinets, and appliances, plus an inset showing hand cleaning the door (no text or symbols)

Complete the surrounding wall covering.

ASSEMBLY GUIDE - SPLASHBACKS / UPSTANDS

IMPORTANT

Unfitted glass is fragile. Do not place on hard surfaces prior to fitting. Special care should be taken with the corners of the product as impact will cause the product to crack.

CHECK LIST

• Do you have everything you need to start the job?
• Check that the splashback / upstands fits.
• Is it the right colour?
• Ensure that your worktop is fitted securely.
• Check that your worktop is level.
• Clear all dust from the worktop.

- Ensure that your hob is fitted in accordance with the manufacturer's instructions.

- Make sure that your extractor is securely fitted in accordance with the manufacturer's instructions.

DO NOT

• Fit the splashback / upstands directly onto a hob or work surface - use spacers.
• Place the splashback / upstands on its edge or on any hard surface during the fitting process.
• Use the product until the silicone has cured (follow the manufacturer's instructions).

To prevent product failures ensure that:

• All fitting steps are completed.
• A space of 2mm is left between the product and all surfaces. The gaps must be filled with silicone.
• The surface to which the product is applied is flat, variations in level in excess of 5mm should be packed with silicone prior to fitting.
• You do not use any form of adhesive other than silicone as certain adhesives will degrade the finish of the glass.

SAFE HANDLING OF GLASS

All products are supplied with a safety packing but we recommend that glass is handled with care and in particular eye protection and suitable gloves should be worn.

AFTER CARE

Do not use abrasive cleaners. For the best results use hot water with a mild soap detergent.

BEFORE YOU START

• Check that all components are present.
• Ensure that you have all tools to hand.

TOOLS (NOT INCLUDED)

- Tape measure

- Sealant gun

- Silicone sealant

Only use Low Modular Neutral Cure Silicone (BS 5889 A)

- Packing shim (spacers) 2mm thick

Line drawing of a syringe with three different components: a cylindrical cap, a cylindrical rod, and a cylindrical nozzle (no text or symbols)

Simple line drawing of a rectangular panel with internal diagonal lines (no text or symbols)

Glass Splashbacks

Pure technical line drawing of a rectangular panel or shelf with internal slots, no text or symbols present

Glass Upstands

Drilling should only be undertaken by a suitably trained person with the correct machinery.
