Product Type	Modular Jack
Category	Category 5e (Cat5e)
Number of Positions	8
Number of Contacts	8
Connector Type	RJ45
Wiring Standard	T568A/T568B
Contact Material	Gold plated phosphor bronze
Housing Material	High-impact polycarbonate
Shielding	Unshielded (UTP)
Operating Temperature Range	-10°C to 60°C
Compliance	UL Listed, ANSI/TIA-568-C.2
Insertion Life	750 cycles minimum
Color	Red (TGRD variant)
Dimensions (L x W x H)	20.5 mm x 16.0 mm x 14.5 mm
Weight	2.5 g
Application	Horizontal wiring, patch panels, faceplates

Frequently Asked Questions - CJE5E88TGRD Panduit

What is the Panduit CJE5E88TGRD?

The Panduit CJE5E88TGRD is a Category 5e unshielded RJ45 modular jack designed for network connectivity. It complies with ANSI/TIA-568-C.2 standards.

What color is the CJE5E88TGRD?

The 'TGRD' suffix indicates Teal Green or Red depending on interpretation. However, the actual color is Red as per Panduit's color code (TGRD).

Is the CJE5E88TGRD compatible with Cat5e cabling?

Yes, it is designed for Category 5e cable to support Gigabit Ethernet (1000BASE-T) and lower speeds.

How do I terminate the CJE5E88TGRD?

Terminate using a punchdown tool following the T568A or T568B wiring scheme as specified in the installation instructions.

What is the operating temperature range?

The operating temperature range is -10°C to 60°C (14°F to 140°F), suitable for typical indoor environments.

Can this jack be used for PoE?

Yes, the CJE5E88TGRD supports Power over Ethernet (PoE) applications, including IEEE 802.3af and 802.3at.

Does the plug require any special cleaning?

No special cleaning is needed. Use a dry, lint-free cloth if necessary. Avoid abrasive cleaners or solvents.

What is the warranty period?

Panduit offers a limited lifetime warranty for this product against manufacturing defects under normal use.

Is the CJE5E88TGRD compliant with UL standards?

Yes, it is UL Listed under the UL 1863 standard for communications circuit accessories.

What is the insertion life rating?

The jack is rated for 750 mating cycles minimum, ensuring long-term reliability in high-use environments.

USER MANUAL CJE5E88TGRD Panduit

Cross-section diagram of a multi-core cable with twisted insulation (no text or symbols)

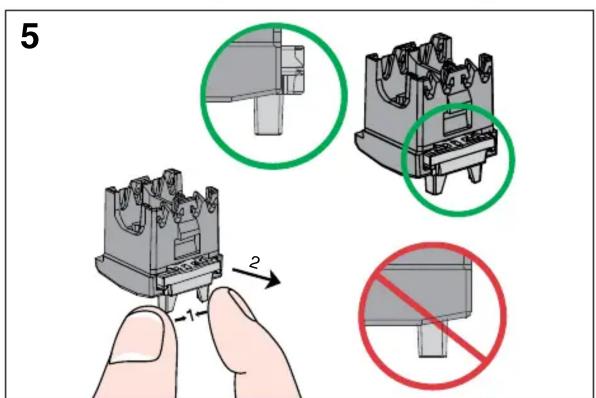

** Denotes color.
Note: For bulk packaged TG style jack modules, add -24 to end of part number.

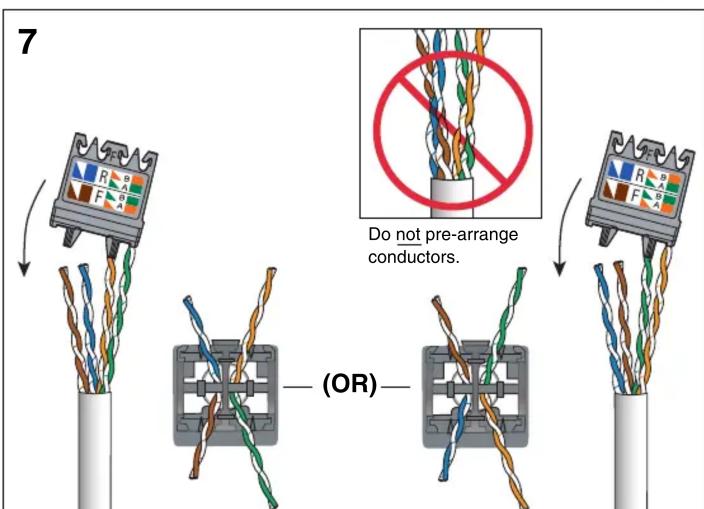

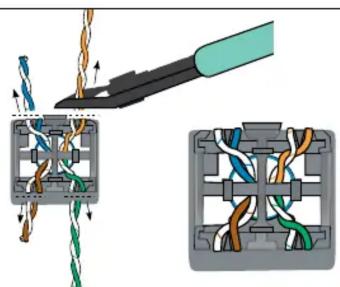

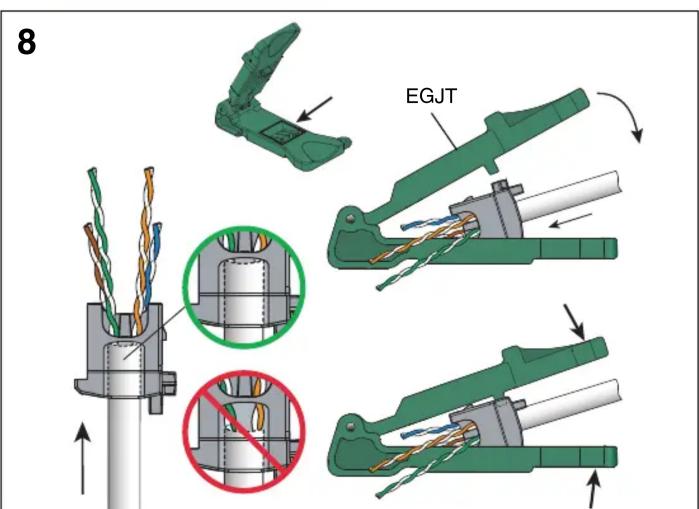

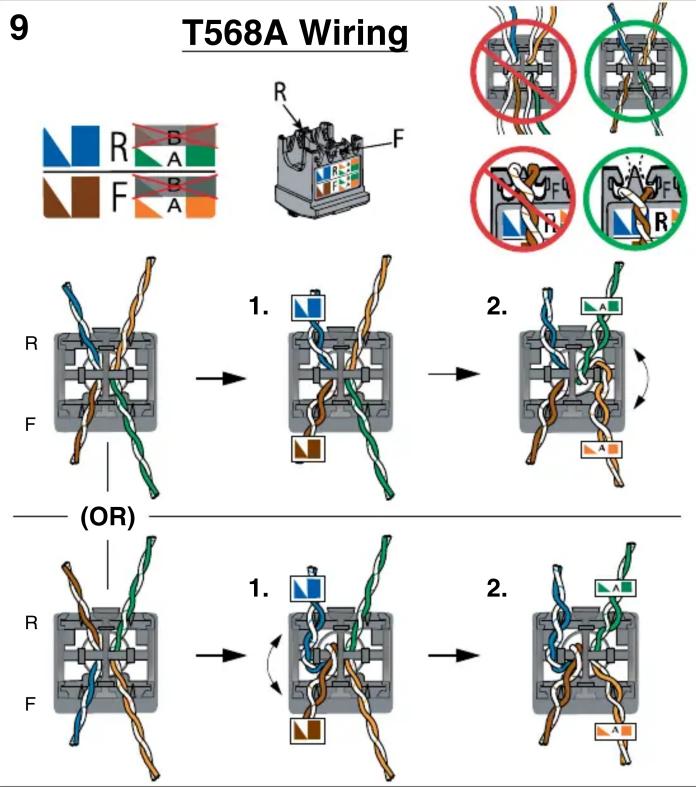

9

10

11

REMOVAL STEPS

1

Mechanical assembly diagram showing a tool interacting with a component, no text or symbols present

2

Diagram of a device being inserted into a connector housing (no text or symbols visible)

3

Notes:

1. For specified performance, follow TIA/EIA 568-C installation guidelines.
2. Jack modules can terminate 22-26 AWG solid or stranded IWC data cable with 0.062" (1.57mm) maximum insulated conductor outside diameter.
3. Jack modules may be re-terminated a minimum of 20 times.
4. For technical and performance information, consult Panduit technical support.
   As with all Communication Components, the following statements apply:
5. Never install communications wiring during a lightning storm.
6. Never install communications wiring in wet locations unless the jack is specifically designed for use in wet locations.
7. Never touch uninsulated communications wiring or terminals unless the communication line has been disconnected at the network interface.
8. Use caution when installing or modifying communication wiring.
