Product Type Category 5e Keystone Jack
Brand Panduit
Model CJK5E88TGYL
Connector Type RJ45 Female
Number of Positions 8
Wiring Standard T568A/T568B
Color Yellow
Dimensions (L x W x H) 1.18 x 0.79 x 0.63 inches
Weight 0.02 lbs
Material Polycarbonate, Gold-plated contacts
Operating Temperature -10°C to 60°C
Compliance ANSI/TIA-568-C.2
Performance Supports 1000BASE-T Ethernet
Installation Tool-less IDC termination
Applications Structured cabling systems, patch panels, wall plates
Maintenance Clean with a dry cloth; avoid liquids
Safety Not rated for hazardous locations
Spare Parts None required; integral unit
Repairability Not repairable; replace if faulty

Frequently Asked Questions - CJK5E88TGYL Panduit

What is the Panduit CJK5E88TGYL?
The CJK5E88TGYL is a Category 5e keystone jack from Panduit, designed for Ethernet cabling systems.
What color is this keystone jack?
The jack is yellow, making it easy to identify in a patch panel or wall plate.
Is it compatible with Cat5e cables?
Yes, it is specifically designed for Category 5e unshielded twisted-pair cables.
Does it support PoE?
Yes, it supports Power over Ethernet (PoE) applications as it meets TIA standards.
How is it terminated?
Termination is tool-less using IDC (Insulation Displacement Contact) technology, no punch-down tool required.
Can it be used for a 10/100/1000 network?
Yes, it supports 1000BASE-T (Gigabit Ethernet) and lower speeds.
What is the warranty?
Panduit offers a limited warranty; check the product documentation for details.
Is it T568A and T568B compatible?
Yes, the jack supports both T568A and T568B wiring standards.
Can I install it in a wall plate?
Yes, it fits standard keystone openings in wall plates and patch panels.
How do I clean the jack?
Use a dry cloth to wipe the exterior. Do not use liquids or solvents.

User questions about CJK5E88TGYL Panduit

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Network connector in PDF format for free! Find your manual CJK5E88TGYL - Panduit and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CJK5E88TGYL by Panduit.

USER MANUAL CJK5E88TGYL Panduit

1 2.00" (50.8mm)

2 Trim pair separator and/or ripcord if present. CWST

3 0.50" (12.7mm)

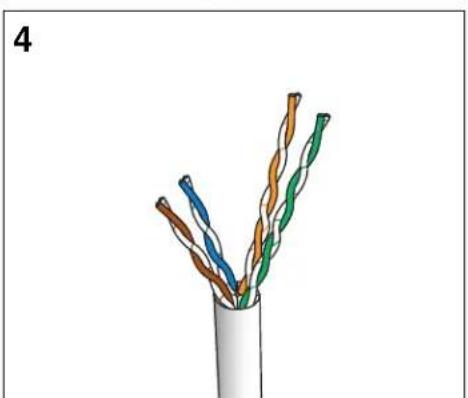

Cross-section diagram of a multi-core cable with twisted insulation (no text or symbols)

5 1 2

6 R F

7 Do not pre-arrange conductors. (OR)

8 EGJT

** Denotes color.
Note: For bulk packaged TG style jack modules, add -24 to end of part number.

9

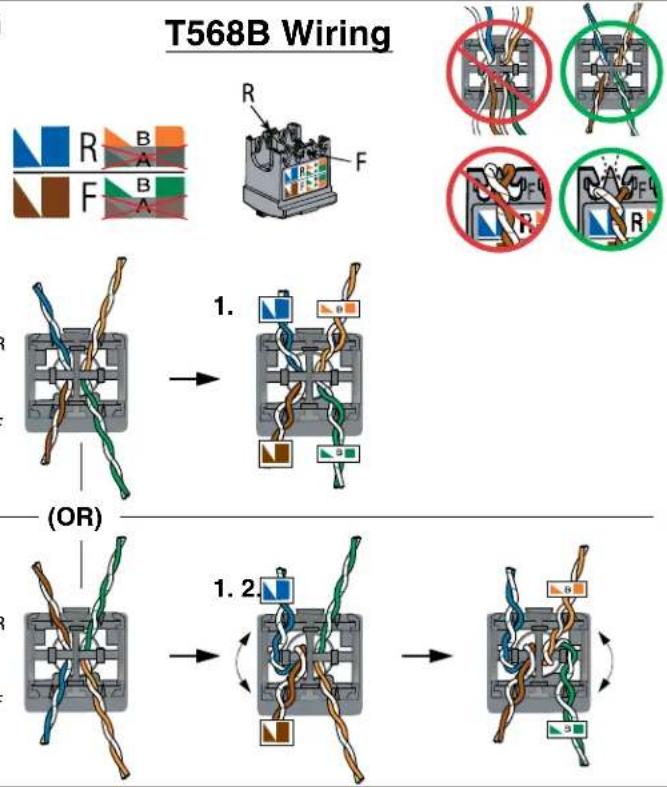

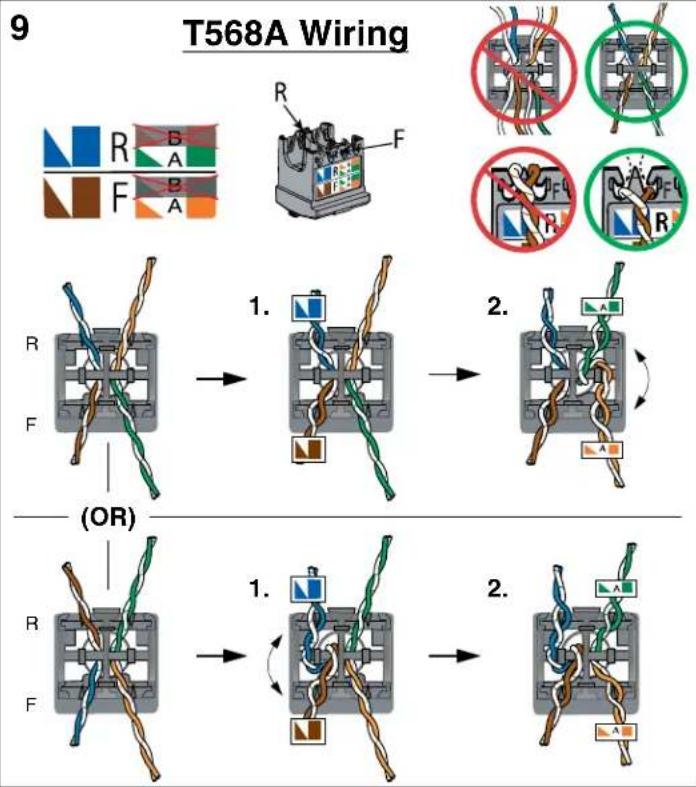


10
Diagram showing cable installation process with wire routing and connector (no text or symbols)

11

Panduit CJK5E88TGYL - 12

12 EGJT

REMOVAL STEPS

1
Diagram of a mechanical tool interacting with a component, showing a dropper tip and lever mechanism (no text or symbols)

2

Mechanical assembly diagram showing a connector being inserted into a housing (no text or symbols visible)

3
Diagram illustrating three safety rules for electrical fuse components: clamped, no protection, and circuit breakers.

Notes:

  1. For specified performance, follow TIA/EIA 568-C installation guidelines.
  2. Jack modules can terminate 22-26 AWG solid or stranded IWC data cable with 0.062" (1.57mm) maximum insulated conductor outside diameter.
  3. Jack modules may be re-terminated a minimum of 20 times.
  4. For technical and performance information, consult Panduit technical support.
    As with all Communication Components, the following statements apply:
  5. Never install communications wiring during a lightning storm.
  6. Never install communications wiring in wet locations unless the jack is specifically designed for use in wet locations.
  7. Never touch uninsulated communications wiring or terminals unless the communication line has been disconnected at the network interface.
  8. Use caution when installing or modifying communication wiring.

For Instructions in Local Languages

and Technical Support:

www.panduit.com/resources/install_maintain.asp
