Product Type	Upper Arm Blood Pressure Monitor
Model Number	880-140
Brand	Marquant
Measurement Method	Oscillometric
Display Type	LCD Digital Display
Arm Circumference Range	22-32 cm (standard cuff)
Measurement Range: Blood Pressure	0-280 mmHg
Measurement Range: Pulse	40-200 beats/min
Accuracy: Blood Pressure	±3 mmHg
Accuracy: Pulse	±5% of reading
Memory Storage	2 users x 90 readings each
Power Source	4 x 1.5V AA batteries or USB power adapter (not included)
Battery Life	Approx. 300 measurements
Auto Power Off	Yes, after 1 minute of inactivity
Irregular Heartbeat Detection	Yes
WHO Blood Pressure Classification Indicator	Yes (color-coded LCD)
Unit Dimensions (Main Unit)	Approx. 120 x 105 x 60 mm
Unit Weight (Main Unit)	Approx. 280 g (without batteries)
Cuff Type	Adjustable, soft fabric
Cuff Size	Standard (22-32 cm)
Charger Connection	Micro USB (5V, 1A)
Cleaning Instructions	Wipe with a soft dry cloth; do not immerse in water
Safety Classification	ME equipment (internal powered, Type BF applied part)
Operating Temperature	+10°C to +40°C
Storage Temperature	-20°C to +55°C
Warranty	2 years (excluding cuff and batteries)

Frequently Asked Questions - 880-140 Marquant

How do I set the date and time on the Marquant 880-140?

Press and hold the SET button for 3 seconds until the year flashes. Use the MEM button to adjust, then press SET to confirm. Repeat for month, day, hour, and minute.

Why does my blood pressure monitor show an error code 'E1'?

Error E1 indicates a cuff issue. Ensure the cuff is properly wrapped around your arm and the air plug is fully inserted. If the problem persists, the cuff may need replacement.

Can I use the monitor without batteries?

Yes, you can power the Marquant 880-140 via a micro USB cable connected to a 5V 1A adapter (not included). Batteries are not required when using an external power source.

How do I clean the monitor and cuff?

Clean the main unit with a soft dry cloth. Do not use chemicals or water. The cuff can be spot cleaned with a damp cloth and mild soap, then air dried thoroughly.

What size arm does the standard cuff fit?

The standard cuff fits arm circumferences from 22 to 32 cm. For larger arms (32-45 cm), purchase an optional large cuff separately.

How do I view previous measurements?

Press the MEM button to enter memory mode. Use the SET button to scroll through the stored readings. The monitor stores up to 90 readings per user (2 users).

What does the color indicator on the display mean?

The monitor shows a color bar (green, yellow, orange, red) next to your blood pressure reading, corresponding to the WHO classification. Green indicates normal, yellow indicates prehypertension, orange and red indicate hypertension stages.

Can two users share the same monitor?

Yes, the Marquant 880-140 has two user profiles (User 1 and User 2). Press the USER button to select the correct user before measuring to store readings separately.

How do I replace the batteries?

Remove the battery cover on the back, insert 4 AA batteries observing polarity, then replace the cover. The monitor will automatically power on when batteries are installed.

Why does the monitor give different readings each time?

Blood pressure varies naturally. For consistent results, measure at the same time daily, sit quietly for 5 minutes before measurement, and ensure the cuff is at heart level. Take multiple readings with a 1-2 minute interval.

USER MANUAL 880-140 Marquant

User Instructions for Blood Pressure Monitor

880-140

SV Bruksanvisning i original

NO Bruksanvisning i original

EN Operating instructions in original

SVENSKA 4

SÄKERHETSANVISNINGAR 4

Symboler 4

SAFETY INSTRUCTIONS....37

Symbols 37

Special safety instructions 37

TECHNICAL DATA....37

DESCRIPTION 38

Parts....38

Accessories....38

Display screen symbols 39

BLOOD PRESSURE 39

What is blood pressure? 39

What is high blood pressure and how do you treat it? 39

Why measure blood pressure at home? 39

WHO's classification of blood pressure 40

Variations in blood pressure 40

OPERATION 41

Before use....41

Functions and features 41

Inserting the batteries 41

Setting the date/time and voice function.... 42

Choice of units, mmHg/kPa 42

Display of WHO's classification of blood pressure 43

Using the blood pressure sleeve 43

Measuring 43

Blood pressure measuring....44

Displaying memory items.... 44

Emptying the memory 44

MAINTENANCE 45

TROUBLESHOOTING 45

SÄKERHETSANVISNINGAR

Line drawing of a medical pressure monitor with attached tubing (no text or symbols)

Visning av who:s klassificering av blodtryck

Line drawing of a human leg with a heart symbol placed on the knee, no text or labels present

VIKTIGT!

Line drawing of a medical pressure monitor device with attached tubing (no text or symbols)

Line drawing of a human leg with a heart symbol and bandage, no text or labels present

Line drawing of a medical pressure monitor device with attached tubing (no text or symbols)

Line drawing of a human leg with a heart symbol and bandage, no text or labels present

WAŻNE!

Read the User Instructions carefully before use.

Save these instructions for future reference.

The following symbols are used in these User Instructions to highlight important instructions.

Symbols

Always follow the recommendations of your doctor. Do not attempt to diagnose or treat any complaints yourself. This could be dangerous.Do not use the unit for first aid, to assess your health status, or for continuous monitoring.	IMPORTANT!
The appliance is not intended to be used by persons (children or adults) with any form of functional disorders, or by persons who do not have sufficient experience or knowledge on how to use it, unless they have received instructions concerning the use of the appliance from someone who is responsible for their safety.
The unit must only be used as it is intended to be used and in accordance with these instructions.Otherwise there is a risk of personal injury and/or material damage.
Do not use mobile phones in the vicinity of the unit. Do not use the unit in or near magnetic fields.
Do not dismantle the unit, or attempt to modify or repair it. This could damage the unit and cause malfunctioning.

Special safety instructions

BatteriesRemove the batteries if the unit is not going to be used for 3 months, or more.Insert new batteries with the correct polarity.

Do not bend the sleeve or air hose too hard.

Hold the plastic plug when releasing the air hose. Do not pull the hose.

Do not expose the unit to knocks and blows.

Put the sleeve on before starting the unit.

Only use spare parts and accessories recommended by the manufacturer. The use of other accessories can cause personal injury and/or material damage.

Contact your dealer if you have any problems or questions.

TECHNICAL DATA

Measurement method Oscillometric measurement

Meaning Digital LCD display

Measurement range Pressure: 30–280 mmHg

Precision Static pressure ± 3 mmHg

Pulse: 40–199 spm

Pulse: ± 5%

Memory 90 memory items

Power supply 4 x 1.5 V AA batteries

Operating conditions 5 to 40°C, 30–80% RH

Atmospheric pressure: 80–106 kPa

Storage conditions -20 to 55°C, 10–93% RH

Atmospheric pressure: 50–106 kPa

Dimensions (W x H x D) Approx. 140 x 110 x 48 mm

Weight Approx. 420 g without batteries

Classification

BF

type

Arm circumference 22–32 cm

*We reserve the right to change the technical data without prior notice.

1. Type of protection against electric shock: EQUIPMENT WITH INTERNAL POWER SUPPLY.
2. Safety class, protection against electric shock: BF TYPE, PATENT APPLIED FOR PART.
3. Duty cycle: CONTINUOUS OPERATION.
4. The equipment is not suitable for use in the vicinity of equipment of the AP and APG category.

IMPORTANT! Failure to comply with the conditions below could prevent the unit from achieving the specified performance data.

Operating conditions: 5 to 40°C, 30–80% RH

Storage conditions: -20 to 55°C, 10–93% RH

DESCRIPTION

Parts

Accessories

Line drawing of a medical or laboratory device with a curved tube and label (no text or symbols present)

User Instructions Blood pressure sleeve for adults Adapter

Display screen symbols

INDICATION OF IRREGULAR PULSE

- Configuration according to purpose

1. WHO's classification of blood pressure

2. The battery is flat.

3. Inflation

4. Pressure relief

5. Memory location

6. Pulse

7. Number of heart beats per minute

8. Voice On/Off

9. Pressure unit

10. Diastolic pressure

11. Systolic pressure

12. Hour/minute

13. Month/day

BLOOD PRESSURE

What is blood pressure?

Blood pressure is the pressure exerted by the blood on the inner walls of the arteries. Systolic pressure occurs when the heart contracts. Diastolic pressure occurs when the heart expands.

Blood pressure is often given in millimetres of mercury column, mmHg. To find out what your normal blood pressure is, you measure the blood pressure in the morning before you have eaten or begun to be active.

What is high blood pressure and how do you treat it?

High blood pressure that is not treated can lead to many health problems, including strokes and heart attacks.

Lifestyle can influence blood pressure. High blood pressure can be treated with medicine under the direction of a doctor.

The following measures can help to counteract high blood pressure.

• Do not smoke.
• Reduce intake of fat and salt.
• Avoid overweight.
  • Exercise regularly.
  • Undergo regular health checks.

Why measure blood pressure at home?

Many people feel anxious when measuring blood pressure at the doctor's, which can result in the measured value being 25 to 30 mmHg higher than if it was measured at home. When measuring at home the measured value is not influenced to the same extent by external circumstances, which makes the readings more accurate.

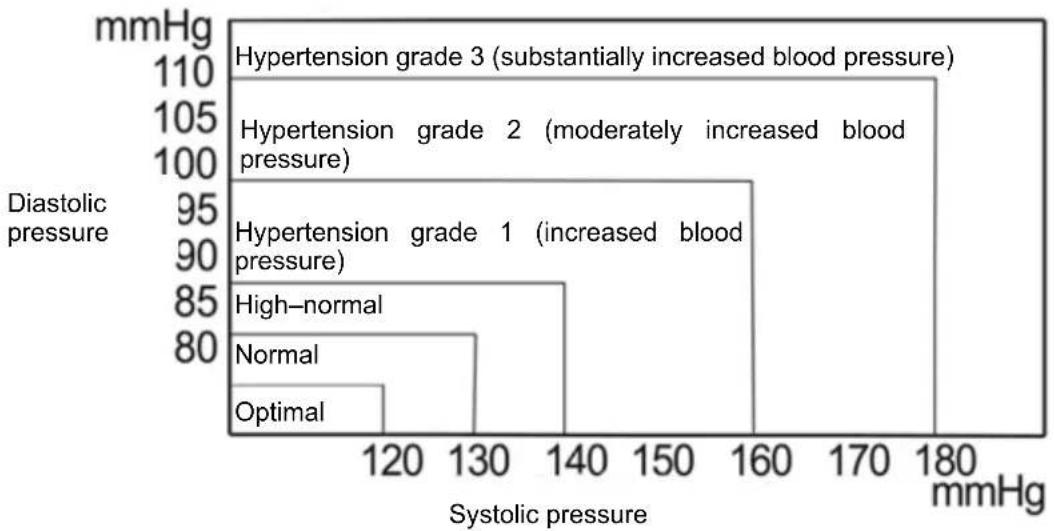

WHO's classification of blood pressure

The World Health Organisation (WHO) has established limiting values for blood pressure, without reference to age, which are indicated in the table below.

Reference material: Journal of Hypertension 1999, Vol 17 No. 2

Variations in blood pressure

A person's blood pressure can vary by up to 30 to 50mmHg during the day. For persons with high blood pressure, their blood pressure can vary even more.

Blood pressure normally increases during physical exertion, and is lowest during sleep. Individual measurement results can therefore be misleading.

Note your normal blood pressure and take measurements at the same time each day. A lot of measurements provide a better overview of variations in blood pressure.

Always make a note of the date and time for blood pressure measurements. Ask your doctor to help you interpret the results.

Typical variation during the day (measured at 5 minute intervals)

OPERATION

Before use

• Do not attempt to make a diagnosis on the basis of the measured values. Allow a doctor or other medically trained person who is familiar with your health to interpret blood pressure measurements.
• If you are regularly taking medicine, ask your doctor what is the best time to take your blood pressure. NEVER change your prescribed medication without consulting a doctor.
• Persons with irregular or unstable peripheral circulation as a result, for example, of diabetes, liver problems or stiff arteries, can get different results if their blood pressure is measured at the wrist or the upper arm.
• The unit is only intended for adults. Consult your doctor regarding blood pressure measurement on small children or the elderly.
• Never use the unit in the vicinity of equipment such as televisions, microwave ovens, X-ray equipment or mobile phones – this can lead to incorrect results.
• The unit must not be used for diagnosis, treatment or continuous monitoring of acute conditions or operations.
• Wash your hands before use.
• If the sleeve is too tight or you experience discomfort, press the power switch immediately to relieve the pressure.

Functions and features

1. 90 measurements can be saved in the memory.
2. Large, comprehensible LCD display.
3. Display of WHO's classification of blood pressure.
4. Easy to use – one press of the button for automatic measuring and registering of measured values, including the date and time.
5. Switches off automatically after 1 minute if there is no activity.

Inserting the batteries

1. Remove the battery cover.
2. Insert new batteries in the battery compartment with the correct polarity.
   Replace the battery cover. Only use AA batteries.

Recycle used batteries in accordance with local regulations.

IMPORTANT!

• Insert the batteries with the polarity shown in the battery compartment.
• Replace all the batteries when the battery indicator flashes in the display. Do not mix old and new batteries. This could cause malfunctioning or damage the batteries. The battery indicator will also stop working. The battery time gets shorter at low ambient temperatures.
• Remove the batteries if the unit is not going to be used for some time. Otherwise there is a risk that battery leakage will damage the unit.
• Only use batteries recommended by the manufacturer. The supplied batteries are intended for trial usage, and may have a shorter battery life.

Setting the date/time and voice function

1. Press the SET button.
2. Keep the SET button pressed until the year digits flash in the display.
3. Press the MEM button to set the year. Press SET to save the setting and activate the month setting.

1. Press the MEM button to set the month. Repeat these steps to set the day/hours/minutes and voice function On/Off. ON indicates that the function is active, OF that it is inactive (only for units with voice function).

year

hour

Choice of units, mmHg/kPa

The unit can show blood pressure in mmHg or kPa. The default setting is mmHg.

Press the power switch for 5 seconds to activate setting the unit of measurement. The selected unit is also applied in the memory items.

Display of WHO's classification of blood pressure

Diastolic pressure

Reference material: Journal of Hypertension 1999, Vol 17 No. 2

Using the blood pressure sleeve

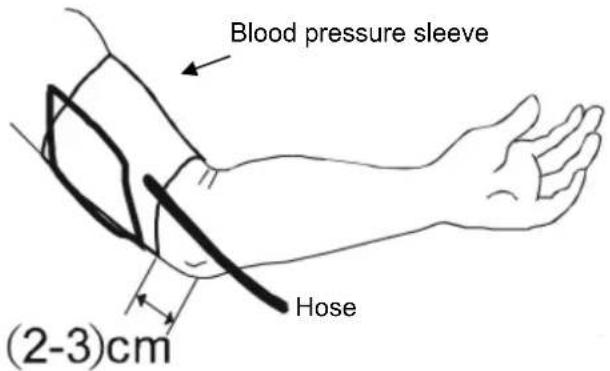

1. Place the sleeve around the upper arm, 2–3 cm above the elbow, as shown in the diagram. Place the sleeve directly against the skin – clothing can result in incorrect measurements.

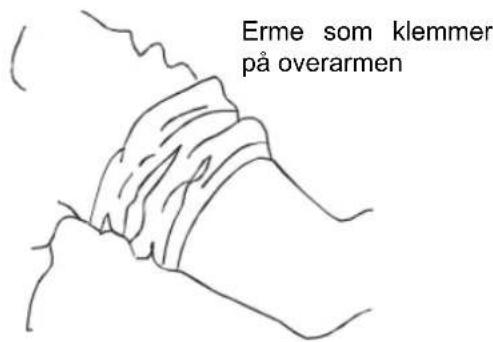

2. A rolled up cuff that squeezes the upper arm can affect the measurement result.

3. Fasten the sleeve with the Velcro strip so that it sits firmly and comfortably. Place the arm on the table with the palm up, so that the sleeve is level with the heart. Check that the hose is not clinched.

Line drawing of a human leg with a heart symbol and bandage, no text or labels present

Measuring

Follow the instructions below to obtain the most accurate results.

1. Sit comfortably at a table. Allow the arm to rest on the table.
2. Relax for 5 to 10 minutes before measuring.
3. Place the blood pressure sleeve level with the heart.
4. Sit still and quietly until the measurement is completed.
5. Do not take measurements immediately after exercising or a bath. Rest for 20–30 minutes before measuring.
6. Measure your blood pressure at about the same time each day.

Blood pressure measuring

1. Put on the blood pressure sleeve as instructed above.

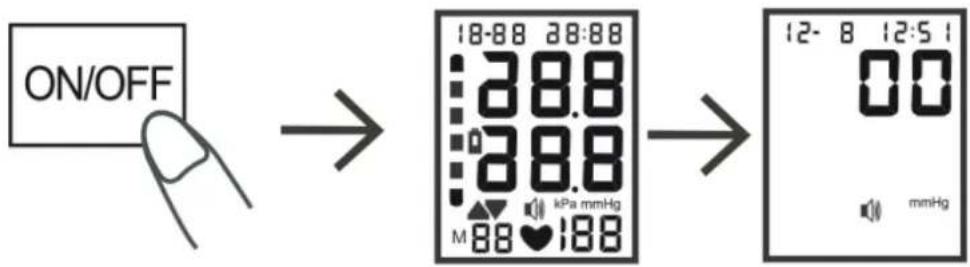

2. Press the power switch. All the icons are shown on the display for 2 seconds, after which 0 or the last measurement result is shown.

1. Start the measurement. The sleeve inflates automatically. Marking ( ) is displayed. The measurement result is shown when the measurement is complete.

Displaying memory items

Press the MEM button. The last saved memory item is displayed. Browse up with MEM button, or down with the SET button.

When the unit is switched off you can press the MEM button to show the last measurement result.

Emptying the memory

To empty the memory, press the MEM button for 5 seconds. No is shown in the display to indicate that all memory items have been deleted.

MAINTENANCE

1. Follow the instructions below to keep the unit in good condition.

2. Store the unit in the case when not in use.

3. Do not fold the sleeve too hard.

4. The Velcro strip can damage the inside surface of the sleeve.

5. Clean the unit and sleeve with a soft, dry cloth.

6. Do not use abrasive or solvent-based detergents.

IMPORTANT!

1. Do not immerse the unit or its components in water or any other liquid.

2. Do not expose the unit to moisture, extreme temperatures or direct sunlight.

3. Store the unit and its components in a safe place.

4. Do not expose the unit to knocks and blows.

5. Remove the batteries if the unit is not going to be used for 3 months, or more. Replace all the batteries at the same time.

TROUBLESHOOTING

The troubleshooting chart will help you identify the causes of common problems and how they can be rectified. Contact your dealer if you cannot rectify the problem by using the troubleshooting chart.

PROBLEM	POSSIBLE	CAUSE	ACTION
Nothing is displayed when you press the power switch, or the battery indicator flashes.	No batteries. Insert the batteries.
	The batteries are spent. Replace batteries.
	The batteries have the wrong polarity.		Insert the batteries with the correct polarity.
E1: The air pressure does not rise correctly.	The sleeve leaks. Replace the sleeve.
E3: The inflation pressure is too high.			Contact
E2, E4: Movement during the measurement.	The arm or body moved during the measurement.		Sit still in the correct position and measure again.
The battery indicator is displayed.	The batteries are spent. Insert new batteries.

Unreasonably high value is shown for systolic or diastolic pressure.	1. The sleeve was held lower than the heart.	Stay in the correct posture and measure again.
	2. The sleeve was not fitted properly.
	3. You moved or spoke during the measurement.
Unreasonably low value is shown for systolic or diastolic pressure.	4. The sleeve was held higher than the heart.
	5. You moved or spoke during the measurement.
Guidelines and manufacturer's certificate concerning electromagnetic radiation
The model is intended to be used in electromagnetic environments in accordance with the specifications below. It is incumbent on the customer or the person using the model to ensure that the electromagnetic environment in which the model is used complies with these specifications.
Emission test Compliance Guidelines for electromagnetic environment
Radio frequency radiation CISPR 11	Group 1 Radio frequency energy is only used in the model for the internal functions in the product. The emitted radio frequency radiation is therefore very low and the probability of it causing interference in nearby electronic equipment is low.
Radio frequency radiation CISPR 11	Class B The model is suitable for use in apartments and similar environments, directly connected to low voltage networks for the distribution of electricity to apartment buildings.
Overtones IEC 61000-3-2 Not applicable
Voltage fluctuation/flicker IEC 61000-3-3	Not applicable

Guidelines and manufacturer's certificate concerning electromagnetic immunity
The model is intended to be used in electromagnetic environments in accordance with the specifications below. It is incumbent on the customer or the person using the model to ensure that the electromagnetic environment in which the model is used complies with these specifications.
Immunity test Test level as per IEC 60601		Compliance level Guidelines for electromagnetic environment
Electrostatic discharge (ESD) IEC 61000-4-2	±6 kV on contact ±8 kV over air gap	±6 kV on contact ±8 kV over air gap	The floor surface should consist of wood, concrete or clinker. In rooms with floors covered with synthetic material the relative air humidity should be at least 30%.
Immunity test Test level as per IEC 60601		Compliance level	Guidelines for electromagnetic environment
Conducted radio frequency interferenceIEC 61000-4-6 Emitted radio frequency interferenceIEC 61000-4-3	3 V rms150 kHz to 80 MHz3 V/m800 MHz till 2.5 GHz	3 V3 V/m	Portable and mobile radio communication equipment must not used nearer to any part of the model or its leads than the recommended minimum distance in accordance with the equation applicable for the transmitter in question. Recommended minimum distance d = 1,2 d = 1,2 80 to 800 MHz d = 2,3 80 to 2.5 GHzwhere P is the maximum output specified by the transmitter manufacturer in watts (W) and d is the recommended minimum distance in metres (m). The field strength from a permanent radio transmitter, determined by electromagnetic measurement in situ, should be less than the specified compliance level for the respective frequency range ^b .Interference can occur in the vicinity of equipment marked with the symbol:
Note: 1: The higher frequency range is applicable at 80 MHz and 800 MHz.Note: 2: These guidelines do not apply in all situations. Electromagnetic radiation can be affected by absorption in and reflection against building structures and other objects, such as people.
^a The field strength from permanent transmitters, e.g. base stations for mobile phones and wireless telephony, communication radios, amplitude or frequency modulated radio and television broadcasting cannot be predicted theoretically with a practical degree of accuracy. In those cases where electromagnetic environmental impact from permanent radio transmitters is important, measurement of electromagnetic field strength in situ should therefore be taken into consideration. If the measured field strength in the place where the model is used exceeds the applicable, above specified compliance levels for radio frequency radiation, the model should be tested and checked to verify that it is working properly. Additional measures may be necessary if incorrect or abnormal functionality is observed, for example the realignment or repositioning of the model. ^b In the frequency range 150 kHz to 80 MHz the field strength should be less than 3 V/m.

Jula reserves the right to make changes. In the event of problems, please contact our service department www.jula.com

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.
