Product Type	Washing Machine
Brand	Fagor
Model	FU-7814
Load Capacity	8 kg
Spin Speed	1400 rpm
Energy Class	A+++
Dimensions (H x W x D)	85 x 60 x 56 cm
Net Weight	71 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	2100 W max
Water Consumption	50 L per cycle (average)
Noise Level (Wash/Spin)	56 dB / 76 dB
Programs	Cotton, Synthetics, Delicates, Wool, Quick 15', Eco 40-60, Rinse & Spin, Drum Clean
Display	Digital LED
Delay Start	Up to 24 hours
Child Lock	Yes
Drum Material	Stainless steel
Door Opening	Left hinge (reversible)
Spare Parts Availability	7 years after end of production
Repairability Index	8.2/10

Frequently Asked Questions - FU-7814 FAGOR

How do I start a wash cycle?

Load the laundry, add detergent, close the door, select the desired program using the knob, and press the Start/Pause button.

What should I do if the machine does not drain?

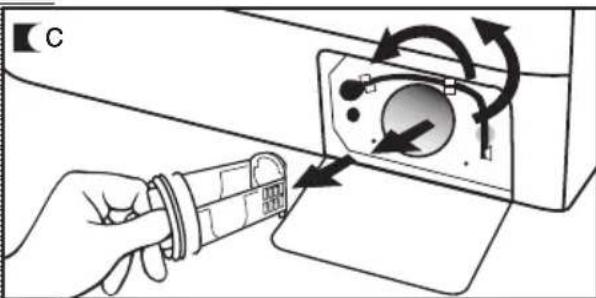

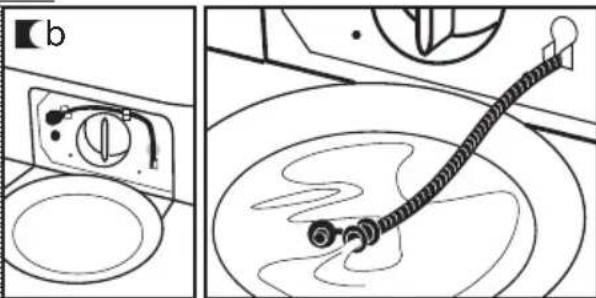

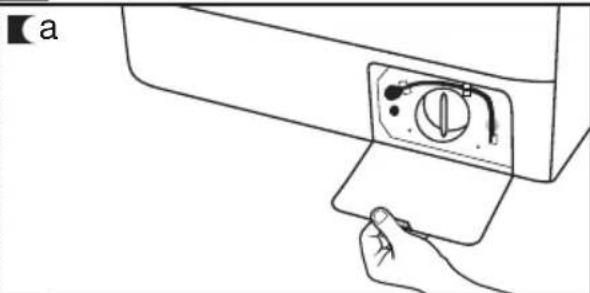

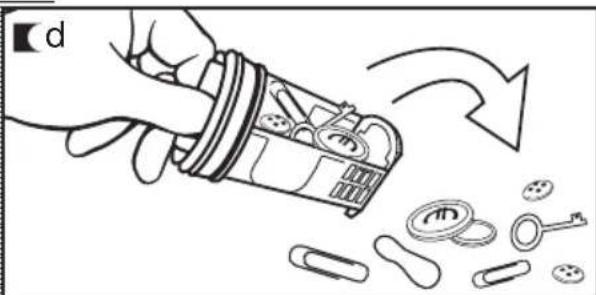

Check the drain hose for kinks or clogs. Clean the pump filter located at the bottom front of the machine. Ensure the drain pump is not blocked.

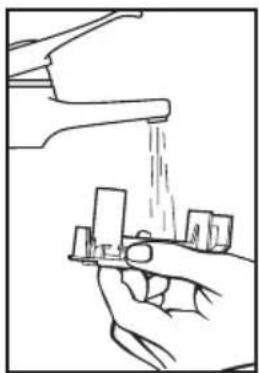

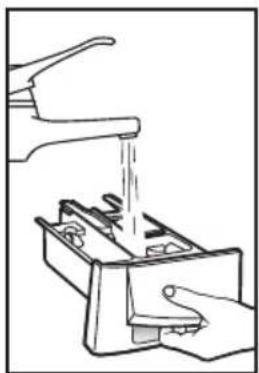

How can I clean the detergent drawer?

Press the release catch inside the drawer and pull it out. Rinse under warm water and scrub with a brush. Dry and reinsert.

Why is the machine vibrating excessively?

Ensure the transport bolts are removed. Check that the machine is level by adjusting the feet. Make sure the load is balanced.

What does the error code 'E01' mean?

E01 indicates a door lock problem. Check if the door is fully closed and the lock is engaged. Restart the cycle.

Can I wash delicate fabrics?

Yes, select the Delicates program which uses gentle tumbling and low spin speed. Use a mesh bag for very delicate items.

How often should I run a drum clean cycle?

We recommend running the Drum Clean program every 2 months to prevent mold and odor. Use a drum cleaner tablet or bleach.

What is the maximum load for a quick wash?

For the Quick 15' program, do not exceed 2 kg of lightly soiled laundry.

How do I reset the machine?

Turn off the machine and unplug it for 1 minute. Plug back in and select a program. Press Start/Pause to resume.

Where can I find spare parts?

Spare parts are available from authorized Fagor service centers. Use the model number FU-7814 to order correct parts.

USER MANUAL FU-7814 FAGOR

Line drawing of a front-loading washing machine with control panel and door (no text or symbols)

Abstract pattern of horizontal striped lines with no text or symbols

índice

ADVERTÊNCIAS 48

QUADRO TÉCNICO 49

INSTALLATION AND ASSEMBLY 72

USING THE APPLIANCE.

PRACTICAL TIPS 76

MAINTENANCE

AND CLEANING 86

SAFETY

AND TROUBLESHOOTING 88

ENVIRONMENTAL

WARNINGS 91

thanks for placing your trust in us

Our new range of washing machines has been designed to make life more convenient for you:

WITH YOUR CONVENIENCE ALWAYS IN MIND

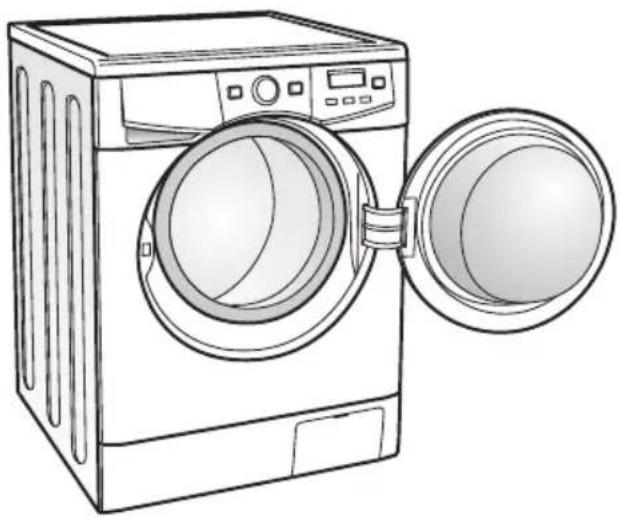

Large hatch.

Maximum opening.

• Designed higher than the normal axis and with the drum tilted to achieve maximum ergonomics.
• Its maximum opening makes it much easier to put clothes in.

■ Hatch opening button.

- Opens instantly at the simple press of a button (Depending on model).

■ Easy-access filter.

• And simple maintenance.

WITH SAVINGS ALWAYS IN MIND

■ 8 kg capacity.

- Which allows you to do less washes and make savings.

■ Washing in less time.

- The wash programmes do not last as long giving you more free time.

■ Time delay.

- To take advantage of cheap electricity rates.

WITH INNOVATION ALWAYS IN MIND

LCD screens.

- Which allows you to have constant information about the wash programme and its duration.

■ Detergent dispenser designed to offer maximum convenience.

• Easy to remove for cleaning.
• Possibility of using liquid detergent.

warnings

To avoid the risk of fire, electrical shocks, injury or damage when using your washing machine, please take the following precautions:

■ This washing machine comes with a manual that includes operating, maintenance and installation instructions. Please read all the instructions before using the washing machine.
■ Do not wash items that have previously been cleaned, washed, soaked or treated with petrol, solvents for dry cleaning, other inflammable substances or explosives, as they produce fumes that could catch fire or explode.
■ Do not add petrol, solvents for dry cleaning or other inflammable or explosive substances to the wash water as they produce fumes that could catch fire or explode.
■ Do not repair or replace any part of the washing machine or try to carry out any type of servicing unless it is recommended in the maintenance instructions in the manual.

■ Do not climb onto the machine or stand on the open hatch door.
■ Do NOT use an extension lead or adaptor to connect your washing machine to the mains supply.
■ The machine should only be used for the purpose it is designed for.
■ Follow the washing instructions recommended by the manufacturer of the garment to be washed.
■ Do not turn your washing machine on until you are sure that:

• It has been installed in accordance with the installation instructions.
• All the water, drainage, mains electricity and earth connections meet the local regulations and/or other applicable regulations.

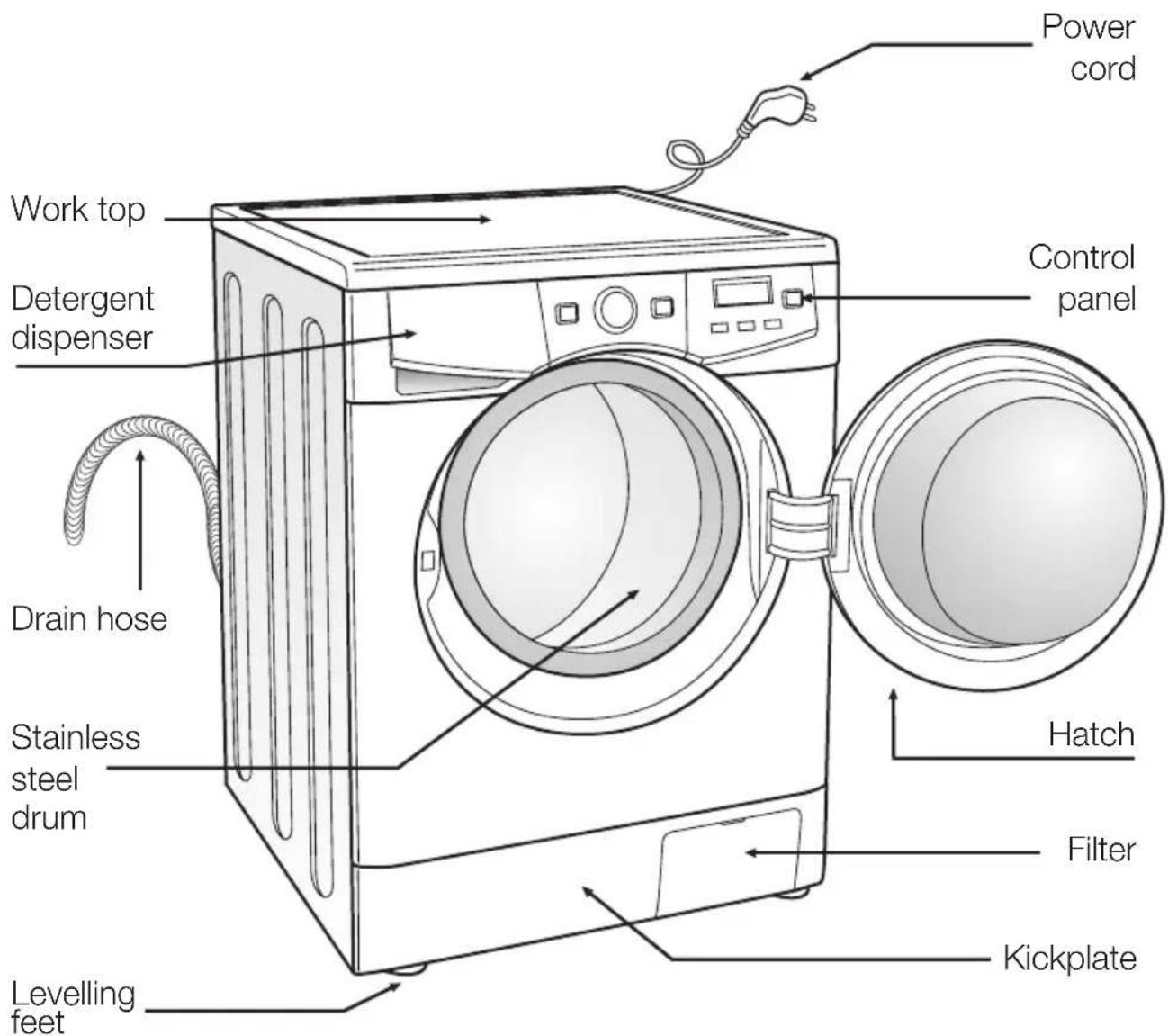

washing machine specific

specifications

ACCESSORIES LOCATED
INSIDE THE DRUM

Rear plugs Drain pipe bender

Illustration of a coiled hose with two connectors (no text or symbols)

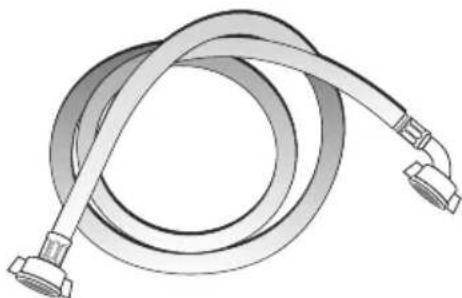

Water inlet hose

installation and assembly

1 UNPACKING AND UNBLOCKING THE WASHING MACHINE

UNPACKING

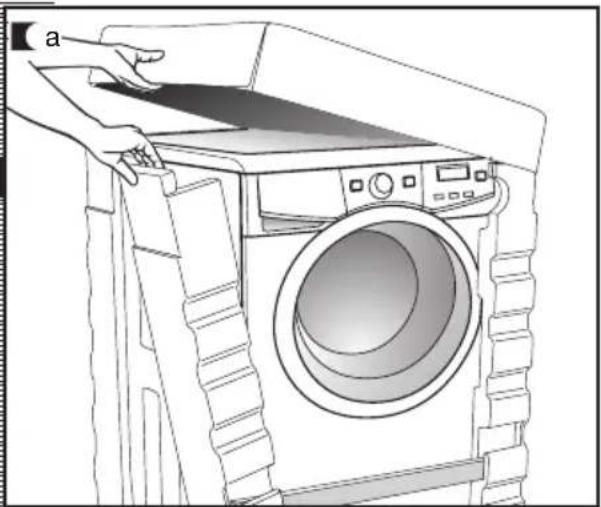

a Remove the base, corner protectors and top cover.

Line drawing of a hand opening a large washing machine (no text or symbols present)

UNBLOCKING

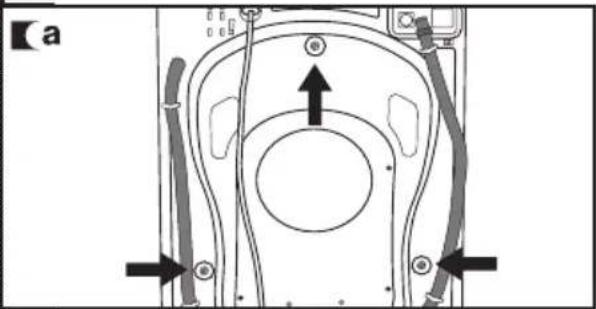

a There are 3 blocking screws on the back of the washing machine.
b To loose and completely remove the 3 screws together with the metal washer and the black rubber and plastic tubes that make up the blocking system.

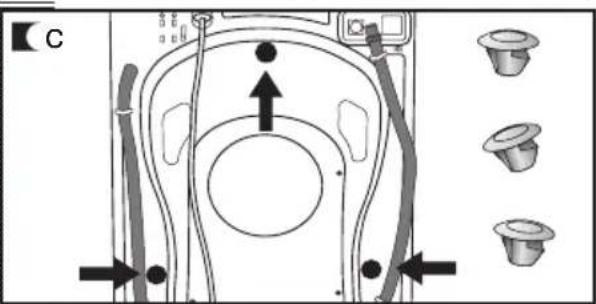

c Fit the 3 plastic plugs supplied in the holes you removed the screws from.

Technical diagram of a mechanical component with arrows indicating directional movement (no text or symbols)

Technical illustration of a screwdriver with threaded shaft and housing (no text or symbols)

Important

Do not throw the blocking screws away. You may need to move the washing machine at a later date.

2

CONNECTION TO THE MAINS WATER SUPPLY AND DRAINAGE

installation and assembly

CONNECTION TO THE

MAINS WATER SUPPLY

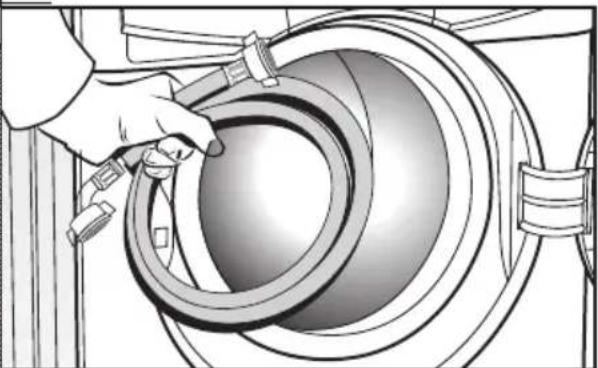

The water supply hose is inside the drum:

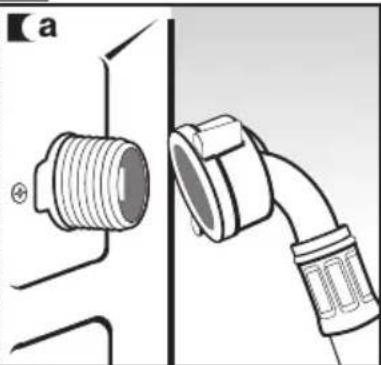

a Connect the bent end of the hose to the threaded inlet of the electrovalve located at the rear of the washing machine.
b Connect the other end of the hose to the water intake. Then securely tighten the connection nut.

Important

It is important that the drain hose bend is correctly fastened to the outlet, to prevent any risk of it becoming detached and causing flooding.

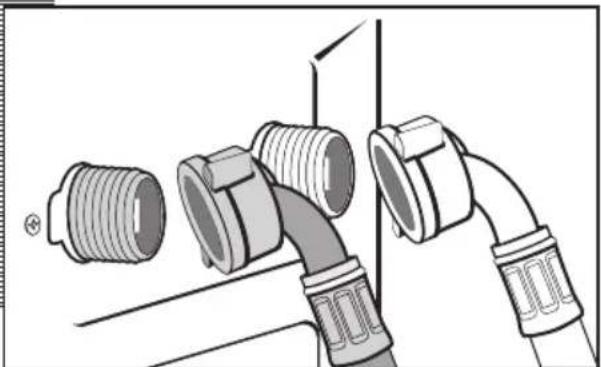

If your washing machine has a hot water intake, connect the hose with the red threaded end to the hot water tap, and to the electrovalve with the red filter.

The washing machine must be connected to the mains water supply, using the new supply hoses supplied with the appliance. Do not use water supply hoses that have been used before. For your washing machine to work properly, the mains water pressure must be between 0.05 and 1MPa (0.05 and 10 Kgr/cm ^2 ).

Illustration of a hand adjusting a circular mechanical component with attached tubing (no text or symbols)

Technical diagram showing a threaded connector inserted into a pipe, with no visible text or symbols

Technical line drawing of a mechanical component with threaded ports and a flanged base (no text or symbols)

Diagram of two pipe fittings with threaded connectors, showing different installation states (no text or symbols present)

DRAINAGE

CONNECTION

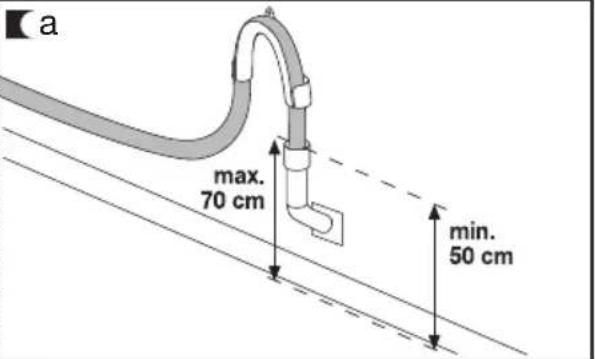

a It is recommended that you have a fixed drainage outlet 50 tom 70 cm from the floor.

Avoid the drain hose being too tight, kinked or restricted. Use the bend supplied.

3 LEVELLING THE WASHING MACHINE AND CONNECTING IT TO THE MAINS ELECTRICITY SUPPLY

installation and assembly

LEVELLING

Important

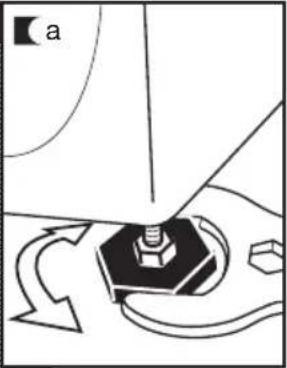

a First of all, we recommend that you fix and level the rear feet. When they are properly fixed, secure the metal locknut tightly to the top part.

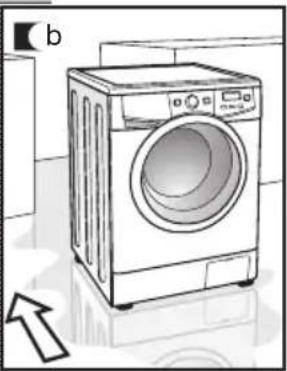

b Put the washing machine into its niche. Dampen the floor to help you move the machine into its final position.

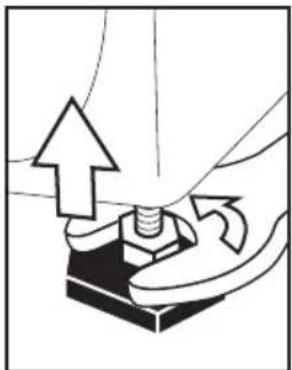

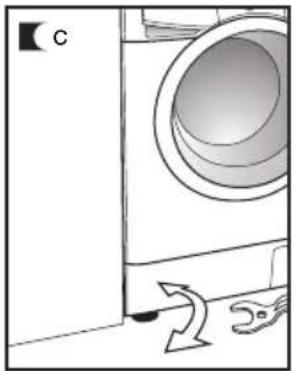

c Finally level and secure the front feet in the same way as you levelled the rear feet.

Mechanical diagram showing a bolt pressing into a hexagonal nut with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical press or clamping mechanism with upward and downward arrows indicating motion (no text or symbols)

Line drawing of a front-loading washing machine with control panel and door (no text or symbols)

Diagram of a washing machine with a circular vent and directional arrow indicating motion (no text or symbols)

ELECTRICAL CONNECTION

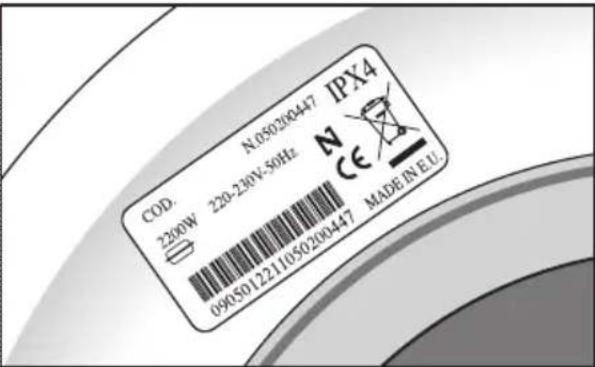

Consult the specifications plate located on the hatch door of the washing machine before making the electrical connections. Ensure that the voltage reaching the plug is the same as that on the plate.

Do not remove the specifications plate. The information on it is important.

Important

It is very important to correctly earth the washing machine.

The electrical installation, plug, socket, fuses or automatic switch and counter must be correctly dimensioned for the maximum power indicated on the specifications plate.

Do not plug the washing machine plug into the socket with wet or damp hands.

To remove the power cord, pull on the body of the plug.

If the power cord is damaged, it must be replaced by a cord or special unit provided by either the manufacturer or your after-sales service.

With built-in washing machines, the plug must be accessible after installation.

4 PRE-CLEANING

PRE-CLEANING

When your washing machine has been correctly installed, we recommend that you pre-clean the machine.

This is to check that the installation, the connections and the drainage are all correct, and to thoroughly clean the inside of the washing machine before any wash programmes are run (see the operating instructions on the following pages).

a Press ON/OFF button.
b Select the normal programme at 60°C.

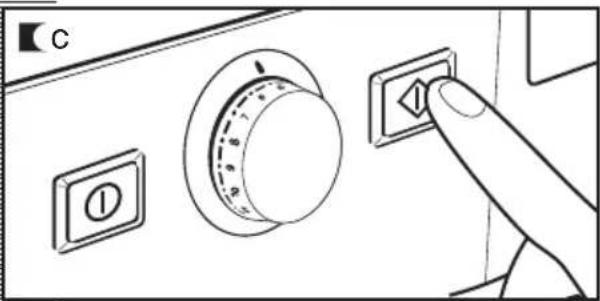

c Press the start/pause button.

Hand holding a circular dial with numbered segments, no visible text or symbols

using the appliance and practical tips

1 PREPARING GARMENTS FOR WASHING

PREPARATION

Important

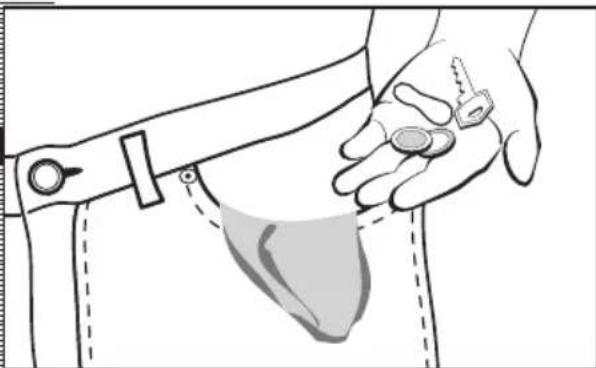

Before placing the clothes in the drum, make sure all the pockets are empty. Any small objects may block the drain pump.

Illustration of a hand holding a small object with a shaded area underneath (no text or symbols)

SORTING THE CLOTHES

a Sort the clothes according to fabric and how they are made.

We recommend using the delicate programmes for sensitive fabrics. There is a special wool programme for woollens.

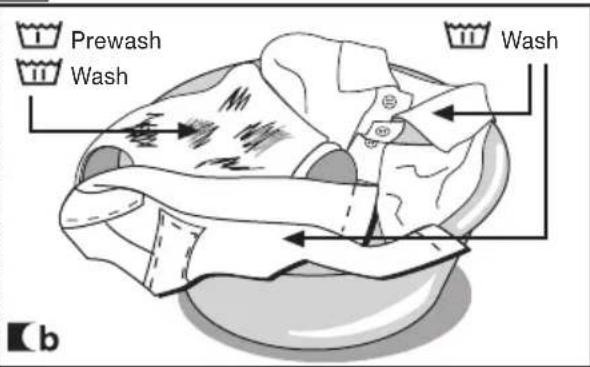

b Sort clothes according to how soiled they are.

• Wash lightly soiled garments using a short programme.
• Use a programme without prewash for medium-soiled garments.
• Wash heavily soiled garments using a long programme with prewash.

c Sort your clothes according to colour.

Wash whites and coloureds separately.

Importante

Make sure beforehand that your woollens can be machine-washed.

Important

We recommend loading the washing machine to its full capacity. This means savings on water and energy.

Whenever possible, we recommend that you wash garments of different sizes within the same wash programme. This improves the washing action and also aids the correct distribution of the garments in the drum when spin-drying, and the washing machine will therefore be quieter.

It is a good idea to put small garments in a wash bag.

2 USING DETERGENT AND ADDITIVES

using the appliance and practical tips

DETERGENT

AND ADDITIVES

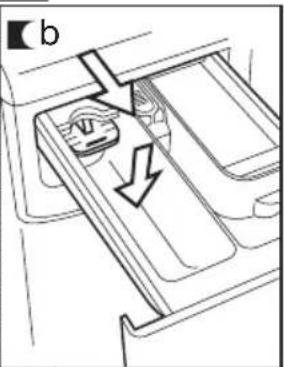

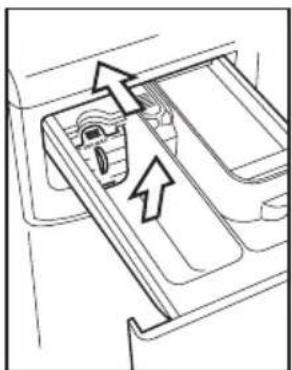

a Your washing machine's detergent dispenser has three compartments.

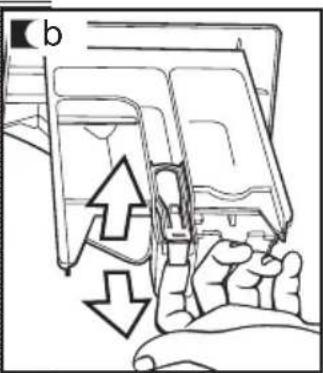

b If you are going to use liquid detergent you must close the wash compartment flap. Take the blue tab protruding from the bottom of the compartment between 2 fingers and pull outwards as far as it will go. Release the flap and it will remain in the vertical position and prevent the liquid detergent from getting out. It must be open for powdered detergent. Put it in the horizontal position, pressing the top tab with your finger and pushing it back as far as it will go.

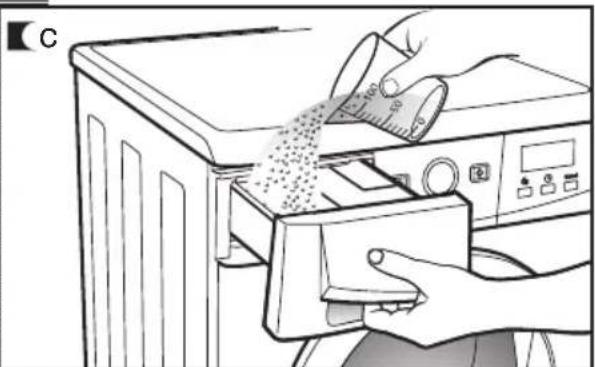

c Put the detergent, either liquid or powder, or additive into the detergent dispenser before starting the wash programme.

Important

The liquid level must never be higher than the MAX mark printed on the dispenser wall.

Remember that the amount of detergent to be used will always depend on:

■ The amount of clothes to be washed.
■ How heavily the clothes are soiled.
■ The water hardness (information about water hardness is available from the relevant local authorities).

Important

We recommend the use of a decalcifying product if the water hardness is high in your area.

Line drawing of a car interior showing a vehicle inside a vehicle tray with two arrows indicating movement or force (no text or symbols)

Illustration of a hand washing a washing machine with a cloth partially inserted (no text or symbols visible)

eco-note

Remember that concentrated detergents exist which are more environment- and nature-friendly.

The use of more detergent than necessary will not improve your washing results, and apart from costing you

money it will have a negative effect on the preservation of the environment.

We therefore recommend you follow the detergent manufacturer's instructions.

3

SELECTING THE WASH

PROGRAMME

using the appliance and practical tips

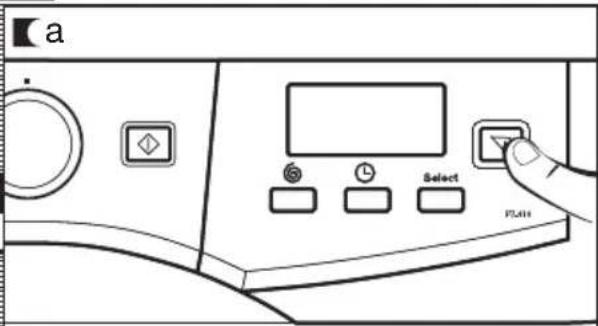

To select a wash programme, proceed as follows:

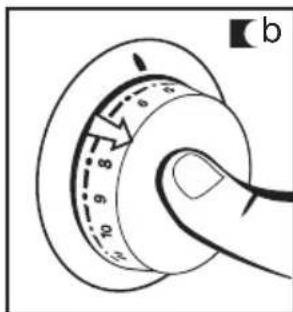

a Switch the washing machine on by pressing ON / OFF.
b Activate the programme selector by pressing it to release it (depending on the model).
c Select the wash programme by turning the programme selector (see programme table).

a

C

Line drawing of a hand holding a circular dial (no text or symbols)

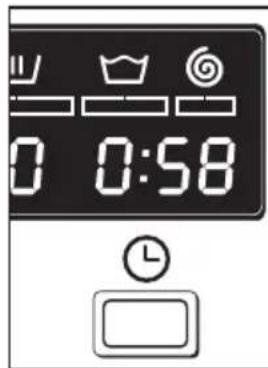

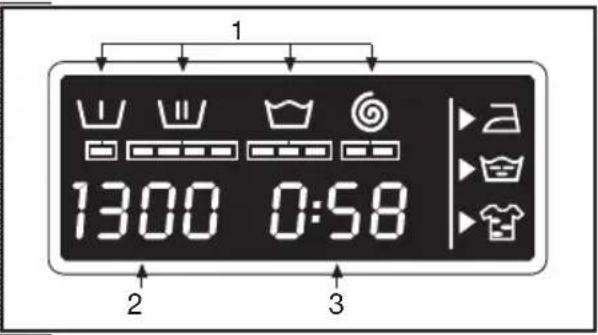

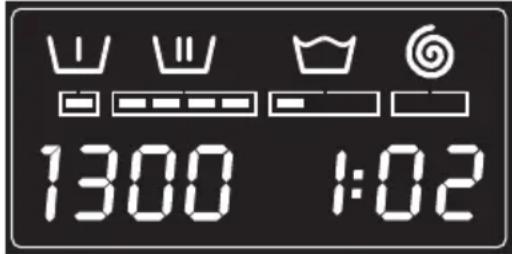

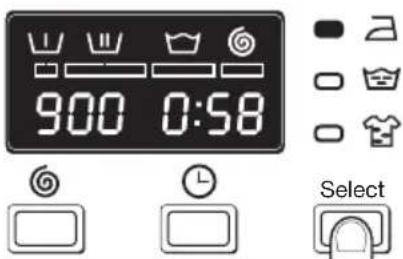

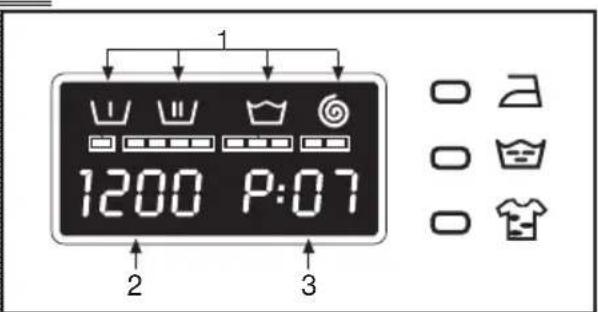

When you select the programme, the following information will be displayed:

1 Wash programme phases:

Prewash

Wash

Rinse

Spin-drying

1. No. of revolutions

2. Programme No. (for a few seconds) and then its duration.

Additional functions

Easy iron

Extra rinse

Intensive wash

There are four types of programmes:

Normal programmes

Delicate programmes

Wool programmes

Auxiliary programmes

PROGRAMMES

Normal Delicate Wool Auxiliary
1 Normal cold	8 Delicate cold	12 Wool cold	14 Rinses
2 Quick 30°C	9 Delicate 30°C	13 Wool 35°C	15 Spin-drying
3 Normal 30°C	10 Delicate 40°C		16 Drain/End
4 Normal 40°C	11 Delicate 60°C
5 Normal 60°C
6 Normal 90°C
7 Prewash 60°C

eco-note

We recommend you choose a wash programme without prewash whenever possible. This will save you money and help protect the environment.

Abstract black-and-white line art design featuring two overlapping leaf-like shapes within a circular frame (no text or symbols)

	Programme		Recommended temperature	Fabric type	Possible option buttons						c
					Extra rinse	Intensive wash	Easy-iron	Spin speed selection	No spin	Anti-crease
Normal programmesDelicate programm	1	Normal cold	Cold	Cotton/Linen delicate colours very light soil	YES
	2	Quick 30°C		Cotton/Linen whites/colours very light soil	YES	NO YES
	3	Normal 30°C		Cotton/Linen delicate colours light soil	YES
	4	Normal 40°C		Cotton/Linen fast colours light soil	YES
	5 (*)	Normal 60°C		Cotton/Linen fast colours medium soil	YES
	6	Normal 90°C		Cotton/Linen whites heavy soil	YES
	7	Prewash 60°C		Cotton/Linen whites/fast colours heavy soil	YES
	8	Delicate cold	Cold	Synthetic/mix cotton delicate colours very light soil	YES
	9	Delicate 30°C		Synthetic/mix cotton delicate colours light soil	YES
	10	Delicate 40°C		Synthetic/mix cotton delicate colours medium soil	YES
	11	Delicate 60°C		Synthetic/mix cotton white/fast colours medium soil	YES
	12	Wool cold	WOOL Cold	Wool/wool mix white/colour very light soil	YES	NO		YES
	13	Wool 35°C	WOOL 35	Wool/wool mix white/colour light soil	YES	NO		YES
	14	Rinses	-	Cotton/cotton mix Synthetic/Delicate Wool/wool mix	YES	NO		YES
	15	Spin-drying	-	Cotton/cotton mix Synthetic/Delicate Wool/wool mix				YESNO	NO
	16	Drain /End	-	Cotton/cotton mix Synthetic/Delicate Wool/wool mix	NO

(*) Programme for wash and energy consumption assessment in accordance with standard EN60456, press intensive wash button.

	Max. load of clothes (Kg)	Wash product compartment	Programme description	TURBO TIME PLUS
				Total consumption KWh/litres	Approx. duration (minutes)
	8		Normal wash, rinses, automatic additive absorption if desired and long final spin	0,10/59	50
	2		SHORT wash, rinses, automatic additive absorption if desired and final long spin	0,25/30	30
	8		Normal wash, rinses, automatic additive absorption if desired and long final spin	0,30/59	52
	8			0,60/59	57
	8			1,52/59	80
	8			2,20/64	110
	8	[SY3G] [SDSW] [WCZD]	Prewash, normal wash, rinses, automatic additive absorption if desired and long final spin	1,50/64	100
	3,5		Delicate wash, rinses, automatic additive absorption if desired and gentle final spin	0,10/45	50
	3,5			0,20/45	50
	3,5			0,40/45	55
	3,5			1,00/45	70
	2		WOOL wash, rinses, automatic additive absorption if desired and gentle final spin	0,05/55	30
	2			0,45/55	40
	8		Rinses, automatic additive absorption if desired and long final spin	0,05/25	23
	8	-	Drain and final long spin	0,05/0	10
	8	-	Drain and end of programme. Takes programme to final position	0,00/0	2

4 SPIN SPEED SELECTION

using the appliance and practical tips

SPIN DRYING

The wash options must always be selected after choosing the wash programme. Any programme change during selection cancels the previously selected options.

■ a Spin speed selection and anti-crease button.

The programme selected is associated with certain spin revolutions, as shown on the display.

■b It can be modified by pressing the spin drying button and the number of revolutions will be reduced by 100 revolutions at a time to 400.

c No spin 0

Press the spin button again to get to the no spin option. A programme without a final spin. It is used to prevent creasing when washing special fabrics.

■d Anti-crease option 8

The wash programme stops on the last rinse, with the clothes left in water. When the function is deactivated, the washing machine continues the programme, draining and spin-drying. It is used, for example, when you are not at home and want to delay the spin-drying until you get home, to prevent the clothes creasing after spin-drying and being left in the drum to be removed.

OPENING

THE HATCH

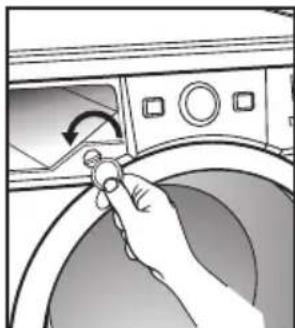

■a Depending on the model, you can open the hatch by pressing the hatch opening button.

If you cannot open the hatch due to a breakdown or a power cut, proceed as follows: remove the dispenser by pulling the handle outwards and pressing the blue lever with your finger. A button with a slot will appear on the right. Turn the button to the left with the aid of a coin and the hatch will open.

If your model of Washing machine does not have remote opening you have to await about 2 minutes from the end of the programme before being able to open the hatch.

a

b

C

d

Illustration of hands using a computer to adjust or install a device (no text or symbols visible)

Illustration of a hand adjusting a washing machine with a knob (no text or symbols visible)

5

TIME DELAY SECTION AND ADDITIONAL FUNCTIONS

using the appliance

TIME DELAY

Time delay selection button

A delay of up to 24 hours can be selected.

The delay must be selected after choosing the wash programme.

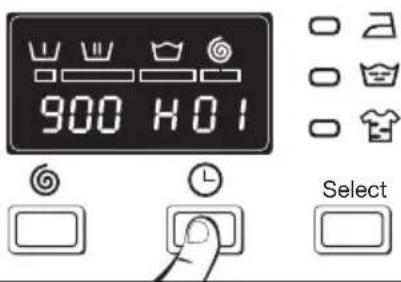

To select the delay time, press the clock button. Each time the button is pressed the start will be put back 1 hour.

Cancelling the delay

To cancel the delay you have to press the clock button successively. The delay will be cancelled when 24 hours have been reached and the button is pressed once more. If the programme is changed the delay is also cancelled.

ADDITIONAL FUNCTIONS

Additional function selection button depending on programmes.

There are 3 options: easy-iron, extra rinse and intensive wash.

Press the select button to display the option required.

By pressing the button several times you can choose between several combinations of one, two and up to three additional functions at the same time depending on the programme selected.

Button: Easy-iron (A)

This option prevents garments from creasing by means of carrying out a special programme with special turns to fluff out the garments after spin-drying and make them easier to iron.

Button: Extra rinse (💡)

Increases the level of the final rinse obtained in the clothes; suitable for large loads and garments belonging to people with sensitive skin. Increases water consumption!

Button: Intensive wash

This option, specially recommended for heavily soiled, stained clothes, achieves better results by extending the normal wash cycle.

Important

If during the additional function selection, the programme is changed or the ON/OFF button is pressed, all the functions selected until then are cancelled.

6

STARTING UP AND BLOCK FUNCTION SELECTION

using the appliance

STARTING UP

Start/pause button

a To start up the washing machine you have to press the start / pause button. The display will constantly show the minutes left until the wash is over.

ca

Hand inserting a small diamond-shaped button into a square socket (no text or symbols visible)

BLOCK FUNCTION

Block function selection

The various buttons can be blocked to prevent them from being pressed and affecting the selected wash programme and options. This can be used to stop children playing with the buttons, etc.

The block function should be activated after the wash programme has been selected together with all its options.

Activating the block function

a The block function is activated by pressing the start/pause button and holding it down for at least 3 seconds. The display will show if it is activated.

Deactivating the block function

b The block function is cancelled when the wash programme comes to an end. If you want to deactivate the block function before the end of the programme, you have to hold the start button down again for at least 3 seconds. After 3 seconds, the block function indicator will disappear from the display, and it will go into pause status. The ON/OFF button does not cancel the block function.

a

Hand holding a button with a diamond symbol (no text or labels)

b

Hand holding a button with a diamond symbol (no text or labels)

7 WASH PROGRAMME PHASES AND POWER CUTS

using the appliance

PROGRAMME PHASES

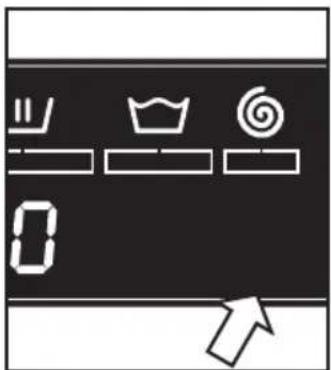

When the programme is running you can see which phase it is at on the display, as well as how long there is to the end of the programme.

The active phases will appear successively at the top of the display as the programme progresses. The time remaining until the end of the programme will also appear on the display. It updates at regular intervals, but not minute by minute.

Any option button can be selected provided the wash phase in which it takes effect has not been passed and when the programme accepts the option.

Pressing the delay button during the wash has no effect on the washing machine.

Pressing the start/pause button during the wash activates the PAUSE function.

important

If you change the wash programme during the wash using the selector, the PAUSE function is activated and the programme is cancelled.

If you need to add or remove a garment, press the start/pause button and make sure that the water level is not above the door overflow level and that the temperature inside is not high. Press the start/pause button again to restart the wash from the same cycle phase it had stopped at.

POWER CUTS

If there is a power cut, when the electricity comes back on the washing machine will continue to run from where it left off (it has several hours of memory). The same will happen if the ON/OFF button is pressed.

warnings

■ Level the washing machine by adjusting the feet to reduce the noise caused by spin-drying.
■ Try and wash clothes of different sizes in the same wash programme to favour the distribution of the clothes inside the drum during spin-drying.

All the models have a safety system for spin-drying that prevents spin-drying from being carried out if the distribution of the clothes inside the drum is too concentrated. This prevents the appliance from vibrating too much.

If you find that the clothes are not properly wrung out, try spin-drying them again after having distributed the clothes more evenly in the drum.

washing machine maintenance and cleaning

MAINTENANCE

After each wash, leave the door open for a while to allow the air to circulate freely inside the machine.

From time to time, depending on the hardness of your water, it is recommendable to run a full wash cycle using a decalcifying product. This will extend the life of your washing machine.

Important

The washing machine should be disconnected from the mains electricity supply before any cleaning or maintenance is carried out.

Line drawing of a front-loading washing machine with two doors open, showing front and back views (no text or symbols)

1 CLEANING THE DETERGENT DISPENSER

Clean the detergent dispenser whenever there is any washing product residue left inside.

a Pull outwards on the handle and press the blue lever with your finger to remove the detergent dispenser completely. Use warm water and a brush to clean the compartments.

b Also clean the additive compartment siphon. To remove it, pull the flap at the back out. Once it has been cleaned, put it back pressing down to make sure that it fits right in. Put the dispenser back into the washing machine.

A dirty or incorrectly fitted siphon will prevent the additives from being taken in and leave water inside the compartment at the end of the wash.

Illustration of hands using a tool to clean or wash a component (no text or symbols present)

Line drawing of a hand holding a faucet with liquid dripping from it (no text or symbols)

2 CLEANING THE ACCESSIBLE FILTER AND THE OUTSIDE

maintenance and cleaning

CLEANING THE FILTER

Clean the accessible filter if the drain pump is blocked by any foreign objects.

a Open the kickplate cover with the aid of a coin and by pulling gently on it.
b Place a container under the drain pipe to collect any water that comes out of it. Remove the drain pipe, place it on the container and open the cover. Water will start to come out.
c When all the water has come out of the machine, turn the filter several times until it can be completely removed, by pulling gently on it.
d Remove the objects or fluff caught in the filter or the drain pump. Put the filter, the drain pipe and cover back in place again.

Important

We recommend that you clean the filter at least once a year.

To avoid burns, do not carry out this operation when the wash water is at a temperature of over 30^ C.

Line drawing of a hand inserting a small component into a device panel (no text or symbols visible)

Diagram showing a kitchen appliance with a handbag and a wavy line inside, alongside its side view (no text or symbols)

Illustration of a hand pouring coins into a container with an arrow indicating flow or direction (no text or symbols)

CLEANING THE OUTSIDE

The outside of the washing machine should be cleaned with warm soapy water or a gentle cleaning agent. Do not use abrasive cleaning products or solvents. It should then be thoroughly dried with a soft cloth.

Important

When there have been spillages of detergent or additives from the dispenser onto the washing machine cabinet, clean them up right away as they are corrosive.

washing machine safety and trouble

safety and troubleshooting

If you detect any problems with your washing machine, you will probably be able to rectify them yourself by consulting the following instructions.

If this is not the case, unplug the appliance and contact the TECHNICAL ASSISTANCE SERVICE.

Important

Never open up the appliance. There is no fuse or similar component inside that can be replaced by the user.

Indicator	Problems
FO1	No water coming in
FO2	Does not drain or spin-dry
CO3	Does not spin-dry
FO4	Does not start
FO5 F10	Call the Technical Assistance Service

PROBLEMS

Why won't the washing machine start?

Why is the washing machine vibrating or making too much noise?

This may be due to the following:

■ The washing machine is not plugged into the mains or there is no voltage in the mains supply.
■ The Start/Pause button has not been pressed.
■ When the washing machine door is not properly closed, F04 appears on the display. Check that the door has been closed properly.

This may be due to the following:

■ The blocking and transport screws have not been removed.
■ The washing machine has not been correctly levelled.
During spin-drying the motor makes a “whistling” noise which is normal due to the mechanical action of the motor itself.

Why doesn't the washing machine take in water?

■ When there is no water coming in F01 will appear on the display.

■ Indicator F01, no water coming in, this may be due to a cut in the water supply, a tap turned off or a blocked water inlet filter.

The possible solutions are as follows: wait for the water supply to be reconnected, turn on the tap, or remove the water inlet hose and clean the filter.

Why doesn't the washing machine drain or spin dry?

■ When F02 appears on the display.

The reasons for the F02 indicator may be the following: washing machine drain pump blocked, building drainage pipes blocked, or incorrect pump electrical connection.

■ Solution: if the pump is blocked, gain access to it as described in section 2, maintaining and cleaning the appliance.

Why doesn't the machine spin-dry?

■ When it does not spin-dry, C03 appears on the display.

This may be due to an uneven distribution of clothes in the drum and may cause an excessive level of vibrations.

■ The solution is to select a spin-drying programme.

Why can't I see any water in the drum during the wash?

This is due to the fact that the washing machine is provided with a system which is able to adapt to the load and type of fabrics, adjusting the levels of water and energy used, in order to preserve the environment.

So, although the water level you can see through the hatch may look low, there is no cause for concern as washing and rinsing efficiency will still be optimum.

Why is there still some water in the dispenser?

Why can't I open the hatch immediately after the wash has finished?

Other indications

This may be because the dispenser needs cleaning. This simple operation is described in Maintaining and cleaning the appliance.

1. Cleaning the detergent dispenser.

Washing machines today are provided with safety systems for users. One of them is that the washing machine cannot be opened until it is certain that the drum is quite still. This is why the hatch cannot be opened for 2 minutes.

■ The washing machine can detect other indications. When this happens a number of other indicators appear on the display: F05, F06..., F10.
■ This information may be due to very different reasons.
- Check if the problem is repeated and in this case call the AUTHORISED SERVICE CENTRE.

washing machine environmental warnings

eco-note

INFORMATION FOR THE CORRECT DISPOSAL OF WASTE ELECTRICAL AND ELECTRONIC APPLIANCES

When your appliance is of no further use, it should not be disposed of together with general domestic waste.

It can be taken, free of charge, to a specific waste collection centre, run by your local authority, or dealers who provide this service.

Disposing of waste domestic appliances separately means avoiding possible negative consequences for the environment and health, derived from incorrect disposal. This will enable the materials in them to be treated and recycled, obtaining important savings in energy and resources.

To highlight the obligation of collaborating with selective waste collection, the product is marked with a symbol to warn against using traditional containers for disposing of the appliance.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

For further information, contact your local authority or the shop where you purchased the product.

Abstract black-and-white line art featuring two interlocking leaf-like shapes within a circular frame (no text or symbols)

Fagor Electrodomésticos, S.Coop.

Apartado 49

Tel. [phone] / 01

Fax [phone]

B° San Andrés, 18
