Product Type	Car Stereo with DVD Player
Brand	Macrom
Model	M-DVD4660R
Dimensions (W x H x D)	178 x 50 x 160 mm (Single DIN)
Weight	1.5 kg
Power Supply	12V DC (negative ground)
Maximum Power Output	4 x 50 Watts
Playback Media	DVD, CD, MP3, WMA, JPEG
Radio Bands	FM/AM with RDS
Connectivity	USB, SD card slot, AUX input, Bluetooth
Display	6.2-inch TFT touchscreen
Audio Outputs	Front, Rear, Subwoofer preamp outputs
Video Output	Composite video output for external monitor
Steering Wheel Control	Compatible (requires adapter)
Remote Control	Included
Maintenance	Clean with soft dry cloth; avoid liquids
Safety Features	Reverse camera input, parking brake detection
Spare Parts Availability	Contact Macrom support or authorized dealers
General Information	Designed for 12V vehicles; installation by professional recommended

Frequently Asked Questions - M-DVD4660R Macrom

How do I install the M-DVD4660R in my car?

Ensure your vehicle has a single DIN slot. Disconnect the battery negative terminal. Connect the wiring harness matching colors: yellow for constant power, red for ignition, black for ground. Use appropriate adapters for your vehicle's wiring. Secure the unit with the provided cage and screws.

Can I connect my smartphone via Bluetooth?

Yes, the M-DVD4660R supports Bluetooth for hands-free calling and audio streaming. Enable Bluetooth on your phone, search for devices, and select 'Macrom M-DVD4660R' to pair. Enter PIN 0000 if prompted.

What types of media can I play?

The unit plays DVD, CD, CD-R/RW, DVD±R/RW as well as digital files like MP3, WMA, and JPEG from disc, USB, or SD card.

Why is there no sound from the speakers?

Check that the mute function is off, volume is turned up, and speaker wires are properly connected. Ensure the head unit is not in AMP mode if you are not using an external amplifier. Also verify fuses.

How do I set the clock?

Press the MENU button, navigate to System Settings, then Clock. Use the touchscreen or remote to adjust hour and minute. Confirm with OK.

Can I use the DVD player while driving?

For safety, video playback is disabled while the vehicle is moving unless the parking brake is engaged. Connect the parking brake wire to a ground switch that activates only when parked.

How do I connect a rearview camera?

Connect the camera's video cable to the REAR CAM IN on the back of the unit. Connect the camera's power to reverse light 12V. The unit will automatically switch to camera view when reversing.

What should I do if the unit does not power on?

First, check the car's ignition switch and fuses. Verify that the yellow (constant) and red (switched) wires have 12V. If not, check connections. Replace blown fuses with the same amperage.

How do I reset the unit to factory settings?

Locate the reset button (small pinhole) on the front panel. Use a paperclip to press it for 5 seconds. This will clear all settings and restore defaults.

Can I control the unit with steering wheel buttons?

Yes, the unit has a steering wheel control input. You need a control adapter compatible with your vehicle (e.g., PAC SWI-RC). Connect the adapter to the unit's input wire and program as per adapter instructions.

USER MANUAL M-DVD4660R Macrom

1. Only connect the unit to a 12-volt power supply with negative grounding.

1. Never install this unit where the operation & condition for safety driving is restrained.

1. Never use the video display function in the front when driving to prevent the violation of laws & regulations and also to reduce the risk of traffic accident except using for rear view video camera.

1. To ensure safe driving, please adjust the volume to a safe & comfort level in case of emergency situations.

2. Never expose this unit, amplifier, and speakers to moisture or water for preventing electric sparks or fires.

1. Please don't change the fuse on the power cord without professional guidance, using improper fuse may cause damage to this unit or even cause fire.

1. Please power off this unit at once and send it back to the after-sales service center or the dealer /distributor you purchased from if one of the following symptoms is found:

(a). No audio output;
(b). No image output;
(c). Water or other obstacle enters the unit;
(d). Smoking;
(e). Peculiar smell.

Safety Information

WARNING

Operate the unit correctly according to the manual instruction to prevent unnecessary problem.

CAUTION

This product is a CLASS 1 LASER PRODUCT. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Do not open covers and do not repair yourself. Refer servicing to qualified personnel.

TWO LASER PRODUCTS

Wave length: CD:780nm DVD:650nm

Laser power: No hazardous radiation is emitted with safety protection.

To reduce the risk of fire electric shock, and annoying interference, use only the included components.

CD NOTES

• Playing a defective or dusty CD can cause dropouts in sound.
• Hold CDs as illustrated.
• Do not touch the unlabeled side.
• Do not attach any seal, label or data protection sheet to either side of a disc.
• Do not expose a CD to direct sunlight or excessive heat.
• Wipe a dirty CD from the center outward with a cleaning cloth.
• Never use solvents such as benzine or alcohol.
  • This unit cannot play 3-inch (8cm) CDs.
• Never insert a 3-inch CD contained in the adapter or an irregularly shaped CD. The unit may not be able to eject it.

Contents

Safety Precautions....1
Safety Information....2
Panel Controls ....3
Remote Controls 4-5
Getting Started....6
USB/SD/MMC MP3 Playback 7
General Operation 8
Rotary Knob Menu 9-12
Radio 13
DVD & AV IN Mode 14
Radio and Clock 14
RDS ( Radio Data System ) 15-16
Disc Playback 17
Disc Playable 17
Audio/Video/Picture File Playback 18
Track Playback 19-20
DVD Playback....21
DVD Setup 22
DVD System Setup 22-23
DVD Language Setup 24
DVD Audio Setup....25
DVD Video Setup....26
DVD Digital Setup 27
Electrical Connections 28-29
Installation Guide 30
Anti-Theft System 31
Troubleshooting 32
Specifications....33

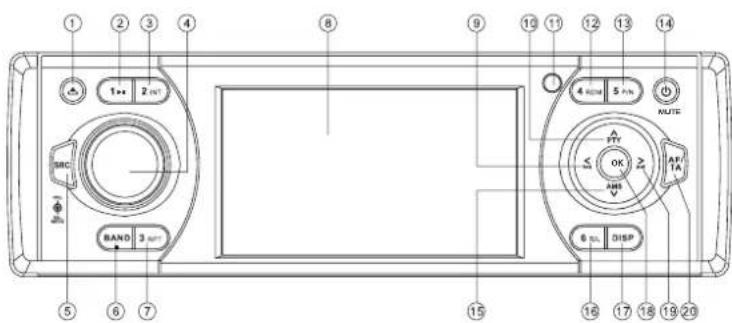

Panel Controls

Power On/Off: Press to turn On/Off the unit.

1 Panel Open

2 Button 1: Play/Pause

3 Button 2: Intro Play

4 - Rotate the knob to adjust volume level.

- Push to select BAS/TRE/BAL/FAD/BRI/CON/SAT, Rotate the knob to adjust level.

5 - Radio

- Disc Play (When disc inserted)

- USB (When USB inserted)

- Card (When SD/MMC inserted)

- AV-in

6 - Band Switch: FM1-FM2-FM3-AM1-AM2

↑

- CT On/Off (press more than 2 seconds when in Radio FM1/FM2/FM3 mode)

- Stop

7 Button 3: Track Repeat play

8 3.5 inch TFT Display

9 - Radio Tune

- Track Skip/Seek

- Last Track (DVD/CD mode)

- Fast Rewind (DVD/CD mode)

- Manual Tuning Backwards (Radio mode)

- Menu Cursor left (MP3 mode)

10 - RDS Program Type

- Menu Cursor up (MP3 mode)

11 Remote Sensor

12 Button 4: Track Random Play

13 Button 5: - Video System PAL/NTSC/AUTO

- Folder Up (USB/SD/MP3/Disc)

14 - Power On/Off (press more than 2 seconds) - Mute On/Off

15 - AMS: Radio Auto Preset/Radio Preset Scan - Menu Cursor down (MP3 mode)

16 Button 6: - DVD Audio Channel

- VCD Audio Channel L/R/ST

- Folder Down (USB/SD/MP3/Disc)

* Button 1\~6: Radio Preset: Press to listen to a preset station.

Hold for more than 2 seconds to store station.

17 Display Switch/Time Adjust

18 Confirm Operation (in settings mode)

19 - Radio Tune

- Track Skip/Seek

- Next Track (DVD/CD mode)

- Fast Forward (DVD/CD mode)

- Manual Tuning Forwards (Radio mode)

- Menu Cursor right (MP3 mode)

20 - Alternative Frequency On/Off

- Traffic Announcements (Press more than 2 seconds to turn on/off)

Remote Controls

Power On/Off: Press ⏻ to turn on/off the unit.

1 Zoom (DVD/VCD only)

2 Title (DVD only)

3 Power On/Off

4 Setup

5 Menu Cursor

6 Enter

7 Program

8 Digit Area

9 - Audio Mode Select Bas/Tre/Bal/Fad/Bri/Con/Sat

- Push more than 2 seconds to Menu mode

10 Volume

11 Mute

12 - Radio Tune

- Track Skip/Seek

13 Subtitle (DVD only)

14 - Radio

- Disc Play (when disc inserted)

- USB (when USB inserted)

- Card (when SD/MMC inserted)

- AV-in

15 REPEAT

16 A→B Repeat

17 Stop/Return

18 Play/Pause

19 Goto Search

20 - DVD MENU

PBC (For VCD 2.0 or up)

21 On Screen Display

22 - DVD Audio

- VCD Audio L/R/ST

23 On Panel Display

24 Angle (DVD only)

25 - Video System PAL/NTSC/AUTO

- Radio Band

Remote Controls

Replacing the lithium battery of remote control unit.

When the range of the operation of the card remote control becomes short or no functions while operating, replace the battery with a new lithium battery. Make sure the battery polarity replacement is correct.

1. Pull out the battery holder while pressing the stopper.
2. Insert the button-type battery with the stamped(+) mark facing upward. Insert the battery holder into the remote control.

WARNING :

• Store the battery where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.
• Do not recharge, short, disassemble or heat the battery or dispose it in a fire.
• Do not expose or bring into contact the battery with other metallic materials.
• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may give off heat, crack or even cause a fire.

Remote control operating range

The remote control can operate within a distance of 3\~5m.

Getting Started

Press the button to open the panel and press to reject the disc.

USB/SD/MMC MP3 Playback

1. Loading SD/MMC card

Open the panel and insert the SD/MMC card into the slot. Close the panel, the unit will read the file of the card automatically.

2. Take out SD/MMC card

PushSRC button to non-SD mode, press the SD/MMC card to pop out. Take out the card.

3. Loading USB device

Insert USB device into the USB jack. The unit will read the file in the USB device automatically.

4. Take out USB device

Press the SRC button to non-USB mode and take out the USB device from the USB jack.

Diagram of two connected USB connectors with arrows indicating connection points (no text or symbols)

USB/SD/MMC Notes

USB functions (flash memory type) MP3 music play

1. SD/MMC card support
2. USB flash memory 2 in 1 (SD/MMC) support
3. Support FAT 16 & FAT 32
4. File name: 32 byte/dir name: 32 byte/tag name: 32 byte
5. Tag (id3 tag ver 2.0)
6. title/artist/album: 32 byte support
7. Multi card reader not support
8. USB 1.1 support

General Operation

Switching On and Off

1. Press ♦ to turn on the unit.
2. Press SRC once or more to select your desired function: DISC, Tuner (Radio), USB & SD/MMC, AV-in.
3. Press ① to power off (press more than 2 seconds).
4. When you switch off the system or car ignition, the settings, tuner presets and the volume level will be retained in the unit's memory.

VOL Knob Function

Press the knob once to select BASS/TREBLE/BALANCE/FADER/BRIGHTNESS/CONTRAST/SATURATION, rotate the knob to adjust.

Rotary Knob Menu

Press the knob more than 2 seconds to enter menu mode, then each press changes the mode as follows: EQ MODE -LOUD BEEP 12/24MODE TA MODE → RETUNE -PARKING TA-VOL VOL-MODE A-VOL→ → SUBWOOFER -SUBW-VOL

EQ mode

Rotate the knob to select EQ sound effect: ROCK - POP - CLASSIC - FLAT - EQ OFF

LOUD mode

Rotate the knob to choose loud on or off.

Rotary Knob Menu

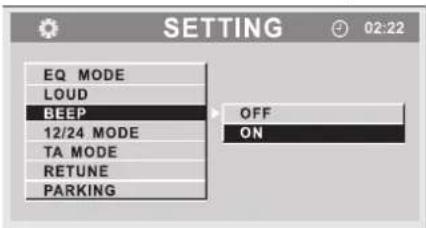

BEEP ON/OFF mode

Rotate the knob to choose button beep sound on or off.

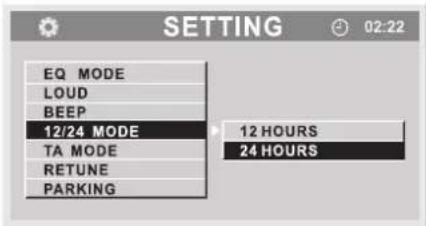

12/24 mode

Select 12 hours mode or 24 hours mode.

TA mode

Rotate the knob to choose TA ALARM or TA SEEK mode. If the TA (Traffic Announcements) is turned on and there is no traffic program identification code received in the specified time, no TA/TP will display and either TA ALARM or TA SEEK will be activated. TA ALARM mode: Alarm is turned on. TA SEEK mode: TA SEEK is automatically activated.

Rotary Knob Menu

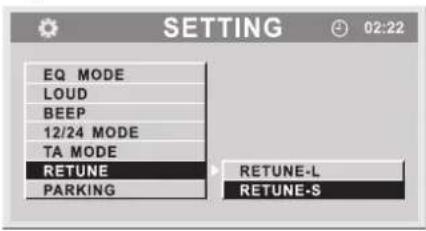

RETUNE mode

Rotate the control to choose RETUNE-S or RETUNE-L.

RETUNE-S or RETUNE-L is time length selection of TA SEEK retune interval.

RETUNE-S: Short, TA SEEK Retune interval is 45 seconds.

RETUNE-L: Long, TA SEEK Retune interval is 180 seconds.

REMARK: RETUNE mode functions for TA during TA SEEK mode only.

PARKING mode

Rotate the knob to turn rear parking attention on or off. While unit enter PARKING ON mode, play the video disc, the screen appear "DO NOT WATCH VIDEO WHILE DRIVING", and blank screen.

TA-VOL

Rotate the knob to choose TA-VOL level.

VOL - MODE

Rotate knob to choose VOL LAST, the turn-on volume level is the volume level of latest power off.

Rotate knob to choose VOL ADJ, then rotate the knob to set the turn-on volume level.

Rotary Knob Menu

A - VOL

Rotate the knob to choose A-VOL level.

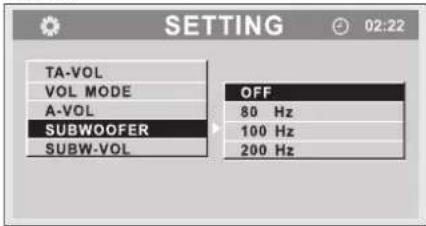

SUBWOOFER

Rotate the knob to choose SUBWOOFER frequency: 80Hz, 100Hz, 120Hz.

SUBW - VOL(optional)

Rotate the knob to choose SUBWOOFER level.

Radio

Band

1. Press to power on, then press SRC once or more to select tuner.
2. Press BAND once or more to select FM1-PM2 FM3 → AM1-AM2. Display shows wave band, frequency, and preset station number if already stored.

Tune

Radio tune by step manually: Press ▶▶▶ less than 2 seconds. Ra di o se ek a ut om ati ca ll y: Press ▶▶▶ md than 2 seconds. Press either button to store the selected station.

DVD & AV IN Mode

Radio and Clock

DVD Mode

Press SRC button to select DVD mode (when disc is insert, and unit is reading disc), then press the DISP button. The LCD will display:

AV IN Mode

Press SRC button to select AV IN mode (when unit is reading). The LCD will display:

AMS : Auto Memory Store

Press AMS briefly to scan the preset station 1 - 6 for 5 seconds each. Hold more than 2 seconds, the 6 strongest available stations will be automatically saved in the memory of preset button 1 - 6.

Clock Setting

1. Press DISP more than 2 seconds, minute display blinks, rotate the knob to set minute.
2. Press the knob once, hour display blinks, rotate the knob to set hour.
3. Press DISP to confirm.

RDS ( Radio Data System )

RDS service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available.

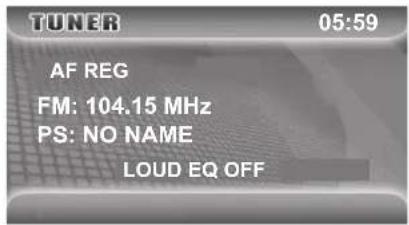

RDS Basics

AF(Alternative Frequency): When the radio signal strength is poor, enabling the AF function will allow the unit to automatically search another station with the same PI (program identification) as the current station but with stronger signal strength.

PS (Program Service name): The name of station will be display instead of frequency.

AF Mode:

AF on: AF function is activated.

AF off: AF function is disabled.

Remark: AF indicator on LCD will flash until RDS information is received. If RDS service is not available in your area, turn off the AF mode.

REG Mode: Press PTY for more than 2 seconds to switch REG mode on and off.

REG on: AF function will implement the regional code (of the PI) and only stations in the current region can be tuned automatically.

REG off: AF function will ignore the regional code (of the PI) and stations in the other regions can also be tuned automatically.

Traffic Announcements

Some RDS FM stations periodically provide traffic information.

TP (Traffic Program Identification) Broadcasting of traffic information

TA (Traffic Announcements Identification) Radio announcements on traffic conditions

TA Mode: When TA mode is turned on, the TA indicator will blink.

When traffic announcement is received, the TA indicator will display. The unit will temporarily switch to the tuner mode (regardless of the current mode) and begin broadcasting the announcement at TA volume level. After the traffic announcement is over, it will return to the previous mode and volume level. When TA is turned on, SEEK, SCAN, AMS function can only be received or saved when traffic program identification (TP) code is received.

EON (Enhanced Other Networks)

When EON data is received, the EON indicator lights and the TA and AF functions are enhanced.

TA: Traffic information can be received from the current station or stations in other network.

AF: The frequency list of preset RDS stations is updated by EON data. EON enables the radio to make fuller use of RDS information. It constantly updates the AF list of preset stations, including the one that currently tuned into. If you preset a station around the area at your home, you will later be able to receive the same station at an alternative frequency, or any other station serving the same program, EON also keeps track of locally available TP stations for quick reception.

RDS ( Radio Data System )

PTY Reception ( Program Type )

RDS FM stations provide a program type identification signal. Example: news, rock, info, sport, etc.

PTY Mode:

Press PTY to turn on the Program Type reception, the previous PTY type is shown. Press PTY once again to enter the MUSIC type or press twice to enter the SPEECH type, then use buttons 1 - 6 to select the desired program type. The selected PTY type is shown and searching starts if no other function is selected for 2 seconds. If there is no corresponding program type, NO PTY is shown and the unit will return to normal mode.

PTY Type Preset:

Press PTY once to enter the MUSIC type or press PTY twice to enter the SPEECH type. Then use function ① to select the desired program type.

PRESET NO.	MUSIC TYPE	SPEECH TYPE
1	POP M	NEWS
		AFFAIRS
	ROCK M	INFO
2	EASY M	SPORT
		EDUCATE
	LIGHT M	DRAMA
3	CLASSICS	CULTLURE
		SCIENCE
	OTHER M	VARIED
4	JAZZ M	WEATHER
		FINANCE
	COUNTRY	CHILDREN
5	NATIONAL M	SOCIAL
		RELIGION
	OLDIES M	PHONE IN
6	FOLK M	TRAVEL
		LEISURE
		DOCUMENT

Disc Playback Disc Playable

Disc Load / Eject

Load: Press ▲button to flip down the panel. Insert the disc into the slot.

Eject: Press button to flip down the panel. Press to eject the disc.

Disc Playback

1. When disc inserted, display shows LOAD. For MP3 or disc with mixed files, reading time may exceed 1 minute.
2. ERROR will be displayed if error found in disc operation.
3. For VCD/CD, VCD or CD icon will appear on the display.
4. While MP3/WMA files playback, MP3/WMA icon will appear on the display.
5. For DVD, DVD icon will appear on the display and TITLE appears. Press ENTER or ▶no play.

File type supported

Audio file: MP3(*.mp3), WMA(*.wma)

Video file: MP4(*.avi, DIVX3.11/4.0/5.0/6.0 /7.0)

MPEG 2(*.vob)

MPEG 1(*.dat)

Picture file: JPEG(*.jpg)

MP3 file: ISO 9660 or ISO 9660 + Joliet format - Max. 30 characters.

Max. nested directory is 8 levels.

The max. album number is 99.

The max. length of each track is 99 minutes 59 seconds.

Supported sampling frequency for MP3 disc: 8KHz to 48KHz (44.1KHz preferably).

Supported bit-rates of MP3 disc are: 32 - 320 kbps (128 kbps preferably).

Disc and file NOT supported

*.AAC, *.DLF, *.M3U, *.PLS, MP3 PRO files and files with DRM.

Open session discs.

Audio/Video/Picture File Playback

When AUDIO/PICTURE/VIDEO file is played, Category/Folder/File list will be displayed on the screen, and file/folder name being played will be displayed on top. Current selected item will be highlighted.

Category Select

Use ▶ to select

Press ENTER to confirm.

Folder Select

Use ◀ to enter folder list and use / ▲to Select desired folder, press ENTER to confirm.

File Select

Use ◀/▶ to enter file list and use ▲/▼ to select desired file, press ENTER to play back, press ■to return.

For PICTURE, press ▶to slide show the pictures, press PROG to select picture showing style.

For MUSIC, press ■will enter intro logo, then press ▶to return.

On the panel On the remote control

Track Playback

Select desired track

• Press or to skip to the next track.
• Use 1-9 and 0, 10+ buttons on the remote control to select desired track number.

Fast forward / backward during playback

Press or for more than 2 seconds once or more to select X2,
X4, X8, X20 to fast backward or forward track during playback.
- During the fast forward or backward operation, press ▶ briefly to playback again.
- During the fast forward or backward operation, the volume will be muted.

INTRO (for CD/VCD only)

You can play the beginning of every track for 15 seconds in sequence.

1. During playback, press INT once.
   INT ON/OFF will appear on the display.
2. Press INT again to select the current track.

Random track playback (for CD/VCD/MP3 Only)

You can play all the tracks in random order.

1. During playback, press RDM once or more.

2. RDM icon will appear on the display.

3. Press RDM again to select normal playback.

REPEAT

During playback, press RPT once or more.

• RPT icon will appear on the display.
• For VCD/CD: Display appears RPT ONE RPT ALL→RPT OFF
• For DVD: Display appears RPT CHAPTER→RPT TITLE -RPT OFF
• For File disc: Display appears RPT ONE→RPT DIR →RPT ALL →RPT OFF

Note: If you do not select RPT on, when the entire disc or TITLE playback has finished, the system will stop. If no other control, after 5 minutes the unit will into standby mode.

REPEAT A → B

Select desired passage to repeat playback.

• Press A→B once to select starting point. Display shows REPEAT A.
• Press A—B again to select ending point.

Display shows REPEAT A→B, and selected passage start to replay.

- Press A→B once again to exit. Display shows A→B CANCELLED.

Track Playback

PAUSE

• During playback, press ▶to pause playback.
• The sound will be muted.
• Display "PAUSE" in the TV screen, display and blink "PAUSE" on the panel display.
  Press again to continue playback.

PBC - Playback Control (for VCD only)

1. If you insert a VCD with PBC, playback starts from the beginning of the 1st track automatically.
2. Press PBC to show menu, use ◀◀ o▶digit button to select desired track. Press ■to return to menu. Press PBC again to exit menu.

GO TO

Goto desired track/chapter or time point directly.

Press GOTO button on the remote control, track or DVD Title/ Chapter and time display on top of the screen. Current item is highlighted. Use ▶ to select desired item. Use digit button to select number. Press ENTER to confirm.

Program

• Press PROG to enter program list. Use ▲ or /◀ cursor and digit button to enter number.
  For DVD and File disc, select title and chapter number.
  For VCD and CD, select track number.
• Press▶to play, or move the cursor to select "PLAY" and press ENTER to play.
• If you want to delete the list, move the cursor to "CLEAR", press ENTER to delete all the list set before.
• Press PROG again to exit program play.

MP3, VCD and CD

DVD Playback

DVD Audio Select

Press AUDIO or R/L to select audio language to listen if the DVD has multiple audio languages.

VCD Audio Select

Press R/L to select audio channel to listen.

DVD Subtitle Select

Press SUB.T to select the subtitle language to show if the DVD has multiple language subtitles.

DVD TITLE Select

Press TITLE to display title or chapter list, use ◀/▶ or ▲/▼ cursor or digit number to select, press ENTER to play.

DVD Angle Select

Press ANGLE to select different angle to view if the DVD has multiple-angle views.

ZOOM

Press ZOOM button, the picture will be zoomed accordingly.

DVD Setup

Press SETUP to display setup menu on the screen.

Use ◀ to select setup items:

SYSTEM—LANGUAGE AUDIO VIDEO DIGITAL

Use ◀ ▶, ▲ to select and ENTER to confirm.

DVD System Setup

TV System

Select the TV system in the setting menu.

Screen Saver

The screen saver appears if disc stop last more than 3 minutes. Original setting: ON.

Video Output Mode

Original setting: INTERLACE-YUV.

DVD System Setup

Setting TV type

Select TV type to watch wide screen movies.

4:3 Pan Scan: For 4:3 TV, left and right edges will be cut.

4:3 Letter Box: For 4:3 TV, black bars will appear on top and bottom.

16:9: For 16:9 wide screen TV.

Setting Password

Original password is 0000.

Setting Rating

The rating of the disc is from 1 to 8:

(1) with the most limit when playing.

(8) with the least limit when playing.

Original setting: 8

Note: The rating can be selected only under the password unlocked status, and the limit can be worked only under the password locked status.

Load Default

If this item is selected, the unit will return to original setting.

DVD Language Setup

OSD Language

Select on screen display language of the DVD.

Audio Language

Select audio language of the DVD from which are contained in the DVD.

Subtitle Language

Select subtitle language of the DVD from which are contained in the DVD.

Menu Language

Select menu language of the DVD from which are contained in the DVD.

DVD Audio Setup

Setting Volume

Setup the volume with the ▲/▼buttons.

DVD Video Setup

Brightness

Set the brightness of the video output with ▲/ ▼

Contrast

Set the contrast of the video output with ▲/ ▼

Hue

Set the hue of the video output with ▲/ ▼

Saturation

Set the saturation of the video output with ▲/▼

Sharpness

Set the sharpness of the video output with ▲/ ▼

DVD Digital Setup

Output Mode

Select the output mode:

LINE OUT: Compress the input signal. The volume is small.

RF REMOD: The volume is large.

Dynamic Range

When you select the compressed mode as "line out", select it to adjust the compression proportion and get the different compressed effect.

When select FULL, the audio signal is minimum; when select OFF, the audio signal is maximum.

Dual Mono

Select the audio channel from STEREO, MONO L, MONO R and MIX MONO.

Electrical Connections

Wiring Diagram

Electrical Connections

Using the ISO Connector

1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.
2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit. Cut the connector, connect the colored leads of the power cord to the car battery, as shown in the colour code table below for speaker and power cable connections.

Location	Function
	Connector A Connector B
1 Rear Right (+) - Purple
2 Telephone-mute/pink Rear	Right (-) - Purple / Black Stripe
3 Front Right (+) - Gray
4 ACC+/red Front Right (-) - Gray / Black Stripe
5 ANT/Amp control/blue Front Left(+) - White
6 Front Left(-) - White / Black Stripe
7 Battery 12V(+)/yellow Rear	Left (+) - Green
8 Ground/black	Rear Left (-) - Green / Black Stripe

Installation Guide

Installation Procedures

First complete the electrical connections, and then check for correctness.

Reset

Press button to flip down the panel. Then press the RESET button with a pointed object to reset the unit to the original status. Note: Press the RESET button will erase the clock and stored stations.

Installation Opening

This unit can be installed in any dashboard having an opening as shown below. The dashboard should be 4.75mm - 5.56mm thick in order to be able to support the unit.

Important: Remove th

Remove these two screws before installation. Otherwise, the DVD player will not work.

1. Inset mounting collar into the dashboard, and bend the mounting tabs out with a screwdriver.

Make sure that lock lever is flush with the mounting collar (not projecting outward).

1. Secure the rear of the unit.

After fixing mounting bolt and power connector, fix the rear of the unit to the car body by rubber cushion.

1. Insert trim plate.

Anti-Theft System

This unit is equipped with a flip-down detachable panel. Panel can be detached and taken with you, helping to deter theft.

Removing the panel

1. Press ☐ button to switch off the power of the unit.
2. Press button to flip down the panel.
3. Hold the right of the panel. Take off right end, and then take off the left end.
4. Place the panel into the case and take it with you when you leave the car.

Install the panel

1. Hold the panel and ensure the panel faces downwards, and set the left side of the panel in the panel bracket.
2. Press the right side of the panel until it locks.

Remove the unit

1. Remove the panel and the trim plate.
2. Insert both T-Keys into hole on the front of the set until they lock.
3. Pull out the unit.

Line drawing of a hand holding a control panel with buttons (no text or symbols)

Line drawing of a hand pressing down on a device panel (no text or symbols)

Diagram showing a device with two input arrows and one output arrow, no text or symbols present

Troubleshooting

If you suspect something is wrong, immediately switch power off. Do not use the unit in abnormal condition, for example without sound, or with smoke or foul smell, can cause fire or electric shock. Immediately stop using it and call the store where you purchased it. Never try to repair the unit yourself because it is dangerous to do so.

General

No power or no sound.

Car's engine switch is not on. Turn your car's key to ACC or ON.

Cable is not correctly connected. Check connection.

Fuse is blown. Replace fuse.

Check volume or mute on / off.

If the above solutions cannot help. Press the RESET button.

Check that telephone mute input cable is not been trapped and grounded during installation.

Disc

Disc is inside but no sound.

Disc is upside down.

Place disc in the correct direction, and the label side up.

Disc is dirty or damaged. Clean disc or change another disc.

Disc sound skips, tone quality is low.

Disc is dirty or damaged. Clean CD or change another CD.

Sound skips due to vibration.

Mounting angle is over 30^ .

Adjust mounting angle to less than 30^ .

Unstable mounting.

Mount the unit securely with the mounting parts.

Radio

Noise in broadcasts.

Station is too far, or signals are too weak.

Select other stations of higher signal level.

Preset station lost.

Battery cable is not correctly connected.

Connect the battery cable to the terminal that is always live.

Error Display Messages

Display shows ERROR.

Disc is dirty, damaged or upside down.

Press ▲to eject the disc.

When video file initializing time is too long.

File read error or file type not supported.

Press SRC to exit. Then press SRC to play disc again.

Specifications

General

Power supply 12 VDC(11 V-16 V)

Test voltage 14.4V, negative ground

Maximum power output 50 Wx4 channels

Continuous power output 25 Wx4 channels (4 10%T.H.D.)

Suitable speaker impedance 4-8 ohm

Pre-Amp output voltage 4.0 V(CD play mode: 1 KHz, 0 dB, 10 KΩload)

Fuse 15A

Dimensions(WxHxD) 178x50x166 mm

Weight 2.2 kg

Sub-out 4.0 V

Aux-in level 300 mV

3.5 INCH TFT LCD

Display Resolution(dot) 320×(RGB)×234

Active area(mm) 76.32(H)×42.822(V)

Screen size(inch) 3.5(16:9l) Dot pitch(mm) 0.2385(H)×0.183(V)

Contrast ratio 350 Brightness 350 nits

FM Stereo Radio

Frequency range 87.5-108.0 MHz(Europe)

87.5-107.9 MHz(America)

Usable sensitivity 8 dBμ

Frequency response 30 Hz-15 KHz

Stereo separation 30 dB(1KHz)

Image response ratio 50 dB

IF response ratio 70 dB

Signal/noise ratio >55 dB

AM(MW) Radio

Frequency range 522-1620 KHz(Europe)

530-1710 KHz(America)

Usable sensitivity(S/N=20dB) 30 dBμ

Disc Player

System Disc digital audio system

Frequency response 20 Hz - 20 KHz

Signal/noise ratio >80 dB

Total harmonic distortion Less than 0.20%(1 KHz)

Channel separation >60dB

Video signal format system PAL/NTSC/AUTO

Video

Video output 1 ± 0.2 V

Horizontal nesowtiou ≥slant 500 lines

Components

Mounting collar 1

Machine screws M5x6 mm 4

M4x6 mm 4

Mounting bolt (50mm) 1

Wire connector 1

Removable face plate case 1

Trim plate 1

T-key 2

Operating Instructions 1

Rubber cushion 1

Remote control 1

Note: Specifications and the design are subject to change without notice due to improvements in technology.

CLASS 1 LASER PRODUCT
