M-DVD7601 - Car stereo Macrom - Free user manual and instructions
Find the device manual for free M-DVD7601 Macrom in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Car Stereo Receiver |
| Brand | Macrom |
| Model | M-DVD7601 |
| Dimensions (W x H x D) | 178 x 50 x 180 mm (Standard DIN) |
| Weight | 1.5 kg |
| Power Supply | 12V DC (negative ground) |
| Maximum Power Output | 4 x 50 Watts |
| Built-in Amplifier | Yes, 4-channel |
| Playback Media | CD, DVD, MP3, WMA, JPEG |
| USB Input | Yes (front panel) |
| SD Card Slot | Yes |
| Bluetooth | Yes, with hands-free calling and audio streaming |
| Radio Tuner | FM/AM with RDS |
| AUX Input | Yes (3.5 mm front panel) |
| Display | 3.5-inch TFT color LCD |

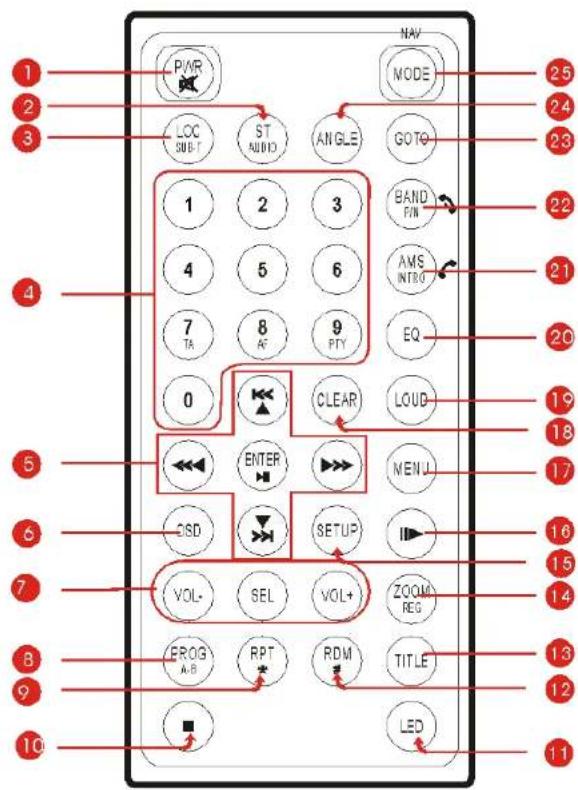

| Remote Control | Included (wired or wireless) |
| Equalizer | Preset EQ (Rock, Pop, Classic, Flat) |
| Steering Wheel Control Compatible | Yes (requires adapter) |
| Rear Camera Input | Yes (RCA) |
| Subwoofer Pre-out | Yes (1 x RCA) |
| Safety | Front panel detachable for theft prevention |
| Maintenance | Clean with soft dry cloth; avoid liquids |
| Repairability | Spare parts available through authorized service centers; consult manual for fuse replacement |
Frequently Asked Questions - M-DVD7601 Macrom
How do I pair my phone via Bluetooth?
Turn on Bluetooth on your phone. On the stereo, press the Bluetooth button and select 'Pair New Device'. Search for 'M-DVD7601' on your phone and confirm pairing. Password is usually 0000 if required.
What is the maximum USB drive size supported?
The M-DVD7601 supports USB drives up to 32GB formatted in FAT32.
Can I watch videos while driving?
For safety, video playback is automatically disabled when the parking brake is not engaged. You must connect the parking brake wire to a grounded switch to override (check local laws).
How do I reset the unit?
Press the Reset button located on the front panel using a pointed object (e.g., paperclip). This restores factory settings.
The stereo does not power on. What could be wrong?

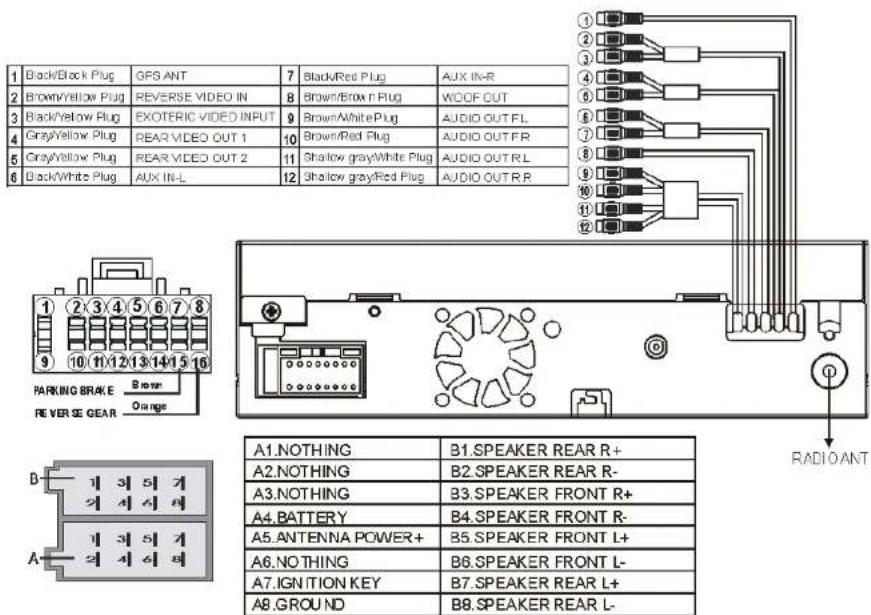

Check the vehicle's fuse for the radio circuit. Also ensure the stereo's inline fuse (usually 10A) is intact. Verify proper wiring of constant +12V, switched +12V, and ground.
How do I set the clock?
Go to settings menu by pressing the SET button. Use the volume knob to navigate to 'Clock' and adjust hour/minute using the knob or arrow buttons.
Does the unit support steering wheel controls?
Yes, it is compatible with aftermarket steering wheel control adapters (e.g., from Metra or PAC). You must connect the adapter's output wire to the stereo's SWC input wire (usually blue/yellow).
What audio formats are supported via USB?
The stereo supports MP3, WMA, and WAV files. Formats like FLAC or AAC are not supported.
Can I connect a rear view camera?
Yes, connect the camera's video RCA to the 'REAR CAM IN' input and the camera's power to reverse light +12V. The stereo automatically switches to camera view when reverse gear is engaged.
How do I clean the touch screen?
Use a soft, lint-free microfiber cloth slightly dampened with water or a mild screen cleaner. Do not spray liquid directly on the screen. Avoid abrasive cleaners.
