Product Type	Slow Juicer
Brand	Innoliving
Model	INN-720
Power Supply	220-240V~, 50/60Hz, 220W
Speed Settings	2 speeds: 1 for soft fruits, 2 for hard fruits
Reverse Function	Yes, to unblock stuck food
Motor Type	Low-speed (slow juicer)
Construction Material	Plastic (ABS) and stainless steel filter
Weight	Approx. 3 kg (6.6 lbs)
Dimensions (L x W x H)	Approx. 30 x 25 x 30 cm (12 x 10 x 12 in)
Juice Container Capacity	Approx. 500 ml
Pulp Container Capacity	Approx. 600 ml
Feed Chute Diameter	Approx. 40 mm
Safety Features	Safety interlock, overload protection, anti-start if button not in position
Cleaning	Hand wash only; parts not dishwasher safe
Certifications	CE, Food contact approved
Included Accessories	Pusher cap, top cover, auger, filter, filter container, juicing bowl, spout, juice/pulp container, cleaning brush
Warranty	Standard manufacturer warranty (see manual)
Country of Origin	China
Intended Use	Household use only

Frequently Asked Questions - INN-720 Innoliving

How do I assemble the Innoliving INN-720 juicer?

Place the juicing bowl onto the motor base, ensuring the spout aligns with the juice outlet. Insert the filter container and filter into the bowl, pressing firmly. Insert the auger into the filter basket. Place the top cover and turn clockwise to lock. Refer to the manual for diagrams.

What fruits and vegetables can I juice with this device?

You can juice soft fruits (strawberries, grapes, pineapple, watermelon, tomatoes) using speed 1, and hard fruits (apples, carrots, pears) using speed 2. Avoid fruits with little juice (bananas, apricots) and nuts (walnuts, hazelnuts) as they may damage the motor. Remove seeds and cores.

What should I avoid putting in the juicer?

Do not juice bananas, apricots, or other low-juice fruits. Avoid nuts like walnuts and hazelnuts as they can damage the engine and filter. Remove pits and hard seeds. Also, do not use fingers to push food; always use the pusher.

How do I clean the filter and other parts?

Unplug the unit and disassemble it. Wash all removable parts (except motor base) in hot water with mild detergent. Use the provided brush to clean the filter net gently to avoid damage. Dry thoroughly before reassembly. Do not put parts in the dishwasher.

Can I wash the parts in a dishwasher?

No, the parts are not dishwasher safe. Hand wash them only to prevent deformation or damage.

What should I do if the juicer gets stuck or jams?

Move the switch to the 'R' (reverse) position to unblock the food. If it still stuck, unplug, disassemble, and clear the jam manually. Resume juicing with smaller pieces. Do not overfill.

How long can I use the juicer continuously?

Do not use the unit for more than 20 minutes consecutively. After 2-3 cycles, let it cool down before using again to prevent overheating.

Is the Innoliving INN-720 safe for children to use?

No, this appliance is not intended for use by children under 8 years old. Children should be supervised and not allowed to play with the product. Keep out of reach of children.

Does the juicer come with a recipe book?

The manual mentions that recipes can be downloaded from the official website: www.innoliving.it/downloads/ricettario.pdf. It does not include a physical recipe book.

What does the reverse function do?

The reverse function rotates the auger in the opposite direction to help dislodge food that is stuck or jammed in the feed chute or filter. It should be used momentarily, then switch back to normal operation.

USER MANUAL INN-720 Innoliving

innoliving easy tech, easy life

ESTRATTORE DI SUCCO

Close-up of a white and green cleaning brush unit with a yellow handle, labeled 'innoliving' (no other text or symbols visible)

INN-720

MANUALE D'USO

USER MANUAL

Line drawing of a mechanical device with a circular top and base (no text or symbols)

Line drawing of a kettle with handle and spout (no text or symbols)

Simple line drawing of a rectangular container with a handle and a circular mark on the side (no text or symbols)

Simple line drawing of a cylindrical container with a curved top and side profile (no text or symbols)

COME MONTARE E SMONTARE L'APPARECCHIO

Close-up of a green plastic kitchen blender with a circular lid and central knob (no visible text or symbols)

COME UTILIZZARE L'ESTRATTORE DI SUCCO

Silhouette of a person reading a book inside a black circle (no text or symbols)

Rev. 00_12.2015

Thank you for purchasing Innoliving INN-720 slow juicer; a very useful instrument to prepare healthy and vitamin fruit and vegetables juices.

Before using the device:

Read all the instructions and warnings carefully and keep this user manual safe for future use.

Wash the parts and accessories: see "Cleaning and maintenance".

Remove all packaging materials.

SAFETY INSTRUCTIONS AND WARNINGS:

• Please read the instructions of use and safety norms before using the appliance and follow these at all times. Keep this manual with the appliance for future consultation for all the product life. Failure to comply with the use and maintenance instructions provided in this user manual could lead to an accident and will invalidate all and any rights to the manufacturer's warranty.
• This appliance must be used only for the purpose for which it was designed that is as a SLOW JUICER for home use. Any other use is improper and potentially dangerous.
• This appliance is for household use only, not professional or industrial use.
• Keep all packing material (plastic bags, cardboard, polystyrene, etc.) out of reach of the children, since they are potential sources of danger and must be disposed of as provided by law.
• After having removed the appliance from its packaging, verify its integrity based on the drawing and any presence of damage caused by transport. If in doubt, do not use the appliance and contact an authorized service centre.
• Do not use the appliance if the cable or plug is damaged.
• Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance. The rating label is on the product.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Do not use or store the appliance outdoors.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not force the electrical connection wire. Never use the electric wire to lift up, carry or unplug the appliance.
• Ensure that the electric cable does not get trapped or tangled.
• Check the state of the electric cable. Damaged or knotted cables increase the risk of electric shock.
• DO NOT use the appliance with damp or wet hands or feet.
• If the power cable is damaged, it must be replaced by an authorized technical service centre, so as to prevent all risks.
• In case of fault or malfunctioning of the appliance, switch it off and do not tamper with it. If the device needs to be repaired, contact an authorized technical assistance centre.
• This appliance is not intended for use by persons (including children under the age of 8 years old) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• This product is not a TOY. Children should be supervised to ensure that they do not play

with the appliance. Keep this product out of reach of children.

• Never let the cord hang down where a child could it grab.
• Do not turn the appliance over while it is in use or connected to the mains.
  • Always unplug the mixer from the power outlet before removing or changing accessories.
• Never leave the product unattended when in use.
• Store the appliance in a dry place, free from dust and out of direct sunlight, far from heating sources.
• Never immerse the appliance into water or other liquids and not place it under tap water.
• Always unplug the mixer from the power outlet before assembling, dismantling or cleaning the device.
• When in use, place the product on a flat and stable surface; ensure it cannot fall on the floor, in a sink or a container full of water.
• DO NOT use near the kitchen hob and/or other sources of heat.
• Be careful that the cable does not touch hot, incandescent surfaces, open flames, pans or other utensils.
• Do not touch the moving parts. CAUTION: Do not touch and/or remove accessories while the unit is in operation.
• All parts that come into contact with food during the use of the device must be well washed before use.
• The extractor is equipped with two types of speed: 1-for the extraction of juice from soft foods such as strawberry, grape, pineapple, watermelon or tomato, etc.; while 2-is suitable for the extraction of juice from hard foods such as apple, carrot or pear, etc.
• Push the food into the tube using the pusher cap. Never use your fingers or other utensils.
• If you have to extract the juice from extremely soft foods, remember to add few at a time to obtain a greater quantity of juice.
• This device is equipped with a safety device that prevents the extractor being put into operation if the button is not in the right position.
• Make sure to unplug the unit after use and disassemble it for cleaning. The parts are not dishwasher safe.
• Ensure that the motor has totally stopped rotating before proceeding with the disassembling of the unit.
• Do not use the appliance if the rotating drum is damaged.
• Pay attention to the sharp blades when handling the product, emptying the basket, and while cleaning. The maintenance and cleaning of the product must not be made by children without supervision.

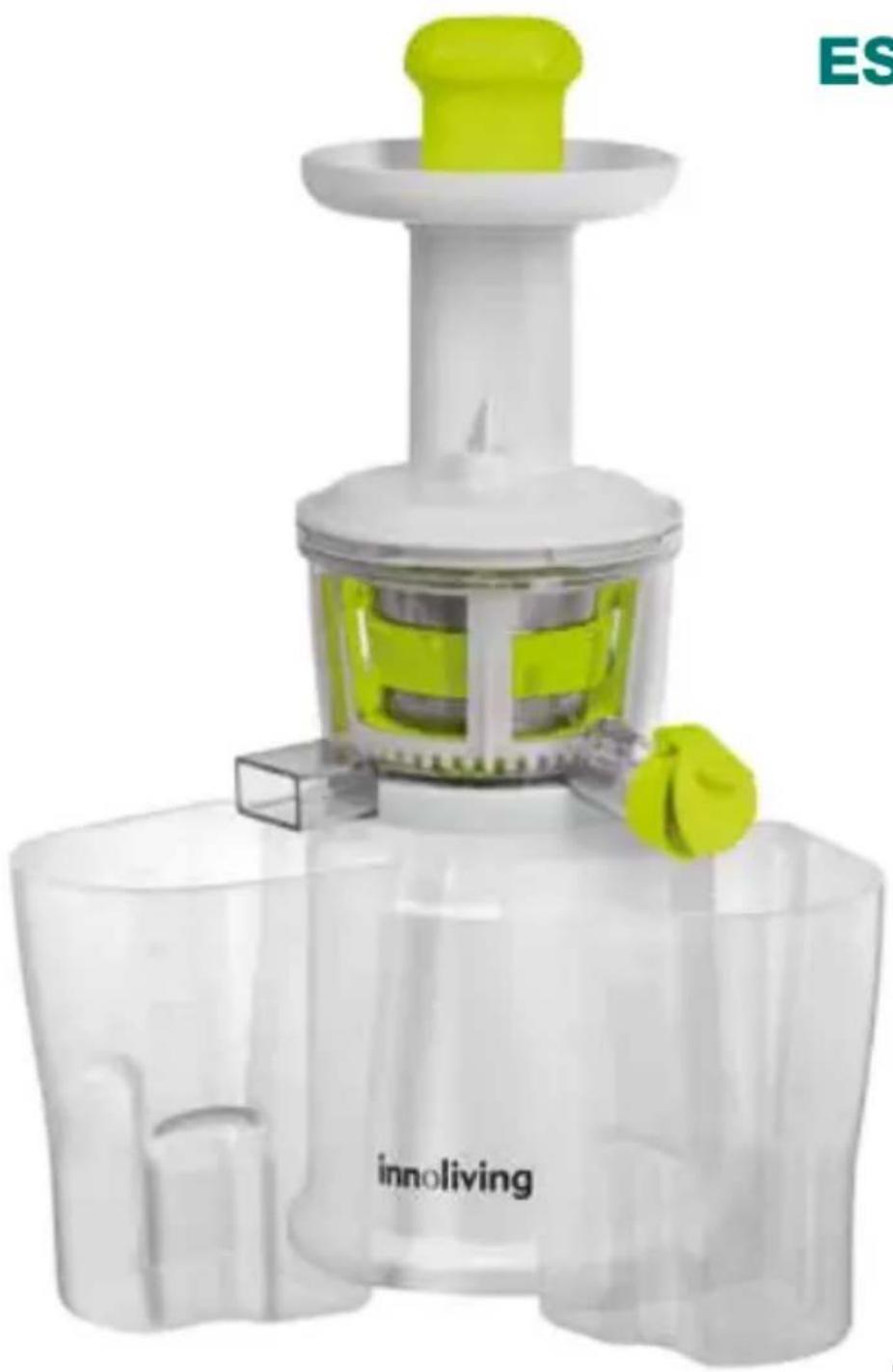

PRODUCT DESCRIPTION

1. Pusher Cap
2. Top cover/Pusher stalk
3. Auger
4. Filter
5. Filter Container
6. Juicing Bowl
7. Pout
8. Container for juice/pulp collection
9. Main Unit

Line drawing of a mechanical device with a central knob and base (no text or symbols)

Line drawing of a vintage kettle with handle and spout (no text or symbols)

Simple line drawing of a rectangular container with a handle and a circular mark on the side (no text or symbols)

Simple line drawing of a cylindrical container with a curved top and side profile (no text or symbols)

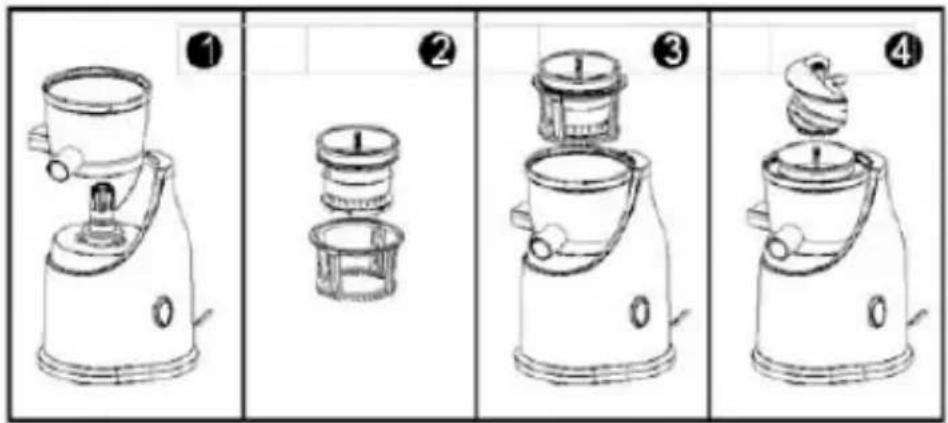

HOW TO ASSEMBLE AND DISASSEMBLE

1. Place the juicing bowl onto the motor base. Make sure to install the spout to the juice outlet.

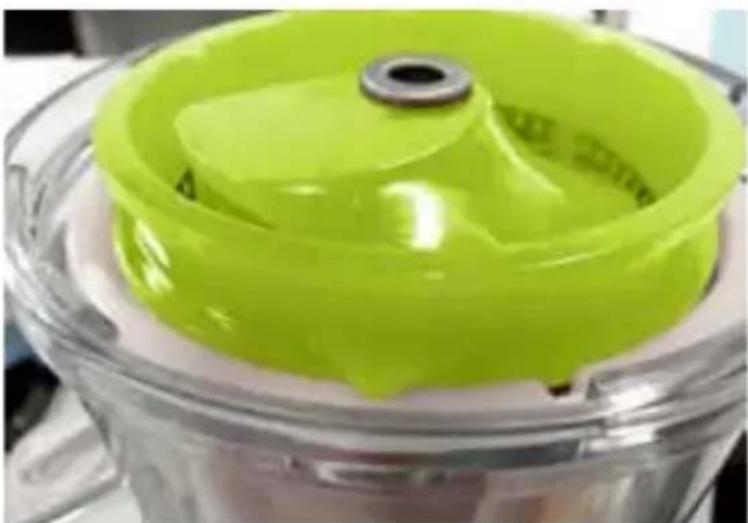

2. Install the filter container and the filter itself into the juicer container. Make sure to press it as far as it can go.

Close-up of a green plastic kitchen blender with a circular lid and central knob (no visible text or symbols)

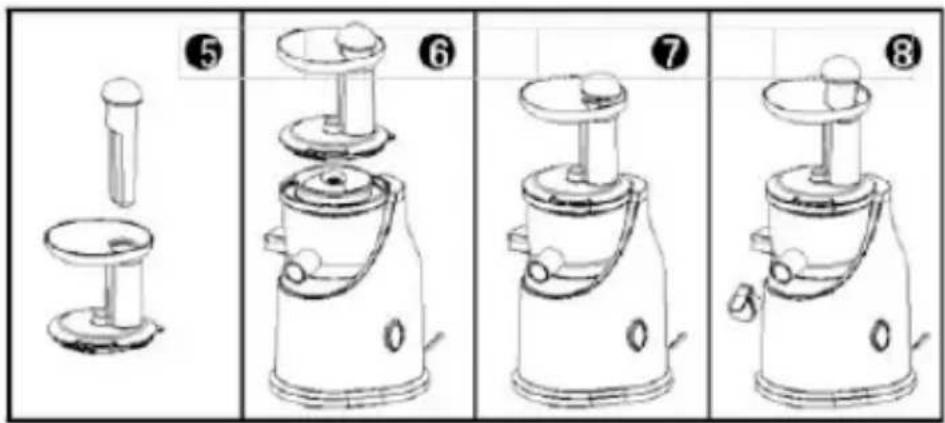

1. Insert the cochlea (3) in the filter basket. Place the top cover by turning it clockwise in order to lock it to the device.
2. After the above mentioned five steps, the unit is ready for use now. Connect it to power source and turn on the unit. If it runs normally, you can start to make the juice.
3. To disassemble the unit for cleaning follow the steps in a reverse order.
4. To remove the top cover, turn it anti-clockwise.

HOW TO USE THE JUICER EXTRACTOR

1. Wash fruits & vegetables cleanly (peel skin when necessary), cut them into a proper blocks or pieces.

WARNING! It is advisable not to put fruit with small amounts of juice as banana, apricot, etc. Nuts such as walnuts, hazelnuts etc. may damage the engine and the filter, therefore they must not be used. Remove the seeds and the core of the fruit before proceeding with juicing. If you want to use the pineapple, remove the middle part.

Place a juice cup or other container right under the juice outlet.

1. Connect the unit to power source and move the switch to the ON position.

2. Place foods in the food chute and press lightly with pusher. Do not use your fingers as pusher. Extracted juice will run out from the juice outlet into the juice cup. If the dregs container is full, unplug and clean it out. If you added too much food, move the switch to R

position, to activate the reverse function and unlock the foods that are stuck. Move the switch to the ON position again to resume pressing.

1. After juicing, turn the switch to "0", then unplug it. Completely clean all parts before you store it.

Note: Do not use the unit for more than 20 minutes consecutively and after 2-3 cycles of use, let it cool down before using it again.

You can download recipes from the following link: www.innoliving.it/downloads/ricettario.pdf

CARE AND CLEANING

1. Do not immerse motor base, power cord or plug in water or other liquids, or performance may be impaired by moisture.
2. Unplug the unit after use and disassembly the unit to proceed with cleaning. The parts are not dishwasher safe.
   3 Wash all the removable parts (except for the base engine) in hot water and dry thoroughly before putting the device. Do not use hot water to clean the plastic parts to avoid the risk of deformation.
3. To protect the filter net from damage, please use brush to clean it.
4. This product should be stored in a cool, dry place.

RATING LABEL:

Innoliving Spa

Via Merloni, 9 - 60131 Ancona - Italy

INN-720 SLOW JUICE - ESTRATTORE SUCCO

220-240V\~50/60Hz 220W

MADE IN CHINA

LOT n.

Icon of a person reading a book inside a circle (no text or symbols)

Rev. 00_12.2015

The product is made conforming with all the applicable European regulations

Read carefully the user manual

Food contact

Class II insulated electrical appliance

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)"

The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014
