Product Type	Juicer
Brand	Innoliving
Model	INN-728
Dimensions (approx.)	30 x 25 x 35 cm
Weight (approx.)	3.5 kg
Power Consumption	500 W
Voltage	220-240 V, 50/60 Hz
Motor Type	Induction motor
Speed Settings	2 speeds (low/high)
Pulp Container Capacity	1.5 L
Juice Jug Capacity	1.0 L
Feeding Tube Diameter	75 mm (whole fruits)
Material	Stainless steel mesh filter, BPA-free plastic
Dishwasher Safe Parts	Yes (excluding motor base)
Anti-Drip System	Yes
Safety Features	Locking arm safety switch, overload protection
Spare Parts Available	Yes (filter, jug, pulp container, pusher)
Repairability Index	7/10 (common parts replaceable)
Accessories Included	Juice jug, pulp container, cleaning brush, pusher

Frequently Asked Questions - INN-728 Innoliving

How do I assemble the Innoliving INN-728 juicer?

To assemble, place the motor base on a flat surface. Insert the filter basket into the juice bowl, then place the bowl onto the base. Align the lock and secure it with the locking arm. Finally, attach the pulp container and the juice jug.

What is the best way to clean the juicer?

Unplug the juicer and disassemble all removable parts. Rinse immediately under running water. Use the cleaning brush to scrub the filter mesh to remove pulp. Most parts are dishwasher safe (top rack). Wipe the motor base with a damp cloth.

Can I juice whole fruits like apples?

Yes, the feeding tube is 75 mm wide, allowing whole apples or similar-sized fruits. For larger items, cut them into pieces to fit.

Why is the juicer not starting?

Ensure the locking arm is properly closed and the safety switch is engaged. Also check that the pulp container and juice jug are correctly positioned. If it still doesn't start, check the power cord and outlet.

Can I juice leafy greens or wheatgrass?

Yes, the INN-728 can handle leafy greens and wheatgrass. For best results, alternate with harder ingredients or use the low speed setting.

How do I prevent the juice from dripping after use?

The juicer features an anti-drip system. After juicing, tilt the spout upward to stop drips. You can also place the juice jug under the spout to catch any residual juice.

What does the overload protection do?

If the motor overheats due to excessive load, the overload protection will shut off the juicer automatically. Let it cool down for about 15 minutes before restarting. Reduce the amount of hard ingredients to avoid this.

Can I replace the filter basket?

Yes, the filter basket is a replaceable spare part. You can order a compatible one from Innoliving or authorized dealers. Ensure you use the correct model (INN-728).

Is the juicer suitable for citrus fruits?

Yes, you can juice oranges, lemons, and limes. Peel them first to avoid bitterness from the rind. The high speed setting works well for citrus.

How do I store the juicer?

Make sure all parts are clean and dry. Keep the motor base in a dry place. You can assemble the juicer for compact storage or disassemble it. Avoid storing near heat sources or in damp areas.

USER MANUAL INN-728 Innoliving

innoliving easy tech, easy life

CENTRIFUGA

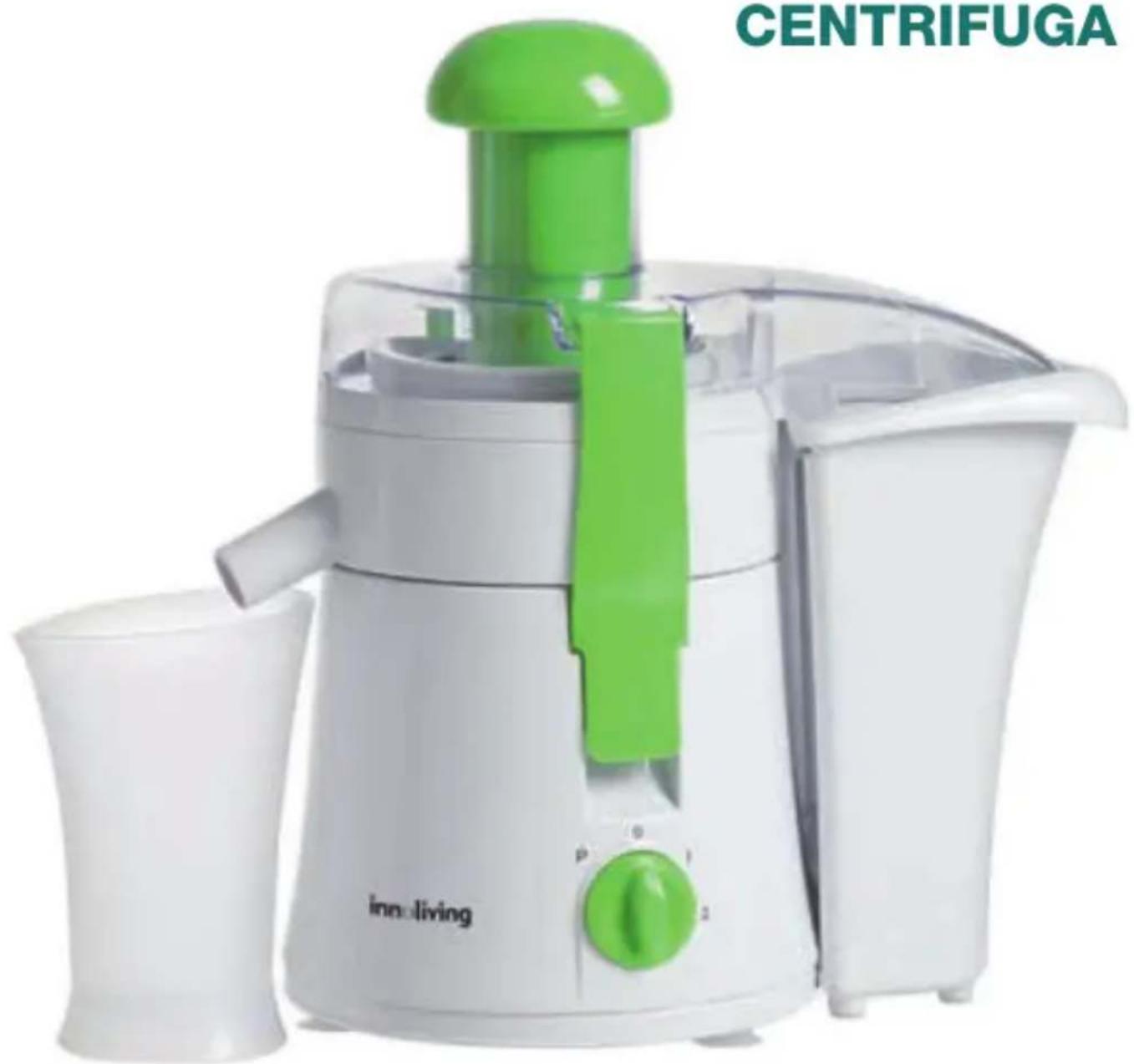

White and green instant juice maker with green handle, labeled 'inn-living' (no other text or symbols visible)

INN-728

MANUALE D'USO

USER MANUAL

COME MONTARE E SMONTARE L'APPARECCHIO

Icon of a person reading a book inside a circle (no text or symbols)

Rev. 00_12.2015

Thank you for purchasing Innoliving INN-728 juice extractor; a very useful instrument to prepare healthy and vitamin fruit and vegetables juices.

Before use:

Read all the instructions and warnings carefully and keep this user manual safe for future use.

Wash the parts and accessories: see "Cleaning and maintenance".

Remove all packaging materials.

SAFETY NORMS AND WARNINGS

• Please read the instructions of use and safety norms before using the appliance and follow these at all times. Keep this manual with the appliance for future consultation for all the product life. Failure to comply with the use and maintenance instructions provided in this user manual could lead to an accident and will invalidate all and any rights to the manufacturer's warranty.
• This appliance must be used only for the purpose for which it was designed that is as a JUICE EXTRACTOR for home use. Any other use is improper and potentially dangerous. This appliance is for household use only, not professional or industrial use.
• Keep all packing material (plastic bags, cardboard, polystyrene, etc.) out of reach of the children, since they are potential sources of danger and must be disposed of as provided by law.
• After having removed the appliance from its packaging, verify its integrity based on the drawing and any presence of damage caused by transport. If in doubt, do not use the appliance and contact an authorized service centre.
• Do not use the appliance if the cable or plug is damaged.
• Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance. The rating label is on the product.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Do not use or store the appliance outdoors.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not force the electrical connection wire. Never use the electric wire to lift up, carry or unplug the appliance.
• Ensure that the electric cable does not get trapped or tangled.
• Check the state of the electric cable. Damaged or knotted cables increase the risk of electric shock.
• DO NOT use the appliance with damp or wet hands or feet.
• If the power cable is damaged, it must be replaced by an authorized technical service centre, so as to prevent all risks.
• In case of fault or malfunctioning of the appliance, switch it off and do not tamper with it. If the device needs to be repaired, contact an authorized technical assistance centre.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• This product is not a TOY. Children should be supervised to ensure that they do not play

with the appliance. Keep this product out of reach of children.

- Never let the cord hang down where a child could it grab.

- Do not turn the appliance over while it is in use or connected to the mains.

• Always unplug the mixer from the power outlet before removing or changing accessories.

- Never leave the product unattended when in use.

- Store the appliance in a dry place, free from dust and out of direct sunlight, far from heating sources.

- Never immerse the appliance into water or other liquids and not place it under tap water.

- Always unplug the mixer from the power outlet before assembling, dismantling or cleaning the device.

- When in use, place the product on a flat and stable surface; ensure it cannot fall on the floor, in a sink or a container full of water.

- DO NOT use near the kitchen hob and/or other sources of heat.

- Be careful that the cable does not touch hot, incandescent surfaces, open flames, pans or other utensils.

- Do not touch the moving parts. CAUTION: Do not touch and/or remove accessories while the unit is in operation.

- All parts that come into contact with food during the use of the device must be well washed before use.

- The extractor is equipped with two types of speed: 1-for the extraction of juice from soft foods such as strawberry, grape, pineapple, watermelon or tomato, etc.; while 2-is suitable for the extraction of juice from hard foods such as apple, carrot or pear, etc.

- Push the food into the tube using the pusher cap. Never use your fingers or other utensils.

- If you have to extract the juice from extremely soft foods, remember to add few at a time to obtain a greater quantity of juice.

- This device is equipped with a safety device that prevents the extractor being put into operation if the safety latch is not in the right position.

- Make sure to unplug the unit after use and disassemble it for cleaning. The parts are not dishwasher safe.

- Ensure that the motor has totally stopped rotating before proceeding with the disassembling of the unit.

- Do not use the appliance if the rotating drum is damaged.

- You need to take precautions when handling sharp blades, especially when removing the blade from the cup, when the cup is emptied and during cleaning.

- Turn off and unplug the device before beginning any moving parts and make sure the product is turned off and unplugged before removing it from the base

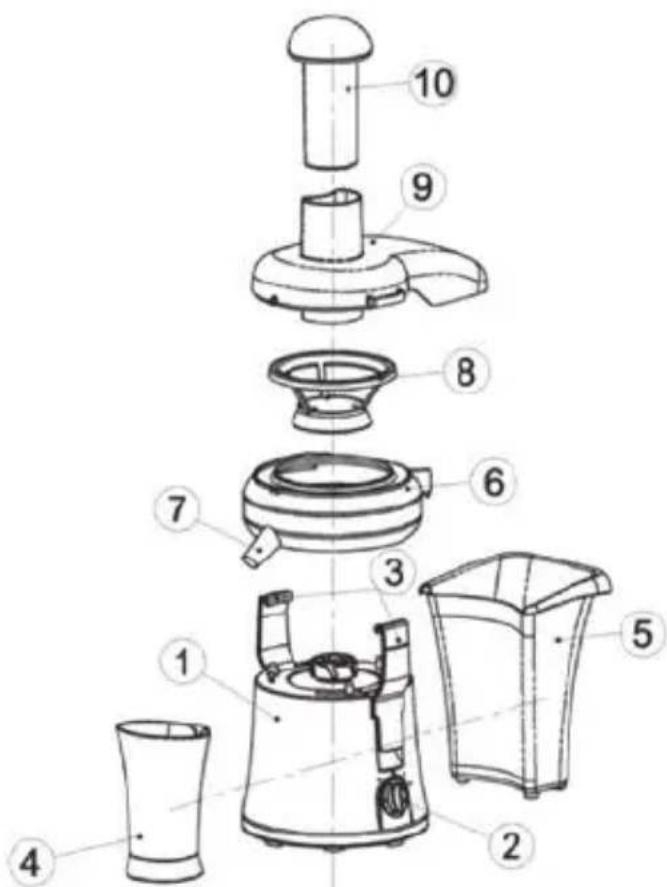

PRODUCT DESCRIPTION

1. Motor Base
   2.Speed control
   3.Safety Latch
   4.Glass
   5.Residue Barrel
   6.Middle Ring
   7.Spout
   8.Filter
   9.Cover
   10.Pusher Cap

HOW TO ASSEMBLE AND DISASSEMBLE

Place the middle ring onto the motor base. Make sure to press it as far as it can go.

Place the cover and lock the two safety latches on both sides of the unit.

After the above mentioned five steps, the unit is ready for use now.

To disassemble the unit for cleaning, follow the steps in a reverse order.

HOW TO USE THE JUICE EXTRACTOR

1. Wash fruits and vegetables cleanly (peel skin when necessary), cut them into a proper blocks or pieces. Place a juice cup or other container right under the juice outlet.
2. Connect the unit to power source and operate the control switch.
3. Place foods in the food chute and press lightly with pusher. Do not use your fingers as pusher. Extracted juice will run out from the juice outlet into the juice cup. If the dregs container is full, unplug and clean it out.
4. After juicing, turn the switch to "0", then unplug it. Completely clean all parts before you store it.

CLEANING AND MAINTENANCE

1. Do NOT immerse motor base, power cord or plug in water or other liquids, performance may be impaired by moisture.
2. Unplug the unit after use and disassembly the unit to proceed with cleaning. The parts are not dishwasher safe.
3. Wash all the removable parts (except for the base engine) in hot water and dry thoroughly

before storing the device. Do not use hot water to clean the plastic parts to avoid the risk of deformation.

1. Store the device in a cool and dry place.

RATING LABEL:

Innoliving Spa

Via Merloni, 9 - 60131 Ancona - Italy

INN-728 CENTRIFUGA - JUICE EXTRACTOR

220-240V\~50/60Hz 250W

MADE IN CHINA

LOT n.

Rev. 00_12.2015

The product is made conforming with all the applicable European regulations

Read cearefully the user manual before use

Food Contact

Class II insulated electrical appliance

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE) "The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014.
