USER MANUAL V7-P7H55E ASUS

User Manual

Intermec Technologies Corporation

Worldwide Headquarters

6001 36th Ave.W.

Everett, WA 98203

U.S.A.

www.intermec.com

The information contained herein is provided solely for the purpose of allowing customers to operate and service Intermec-manufactured equipment and is not to be released, reproduced, or used for any other purpose without written permission of Intermec Technologies Corporation.

Information and specifications contained in this document are subject to change without prior notice and do not represent a commitment on the part of Intermec Technologies Corporation.

© 2012 by Intermec Technologies Corporation. All rights reserved.

The word Intermec, the Intermec logo, Norand, ArciTech, Beverage Routebook, CrossBar, dcBrowser, Duratherm, EasyADC, EasyCoder, EasySet, Fingerprint, i-gistics, INCA (under license), Intellitag, Intellitag Gen2, JANUS, LabelShop, MobileLAN, Picolink, Ready-to-Work, RoutePower, Sabre, ScanPlus, ShopScan, Smart Mobile Computing, SmartSystems, TE 2000, Trakker Antares, and Vista Powered are either trademarks or registered trademarks of Intermec Technologies Corporation.

There are U.S. and foreign patents as well as U.S. and foreign patents pending.

Wi-Fi is a registered certification mark of the Wi-Fi Alliance.

Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and/or other countries.

Bluetooth is a trademark of Bluetooth SIG, Inc., U.S.A.

This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (www.openssl.org).

This product includes cryptographic software written by Eric Young (EAY@cryptsoft.com).

This product uses Regex++, Index software during its operational phases. The owner of Regex++ has granted use of the software to anyone provided such use is accompanied by the following copyright and permission notice:

Regex++, Index. (Version 3.31, 16th Dec 2001)

Copyright © 1998-2001 Dr John Maddock

Permission to use, copy, modify, distribute and sell this software and its documentation for any purpose is hereby granted without fee, provided that the above copyright notice appear in all copies and that both that copyright notice and this permission notice appear in supporting documentation. Dr John Maddock makes no representations about the suitability of this software for any purpose. It is provided "as is" without express or implied warranty.

iTalkie is a trademark of TABLETmedia, Inc.

Contents

Before You Begin.... ix

Safety Information ix

Global Services and Support ix

Warranty Information...... ix

Web Support....x

Send Feedback....x

Telephone Support x

Who Should Read This Manual x

Related Documents xi

Patent Information xi

1 About the Computer Features .... 1

About the CK3R and CK3X Mobile Computers....2

About Language Provisioning....3

About the Battery 4

Charge the Battery 4

Battery Charge Times 5

Change the Battery....5

About Battery Status 6

About Battery Life and Conservation 8

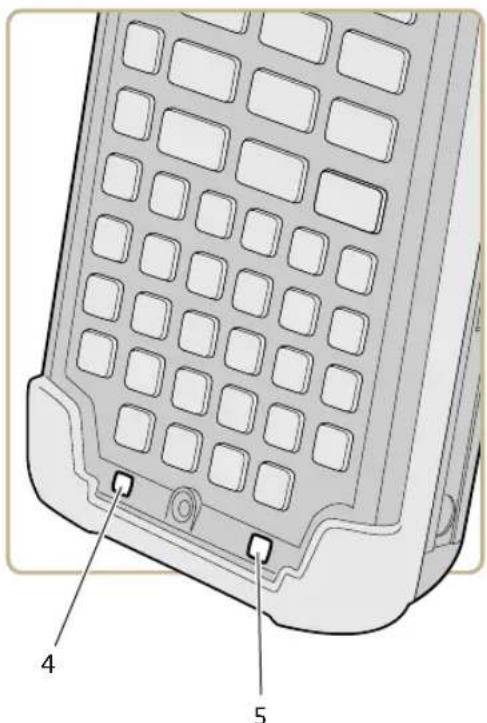

About the Status LEDs 9

About the Keypad....12

About the Color-Coded Keys....13

How to Capitalize Characters .....14

About the Power Button....15

About the Screen Backlight 17

Configure the Screen Backlight Timeout....17

Configure the Screen Backlight Brightness 18

About the Audio Features....18

Adjust the Speaker Volume 18

About the Push-to-Talk Feature....18

Record Audio....18

Use the Computer as a Two-Way Radio 19

Contents

How to Read Bar Codes....19

Read Bar Codes with the Imager....19

Connect a Bluetooth Scanner 21

Connect a Tethered Scanner....22

Insert a microSD Card....22

How to Transfer Files....25

Set Up the Computer as a Mass Storage Device 25

CK3 Options and Accessories 26

2 About the User Interface and Intermec Applications ..... 29

About the User Interface....30

About the Home Screen 30

About Screen Gestures ....32

Title Bar Status Icons 32

Calibrate the Screen....34

About Intermec Applications ......34

Intermec Applications on the Computer 35

Downloadable Intermec Applications for the Computer....36

About Features Demo 36

About Intermec Browser....36

About Intermec HTML5 Browser....37

About Intermec Launcher ....37

About Intermec Terminal Emulator....37

About SmartSystems 38

3 Configure the Computer.... 39

How to Configure the Computer 40

About Intermec Settings on the Computer 40

Start Intermec Settings 41

About the Structure of Intermec Settings ....41

How to Navigate in Intermec Settings....46

Enable Intermec Settings Password 46

Restore Default Settings....47

Configure the Computer Remotely with SmartSystems ....48

Contents

About Network Communications ...... 48

Configure 802.11 Radio Communications .....48

About Bluetooth Communications 49

Turn On the Bluetooth Radio....50

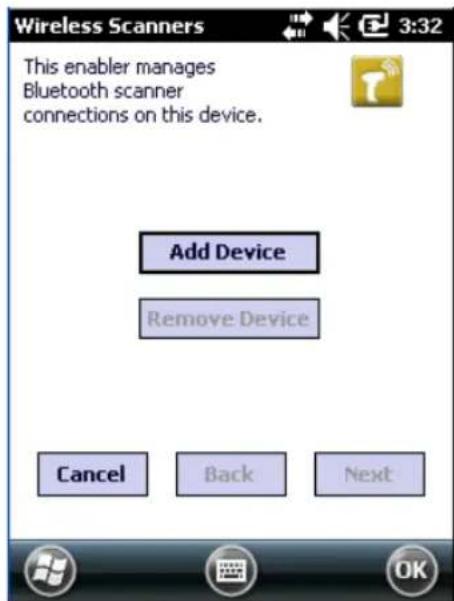

Connect a Bluetooth Scanner 51

Create a Configuration Bar Code with EasySet ....51

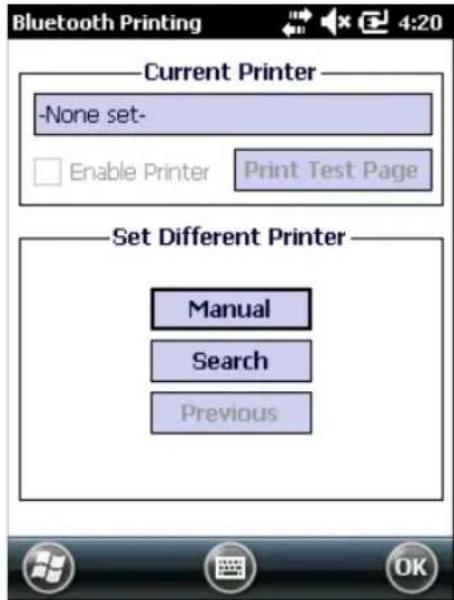

Connect to a Bluetooth Printer....52

Connect a Bluetooth Audio Device ....54

Connect to a Wireless Reader ....55

About Serial and USB Communications 56

About Wireless Security 56

Load a Certificate 57

How to Make Your Security Choice ....58

Select a Funk Security Profile 58

Configure WPA or WPA2 Enterprise (802.1x) Security with Funk Security....59

Configure WPA or WPA2 Personal (PSK) Security with Funk Security ....59

Configure 802.1x Security with Funk Security ....60

Configure LEAP Security with Funk Security....61

Configure Static WEP Security with Funk Security....61

Use Open (No Security) Associations with Funk Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Select Microsoft as Your Security Choice 62

Configure WPA or WPA2 Enterprise (802.1x) Security with Microsoft Security....63

Configure WPA or WPA2 Personal (PSK) Security with Microsoft Security....63

Configure 802.1x Security with Microsoft Security....64

Configure Static WEP Security with Microsoft Security .....65

Use Open (No Security) Associations with Microsoft Security. . . . . . . 65

4 Manage the Computer 67

About Managing the Computer in Your Network 68

How to Manage the Computer Using CloneNGo 68

How to Manage the Computer Using SmartSystems ....68

How to Manage the Computer Using Third-Party Software....69

How to Develop and Install Applications....69

About Packaging Your Application....69

Install Applications Using SmartSystems 70

Install Applications Using Microsoft Synchronization Software....71

Install Applications Using an SD Card....71

How to Launch Applications Automatically....72

Contents

How to Update the System Software....72

Update Computers Using SmartSystems....72

Update the Computer Using a microSD Card ....73

5 Troubleshoot and Maintain the Computer 75

About the Intermec Dashboard 76

About Troubleshooting the Computer....77

Wi-Fi Connection Problems....77

Check Wi-Fi Network Status....78

802.1x Security Problems ....79

Troubleshoot the Scanner with Scan Diagnostics 81

Problems Reading Bar Codes....82

Problems Using the Computer 84

Call Product Support....84

Locate Your Configuration Number 85

Locate Your Operating System Version....85

How to Restart the Computer....86

Reboot the Computer 86

Cold Boot the Computer 86

Clean Boot the Computer....87

Clean the Computer....88

A Specifications....89

Physical and Environmental Specifications....90

EA31 Typical Reading Distances - Extended Reading Range .....93

EA31 Imager Minimum Reading Distances 94

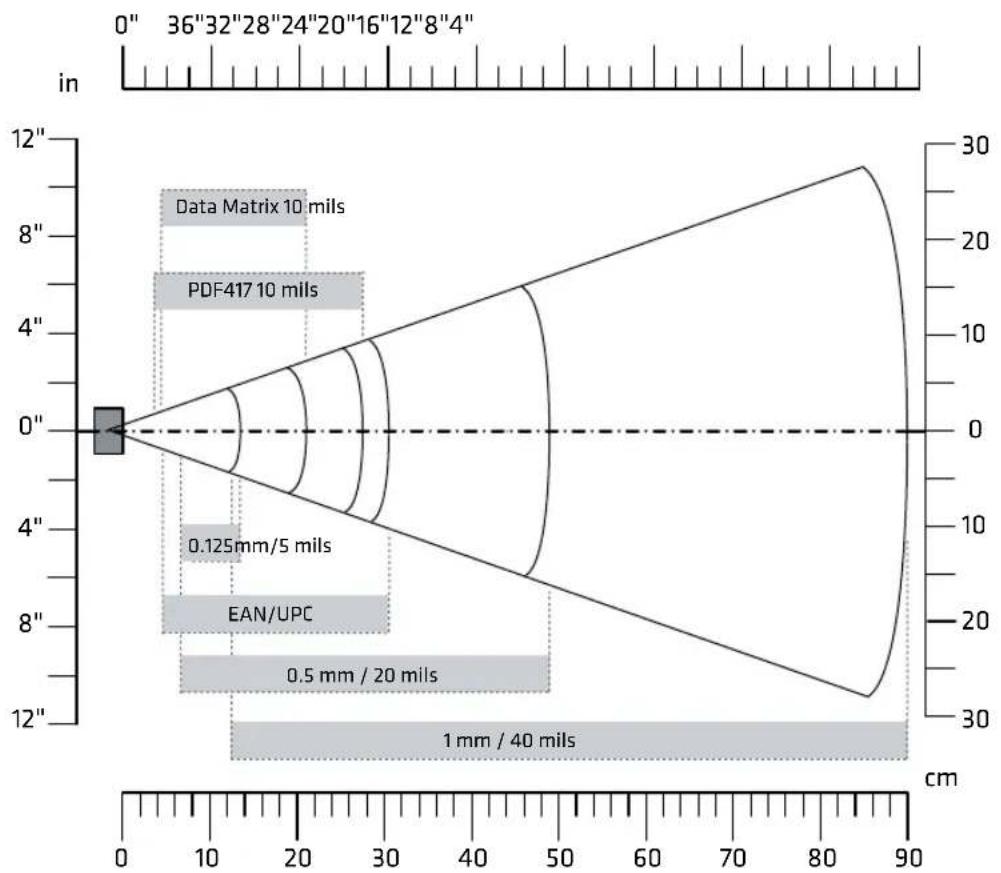

EA31 Imager Typical Reading Distances....95

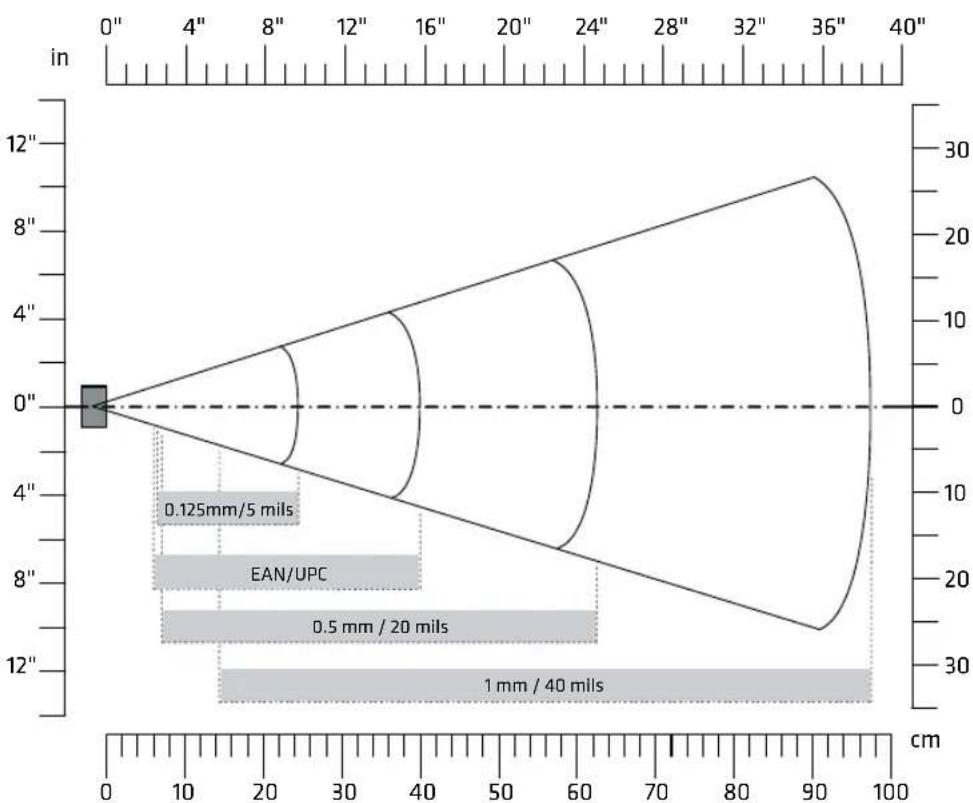

EA30 Typical Reading Distances - Extended Reading Range .....97

EA30 Area Imager Minimum Reading Distances....98

EA30 Imager Typical Reading Distances....99

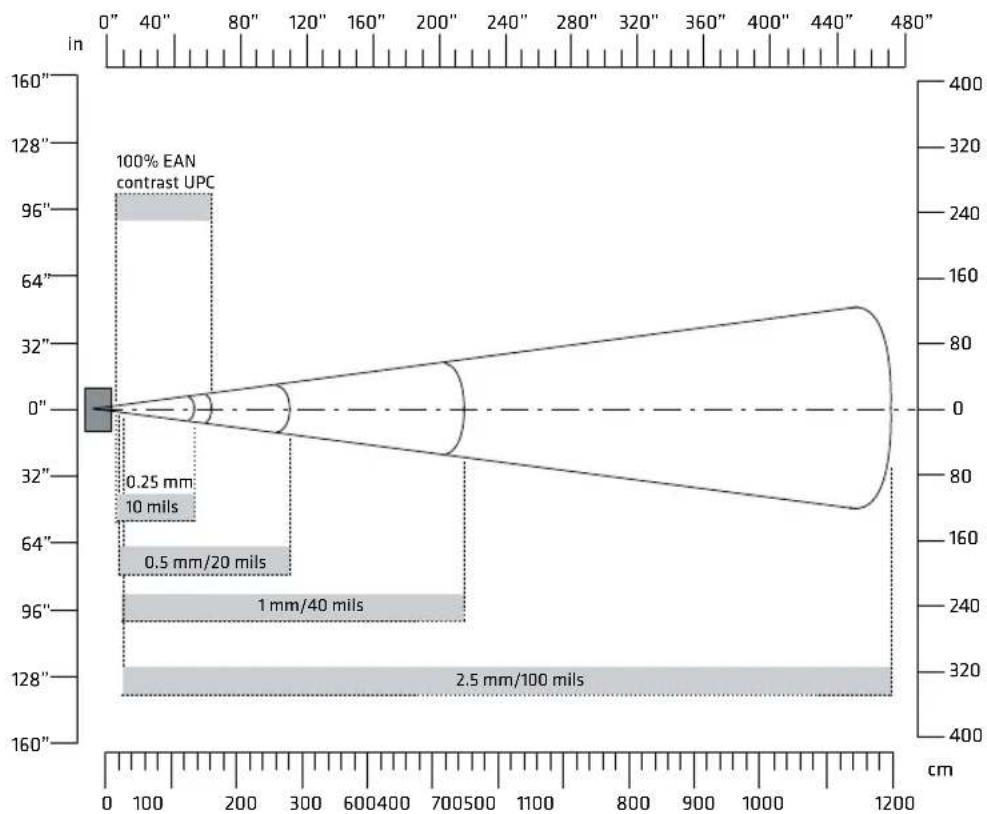

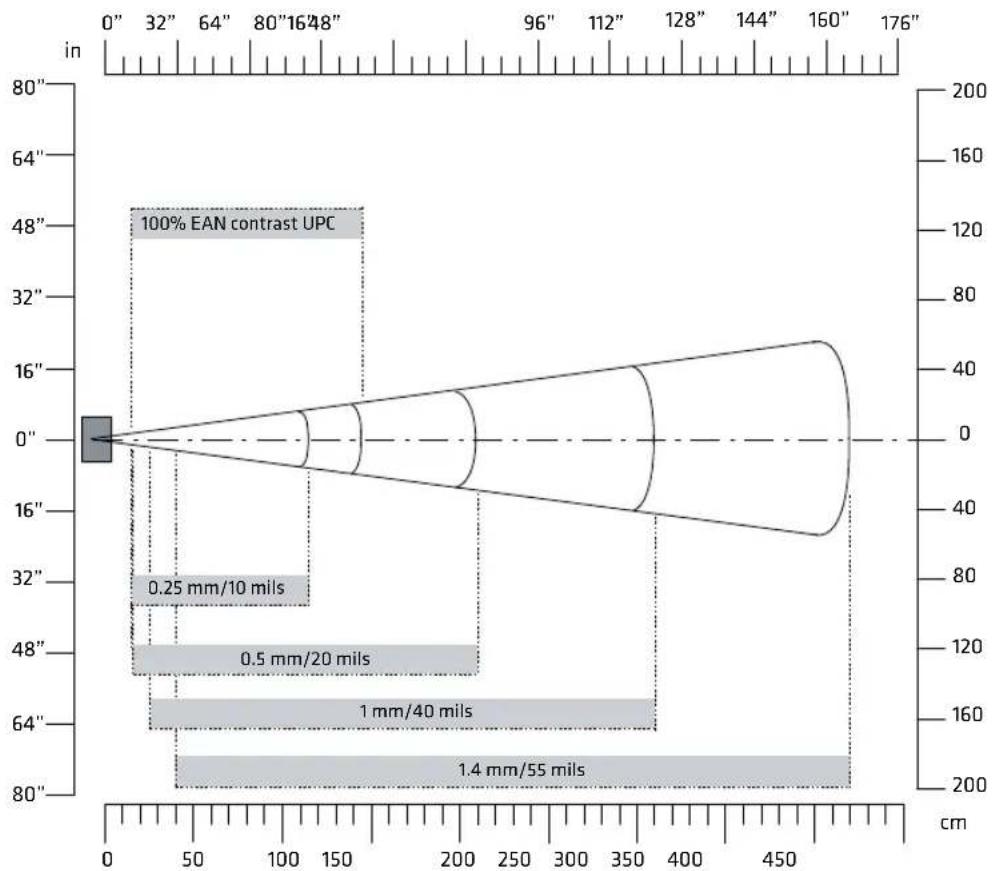

EX25C Near-Far Range Area Imager Reading Distance ....100

B Default Settings.... 105

Default Configuration ....106

Data Collection....106

RFID 109

Communications ....111

Device Settings 112

Core Messaging Service....114

Device Monitor....115

Virtual Wedge 115

Location Services ....116

C Keypads and Keystrokes 117

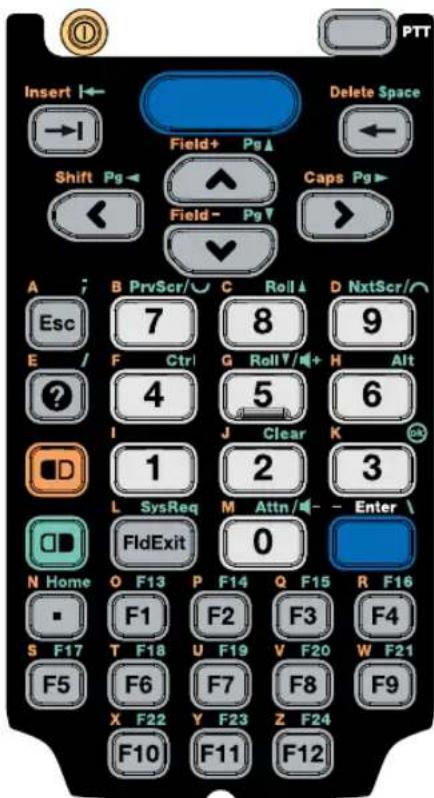

Characters and Functions on Keypads ....118

Contents

Before You Begin

This section provides you with safety information, technical support information, and sources for additional product information.

Safety Information

Your safety is extremely important. Read and follow all warnings and cautions in this document before handling and operating Intermec equipment. You can be seriously injured, and equipment and data can be damaged if you do not follow the safety warnings and cautions.

This section explains how to identify and understand warnings, cautions, and notes that are in this document.

ASUS V7-P7H55E - Safety Information - 1

A warning alerts you of an operating procedure, practice, condition, or statement that must be strictly observed to avoid death or serious injury to the persons working on the equipment.

ASUS V7-P7H55E - Safety Information - 2

A caution alerts you to an operating procedure, practice, condition, or statement that must be strictly observed to prevent equipment damage or destruction, or corruption or loss of data.

ASUS V7-P7H55E - Safety Information - 3

Note: Notes either provide extra information about a topic or contain special instructions for handling a particular condition or set of circumstances.

Global Services and Support

Warranty Information

To understand the warranty for your Intermec product, visit the Intermec website at www.intermec.com and click Support > Returns and Repairs > Warranty.

Before You Begin

Disclaimer of warranties: The sample code included in this document is presented for reference only. The code does not necessarily represent complete, tested programs. The code is provided “as is with all faults.” All warranties are expressly disclaimed, including the implied warranties of merchantability and fitness for a particular purpose.

Web Support

Visit the Intermec website at www.intermec.com to download our current manuals (in PDF).

Visit the Intermec technical knowledge base (Knowledge Central) at www.intermec.com and click Support > Knowledge Central to review technical information or to request technical support for your Intermec product.

Send Feedback

Your feedback is crucial to the continual improvement of our documentation. To provide feedback about this manual, please contact the Intermec Technical Communications department directly at TechnicalCommunications@intermec.com.

Telephone Support

In the U.S.A. and Canada, call 1-800-755-5505.

Outside the U.S.A. and Canada, contact your local Intermec representative. To search for your local representative, from the Intermec website, click About Us > Contact Us.

Who Should Read This Manual

This manual is for the person who is responsible for installing, configuring, and maintaining the CK3R and CK3X mobile computer.

This manual provides you with information about the features of the computer, and how to install, configure, operate, maintain, and troubleshoot it.

Before you work with the CK3R or CK3X, you should be familiar with your network and general networking terms, such as IP address.

Here are some related Intermec documents you might find useful:

• Intermec Settings Command Reference Manual
- Intermec Developer Library (IDL) Resource Kit Developer's Guide

The Intermec website at www.intermec.com contains our documents (as .pdf files) that you can download for free.

To download documents

1 Visit the Intermec website at www.intermec.com.
2 Click the Products tab.
3 Using the Products menu, navigate to your product page. For example, to find the CK3X computer product page, click Computers > Handheld Computers > CK3X.
4 Click the Manuals tab.

If your product does not have its own product page, click Support > Manuals. Use the Product Category, the Product Family, and Product to find your documentation.

Patent Information

Product is covered by one or more of the following patents:

4953113; 4961043; 4970379; 4988852; 5019699; 5021642; 5038024; 5081343; 5095197; 5144119; 5144121; 5182441; 5187355; 5187356; 5195183; 5216233; 5216550; 5218191; 5227614; 5233172; 5241488; 5243602; 5258606; 5278487; 5288985; 5308966; 5322991; 5331136; 5331580; 5342210; 5349678; 5359185; 5371858; 5373458; 5389770; 5397885; 5410141; 5414251; 5416463; 5442167; 5464972; 5468947; 5468950; 5477044; 5486689; 5488575; 5500516; 5502297; 5504367; 5508599; 5514858; 5530619; 5534684; 5536924; 5539191; 5541419; 5548108; 5550362; 5550364; 5565669; 5567925; 5568645; 5572007; 5576529; 5592512; 5594230; 5598007; 5608578; 5616909; 5619027; 5627360; 5640001; 5657317; 5659431; 5671436; 5672860; 5684290; 5719678; 5729003; 5742041; 5761219; 5764798; 5777308; 5777309; 5777310; 5786583; 5793604; 5798509; 5798513; 5804805; 5805807; 5811776; 5811777; 5818027; 5821523; 5828052; 5831819; 5834749; 5834753; 5837987; 5841121; 5842070; 5844222; 5854478; 5862267;

Before You Begin

5869840; 5873070; 5877486; 5878395; 5883492; 5883493; 5886338; 5889386; 5892971; 5895906; 5898162; 5902987; 5902988; 5912452; 5923022; 5936224; 5949056; 5969321; 5969326; 5969328; 5979768; 5986435; 5987192; 5987499; 5992750; 6003775; 6012640; 6016960; 6018597; 6024289; 6034379; 6036093; 6039252; 6064763; 6075340; 6095422; 6097839; 6102289; 6102295; 6109528; 6119941; 6128414; 6138915; 6149061; 6149063; 6152370; 6155490; 6158661; 6164542; 6164545; 6173893; 6195053; 6234393; 6234395; 6244512; 6249008; 6328214; 6330975; 6345765; 6356949; 6367699; 6375075; 6375076; 6375344; 6431451; 6435411; 6484944; 6488209; 6497368; 6532152; 6538413; 6539422; 6621942; 6641046; 6681994; 6687403; 6688523; 6732930; 6859190; 6889903; 6967280; 7027037; 7035466; 7090137; 7121467.

Docking station or device: 5052943; 5195183; 5317691; 5331580; 5544010; 5644471.

There may be other U.S. and foreign patents pending.

1 About the Computer Features

This Chapter introduces the CK3R and CK3X Mobile Computers with Windows® Embedded Handheld operating system. Use this chapter to learn about the basic features and functions of each computer, as well as the available accessories for it.

About the CK3R and CK3X Mobile Computers

The Intermec CK3R and CK3X Mobile Computers are ergonomically designed mobile computers built on the Microsoft® Windows® Embedded Handheld 6.5 operating system. The computers are lightweight, easy-to-use, and run most software designed for the Windows Embedded platform. In this manual, computer refers to models CK3R, CK3X, and CK3XNI, unless specifically stated.

Technical diagram of a mobile phone with numbered parts labeled 1 through 6

CK3 Mobile Computer Features

Callout Description
1Pow
2Sca
3Sta
4 Ambient light sensor
5 Tethered stylus
6 Docking connector

ASUS V7-P7H55E - About the CK3R and CK3X Mobile Computers - 2

The CK3R Mobile Computer with a DHIB 802.11b/g/n radio installed is Wi-Fi® certified for interoperability with other 802.11b/g/n wireless LAN devices.

ASUS V7-P7H55E - About the CK3R and CK3X Mobile Computers - 3

The CK3X Mobile Computer with a DDIB 802.11a/b/g/n radio installed is Wi-Fi® certified for interoperability with other 802.11a/b/g/n wireless LAN devices.

This table shows some of the key differences between the CK3R and CK3X:

Compare the CK3R and CK3X

Feature CK3R CK3X
Flash 512 MB 1 G
RAM 256 MB 256 MB
Accelerometer No Yes
802.11 Radio b/g/n a/b/g/n
Alphanumeric or Numeric Keypad Yes Yes
Microphone No Yes
Imager EA31 EA30, EX25

About Language Provisioning

You are prompted to select a language provision when the computer starts for the first time. It may take up to 15 minutes to load your language. Once loaded, your selected language will persist through all boot scenarios (warm, cold, or clean).

Make sure you select the correct language before you tap Provision. If you need change the language provisioning, you need to reinstall the operating system and restart the computer. When the computer starts again, select your new language.

About the Battery

ASUS V7-P7H55E - About the Battery - 1

Warning: The battery used in this device may present a fire or chemical burn hazard if it is mistreated. Do not disassemble it, heat it above 100 °C (212 °F) or incinerate it. Dispose of used batteries promptly. Keep away from children.

The computer uses one of these rechargeable Lithium-ion battery packs as its main power source.

CK3R/CK3X Battery Packs

Battery Model Description Ships With
AB17 2000 mAH (7.4 Wh) battery CK3R
AB18 5100 mAH (18.5 Wh) battery CK3X
1001AB01/1005200 mAH (19.2 Wh) battery, includes battery
1AB02health monitoring

You can use the battery status icon in the Title bar or the Intermec Dashboard to view the charging status of your battery.

The optional 5200 mAH battery provides higher performance with less power, improves cold temperature operation, and provides remote health monitoring if you are using SmartSystems.

Charge the Battery

Make sure you fully charge the battery before you use your computer. You can charge the battery before or after you install it in the computer. A fully discharged battery charges in approximately 4 (AB17) to 7 (AB18, 1001AB01/1001AB02) hours.

- Insert the battery into the battery bay of the AD20 single dock (AB17 or AB18 only), insert up to four batteries into the AC20 quad battery charger (AB17 or AB18 only), or insert batteries into the FlexDock battery cup 1002UC02 with the DX2 or DX4.

Or,

- Install the battery in the CK3 and insert the CK3 into the AD20 single dock, AD21 Ethernet multidock, AD22 charge-only multidock, Universal Wall Mount Charger, or AV10 vehicle dock.

Battery Charge Times

Charge times for the batteries depend on the battery and the charging method.

Battery Charge Times

CK3 Charging AccessoryAB17 Charge TimesAB18 Charge Times1001AB01/1001 AB02 Charge Times
AC20 quad charger up to 4 hours up to 6 hours
AD20 single dock up to 4 hours up to 6 or 7 hoursup to 6 hours (battery must be inserted in computer)
AD21 Ethernet multidockup to 4 hours up to 7 hours up to 6 hours
AD22 charge-only multidockup to 4 hours up to 7 hours up to 6 hours
AV10 vehicle dock up to 4 hours up to 7 hours up to 6 hours
DX2 or DX4 with FlexDock cup 1002UC02up to 4 hours up to 7 hours up to 6 hours
Universal wall mount chargerup to 4 hours up to 6 hours up to 6 hours

Change the Battery

Before you change the battery, you need to put the computer in Hibernate (battery swap) mode. Hibernate mode turns off the radios on the computer.

1 Save your files and close any open applications.
2 Press and hold the Power button for about 2 seconds until the Intermec Power Options screen appears.
3 From the Intermec Power Options screen, select Hibernate.
4 If necessary, disconnect the handstrap from the bottom of the computer.

Chapter 1 – About the Computer Features

5 Press the battery release tab toward the battery until the battery is released, and then remove the battery.
6 Insert the top end of a fully charged battery into the computer and press down firmly on the bottom of the battery. The battery release tab makes a clicking sound when the battery is completely installed.

About Battery Status

Use the battery icon on the Title bar to view the power status of the battery.

Battery Status Icons

Icon Status
Battery is fully charged.
Battery has medium charge.
Battery is low. You need to replace the battery soon.
Battery is critically low. You need to replace the battery now.
ASUS V7-P7H55E - About Battery Status - 1Battery is charging.

The Battery status LED below the computer screen indicates the charging status of the battery.

Battery status LED

Battery LED States

LED State Description
Steady green The computer is connected to a charger and the battery is more than 95% charged.
Blinking red The battery is very low. The computer will soon go into Suspend mode. Charge or replace the battery.
Steady red The computer is connected to a charger and the battery is charging.
Amber There is a battery error. The battery is not charging because it is missing, faulty, or outside the allowable charging temperature range. If it is outside the charging temperature range, charging will resume when the battery temperature returns to the acceptable range of 5 °C to 35 °C (41 °F to 95 °F).
OffThe computer is not on external power and the battery is operating normally.

About Battery Life and Conservation

Batteries that are stored outside the computer for long periods of time slowly discharge. Intermec recommends storing the battery in a charger to maintain battery performance.

Battery Conservation Tips

When You Want to: Do this to Save Battery Power:
Use the computer and the low battery status icon appears or the battery light turns on.Connect the computer to an external power source. Save your data, press thePowerbutton, and selectHibernate.After the computer turns off, remove the battery and insert a fully charged battery.
Stop using the computer for 5 minutes or longer.Make sure that the low battery status icon is not on the screen and the battery status LED is not on. Press thePowerbutton and selectSuspendto suspend the computer. If you have a CK3X, the accelerometer lets you lay the computer face down and it will automatically suspend.
Store the computer for more than a day.If you are storing the computer for a few days, like over the weekend, install a charged battery or connect the computer to a power source.If you are storing the computer for longer, remove and charge the battery, and then store both the battery and computer in a cool location.If you store the battery for several months, recharge the battery to keep it at peak performance.
Store the battery outside the computer.Store the battery in a charger.

About the Status LEDs

The status LEDs turn on, turn off, or blink to indicate a specific activity on your computer.

1 2 3

Location of Main Status LEDs

Main Status LED Descriptions

Callout LED Color Description
1 Notification Orange Windows Mobile 6.5 notification.
2 Good Read Green Good read of a bar code.
Blinking redBad read of a bar code.
Blinking greenThe data collection engine is processing or starting up.
2 Intermec Ready-to-WorkTM indicatorBlue If Intermec Terminal Emulator (ITE) is installed, the application is running and is connected to the host. If you do not have ITE, you can configure the Ready-to-Work indicator to turn on or off to indicate a healthy state.
Blinking blueITE is running but not connected to the host. The computer is unhealthy.
Off ITE is not installed or not running. The computer is healthy.
3 B a t t greenThe computer is connected to a t charger and the battery is more than 95% charged.
Steady redThe computer is connected to a charger and the battery is charging.
Blinking redThe battery is very low, and the computer will go into Suspend mode soon. Charge or replace the battery.
Amber There is a battery error. The battery is not charging because it is missing, faulty, or outside the allowable charging temperature range. If it is outside the charging temperature range, charging will resume when the battery temperature returns to the acceptable range of 5 °C to 35 °C (41 °F to 95 °F).
Off The computer is not on external power and the battery is operating normally.

4 5

Location of Orange and Green Key LEDs

Orange and Green Key Status LEDs

Callout LED Color Description

4 Orange key status Orange The Orange key is enabled.

5 Green key status Green The Green key is enabled.

About the Keypad

The computer comes with either an alphanumeric keypad or a numeric keypad. In low light conditions, an ambient light sensor automatically turns on the keypad backlight. To conserve power, you can disable the keypad backlight. The CK3R keypads do not have the PTT key.

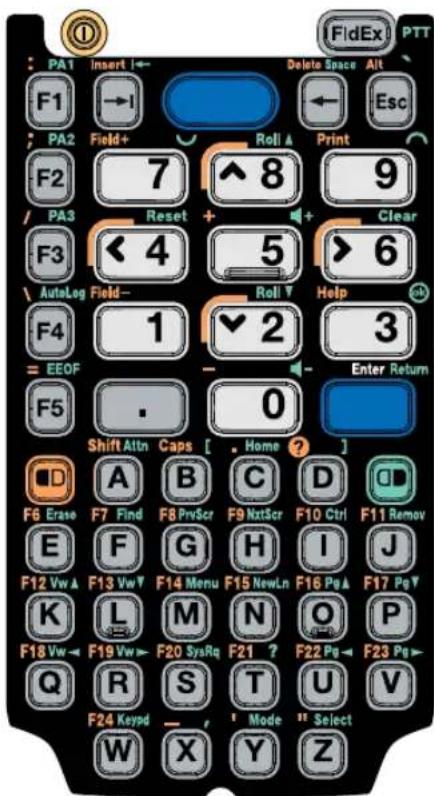

FldEx PTT PA1 Insert I← Delete Space Alt F1 →I ← Esc PA2 Field+ Roll ▲ Print F2 7 ^8 9 / PA3 Reset + Clear F3 <4 5 >6 \ AutoLog Field- Roll ▼ Help F4 1 ♥2 3 = EEOF - Enter Return F5 . 0 Shift Altn Caps [ Home ? D A B C D F6 Erase F7 Find F8 PrvScr F9 NxtScr F10 Ctrl F11 Remov E F G H I J F12 Vw ▲ F13 Vw ▼ F14 Menu F15 NewLn F16 Pa ▲ F17 Pa K L M N O P F18 Vw ← F19 Vw→ F20 SysRg F21 ? F22 Pg ← F23 Pg Q R S T U V F24 Keypd — Mode Select W X Y Z

Alphanumeric Keypad

Insert Delete Space Field+ Pg Shift Pg Field- Pg Caps Pg A B PrvScr/ C Roll D NxtScr/ Esc 7 8 9 E / F Ctrl G Roll Y/+ H Alt ? 4 5 6 I J Clear K D 1 2 3 L SysReq M Attn/ - Enter FldExit 0 N Home O F13 P F14 Q F15 R F16 F1 F2 F3 F4 S F17 T F18 U F19 V F20 W F21 F5 F6 F7 F8 F9 X F22 Y F23 Z F24 F10 F11 F12

Numeric Keypad

About the Color-Coded Keys

Use the orange key and the green key to access additional characters, symbols, and functions printed on the keypad overlay. After you understand how to use the color-coded keys and key sequences, you can access all of the additional features printed on the keypad overlay.

The default setting for the Green/Orange keys is Press once to lock. You can also set the keys to Press twice to lock if you do not want the Green/Orange keys to lock after pressing them one time. The information in this section assumes that you are using the default setting for the Green/Orange keys lock options. To change the setting for the Green/Orange keys, go to Start > Settings > System > Intermec Settings > Device Settings > Keypad.

How to Use the Color-Coded Keys

You Want to Press Example
Use an orange character or function printed above a key.key (LED turns on), and then the key with the character or function printed above it (LED stays on).On the alphanumeric keypad, pressthento open the device health dashboard.
Use a green character or function printed above a key.key (LED turns on), and then the key with the character or function printed above it (LED stays on).On the alphanumeric keypad, pressandthentoselect the ok function.
Unlock the green or orange key.once.Pressoronce to unlock the key. The LED turns off.

How to Capitalize Characters

You can capitalize characters individually, or you can enable Caps Lock to type all capital letters.

To capitalize a single character

  • On the alphanumeric keypad, press the key, and then the key to select the Shift function.
  • On the numeric keypad, press the key, and then the key to select the Shift function.

To enable Caps Lock

- On the alphanumeric keypad, press the key, and then the key. B

- On the numeric keypad, press the key, and then the .key. To disable Caps Lock

- When in Caps Lock mode, press key to disable Caps Lock.

About the Power Button

When you press the Power button for about 2 seconds and hold it, the Intermec Power Options screen appears with a list of power options. If you do not select a power options setting, the currently selected action (the button outlined in bold) occurs after the timeout. Hibernate does not appear as an option if the computer is connected to external power.

ASUS V7-P7H55E - About the Power Button - 1


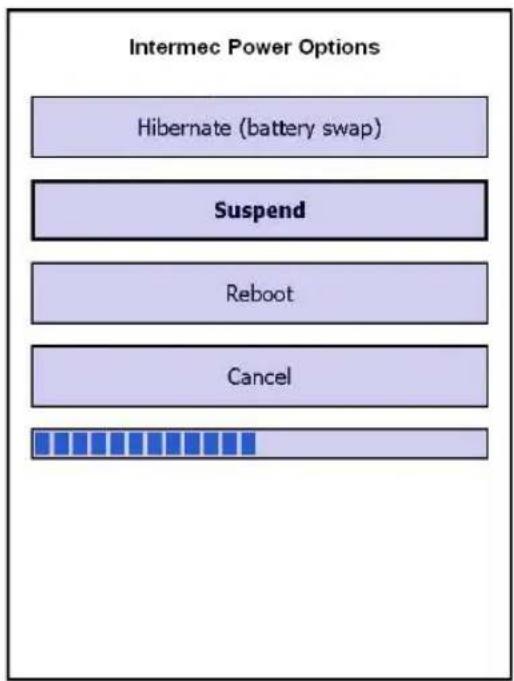

The Intermec Power Options Default Screen

Use the next table to understand the Intermec Power Options and what settings are available for your computer.

Intermec Power Options

Option Description
Hibernate (battery swap)High power saving mode. The computersaves the current system state, registry,and file system and then powers off allradios and internal devices. You can wakethe computer by pressing thePowerbutton or connecting the computer toexternal power.
Suspend Medium power saving mode. Thecomputer powers off all radios andinternal devices not involved in saving thesystem state. You can wake the computerby pressing thePowerbutton, pulling thescanner trigger, scheduling an event suchas an alarm, or by connecting thecomputer to external power.
Reboot The computer does not save the currentsystem state, but the registry and filesystems are saved. The computer shutsdown all running processes and restarts.
Cancel Cancels the Intermec Power Optionsmenu.
Screen Off Lowest power saving mode. The screenturns off, but the radios and internaldevices stay on. Tap the screen to turn itback on.
Shutdown Very high power saving mode. Thecomputer turns off everything. You mustpressPoweror apply external power torestart the computer.

If you are using WPA or 802.1x security, the computer may need to reauthenticate before it resumes your application. The Real Time Clock (RTC) will persist through all of the power options as long as it receives power from the Real Time Clock battery.

The Intermec Power Options screen is customizable. You can use Intermec Settings to determine which options are available to end users, the timeout until the default choice is selected, the default action if no option is selected, or to disable the Power Options Screen.

About the Screen Backlight

The computer has an ambient light sensor that automatically adjusts the brightness of the screen backlight to ensure that the screen is readable, while conserving power. By default, the screen turns off when there is no activity on the computer. To resume activity, press a key or tap the screen.

You can configure the brightness and the timeout of the screen backlight.

Configure the Screen Backlight Timeout

Use the Start menu to configure the timeout for the screen backlight. The Power option settings shown below suspend the device after a specific amount of time. To actually turn off the screen, go to Start > Settings > System > Intermec Settings > Device Settings > Power Management > Battery Power > Screen turns off after.

1 Tap Start > Settings > Power.
2 Tap Advanced on the horizontal scroll bar.

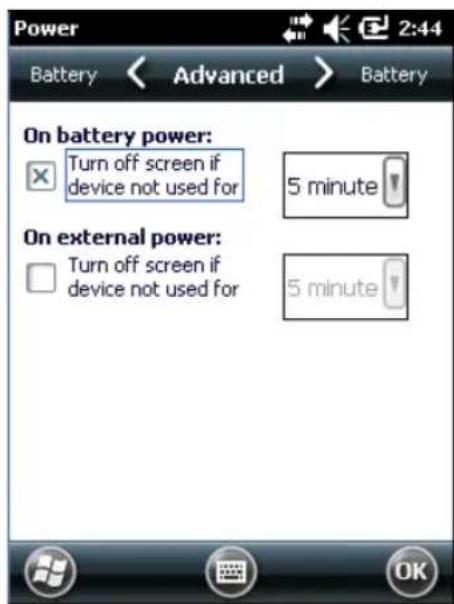

Power Battery < Advanced > Battery On battery power: Turn off screen if device not used for 5 minute On external power: Turn off screen if device not used for 5 minute OK

3 Select the screen power off settings that you want the computer to use when it is on battery power or external power.

4 Tap OK.

Configure the Screen Backlight Brightness

Use Intermec Settings to configure the brightness of the screen backlight.

1 Tap Start > Settings > System > Intermec Settings.
2 Tap Device Settings > Backlight > Display.
3 Select how bright you want the backlight to be in normal, low, and bright light conditions.
4 Tap OK and exit Intermec Settings.

About the Audio Features

Your mobile computer has a speaker, a microphone (CK3X only), and several software tools for configuring the volume of sounds.

Adjust the Speaker Volume

The computer volume includes sounds you hear when you tap the screen or scan bar codes with a scanner.

1 Tap the Title bar at the top of the screen.
2 Tap the Volume icon .
3 Use your stylus to adjust the volume slider.
4 Tap OK.

About the Push-to-Talk Feature

You can use the Push-to-Talk (PTT) feature on the CK3X to:

• record audio on your computer.
- use your computer as a two-way radio.

Record Audio

Use the Push-to-Talk (PTT) key to record audio on your computer.

1 If your computer is in suspend mode, press the PTT key to turn on the computer.

2 Press the PTT key to start the Notes application in audio note mode, and then tap the Record button to start recording.
Or, press and hold the PTT key to start the Notes application in audio note mode and start recording.
3 To stop recording, release the PTT key.

Use the Computer as a Two-Way Radio

Use the Push To Talk (PTT) feature with an audio application, such as iTalkie™, to communicate with other computers over the 802.11 radio network. For more information about the iTalkie application, go to www.tabletmedia.com/iTalkie.html.

- After you install an audio application, press and hold the PTT key to talk to another computer.

How to Read Bar Codes

The computer has an internal imager that can read 1D and 2D bar code symbologies, composite symbologies, and postal codes:

• The CK3R computer has an EA31 area imager.
- The CK3X computer has either an EA30 area imager or an EX25 near-far range area imager.

You can also connect the computer to these external scanners:

- Cordless scanners, such as the SF51, SG20, and SR61, using Bluetooth communications

- Tethered scanners, such as the SG10, SG20, SR30, and the SR61, using a CK3 RS-232 adapter (Model AA21)

Read Bar Codes with the Imager

All of the imagers have an aiming beam to help you correctly frame bar codes and they support omni-directional (360°) scanning.

Before you start reading bar codes, use Intermec Settings to:

  • enable only the bar code symbologies that you need.
  • choose the predefined imager mode that best suits your environment.

Predefined Mode For Scanning

1D Only 1D labels.

1D and 2D Standard (Default) All types of bar code labels.

1D and 2D Bright Environment In high ambient light, such as outdoors in sunshine.

1D and 2D Reflective Surface Glossy Labels.

1 Point the imager window at the bar code and hold the computer steady a few inches from the label.

2 Press the Scan button or pull the scan handle trigger. The illumination beam, laser pointer, or frame appear.

Diagram of a handheld electronic device with a barcode label and a red arrow pointing to the control panel.

For near or close-in scanning distances of 30 cm (11.8 in) or less, use the laser pointer as a guide and aim slightly to the right of the center of the bar code. Make sure the illumination beam covers the bar code you are trying to decode.

For standard and long range scanning distances of 30 cm (11.8 in) or more, use the laser pointer as a guide and aim toward the middle of the bar code. Make sure that the illumination beam covers the bar code you are trying to decode.

When the imager successfully reads a bar code label, you hear a high beep, and the Good Read LED turns on briefly.

3 Release the Scan button or trigger.

Connect a Bluetooth Scanner

You can connect the computer to an Intermec Bluetooth scanner, such as the SF51, SG20, or SR61. Make sure that the Bluetooth radio in the computer is turned on before you try to connect to a scanner.

1 Tap Start > Settings > System > Wireless Scanning.

Wireless Scanners This enabler manages Bluetooth scanner connections on this device. Add Device Remove Device Cancel Back Next 3:32

2 Tap Add Device.

3 Select Quick Connect, Search, or Manual. Follow the instructions on the screen to add a wireless scanner.

Connect a Tethered Scanner

To connect a tethered scanner to your computer, use a CK3 RS-232 Adapter (Model AA21) and scanner RS-232 interface cable. For more information, contact your local Intermec representative.

1 Connect the CK3 RS-232 adapter to the tethered scanner using the scanner RS-232 interface cable.
2 Connect the adapter to the CK3. For help, see the CK3 Series RS-232 Snap-On Adapter (AA21) Instructions.
3 Tap Start > Settings > System > Intermec Settings > Data Collection > Tethered Scanner to configure the settings for the tethered scanner.

Insert a microSD Card

Insert a micro Secure Digital (SD) card to increase file storage and install software. The mobile computer supports microSD cards that hold up to 32 GB of information. The microSD card slot is located in the battery compartment.

1 Press the Power button to turn off the computer.
2 Remove the handstrap and the battery.

3 Open the card cover door.

Diagram showing a device component with a pen inserted, indicating a rotation or adjustment mechanism.

4 Slide the microSD card cover towards the OPEN position and lift the cover.

ASUS V7-P7H55E - Insert a microSD Card - 2

natural_image Diagram of a device inside a car casing showing internal components and red directional arrows indicating rotation (no text or symbols)

Chapter 1 – About the Computer Features

5 Insert the microSD card.

ASUS V7-P7H55E - Chapter 1 – About the Computer Features - 1

natural_image Diagram of a device interior showing a device being inserted into a tray, with a red arrow indicating the insertion point (no text or symbols present)

6 Close the microSD card cover and slide it towards the LOCK position.

7 Close the card cover.

8 Use the stylus to press the Reset button in the battery compartment.

ASUS V7-P7H55E - Chapter 1 – About the Computer Features - 2

natural_image Diagram of a handheld device with a red arrow pointing to a component on the interior (no text or symbols)

24 CK3R and CK3X Mobile Computer User Manual

9 Install the battery. Press down firmly on the bottom of the battery, and make sure that the battery release tab is fully engaged.

10 Attach the handstrap.

11 Press the Power button. The computer cold boots.

How to Transfer Files

To transfer files you need to physically connect your mobile computer to your PC and install either Microsoft ActiveSync (Windows XP or earlier) or Windows Mobile Device Center (Windows Vista or Windows 7) on your PC. ActiveSync and Windows Mobile Device Center are free applications available from the Microsoft website at

www.microsoft.com/downloads.

Use one of these accessories to connect your mobile computer to your PC:

- AD20 single dock

• USB cable (P/N 236-297-001)

Set Up the Computer as a Mass Storage Device

Use the computer as a mass storage device so you can easily copy files to and from the mobile computer and your desktop PC.

1 Go to www.datalight.com and download the Reliance Nitro Windows Driver (RNWD).

2 Connect the mobile computer to your desktop PC using a USB cable.

3 On the mobile computer, tap Start > Settings > System > Intermec Settings.

4 Tap Device Settings > USB.

5 From the USB function driver menu, select Mass storage - Flash File Store and tap OK.

6 Copy files to and from your desktop PC to the mobile computer.

CK3 Options and Accessories

You can use these accessories (sold and ordered separately) with the CK3. To order accessories, contact your local Intermec sales representative.

CK3 Options and Accessories

Accessory Description
Battery (AB17, AB18, 1001AB01, 1001AB02)The AB17 standard battery, the AB18 extended battery, and the 1001AB01/1001AB02 smart battery, provide main power to the CK3.
Quad Charger (AC20) The AC20 quad charger charges up to four AB17 or AB18 batteries at one time.
Single Dock (AD20) The AD20 single dock powers your CK3 Mobile Computer and charges a spare battery (AB17 or AB18) separately. The single dock also provides client and host USB connectivity.
Ethernet Multidock (AD21) The AD21 Ethernet multidock provides Ethernet connectivity and power to up to four CK3 computers at one time.
Charge-Only Multidock (AD22)The AD22 charge-only multidock charges up to four CK3 computers at one time.
Vehicle Dock (AV10) Use the AV10 vehicle dock to hold and charge your CK3 while you are using it on a vehicle.
Vehicle Battery Adapter (AE33) Use the AE33 vehicle battery adapter to provide power to your CK3 from your vehicle. To use the vehicle battery adapter, you also need the AA23 power adapter.
FlexDock battery cup 1002UC02 with the DX2 or DX4Use the DX2 or DX4 FlexDock with battery cup 1002UC02 to charge any of the supported CK3 batteries.
RS-232 Snap-On Adapter (AA21)Use the RS-232 adapter to connect RS-232 devices to your CK3.
Power Snap-On Adapter (AA23)Use the power adapter to provide power to your CK3 from an external power supply.
Scan Handle The scan handle provides you with an alternate way to hold the CK3 and scan bar code labels using a convenient scanning trigger.
Vehicle Holder Use the vehicle holder to store your CK3 when you are not using it.
Holster The holster provides you with a convenient way to carry your CK3 when you are not using it. There are holsters for a CK3 with a handle or without a handle.
IP30 and SR61 Battery Pack AdapterThe IP30 and SR61 battery pack adapter lets you charge an AB3 battery using the CK3 quad charger (AC20) or CK3 single dock (AD20).
CK3 With IP30 Vehicle Holder If you attached an IP30 to your CK3, you can use the vehicle holder to store your CK3 when you are not using it.
Universal Wall Mount Charger KitProvides interchangeable country plugs to connect power to the computer for charging. Includes the USB charging cable (P/N 236-297-001).
Protective Boot A rubber boot to protects the computer from damage.
Ethernet Adapter Model 1004UA01 (need the AD20)Use the Ethernet adapter model 1004UA01 with the AD20 single dock to provide an Ethernet connection for the computer.
Modem Adapter Model 1004UA02 (need the AD20)Use the modem adapter model 1004UA02 with the AD20 single dock to provide a modem connection for the computer.
USB Charging Cable (P/N 236-297-001)Use the USB charging cable to connect your computer to the desktop using ActiveSync or to directly charge the computer.

Chapter 1 – About the Computer Features

2

About the User Interface and Intermec Applications

Use this chapter to learn about the Windows Embedded Handheld user interface and how to interact with the screen. You can also use this chapter to learn about the Intermec applications on your computer, as well as additional applications you can download.

Chapter 2 – About the User Interface and Intermec Applications

About the User Interface

The Windows Embedded Handheld 6.5 operating system provides a touch-friendly and easy to navigate user interface.

About the Home Screen

When you turn on your mobile computer, the Home screen is the first screen that appears after language provisioning is complete.

11:55 No unread messages No tasks No upcoming appointments Bing Device unlocked Calendar Contacts

The Windows Embedded Handheld 6.5 Home Screen

Home Screen Navigation Bars

Callout Navigation Bar Description

1 Title bar Use the Title bar icons to view the current status of information such as signal strength and battery power remaining.

Chapter 2 – About the User Interface and Intermec Applications

Home Screen Navigation Bars (Continued)

Callout Navigation Bar Description

2 Horizontal scroll bar A horizontal scroll bar appears when you tap the Title bar. The horizontal scroll bar makes it easy to access the applications associated with the Tile bar icons. The horizontal scroll bar also contains a magnifier which improves the touch experience by making parts of the screen large enough to tap with your finger. The horizontal scroll bar also replaces tabs within Windows screens and allows for easier navigation.

3 Tile bar Use the Tile bar to access the Start menu, navigate within applications, and open the SIP.

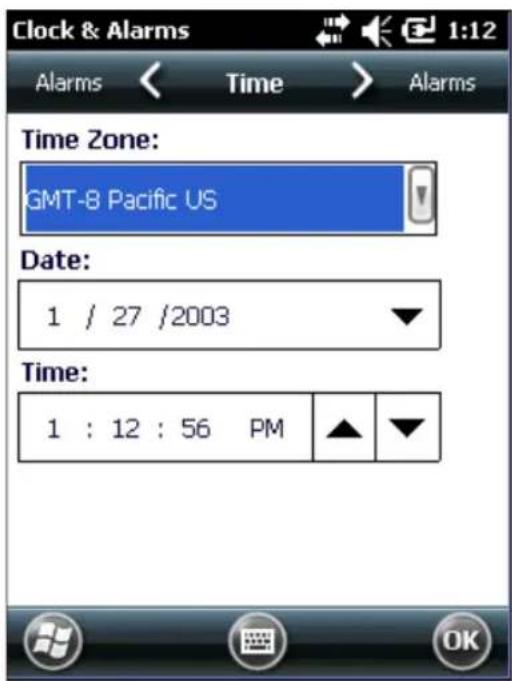

The Clock & Alarms screen shows how the horizontal scroll bar appears when you open an application.

Clock & Alarms Alarms < Time > Alarms Time Zone: GMT-8 Pacific US Date: 1 / 27 /2003 Time: 1 : 12 : 56 PM

Clock & Alarms Screen with Horizontal Scroll Bar

About Screen Gestures

The Windows Embedded Handheld 6.5 interface supports the use of gestures with the finger or stylus to move around the screen.

Screen Gestures

Gesture Description
Tap Represents the left click of a mouse.
Double-tap Represents the left double-click of a mouse.
Hold Represents the right click of a mouse when you press and hold on the screen and a context menu appears.
Flick Initiates scrolling in the direction (horizontal or vertical) the finger or stylus moves across the screen.
Pan Press and hold on the screen and then drag in any direction.

Title Bar Status Icons

Tappable icons on the Title bar immediately show you the status of your network, the volume, the battery, and the time.

Title Bar Status Icons

Icon Description
ASUS V7-P7H55E - Title Bar Status Icons - 1You have a new notification.
ASUS V7-P7H55E - Title Bar Status Icons - 2You have a new text message.
ASUS V7-P7H55E - Title Bar Status Icons - 3You have a new email message.
ASUS V7-P7H55E - Title Bar Status Icons - 4You have a new instant message.
ASUS V7-P7H55E - Title Bar Status Icons - 5An alarm is set.
ASUS V7-P7H55E - Title Bar Status Icons - 6(CK3X) Microphone is on.
ASUS V7-P7H55E - Title Bar Status Icons - 7Internet call is in progress.
ASUS V7-P7H55E - Title Bar Status Icons - 8Bluetooth is on.

Chapter 2 – About the User Interface and Intermec Applications

Title Bar Status Icons (Continued)

Icon Description
Bluetooth headset is detected.
ActiveSync connection is established.
ActiveSync synchronization is in progress.
There is a problem with the ActiveSync synchronization.
Connected to a Wi-Fi network.
Connected to a Wi-Fi network, and other networks are detected.
Wi-Fi synchronization is in progress.
Other Wi-Fi networks are detected.
Information about a new Wi-Fi network is available.
Wi-Fi is on, but not connected to a network, and other networks are detected.
Wi-Fi is on, but not connected to a network, and no networks are detected.
A network connection is active.
A network connection is inactive.
The volume is on.
The volume is off.
The battery has full charge.
The battery has a high charge.
The battery has a medium charge.
The battery has a low charge.

Chapter 2 – About the User Interface and Intermec Applications

Title Bar Status Icons (Continued)

Icon Description
The battery has a very low charge.
The computer is attached to external power and the battery is charging.
No battery is installed in the computer.

Calibrate the Screen

If the touch screen does not respond when you tap it with the stylus, you may need to align the screen using the stylus.

1 Tap Start > Settings > Systems > Screen.
2 Tap Align Screen and follow the instructions to align the screen.
3 Tap OK.

About Intermec Applications

Intermec provides many useful applications to help you configure, troubleshoot, and connect your computer to other devices and networks. You can also download additional applications from the Intermec website to help you use all of the features of your computer.

Intermec Applications on the Computer

Intermec applications help you configure, troubleshoot, and connect your computer to other devices and networks.

Intermec Applications Available on the Mobile Computer

Icon Application Description
ASUS V7-P7H55E - Intermec Applications on the Computer - 1Bluetooth Audio Use the Bluetooth Audio application to connect to a Bluetooth headset or hands-free device.
ASUS V7-P7H55E - Intermec Applications on the Computer - 2CloneNGo Use CloneNGo to configure basic device settings on multiple client computers from one master computer. For more information, see the CloneNGo User Guide.
ASUS V7-P7H55E - Intermec Applications on the Computer - 3Intermec Settings Use Intermec Settings to configure your computer. You can use Intermec Settings to individually configure a computer or you can use it through SmartSystems to configure all of your computers.
ASUS V7-P7H55E - Intermec Applications on the Computer - 4ISpyWiFi Use ISpyWiFi to check your 802.11 status and diagnose issues with the connection.
ASUS V7-P7H55E - Intermec Applications on the Computer - 5Profile Settings Use Profile Settings to easily configure the computer for a specific use. You can choose predefined values for the Power and Scanning.
ASUS V7-P7H55E - Intermec Applications on the Computer - 6ScanDiagnostic Use the ScanDiagnostic application to troubleshoot problems with the internal or external scanner.
ASUS V7-P7H55E - Intermec Applications on the Computer - 7Sensor Calibration Use the Sensor Calibration application to calibrate the accelerometer.
ASUS V7-P7H55E - Intermec Applications on the Computer - 8Wireless Center Use the Wireless Center to turn radios (Wi-Fi, Bluetooth) on and off and configure settings for each radio.
ASUS V7-P7H55E - Intermec Applications on the Computer - 9Wireless Printing Use the Wireless Printing application to connect to a Bluetooth printer.

Intermec Applications Available on the Mobile Computer (Continued)

Icon Application Description

ASUS V7-P7H55E - Icon Application Description - 1

Wireless Readers Use the Wireless Readers application to connect the computer to the IP30 RFID reader.

ASUS V7-P7H55E - Icon Application Description - 2

Wireless Scanning Use the Wireless Scanning application to connect to a Bluetooth scanner.

Downloadable Intermec Applications for the Computer

You can download Intermec applications to extend the capabilities of the computer. You may need to purchase an Intermec license to run some applications. To find an application, go to www.intermec.com > Support > Downloads.

About Features Demo

Intermec Features Demo provides a simple way to explore the key features of your mobile computer. Features Demo applications demonstrate scanning, document imaging, image capture, and printing functionality. Many of the applications that are part of Features Demo also have separate full-featured versions that you can download and license for your computer. For more information on Features Demo, see Intermec Features Demo User Guide.

About Intermec Browser

Intermec Browser is a web browser designed for Intermec computers and is compatible with Microsoft® Internet Explorer® 6 (IE6) and Pocket Internet Explorer (PIE). This locked-down application deliberately limits normal web browser functionality. For example, users cannot exit the program, type URLs, or use the Back button. You can configure Intermec Browser for your specific application requirements and you can design your own web pages.

You can download and use Intermec Browser for free for a 60-day evaluation period. After the evaluation period expires, you need to purchase a license. For more information on Intermec Browser, see the Intermec Browser User Manual.

About Intermec HTML5 Browser

Intermec HTML5 Browser provides a free open-platform application environment for Intermec computers. You can now run the same cross-platform web applications on an Intermec computer that you can run on iOS and Android devices. Intermec HTML5 Browser also lets you run applications while the computer is connected to the web or while it is offline. For more information on the HTML5 Browser, see the Intermec HTML5 Browser User Guide

About Intermec Launcher

Intermec Launcher is a Microsoft Windows application, designed for Intermec mobile computers, that provides a platform from which other applications may be launched while attempting to provide a locked-down environment. You can configure Intermec Launcher for your specific application requirements. You can download and use Intermec Launcher for a 60-day evaluation period. After the evaluation period expires, you will need to purchase a license. For more information on Intermec Launcher, see the Intermec Launcher Version 2.00 User Guide.

About Intermec Terminal Emulator

Intermec Terminal Emulator (ITE) is Intermec's popular terminal emulation client designed for enterprise-level data collection. In a single client, ITE supports multiple emulation protocols. Its features include session persistence, remote management and configuration, and multiple security options. ITE provides a consistent user interface and a common menu structure (Intermec Settings), which simplifies the use and management of applications running on Intermec mobile computers.

You can download and use ITE for free for a 60-day demo period. During the demo period, a demo mode message box appears each time you launch ITE. Press Enter to close the message box. When the demo period expires, you need to purchase a license. For more information on ITE, see the Intermec Terminal Emulator (ITE) User Guide.

Chapter 2 – About the User Interface and Intermec Applications

About SmartSystems

Intermec SmartSystems™ is an easy-to-use centralized software platform. With SmartSystems, IT Administrators and Integrators can perform hands-free provisioning and deploy and manage Intermec devices.

SmartSystems provides a consistent way to manage Intermec devices located on-site or remotely to maximize IT resources and lower the total cost of ownership for Intermec data collection equipment.

SmartSystems Foundation can be downloaded at no charge from the Intermec website. For more information, visit

www.intermec.com/SmartSystems.

3

Configure the Computer

Use this chapter to learn about the available methods for configuring your computer and how to use Intermec Settings. You can also use this chapter to learn how to configure network communications and wireless security.

How to Configure the Computer

You can configure many parameters on the computer such as the bar code symbologies it decodes or the network settings. The values you set for these parameters determine how the computer operates.

There are several ways to configure the computer:

  • Directly on the computer. You can use Intermec Settings directly on the computer to change only the settings on that computer.
  • Remotely using Intermec SmartSystems. With SmartSystems, you can remotely configure all of your mobile computers as well as other SmartSystems-enabled Intermec devices and peripherals.
  • Using a third-party device management product that supports the computer and Intermec Settings, such as Soti MobiControl or Wavelink Avalanche.
    • Using configuration bundles that you create with SmartSystems.

About Intermec Settings on the Computer

Use Intermec Settings to configure parameters for Intermec applications on the computer, as well as some device-specific parameters like volume. You can configure parameters for important functions like data collection and communications. You can also password protect Intermec Settings to prevent users from making changes to the configuration settings.

Start Intermec Settings

Use Intermec Settings to configure parameters for Intermec applications and some device-specific parameters. Intermec Settings is located on the System screen.

- Tap Start > Settings > System > Intermec Settings. The Intermec Settings Main Menu appears.

Intermec Settings. 3:46 Main Menu Data Collection Communications Device Settings Printers GPS SmartSystems Information

About the Structure of Intermec Settings

Use the following tables to help find the parameters in Intermec Settings that you want to configure. Each table contains the parameters for one of the Intermec Settings Main Menu options.

Most parameters are saved as soon as you tap OK. Some settings, such as Security Choice, require you to reboot the computer for the changes to take effect.

Data Collection Menu

Data Collection Options Parameters You Can Configure
Internal ScannerEnable Scanner PortSymbologiesScanner SettingsImager SettingsDecode Security
Dock Tethered ScannerTethered-Configure on ConnectEnable Scanner PortEnable Scanner Auto-detectSymbologiesScanner SettingsScanner Port SettingsImager SettingsDecode Security
Bluetooth ScannerBT-Configure on Connect

Communications Menu

Communications Options Parameters You Can Configure
Device Name Device Name
802.11 RadioRadio EnabledSecurity ChoiceSecurity Settings (Funk or Microsoft)IP SettingsCertificatesRadio MeasurementRadio Bands (CK3X only)Allow Security Changes
Ethernet Adapter IP Settings
Bluetooth Bluetooth Settings

Device Settings

Device Settings Options Parameters You Can Configure
Backlight Display and Keypad Settings
Date and Time Date and Time Settings
Good ReadInternal ScannerTethered ScannerBluetooth ScannerRFID Scanner
IDL Runtime Versions Read-only
Keypad Button Remapping
Power ManagementPower ButtonBattery PowerExternal PowerDevice Off Sensor (CK3X only)
Profile Settings Application Whether these parameter options appear in Profile Settings:PowerScanning
ScreenScreen RotationScreen Rotation Sensor (CK3X only)
Security Enables or disables ActiveSync, the SDCard, A USB external drive, and image capture.
SoundsBeeper and VoiceHeadset BeeperScreen TapsKey Clicks
System Component Versions Read-only
USB USB Function Driver

Printers Menu

Printer Options Parameters You Can Configure
Printer (connected through Bluetooth)Printer Settings

ASUS V7-P7H55E - About the Structure of Intermec Settings - 1

Note: The Printers menu displays settings for Bluetooth connected printers. The settings that appear in the menu are dependent on the printer that is paired with the device. The printer needs to be using the Wireless Printing application.

Core Messaging Service Menu

Core Messaging Service Options Parameters You Can Configure
Server IP Read-only
Associated Server IP Associated Server IP
Broadcast Name Broadcast name
Port Read-only
Keep Alive Ping Interval Keep Alive Ping Interval

SmartSystems Information Menu

SmartSystems Information Options Parameters You Can Configure
Identity Identity Information (hardware version, firmware version, OS version, and so on) (Read-only)
Administrator Administrator Settings (name, phone, and email)
Location Location Settings (country, state, city, campus, and detail)
Information Device Notes (Read-only)

Device Monitor Menu

Device Monitor Options Parameters You Can Configure
Device Health ControlsEnable Health Data CollectionEnable Device Health ApplicationEnable Blue Light (LED)Set Rule File LocationCollect Abuse HistorySet Data Refresh Periods
Device Health Screen CapturesDirectoryScreen Captures Allowed
Disabled Executables Read-only
Device WipeEnable WipeInterval

License Manager Menu

License Manager Options Parameters You Can Configure
About Read-only
License Vault Read-only

Virtual Wedge Menu

Virtual Wedge Options Parameters You Can Configure
Enable Virtual Wedge Enable Virtual Wedge
Virtual Wedge Method Virtual Wedge Method (Adapt to application, character mode, or block mode)
Bar Code Scanner Wedge• Bar Code Scanner Grid• Label Encoding (Code page)
Magstripe Reader Wedge Magstripe Reader Grid
RFID Reader Wedge• Read Command• User-Defined Read Command• Date• Time• Tag Separator• User-Defined Tag Separator• End of Message• User-Defined End of Message• RFID Reader Grid

Location Services Menu
Location Services Options Parameters You Can Configure

Server• Port
• Enable Server

Virtual GPS Virtual GPS Settings

RFID Menu
RFID Options Parameters You Can Configure

Enable RFID Service· Enable RFID Service
· Application Connection
· Reader 1

How to Navigate in Intermec Settings

You can easily navigate through the screens in Intermec Settings to find the parameters you need to configure:

  • Tap inside a text field to be able to enter text into it.
  • Tap a field once to select it.
  • If you see a ... next to a menu item, there is only one more screen available. Tap the menu item to access this screen.
  • If you see a > next to a menu item, there are more screens available in the next level. Tap the menu item to access these screens.
  • Use the up and down arrow keys to move up and down the menu.
  • To move back a level in the menu, tap Back or Cancel on the Tile bar.
    • To exit Intermec Settings, tap Menu > Exit or OK.

Enable Intermec Settings Password

You can protect Intermec Settings from other users by enabling a password.

1 Start Intermec Settings.
2 Tap Menu > Enter Password.
3 Select the Enable password checkbox.

4 Type your password in the Enter: text box.

5 Retype your password in the Confirm: text box.

6 (Optional) Select the Use password to protect CAB Installation if you want to restrict the installation of .cab files.

7 Tap OK.

The easiest way to restore default settings on your computer is to use Intermec Settings. You can restore all default settings on your computer or restore default settings for a specific menu item in Intermec Settings.

ASUS V7-P7H55E - Enable Intermec Settings Password - 1

Note: When you restore default settings, only the settings for visible menu items are restored. The settings for hidden menu items are not affected.

1 Start Intermec Settings.
2 Restore the default settings:

- To restore all default settings, tap Menu > Restore all Defaults.

- To restore default settings for one menu item, navigate to the menu and tap Menu > Restore Menu Defaults.

3 When prompted, tap Yes to restore the default settings.

If you are prompted to refresh the computer, tap Yes.

Configure the Computer Remotely with SmartSystems

You can use Intermec Settings from a SmartSystems console to remotely configure all the Intermec computers. For help using Intermec Settings, click Help > Contents. For information on all the parameters in Intermec Settings, see the Intermec Settings Command Reference Manual.

1 In the SmartSystems console, select a computer and then right-click on it. A list appears.
2 Select Start Intermec Settings.
3 Configure the settings you want to change. As you select parameters, help for each parameter appears in the upper right pane.
4 When you are done making changes, select File > Save Settings.

About Network Communications

You can use the mobile computer in your wireless or wired data collection network. You can connect your computer using:

• 802.11 radio communications.
- Ethernet communications.
- Bluetooth communications.
- USB and serial communications.

Configure 802.11 Radio Communications

ASUS V7-P7H55E - Configure 802.11 Radio Communications - 1

Caution: Make sure all components with antennas are at least 30 cm (1 ft) apart when power is applied. Failure to comply could result in equipment damage.

The CK3R has an 802.11b/g/n radio and the CK3X has an 801.11a/b/g/n radio to transfer data using wireless communications. Before you configure radio communications, you need to have your wireless network set up including your access points.

By default, the 802.11 radio is disabled. Use the following procedure to enable the Wi-Fi radio using Intermec Settings.

1 Tap Start > Settings > System > Intermec Settings.
2 From the Intermec Settings main menu, tap Communications > 802.11 Radio > Radio Enabled.
3 Select the Radio Enabled check box and tap OK. By default, the computer uses Funk security and enables DHCP.
4 Use Intermec Settings to configure the parameters you need to use for communications with your network.
5 Configure 802.11 security.

About Bluetooth Communications

The CK3 is Bluetooth-enabled, which lets you connect to other Bluetooth devices such as:

  • scanners.
  • printers.
  • audio devices.
  • wireless readers.

You need to turn on the Bluetooth radio before you can discover and connect to Bluetooth devices. By default, the radio is turned off.

The Bluetooth radio maintains its current state through a warm or cold boot and maintains virtual COM ports. If you clean boot the CK3, you must recreate pairings to devices.

You can also access Bluetooth settings using Intermec Settings.

Turn On the Bluetooth Radio

You need to turn on the Bluetooth radio in the CK3 before you can discover and connect to Bluetooth devices. By default the radio is turned off.

1 Tap Start > Settings > Bluetooth > Mode tab.

2 Tap Turn on Bluetooth.

Bluetooth Devices < Mode > COM Ports Turn on Bluetooth Make this device visible to other devices To connect to a device, click on the Devices tab below.

3 (Optional) If you want this CK3 to be visible to other Bluetooth devices, tap Make this device visible to other devices.

4 Tap OK.

Connect a Bluetooth Scanner

You can connect the computer to an Intermec Bluetooth scanner, such as the SF51, SG20, or SR61. Make sure that the Bluetooth radio in the computer is turned on before you try to connect to a scanner.

1 Tap Start > Settings > System > Wireless Scanning.

Wireless Scanners This enabler manages Bluetooth scanner connections on this device. Add Device Remove Device Cancel Back Next 3:32

2 Tap Add Device.

3 Select Quick Connect, Search, or Manual. Follow the instructions on the screen to add a wireless scanner.

Create a Configuration Bar Code with EasySet

To connect a Blueooth scanner to the computer, you can use the computer to read a configuration bar code for the scanner. You create the bar code using Intermec EasySet.

ASUS V7-P7H55E - Create a Configuration Bar Code with EasySet - 1

Note: To create the configuration bar code, you need the computer Bluetooth address. The address is on the labels located on the outside of the computer shipping box, and on the packet of information that ships with the computer.

1 Go to the Intermec website at www.intermec.com.

2 Click the Products tab.

Chapter 3 – Configure the Computer

3 On the Products page, click Computers > Handheld Computers > CK3 > the Downloads tab > Easyset ver. 5.x.x.x.
4 Follow the instructions to download and install EasySet.
5 Open EasySet and select Interface > Bluetooth > Connect/disconnect > Compose BT address. The Bluetooth - Connect/disconnect - Compose BT address screen appears.
6 Enter the BT address listed on the labels that shipped with your computer.
7 Click OK.

Connect to a Bluetooth Printer

You can connect the computer to a Bluetooth printer and use the computer to wirelessly print to the printer. Make sure that the Bluetooth radio in the computer is turned on before you try to connect to an Intermec Bluetooth printer, such as the PB21, PB50, or PR3. To configure your computer for printing wirelessly using Bluetooth, you need to:

  • create an application that opens the wireless printing COM port on the computer. For help, see the Bluetooth Resource Kit, which is part of the Intermec Developer Library (IDL), available from the Intermec website at www.intermec.com/idl.
  • select the current Bluetooth printer on the computer. For help, see the next procedure.

ASUS V7-P7H55E - Connect to a Bluetooth Printer - 1

Note: You can also print wirelessly using Microsoft APIs with Bluetooth extensions for Winsock and Bluetooth virtual COM ports. For help, see the Bluetooth Resource Kit documentation.

1 Tap Start > Settings > System > Wireless Printing.

Bluetooth Printing 4:20 Current Printer -None set- Enable Printer Print Test Page Set Different Printer Manual Search Previous

2 Tap Search to find a printer, or tap Manual to enter a device address. Follow the onscreen instructions to select the current Bluetooth printer.

3 (Optional) Tap Print Test Page. The printer prints out a test page.

Connect a Bluetooth Audio Device

Use the Bluetooth Audio applet to discover, activate, and connect to Bluetooth audio devices such as a headset.

1 Select Start > Settings > System > Bluetooth Audio. The Bluetooth Audio screen appears.

Bluetooth Audio 3:43 Connect headsets / hands-free devices Search Select a device above for pop-up menu. Keep audio connected at suspend Mono Headset Settings 0 Volume 15 0 Microphone 15

2 Follow the onscreen instructions to discover and connect to a Bluetooth audio device.

ASUS V7-P7H55E - Connect a Bluetooth Audio Device - 2

Note: If a wired audio device such as a headset is already connected to the computer, Bluetooth audio receives priority when a Bluetooth audio device is connected.

Connect to a Wireless Reader

You can connect the computer to a Bluetooth RFID reader, such as the IP30. Use Intermec Settings to configure or view information on your connected RFID readers.

1 Tap Start > Settings > System > Wireless Readers.

Wireless Readers Welcome, this enabler manages Bluetooth RFID readers on this device. Add Reader Remove Reader Cancel Back Next 3:47 OK

2 Tap Add Reader.

3 Select Search or Manual. Follow the onscreen instructions to add a wireless reader.

About Serial and USB Communications

You can use these accessories to transmit data to and receive data from another device through serial or USB communications:

  • AD20 single dock
  • AV10 vehicle dock
    • AA21 RS-232 adapter

For information on these accessories, contact your local Intermec representative.

About Wireless Security

The computer provides these security solutions for your wireless network:

• Wi-Fi Protected Access 2 (WPA2™)
• Wi-Fi Protected Access (WPA)
• 802.1x
- LEAP (Funk security only)
• WEP

You use either Funk or Microsoft security to implement your wireless security solution. Intermec recommends WPA2 security with PSK (Personal) or 802.1x (Enterprise) key management.

Before you set security, you need to enable the radio, set the date, and set the SSID on your computer. To use 802.1x security, you need to load a root certificate on your computer. To use transport layer security (TLS) with WPA or 802.1x security, you also need to load a user certificate.

Load a Certificate

To use transport layer security (TLS) with WPA or 802.1x security, you need a unique client certificate on the computer and a trusted root certificate authority (CA) certificate.

1 Start Intermec Settings.

2 Select Communications > 802.11 Radio > Certificates.

Intermec Settings Certificates PAC Manager PAC Manager Enroll Certificates Enroll Certificates Certificates Applet Certificates Applet Import Certificates Import Certificates Import Root Certificates

3 Tap Import Certificates.

4 To import a certificate chain:

a Tap the Import PFX tab.
b Next to the Select pfx to import field, tap <<.
c Find and select the root certificate.
d If necessary, enter the Password of pfx.
e Tap Import Certificate.

5 To import user and root certificates from a Microsoft ISD server:

a Tap Web Enrollment.
b To log on to the server, enter the User, Password, and Server (IP Address).
c Tap OK.

Chapter 3 – Configure the Computer

d When you are prompted to load the root certificate, tap OK.
e When the message box appears to let you know the certificate has been added, tap OK.

How to Make Your Security Choice

The computer supports Funk and Microsoft® security. Your security choice depends on your network security needs:

  • Choose Funk security if you use the computer in a static environment that requires a high level of security. Funk security provides CCX v4.0 compliance, support for LEAP and TTLS, and configuration for up to four profiles. Funk security is the default security setting on the computer.
  • Choose Microsoft security if you primarily use the computer to connect to Wi-Fi hotspots.

ASUS V7-P7H55E - How to Make Your Security Choice - 1

Note: Your security choice does not depend on your authentication server. For example, if you use Microsoft Active Directory® to issue certificates, you can still choose Funk security.

Select a Funk Security Profile

You can define up to four profiles for Funk security. Different profiles let your computer communicate in different networks without having to change all your security settings. For example, you may want to set up one profile for the manufacturing floor and one for the warehouse. By default, the active profile is Profile 1.

1 Start Intermec Settings.
2 Select Communications > 802.11 Radio > Funk Security.
3 Tap a profile to expand it.
4 (Optional) In the Profile Label text box, enter a meaningful name for your profile.
5 Configure your security settings. For help, see the next sections.
6 Repeat Steps 3 through 5 for each profile you want to define.

7 To set the active profile, tap Active Profile and select a profile from the list.
8 Save your settings.

Configure WPA or WPA2 Enterprise (802.1x) Security with Funk Security

Before you set WPA-802.1x or WPA2-802.1x security with Funk, you need to configure your authentication server and authenticators. To use TLS protocol, you also need to load a user and root certificate. On your computer, you need to enable the radio and set the date.

1 Start Intermec Settings.
2 Select Communications > 802.11 Radio > Funk Security.
3 Select a Funk security profile to configure.
4 Enter the SSID.
5 For Association, select WPA or WPA2. The default encryption is TKIP or AES, respectively.

6 For 8021x, select TTLS, PEAP, EAP-FAST, or TLS.

7 If you selected TTLS, PEAP, or EAP-FAST:

a For Prompt for Credentials, select Enter credentials now.
b Enter a User Name and User Password.

8 If you selected TLS, enter a User Name and Subject Name.

9 For Validate Server Certificate, select Yes.

10 Tap OK.

Configure WPA or WPA2 Personal (PSK) Security with Funk Security

Before you set WPA or WPA2 Personal (PSK) security, you need to know the pre-shared key for your access point or passphrase for your authenticator. On your computer, you need to enable the radio and set the date.

1 Start Intermec Settings.

Chapter 3 – Configure the Computer

2 Select Communications > 802.11 Radio > Funk Security.
3 Select a Funk security profile to configure.
4 Enter the SSID.
5 For Association, select WPA or WPA2.

The default encryption is TKIP or AES, respectively.

6 For 8021x, select None.
7 For Pre-Shared Key, enter the pre-shared key or passphrase:

- Enter the pre-shared key (0x followed by 32 hexadecimal pairs) for your access point.

- Enter the passphrase (8 to 63 ASCII characters) for your authenticator. The computer internally converts the passphrase to a pre-shared key.

8 Tap OK.

Configure 802.1x Security with Funk Security

Before you set 802.1x-WEP security with Funk security, you need to enable the radio on your computer and set the date. To use TLS protocol, you also need to load a user and root certificate. Intermec recommends that you use WPA2-802.1x instead of 802.1x-WEP if possible.

1 Start Intermec Settings.
2 Select Communications > 802.11 Radio > Funk Security.
3 Select a Funk security profile to configure.
4 Enter the SSID.
5 For Association, select Open.
6 For Encryption, select WEP.
7 For 8021x, select TTLS, PEAP, or TLS.
8 If you selected TTLS or PEAP:

a For Prompt for Credentials, select Enter credentials now.
b Enter a User Name and a User Password.

9 If you selected TLS, enter a User Name and Subject Name.
10 For Validate Server Certificate, select Yes.
11 Tap OK.

Configure LEAP Security with Funk Security

Before you set LEAP security, you need to enable the radio and set the date on your computer.

1 Start Intermec Settings.
2 Select Communications > 802.11 Radio > Funk Security.
3 Select a Funk security profile to configure.
4 Enter the SSID.
5 For Association, select Open, WPA, WPA2, or Network EAP. The default encryption is TKIP for WPA, AES for WPA2, and WEP for Open or Network EAP.
6 For Prompt for Credentials, select Enter credentials now.
7 Type a User Name and User Password.
8 Save your settings.

Configure Static WEP Security with Funk Security

Before you set static WEP security with Funk security, you need to enable the radio on your computer and set the date. Intermec recommends that you use WPA2-PSK instead of WEP if possible.

1 Start Intermec Settings.

2 Select Communications > 802.11 Radio > Funk Security.

3 Select a Funk security profile to configure.

4 Enter the SSID.

5 For Association, select Open.

6 For Encryption, select WEP.

7 For 8021x, select None.

Chapter 3 – Configure the Computer

8 Enter an ASCII key or hex key value for each key you want to use (Key 1 through Key 4):

  • For 64-bit WEP, enter a 5-byte value: 5 ASCII characters or 0x followed by 5 hexadecimal pairs.
  • For 128-bit WEP, enter a 13-byte value: 13 ASCII characters or 0x followed by 13 hexadecimal pairs.
    9 Select the Transmit key you want to use to transmit data.
    10 Tap OK.

Use Open (No Security) Associations with Funk Security

To create an open network, you can set no security with Funk security.

1 Start Intermec Settings.
2 Select Communications > 802.11 Radio > Funk Security.
3 Select the active Funk security profile.
4 Enter the SSID.
5 For Association, select Open.
6 For Encryption, select WEP.
7 Tap OK.

Select Microsoft as Your Security Choice

The default security setting is Funk. If you want to use Microsoft Wireless Zero Configuration (WZC) security, you need to select it as your security choice.

1 Start Intermec Settings.
2 Select Communications > 802.11 Radio > Security Choice.
3 Select Microsoft Security.
4 Tap Yes to save your settings and reboot the computer.

The computer reboots and starts with Microsoft Security as the Security Choice.

Configure WPA or WPA2 Enterprise (802.1x) Security with Microsoft Security

Before you set WPA-802.1x or WPA2-802.1x security with Microsoft, you need to configure your authentication server and authenticators. To use TLS protocol, you also need to load a user and root certificate. On your computer, you need to enable the radio and set the date.

1 Start Intermec Settings.
2 Select Communications > 802.11 Radio > Microsoft Security.
3 Enter the Network name (SSID).
4 For Infrastructure Mode, select Infrastructure.
5 For Network Authentication, select WPA or WPA2.
The default encryption is TKIP or AES, respectively.

6 For 802.1X Authentication, select TLS or PEAP.

7 Select Hidden Network.

8 Tap OK. The User Logon dialog box appears.

9 If you selected PEAP:

a Enter a User Name, Password, and Domain.
b If you want to save the password for future authentication sessions, select Save Password.

10 If you selected TLS, enter a User Name and Domain.

11 For Network Key Setting, select Automatic.

12 Tap OK.

Configure WPA or WPA2 Personal (PSK) Security with Microsoft Security

Before you set WPA or WPA2 Personal (PSK) security, you need to need to know the pre-shared key for your access point or passphrase for your authenticator. On your computer, you need to enable the radio and set the date.

1 Start Intermec Settings.
2 Select Communications > 802.11 Radio > Microsoft Security.

3 Enter the Network name (SSID).
4 For Infrastructure Mode, select Infrastructure.
5 For Association, select WPA-PSK or WPA2-PSK.

The default encryption is TKIP or AES, respectively.

6 For Pre-Shared Key, enter the pre-shared key or passphrase:

  • Enter the pre-shared key (0x followed by 32 hexadecimal pairs) for your access point.
  • Enter the passphrase (8 to 63 ASCII characters) for your authenticator. The computer internally converts the passphrase to a pre-shared key.

7 Tap OK.

Configure 802.1x Security with Microsoft Security

Before you set 802.1x-WEP security with Microsoft security, you need to enable the radio on your computer and set the date. To use TLS protocol, you also need to load a user and root certificate. Intermec recommends that you use WPA2-802.1x instead of 802.1x-WEP if possible.

1 Start Intermec Settings.
2 Select Communications > 802.11 Radio > Microsoft Security.
3 Enter the Network name (SSID).
4 For Infrastructure Mode, select Infrastructure.
5 For Network Authentication, select Open.
6 For Data Encryption, select WEP.
7 For 802.1X Authentication, select TLS or PEAP.
8 Select Hidden Network.
9 Tap OK. The User Logon dialog box appears.

10 If you selected PEAP:

a Enter a User Name, Password, and Domain.
b If you want to save the password for future authentication sessions, select Save Password.

11 If you selected TLS, enter a User Name and Domain.

12 Tap OK.

Configure Static WEP Security with Microsoft Security

Before you set static WEP security with Microsoft security, you need to enable the radio on your computer and set the date. Intermec recommends that you use WPA2-PSK instead of WEP if possible.

1 Start Intermec Settings.
2 Select Communications > 802.11 Radio > Microsoft Security.
3 Enter the Network name (SSID).
4 For Network Authentication, select Open.
5 For Data Encryption, select WEP.
6 For 802.1X Authentication, select Disabled.

7 For Network Key Value, enter an ASCII key or hex key:

- For 64-bit WEP, enter a 5-byte value: 5 ASCII characters or 0x followed by 5 hexadecimal pairs.

- For 128-bit WEP, enter a 13-byte value: 13 ASCII characters or 0x followed by 13 hexadecimal pairs.

8 For Network Key Index, select the key you want to use to transmit data.

9 Tap OK.

Use Open (No Security) Associations with Microsoft Security

To create an open network, you can set no security with Microsoft security.

1 Start Intermec Settings.
2 Select Communications > 802.11 Radio > Microsoft Security.
3 Enter the Network name (SSID).
4 For Network Authentication, select Open.

Chapter 3 – Configure the Computer

5 For Data Encryption, select Disabled.

6 Tap OK.

4

Manage the Computer

Use this chapter to learn how to remotely update, configure, and monitor your Intermec computers. You will also find information on installing and developing software applications as well as how to upgrade the system software.

About Managing the Computer in Your Network

When you have multiple mobile computers and peripherals in your network, it is essential to have an easy way to manage updates, configure all the devices, and remotely troubleshoot problems. Intermec provides two free software solutions for managing your computers:

  • CloneNGo is a peer-to-peer license-free way to easily clone settings from one computer to another.
  • SmartSystems™ is a device management software platform that helps you manage your devices.
  • You can also purchase third-party device management software through a vendor.

How to Manage the Computer Using CloneNGo

Intermec CloneNGo is a software application that allows you to copy the settings and parameters from a master computer onto one or more client computers. Cloning reduces redundancy and error by providing an efficient and accurate way to copy and transmit settings from a master computer to one or more client computers through an adhoc wireless network. For more information on using CloneNGo, see the CloneNGo User Guide.

How to Manage the Computer Using SmartSystems

Intermec SmartSystems is a software platform that lets you manage all of your SmartSystems-enabled devices simultaneously from a central server. From the Intermec website, you can download this application at no charge. For help, see www.intermec.com/SmartSystems.

The SmartSystems console displays all SmartSystems-enabled devices and peripherals in your network. Through the console, you can:

  • drag-and-drop configuration bundles, operating system updates, and firmware upgrades to multiple computers.
  • save configuration settings from a single device and deploy those settings to many devices simultaneously.
  • remotely change settings on the computer and peripherals.

The SmartSystems console can report on asset locations and battery status, making it easier to manage your computers.

With a Provisioning license, SmartSystems can automatically push software, configuration settings, and other files to the computers. The license also enables ScanNGo, which makes connecting additional computers to your wireless network as easy as scanning bar codes. To purchase a Provisioning license, contact your local Intermec representative.

How to Manage the Computer Using Third-Party Software

You can use third-party software such as Wavelink Avalanche to centrally manage your Intermec devices. Device management software enables you to update software, increase security, track your assets, and troubleshoot devices remotely. You can download the Wavelink enabler for the mobile computer from the Wavelink website. For more information, visit the Intermec website and search for Wavelink Avalanche or visit www.wavelink.com to download the enables.

How to Develop and Install Applications

Use the Intermec Resource Kits to develop applications to run on the mobile computer. The Resource Kits are a library of C++, .NET, Java, and web components grouped by functionality that you can use to create applications for the computer. The Resource Kits are part of the Intermec Developer Library (IDL), and can be downloaded from the Intermec website at www.intermec.com/idl.

About Packaging Your Application

After you develop your application, you need to package it for installation on your mobile computer. For very simple applications, the executable file may be the only file you need to deploy. Typically, you will have a set of files to install. Intermec recommends using cabinet (.cab) files to install more complex applications. The computer uses standard Windows Mobile .cab files and will install third-party .cab files.

You can have your .cab file place the application in any of these memory locations on the computer:

  • Object store (root directory)
  • The non-volatile Flash File Store. Applications and data in the Flash File Store will persist through a clean boot. The Flash File Store is erased if you reflash the operating system image.
  • The optional microSD card. Depending on available disk space, you may want to consider installing your application files on the microSD card. Using a card creates the Storage Card folder on the computer.

Files copied to any of these locations are safe when you cold boot the computer if the Autouser.dat file has been edited correctly. All .cab files in each CABFILES folder are automatically extracted after a cold boot. For more information about AutoRun, see the Intermec Developer Library Resource Kit Developer Guide.

Install Applications Using SmartSystems

You can use the SmartSystems console to drag-and-drop Intermec applications onto your mobile computer. The console is part of SmartSystems.

1 Download your application file from the Intermec website and unzip it on your desktop PC.
2 Double-click the application file to install it. The application file should appear in the Software Vault.
3 From the SmartSystems console in the Software Vault, drag-and-drop the application onto each mobile computer in your network, or drop the application on a group of computers contained in a folder.

Install Applications Using Microsoft Synchronization Software

When you only have a few computers to update with applications, you can copy files using Microsoft synchronization software. This procedure assumes the Microsoft synchronization software is installed on your PC and is up and running.

1 Connect to the mobile computer through the synchronization software.
2 Copy the .cab files from your development PC to the mobile computer.
3 Reboot or cold boot the computer.
4 After the boot process is finished, browse to the .cab files and tap the files to install them.

Install Applications Using an SD Card

Use a MicroSD card to install applications on one computer at a time or if you do not have a network connection.

1 Copy your application file to the MicroSD card.
2 Insert the MicroSD card into the mobile computer.

ASUS V7-P7H55E - Install Applications Using an SD Card - 1

Note: You need to manually reset the computer after you install the storage card.

3 On the mobile computer, browse to the SD Card folder and run your application.

How to Launch Applications Automatically

There are two ways to launch applications automatically on a cold boot:

  • Set up your application .cab file to place a shortcut to the application in the \Windows\StartUp directory at install time.
  • Use AutoRun to start your application at boot time. AutoRun ships on the computer and automates other operations. At boot time, AutoRun executes any commands found in its data file, Autouser.dat. For more information on using AutoRun, see the Readme.txt file located in the My Device\Flash File Store\2577 directory on the computer.

How to Update the System Software

The mobile computer uses SmartSystems bundles to update the operating system (OS) and the system software.

You can use these methods to update your mobile computer:

  • You can update individual computers, or multiple computers at the same time, using the SmartSystems console. For help, see the next section.
  • You can update individual computers using an SD card.

Update Computers Using SmartSystems

You can use the SmartSystems console to update the operating system or system software on your mobile computer. The console is part of SmartSystems and is available from the Intermec website. Before you can update your mobile computer, you need:

  • SmartSystems Foundation. To download SmartSystems Foundation, go to www.intermec.com/SmartSystems and click the Downloads tab.
  • the SmartSystems bundles you want to install. These SmartSystems bundles are available from the Intermec website at www.intermec.com. Go to Support > Downloads > OS/Firmware/Drivers list.

After you have located these items, you can update your mobile computer using SmartSystems.

1 Open the SmartSystems console.
2 Make sure the computer is discovered.
3 Make sure the computer is in a powered dock or that power management is disabled.
4 Download the SmartSystems bundle to your PC.
5 Double-click the SmartSystems bundle on your PC to extract the update files to the software vault.
6 From the SmartSystems console, locate the bundle to install and drag them to each mobile computer (or group in a folder) you want to update. The SmartSystems console installs the update on your mobile computers.

After the download is complete, your mobile computer begins the update process and automatically performs a cold boot. The computer then boots into a special Update Loader mode where the computer has no network connections and is completely unusable. This process can take anywhere from 30 seconds to 15 minutes depending on the update.

After the update is complete, the computer boots again. You will see a red stop symbol in the SmartSystems console until the computer reboots and reconnects to the system.

Update the Computer Using a microSD Card

PREREQUISITE

You can update the computer using a microSD card. You need:

  • a microSD card formatted to FAT16
  • a microSD adapter card
  • an SD card reader

- the AutoFlash.img file that contains the update you want to install. If you need this file, visit the Intermec website at

www.intermec.com. Click the Products tab, navigate to the computer product page, click the Downloads tab, and then locate the download under OS/Firmware/Drivers.

Chapter 4 – Manage the Computer

The computer supports microSD cards that hold up to 2 GB of information when you are updating the computer. The microSD card slot is located in the battery compartment.

1 Insert the microSD card into a microSD adapter card and then place it in the SD card reader connected to your PC.
2 On your desktop PC, navigate to the download location and select the folder with the AutoFlash.img file that contains the update you want to install. Typically, this directory is C:\Program Files\Intermec\SmartSystem\SS_Lib\Software\OS\
3 Copy the AutoFlash.img file to the root directory of the microSD card.
4 Remove the microSD card from the adapter card.
5 Turn off the computer and install the microSD card.
6 Press the Reset button.
7 Replace the battery and turn on the computer.
The update process begins. The computer may restart several times. When the update is complete, the Autoflash Complete message appears.
8 Press the Power button and choose to Suspend the computer.
9 Remove the microSD card. If you do not remove the microSD card, the update process repeats each time the computer restarts.
10 Press the Reset button, replace the battery, turn on the computer, and follow the setup process.

5

Troubleshoot and Maintain the Computer

Use this chapter to find answers to any problems you may encounter while using the computer. You will also find information on routine maintenance.

About the Intermec Dashboard

The Intermec Dashboard provides proactive monitoring of your computer to prevent downtime. Using Intermec Dashboard, you can easily see the health of the computer and help pinpoint the source of a problem to determine if it is hardware or software related. It is highly integrated with SmartSystems. You can also use SmartSystems to remotely monitor the health of your computers. For help, see the SmartSystems help.

Intermec Dashboard displays information, such as the status of network connection, battery usage and battery health, storage space, and internal devices. It also provides system information, such as the operating system, firmware, and hardware configuration.

• To access the Intermec Dashboard, press the Intermec Dashboard button on the compu numeric keypad or press the alphanumeric keypad.

Dashboard 11:35 AM Wi-Fi Signal NA My Connections Battery Battery % 100 System Available Memory 812,450 Kb My Devices Exit Menu

Intermec Dashboard Main Screen

About Troubleshooting the Computer

These troubleshooting tables may help you fix some common problems you may experience with your computer. These tables group solutions for the Wi-Fi connection, 802.1x security, the imager, and general operation of the computer.

ASUS V7-P7H55E - About Troubleshooting the Computer - 1

Note: If you send the computer in for service, it is your responsibility to save the computer data and its configuration. Intermec is only responsible for ensuring that the hardware matches the original configuration when repairing or replacing the computer.

Wi-Fi Connection Problems

Use this section to find possible solutions to Wi-Fi connection problems.

Wi-Fi Connection Problems and Possible Solutions

Problem Possible Solution
When you turn on the, mobile computer after it was suspended for 10 to 15 minutes or longer, the mobile computer can no longer send or receive messages over the network.The host may have deactivated or lost the current terminal emulation session. In a TCP/IP direct connect network, turn off the “Keep Alive” message from host to maintain the TCP session while the computer is suspended.
The computer is connected to the network, and you move to a new site to collect data. Now, your mobile computer is not connected to the network.Move closer to an access point or to a different location to reestablish communications until you reconnect with the network. Any data collected while out of range is transmitted over the network.
The mobile computer appears to be connected to the network, but you cannot establish a terminal emulation session with the host computer.Move closer to an access point or to a different location to reestablish communications until you reconnect with the network. Any data collected while out of range is transmitted over the network.
The mobile computer appears to be connected to the network, but the host computer is not receiving any information from the mobile computer.There may be a problem with the connection between the access point and the host computer. Check with network administrator or use your access point user’s manual.

Check Wi-Fi Network Status

If you have trouble connecting to your Wi-Fi wireless network:

  • Make sure you have correctly set network parameters on the CK3.
  • Check your wireless security settings.

Follow the next procedure to verify available access points and networks, check signal strength, and view other diagnostics. If you need to contact Intermec Product Support, this information can be helpful in troubleshooting wireless network connection issues.

1 Tap Start > iSpyWiFi. The ISpyWiFi application launches:

The ISpyWiFi tab shows:

  • MAC address and IP address of the Wi-Fi radio.
  • network association status, including the SSID and MAC address of the access point.
  • security configuration.
    • radio transmit power and signal strength information.

2 Tap the Scan tab to view a list of available Wi-Fi networks. The list includes the signal strength, channel, and MAC address for each network.

• Tap Scan to refresh the screen.

3 Tap the Supp tab to view radio supplicant information, including a list of supplicant events and authentication status.

  • To verify the settings for the currently active security profile, tap Configure Profile. Intermec Settings launches for you to configure Wi-Fi radio settings.
    • To try reconnecting to the network, tap Reconnect.
    • To delete the events in the list, tap Clear Events.

4 Tap the Ping tab to run a ping test to the host.

a In the Host field, enter the IP address of the host.
b From the Repetitions list, choose the number of times the computer will ping the host.

c Tap Ping. The graph shows the amount of time it takes for the host to return the ping. Tap List to see this information in a list format.

5 Tap the RSSI tab to view the received signal strength of the host signal.

The information box includes the current signal strength, host SSID name, MAC address, data rate, and transmit power.

- Tap Mark to place an arrow marker above the graph.

6 Tap the Conf tab to set up a log file that lists the RSSI history.

This screen includes the Wi-Fi radio driver version and available radio modes.

a Check the Log to File check box.
b (Optional) Change to the sample period and number of samples displayed.
c Tap Log file. The Save As screen appears.
d (Optional) Change the name of the saved log file, the folder to which the file to be saved, the content type (log or text), and the location.
e Tap OK.

802.1x Security Problems

Use this section to find possible solutions to 802.1x security problems.

802.1x Security Problems and Possible Solutions

Problem Possible Solution

The mobile computer indicates that it is authenticated, but it does not communicate with the host.

Make sure the mobile computer IP address, host IP address, subnet mask, and default router are configured for the network.

802.1x Security Problems and Possible Solutions (Continued)

Problem Possible Solution
The mobile computer does not appear to be authenticating and a network connection icon does not appear on the toolbar.· The mobile computer may not be communicating with the access point. Make sure the mobile computer network name matches the access point network name (SSID).· The access point may not be communicating with the server. Ensure the access point is turned on, properly configured, and has 802.1x security enabled.
A network connection icon appears in the toolbar, but then disappears.· The mobile computer may not be communicating with the intended access point. Make sure that the network name matches the access point network name. The default network name is “INTERMEC.”· The access point may not be communicating with the server. Ensure the access point is turned on, properly configured, and has 802.1x security enabled.
You are setting up multiple access points in a network with different SSIDs, and the connection fails.When you change the SSID, the WEP key values are not saved. Configure the WEP key values and save your changes.
The mobile computer indicates it is not authenticated.Make sure that:the User Name and Password parameters on the mobile computer match the user name and password on the authentication server.You may need to configure the password on both the mobile computer and the authentication server.on your authentication server, the user and group are allowed and the group policy is allowed to log into the server. For help, see the documentation that shipped with your authentication server software.the IP address and secret key for the access point match the IP address and secret key on the authentication server. You may need to configure the IP address and secret key on both your access point and authentication server.the authentication server software is running on the server PC.
You clean boot the mobile computer and this message appears, “The server certificate has expired or your system date is incorrect.”When you clean boot the CK3, the date and time are not saved. Configure the date and time and save your changes.

Troubleshoot the Scanner with Scan Diagnostics

The ScanDiagnostic application helps troubleshoot problems, such as the inability to read a bar code or a scanner or imager that does not turn on.

1 Tap Start > ScanDiagnostic.
2 Select the scanner or imager you want to troubleshoot and tap Diagnose.

The application checks to make sure the scanner or imager is enabled and checks the settings to make sure they are optimized.

Chapter 5 – Troubleshoot and Maintain the Computer

3 Aim the scanner or imager at a bar code and tap and hold Press to Scan.

After the computer reads the bar code, the computer beeps and the label data, data length, and symbology appear on the screen.

4 To view recommended settings, press the right arrow button.

5 To accept recommended settings, tap Apply.

6 Tap OK.

Problems Reading Bar Codes

You can troubleshoot problems that prevent you from reading bar codes, such as the appropriate symbology not being enabled. Before you call Intermec Product Support, look for your problem in the next table, and try the possible solutions.

Problems Reading Bar Codes

Problem Possible Solution

You cannot see the illumination beam or frame from the imager when you press the Scan button and aim the imager at a bar code label.

- You may be too far away from the bar code label. Try moving closer to the bar code label and scan it again.

- You may be reading the bar code label "straight on." Change the reading angle and try again.

- The imager hardware trigger may be disabled. Start Intermec Settings and go to Data Collection > Scanner Settings. Make sure Hardware trigger is selected.

When you release the Scan button or scan handle trigger, the Good Read LED does not turn off.

If you configure the computer to use continuous/edge triggering, the Good Read LED stays on. If you configure the computer for level triggering and the Good Read LED stays on, there may be a problem. Press the Scan button or pull the trigger again without scanning a bar code label. If the LED is still on, contact Intermec.

Problems Reading Bar Codes (Continued)

Problem Possible Solution
The scanner or imager cannot read the bar code.·Position the scanner beam so that it crosses the entire bar code label in one pass. Try to vary the scanning angle.·Check the quality of the bar code label. Scan a bar code label that you know scans properly. Compare the quality of the two bar code labels. You may need to replace the label that you cannot scan.·Make sure the bar code symbology is enabled and configured correctly. Start Intermec Settings and go to Data Collection > Symbologies for the scanning device (scanner, virtual wedge) to check and enable symbologies.·Make sure the computer application is expecting input from a bar code. You may need to type this information instead.·The scanner may not be turned on or the scanner may be unable to scan a specific bar code. Run the ScanDiagnostic application.
The scanner or imager cannot read the bar code quickly, or the scanning beam seems to be faint or obscured.The scanner or imager window may be dirty. Clean the window with a solution of mild soap and water. Wipe dry. Do not allow abrasive material to touch the window.
You read a valid bar code label to enter data for your application. The data decoded by the scan module does not match the data encoded in the bar code label.The computer may have decoded the bar code label in another symbology. Scan the bar code label again. Make sure you scan the entire label.
The input device attached to the computer does not work well or read bar code labels very quickly.Set the Scanner Model command to the specific attached input device. Enable only the bar code symbologies being used.

Problems Using the Computer

You can troubleshoot general problems while using the computer. Before you call Intermec Product Support, look for your problem in the next table, and try the possible solutions.

Problems Using the Computer

Problem Possible Solution
You tap the screen and nothing happens.Align the screen.
You press the Power button and nothing happens.The battery may be completely drained. Replace or charge the battery.Restart the computer.
The computer appears to be locked up, and you cannot enter data.Press the Power button and select Suspend. Press the Power button again to turn the screen back on.Press the Power button and select Reboot.Cold boot the computer.Reload the firmware.
You rotate the computer and the screen does not respond properly.Run the Sensor Calibration application to calibrate the accelerometer.
You cannot type a character on the keypad, or you can only type uppercase or lowercase letters.The orange modifier or green modifier key may be locked.

Call Product Support

If you are having trouble using your Intermec computer, you can:

  • use the troubleshooting tables in this manual to find your problem and possible solutions.
  • visit the Intermec technical knowledge base, Knowledge Central at intermec.custhelp.com.

If you still need help, you can call Intermec Product Support at:

1-800-755-5505

Before you call Product Support, have this information ready:

  • Configuration number (CN) and serial number (SN), printed on a label inside the battery compartment or shown on the Device Health dashboard under Information.
  • Operating system version
    • Power management settings
  • Wireless security settings
  • SmartSystems Platform Bundle (SSPB) version
  • Intermec Terminal Emulation (ITE) version and protocol, available from the ITE main screen.

Or, programming language of your custom application and tools used to create it.

Most information is available in Intermec Settings.

Locate Your Configuration Number

Before you call Intermec Product Support, you need to know the configuration number of your computer.

1 Open the Device Health Dashboard:

  • Press of the numeric keypad.
  • Press on the alphanumeric keypad.

2 In the Dashboard, scroll down and tap Information.
3 Scroll down until you see the Hardware Configuration number.
4 Exit the Device Health Dashboard.

Locate Your Operating System Version

Before you call Intermec Product Support, you need know the operating system version loaded on your computer.

1 Open the Device Health Dashboard:

  • Press on the numeric keypad.
  • Press on the alphanumeric keypad.

2 In the Dashboard, scroll down and tap Information.

Chapter 5 – Troubleshoot and Maintain the Computer

3 Scroll down until you see the OS Version number.

4 Exit the Device Health Dashboard.

How to Restart the Computer

If the computer or an application locks up, or if the computer does not respond when you press the Power button, you may need to restart the computer.

The computer uses the configuration currently saved in flash memory during the boot process. Try these methods, in order, to restart the computer:

  • Reboot: Restarts the computer and goes through the initialization process.
  • Cold boot: Preserves configuration and network settings, but does not necessarily save cached disk data, which may result in data loss.
  • Clean boot: Completely erases the computer memory, including all applications and data files, except those in the Flash File Store or any removable storage.

Reboot the Computer

You may need to restart the computer to correct conditions where an application stops responding to the system.

- Press the Power button and select Reboot from the menu.

Cold Boot the Computer

In some cases where the computer completely stops responding, it may be necessary to perform a cold boot. Because cold booting may result in data loss, use this method only if all other recovery methods have failed.

1 Press the Power button to suspend the computer.
2 Remove the handstrap and the battery pack.
3 Press the Reset button in the battery compartment on the back of the computer.

4 Replace the battery and the handstrap.

5 Press the Power button and wait for the computer to boot. When the cold boot is complete, the Home screen appears.

Clean Boot the Computer

ASUS V7-P7H55E - Clean Boot the Computer - 1

Caution: A clean boot erases the memory in the mobile computer, including all applications and data files, with the expectation of those found in the Flash File Store, or any removable storage.

If the computer seems to be locked up, try cold booting it. If this process does not work, use a clean boot to get the computer up and running for further troubleshooting.

1 Press and hold the Power button for about 2 seconds to suspend the computer.
2 Remove the battery pack from the back of the computer.
3 With a stylus, press the Reset button in the battery cavity.
4 Insert the battery pack into the computer and immediately press and hold the Power button.
5 Continue to hold the Power button until the "Release IO Button" prompt appears on the screen.
6 Release the button and the message "Enter first key in 20 seconds" appears on the screen. Press 9 on the keypad.
7 The message “Enter second key in 6 seconds” appears on the screen. Press 6 on the keypad.
8 The message “Reconfirm first key in 6 seconds” appears on the screen. Press 9 again.
9 The message “Reconfirm second key in 6 seconds” appears on the screen. Press 6 again.
10 The message “Cleanboot Confirmed” appears on the screen. The computer starts the process of clean booting.

Clean the Computer

To keep the computer in good working order, you may need to clean the imager window, color camera window, and the touch screen. Clean the windows and the touch screen as often as needed for the environment in which you are using the computer. To clean the computer, use one of these recommended cleaning agents:

• Acetic acid, 10% in water
• Ethyl alcohol, 10% in water
- Mild soap solutions
- 5% to no more than 10% bleach or sodium hypochlorite with water

ASUS V7-P7H55E - Clean the Computer - 1

Caution: There are no user-serviceable parts inside the computer. Opening the computer will void the warranty and may cause damage to the internal components.

1 Press the Power button to suspend the computer.
2 Dip a clean cloth towel in the cleaning agent and wring out the excess.
3 Wipe off the imager window, camera lens, and flash area. Do not allow any abrasive material to touch these surfaces.
4 Wipe dry.
5 Let the computer completely air dry before using again.

A

Specifications

Physical and Environmental Specifications

This section lists the physical and environmental specifications for the computer.

Physical Dimensions

Length: 21.6 cm (8.5 in)

Width (at widest part): 8.3 cm (3.3 in)

CK3R Height (at grip): 2.8 cm (1.1 in)

CK3X Height (at grip): 3.6 cm (1.4 in)

CK3R Weight (with 2000 mAh battery): 401 g (14.1 oz)

CK3X Weight (with 5100 mAh battery): 499 g (17.6 oz)

Tumble and Drop Specifications

CK3R Tumble Specification: 1,000 (0.5 m) tumbles per IEC 60068-2-32 specification.

CK3X Tumble Specification: 1,000 (1.0 m) tumbles per IEC 60068-2-32 specification.

CK3R Drop Specification: Multiple 1.5 m (5 ft) drops to concrete at ambient temperature, multiple 1.2 m (4 ft) drops to concrete across the operating temperature range per MIL-STD 810G.

CK3X Drop Specification: Multiple 1.5 m (5 ft) drops to concrete across the operating temperature range per MIL-STD 810G.

Power and Electrical Specifications

Operating battery: Rechargeable lithium-ion battery

Backup battery: Supercap supplies 10 minutes of bridge time while replacing the main battery (CK3X only).

Electrical rating: 4,4 V, 2 A; 4,7 V, 1,5 A =

Temperature and Humidity Specifications

Operating temperature: -10^ to 50^ ( 14^ to 122^ )

Storage temperature: -20^ to 70^ ( -4^ to 158^ )

Charging temperature: 5^ C to 35^ C ( 41^ F to 95^ F)

Relative humidity (operating): 0 to 95% non-condensing

Environmental rating: IP54, Category 1

Screen Specifications

  • 240 x 320 pixels, 16-bit RGB
  • 8.9 cm (3.5 in) transmissive QVGA display
  • LCD capable of both portrait and landscape operation (CK3X only)
  • LED backlight
  • Ambient light sensor

Keypad Options

• Alphanumeric and function keypad

- Numeric and function keypad

Bar Code Symbologies

• Australia Post*• Infomail
• Aztec*• Intelligent Mail
• BPO (British Post 4-state)*• Interleaved 2 of 5
• Canada Post• JapanPost*
• Codabar• Matrix 2 of 5
• Codablock A• Maxicode*
• Codablock F• Micro PDF417
• Code 11• MSI
• Code 39• PDF417*
• Code 93• Planet*
• Code 128/GS1-128• Plessey
• DataMatrix*• Postnet*
• Dutch Post*• QR Code*
• EAN/UPC• Standard 2 of 5
• GS1 Composite*• SwedenPost
• GS1 DataBar Expanded• Telepen
• GS1 DataBar Limited• TLC 39
• GS1 DataBar Omni-Directional

* These symbologies are only available if your CK3 has an extended range are imager or a near-far area imager.

EA31 Typical Reading Distances - Extended Reading Range

These typical reading distances are measured in an office environment (250 lux) for the EA31 standard model with Extended Reading Range activated. Extended Reading Range is enabled by default.

ASUS V7-P7H55E - EA31 Typical Reading Distances - Extended Reading Range - 1

line | Depth (cm) | Value | | ---------- | --------- | | 0 | 0 | | 10 | 0 | | 20 | 0 | | 30 | 0 | | 40 | 0 | | 50 | 0 | | 60 | 0 | | 70 | 0 | | 80 | 0 | | 90 | 0 | | 100 | 0 |

EA31 Typical Reading Distances - Extended Reading Range

EA31 Typical Reading Distances - Extended Reading Range Activated

SymbologyDensityMinimum DistanceMaximum Distance
Code 39 0.125 mm/5 mils4.50 cm/1.77 in22.50 cm/8.86 in
0.50 mm/20 mils6.00 cm/2.36 in
1 mm/40 mils12.50 cm/4.92 in
EAN/UPC 100% 0.33 mm/13 mils4.50 cm/1.77 in 41 cm/16.14 in

EA31 Imager Minimum Reading Distances

Minimum reading distances are measured in the dark (0 lux).

ASUS V7-P7H55E - EA31 Imager Minimum Reading Distances - 1

line | Depth (cm) | Value (in) | |------------|------------| | 0 | 0 | | 28 | ~12 | | 40 | ~8 | | 60 | ~4 | | 80 | ~2 | | 100 | ~0 | | 200 | ~-2 | | 400 | ~-4 | | 600 | ~-6 | | 800 | ~-8 |

EA31 Minimum Reading Distances

EA31 Minimum Reading Distances

Symbology DensityMinimum DistanceMaximum Distance
Code 39 0.10 mm/4 mils8 cm/3.15 in10 cm/3.94 in
0.13 mm/5 mils7 cm/2.76 in13 cm/5.12 in
0.20 mm/8 mils4 cm/1.57 in20 cm/7.87 in
0.25 mm/10 mils3.8 cm/1.5 in24.5 xm/9.65 in
0.50 mm/20 mils7 cm/2.76 in45 cm/17.72 in
1 mm/40 mils13.5 cm/5.31 in71.5 cm/28.15 in
Symbology DensityMinimum Distance Maximum Distance
DataMatrix 0.18 mm/7 mils7 cm/2.76 in14 cm/5.51 in
0.25 mm/10 mils5 cm/1.97 in20 cm/7.87 in
0.38 mm/15 mils5.2 cm/2.05 in29.5 cm/11.61 in
PDF417 0.17 mm/6.6 mils5.8 cm/2.28 in17.5 cm/6.89 in
0.25 mm/10 mils4 cm/1.57 in26.5 cm/10.43 in
0.38 mm/15 mils4.9 cm/1.93 in37 cm/14.57 in

EA31 Imager Typical Reading Distances

Minimum reading distances are measured in the dark (0 lux).

ASUS V7-P7H55E - EA31 Imager Typical Reading Distances - 1

line | Depth (cm) | Value (in) | |------------|------------| | 0 | 0 | | 10 | 0 | | 20 | 0 | | 30 | 0 | | 40 | 0 | | 50 | 0 | | 60 | 0 | | 70 | 0 | | 80 | 0 | | 90 | 0 |

EA31 Typical Reading Distances

EA31 Typical Reading Distances

Symbology DensityMinimum DistanceMaximum Distance
Code 39 0.10 mm/4 mils7.5 cm/2.95 in10.5 cm/4.13 in
0.13 mm/5 mils6.5 cm/2.56 in13.5 cm/5.31 in
0.20 mm/8 mils4 cm/1.57 in21 cm/8.27 in
0.25 mm/10 mils3.5 cm/1.38 in25.5 xm/10 in
0.50 mm/20 mils6.5 cm/2.56 in49 cm/19.29 in
1 mm/40 mils12.5 cm/4.92 in90 cm/35.43 in
EAN/UPC 100% 0.33 mm/13 mils4.5 cm/1.77 in30.5 cm/12.01 in
DataMatrix 0.18 mm/7 mils6.5 cm/2.56 in15 cm/5.91 in
0.25 mm/10 mils4.5 cm/1.77 in21 cm/8.27 in
0.38 mm/15 mils4.7 cm/1.85 in31 cm/12.20 in
PDF417 0.17 mm/6.6 mils5 cm/1.97 in18.2 cm/7.17 in
0.25 mm/10 mils3.7 cm/1.46 in27.5 cm/10.83 in
0.38 mm/15 mils4.5 cm/1.77 in40 cm/15.75 in

EA30 Typical Reading Distances - Extended Reading Range

These typical reading distances are measured in an office environment (250 lux) for the EA30 standard model with Extended Reading Range activated. Extended Reading Range is enabled by default.

ASUS V7-P7H55E - EA30 Typical Reading Distances - Extended Reading Range - 1

line | x (cm) | y (in) | | ------ | ------ | | 0 | 0 | | 10 | 0 | | 20 | 0 | | 30 | 0 | | 40 | 0 | | 50 | 0 | | 60 | 0 | | 70 | 0 | | 80 | 0 | | 90 | 0 | | 100 | 0 |

EA30 Typical Reading Distances - Extended Reading Range Activated

EA30 Typical Reading Distances - Extended Reading Range Activated

SymbologyDensityMinimum DistanceMaximum Distance
Code 39 0.125mm/5 mils64.50 cm/2.56 in24.50 cm/9.65 in
0.50 mm/20 mils7.00 cm/2.76 in62.50/24.61 in
1 mm/40 mils14.50 cm/5.71 in97.50 cm/38.39 in
EAN/UPC 100%0.33 mm/13 mils6 cm/2.36 in 40 cm/15.75 in

EA30 Area Imager Minimum Reading Distances

Minimum reading distances are measured in the dark (0 lux).

ASUS V7-P7H55E - EA30 Area Imager Minimum Reading Distances - 1

other | Component | Value | | --------------------- | ----------- | | Data Matrix 10 mils | 10 | | PDF417 10 mils | 10 | | EAN/UPC | 5 | | 0.5 mm / 20 mils | 20 | | 1 mm / 40 mils | 40 |

EA30 Minimum Reading Distances

EA30 Minimum Reading Distances

Symbology DensityMinimum DistanceMaximum Distance
Code 39 0.10 mm/4 mils9.5 cm/3.74 in10.5 cm/4.13 in
0.13 mm/5 mils8 cm/3.15 in14 cm/5.51 in
0.50 mm/20 mils7 cm/2.76 in45 cm/17.72 in
1 mm/40 mils9.5 cm/3.74 in62 cm/24.41 in
EAN/UPC 100% 0.33 mm/13 mils6 cm/2.36 in 31.5 cm/12.4 in
DataMatrix 0.18 mm/7 mils8 cm/3.15 in15.5 cm/6.1 in
0.25 mm/10 mils6.5 cm/2.56 in21.5 cm/8.46 in
0.38 mm/15 mils5.5 cm/2.17 in31.5 cm/12.4 in
Symbology DensityMinimum Distance Maximum Distance
PDF417 0.25 mm/10 mils5.5 cm/2.17 in25 cm/9.84 in
0.38 mm/15 mils7 cm/2.76 in34 cm/13.39 in

EA30 Imager Typical Reading Distances

Minimum reading distances are measured in the dark (0 lux).

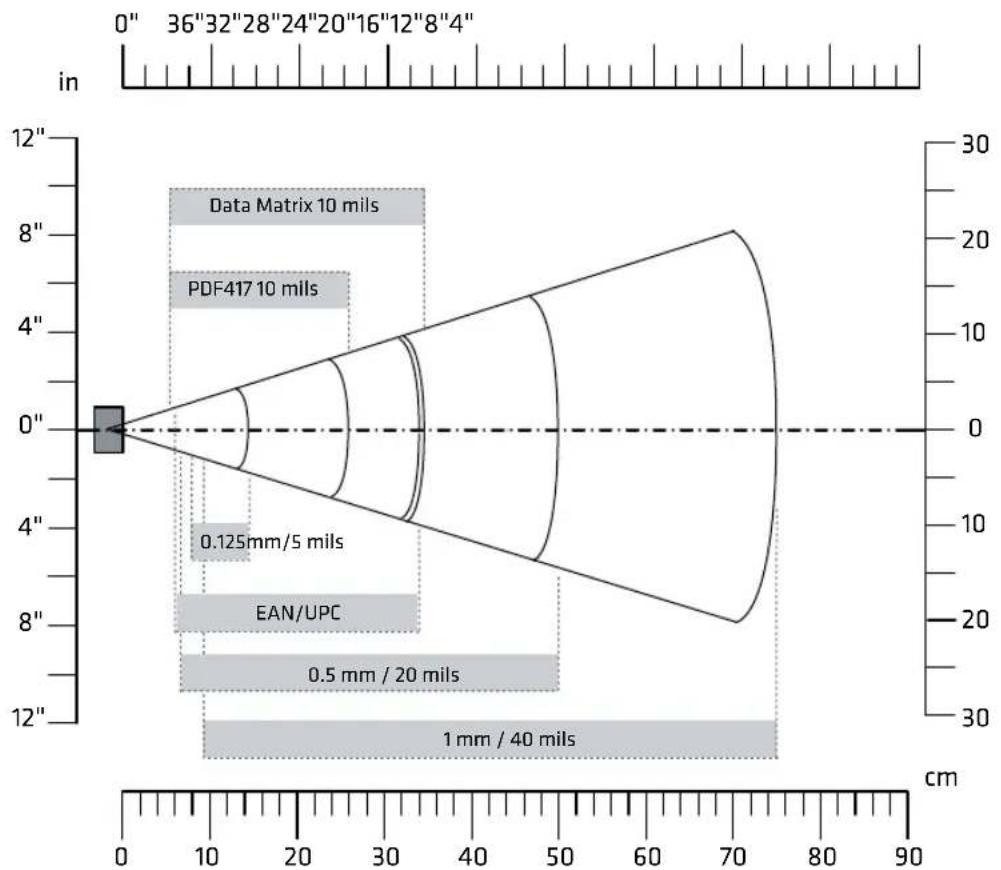

ASUS V7-P7H55E - EA30 Imager Typical Reading Distances - 1

other | Parameter | Value | | ------------------- | ----------- | | Data Matrix 10 mils | 10 | | PDF417 10 mils | 10 | | EAN/UPC | 5 | | 0.5 mm / 20 mils | 20 | | 1 mm / 40 mils | 40 |

EA30 Typical Reading Distances

EA30 Typical Reading Distances

Symbology DensityMinimum DistanceMaximum Distance
Code 39 0.10 mm/4 mils9.5 cm/3.74 in11.5 cm/4.53 in
0.13 mm/5 mils8 cm/3.15 in14.5 cm/5.71 in
0.50 mm/20 mils6.5 cm/2.56 in50 cm/19.69 in
1 mm/40 mils9.5 cm/3.74 in75 cm/29.53 in
EAN/UPC 100% 0.33 mm/13 mils6 cm/2.36 in 34 cm/13.39 in
DataMatrix 0.18 mm/7 mils7.5 cm/2.95 in16.5 cm/6.5 in
0.25 mm/10 mils6 cm/2.36 in23 cm/9.06 in
0.38 mm/15 mils5.5 cm/2.17 in34.5 cm/13.58 in
PDF417 0.25 mm/10 mils5.5 cm/2.17 in26 cm/10.24 in
0.38 mm/15 mils6.5 cm/2.56 in37 cm/14.57 in

EX25C Near-Far Range Area Imager Reading Distance

Minimum reading distances are measured in the dark (0 lux).

ASUS V7-P7H55E - EX25C Near-Far Range Area Imager Reading Distance - 1

other | Dimension | Value | | ----------------- | ----------- | | 0.25 mm/10 mils | 0 | | 0.5 mm/20 mils | 0 | | 1 mm/40 mils | 0 | | 1.4 mm/55 mils | 0 |

EX25C Near-Far Range Imager 1D Minimum Reading Distances

EX25C 1D Symbologies Minimum Reading Distances with 0.24 cm (0.09 in) Setback

Symbology DensityMinimum DistanceMaximum Distance
Code 39 0.08 mm/3 mils15 cm/5.91 in35 cm/13.78 in
0.10 mm/3.8 mils15 cm/5.91 in45 cm/17.72 in
0.25 mm/10 mils15 cm/5.91 in115 cm/45.28 in
0.50 mm/20 mils16 cm/6.30 in210 cm/82.68 in
1 mm/40 mils25 cm/9.84 in310 cm/122.05 in
1.3 mm/51 mils40 cm/15.75 in420 cm/165.35 in

EAN 100% 0.33 mm/13 mils 15 cm/5.91 in 145 cm/57.09 in

ASUS V7-P7H55E - EX25C Near-Far Range Area Imager Reading Distance - 2

other | Section | Value | |---------------------|--------------| | 100% EAN contrast UPC | 0 | | 0.25 mm / 10 mils | 10 | | 0.5 mm / 20 mils | 20 | | 1 mm / 40 mils | 40 | | 2.5 mm / 100 mils | 100 |

EX25C Near-Far Range Imager 1D Typical Reading Distances

EX25C 1D Symbologies Typical Reading Distances with 0.24 cm (0.09 in) Setback*

Symbology DensityMinimum DistanceMaximum Distance
Code 39 0.25 mm/10 mils15 cm/5.91 in135 cm/53.15 in
0.50 mm/20 mils16 cm/6.30 in
1 mm/40 mils25 cm/9.84 in
1.4 mm/55 mils40 cm/15.75 in
2.5 mm/100 mils**
Code 128 retro-reflective2.5 mm/100 mils** 1300 cm/511.81 in
EAN 100% 0.33 mm/13 mils 15 cm/5.91 in 160 cm/62.99 in

* Typical reading distances are measured in an office environment (200 lux).
** Minimum distance depends on bar code width and scan angle.

ASUS V7-P7H55E - EX25C Near-Far Range Area Imager Reading Distance - 3

bar | Depth (cm) | Diameter (mils) | | ---------- | --------------- | | 0.25 | 10 | | 74 | 55 | | 1.4 | 55 | | 340 | 133.9 | | 680 | 100 | | 3.5 | 140 | | 790 | 311 |

EX25C Near-Far Range Imager 2D Typical Reading Distances

EX25C 2D Symbologies Typical Reading Distances with 0.24 cm (0.09 in) Setback*

SymbologyDensityMinimum DistanceMaximum Distance
DataMatrix0.25 mm/10 mils15 cm/5.91 in90 cm/35.43 in
0.76 mm/30 mils25 cm/9.84 in310 cm/122.05 in
1.4 mm/55 mils**450 cm/177.17 in
2.5 mm/100 mils**1100 cm/433.07 in

* Typical reading distances are measured in an office environment (200 lux).
** Minimum distance depends on bar code width and scan angle.

Appendix A – Specifications

B

Default Settings

Default Configuration

The following tables list the default values of the configuration commands supported on the CK3. If you restore the CK3 to factory default settings, the CK3 uses these values.

The commands are grouped by function and reflect the organization of Intermec Settings. For detailed information on most of the commands, see the Intermec Settings Command Reference Manual, available from the Intermec website at www.intermec.com.

Data Collection

Data Collection Settings

Data Collection Setting Default Value
Enable Scanner Port Enable
Enable Scanner Auto-Detect Enable
Scanner Port Baud Rate 38400

Symbology Settings

Symbology Default Value
Australian Post Disable
Aztec Disable
BPO Disable
CanadaPost Disable
Codabar Disable
Codablock A Disable
Codablock F Disable
Code 11 Disable
Code 39 Enable
Code 93 Disable
Code 128/GS1-128Enable
DataMatrixEnable
DutchPostDisable
SymbologyDefault Value
EAN/UPC Enable UPC A, UPC E,EAN 8, EAN 13
GS1 Composite Disable
GS1 DataBar Expanded Disable
GS1 DataBar Limited Disable
GS1 DataBar Omni-Directional Disable
Infomail Disable
Interleaved 2 of 5 Disable
JapanPost Disable
Matrix 2 of 5 Disable
Maxicode Disable
Micro PDF417 Disable
MSI Disable
PDF417 Enable
PlanetDisable
PlesseyDisable
PostnetDisable
QR CodeDisable
Standard 2 of 5Disable
SwedenPostDisable
TelepenDisable
TLC 39Disable

Symbology Option Setting

Symbology OptionDefault Value
Preamble None (disabled)
PostambleNone (disabled)
Symbology IdentifierDisable
MulticodeDisable

Scanner Settings

Scanner Setting Default Value
Scanner Model Internal Scanner
Trigger Mode Level
Aimer Mode Typical aimer
Hardware Trigger Enable
Trigger Timeout (sec) 2
Aiming Duration (msec) 500
Turn Off After Good Read Enable/One-shot
Scanner Firmware Version Read-only

Imager Settings

Imager Setting Default Value
Predefined Modes 1D and 2D Standard
Imager Decode Mode 2D Imager
Lighting Mode Illumination LED Priority
Lighting Goal 42
Illumination Level100
Initial 1D Search AreaSmart Raster
Direct Part Marking ModeDisable
Damaged 1D CodesDisable
Image File Location\My Documents\MDI
Folder Memory Limit (MBytes)13
Enable Tagging Location DataDisable
Output Compression Bitmap
Output Compression Quality0
Edge EnhancementNone
Noise Reduction0
SubsamplingNone
Image RotationNone
Image Lighting CorrectionDisable

Decode Security Settings

Decode Security Setting Default Value
Consecutive Data Validation 0
Identical Consecutive Timeout 300 ms
Different Consecutive Timeout 0
Center Decoding Disable
Center Decoding Tolerance Disable

RFID

RFID Settings

RFID Setting Default Value
Enable RFID Service Enable

Application Connection Settings

Application Connection Setting Default Value
Allow External BRI Connections Enable
BRI TCP Port 2189
Enable Logging Disable

Reader 1 Settings

Reader 1 Setting Default Value
Enable ReaderOff
ConnectedOff
Reader ModelIP30
Device Address 000000000000

RFID Module Settings

RFID Module SettingDefault Value
Tag TypeEPC Class 1 Gen2
Dense Reader Mode Off
LBT Channel 5
LBT Scan Enable On
Field Separator Space ( )
ID Report Off
No Tag Report Off
Report Timeout 0 ms
Timeout Mode Off
ID Timeout 100 ms
Antenna Timeout 50 ms
ID Tries 1
Antenna Tries 3
Read Tries 3
Write Tries3
Initialization Tries1
Lock Tries3
Select Tries1
Unselect Tries 1
Initial Q4
Field Strength dB30
Session2
Enable Antenna Port 1On
Enable Antenna Port 2Off
Enable Antenna Port 3Off
Enable Antenna Port 4Off
Bluetooth Power Off300 s

Communications

Communications Settings
Communications Setting Default Value

Device Name CK3xxxxxxxxxxxxx

802.11 Radio Settings
802.11 Radio Setting Default Value

Radio Enabled Off
Security Choice Funk Security
Radio Measurement 300
Radio Bands (CK3X only) b/g (2.4 GHz)
Allow Security Changes Enabled

Funk Security Settings

Funk Security Setting Default Value

Active Profile Profile 1
Hide Password Text Enabled
Profile Label Profile_1
Network Type Infrastructure
Channel3
SSIDINTERMEC
Power ModeEnabled (FastPSP)
8021xNone
AssociationOpen
EncryptionNone
Pre-Shared KeyNull
Transmit KeyKey1
Mixed CellOn
LoggingOff

Ethernet Adapter Settings

IP Settings Default Value
Current Device IP Address 0.0.0.0
DHCP Enable
DHCP Client Identifier Null
IP Address Null
Subnet Mask 255.0.0.0
Default Router Null
Primary DNS Null
Secondary DNS Null
Primary WINS Null
Secondary WINS Null

Bluetooth Settings

Bluetooth Setting Default Value
Bluetooth Power Off

Device Settings

Device Settings

Device Setting Default Value
DateNull
TimeNull
Enable ActiveSync Enabled
Enable SD Card Enabled
Enable USB External DriveEnabled
Enable All Image CaptureEnabled
Beeper and VoiceMedium
Headset BeeperVery Low
Screen TapsOff
Key ClicksOff
USB Function DriverActiveSync RNDIS Client
Device SettingDefault Value
Good Read One beep

Backlight Settings

Backlight Setting Default Value
Normal Light Backlight Adjustment Normal
Low Light Backlight Adjustment Normal
Bright Light Backlight Adjustment Normal
Keypad Backlight On Based on Light Level
Light Level Low

Keypad Settings

Keypad Setting Default Value
Center Scan Button Scanner
Green/Orange Keys Lock Options Press Once to Lock

Power Management Settings

Power Management Setting Default Value
Enable Power Button Screen On
Screen Off Disabled
Hibernate (Battery Swap) Enabled
Suspend Enabled
RebootEnabled
ShutdownDisabled
Screen Timeout (Seconds)5
Screen Turns Off After (Battery Power)Disabled
Device Turns Off After (Battery Power)5 minutes
Screen Turns Off After (External Power)Disabled
Device Turns Off After (External Power)Disabled
Enable Device Sleep Disabled
Power Management SettingDefault Value
Sleep Face Down Enabled
Sleep Portrait Disabled
Sleep Reverse Portrait Disabled

Profile Settings Application Settings

Profile Settings Application Setting Default Value
Always On Show Option in Profile Settings
Maximize Battery Life Show Option in Profile Settings
Normal Show Option in Profile Settings
1D Bar Codes Optimized Show Option in Profile Settings
Bright Sunlight Show Option in Profile Settings
Reflective Labels Show Option in Profile Settings
Standards Show Option in Profile Settings

Screen Settings

Screen Setting Default Value
Screen RotationPortrait 0 Degrees
Enable Screen RotationDisabled
Rotate PortraitEnabled
Rotate LandscapeEnabled
Rotate Signature CaptureDisabled

Core Messaging Service

Core Messaging Service Settings

Core Messaging Service SettingDefault Value
Server IPNull
Associated Server IPNull
Broadcast NameINTERMEC

Core Messaging Service Settings (Continued)
Core Messaging Service Setting Default Value

Port 62241
Keep Alive Ping Interval 30 Seconds

Device Monitor

Device Monitor Settings

Device Monitor Setting Default Value
Enable Device Health Data Collection On
Enable Device Health Application On
Enable Blue Light (LED) Off for Ready-to-Work
Set Rule File Location \SmartSystems\HealthRules.txt
Asset Message Send Period 0
System Device Health (Seconds) 90
Network Device Health (Seconds) 45
Printer Device Health (Seconds) 300
Directory \SmartSystems\ScreenCapture
Screen Captures Allowed3
Enable WipeDisabled
Interval (in Days)3

Virtual Wedge

Virtual Wedge Settings

Virtual Wedge SettingDefault Value
Enable Virtual WedgeEnabled
Virtual Wedge MethodAdapt to Application
Bar Code Scanner GridNull
Label Encoding (Code Page)1252(D)-ANSI Win3.1 US
Magstripe Reader GridNull
Read CommandREAD REPORT = DIRECT
User-Defined Read CommandREAD

Virtual Wedge Settings (Continued)

Virtual Wedge Setting Default Value
Date (YYYY-MM-DD) Disabled
Time (HH_MM_SS) Disabled
Tag Separator SP (space)
User-Defined Tag Separator Null
End of Message CRLF (Return-Line Feed)
User-Defined End of Message Null
RFID Reader Grid Null

Location Services

Location Services Settings

Location Services Setting Default Value
Port 9569
Enable Server Disable

C

Keypads and Keystrokes

Characters and Functions on Keypads

Use these tables to learn how to enter standard characters as well as other available characters and functions with the keypad. If a character or function does not have a sequence of keystrokes, it is only available through the soft input panel (SIP). You can access the SIP by tapping the keyboard icon on the touch screen.

The information in the character and function tables assumes that the Green/Orange keys lock option in Intermec Settings > Device Settings > Keypad is set to the default of Press once to lock. The information in these tables will not work if you have this option set to Press twice to lock.

Alphanumeric Characters

Character Alphanumeric Keypad Numeric Keypad
aAEsc
bB7
cC8
dD9
eE?
fF4
gG5
hH6
iI1
jJ2
kK3
lLFldExit
mM0
nN·
oOF1
pPF2
qQF3
rRF4
sSF5
tTF6
uUF7
vVF8
wWF9
xXF10
yYF11
zZF12
AA A AEsc
BA B7
CA C8
DA D9
EA E?
FA F4
GA G5
HA H6
IA I1
JA J2
KA K3
LA LFldExit
MA M0
NA N·
OA OF1
PA PF2
QA QF3
RA RF4
SA SF5
TA TF5
UA UF7
VA VF8
WA WF9
XA XF10
YA YF11
ZA ZF12
000
111
222
333
444
555
666
777
888
999

Function Keys

Character Alphanumeric Keypad Numeric Keypad
F1F1F1
F2F2F2
F3F3F3
F4F4F4
F5F5F5
F6EF6
F7FF7
F8GF8
F9HF9
F10IF10
F11JF11
F12KF12
F13LF1
F14MF2
F15NF3
F16OF4
F17PF5
F18QF6
F19RF7
F20SF8
F21TF9
F22UF10
F23VF11
F24WF12

Special Functions

Character Alphanumeric Keypad Numeric Keypad
Forward Tab
Back Tab
Space
Backspace
Shift
Caps LockBD>
Field ExitFldExFldExit
Up ArrowA 8^
Down ArrowA 2
Left ArrowA < 4<
Right ArrowA > 6>
ControlI4
AltEsc6

ASUS V7-P7H55E - Characters and Functions on Keypads - 1

Depending on your computer model, some of the following characters or functions will not be printed on the keypad.

Other Available Characters and Functions

Character or FunctionAlphanumeric Keypad Numeric Keypad
!A 1< 1
@A 2< 2
#A 3< 3
$A 4< 4
%A 5< 5
^A > 6< 6
&A 7< 7
*A 8< 8
(A 9< 9
)A 0< 0
-X< D
|A F4< D [ Enter]
:F1< Esc
Character orFunction Alphanumeric Keypad Numeric Keypad
?T?
;F2Esc
/F3?
-0#D
\F5[Enter]
=F4N/A
'EscN/A
+5N/A
[BN/A
.C.
]DN/A
,XN/A
'YN/A
"ZN/A
Volume Down00
OK33
Volume Up55
Soft Key 177
Soft Key 299

ASUS V7-P7H55E - Characters and Functions on Keypads - 2

The following ITE functions are only operational when you are using the ITE application.

Intermec Terminal Emulation (ITE) Functions

Character or Function Alphanumeric Keypad Numeric Keypad
Field ExitFldExFldExit

Intermec Terminal Emulation (ITE) Functions (Continued)

Character or Function Alphanumeric Keypad Numeric Keypad
System RequestSFldExit
HomeC.
AttentionA0
Reset< 41
Clear> 62
Roll Down√ 25
Previous ScreenG7
Roll Up^ 88
Next ScreenH9
Page LeftU<
Page UpO^
Page DownP
Page RightV>
Field +7^
Field -1

Intermec

Worldwide Headquarters

6001 36th Avenue West

Everett, Washington 98203

U.S.A.

tel 425.348.2600

fax 425.355.9551

www.intermec.com

© 2012 Intermec Technologies

Corporation. All rights reserved.

CK3R and CK3X Mobile Computer User Manual

Barcode image containing machine-readable data, no human-readable text visible

P/N 935-075-001

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : ASUS

Model : V7-P7H55E

Category : Barbecue
