GVC65 - Vacuum Cleaner GEMINI - Free user manual and instructions

Product type	Handheld vacuum cleaner
Model number	GVC65
Dimensions (H x W x D)	70 x 455 x 70 mm
Battery voltage	7.4V
Power consumption	65W
Suction power (High / Low)	4 kPa / 2.5 kPa
Dust container capacity	Approx. 0.5 L (max level marked)
Charging cable	USB-A to USB-C (included)
Charging time (first use)	At least 8 hours
Charging time (regular)	At least 2 hours
Battery run time	Approx. 20 minutes (estimated)
Speed settings	2 (Low and High)
Dry vacuuming	Yes
Wet vacuuming	Yes (cold water only, Low speed only)
Filter type	Washable dust filter (replaceable)
Accessories included	Crevice nozzle, brush attachment, soft nozzle for liquid, Type-C charging cable
Safety features	Do not use without filter; do not vacuum flammable liquids; do not immerse in water
Care instructions	Only dust container and filter washable with cold water; dry completely before reassembly; do not wash other parts in dishwasher
Reparability	Repairs by qualified technician only; do not disassemble yourself
Intended use	Household use only

Frequently Asked Questions - GVC65 GEMINI

Why won't my vacuum cleaner start?

The battery may be flat. Recharge the appliance for at least 2 hours. If it still doesn't start, check the charging cable and power source.

How do I charge the vacuum cleaner?

Make sure the power switch is OFF. Connect the USB-A end of the charging cable to a suitable adaptor (not included) and the USB-C end to the charging port on the handle. The red LED indicates charging; green means fully charged.

Can I vacuum liquids with this vacuum?

Yes, but only cold water. Use the soft nozzle for liquid, and ensure the appliance is in vertical position with suction inlet facing down. Only use Low speed mode. Do not exceed the MAX level mark. Empty and clean the container immediately after use.

How do I clean the filter?

Twist off the dust container, remove the filter, and clean it with cold water. Also rinse the container. Let all parts dry completely before reassembling. Ensure the filter bracket faces upwards when reinserting.

Why is the suction power weak?

Possible causes: dust container full, filter clogged, or suction opening blocked. Empty the container, clean the filter, and remove any blockage. Also check if you are using High speed mode for dry vacuuming.

What should I do if the light indicator does not light up during charging?

Ensure the charging cable is properly connected to the adaptor and the vacuum. Try a different wall socket. Check the fuse in your mains connection. If the problem persists, contact customer service.

Is it normal for the vacuum to have an unusual odor when first used?

Yes, any new odor is normal during initial use and will disappear after a while. If the odor persists, check if the filter needs cleaning.

Can I use a different charging cable?

You must use a USB-A to USB-C charging cable. Cables with USB-C on both ends may not charge the appliance properly. Use the included cable or a compatible one.

How do I empty the dust container?

Twist the dust container off the main unit. Remove the filter, then empty the contents. Clean the container and filter with cold water if needed. Let all parts dry completely before reassembling.

The vacuum is not charging at all. What can I do?

First, verify the charging cable type: it must be USB-A to USB-C. Ensure the power switch is OFF and the cable is firmly connected. Try another USB adaptor or wall socket. If it still does not charge, the internal battery may be damaged.

USER MANUAL GVC65 GEMINI

Please read and retain for future reference.

SAFETY INSTRUCTION - GENERAL

• Use this appliance solely in accordance with these instructions.
• This appliance is for household use only, not for commercial purpose.
• Remove all packaging material from the appliance before use.
• This appliance shall not be used by children of 0 to 8-year old.
• This appliance can be used by children older than 8-year old and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, but only if they have been given supervision or instruction concerning use of the appliance in safe way and understand the hazards involved.
  • Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and maintenance must not be done by children.
• Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.
• Do not handle the plug or appliance with wet hands.
• Do not immerse the main body in water.
  • Children shall not play with the appliance.
• Keep hair, loose clothing, fingers and all parts of the body away from openings of the appliance.
• Only use the attachments/accessories supplied with the product.

SAFETY INSTRUCTION - ELECTRICITY AND HEAT

• Verify that the adaptor is the same as that indicated on the rating plate on the appliance before use.
• Make sure that you always use a grounded wall socket to connect the appliance.
  • Always remove the USB cable when the appliance is not in use.
• Remove the plug from the wall socket by pulling the plug, not the power cord.
• Make sure that the appliance, the USB cable do not make contact with water.
• Make sure that the appliance, the USB cable do not make contact with hot surface, such as a hot hob or naked flame.
• Check the appliance's USB cable regularly to make sure it is not damaged. Do not use the appliance if the USB cable is damaged. If the power cord is damaged, it must be replaced by an electrical technician or a person with similar qualification, in order to avoid any hazards.
• The appliance needs space to allow heat to escape, thereby preventing the risk of fire. Make sure that the appliance has sufficient space around it, and does not come in contact with flammable material. The appliance, the air vents must not be covered or blocked when use.
• Never use the appliance in the vicinity of flammable material.

SAFETY INSTRUCTION - DURING OPERATION

• Make sure your hands are dry before touching the appliance, USB cable.
- Do not pick up the appliance if it falls into water. Remove the USB cable from the adaptor immediately. Do not use the appliance again.
- Never immerse the appliance, the USB cable in water or any liquid.
- Clean the appliance thoroughly after every use (Please refer to “Cleaning and Storage” section.)
- The appliance can not aspirating an aqueous solution that may contain foaming detergent.
- Do not dismantle the vacuum cleaner while the motor is still operating.
- Never use the vacuum cleaner without the filter.
- Always keep the openings clean and prevent dust or dirt from blocking the air passage. Do not put any objects into openings. Do not use with any opening blocked until the obstacles removed.
- Never use the vacuum cleaner to suck up explosive, flammable or combustible liquids nor anything that may be still burning such as cigarette butts or ash/ cinders. Never vacuum up toxic materials, organic solvents or acids.
- Never vacuum up solid, sharp or piercing objects that may damage the filter.
- Never use the appliance to suck up any other liquid than cold water.
- Never exceed the MAX level when sucking up liquids.
- When aspiring liquids, always keep the appliance in the vertical position, with the suction inlet facing downwards. Never place the appliance in any other position and never allow liquids to come into contact with the motor.
- Never use the appliance to suck up cement powder, filings, sawdust or metal powder, because they could block the filter, be abrasive to and damage the motor, causing the loss of the guarantee.
- Do not use the batteries included inside the appliance for other uses or other appliances.
- Do not clean any parts in a dishwasher.

Note: For the first time you should `charge the appliance for at least 8 consecutive hours.

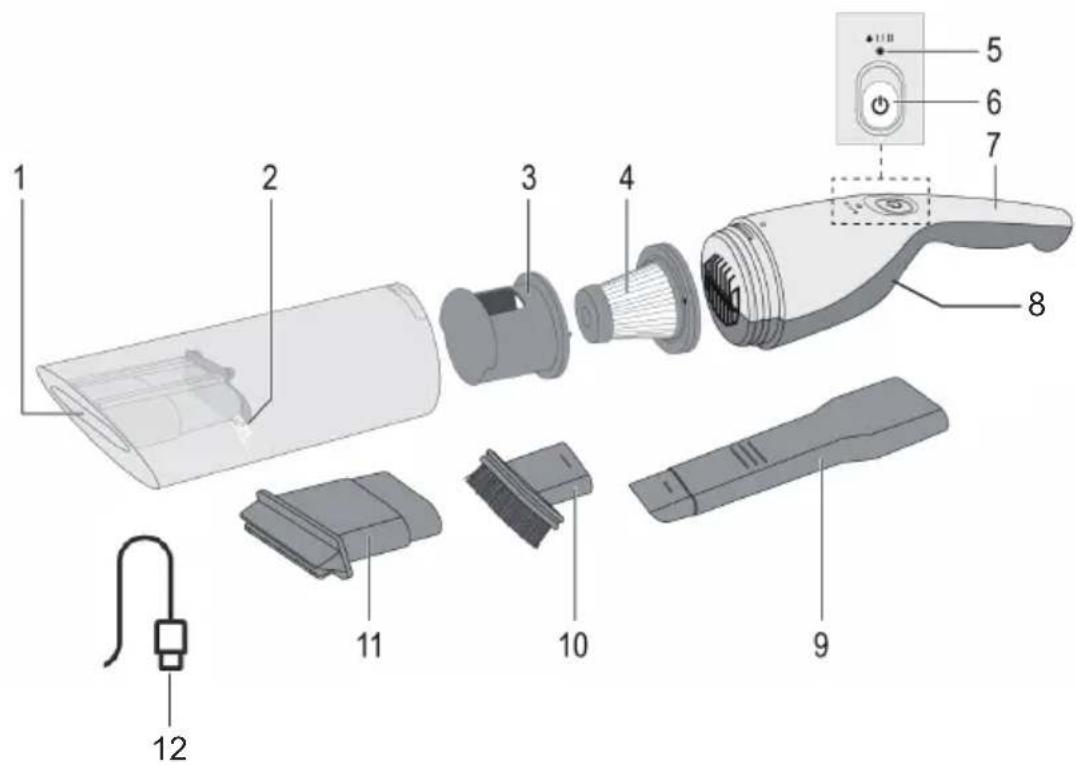

PRODUCT OVERVIEW

1. Dust container
2. "MAX" level mark
3. Filter bracket
4. Filter
5. Light indicator
6. On/Off switch
7. Handle
8. Charging port (Type-C)
9. Crevice nozzle
10. Brush attachment
11. Soft nozzle for liquid
12. Type C charging cable

USAGE INSTRUCTION

Using the appliance for dry suction

Following accessies working for dry purpose:

Crevice nozzle (9): is suitable for upholstery, cleaning the inside of cars and fro all nooks and crannies that can't be reached with other nozzle.

Brush attachment (10) can be used with Crevice nozzle (9).

a) Plug the Crevice nozzle (9) and then apply pressure on it to attach it.
b) Turn on the appliance press on the switch (6) for Low speed,
c) Press again and hold on for 2 second to turn to High speed.
d) To turn off the appliance, operate again on the switch (6).

Using the appliance to suck up liquids

WARNING:

1. Never use the appliance to suck up any other liquid than cold water.
2. Do not exceed the indicated MAX level (2) when sucking up liquids (the MAX level must always be measured when the appliance is in the vertical position,

with the suction inlet facing down).

1. When sucking up liquids, always keep the appliance in the vertical position, with the suction inlet facing downwards.

Never place the appliance in any other position and never allow liquids to come into contact with the motor.

Line drawing of a knife with a handle and blade, showing an arrow pointing to the blade (no text or symbols)

a) Use the Soft nozzle for liquid as final attachment (11); apply pressure to it to attach it.
b) Press on switch (6) to switch the appliance on.
c) Keep the appliance on with the suction inlet facing down at all times.
d) Pull the switch (6) back to switch the appliance off.

Note: Empty the container immediately after use and wash the filter.

Rinse the container and the filter in cold water and let all parts dry completely before reassembling them.

Note: Only low speed mode available for Liquid vacuuming. Do never suck up liquid on High speed.

CHARGING

Insert the plug of charging cable into the adaptor outlet.

Make sure the on/off switch (6) in OFF.

Please recharge the appliance. When the appliance will be correctly positioned then the LED will display a red light.

Note:

• When you are not using the appliance, keep it always switch OFF let it recharge for at least 2 hours.
• If the appliance is used until the batteries are completely flat, it should then be recharged with a complete recharging cycle until LED light turn to green.
• Don't let the appliance uncharged for a long time, because the inner accumulators may be damaged.
• Type C on both sides of the charging cable, there is a chance it won't be able to charge.
• Please use a USB-A to USB-C charging cable.

CLEANING & STORAGE

Empty the container and clean the filter

Twist the dust container off (1) the main unit (fig.2)

Remove the dust filter from the inside of the container and empty the dust container (1).

Clean the dust filter and, if necessary, clean the container and dust filter with clear, lukewarm water.

Let all parts dry completely before you put them back together.

Note: Ensure filter bracket (3) facing upwards (fig.3)

Reinsert the dust container into the main unit, ensuring that it clicks into place. Ensure that the front tip on the main unit's lower side slots into the correct opening found on the dust container. (fig.4, fig.5)

Don't use the appliance if the filter is broken or worn out.

Note: After an intensive or long use, it is necessary to change the filter with a new one.

Diagram of a mechanical assembly showing a shaft and housing with an arrow indicating rotation (no text or symbols)

Mechanical component diagram showing a threaded pipe with an upward arrow, labeled 'fig.3' (no text or symbols on the diagram itself)

Care and storage

Before cleaning the appliance, make sure it has completely cooled.

The appliance should be cleaned with a dry cloth. Don't use abrasive detergents.

Only the dust container (1) and the dust filter can be washed in cold water. Let the parts dry completely before reassembly.

Do not immerse the body of the appliance, Power cable in water or other liquids.

Do not wash any components of the appliance in the dishwasher.

TROUBLESHOOTING

If the appliance should stop working properly, first check whether you are able to correct the problem yourself. Otherwise, contact our customer service department Do not try to repair a faulty appliance yourself!

PROBLEM POSSIBLE CAUSES SOLUTION
The appliance only works slowly or does not start	Battery flat Recharge it
Low suction force The dust	container full.The filter heavily clogged up.The suction opening locked.Some smaller items will remain stuck to the carpet or are too big / too heavy to be picked up the appliance.	Empty the container.Clean the container.Switch off the appliance and remove the blockage.Remove these foreign bodies by hand.
Dust escapes from the appliance during cleaning	The dust container and filter are inserted incorrectly	The dust container and filter are inserted correctly.Adjust the fitting of the dust container if necessary
The light indicator does not light up when the appliance is connected to the mains power.	The charger cable is not inserted into the adaptor correctly and the charging connector is not installed in place.The plug socket defectiveTurn off of the fuse of your mains connection.	Plug the charging cable into the adaptor correctly and make sure the connector is inserted into the socket.Try another plug socket.Check the fuse of your mains connection.
Unusual odour.	Any new odour is normal when the appliance is used for the first times;	It will disappears after a while of usage.
This product cannot be charged	Check charging cable type Please	use USB-A to USB-Ccharging cable

PRODUCT SPECIFICATIONS

Model no.: GVC65GR

Battery Voltage: 7.4V

Output power: 65W

Suction power: 4 kPa (High speed) / 2.5 kPa (Low speed)

Product size: 70(H) x 455(W) x 70(D)mm

*The final product specification may be varied according to a different lot of material and actual input voltage power of the usage area.

Note:

• Type C on both sides of the charging cable, there is a chance it won't be able to charge.
• Please use a USB-A to USB-C charging cable.

Line drawing of a knife with a handle and blade, showing an arrow indicating motion (no text or symbols)

充電

將USB充電線插頭插入充電器。

確保電源開關鍵(6)處於關閉位置。

Diagram showing a mechanical assembly with a cylindrical component and a threaded end, no text or symbols present.

Mechanical component diagram showing a cylindrical assembly with an upward arrow indicating motion (no text or symbols)

圖3

圖4

圖 5

疑難排解

購買日期 Date of Purchase:

單據編號 Invoice No.:

The product specifications may be changed without prior notice.

Please contact customer service for details if necessary.

說明書內容以英文版本為準

If there is any inconsistency or ambiguity

between the English version and the Chinese version,

the English version shall prevail.
