GVC222R - Vacuum Cleaner GEMINI - Free user manual and instructions

Product Type	Stick Vacuum Cleaner
Brand	Gemini
Model	GVC222R
Voltage	DC 22.2V
Power Consumption (Main Unit)	160W
Power Consumption (Floor Brush)	15W
Power Consumption (Bed Brush)	15W
Battery Type	Rechargeable Lithium-ion (assumed)
Charging Time	Approx. 5.5 hours
Max Runtime (High Speed)	Approx. 18 minutes
Max Runtime (Low Speed)	Approx. 30 minutes
Dimensions (Stick Vac with Floor Brush)	1270 (H) x 250 (W) x 210 (D) mm
Weight	Approx. 2.5 kg
Dust Container Capacity	Approx. 0.5 L
Filter Type	H12 washable filter
Speed Settings	High (red indicator) and Low (green indicator)
Accessories Included	2-in-1 crevice nozzle, motorized bed brush, pet brush with foldable tube, wall hanger, adaptor
LED Floor Brush	Yes
Battery Level Indicator	3-bar green LED indicator
Wall Mountable	Yes (wall hanger included)
Washable Parts	Dust container, H12 filter, rolling brush
Safety Certifications	Not specified

Frequently Asked Questions - GVC222R GEMINI

How long does it take to fully charge the battery?

The battery takes approximately 5.5 hours to fully charge. The green battery indicator will flash during charging and show 3 solid bars when fully charged.

Can I use the vacuum while it is charging?

No, the vacuum cleaner cannot start operation during charging. You must unplug it before use.

What is the runtime on a full charge?

On high speed, the runtime is approximately 18 minutes. On low speed, it extends to approximately 30 minutes.

How do I assemble the metal tube to the handheld unit?

Insert the end of the metal tube into the main handheld unit until you hear a click. To disassemble, press the release button on the handheld unit and pull the tube out.

How do I clean the H12 filter?

Remove the H12 filter, gently rinse it with water, and let it air-dry completely before reassembling. Do not use a dishwasher.

Can I vacuum liquids with this appliance?

No, this vacuum is designed for dry use only. Do not vacuum aqueous solutions, foaming detergents, or any liquids.

How do I empty the dust container?

Press the dust container release button, remove the container, empty it, and if needed rinse with water. Ensure it is completely dry before reinstalling.

What should I do if the motorized floor brush gets tangled with hair?

Slide the sliding switch to open, remove the roll brush, clean off hair and dust, rinse if needed, and let it dry. Reinstall and lock the switch.

Is the vacuum suitable for pet hair?

Yes, it comes with a pet brush with foldable tube designed to effectively remove pet hair from upholstery and other surfaces.

How do I mount the wall hanger?

Position the wall hanger against the wall, mark screw holes, drill, insert plastic anchors, then screw the hanger onto the wall. Hang the vacuum on it.

USER MANUAL GVC222R GEMINI

Please read and retain for future reference.

SAFETY INSTRUCTION - GENERAL

• Use this appliance solely in accordance with these instructions.
• This appliance is for household use only, not for commercial purpose.
• Remove all packaging material from the appliance before use.
• This appliance shall not be used by children of 0 to 8-year old.
• This appliance can be used by children older than 8-year old and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, but only if they have been given supervision or instruction concerning use of the appliance in safe way and understand the hazards involved.
  • Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and maintenance must not be done by children.
• Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.
• Do not handle the plug or appliance with wet hands.
• Do not immerse the main body in water.
  • Children shall not play with the appliance.
• Do not leave the appliance unattended when connected to the mains supply.
• Keep hair, loose clothing, fingers and all parts of the body away from openings of the appliance.
• Only use the attachments/accessories supplied with the product.

SAFETY INSTRUCTION - ELECTRICITY AND HEAT

• Verify that the mains voltage is the same as that indicated on the rating plate on the appliance before use.
• Make sure that you always use a grounded wall socket to connect the appliance.
  • Always remove the plug from the wall socket when the appliance is not in use.
• Remove the plug from the wall socket by pulling the plug, not the power cord.
• Make sure that the appliance, the power cord and plug do not make contact with water.
• Make sure that the appliance, the power cord and plug do not make contact with hot surface, such as a hot hob or naked flame.
• Check the appliance's power cord regularly to make sure it is not damaged. Do not use the appliance if the power cord is damaged. If the power cord is damaged, it must be replaced by an electrical technician or a person with similar qualification, in order to avoid any hazards.

• The appliance needs space to allow heat to escape, thereby preventing the risk of fire. Make sure that the appliance has sufficient space around it, and does not come in contact with flammable material. The appliance, the air vents must not be covered or blocked when use.

• Never use the appliance in the vicinity of flammable material.

• Certain part of the appliance may get hot, such as air outlet. Do not touch these part to prevent scalding yourself.

SAFETY INSTRUCTION - DURING OPERATION

• Make sure your hands are dry before touching the appliance, power cord or plug.
• Do not pick up the appliance if it falls into water. Remove the plug from the socket immediately. Do not use the appliance again.
• Never immerse the appliance, the power cord or the plug in water or any liquid.
• Clean the appliance thoroughly after every use (Please refer to “Cleaning and Storage” section.)
• The appliance can not aspirating an aqueous solution that may contain foaming detergent.
• Do not dismantle the vacuum cleaner while the motor is still operating.
• Never use the vacuum cleaner without the filter.
• Always keep the openings clean and prevent dust or dirt from blocking the air passage. Do not put any objects into openings. Do not use with any opening blocked until the obstacles removed.
• Never use the vacuum cleaner to suck up explosive, flammable or combustible liquids nor anything that may be still burning such as cigarette butts or ash/cinders. Never vacuum up toxic materials, organic solvents or acids.
• Never vacuum up solid, sharp or piercing objects that may damage the filter.
• Do not clean any parts in a dishwasher.
• The appliance must be disconnected from the supply mains when removing the battery

PRODUCT OVERVIEW

Close-up of a mechanical component with two cylindrical pins and a labeled part (11), no visible text or symbols.

Close-up of a black electronic device with wires and a labeled component (no readable text or symbols)

Close-up of a mechanical component with threaded end and flange (no visible text or symbols)

1. Charging socket
2. Dust container button
3. Dust container
4. Dust container release button
5. LED floor brush
6. Handle
7. Air Outlet
8. Metal tube release button
9. Metal tube

10. LED Floor brush release button

11. Wall hanger

12. Adaptor
13. 2-in-1 crevice nozzle
14. Motorized bed brush
15. Pet brush with foldable tube

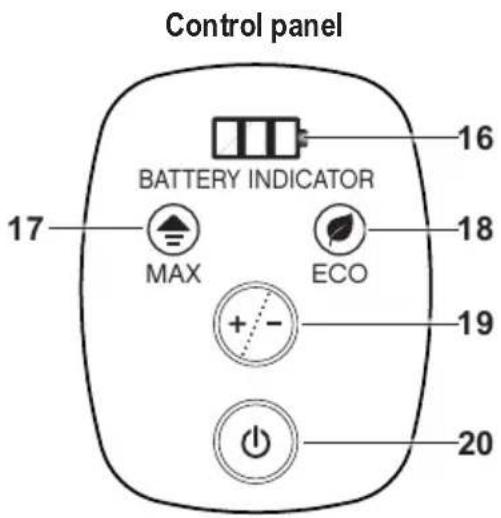

16. Battery level and charging indicator
17. High speed indicator
18. Low speed indicator
19. High/Low speed mode button
20. On/Off button

CHARGING

Before using your vacuum cleaner for the first time, allow the battery to charge for approx. 5.5 hours.

Important note: Please note the vacuum cleaner can not start operation during charging

- When the vacuum cleaner is charging, the green battery indicator light is flashing. When the 3-bar green light of the battery indicator light is on, it means the battery is fully charged.

- When the 3-bar of green battery indicator turn to 2 or 1 bar, it means that the battery level will gradually decrease. Charge again.

Close-up of a black mechanical component with a cable and plug attached to its base, showing a close-up of its cable (no text or symbols visible)

Replace the battery with Handle

- If you need the a back up battery or the battery became more and more weak. You need to replace a new battery with handle.

After fully charging, press the power on/off button ⏻” to start operation, the vacuum cleaner will work under high speed (red indicator on) at the beginning, and can press speed “+/-” button once to change at the low speed (green indicator on). You can select the speed according to your cleaning. If you need to stop operation press once on the on/off button “💡”.

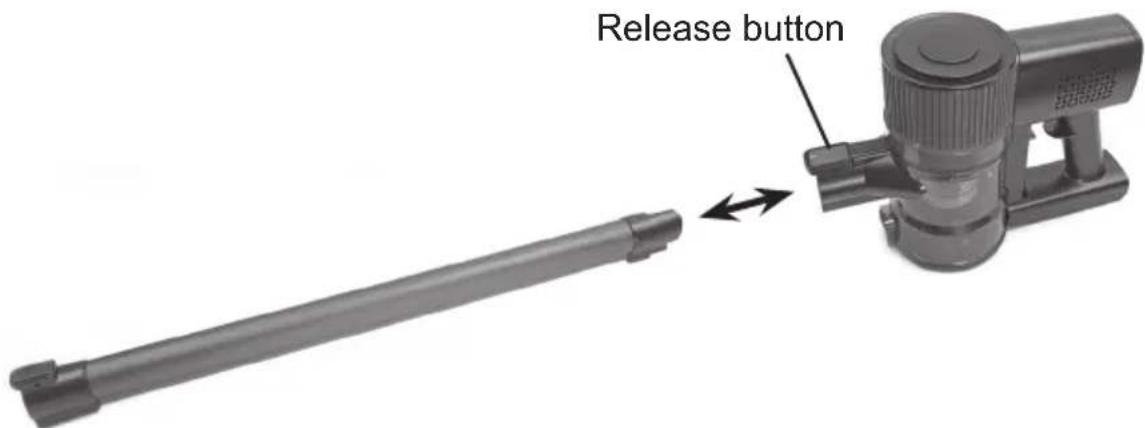

Assemble and Dis-assemble Handheld with metal tube

• Assemble: Insert the end of the metal tube into the main handheld unit, after hearing the click sound, then the metal tube installed in place.
• Dis-assemble: Use one hand to hold the metal tube, press the release button on the main handheld unit and remove the metal tube outwards.

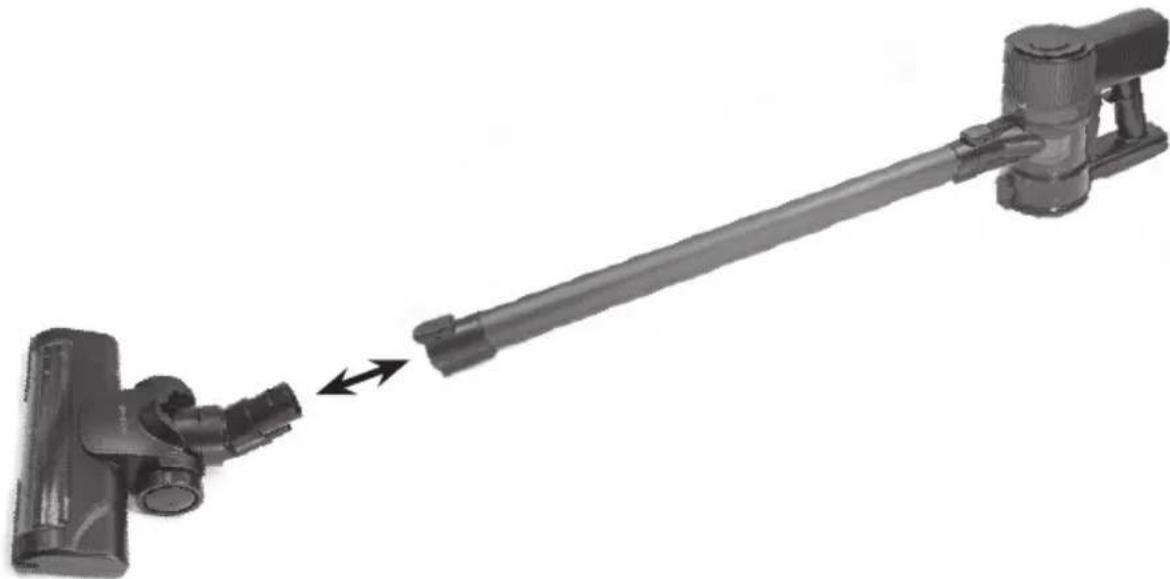

Assemble and Dis-assemble the floor brush

• Assemble: Insert the end of the motorized floor brush into the metal tube, after hearing the click sound, then motorized floor brush installed in place.
• Dis-assemble: Use one hand to hold the motorized floor brush, press the release button on the metal tube and remove the motorized floor brush outwards.

Mechanical device with a lever and handle assembly, showing a close-up of the lever (no text or symbols visible)

Motorized floor brush/ bed brush and the main handheld unit

• Assemble: Insert the end of the motorized floor brush/ bed brush into the main handheld unit, after hearing the click sound, then motorized floor brush/ bed brush installed in place.
• Dis-assemble: Use one hand to hold the motorized floor brush/ bed brush, press the release button on the main handheld unit and remove the motorized floor brush/ bed brush outwards.

Pet brush and the main handheld unit

• Assemble: Insert the end of the pet brush into the main handheld unit, after hearing the click sound, then pet brush installed in place.
• Dis-assemble: Use one hand to hold the pet brush, press the release button on the main handheld unit and remove the pet brush outwards.

2-in-1 Crevice tool assemble with handheld unit

• A: A crevice tool with a narrow nozzle, which you can use to clean window frames and crevices, etc.
• B: Push upwards the cleaning brush of 2-in-1 crevice tool, you can use to clean delicate or irregular surfaces, furniture, Venetian blinds, etc.

CLEANING AND STORAGE

Emptying the dust container

• Check that the appliance is switched off before cleaning any parts.

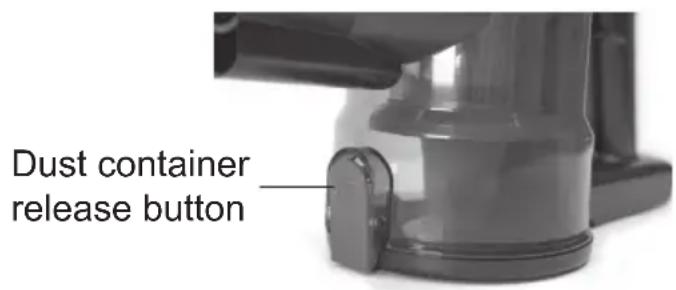

• Press the dust cover release button at the front of the dust container, and unfasten the dust container from the main handheld unit.
  • Empty the dust container.
• If necessary, rinse the dust container with water gently, let it air-dry completely before reassemble.

NOTE: The H12 filter, cyclonic part can become blocked a fter some time and can thereby reduce the suction power. It is therefore important that the above mentioned filter determine to replace.

Cleaning or replacing the H12 filter

The filters can become blocked after some time and can thereby reduce the suction power. It is therefore important that the above mentioned filter determine to replace.

• When you take off H12 filter.
• Rinse the cyclone, H12 filter with water gently, let them air-dry completely before reassemble.

NOTE: Water could penetrate into the appliance if the filters are not thoroughly dry. This can result in electrical damage, poor suction performance and smelly during operation.

Clean the motorized floor brush

The Motorized floor brush can be possibly blocked by big objects or rape around by hair or long thread. It need to be clean the rolling brush timely.

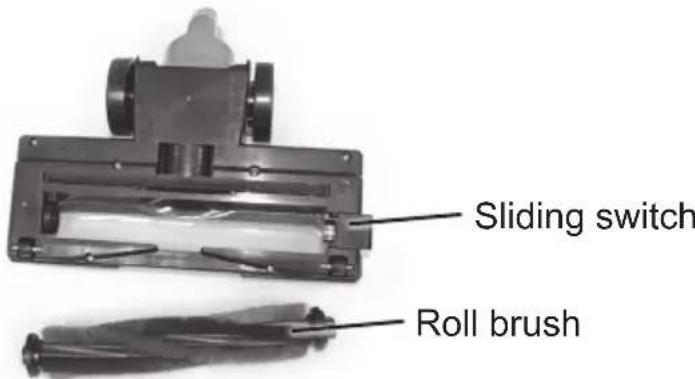

- Slide the sliding switch to open position, remove the roll brush from the floor brush housing.

- Remove the hairs or dust around the roll brush, rinse the roll brush with water gently, let it air-dry completely before reassemble.

• After cleaned, install the rolling brush inside the motorized floor brush. Make sure the rolling brush is proper seat in position. Slide the sliding switch to lock position.

NOTE: All accessories must dry thoroughly before installing into the appliance.

Clean the motorized bed brush

- Turn the unlock/ lock switch to unlock position and push out the roll brush.

- Remove the hairs or dust around the roll brush, rinse the roll brush with water gently, let it air-dry completely before reassemble.

- After cleaned, install the rolling brush inside the motorized bed brush. Make sure the rolling brush is proper seat in position. Turn the unlock/ lock switch to lock position.

Storage with Wall mount hanger

- After cleaning, you can store your appliance on the wall mount hanger. Position the wall mount hanger against the wall and mark the points at which the fastening screws are to be inserted. Using a drill, drill the holes for the screws, insert the plastic anchor provided, then hang the wall mount hanger on the screws, and tighten the screws up to their full extent.

Technical illustration of a mechanical device with two views: one showing a cylindrical component and dashed alignment lines, the other showing a mounted sensor or clamp device (no text or symbols present)

PRODUCT SPECIFICATIONS

Model no.: GVC222R

Voltage: DC 22.2V

Output power: 160W Main unit

15W Floor brush

15W Bed brush

Charging time: Approx.5.5 hours

Two Speed of run time: About 18 mins (High) / 30 mins (Low)

Product Dimension (mm):

Stick Vac with floor brush: 1270(H) x 250(W) x 210(D) mm

*The final product specification may be varied according to a different lot of material and actual input voltage power of the usage area.

Close-up of a mechanical component with two cylindrical pins and a labeled part (11), no visible text or symbols.

Close-up of a black electronic device with wires and a labeled component (no readable text or symbols)

Close-up of a mechanical component with threaded end and flange (no visible text or symbols)

Close-up of a black mechanical component with a cable being inserted, showing a small inset image (no text or symbols visible)

安裝及使用說明

Mechanical assembly diagram showing a pipe fitting and a lever mechanism (no text or symbols)

電動地扒/床刷和主機連接

Two mechanical components with threaded surfaces, one metallic and one white, shown from different angles (no text or symbols visible)

Two black mechanical components with threaded pins, shown from different angles (no text or symbols visible)

購買日期 Date of Purchase:

單據編號 Invoice No.:

The product specifications may be changed without prior notice.

Please contact customer service for details if necessary.

說明書內容以英文版本為準

If there is any inconsistency or ambiguity

between the English version and the Chinese version,

the English version shall prevail.
