Product Type	Wireless Optical Mouse
Brand	IOPLEE
Model	IOPEXT561BTR
Connectivity Technology	2.4 GHz Wireless via USB Receiver
Buttons	6 (Left, Right, Middle, Forward, Back, DPI Switch)
Scroll Wheel	Yes
DPI Resolution	Adjustable: 800 / 1200 / 1600 / 2400 DPI
Power Source	1x AA Battery (not included)
Dimensions (L x W x H)	Approx. 100 x 60 x 30 mm
Weight	Approx. 60 g (without battery)
Operating Range	Up to 10 meters
Compatible Operating Systems	Windows, macOS, Linux, Chrome OS
Cleaning	Wipe with a soft, dry cloth; avoid liquids
Safety Precautions	Keep away from water and heat; do not disassemble
Spare Parts	USB receiver, battery (AA)
Repairability	Not user-serviceable; contact support for issues

Frequently Asked Questions - IOPEXT561BTR IOPLEE

How do I connect the mouse to my computer?

Insert the USB receiver into a free USB port on your computer. The mouse will automatically pair. If not, press the connect button on the bottom of the mouse.

What type of battery does the mouse require?

The mouse requires one AA battery (not included). Open the battery compartment on the underside and insert the battery with correct polarity.

How can I adjust the DPI settings?

Press the DPI button on the top of the mouse to cycle through preset levels: 800, 1200, 1600, and 2400 DPI.

Why is my mouse cursor not moving?

Check that the USB receiver is properly connected. Ensure the mouse is powered on (switch on bottom) and the battery is fresh. Try re-pairing by pressing the connect button.

How do I clean the mouse?

Use a soft, dry cloth to wipe the exterior. For the sensor, gently remove debris with a cotton swab. Do not use liquids or harsh cleaners.

Is the mouse compatible with Mac computers?

Yes, the mouse works with macOS, as well as Windows, Linux, and Chrome OS.

What is the battery life of the mouse?

Battery life depends on usage, but typically lasts several months with normal use. The mouse will automatically enter sleep mode after inactivity to save power.

Can I use the mouse on any surface?

The optical sensor works on most surfaces except glossy transparent ones. For best performance, use a mouse pad.

How do I replace the USB receiver if lost?

Contact IOPLEE customer support for a replacement receiver. Note that each receiver is paired with the mouse, so a new one may need pairing.

What is the operating range of the mouse?

The mouse works up to 10 meters (33 feet) from the receiver under normal conditions.

USER MANUAL IOPEXT561BTR IOPLEE

Technical line drawing of a mechanical component with curved internal structure (no text or symbols)

PORTATA WIRELESS 8.10m

800 1200 1600

6 TASTI

RICARICABILE

Line drawing of a medical device with a hand holding a small object (no text or symbols)

Diagram showing a laptop keyboard and server rack with an icon of a USB drive (no text or symbols present)

Thank you very much for purchasing one of our products. We kindly ask you to read this instruction manual carefully and to keep it, as it provides valuable information regarding safe use and maintenance.

INDEX

1 Safety Warnings
2 Description of the Appliance
3 Before first use
4 Operation
5 Cleaning and maintenance
6 Technical Specification
7 Disposal
8 Warranty and Compliance

1 Safety Warnings

• If the battery is not replaced properly, there is a possibility of leakage, explosion, and personal injury.

- Do not use the battery in case of leakage, discoloration, deformation, or any other abnormalities.

- Do not leave the battery in a discharged or unused state for a long time.

• Do not short-circuit the product.

- The lifespan of batteries varies depending on usage, and discarded batteries should be disposed of in accordance with local laws or disposed of in trash cans used for recycling electronic devices.

- If any liquid accidentally enters the product. please immediately disconnect the power supply and remove it.

- Continued use of this product may cause a fire or electric shock. Please contact your agent or nearest customer service centre for inspection and repair in a timely manner.

- Storing the mouse and keyboard: Moisture-proof

Keep the mouse storage environment dry and avoid moisture. When not in use for a long time, it is recommended to regularly check the storage environment to ensure dryness.

Ultraviolet Light

Avoid prolonged exposure of the mouse to sunlight to prevent accelerated aging.

Anti-theft

Be careful when storing the mouse to avoid theft or damage. It is recommended to place the mouse in a safe place and ensure the security of the storage environment.

• Other precautions:

Do not let the mouse encounter harmful substances.

Avoid exposing the mouse to harmful substances such as alcohol, soap, and other chemicals. These substances may damage the coating on the surface

of the mouse and affect its use.

Do not expose the mouse to damp environments.

Prolonged exposure of the mouse to a humid environment may cause damage to its internal circuits and affect its normal use. Therefore, special attention should be paid to protecting the mouse in damp environments.

Pay attention to cleanliness

Regularly clean the surface and bottom of the mouse to maintain a good user experience. But be careful not to use overly strong cleaning agents to avoid damage to the surface of the mouse.

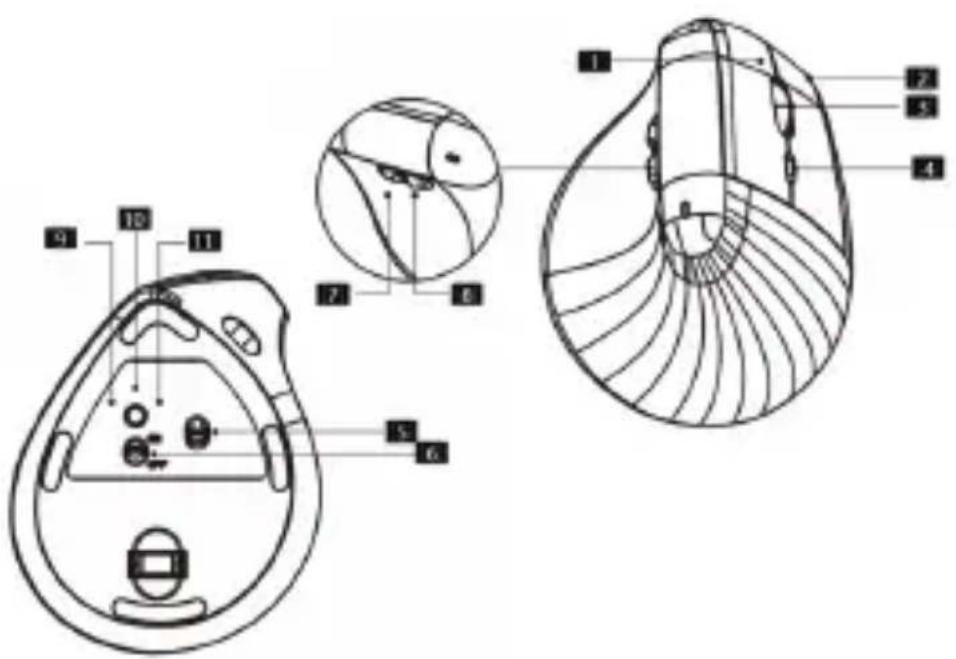

2 Description of the Appliancear

1.Left Click 7.Forward
2.Right Click 8.Back
3.Wheel 9.2.4G
4.DPI Button 10.BT1
5.Sensor 11.BT2
6.Power On/Off

3 Before first use

Before using the mouse, be sure to carefully review the mouse manual and operate according to the requirements and specifications in the manual. When cleaning the mouse, do not rinse it directly with water, as it may result in the mouse being scrapped.

The mouse should be kept as dry as possible.

4 Operation

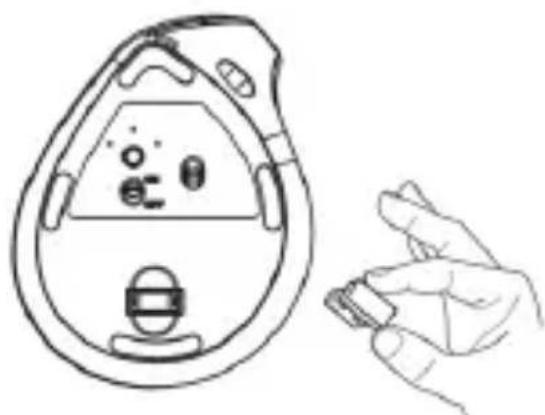

Step 1: Remove the USB receiver from the bottom of the mouse.

Line drawing of a device with a hand holding a small object, no text or symbols present

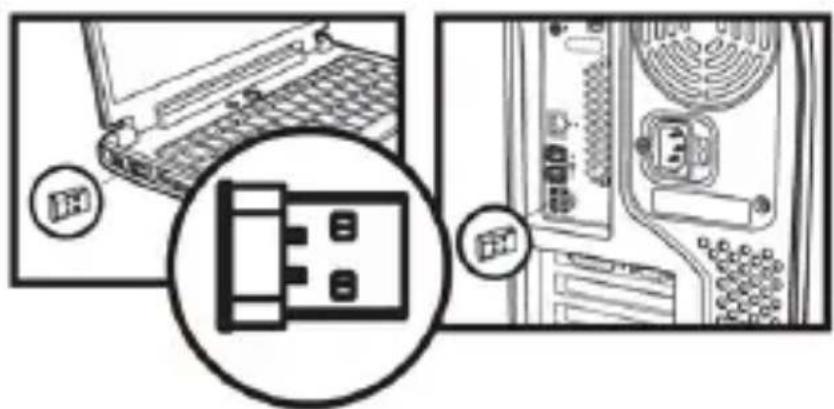

Step 2: Plug the USB receiver into your PC/Laptop.

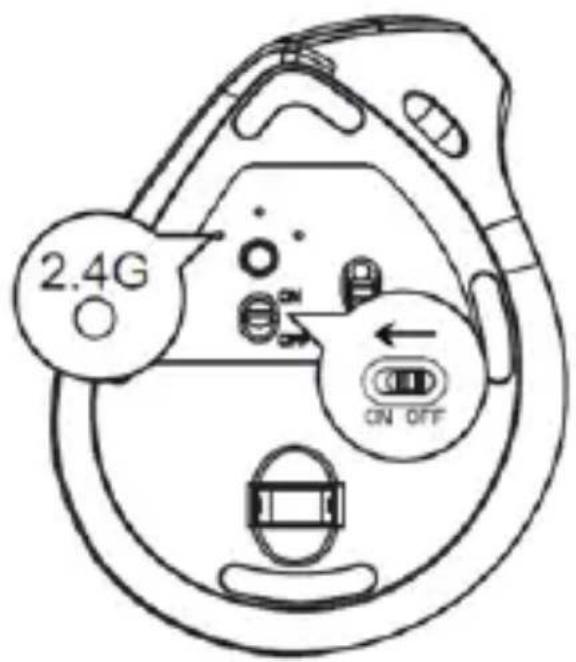

Step 3: Turn the power switch to the "on" position. Wait for 3-5 seconds, the mouse will pair with the USB receiver automatically.

Step 4: Click the mode switch button at the bottom of the mouse to ensure that the indicator light is set to 2.4G

Bluetooth connection method:

Step 1: Press the mode switch button once. When the indicator light is on at BT1/BT2 position, press and hold the mode switch button for 3-5 seconds, and the indicator light will flash quickly.

Step 2: Turn on the Bluetooth of your PC/Laptop, search for the Bluetooth name

BT3.0/BT5.0 in your device, and click pair to complete the process.

5 Cleaning and Maintenance

• Turn off the mouse.
- Dampen a microfiber cloth and cotton swab in water, and then use a cotton swab to wipe all cracks, curves, and gaps that accumulate dust and dirt on the mouse.
• Gently wipe the sensor with a cotton swab dipped in water.
- Turn the mouse over, roll the scroll wheel to release the accumulated dirt, and then wipe the area with a microfiber cloth.
- Finally, use a toothpick to remove unnecessary dirt from the area that your cotton swab cannot reach for the first time. Flip the mouse and clean any dirty areas that you may have missed.

6 Technical Specification

Model No.	IOPEXTMOUSEB561BTR
Connection method	2.4G+BT1+BT2
Receiver	USB receiver
Size	111.16*83.91*66.57mm
Weight	95g±5g
DPI	800/1200/1600
Battery	500mAh lithium battery
Charging interface	Type-C
Working distance	8-10m

7 Disposal

Processing of electric and electronic equipment at the end of their service life (applicable in member countries of the European Union and other European countries operating a selective waste collection system).

This symbol, affixed to the product or its packaging, indicates that the product must not be processed with household waste. It must be brought to an electric and electronic waste collection point for recycling and disposal. By ensuring the appropriate disposal of this product you also help in preventing potentially negative consequences for the environment and human health. The recycling of materials helps preserve our natural resources. For further information regarding the recycling of this product, please contact your municipality, local waste disposal centre or the store where the product was purchased.

In accordance with Legislative Decree of March 14, 2014, No. 49,

"Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)"the crossed-out wheeled bin symbol on the appliance or its packaging indicates that the product must be collected separately from other waste at the end of its life. Therefore, the user should dispose of the end-of-life appliance at the appropriate collection points for electronic and electrical waste or return it to the retailer when purchasing a new equivalent appliance, on a one-to-one basis. Proper separate collection for the subsequent disposal, treatment, and environmentally friendly disposal of the discarded appliance helps to prevent potential negative effects on the environment and health and promotes the recycling of the materials the appliance is composed of. Unauthorized disposal of the product by the user may result in the application of administrative sanctions provided by current regulations.

8 Warranty and Compliance

This IOPLEE Warranty applies only to IOPLEE products purchased for personal use and not those intended for resale.

Your IOPLEE product is warranted in accordance with the terms and conditions of this warranty against defects in workmanship and conformity for a period of a 2 years, and that period begins upon delivery of the item, if purchased from an official dealer.

The warranty will not be valid if the product has been opened, in the presence of physical damage, damage resulting from incorrect use, modifications, repairs by unauthorized persons, negligence and in the event that the product has been used for purposes other than those for which it was intended; furthermore, the legal guarantee will not apply if the purchase methods or other circumstances demonstrate, with reasonable certainty, that the purchase itself is not exclusively aimed at private consumption.

purchase itself is not exclusively aimed at private consumption.

In the event that the product is defective, it can be returned to the retailer along with a description of the type of malfunction, proof of purchase, and any accessories.

If the product is still under warranty, you will receive a replacement product (if available) from the dealer.

These are not covered by the warranty:

• Accidental damage or damage resulting from incorrect or improper use, contact with liquids; damage caused by accidents or force majeure events such as fire, earthquake, flood, vandalism, theft or other external cause.
• Cosmetic damage such as scratches, dents, or other breakage of plastic parts, caused by handling errors.
  • Defects resulting from normal product wear and tear (product aging).
• Incompatibility with other hardware/software products not listed in the minimum system

requirements.

- Consumable accessories such as batteries, protective covers, and fuses, which normally wear out over time. Problems due to noncompliance related to labour or materials are excluded.

In no event shall the manufacturer be liable for incidental or consequential damages, including any loss of business profits or other commercial damages resulting from the use of the product.

Due to the rapidly evolving nature of our products, the content of this manual may be subject to change without prior notice.

Made in China
