IOPEXTMOUSE358G - Mouse IOPLEE - Free user manual and instructions

Type	Wireless Mouse
Brand	IOPLEE
Model	IOPEXTMOUSE358G
Connectivity	2.4 GHz Wireless via USB Receiver
Sensor	Optical
Buttons	6 (Left, Right, Middle, Forward, Back, DPI Switch)
Scroll Wheel	Yes, Clickable
DPI Range	800-2400 DPI (Adjustable)
Power Source	1x AA Battery (Not Included)
Battery Life	Up to 12 Months (Typical Use)
Dimensions	120 x 65 x 38 mm
Weight	65 g (Without Battery)
Compatibility	Windows, macOS, Linux, Chrome OS
Color	Black
Warranty	1 Year Limited
Maintenance	Clean with soft dry cloth; avoid liquids
Safety	Keep away from water and extreme heat
Spare Parts	Battery, USB Receiver (Nano)
Package Contents	Mouse, USB Receiver, AA Battery (Demo), User Manual

Frequently Asked Questions - IOPEXTMOUSE358G IOPLEE

How do I connect the mouse to my computer?

Insert the provided USB receiver into an available USB port on your computer. The mouse will automatically pair. If not, press the connect button on the bottom of the mouse.

What type of battery does the mouse use?

The mouse uses one AA battery. A demo battery is included in the package. Replace it when the mouse performance declines.

How do I adjust the DPI?

Press the DPI button on top of the mouse to cycle through preset DPI levels: 800, 1200, 1600, 2400. The LED indicator will flash to confirm the change.

Why is the cursor not moving?

Check that the mouse is turned on (slide switch on bottom), the USB receiver is properly connected, and the battery is not dead. Try moving the receiver to a different USB port or closer to the mouse.

Can I use the mouse on a glass surface?

The optical sensor may not work well on transparent or reflective surfaces. Use a mouse pad or a matte surface for best performance.

How do I clean the mouse?

Use a soft, dry cloth to wipe the exterior. For dirt in crevices, use a slightly damp cloth (wring out well). Do not use abrasive cleaners or immerse in water.

Is the mouse compatible with Mac?

Yes, it works with macOS, as well as Windows, Linux, and Chrome OS. No additional drivers are needed for basic functions.

What is the wireless range?

The mouse has a range of up to 10 meters (33 feet) in open air. Walls and interference may reduce range.

How do I replace the battery?

Slide the battery compartment cover off (located on the bottom). Insert a new AA battery with correct polarity (+/-), then close the cover. Turn on the mouse.

Does the mouse have a power-saving mode?

Yes, the mouse enters sleep mode after 8 minutes of inactivity. Move the mouse or click any button to wake it instantly. Battery life is optimized for long usage.

USER MANUAL IOPEXTMOUSE358G IOPLEE

Line drawing of a computer mouse with a central screen and scroll wheel (no text or symbols)

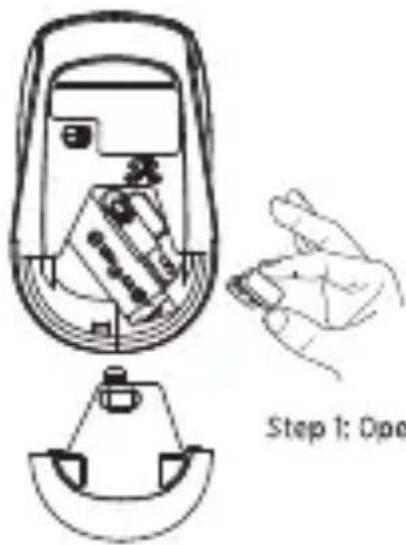

Step 1: Open the mouse battery cover and remove the USB receiver

Illustration of a vintage typewriter and keyboard (no text or symbols visible)

Step 2: Plug the USB receiver into your PC/laptop.

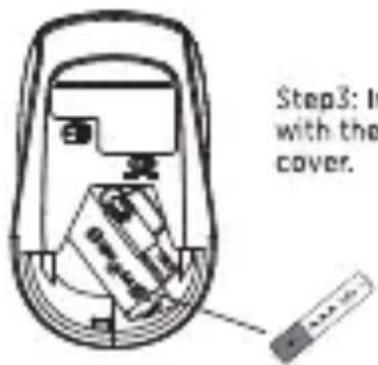

Step3: Insert one 1.5V AA battery into the mouse. Be sure to align with the positive (+)and negative (-)signs, then cover the battery cover.

Line drawing of a hand pressing a button on a device (no text or symbols)

Step 4: Turn on the Mouse by flipping the power switch to the "On" position. Then the mouse can start working now

NOTE: Ensure that the distance between your computer and mouse is within ten meters.

Dear Customer, thank you very much for purchasing one of our products. We kindly ask you to read this instruction manual carefully and to keep it, as it provides valuable information regarding the safe use and maintenance.

1. Safety Warnings
2. Description of the Appliance
3. Before first use
4. Operation
5. Cleaning and maintenance
6. Technical Specification
7. Disposal
8. Warranty and Compliance

1. Safety Warnings

1. If the battery is not replaced properly, there is a possibility of leakage, explosion, and personal injury
2. Do not use the battery in case of leakage, discoloration, deformation, or any other abnormalities.
3. Do not leave the battery in a discharged or unused state for a long time.
4. Do not short-circuit the product.
5. The lifespan of batteries varies depending on usage, and discarded batteries should be disposed of in accordance with local laws or disposed of in trash cans used for recycling electronic devices.
6. If any liquid accidentally enters the product, please immediately disconnect the power supply, and remove it
7. Continued use of this product may cause a fire or electric shock. Please contact your agent or nearest customer service centre for inspection and repair in a timely manner.

Storing the mouse:

• Moisture-proof Keep the mouse storage environment dry and avoid moisture. When not in use for a long time, it is recommended to regularly check the storage environment to ensure dryness.

- Sunscreen Avoid prolonged exposure of the mouse to

sunlight to prevent accelerated aging.

- Anti-theft

Be careful when storing the mouse to avoid theft or damage. It is recommended to place the mouse in a safe place and ensure the security of the storage environment.

Other precautions:

• Do not let the mouse encounter harmful substances
- Avoid exposing the mouse to harmful substances such as alcohol, soap, and other chemicals. These substances may damage the coating on the surface of the mouse and affect its use.
• Do not expose the mouse to damp environments

Prolonged exposure of the mouse to a humid environment may cause damage to its internal circuits and affect its normal use. Therefore, special attention should be paid to protecting the mouse in damp environments.

• Pay attention to cleanliness

Regularly clean the surface and bottom of the mouse to maintain a good user experience. But be careful not to use overly strong cleaning agents to avoid damage to the surface of the mouse.

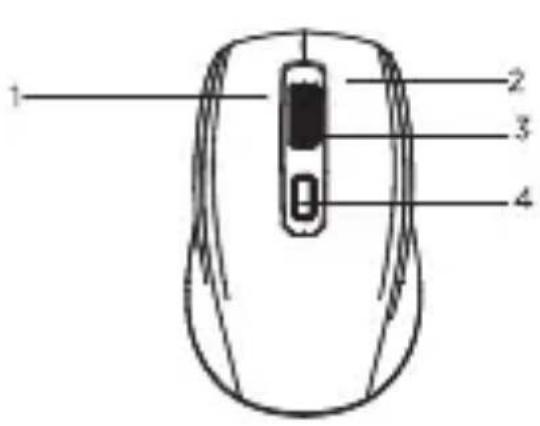

2. Description of the Appliance

1. Left Button
2. Right Button
3. Wheel
4. DPI Button
5. On/Off Switch
6. 2.4GHz USB Receiver
7. 1 x AA Battery
8. LED Light
9. Battery Cover

3. Before first use

1. Before using the mouse, be sure to carefully review the mouse manual and operate according to the requirements and specifications in the manual.

2. When cleaning the mouse, do not rinse it directly with water, as it may result in the mouse being scrapped.

3. The mouse should be kept as dry as possible.

4. Operation

This wireless mouse is plug and play device. Plug the USB receiver into the free USB port of your PC. Wait for a few moments until your system recognizes your new mouse. You will be notified once the mouse is ready.

1. Open the mouse battery cover and remove the USB receiver
2. Plug the USB receiver into your PC/Laptop
3. Insert 1 x 1.5V AA battery. Take care to align the positive (+) and negative (-) signs, and then replace the battery cover
4. Turn on the mouse by switching the power switch to the "On" position

NOTE: The mouse will only operate within a 10 metre distance of your PC/Laptop

Step 1: Open the mouse battery cover and remove the USB receiver

Technical illustration of a mechanical device with no visible text or symbols

Step 2: Plug the USB receiver into your PC/laptop.

Step3: Insert one 1.5V AA battery into the mouse. Be sure to align with the positive (+)and negative (-)signs, then cover the battery cover.

Line drawing of a hand interacting with a device (no text or symbols)

Step 4: Turn on the Mouse by flipping the power switch to the "On" position. Then the mouse can start working now
NOTE: Ensure that the distance between your computer and mouse is within ten meters.

5. Cleaning and Maintenance

• Disconnect the mouse, and if it is a wireless mouse, turn it off.
• Dampen a microfiber cloth and cotton swab in water, and then use a cotton swab to wipe all cracks, curves, and gaps that accumulate dust and dirt on the mouse.
• Gently wipe the sensor with a cotton swab dipped in water.
• Turn the mouse over, roll the scroll wheel to release the accumulated dirt, and then wipe the area with a microfiber cloth.
• Finally, use a toothpick to remove unnecessary dirt from the area that your cotton swab cannot reach for the first time. Flip the mouse and clean any dirty areas that you may have missed.

1. Technical Specification

Wireless mouse model	IOPEXTMOUSE358G
Connection type	2.4 GHz wireless
Receiver	USB Receiver
DPI	800/1200/1600
Weight	60g ± 5g
Mouse size	108x65x37mm
Receiver size	18.4 x14.6 x 6mm
Material	ABS plastic
Operation range	8-10M
Working voltage	1.1-1.6V
Optical Chip set detective speed	28ips
Working current	<16mA
Dormant current	<100uA
Report Rate	125Hz
Battery	1 x AA battery
Compatible with	Windows,MacOS,Chrome

7. Disposal

In accordance with Legislative Decree of March 14, 2014, No. 49, "Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)" the crossed-out wheeled bin symbol on the appliance or its packaging indicates that the product must be collected separately from other waste at the end of its life. Therefore, the user should dispose of the end-of-life appliance at the appropriate collection points for electronic and electrical waste or return it to the retailer when purchasing a new equivalent appliance, on a one-to-one basis. Proper separate collection for the subsequent disposal, treatment, and environmentally friendly disposal of the discarded appliance helps to prevent potential negative effects on the environment and health and promotes the recycling of the materials the appliance is composed of. Unauthorized disposal of the product by the user may result in the application of administrative sanctions provided by current regulations.

8. Warranty and Compliance

This loplee Warranty applies only to loplee products purchased for personal use and not those intended for resale.

Your loplee product is warranted in accordance with the terms and conditions of this warranty against defects in workmanship and conformity for a period of a 2 years, and that period begins upon delivery of the item, if purchased from an official dealer.

The warranty will not be valid if the product has been opened, in the presence of physical damage, damage resulting from incorrect use, modifications, repairs by unauthorized persons, negligence and in the event that the product has been used for purposes other than those for which it was intended; furthermore, the legal guarantee will not apply if the purchase methods or other circumstances demonstrate, with reasonable certainty, that the purchase itself is not exclusively aimed at private consumption.

In the event that the product is defective, it can be returned to the retailer along with a description of the type of malfunction, proof of purchase, and any accessories.

If the product is still under warranty, you will

receive a replacement product (if available) from the dealer.

These are not covered by the warranty:

• Accidental damage or damage resulting from incorrect or improper use, contact with liquids; damage caused by accidents or force majeure events such as fire, earthquake, flood, vandalism, theft or other external cause.
• Cosmetic damage such as scratches, dents, or other breakage of plastic parts.
• Defects resulting from normal product wear and tear (product aging).
• Incompatibility with other hardware/software products not listed in the minimum system requirements.
• Consumable accessories such as batteries, protective covers, and fuses, which normally wear out over time. Problems due to noncompliance related to labor or materials are excluded.

In no event shall the manufacturer be liable for incidental or consequential damages, including any loss of business profits or other commercial damages resulting from the use of the product.

The benefits conferred by this manufacturer's warranty are in addition to the rights provided by consumer protection legislation.

Due to the ongoing technological evolution of products, the data contained in this manual may undergo slight changes without prior notice from the manufacturer.

Made in China

SOMMARIO

ioplee

ioplee

Manufactured and imported by Exertis Supply Chain Services Ltd., Unit 21 Fonthill Business Park, Clondalkin, Dublin 22, D22 FR82, Dublin, Ireland "Ioplee" used under license from Unieuro S.p.A., Via Piero Maroncelli 10, 47121 Forli (FC).
