| Product Type | KVM Extender over IP |
| Model | ADDERView CATxIP 5000 |
| Brand | Adder |
| Dimensions (W x D x H) | 210 mm x 150 mm x 44 mm (1U rackmount) |
| Weight | 1.2 kg |
| Power Supply | 12V DC, 2A, external adapter |
| Power Consumption | <12W |
| Video Resolution | Up to 1920x1080@60Hz |
| Interface | RJ45 (CAT5e/6) for IP connection |
| USB Ports | 2 x USB 2.0 Type A (keyboard/mouse) |
| Audio | Microphone and speaker via 3.5mm jacks |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 10% to 90% non-condensing |
| Main Functions | Remote access to single computer over IP, VGA/audio/USB extension, rackmount design |
| Cleaning | Wipe with dry cloth; avoid liquids |
| Safety | CE, FCC compliant; use only supplied power adapter |

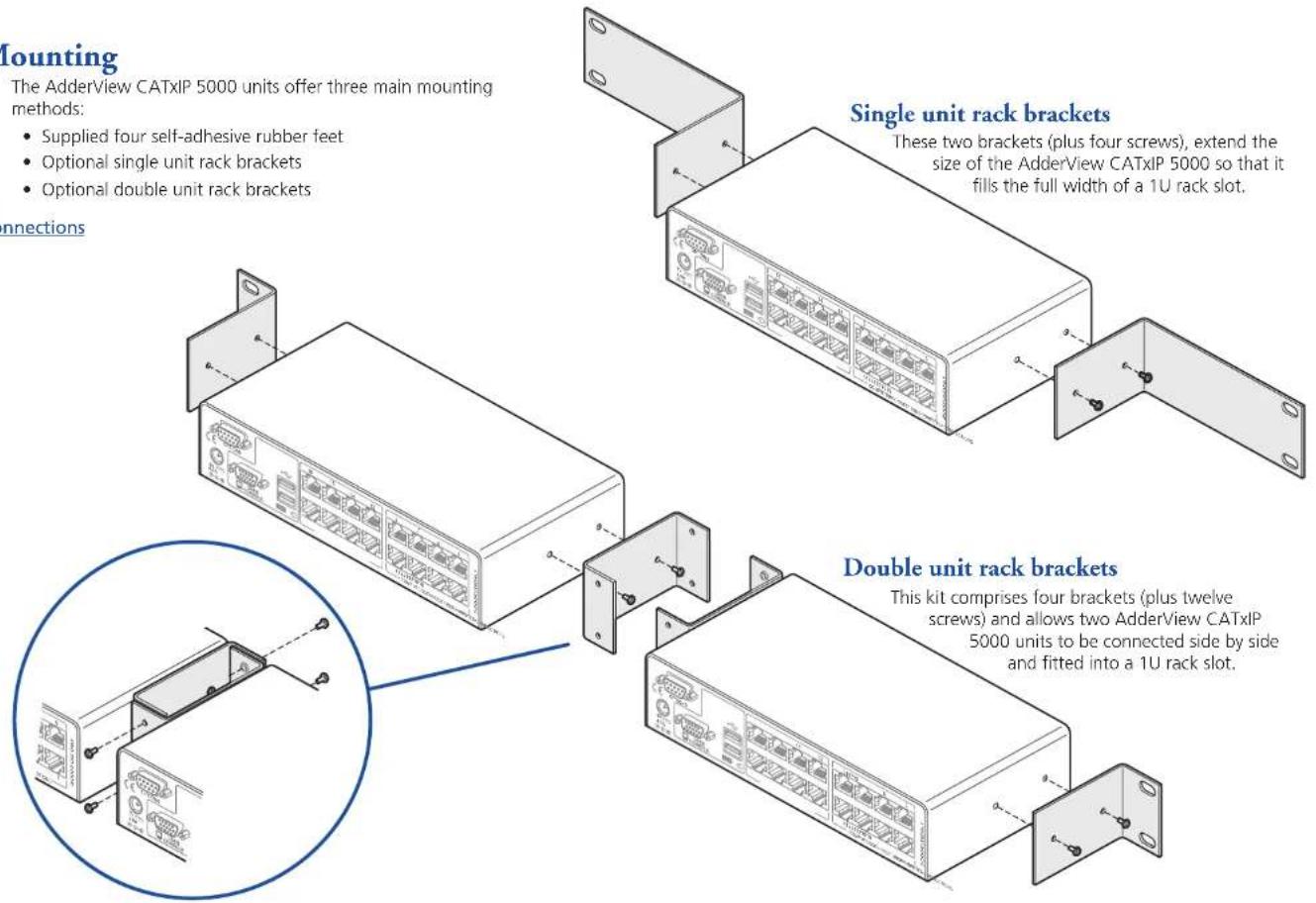

| Spare Parts | Power adapter, rackmount brackets (included) |
| Repairability | No user-serviceable parts; contact Adder support |
| Warranty | 2 years limited |
Frequently Asked Questions - ADDERView CATxIP 5000 Adder
What is the maximum transmission distance for the ADDERView CATxIP 5000?
The maximum distance is up to 150 meters over CAT5e/6 cable for video and USB signals at 1080p resolution.

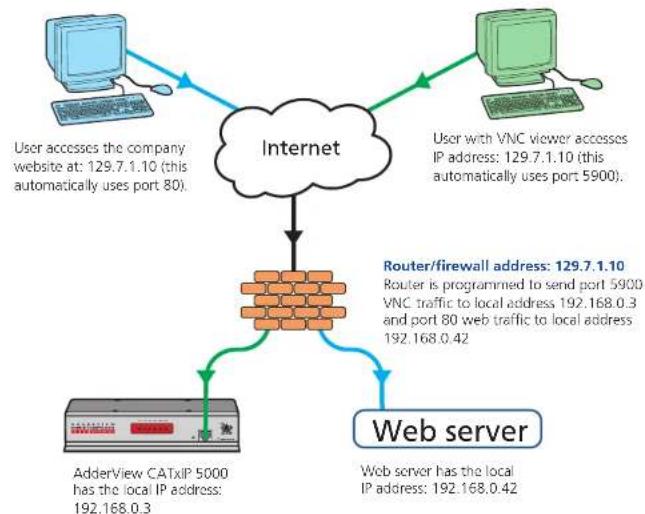

Can I use a standard Ethernet switch between the local and remote units?

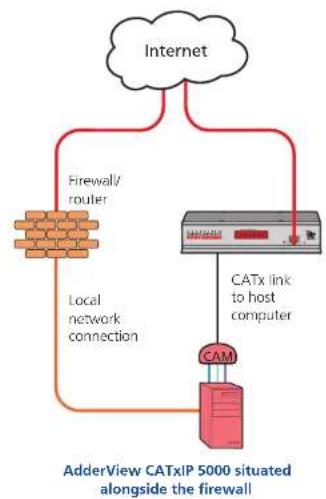

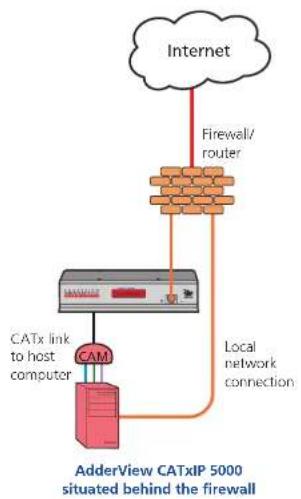

Yes, the device supports IP-based extension and can be connected via a standard Ethernet switch or directly.
Does the ADDERView CATxIP 5000 support audio?
Yes, it has 3.5mm audio jacks for microphone and speaker, allowing full audio extension.
How do I reset the device to factory defaults?
Press and hold the reset button on the rear panel for 10 seconds using a paperclip.
What video resolutions are supported?
The device supports resolutions up to 1920x1080@60Hz, including standard VGA resolutions.
Is the ADDERView CATxIP 5000 hot-swappable?
Yes, both local and remote units are hot-swappable, but ensure all cables are properly connected.
Can I extend USB 2.0 devices?
Yes, it has two USB 2.0 Type A ports for keyboard and mouse, but not high-speed storage.

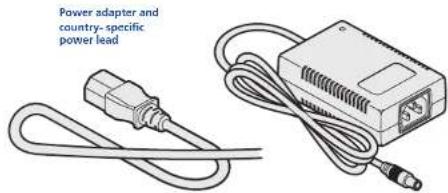

What power supply is required?
It requires a 12V DC, 2A power adapter (included). Use only the supplied adapter to avoid damage.

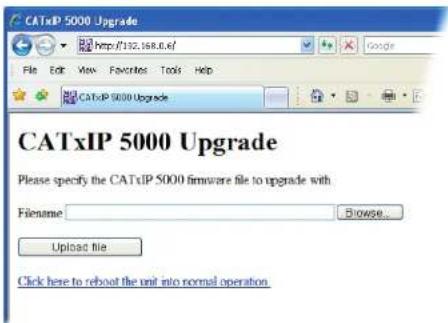

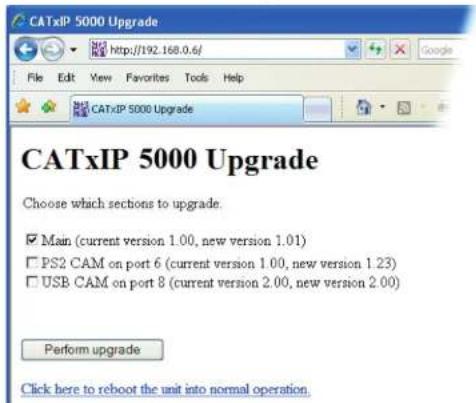

How do I update the firmware?

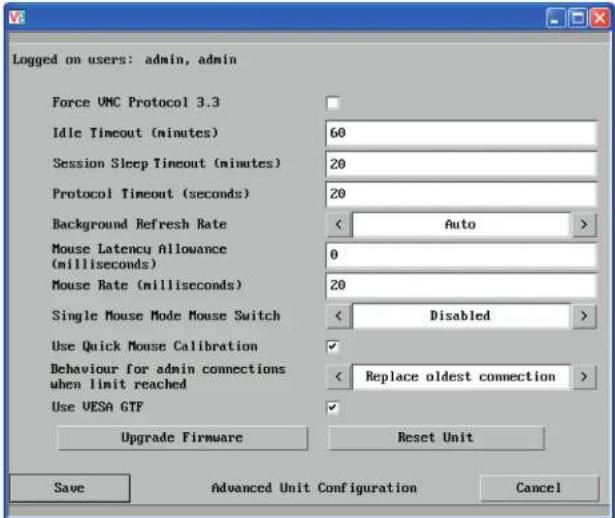

Download the latest firmware from Adder's website, then upload via the web interface under Administration > Firmware Update.
Does it support multiple computer access?
No, this model is a single-computer extender. For multi-computer switching, consider the ADDERView X-Series.
