Product Type	Moving Head Beam Effect Light
Light Source	1 x 75W White LED, 7500K
Lamp Life	50,000 hours
Power Input	AC 90-260V, 50/60Hz
Power Consumption	116W
Control Protocol	DMX512 (12/10 channels), Master-Slave, Sound-Active, Auto
Pan Range	360° / 540° / 630° (selectable)
Tilt Range	90° / 180° / 270° (selectable)
Color Wheel	12 colors + open, rainbow effect
Gobo Wheel	17 static gobos + open, rotation and shake
Prism	8-facet, variable speed and direction
Dimmer	0-100% linear LED dimmer
Strobe	Up to 25 T/sec, variable/random pulse
Display	1.44" TFT LCD
Cooling	Fan cooling with temperature monitoring
Protection Rating	IP20
Dimensions (D x W x H)	243 x 151 x 305 mm
Net Weight	4.38 kg
Gross Weight	6.04 kg
Mounting	Omega bracket with safety cable attachment
Accessories Included	Hanging kit, safety cable, RF remote controller

Frequently Asked Questions - Attco Beam 100 JMAZ Lighting

What is the lamp life of the Attco Beam 100?

The LED lamp has a rated life of 50,000 hours.

How do I clean the fixture?

Disconnect from mains before cleaning. Use a soft lint-free cloth moistened with glass cleaner for the lens. Clean cooling fans monthly and interior annually with a vacuum or air jet. Never use alcohol or solvents.

How do I replace the fuse?

Unplug the mains lead. Remove the fuse holder on the rear panel with a screwdriver (anti-clockwise). Replace with the same type and rating fuse only.

How do I set the DMX address?

Use the menu: navigate to Dmx Addr and set the address (A001-AXXX) using UP/DOWN buttons.

How do I reset the fixture?

Go to Reset in the menu and select All Reset to reset all motors, or choose specific resets (scan, color, gobo, etc.).

What DMX modes are available?

Two modes: CH 12 (standard) and CH 10 (basic). Select via menu under DMX Mode.

How do I use the RF remote controller?

Press the series button (e.g., Spotlight/Beam/Wash) three times to activate RF. Use buttons for dimmer, strobe, speed, and program selection. Press DMX to exit RF mode and return to DMX control.

What is the maximum ambient temperature?

The fixture can operate at ambient temperatures between -35°C and 45°C.

How do I calibrate the fixture?

Enter the Calibrat menu, input password 088, then adjust Pan, Tilt, etc. using the menu.

Can I mount the fixture in any orientation?

Yes, the fixture can be mounted on a truss using a clamp or set on a flat surface. Always use the supplied safety cable. Keep at least 0.5m away from flammable materials.

USER MANUAL Attco Beam 100 JMAZ Lighting

JMAZ LIGHTING

Address:313 NEWQUIST PLACE STE B,CITY OF INDUSTRY, CA 91745 USA Phone: [phone] www.jmazlighting.com [e-mail]

Version 1.0

USER MANUAL

• Be sure to read the USER MANUAL carefully before using this product.
• Be sure to keep the USER MANUAL properly for future needs.
• Use this product correctly when you can fully understand the User Manual

ATTCO BEAM 100 Product Datasheet

10. Maintenance and cleaning

It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not build up on or within the fixture. Otherwise, the fixture's light-output will be significantly reduced. Regular cleaning will not only ensure the maximum light-output, but will also allow the fixture to function reliably throughout its life. A soft lint-free cloth moistened with any good glass cleaning fluid is recommended, under no circumstances should alcohol or solvents be used!

DANGER! Disconnect from the mains before starting any maintenance work

The front objective lens will require weekly cleaning as smoke-fluid tends to building up residues, reducing the light-output very quickly. The cooling-fans should be cleaned monthly.

The interior of the fixture should be cleaned at least annually using a vacuum-cleaner or an air-jet. Remove dust and dirt from the fans and cooling vents using a soft brush and vacuum-cleaner.

Important! Check the air filters periodically and clean before they become clogged!

Clean two air filters placed in the fixture's covers and two in the fixture base. Use a vacuum cleaner, compressed air or you can wash them and put back dry.

After replacing the air filters, reset the elapsed time counter in the menu "Information" (Information-->Air Filters-->Elapsed Time).

Replacing the fuse. Before replacing the fuse, unplug mains lead.

1) Remove the fuse holder on the rear panel of the base with a fitting screwdriver from the housing (anti-clockwise).
2) Remove the old fuse from the fuse holder.
3) Install the new fuse in the fuse holder (only the same type and rating).
4) Replace the fuseholder in the housing and fix it.

ATTCO BEAM 100 Product Datasheet

1. Safety instructions

Thank you for choosing our ATTCO BEAM 100. For your own safety, please read this user manual carefully.

Be careful with your operations.

With a high voltage you can suffer a dangerous electric shock when touching the wires!

This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual.

CAUTION!

Keep this device away from rain and moisture! Unplug mains lead before opening the housing!

Important:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the device.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

During the operation the housing becomes hot). Allow the fixture to cool approximately 20 minutes prior to manipulate with it.

Make sure that the available voltage is not higher than stated on the rear panel.

WARNING! This unit does not contain an ON/OFF switch. Always disconnect power input cable to completely remove power from unit when not in use or before cleaning or servicing the fixture.

Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the power-cord from time to time.

Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power-cord by the plug. Never pull out the plug by tugging the power cord.

This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth.

The electric connection, repairs and servicing must be carried out by a qualified employee.

Do not connect this device to a dimmer pack.

Do not switch the fixture on and off in short intervals as this would reduce the lamp's life.

During the initial start-up some smoke or smell may arise. This is a normal process and does not necessarily mean that the device is defective.

Do not touch the device's housing bare hands during its operation (housing becomes hot)!

For replacement use lamps and fuses of same type and rating only.

CAUTION! EYE DAMAGES!

Avoid looking directly into the light source (meant especially for epileptics)!

ATTCO BEAM 100 Product Datasheet

2.UNPACKING

The ATTCO BEAM 100 adopts a 75W white LED lamp which features high brightness and stability. Please carefully unpack it when you receive the fixture and check whether it is damaged during the transportation. And please check whether the following items are included inside the box:

The ATTCO BEAM 100 is made of a new type of high temperature strength of engineering plastics and cast aluminum casing with nice outlook. The fixture is designed and manufactured strictly following CE standards, complying with international standard DMX512 protocol. It's available independently controlled and linkable with each other for operation. And it is applicable for large-scale live performances, theater, studio, nightclubs and discs.

This manual covers the important information on installation and applications. Meanwhile, please keep this manual well for future needs.

ATTCO BEAM 100 Product Datasheet

10.RF Remote Controller Instruction

1. Press 3 times "Spot" to activate Spot series RF function

2. Press 3 times "Beam" to activate Beam series RF function

3. Press 3 times "Wash" to activate Wash series RF function

4. "Dimmer" brightness adjustment (press "Dimmer" button then press "+", "-" to adjust brightness.

5. "Strobe" turn on strobe effect (press "Strobe" button, can adjust speed by "+", "-").

6. "×" adjust the speed of sound program or adjust the sensitivity of sound control.

7. "→" adjust the speed of self-propelled program or adjust the sensitivity of voice control.

8. "1-9" Auto programs or sound activated state, press the corresponding button into the corresponding program; In the "Dimmer" or "Strobe" state, press this button can be optional color matching

9. "☐" All reset

10. "DMX" selects wire DMX signal as signal source

Tips:

1. When activated RF function, the lamp will not control by DMX signal, and the lamp is in the RF control state. And each remote controller can only control a series of lamps at the same time.

2. When Wash series opens "Dimmer" and "Strobe", it needs to press the number button to brighten the corresponding color. In this mode, the number bottom can only switch the color wheel, but not the corresponding key color for Spot and Beam series.

3. To turn off RF function, there are the following methods:

(1). Select the signal input mode needed, "DMX" can exit RF function;

(2). Switch to other series of lamps, "Spot", "Beam", "Wash" switch to other units, will be restored to the original set signal source input;

(3) Press the menu button of the display panel.

ATTCO BEAM 100 Product Datasheet

9	7		Rrotating prism
		0..5	OFF
		6..127	ON
		128..189	Forwards rotation from fast to slow
		190..193	Prism rotation stop
		194..255	Forwards rotation from fast to slow
10	8		Frost
		0..199	Frost out
		200..255	Frost In
11	9		Speed pan/tile
		0..225	max to min speed
		226..235	blackout by movement
		236..245	blackout by all wheel changing
		246..255	no function
12	10		Special function
		0..19	No function
		20..29	No function
		30..39	No function
		40..79	No function
		80..84	All Motor reset
		85..87	Scan motor reset
		88..90	Colors motor reset
		91..93	Gobo motor reset
		94..96	No function
		97..99	Other motor reset
		100..119	Internal program 1
		120..139	Internal program 2
		140..159	Internal program 3
		160..179	Internal program 4
		180..199	Internal program 5
		200..219	Internal program 6
		220..239	Internal program 7
		240..255	Internal Sound program 1

ATTCO BEAM 100 Product Datasheet

3.TECHNICAL INFORMATION

SPECIFICATIONS:

■ 1*75W white LED lamp, 7500K
■ 50000 hours life span
■ Input Voltage:AC90-260V 50/60Hz
■ Power Consumption: 116W
■ Control Signal:DMX512, master-slave and sound
activated or auto operation (9 built-in programs)
■ Control Channel: 12/10 DMX channels USITT
DMX-512
■ Dimensions:243(D)*151(W)*305(H)mm
■ Packing Dimensions:350(D)*450(W)*240(H)mm
■ Net Weight: 4.38kgs
■ Gross Weight: 6.04kgs

FUNCTION:

■ Improved optics and flat beam field
■ Scan position memory, auto reposition after
unexpected movement
■ Variable direction rainbow effect with speed adjustable
■ 8-Facet prism with variable speed and direction
■ Fan cooling system
-35°C - 45°C max ambient thhemperature
■ Constant temperature readout and management
function

FEATURES:

■ Low power consumption
■ 0-100% Linear LED dimmer
■ 25T/sec high speed LED shutter/strobe effect with variable speed
■ Preset variable/random strobe and dimming pulse effect
■ 1 44 TFT LCD display
■ 3-Pin XLR connectors IN/OUT
■ IP20 protection rating
■ 55dB at 3'dB rating
■ 1*Hanging kit
■ 1* Safety attachment point

MOVEMENT:

■ 8/16 bit smooth and precise resolution for PAN/TILT movement
■ 360°/540°/630° PAN and 90°/180°/270° TILT movement

COLORS:

■ 1 Color wheel with 12 colors plus open

GOBOS;

■ 1 Static gobo wheel with 17 gobos plus open

4.PHOTOMETRICS DIAGRAM

5. OPERATION INSTRUCTIONS

● The ATTCO BEAM 100 is for beam effect for on-site decoration purpose.
- Don't turn on the fixture if it's been through severe temperature difference like after transportation because it might damage the light due to the environment changes. So make sure to operate the fixture until it is in normal temperature.
● This light should be keep away from strong shaking during any transportation or movement.
- Don't pull up the light by only the head, or it might cause damages to the mechanical parts.
- Don't expose the fixture in overheat, moisture or environment with too much dust when installing it. And
- don't lay any power cables on the floor. Or it might cause electronic shock to the people
● Make sure the installation place is in good safety condition before installing the fixture
● Make sure to put the safety chain and check whether the screws are screwed properly when installing the fixture.
- Make sure the lens are in good condition. It's recommended to replace the units if there are any damages or severe scratch.
● Make sure the fixture is operated by qualified personnel who knows the fixture before using.
- Keep the original packages if any second shipment is needed.
- Don't try to change the fixtures without any instruction by the manufacturer or the appointed repairing agencies.
- It is not in warranty range if there are any malfunctions from not following the user manual to operate or any illegal operation, like shock short circuit, electronic shock, lamp broke, etc.

6	4	40..44	gobo 8
		45..49	gobo 9
		50..54	gobo 10
		55..59	gobo 11
		60..64	gobo 12
		65..69	gobo 13
		70..74	gobo 14
		75..79	gobo 15
		80..84	gobo 16
		85..89	gobo 17
		90..97	Gobo 1 shake slow to fast
		98..105	Gobo 2 shake slow to fast
		106..113	Gobo 3 shake slow to fast
		114..121	Gobo 4 shake slow to fast
		122..129	Gobo 5 shake slow to fast
		130..137	Gobo 6 shake slow to fast
		138..145	Gobo 7 shake slow to fast
		146..153	Gobo 8 shake slow to fast
		154..161	Gobo 9 shake slow to fast
		162..169	Gobo 10 shake slow to fast
		170..177	Gobo 11 shake slow to fast
		178..185	Gobo 12 shake slow to fast
		186..193	Gobo 13 shake slow to fast
		194..201	Gobo 14 shake slow to fast
		202..209	Gobo 15 shake slow to fast
		210..217	Gobo 16 shake slow to fast
		218..225	Gobo 17 shake slow to fast
		226..255	Rot. gobo wheel cont. rotation slow to fast
7	5		Shutter
		0..31	Shutter closed
		32..63	shutter open
		64..95	Strobe effect slow to fast
		96..127	shutter open
		128..159	Pulse-effect in sequences slow to fast
		160..191	shutter open
		192..223	Random strobe effect slow to fast
		224..255	shutter open
8	6		Dimmer
		0..255	Dimmer 0%...100%

9.DMX PROTOCOL

Mode/Channel		Value	Function
16b	8b
1	1		Pan
		0..255	PAN Movement
2			Pan-fine
		0..255	Fine control of Pan movement
3	2		Tilt
		0..255	Tilt Movement
4			Tile-fine
		0..255	Fine control of Tilt movement
5	3		Color wheel
		0..9	Open / white
		10..19	Color 1
		20..29	Color 2
		30..39	Color 3
		40..49	Color 4
		50..59	Color 5
		60..69	Color 6
		70..79	Color 7
		80..89	Color 8
		90..99	Color 9
		100..109	Color 10
		110..119	Color 11
		120..127	Color 12
		128..189	Forwards rainbow effect from fast to slow
		190-193	Color rotation stop
		194.255	Backwards rainbow effect from slow to fast
6	4		Gobo wheel 1
		0..4	Open
		5..9	gobo 1
		10..14	gobo 2
		15..19	gobo 3
		20..24	gobo 4
		25..29	gobo 5
		30..34	gobo 6
		35..39	gobo 7

6.INSTALLATIONS

Cautions:

For added protection mount the fixtures in areas outside walking paths, seating areas, or in areas were the fixture might be reached by unauthorized personnel

Before mounting the fixture to any surface, make sure that the installation area can hold a minimum point load of 10 times the device's weight.

Fixture installation must always be secured with a secondary safety attachment, such as an appropriate safety cable.

Never stand directly below the device when mounting, removing, or servicing the fixture.

from a ceiling, or set on a flat level surface (see illustration below). Be sure this fixture is kept at least 0.5m (1.5 ft) away from any flammable materials (decoration etc.)

Always use and install the supplied safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails.

Mounting points:

Overhead mounting requires extensive experience, including amongst others calculating working load limits, a fine knowledge of the installation material being used, and periodic safety inspection of all installation material and the fixture. If you lack these qualifications, do not attempt the installation yourself Improper installation can result in bodily injury.

Be sure to complete all rigging and installation procedures before connecting the main power cord to the appropriate wall outlet.

Clamp Mounting:

ATTCO BEAM 100 provides a unique mounting bracket assembly that integrates the bottom of the base, and the safety cable rigging point in one unit (see the illustration below). When mounting this fixture to truss be sure to secure an appropriately rated clamp to the included omega bracket using a M10 screw fitted through the center hole of the "Hanging Kit". As an added safety measure be sure to attached at least one properly rated safety cable to the fixture using on of the safety cable rigging point integrated in the base assembly.

7.CONTROL CONNECTION

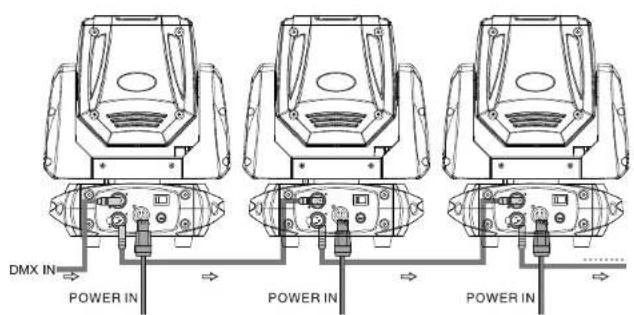

Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving head together through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors. Please refer to the diagram below. DMX-512 connection with DMX terminator.

For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise. The DMX terminator is simply an XLR plug with a3 resistor connected between pins 2 and 3, which is then plugged into the output XLR socket of the last fixture in the chain. Please see illustrations below.

1. MENU OPERATIONS


		MENU		Description
Dmx Addr	A001-AXXX			DMX address setting
Auto Play	Auto Run	Internal Program1~9	Master/Alone	Auto Program
	Music Run	Internal Program1~9	Master/Alone	Music Control
Reset	ALL Reset	On/Off		ALL Reset
	Scan Reset	On/Off		Scan Reset
	Color Reset	On/Off		Color Reset
	Gobo Reset	On/Off		GOBO Reset
	Other Reset	On/Off		Other Reset
Reverse Pan	On/Off			Reverse Pan
ReversTilt	On/Off			Reverse Tilt
Special	ToDefault	On/Off		Reset Default
	Calibrat	Code(Password.088)		Calibration Code
		PAN...		Calibration of the channel
	Temperatur	XXX °C/°F		Current Temperature
	Manual Crtl	PAN=XXX....		Manual Contro
	Mic SET	0~99%		Sensitivity of mic
DMX Mode	CH 12			Standard Mode
	CH 10			Basic Mode
Scan Degree	PAN Degree	630 °/540 °/360 °		Select Pan DegreeThe default is 540 °
	TILT Degree	270 °/180 °/90 °		Select Pan DegreeThe default is 270 °
Version	V1 0—VXX			software Version:V1.0—VXX
