Product Type	LED Moving Head Wash Light
Model	Attco Wash 100Z
Brand	JMAZ Lighting
LED Quantity & Type	6 x 15W 4-in-1 RGBW LEDs, 50,000 hours lifespan
Input Voltage	AC90-260V 50/60Hz
Power Consumption	112W
Control Signal	DMX512, master-slave, sound activated, auto operation
DMX Channels	15/13 channels (Standard/Basic mode)
Pan Range	630°/540°/360° selectable
Tilt Range	270°/180°/90° selectable
Zoom Range	6°-60° electronic linear zoom
Dimmer	0-100% linear LED dimmer
Strobe Rate	1-25 T/sec high speed shutter/strobe with variable speed
Display	1.44" TFT LCD display
Connectors	PowerCon IN, 3-pin XLR IN/OUT
Dimensions (Fixture)	9.6" x 5.9" x 10.9" (24.3x15.1x27.8 cm)
Net Weight	8.9 lbs (4.05 kg)
Protection Rating	IP20
Cooling	Fans, clean monthly
Air Filters	Two in covers, two in base; clean periodically
Fuse Replacement	Same type and rating; disconnect mains before
Safety	Class I, earth connection required, no ON/OFF switch

Frequently Asked Questions - Attco Wash 100Z JMAZ Lighting

How do I reset the fixture to factory defaults?

Go to the menu, select Special > To Default and set to On. Password not required for this operation.

How often should I clean the air filters?

Check air filters periodically and clean before they become clogged. Use a vacuum cleaner, compressed air, or wash them and put back dry. After cleaning, reset the elapsed time counter in the Information menu.

How do I replace the fuse?

Unplug the mains lead. Remove the fuse holder on the rear panel using a screwdriver (anti-clockwise). Remove old fuse and install new one of the same type and rating. Replace the fuse holder and tighten.

How do I use the RF remote controller?

Press 3 times Wash to activate Wash series RF function. Use Dimmer to adjust brightness, Strobe for strobe, 1-9 for auto programs. Press DMX to return to DMX control.

What DMX modes are available?

Two modes: CH15 (Standard mode with 15 channels) and CH13 (Basic mode with 13 channels). Select via menu DMX Mode.

How do I set the DMX address?

Go to menu Dmx Addr and set address from A001 to AXXX (maximum depending on fixture count). Use +/- buttons to adjust.

What is the power consumption of the fixture?

The fixture consumes 112W at full operation. Input voltage range is AC90-260V 50/60Hz.

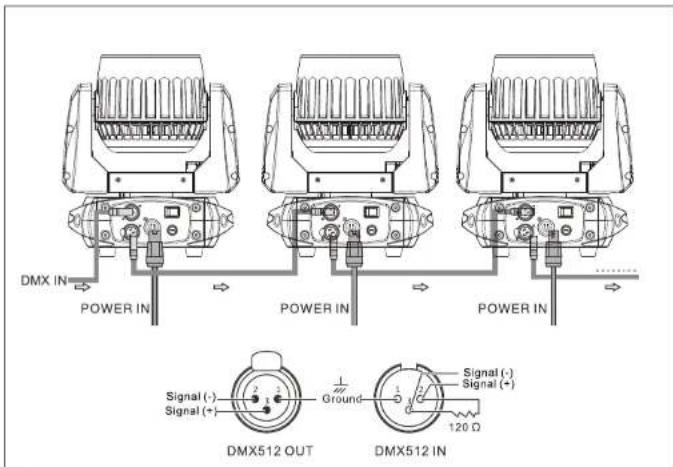

How do I connect multiple fixtures via DMX?

Use 3-pin XLR cables to daisy chain from controller output to first fixture input, then from first fixture output to next input, etc. Install a DMX terminator (120 ohm resistor between pins 2 and 3) at the last fixture to prevent signal corruption.

What is the lifespan of the LEDs?

The LEDs have a rated lifespan of 50,000 hours. The fixture uses 6 x 15W 4-in-1 RGBW LEDs.

How do I calibrate the pan, tilt, or zoom?

Go to menu Special > Calibrat and enter password 088. Then select PAN, TILT, or ZOOM to adjust calibration values.

USER MANUAL Attco Wash 100Z JMAZ Lighting

10. Maintenance and cleaning

It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not build up on or within the fixture. Otherwise, the fixture's light-output will be significantly reduced. Regular cleaning will not only ensure the maximum light-output, but will also allow the fixture to function reliably throughout its life. A soft lint-free cloth moistened with any good glass cleaning fluid is recommended, under no circumstances should alcohol or solvents be used!

DANGER! Disconnect from the mains before starting any maintenance work

The front objective lens will require weekly cleaning as smoke-fluid tends to building up residues, reducing the light-output very quickly. The cooling-fans should be cleaned monthly.

The interior of the fixture should be cleaned at least annually using a vacuum-cleaner or an air-jet. Remove dust and dirt from the fans and cooling vents using a soft brush and vacuum-cleaner.

Important! Check the air filters periodically and clean before they become clogged!

Clean two air filters placed in the fixture's covers and two in the fixture base. Use a vacuum cleaner, compressed air or you can wash them and put back dry.

After replacing the air filters, reset the elapsed time counter in the menu "Information" (Information-->Air Filters-->Elapsed Time).

Replacing the fuse. Before replacing the fuse, unplug mains lead

1) Remove the fuse holder on the rear panel of the base with a fitting screwdriver from the housing (anti-clockwise).
2) Remove the old fuse from the fuse holder.
3) Install the new fuse in the fuse holder (only the same type and rating).
4) Replace the fuseholder in the housing and fix it.

JMAZ LIGHTING

Address:313 NEWQUIST PLACE STE B,CITY OF INDUSTRY, CA 91745 USA

Phone: [phone] www.jmazlighting.com [e-mail]

ATTCO WASH 100Z

Version 1.0

USER MANUAL

• Be sure to read the USER MANUAL carefully before using this product.
• Be sure to keep the USER MANUAL properly for future needs.
• Use this product correctly when you can fully understand the User Manual

ATTCO WASH 100Z Product Datasheet

1. Safety instructions

Thank you for choosing our ATTCO WASH 100Z . For your own safety, please read this user manual carefully.

Be careful with your operations.

With a high voltage you can suffer a dangerous electric shock when touching the wires!

This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual.

CAUTION!

Keep this device away from rain and moisture! Unplug mains lead before opening the housing!

Important:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the device.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

During the operation the housing becomes hot). Allow the fixture to cool approximately 20 minutes prior to manipulate with it.

Make sure that the available voltage is not higher than stated on the rear panel.

WARNING! This unit does not contain an ON/OFF switch. Always disconnect power input cable to completely remove power from unit when not in use or before cleaning or servicing the fixture.

Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the power-cord from time to time.

Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power-cord by the plug. Never pull out the plug by tugging the power cord.

This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth.

The electric connection, repairs and servicing must be carried out by a qualified employee.

Do not connect this device to a dimmer pack.

Do not switch the fixture on and off in short intervals as this would reduce the lamp's life.

During the initial start-up some smoke or smell may arise. This is a normal process and does not necessarily mean that the device is defective.

Do not touch the device's housing bare hands during its operation (housing becomes hot)!

For replacement use lamps and fuses of same type and rating only.

CAUTION! EYE DAMAGES!

Avoid looking directly into the light source (meant especially for epileptics)!

ATTCO WASH 100Z Product Datasheet

10.RF Remote Controller Instruction

RF Wireless

1. Press 3 times "Spot" to activate Spot series RF function

2. Press 3 times "Beam" to activate Beam series RF function

3. Press 3 times "Wash" to activate Wash series RF function

4. "Dimmer" brightness adjustment (press "Dimmer" button then press "+", "-") to adjust brightness

5. "Strobe" turn on strobe effect (press "Strobe" button, can adjust speed by "+" , "-").

6. "K" adjust the speed of sound program or adjust the sensitivity of sound control.

7. "P> " adjust the speed of self-propelled program or adjust the sensitivity of voice control.

8. "1-9" Auto programs or sound activated state, press the corresponding button into the corresponding program; In the "Dimmer" or "Strobe" state, press this button can be optional color matching

9. "☐" All reset

10. "DMX" selects wire DMX signal as signal source.

Tips:

1. When activated RF function, the lamp will not control by DMX signal, and the lamp is in the RF control state. And each remote controller can only control a series of lamps at the same time.

2. When Wash series opens "Dimmer" and "Strobe", it needs to press the number button to brighten the corresponding color. In this mode, the number bottom can only switch the color wheel, but not the corresponding key color for Spot and Beam series.

3. To turn off RF function, there are the following methods:

(1) Select the signal input mode needed, "DMX" can exit RF function;

(2). Switch to other series of lamps, "Spot", "Beam", "Wash" switch to other units, will be restored to the original set signal source input;

(3). Press the menu button of the display panel.

ATTCO WASH 100Z Product Datasheet

11	9		Blue
		0..255	0-100% Blue dimmer from dark to bright
12	10		White
		0..255	0-100% White dimmer from dark to bright
13	11		Macro
		0..15	No Function
		16..31	Red
		32..47	Green
		48..63	Blue
		64..79	White
		80..95	Red+Green
		96..111	Red+Blue
		112..127	Red+White
		128..143	Green+Blue
		144..159	Green+White
		160..175	Blue+Wtihe
		176..191	R+G+B
		192..207	R+G+B+W
		208..223	Jump effect
		224..239	Fading effect
		240..255	Jump effect,Fading effect ,Pulse-effect
14	12		Macro Speed
		0..255	Macro Speed from Slow To Fast
15	13		Special function
		0..19	No function
		20..29	No function
		30..39	No function
		40..79	No function
		80..84	All Motor reset
		85..87	SCAN Motor Reset
		88..96	No function
		97..99	ZOOM Motor Reset
		100..119	Internal program 1
		120..139	Internal program 2
		140..159	Internal program 3
		160..179	Internal program 4
		180..199	Internal program 5
		200..219	Internal program 6
		220..239	Internal program 7
		240..255	Internal Sound program 1

ATTCO WASH 100Z Product Datasheet

2.UNPACKING

ATTCO WASH 100Z adopts 6*15W 4 IN 1 LEDs which features high brightness and stability. Please carefully unpack it when you receive the fixture and check whether it is damaged during the transportation. And please check whether the following items are included inside the box:

ATTCO WASH 100Z is made of a new type of high temperature strength of engineering plastics and cast aluminum casing with nice outlook. The fixture is designed and manufactured strictly following CE standards, complying with international standard DMX512 protocol. It's available independently controlled and linkable with each other for operation. And it is applicable for large-scale live per formances, theater, studio, nightclubs and discos. This manual covers the important information on installation and applications. Meanwhile, please keep this manual well for future needs.

3.TECHNICAL INFORMATION

SPECIFICATIONS:

■ LED Quantities:6*15W 4-IN-1 RGBW LEDs, 50000 hours life span
■ Input Voltage: AC90-260V 50/60Hz
■ Control Signal:DMX512 master-slave and sound activated or auto operation
■ Control Channel: 15/13 DMX channels USITT DMX-512
■ Power Consumption: 112W
■ Dimension:9.6"x5.9"x10.9"/24.3x15.1x27.8cm
- Packing Dimension:13.2"x9"x15"/33.5x23x38cm
■ Net Weight: 8.9lbs / 4.05kgs
■ Gross Weight:12.1lbs/5.50kgs

Features:

■ Low power consumption
■ 8/16 bit smooth and precise resolution for PAN/TILT movement
■ Scan position memory auto reposition after unexpected movement
■ 6-60°Smooth electronic linear zoom
■ Built-in running programs
■ Built-in color and graphic effect macros
■ 0-100% Linear LED dimmer
■ 1.44' TFT LCD display
■ 1-25T/sec high speed LED shutter/strobe effect with variable speed
■ Preset variable/random strobe and dimming pulse effect
■ DMX recorder and edit function integrated
■ High resolution graphic LCD display
■ Powercon IN
■ 3-Pin XLR connectors IN/OUT
■ Constant temperature readout and management function
-35°C \~ 45°C max ambient temperature
■ IP20 protection rating

9.DMX PROTOCOL

Mode/Channel		Value	Function
16b	8b
1	1		Dimmer
		0..255	Dimmer 0%...100%
2	2		Shutter
		0..31	Shutterclosed
		32..63	shutteropen
		64..95	Strobe effect slow to fast
		96..127	shutteropen
		128..159	Pulse-effect in sequences slow to fast
		160..191	shutteropen
		192..223	Random strobe effect slow to fast
		224..255	shutteropen
3	3		Pan
		0..255	PAN Movement
4			Pan-fine
		0..255	Fine control of Pan movement
5	4		Tilt
		0..255	Tilt Movement
6			Tile-fine
		0..255	Fine control of Tilt movement
7	5		Zoom
		0..255	ln(near)to out(far)
8	6		Speed pan/tile
		0..225	max to min speed
		226..235	blackout by movement
		236..255	no function
9	7		Red
		0..255	0-100% Red dimmer from dark to bright
10	8		Green
		0..255	0-100% Green dimmer from dark to bright

1. MENU OPERATIONS


	MENU			Description
Dmx Addr	A001-AXXX			DMX address setting
Auto Play	Auto Run	Internal Program1-9	Master/Alone	Auto Program
	Music Run	Internal Program1-9	Master/Alone	Music Control
Reset	ALL Reset	On/Off		ALL Reset
	Scan Reset	On/Off		Scan Reset
	Zoom Reset	On/Off		Zoom Reset
ReversePan	On/Off			Reverse Pan
ReversTilt	On/Off			Reverse Tilt
Special	To Default	On/Off		Reset Default
	Calibrat	Code(Password:088)		Calibration Code
		PAN, TILT, ZOOM		Calibration of the channel
	Temperatur	XXX °C/°F		Current Temperature
	Manual Crtl	PAN=XXX....		Manual Contro
	Mic SET	0-99%		Sensitivity of mic
DMX Mode	CH15			Standard Mode
	CH13			Basic Mode
Scan Degree	PAN Degree	630 °/540 °/360 °		Select Pan DegreeThe default is 540 °
	TILT Degree	270 °/180 °/90 °		Select Pan DegreeThe default is 270 °
Version	V1.0—VXX			software Version V1.0—VXX

4.PHOTOMETRICS DIAGRAM

5. OPERATION INSTRUCTIONS

● The ATTCO WASH 100Z is for beam effect for on-site decoration purpose.
- Don't turn on the fixture if it's been through severe temperature difference like after transportation because it might damage the light due to the environment changes. So make sure to operate the fixture until it is in normal temperature.
● This light should be keep away from strong shaking during any transportation or movement.
- Don't pull up the light by only the head, or it might cause damages to the mechanical parts.
- Don't expose the fixture in overheat, moisture or environment with too much dust when installing it. And
- don't lay any power cables on the floor. Or it might cause electronic shock to the people
● Make sure the installation place is in good safety condition before installing the fixture.
● Make sure to put the safety chain and check whether the screws are screwed properly when installing the fixture.
- Make sure the lens are in good condition. It's recommended to replace the units if there are any damages or severe scratch.
● Make sure the fixture is operated by qualified personnel who knows the fixture before using.
- Keep the original packages if any second shipment is needed
- Don't try to change the fixtures without any instruction by the manufacturer or the appointed repairing agencies
- It is not in warranty range if there are any malfunctions from not following the user manual to operate or any illegal operation, like shock short circuit, electronic shock, lamp broke, etc.

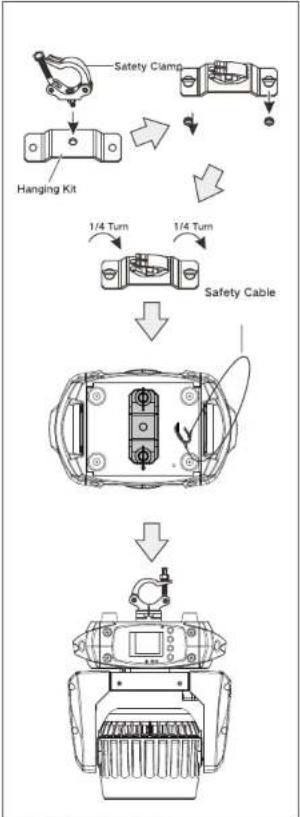

6.INSTALLATIONS

Cautions:

For added protection mount the fixtures in areas outside walking paths, seating areas, or in areas were the fixture might be reached by unauthorized personnel.

Before mounting the fixture to any surface, make sure that the installation area can hold a minimum point load of 10 times the device's weight.

Fixture installation must always be secured with a secondary safety attachment, such as an appropriate safety cable.

Never stand directly below the device when mounting, removing, or servicing the fixture.

from a ceiling, or set on a flat level surface (see illustration below). Be sure this fixture is kept at least 0.5m (1.5 ft) away from any flammable materials (decoration etc.).

Always use and install the supplied safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails.

Mounting points:

Overhead mounting requires extensive experience, including amongst others calculating working load limits, a fine knowledge of the installation material being used, and periodic safety inspection of all installation material and the fixture. If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury. Be sure to complete all rigging and installation procedures before connecting the main power cord to the appropriate wall outlet.

Clamp Mounting:

The ATTCO WASH 100Z provides a unique mounting bracket assembly that integrates the bottom of the base, and the safety cable rigging point in one unit (see the illustration below). When mounting this fixture to truss be sure to secure an appropriately rated clamp to the included omega bracket using a M10 screw fitted through the center hole of the "Hanging Kit". As an added safety measure be sure to attached at least one properly rated safety cable to the fixture using on of the safety cable rigging point integrated in the base assembly.

INSTALLATION DIAGRAM

7.CONTROL CONNECTION

Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving head together through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors. Please refer to the diagram below. DMX-512 connection with DMX terminator.

For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise. The DMX terminator is simply an XLR plug with a3 resistor connected between pins 2 and 3, which is then plugged into the output XLR socket of the last fixture in the chain. Please see illustrations below.
