HVC-MWD1400RD - Vacuum Cleaner Heinner - Free user manual and instructions

Product Type	Wet & Dry Vacuum Cleaner with Blower Function
Model	HVC-MWD1400RD
Brand	Heinner
Capacity	21 L
Power	1400 W
Voltage	220-240 V ~ 50 Hz
Filtration	HEPA Filter
Functions	Dry vacuum, wet vacuum, blower
Hose Type	Coiled hose with connections
Accessories Included	Floor brush, plastic tube, round brush, crevice tool, 2-in-1 water brush, filter bag
Tank Material	Plastic
Color	Red (as per model suffix RD)
Wheels	Large and small wheels for mobility
Blower Outlet	Yes
Float Safety Feature	Automatic float for wet vacuum protection
Filter Bag	Included, replaceable
HEPA Filter Maintenance	Washable under running water, air dry
Intended Use	Household indoor use only
Certifications	CE compliant
Power Cord Storage	Hook for winding and storage

Frequently Asked Questions - HVC-MWD1400RD Heinner

Can I use this vacuum cleaner for wet pick-up?

Yes, for wet vacuum cleaning, remove the filter bag and ensure the float works properly. Do not use the filter bag when picking up liquids.

How do I assemble the vacuum cleaner?

Insert the big and small wheels into the base. Connect the hose to the hose inlet. Attach the plastic tube and desired brush or accessory.

How do I use the blower function?

Insert the hose connector into the blower outlet on the machine. Then you can use it to blow dust or leaves.

How do I clean the HEPA filter?

Remove the HEPA filter and rinse it under running water. Do not wipe or brush it. Let it dry completely before reinstalling.

What should I do if suction power is weak?

Check if accessories, hose, or tubes are clogged. Also check if the filter bag is full or if the HEPA filter is blocked. Clean or replace as needed.

Can I vacuum hot ashes or flammable materials?

No, never use the vacuum cleaner to pick up hot materials, burning cigarettes, flammable or explosive liquids or dust. This can cause fire or injury.

Is this vacuum cleaner suitable for industrial use?

No, this appliance is intended for household use only. It is not suitable for commercial, industrial, or outdoor use.

How do I empty the dirt tank?

Unplug the vacuum cleaner. Pull the locking latches on both sides of the tank to release it. Lift off the top cover, remove the filter bag and HEPA filter, then empty the tank.

What accessories come with the vacuum cleaner?

The package includes a floor brush, plastic tube, round brush, crevice tool, hose, 2-in-1 water brush, and a filter bag.

How do I store the power cord?

After use, wind the power cord around the cord storage hook located on the back of the vacuum cleaner for tidy storage.

USER MANUAL HVC-MWD1400RD Heinner

Product photo of a HEINNER TwinClean vacuum cleaner with coiled hose and clamps (no visible text or symbols)

- Wet & dry vacuum function

- Blower function

- Capacity: 21 L

1. INTRODUCTION

Please read the instructions carefully and keep the manual for future information.

This manual is designed to give all necessary instructions concerning installation, use and maintenance of the unit. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and use.

2. CONTENT OF YOUR PACKAGE

→ Wet & dry vacuum cleaner
→ User manual
→ Certificate of warranty
→ Declaration of conformity

3. SAFETY MEASURES

Keep the manual in a safe place for future reference, along with the completed warranty card, purchase receipt and carton. If applicable, pass these instructions on to the next owner of the appliance.

Always follow basic safety precautions and accident prevention measures when using an electrical appliance, including the following:

Electrical safety and cord handling

• Before turning on, ensure that your electrical voltage and circuit frequency correspond to those indicated. on the appliance.
• To reduce the risk of electrocution, never operate this product or handle the plug with wet hands, submerge it under water or spill liquids into the product.
• Do not insert any objects into the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or an appropriately qualified person in order to avoid a hazard.
• Check the appliance and cord regularly for visible damage. Do not use it if the cord or housing is damaged, if it has been dropped, damaged, left outdoors or dropped into water, or if it appears faulty in any way. Call the after-sales support line if any part appears damaged.
• Do not kink, bend, squash, strain or damage the power cord.
• Do not pull or carry the vacuum cleaner by the cord. Do not use the cord as a handle, close a door on the cord or pull the cord around sharp edges or corners. Do not run the vacuum cleaner over the cord. Keep the cord away from heated surfaces.
• Turn off the vacuum cleaner controls before connecting or disconnecting it from the mains supply.

WARNING:

• Always switch off and unplug the vacuum cleaner before connecting or disconnecting the vacuum hose and accessories and before emptying or cleaning the dust tank.
• Do not pull on the cord to disconnect the plug from the power supply. To unplug, grasp the plug, not the cord, and gently pull it out of the power point and then press the cord retraction button to retract the cord.

Usage conditions and restrictions

• This appliance is intended for household use only. It is neither suitable for commercial/industrial nor for outdoor use.
• Only use the vacuum cleaner on indoor surfaces, as described in this manual and with the original accessories supplied by the manufacturer/distributor.

Do not use it for any purpose other than described in this manual.

• Improper installation and use may result in the risk of fire, electric shock and/or injury to persons. We assume no liability for any eventual damage caused by improper or faulty use.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.
• Supervise young children to ensure they do not play with the appliance. Close supervision is necessary when any appliance is used by or near children.
• Never leave the appliance unattended.

Safe usage

• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
• Keep the end of the hose, wands, and other openings away from your face and body.
• Do not point the vacuum cleaner at people or animals when in use.
• Do not use the product without the filters in place.
  • Take extra care when vacuuming on stairs.
• Do not use the vacuum cleaner to pick up: hazardous dust, hot materials (burning cigarettes, hot ashes, etc.), flammable, explosive, aggressive, liquids (e.g. petrol, solvents, acids alkalis, etc.), flammable, explosive dust (e.g. magnesium or aluminum dust etc.)
• Keep the vacuum cleaner away from heat sources (radiator, oven etc.), direct sunlight, moisture, and sharp edges.
• Keep all openings free of dust, lint, hair, or anything that may reduce the airflow.
• Do not use the product with any openings blocked or restricted airflow.
• Put the vacuum cleaner away after every use to prevent anyone tripping over it.
• Store the vacuum cleaner indoors in a cool, dry area, out of reach of young children.
• Never attempt to open the motor base of the vacuum cleaner yourself or to replace the power cord.

WARNING!

• Never use this machine when the suction power becomes very weak.
  When this happens:
• Switch off the unit, unplug it and check whether the dust container is full.
• Then check if any part of the floor brush, tube or hose is blocked.
• Do not use the vacuum cleaner until the blockage is removed and it operates normally again. If you cannot solve the problem, contact the authorized service company.
• Always switch the vacuum cleaner off after use, and before plugging it in again, make sure to hold the vacuum cleaner firmly when using it.
• Always switch off and unplug the vacuum cleaner from the electrical outlet before assembling, opening, or emptying the dust bag, or before connecting/ disconnecting the attachments.
• If the vacuum cleaner is damaged, it must be repaired by the manufacturer or its service agent or an appropriately qualified person in order to avoid a hazard. In case of damage, call the after-sales support line for advice.

4. USING THE PRODUCT

Assembly

Wheels: Insert the big wheel and the small wheel into the hole of the base

Mechanical assembly diagram showing a rotating component with arrows indicating direction (no text or symbols)

Hose: Insert the hose connection wand into the hose inlet.

Plastic tube: To use the plastic tube, insert the plastic tube into the end of the hose.

Floor Brush: Choose the brush pedal to floor or carpet, then insert it into the suction hole of the plastic tube.

2 in 1 water brush

When absorbing water, please use the thong.

When vacuuming, please use the top wool.

Blower function

Insert the hose connector to the blower outlet, then you can use the blower function, blower the dust or leaves.

Power cord storage

Wind the power cord and place it on the cord storage hook.

OPERATION:

Always work with HEPA filter during wet as well as dry vacuum cleaning!

Dry vacuum cleaning

Work only with a dry HEPA filter and filter bag.

If the suction power is weak, should change the filter bag.

Wet vacuum cleaning

Caution: Do not use the filter bag!

Before liquids are picked up, always remove the filter bag, check the float works properly. If foam develops or liquid emerges from the machine, stop work immediately and empty the dirt tank.

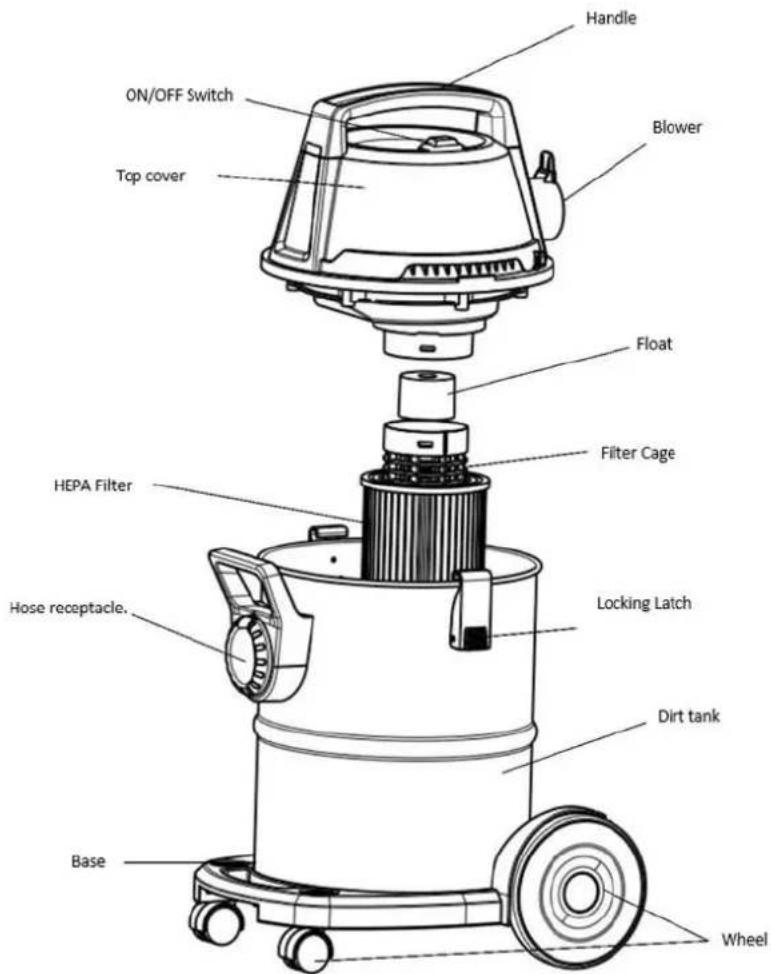

5. PRODUCT DESCRIPTION

Accessories

Brush

Plastic tube

Round brush

Crevice tool

Hose

2 in 1 water brush

Filter bag

6. CLEANING AND MAINTENANCE

Empty the dirt tank.

Pull outward to release the locking latch on both sides of the dirt tank (Note: Be sure to cut off the power plug beforehand!) (fig 1)

Take off the top cover, remove the filter bag, HEPA filter and pat the dust off them. (fig 2) Empty the dirt tank. (fig 3)

Line drawing of a portable oven with two handles and a central lid (no text or symbols)

Fig 1

Fig 2

Simple line drawing of a mechanical device with a cylindrical component and attached lever (no text or symbols)

Fig 3

Maintenance

• Turn off the appliance and remove the mains plug prior to any care and maintenance work. Repair work may only be performed by the authorized customer service.
• Do not use abrasives, glass, or universal cleaners! Never immerse the appliance in water, especially the motor.
  ● Dry filters completely in the air.
• Clean the appliance and accessory parts made of plastic with clean water and squeeze the water out, don't clean them in washing machine.
• If required, rinse the container and accessories with water properly and dry them before reuse.
• Only clean the HEPA filter under running water; do not wipe or brush. Let it dry completely before installation.

7. TROUBLESHOOTING

If the cleaning power of the appliance deteriorates, please check the following:

● Accessories, suction hose, or suction tubes are clogged, please remove the obstruction.
● Filter bag is full, install new filter bag.
● HEPA filter is blocked, clean under running water if necessary.
- Replace damaged HEPA filter.

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model and Serial Number.

The information can be found on the rating plate. Subject to change without notice.

TECHNICAL DATA

Voltage	220-240V~50Hz
Power	1400W

Thank you for purchasing this product. If you need support with your product, visit our website using the links below.

Get User manuals: https://www.heinner.ro

Get Service information: https://www.heinner.ro

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

This product is in conformity with norms and standards of European Community.

Importer: Network One Distribution

Marcel Iancu Street, 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro
