| Product Type | Cordless Drill/Driver |
| Brand | Stanley |
| Model | SCD201C2K |
| Voltage | 20V MAX (nominal 18V) |
| No-load Speed | Low: 0-350 rpm, High: 0-1500 rpm |
| Maximum Torque | 45 Nm (33.2 ft-lb) |
| Chuck Size | 1/2" (13 mm) Keyless |
| Battery Compatibility | SB20C (1.3Ah), SB20D (2.0Ah) Lithium-Ion |
| Charger Compatibility | SC201 (1A), SC202 (2A) |
| Charging Time (SB20C+SC201) | 75 min |
| Charging Time (SB20C+SC202) | 45 min |
| Charging Time (SB20D+SC202) | 60 min |
| Dual Range Gear Selector | Yes |
| Forward/Reverse | Yes, with lock-off center position |
| Torque Adjustment Collar | Yes, 15+ positions plus drill mode |
| LED Work Light | Yes, integrated |
| Bit Tip Holder | Yes, built-in storage |
| Weight (Charger SC201/SC202) | 0.445 kg (0.98 lb) each |
| Power Source | Battery (cordless) |
| Motor | Brushed (typical for this class) |
| Construction | Double insulated (no earth wire required) |
| Recommended Applications | Drilling in wood, metal, masonry; screwdriving |
| Maintenance | Clean ventilation slots regularly; chuck may be tapped to remove dust |
Frequently Asked Questions - SCD201C2K STANLEY
User questions about SCD201C2K STANLEY
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Saw in PDF format for free! Find your manual SCD201C2K - STANLEY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SCD201C2K by STANLEY.
USER MANUAL SCD201C2K STANLEY
SCD20 SCD20C2 SCD20C2K SCD201C2K
DO NOT RETURN THIS PRODUCT TO THE STORE, first contact your local STANLEY office or nearest authorized service center.
GENERAL SAFETY RULES
⚠ Warning! Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS
SAFETY INSTRUCTIONS
General power tool safety warnings.
Warning! Read all safety warnings and
all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. Note: The term "Residual Current Device (RCD)" can be replaced by "Ground Fault Circuit Interrupter (GFCI)" or by "Earth Leakage Circuit Breaker (ELCB)".
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
- Battery tool use and care
a. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
- Service
a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
- Electrical safety
Your tool is double insulated; therefore no earth wire is required. Always check that the main voltage corresponds to the voltage on the rating plate.
Warning! If the power cord is damaged, it must be replaced by the manufacturer, authorized STANLEY Service Center or an equally qualified person in order to avoid damage or injury. If the power cord is replaced by an equally qualified person, but not authorized by STANLEY the warranty will not be valid.
- Labels on tool
The label on your tool may include the following symbol:
Read Instructions Manual
Use Eye Protection
Use Ear Protection
W ..... Watts min ..... minute
- .... Direct Current
n_0 ..... No-Load Speed
Class II Construction
.... Earthing Terminal
.... Safety Alert Symbol
.../min..
Revolutions or Reciprocation per minute
The charger is intended for indoor use only.
ADDITIONAL POWER TOOL SAFETY WARNINGS
⚠ Warning! Additional safety warnings for drills and drill/drivers.
▶ Wear ear protectors with impact drills. Exposure to noise can cause hearing loss.
▶ Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
▶ Hold power tool by insulated gripping surfaces when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "Live" wire may make exposed metal parts of the power tool "Live" and could give the operator an electric shock.
- Hold power tool by insulated gripping surfaces when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a “Live” wire may make exposed metal parts of the power tool “Live” and could give the operator an electric shock.
▶ Use clamps or another practical way to secure and support the work piece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.
▶ Before drilling into walls, floors or ceilings, check for the location of wiring and pipes.
- Avoid touching the tip of a drill bit just after drilling, as it may be hot.
This tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
The intended use is described in this instruction manual. The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury and/or damage to property.
SAFETY OF OTHERS
▶ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
▶ Children should be supervised to ensure that they do not play with the appliance.
RESIDUAL RISKS
Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc.
Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. These include:
▶ Injuries caused by touching any rotating/moving parts.
▶ Injuries caused when changing any parts, blades or accessories.
▶ Injuries caused by prolonged use of a tool. When using any tool for prolonged periods ensure you take regular breaks.
▶ Impairment of hearing.
▶ Health hazards caused by breathing dust developed when using your tool (example: working with wood, especially oak, beech and MDF.)
ADDITIONAL SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGERS
BATTERIES
▶ Never attempt to open for any reason.
▶ Do not expose the battery to water.
▶ Do not store in locations where the temperature may exceed 40^ C.
▶ Charge only at ambient temperatures between 10^ C and 40^ C.
▶ Charge only using the charger provided with the tool.
- When disposing of batteries, follow the instructions given in the section "Protecting the environment".
▶ Do not attempt to charge damaged batteries.
CHARGERS
▶ Use your STANLEY charger only to charge the battery in the tool with which it was supplied. Other batteries could burst, causing personal injury and damage.
▶ Never attempt to charge non-rechargeable batteries.
▶ Have defective cords replaced immediately.
▶ Do not expose the charger to water.
▶ Do not open the charger.
▶ Do not probe the charger.
STORAGE RECOMMENDATIONS
- The best storage place is one that is cool and dry away from direct sunlight and excess heat or cold.
- Long storage will not harm the battery pack or charger.

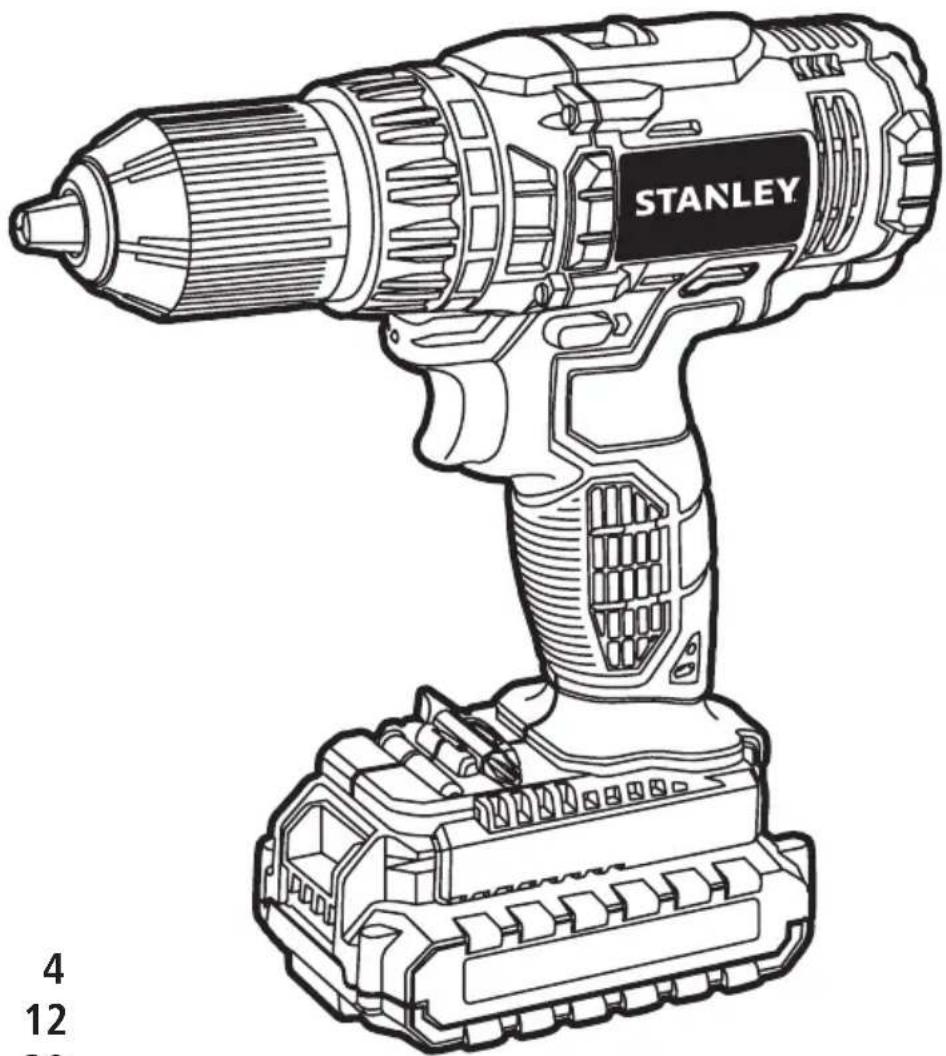

FEATURES (Fig. A)
- Trigger Switch
- Forward/Reverse Button
- Torque Adjust Collar
- Dual Range Gear Selector
- Keyless Chuck
- Battery
- Battery Release Button
- LED Work Light
- Bit Tip Holder
This product uses the batteries and chargers listed below:
20V MAX Lithium-Ion Batteries:
SB20C (1.3Ah), SB20D (2.0Ah).
20V MAX Lithium-Ion Chargers:
SC201 (1A), SC202 (2A).
CHARGING PROCEDURE
STANLEY chargers are designed to charge STANLEY battery packs.
Charging time:
SB20C (1,3Ah) + SC201 (1A) = Charge time 75 min.
SB20C (1,3Ah) + SC202 (2A) = Charge time 45 min.
SB20D (2,0Ah) + SC202 (2A) = Charge time 60 min.
- Plug the charger into an appropriate outlet before inserting the battery pack.
- Insert the battery pack into the charger.
- The led will flash indicating that the battery is being charged.
- The completion of charge is indicated by the led remaining on continuously. The pack is fully charged and may be used at this time or left on the charger.
Recharge discharged batteries as soon as possible after use or battery life may be greatly diminished. for longest battery life, do not discharge batteries fully.
it is recommended that the batteries be recharged after each use.
CHARGER DIAGNOSTICS
This charger is designed to detect certain problems that can arise with the battery packs or the power source. Problems are indicated by one LED flashing in different patterns.
Bad battery
The charger can detect a weak or damaged battery. The LED flashes in the pattern indicated on the label. If you see this bad battery blink pattern, do not continue to charge the battery. Return it to a service center or a collection site for recycling.
Hot/Cold pack delay
When the charger detects a battery that is excessively hot or excessively cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery has normalized. After this happens, the charger automatically switches to the Pack Charging mode. This feature ensures maximum battery life. The light flashes in the pattern indicated on the label.
Problem power line
When the charger is used with some portable power sources such generators or sources that convert DC to AC, the charger may temporarily suspend operation. The LED flashes in the pattern indicated on the label. This indicates that the power source is out of limits.
LEAVING THE BATTERY IN THE CHARGER
The charger and battery pack can be left connected with the LED glowing indefinitely. The charger will keep the battery pack fresh and fully charged. This charger features an automatic tune-up mode which equals or balances the individual cells in the battery pack to allow it to function at peak capacity. Battery packs should be tuned up weekly or whenever the battery no longer delivers the same amount of work. To use the automatic tune-up mode, place the battery pack in the charger and leave it for at least 8 hours.
IMPORTANT CHARGING NOTES
- Longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 65^ F and 75^ F ( 18^ C - 24^ C). DO NOT charge the battery pack in an air temperature below +40^ F (+4,5°C), or above +105^ F (+40,5°C). This is important and will prevent serious damage to the battery pack.
- The charger and battery pack may become warm to touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the
cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed, or an uninsulated trailer.
- If the battery pack does not charge properly:
a. Check current at receptacle by plugging in a lamp or other appliance
b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights.
c. Move charger and battery pack to a location where the surrounding air temperature is approximately 65^ F - 75^ F ( 18^ C - 24^ C).
d. If charging problems persist, take the tool, battery pack and charger to your local service center.
-
The battery pack should be recharged when it fails to produce sufficient power on jobs which were easily done previously.
-
DO NOT CONTINUE to use under these conditions. Follow the charging procedure.
-
You may also charge a partially used pack whenever you desire with no adverse effect on the battery pack.
OPERATING INSTRUCTIONS
Installing and removing the battery pack from the tool
⚠ Caution! Make certain the lock-off button is engaged to prevent switch actuation before removing or installing battery.
▶ To install battery pack
Insert battery pack firmly into tool until an audible click is heard as shown in Fig. B Ensure battery pack is fully seated and fully latched into position.
▶ To remove battery pack
Depress the battery release button (7) as shown in Fig. C and pull battery pack out of tool.
Safety warnings and instructions: Drills
⚠ Warning! Before using tool, read all instructions and cautionary markings on tool.
⚠ Warning! Drill may stall (if overloaded or improperly used) causing a twist. Always expect the stall. Grip the drill firmly with two hands to control the twisting action and prevent loss of control which could cause personal injury. If a stall does occur, release the trigger immediately and determine the reason for the stall before re-starting.

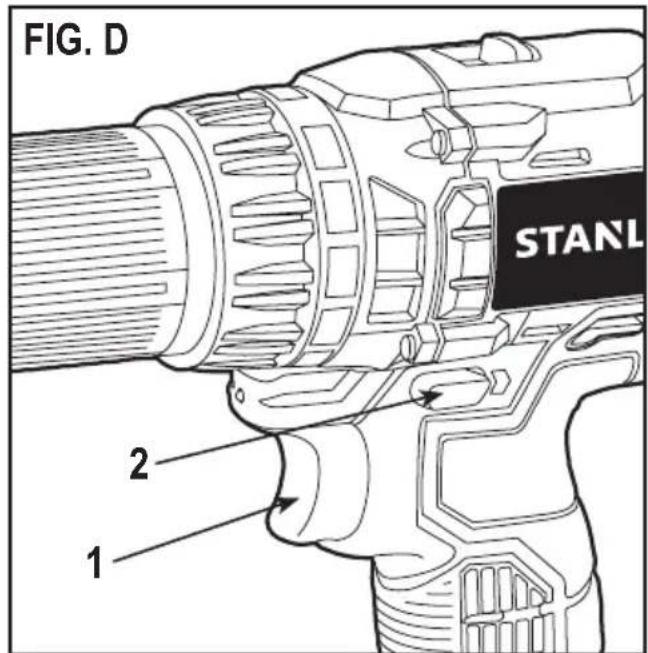

Trigger switch & forward/reverse button (Fig. D)
The drill is turned ON and OFF by pulling and releasing the trigger switch (1) shown in Fig. D. The other the trigger is depressed, the higher the speed the drill.
▶ A forward/reverse control button (2) determines the
rotational direction of the tool and also serves as a lock off button.
▶ To select forward rotation, release the trigger switch and depress the forward/reverse control button on the right side of the tool.
▶ To select reverse, depress the forward/reverse contribution on the left side of the tool.
▶ The center position of the control button locks the tool in the off position. When changing the position of the control button, be sure the trigger is released.
Adjusting torque control (Fig. E)
This tool is fitted with a torque adjustment collar (3) to select the operating mode and to set the torque for tightening screws. Large screws and hard work piece materials require a higher torque setting than small screws and soft work piece materials.
For drilling in wood, metal and plastics, set the collar to the drilling position symbol.
▶ For screwdriving, set the collar to the desired setting. If you do not yet know the appropriate setting, proceed as follows:
a. Set the collar to the lowest torque setting.
b. Tighten the first screw.
c. If the clutch ratchets before the desired result is achieved, increase the collar setting and continue tightening the screw. Repeat until you reach the correct setting. Use this setting for the remaining screws.
Dual range switch (Fig. F)
The dual range feature of your drill allows you to shift gears for greater versatility.
▶ To select low speed, high torque setting (position 1), turn tool off and permit to stop. Slide gear shifter button (4) away from the chuck.
▶ To select the high speed, low torque setting (position 2), turn tool off and permit to stop. Slide gear shifter button back toward the chuck.
Note: Do not change gears when tool is running. If you are having trouble changing gears, make sure that the dual range gear button is either completely pushed forward or completely pushed back.
Keyless chuck (Fig. G)
⚠ Warning! Make certain the battery pack is removed to prevent tool actuation before installing or removing accessories.
To insert a drill bit or other accessory:
- Grasp the chuck (5) and rotate it in the counterclockwise direction, as viewed from the chuck end.
- Insert the bit or other accessory fully into the chuck, and tighten securely by rotating the chuck in the clockwise direction as viewed from the chuck end.
⚠ Warning! Do not attempt to tighten or loosen drill bits (or any other accessory) by gripping the front part of the chuck and turning the tool on. Damage to the chuck and personal injury may occur when changing accessories.
Screw driving
- For driving fasteners, the forward/reverse button should be pushed to the left. - Use reverse (button pushed to the right) for removing fasteners.
Note: When moving from forward to reverse, or vice versa, always release the trigger switch first.
Drilling
▶ Use sharp drill bits only.
▶ Support and secure work properly, as instructed in the Safety Instructions.
▶ Use appropriate and required safety equipment, as instructed in the Safety Instructions.
- Secure and maintain work area, as instructed in the Safety Instructions.
▶ Run the drill very slowly, using light pressure, until the hole is started enough to keep the drill bit from slipping out of it.
▶ Apply pressure in a straight line with the bit. Use enough pressure to keep the bit biting but not so much as to stall the motor or deflect the bit.
▶ Hold the drill firmly with two hands, one hand on the handle, and the other gripping the bottom around the battery area or the auxiliary handle if provided.
▶ Do not click the trigger of a stalled drill off and on in an attempt to start it. Damage to the drill can result.
▶ Minimize stalling on break through by reducing pressure and slowly drilling through the last part of th hole.
▶ Keep the motor running while pulling the bit out of a drilled hole. This will help reduce jamming.
▶ Make sure switch turns drill on and off.
Drilling in wood
Holes in wood can be made with the same twist drill bits used for metal or with spade bits. These bits should be sharp and should be pulled out frequently when drilling to clear chips from the flutes.
Drilling in metal
Use a cutting lubricant when drilling metals. The exceptions are cast iron and brass which should be drilled dry. The cutting lubricants that work best are sulfurized cutting oil or lard oil.
Drilling in masonry
Use carbide tipped masonry bits. Refer to Drilling section. Keep even force on the drill but not so much that you crack the brittle material. A smooth, even flow of dust indicates the proper drilling rate.
LED work light
When drill is activated by pulling the trigger switch (1), the integrated LED work light (8) will automatically illuminate the work area.
Note: The work light is for lighting the immediate work surface and is not intended to be used as a flashlight.
Bit tip storage
A bit storage slot (9) is built into the base of the tool.
MAINTENANCE
Your Stanley Fat Max tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning. Your charger does not require any maintenance apart from regular cleaning.
⚠ Warning! Before performing any maintenance on the tool, remove the battery from the tool. Unplug the charger before cleaning it.
▶ Regularly clean the ventilation slots in your tool and charger using a soft brush or dry cloth.
▶ Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.
▶ Regularly open the chuck and tap it to remove any dust from the interior.
▲ ¡Important! To ensure product SAFETY and
RELIABILITY, repairs, maintenance and adjustment (other than those listed in this manual) should be performed by authorized service centers or other qualified organizations, always using identical replacement parts. Unit contains no user service able parts inside.
ACCESSORIES
⚠ Warning! Since accessories, other than those offered by STANLEY have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only STANLEY recommended accessories should be used with this product.
PROTECTING THE ENVIRONMENT
Separate collection. This product must not be disposed of with normal household waste. Should you find one day that your STANLEY product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.
Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials. Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.
BATTERIES
STANLEY batteries can be recharged many times. At the end of their useful life, discard batteries with due care for our environment:
▶ Run the battery down completely, then remove it from the tool.
▶ NiCd, NiMH and Li-Ion batteries are recyclable. Take them to any authorized repair agent or a local recycling station.
SERVICE INFORMATION
STANLEY offers a full network of company-owned and authorized service locations. All STANLEY Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. For more information about our authorized service centers and if you need technical advice, repair, or genuine factory replacement parts, contact the STANLEY location nearest you.
SPECIFICATIONS
Voltage 20V MAX
No-load speed 0 - 350/min (rpm)
0 - 1500/min (rpm)
Torque 45 Nm (33,2 ft-lb)
Chuck 1/2" (13mm)
SCD20
CHARGER SC201
Voltage
B3 120V \~ 60Hz
Output Voltage 20V === MAX
Input current 0,4Amp
Output current 1A
Weight 0,445kg (0,98lb)
CHARGER SC202
Voltage
B3 120V \~ 60Hz
Output Voltage 20V --- MAX
Input current 0,9Amp
Output current 2A
Weight 0,445kg (0,98lb)
BATTERY
Voltage
Capacity
Type
SB20C
20V
1,3Ah
Lithium-Ion
BATTERY
Voltage
Capacity
Type
SB20D
20V
2,0Ah
Lithium-Ion
MAX*
MAX*
* Maximum initial battery pack voltage
(measured without a workload) is 20 volts.
Nominal voltage is 18V.
CHARGING TIME
SB20C (1,3Ah) + SC201 (1A) = Charge time 75 min.
SB20C (1,3Ah) + SC202 (2A) = Charge time 45 min.
SB20D (2,0Ah) + SC202 (2A) = Charge time 60 min.
| TROUBLE SHOOTING | ||
| PROBLEMA CAUSA POSIBLE SOLUCIÓN POSIBLE | ||
| Unit will not start. | Battery pack not installed properly. Check battery pack installation. | |
| Battery pack not charged. | Check battery pack charging requirements. | |
| Unit starts immediately upon inserting battery. | The switch has been left in the “On” position. | The switch must be moved to “Off” to prevent the tool from immediately starting when battery is inserted |
| Battery pack will not charge | Battery pack not inserted into charger. | Insert battery pack into charger until LED lights. |
| Charger not plugged tin. | Plug charger into a working out let. Refer to “Important charging notes” for more details. | |
| Surrounding air temperature too hot or too cold. | Move charger and battery pack to a surrounding air temperature of above 40°F (4,5°C) or below 105°F +40,5°C). | |
| Unit shuts off abruptly. | Battery pack has reached its maximum thermal limit. | Allow battery pack to cool down. |
| Out of charge. (To maximize the life of the battery pack it is designed to shut off abruptly when the charge is depleted). | Place on charger and allow to charge. | |
CNPJ: 53.296.273/0001-91
Insc. Est.: 701.948.711.00-98
S.A.C.: 0800.703.4644
- GENERAL SAFETY RULES
- SAVE THESE INSTRUCTIONS
- SAFETY INSTRUCTIONS
- General power tool safety warnings.
- Save all warnings and instructions for future reference.
- Work area safety
- Electrical safety
- Personal safety
- Power tool use and care
- ADDITIONAL POWER TOOL SAFETY WARNINGS
- SAFETY OF OTHERS
- RESIDUAL RISKS
- ADDITIONAL SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGERS
- BATTERIES
- CHARGERS
- STORAGE RECOMMENDATIONS
- FEATURES (Fig. A)
- 20V MAX Lithium-Ion Batteries:
- 20V MAX Lithium-Ion Chargers:
- CHARGING PROCEDURE
- Charging time:
- Recharge discharged batteries as soon as possible after use or battery life may be greatly diminished. for longest battery life, do not discharge batteries fully.
- CHARGER DIAGNOSTICS
- Bad battery
- Hot/Cold pack delay
- Problem power line
- LEAVING THE BATTERY IN THE CHARGER
- IMPORTANT CHARGING NOTES
- OPERATING INSTRUCTIONS
- Installing and removing the battery pack from the tool
- ▶ To install battery pack
- ▶ To remove battery pack
- Safety warnings and instructions: Drills
- Trigger switch & forward/reverse button (Fig. D)
- Adjusting torque control (Fig. E)
- Dual range switch (Fig. F)
- Keyless chuck (Fig. G)
- Screw driving
- Drilling
- Drilling in wood
- Drilling in metal
- Drilling in masonry
- LED work light
- Bit tip storage
- MAINTENANCE
- ACCESSORIES
- PROTECTING THE ENVIRONMENT
- SERVICE INFORMATION
- SPECIFICATIONS
- SCD20
- CHARGER SC201
- CHARGER SC202
- BATTERY
- SB20C
- SB20D
- CHARGING TIME
Brand : STANLEY
Model : SCD201C2K
Category : Saw
