Product Type	Dual-Band Wireless AC3100 Gigabit Router
Model	Epic 3 XWR-3150
Brand	Luxul
Wireless Standard	802.11ac (AC3100), dual-band 2.4GHz and 5GHz
Antennas	4 external dual-band antennas (RPSMA female connectors)
LAN Ports	4 x Gigabit Ethernet (green RJ-45)
WAN Port	1 x Gigabit Ethernet (black RJ-45)
USB Port	1 x USB (status LED on front panel)
Default IP Address	192.168.0.1
Default Username/Password	admin / admin
DHCP Server	Enabled by default (192.168.0.x subnet)
Wireless Controller	Supports management of up to 2 additional access points for seamless roaming
Power Adapter	Included; AC input 100-240V, DC output 12V
Reset Button	Press and hold ~20 seconds for factory reset
Dimensions (approx.)	9.5 x 6.5 x 1.5 inches (estimated)
Weight (approx.)	1.5 lbs (estimated)
Mounting Options	Horizontal desk or wall/ceiling mounting using keyholes (pattern included)
Ventilation	Ensure adequate space around device for ventilation
Compliance	FCC, CE (implied by brand)

Frequently Asked Questions - Epic 3 XWR-3150 Luxul

What is the default IP address of the Luxul Epic 3 XWR-3150?

The default LAN IP address is 192.168.0.1. Ensure your computer is on the same subnet (192.168.0.x) or set a static IP if needed.

How do I access the router's web interface?

Connect via Ethernet to one of the LAN ports or connect to the default Wi-Fi network (Luxul3150 or Luxul31505G). Open a browser, go to 192.168.0.1, and log in with username admin and password admin.

How do I reset the Epic 3 to factory defaults?

Press and hold the Reset button on the rear panel until the System LED stops flashing (about 20 seconds). All port LEDs will flash once to confirm. A reboot follows; the router will be restored to factory settings.

Can I mount the Epic 3 on a wall?

Yes, the router has keyhole slots for wall or ceiling mounting. Use the included mounting pattern for proper placement.

What does the System LED indicate?

The System LED shows the router's status: flashing during boot, heartbeat (slow pulse) when operating normally, and off when not powered.

How many access points can the Epic 3 manage as a wireless controller?

The Epic 3 can manage up to two additional Luxul access points for seamless roaming. Enable Wireless Controller in the web interface and add them to the profile.

What should I do if I forget the login password?

Perform a factory reset (hold Reset button for 20 seconds) to restore default credentials (admin/admin). Note this erases all custom settings.

Is the Epic 3 compatible with Domotz?

Yes, the router supports Domotz remote monitoring. Refer to the video tutorial at https://youtu.be/YOY9A_jV7BE for activation steps.

What are the default wireless network names?

Two default SSIDs are broadcast: Luxul3150 (2.4GHz) and Luxul31505G (5GHz). Both are open (no password) until you configure wireless security.

How do I improve wireless coverage?

Ensure all four antennas are properly attached and positioned. Consider using the Epic 3 as a wireless controller with additional Luxul access points for extended coverage.

USER MANUAL Epic 3 XWR-3150 Luxul

Epic 3

Dual-Band AC3100 Gigabit Router

XWR-3150

Includes:

Dual-Band Wireless AC3100 Gigabit Router
Dual Band Antennas (4)
Ethernet Cable
Power Adapter

ROUTER SETUP AND CONFIGURATION

1 Physical Installation

The Epic 3 Wireless Router is designed for simple and efficient installation. For horizontal installation, install the rubber feet and position the Epic 3 on a desk or other horizontal surface with adequate room around the device for ventilation. For wall or ceiling mounting, simply follow the directions on the included mounting pattern and use the mounting keyholes on the Epic 3.

2 Connecting Antennas, Ethernet and Power

Antennas: Ensure all dual-band antennas are installed on the router.

INTERNET Connection: Connect the Ethernet cable from the modem/router equipment provided by your Internet Service Provider (ISP) to the black INTERNET port of the Epic 3.

AC Power: Connect the included AC Adapter to the XWR-3150 first and then to the AC outlet.

3 Preparing for Access

IP Addressing

The Epic 3 default LAN IP address is 192.168.0.1. The DHCP server on the Epic 3 is configured by default to create a 192.168.0.x network.

Both the default LAN IP address and subnet scheme can be changed. However for hassle-free plug-and-play installation of other Luxul hardware, we recommend you use the default IP address if possible.

If your client device is set to obtain an address automatically, no further configuration is required and you can skip to the next step, Access and Setup.

If your computer or device isn't set to obtain an IP address automatically, you'll need to set a temporary static IP address on that device. Set the IP address of your computer to an address in the 192.168.0.X range, then set the Gateway/Router address to 192.168.0.1 (the default IP address of the Epic 3).

NOTE: Visit http://luxul.com/ip-addressing to learn more about changing your computer's IP address and getting connected.

Access and Setup

Getting Connected

Connecting Via an Ethernet Device: Use an Ethernet cable to connect your computer to one of the green Epic 3 LAN ports. Ethernet is the preferred method of connection.

Connecting Via a Wireless Device: Connect a wireless client device to one of the Epic 3 default wireless networks (Luxul3150 or Luxul31505G). Both Wireless networks will run in Open security mode, so a passphrase will not be required until wireless security is configured.

Open a web browser, enter 192.168.0.1, then log in to the router using the default user name and password and proceed with configuration:

Default IP: 192.168.0.1

Username: admin

Password: admin

NOTE: If another device on your network shares the 192.168.0.1 address, you'll need to reassign that device a different IP address to configure the Epic 3.

NOTE: Only devices that support the 5GHz frequency will see the default Luxul31505G wireless network.

Advanced Configuration

Configuring the Epic 3 as a Wireless Controller

The Epic 3 can manage up to two additional access points to enable wireless client roaming and simple configuration. To enable this feature, ensure one or two compatible access points are connected to the same network as the Epic 3, then select Wireless Controller from the Epic 3 web configuration interface. Follow the online help to add the access point(s) to the profile.

Caution: Do not manually configure access points you intend to manage with the Epic 3 for seamless roaming. Doing so will result in standalone AP that the Epic 3 will not find/manage.

Epic 3 as a Controller

Activating Domotz in a Luxul Router

NOTE: Visit https://youtu.be/YOY9A_jV7BE_to learn how to activate Domotz in a Luxul router.

Other Advanced Configuration

For more information on configuring advanced features such as DDNS, VPN, etc., refer to the support resources at luxul.com.

Hardware Operation

Epic 3 Front Panel LED Indicators

Indicator Name Status Function
	5GHz ON A 5GHz wireless network is broadcasting.
	2.4GHz ON A 2.4GHz network is broadcasting.
	1-4 LED ON A device is connected to the corresponding Ethernet port.
		FLASHING Data packets are being transmitted to the connected device.
	Internet LED	On	Router is connected to the ISP.
		FLASHING Data packets are being transmitted
	USB LED	ON A USB-enabled device is connected and configured.
	System LED	FLASHING Router is booting.
		HEART BEAT	Router is operating normally.
		OFF	Router is not booting.
	Power LED	ON Power is applied to the Router.
		OFF	Power is not applied to the Router.

Front Panel

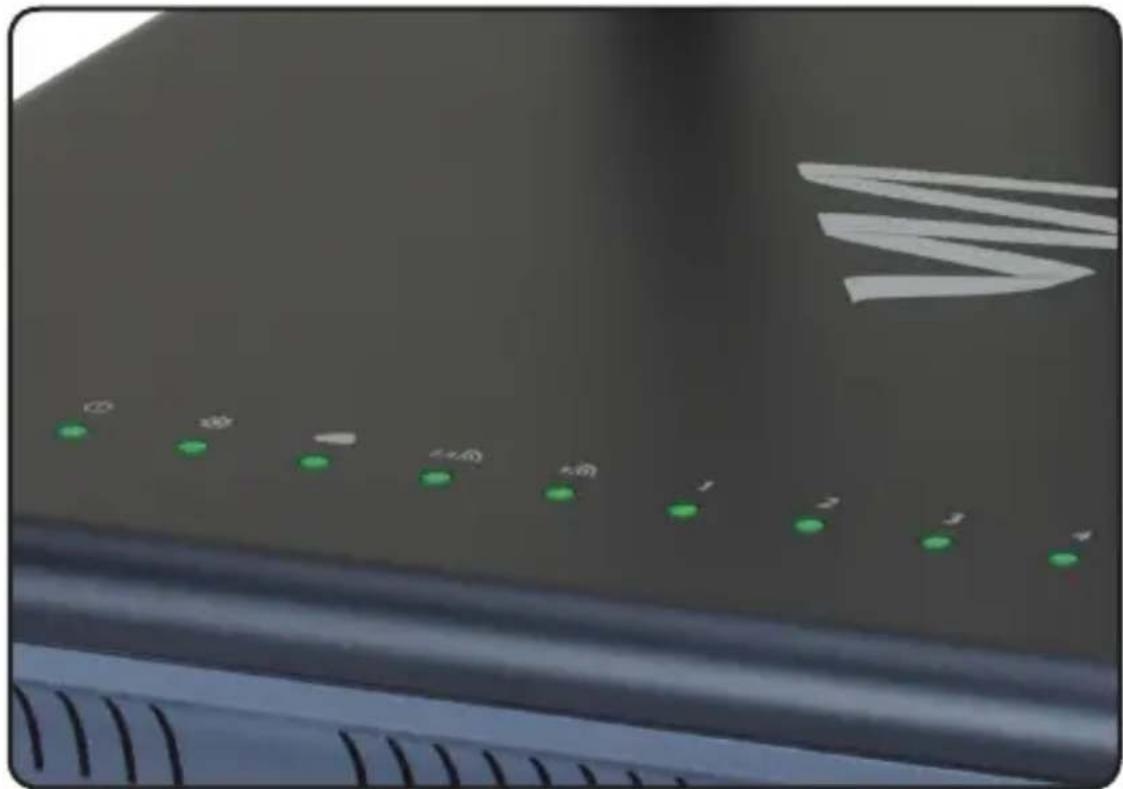

Epic 3 Front Panel View

Rear Panel

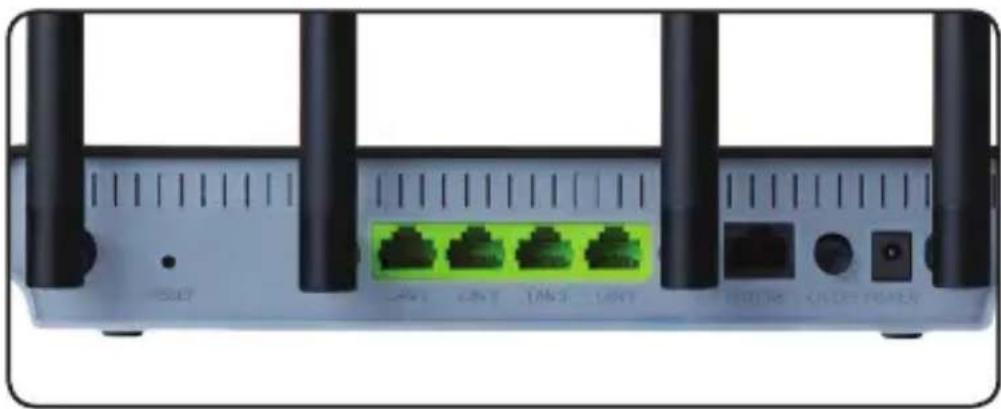

Epic 3 Rear Panel View

Antenna Ports: 4 RPSMA female antenna ports to connect the included antennas.

NOTE: All four antennas should be installed prior to powering up the XWR-3150 and are required for optimal performance.

▶ Power Input: Power adapter included.

NOTE: To reboot the router, disconnect the power adapter, wait 10 seconds and reconnect the power adapter.

WAN Port: (1) black RJ-45 Ethernet Port for Internet connection.

▶ LAN 1 - 4 Ports: (4) green RJ-45 Ethernet ports for connecting to the local network.

NOTE: A Luxul switch is recommended in conjunction with the Epic 3 to increase the number of local ports available.

▶ Reset Button: Used to restore factory default settings.

CAUTION: Holding the Reset button longer than 10 seconds will result in a factory reset.

To restore factory defaults, press and hold the Reset button until the System LED stops flashing (approximately 20 seconds). A factory reset will take one minute or more to complete. A successful factory reset is indicated when all of the Port LEDs flash once. When the System LED starts flashing again, the unit is ready.

CAUTION: Resetting the Epic 3 to factory defaults will remove all custom settings.
