Product Type	High-Performance Gigabit Router
Model	Epic 5 ABR-5000
Brand	Luxul
Ethernet Ports	7 RJ-45 (2 WAN, 5 LAN) Gigabit
USB Port	1 x USB 3.0
Console Port	1 x Console (RJ-45, requires special cable)
Default IP Address	192.168.0.1
Default Login	Username: admin, Password: admin
Power Supply	Built-in, 100-240VAC, 50/60Hz
Power Consumption	Not specified (typical <30W)
Mounting Options	Desktop with rubber feet or 19-inch rack mount (brackets included)
LED Indicators	Power, System, USB, WAN/LAN activity and speed (blue/green selectable)
DHCP Server	Enabled by default
Dual WAN Support	Yes, two independent Internet connections
File/DLNA Server	Built-in via USB storage
Reset Functions	Reboot, restore default settings, restore factory software
Dimensions	Standard 1U rackmount (19 x 8 x 1.75 in approx.)
Weight	Approx. 5 lbs (2.3 kg)
Maintenance	No special maintenance required; keep ventilated and away from direct sunlight
Safety	Use surge-protected outlet; ensure proper grounding; avoid heavy objects on router
Spare Parts / Repairability	No user-serviceable parts; contact technical support
Included Accessories	Rack mount kit, rubber feet, power cord
Warranty	Not specified; contact Luxul
Legal	© 2016 Luxul. All rights reserved.

Frequently Asked Questions - Epic 5 ABR-5000 Luxul

What is the default IP address of the Luxul Epic 5 ABR-5000?

The default IP address is 192.168.0.1. It is recommended to keep this address for easy integration with other Luxul products.

How do I log in to the router's web interface?

Open a web browser and navigate to 192.168.0.1. Use the default username admin and password admin.

How do I reset the router to factory defaults?

With the router powered on, press and hold the Reset button on the rear panel for 5 seconds, then release. The router will restore default settings and reboot. Note: This erases all custom configuration.

What do the LED indicators on the front panel mean?

The Power LED indicates power status. The System LED shows boot progress: blinking means loading OS, heartbeat means normal operation. USB LED shows device activity. WAN/LAN port LEDs indicate speed (top row/green for 1000Mbps, bottom row/yellow for 10/100Mbps) and flash during data transfer.

How many WAN and LAN ports does the Epic 5 have?

It has 2 dedicated WAN ports and 5 dedicated LAN ports (all Gigabit RJ-45). This allows connection to two independent Internet connections.

Can I use a USB drive with the router?

Yes, plug a USB flash drive or hard drive into the USB 3.0 port on the rear panel. Then configure the built-in file/DLNA server to share files with devices on your LAN.

What is the Console port for?

The Console port provides advanced command-line access. It is not an Ethernet port and requires a special cable. Contact technical support if you need this functionality.

How do I change the front panel LED color?

There is a switch on the rear panel that lets you select between blue, green, or off to match other equipment in an A/V rack.

Is the router's DHCP server enabled by default?

Yes, the DHCP server is enabled by default. If your client devices are set to obtain IP addresses automatically, they will connect without additional configuration.

Can I mount the Epic 5 in a server rack?

Yes, the router comes with a rack mount kit. Attach the L-shaped brackets to the sides using the included screws, then mount it horizontally in a standard 19-inch rack.

USER MANUAL Epic 5 ABR-5000 Luxul

Exterior view of a black LUXUL device with control panel and indicator lights (no readable text or symbols beyond branding)

Epic 5

High-Performance Gigabit Router

ABR-5000

Includes:

High-Performance Gigabit Router
Rack Mount Kit
Rubber Feet
Power Cord

SETUP AND CONFIGURATION

1 Physical Installation

The Epic 5 can be rack-mounted or used as a desktop router. Install the router in a stable/safe place to avoid any possible damage. Make sure there is adequate space around the router for ventilation and proper heat dissipation. Avoid placement in direct sunlight. Do not place heavy articles on the router and verify the ground connection of the outlet is functioning properly.

Desktop/Shelf Installation

For desktop/shelf installation, attach the four rubber feet to the corner indentations on the bottom of the router, then place the router on a solid, level platform.

Rack Installation

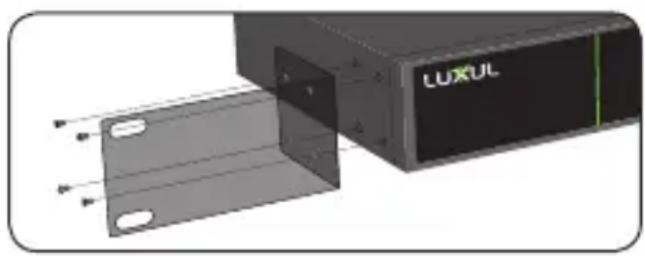

Use the included L brackets for convenient installation in a 19-inch server or AV rack. As shown below, use four screws to attach the L-shaped brackets on both sides of the router then mount it horizontally in the rack. Use your desired hardware to affix the router supports to the rack.

3D rendering of a LuxUL device with a rectangular panel and internal components, no visible text or symbols on the main body.

Install Brackets for Rack-Mounting

Exterior view of a black electronic device labeled 'LUXUL' with green vertical lines and mounting holes (no additional text or symbols)

Attach Feet for Desktop Installation

Connecting Ethernet and Power

Before you attempt to configure the router, test the Internet connection to verify that it is functioning properly. Once Internet access is confirmed to be working, follow the steps below for installation and configuration.

Connecting Ethernet

Luxul recommends at least Cat-5e unshielded twisted pair (CAT5e UTP) cabling. To ensure best performance and stable data transmission at 1000 Mbps, use Category-6 unshielded twisted pair (CAT6 UTP).

1. Connect the WAN: Connect the Internet cable from a telco/ISP modem/router to the dedicated WAN 1 port on the Epic 5.
2. Connect the LAN: Connect a cable from the dedicated LAN 1 port on the Epic 5 to a switch, access point, or computer.

For best performance, and to maximize available ports, Luxul recommends connecting all LAN devices to a Luxul switch, then connecting that switch to the Epic 5 LAN port via a single Ethernet cable.

NOTE: Connect all LAN devices to a Luxul switch, then connect that switch to the router for best results.

Connecting Power

Use the included power cable to connect the router to a surge-protected outlet. The AC input socket and power switch are on the rear panel. The built-in power supply supports 100\~240VAC at 50/60Hz.

Access and Setup

Default IP Address

The Epic 5's default IP address is 192.168.0.1. This can be modified, however, we recommend you retain the default IP address if possible for hassle-free installation of other Luxul products.

NOTE: In the event another device on your network shares the 192.168.0.1 address, you'll need to reassign the device's IP address or remove it from the network.

Connecting a Client Device

Connect a client device to one of the router LAN ports or to a switch that is connected to a router LAN port. The DHCP server on the router is configured by default. If your client device is set to obtain an IP address automatically, no further configuration is required and you're ready to log in.

Note: Visit http://luxul.com/ip-addressing to learn more about changing your computer's IP address and getting connected.

Logging In

To access the router web configuration, open your web browser and enter the router's default 192.168.0.1 IP address in the address field. Log in to the router using the default user name and password:

Default IP: 192.168.0.1

Username: admin

Password: admin

Select the menu items on the left to view and/or modify the configuration. For information on configuring the Epic 5 and routers in general, review the Support Resources at luxul.com.

Hardware Operation

The front panel of the router features Power, System and USB LEDs; and port status indicators for each of the router's Ethernet ports.

The rear panel of the router features seven RJ-45 Ethernet ports: Two dedicated WAN ports and five dedicated LAN ports. Using the two dedicated WAN ports, the router can be connected to two independent Internet connections simultaneously.

The rear panel also features a power switch and socket, recessed Reset button, and a switch for selecting front-panel LED colors (blue/green/off) to match other equipment in an audio/video rack.

Plug a USB flash drive or hard drive into the USB 3.0 port and configure the built-in file/DLNA server to serve files to LAN-connected client devices.

The Console port supports advanced command-line functionality, but requires a special cable. Contact support if your application requires a command line.

Note: The Console port is not an Ethernet port. A special cable is required for use. Contact support for more information.

Front Panel

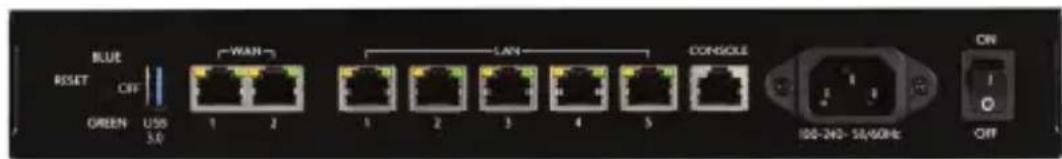

Back Panel

Reset Button

The Reset button (located on the rear panel) can be used to reset (reboot) the router, restore the router to default settings, or restore the router to factory default software version and settings.

To Reboot the Router: With the Epic 5 powered on and running, briefly press and release the Reset button. The router will reboot. When the System LED flashes like a heartbeat, the unit is ready.

CAUTION: Do not hold the button for more than three seconds. Doing so may erase all settings and restore factory defaults.

To Restore the Default Settings: With the router powered on and running, press and hold the Reset button for 5 seconds, then release the button. The router will restore its default configuration and reboot. The software version will not change. When the System LED flashes like a heartbeat, the unit is ready.

CAUTION: Restoring default settings will remove any/all custom configuration.

To Restore Factory Software: With the router powered off, press and hold the Reset button, turn the router on, and continue holding the Reset button until the System LED turns on. The device will completely reflash itself back to the factory default software version and settings.

WARNING: Restoring factory software will remove any/all custom configuration and remove newer firmware.

LED Indicators

Indicator & State		Description
POWER On / SYSTEM Off		Epic 5 is powered on and booting.
POWER On / SYSTEM On		Loading operating system.
POWER On / SYSTEM Blinking		OS loaded; finishing boot process.
POWER On / SYSTEM Heartbeat		Booting finished/operating normally.
POWER Off / SYSTEM Off		Epic 5 not powered.
USB	On	A USB device is connected.
	Blinking	USB device activity.
WAN/LAN Front	Top Row On	10/100 Mbps device connected.
	Bottom Row On	1000 Mbps device connected.
	Flashing	Data packets are being transferred.
WAN/LAN Rear	Yellow On	10/100 Mbps device connected.
	Green On	1000 Mbps device connected.
	Flashing	Data packets are being transferred.

Sales

801-822-5450

[e-mail]

Technical Support

801-822-5450

[e-mail]

Copyright and Trademark Notices

No part of this document may be modified or adapted in any way, for any purposes without permission in writing from Luxul. The material in this document is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design. No license is granted, either expressly or by implication or otherwise under any Luxul intellectual property rights. An implied license only exists for equipment, circuits and subsystems contained in this or any Luxul product.

© Copyright 2016 Luxul. All rights reserved. The name Luxul, the Luxul logo, the Luxul logo mark and Simply Connected are all trademarks and or registered trademarks of Luxul Wireless, Inc. All other trademarks and registered trademarks are property of their respective holders.

LUX-QIG-ABR-5000-v7
