Mythos 3C-85 - Soundbar DEFINITIVE TECHNOLOGY - Free user manual and instructions

Product Type	Soundbar
Brand	Definitive Technology
Model	Mythos 3C-85
Category	Soundbar
Dimensions (W x H x D)	44.5 x 8.9 x 10.2 cm
Weight	3.5 kg
Power Consumption	40 W (typical)
Standby Power	< 0.5 W
Speaker Configuration	3.0 channels
Amplifier Power	200 W total
Frequency Response	50 Hz - 22 kHz
Impedance	8 ohms
Connectivity	Bluetooth, Optical, Coaxial, 3.5mm Aux
Remote Control	Included
Wall Mountable	Yes (bracket included)
Cleaning Instructions	Wipe with a soft dry cloth; avoid solvents.
Safety Instructions	Do not expose to water or heat sources. Unplug during storms.
Spare Parts and Repairability	Contact authorized service center for parts.
Warranty	2 years

Frequently Asked Questions - Mythos 3C-85 DEFINITIVE TECHNOLOGY

How do I connect the Mythos 3C-85 to my TV?

Use the optical audio cable (included) or connect via Bluetooth. For best sound, set your TV to PCM output.

Can the soundbar be wall-mounted?

Yes, it comes with a wall-mount bracket. Ensure the wall can support its weight (3.5 kg) and use appropriate anchors.

How do I pair a Bluetooth device?

Press the Bluetooth button on the remote or soundbar until the indicator flashes. Select 'Mythos 3C-85' from your device's Bluetooth list.

Why is there no sound?

Check that the soundbar is powered on and the correct input is selected. Ensure your TV's audio output is set to external speakers. Try increasing the volume.

Does the soundbar support Dolby Atmos?

No, the Mythos 3C-85 is a 3.0-channel system without height channels. It supports standard Dolby Digital and DTS.

Can I add a subwoofer?

This model does not have a dedicated subwoofer output. However, it has built-in bass radiators for enhanced low frequencies.

How do I clean the soundbar?

Unplug the device and wipe the grille and casing with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.

The remote control isn't working. What should I do?

Replace the batteries with fresh ones. Ensure there are no obstructions between the remote and the soundbar. If the issue persists, contact Definitive Technology support.

Can I use the soundbar with a computer?

Yes, via Bluetooth, 3.5mm aux cable, or optical audio. For optical, your PC must have an optical output.

What is the maximum volume level?

The volume ranges from 0 to 40. At maximum, the soundbar can produce up to 100 dB SPL. Use caution to avoid hearing damage.

USER MANUAL Mythos 3C-85 DEFINITIVE TECHNOLOGY

Exploded view diagram of a multi-layered air conditioner panel assembly (no text or labels)

Check that the items shown are included in the box.

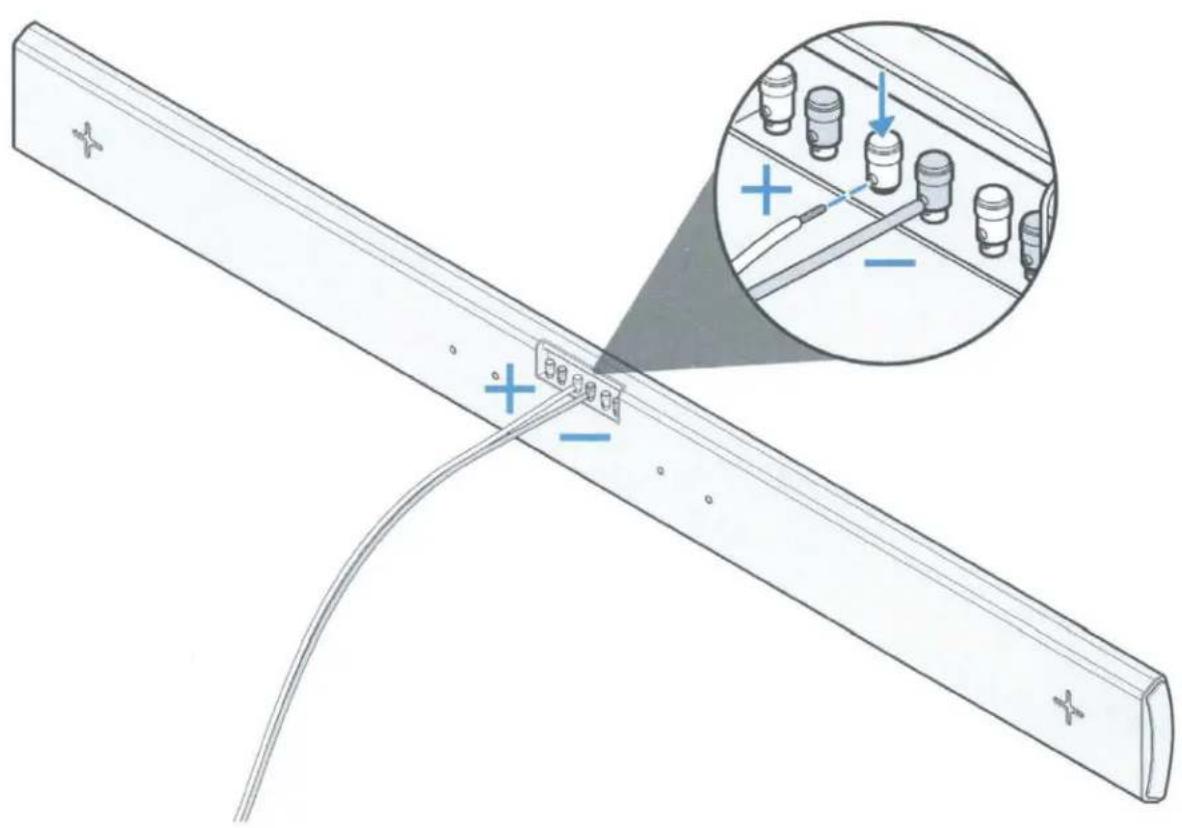

2 Connect speaker wires to the terminals on the sound bar

1. Strip about 3/8 in (10 mm) of insulation from each speaker wire.
2. Push down on the top of the terminal to expose the hole in the post.
3. Insert the bare wire through the hole. Make sure the wire does not touch any other terminals.
4. Release the push terminal to secure the wire.
5. Repeat these steps for the other terminal.

Note: The speaker includes three channels and can either use three sets of two conductors or a six-conductor cable.

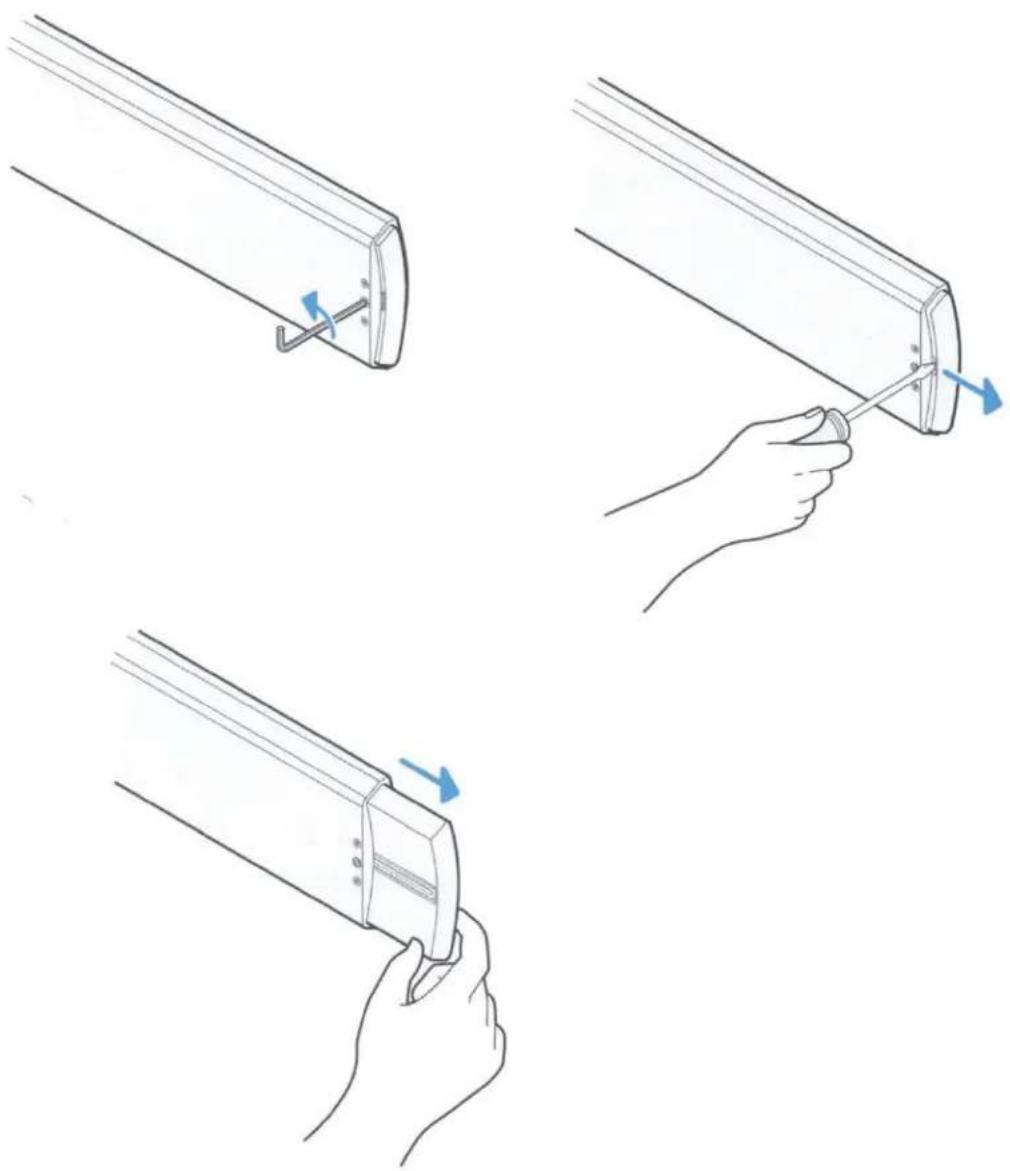

3 Adjust the sound bar length

The speaker has a pair of symmetrically adjustable extensions that you can adjust to match the length of your TV. Use the included hex key to loosen the set screws on the back of the speaker, and slide the extensions so that the speaker is even with the edges of your TV. After you adjust the extensions, tighten the screws to lock the extensions in place.

Note: We recommend that you use a flat-head screwdriver to separate the extension from the sound bar.

4 Choose your mounting method

Option 1

Bracket

p. 10

Technical line drawing of a mechanical component with two parallel plates and a central slot (no text or symbols)

Option 2

VESA TV Bracket

p. 16

Technical line drawing of a mechanical assembly with two plates and a tool, no visible text or symbols

Option 3

No Bracket (Use

Wall-Mounting

Template)

p. 22

Simple line drawing of a rectangular frame with a ruler at the bottom (no text or symbols)

Select one of three methods to mount the sound bar.

Mounting Option 1

Bracket

A

B

C

Line drawing of two hands holding a ruler on a screen, no text or symbols present

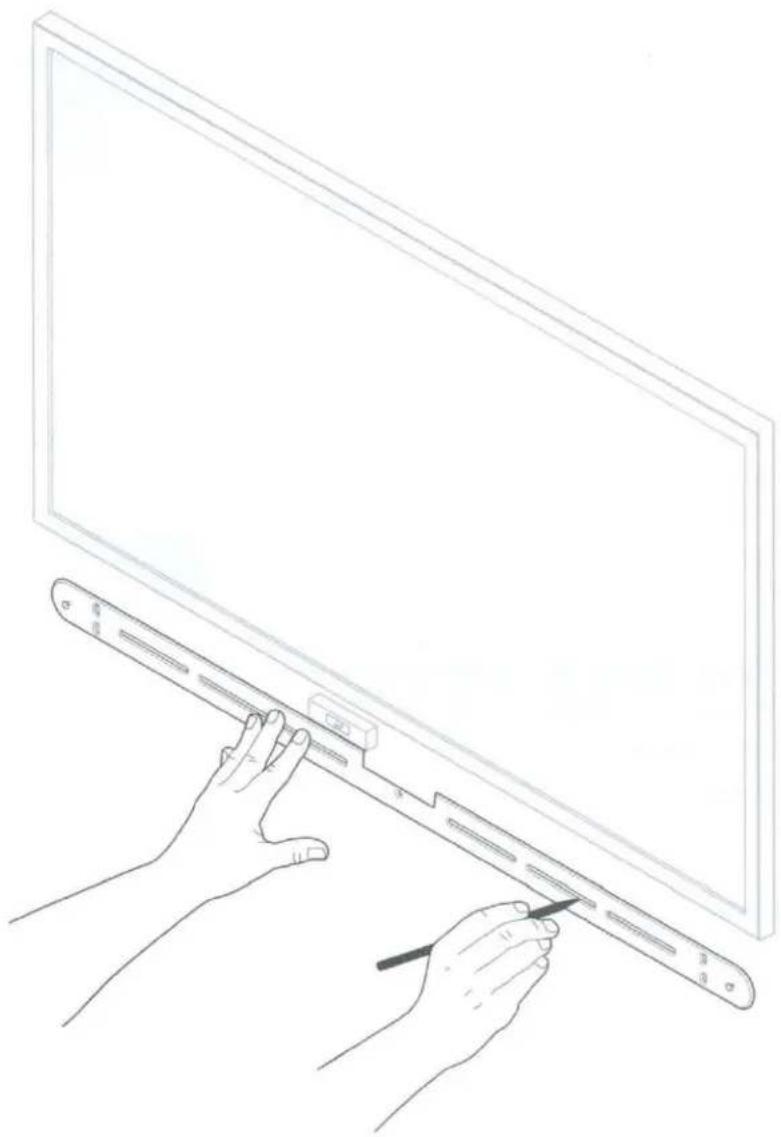

Use a stud finder to locate and mark the studs on your wall. If you are not able to secure the sound bar to studs, use the appropriate wall anchors for your wall type.

1. Place the wall-mounting bracket against the wall under your TV.

Note: Make sure to leave enough space for the speaker to comfortably fit under your TV.

1. Mark the locations where you will drill pilot holes.

Technical line drawing of a mechanical component and its assembly, showing a drill bit and a linear blade assembly (no text or symbols)

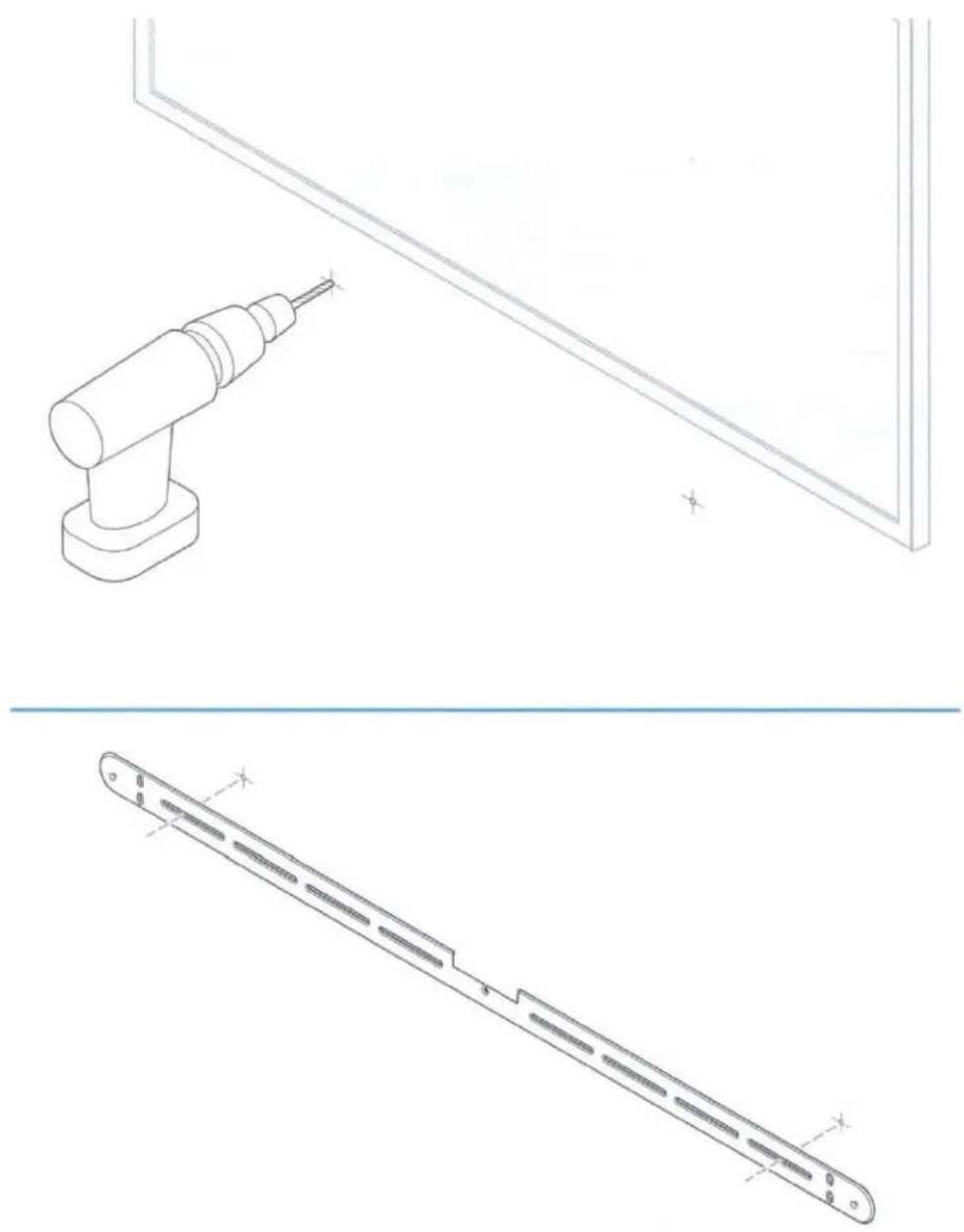

1. Drill pilot holes into the marked locations on the wall.
2. Align the holes on the wall-mounting bracket with the holes in the wall.


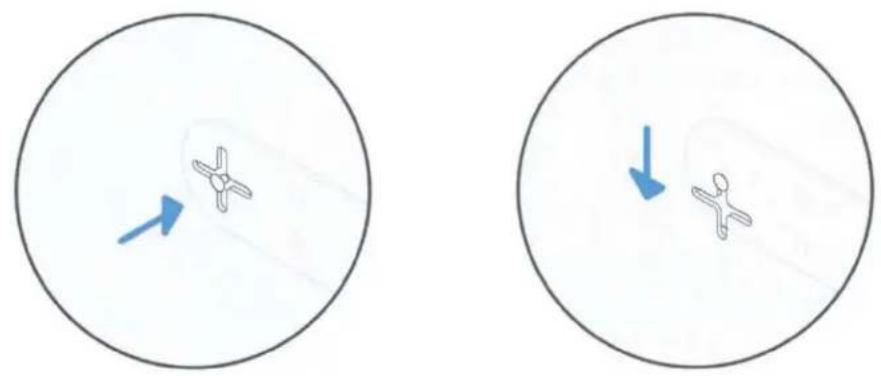

Two circular diagrams showing a person inside, with arrows pointing to the left and right sides of each diagram (no text or symbols)

Technical line drawing of a mechanical component with two parts, one showing internal structure and the other showing directional arrows (no text or symbols)

Secure the wall brackets by placing 2 in. long screws into studs or appropriate size wall anchors. Use the mounting holes as close to the hooks as possible. More screws can be used if needed for additional support.

1. Insert the screws into the wall through the wall-mounting bracket.

Note: If none of the screws go into a wall stud, consider using wall anchors (not included) to secure the screws.

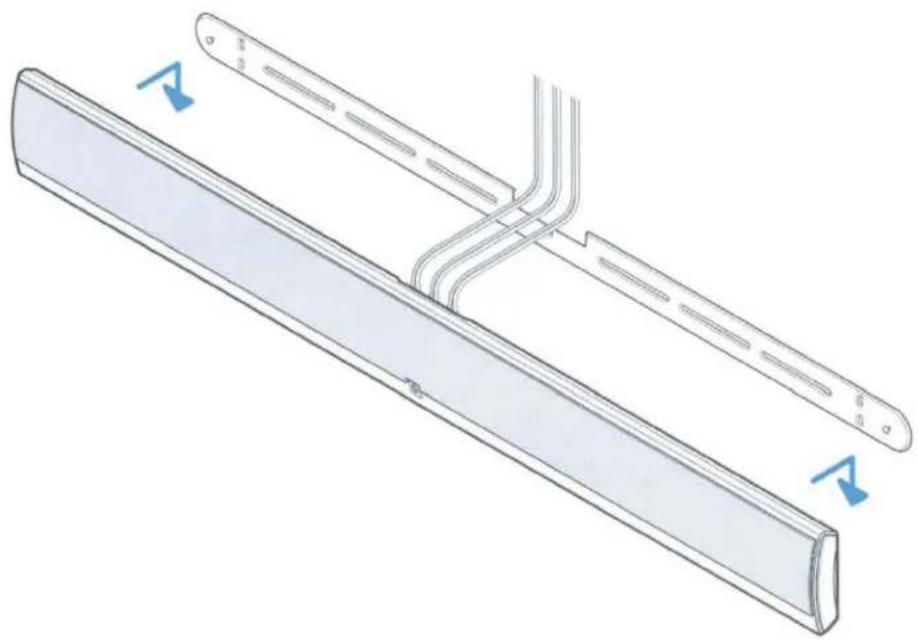

1. Align the speaker holes with the bracket hooks and then hang the speaker on the hooks.

Line drawing of a device with a flat panel and a rectangular base, showing internal components and wiring (no text or symbols)

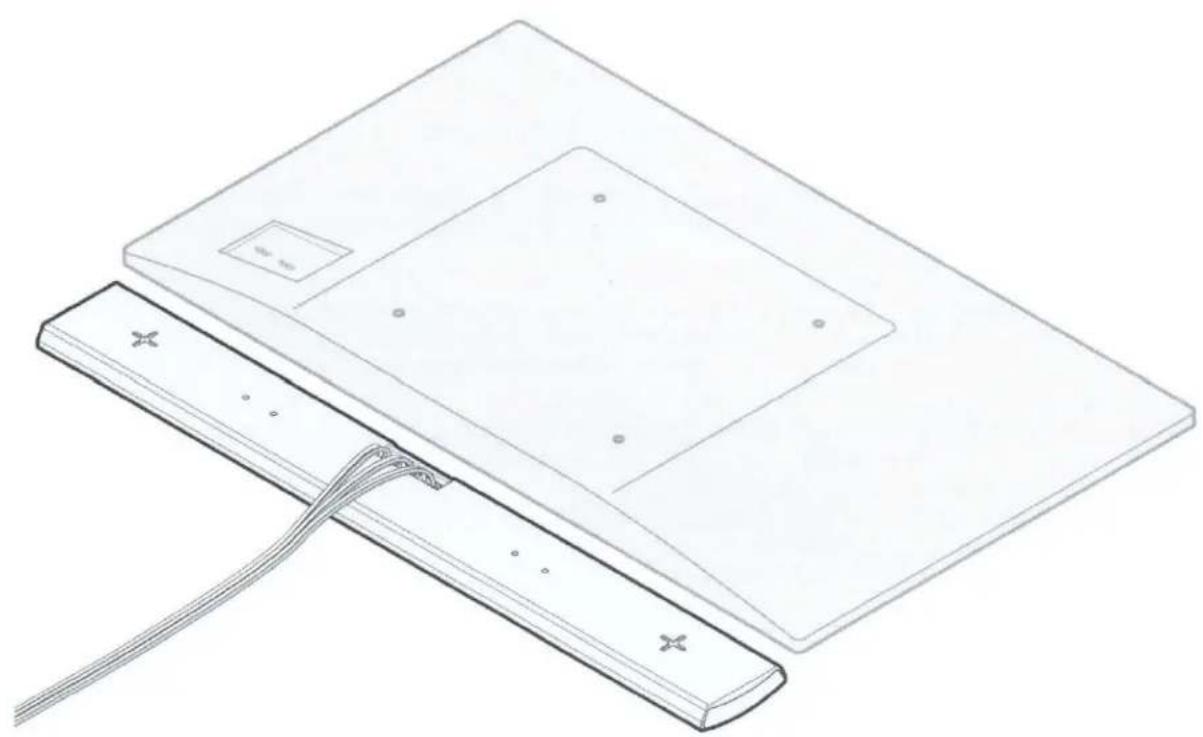

1. Remove your TV from its packaging or existing mount.
2. Lay the TV down on its screen on a flat surface.
3. Lay the sound bar under your TV.

Mounting Option 2

VESA TV Bracket

Line drawing of a mechanical device with two parallel plates and a coiled cable, no text or symbols present

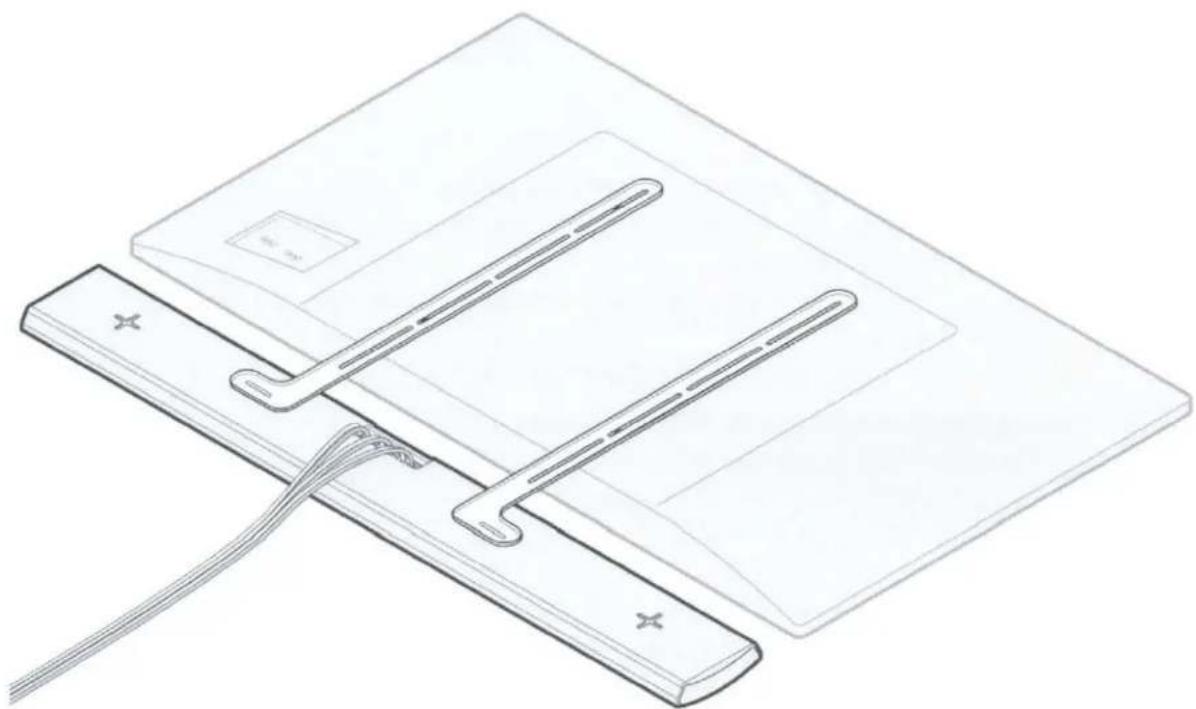

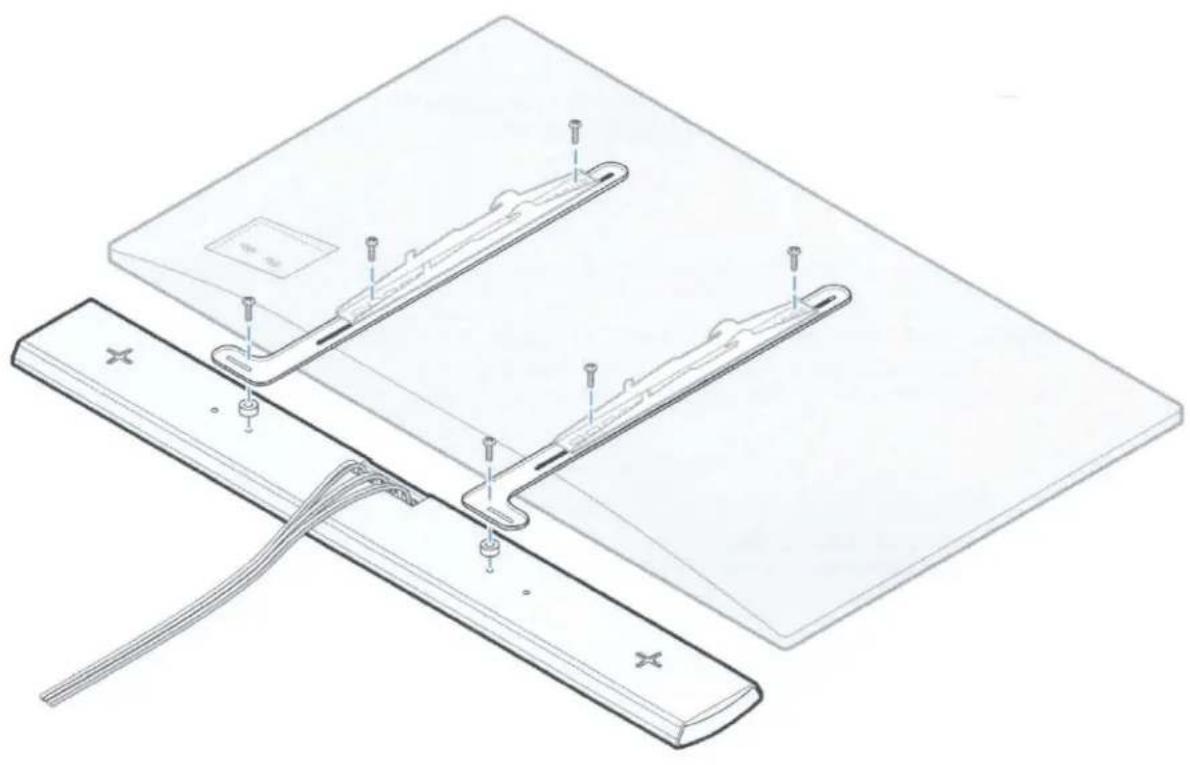

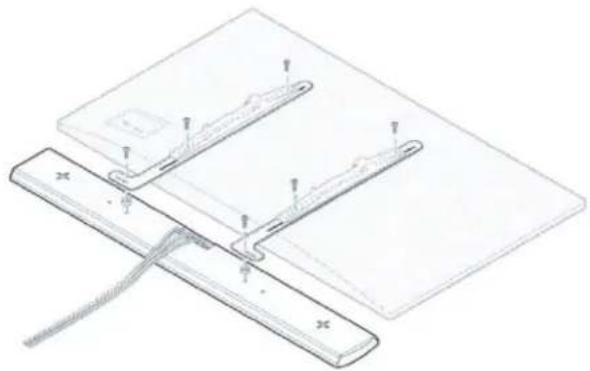

Place both of the included VESA mount brackets over the holes on the back of your TV.

Note: The included mounting brackets are compatible with most 300, 400, and 600 VESA mounting hole patterns. The speaker's threaded inserts can be used with many other aftermarket brackets.

Technical line drawing of a mechanical assembly with two plates and a coiled cable (no text or symbols)

1. Place your VESA TV wall mount on top of the mount brackets and your TV. Adjust the position of the mount brackets as needed.

2. Insert four screws (not included) into your TV to secure the VESA mount and sound bar mount brackets to your TV.

3. Attach the sound bar to the brackets by inserting two of the included screws into the sound bar with the included spacers to level the sound bar with the TV.

4. Mount your VESA mount with the attached TV and sound bar to your wall. For help, refer to the instructions that came with your VESA mount.

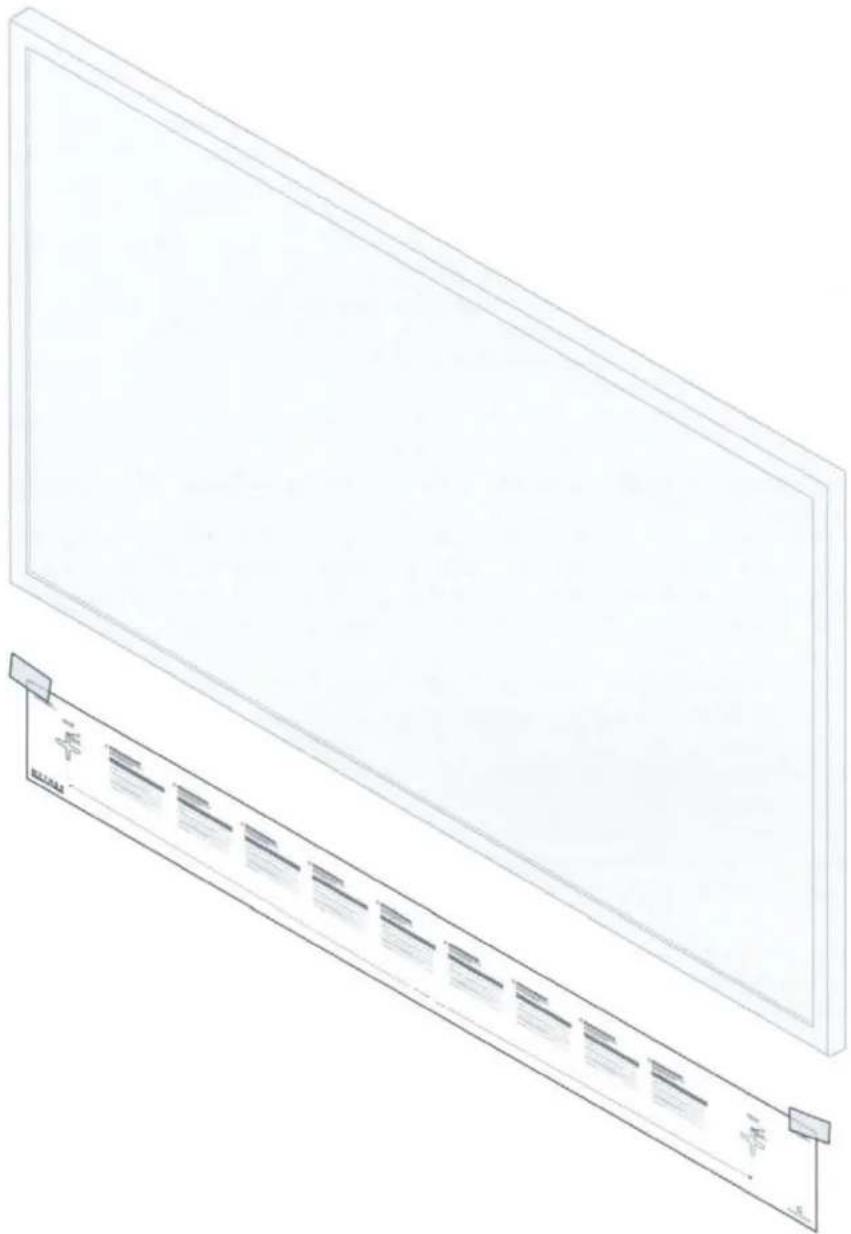

Mounting Option 3

No Bracket (Wall-Mounting Template)

Technical line drawing of a rectangular panel with a separate row of small rectangular components (no text or symbols)

Follow the instructions on the included wall-mounting template to mount the sound bar to your wall without a mounting bracket.

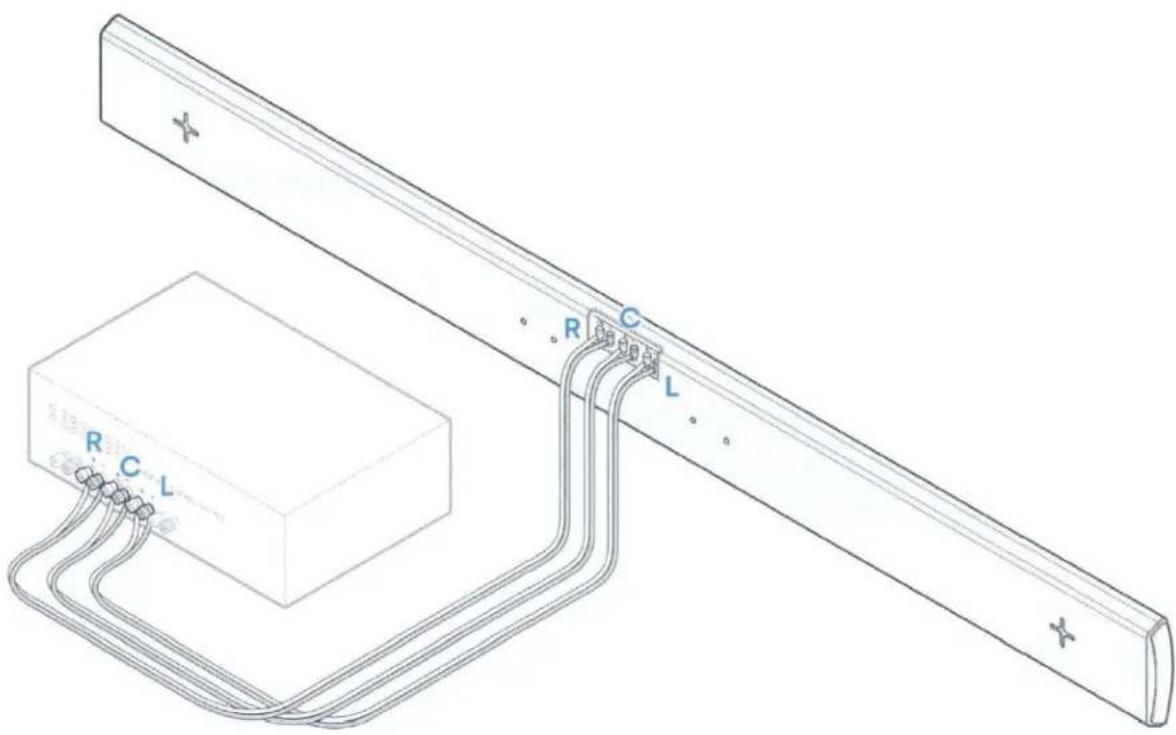

5 Connect the speaker wires to your receiver or amplifier

Connect the other ends of your speaker wires to your amplifier. Ensure that the speaker is always connected to the receiver or amplifier + to + and - to -. Make sure the channels on the sound bar are connected to the matching channels on the receiver or amplifier.

6

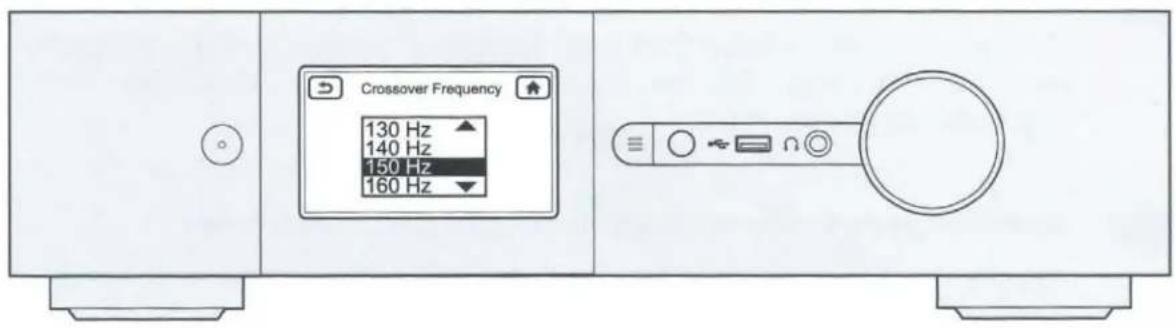

Configure your AV Receiver

Set the Left, Center and Right crossover frequency on the receiver to 150 Hz or higher. All lower frequencies should be sent to a powered subwoofer.

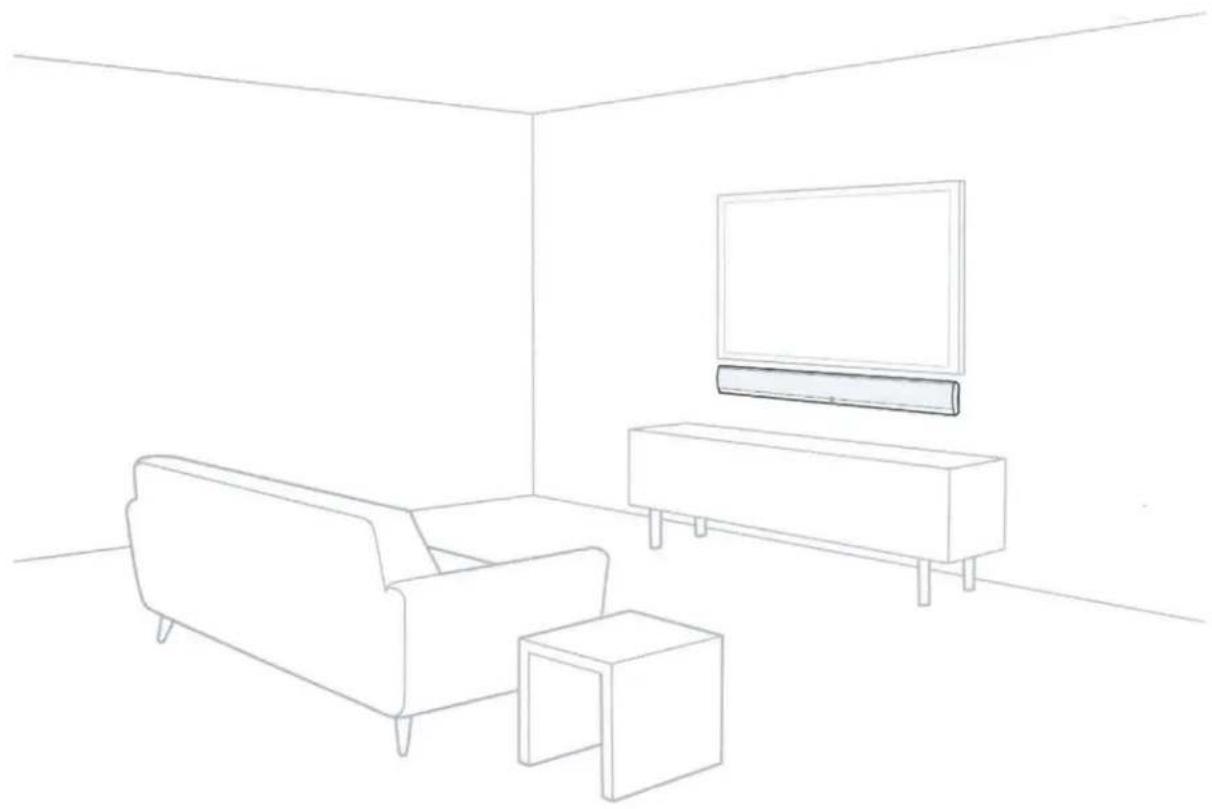

7 Setup is now complete!

Line drawing of a minimalist living room interior with a sofa, TV, and side table (no text or symbols)

Adjust the settings on your amplifier, then listen to music or watch TV to test the speaker sound and volume.

Sound United Europe,

A division of D&M Europe B.V.

Eindhoven, The Netherlands

UK Importer:

D&M Audiovisual Ltd.

Dale Road, Worthing,

West Sussex

BN11 2BH United

Kingdom

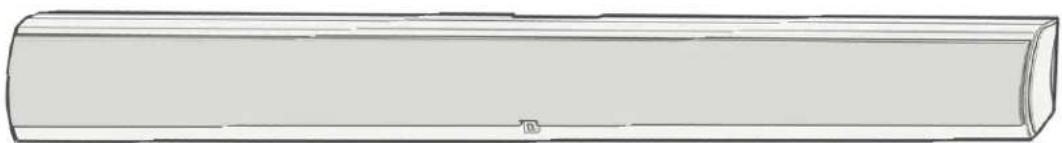

Mythos Three-Channel Passive Sound Bar

The Mythos ^® Series three-channel sound bars elevate home theater experiences indoors and out. Combining the three front channels of a home theater system in a single cabinet, these ultra-slim, on-wall speakers blend high-performance sound and designer aesthetics in a weather-protected, adjustable-width rigid aluminum enclosure. Mythos Series three-channel sound bars are available in three models.

KEY BENEFITS

Slim Profile with Luxury Finishes

Ultra-slim, wall-mount cabinet measures less than 2" deep and features clean, modern aesthetics; and refined anodized aluminum finishes. Symmetrically adjustable extensions expand from 3.5" (on 3C-65 and 3C-75) to 6.75" (on the 3C-85) to perfectly match the width of 65", 75", or 85"-class displays for a sleek, streamlined appearance under your TV.

Acoustically Optimized Cabinet

A highly rigid, tuned aircraft-grade aluminum enclosure houses the speaker array, with each channel in its own acoustic chamber. You'll experience the truest sound, uncolored by cabinet resonances.

IP66-Rated Weather Protection

Water- and dust-resistant construction means you can enjoy stunning home theater sound outdoors.

Multi-Driver Arrays

Mythos three-channel passive sound bars feature two- and three-way driver arrays. Multiple-driver arrays improve driver performance and project robust, full-range sound over a wide area.

XTDD Drivers

Ultra-stiff, 3.5", anodized aluminum dome woofers and midrange drivers eliminate breakup and broaden dispersion, for crisp, clear sound and a spacious, enveloping soundstage.

Aluminum Oxide Dome Tweeters

Rigid, 1", well-damped Dymension" Series tweeters deliver smooth extended response, crisp transients, and pin-point imaging, for cohesive, lifelike sound that draws you inside the action.

Timbre Matched

Consistent sound across Definitive Technology models gives you the flexibility to mix and match speakers to build the ultimate system or a starter system that can expand as your needs grow.

definitivetechnology.com

PRODUCT FEATURES

• On-wall, passive sound bar blends high-performance sound and designer aesthetics
• IP66-rated weather-resistant design is suitable for use outdoors
• 3.5" XTDD woofers and 3.5" XTDD midrange drivers deliver balanced lows and mids
• 1" aluminum oxide dome tweeters deliver precise highs, lifelike realism
• Precision crossovers optimize drivers for full, lifelike sound
• Included VESA and wall-mount brackets provide a seamless appearance

Mythos ^® Three-Channel Passive Sound Bar

SPECIFICATIONS
3C-65 3C-75 3C-85
Dimensions (H × D) 6.25 × 1.87 in.	(159 × 48 mm)	6.25 × 1.87 in.(159 × 48 mm)	6.25 × 1.87 in.(159 × 48 mm)
Adjustable Width (W) 56.5 × 60 in. (1435 × 1524mm) 65.8 × 69.2 in. (1671 × 1758 mm) 72.8 × 79.5 in. (1849 × 2019 mm)
Symmetrically Adjustable Extensions	3.4 in. (86 mm) 3.4 in. (87 mm) 6.25 in. (159 mm)
Weight 17 lbs (7.8 kg) 20 lbs (9.3 kg) 22 lbs (10.1 kg)
Color / Material Black anodized aluminum Black anodized aluminum		Black anodized aluminum
Grille Material Micro-perforated	powder-coated steel	Micro-perforated powder-coated steel	Micro-perforated powder-coated steel
Tweeter	(3) 1 in. aluminum oxide dome	(3) 1 in. aluminum oxide dome	(3) 1 in. aluminum oxide dome
Midrange	-	(2) 3.5 in. XTDD aluminum dome	(2) 3.5 in. XTDD aluminum dome
Woofer	(8) 3.5 in. XTDD aluminum dome	(8) 3.5 in. XTDD aluminum dome	(8) 3.5 in. XTDD aluminum dome
Number of Channels	3 (left,center, right)	3 (left,center, right)	3 (left,center, right)
Frequency Response	100 Hz-25 kHz (-10dB)120 Hz-20 kHz (-3dB)	100 Hz-25 kHz (-10dB)120 Hz-20 kHz (-3dB)	100 Hz-25 kHz (-10dB)120 Hz-20 kHz (-3dB)
Nominal Impedance	4Ω (8Ω compatible)	4Ω (8Ω compatible)	4Ω (8Ω compatible)
Sensitivity	88dB (2.83V/1m)	88dB (2.83V/1m)	88dB (2.83V/1m)
Recommended Amplifier Power	80W	80W	80W
IP Rating (Ingress Protection)	IP66	IP66	IP66
Warranty	5-year 5-year 5-year
Included Accessories	(2) VESA-mount brackets and spacers(1) Wall-mount bracket	(2) VESA-mount brackets and spacers(1) Wall-mount bracket	(2) VESA-mount brackets and spacers(1) Wall-mount bracket

Simple line drawing of a cylindrical object with rounded ends and a small label 'a' on the side (no text or symbols on the object itself)

Limited 5-Year Warranty (United States and Canada)

Definitive Technology, LLC (herein "Definitive") warrants to the original purchaser only that this Definitive Loudspeaker Product (the "Product") will be free from defects in materials and workmanship for a limited period of five (5) years from the date of original retail purchase from a Definitive Authorized Dealer. However, this Warranty will automatically terminate prior to the expiration of the five (5) years if the original retail purchaser sells or otherwise transfers the Product to any other party. The original retail purchaser shall hereinafter be referred to as "you." To allow Definitive to offer the best possible warranty service, please visit the website on the Product Registration Card(s) and fill out the form within ten (10) days of the date of purchase.

Defective Products must be shipped, together with proof of purchase, prepaid insured to the Definitive Authorized Dealer from whom you purchased the Product, or an authorized service center. Products must be shipped in the original shipping container or its equivalent: in any case the risk of loss or damage in transit is to be borne by you. If upon examination at the Factory or Definitive Authorized Dealer it is determined that the Product was defective in materials or workmanship at any time during this Warranty period, Definitive or the Definitive Authorized Dealer will, at its option, repair or replace this Product at no additional charge, except as set forth below. All replaced parts and Products become the property of Definitive. Products replaced or repaired under this warranty will be returned to you, within a reasonable time, freight prepaid.

This warranty does not include service or parts to repair damage caused by accident, disaster, misuse, abuse, negligence, inadequate packing or shipping procedures, commercial use, voltage inputs in excess of the rated maximum of the unit, cosmetic appearance of cabinetry not directly attributable to defect in materials or workmanship, or service, repair, or modification of the Product which has not been authorized or approved by Definitive. This warranty shall terminate if the Serial number on the Product has been removed, tampered with or defaced. This warranty is in lieu of all other expressed Warranties. If this Product is defective in materials or workmanship as warranted above, your sole remedy shall be repair or replacement as provided above. In no event will Definitive be liable to you for any incidental, special, or consequential damages arising out of the use or inability to use the Product, even if Definitive or a Definitive Authorized Dealer has been advised of the possibility of such damages, or for any claim by any other party. Some states or provinces do not allow the exclusion or limitation of consequential damages, so the above limitation and exclusion may not apply to you. All implied warranties on this Product are limited to the duration of this expressed Warranty. Some states or provinces do not allow limitation on how long an implied Warranty lasts, so the above limitations may not apply to you. This Warranty gives you specific legal rights, and you also may have other rights which vary from state to state or province to province. Definitive has no liability for acts of third parties. Definitive's liability, whether based on contract, tort, or any other theory, shall not exceed the purchase price of the Product for which a claim has been made. For U.S. warranty claims, the consumer agrees and consents that all disputes shall be resolved in accordance with California laws in San Diego County, California. Definitive reserves the right to modify this warranty statement at any time.

This Warranty applies only to Products purchased in the United States of America, its possessions, and U.S. and NATO armed forces exchanges and audio clubs, and Canada, except Quebec. Residents of Quebec are governed by that province's consumer protection legislation. The Warranty terms and conditions applicable to Products purchased in other countries are available from the Definitive Authorized Distributors in such countries. Please see the warranty guide specific to Products purchased in countries or territories not referenced herein.

• Avoid high temperatures.
  • Do not let foreign objects into the unit.
• Do not let insecticides, benzene, and thinner come in contact with the unit.
• Never disassemble or modify the unit in any way.
• Naked flame sources such as lit candles should not be placed on the unit.
• Do not place objects filled with liquids, such as vases, on the unit.

Disposal of Equipment

Only for European Union and countries with recycling systems.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

EU Declarations of Conformity

CE

Hereby, Sound United, LLC declares that our product complies with the following EU/EC directives:

• Directive 2011/65/EU (RoHS)
• WEEE Directive 2012/19/EU
• REACH Regulation(EC) No 1907/2006
• Packaging Directive 94/62/EC
IEC62474

The full text of the EU declaration of conformity is available at the following internet address: https://www.definitivetechnology.com/declarations-of-conformity.

Sound United, LLC

5541 Fermi Court

Carlsbad, CA 92008, USA

EU Contact:

Sound United Europe

A Division of D&M Europe B.V.

UKCA Declarations of Conformity

UK CA

Hereby, Sound United, LLC declares that our product is in compliance with the following UK regulations:

• 2012 No. 3032, The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
• 2013 No. 3113, The Waste Electrical and Electronic Equipment Regulations 2013
• 2008 No. 2852, The REACH Enforcement Regulations 2008
• 2015 No. 1640, The Packaging (Essential Requirements) Regulations 2015
• BS EN IEC62474:2019

The full text of the UKCA declaration of conformity is available at the following internet address: https://www.definitivetechnology.com/declarations-of-conformity.

UK Importer:

D&M Audiovisual Ltd

Dale Road, Worthing, West Sussex

BN11 2BH United Kingdom

JOIN OUR

SOUND CLUB

Be the first to know of new product releases and updates. Register your new Definitive Technology product online:

www.definitivetechnology.com/register

We take privacy seriously and do not share or sell

registration information (see privacy policy for more details):

www.definitivetechnology.com/privacy
