CBT60RX-07 - Range hood CANDY - Free user manual and instructions

Product Type	Range Hood
Brand	Candy
Model	CBT60RX-07
Mounting Type	Wall-mounted or under cabinet
Width	600 mm
Depth	516 mm
Height (minimum)	176 mm
Weight	Approx. 12 kg
Power Supply	AC 110-240 V, 50/60 Hz
Fan Speeds	2 speeds (low/high)
Control Type	Rocker switch
Lighting	1 x 2 W LED (ILCOS D: DBS-2/65-H-120/33)
Grease Filter Material	Aluminum mesh
Carbon Filter Available	Yes (optional, not supplied)
Ducting	External ventilation (optional non-ducted recirculation with carbon filter)
Minimum Distance from Gas Hob	65 cm
Noise Level	Not specified
Energy Efficiency Class	Not specified
Additional Features	Removable front panel for automatic power disconnect
Cleaning	Grease filters washable by hand; stainless steel surfaces cleaned with mild detergent

Frequently Asked Questions - CBT60RX-07 CANDY

How do I install the Candy CBT60RX-07 range hood?

Installation can be wall-mounted or under cabinet. Use the provided L-shaped bracket and screws. Ensure the minimum distance from gas hob is 65 cm. Follow the step-by-step installation section in the manual. For safety, disconnect power before installation.

How do I clean the grease mesh filters?

Remove the filters by pressing the handle button. Soak in warm water with a grease-loosening detergent for about 3 minutes, then gently brush with a soft brush. Do not use abrasive cleaners. Allow to dry naturally away from direct sunlight. Install by angling into slots and releasing the handle.

How do I replace the carbon filter?

Carbon filters are optional and not supplied. To replace, disconnect power, remove the mesh filter, then turn the carbon filter anti-clockwise on both sides to remove. Fit new carbon filters and reinstall the mesh filter.

What type of light bulb does the hood use?

It uses a 2W LED bulb (ILCOS D code: DBS-2/65-H-120/33) with voltage range AC 110-240V. Replacement should be done by a qualified person. Always disconnect power and allow bulb to cool before handling.

Why is the hood not working?

Check if the fan switch is turned on (positions I or II). If light and motor both fail, check house fuses or power cord connection. If light works but motor doesn't, the fan switch or motor may be faulty — contact service center.

What should I do if oil leaks from the hood?

Oil leakage is often due to loose seals. Check the one-way valve and outlet connection; seal with sealant if needed. Also check chimney and cover connections. Ensure grease filters are not overly saturated.

Can I use the hood without ducting?

Yes, the hood can be used in recirculation mode with an activated carbon filter (not included). The carbon filter traps odors. Note that suction power will be reduced compared to ducted mode.

How often should I clean the hood?

Clean stainless steel surfaces weekly with a soft cloth and mild detergent. Grease filters should be cleaned every 1-2 months depending on usage. Carbon filters need replacement every 3-6 months.

What safety precautions should I take?

Always disconnect power before maintenance. Do not use the hood without grease filters. Keep a minimum distance of 65 cm from gas hobs. Never flambé under the hood. Ensure proper ventilation when using gas appliances simultaneously.

How do I adjust the fan speed?

The hood has a rocker switch with positions I (low speed) and II (high speed). Push to the desired setting. To turn off, push to 0. The light is controlled separately by pulling out the front panel to connect power.

USER MANUAL CBT60RX-07 CANDY

Isometric line drawing of a rectangular enclosure or storage unit with internal grid pattern and mounting feet (no text or symbols)

ENGLISH(EN)----page 001

RUSSIAN(RU)----page 013

KAZAKH(KK)----page 027

Content

1. Safety instructions
   2....Installation
   3....Start using your cooker hood
   4....Troubleshooting
   5....Maintenance and cleaning
   6 Environment protection

SAFETY INSTRUCTIONS

This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference.

Never to do:

• Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy!
  ● Do not install above a cooker with a high level grill.
• Do not leave frying pans unattended during use because overheated fats or oils might catch fire.
  ● Never leave naked flames under the cooker hood.

• If the cooker hood is damaged, do not attempt to use.
  ● Do not flambé under the cooker hood.
  ● CAUTION: Accessible parts may become hot when used with cooking appliances.
  ● The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the cooker hood is located above a gas appliance, this distance shall be at least 65 cm)
  ● The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Always to do:

● Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.
● The cooker hood must be installed in accordance with the installation instructions and all measurements followed.
● All installation work must be carried out by a competent person or qualified electrician.
● Please dispose of the packing material carefully. Children are vulnerable to it.
● Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.
● Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the cooker hood.
●Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards
● Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

Always to do:

● Always put lids on pots and pans when cooking on a gas cooker.
- When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being observed. The cooker hood removes odours from room but not steam.
● Cooker hood is for domestic use only.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  ● This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

● Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

Always to do:

● Caution: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children younger than 8 years old should stay away unless they are under permanent supervision.
● There shall be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
● There is a fire risk if cleaning is not carried out in accordance with the instructions
● Regulations concerning the discharge of air have to be fulfilled.
● Clean your appliance periodically by following the method given in the chapter MAINTENANCE.
● For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
● Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.
●Cleaning and user maintenance shall not be made by children without supervision.
- When the cooker hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).
● WARNING: Danger of fire: do not store items on the cooking surfaces.
●A steam cleaner is not to be used.
● NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

INSTALLATION (VENT OUTSIDE)

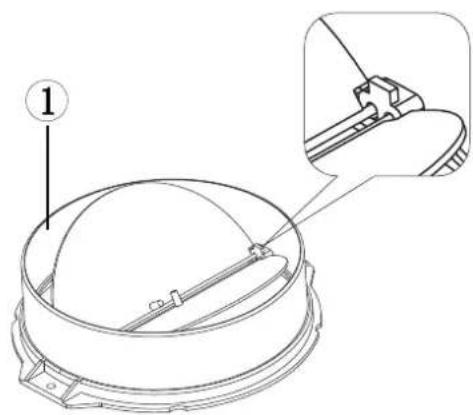

MOUNTING OF THE V-FLAP

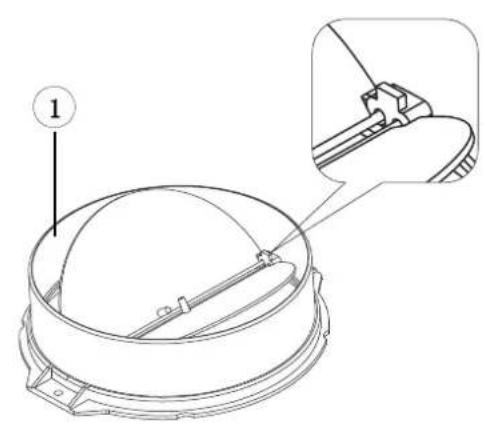

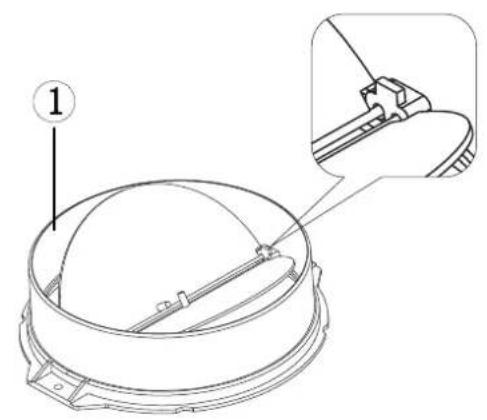

If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to its body. The images only show an example of how to mount the V-flap, the outlet may be various according to different models and configuration.

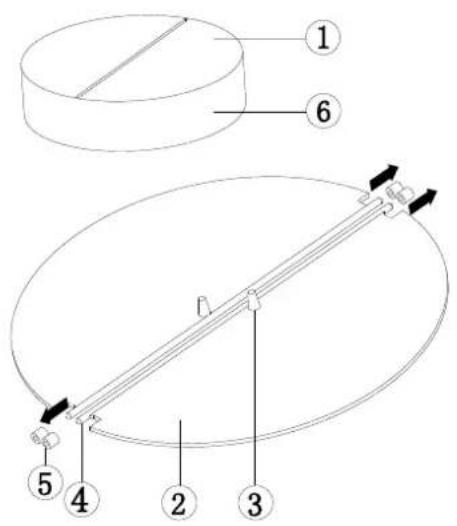

To mount the V-flap 1 you should:

• Mount two half-parts 2 into the body 6
• a pin 3 should be top oriented:
• the axis 4 should be inserted in the holes 5 on body;
• repeat all the operations for the 2nd half-part

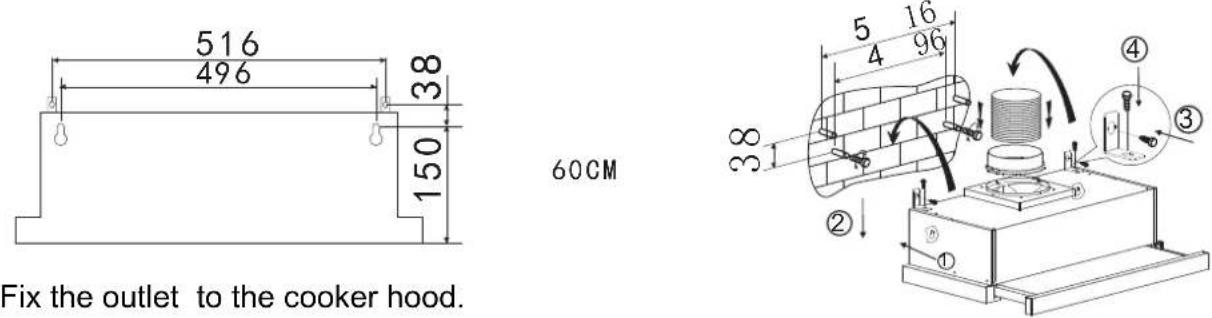

INSTALLATION (Wall Mounting)

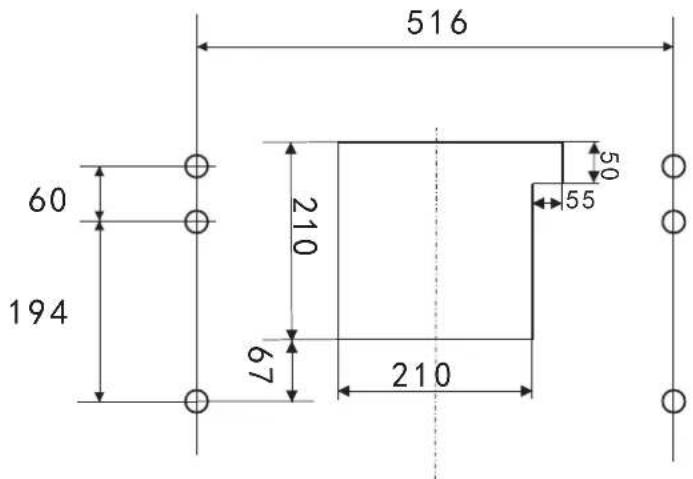

1. Decide the location of the holes for fixing the cooker hood.

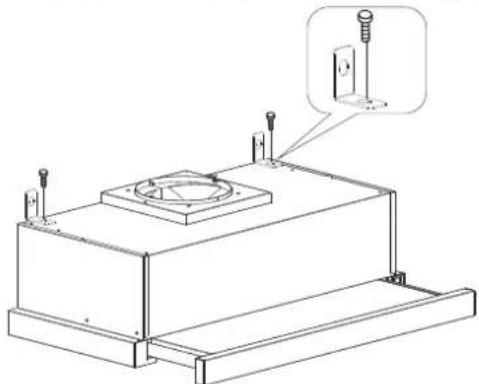

1. Install the L-shaped bracket on the top of the hood by two screws (4mm x 10mm)

Technical line drawing of a mechanical assembly with mounting holes and a central square component (no text or symbols)

1. The cooker hood is wall mounted by 4 screws (4mm x 30mm) and wall plugs. Mount the cooker hood on the wall on the back of the cooker hood by 2 screws (4mm x 30mm) and wall plugs. Then fix the cooker hood on the wall by 2 screws (4mm x 30mm) and wall plugs through the small L-shaped bracket.

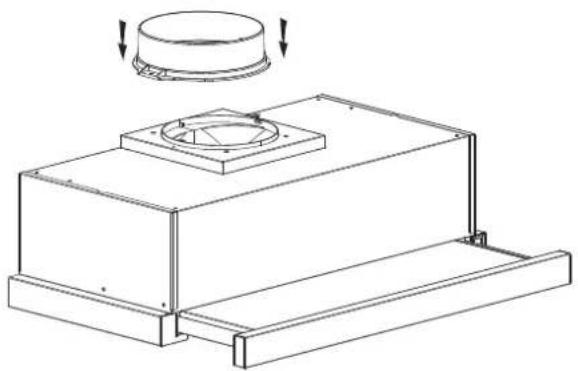

1. Fix the outlet to the cooker hood.

Technical line drawing of a mechanical assembly with a circular component and mounting base (no text or symbols)

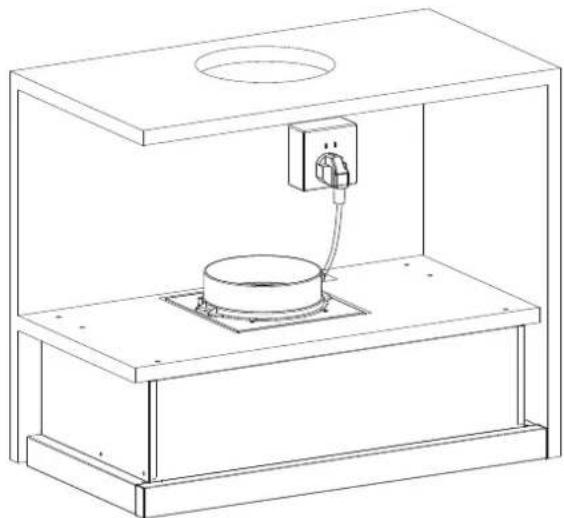

INSTALLATION (Cabinet Mounting)

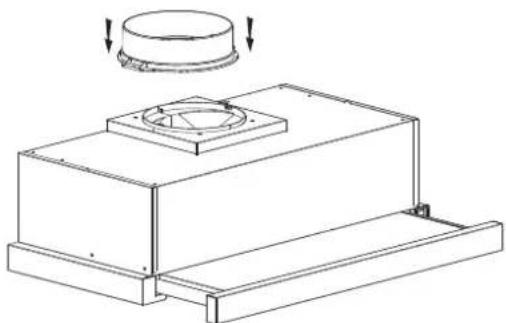

1. Fix the outlet to the cooker hood.

Technical line drawing of a mechanical assembly with a cylindrical component and mounting base (no text or symbols)

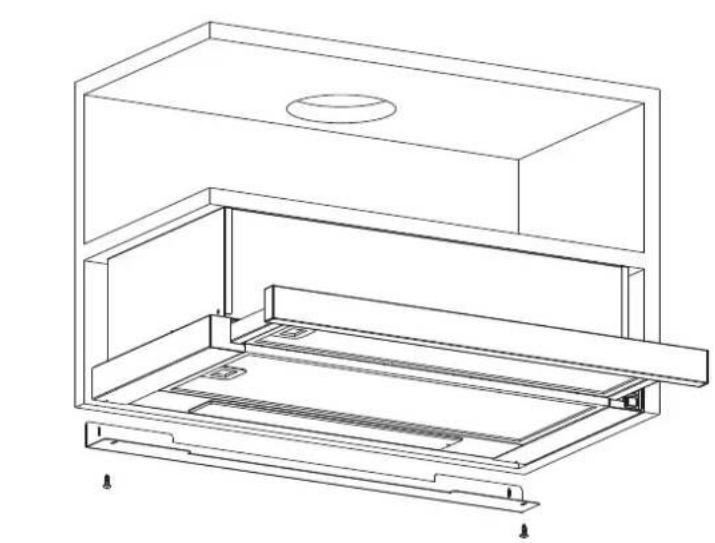

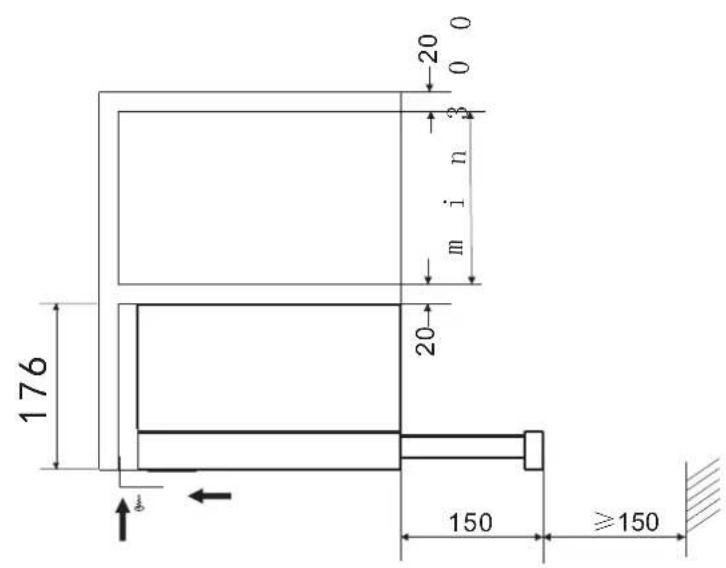

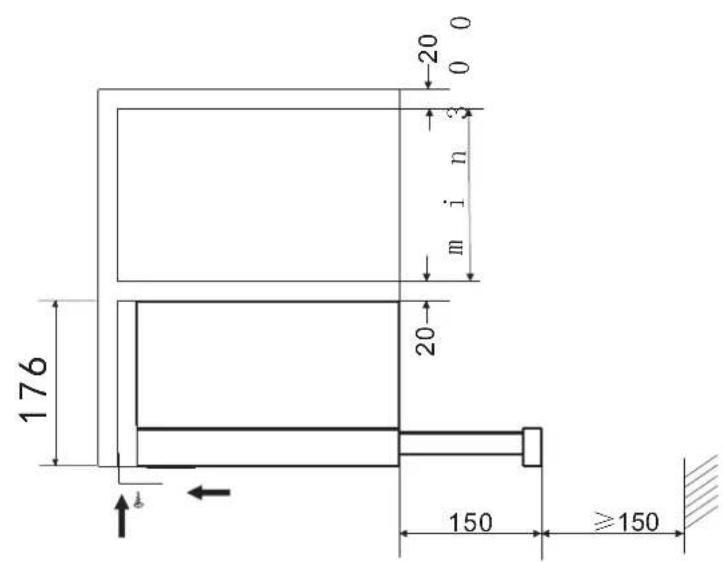

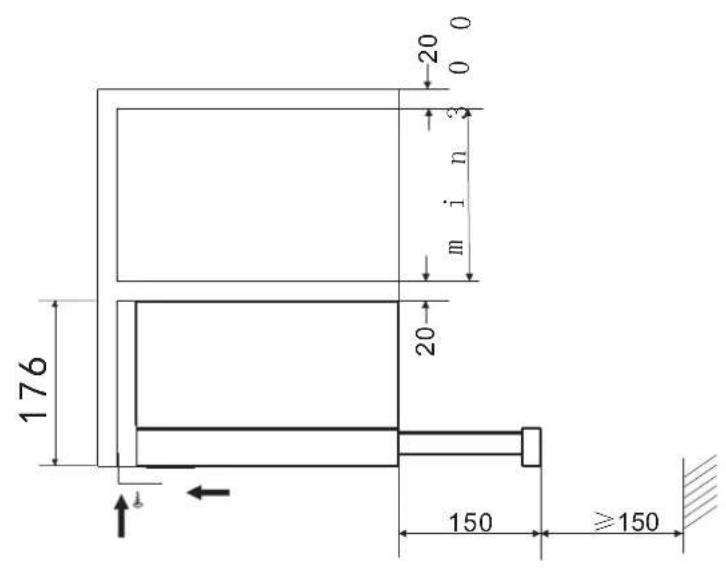

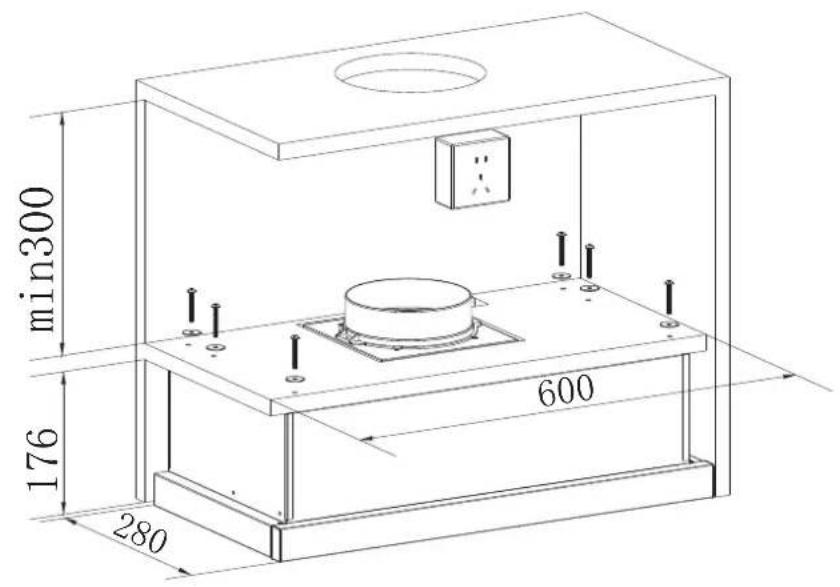

1. Mount the cooker hood on the cabinet by 6 screws (4x35mm) and flat washers.

Technical line drawing of a mechanical or architectural component with no visible text, numbers, or symbols.

Technical line drawing of a mechanical setup with a central component and mounting base (no text or symbols)

If there is gap between the wall and the cooker hood, you may install the L-shaped bracket on the bottom of the hood by two screws (3 x 12mm). The installation of the L-shaped bracket is optional.

Note: The expansion pipe mentioned in all installation is not included in the product.

WARNING:

For safety reason, pl ease use only the same size of fi xing or m ounting screw which are recommended in this instruction manual.Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Start Using Your Cooker Hood

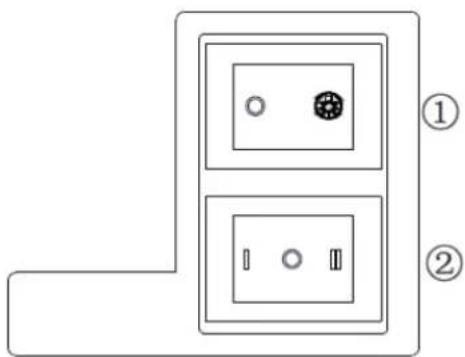

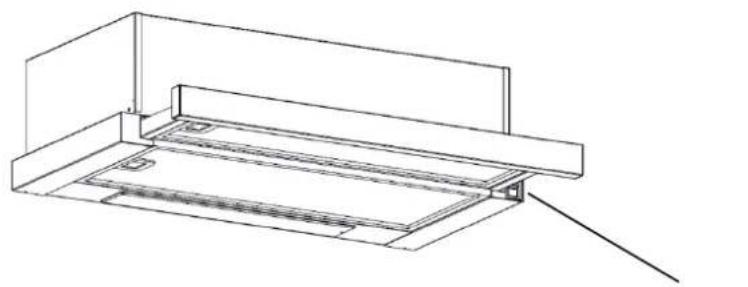

Rocker switch

Technical line drawing of a mechanical assembly with no visible text or symbols

Rocker switch

Diagram of two electrical outlets with circular components and labeled parts (no text or symbols beyond labels)

1. Insert the power plug into the socket.

2. Push switch ① to , the lamp will be on; push switch ① to "0", the lamp will be off.

3. Push the switch ② into “I、II”，the motor will be on “low、high” two speeds, push into “0”，the motor will be off.

4. The power will be connected when pull out the front panel. Conversely, the power will be automatically disconnected.

TROUBLESHOOTING

Fault Possible Cause Solution
Light on, but motor does not work	Fan switch turned off Select a fan	switch position.
	Fan switch failed Contact service center.
	Motor failed Contact service center.
Light does not work, motor does not work	House fuses blown Reset/Replace fuses.
	Power cord loose or disconnected	Refit cord to power outlet.Switch power outlet on.
Oil leakage	One way valve and the outlet are not tightly sealed	Take down the one way valve and seal with sealant.
	Leakage from the connection of chimney and cover	Take chimney down and seal.
Lights not working	Broken/Faulty globes	Replace globes as per this instruction.
Insufficient suction	The distance between the cooker hood and the gas top is too far	Refit the cooker hood to the correct distance.
The Cooker hood inclines	The fixing screw not tight enough	Tighten the hanging screw and make it horizontal.

NOTE: Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt before undertaking any of the above. Always disconnect the unit from the power source when opening the unit.

MAINTENANCE AND CLEANING

Caution:

- Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the main power supply. Ensure that the cooker hood is switched off at the wall socket and the plug removed.

Abstract line drawing of a stylized figure with geometric shapes and a circular element, no text or symbols present.

- External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage.

GENERAL

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces.

STAINLESS STEEL

The stainless steel must be cleaned regularly (e.g. weekly) to ensure long life expectancy. Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may be used.

NOTE:

Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.

CONTROL PANEL SURFACE

The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning.

Important

Using neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives, as this will affect the appliance appearance and potentially remove any printing of artwork on the control panel and will void manufactures warrantee.

GREASE MESH FILTERS

The mesh filters can be cleaned by hand. Soak them for about 3 minute in water with a grease-loosening detergent then brush it gently with a soft brush. Please do not apply too much pressure, avoid to damage it. (Leave to dry naturally out of direct sun light)

Filters should be washed separately to crockery and kitchen utensils. it is advisable not to use rinse aid.

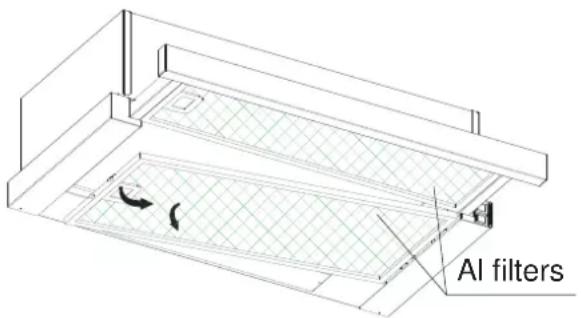

INSTALLING GREASE MESH FILTERS

• To install filters for the following four steps.
• Angle the filter into slots at the back of the hood.
• Push the button on handle of the filter.
• Release the handle once the filter fits into a resting position.
• Repeat to install all filters.

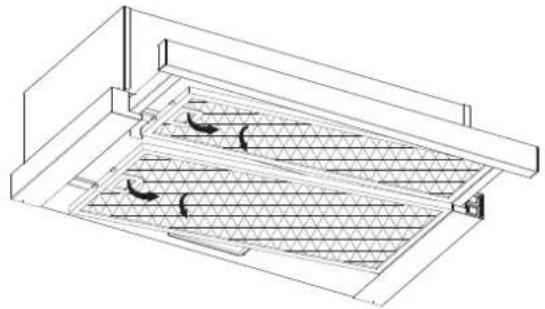

CARBON FILTER-not supplied

Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed at three or six months according to your cooking habit. The installation procedure of activated carbon filter is as below.

1. Before installing or replacing the carbon filters, please remove power to the unit.
2. Press the filter lock and remove the mesh filter.

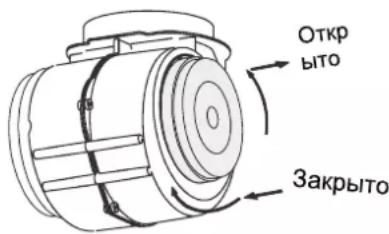

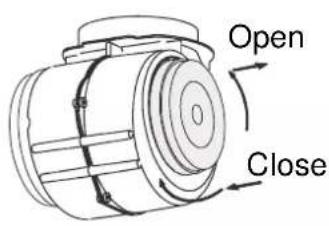

3. Turn the carbon filter on both side of the motor anti-clockwise. Replace the carbon filters with the new carbon filters.
4. Place the mesh filter.
5. Connect the power supply to the wall socket.

Technical line drawing of a ventilation duct system with cooling fins and airflow indicators (no text or symbols)

NOTE:

• Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
• When activated carbon filter attached, the suction power will be lowered.

BULB REPLACEMENT

Important :

The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons.
Always switch of f the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it is completely cool down before any direct contact to hands.
When handling globes hold with a cloth or gloves to ensure perspiration does not come in contact with the globe as this can reduce the life of the globe.

Note:

● Before changing the lights, make sure that the appliance is plugged off.
- Protect against danger when changing lights, such as wearing gloves.

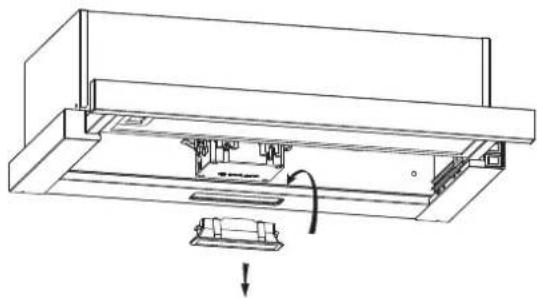

Changing the lights:

Use the screw driver loosen the ST4*8MM self tapping screw (2pcs) from the lighting panel, take out the lighting fixture. Open the terminal box that connected with the wire, disconnect the wire connector and replace the lamp.

• ILCOS D code for this lamp is: DBS-2/65-H-120/33

• Max wattage: 1 × 2 W
  – Voltage range: AC 110-240V

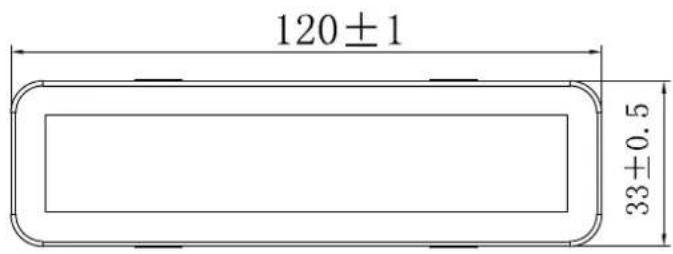

- Dimensions:

Technical line drawing of a mechanical assembly with a base plate and internal components (no text or symbols)

ENVIRONMENTAL PROTECTION:

This appliance is labelled in accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment Regulations 2013 regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

• the WEEE should not be treated as domestic waste;
• the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

NOTE:

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process).

(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.

INFORMATION FOR DISMANTLING

Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority or retainer for recycling advice.

CANDY

CBT60RX-07

CBT60RWG-07

CBT60RBG-07

Кухонная вытяжка

Isometric line drawing of a two-tiered storage unit with grid pattern and mounting bracket (no text or symbols)

EAC

Содержание

Black and white pictogram showing two stick figures crossed out of a circle, with no text or symbols present.

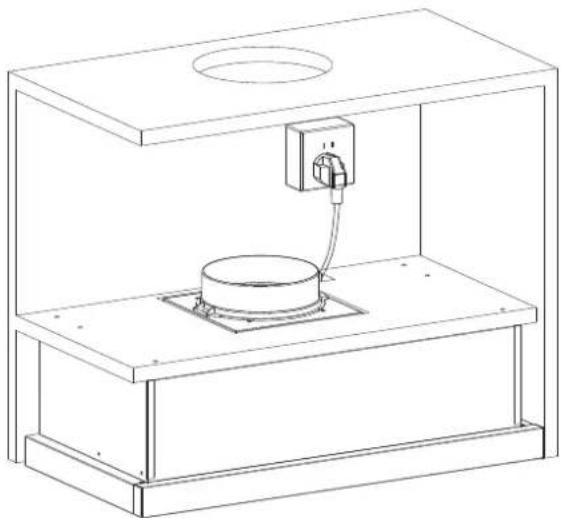

МОНТАЖ (настенный)

Technical line drawing of a mechanical assembly with mounting holes and a central circular component (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with a circular component and directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a circular component and mounting base (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical testing setup with a central component and mounting base (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of two electrical outlets with circular components and a grid pattern, no text or symbols present

Abstract line drawing of a stylized figure with a cat and arrow, no text or symbols present

Technical line drawing of a ventilation duct system with mesh patterns and ventilation slots (no text or symbols)

Technical line drawing of a mechanical assembly with a base plate and internal components (no text or symbols)

https://www.candy-home.com/ru_RU/

Isometric line drawing of a rectangular storage or ventilation unit with mesh pattern and support brackets (no text or symbols)

EAC

Мазмуны

Illustration of a desk lamp illuminating a wall-mounted device with a cross mark (no text or symbols)

Symbolic illustration of two children holding a diagonal line, enclosed in a circle (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and a central circular component (no text or symbols)

Technical line drawing of a mechanical assembly with a cylindrical component and mounting base (no text or symbols)

Technical line drawing of a mechanical assembly with a cylindrical component and mounting base (no text or symbols)

Technical line drawing of a mechanical enclosure or enclosure with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical setup with a central component and mounting base (no text or symbols)

Abstract line drawing of a stylized figure with geometric shapes and a circular element (no text or symbols)

Technical line drawing of a ventilation duct system with mesh structure and airflow indicators (no text or symbols)

ЕСКЕРТПЕ:

Technical line drawing of a mechanical assembly with a base plate and internal components, showing no text or symbols.
