| Product Type | Digital Matrix Mixer 8 in / 8 out |
| Brand | FBT |
| Model | DMM 8008 |
| Dimensions | 19" x 1.75" x 9" (483 x 44 x 229 mm) - 1RU |
| Weight (Net) | 7.71 lbs (3.5 kg) |
| Weight (Shipping) | 8.82 lbs (4 kg) |
| Power Supply | 90-240 Vac, 50/60 Hz, 40 W |
| Audio Inputs | 8 balanced Mic/Line inputs on Phoenix connectors, switchable phantom power |
| Audio Outputs | 8 balanced Line outputs on Phoenix connectors |
| Digital I/O | 4 inputs (S1-S4) and 4 outputs (S1-S4), TTL level 0-5V |
| Connectivity | USB type B, 2x RJ45 RS485 In/Out, 1x RJ45 Ethernet (10/100 TCP/IP) |
| DSP Engine | Dream SAM3716, 24-bit data, 96-bit coefficients |
| Sampling Rate | 48 kHz / 24-bit |
| Input Processing | Gain, Phase, 3-band parametric EQ, High/Low pass 1st order filter, Noise Gate, Feedback Eliminator |
| Output Processing | Gain, Phase, Mute, 5-band parametric EQ, Crossover HPF/LPF (Butterworth, Linkwitz-Riley, Bessel), RMS Compressor, Peak Limiter, Delay (up to 380.998 ms) |
| Automixing Functions | NOM attenuation, Gain sharing, Priority Ducker |
| Presets | 6 user presets (front panel) + 4 via digital inputs S1-S4 |
| Front Panel | 2x24 LCD with white/blue backlight, 6 LEDs, 6 buttons, 8 rotary knobs, USB type B |
| Remote Control | PC software via USB, RS485, or Ethernet; optional wall panel WP8008 |
| Included Accessories | AC power cord, removable terminal plugs, USB adapter, software CD with manual |
| Safety & Maintenance | Do not expose to rain/moisture; ensure proper ventilation; no user-serviceable parts inside; refer servicing to qualified personnel |
Frequently Asked Questions - DMM 8008 FBT
How do I connect the DMM 8008 to a computer?
You can connect via USB (type B), RS485 (RJ45), or Ethernet (RJ45 TCP/IP). Use the included software to control the device. For USB, install the driver from the CD; it simulates a serial COM port.
What is the maximum number of units that can be daisy-chained via RS485?
Up to 64 units can be connected in a chain using the RS485 In/Out ports. Set a unique ID (1-64) for each unit via the system setup menu.
How do I recall a preset in stand-alone mode?
Press one of the 6 front panel preset buttons (1-6). The corresponding preset must have been previously saved via the PC software. The LCD will display the preset name.
Can I use the DMM 8008 with a wall panel controller?
Yes, the optional FBT WP8008 wall panel can be connected via RS485. It can operate as a Zone Controller (single zone) or Global Controller (all inputs/outputs). Requires a 12V DC power supply.
How do I set the IP address for Ethernet control?
Go to System Setup > Tcp/Ip Setup on the front panel. Use the buttons to enter the IP address (e.g., 192.168.0.1). The unit automatically calculates the subnet mask based on the IP class.
What processing is available on each input channel?
Each input offers gain (-127 to +12 dB), phase invert, 3-band parametric EQ (peaking or shelving), a 1st order high/low pass filter, noise gate, and a feedback eliminator using pitch shifting (for Mic inputs only).
What processing is available on each output channel?
Each output includes gain, phase, mute, 5-band parametric EQ, crossover filters (HPF/LPF with selectable slopes), RMS compressor, peak limiter, and delay up to 380.998 ms.
How do I enable phantom power on the microphone inputs?
Phantom power (+48V) is enabled via the PC software. It is a global setting for all Mic inputs. When activated, the front panel Phantom LED lights up. Only use with balanced microphones.

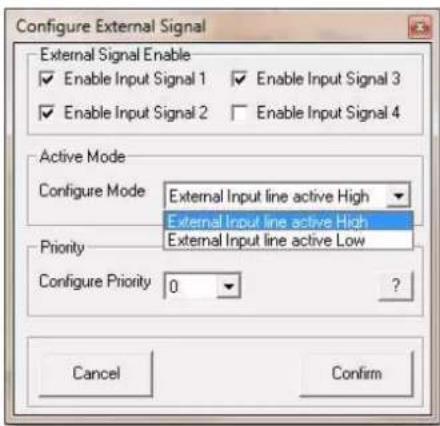

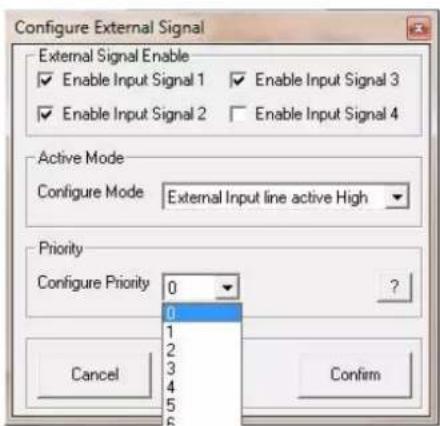

Can I use the digital I/O ports for external control?
Yes, the S1-S4 input ports (TTL 0-5V) can recall up to 4 additional presets. The output ports can be used to trigger external devices. Configure the logic and priority via the PC software.
What is the feedback eliminator and how does it work?
The feedback eliminator uses a pitch shifting algorithm to reduce acoustic feedback. It is available on Mic input channels and can be enabled/disabled per channel via the software. It shifts the frequency slightly to prevent howling.
User questions about DMM 8008 FBT
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Loudspeaker in PDF format for free! Find your manual DMM 8008 - FBT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DMM 8008 by FBT.
USER MANUAL DMM 8008 FBT
DMM 8008
Digital Matrix Mixer 8 in - 8 out
MANUALE D'USO
ver. 1.2
USER MANUAL
ver. 1.2
INDICE
Avvertenze 1
1.0 Introduzione 2
Firmware version V1.1
01: Current Preset Name
2.2 MODALITÀ STAND ALONE
System Setup Tcp/lp Setup
- IP Address from IP=001.0.0.2 up to IP=126.255.255.254, SubNetMask = FF000000h (Class A)
- IP Address from IP=127.0.0.2 up to IP=191.255.255.254, SubNetMask = FFFF0000h (Class B)
- IP Address from IP=192.0.0.2 up to IP=223.255.255.254, SubNetMask = FFFFFFF00h (Class C)
OUTPUT SWITCH LINKED Link = ON
OUTPUT SWITCH SETUP SP01
- Bypass (High Pass Filter Bypassed)
- Buttw 6dB (Butterworth Filter 6dB/Oct Slope)
- Buttw 12dB (Butterworth Filter 12dB/Oct Slope)
- LRiley 12dB (Linkwitz/Riley Filter 12dB/Oct Slope)
- Bessel 12dB (Bessel Filter 12dB/Oct Slope)
- Buttw 18dB (Butterworth Filter 18dB/Oct Slope)
- Buttw 24dB (Butterworth Filter 24dB/Oct Slope)
- LRiley 24dB (Linkwitz/Riley Filter 24dB/Oct Slope)
- Bessel 24dB (Bessel Filter 24dB/Oct Slope)
01: Current Preset Name
| DSP Engine | Dream SAM3716, 24bit (data) x 96bit (coeff.) |
| DSP Resolution | 24 x 32 bit for filtering process; 96bits resolution on intermediate computation results |
| Input Equalization | 3-band parametric selected as peaking or Low/High shelving with variable Q per input channelLow/High pass 1st order filter per input channel |
| Output Equalization | 5-band parametric EQ selected as peaking or Low/High shelving with variable Q per output channel |
| Filter Gain | From -12dBu up to +12dBu by 0.5dBu resolution steps |
| Center Frequency | Selectable with a 1/24th of octave resolution step from 20Hz up to 20kHz |
| Filter Q/BW | Q from 0.4 up to 10 by 0.1 resolution steps |
| Crossover Section HPF/LPF | Butterworth 6/12/18/24dB per octaveBussel, Linkwitz-Riley and custom 12/24dB per octaveFilter resolution 1/24th of octave |
| RMS Compressor and Peak Limiter | Threshold from 14dBu up to -34dBuAttack time from 5ms up to 200ms (1ms resolution up to 20ms, 10ms resolution up to 100ms and 20ms resolution up to 200ms)Release time from 0.1 sec up to 3 sec (0.1 sec resolution)Ratio from 1:1 to 32:1 (compressor only)Adjustable soft or hard knee (compressor only) |
| Delay | 380,998 ms 21 us increment/decrement steps per output channel only |
| Feedback Eliminator | Pitch shifting algorithm only for Mic input channels |
| Automixing Functions | NOM attenuation, Gain sharing algorithm and priority ducking processing |
General
| Device Presets | 6 user presets + 4 by using S1-S4 digital input ports |
| Front Panel | 2 x 24 character LCD display with white/blue LED backlight |
| 6-LED status indicators (Line, Mic, Mute I/O, Signal, Clip,Limiter) | |
| 1-LED indicator Phantom power | |
| 6 x front push button (Preset recall, Setup) | |
| USB type B connector | |
| Rear Panel | 2 x 12 pin Phoenix connector (Mic/Line inputs) |
| 2 x 12 pin Phoenix connector (Line outputs) | |
| 2 x 4 pin Phoenix connector (S1-S4 digital input ports - TTL level 0-5V) | |
| 2 x 4 pin Phoenix connector (S1-S4 digital output ports - TTL level 0-5V) | |
| 2 x RJ45 for RS485 In/Out connection | |
| 1 x RJ45 with activity leds for Ethernet connection (10/100 TCP-IP) | |
| IEC C13 16A connector; power on/off switch | |
| Optional Device | FBT WP8008 wall panel control |
| Included Software | PC users interface; |
| Main AC | 90-240Vac (50/60Hz) - 40W |
| Dimensions | 19" x 1.75" x 9" (483 x 44 x 229mm) - 1RU |
| Weight, Net/Shipping | 7.71lbs (3.5kg) / 8.82lbs (4kg) |
Specifications subject to change without notice.

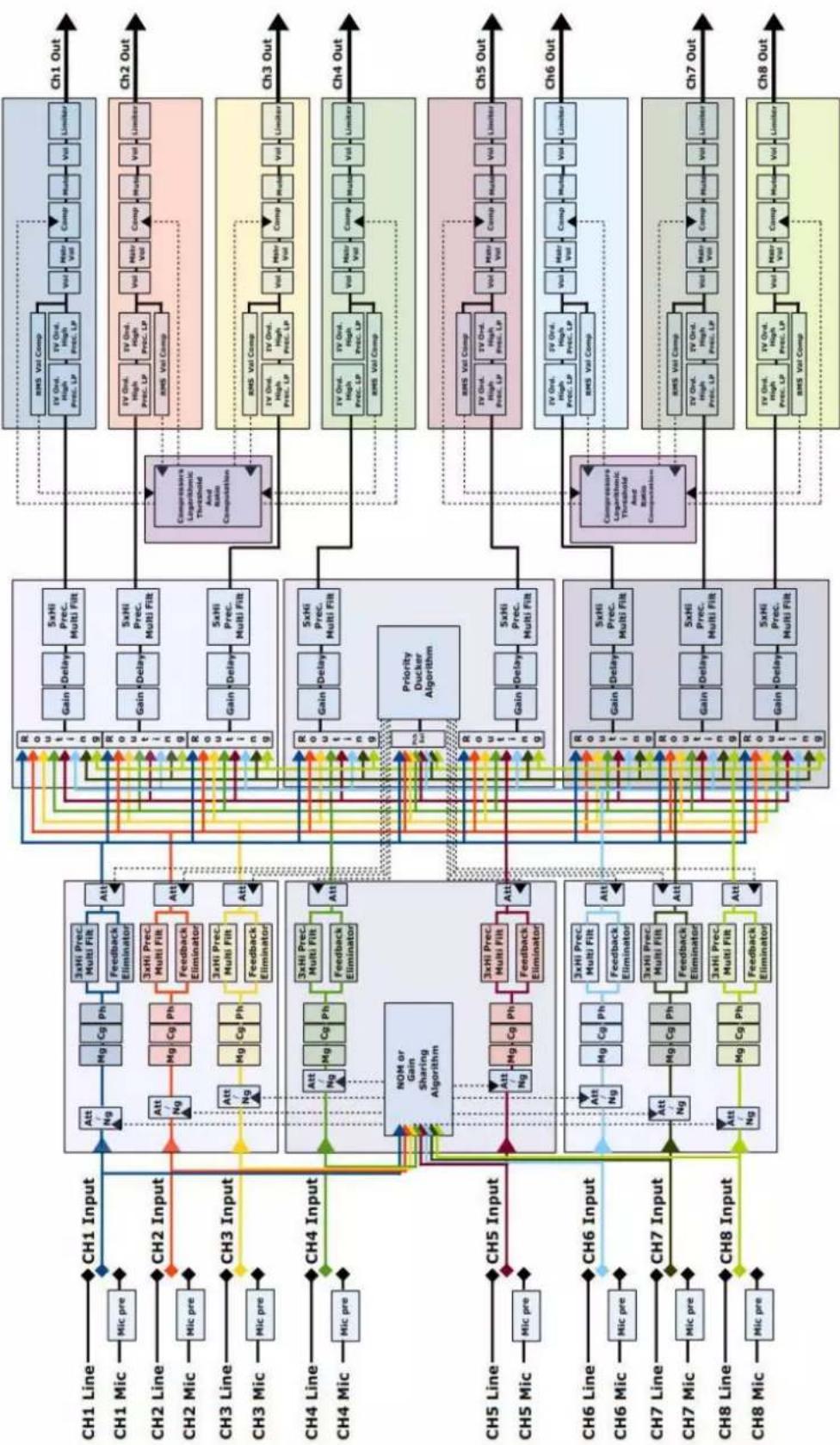

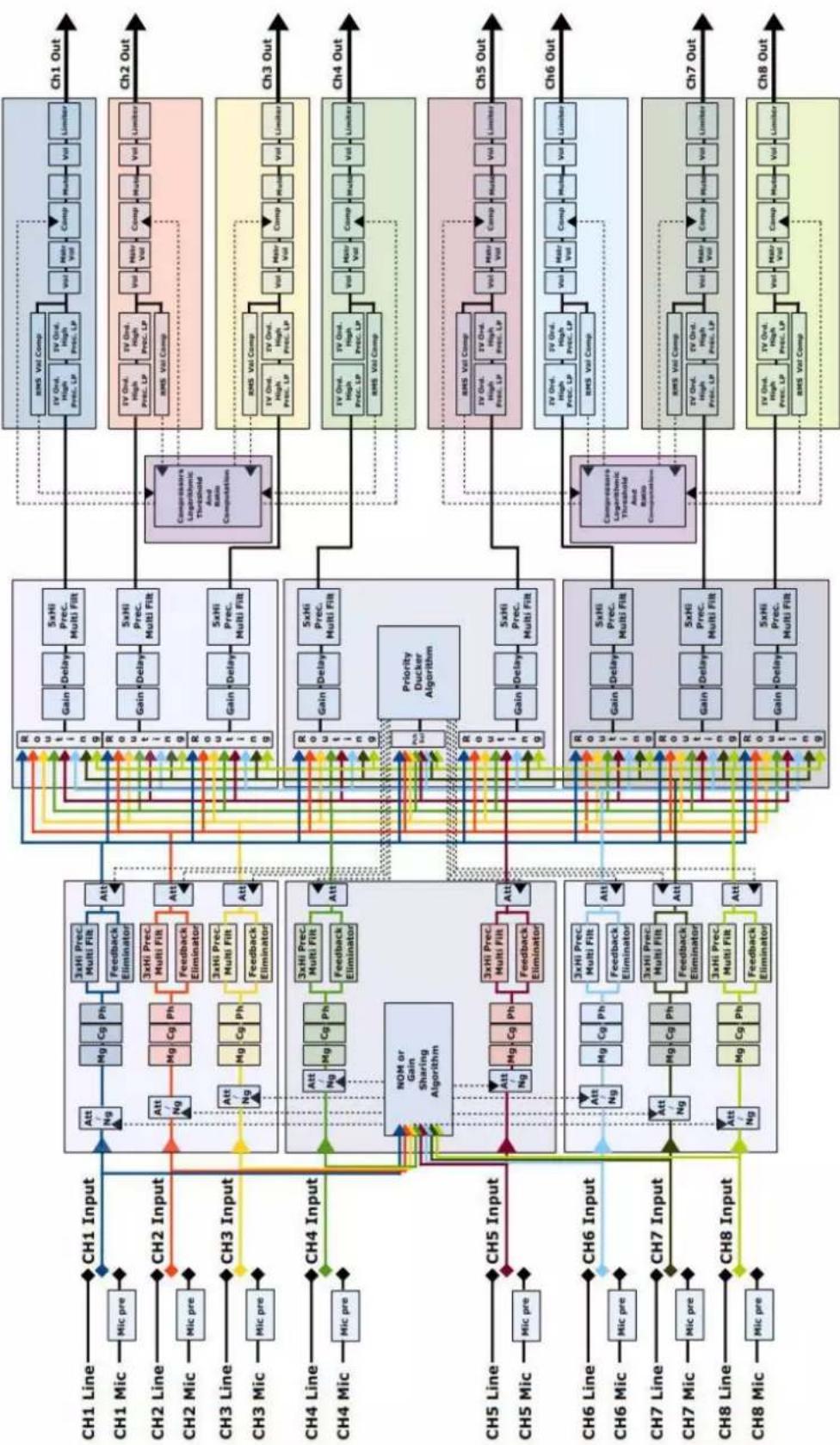

5. SCHEMA A BLOCCHI
DMM 8008 Pro Digital Matrix 8 in x 8 out with «Feedback Elim OR EQ, Auto mix and Priority Ducker»
</details>
<h1 id="6-protocollo-di-comunicazione">6. PROTOCOLLO DI COMUNICAZIONE</h1>
<h1 id="uart-setting">U.A.R.T. SETTING</h1>
BAUD-RATE = 57600
PARITY = NONE
DATA BIT = 8
BIT STOP = 1
<h1 id="tcpip-setting">TCP/IP SETTING</h1>
REMOTE\_PORT = 1001
IP ADDRESS = da 1.0.0.1 a 223.255.255.254 con:
\- IP=1.0.0.2 to IP=126.255.255.254 automaticamente SUBNET MASK= 255. 0. 0. 0
\- IP=127.0.0.2 to IP=191.255.255.254 automaticamente SUBNET MASK= 255. 255. 0. 0
\- IP=192.0.0.2 to IP=223.255.255.254 automaticamente SUBNET MASK= 255. 255. 255. 0
GATEWAY = IP(0). IP(1). IP(2). 1
<h1 id="frame-protocol">FRAME PROTOCOL</h1>
Il controllo remoto deve inviare al dispositivo la seguente configurazione:
TX:
STX ID\_M ID\_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX
Dove:
STX = F0H Start message
ID\_M = 46H Id device
ID\_N = 0,..,64 Id number device (0 only for USB / TCP/IP connection; 1,..,64 for RS485)
CMD = xx Command type
DATA0,...,7= xx Data byte
ETX = F7H End message
Quando il dispositivo riceve questa configurazione valuta il tipo di comando e dopo l'esecuzione, invia nuovamente al controllo remoto un riconoscimento; questo riconoscimento dipende dal tipo di comando
<h1 id="tipo-di-comando">TIPO DI COMANDO</h1>
CONNECTION REQUEST 00H
UPDATE GAINS-PHASE-MUTE 01H
UPDATE ROUTING 08H
CLOSE SINGLE DEVICE 0FH
UPG\_MASTERGAIN\_CMD 16H
SWITCH\_S\_CMD 1AH
RECALL PRESET 1BH
CMD\_UPG\_BALANCED 1FH
INC\_DECR\_GAIN\_LINKED\_CMD 2FH
INC DECR GAIN CMD 30H
INC\_DECR\_MASTERGAIN\_CMD 31H
INC DECR MASTERVOLUME\_CMD 32H
MUTE\_UNMUTE\_CMD 33H
UPG\_ONLY\_GAINS\_CMD 34H
CHANGE\_PRESET\_SWITCH\_CMD 3DH
LINK\_SWITCH\_CMD 3EH
UPG AUTOMIX BYP CMD 61H
UPG AUTOMIX MODE CMD 62H
UPG AUTOMIX GS CMD 64H
READ AUTOMIX NOM ATT CMD 0EH
UPG\_DUCKER\_PRIORITY\_CMD 66H
UPG DUCKER HOLD CMD 67H
UPG\_DUCKER\_REL\_ATK\_CMD 68H
UPG DUCKER THR CMD 69H
VUMETER\_OUT\_CMD 36H
VUMETER\_LIM\_CMD 37H
VUMETER CMP CMD 38H
READ\_VERSION\_CMD 39H
CLOSE ALL DEVICES 8FH
READ\_MAC\_ADDRESS\_CMD B2H
VUMETER\_IN\_CMD 55H
<h1 id="comunicazione-tra-il-dispositivo-e-il-controllo-remoto">COMUNICAZIONE TRA IL DISPOSITIVO E IL CONTROLLO REMOTO</h1>
<h1 id="read_version_cmd-cmd39h">READ\_VERSION\_CMD: CMD=39H</h1>
TX:
<table><tr><td colspan="13">STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX</td></tr><tr><td colspan="13">F0H 46H XX 39H 00H 00H 00H 00H 00H 00H 00H F7H</td></tr></table>
RX:
<table><tr><td colspan="8">STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td colspan="8">F0H 46H XX 39H Sm0 Sm1 Sm2 St0 St1 St2 46H Type F7H</td><td></td><td></td><td></td><td></td><td></td><td></td></tr></table>
La versione SyncMos è V1.0 così che l'utente legga Sm0 = 0, Sm1 = 1, Sm2 = 0
La versione corrente STM8S è V1.0.2 così che l'utente legga ST0 = 1, ST1 = 0, ST2 = 2
Type: tipo di dispositivo, Type=1 quando il dispositivo è DMM8008
<h1 id="richiesta-collegamento-cmd00h">RICHIESTA COLLEGAMENTO: CMD=00H</h1>
(per bloccare l'interfaccia hardware quando è collegato il PC)
TX:
<table><tr><td colspan="6">STX ID_M ID_N CMD D0 D1 D2 D3 D4</td><td>D5 D6 D7 ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td colspan="7">F0H 46H XX 00H 00H 00H 00H 00H 00H 00H 00H F7H</td><td></td><td></td><td></td><td></td><td></td><td></td></tr></table>
RX:
<table><tr><td colspan="13">STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX</td></tr><tr><td colspan="13">F0H 46H XX 00H 46H 00H 00H 00H 00H 00H 00H F7H</td></tr></table>
Se il dispositivo è collegato e l'indirizzo ID\_N è corretto, allora il dispositivo invia nuovamente la stessa configurazione ma con l'D0 = 46H e l'interfaccia hw è bloccata
<h1 id="update-gains-phase-mute-cmd01h">UPDATE GAINS-PHASE-MUTE: CMD=01H</h1>
TX:
<table><tr><td colspan="13">STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX</td></tr><tr><td colspan="13">F0H 46H XX 01H Chn 00H 00H VolL BypG Mute Phase VolH F7H</td></tr></table>
Chn=0,...,15: Canale selezionato, 0,...7=In1,...,In8; 8,...,15=Out1,...,Out8 se Chn=0,...,7 then Input channel
BypG= Input Bypass Gain = 8 bit dove LSB=Input1,..., MSB=Input8; Value=0,1 dove 0=not bypass, 1=bypass
<table><tr><td colspan="2">bit7 bit6 bit5</td><td colspan="2">bit4 bit3 bit2</td><td colspan="2">bit1 bit0</td><td></td><td></td></tr><tr><td>input8</td><td>input7</td><td>input6</td><td>input5</td><td>input4</td><td>input3</td><td>input2</td><td>input1</td></tr></table>
Mute= Input Mute = 8 bit dove LSB=Input1,..., MSB=Input8; Value=0,1 dove 0=Unmute, 1=Mute
Phase= Input Phase = 8 bit dove LSB=Input1,..., MSB=Input8; Value=0,1 dove 0=direct, 1=invers
VoIH + VoIL = Value a 16Bit = 0,...,1390 (-127dB to +12dB step 0.1dB),
se Chn=8,...,15 then Output channel
BypG= Output Bypass Gain = 8 bit dove LSB=Output1,..., MSB=Output8; Value=0,1 dove 0=not bypass, 1=bypass
Mute= Output Mute = 8 bit dove LSB=Output1,..., MSB=Output8; Value=0,1 dove 0=Unmute, 1=Mute
Phase= Output Phase = 8 bit dove LSB=Output1,..., MSB=Output8; Value=0,1 dove 0=direct, 1=invers
VolH+VolL= Output Gains = 16bit da 0 a 1450 (-127dB to 18dB step 0.1dB)
RX:
<table><tr><td colspan="13">STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX</td></tr><tr><td colspan="13">F0H 46H XX 01H Chn 00H 00H VolL BypG Mute Phase VolH F7H</td></tr></table>
Questo è il riconoscimento:
UPG\_ONLY\_GAINS\_CMD: CMD=34H
TX:
<table><tr><td colspan="7">STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td colspan="7">F0H 46H XX 34H Chn 00H 00H VolL 00H 00H 00H VolH F7H</td><td></td><td></td><td></td><td></td><td></td><td></td></tr></table>
Chn=0,...,15: Canale selezionato, 0,...7=In1,...,In8; 8,...,15=Out1,...,Out8
if Chn=0,...,7 then Input channel
VolH + VolL = Valore a 16Bit = 0,...,1390 (-127dB to +12dB step 0.1dB),
se Chn=8,...,15 then Output channel
VoIH+VoIL= Output Gains = 16bit da 0 a 1450 (-127dB to 18dB step 0.1dB)
RX:
<table><tr><td>STX ID_M ID_</td><td>N CMD D0</td><td>D1 D2</td><td>D3 D4</td><td>D5 D6 D7</td><td>ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H 46H XX 34</td><td>H Chn</td><td>00H 00H</td><td>VoIL 00</td><td>H 00H 00H</td><td>VoIH</td><td>F7H</td><td></td><td></td><td></td><td></td><td></td></tr></table>
Questa è riconosciuta
<h1 id="update-routing-cmd08h">UPDATE ROUTING: CMD=08H</h1>
TX:
<table><tr><td colspan="7">STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td colspan="7">F0H 46H XX 08 H Chn 00H 00H 00H 00H N n Val F7H</td><td></td><td></td><td></td><td></td><td></td><td></td></tr></table>
Chn=8,...,15: Canale selezionato =Out1,...,Out8;
NIn = 0,...,7 Selezionare l'ingresso al canale di uscita 0=In1,...,7=In8
Val = 0,..,30 Ingresso Gain da -30dB a 0dB step 1dB
Se l'invio di Input X to Output Y è disabilitato (mute) allora Val = 80H + Val
RX:
<table><tr><td colspan="7">STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td colspan="7">F0H 46H XX 08H Chn 00H 00H 00H 00H Nin Val F7H</td><td></td><td></td><td></td><td></td><td></td><td></td></tr></table>
Questa è riconosciuta
<h1 id="close-single-device-cmd0fh">CLOSE SINGLE DEVICE: CMD=0FH</h1>
<h1 id="come-sbloccare-linterfaccia-hardware">(come sbloccare l'interfaccia hardware)</h1>
TX:
<table><tr><td colspan="13">STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX</td></tr><tr><td>F0H 46H XX 0F</td><td>FH 00H</td><td>00H 00H</td><td>00H 00H</td><td>H 00H 00H</td><td>00H F7H</td><td></td><td></td><td></td><td></td><td></td><td></td><td></td></tr></table>
RX:
<table><tr><td colspan="13">STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX</td></tr><tr><td>F0H 46H XX 0F</td><td>FH 00H</td><td>00H 00H</td><td>00H 00H</td><td>H 00H 00H</td><td>00H F7H</td><td></td><td></td><td></td><td></td><td></td><td></td><td></td></tr></table>
<h1 id="upg_mastergains_cmd-cmd16h">UPG\_MASTERGAINS\_CMD: CMD=16H</h1>
TX:
<table><tr><td colspan="7">STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td colspan="7">F0H 46H XX 16H CHN 00H 00H 00H 00H ValH ValL F7H</td><td></td><td></td><td></td><td></td><td></td><td></td></tr></table>
CHN=0,8: Canale selezionato, 0= Input, 8=Output
ValH+ValL= MasterGains = 16bit da 0 a MaxIndex
If CHN = 0 quando MaxIndex = 100 (0% a 100%)
If CHN = 8 quando MaxIndex = 1270 (-127dB a 0dB step 0.1dB)
RX:
<table><tr><td colspan="7">STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td colspan="7">F0H 46H XX 16H CHN 00H 00H 00H 00H ValH ValL F7H</td><td></td><td></td><td></td><td></td><td></td><td></td></tr></table>
Questa è riconosciuta
<h1 id="switch_s_cmd-cmd1ah">SWITCH\_S\_CMD: CMD=1AH</h1>
TX:
<table><tr><td colspan="7">STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td colspan="7">F0H 46H XX 1AH 00H 00H 00H 00H 00H 00H Val</td><td>F7H</td><td></td><td></td><td></td><td></td><td></td></tr></table>
Val= 4 bit, Value of the switch set line output 0V or 5V LSB=Line1,...,LSB+3=Line4; Value=0,1 where 0=Line 0V, 1=Line 5V
RX:
<table><tr><td>STX ID_M ID_N</td><td>CMD D0</td><td>D1</td><td>D2</td><td>D3</td><td>D4</td><td>D5</td><td>D6</td><td>D7</td><td>ETX</td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H 46H XX</td><td>1AH</td><td>00H</td><td>00H</td><td>00H</td><td>Vol</td><td>00H</td><td>00H</td><td>00H</td><td>Val</td><td>F7H</td><td></td><td></td><td></td><td></td></tr></table>
Questa è riconosciuta
<h1 id="recall_preset-cmd1bh">RECALL\_PRESET: CMD=1BH</h1>
TX:
<table><tr><td>STX ID_M ID_N CMD D0 D1 D2 D3 D4D5 D6 D7 ETX</td><td></td><td></td><td></td><td></td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H 46H XX</td><td>1BH Npr</td><td>00H 00H</td><td>00H 00H</td><td>00H 00H</td><td>00H 00H</td><td>00H F7H</td><td></td><td></td><td></td><td></td></tr></table>
Npr = Preset richiamato = 0,..,9
RX:
<table><tr><td colspan="6">STX ID_M ID_N CMD D0 D1 D2 D3 D4</td><td>D5 D6 D7 ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td colspan="2">F0H 46H XX</td><td colspan="4">1BH Val 00H 00H 00H</td><td>00H 00H 00H 00H F7H</td><td></td><td></td><td></td><td></td><td></td><td></td></tr></table>
Se il preset selezionato non è libero il sistema caricherà un nuovo preset e il valore del preset tornara in D0
Se il preset selezionato è libero il sistema salta questo comando e ritorna col valore D0 = FFH
<h1 id="cmd_upg_balanced-cmd1fh">CMD\_UPG\_BALANCED: CMD=1FH</h1>
TX:
<table><tr><td colspan="13">STX ID_M ID_N CMD D0 D1 D2 D3 D4D5 D6 D7 ETX</td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td>1FH</td><td>Chn</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>Val</td><td>F7H</td></tr></table>
Chn=0,...,7: Canale selezionato, 0,...7=In1,...,In8;
Val = Ingresso selezionato Bilanciato/Sbilanciato = 8 bit dove LSB=Input1,..., MSB=Input8; Value=0,1 dove 0=Unbalanced, 1=Balanced
<table><tr><td>bit7 bit6 bit5</td><td>bit4 bit3</td><td>bit2 bit1</td><td>bit0</td><td></td><td></td><td></td></tr><tr><td>input8</td><td>input7 input6</td><td>input5 input</td><td>t4 input</td><td>3 input2</td><td>input1</td><td></td></tr></table>
RX:
<table><tr><td colspan="2">STX ID_M ID_</td><td>N CMD D0</td><td>D1 D2</td><td>D3 D4</td><td>D5 D6 D7</td><td>ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>43H</td><td>XX</td><td>1FH</td><td>Chn</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>Val</td><td>F7H</td></tr></table>
Questa è riconosciuta
CHANGE\_PRESET\_SWITCH\_CMD: CMD=3DH
TX:
<table><tr><td>STX</td><td>ID_M</td><td>ID_D</td><td>CMD</td><td>Data0</td><td>Data1</td><td>Data2</td><td>Data3</td><td>Data4</td><td>Data5</td><td>Data6</td><td>Data7</td><td>ETX</td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td>3DH</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>Val</td><td>F7H</td></tr></table>
Val = 0,...,9 (preset1,...,preset10)
RX:
<table><tr><td>STX</td><td>ID_M</td><td>ID_D</td><td>CMD</td><td>Data0</td><td>Data1</td><td>Data2</td><td>Data3</td><td>Data4</td><td>Data5</td><td>Data6</td><td>Data7</td><td>ETX</td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td>3DH</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>Val</td><td>F7H</td></tr></table>
LINK\_SWITCH\_CMD: CMD=3EH
TX:
<table><tr><td>STX ID</td><td>_M ID_D</td><td>CMD</td><td>Data0</td><td>Data1</td><td></td><td>Data2</td><td>Data3</td><td>Data4</td><td>Data5</td><td>Data6</td><td>Data7</td><td>ETX</td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td>3EH</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>Val</td><td>F7H</td></tr></table>
Val = 0,1 (0=Link OFF, 1=Link ON)
RX:
<table><tr><td>STX ID</td><td>_M ID_</td><td>D CMD</td><td>Data0</td><td>Data1</td><td></td><td>Data2</td><td>Data3</td><td>Data4</td><td>Data5</td><td>Data6</td><td>Data7</td><td>ETX</td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td>3EH</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>Val</td><td>F7H</td></tr></table>
UPG\_AUTOMIX\_BYP\_CMD: CMD=61H
TX:
<table><tr><td>STX ID</td><td>M ID</td><td>N CMD</td><td>D0 D1</td><td></td><td></td><td>D2</td><td>D3 D4</td><td>D5 D6</td><td>D7 ETX</td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td>61H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>Byp</td><td>F7H</td></tr></table>
ùByp= AutoMixerBypass, Value=0,1 dove 0=bypass, 1=not byp
RX:
<table><tr><td>STX ID</td><td>M ID</td><td>N CMD</td><td>D0 D1</td><td></td><td></td><td>D2</td><td>D3 D4</td><td>D5 D6</td><td>D7 ETX</td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td>61H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>Byp</td><td>F7H</td></tr></table>
UPG\_AUTOMIX\_MODE\_CMD: CMD=62H
TX:
<table><tr><td colspan="4">STX ID_M ID_N CMD D0 D1</td><td></td><td></td><td>D2</td><td>D3 D4</td><td>D5 D6</td><td>D7 ETX</td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td>61H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>Byp</td><td>F7H</td></tr></table>
Mode= AutoMixerMode, Value=0,1 dove 0=NOM (numero mic aperto), 1=Gain Sharing RX:
<table><tr><td>STX ID</td><td>M ID</td><td>N CMD</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td><td>D4</td><td>D5</td><td>D6</td><td>D7</td><td>ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td>62</td><td>H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>Mode</td><td>F7H</td><td></td><td></td><td></td><td></td><td></td></tr></table>
UPG\_AUTOMIX\_GS\_CMD: CMD=64H
TX:
<table><tr><td colspan="6">STX ID_M ID_N CMD D0 D1 D2 D3 D4</td><td>D5 D6 D7 ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>46H</td><td colspan="4">XX 64H 00H 00H 00H</td><td colspan="3">00H 00H LEV 00H 00H F7H</td><td></td><td></td><td></td><td></td></tr></table>
LEV= AutoMixer\_GS\_Level, Value=0,..,24 (-12dB to 0dB step 0.5dB)
RX:
<table><tr><td>STX ID</td><td>_M ID_</td><td>N CMD D</td><td>D0 D1 D2</td><td>D3 D4</td><td>D5 D6 D</td><td>7 ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>46H</td><td>XX 64</td><td>H 00H</td><td>00H 00H</td><td>00H 00H</td><td>LEV 00H</td><td>00H F7H</td><td></td><td></td><td></td><td></td><td></td></tr></table>
UPG\_AUTOMIX\_NOM\_ATT\_CMD: CMD=6AH
TX:
<table><tr><td>STX ID</td><td>_M ID_</td><td>N CMD D</td><td>D0 D1 D2</td><td>D3 D4</td><td>D5 D6 D</td><td>7 ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>46H</td><td>XX 6A</td><td>H Mic1</td><td>Mic2 Mic</td><td>3 Mic4</td><td>Mic5 Mic6</td><td>Mic7 Mic8 F7H</td><td></td><td></td><td></td><td></td><td></td></tr></table>
Definisce l'attenuazione del MIC (s) quando l'utente utilizza 1,2, ..., 8 mic; valido solo se la modalità è N.O.M
Mic1,...,8= valore di attenuazione :0,...,200 (-20dB to 0dB step 0.1dB)
RX:
<table><tr><td>STX ID</td><td>M ID</td><td>N CMD</td><td>D0</td><td>D1</td><td></td><td></td><td>D2</td><td>D3</td><td>D4</td><td>D5</td><td>D6</td><td>D7</td><td>ETX</td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td>6AH</td><td>Mic1</td><td>Mic2</td><td>Mic3</td><td>Mic4</td><td>Mic5</td><td>Mic6</td><td>Mic7</td><td>Mic8</td><td>F7H</td><td></td><td></td><td></td><td></td></tr></table>
READ\_AUTOMIX\_NOM\_ATT\_CMD: CMD=0EH
TX:
<table><tr><td>STX ID</td><td>M ID</td><td>N CMD</td><td>D0</td><td>D1</td><td></td><td></td><td>D2</td><td>D3</td><td>D4</td><td>D5</td><td>D6</td><td>D7</td><td>ETX</td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td>3EH</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>Val</td><td>F7H</td><td></td><td></td><td></td><td></td><td></td></tr></table>
RX:
<table><tr><td>STX ID</td><td>M ID</td><td>N CMD</td><td>D0</td><td>D1</td><td></td><td></td><td>D2</td><td>D3</td><td>D4</td><td>D5</td><td>D6</td><td>D7</td><td>ETX</td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td>0E</td><td>H 03H</td><td>D8H</td><td>08H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>Byp</td><td>F7H</td><td></td><td></td><td></td><td></td></tr></table>
Mic1,...,8= valore di attenuazione :0,...,200 (-20dB to 0dB step 0.1dB)

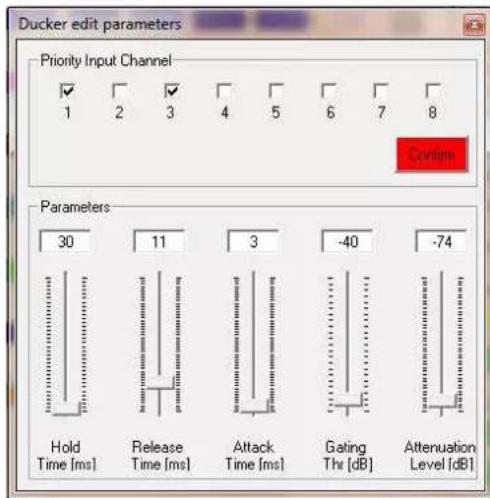

UPG\_DUCKER\_PRIORITY\_CMD: CMD=66H
TX:
<table><tr><td>STX ID</td><td>_M ID_</td><td>N CMD</td><td>D0</td><td>D1</td><td></td><td></td><td>D2</td><td>D3</td><td>D4</td><td>D5</td><td>D6</td><td>D7</td><td>ETX</td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td>66</td><td>H 00H</td><td>00H 00H</td><td>00H 00H</td><td>00H 00H</td><td>Byp F</td><td>7H</td><td></td><td></td><td></td><td></td><td></td><td></td><td></td></tr></table>
Byp= Ducker priority = 8 bit dove LSB=Input1,..., MSB=Input8; Value=0,1 dove 0=bypass, 1=not byp (il numero di canali con priorità è 4)
RX:
<table><tr><td>STX ID</td><td>_M</td><td>ID_N</td><td>CMD</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td><td>D4</td><td>D5</td><td>D6</td><td>D7</td><td>ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td colspan="2">46H</td><td>XX</td><td>66</td><td>H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>H</td><td>00H</td><td>00H</td><td>Byp</td><td>F7H</td><td></td><td></td><td></td></tr></table>
Questa è riconosciuta
UPG\_DUCKER\_HOLD\_CMD: CMD=67H
TX:
<table><tr><td>STX ID</td><td>M ID</td><td>N CMD</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td><td>D4</td><td>D5</td><td>D6</td><td>D7</td><td>ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td colspan="3">67H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td></td><td></td><td>Hold</td><td>F7H</td></tr></table>
Hold = Ducker Hold Time Value=0,...,99 (da 10ms a 1000ms)
RX:
<table><tr><td colspan="7">STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td>67H</td><td colspan="5">00H 00H 00H 00H 00H 00H 00H</td><td></td><td></td><td>Hold</td><td>F7H</td></tr></table>
Questa è riconosciuta
UPG\_DUCKER\_REL\_ATK\_CMD: CMD=68H
TX:
<table><tr><td>STX ID</td><td>M ID</td><td>N CMD</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td><td>D4</td><td>D5</td><td>D6</td><td>D7</td><td>ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td colspan="3">68H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H Rel</td><td></td><td></td><td></td><td></td><td>Atk</td><td>F7H</td></tr></table>
Rel = Ducker Release Time Value=0,..,47
Atk = Ducker Attack Time Value=0,...,47
RX:
<table><tr><td>STX ID</td><td>M ID</td><td>N CMD</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td><td>D4</td><td>D5</td><td>D6</td><td>D7</td><td>ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td colspan="3">68H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>Rel</td><td></td><td></td><td></td><td>Atk</td><td>F7H</td></tr></table>
UPG\_DUCKER\_THR\_CMD: CMD=69H
TX:
<table><tr><td colspan="7">STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td>69H</td><td colspan="5">00H 00H 00H 00H Att Gate</td><td></td><td></td><td>00H</td><td>F7H</td></tr></table>
Att = Ducker Attenuation level Value=0,...,80
Gate = Ducker gating thr Value=0,...,44
RX:
<table><tr><td>STX ID</td><td>M ID</td><td>N CMD</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td><td>D4</td><td>D5</td><td>D6</td><td>D7</td><td>ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td colspan="3">69H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td colspan="2">Att Gate</td><td></td><td></td><td>00H</td><td colspan="2">F7H</td></tr></table>
Questa è riconosciuta
VUMETER\_LIM\_CMD: CMD=37H
TX:
<table><tr><td>STX ID</td><td>M ID</td><td>N CMD</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td><td>D4</td><td>D5</td><td>D6</td><td>D7</td><td>ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td colspan="3">37H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td></td><td></td><td>00H</td><td>F7H</td></tr></table>
RX:
<table><tr><td colspan="7">STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td>37H</td><td>In1 In</td><td>2 In3 In</td><td>4 In5 In</td><td>6 In7</td><td></td><td></td><td></td><td>In8</td><td>F7H</td></tr></table>
In1, .., In8 hanno il valore già in dB per il limitatore (per ogni uscita)
dB = 60 - (InX / 2) (max limitazione = 48dB poiche' limiter Thr = -30 to +18) (inX = 0,...,120; step dB = 0.5)
<h1 id="vumeter_cmp_cmd-cmd38h">VUMETER\_CMP\_CMD: CMD=38H</h1>
TX:
<table><tr><td colspan="7">STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td>38H</td><td colspan="5">00H 00H 00H 00H 00H 00H 00H</td><td></td><td></td><td>00H</td><td>F7H</td></tr></table>
RX:
<table><tr><td>STX ID</td><td>_M</td><td>ID_</td><td>N</td><td>CMD</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td><td>D4</td><td>D5</td><td>D6</td><td>D7</td><td>ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td colspan="2">46H</td><td colspan="2">XX</td><td colspan="2">38H</td><td>In1</td><td>In</td><td>2</td><td>In3</td><td>In</td><td>4</td><td>In5</td><td>In</td><td>6</td><td>In7</td><td></td><td></td><td>In8</td></tr></table>
In1, ..., In8 hanno il valore già in dB per il compressore (per ogni uscita)
dB = 60 - (InX / 2) (max Compression = 48dB poiche' Cmp Thr = -30 to +18) (inX = 0,...,120; step dB = 0.5)
<h1 id="close-all-devices-cmd8fh">CLOSE ALL DEVICES: CMD=8FH</h1>
<h1 id="only-usb-and-rs485">(only usb and RS485)</h1>
TX:
<table><tr><td>STX ID</td><td>_M</td><td>ID_</td><td>N</td><td>CMD</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td><td>D4</td><td>D5</td><td>D6</td><td>D7</td><td>ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td colspan="2">42H</td><td colspan="2">XX</td><td colspan="2">8FH</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td></td><td></td><td>00H</td><td>F7H</td></tr></table>
Questa non è riconosciuta
<h1 id="vumeter_in_cmd-cmd55h">VUMETER\_IN\_CMD : CMD=55H</h1>
TX:
<table><tr><td>STX ID</td><td>_M</td><td>ID_N</td><td>CMD</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td><td>D4</td><td>D5</td><td>D6</td><td>D7</td><td>ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td colspan="2">46H</td><td>XX</td><td colspan="2">55H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>F7H</td></tr></table>
RX:
<table><tr><td>STX ID</td><td>_M</td><td>ID_N</td><td>CMD</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td><td>D4</td><td>D5</td><td>D6</td><td>D7</td><td>ETX</td><td></td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td colspan="2">46H</td><td>XX</td><td colspan="2">55H</td><td>In1</td><td>In</td><td>2</td><td>In3</td><td>In</td><td>4</td><td>In5</td><td>In</td><td>6</td><td>In7</td><td></td><td></td><td>In8</td><td>F7H</td></tr></table>
In1, ..., In8 hanno il valore già in dB per il segnale di ingresso
dB = -60 + (InX / 2) + 18 (max level=+18) (inX = 0,...,120; step dB = 0.5)
<h1 id="vumeter_out_cmd-cmd56h">VUMETER\_OUT\_CMD: CMD=56H</h1>
TX:
<table><tr><td>STX ID</td><td>_M</td><td>ID_</td><td>N</td><td>CMD</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td><td>D4</td><td>D5</td><td>D6</td><td>D7</td><td>ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td colspan="2">46H</td><td colspan="2">XX</td><td colspan="2">56H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>F7H</td></tr></table>
RX:
<table><tr><td>STX ID</td><td>_M</td><td>ID_</td><td>N</td><td>CMD</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td><td>D4</td><td>D5</td><td>D6</td><td>D7</td><td>ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td colspan="2">46H</td><td colspan="2">XX</td><td colspan="2">56H</td><td>In1</td><td>In</td><td>2</td><td>In3</td><td>In</td><td>4</td><td>In5</td><td>In</td><td>6</td><td>In7</td><td></td><td>In8</td><td>F7H</td></tr></table>
In1, ..., In8 hanno il valore già in dB per il segnale di uscita
dB = -60 + (InX / 2) + 18 (max level=+18) (inX = 0,...,120; step dB = 0.5)
<h1 id="inc_decr_gain_cmd-cmd30h-command-increasedecrease-inputoutput-level">INC\_DECR\_GAIN\_CMD: CMD=30H command Increase/Decrease input/output Level</h1>
TX:
<table><tr><td>STX ID</td><td>M ID</td><td>N CMD</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td><td>D4</td><td>D5</td><td>D6</td><td>D7</td><td>ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td colspan="3">30H</td><td colspan="2">Chn F</td><td colspan="2">ag 00H</td><td colspan="2">00H 00H</td><td colspan="2">00H 00H</td><td></td><td></td><td>Value</td><td>F7H</td></tr></table>
Dove:
Chn = 0,...,15 - In1,...,In8=0,1,2,3,...,7; Out1,...,Out8 = 8,...,15
Flag = 0,1 - decrease level = 0; Increase level = 1;
Value = 0,...x step di incremento/diminuzione livello
if Value = 01h quando il livello sarà incrementato/diminuito di 0.1dB,
if Value = 0Ah quando il livello sarà incrementato/diminuito di 1dB,
if Value = x quando il livello sarà incrementato/diminuito di (0.1 \* x) dB.
Se il livello è al massimo o al minimo il sistema mantiene comunque il valore minimo o massimo
RX:
<table><tr><td>STX ID</td><td>M ID</td><td>N CMD</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td><td>D4</td><td>D5</td><td>D6</td><td>D7</td><td>ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td colspan="3">30H</td><td colspan="2">Chn F</td><td colspan="2">ag 00H</td><td colspan="2">00H 00H</td><td colspan="2">00H 00H</td><td></td><td></td><td>Value</td><td>F7H</td></tr></table>
<h1 id="mute_unmute_cmd-cmd33h-single-muteunmute-inputoutput">MUTE\_UNMUTE\_CMD: CMD=33H single Mute/Unmute input/output</h1>
TX:
<table><tr><td>STX ID</td><td>_M ID_</td><td>N CMD D</td><td>0 D1 D2</td><td>D3 D4</td><td>D5 D6 D</td><td>7 ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td>33H</td><td>Chn 0</td><td>0H 00H</td><td>00H 00H</td><td>00H 00H</td><td></td><td></td><td></td><td>Value</td><td>F7H</td></tr></table>
Chn = 0,...,15 - In1,...,In8=0,1,2,3,...,7; Out1,...,Out8 = 8,...,15
Value = 0,1 0=Unmute; 1=Mute
RX:
<table><tr><td>STX ID</td><td>_M</td><td>ID_</td><td>N</td><td>CMD</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td><td>D4</td><td>D5</td><td>D6</td><td>D7</td><td>ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td colspan="2">46H</td><td colspan="2">XX</td><td colspan="2">33H</td><td>Chn</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>H</td><td></td><td></td><td>Value</td><td>F7H</td></tr></table>
<h1 id="inc_decr_gain_linked_cmd-cmd2fh-increasedecrease-inputoutput-level-linked-channel">INC\_DECR\_GAIN\_LINKED\_CMD: CMD=2FH Increase/Decrease input/output Level linked channel</h1>
TX:
<table><tr><td>STX ID</td><td>M ID</td><td>N CMD</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td><td>D4</td><td>D5</td><td>D6</td><td>D7</td><td>ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td colspan="3">2FH</td><td colspan="2">Sel IO</td><td colspan="4">Flag ChLink 00H</td><td>00H 00H</td><td>00H</td><td></td><td></td><td>Value</td><td>F7H</td></tr></table>
Dove:
Sel I/O = 0,1 - 0=Input; 1=Output
Flag = 0,1 - decrease level = 0; Increase level = 1;
Value = 0,...,x step di incremento/diminuzione livello
if Value = 01h quando il livello sarà incrementato/diminuito di 0.1dB,
if Value = 0Ah quando il livello sarà incrementato/diminuito di 1dB,
if Value = x quando il livello sarà incrementato/diminuito di (0.1 \* x) dB.
ChLink (8bit) = un bit per ogni ingresso o uscita (con 1 ingresso/uscita selezionato)
<table><tr><td>bit7 bit</td><td>6 bit5 bit4</td><td>bit3 bit2</td><td>bit1 bit0</td><td></td><td></td><td></td><td></td></tr><tr><td>In8/Out8</td><td>In7/Out7</td><td>In6/Out6</td><td>In5/Out5</td><td>In4/Out4</td><td>In3/Out3</td><td>In2/Out2</td><td>In1/Out1</td></tr></table>
Esempi: per aumentare il livello di 1dB sull'ingresso 1 e l'ingresso 5, l'utente deve inviare la seguente configurazione:
<table><tr><td>F0h</td><td>46h</td><td>ID</td><td>2Fh</td><td>00h</td><td>01h</td><td>11h</td><td>00h</td><td>00h</td><td>00h</td><td>00h</td><td>Value</td><td>F7h</td></tr></table>
RX:
<table><tr><td colspan="5">STX ID_M ID_N CMD D0 D1 D2 D3 D4</td><td>D5 D6 D7 ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td>2FH</td><td>Sel IO</td><td>Flag ChLink 00H</td><td>00H 00H</td><td>00H</td><td></td><td></td><td>Value</td><td>F7H</td></tr></table>
<h1 id="inc_decr_mastergain_cmd-cmd31h">INC\_DECR\_MASTERGAIN\_CMD: CMD=31H</h1>
<h1 id="increasedecrease-mastergain-level-only-input">Increase/Decrease MasterGain Level (only Input)</h1>
TX:
<table><tr><td>STX ID</td><td>_M</td><td>ID_</td><td>N</td><td>CMD</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td><td>D4</td><td>D5</td><td>D6</td><td>D7</td><td>ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td colspan="2">46H</td><td colspan="2">XX</td><td colspan="2">31H</td><td>00H</td><td>F</td><td>ag</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>H</td><td></td><td></td><td>Value</td><td>F7H</td></tr></table>
Where
Flag = 0,1 decrease level = 0; Increase level = 1;
Value = 0,...x step di aumento/diminuzione del livello
if Value = 01h quando il livello generale di ingresso sarà incrementato/diminuito di 1%,
if Value = 0Ah quando il livello generale di ingresso sarà incrementato/diminuito di 10%,
if Value = x quando il livello sarà incrementato/diminuito di (1 \* x) %
RX:
<table><tr><td>STX ID</td><td>_M</td><td>ID_</td><td>N</td><td>CMD</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td><td>D4</td><td>D5</td><td>D6</td><td>D7</td><td>ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td colspan="2">46H</td><td colspan="2">XX</td><td colspan="2">31H</td><td>00H</td><td>F</td><td>ag</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>H</td><td></td><td></td><td>Value</td><td>F7H</td></tr></table>
<h1 id="inc_decr_mastervolume_cmd-cmd32h">INC\_DECR\_MASTERVOLUME\_CMD: CMD=32H</h1>
<h1 id="increasedecrease-mastervolume-level-only-output">Increase/Decrease MasterVolume Level (only Output)</h1>
TX:
<table><tr><td>STX ID</td><td>M ID</td><td>N CMD</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td><td>D4</td><td>D5</td><td>D6</td><td>D7</td><td>ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td>46H</td><td>XX</td><td colspan="3">32H</td><td>00H</td><td>F</td><td>ag</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td></td><td></td><td>Value</td><td>F7H</td></tr></table>
Where:
Flag = 0,1 decrease level = 0; Increase level = 1;
Value = 0,...x step di aumento/diminuzione del livello
if Value = 01h quando il livello generale di uscita sarà incrementato/diminuito di 0.1dB,
if Value = 0Ah quando il livello generale di uscita sarà incrementato/diminuito di 1dB,
if Value = x quando il livello generale di uscita sarà incrementato/diminuito di (0.1 \* x) dB.
RX:
<table><tr><td>STX ID</td><td>_M</td><td>ID_</td><td>N</td><td>CMD</td><td>D0</td><td>D1</td><td>D2</td><td>D3</td><td>D4</td><td>D5</td><td>D6</td><td>D7</td><td>ETX</td><td></td><td></td><td></td><td></td><td></td><td></td></tr><tr><td>F0H</td><td colspan="2">46H</td><td colspan="2">XX</td><td colspan="2">32H</td><td>00H</td><td>F</td><td>ag</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>00H</td><td>H</td><td></td><td></td><td>Value</td><td>F7H</td></tr></table>
<h1 id="contents">CONTENTS</h1>
<h1 id="safety-1">Safety.... 1</h1>
<h1 id="10-overview-2">1.0 Overview.... 2</h1>
1.1 Main features.... 2
1.2 Front/rear panel.... 3
1.3 Wall panel.... 4
1.4 Connection.... 5
1.4.1 Inputs.... 5
1.4.2 Outputs.... 5
1.4.3 General purpose I/O.... 5
1.4.4 Wall panel WP 8008....5
1.4.5 Computer.... 5
<h1 id="20-operation6">2.0 Operation....6</h1>
2.1 Overview.... 6
2.2 Stand alone mode....7
2.2.1 TCP/IP Setup.... 8
2.2.2 USB/RS485 Setup 8
2.2.3 ID RS485 Setup.... 9
2.2.4 Output switch linked setup....9-10
2.3 Remote control mode....11
2.3.1 Remote control via wall panel....11
2.3.2 Remote control via PC software....12
2.3.2.1 Installing PC software....12
2.3.2.2 Starting PC software....12
2.3.2.3 Connecting-disconnecting or removing units....13
2.3.2.4 Naming-saving and loading units.... 14
2.3.2.5 Changing interface....14
2.3.2.6 Setting ID number or IP address....15
<h1 id="30-editing16">3.0 Editing....16</h1>
3.1 Inputs page....16-17-18-19-20
3.2 Outputs page....21-22-23-24-25
3.3 Routing page....26
3.4 Overview page....27
3.5 Automixer functions....28-29
3.6 Priority ducker.... 30
3.7 Background utilities.... 31-32-33-34-35-36
<h1 id="40-technical-specifications37">4.0 Technical specifications....37</h1>
<h1 id="50-block-scheme38">5.0 Block scheme....38</h1>
<h1 id="60-communication-protocol39-40-41-42-43-44-45-46-47-48-49">6.0 Communication protocol....39-40-41-42-43-44-45-46-47-48-49</h1>
<h1 id="important-safety-instructions">IMPORTANT SAFETY INSTRUCTIONS</h1>
<h1 id="warning">WARNING</h1>
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE
WHERE MARKED, THIS SYMBOL INDICATES A DANGEROUS NON-ISOLATED
VOLTAGE INSIDE THE LOUDSPEAKER: SUCH VOLTAGE COULD BE
SUFFICIENT TO RESULT IN THE RISK OF ELECTRIC SHOCK
WHERE MARKED, THIS SYMBOL INDICATES IMPORTANT USAGE
AND MAINTENANCE INSTRUCTIONS IN THE ENCLOSED
DOCUMENTS. PLEASE REFER TO THE MANUAL
<h1 id="precautions">PRECAUTIONS</h1>
☐ For proper air ventilation please make sure to leave sufficient clearance (min. 11 inch.) on all sides of the device.
☐ Please do not cover the ventilation slots with papers, table cloths, curtains, etc. in order not to prevent ventilation of the device
☐ Please do not place any naked flame source, such as lighted candles, on the device.
☐ Please keep the device away from water springs and splashes and please do not place any objects containing liquids, such as vases, on the device.
<h1 id="installation">INSTALLATION</h1>
☐ When the unit is installed in a rack enclosure, the rack must have all the prerequisites required by the EN 60439-1 standard, in particular the rear part must be closed by means of suitable panels.
<h1 id="connections">CONNECTIONS</h1>
Before using the amplifier make sure that the appliance's voltage is in accordance to your mains supply. Connect the amplifier only to grounded mains outlets.
☐ The unit must only be supplied from the mains after all connections have been completed.
<h1 id="items-supplied">ITEMS SUPPLIED</h1>
This product is supplied with the following items:
- AC power cord
- Removable terminal plags
- USB adapter
- Setting software CD with user manual
<h1 id="1-overview">1. OVERVIEW</h1>
<h1 id="11-main-features">1.1 MAIN FEATURES</h1>
The DMM 8008 is a high performance 8 input x 8 output digital matrix mixer; specially designed for commercial and professional applications such as conference rooms, auditoriums, sport utility buildings, house of worship, pubs and disco. It includes 8 independently switchable Line/Mic inputs with Phantom power supply, 8 line outputs, managed by a powerful 48kHz / 24 bit DSP engine, in addition to high performance 24 bit AD/DA converters. The DMM 8008 supports a full matrix mixing mode where inputs may be routed/mixed in any ratio to any output. Each Mic/Line input channel provides Lo/Hi pass 1st order filters, 3-band parametric EQ, Noise Gate function and Gain control. In addition Mic inputs include a Feedback Eliminator function, based on a powerful «pitch shifting» algorithm, particularly suitable for voice applications. Automixing function automatically adjusts input level to make operating easier using either NOM (Number of Open Mics) attenuation function or Gain sharing algorithm. In addition Ducking process enforces a «priority order» of open microphones in order that high priority inputs attenuate lower priority inputs. Each output offers up to 5-band of parametric equalization, crossover filters, RMS compressor, Peak limiter, Phase and Delay controls; 8 digital In/Out ports are provided for general purpose (preset recall, trigger third parts or device); 8 front knobs provides a quickly way to control input Gain; Up to 32 units can be managed by software applications.
1.2 FRONT / REAR PANEL
<details>
<summary>text_image</summary>
FBT
PN
1 2 3
PRESET
4
5
6
DMM 8008
USB
8
9
10
11
RS/RS
IN
OUT
CAUTION:
TO PRODUIT THE RIN OF PRC
ON ELECTRIC SWITCH ON AUT
ON POWER ENJOY FOR
EQUIPMENT TO MAIN ON
POWER
FIBT
T800mAAL TCR / IP
OUTPUT PORT
04.03.02.01
INPUT PORT
04.03.02.01
LINE OUTPUTS
DESIGNED IN ITALY
MANUFACTURED IN PLC.
MIC / LINE INPUTS
</details>
1> LED PHANTOM POWER: lights up when the phantom power supply for the microphone inputs is switched on
2> 2 x 24 LCD display
3> Buttons PRESET 1/6: for retrieving the configurations previously saved; to call up the system setting menu
4> Status LEDs for the input/output channels:
Ch1 - Ch8:
MUTE - output mute condition
SGN/CLIP - output signal (blink in clip condition)
MUTE - input mute condition
SGN/CLIP - input signal (blink in clip condition)
MIC - input set as Mic
LINE - input set as Line
5> Mic input channel knob: allow to increase/decrease the gain of the mic inputs
6> USB jack type B: to connect a computer for remote control and for configuration of the DMM 8008
7> POWER switch
8> Mains jack: for connection to a socket (90-240Vac / 50-60Hz) via the mains cable supplied
9> Support for the mains fuse; always replace a blown fuse by a fuse of the same type
10> RJ45 jack TCP/IP: to connect a computer for remote controlled operation of the DMM 8008 via Ethernet; the two LEDs above the jack indicate that the connection is being established or that data is being transferred
11> RJ45 jack RS485 IN: to connect a computer for remote controlled operation or to connect the remote control panel WP 8008
12> RJ45 jack RS485 OUT: to connect an additional unit to be remote controlled by the computer that is connected to jack RS485 IN
13> Switching outputs S1 - S4 as screw terminals
14> Switching inputs S1 - S4 as screw terminals to retrieve the extra configurations previously saved
15> Balanced audio signal outputs Ch1 - Ch8 as screw terminals
16> Balanced audio signal inputs Ch1 - Ch8 as screw terminals
<h1 id="13-wall-panel">1.3 WALL PANEL</h1>
<details>
<summary>text_image</summary>
21 22
PWR ETH
FBT
17
SET ESC
18 19 20
</details>
17> 2 x 16 LCD display
18> SET button allows to confirm the selection
19> ESC button allows to come back without confirm
20> Encoder allows to scroll available selections
21> Power indication LED
22> RS485 indication LED
<h1 id="14-connection">1.4 CONNECTION</h1>
<h1 id="141-inputs">1.4.1 INPUTS</h1>
Connect line-level signal sources, e.g. the output of a preamplifier or of a mixer, to the screw terminals INPUTS CH1-CH8 (16). The connections are provided for balanced signals. To connect unbalanced signal sources, connect the contacts «-» and «gnd». Alternatively, connect microphones to these terminal screws. Use the computer to configure the respective input as a microphone or line input. This procedure can also be used to provide all microphone inputs with a phantom power supply of 48V. In this case, only microphones with balanced signal outputs can be connected. Microphones with unbalanced outputs may be damaged by the phantom power supply.
<h1 id="142-outputs">1.4.2 OUTPUTS</h1>
Connect the amplifiers, monitoring systems or other units for further signal processing to the screw terminals LINE OUTPUTS Ch1 - Ch8 (15).
<h1 id="143-general-purpose-io">1.4.3 GENERAL PURPOSE I/O</h1>
Use the four switching inputs to retrieve special configurations (extra programs). Connect the units that are to be used as switching units to the screw terminals INPUT PORT "S1" to "S4" (14) and the corresponding ground terminals. A switching voltage of +5V is required. The logic type and the priority between the four inputs can be configured via the computer. Four switching outputs with a switching voltage of +5V are available for controlling other units. Connect the switching inputs of these units to the screw terminals OUTPUT PORT "S1" to "S4" (13) and the corresponding ground terminals "gnd".
<h1 id="144-wall-panel-wp-8008">1.4.4 WALL PANEL WP 8008</h1>
The wall mount control panel WP 8008 (separately available as an option) allows users to operate the DMM 8008 by two configurable modes: Zone controller (only a single zone can be managed) and Global controller (can be managed all inputs and outputs).
Connect the terminals "485+" and "485-" located on the rear side of the operating panel to the appropriate contacts of the jack RS485 IN (11); to supply power to the control panel, connect the terminals "+12V" and "GND" to a regulated, unearthed DC voltage source of 12V (observe the correct polarity!).
Note: in order to enable the control panel to establish a data connection to the DMM 8008, only switch on the power supply for the control panel when the DMM 8008 has already been switched on. For mounting the control panel use a standard 503 recessed box.
<h1 id="145-computer-2">1.4.5 COMPUTER</h1>
To operate the DMM 8008 by remote control via a computer, connect the computer to the jack (6) using a USB cable. Alternatively, the unit may also be controlled via the RS485 interface (provided the interface is not to be used for connecting the control panel WP 8008) or Ethernet. To control the DMM 8008 via the RS485 interface connect the RS485 output of the computer to the jack RS485 IN (11); the pin configuration is:
The output jack RS485 OUT (12) may be connected to the jack RS485 IN of an additional DMM 8008. Thus, up to 64 units to be controlled may be connected in a chain. If multiple units are connected and if longer control lines are used, the control output of the last unit in the chain should be equipped with a terminal resistor (120 Ohm resistor between pin 1 and pin 2 of the connection) to prevent interference while signals are transmitted.
To operate the DMM 8008 by remote control via Ethernet, the jack TCP/IP (10) may be used to connect the DMM 8008 to an individual computer, a local computer network or, e.g. via a router, to larger computer networks (internet). Network technology expertise is indispensable for the correct installation of the connection.
<h1 id="20-operation">2.0 OPERATION</h1>
<h1 id="21-overview">2.1 OVERVIEW</h1>
The DMM 8008 can work as a stand alone unit [Stand Alone Mode], where up to 6 preset can be recalled by directly selecting them through the 6 "preset" buttons available on the front panel, or an work as completely remotely controlled unit [Remote Control Mode].
As soon as is turned ON the device will indicate the current Firmware version
DMM 8008
Firmware version V1.1
and then will load the currently selected preset.
During the Preset Loading, the LCD screen will show the following:
Please Wait.....
Loading new program.....
Here the unit is just checking if Presets are available on the Eeprom.
If not, the "Init" phase can last several seconds, and the Eeprom of the unit is initialized in order to guest later on the presets will be created by the user through the Pc Remote Control Sw.
DMM 8008
01: Program default
If Presets are already available, then the "init" phase will be skipped and the currently selected preset will be loaded.
The preset loading can take approximately 14Seconds and will end with showing on the LCD the currently running preset's name:
DMM 8008
01: Current Preset Name
<h1 id="22-stand-alone-mode">2.2 STAND ALONE MODE</h1>
When the DMM 8008 is operating as stand alone unit, so running one of the 6 available presets, previously created and stored within the unit with the remote control Pc Sw, the only available control are the 6 "preset buttons", allowing to select 1 of the 6 available presets previously stored through the Pc Sw Remote Control. The name of the currently loaded/running preset is displayed on the LCD screen.
Using the buttons on the front panel, a particular function called System Setup, can be accessed. For accessing the System Setup function, need to refer to the 6 available buttons on the front panel, as follow:
<details>
<summary>text_image</summary>
1 / Enter 2 / Down 3 / Up
4 / Esc 5 / Utilities 6 / Page
PRESET 8008
DMM 8008
USB
</details>
Referring to the Picture, in order to access the System Setup need to press the Button 5 / Utilities, for about 4 seconds,
The following window will appear:
System Setup
---- Tcp/lp Setup ----
As the picture shows, in the System Setup mode the buttons 1/2/3/4/6 are used as Enter/Down/Up/Esc/Page commands, used for scrolling, accessing and editing the following 5 Menus:
1. Tcp/Ip Setup
2. Output Switch Linked
3. Out Switch Setup
4. ID RS485 Setup
5. USB/RS485 Setup
From the first "Tcp/Ip Setup" Menu, just using the Up/Down buttons, the all other Menus can be accessed.
<h1 id="221-tcp-ip-setup">2.2.1 TCP / IP SETUP</h1>
Within this Menu, the User can set the DMM 8008 IP Address
From the Tcp/Ip Setup, pressing the Button 1 / Enter, the following sub-menu is entered:
<h1 id="tcplp-setup-ip192168000001-2">Tcp/lp Setup IP=192.168.000.001</h1>
Here, the first digit of the IP will be blinking, which means the User can modify the digit's value using the Up/Down buttons.
Once assigned the desired value to the digit, confirm it pressing the Enter button.
After a while, the system will automatically go to the second digit of the IP address, which will start blinking. With the Button Page, a digit can be skipped without being modified, so using Page is possible to scroll into the all 4 digits of the IP Address, without the necessity to modify them.
The first digit of the IP Address can range from 1 to 223, the second and third digits can range from 0 to 255 and the fourth digit from 1 to 255.
The system will automatically compute the right "Sub Net Mask" value to assign to the Unit, once defined the IP address.
The Sub Net Mask values are the following:
1. IP Address from IP=001.0.0.2 up to IP=126.255.255.254, SubNetMask = FF000000h (Class A)
2. IP Address from IP=127.0.0.2 up to IP=191.255.255.254, SubNetMask = FFFF0000h (Class B)
3. IP Address from IP=192.0.0.2 up to IP=223.255.255.254, SubNetMask = FFFFFFF00h (Class C)
Once set properly the IP Address, the Tcp/Ip setup Menu can be left using the Esc button.
<h1 id="222-usb-rs485-setup">2.2.2 USB / RS485 SETUP</h1>

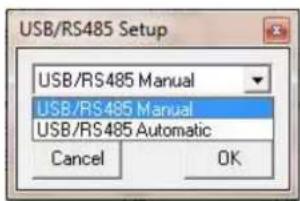

Within this Menu, the User can chose between the USB or RS485 connection type to be used for a remote control.
From the USB/RS485 Setup page
<h1 id="system-setup-usbrs485-setup-2">System Setup ---- USB/RS485 Setup ----</h1>
pressing the Button 1 / Enter, the following sub-menu is entered:
<h1 id="usbrs485-setup-mode-usb-2">USB/RS485 Setup Mode = USB</h1>
Here, the communication interface to be used can be selected: USB/RS485/Automatic.
The Tcp/Ip connection is EVER available.
In the USB mode, the DMM 8008 can be controlled via USB interface or via Tcp/Ip connection.
If selected, the USB interface will be active as default when the DMM 8008 is turned ON.
In the RS485 mode, the DMM 8008 can be controlled via USB interface or via Tcp/Ip connection.
If selected, the RS485 interface will be active as default when the DMM 8008 is turned ON.
If selected the Automatic Mode, the unit will continuously "switch" between USB and RS485 (each about 100ms), looking for an available Remote Control on one of the 2 interfaces.
Once found an available one, the DMM 8008 will communicate vi the interface corresponding to the one found.
If selected, the Automatic interface will be active as default when the DMM 8008 is turned ON.
The currently active connection type, will be displayed on the extreme right of the LCD's top row, with the U/R/A symbols (USB/RS495/Automatic)
<h1 id="223-id-rs485-setup">2.2.3 ID RS485 SETUP</h1>
Within this Menu, the User can define the ID of the DMM 8008 when working with a remote control via RS485 interface.
From the ID RS485 Setup page
System Setup
ID RS485 Setup
pressing the Button 1 / Enter, the following sub-menu is entered:
ID RS485 Setup
ID = 1
Here, the ID number of the DMM 8008 can be assigned.
The possible ID values range from 1 to 64.
The ID number can be selected using the Up/Down buttons.
The Enter button has to be used to SAVE the assigned ID number and exit the Menu.
The Esc button has to be used to exit the Menu WITHOUT SAVING the ID number.
<h1 id="224-output-switch-linked-setup">2.2.4 OUTPUT SWITCH LINKED SETUP</h1>
The DMM 8008 has internally the possibility to store up to 10 Presets "Switch" (Only by Pc Sw) and on each one of these presets is contained the Status of the Output Switch lines (Output Ports S1/S2/S3/S4) available on the DMM 8008 back panel.
These 10 presets can be recalled in LINK with the corresponding "Audio" Preset, by pressing one of the 6 Presets Buttons of the front panel (or just loading the presets by Pc), once the Output Switch Link function is set as ON.
In this case, any time an Audio Preset is recalled by pressing one of the front panel's buttons, the equivalent Switch preset Is also loaded: it the Audio Preset N. 1 is recalled, the Switch preset N. 1 is recalled too. In a such case, each recalled preset is a combination of an Audio and a Switch preset.
To get the above result, need therefore to enter the System Setup's Output Switch Linked page
System Setup
---- Output Switch Linked ----
And to set as On the Link
OUTPUT SWITCH LINKED
Link = ON
If the Output Switch Linked is not active and the Switch presets aren't linked to the Audio ones, they'll not be recalled once pressed any one of the Preset Buttons.
Therefore, the Switch Outputs status can be "manually" defined by the User who will be allowed to recall "manually" one of the 10 Switch preset and leave it active until a new "Manual" setting or a change of the Output Switch Linked Status.
If the Output Switch Linked mode is set with Link = OFF, the User can "Manually" Load one of the 10 switch Presets available and previously created using the Pc Sw.
This can be done from the Out Switch Setup Menu
<h1 id="system-setup-out-switch-setup-2">System Setup ---- Out Switch Setup ----</h1>
Within this Menu, the User can select and Load one of the 10 available Switch Presets.
Pressing the Button 1 / Enter, the following sub-menu is entered:
<h1 id="output-switch-setup-sp01-2">OUTPUT SWITCH SETUP SP01</h1>
Here, the user can recall one of the 10 available Switch Presets SP01-SP10, just selecting the desired one by the Up/Down buttons.
As said, in this way any action on the Preset Buttons, forcing the Load of the corresponding Audio Preset, will not affect the status of the Output Switches, which will depend from the Preset loaded "Manually" by the User within the Output Switch Setup, being the Output Switch Linked Status set as OFF.
In order to finally leave and exit the System Setup mode, so to get back to normal working mode, is is enough to get back to any one of the 5 System Setup Menus and there from press the ESC button.
NOTE: The All Settings done within the System Setup Function will be effective ONLY WHEN LEFT the System Setup Mode itself.
Within the System Setup Mode, the all communications with the remote control units are DISABLED, so as the some "Real Time" processes available in the DMM 8008.
In Stand Alone Mode, the "Activity" of the DMM 8008 in terms of running processes and signal status, per each channel, can be checked thanks to the Vu-Metering features:
1 led for Microphone Phantom Power Supply Active
5 led for Outputs Activities:
<h1 id="23-remote-control-mode">2.3 REMOTE CONTROL MODE</h1>
The DMM 8008 is mainly thought to operate with Remote Control Sw running on Pc.
Nevertheless, once created the desired presets for the defined applications, the unit can operate as a Stand Alone one, as seen before or as Wall Panel Remote Control working device.
The Remote control, when operated by the Wall Panel Remote control, is working on the base of the RS485 connector of the DMM 8008
The Pc Sw remote control, can instead operate with USB, RS485 or Tcp/Ip connection.
When used the USB connection, the Pc Sw Remote Control can control/edit ONLY one unit per time.
When used the RS485 or Tcp/Ip connection, the Pc Sw Remote Control can control/edit MORE units at the same time, connected each others in net.
A particular way of "double" Remote Control is allowed, being possible to connect to the Rs485 the Wall Panel Control and at the same time the Pc Sw Remote Control can be used if connecting the Pc on the USB connection.
<h1 id="231-remote-control-via-wall-panel">2.3.1 REMOTE CONTROL VIA WALL PANEL</h1>
<details>
<summary>text_image</summary>
PWR
ETH
FBT
SET
ESC
</details>
The wall mount control panel WP 8008 (separately available as an option) allows users to operate the DMM 8008 by two configurable modes: Zone Controller (only a single zone can be managed) and Global Controller (can be managed all inputs and outputs).
WP 8008 set as Zone Controller allow to:
\- Adjust local output gain
\- Set local mute
\- Inputs selection
\- Select lock condition
\- View system info
WP 8008 set as Global Controller allow to:
\- Adjust every inputs/outputs gain
\- Set every inputs/outputs mute
\- Recall presets stored
\- Select lock condition
\- View system info
<h1 id="232-remote-control-via-pc-software">2.3.2 REMOTE CONTROL VIA PC SOFTWARE</h1>
The computer software supplied can be used to operate the DMM 8008 by remote control. Thus, the unit may also be configured for operation without a computer. The configurations created may be saved on the unit or on the computer.
<h1 id="2321-installing-pc-software">2.3.2.1 INSTALLING PC SOFTWARE</h1>
The installation of the control program supplied requires a PC equipped with the WINDOWS XP operating system (SP2) or later, a memory of at least 512MB, 10MB free hard-disk space and a USB, Ethernet or RS485 interface. The screen resolution should be at least 1024x768 pixel.
To install the PC software, start the installation program "SETUP.EXE" on the CD supplied and follow the instructions of the installation program.
The connection via the USB interface or the Ethernet interface requires a special driver which is included on the CD supplied. Call up the file USB[...]SETUP.EXE to install the driver automatically. The driver will simulate a serial interface for the operating software.
<h1 id="2322-starting-pc-software">2.3.2.2 STARTING PC SOFTWARE</h1>
Start the control program DMM 8008 Vx.x.x on the PC. The main window (fig.1) appears, showing the units that were most recently connected. For each unit, a separate window is provided: the header shows information with regard to the interface as well as the connection status.
<details>
<summary>text_image</summary>
DMM8008
USB-COM7 Load Project Save Project Add Device Remove Device Connect All ID & IP
USB - Offline Add Device
Edit Connect=no-name
</details>
Fig.1
To add a(nother) unit, click the button "Add Device".
If USB is selected as the current interface type (the text on the button on the upper left is "USBCOMx"), the following unit window will be displayed:
After that, it is not possible to add further units.
If RS485 is selected as the current interface type (the text on the button on the upper left is "RS485-COMx", the following dialog window will initially be displayed:
<details>
<summary>text_image</summary>
Configure ID
ID Device
Cancel OK
</details>
Select the unit number (ID) of the unit desired and then press "OK" to confirm.
If Ethernet is selected as the current interface type (the text on the button on the upper left is "TCP/IP"), the following dialog window will initially be displayed:
<details>
<summary>text_image</summary>
Configure IP
IP Address
192 .168 .0 .1
Cancel OK
</details>
Enter the IP address of the unit desired and then press "OK" to confirm. For each unit, a separate window is added.
<h1 id="2323-connecting-disconnecting-or-removing-units">2.3.2.3 CONNECTING - DISCONNECTING OR REMOVING UNITS</h1>
To establish a data connection to the unit, click the button "Connect" in the window of the unit desired. Instead of the unit name or "no-name" (if no name was assigned to the unit), a status bar is shown indicating the progress of the connection establishment. Once the connection has been established, the button "Connect" is replaced by the button "Disconnect". To connect all units, use the button "Connect All" located in the upper button bar of the main window. If a connection establishment fails and an error message is displayed (e.g. "COM not found", "Devices disconnected" or "IP address: x.x.x.x. not found"), this may be due to the following reasons:
- a wrong unit number / IP address has been set
- a cable connection is defective
- a unit is not switched on or its system menu is called up
- the wrong interface has been selected in the system menu
- the network settings on the computer are not correct (for connection via Ethernet)
The display of a connected unit shows the following (example):
System Lock
PC Connection
or
System Lock
Online Device ID[01]
or if controlled via Ethernet
System Lock
IP: 192.168.001.101
The unit cannot be directly operated as long as the connection exists.
To disconnect the data connection, click the button "Disconnect" in the window of the unit desired and then confirm the confirmation message. Then, the DMM 8008 can directly be operated again.
It is not possible to disconnect the connection while the configuration window of a unit is still open.
To remove a unit from the constellation, close the corresponding unit window (☐) and then confirm the confirmation message. To remove all units, click the button "Remove Device" located in the upper button bar of the main window. Then confirm the confirmation message.
<h1 id="2324-naming-saving-and-loading-units">2.3.2.4 NAMING - SAVING AND LOADING UNITS</h1>
The units may be named for easier identification in the main window. The default name is "no name". To change a unit name, double-click the current name. A dialog window appears. Overwrite the old name with the new name (max. 16 characters) and then click "OK" to confirm your changes or "Cancel" to cancel.
The units network currently created in the main window along with the unit names and the interface type may be saved as a "project" on the computer.
- Click the button "Save Project". The dialog window "Save As" is displayed.
- Enter the file name desired, select the location where the file is to be saved and then save the file.
By default, the subfolder "Project" is selected which was automatically created during program installation. The file extension \*.p88 is automatically appended to the file name entered.
To load a units network that has been saved on the computer:
\- click the button "Load Project" located on the upper right of the window. The dialog window "Open" is displayed.
\- select the file desired and then confirm your selection.
If the interface used by the constellation selected is different from the interface currently set, a warning message will appear. To go to the interface of the constellation, confirm the message.
<h1 id="2325-changing-interface">2.3.2.5 CHANGING INTERFACE</h1>
To change to one of the other interface types supported, first remove all units from the main window then: - click the button on the upper left. Depending on the interface currently selected, the text on the button is "USB-COMx", "RS485-COMx" or "TCP/IP".
The following dialog window is displayed:
<details>
<summary>text_image</summary>
Select
Select Connection
USB RS485 TCP/IP
Select COM
COM 7 Search
Exit OK
</details>
- Under "Select Connection" select the interface desired ("USB", "RS485" or "TCP/IP").
- For "RS485" the number of the port used for this interface must be selected under "Select COM". For "USB" the serial interface that simulates the driver for this software must be selected under "Select COM". Check the settings of the operating system for the appropriate COM interface or use the button "Search" to have it determined automatically.
The respective settings of the operating system can for example be found under: \_ Control Panel\_System Properties (Hardware)\_Device Manager\_Ports (COM and LPT).
If there are conflicts with other units, the number of the COM interface may be changed here (e.g. via\_Properties\_Port Settings\_Advanced...).
Note: To avoid communication problems, it is recommended to manually change the COM numbers 10 and higher that are automatically assigned by the computer to the COM numbers 1 to 9.
<h1 id="2326-setting-id-number-or-ip-address">2.3.2.6 SETTING ID NUMBER OR IP ADDRESS</h1>
To operate multiple routers DMM 8008 by remote control via RS-485 or TCP/IP, a separate ID number or IP address must be assigned to each unit prior to their first simultaneous operation. This may be done in the system menu or, as described in the following, via the computer:
Connect the units one after another to the PC, using the USB interface, and make the following settings for each unit:
- If the USB interface is not being selected, use the main window to go to the USB interface
- Add a unit (button "Add device")
- Connect the unit (button "Connect")
- For remote control via RS-485, press "Add Device" and select an ID number (1 - 64) under "Configure ID".
- For remote control via Ethernet, press "Add Device" define an IP address under "Configure ID".
A network mask will automatically be generated
<h1 id="3-editing-2">3. EDITING</h1>
<h1 id="31-inputs-page">3.1 INPUTS PAGE</h1>
<details>
<summary>text_image</summary>
DMM808 - Program load from device - 01: Program Empty
Status: Offline
Inputs
Cut1
Cut2
Cut3
Cut4
Cut5
Cut6
Cut7
Cut8
Routing
Overload
Stereo Mode
Inp1
Gain [dB] 0 dB
0 dB
Byp <20
Fiber 1st ord
Bypass
1000 Hz
Noise Gate
Enable
Edit
Mic/Line
Line
Sel Fbl/EQ
EQ
EQ
Edit
Phase 100'
Balanced
Feedback dev freq [Hz]
4.5
Phantom
Stereo Mode
Inp2
Gain [dB] 0 dB
0 dB
Byp <20
Fiber 1st ord
Bypass
1000 Hz
Noise Gate
Enable
Edit
Mic/Line
Line
Sel Fbl/EQ
EQ
EQ
Edit
Phase 100'
Balanced
Stereo Mode I
Inp3
Gain [dB] 0 dB
0 dB
Byp <20
Fiber 1st ord
Bypass
1000 Hz
Noise Gate
Enable
Edit
Mic/Line
Line
Sel Fbl/EQ
EQ
EQ
Edit
Phase 100'
Balanced
Stereo Mode II
Inp4
Gain [dB] 0 dB
0 dB
Byp <20
Fiber 1st ord
Bypass
1000 Hz
Noise Gate
Enable
Edit
Mic/Line
Line
Sel Fbl/EQ
EQ
EQ
Edit
Phase 100'
Balanced
Stereo Mode III
Inp5
Gain [dB] 0 dB
0 dB
Byp <20
Fiber 1st ord
Bypass
1000 Hz
Noise Gate
Enable
Edit
Mic/Line
Line
Sel Fbl/EQ
EQ
EQ
Edit
Phase 100'
Balanced
Stereo Mode IV
Inp6
Gain [dB] 0 dB
0 dB
Byp <20
Fiber 1st ord
Bypass
1000 Hz
Noise Gate
Enable
Edit
Mic/Line
Line
Sel Fbl/EQ
EQ
EQ
Edit
Phase 100'
Balanced
Stereo Mode V
Inp7
Gain [dB] 0 dB
0 dB
Byp <20
Fiber 1st ord
Bypass
1000 Hz
Noise Gate
Enable
Edit
Mic/Line
Line
Sel Fbl/EQ
EQ
EQ
Edit
Phase 100'
Balanced
</details>
From the "Input" Page of the editing environment, on each input can be selected the source. This can be Microphone or Line.
When the Line Source is selected, the Input Gain can be adjusted from -127dB up to +12dB. A Bypass button is available for any channel, allowing to "Bypass" the channel's level setting and bringing it to 0dB.
A Master input Gain can be used to Mute the all Inputs (0%) or to bring all of them to a level up to 0dB (100%): each time the Gain Slider is halved in percentage, the Level of each Input is decreased of -6dB. For each input, is possible to set the signal Phase as "Direct" (unchecked box) or 180Deg.
Reversed (box checked).
A 3 bands Equalizer is ever available and can be set pressing the "Edit" button. In a such case, the following Eq editing window will open
<details>
<summary>text_image</summary>
Inputs EQ
Inp1 - Line
Inp2 - Line
Inp3 - Line
Inp4 - Line
Inp5 - Line
Inp6 - Line
Inp7 - Line
Inp8 - Line
Mag
Phase
EO
PEAK
EQ
PEAK
EQ
PSAK
EQ
0 0 0 dR
1000 1000 1000 R7
2.6 2.9 2.6 Q
0.5254 0.51254 0.51254 By
Byp Byp Byp
Show output
Input Linked
Inp1 Inp2 Inp3 Inp4 Inp5 Inp6 Inp7 Inp8 Flat Eq Exit
</details>
EQ: from this sub-frame it is possible to set the Input Channels three available Peaker (Bell) or variable Q Shelving Filters.
The DMM 8008 allows the user to select either Bell or variable Q Shelving Parameters and assign them independently using the 3 available filters.
The selection can be done just pressing the "Peak Eq" button on top of the filters' gain sliders and selecting one of the 3 available filters' type: Peaker, variable Q high Shelving and variable Q low Shelving.
BELL Filter: here Center Frequency, Band Width (Q) and Gain can be adjusted.
"Center Frequency": the selectable frequencies range is from 20Hz to 20kHz in steps of 1/24 of an Octave.
"Bandwidth BW": the selectable BW range is from 0.0312 Octave (Q=10) up to 3.59 Octave (Q=0.4) in steps of 0.1 Q.
"Gain": the selectable Gain range is from -12dB to +12dB in steps of 0.5 dB.
Variable Q Low Shelving Filter: here Center Frequency, Band Width (Q) (Slope) and Gain can be adjusted.
"Center Frequency": the selectable frequencies range is from 20Hz to 20kHz in steps of 1/24 of an Octave.
"Bandwidth BW (Slope)": the selectable BW range is from 0.0312 Octave (Q=10) up to 3.59 Octave (Q=0.4) in steps of 0.1 Q.
"Gain": the selectable Gain range is from -12dB to +12dB in steps of 0.5 dB.
Variable Q High Shelving Filter: here Center Frequency, Band Width (Q) (Slope) and Gain can be adjusted.
"Center Frequency": the selectable frequencies range is from 20Hz to 20kHz in steps of 1/24 of an Octave.
"Bandwidth BW (Slope)": the selectable BW range is from 0.0312 Octave (Q=10) up to 3.59 Octave (Q=0.4) in steps of 0.1 Q.
"Gain": the selectable Gain range is from -12dB to +12dB in steps of 0.5 dB.
Note: each single filter can be independently "bypassed" for an easy setting/use of them. To "Bypass" the single filter, just press the "Bypass" button below the filter's parameters.
In order to set, if necessary, more Eq of the 8 input channels in the same way, "Input Linked" buttons are available and, when pressed, force the all channels corresponding to the pressed buttons to set the Eq in the same as as the one set for the currently edited channel (which has to be one of the linked ones)
The set up of the filters and specially their frequency placement can also be done with the use of the mouse, just activating the "Show Cursor" function, pressing the related button on the left bottom of the frequency response Graphic.
<details>
<summary>line</summary>
| Frequency | Value |
| --------- | ----- |
| 20Hz | ~0 |
| 100Hz | ~5 |
| 1KHz | ~0 |
| 10KHz | ~5 |
</details>
Once the all 3 available cursor are shown on the Frequency Response graphic, just selecting anyone of them with the mouse's arrow and maintaining the mouse's click pressed, it is possible to move and place the selected cursor on the desired frequency and with the desired gain.
For setting the filter's Q, still need to enter the desired value directly in the dedicated box in the filters' editing main sub-frame.
In order to see what's the "Phase" response of the channel once set up the all filters of the EQ, it is possible, selecting the Phase choice on the top right of the Graphic window, to turn the graphic in "Phase Response Graphic":
<details>
<summary>line</summary>
| Frequency | Value |
| --------- | ----- |
| 1000 Hz | 556 |
| 900 Hz | 7041 |
| 1000 Hz | 24 |
| 900 Hz | 2.8 |
| 1000 Hz | 25431 |
| 900 Hz | 0.59695 |
</details>
When the Microphone Source is selected, on the related channel is possible to adjust the Input level from -127dB up to 12dB.
<details>
<summary>text_image</summary>
DMM8008 - Program load from device - OL: Program Empty
Inputs
Out1
Out2
Out3
Out4
Out5
Out6
Out7
Out8
Out9
Boating
Overview
Status: Offline
Stereo Mode I
Inp1 Gain [dB] 0 dB
12.7 dBu
Byp <30
Filter 1st ord
Bypass
1000 Hz
Noise Gate Enable Edit
Mic/Line Mic
Sel Fbk/EQ EQ
FbK EQ
Phase 160° Balanced
Feedback dev freq [Hz]
4.5
Phantom
Stereo Mode I
Inp2 Gain [dB] 0 dB
0 dBu
Byp <30
Filter 1st ord
Bypass
1000 Hz
Noise Gate Enable Edit
Mic/Line Line Sel Fbk/EQ EQ
EQ Edit Phase 180° Balanced
Stereo Mode I
Inp3 Gain [dB] 0 dB
0 dBu
Byp <30
Filter 1st ord
Bypass
1000 Hz
Noise Gate Enable Edit
Mic/Line Line Sel Fbk/EQ EQ
EQ Edit Phase 180° Balanced
Stereo Mode I
Inp4 Gain [dB] 0 dB
0 dBu
Byp <30
Filter 1st ord
Bypass
1000 Hz
Noise Gate Enable Edit
Mic/Line Line Sel Fbk/EQ EQ
EQ Edit Phase 180° Balanced
Stereo Mode I
Inp5 Gain [dB] 0 dB
0 dBu
Byp <30
Filter 1st ord
Bypass
1000 Hz
Noise Gate Enable Edit
Mic/Line Line Sel Fbk/EQ EQ
EQ Edit Phase 180° Balanced
Stereo Mode I
Inp6 Gain [dB] 0 dB
0 dBu
Byp <30
Filter 1st ord
Bypass
1000 Hz
Noise Gate Enable Edit
Mic/Line Line Sel Fbk/EQ EQ
EQ Edit Phase 180° Balanced
Stereo Mode I
Inp7 Gain [dB] 0 dB
0 dBu
Byp <30
Filter 1st ord
Bypass
1000 Hz
Noise Gate Enable Edit
Mic/Line Line Sel Fbk/EQ EQ
EQ Edit Phase 180° Balanced
Stereo Mode I
Inp8 Gain [dB] 0 dB
0 dBu
Byp <30
Filter 1st ord Bypass
1000 Hz
Noise Gate Enable Edit
Mic/Line Line Sel Fbk/EQ EQ
EQ Edit Phase 180° Balanced
</details>
When selected microphone as input, the user can chose to select on the input itself a 3bands Eq process on the Input signal, or a Feedback Eliminator.
When the 3 bands Eq is selected, the Equalizer can be edited in the same way shown for the Line Input case.
When the Feedback Eliminator is selected, it can be activated or not, and when active, its deviation can be set. The Feedback Eliminator is working on the base of a frequency shift process avoiding the feedback to raise up. The speed of the feedback elimination process it is just defining the amount of frequency shift is added to the input signal.
Independently from the Input selected (microphone or line), on the Inputs are ever available a first order Low Pass filter and a Noise Gate.
First Order Low Pass Filter: this filter is a first order Low Pas, with a 3dB/Oct Slope.
The filter's cut of frequency is ranging from 20kHz up to 1kHz by steps of 1/3 of Octave.
The filter can be made active or not (bypassed), checking or unchecking the "Enable" check box:
Once active, the smooth first order LP filter is intended to be mainly used with the microphone's input selected, in order to reduce the amount of high frequencies without affecting significantly the voice quality, nevertheless increasing the immunity to the Feedback.
Noise Gate: the particular DMM 8008 Noise Gate can be selected or bypassed checking or unchecking the "Enable" check box:
This Noise Gate has been thought as Noise Gate for the Line inputs, but also as Auto Switch On/Off when operating with the microphone inputs.
From this point of view, the range of a standard Noise gate have been extended, and particularly the one of the Gating Threshold, so to better fit the characteristics of the voice signal
<details>
<summary>text_image</summary>
Noise Gate - Inp1
-42 50 30
Thu (dBu) Release Attack
Enable
</details>
Gating Threshold: the gating threshold is ranging from -80dB up to 0dBu.
This threshold is allowing to set a gating level for the microphones, pretty high, allowing in this way to open or close at level far from the common noise floor, so to open or close when a hi level signal, as the voice, is detected at the microphone's input or not.
Attack Time: it is ranging from 1ms up to 1 second and represent the speed of the Noise Gate in "closing" the input level once a signal in input is detected to be below the Gating Threshold.
Release Time: t is ranging from 10ms up to 1 second and represent the speed of the Noise Gate in "opening" the input level once a signal in input is detected to be above the Gating Threshold.
A Phantom power supply can be activated if microphones using a such power supply are chosen.
Note: at the bottom of the Meter Bar aside the level slider, both when Line or Microphone Input are selected, there is an indicator indicating in real time and precisely what's the current Input signal level in dBu
Note1: a "Balance" check box is also available.
When a Balanced Input is used, it has to be checked, so to get the proper input level adjustment.
If a Not Balanced Input is used, the box has to be left unchecked and the input level is automatically adjusted at +6dBu.
Note2: In order to help tuning properly the Noise Gate when used as Microphone Input On/Off Switch, 8 Leds indicating the Inputs status is available in the Led meters interface:
<details>
<summary>text_image</summary>
Phantom
Limit
Sgn/Clip
Feedback
Mic
Line
Input Off
Mute In
Mute Out
</details>
The line of "Input Off" leds is indicating when an Input is Off or Muted by the Noise Gate. In that case the related Led is turned RED.
Once set the microphone inputs configurations, if used the Noise Gate as microphone On/Off Switch, the Noise Gate parameters and mainly the Gating Threshold can be tuned checking when the corresponding Input will be muted without any direct source in input but the noise floor.
<h1 id="32-outputs-page">3.2 OUTPUTS PAGE</h1>
From this windows is possible to access and edit the most significant signal processes of the 8 output channels.
<details>
<summary>line</summary>
| Frequency (Hz) | Voltage (dB) |
| -------------- | ------------ |
| 20 | 0 |
| 100 | ~5 |
| 1K | ~0 |
| 10K | ~5 |
</details>
High Pass Filter: from this sub-frame it is possible to set the Output Channels High Pass Filter (HPF).
"Frequency": (Low Cut frequency) the selectable frequencies range is from 20Hz to 20kHz in steps of 1/24 of an Octave.
"Slope": allows you to select the X-Over's High Pass Filter Shape and Order.
The available shapes and orders for the High Pass Filter are listed below:
- Bypass (High Pass Filter Bypassed)
- Buttw 6dB (Butterworth Filter 6dB/Oct Slope)
- Buttw 12dB (Butterworth Filter 12dB/Oct Slope)
- LRiley 12dB (Linkwitz/Riley Filter 12dB/Oct Slope)
- Bessel 12dB (Bessel Filter 12dB/Oct Slope)
- Buttw 18dB (Butterworth Filter 18dB/Oct Slope)
- Buttw 24dB (Butterworth Filter 24dB/Oct Slope)
- LRiley 24dB (Linkwitz/Riley Filter 24dB/Oct Slope)
- Bessel 24dB (Bessel Filter 24dB/Oct Slope)
Low Pass Filter: from this sub-frame it is possible to set the Output Channels Low Pass Filter (LPF).
"Frequency": (High Cut frequency) the selectable frequencies range is from 20Hz to 20kHz in steps of 1/24 of an Octave.
"Slope": allows you to select the X-Over's Low Pass Filter Shape and Order.
The available shapes and orders for the Low Pass Filter are listed below:
- Bypass (High Pass Filter Bypassed)
- Buttw 6dB (Butterworth Filter 6dB/Oct Slope)
- Buttw 12dB (Butterworth Filter 12dB/Oct Slope)
- LRiley 12dB (Linkwitz/Riley Filter 12dB/Oct Slope)
- Bessel 12dB (Bessel Filter 12dB/Oct Slope)
- Buttw 18dB (Butterworth Filter 18dB/Oct Slope)
- Buttw 24dB (Butterworth Filter 24dB/Oct Slope)
- LRiley 24dB (Linkwitz/Riley Filter 24dB/Oct Slope)
- Bessel 24dB (Bessel Filter 24dB/Oct Slope)
EQ: from this sub-frame it is possible to set the Output Channels five available Peaker (Bell) or variable Q Shelving Filters.
The DMM 8008 allows the user to select either Bell or variable Q Shelving Parameters and assign them independently using the 5 available filters.
The selection can be done just pressing the "Peak Eq" button on top of the filters' gain sliders and selecting one of the 3 available filters' type: Peaker, variable Q high Shelving and variable Q low Shelving.
BELL Filter: here Center Frequency, Band Width (Q) and Gain can be adjusted.
"Center Frequency": the selectable frequencies range is from 20Hz to 20kHz in steps of 1/24 of an Octave.
"Bandwidth BW": the selectable BW range is from 0.0312 Octave (Q=10) up to 3.59 Octave (Q=0.4) in steps of 0.1 Q.
"Gain": the selectable Gain range is from -12dB to +12dB in steps of 0.5 dB.
Variable Q Low Shelving Filter: here Center Frequency, Band Width (Q) (Slope) and Gain can be adjusted.
"Center Frequency": the selectable frequencies range is from 20Hz to 20kHz in steps of 1/24 of an Octave.
"Bandwidth BW (Slope)": the selectable BW range is from 0.0312 Octave (Q=10) up to 3.59 Octave (Q=0.4) in steps of 0.1 Q.
"Gain": the selectable Gain range is from -12dB to +12dB in steps of 0.5 dB.
Variable Q High Shelving Filter: here Center Frequency, Band Width (Q) (Slope) and Gain can be adjusted.
"Center Frequency": the selectable frequencies range is from 20Hz to 20kHz in steps of 1/24 of an Octave.
"Bandwidth BW (Slope)": the selectable BW range is from 0.0312 Octave (Q=10) up to 3.59 Octave (Q=0.4) in steps of 0.1 Q.
"Gain": the selectable Gain range is from -12dB to +12dB in steps of 0.5 dB.
Note: each single filter can be independently "bypassed" for an easy setting/use of them. To "Bypass" the single filter, just press the "Bypass" button below the filter's parameters.
The set up of the filters and specially their frequency placement can also be done with the use of the mouse, just activating the "Show Cursor" function, pressing the related button on the left bottom of the frequency response Graphic.
<details>
<summary>line</summary>
| Frequency | Value |
| --------- | ----- |
| 20Hz | -30 |
| 100Hz | 6 |
| 1KHz | 0 |
| 10KHz | 6 |
</details>
Once the all 5 available cursor are shown on the Frequency Response graphic, just selecting anyone of them with the mouse's arrow and maintaining the mouse's click pressed, it is possible to move and place the selected cursor on the desired frequency and with the desired gain.
For setting the filter's Q, still need to enter the desired value directly in the dedicated box in the filters' editing main sub-frame.
In order to see what's the "Phase" response of the channel once set up the all filters of the EQ, it is possible, selecting the Phase choice on the top right of the Graphic window, to turn the graphic in "Phase Response Graphic":
<details>
<summary>line</summary>
| Frequency | Value |
| --------- | ----- |
| 20Hz | 40 |
| 50Hz | -180 |
| 100Hz | 30 |
| 1KHz | 0 |
| 10KHz | 40 |
| 10XHz | 40 |
</details>
Step dB - this simple function is allowing to set the resolution in dB of the Grid Lines of the Graphic displaying the Magnitude response of the equalization.
The resolution can be set in a range from 5dB up to 50dB, by steps of 5dB.
Offset dB - here can be set an "offset" in dB in visualizing the Magnitude response of the equalization.
Once added a positive offset, more space is given in the graphic to the visualization above the 0dB, when a negative offset is added, more space is given to the visualization below the 0dB.
The offset can be set in a range from 10dB up to -120dB, by steps of 10dB.
Level [dB] – from this sub-frame it is possible to set the Output Channels Level from -127dB up to +18dB.
Pressing the "Bypass" button at the bottom of the Level slider, the currently set level will be skipped and the output level will be set to 0dB.
Phase - when this check box is "unchecked" the processed signal is left with its original phase.
When the check box is "checked", then the original phase of the signal is inverted of 180Deg.
Delay - from this sub-frame it is possible to set the Output Channels Delay Time from 000.0000mS (0 meters) up to 380.998mS (129.53932 Meters), by steps of 1mS (Adj arrows) or 20.8uS (Fine arrows).
On each Output channel is available a powerful RMS compressor for improving the sound quality, followed by a Peak limiter useful for limiting the output signal before to enter the amplification system.
Each, RMS Compressor and Peak Limiter, can be independently set.
The editable parameters can be accessed directly from the RMS Compressor and Peak Limiter subframes, or entering a dedicated window accessible from both the sub-frames pressing the buttons "RMS Compressor" or "P. Limiter".
Both RMS Compressor and Peak limiter can be quickly skipped and re-activated by pressing the "Bypass" button within the respective sub-frames.
RMS Compressor – from this sub-frame it is possible to set the Threshold, Ratio, Attack Time, Release Time and "Knee" type of the Output Channels' RMS Compressor.
<details>
<summary>line</summary>
| Input [dB] | TPI [dB] |
| ---------- | -------- |
| -40 | 40 |
| -30 | 60 |
| -20 | 80 |
| -10 | 10 |
| 0 | 12 |
| 10 | 15 |
| 20 | 20 |
| 30 | 25 |
| 40 | 30 |
| -13 | 35 |
</details>
<details>
<summary>line</summary>
| Metric | Value |
|--------|-------|
| Threshold [dBm] | -10 |
| Ratio [dBm] | 3.1 |
| 30% Kover [%] | 100 |
| Release [sec] | 1.1 |
| Attack [sec] | 10 |
</details>
"Threshold": the selectable range of the RMS Compressor's Threshold is from +14,2dBu (OFF) to -33,8dBu in steps of 0.2dBu
"Ratio": the selectable range of the RMS Compressor's Ratio is from 1:1 (Off) up to 32:1 (Lim) in steps of 1.
"Hard/Soft Knee": the selectable range of the RMS Compressor's Knee type is from 000% (Hard) up to 100% (Soft).
"Release Time": the selectable range of the RMS Compressor's Release Time is from 0.1s to 3s in steps of 0.1s.
"Attack Time": the selectable range of the RMS Compressor's Attack Time is from 5ms to 200ms in steps of 1ms - from 5ms to 20ms then 5ms - from 20ms to 30ms then 10ms - from 30ms to 100ms and 20ms - from 100ms to 200ms.
Note: The RMS Compressor Threshold is defined in dBu, due to the fact that with both, Sinusoid and Squared wave testing signals, the DMM 8008 compressed output dBu (RMS) Level is the same and matching the selected one.
Peak Limiter – from this sub-frame it is possible to set the Threshold, Attack Time and Release Time of the Output Channels' Peak Limiter.
<details>
<summary>line</summary>
| Parameter | Value |
| --------------- | ----- |
| Threshold [dBu] | -10 |
| Ratio hi: 1 | 0.346 Vp |
| S/H Knee Ots | 1.0 |
| Release [sec] | 3.0 |
| Attack [va] | 10 |
</details>
"Threshold": the selectable range of the Peak Limiter's Threshold is from +14,2dB (Limiter not active) to -33,8dB in steps of 0.2 dB.
"Release Time": the selectable range of the Peak Limiter's Release Time is from 0.1s to 3s in steps of 0.1s.
"Attack Time": the selectable range of the Peak Limiter's Attack Time is from 5ms to 200ms in steps of 1ms - from 5ms to 20ms then 5ms - from 20ms to 30ms then 10ms - from 30ms to 100ms and 20ms - from 100ms to 200ms.
Note: The Peak limiter Threshold is defined in Vp, due to the fact that with both, Sinusoid and Squared wave testing signals, the DMM 8008 Peak Limited output Vp (Peak-Peak) Level is the same and matching the selected one.
<h1 id="33-routing-page">3.3 ROUTING PAGE</h1>
<details>
<summary>text_image</summary>
DMM8008 - Program lead from device - 01
Status: Offline
Output Routing
Out1 Out2 Out3 Out4 Out5 Out6 Out7 Out8
Editing mix routing
Output Selected
Out1 Out2 Out3 Out4
Out5 Out6 Out7 Out8
Output mix level
Out1 Out2 Out3 Out4 Out5 Out6 Out7 Out8
Reset
</details>
The routing Page is allowing to set the Matrix Structure of the DMM 8008 sign to each Output the desired Inputs.
On the "Output Routing" Matrix block activating the desired "node" will connect the Input and the Output related to the Node.
On the "Editing mix routing", it is possible to adjust the Level of each input assigned to the Output selected by the related button.
So, selecting any one of the available 8 buttons, the related Output will be "formed" by the addition of the all inputs (assigned by the "Output Routing" Matrix Block, with the Level percentage defined by the "Output mix level" sliders.
The Levels of the "mixed inputs" to the selected outputs, can range from -30dB up to 0dB.
<h1 id="34-overview-page">3.4 OVERVIEW PAGE</h1>
<details>
<summary>flowchart</summary>
Within the Overview Page, can be checked the all channels inputs selection (between Microphone and Line), so as any of the available processes can be accessed double clicking on its name in the processes' block diagram. Particularly, in this page is also resumed the current selections operated for the Inputs in terms of available Eq or Feedback Eliminator processes, when Microphone Input is selected.
Here also can be selected the "Unit" for defining the amount of delay available on each output. The Delay can be actually set in "meters" or "milliseconds".
In the Overview Page are also accessible the Editing Pages of the Automixer and Priority Ducker. The DMM 8008 is running 2 Classic Automixer processes, the NOM (Number of Opened Microphones) and the Gain Sharing. These 2 processes are used with microphones in Conference Systems for Voice quality improvement and Feedback effect reduction.
Has to be noticed here that the DMM 8008 can run together with the Classic NOM and Gain Sharing processes, also the First order Low Pass filter and mainly the Frequency shift Feedback Eliminator. This is providing a very strong Anti Feedback characteristic to the unit, which can let the NOM and Gain Sharing processes act mainly in terms of Voice quality and intelligibility improvement.
The Priority Ducker is a process able to assign to up to 4 microphone/line inputs, priority on the others, which will be attenuated in their input level as soon as a signal is detected on one of the input having the Priority. The Priority Ducker is mainly used in Conference System applications, there where is necessary to assign a priority to a microphone used by one Chairman or more equal priorities speakers. Nevertheless, the Priority Ducker can be very useful also in installation systems, there where a microphone or line input is used as Priority channel for priority or urgent announcements.
3.5 AUTOMIXER FUNCTIONS
The DMM 8008 can perform 2 Classic processes of the Automixers, the NOM Attenuation and the Gain Sharing one.
NOM Attenuation : this is a process able to detect the number of microphones active (Opened) at the same time and, on the base of the Number of Opened Microphones, it is applying a predefined amount of attenuation to each microphone's input.
A simple formula determines the NOM Attenuation: "Attenuate by 3dB for every doubling of the Number of Open Microphones", which translates to the following:
NOM Attenuation = 10log(NOM)
Here are some examples to better illustrate the NOM attenuation:
- 1 active microphone means no attenuation: 10(1) = 0dB
- 2 active microphones translates to doubling the NOM: 10 (2) = 3dB of attenuation
Once the limit of 8 active microphones is reached (9dB attenuation), the NOM count and attenuation maximum is reached and will not increase further (hopefully the eight people trying to talk at once will have figured that out by then...).
Here following a table resuming the NOM Attenuation applied on the base of the number of Opened Microphones:
| NOM | Output Gain Adjustment (dB)10log (NOM) |
| 1 | 0 |
| 2 | -3.0 |
| 3 | -4.8 |
| 4 | -6.0 |
| 5 | -7.0 |
| 10 | -10.0 |
| 20 | -13.0 |
| 100 | -20.0 |
Note: The NOM attenuation could be free confidurable.
Gain Sharing: This process is based on a dynamic control of the gain of each microphone channel; the gain of each channel is adjusted by comparing its level to the level of the sum of the level of the all microphones.
The gain is computed so that the combined system gain of all microphones remains constant.
In this way, the microphones with the strongest signal are given the highest gain and those with low level signals have their gain reduced.
Specifically, each microphone channel is attenuated (turned down) by the amount, in dB, equal to the difference between that microphone channel's level and the sum of all microphone channel levels.
In example, if two talkers are each speaking on their own microphone channel at the same level, then the level of the sum of all channels would be 3 dB higher than the level from each of these mics (power addition).
Each microphone would then be turned down 3 dB.
If a person is being picked up equally by two microphones, the sum of these two signals would increase 6 dB. (The 6 dB increase results from the addition of two coherent signals.)
The level in each mic channel would be 6 dB lower than the sum and the gain of each mic is reduced 6 dB.
The resulting output would be the same as if only one mic were on. In a final example, a talker is speaking into his mic, but his voice also enters an adjacent microphone at a level 4 dB lower.
In a gated system, this second mic could very easily be gated "on" creating comb filtering effects.
In the gain sharing system, the gain of the second mic will be attenuated 4 dB.
This makes the level from the second mic 8 dB lower than the first, which will greatly reduce the interference. As said, the DMM 8008 can perform both processes.
The user can select which one to make active, entering the Automixer editing page and selecting the desired process, checking the related check box.

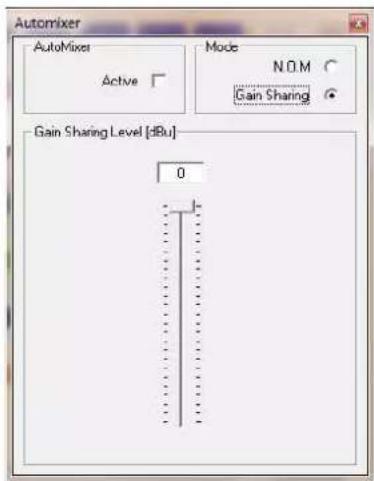

![Automixer AutoMixer Active Mode NOM Gain Sharing Gain Sharing Level [dBu] 0](/content/2026/05/956652/images/a507e92b552da6b62f554553a7e60591d7bd88aebce7ac19ae168514f9e34487.jpg)
If selected the Gain Sharing option, the Max Gain available to the SUM of the all microphones can even be set using the Gain Sharing level Slider.
When the Slider is set on 0dB, the MAX output available (virtually 0dB) is available to the SUM of the all microphones level.
If the slider is set at a different value, as in example -6dB, the Max gain allowed to the SUM of the all microphones level is -6dB.
This means that respect the case of the slider set to 0dB, the Gain of the microphones will start to be adjusted 6dB earlier when the slider is set to -6dB.
3.6 PRIORITY DUCKER
The Priority Ducker is a Side-Chain dynamic process, used to attenuate the level of a certain number of input channels on the base of a signal detected on an independent input.
In our case, the Priority Ducker Process is allowing to select from 1 to 4 Inputs as inputs having priority on the other ones.
When signal above a defined threshold is detected on one of the Priority Inputs, the all others are attenuated of a defined amount of dB.
The Priority Ducker implemented on the DMM 8008 is allowing to assign to up to 4 of the all available Microphone/Line Inputs, Priority on the others.
Particularly, when a signal above the Gating threshold is detected on one of the Priority Inputs, the other inputs are attenuated of the Attenuation Level.
The Attenuation action is taken with the Attack Time speed and is maintained for the Hold time, after the signal on the Priority channels dropped below the Gating Threshold, before to go back to the original level in a time defined by the release time.
The all parameters of the DMM 8008 Ducker, can be set within the Ducker Edit Parameters window
![Ducker edit parameters Priority Input Channel ✓ 1 ✓ 2 ✓ 3 ✓ 4 ✓ 5 ✓ 6 ✓ 7 ✓ 8 Contim Parameters 30 11 3 -40 -74 Hold Time [ms] Release Time [ms] Attack Time [ms] Gating Thr [dB] Attenuation Level [dB]](/content/2026/05/956652/images/ae132efd3f690a1d4ce03bbf52d79ca8e3d4821e905f5f6750cfab61c87bfe2a.jpg)
Here can be defined the following
Priority Input Channel: up to 4 check boxes can be checked for choosing up to 4 channels which will have priority on the unchecked ones.
Once selected the Priority Channels, in order to make the Priority effective, need to confirm the selection pressing the "Confirm" button.
Gating Threshold: it is the threshold defining the limit has to be passed by the input signal level on the Priority channels to activate the ducking process and it is ranging from -44dB up to 0dB.
Attenuation Level: it is amount of attenuation applied to the channels not having priority when the Ducking process is active and is ranging from 0dB up to -80dB.
Attack Time: it is the speed needed by the Ducking process to reach the set Attenuation Level once the Ducking process is activated and is ranging from 1ms up to 2 seconds.
Hold Time: it is the time in between the de-activation of the Ducking process and the Release action and is ranging from 10ms up to 1 second
Release Time: it is the speed needed by the Ducking process to get back to the original gain level of the channels not having Priority, once the Ducking process is de-activated and is ranging from 1ms up to 2 seconds.
3.7 BACKGROUND UTILITIES

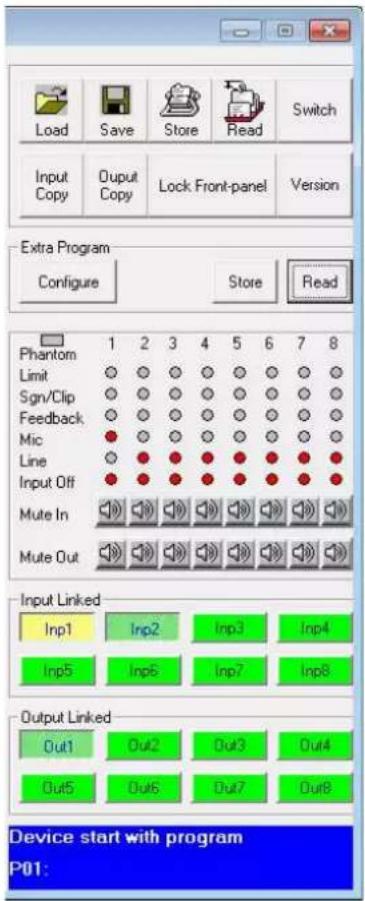

In this background screen, ever present together with the other editing pages, is displayed the channels' status.
Here are mainly reported the all activities of the DMM 8008 front panel's leds.
Each Input/Output channel can be muted so as input channels and output channels can be "linked" together so to report on the all linked channels the same parameters adjustments.
To link 2 or more channels, it is enough to press the related buttons within the "Input Linked" and "Output Linked" frames.
The Main output Level can also be adjusted from this Utilities window.

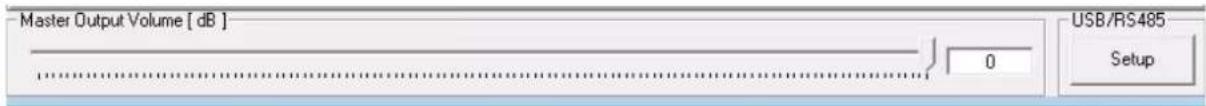

![Master Output Volume [ dB ] ---------------- 0 Setup USB/RS485](/content/2026/05/956652/images/a5b456595315b3f15c238c4087b4b09812f2ea3d870c7e26d5e3bb102335f1bd.jpg)
This is the same Level control used by the Wall Panel Remote Control.
Through the "Setup" button a selection window can be accessed allowing to set the DMM 8008 in Manual Mode, choosing the USB or RS485 interface, or in Automatic mode.
From the Utilities Window, can be accessed also the all processes for Saving/Recalling presets to/from Pc and to/From the DMM 8008 and for configuring Special Processes activated by the External Switch Input Ports.
Particularly:
Load: allows to load on the Pc Remote Control a configuration previously saved on Pc
Save: allows to save on Pc the current editing session
Store: allows to store on the DMM 8008, in one of the 6 available location, the current editing session
Read: allows to read from the DMM 8008, one of the 6 stored presets and to display it on the current editing session
Input Copy: allows to copy the setting of one Input channel on an other one
Output Copy: allows to copy the setting of one Output channel on an other one

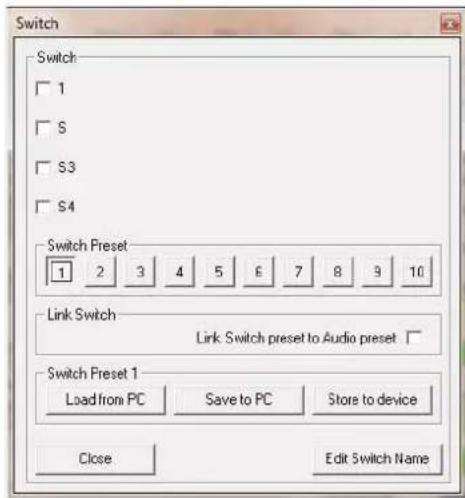

Switch: this particular button is allowing to enter e window where from up 4 lines (switches) can be set as 0 (boxes unchecked) or 5V (boxes checked).
The switches controlled by this window actually set as 0V or 5V the physical 4 output "switch" lines available on the DMM 8008 back panel and useful for controlling remote devices.
From this editing window, up to 10 different presets can be created, where a specific Switches configuration is assigned.
In order to create the presets, need first to press one of the 10 "Switch Preset" buttons
Once the specific button is presses, to that button will be assigned the current status of the 4 S1/S2/S3/S4 switches.
To any button, a different S(x) configuration can be assigned.
The different configuration will be maintained until the Pc Sw is open.
On the Pc can be saved ONLY a Configuration a time, the Pc will not store the configurations of the 10 buttons.
Therefore, on Pc will be saved any time the current configuration of the Switches S1/S2/S3/S4.
The several configurations can be then recalled and they'll be assigned to the currently pressed "Switch Preset" button.
In example, creating the following configuration
S1 = checked
S2 = unchecked
S3 = unchecked
S4 = unchecked
The configuration can be saved on Pc as "S1_On".
If recalled, when the Switch Preset button ONE is pressed, then to the Switch Preset Button 1 will be associated with the above configuration of the switches.
Different S(x) configurations can be saved with different names and be associated to different Switch Preset buttons.
Once assigned different S(x) configurations to different Switch Preset buttons, the user can recall the several configurations from Pc Sw just pressing the several Switch Preset buttons.
In order to store the 10 Preset configurations within the DMM 8008, so to be able to recall them by DMM 8008 front panel or together with the "Audio Presets" if active the "link" function (see later), it is enough to press any Switch Preset button in order to make it active and press the "Store to Device" button.
The preset related to the currently active Switch Preset button, will be stored in the equivalent preset location within the DMM 8008.
In order to store the all 10 presets, need to make active one by one the all Switch Preset buttons and for anyone of them press the "Store to Device" button.
Once stored within the DMM 8008, the 10 presets controlling the S(x) switches status can be recalled manually and independently from the "Audio" Presets, from the unit's front panel.
If the User want to recall the Switch Presets together with the Audio Presets, which would mean that together with the Audio preset number 1, the user want to be recalled also the Switch Preset number 1 (the Audio preset and Switch Preset numbers have to match...), then is necessary to LINK the Audio Presets and the Switch Presets.
This can be done checking the "Link Switch preset to Audio preset" check box within the Link Switch frame of the Switch Editing window.

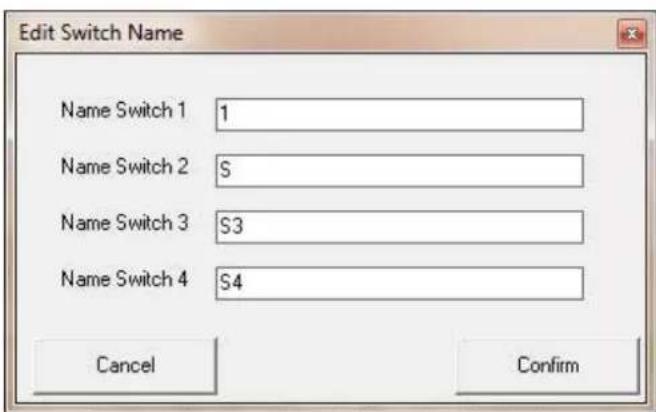

To the Switches can also be assigned a NAME, just pressing the "Edit Switch Name" button and entering the Edit Switch Name window
Extra Program: the External Program section is allowing the user to set as active or not active anyone of the 4 available Input Switches.
When set as active one or more of them, it is also possible to define with the "Configure Mode" option, if the Input Switch signal has to be considered active on its High or Low level detected.
Furthermore, it is also possible, in case more Events related to the Input Switches are occurring at the same time, so activating at the same time more than one Switch, to assign a Priority in "serving" the events related to the active Switches (see below).
The desired Priority can be set selecting one of the 8 options available, corresponding to the following Priority Table (accessible pressing the "?" button aside the "Configure Priority" selection box):
| Priority | With mode - Signal Active High | With mode - Signal Active Low |
| 0 | recall program E4 if S4 = 1 orrecall program E3 if S3 = 1 orrecall program E2 if S2 = 1 orrecall program E1 if S1 = 1 | recall program E4 if S4 = 0 orrecall program E3 if S3 = 0 orrecall program E2 if S2 = 0 orrecall program E1 if S1 = 0 |
| 1 | recall program E3 if S3 = 1 orrecall program E2 if S2 = 1 orrecall program E1 if S1 = 1 orrecall program E4 if S4 = 1 | recall program E3 if S3 = 0 orrecall program E2 if S2 = 0 orrecall program E1 if S1 = 0 orrecall program E4 if S4 = 0 |
| 2 | recall program E2 if S2 = 1 orrecall program E1 if S1 = 1 orrecall program E4 if S4 = 1 orrecall program E3 if S3 = 1 | recall program E2 if S2 = 0 orrecall program E1 if S1 = 0 orrecall program E4 if S4 = 0 orrecall program E3 if S3 = 0 |
| 3 | recall program E1 if S1 = 1 orrecall program E4 if S4 = 1 orrecall program E3 if S3 = 1 orrecall program E2 if S2 = 1 | recall program E1 if S1 = 0 orrecall program E4 if S4 = 0 orrecall program E3 if S3 = 0 orrecall program E2 if S2 = 0 |
| 4 | recall program E1 if S1 = 1 orrecall program E4 if S4 = 1 orrecall program E3 if S3 = 1 orrecall program E2 if S2 = 1 | recall program E1 if S1 = 0 orrecall program E4 if S4 = 0 orrecall program E3 if S3 = 0 orrecall program E2 if S2 = 0 |
| 5 | recall program E2 if S2 = 1 orrecall program E3 if S3 = 1 orrecall program E4 if S4 = 1 orrecall program E1 if S1 = 1 | recall program E2 if S2 = 0 orrecall program E3 if S3 = 0 orrecall program E4 if S4 = 0 orrecall program E1 if S1 = 0 |
| 6 | recall program E3 if S3 = 1 orrecall program E4 if S4 = 1 orrecall program E1 if S1 = 1 orrecall program E2 if S2 = 1 | recall program E3 if S3 = 0 orrecall program E4 if S4 = 0 orrecall program E1 if S1 = 0 orrecall program E2 if S2 = 0 |
| 7 | recall program E4 if S4 = 1 orrecall program E1 if S1 = 1 orrecall program E2 if S2 = 1 orrecall program E3 if S3 = 1 | recall program E4 if S4 = 0 orrecall program E1 if S1 = 0 orrecall program E2 if S2 = 0 orrecall program E3 if S3 = 0 |
| S1-S4 refer to the respective contacts of the Input Port terminal | ||
Once operated the all desired selections, need to "Confirm" them before to exit the "Configure External Signal" Page.
To anyone of the 4 External Switches (Events) can be related a specific process.
This process is corresponding to a Input/Output specific Configuration (Preset), that has to be recalled ONLY if the related Event (Switch Active) is occurring.
So, 4 Extra Presets other than the 6 available for the normal operations, can be created and stored, so to be recalled ONLY when the related event is occurring.
Once create the 4 Extra Presets, they can be stored within the DMM 8008 Through the Button "Store":

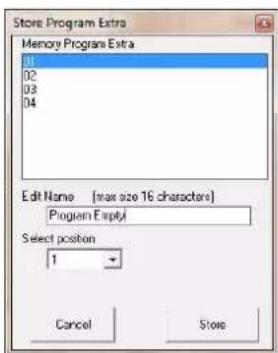

![Store Program Extra Memory Programs Extra 11 02 03 04 Edit Name [max size 16 characters] Program Empty Select position 1 Cancel Store](/content/2026/05/956652/images/9a533af3d7834da276901a027a002d3bc5e3a9f978f05e6feb753640be5ffc7c.jpg)
The Extra Presets can be saved in 4 available locations where the location number is corresponding to the related Switch Input Event.
To anyone of the 4 Extra Preset can be assigned a specific name.

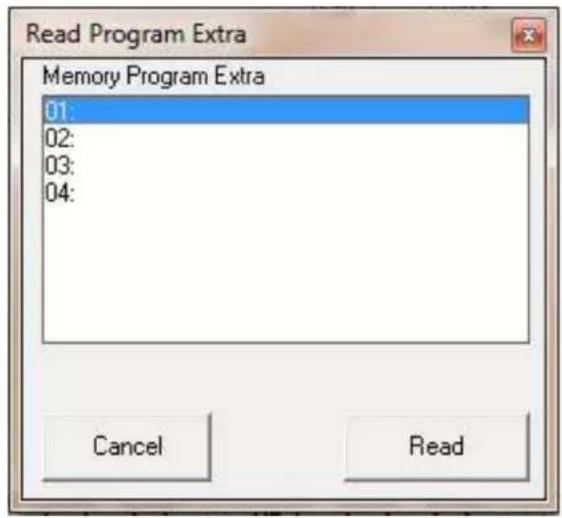

Once saved the Extra Presets, they can be anytime recalled for check using the "Read" button.
For Leaving the Remote control Sw, it is enough to click "Exit" on the "file" option on the top left corner of the Main Editing Environment.
Once left the Pc Sw Remote Control, the DMM 8008 will go back to the Stand Alone Mode and the LCD will display the currently running preset:
DMM 8008
01: Current Preset Name
4. TECHNICAL SPECIFICATIONS
Audio
| Analog Input | 8 electronically balanced ( Mic - Line - Unbalanced ) |
| Analog Output | 8 electronically balanced |
| Maximum Input Level | Line: +14dBu; Mic: -20/0dBu (+6dBu unbalanced ) |
| Mic Input Gain | 35dB ( 23dB analog, 12dB digital ) |
| Maximum Output Level | +14dBu |
| THD+N | 0.005% at 1kHz 0dBu |
| S/N | >104dBA |
| Frequency Response | 20Hz-20kHz +/-1dB |
| AD & DA Converters | 4 x AK5385B 24bit, 1 x Ak4358 24bit (48kHz) |
| Phantom Power | 48Vdc |
| Impedance Line Mic Input 3300 Ohm / Outputs 115 Ohm | |
DSP & Processing
| DSP Engine | Dream SAM3716, 24bit (data) x 96bit (coeff.) |
| DSP Resolution | 24 x 32 bit for filtering process; 96bits resolution on intermediate computation results |
| Input Equalization | 3-band parametric selected as peaking or Low/High shelving with variable Q per input channelLow/High pass 1st order filter per input channel |
| Output Equalization | 5-band parametric EQ selected as peaking or Low/High shelving with variable Q per output channel |
| Filter Gain | From -12dBu up to +12dBu by 0.5dBu resolution steps |
| Center Frequency | Selectable with a 1/24th of octave resolution step from 20Hz up to 20kHz |
| Filter Q/BW | Q from 0.4 up to 10 by 0.1 resolution steps |
| Crossover Section HPF/LPF | Butterworth 6/12/18/24dB per octaveBussel, Linkwitz-Riley and custom 12/24dB per octaveFilter resolution 1/24th of octave |
| RMS Compressor and Peak Limiter | Threshold from 14dBu up to -34dBuAttack time from 5ms up to 200ms (1ms resolution up to 20ms, 10ms resolution up to 100ms and 20ms resolution up to 200ms)Release time from 0.1 sec up to 3 sec (0.1 sec resolution)Ratio from 1:1 to 32:1 (compressor only)Adjustable soft or hard knee (compressor only) |
| Delay | 380,998 ms 21 us increment/decrement steps per output channel only |
| Feedback Eliminator | Pitch shifting algorithm only for Mic input channels |
| Automixing Functions | NOM attenuation, Gain sharing algorithm and priority ducking processing |
General
| Device Presets | 6 user presets + 4 by using S1-S4 digital input ports |
| Front Panel | 2 x 24 character LCD display with white/blue LED backlight |
| 6-LED status indicators (Line, Mic, Mute I/O, Signal, Clip,Limiter) | |
| 1-LED indicator Phantom power | |
| 6 x front push button (Preset recall, Setup) | |
| USB type B connector | |
| Rear Panel | 2 x 12 pin Phoenix connector (Mic/Line inputs) |
| 2 x 12 pin Phoenix connector (Line outputs) | |
| 2 x 4 pin Phoenix connector (S1-S4 digital input ports - TTL level 0-5V) | |
| 2 x 4 pin Phoenix connector (S1-S4 digital output ports - TTL level 0-5V) | |
| 2 x RJ45 for RS485 In/Out connection | |
| 1 x RJ45 with activity leds for Ethernet connection (10/100 TCP-IP) | |
| IEC C13 16A connector; power on/off switch | |
| Optional Device | FBT WP8008 wall panel control |
| Included Software | PC users interface; |
| Main AC | 90-240Vac (50/60Hz) - 40W |
| Dimensions | 19" x 1.75" x 9" (483 x 44 x 229mm) - 1RU |
| Weight, Net/Shipping | 7.71lbs (3.5kg) / 8.82lbs (4kg) |
Specifications subject to change without notice.
5. BLOCK SCHEME
DMM 8008 Pro Digital Matrix 8 in x 8 out with «Feedback Elim OR EQ, Auto mix and Priority Ducker»
6. COMMUNICATION PROTOCOL
U.A.R.T. SETTING
BAUD-RATE = 57600
PARITY = NONE
DATA BIT = 8
BIT STOP = 1
TCP/IP SETTING
REMOTE_PORT = 1001
IP ADDRESS = from 1.0.0.1 to 223.255.255.254 with:
- IP=1.0.0.2 to IP=126.255.255.254 automatically SUBNET MASK=255.0.0.0
- IP=127.0.0.2 to IP=191.255.255.254 automatically SUBNET MASK=255.255.0.0
- IP=192.0.0.2 to IP=223.255.255.254 automatically SUBNET MASK= 255. 255. 255. 0
GATEWAY = IP(0). IP(1). IP(2). 1
FRAME PROTOCOL
The REMOTE CONTROL must be send to the DEVICE the following frame:
TX:
STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX
Where:
STX = F0H Start message
ID_M = 46H Id device
ID_N = 0,..,64 Id number device (0 only for USB / TCP/IP connection; 1,..,64 for RS485)
CMD = xx Command type
When the DEVICE receive this frame it evaluate the command type and after the execution it resend to the REMOTE CONTROLL an acknowledge, This acknowledge is dependent on the command type
COMMAND TYPE
CONNECTION REQUEST 00H
UPDATE GAINS-PHASE-MUTE 01H
UPDATE ROUTING 08H
CLOSE SINGLE DEVICE 0FH
UPG_MASTERGAIN_CMD 16H
SWITCH_S_CMD 1AH
RECALL PRESET 1BH
CMD_UPG_BALANCED 1FH
INC_DECR_GAIN_LINKED_CMD 2FH
INC DECR GAIN CMD 30H
INC_DECR_MASTERGAIN_CMD 31H
INC DECR MASTERVOLUME_CMD 32H
MUTE_UNMUTE_CMD 33H
UPG_ONLY_GAINS_CMD 34H
CHANGE_PRESET_SWITCH_CMD 3DH
LINK_SWITCH_CMD 3EH
UPG AUTOMIX BYP CMD 61H
UPG AUTOMIX MODE CMD 62H
UPG AUTOMIX GS CMD 64H
READ AUTOMIX NOM ATT CMD 0EH
UPG_DUCKER_PRIORITY_CMD 66H
UPG DUCKER HOLD CMD 67H
UPG_DUCKER_REL_ATK_CMD 68H
UPG DUCKER THR CMD 69H
VUMETER_OUT_CMD 36H
VUMETER_LIM_CMD 37H
VUMETER CMP CMD 38H
READ_VERSION_CMD 39H
CLOSE ALL DEVICES 8FH
READ_MAC_ADDRESS_CMD B2H
VUMETER_IN_CMD 55H
COMMUNICATION BETWEEN DEVICE AND REMOTE CONTROL
READ\_VERSION\_CMD: CMD=39H
TX:
| STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX | ||||||||||||
| F0H 46H XX 39H 00H 00H 00H 00H 00H 00H 00H F7H |
RX:
| STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX | |||||||||||||
| F0H 46H XX 39H Sm0 Sm1 Sm2 St0 St1 St2 46H Type F7H | |||||||||||||
The SyncMos version is V1.0 so the user can read Sm0 = 0, Sm1 = 1, Sm2 = 0
The current STM8S version is V1.0.2 so the user can read ST0 = 1, ST1 = 0, ST2 = 2
Type: type of the device, Type=1 then the device is DMM8008
CONNECTION REQUEST: CMD=00H
(to lock the hardware interface when the PC is connected)
TX:
| STX ID_M ID_N CMD D0 D1 D2 D3 D4 | D5 D6 D7 ETX | |||||||||||
| F0H 46H XX 00H 00H 00H 00H 00H 00H 00H 00H F7H | ||||||||||||
RX:
| STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX | ||||||||||||
| F0H 46H XX 00H 46H 00H 00H 00H 00H 00H 00H F7H |
If the device is connect and the ID_N is correct then the device resend the same frame but with the D0=46H and the hw interface is locked
UPDATE GAINS-PHASE-MUTE: CMD=01H
TX:
| STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX | ||||||||||||
| F0H 46H XX 01H Chn 00H 00H VolL BypG Mute Phase VolH F7H |
Chn=0,...,15: Channel selected, 0,...7=In1,...,In8; 8,...,15=Out1,...,Out8
if Chn=0,...,7 then Input channel
BypG= Input Bypass Gain = 8 bit where LSB=Input1,..., MSB=Input8; Value=0,1 where 0=not bypass, 1=bypass
| bit7 bit6 bit5 | bit4 bit3 bit2 | bit1 bit0 | |||||
| input8 | input7 | input6 | input5 | input4 | input3 | input2 | input1 |
Mute= Input Mute = 8 bit where LSB=Input1,..., MSB=Input8; Value=0,1 where 0=Unmute, 1=Mute
Phase= Input Phase = 8 bit where LSB=Input1,..., MSB=Input8; Value=0,1 where 0=direct, 1=invers
VoIH + VoIL = Value a 16Bit = 0,...,1390 (-127dB to +12dB step 0.1dB),
if Chn=8,..,15 then Output channel
BypG= Output Bypass Gain = 8 bit where LSB=Output1,..., MSB=Output8; Value=0,1 where 0=not bypass, 1=bypass
Mute= Output Mute = 8 bit where LSB=Output1,..., MSB=Output8; Value=0,1 where 0=Unmute, 1=Mute
Phase= Output Phase = 8 bit where LSB=Output1,..., MSB=Output8; Value=0,1 where 0=direct, 1=invers
VolH+VolL= Output Gains = 16bit from 0 to 1450 (-127dB to 18dB step 0.1dB)
RX:
| STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX | ||||||||||||
| F0H 46H XX 01H Chn 00H 00H VolL BypG Mute Phase VolH F7H |
This is the acknowledge
UPG_ONLY_GAINS_CMD: CMD=34H
TX:
| STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX | |||||||||||||
| F0H 46H XX 34H Chn 00H 00H VolL 00H 00H 00H VolH F7H | |||||||||||||
Chn=0,...,15: Channel selected, 0,...7=In1,...,In8; 8,...,15=Out1,...,Out8
if Chn=0,...,7 then Input channel
VolH + VolL = Value a 16Bit = 0,...,1390 (-127dB to +12dB step 0.1dB),
if Chn=8,...,15 then Output channel
VoIH+VoIL= Output Gains = 16bit from 0 to 1450 (-127dB to 18dB step 0.1dB)
RX:
| STX ID_M ID_ | N CMD D0 | D1 D2 | D3 D4 | D5 D6 D7 | ETX | ||||||
| F0H 46H XX 34 | H Chn | 00H 00H | VoIL 00 | H 00H 00H | VoIH | F7H |
This is the acknowledge
UPDATE ROUTING: CMD=08H
TX:
| STX ID_M ID_ | N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX | |||||||||||
| F0H 46H XX 08 | H Chn 00H 00H | 00H 00H 00H N n Val F7 H | ||||||||||
Chn=8,...,15: Channel selected =Out1,...,Out8;
NIn = 0,...,7 Select input to the Output channel selected 0=In1,...,7=In8
Val = 0,..,30 Input Gain from -30dB to 0dB step 1dB
if the cross InputX to OutputY is disable (mute) then Val = 80H + Val
RX:
| STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX | ||||||||||||
| F0H 46H XX 08H Chn 00H 00H 00H 00H N in Val F7H |
This is the acknowledge
CLOSE SINGLE DEVICE: CMD=0FH
(to unlock the hardware interface)
TX:
| STX ID_M ID_ | N CMD D0 D1 D2 D3 D4 | D5 D6 D7 ETX | ||||||||||
| F0H 46H XX 0F | FH 00H 00H 00H | 00H 00H 00H 00H F7H | ||||||||||
RX:
| STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX | ||||||||||||
| F0H 46H XX 0F | FH 00H | 00H 00H | 00H 00H | H 00H 00H | 00H F7H | |||||||
UPG\_MASTERGAINS\_CMD: CMD=16H
TX:
| STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX | |||||||||||||
| F0H 46H XX 16H CHN 00H 00H 00H 00H ValH ValL F7H | |||||||||||||
CHN=0,8: Channel selected, 0= Input, 8=Output
ValH+ValL= MasterGains = 16bit from 0 to MaxIndex
If CHN = 0 then MaxIndex = 100 (0% to 100%)
If CHN = 8 then MaxIndex = 1270 (-127dB to 0dB step 0.1dB)
RX:
| STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX | |||||||||||||
| F0H 46H XX 16H CHN 00H 00H 00H 00H ValH ValL F7H | |||||||||||||
This is the acknowledge
SWITCH\_S\_CMD: CMD=1AH
TX:
| STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX | ||||||||||||
| F0H 46H XX 1AH 00H 00H 00H 00H 00H 00H Val | F7H | |||||||||||
Val= 4 bit, Value of the switch set line output 0V or 5V LSB=Line1,...,LSB+3=Line4; Value=0,1 where 0=Line 0V, 1=Line 5V
RX:
| STX ID_M ID_N CMD D0 D1 D2 D3 D4D5 D6 D7 ETX | ||||||||||||
| F0H 46H XX | 1AH 00H 00H 00H Vol_00H 00H 00H Val F7H | |||||||||||
This is the acknowledge
RECALL\_PRESET: CMD=1BH
TX:
| STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX | ||||||||||||
| F0H 46H XX | 1BH Npr 00H 00H 00H 00H 00H 00H F7H | |||||||||||
Npr = Recall number preset = 0,..,9
RX:
| STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX | ||||||||||||
| F0H 46H XX | 1BH Val 00H 00H 00H | 00H 00H 00H 00H F7H | ||||||||||
if preset selected is not empty the system load the new preset and return in D0 the value of the preset loaded
if preset selected is empty the system skip this command and return in D0 the value = FFH
CMD\_UPG\_BALANCED: CMD=1FH
TX:
| STX ID_M ID_N CMD D0 D1 D2 D3 D4D5 D6 D7 ETX | ||||||||||||
| F0H | 46H | XX | 1FH | Chn | 00H | 00H | 00H | 00H | 00H | 00H | Val | F7H |
Chn=0,...,7: Channel selected, 0,...7=In1,...,In8;
Val = Select input Balanced/Unbalanced = 8 bit where LSB=Input1,..., MSB=Input8; Value=0,1 where 0=Unbalanced, 1=Balanced
| bit7 bit6 bit5 | bit4 bit3 | bit2 bit1 | bit0 | |||
| input8 | input7 input6 | input5 input | t4 input | 3 input2 | input1 |
RX:
| STX ID_M ID_ | N CMD D0 D1 D2 D3 D4 | D5 D6 D7 ETX | |||||||||||
| F0H | 43H | XX 1FH Chn 00H 00H | 00H 00H 00H 00H Val F7H | ||||||||||
This is the acknowledge
CHANGE_PRESET_SWITCH_CMD: CMD=3DH
TX:
| STX | ID_M | ID_D | CMD | Data0 | Data1 | Data2 | Data3 | Data4 | Data5 | Data6 | Data7 | ETX |
| F0H | 46H | XX | 3DH | 00H | 00H | 00H | 00H | 00H | 00H | 00H | Val | F7H |
Val = 0,...,9 (preset1,...,preset10)
RX:
| STX | ID_M | ID_D | CMD | Data0 | Data1 | Data2 | Data3 | Data4 | Data5 | Data6 | Data7 | ETX |
| F0H | 46H | XX | 3DH | 00H | 00H | 00H | 00H | 00H | 00H | 00H | Val | F7H |
LINK_SWITCH_CMD: CMD=3EH
TX:
| STX ID | _M ID_D | CMD | Data0 | Data1 | Data2 | Data3 | Data4 | Data5 | Data6 | Data7 | ETX | |
| F0H | 46H | XX | 3EH | 00H | 00H | 00H | 00H | 00H | 00H | 00H | Val | F7H |
Val = 0,1 (0=Link OFF, 1=Link ON)
RX:
| STX ID | _M ID_D | CMD | Data0 | Data1 | Data2 | Data3 | Data4 | Data5 | Data6 | Data7 | ETX | |
| F0H | 46H | XX | 3EH | 00H | 00H | 00H | 00H | 00H | 00H | 00H | Val | F7H |
UPG_AUTOMIX_BYP_CMD: CMD=61H
TX:
| STX ID | _M ID_ | N CMD | D0 D1 | D2 | D3 D4 | D5 D6 | D7 ETX | |||||
| F0H | 46H | XX | 61H 00H 00H | 00H 00H | 00H 00H | 00H 00H | H 00H Byp F7H | |||||
ùByp= AutoMixerBypass, Value=0,1 where 0=bypass, 1=not byp
RX:
| STX ID | M ID | N CMD | D0 D1 | D2 | D3 D4 | D5 D6 | D7 ETX | |||||
| F0H | 46H | XX | 61H 00H 00H | 00H 00H | 00H 00H | 00H 00H | H 00H Byp F7H | |||||
UPG_AUTOMIX_MODE_CMD: CMD=62H
TX:
| STX ID | M ID | N CMD | D0 D1 | D2 | D3 D4 | D5 D6 | D7 ETX | |||||
| F0H | 46H | XX | 61H 00H 00H | 00H 00H | 00H 00H | 00H 00H | 00H Byp F7H | |||||
Mode= AutoMixerMode, Value=0,1 where 0=NOM (Number of Open Mic), 1=Gain Sharing RX:
| STX ID | _M ID_ | N CMD D | D0 D1 D2 | D3 D4 | D5 D6 D | 7 ETX | ||||||
| F0H | 46H | XX 62 | H 00H | 00H 00H | 00H 00H | 00H 00H | Mode | F7H |
UPG_AUTOMIX_GS_CMD: CMD=64H
TX:
| STX ID_M ID_N CMD D0 D1 D2 D3 D4 | D5 D6 D7 ETX | |||||||||||
| F0H | 46H | XX 64H 00H 00H 00H | 00H 00H LEV 00H 00H F7H | |||||||||
LEV= AutoMixer_GS_Level, Value=0,...,24 (-12dB to 0dB step 0.5dB)
RX:
| STX ID | _M ID_ | N CMD D | D0 D1 D2 | D3 D4 | D5 D6 D | 7 ETX | ||||||
| F0H | 46H | XX 64 | H 00H | 00H 00H | 00H 00H | LEV 00H | 00H F7H |
UPG_AUTOMIX_NOM_ATT_CMD: CMD=6AH
TX:
| STX ID | _M ID_ | N CMD D | D0 D1 D2 | D3 D4 | D5 D6 D | 7 ETX | ||||||
| F0H | 46H | XX 6A | H Mic1 | Mic2 Mic | 3 Mic4 | Mic5 Mic6 | Mic7 Mic8 F7H |
Define the attenuation of the MIC(s) when the user use 1,2,...,8 mic, valid only if the mode is N.O.M
Mic1,...,8= value of the attenuation :0,...,200 (-20dB to 0dB step 0.1dB)
RX:
| STX ID | M ID | N CMD | D0 | D1 | D2 | D3 | D4 | D5 | D6 | D7 | ETX | |||||
| F0H | 46H | XX | 6AH | Mic1 | Mic2 | Mic3 | Mic4 | Mic5 | Mic6 | Mic7 | Mic8 | F7H |
READ_AUTOMIX_NOM_ATT_CMD: CMD=0EH
TX:
| STX ID | M ID | N CMD | D0 | D1 | D2 | D3 | D4 | D5 | D6 | D7 | ETX | |||||
| F0H | 46H | XX | 3EH | 00H | 00H | 00H | 00H | 00H | 00H | Val | F7H |
RX:
| STX ID | M ID | N CMD | D0 | D1 | D2 | D3 | D4 | D5 | D6 | D7 | ETX | |||||
| F0H | 46H | XX | 0E | H 03H | D8H | 08H | 00H | 00H | 00H | 00H | Byp | F7H |
Mic1,...,8= value of the attenuation :0,...,200 (-20dB to 0dB step 0.1dB)
UPG_DUCKER_PRIORITY_CMD: CMD=66H
TX:
| STX ID | _M ID_ | N CMD D0 D1 | D2 | D3 D4 D5 D6 | D7 ETX | |||||
| F0H | 46H | XX 66H 00H 00H 00H | 00H 00H | 00H 00H Byp F7H |
Byp = Ducker priority = 8 bit where LSB=Input1,..., MSB=Input8; Value=0,1 where 0=bypass, 1=not byp (max number of the channel with priority is 4)
RX:
| STX ID_M ID_N CMD D0 D1 D2 D3 D4 | D5 D6 D7 ETX | |||||||||||
| F0H | 46H | XX 66H 00H 00H 00H | 00H 00H 00H 00H Byp F7H | |||||||||
This is the acknowledge
UPG_DUCKER_HOLD_CMD: CMD=67H
TX:
| STX ID | _M | ID_ | N | CMD | D0 | D1 | D2 | D3 | D4 | D5 | D6 | D7 | ETX | ||||||
| F0H | 46H | XX | 67H | 00H | 00H | 00H | 00H | 00H | 00H | 00H | 00H | Hold | F7H | ||||||
Hold = Ducker Hold Time Value=0,...,99 (da 10ms a 1000ms)
RX:
| STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX | ||||||||||||
| F0H | 46H | XX | 67H | 00H 00H 00H 00H 00H 00H 00H | Hold | F7H | ||||||
This is the acknowledge
UPG_DUCKER_REL_ATK_CMD: CMD=68H
TX:
| STX ID | M ID | N CMD | D0 | D1 | D2 | D3 | D4 | D5 | D6 | D7 | ETX | ||||||
| F0H | 46H | XX | 68H | 00H | 00H | 00H | 00H | 00H | 00H Rel | Atk | F7H | ||||||
Rel = Ducker Release Time Value=0,..,47
Atk = Ducker Attack Time Value=0,...,47
RX:
| STX ID | _M | ID_ | N | CMD | D0 | D1 | D2 | D3 | D4 | D5 | D6 | D7 | ETX | ||||||
| F0H | 46H | XX | 68H | 00H | 00H | 00H | 00H | 00H | 00H | 00H Rel | Atk | F7H | |||||||
UPG_DUCKER_THR_CMD: CMD=69H
TX:
| STX ID | M ID | N CMD | D0 | D1 | D2 | D3 | D4 | D5 | D6 | D7 | ETX | |||||
| F0H | 46H | XX | 69H | 00H | 00H | 00H | 00H | 00H | Att Gate | 00H | F7H | |||||
Att = Ducker Attenuation level Value=0,..,80
Gate = Ducker gating thr Value=0,...,44
RX:
| STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX | ||||||||||||
| F0H | 46H | XX | 69H | 00H 00H 00H 00H Att Gate | 00H | F7H | ||||||
This is the acknowledge
VUMETER_LIM_CMD: CMD=37H
TX:
| STX ID | _M | ID_ | N | CMD | D0 | D1 | D2 | D3 | D4 | D5 | D6 | D7 | ETX | ||||||
| F0H | 46H | XX | 37H | 00H | 00H | 00H | 00H | 00H | 00H | 00H | 00H | 00H | 00H | F7H | |||||
RX:
| STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX | ||||||||||||
| F0H | 46H | XX | 37H | In1 In | 2 In3 In | 4 In5 In | 6 In7 | In8 | F7H | |||
In1,...,I8 are the value already in dB of the Limiter activity(for each output)
VUMETER\_CMP\_CMD: CMD=38H
TX:
| STX ID | M ID | N CMD | D0 | D1 | D2 | D3 | D4 | D5 | D6 | D7 | ETX | ||||||
| F0H | 46H | XX | 38H | 00H | 00H | 00H | 00H | 00H | 00H | 00H | 00H | 00H | F7H | ||||
RX:
| STX ID_M ID_N CMD D0 D1 D2 D3 D4 D5 D6 D7 ETX | ||||||||||||
| F0H | 46H | XX | 38H | In1 In | 2 In3 In | 4 In5 In | 6 In7 | In8 | F7H | |||
In1,...,I8 are the value already in dB of the Compression activity (for each output)
dB = 60 - (InX / 2) (max Compression = 48dB poiche' Cmp Thr = -30 to +18) (inX = 0,...,120; step dB = 0.5)
CLOSE ALL DEVICES: CMD=8FH
(only usb and RS485)
TX:
| STX ID | _M | ID_ | N | CMD | D0 | D1 | D2 | D3 | D4 | D5 | D6 | D7 | ETX | ||||||
| F0H | 42H | XX | 8FH | 00H | 00H | 00H | 00H | 00H | 00H | 00H | 00H | 00H | 00H | 00H | F7H | ||||
There is not acknowledge.
VUMETER\_IN\_CMD : CMD=55H
TX:
| STX ID | M ID | N CMD | D0 | D1 | D2 | D3 | D4 | D5 | D6 | D7 | ETX | ||||||
| F0H | 46H | XX | 55H | 00H | 00H | 00H | 00H | 00H | 00H | 00H | 00H | 00H | F7H | ||||
RX:
| STX ID | M ID | N CMD | D0 | D1 | D2 | D3 | D4 | D5 | D6 | D7 | ETX | ||||||
| F0H | 46H | XX | 55H | In1 | In | 2 | In3 | In | 4 | In5 | In | 6 | In7 | ||||
In1,...,I8 are the value already in dB of the input signal
dB = -60 + (InX / 2) + 18 (max level=+18) (inX = 0,...,120; step dB = 0.5)
VUMETER\_OUT\_CMD: CMD=56H
TX:
| STX ID | M ID | N CMD | D0 | D1 | D2 | D3 | D4 | D5 | D6 | D7 | ETX | ||||||
| F0H | 46H | XX | 56H | 00H | 00H | 00H | 00H | 00H | 00H | 00H | 00H | 00H | F7H | ||||
RX:
| STX ID | _M | ID_ | N | CMD | D0 | D1 | D2 | D3 | D4 | D5 | D6 | D7 | ETX | ||||||
| F0H | 46H | XX | 56H | In1 | In | 2 | In3 | In | 4 | In5 | In | 6 | In7 | In8 | |||||
In1,...,I8 are the value already in dB of the output signal
dB = -60 + (InX / 2) + 18 (max level=+18) (inX = 0,...,120; step dB = 0.5)
INC\_DECR\_GAIN\_CMD: CMD=30H command Increase/Decrease input/output Level
TX:
| STX ID | M ID | N CMD | D0 | D1 | D2 | D3 | D4 | D5 | D6 | D7 | ETX | ||||||
| F0H | 46H | XX | 30H | Chn F | ag 00H | 00H 00H | 00H 00H | Value | F7H | ||||||||
Where:
Chn = 0,...,15 - In1,...,In8=0,1,2,3,...,7; Out1,...,Out8 = 8,...,15
Flag = 0,1 - decrease level = 0; Increase level = 1;
Value = 0,...x step of the increase/decrease level if Value = 01h then the level will be increased/decreased of 0.1dB, if Value = 0Ah then the level will be increased/decreased of 1dB, if Value = x then the level will be increased/decreased of (0.1 * x) dB. If the level is to max or min the system maintain the min or max value
RX:
| STX ID | M ID | N CMD | D0 | D1 | D2 | D3 | D4 | D5 | D6 | D7 | ETX | ||||||
| F0H | 46H | XX | 30H | Chn F | ag 00H | 00H 00H | 00H 00H | Value | F7H | ||||||||
MUTE\_UNMUTE\_CMD: CMD=33H single Mute/Unmute input/output
TX:
| STX ID | _M | ID_ | N | CMD | D0 | D1 | D2 | D3 | D4 | D5 | D6 | D7 | ETX | |||||||
| F0H | 46H | XX | 33H | Chn 0 | 0H | 00H | 00H | 00H | 00H | 00H | H | Value | F7H | |||||||
Chn = 0,...,15 - In1,...,In8=0,1,2,3,...,7; Out1,...,Out8 = 8,...,15
Value = 0,1 0=Unmute; 1=Mute
RX:
| STX ID | _M | ID_ | N | CMD | D0 | D1 | D2 | D3 | D4 | D5 | D6 | D7 | ETX | ||||||
| F0H | 46H | XX | 33H | Chn | 00H | 00H | 00H | 00H | 00H | 00H | 00H | Value | F7H | ||||||
INC\_DECR\_GAIN\_LINKED\_CMD: CMD=2FH Increase/Decrease input/output Level linked channel
TX:
| STX ID | M ID | N CMD | D0 | D1 | D2 | D3 | D4 | D5 | D6 | D7 | ETX | ||||||
| F0H | 46H | XX | 2FH | Sel IO | Flag ChLink 00H | 00H 00H | 00H | Value | F7H | ||||||||
Where:
Sel I/O = 0,1 - 0=Input; 1=Output
Flag = 0,1 - decrease level = 0; Increase level = 1;
Value = 0,...,x step of the increase/decrease level if Value = 01h then the level will be increased/decreased of 0.1dB, if Value = 0Ah then the level will be increased/decreased of 1dB, if Value = x then the level will be increased/decreased of (0.1 * x) dB.
ChLink (8bit) = one bit for each input or output (with 1 input/output selected)
| bit7 bit | 6 bit5 bit4 | bit3 bit2 | bit1 bit0 | ||||
| In8/Out8 | In7/Out7 | In6/Out6 | In5/Out5 | In4/Out4 | In3/Out3 | In2/Out2 | In1/Out1 |
Examples
to increase the level of 1dB on input1 and input5, the user must send the following frame:
INC\_DECR\_MASTERGAIN\_CMD: CMD=31H
Increase/Decrease MasterGain Level (only Input)
TX:
| STX ID | _M | ID_ | N | CMD | D0 | D1 | D2 | D3 | D4 | D5 | D6 | D7 | ETX | ||||||
| F0H | 46H | XX | 31H | 00H | F | ag | 00H | 00H | 00H | 00H | 00H | H | Value | F7H | |||||
Where
Flag = 0,1 decrease level = 0; Increase level = 1;
Value = 0,...x step of the increase/decrease level
if Value = 01h then the input master level will be increased/decreased of 1%,
if Value = 0Ah then the input master level will be increased/decreased of 10%,
if Value = x then the level will be increased/decreased of (1 * x) %
RX:
| STX ID | _M | ID_ | N | CMD | D0 | D1 | D2 | D3 | D4 | D5 | D6 | D7 | ETX | ||||||
| F0H | 46H | XX | 31H | 00H | F | ag | 00H | 00H | 00H | 00H | 00H | H | Value | F7H | |||||
INC\_DECR\_MASTERVOLUME\_CMD: CMD=32H
Increase/Decrease MasterVolume Level (only Output)
TX:
| STX ID | M ID | N CMD | D0 | D1 | D2 | D3 | D4 | D5 | D6 | D7 | ETX | ||||||
| F0H | 46H | XX | 32H | 00H | F | ag | 00H | 00H | 00H | 00H | 00H | Value | F7H | ||||
Where:
Flag = 0,1 decrease level = 0; Increase level = 1;
Value = 0,...x step of the increase/decrease level
if Value = 01h then the output master level will be increased/decreased of 0.1dB,
if Value = 0Ah then the output master level will be increased/decreased of 1dB,
if Value = x then the output master level will be increased/decreased of (0.1 × x) dB.
RX:
| STX ID | _M | ID_ | N | CMD | D0 | D1 | D2 | D3 | D4 | D5 | D6 | D7 | ETX | ||||||
| F0H | 46H | XX | 32H | 00H | F | ag | 00H | 00H | 00H | 00H | 00H | H | Value | F7H | |||||
WARNING: where affixed on the equipment or package, the barred waste bin sign indicates that the product must be separated from other waste at the end of its working life for disposal. At the end of use, the user must deliver the product to a suitable recycling centre or return it to the dealer when purchasing a new product. Adequate disposal of the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes in preventing potentially negative effects on the environment and health and promotes the reuse and/or recycling of equipment materials. Abusive product disposal by the user is punishable by law with administrative sanctions.
All informations included in this operating manual have been scrupulously controlled; however FBT is not responsible for eventual mistakes. FBT Elettronica SpA has the right to amend products and specifications without notice.
Table of contents
Click a title to access it
- DMM 8008
- INDICE
- Avvertenze 1
- Introduzione 2
- MODALITÀ STAND ALONE
- System Setup Tcp/lp Setup
- OUTPUT SWITCH SETUP SP01
- General
- SCHEMA A BLOCCHI
- AUTOMIXER FUNCTIONS
- PRIORITY DUCKER
- BACKGROUND UTILITIES
- TECHNICAL SPECIFICATIONS
- Audio
- DSP & Processing
- BLOCK SCHEME
- COMMUNICATION PROTOCOL
- U.A.R.T. SETTING
- TCP/IP SETTING
- FRAME PROTOCOL
- COMMAND TYPE
- COMMUNICATION BETWEEN DEVICE AND REMOTE CONTROL
- READ\_VERSION\_CMD: CMD=39H
- CONNECTION REQUEST: CMD=00H
- (to lock the hardware interface when the PC is connected)
- UPDATE GAINS-PHASE-MUTE: CMD=01H
- UPDATE ROUTING: CMD=08H
- CLOSE SINGLE DEVICE: CMD=0FH
- (to unlock the hardware interface)
- UPG\_MASTERGAINS\_CMD: CMD=16H
- This is the acknowledge
- SWITCH\_S\_CMD: CMD=1AH
- RECALL\_PRESET: CMD=1BH
- CMD\_UPG\_BALANCED: CMD=1FH
- VUMETER\_CMP\_CMD: CMD=38H
- CLOSE ALL DEVICES: CMD=8FH
- (only usb and RS485)
- VUMETER\_IN\_CMD : CMD=55H
- VUMETER\_OUT\_CMD: CMD=56H
- INC\_DECR\_GAIN\_CMD: CMD=30H command Increase/Decrease input/output Level
- MUTE\_UNMUTE\_CMD: CMD=33H single Mute/Unmute input/output
- INC\_DECR\_GAIN\_LINKED\_CMD: CMD=2FH Increase/Decrease input/output Level linked channel
- Examples
- INC\_DECR\_MASTERGAIN\_CMD: CMD=31H
- Increase/Decrease MasterGain Level (only Input)
- INC\_DECR\_MASTERVOLUME\_CMD: CMD=32H
- Increase/Decrease MasterVolume Level (only Output)
Manual assistant
Powered by Anthropic
Waiting for your message
Product information
Brand : FBT
Model : DMM 8008
Category : Loudspeaker
