USER MANUAL PROJECT 315 FBT

Black and white FBT speaker with visible grille and front-mounted buttons (no text or symbols on body)

Important information for correct disposal of the product in accordance with European Directive 2012/19/UE

This product must not be disposed of as urban waste at the end of its working life. It must be taken to a special waste collection centre licensed by the local authorities or to a dealer providing this service. Separate disposal of electric and/or electronic equipment (WEEE) will avoid possible negative consequences for the environment and for health resulting from inappropriate disposal, and will enable the constituent materials to be recovered, with significant savings in energy and resources. As a reminder of the need to dispose of this equipment separately, the product is marked with a crossed-out wheeled dustbin.

□ Only qualified staff shall carry out speakers connection.
☐ In order to avoid the danger of electrical shock, the speaker shall never be connected when the amplifier is on.
☐The speaker shall be protected from the following elements: weathering agents such as humidity, large temperature variation, excess heat etc.
In order to avoid the inductive phenomena causing noise and disturbance, speakers lines shall not be channelled with power conductors, microphone cables, or with amplifier's signal lines.
☐ The loudspeaker installation shall comply with the current law and regulations concerning electrical systems. This product shall be installed and used considering all the technical data provided and using only the attachments provided with it.

INTRODUZIONE

INTRODUCTION

PROJECT speakers have been created and developed in order to provide the suitable solution for any loudspeaker installation: their characteristics allow their use in any environment, keeping the same high sound quality.

The PROJECT range features a compact two-way system ensuring high power performances, wide dynamics, high-fidelity music reproduction and high speech intelligibility.

PROJECT speakers are preset for an easy assembly, making the installation easier, cutting costs and saving time.

The PROJECT series includes:

SERIES 300: 315WT/BT - 320WT/BT

SERIES 500: 530WT/BT - 550WT/BT

SERIES 600: 640WT/BT - 660WT/BT

The speaker can be connected to audio lines at constant voltage (100V / 70V) or with constant impedance (switch set at 8 Ohm).

Connect the negative conductor from amplifier's output ("0" / "COM" /-") to the "-" of speaker input connector (A). Connect amplifier's positive conductor (output 100V/70 V or "+" to the "+" of the connector (A).

A speaker can be used both in constant voltage sound systems and constant impedance systems.

☐ The input voltage selected on the speaker must correspond to the voltage selected on the amplifier output.
☐ The sum of the nominal power values of all the connected speakers must not exceed that of the amplifier.

CONSTANT IMPEDANCE SYSTEMS

☐ The total load impedance of all the connected speakers must be no less than the impedance selected on the amplifier output, to avoid the risk of serious damage to the amplifier.
☐ The sum of nominal power values of all connected speakers must be no less than that of the amplifier.
☐ Connection cable lenghts must be kept to the indispensable minimum.

COLLEGAMENTO DEI DIFFUSORI CON SISTEMA A TENSIONE COSTANTE

This connection system implies that each speaker is equipped with its own line transformer. The amplifier shall be equipped with 100V/70V constant voltage outputs.

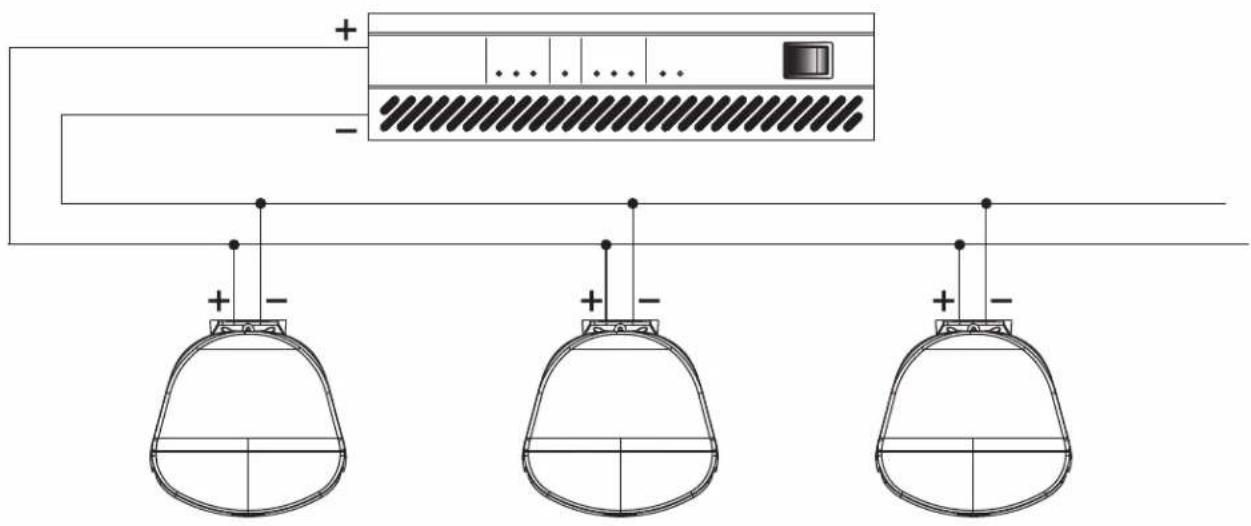

The loudspeakers connected in parallel to amplifier's output will make system expansion easier, if required, by simply shunting from any of the previously installed speakers. Similarly, the loudspeakers which are not necessary anymore can be removed.

Matching the "phase" is necessary both in the connection of each speaker to its own transformer and in the connection in parallel of the speakers.

All the constant voltage outputs (100V / 70V) of a single amplifier can be connected at the same time, provided that amplifier's rated power remains equal or higher to the sum of the power of all the speakers installed on each output line.

Using the following formula: P = V^2 / Z with V being 100/70V and Z being speaker's transformer primary impedance- any power applied to each speaker can be calculated. If, instead, you know the voltage (100V/70V) and the rated power (or powers) of the transformer and you want to calculate transformer impedance, the following formula applies: Z = V^2 / P

SPEAKER'S CONNECTION TO A CONSTANT IMPEDANCE

Constant impedance outputs are generally used in the case of lines with a small number of speakers having a certain power and being placed at a minimum distance from the amplifier.

Speakers connection will be a combination of connection in parallel and series connection, so to bring loudspeakers total impedance to a value which is not critical for the amplifier. In the series connection the positive lug shall be connected to the negative lug of the following speaker.

In the connection with constant impedance it is always recommended that speakers total power is higher than the power supplied by the amplifier.

If in the connection with constant impedance the volume of one or more speakers needed to be set independently or also if any speaker needed to be switched off, the use of attenuators keeping impedance constant is required. In the series connection, whatever the impedance of each speaker, the total impedance results from the sum of all the impedances. Anyway, using sound speakers with equal impedance and power is recommended.

INSTALLAZIONE

INSTALLATION

PER PREVENIRE DANNI A PERSONE E COSE È INDISPENSABILE DOTARE IL SISTEMA DI CAVO DI SICUREZZA (IN DOTAZIONE) QUANDO IL DIFFUSORE VIENE FISSATO A PARETE. SELEZIONARE CON CURA L'AREA DOVE INSTALLARE I DIFFUSORI ; ASSICURARSI CHE LA STRUTTURA SIA ADEGUATA A SOPPORTARE IL PESO DEL DIFFUSORE;

WHEN THE SPEAKER IS MOUNTED ON THE WALL, THE SYSTEM MUST BE EQUIPPED WITH THE SAFETY CABLE (PROVIDED) IN ORDER TO AVOID DAMAGES TO PEOPLE OR PROPERTY. CAREFULLY CHOOSE THE AREA WHERE SPEAKERS WILL BE INSTALLED, MAKING SURE THAT THE STRUCTURE CAN SUPPORT SPEAKER'S WEIGHT.

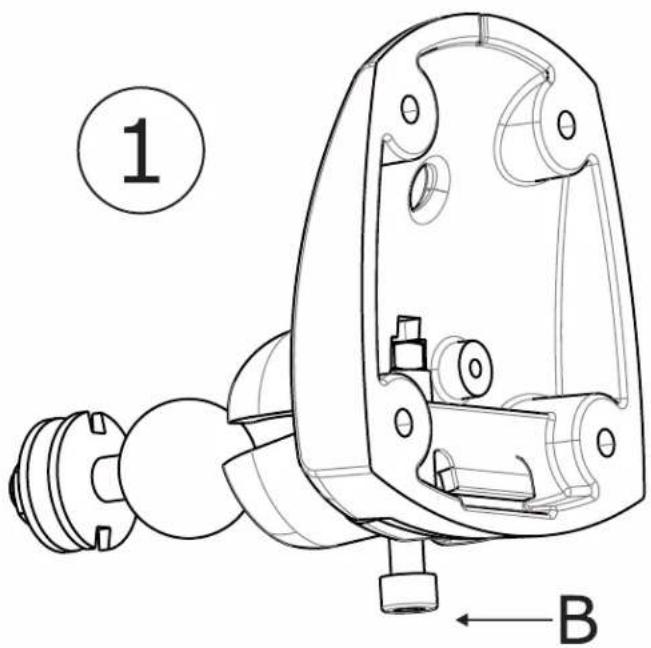

Remove the wall support from the speaker through the threaded insert "B"

Technical line drawing of a mechanical component with labeled parts (1 and B), no readable text or symbols beyond labels

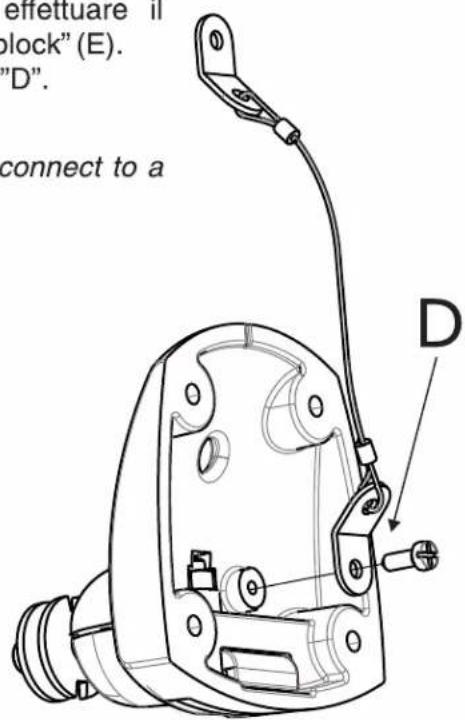

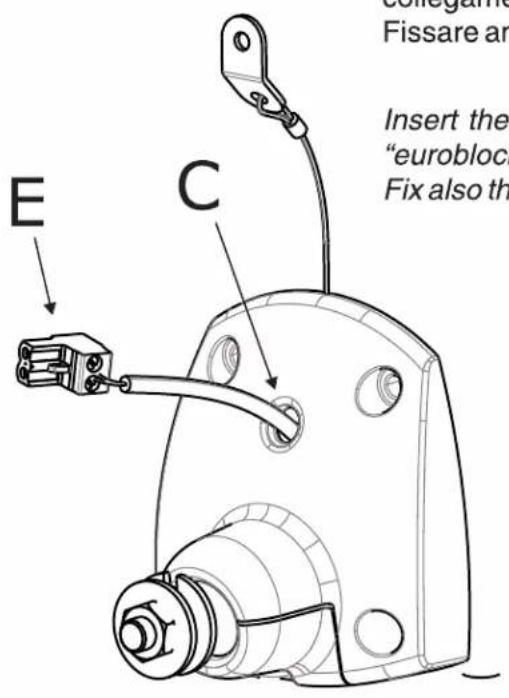

Insert the cable in the hole "C" and connect to a "euroblock" connector (E). Fix also the protection cable "D".

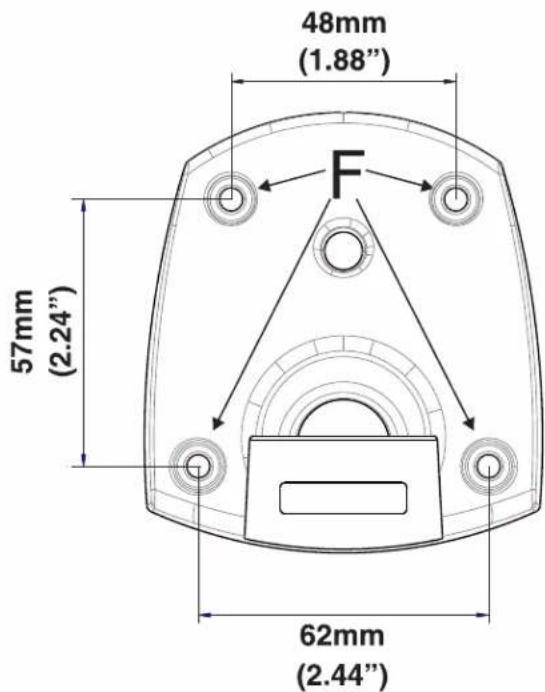

Secure the wall support through the four holes "F"

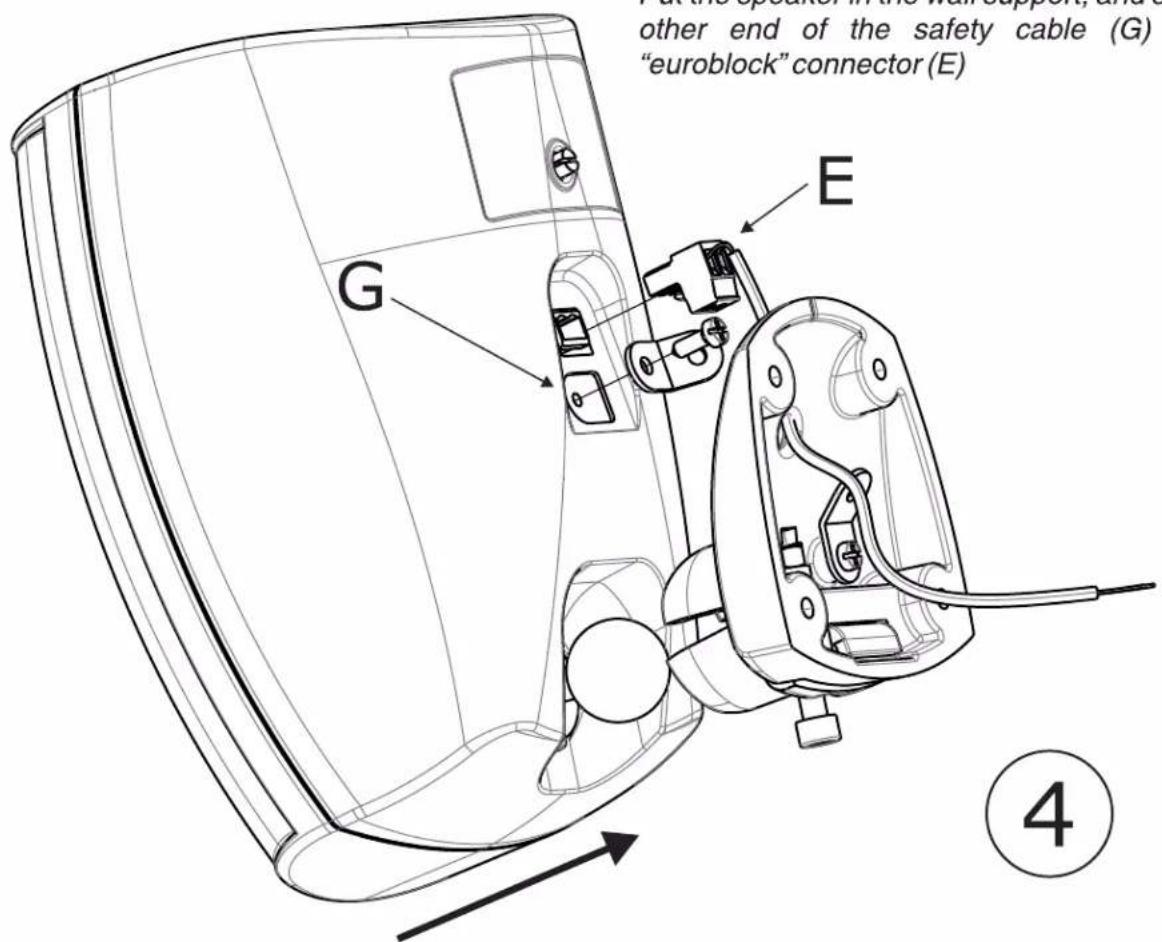

Put the speaker in the wall support, and secure the other end of the safety cable (G) and the "euroblock" connector (E)

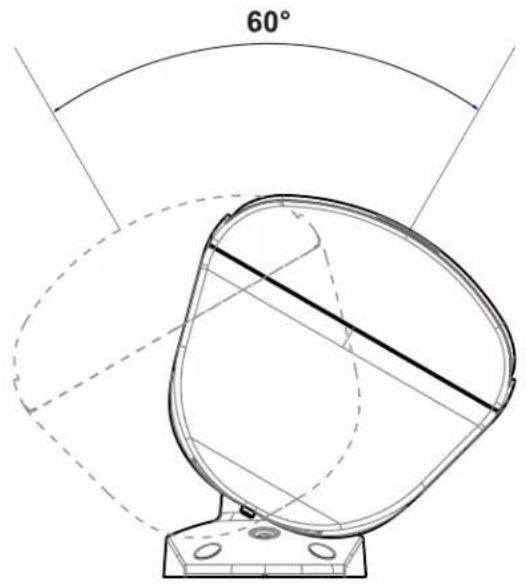

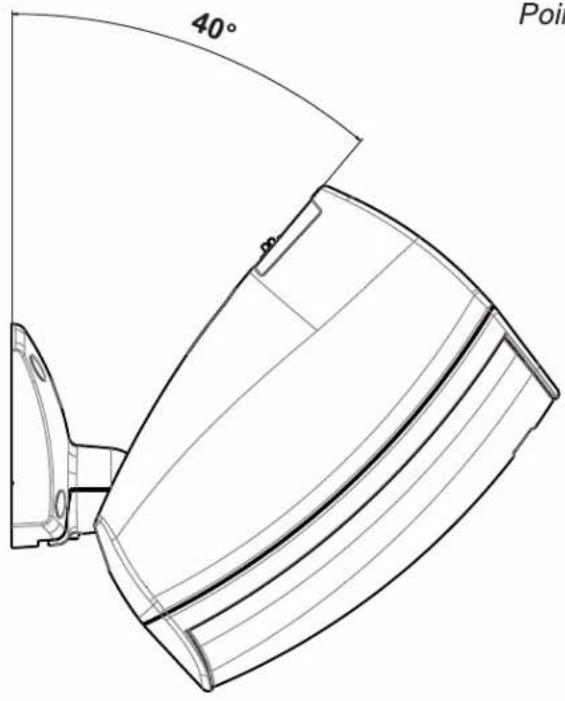

Point the speaker as desired

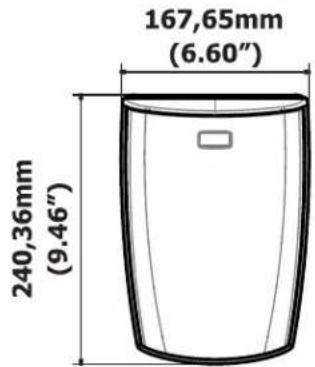

DIMENSIONI

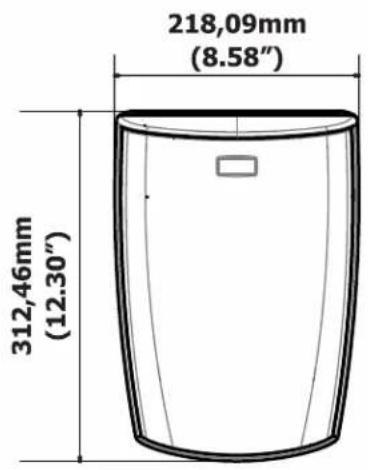

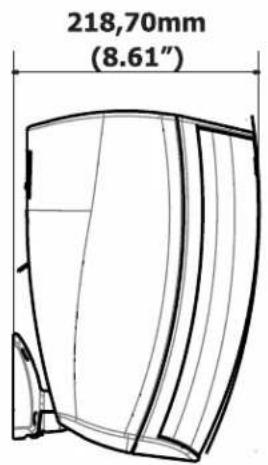

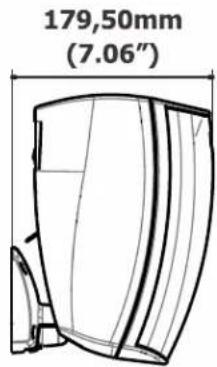

DIMENSIONS

600 SERIES

500 SERIES

300 SERIES

		315	320	530	550	640	660
CONFIGURAZIONE TYPE	vieway	2	2	2	2	2	2
AMPLIFICATORE CONSIGLIATO RECOMMENDED AMPLIFIER	w rms	30	40	60	100	80	120
POTENZA LUNGO TERMINE LONG TERM POWER	w	15	20	30	50	40	60
POTENZA BREVE TERMINE SHORT TERM POWER	w	60	80	120	200	160	240
TRASFORMATORE DI LINEA (100V) LINE TRANSFORMER (100V)	w	2-4-7.5-15	4-8-15-20	10-15-20-30	15-25-40-50	10-20-30-40	15-30-45-60
IMPEDENZA NOMINALE NOMINAL IMPEDANCE	ohm	8	8	8	8	8	8
RISPOSTA IN FREQUENZA FREQUENCY RESPONSE	@-10dB	100Hz-15kHz	100Hz-20kHz	85Hz-20kHz	80Hz-20kHz	70Hz-20kHz	70Hz-20kHz
UNITÀ BASSE FREQUENZE LOW FREQUENCY WOOFER	min inch	88 3.5	88 3.5	130 5.11	130 5.1	165 6.5	165 6.5
TWEETER	min inch	13 0.5	13 0.5	20 0.75	25 1	25 1	25 1
SENSIBILITÀ (@1w, 1m) SENSITIVITY	dB	85	87	87.5	89	89	90
SPL MAX. MAX. SPL	dB	100	103	106	109	108	111
DISPERSIONE DISPERSION	0 x V H x V	120 x 120	120 x 120	100 x 100	100 x 100	90 x 90	90 x 90
FILTRO HP CONSIGLIATO RECOMMENDED HP FILTER		70Hz-24dB/oct	70Hz-24dB/oct	55Hz-24dB/oct	50Hz-24dB/oct	40Hz-24dB/oct	40Hz-24dB/oct
CONNETTORE DI INGRESSO INPUT CONNECTOR		euroblock	euroblock	euroblock	euroblock	euroblock	euroblock
DIMENSIONI NETTE (L x A x P) NET DIMENSIONS (W x H x D)	min inch	142,5x204,3x162,15 5,61x8,94x8,38	142,5x204,3x162,15 5,61x8,94x8,38	167,65x240,36x179,5 6,60x9,46x7,06	167,65x240,36x179,5 6,60x9,46x7,06	218,09x312,46x218,7 8,58x12,3x8,61	218,09x312,46x218,7 8,58x12,3x8,61
PESO NETTO NET WEIGHT	Kg Lbs	1,5 3,3	1,5 3,3	2,3 5	2,3 5	3,7 8	3,7 8
DIMENSIONI TRASPORTO (L x A x P) TRANSPORT DIMENSIONS (W x H x D)	min inch	238x266x220 9,37x10,47x8,66	238x266x220 9,37x10,47x8,66	248x304x240 9,76x11,96x9,45	248x304x240 9,76x11,96x9,45	293x376x290 11,53x14,80x11,41	293x376x290 11,53x14,80x11,41
PESO TRASPORTO TRANSPORT WEIGHT	Kg Lbs	2 4,4	2 4,4	2,9 6,4	2,9 6,4	4,8 10,5	4,8 10,5
DIMENSIONI IMBALLO MASTER (L x A x P) MASTER PACKING DIMENSIONS (W x H x D)	min inch	496x552x458 19,5x21,7x18	496x552x458 19,5x21,7x18	516x498x324 20,3x19,6x12,75	516x498x324 20,3x19,6x12,75	606x598x396 23,85x23,54x15,6	606x598x396 23,85x23,54x15,6

CODE: 29490

All information included in this operating manual have been scrupulously controlled; however FBT is not responsible for eventual mistakes. FBT Elettronica S.p.A. has the right to amend products and specifications without notice.
