Product Type	Professional Passive Loudspeaker
Brand	Atlas
Model	FS12T-94
Series	FS12T
Dimensions (H x W x D)	19.6 x 18.5 x 13.0 in (approx.)
Weight	Approx. 50 lb (22.7 kg)
Mounting Bracket	Included, allows tilt up to 50°
Secondary Safety Point	Load-rated cable or chain required
Installation	Requires qualified personnel, 5:1 safety factor minimum
Sound Pressure Level	High SPL capable, risk of hearing damage
Power Handling	Not specified (typical 200-300W continuous)
Impedance	Not specified (typically 8 Ω)
Sensitivity	Not specified (typical 94-97 dB)
Enclosure Material	Not specified (likely weather-resistant)
Frequency Response	Not specified
Application	Outdoor/indoor professional sound reinforcement
Safety Standards	Follow local codes for overhead suspension
Warranty	Not specified (contact AtlasIED)
Tech Support	AtlasIED: 800-876-3333 or [e-mail]

Frequently Asked Questions - FS12T-94 ATLAS

What is the weight of the Atlas FS12T-94 speaker?

The FS12T Series speakers can weigh up to 50 lb (22.7 kg) depending on the model. The FS12T-94 is similar, so expect around 50 lb. Always verify with the manual.

How do I mount the FS12T-94 speaker?

Use the included mounting bracket. Two people are recommended. Ensure the surface can support at least 5x the speaker weight. Use stainless steel hardware with thread locking compound.

Do I need a secondary safety cable?

Yes, for overhead installations. Attach a load-rated cable or chain that can hold the speaker if the primary mount fails, with no more than 6 inches of drop.

Can I install the FS12T-94 outdoors?

Yes, it is designed for outdoor use. Use stainless steel hardware and consider high wind forces. A 7x safety factor is recommended for windy areas.

What tools are needed for installation?

You'll need appropriate bolts, flat washers, lock washers, a drill, and thread locking compound. For steel beams, use structural bolts.

Is the FS12T-94 a passive or powered speaker?

It is a passive loudspeaker, requiring an external amplifier. Always turn off the amplifier before connecting.

What is the maximum SPL of this speaker?

Exact SPL is not specified, but it is a professional speaker capable of generating very high sound pressure levels that can cause hearing damage. Use ear protection.

How do I clean the FS12T-94?

No specific cleaning instructions are provided. Use a damp cloth for the enclosure; avoid getting water into the grille.

Where can I find replacement parts?

Contact AtlasIED Tech Support at 800-876-3333 or [e-mail] for parts and service.

Can I mount the speaker on a pole or scoreboard?

Yes, but follow the manufacturer's instructions for that pole or scoreboard. Consult a structural engineer if unsure.

USER MANUAL FS12T-94 ATLAS

Installation Instructions

Safety Instructions

Please read carefully before installing or operating.

• Read all instructions carefully
• Heed all warnings
  • Assure that the speaker is securely mounted
  • Always assure amplifier power is Off before making any connections
• Ensure that all electrical equipment is properly grounded
• Keep instructions for future reference

- Should any questions arise after reading this document, please call AtlasIED Tech Support at 800-876-3333

Hearing Damage

CAUTION: All professional loudspeaker systems are capable of generating very high sound pressure levels. Use care with placement and operation to avoid exposure to excessive levels that can cause permanent hearing damage.

Mounting

Mounting loudspeaker systems require training and expertise. Improper rigging of a suspended loudspeaker may result in injury, death, equipment damage, and legal liability. Installation must be carried out by fully qualified installers, in accordance with all required safety codes and standards at the place of installation.

A 5:1 design factor is a generally accepted minimum standard. However, legal requirements for overhead suspension vary by municipality. Please consult your local safety standards office before installing any product. We also recommend thoroughly checking any laws and bylaws prior to installation.

Loudspeakers flown in theaters, nightclubs, conference centers, or other places of work and entertainment must be provided with an independent, correctly rated and securely attached secondary safety — in addition to the principle suspension point(s). This secondary safety must prevent the loudspeaker from dropping more than 6" should the principle suspension device fail. If you lack the skills, training, and proper ancillary equipment to suspend a loudspeaker system, do not attempt to do so.

For additional information regarding the suspension of loudspeakers or to purchase rigging materials, please contact our friends at Allen Products, Inc.

1635 E. Burnett St. Signal Hills, CA 90755

www.adapttechgroup.com

Telephone [phone] and Fax [phone]

Installation via Mounting Bracket (Included)

General considerations and hardware recommendations:

CAUTION: FS12T Series models weigh as much as 50 pounds (22.7 kg) – model FS12T-66. A fall from almost any height could result in serious injury or death. Assure that the loudspeaker is firmly mounted to an object that can handle its weight. Remember that wind will add considerable torque to the point of attachment. The mounting surface the FS12T loudspeaker is being attached to should be able to handle five or more times the weight of the FS12T loudspeaker (7x is recommended for locations subject to high wind forces).

Whenever the loudspeaker is mounted to a surface using the bracket, the installer must ensure that the surface is capable of safely and securely supporting the load. The hardware employed must be safely and securely attached both to the loudspeaker and the surface in question, using only the mounting holes. A general rule for soft surface installations (wood beams) is to multiply the corresponding working load limit by 75%; the result will be an approximate working load strength.

Use thread locking compound for all installations.

CAUTION: Mount the speaker such that the shear force is at a right angle to the mounting bolts, and as close to the connection, as shown:

When mounting the FS12T loudspeaker to a solid surface use the proper bolts, washers, and lock washers (stainless steel A193 grade B8 is recommended for high strength outdoor installations). Do not substitute mismatched bolts and washers.

The FS12T loudspeaker may be mounted to a pole or scoreboard. For such mounting, contact the light pole or scoreboard manufacturer for proper instructions. If mounting to another surface, such as a beam, see the diagram on page 3. When in doubt contact a qualified structural/mechanical engineer for approval of the mounting materials and methods.

Mounting

CAUTION: Mounting the FS12T loudspeaker requires two people, unless it is possible to safely clamp the loudspeaker in position for alignment before mounting.

The bracket may be removed from the loudspeaker for installation convenience. When re-attaching loudspeaker to bracket be sure to tightly secure loudspeaker mounting bolts. A semi-permanent thread locking compound should also be used in this operation.

1. Choose the center mounting hole or any two of the 10mm bracket mounting holes best suited for the surface you are mounting to. For best stability using 2 holes is recommended.
2. When using these mounting holes 10mm (stainless steel A193 grade B8 hardware is recommended for high strength outdoor installations). Stainless flat and lock washers must also be used. Remember to use semi-permanent thread locking compound on threads.
3. Use the dimensions noted on the illustration to mark the points for drilling holes.
4. Choose appropriately sized bit and drill holes.
5. Attach loudspeaker bracket, using bolt, flat washer, and lock washer as shown and re-attach loudspeaker to bracket.
6. Secondary (safety) suspension point: Use a load rated cable or steel chain (capable of holding the loudspeaker should it come loose from the primary mounting point). This cable or chain assembly should be attached to and secured to the mounting surface via approved, load rated hardware.

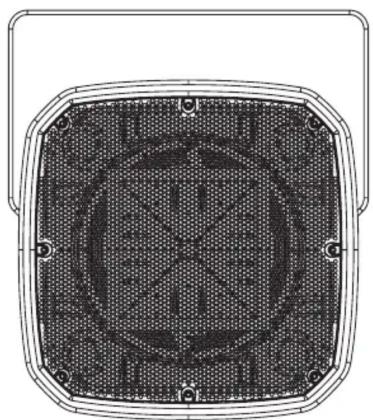

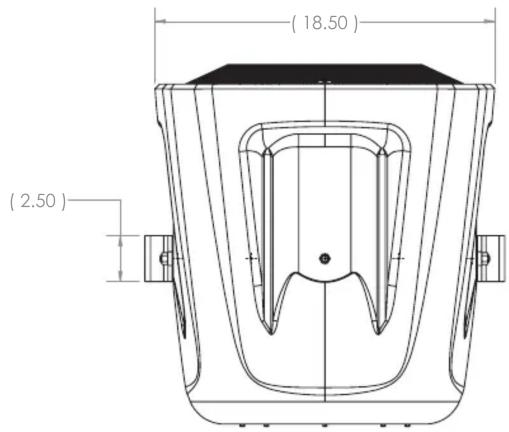

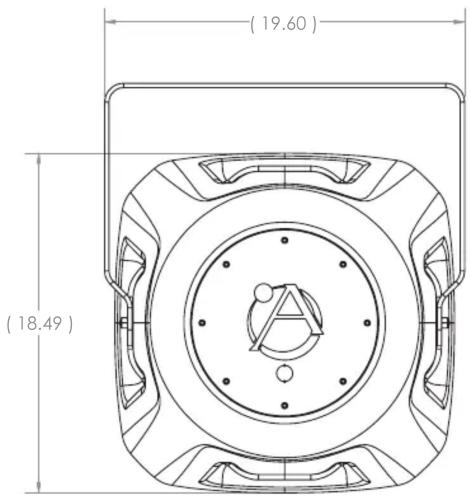

FS12T Dimensions

Fig. 1

Fig. 2

Top-down schematic of a square electronic component with a central circular structure and surrounding grid pattern (no text or symbols)

Fig. 3

Fig. 4

Included bracket allows for additional support for high wind environments, can be used for a tilt angle up to 50^

Fig. 5

Technical line drawing of a mechanical housing or enclosure with internal mesh structure and mounting holes (no text or symbols)

Fig. 6
