PLHRDVD108KT - Media player Pyle - Free user manual and instructions

Product Type	Dual Vehicle Headrest Mount CD/DVD Player System
Screen Size	10.5 inches (two units)
Display Technology	Hi-Res Digital LCD Wide-Screen
Aspect Ratio	16:9
Screen Resolution	1024 x 600 pixels
Contrast Ratio	300:1
Brightness	350 cd/m²
Video System	PAL/NTSC Auto Switching
Audio	Built-in stereo speakers, 3.5mm headphone jack
Disc Support	DVD, VCD, MP3, JPG, MP4, CD-R, CD-RW, SVCD, DVCD, HDCD, CD-ROM7, DIVX, MPEG4
Digital File Compatibility	MP3, MP4, MP5, JPG, MPEG4, WMA, AVI
Memory Card Support	USB Flash (up to 32GB), SD Card (up to 32GB)
Inputs	HDMI, AV (RCA), USB, SD
Outputs	Headphone jack, IR transmitter for wireless headphones, FM transmitter
Power Supply	DC 12V (10V-14V range)
Dimensions (per unit)	10.2" x 6.7" x 2.0" (L x W x H)
Total Weight	7.40 lbs
Mounting	Headrest mount brackets included
Wireless Headphones	2 units included
Remote Control	Included
OSD Language	English
Storage Temperature	-4°F to 140°F
Safety	Do not disassemble; avoid moisture, dust, and direct sunlight
Maintenance	Clean with soft cloth and mild cleaner; do not use diluents
Warranty	Contact PyleUSA.com for service or repair

Frequently Asked Questions - PLHRDVD108KT Pyle

How do I install the Pyle PLHRDVD108KT in my vehicle?

Installation involves mounting the units to the front and rear headrests using the included metal brackets, plastic bracket parts, and screws. First, remove the screws from the bracket to attach it to the iron tube. Then, place the plastic bracket parts between the two metal poles and secure with screws. Hold up the unit, insert the metal plate into the plastic bracket, adjust to the desired angle, and tighten. Finally, lower the original car headrest to the appropriate position. Refer to the installation section in the manual for diagrams.

What disc formats does the PLHRDVD108KT support?

The player supports DVD, VCD, SVCD, DVCD, CD, MP3, WMA, JPEG, MP4, CD-R, CD-RW, HDCD, CD-ROM7, DIVX, and MPEG4 formats.

Why is there no image on the screen?

Possible causes include a scratched disc, disconnected signal wire, or incorrect power supply. Ensure the unit is turned on and the disc is clean. Check the signal wire connections. If the screen is black, adjust the image luminance and contrast settings, and verify the voltage is within 10V-14V DC.

Can I connect external devices to this media player?

Yes, the PLHRDVD108KT has an HDMI input port and an AV connector (RCA). You can connect additional devices such as game consoles or streaming devices via the included wiring harness.

How do I use the wireless headphones?

The units have a built-in IR transmitter for wireless headphone use. Simply put on the included wireless headphones, ensure they are powered on and within range of the IR transmitter. Adjust the volume on the headphones or the unit as needed.

What is the maximum USB/SD card size supported?

The player supports USB flash drives and SD memory cards up to 32GB in size. Larger capacities may not be recognized.

How do I clean the screen and unit?

Use a soft cloth with a mild special cleaner. Do not use diluents or other chemical cleaners. Keep the unit away from dampness, dust, oil, and direct sunlight.

What should I do if there is no power?

Check the interconnect circuit for correct voltage. The power supply should be DC 12V (range 10V-14V). If the fuse is blown, replace it with the appropriate specification. Ensure the cigarette lighter cable or hard-wire connection is secure.

Can I use the FM transmitter feature?

Yes, the unit has an integrated FM transmitter. You can transmit audio from the player to your car's FM radio. Tune your radio to an unused frequency and set the transmitter to match for wireless audio streaming.

What should I do if the sound is unstable due to vibration?

Unstable sound caused by vibration often indicates a dirty or seriously damaged disc. Clean the disc with a soft cloth or replace it. If the sound is unstable even without vibration, the disc may be scratched; try cleaning or replacing it.

USER MANUAL PLHRDVD108KT Pyle

Need service or repair?

Want to leave a comment?

PyleUSA.com/ContactUs

PYLE

PYLE

PyleUSA.com

RPLE TV displaying a scenic cityscape at sunset, no visible text or symbols on the screen or background.

Digital tablet displaying a scenic view of the Paris-Valle landscape at sunset, with no visible text or symbols on the screen.

★★★☆☆☆☆

Car Video Entertainment Display Monitors with Wireless Headphones (10.5" -inch)

USER MANUAL

FRONT PANEL

MULTIMEDIA PLAYER

1. LCD Panel
2. Open
3. Pre/Rewind Forward
4. Next/Fast
5. Power
   6.-
6. Menu
8. DC 12V
9. DC Jacket
10. HDMI Read Port
11. AV2 IN jack
12. Earphone jack
13. USB Read Port
14. SD Read Port

SIDE PANEL

1. Power
2. Earphone/AV2 jack
3. USB.SD
4. DC 12V Jacket
   5.2.5.HDMI PORT

Only on selected unit models

-- Review product specs & features for detailed info

Two black electronic devices with ports and connectors, one partially open and one partially closed (no visible text or symbols)

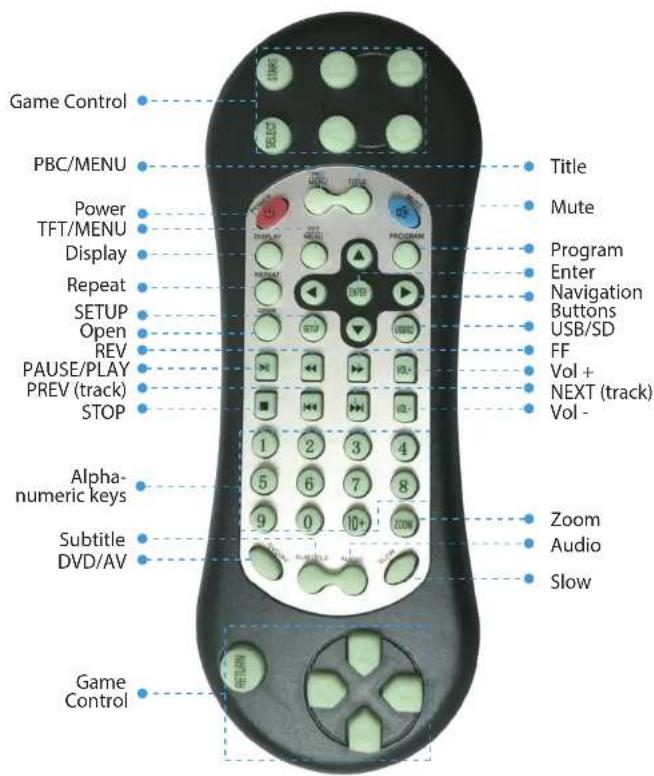

REMOTE CONTROL

INSTALLATION

1. Remove the screws from bracket like below picture to install the bracket on iron tube.

Interior view of a car showing rear seat, dashboard, and camera module (no text or symbols visible)

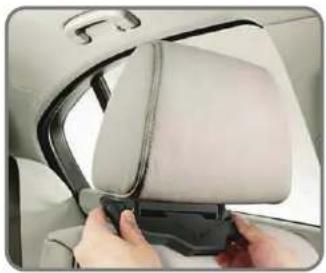

1. Put the plastic bracket parts in between two metal poles, at the same time, push 2 screws to fix up bracket.

Close-up of a car's rear seatbelt buckle being adjusted for a hand (no text or symbols visible)

Black plastic mechanical component with clamping mechanism (no text or symbols visible)

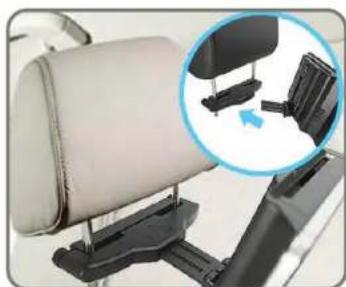

1. Hold up unit, insert the metal plate at the back of the unit into plastic bracket parts, then adjust it to the right angle and fix it tightly, at last lower the original car headrest to the appropriate position.

Close-up of a medical or rehabilitation device with a white seat and black frame, showing a close-up inset of mechanical components (no text or symbols visible)

WIRING DIAGRAM

Close-up of a black electronic component with mounting holes and two screws (no visible text or symbols)

Close-up of a mechanical component with mounting holes and a central connector (no visible text or symbols)

Mini Din Connector Attach power cable to connect

WIRING DIAGRAM

Attention

1. Do not put the machine in the rain or damp environment lest outbreak of fire or any damage to machine.
2. Do not repair the machine by yourself. Please turn off the machine and inform us if any problem found, the factory or the agent will arrange specialized personnel to disassemble and repair the machine for you.

3. Please keep the machine away from dampness, dust, oil and straight sunlight.

4. Do not use diluents or other chemical cleaner when cleaning the machine. Please clean the machine by soft cloth with special cleaner.

5. Please keep the machine in a good environment. The storage temperature for this machine is from -4^ F to 140^ F.
6. This machine only supports DIVX/MPEG4/DVD/DVDR+/SVCD/VCD/DVCD/CD/MP3/WMA/CD-R/RW/HDCD+-R/JPEG or CD-ROM7.
7. Please prevent the machine from the influence of other equipment.
8. For your safety, please do not turn or operate this machine when driving as it may be illegal in some countries and regions.
9. Safe power supply: DC12V (voltage range: 10V-14V)

Attention

There may be some small and bright spots on the screen. This is a common technical matter and does not indicate any quality problem of this machine.

TROUBLESHOOTING

Troubles Solution
No sound & image	Power is disconnected; the machine is not turned ON
No image	Disc is scratched; signal wire is disconnected
No sound	Volume too low or the volume setup is not workable
Black Screen	Incorrect setup of image luminance and contrast; Undervoltage
Blurring and Unstable Image	Disc is scratched
Color cast	Function menu setup is incorrect; weak signal
No power	Voltage is not accurate: check inter connect circuit; Fuse is disconnected: change fuse specification
No image after loading the disc	Only audio frequency for the disc; disc is scratched; disc for format is not supported
Unstable sound caused by vibration	DVD is dirty or seriously damaged
Unstable sound even with no vibration	Disc is dirty or scratched clean or replace the disc

PLHRDVD108KT

Dual Vehicle Headrest Mount CD/DVD Player System

Car Video Entertainment Display Monitors with Wireless Headphones (10.5" -inch)

Features:

• Universal Vehicle Headrest Mount Displays
• Top-Loading CD/DVD Player
- Includes Secondary Display Screen
• Audio & Video Entertainment System
• Hi-Res Digital LCD Wide-Screen Video
• Built-in Stereo Speakers
• Headphone Jack, 3.5mm
• USB Flash & SD Memory Card Readers
- Convenient Removable Leather Screen Cover
- Easily Attaches to Front-Seat & Back-Seat Headrests
• HDMI Input Port & AV Connector
- Connect Additional Device via RCA (Audio/Video) Wiring Harness
• Built-in IR Transmitter for Wireless IR Headphone Use
• Front Panel Button Controls
- Integrated FM Transmitter
- Includes All Necessary Hardware & Cables for Installation
- *Can be Hard-Wired or Powered via Included Plug-in Cigarette Lighter Power Cable

What's in the Box:

• (2)10.5" -inch CD/DVD Player
• (2) Wireless Headphones
• Headrest Mounting Brackets
- Remote Control
• Power Wiring Harness Cable
• Cigarette Lighter Power Cable

Technical Specifications:

• Screen Size: 10.5inches (x2)
• Video System: PAL / NTSC Compatible Auto Switching
- Aspect Ratio: 16:9
• Screen Resolution: 1024 x 600 Pixels
- Contrast Ratio: 300:1
- Brightness: 350 cd/m2
- English OSD Menu
• Maximum USB/SD Card Size: 32GB
• CD/DVD Player Support: DVD/VCD/MP3/JPG/MP4/CD-R/CD-RW
• Digital File Compatibility: MP3, MP4, MP5, JPG, MPEG4, WMA, AVI
• Power Supply: DC 12V
- Dimensions (L x W x H): 10.2" x 6.7" x 2.0"-inches
• Weight: 7.40 lbs.
