Product Type	Vehicle Headrest Mount Multimedia Disc Player
Brand	Pyle
Model	PLHRDVD904
Screen Size	9.4 inches
Screen Resolution	800 x 480 pixels
Display Type	LCD
Aspect Ratio	16:9
Contrast Ratio	300:1
Brightness	350 cd/m²
Video System	PAL / NTSC compatible auto switching
Disc Player Type	Top-loading CD/DVD
Supported Disc Formats	DVD, VCD, MP3, JPG, MP4, CD-R, CD-RW
Supported Digital Files	MP3, MP4, MP5, JPG, MPEG4, WMA, AVI
Memory Card Support	SD card (up to 32GB)
USB Support	USB flash drive (up to 32GB)
Audio Output	Built-in stereo speakers, 3.5mm headphone jack
Video Output	HDMI, AV (RCA)
IR Transmitter	Built-in for wireless IR headphones
FM Transmitter	Integrated
Power Supply	DC 12V (10V-14V range)
Mounting Type	Vehicle headrest mount
OSD Language	English
Included Accessories	Remote control, mounting brackets, power wiring harness, cigarette lighter power cable
Storage Temperature Range	-4°F to 140°F

Frequently Asked Questions - PLHRDVD904 Pyle

How do I install the PLHRDVD904 in my vehicle?

Remove the original headrest. Insert the metal plate at the back of the unit into the plastic bracket parts, adjust to the right angle, then lower the car headrest to the appropriate position. Secure the bracket using the provided screws.

What disc formats are supported?

The player supports DVD, VCD, MP3, JPG, MP4, CD-R, and CD-RW discs.

Can I play movies from a USB drive or SD card?

Yes, you can play digital files (MP3, MP4, MP5, JPG, MPEG4, WMA, AVI) from USB flash drives or SD cards up to 32GB.

How do I connect the player to power?

The player can be hard-wired using the included power wiring harness or powered via the provided cigarette lighter power cable. The power supply is DC 12V (range 10V-14V).

Why is there no sound or image?

Check that the power is connected and the unit is turned on. Ensure the disc is not scratched or dirty. Verify the signal wires are properly connected, and the volume is not muted or too low.

How do I clean the device?

Use a soft cloth with a special cleaner. Do not use diluents or other chemical cleaners. Keep the machine away from dampness, dust, oil, and direct sunlight.

Can I use wireless headphones with this unit?

Yes, the unit has a built-in IR transmitter for use with wireless IR headphones. The PLHRDVD90KT model includes two wireless headphones.

What is the maximum USB/SD card size supported?

The maximum supported size for both USB flash drives and SD cards is 32GB.

How do I troubleshoot a blurry or unstable image?

Blurring or unstable image often indicates a scratched disc. Clean or replace the disc. Also check the disc format compatibility and ensure the video system (PAL/NTSC) is set correctly.

Is the screen touch-sensitive?

No, the screen is not touch-sensitive. The device is controlled via front panel buttons and the included remote control.

USER MANUAL PLHRDVD904 Pyle

Need service or repair?

Want to leave a comment?

PyleUSA.com/ContactUs

PYLE

PyleUSA.com

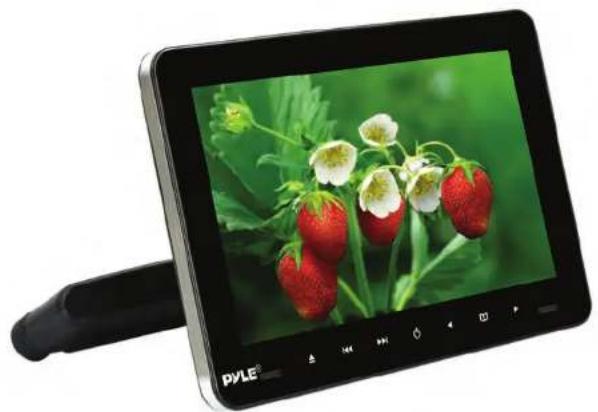

Smartphone displaying a photo of strawberries on a green background (no visible text or symbols)

★★★☆☆☆+☆☆☆☆☆☆☆☆

9.4" -inch

★★★☆♣★♣C ^1 √

10.5" -inch

◆◆□ ★★★★□ ◆■▼★□▼★★○★▼ ◆★▲□●

★□■*□□*▲*○

USER MANUAL

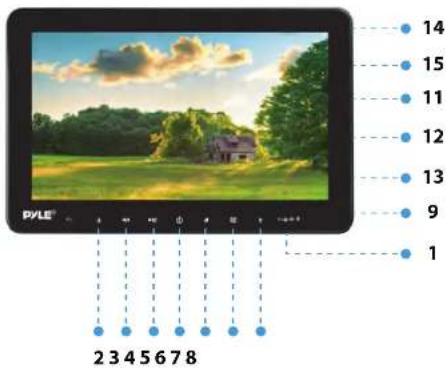

FRONT PANEL

MULTIMEDIA PLAYER

1. LCD Panel
2. Open
3. Pre/Rewind Forward
4. Next/Fast
5. Power
   6.-
6. Menu
   8.+
7. DC 12V
8. DC Jacket
9. HDMI Read Port
10. AV2 IN jack
11. Earphone jack
12. USB Read Port
13. SD Read Port

SIDE PANEL

1. Power
2. Earphone/AV2 jack
3. USB.SD
4. DC 12V Jacket
   5.2.5.HDMI PORT

Only on selected unit models

-- Review product specs & features for detailed info

Two black electronic devices with ports and connectors, one partially open and one partially closed (no visible text or symbols)

REMOTE CONTROL

INSTALLATION

1. Remove the screws from bracket like below picture to install the bracket on iron tube.

Interior view of a car showing seatbelt and rearview mirror (no text or symbols visible)

1. Put the plastic bracket parts in between two metal poles, at the same time, push 2 screws to fix up bracket.

Close-up of a car seatbelt buckle being adjusted for a hand (no text or symbols visible)

Black plastic mechanical component with mounting brackets (no text or symbols visible)

4

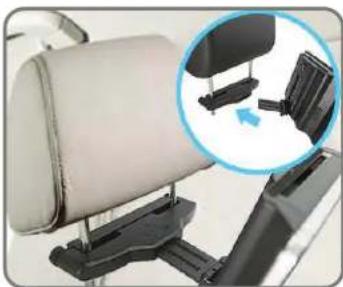

1. Hold up unit, insert the metal plate at the back of the unit into plastic bracket parts, then adjust it to the right angle and fix it tightly, at last lower the original car headrest to the appropriate position.

Close-up of a medical or rehabilitation device with a white seat and black clamps, showing a magnified inset of the device's handle (no text or symbols visible)

WIRING DIAGRAM

Close-up of a mechanical component with mounting holes and a central bracket (no visible text or symbols)

Close-up of a black electronic device's internal components with screws and a plug (no visible text or symbols)

Mini Din Connector Attach power cable to connect

5

WIRING DIAGRAM

Attention

1. Do not put the machine in the rain or damp environment lest outbreak of fire or any damage to machine.
2. Do not repair the machine by yourself. Please turn off the machine and inform us if any problem found, the factory or the agent will arrange specialized personnel to disassemble and repair the machine for you.

3. Please keep the machine away from dampness, dust, oil and straight sunlight.

4. Do not use diluents or other chemical cleaner when cleaning the machine. Please clean the machine by soft cloth with special cleaner.

5. Please keep the machine in a good environment. The storage temperature for this machine is from -4^ F to 140^ F.
6. This machine only supports DIVX/MPEG4/DVD/DVDR+/SVCD/VCD/DVCD/CD/MP3/WMA/CD-R/RW/HDCD+-R/JPEG or CD-ROM7.
7. Please prevent the machine from the influence of other equipment.
8. For your safety, please do not turn or operate this machine when driving as it may be illegal in some countries and regions.
9. Safe power supply: DC12V (voltage range: 10V-14V)

Attention

There may be some small and bright spots on the screen. This is a common technical matter and does not indicate any quality problem of this machine.

TROUBLESHOOTING

Troubles Solution
No sound & image	Power is disconnected; the machine is not turned ON
No image	Disc is scratched; signal wire is disconnected
No sound	Volume too low or the volume setup is not workable
Black Screen	Incorrect setup of image luminance and contrast; Undervoltage
Blurring and Unstable Image	Disc is scratched
Color cast	Function menu setup is incorrect; weak signal
No power	Voltage is not accurate: check inter connect circuit; Fuse is disconnected: change fuse specification
No image after loading the disc	Only audio frequency for the disc; disc is scratched; disc for format is not supported
Unstable sound caused by vibration	DVD is dirty or seriously damaged
Unstable sound even with no vibration	Disc is dirty or scratched clean or replace the disc

FEATURES AND FUNCTIONS

PLHRDVD90KT

Dual Vehicle Headrest Mount Multimedia Disc Player System - Car Video Entertainment Display Monitors with Wireless Headphones (9.4" -inch)

PLHRDVD904

Single Vehicle Headrest Mount Multimedia Disc Player Car Video Entertainment Display Monitor (9.4" -inch)

PLHRDVD103

Single Vehicle Headrest Mount Multimedia Disc Player Car Video Entertainment Display Monitor (10.5" -inch)

MODEL PLHRDVD90KT PL	HRDVD904 PLHRDVD103
(2) Wireless Headphones	√
Screen Size 9.4 inches (x2)	9.4 inches 10.5 inches
Screen Resolution 800x480 Pixels 800x480 Pixels 1024x600 Pixels
Sold as	kit	1	1

Features:

• Universal Vehicle Headrest Mount Displays
• Top-Loading CD/DVD Player
• Audio & Video Entertainment System
• Hi-Res Digital LCD Wide-Screen Video
• Built-in Stereo Speakers
• Headphone Jack, 3.5mm

• USB Flash & SD Memory Card Readers
- Convenient Removable Leather Screen Cover
- Easily Attaches to Front-Seat & Back-Seat Headrests
• HDMI Input Port & AV Connector
- Connect Additional Device via RCA (Audio/Video) Wiring Harness
• Built-in IR Transmitter for Wireless IR Headphone Use
- Front Panel Button Controls
• Integrated FM Transmitter
- Includes All Necessary Hardware & Cables for Installation
- *Can be Hard-Wired or Powered via Included Plug-in Cigarette Lighter Power Cable

What's in the Box:

• Headrest Mounting Brackets
- Remote Control
• Power Wiring Harness Cable
• Cigarette Lighter Power Cable

Technical Specifications:

• Video System: PAL / NTSC Compatible Auto Switching
- Aspect Ratio: 16:9
• Contrast Ratio: 300:1
• Brightness: 350 cd/m2
- English OSD Menu
• Maximum USB/SD Card Size: 32GB
• CD/DVD Player Support: DVD/VCD/MP3/JPG/MP4/CD-R/CD-RW
• Digital File Compatibility: MP3, MP4, MP5, JPG, MPEG4, WMA, AVI
• Power Supply: DC 12V
