| Product Type | Security Camera |
| Brand | 3xLOGIC |
| Model | VX-4S28-MD-I-S |
| Image Sensor | 4 Megapixel CMOS |
| Resolution | 2560 x 1440 pixels |
| Lens | 2.8mm fixed |
| Field of View | Horizontal: 90°, Vertical: 50° |
| Night Vision | Infrared up to 30m (100ft) |
| Motion Detection | Yes, configurable zones |
| Power | PoE (802.3af) or DC 12V, 1A |
| Power Consumption | Maximum 12W |
| Dimensions (W x H x D) | 80 mm x 180 mm x 70 mm |
| Weight | 0.5 kg (1.1 lb) |
| Housing | Metal, IP67 rated |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Storage | MicroSD card slot (max 128GB) or NVR |
| Video Compression | H.265 / H.264 |
| Maintenance | Clean lens with soft, dry cloth. Avoid solvents. |
| Safety | Install at height > 2m; follow local electrical codes. |
| Spare Parts & Repairability | No user-serviceable parts. Contact authorized service center. |
Frequently Asked Questions - VX-4S28-MD-I-S 3xLOGIC
How do I reset the camera to factory defaults?
Press and hold the reset button (located near the Ethernet port) for 10 seconds. The camera will reboot and restore default settings.
How can I view the camera remotely?

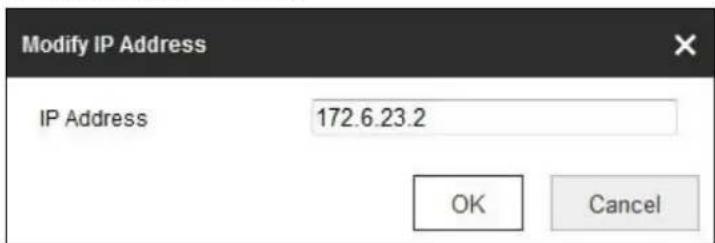

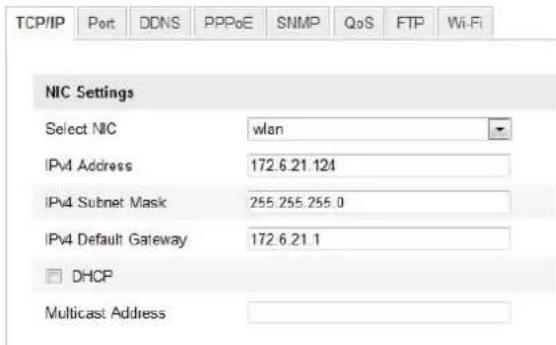

Use the 3xLOGIC mobile app or web interface. Ensure the camera is connected to your network with a static IP, then add it using the device's serial number.
What is the warranty period for this camera?
The standard warranty is 3 years from the date of purchase, covering manufacturing defects.
Where can I download the full user manual?
The manual is available for free on notice-facile.com in PDF format. Search for your model VX-4S28-MD-I-S.
How do I update the firmware?
Download the latest firmware from the 3xLOGIC support site. Access the camera's web interface, go to Maintenance > Firmware Upgrade, and upload the file.
Is this camera compatible with third-party NVRs?
Yes, it supports ONVIF Profile S, making it compatible with most standard NVRs. You may need to enter the camera's IP and credentials.
How should I mount the camera outdoors?
Use the included mounting bracket. Ensure the mounting surface is sturdy. Route cables through the base to prevent water ingress. Tighten all screws securely.
What is the effective night vision range?
The infrared LEDs provide clear visibility up to 30 meters (100 feet) in complete darkness.

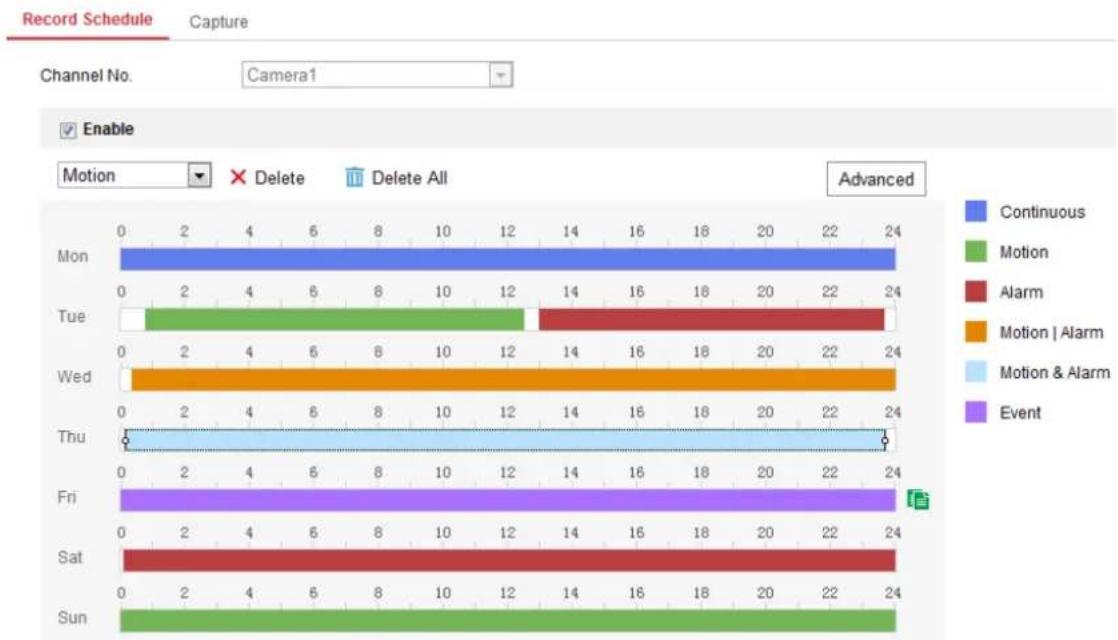

Can I save recordings without an NVR?
Yes, the camera has a built-in microSD card slot supporting up to 128GB for local recording. Configure recording settings via the web interface.
How do I clean the camera lens?
Use a soft, lint-free cloth slightly dampened with water or mild soap. Gently wipe the lens. Avoid using alcohol or abrasive materials.
