MOSAIC - Stroller GRACO - Free user manual and instructions

Brand	GRACO
Model	MOSAIC
Product type	Stroller
Safety standard	EN1888:2003
Recommended age	From birth to approximately 3 years
Maximum child weight	15 kg
Stroller weight	9 kg
Maximum load on handle	5 kg
Main functions	Reclining seat, 5-point harness, front swivel wheels with lock, parking brake, adjustable canopy, removable apron, compatibility with Group 0+ car seat
Seat cushion maintenance	Machine washable cold, delicate cycle, drip dry
Chassis maintenance	Clean with mild soap and warm water, no bleach or abrasive cleaners
Lubrication	Light machine oil for moving parts
Safety	Harness with crotch strap, parking brake, lockable wheels, do not use for running or skating, do not leave child unattended
Compatible accessories	Graco Group 0+ car seat, Graco approved rain cover, Graco approved transport basket
Spare parts and repairability	Contact GRACO customer service
General information	Manufacturer: GRACO, 7 rue Guillaume Kroll, L-1882 Luxembourg, www.graco.fr

Frequently Asked Questions - MOSAIC GRACO

How to install the wheels on the MOSAIC stroller?

Insert the axle through the hub, attach the retainer on the axle, then the cap. For front wheels, insert the pin and washer, attach the wheel, then reinsert the pin and washer, and finally the wheel cover. Repeat for the other wheel.

How to adjust the recline?

To recline the backrest, pull the recline tab down. To raise it, push the tab up.

How to fold the MOSAIC stroller?

Before folding, lower the canopy, engage the brakes, remove the apron and car seat if installed. Recline the seat to the lowest position, then follow the illustrated steps (images 31-36 in the manual).

How to attach a Graco car seat to the stroller?

Recline the stroller seat to the lowest position, attach the car seat onto the armrest with a single click. Insert the side hooks into the designated slots. Check the attachment by pulling. To remove, loosen the straps, squeeze the release handle at the back and lift.

What is the maximum weight supported by the stroller?

The stroller is designed for a child from birth up to approximately 3 years, with a maximum weight of 15 kg. The maximum load on the handle is 5 kg.

Can I use the stroller for jogging?

No, the MOSAIC stroller is not suitable for running or skating. It is intended for standard use.

How to clean the stroller?

The removable seat cushion can be machine washed in cold water on delicate cycle, then drip dry. The chassis can be cleaned with mild soap and warm water. Do not use bleach, white spirit, or abrasive cleaners. Lubricate moving parts with light machine oil.

How to lock the front swivel wheels?

The front swivel wheels can be locked for use on uneven surfaces like grass or gravel. Refer to images 27-28 in the manual for the locking mechanism.

How to remove the apron?

The apron can be removed by pressing the metal button located on the underside of the bar (images 29-30 in the manual).

How to adjust the safety harness?

Thread the harness straps through the slot nearest to the child's shoulder. Use the sliding adjuster to fit the harness to the child's size. Always use the crotch strap in combination with the waist belt.

USER MANUAL MOSAIC GRACO

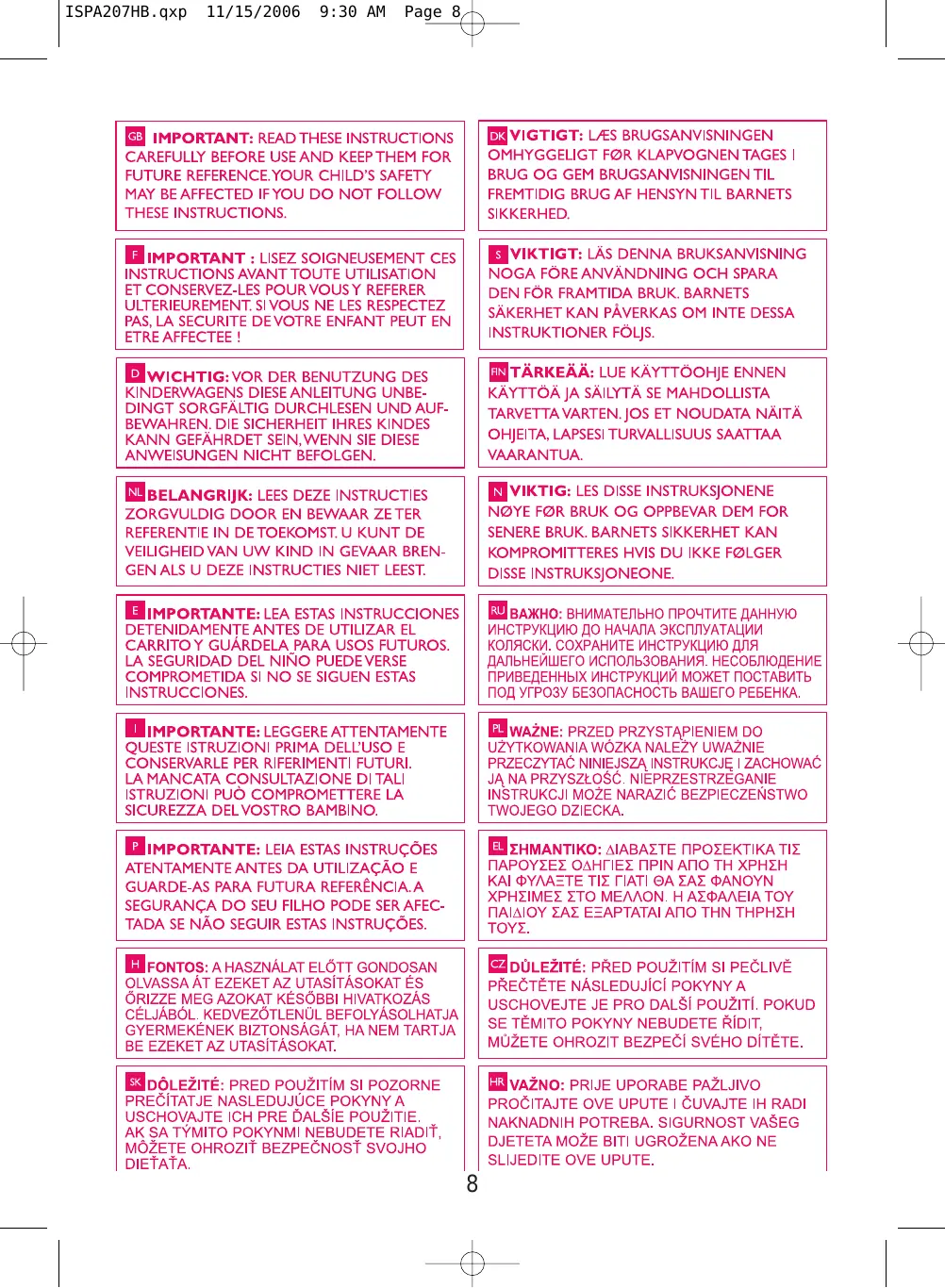

Read these instructions carefully before use and keep them for future reference.

Your child's safety may be affected if you do not follow these instructions.

PARTS

ACCESSIONS (certain models only)

OR

2X

2X

2X

2X

2X

2X

2X

Rear wheels

To open stroller

Arm chair

Brakes

Hood

To secure your child

To recline back

Swivel wheels

To remove ambar

Adjustable legrest

To fold stroller

34

35

36

Travel system

Rain Cover (certain models only)

Apron (certain models only)

Complies with the EN1888:2003

Graco Children's Product

First Floor

900 Pavilion Drive

Northampton NN4 7RG

United Kingdom

0870 909 0501

GRACO CONTINENTAL EUROPE GRACO

Newell Rubbermaid Luxembourg SARL

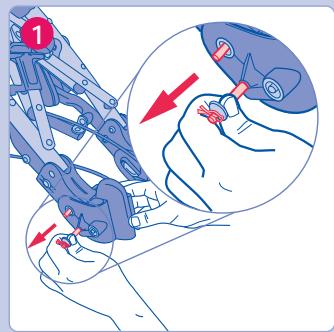

Pull axle through axle hole as shown.

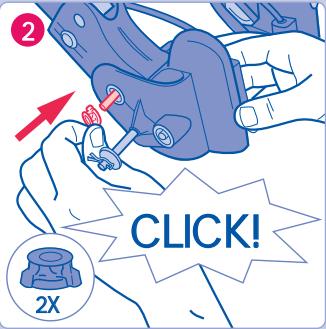

Attach retainer to axle as shown.

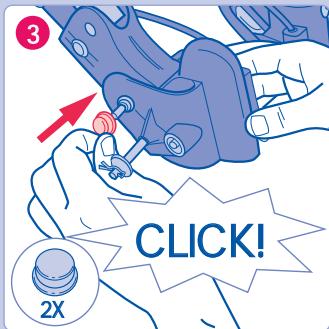

3 Attach cap over retainer as shown.

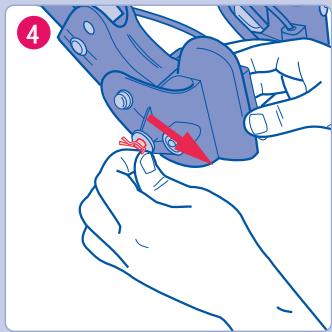

4 Remove pin and washer from axle.

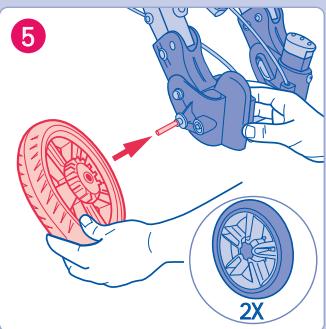

5 Attach wheel to axle.

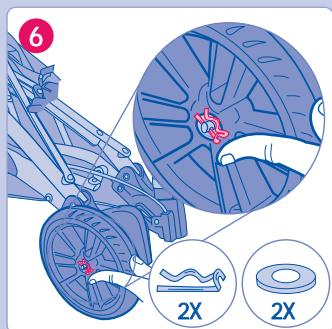

6 Reattach washer and then pin.

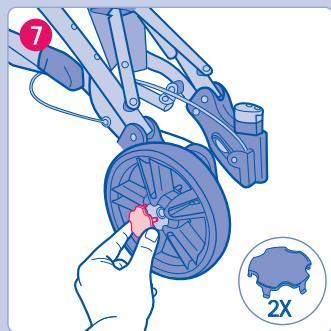

7 Attach hubcap.

Repeat Steps 1 through 7 for other wheel.

To open stroller

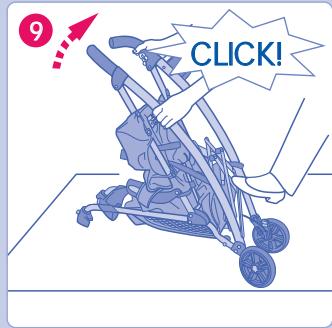

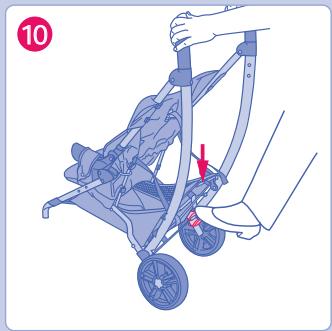

See images 8,9 and 10

Armbar

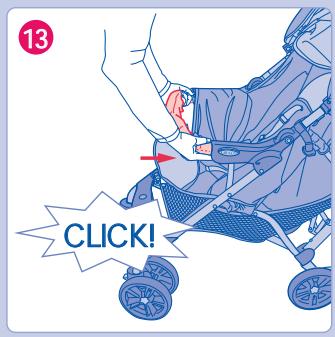

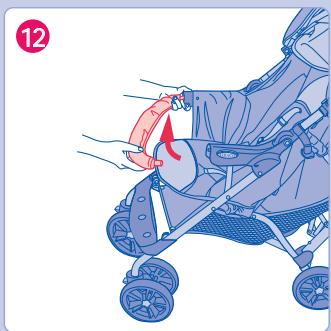

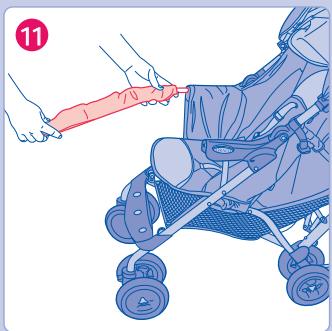

11- 13Push arm bar into hole on side of pushchair. Click into place.

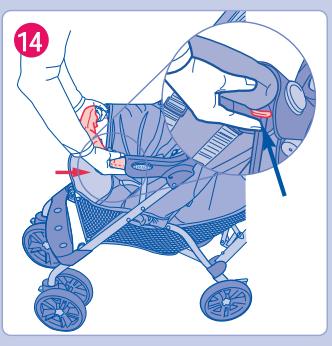

14 To open, press button.

Front wheels

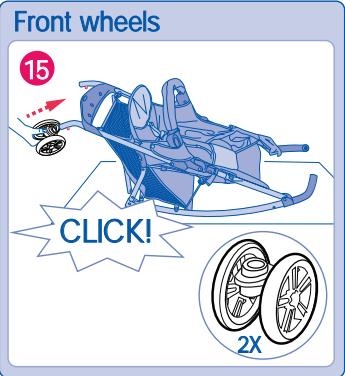

15 Pull FIRMLY on wheel assembly to be sure it is securely attached.

Brakes

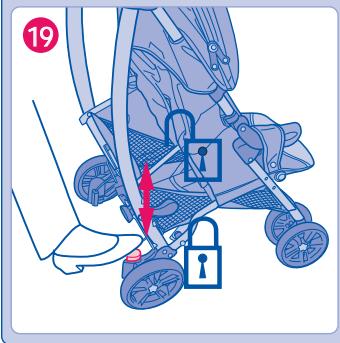

19 Check to make sure brake is on by trying to push the pushchair.

Hood

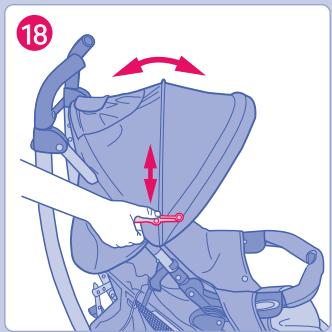

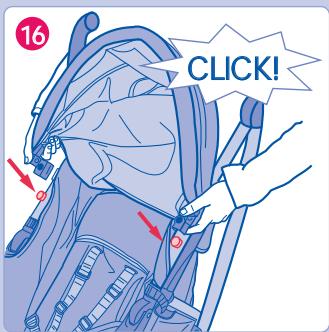

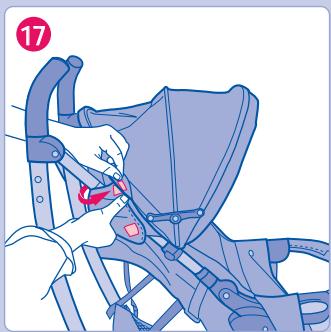

See images 16,17 and 18

To secure your child

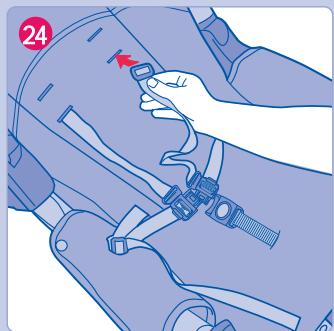

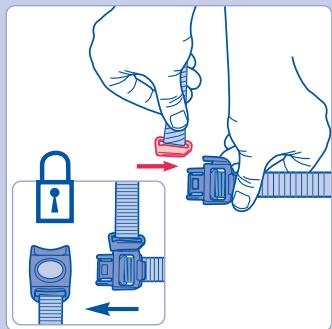

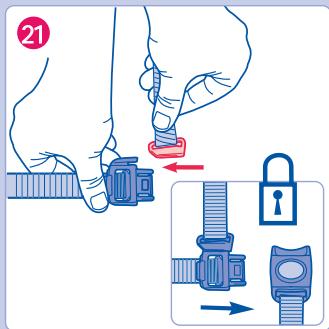

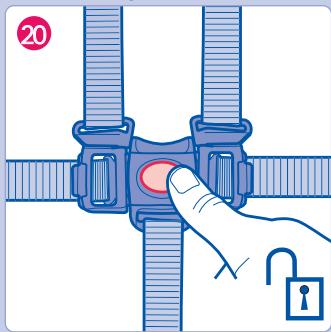

See images 20 - 24

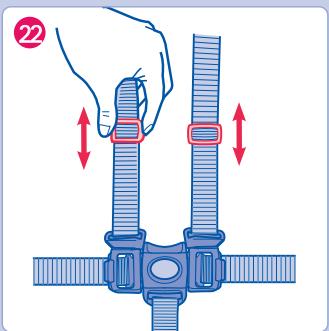

To adjust

Use either shoulder harness anchor in the slots that are closest to child's shoulder height.
Use slide adjuster for further adjustment.

To recline back

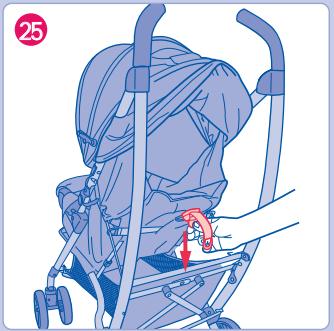

25 To recline, pull recline tab down.
26 To raise, pull recline strap up.

Swivel wheels

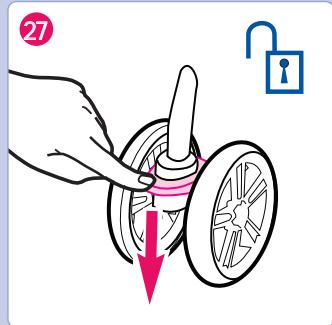

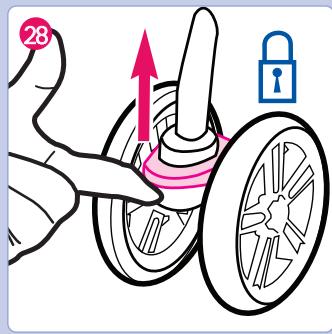

27/28 Front swivel wheels lock for use on uneven surfaces such as grass, stones or gravel.

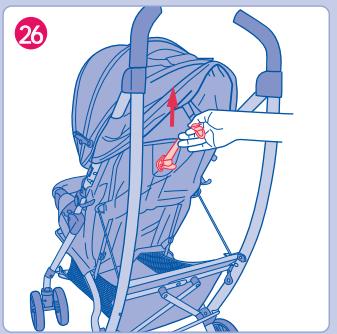

To remove armbar

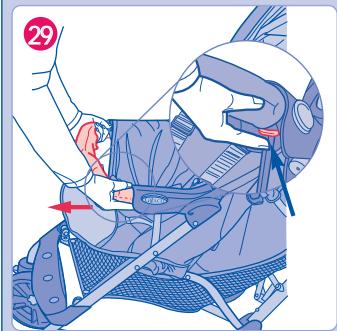

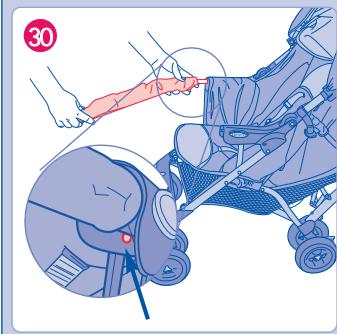

To remove, press metal button on underside of armbar.

Adjustable legrest

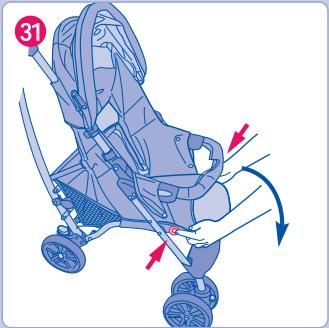

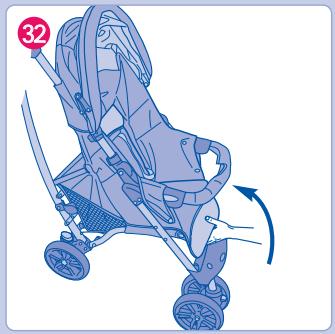

See images 31-32

To fold stroller

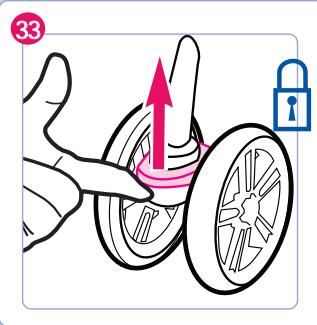

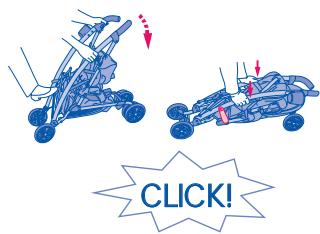

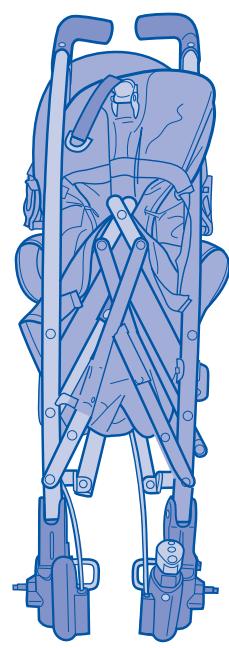

See images 33-36 Before folding, fold hood, 34 apply brakes, and remove apron and car seat if installed.

Travel system

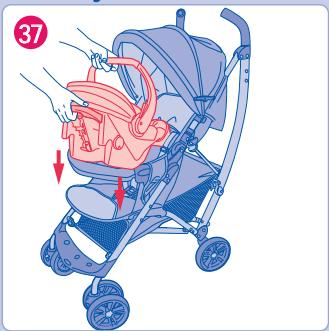

37 Recline the stroller seat back to its lowest position. Snap carrier into position ontoarm bar.

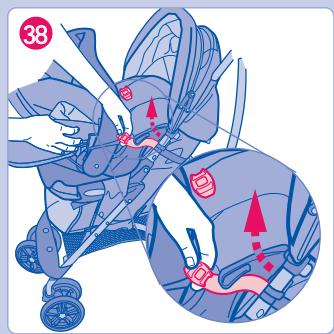

38 Pull straps through vehicle belt hooks on both sides of the car seat. Check that infant carrier is securely attached by pulling up on it.

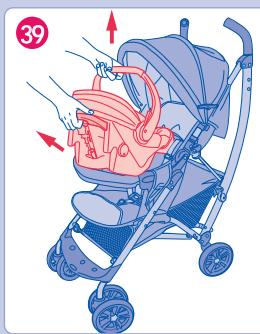

39 To remove carrier:release straps from carrier, squeeze release handle at back of carrier, and lift carrier out of the stroller.

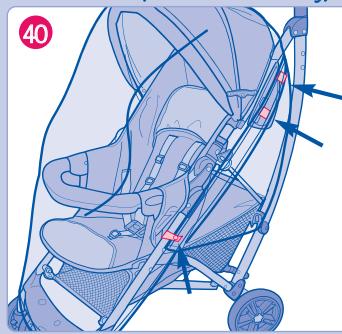

40 Rain Cover

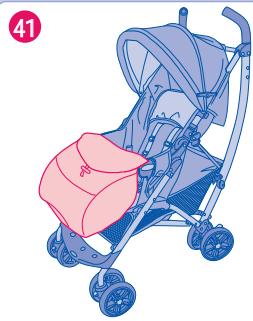

Apron

WARNING: Remember a child's safety is your responsibility.

WARNING: It may be dangerous to leave your child unattended.

Children should be harnessed in at all times and should never be left unattended.

The child should be clear of all moving parts while making adjustments.

This vehicle requires regular maintenance by the user.

Overloading, incorrect folding and the use of non-approved accessories may damage or break this vehicle.

Read the instructions.

Do not hang shopping bags from the handle or carry shopping bags on the pushchair except in a Graco-approved shopping tray. Maximum load 5 kg. NEVER ON THE FOOTREST.

It may be unsafe to use accessories e.g. child seats, bag hooks, rain covers, etc. other than those approved by Graco®.

It may be unsafe to use replacement parts other than those approved by Graco.

This vehicle is intended for one child only. Use of this pushchair with a child weighing more than 15 kg will cause excessive wear and stress on this pushchair.

Use this pushchair only with Graco Group 0+ .

WARNING: This product is not suitable for running or skating.

WARNING: Ensure that all the locking devices are engaged before use.

WARNING: Check that the pram body or seat unit attachment devices are correctly engaged before use.

WARNING: Use a harness as soon as your child can sit unaided.

WARNING: Always use the crotch strap in combination with the waist belt.

WARNING: Any load attached to the handle affects the stability of the pram/pushchair.

WARNING: Regularly lubricate all moving parts sparingly with a light general purpose machine oil, making sure that the oil penetrates between the components where these move against each other in use.

Check the various safety devices and use them correctly.

Keep your child away from the folded free-standing unit so that it does not fall and injure your child.

Pushchairs should be serviced after an extended period of no use.

If your pushchair is used by anyone unfamiliar with it, e.g. grandparents, always show them how it works. D rings are provided at the ends of the waist belts on either side of the seat for the attachment of a safety harness approved to BS 6684 or EN13210.

Do not use a PVC rain hood indoors, in a hot atmosphere or near a direct heat source - baby may overheat.

Do not let go of your pushchair when close to moving road vehicles or trains, even with the brake on, the draught from the vehicle or train may move a free standing pushchair.

When ascending or descending stairs or escalators, always remove your child and fold the puschchair.

Avoid strangulation. DO NOT suspend strings from your pushchair or place items with strings on your child.

Please fully remove raincover before folding the pushchair.

CARE AND MAINTENANCE

REMOVABLE SEAT PAD may be machine washed in cold water on delicate cycle and drip-dried.

WHEN USING YOUR PUSHCHAIR at the beach, completely clean your pushchair afterwards to remove sand and salt from the wheel assemblies.

FROM TIME TO TIME CHECK YOUR PUSHCHAIR for loose screws, worn parts, torn material or stitching. Replace or repair the parts as needed.

DISCONTINUE USING YOUR PUSHCHAIR should it become damaged or broken.

TO CLEAN PUSHCHAIR FRAME, use only household soap or detergent and warm water. NO BLEACH, SPIRIT OR ABRASIVE CLEANERS. Allow to dry before storing.

EXCESSIVE EXPOSURE TO THE SUN could cause premature fading of pushchair plastic and fabric.

Travel system - Travel system

Travel system - Transportsystem

Consulte as imagens 16, 17 e 18

To secure your child - Para prender acrianca

Consulte as imagens 20-24

Para ajustar

To recline back - Para reclinar as costas

Adjustable tegrest - Apoio para as pernas regulavel

Consulte as imagens 31 - 32

To fold stroller - Para fechar o carrinho de passageo

Consulte as imagens 33-36

To secure your child - Fastspending of barnet

Se billed 20 til 24

Justering

Rear wheels - Bakhjul

To secure your child - Att spanna fast barnet

Se bilderna 20-24

For att justera

Rear wheels - Bakhjul

Travel system - Reisesystem

STELL OG VEDLIKEHOLD

Rear wheels - Takapy r t

Front wheels - Els_kerekek
