RedPlanet RP-300SP - Telescope Carson - Free user manual and instructions

Product Type	Smartphone Telescope Adapter
Brand	Carson
Model	HookUpz (included with RedPlanet RP-300SP)
Compatible Telescopes	Carson RedPlanet RP-100, RP-200, RP-300, RP-400
Phone Orientation	Portrait and Landscape
Vertical Adjustment	Sliding top clamp
Horizontal Adjustment	Alignment screw
Locking Mechanism	Set screw to prevent eyepiece rotation
Camera Cutout	For phone camera alignment
Material	Plastic and metal
Color	Black
Net Weight	Approx. 4 oz (113 g)
Dimensions	Approx. 4 x 3 x 2 inches (102 x 76 x 51 mm)
Cleaning Instructions	Soft damp cloth only; no chemicals or abrasives
Storage Conditions	Dry area at room temperature
Included Accessories	Adapter only (included with telescope purchase)
Manual Languages	English, French, Spanish, German, Japanese
Customer Service Phone	1-800-967-8427 (toll-free)
Customer Service Email	[e-mail]
Website	www.carson.com

Frequently Asked Questions - RedPlanet RP-300SP Carson

Why does the top clamp touch the round corner of my phone instead of the top flat edge?

This is normal for some phone models. Simply fit the clamp as close to the rounded edge as possible and lock the top clamp as usual.

Why am I getting reflections or glare in my image?

Indoor lighting can cause reflections. Avoid overhead lighting or change the angle of the light. Also, turn off the flash to reduce glare. Increase phone screen brightness if needed.

I can't align my phone vertically with the top clamp; it won't fit. What should I do?

Try removing your phone case. Alternatively, you can remove the top clamp assembly using the screw. Note that without the top clamp, you will need to adjust vertical alignment each time you use the adapter.

How do I know which phones will work with the adapter?

Refer to the Smartphone Sizing Guide: if your phone (in its case) fits in portrait orientation between the two arrows shown in the manual, it will fit the adapter.

Why does my phone rotate on the eyepiece when used in landscape mode?

If the eyepiece can rotate on your telescope, tighten the set screw (Fig. 12) to lock it in place.

My image doesn't appear centered or is not a complete round image. What's wrong?

Adjust the phone alignment vertically using the top clamp (Fig. 7) and horizontally using the alignment screw (Fig. 8). Ensure the phone is flat on the adapter (Fig. 6) and the adapter is flush with the optic (Fig. 15).

My other phone camera or flash is covered by the adapter. Why is that?

Use only the primary rear camera. The flash is not needed when using the adapter, so turn off the flash. If problems persist, contact customer support.

How do I attach the adapter to my telescope?

Align the optic adapter over the eyepiece and press down firmly. Ensure it is flush with the eyepiece. Be careful not to disturb the phone alignment.

How do I remove the phone from the adapter while preserving alignment?

To save your alignment, do not adjust the top clamp or alignment knob. Simply remove the phone using only the right clamp as shown in Fig. 4.

Can I use this adapter with binoculars?

The adapter is designed for telescopes with standard eyepieces. It may work with binoculars that have compatible eyepieces, but it is not guaranteed.

USER MANUAL RedPlanet RP-300SP Carson

Smartphone Telescope Adapter

Included with:

• RP-100SP Telescope
• RP-200SP Telescope
• RP-300SP Telescope
• RP-400SP Telescope

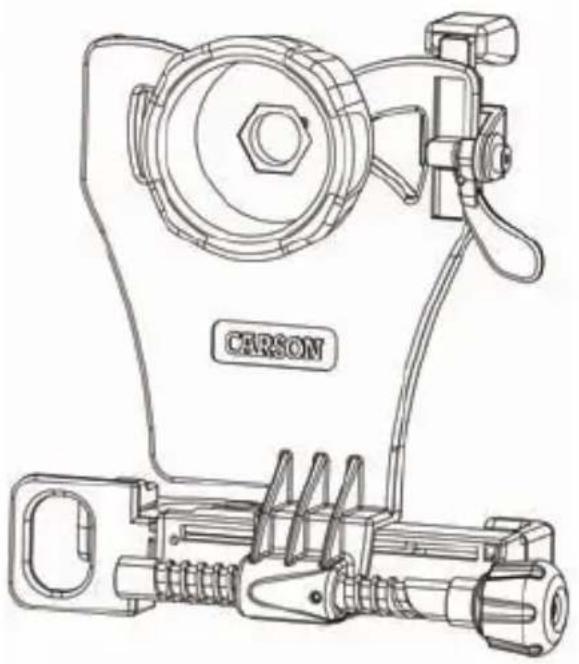

Technical line drawing of a carson tool assembly (no text or symbols on the diagram itself)

Instructions for Use

PDF / ➤ VIDEO: www.carson.com/telescopic

English / Français / Español / Deutsch / 日本語

HookUpz™

Table of Contents

Optic Side Diagram...... 2

Phone Side Diagram.... 3

Inserting Phone...... 4-5

Align & Lock...... 6-7

Attaching to Optic 8-9

Frequently Asked Questions...... 10-13

Tips and Tricks...... 14

Storage/Cleaning Information.... 15

Customer Service.... 15

Carson Optical

2070 5th Avenue

Ronkonkoma, NY 11779

www.carson.com [e-mail]

Tel: [phone] Fax: [phone]

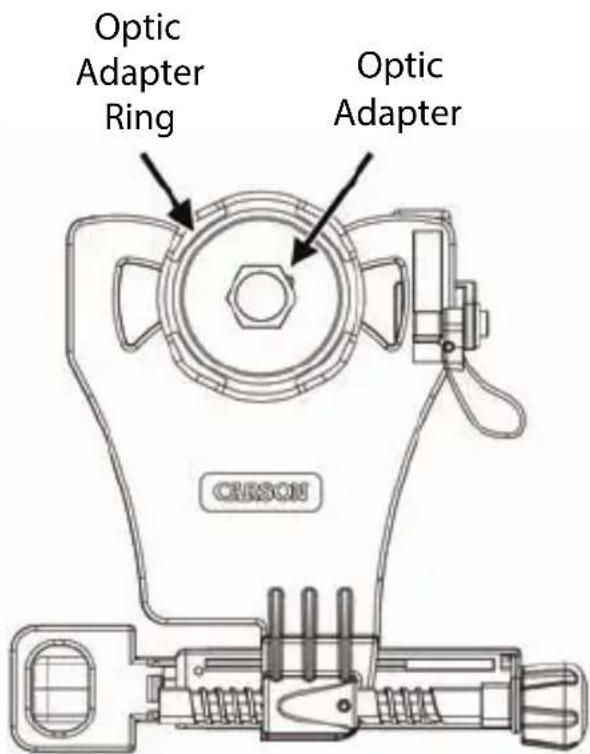

Optic Side

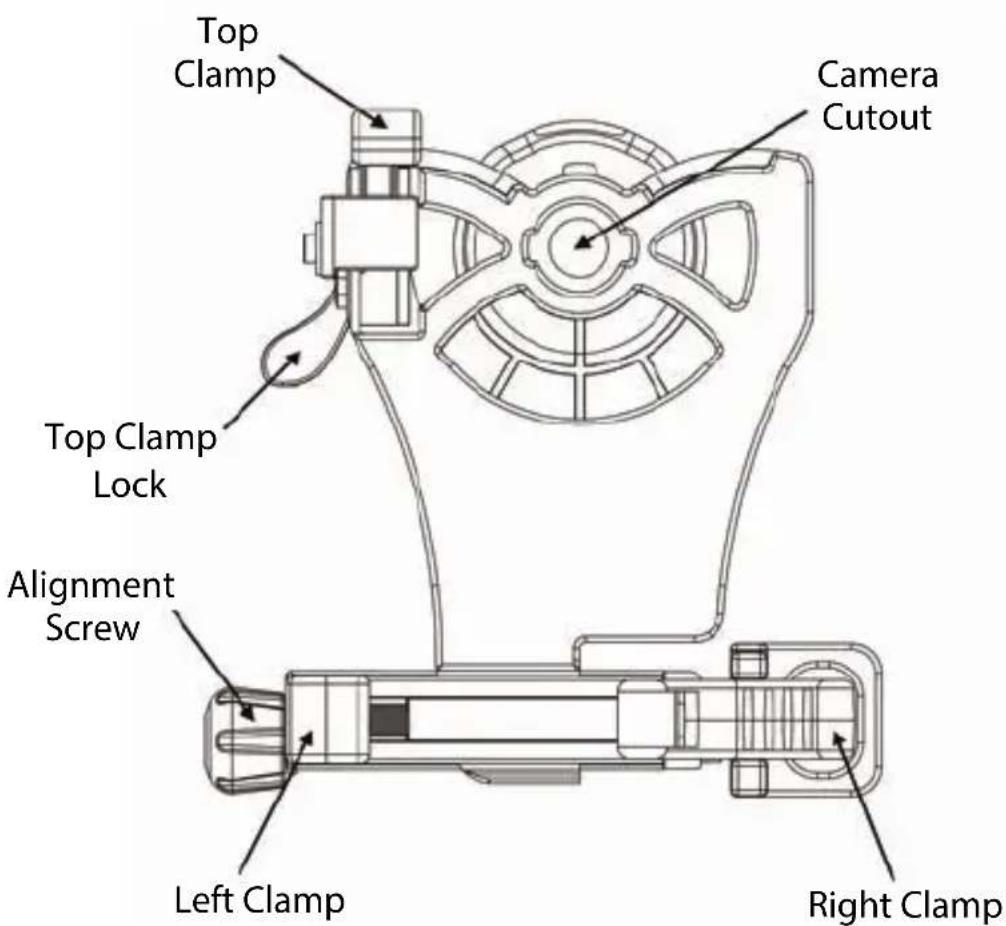

Phone Side

Inserting Phone

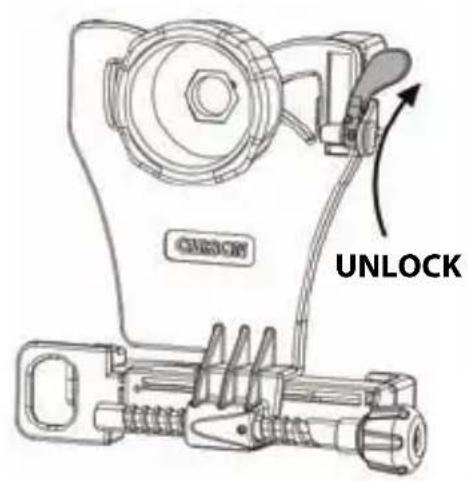

Fig.1

Rotate to unlock top clamp.

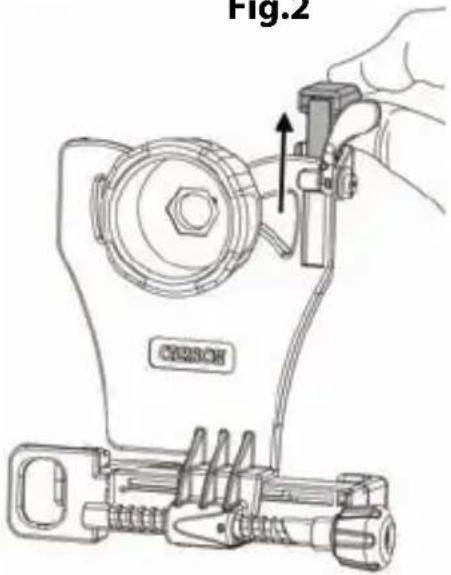

Fig.2

Slide top clamp into uppermost position.

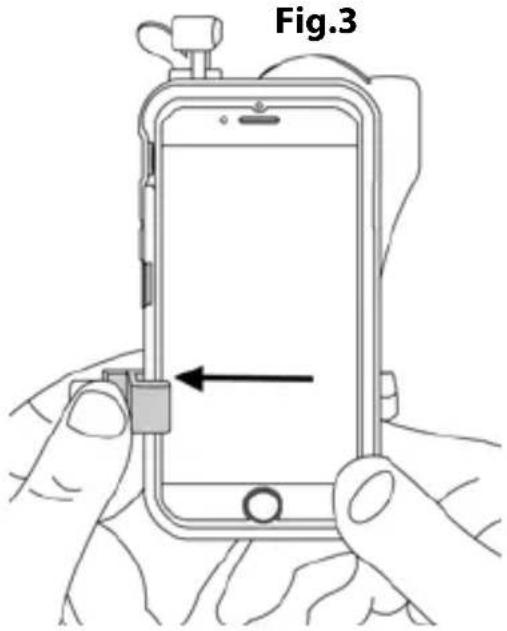

Insert phone into left clamp.

Inserting Phone (cont.)

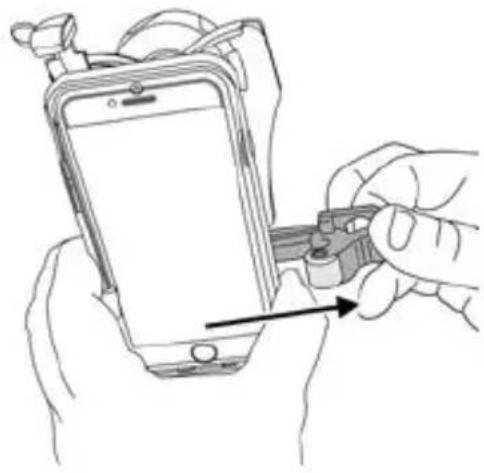

Fig.4

Illustration of hands holding a smartphone with a tool, showing the screen and cable (no text or symbols present)

Squeeze and pull right clamp past edge of phone.

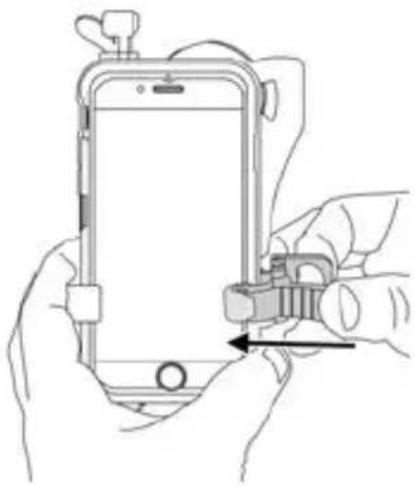

Fig.5

Line drawing of hands holding a smartphone with a lock and cable (no text or symbols)

Release right clamp to secure phone.

Fig.6

Mechanical device with a checkmark indicating a specific part (no visible text or symbols)

Ensure phone is flat as possible to adapter.

Mechanical device with a circular symbol indicating no change, showing no text or labels.

Align & Lock

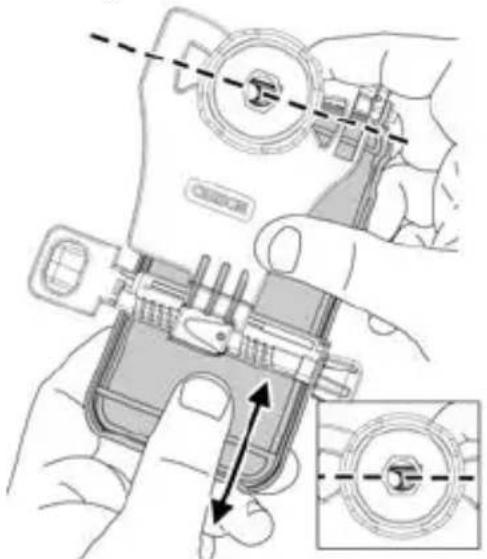

Fig.7

Slide phone vertically until camera is roughly aligned with camera cutout.

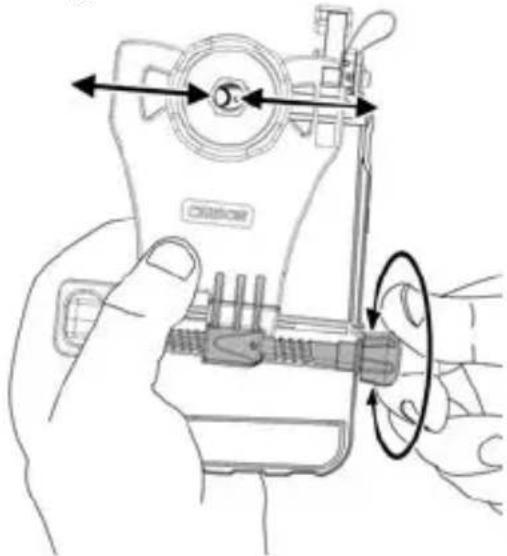

Fig.8

Line drawing of a hand operating a camera with a circular motion indicator (no text or symbols)

Turn alignment screw until camera is centered in camera cutout.

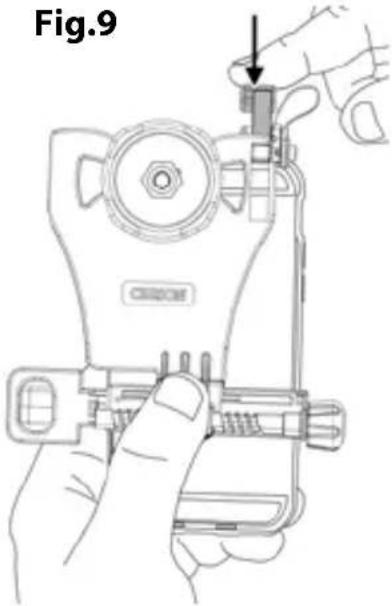

Slide top clamp down against phone edge.

MULTIPLE-LENS CAMERA PHONE:

If there is more than one rear-facing camera, use the primary one. Typically, the primary is a 1x wide-angle color camera, and the other camera(s) are secondary.

For Apple dual camera phones, the primary camera is the one closest to the corner. Use photo or video mode only. For Android, the primary camera can be determined by which does not show an image in your app while blocking the individual camera.

For the latest instructions on multiple camera phones, please visit www.carson.com/multicam.

Align & Lock (cont.)

Fig.10

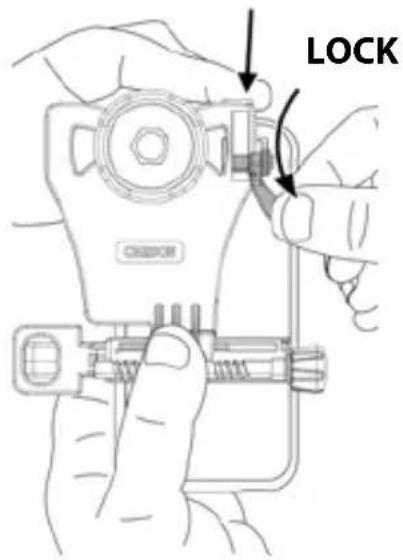

While holding top clamp tight to phone, rotate to lock.

Fig.11

Illustration of a handheld device with a circular component and a hand holding it (no text or symbols visible)

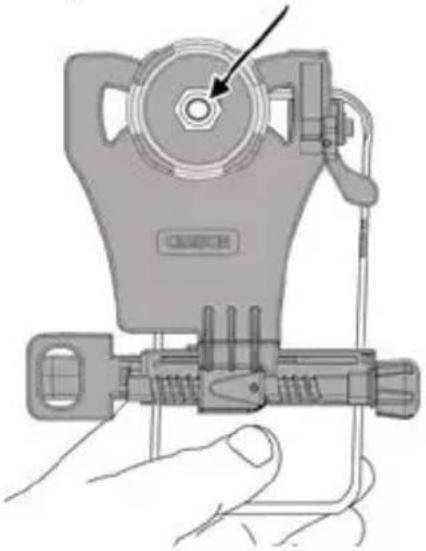

Figure 11 shows a properly aligned camera. If needed, use alignment screw and top clamp to make further adjustments.

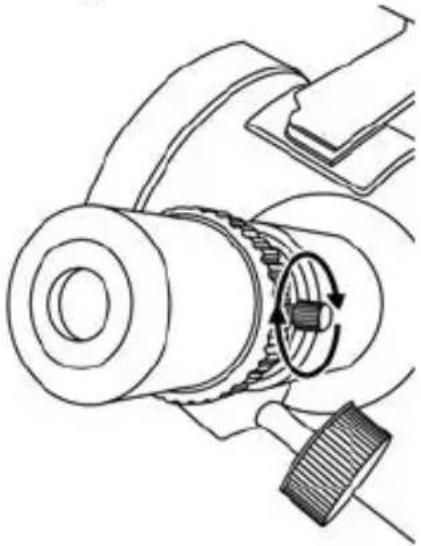

Fig.12

Mechanical assembly diagram showing a gear and shaft mechanism with rotational motion arrows (no text or labels)

To prevent eyepiece from rotating, tighten set screw to lock in place.

Attaching to Optic

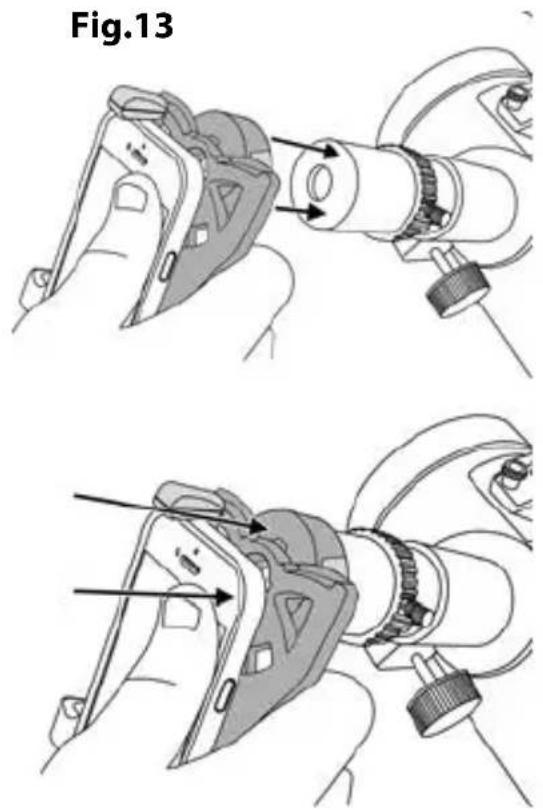

Align optic adapter over eyepiece and press down firmly. Be careful not to move your camera out of alignment.

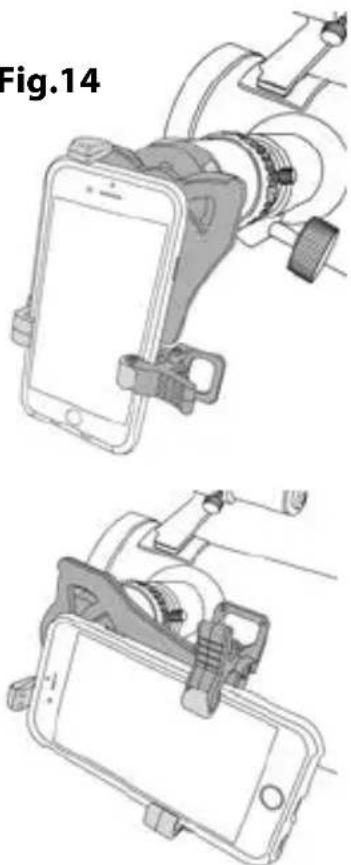

Fig.14

Two technical diagrams showing a smartphone mounted on a stand with a clamp, no text or symbols present.

Phone can be positioned in either portrait or landscape mode.

Attaching to Optic (cont.)

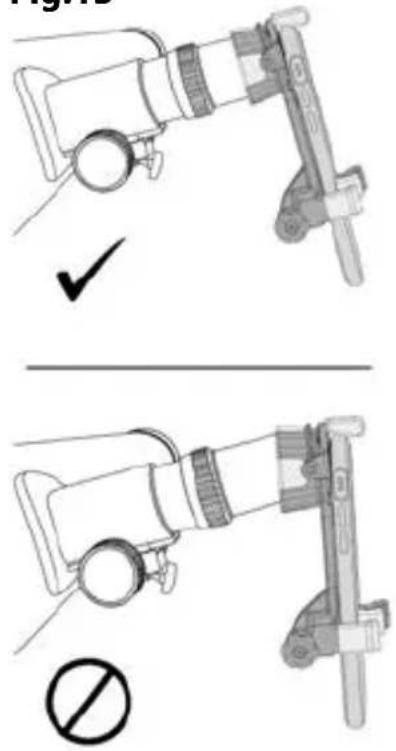

Fig.15

Ensure that optic adapter is flush to the eyepiece of your telescope.

Fig.16

Illustration of a smartphone with a brain icon and mechanical device, no text or symbols present

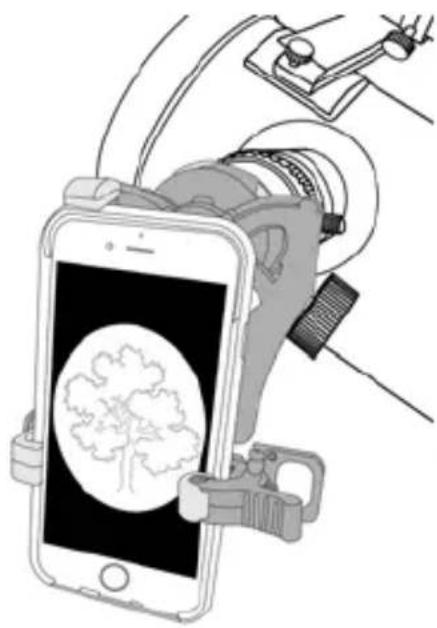

Turn on camera. If image is not centered, repeat alignment steps.

Fig.17

Illustration of a hand holding a smartphone displaying a circular diagram, with a camera and mechanical device in the background (no text or symbols)

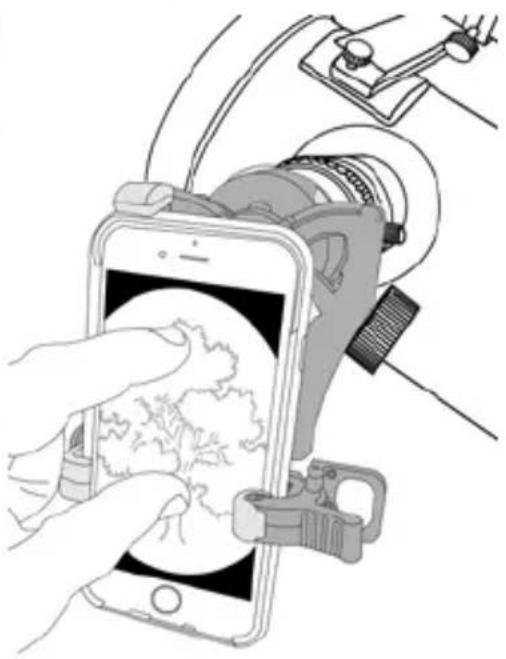

To maximize your image, pinch to enlarge image. For best results, use in video mode.

TO REMOVE PHONE FROM ADAPTER:

To save your alignment, make no further adjustments to the top clamp and alignment knob. Simply remove phone using right clamp only as shown in Fig. 4.

USING ADAPTER AGAIN:

The alignment of your phone to the adapter should be saved from the initial setup, so many steps can be skipped (FIG 1-2, 7-10) and only a quick fine adjustment of the alignment may be needed.

Frequently Asked Questions:

Q1: Why does the top clamp touch the round corner of my phone, instead of the top flat edge?

A1: This is normal for some models of phones. Just fit as close to rounded edge as possible and lock top clamp as normal.

Q2: Why am I getting reflections and/or glare in my image?

A2: This may occur with indoor lighting. Please avoid overhead lighting or change the angle of the lighting relative to phone. Also, please use without flash to avoid reflections and/or glare in photos. If there's glare on your phone screen that makes image hard to view, increase brightness setting on phone and view from a position with less overhead light.

Q3: I can't align my phone vertically with the top clamp; it won't fit. What should I do?

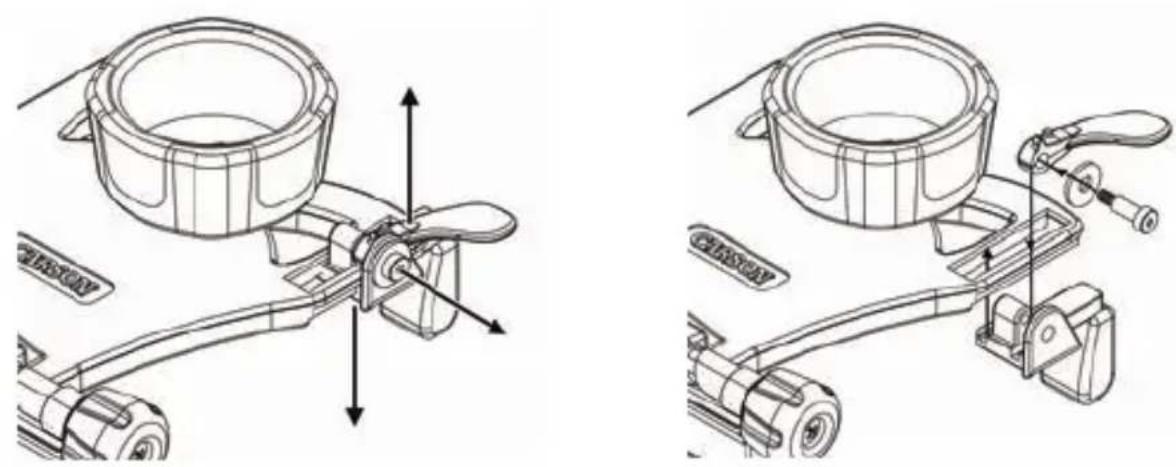

A3: If you go through the alignment process and there is no way to achieve vertical alignment, because it's restricted by the top clamp, try removing your phone case. Alternatively, you can remove top clamp assembly using screw as shown below in left figure. For this configuration, you will not be able to save your vertical alignment between uses. Your phone will have to be adjusted for vertical positioning each time it's placed within the adapter. We recommend you save these four parts for use with other phones, and you can reassemble the top clamp as shown below in right figure.

Technical line drawings of a mechanical device with labeled parts, showing assembly and mounting features (no text or symbols present)

Q4: How do I know which phones will work with the adapter?

A4: Please see the smartphone sizing guide below.

SMARTPHONE SIZING GUIDE

If your phone (in its case) fits in "portrait" orientation between the 2 arrows, it will fit the smartphone telescope adapter.

Q5: Why does my phone rotate on the eyepiece when used in landscape (horizontal) mode?

A5: If the eyepiece can rotate on your telescope, lock it in place by tightening the set screw (Fig 12).

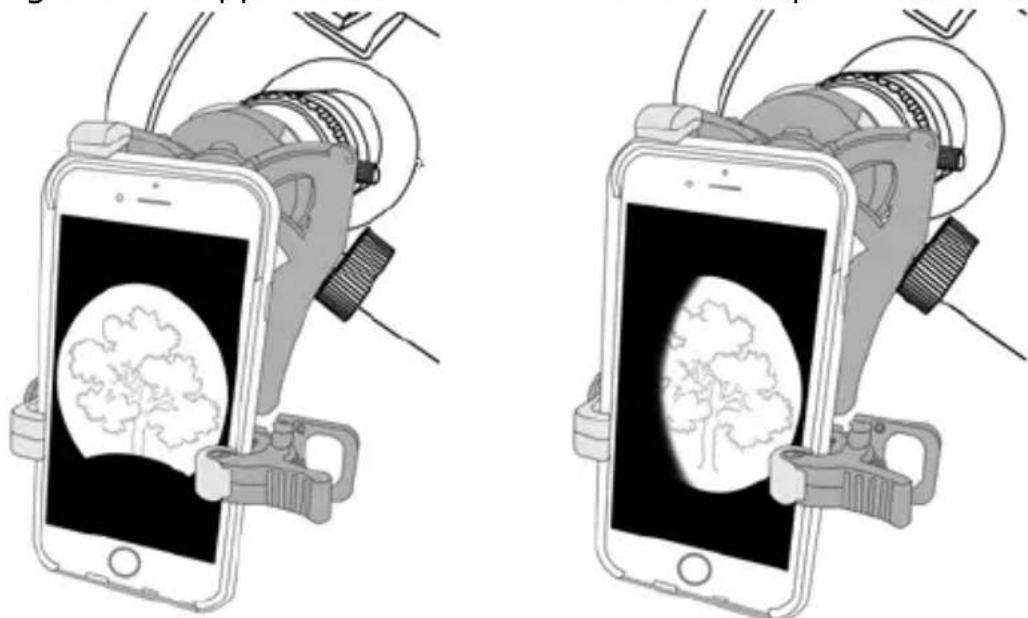

Q6: My image doesn't appear to be centered or is not a complete round image; what's wrong?

Illustration of two smartphones with a brain inside, shown from different angles (no text or symbols)

A6: The phone alignment needs to be adjusted in vertical direction using top clamp (FIG 7) and in horizontal direction by using alignment screw (FIG 8). Check that phone is flat on adapter (FIG 6), and adapter is flush with optic (FIG 15).

Q7: My other phone camera or flash is covered by adapter. Why is that?

A7: First, we recommend using the device with only the primary rear camera. If problems persist, please contact customer support. Second, the flash can be covered, and is not needed for use with optic. We recommend flash setting is turned off at all times when using adapter.

Tips & Tricks:

PHOTOGRAPHY

• Tap object of interest on your phone screen to autofocus.
• For videos, tap and hold object of interest on phone screen for a second to lock focus. Tap again to release the focus lock.
• In low light conditions, turn your phone screen brightness to its lowest level.
• For long sessions, try using battery cases or phone chargers to prevent your battery from draining.

APPS

• Share photos and videos through various apps (e.g. FaceTime, Messages, Facebook, Instagram, etc.).
• Apps that allow you to set exposure and focus manually can expand the potential of the adapter. This is especially helpful for telescopes to set longer exposure times to get the best images of sky objects.

STABILIZATION

• Place telescope on a stable surface to prevent external vibrations from shaking image.
• To prevent shaking while capturing photos, attach headphones to smartphone and use the volume buttons to activate shutter.
• Many phones have image stabilization features. Check your phone and turn on this feature if available. If not, there are camera apps with stabilization features.

Storage/Cleaning Information:

- For longest life of springs/plastic, store in dry area at room temperature.

- Adapter should be cleaned with soft, damp cloth only. Do not use any chemicals or abrasives.

Customer Service:

We will be happy to help you with any problems you may experience with your HookUpz™ Smartphone Telescope Adapter. Email us at [e-mail] or call toll-free at 1-800-967-8427.

CARSON®

Carson Optical

2070 5th Avenue

Ronkonkoma, NY 11779

www.carson.com [e-mail]

Tel: [phone] Fax: [phone]

IT-100B / ©2017 - R1
