Product Type	Barcode Reader
Brand	Socket Mobile
Model	D720
Dimensions	Approximately 150 x 70 x 30 mm (5.9 x 2.8 x 1.2 in)
Weight	Approximately 150 g (5.3 oz)
Power Supply	Rechargeable Li-ion battery via USB
Main Functions	1D/2D barcode scanning, Bluetooth data transmission, batch storage
Connectivity	Bluetooth Class 2, compatible with iOS and Android
Scan Range	Up to 50 cm (20 in) depending on barcode density and ambient light
Battery Life	Up to 8 hours of continuous scanning
Charging Time	Approximately 2-3 hours for full charge
Supported Symbologies	UPC, EAN, Code 128, Code 39, QR, Data Matrix, and many more
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
IP Rating	IP54 (dust and splash resistant)
Maintenance and Cleaning	Wipe the reading window with a soft, dry cloth; do not use solvents
Safety Precautions	Avoid exposure to extreme temperatures, moisture, and dropping
Spare Parts and Repairability	Battery and USB cable replaceable; professional repair recommended
General Information	Ergonomic design, LED and audible indicators, supports multiple interfaces

Frequently Asked Questions - D720 Socket Mobile

How do I pair the D720 with my smartphone?

Enable Bluetooth on your phone and scan the pairing barcode provided in the quick start guide. The scanner will appear as 'Socket D720' in your Bluetooth settings.

What is the battery life of the D720?

The battery lasts up to 8 hours of continuous scanning and up to 100 hours in standby.

How do I reset the D720?

Insert a paperclip into the small hole on the back of the scanner and press the reset button for 2 seconds. This will restart the device without erasing data.

Is the D720 compatible with iPhones?

Yes, the D720 works with iOS devices running iOS 12 or later. It can also be used with Android 5.0 or later.

How do I clean the scanner lens?

Use a soft, lint-free cloth slightly dampened with water or isopropyl alcohol. Gently wipe the lens and allow it to air dry.

Can the D720 scan barcodes from a screen?

Yes, it can scan both printed and on-screen barcodes. Adjust the scanning distance for best results, typically 10-30 cm.

What should I do if the scanner is not turning on?

Ensure the battery is charged by connecting the USB cable to a power source. If it still does not turn on, try a hard reset using the reset button.

How do I update the firmware?

Download the SocketScan software from the official website and connect the scanner via USB. The software will guide you through the update process.

Does the D720 store barcode data?

Yes, it can store up to 100,000 barcodes in batch mode. Data is transferred when the scanner reconnects to the host.

What is the warranty period?

Socket Mobile offers a one-year limited warranty on the D720. You can extend the warranty by purchasing a service plan.

USER MANUAL D720 Socket Mobile

Package Contents 4
Optional Charging Accessories 4
Product Information 5
Attach wristrap 6
Charge the Battery 7
Power Adapter 7
Powering on/off 8
Scanning Barcodes 9
Bluetooth Connection Modes 10-11
Bluetooth connection Roles 12
Data Mode-For SPP mode only 13
Bluetooth Re-Connection 14

How to setup your scanner:

Download our Companion App 15

Can't use Companion App?

How to setup your scanner in Application Mode

Apple ^® 16
Android 17
Windows 18

How to setup your scanner in Basic Mode

Apple 19
Android 20
Windows 21

Pairing reset 22
Factory Reset 23
Restore Method 24

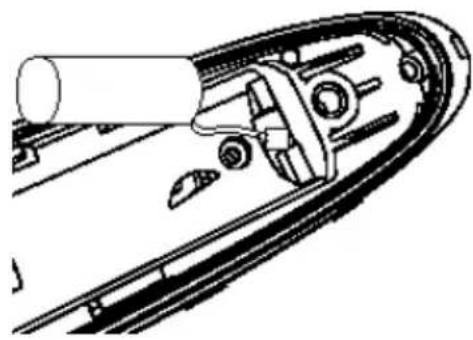

Battery Replacement 25

Quick Programming 26-32

Status Indicators 33-36

Helpful Resources 37

Battery Warning, Safety, Compliance, Warranty 38

PACKAGE CONTENTS

Line drawing of a handheld device with a circular button and square eyes (no text or symbols)

DuraScan D700 Series

Simple line drawing of a pen or stylus with no text or symbols

Wrist Strap

Coiled black cable with two connectors, one connected to a USB port (no text or symbols visible)

Charging Cable Insert Card

OPTIONAL CHARGING ACCESSORIES

Line drawing of a pocket watch with no text or symbols

Charging Stand

Line drawing of a mechanical device with a cylindrical base and mounting feet (no text or symbols)

Line drawing of a smartphone with a handle and screen (no text or symbols)

Line drawing of two rectangular electronic devices with leads, no text or symbols present

Charging Cradle Charging AOPower
Supply International Adapters available

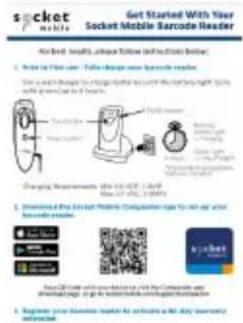

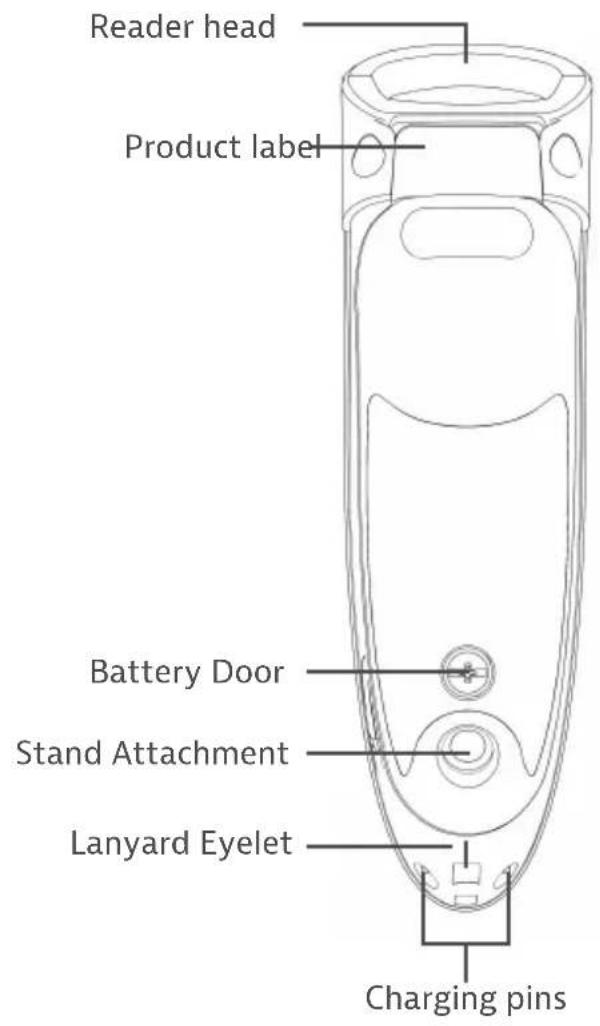

Thank you for choosing Socket Mobile! Let's get started!

© 2022 Socket Mobile, Inc. All rights reserved. Socket ^ , the Socket Mobile logo, SocketScan ^ , DuraSled ^ , Socket Mobile DuraCase ^TM Battery Friendly ^ are registered trademarks or trademarks of Socket Mobile, Inc. Microsoft ^ is a registered trademark of Microsoft Corporation in the United States and other countries. Apple ^ , iPad ^ , iPad Air ^ , iPad mini ^ , iPad Pro ^ , iPhone ^ , iPod touch ^ , Objective-C ^ , Swift ^TM , and Xcode ^ are registered trademarks of Apple, Inc., registered in the U.S. and other countries. The Bluetooth ^ Technology word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Socket Mobile, Inc. is under license. Other trademarks and trade names are those of their respective owners.

The DuraScan 700 Series has a protection rating of IP54 for dust and water protection.

Socket Mobile's barcode readers can be wiped clean with a cloth dampened with isopropyl alcohol or water. Or, the barcode readers can be wiped clean with a Sani-Cloth.

Warning: DO NOT IMMERSE IN WATER (reader's mechanics could be damaged)

*Also used to display the on-screen keyboard in Basic Keyboard Mode (iOS only).

ATTACH WRISTRAP

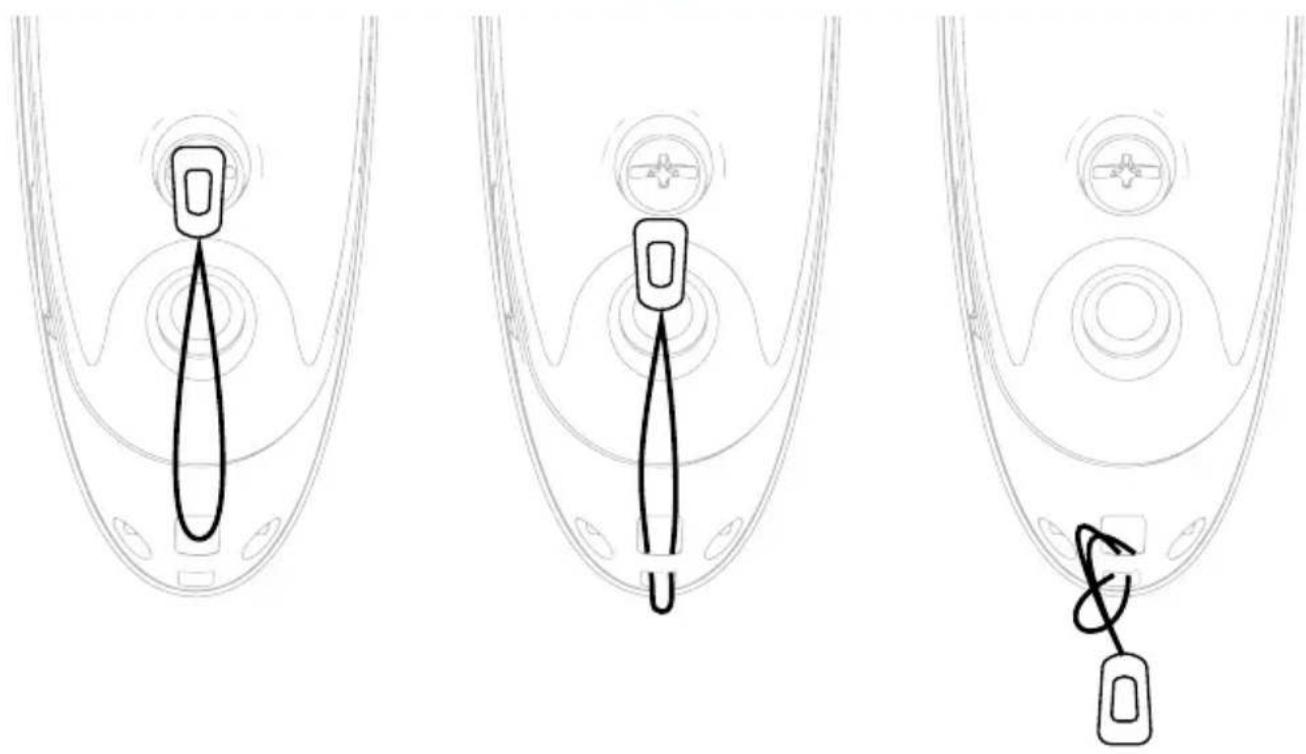

Three line drawings of a device with a central connector and a separate close-up view showing a coiled cable (no text or symbols)

Attach the Wrist Strap (optional)

1. Detach the string loop of the tether from the wrist strap.
2. Feed the string loop through the eyelet.
3. Pull the tether through the string loop.
4. Pull tight so the string loop is secure.
5. Reattach the string loop's tether to the wrist strap.

The reader must be fully charged before first use. Please allow 8 hours uninterrupted charging for the initial battery charge.

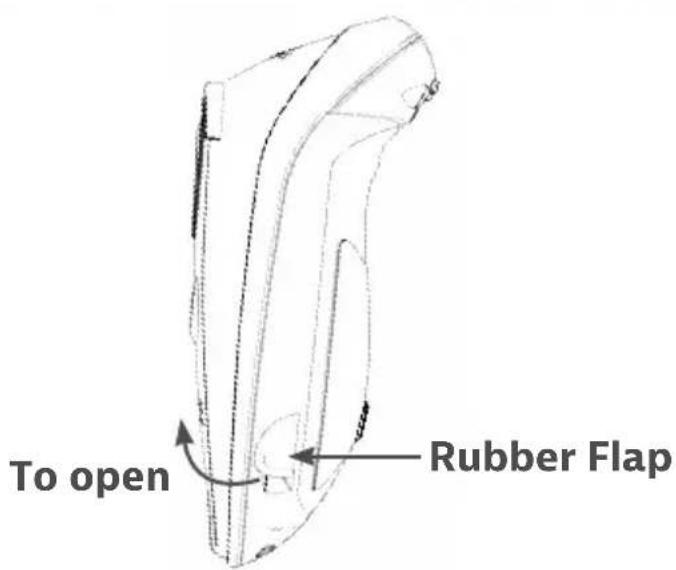

Lift the rubber flap to access the power connector.

• Yellow Light = Charging
• Green Light = Fully charged

Important: Charging from a computer USB port is not reliable and not recommended.

Powering On:

Press and hold down the small power button until the Battery light turns on and the reader beeps twice (low-high).

Line drawing of a hand holding a pair of shoes with a visible 'spleen' label (no other text or symbols)

Powering Off/ Disconnecting:

Press and hold down the small power button until the reader beeps twice (high-low) and all lights turn off.

The reader will power off automatically if device is not connected within 5 minutes. Reader connected to a device will power off within 2 hours if idle/inactive.

1D/2D Barcode and OCR

Aim the scan beam straight across the entire barcode

Scanning Barcodes

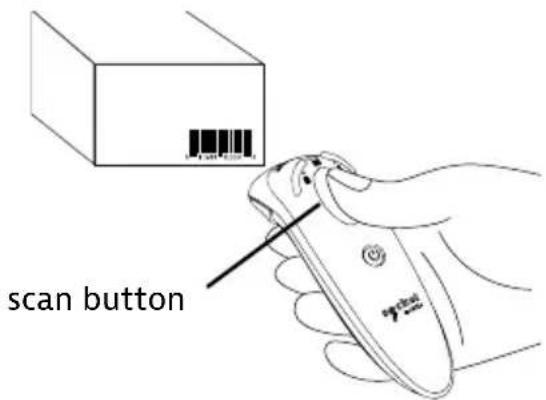

1. Hold the barcode reader 4-5 inches away from the barcode.

Note: Distance between the reader and barcode depend on the size of the barcode.

1. Aim, press and hold the trigger button.

By default, the reader will beep, vibrate, and the scan indicator will flash green to confirm a successful scan.

Caution: Do not stare directly into the reader's light beam.

Operating System Connection Options

Operating Systems (OS)	Devices	Bluetooth HID Support	Bluetooth SPP Support	Bluetooth Apple Serial Specific (MFi Mode)
Android	Android 4.0.3 & later	Yes Yes N/A
Apple iOS	iPod, iPhone, & iPad	Yes N/A Yes
Windows PC	Windows 8, 10, 11	Yes Yes N/A
Mac OS	Mac OS X 10.4 to 10.X Mac Books, Mac Mini, & iMac	Yes No N/A

Note: To switch from one mode to the other you must remove the pairing information from both devices - host device and the reader. (see pairing reset procedure on page 24)

Connect your reader using one of the following Bluetooth connection mode

Bluetooth Connection Profiles

Bluetooth Mode Description
iOS Application Mode* (Default)Make for iPod iPhone iPadUse this mode with an Apple app designed for Socket Mobile barcode readers.	· Use with an App developed for iOS devices· Software installation is required· Mode to use for iOS applications that support Socket Mobile readers
Android/Windows Application ModeUse this mode with an Android app designed for Socket Mobile barcode readers.	· Software installation is required· More efficient and reliable data communications for barcodes containing lots of data· Mode recommended for applications supporting Socket Mobile readers
Basic Keyboard ModeMake for iPod iPhone iPadConfigures the barcode reader to Human Interface Device (HID).	· NO software installation needed· Connects to most devices· Good for barcodes containing small amounts of data· Barcode reader interacts with host device like a keyboard

*By default, the reader is set to iOS Application Mode.

Advanced users only.

Basic Mode (HID) Keyboard

Changes a reader in HID-Peripheral mode to HID-Keyboard mode. For Mac OS, Apple iOS, and other smart devices.

Basic Mode (HID) Peripheral

Changes a reader in HID-Keyboard mode to HID-Peripheral mode. For some MS Windows or Android mobile devices.

Scan only with reader in Application Mode (SPP)
*For Windows PC only.

Acceptor (default)

Configures the reader to accept a Bluetooth connection puts the reader in discoverable mode.

Initiator

Configures the reader to initiate a connection to a computer/device with the Bluetooth Device Address specified in the barcode.

The barcode must be formatted in Code 128 and contain the data #FNlaabbccddeeff# such that aabbccddeeff is the Bluetooth device address of the computer/device you want to connect to the reader.

You must create a custom barcode for each computer/device that you want to connect to the reader.

You can use barcode generating software or website (e.g., http://barcode.tec-it.com)

Advanced users only.

Packet Mode (default)

Configures the reader to transmit decoded data in packet format.

Raw Mode - Android and Windows only

Configures the reader to transmit decoded data in raw (unpacketed) format.

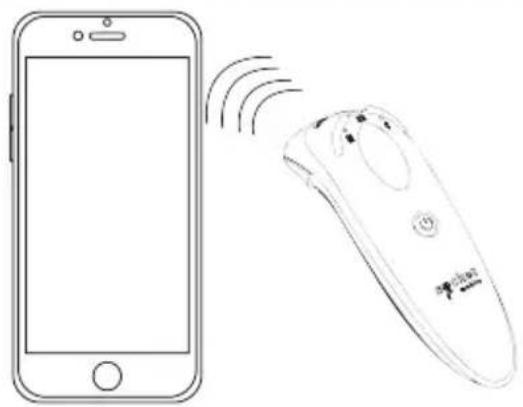

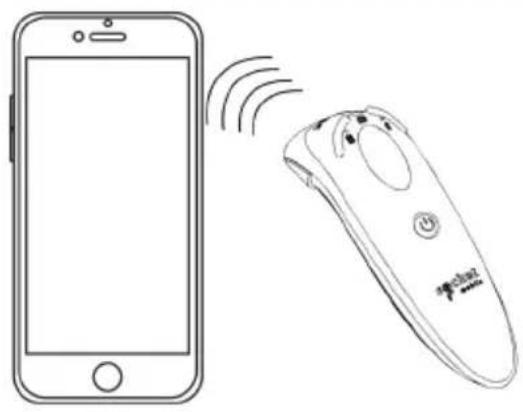

Line drawing of a smartphone and a remote control device with wireless signal waves (no text or symbols)

For all Bluetooth Connection Modes.

Important! After scanning this command barcode, power off and power on the reader to make sure it is configured properly.

Enable Automatic Reconnection from reader (default)

Configure the reader to automatically initiate a connection to the last paired computer/device after the reader is powered on.

Disable Automatic Reconnection from reader

Configure the reader to wait for a computer/device to initiate a Bluetooth connection after the reader is powered on.

Socket Mobile Companion helps you configure Socket Mobile barcode readers from the convenience of a mobile device.

Register a device and extend your warranty by 90 days

• Add multiple devices
  • Purchase accessories (limited availability)
• Browse app partners

The Companion app enables you to configure the reader into the faster and more accurate App Mode, so it can be controlled by other apps, such as Shopify and Square, to name a couple of the 1000+ apps available.

The Socket Mobile Companion app is designed to ensure you get the maximum utility benefits from your Socket Mobile devices.

Scan this QR code with your mobile device to download our new app!

Scan this QR code with your mobile device to download our new app!

Scan QR Code using your host device to download Socket Mobile Companion app to pair your reader.

Watch how to set up using the Socket Mobile Companion app for demonstration.

For quick set up:

1. Power on the reader. Make sure the reader is discoverable (unpaired). The Blue light should be blinking fast.
2. Scan barcode. The reader will beep 3 times.

iOS Application Mode

1. Turn on Bluetooth on the Apple device. Go to Settings > Bluetooth. A Bluetooth devices search will begin.
2. Tap Socket D700[xxxxxx] in the list of other devices found. After a few seconds the status will change to "Connected" and the reader blue LED will stop blinking and turn solid blue.

Note: The characters in brackets are the last 6 characters of the Bluetooth Address.

1. Launch your reader-enabled Application. The reader will beep once indicating that it is connected to the appropriate application.

Now you are ready to scan barcodes!

Scan QR Code using your host device to download Socket Mobile Companion app to pair your reader.

For quick set up:

1. Power on the reader. Make sure the reader is discoverable (unpaired). The Blue light should be blinking fast.

2. Scan barcode

App Mode (SPP)

1. Turn on Bluetooth on the Android device. Go to Settings > Bluetooth. A Bluetooth Devices search will begin.

2. Tap Socket D700[xxxxxx] in the list of other devices found. After a few seconds the status will change to "Connected" and the LED will stop blinking and turn solid blue.

Note: The characters in brackets are the last 6 characters of the Bluetooth Address.

1. Launch your reader-enabled Application. The reader will beep once indicating that it is connected to the appropriate application.

Now you are ready to scan barcodes!

Note: Make sure you have administrative privileges.

1. Download Companion for Windows:
2. Follow on-screen instructions to install the software
3. Power on the barcode reader. Make sure the barcode reader is discoverable to be connected to Bluetooth (unpaired).
4. Launch Companion from icon in the task tray. In the pop-up menu, click Open.
5. Click the "Start" button and follow the instructions in the wizard.
6. Once complete, you will be ready to scan using Socket's keyboard emulation (this should be turned off if you have an application that supports the CaptureSDK)

Note: For the D730 laser barcode reader. Print the barcode to scan.

Now you are ready to scan barcodes!

For model D750: use this mode 1 barcode below.

iMAC

In this mode the reader functions and communicates similar to a keyboard. Therefore, reader will work with Safari, Notes, and any other application that support an active cursor.

1. Power on the reader. Make sure the reader is discoverable (unpaired). The Blue light blinks fast.

2. Start a Bluetooth device search.

3. Settings | Bluetooth: Turn on Bluetooth and search for device.

4. Mac OS: Click System Preferences | Bluetooth. A Bluetooth device search will begin.
5. In the device list, tap on D700 [xxxxxx]. Tap Pair.
6. The reader will connect to the Apple device.
7. The reader will beep once after it has connected.

Now you are ready to scan barcodes!

To use the virtual keyboard while the reader is connected double tap on the power button. Watch Youtube video for demonstration.

Android

In this mode the reader functions and communicates similar to a keyboard. Therefore, reader will work with Notes, and any other application that supports an active cursor.

1. Power on the reader. Make sure the reader is discoverable (unpaired) and the blue light blinks fast.
2. Settings | Bluetooth.
3. Make sure the device has Bluetooth "On" to scan for devices.
4. In the list of found devices, select D700 [xxxxxx]. Tap Pair.
5. The reader will connect to the Android device.
6. The reader will beep once after it has connected.

*If you have trouble connecting or pairing with host device, turn host device's Bluetooth off/on, and/or perform factory reset to the reader (see page 25).

Now you are ready to scan barcodes!

Windows

In this mode the reader functions and communicates similar to a keyboard. Therefore, reader will work with Notes, and any other application that support an active cursor.

Highly recommended, allows two-way communications with Android, or Windows Devices. Reader-enabled app software installation required.

1. Turn Bluetooth on for your device. Go to Settings > Bluetooth. A Bluetooth Devices search will begin.

2. Tap Socket D700[xxxxxx] in the list of Devices found. After a few seconds the status will change to "Connected" or "Paired" and the reader blue light will stop blinking and turn solid blue.

Now you are ready to scan barcodes!

Line drawing of two hands holding a circular object, one with a small mark and the other with a dotted line (no text or symbols)

This procedure will put the reader in discoverable mode.

If the reader is paired with a device, unpair it before trying to connect to a different device.

Step 1: Remove or forget the reader from the Bluetooth list on the host device.

Step 2: Scan Pairing Reset barcode.

Or, follow the Pairing Reset button sequence:

1. Power on the reader.
2. Press the trigger button then power button and hold both until you hear 3 beeps.

The reader will unpair and automatically power off. The next time you power on the reader, it will be discoverable.

Important: Both steps above must be done to complete the unpairing.

Watch Youtube video for demonstration.

Configures the reader to factory defaults. The reader powers off after scanning this barcode.

Or, follow the Factory Reset button sequence:

1. Power ON the reader.

Line drawing of a hand holding a pair of shoes (no text or symbols)

1. Press and hold the scan button.

Quickly press and release the power button

1. Tap the power button once while continuing to press the scan button.

Line drawing of two hands holding a flat object, no text or symbols present

1. Keep holding the trigger button until you hear a beep (about 15 seconds).

When you release the scan button you will hear 5 confirmation beeps then the reader will power off.

Note: If you follow this sequence but release the trigger button too early (before 15 seconds and the beep) the Factory Reset will fail.

Watch demonstration.

RESTORE METHOD

NOTE: If your reader remains in an unresponsive state after following the Factory Reset, use the Restore Method.

The Restore Method should be the last attempt used to revive an unresponsive reader. It will reinitialize the core hardware.

1. Make sure your reader is OFF.
2. Press and hold the power button until the LED light goes on and off (about 15 seconds)

Line drawing of a hand holding a pair of shoes (no text or symbols)

Watch demonstration.

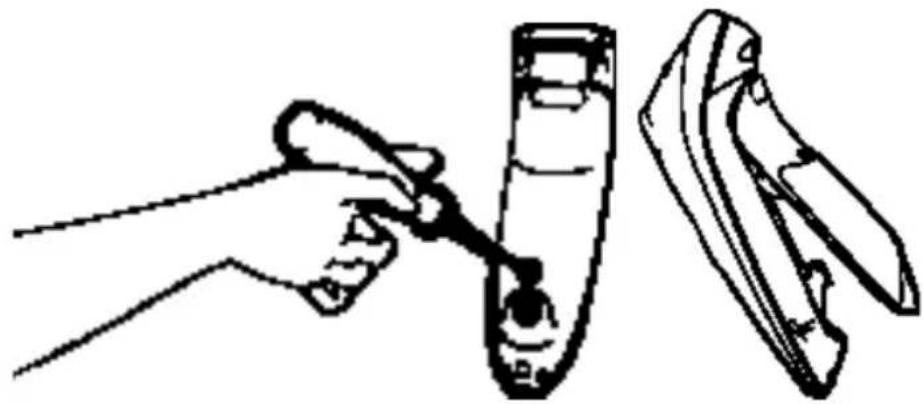

Step 1: Remove Battery Door

Use screw driver to loosen screw and remove battery door.

Line drawing of a hand using a tool to cut or mark a device, with no visible text or symbols

Step 2: Remove Battery

Use a flat head screw driver and place in the top right corner to gently push the battery out. Then, pull the connector to remove.

Step 3: Insert New Battery

Plug the connector on the new battery. Purchase new battery on the SocketStore.

Technical line drawing of a mechanical assembly with no visible text or symbols

Step 4: Secure Battery Door

Ensure the battery door is properly placed, then screw the battery door back on.

For D700 barcode readers.

Scan command barcode(s) to quickly configure the barcode reader.

Important! Make sure the barcode reader is not connected to a host computer or device before scanning a command barcode!

For custom prefix and suffix, contact [e-mail]

Prefix/Suffix
Suffix- Carriage Return
Configures the barcode reader to add a carriage return after decoded data.
Suffix- Tab
Configures the barcode reader to add a tab after decoded data.
Suffix- Carriage Return & Line Feed
Configures the barcode reader to add a carriage return and line feed after decoded data.
Data As Is
Configures the barcode reader to return only the decoded data. (i.e., no prefix or suffix).

For D730/D740/D745/D750/D755/D760 barcode readers.

Scan command barcode(s) to quickly configure the barcode reader.

Important! Make sure the barcode reader is not connected to a host computer or device before scanning a command barcode!

For custom prefix and suffix, contact [e-mail]

(Note: For the D730 laser barcode reader. Print the barcode to scan).

Prefix/Suffix
Suffix- Carriage Return
Configures the barcode reader to add a carriage return after decoded data.
Suffix- Tab
Configures the barcode reader to add a tab after decoded data.
Suffix- Carriage Return & Line Feed
Configures the barcode reader to add a carriage return and line feed after decoded data.
Data As Is
Configures the barcode reader to return only the decoded data. (i.e., no prefix or suffix).

Scan one of the barcodes to enable/disable vibrate and beep settings.

Vibrate/Beep Modes
Vibrate ON (default)Enables barcode reader to vibrate to indicate successful scans.
Vibrate OFFDisables barcode reader from vibrating to indicate successful scans.
Beep ON (default)Enables barcode reader to beep to indicate successful scans.
Beep OFFDisables barcode reader from beeping to indicate successful scans.

QUICK PROGRAMMING

Scan one of the barcodes to reconfigure the reader to remain powered on for a longer time.

Active Modes
2 Hours (default)Barcode reader powers off in 2 hours when idle/ inactive while connected and 5 minutes when disconnected
Continuous Power for 4 HoursConfigures the barcode reader to remain on for 4 hours after last scan.
Continuous Power for 8 HoursConfigures the barcode reader to remain on for 8 hours after last scan.
Barcode reader Always OnConfigures the barcode reader to never power off.

These settings drain the battery faster. Please ensure the reader is charged daily.

Scan one of the barcodes to configure the reader to automatically scan barcodes.

Command barcode is for model D740, D745, D750, D755 and D760 only.

Presentation modes
Mobile Mode (default)Reverts back to manual scan mode.	#FNB 41FBA50000#
Auto Mode(recommended)Configures the scanner to switch to presentation mode when power is detected on the charging pins. The reader will remain on presentation mode until the scan button is pressed to exit the mode.	#FNB 41FBA50003#
Detect ModeConfigures the reader to switch to presentation mode when power is detected on the charging pins. The automatic scan will continue until power is removed.	#FNB 41FBA50002#
Stand ModeReader is permanently in presentation mode.	#FNB 41FBA50001#

QUICK PROGRAMMING

These barcodes are to configure the reader for different languages using Microsoft Windows keyboard layout.

Scan only when the reader is in Basic Mode (HID profile).

HID Keyboard Language Settings
English (default)
English UK
French
German
Italian
Japanese
Polish
Spanish
Swedish
ANSI Emulation*Can be slower on Windows System

STATUS INDICATORS

Battery Charging when plugged into Power Supply	LED Activity Meaning
	Blinking Yellow Charging the battery
	Solid Green Battery is 100% full
Battery Status When not connected to power supply	LED Activity Meaning
	Solid Green Battery capacity from 100% to 25%
	Solid Yellow Battery capacity from 25% to 10%
	Solid Red	Warning - Battery capacity below 10%
	Blinking Red	Charge immediately!The battery level is critically low. Alternatively, if battery capacity is unknown battery status will blink red until the power is applied & reader is fully charged.

STATUS INDICATORS

Bluetooth LED	Activity Meaning
Bluetooth	Quick Blinking Blue (2 blinks every second)	Discoverable - waiting for a host Bluetooth connection.
	Slow Blinking Blue (1 blink every second)	Reader is attempting to connect to the last known host device. After 1 minute of blinking, reader will stop searching.
	No Light - No Activity	Reader has attempted to connect and failed. Press trigger button to try again.
	Solid Blue Reader is connected
Scan/Read LED	Activity Meaning
Scan/Read	Blink Green Once Good	Scan/Read
	Blink Red Once Bad Scan/Read
	Solid Red - for as long as power button is pressed	Power Button Pressed
	Quick Blinking Green (2 blinks every second)	Reader is in bootloader mode during firmware upgrade.

STATUS INDICATORS

Beep Pattern Sound Meaning
Low-High Tone Power	On
High-Low Tone Power	Off
High-High Tone Power	Supply detected and reader started charging
1 Low Beep Reader has	toggled on-screen keyboard or keyboard toggle feature is enabled (iOS devices only)
1 Beep Reader connected	to device and is ready to scan barcodes
1 Beep Data successfully scanned
2 Beeps (same tone)	Reader disconnected
1 Long Beep Reader gave up searching for a host
3 Beeps (escalating tone)	Reader has been reconfigured (the command scanned successfully)
3 Beeps (escalating tone followed by long tone)	The command barcode did NOT work! (Verify if the command barcode used is valid for your reader and try again)

STATUS INDICATORS

Vibrate Meaning
Vibrate Data successfully scanned.

Command Barcodes are available on page 28 to modify beep and vibrate settings.

If you are using a reader-enabled application, typically the application provides settings for beep, and vibrate settings.

Configuration Settings

Time after powering on Reader Bluetooth mode

0-5 minutes Discoverable and connectable

5 minutes If connection is not made, reader powers off

2 hours If your reader is connected but not used it will power off in 2 hours. When trigger button is pressed the timer is reset.

Product Specifications:

• D700 Datasheet
• D730 Datasheet
• D740 Datasheet
• D745 Datasheet
• D755 Datasheet
D760 Datasheet

Technical Support & Product Registration:

https://support.socketmobile.com

Phone: [phone] [phone] (worldwide)

Warranty Checker:

https://www.socketmobile.com/support/warranty-checker

Socket Mobile Developer Program:

Learn more at: http://www.socketmobile.com/developers

The User's Guide (full installation and usage instructions) and Programming Guide (Advanced Reader Configurations) can be download at: https://www.socketmobile.com/support/downloads

WARNING: Failure to follow these safety instructions could result in fire or other injury or damage to the barcode readers or other property.

Carrying and Handling the DuraScan barcode readers: The Socket Mobile barcode reader contains sensitive components. Do not disassemble, open, crush, bend, deform, puncture, shred, microwave, incinerate, paint, or insert foreign objects into this unit.

Do not attempt to disassemble the product. Should your unit need service, contact Socket Mobile technical support at https://support.socketmobile.com/

Changes or modifications of this product, not expressly approved by Socket Mobile may void the user's authority to use the equipment.

Do not charge the DuraScan barcode reader using an AC adapter when operating the unit outdoors, or in the rain.

Operating Temperature - this product is designed for a maximum ambient temperature of 50° degrees C or 122° degrees F.

Pacemaker Disclaimer: For now, we do not have specific information on the effect(s) of vibration or Bluetooth devices on pacemakers. Socket Mobile cannot provide any specific guidance. Individuals who are concerned with using the barcode reader should immediately turn the device off.

FCCID: T9J-RN42

FCC ID: LUBD700

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices).

FCC Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 1.5 centimeters (15mm) between the radiator and your body.

Radio Frequency Interference Notices

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

IC ID: 2925A-D700

IC ID: 6514A-RN-42

Industrie

Canada

Industry

Canada

This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

CE Marking & European Union Compliance

CE

Products intended for sale within the European Union are marked with a CE Mark, which indicates compliance to applicable Directives and European Normes (EN), as follows. Amendments to these Directives or ENs are included: Normes (EN), as follows:

Low Voltage Directives: 2014/35/EU

RED Directive: 2014/53/EU

EMC Directive: 2014/30/EU

RoHS Directive: 2015/863

WEEE Directive: 2012/19/EC

Supplementary Information:

Safety: EN 60950-1: 2006/A11:2009, A12:2011, A1:2010, A2:2013

ETSI EN 300 328

ETSI EN 301 489

W

Telec Marking Compliance

R201-125709

R211-161214

Products intended for sale within the country of Japan are marked with a Telec mark, which indicates compliance to applicable Radio Laws, Articles and Amendments.

This device contains a rechargeable Lithium-Ion battery.

Stop charging DuraScan barcode readers if charging is not completed within 24 hours. Discontinue use immediately and contact [e-mail]

Stop charging the battery if the DuraScan barcode reader case becomes abnormally hot, or shows signs of odor, discoloration, deformation, or abnormal conditions is detected during use, charge, or storage. Discontinue use immediately and contact [e-mail]

Stop using the DuraScan barcode reader if the enclosure is cracked, swollen or shows any other signs of mis-use. Discontinue use immediately and contact [e-mail]

Your device contains a rechargeable Lithium-Ion battery which may present a risk of fire or chemical burn if mistreated. Do not charge or use the unit in a car or similar place where the inside temperature may be over 60 degrees C or 140 degrees F.

• Never throw the battery into a fire, as that could cause the battery to explode.
• Never short circuit the battery by bringing the terminals in contact with another metal object. This could cause personal injury, or fire, and could also damage the battery.
• Never dispose of used batteries with other ordinary solid wastes. Batteries contain toxic substances.

BATTERY WARNING STATEMENTS

• Dispose of used batteries in accordance with the prevailing community regulations that apply to the disposal of batteries.
• Never expose this product or the battery to any liquids.
• Do not shock the battery by dropping it or throwing it.

If this unit shows any type of damage, such as bulging, swelling or disfigurement, discontinue use and promptly dispose.

Product Disposal

Your device should not be placed in municipal waste. Please check local regulations for disposal of electronic products.

Caution: DO NOT STARE DIRECTLY INTO THE LED BEAM.

LED DEVICE:

The DuraScan D700, D740, D745, D750, D755 and D760 contain a LED-type scan engine.

For the Class 1 LED version of this engine, the following applies:

• Complies with IEC 60825-1:2001-08, and EN 60825-1:1994 + A1 + A2
  • LED output is in the 630-670nm range (visible red).
• Class 1 LED devices are not considered to be hazardous when used for their intended purpose.

The following statement is required to comply with US and international regulations:

Caution: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous LED light

CE MARKING AND EUROPEAN UNION COMPLIANCE

Testing for compliance to CE requirements was performed by an independent laboratory. The unit under test was found compliant with all the applicable Directives, 2004/108/EC and 2006/95/EC.

WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT

The WEEE directive places an obligation on all EU-based manufacturers and importers to take-back electronic products at the end of their useful life.

RoHS STATEMENT OF COMPLIANCE

This product is compliant to Directive 2011/95/EC.

NON-MODIFICATION STATEMENT

Changes or modifications not expressly approved by the party responsible for compliance.

Socket Mobile Incorporated (Socket) warrants this product against defects in material and workmanship, under normal use and service, for one (1) year from the date of purchase. Product must be purchased new from a Socket Authorized Distributor or Reseller. Used products and products purchased through non-authorized channels are not eligible for this warranty support.

Warranty benefits are in addition to rights provided under local consumer laws. You may be required to furnish proof of purchase details when making a claim under this warranty.

Consumables such as batteries, removable cables, cases, straps, and chargers: 90 day coverage only

For more warranty information, please visit: https://www.socketmobile.com/support/downloads/product-support

Blue circular icon with white hands holding a pen, labeled 'SocketCare' below (no additional text or symbols)

SocketCare Extended Warranty Coverage

Purchase SocketCare within 60 days from the date of purchase of the reader.

Product Warranty: The barcode reader's warranty period is one year from the date of purchase. Consumables such as batteries and charging cables have a limited warranty of 90 days. Extend your reader's standard one-year limited warranty coverage up to five years from the date of purchase.

Additional service features are available to further enhance your warranty coverage:

• Warranty period extension only
  • Express Replacement Service
  • One-Time Accidental Coverage
• Premium Service

For detailed information visit: socketmobile.com/support/socketcare

D700, D720, D730, D740, D745, D750, D755 & D760 DURASCAN® 700 SERIES ユーザーガイド

How to setup your scanner:

Companion App 15

Can't use Companion App?

Application Modeに設定

Apple® 16

Android 17

Windows 18

Basic Modeに設定

Apple 19

Android 20

Windows 21

ペアリングのリセット 22

工場出荷前状態にリセット 23

リストアー方法 24

電池の交換 25

クイックプログラミング 26-32

状態表示器 33-36

役立つリソース 37

安全と取り扱い情報 38

内容物

Line drawing of a remote control device with no visible text or symbols

DuraScan D700 Series

Line drawing of a pen or stylus with a curved handle and loop (no text or symbols)

リストストラップ

Coiled black cable with a USB port connector (no text or symbols visible)

充電ケーブル クイックガイド

充電アクセサリー(別売)

Line drawing of a pocket watch with handle and logo (no text or symbols on body)

Line drawing of a mechanical device with a cylindrical base and mounting feet (no text or symbols)

充電スタンド

Line drawing of a smartphone with a handle and screen (no text or symbols)

Line drawing of two rectangular electronic devices with leads (no text or symbols)

プター

Three line drawings of a device with a vertical connector and a coiled cable, shown from different angles (no text or symbols)

リストストラップの取り付け方

Line drawing of a hand holding a pair of shoes with a visible 'spectest' label on the side (no other text or symbols)

電源オン:

Operating Systems (OS)	Devices	Bluetooth HID Support	Bluetooth SPP Support	Bluetooth Apple Serial Specific (MFi Mode)
Android	Android 4.0.3 & later	Yes Yes	N/A
Apple iOS	iPod, iPhone, & iPad	Yes N/A	Yes
Windows PC	Windows 8, 10, 11	Yes Yes	N/A
Mac OS	Mac OS X 10.4 to 10.X Mac Books, Mac Mini, & iMac	Yes No	N/A

*By default, the reader is set to iOS Application Mode.

上級者向け.

Basic Mode (HID) Keyboard

Basic Mode (HID) Peripheral

Line drawing of a smartphone and a remote control device with wireless signal waves (no text or symbols)

全てのBluetooth 接続モード用

リーダーからの自動再接続を無効にする

iOS Application Mode

設定方法:

In this mode the reader functions and communicates similar to a keyboard. Therefore, reader will work with Notes, and any other application that support an active cursor.

Highly recommended, allows two-way communications with Android, or Windows Devices. Reader-enabled app software installation required.

1. Turn Bluetooth on for your device. Go to Settings > Bluetooth. A Bluetooth Devices search will begin.
2. Tap Socket D700[xxxxxx] in the list of Devices found. After a few seconds the status will change to "Connected" or "Paired" and the reader blue light will stop blinking and turn solid blue.

Now you are ready to scan barcodes!

Line drawing of two hands holding a pair of shoes, one with black dots and the other with a small mark (no text or symbols)

Line drawing of a hand holding a pair of shoes (no text or symbols)

1. スキャンボタンを押し続ける。

電源ボタンを押してすぐに離す

Line drawing of two hands holding a shoe with a small mark on the sole (no text or symbols)

Line drawing of a hand holding a pair of sneakers (no text or symbols)

動画說明：Watch demonstration.

Line drawing of a hand using a tool to cut or apply a piece of paper or tool (no text or symbols present)

Step 2: 電池を取り外す

Technical line drawing of a mechanical component with no visible text or symbols

HID Keyboard 言語設定
English (default)
English UK
French
German
Italian
Japanese
Polish
Spanish
Swedish
ANSI Emulation *Can be slower on Windows System

状態表示

https://www.socketmobile.co.jp/support/socketcare/warranty-checker

https://www.socketmobile.com/support/downloads

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices).

FCC Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 1.5 centimeters (15mm) between the radiator and your body.

Radio Frequency Interference Notices

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.

IC ID: 2925A-D700 IC ID: 6514A-RN-42

Industrie Canada

Industry Canada

This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

CE Marking & European Union Compliance

CE

Products intended for sale within the European Union are marked with a CE Mark, which indicates compliance to applicable Directives and European Normes (EN), as follows. Amendments to these Directives or ENs are included: Normes (EN), as follows:

Low Voltage Directives: 2014/35/EU

RED Directive: 2014/53/EU

EMC Directive: 2014/30/EU

RoHS Directive: 2015/863

WEEE Directive: 2012/19/EC

Supplementary Information:

Safety: EN 60950-1: 2006/A11:2009, A12:2011, A1:2010, A2:2013

ETSI EN 300 328

ETSI EN 301 489

W

Telec Marking Compliance

R 201-125709

R211-161214

限定保証

https://www.socketmobile.com/support/downloads/product-support

Blue circular icon with white hands holding a pen, labeled 'SocketCare' below (no additional text or symbols)

SocketCare 延長保証範囲
