Product Type	Wireless Dual Band Gigabit Router
Model	A3002RU V2
Standards	IEEE 802.11ac/a/b/g/n
Frequency Band	2.4 GHz & 5 GHz
Maximum Data Rate	2.4 GHz: 300 Mbps, 5 GHz: 867 Mbps, Total: 1167 Mbps
Interfaces	4x Gigabit LAN, 1x Gigabit WAN, 1x USB 2.0
Antenna	4x Fixed Omni-directional (2x 2.4 GHz 5 dBi, 2x 5 GHz 5 dBi)
Dimensions (L x W x H)	210 x 120 x 40 mm (without antennas)
Power Supply	12 V DC, 2 A
Wireless Security	64/128-bit WEP, WPA, WPA2
MU-MIMO	Yes (Multi-User MIMO)
Beamforming	Yes
Operational Modes	Gateway, Repeater, AP, WISP
WAN Connection Types	Static IP, DHCP, PPPoE, PPTP, L2TP
IPv6 Support	Yes (DHCP, Static IP, PPPoE)
QoS	Bandwidth control based on IP address
USB Functionality	DLNA, Samba, FTP, device charging
IPTV	Supported
Multiple SSID	Up to 4 SSIDs
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Package Contents	Router, Power Adapter, Ethernet Cable, Quick Installation Guide

Frequently Asked Questions - A3002RU V2 Totolink

How do I set up the A3002RU V2 router?

Connect the router to your modem using the Ethernet cable, then power it on. Open a web browser and enter the default IP address (usually 192.168.0.1) to access the setup wizard. Follow the on-screen instructions to configure your internet connection and Wi-Fi settings.

What is the maximum wireless speed of this router?

The A3002RU V2 offers combined speeds of up to 1167 Mbps, with 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.

Does the router support MU-MIMO technology?

Yes, this router features MU-MIMO (Multi-User Multiple Input Multiple Output) technology, allowing it to communicate with multiple devices simultaneously for better efficiency.

How can I improve Wi-Fi coverage in my home?

The router uses Beamforming technology to focus the Wi-Fi signal toward connected devices. Place the router in a central location, away from obstructions, and adjust the external antennas for optimal coverage.

What security encryption methods are supported?

The router supports 64/128-bit WEP, WPA, and WPA2 encryption to secure your wireless network.

Can I use the USB port for storage?

Yes, the USB 2.0 port supports DLNA, Samba, and FTP services, allowing you to share files across your network or charge devices.

How do I reset the router to factory defaults?

Press and hold the RST/WPS button on the back panel for about 5 seconds until the LEDs blink. The router will reboot with factory settings.

What is the IPTV function and how do I use it?

The IPTV feature allows you to connect a set-top box to the router and configure a dedicated port for IPTV service. Enable it in the router's web interface under 'Network Settings' -> 'IPTV'.

Does the router support guest networks?

Yes, you can create up to 4 multiple SSIDs, which can be used for guest networks or to separate different user groups.

How can I control bandwidth for specific devices?

Use the QoS (Quality of Service) feature in the web interface. You can set upload/download speed limits based on IP address to prioritize traffic.

USER MANUAL A3002RU V2 Totolink

Black TOTO Link wireless router with two tall antennas and a control panel (no visible text or symbols on the device body)

AC1200

Wireless Dual Band Gigabit Router

Model No. A3002RU

867Mbps+300Mbps

11ac 1167Mbps

Phone UI

Full Gigabit WAN

MU-MIMO Technology

Overview

AC1200

Wireless Dual Band Gigabit Router

Model No. A3002RU\_V2

A3002RU_V2 is a wireless dual band gigabit router which complies with the latest IEEE802.11ac Wave 2 standards, supporting to connect and communicate with multiple wireless devices at the same time.

Equipped with 4 pieces omni-directional antennas, A3002RU_V2 delivers Wi-Fi speed up to 1167Mbps, offering a faster Internet speed and a more stable Internet connection with other wireless devices.

Meanwhile, full gigabit WAN port and LAN ports offer a larger capability for data streaming via cable connection. It is an ideal choice for the homes or offices with a high demand for the Internet access.

Features

• Complies with the IEEE 802.11ac Wave 2 Wi-Fi standard.
• 1167Mbps in total on dual band, 867Mbps on 5GHz and 300Mbps on 2.4GHz
• MU-MIMO technology allows to transfer data to multiple devices at the same time, each device enjoys high Internet speed separately.
• Beamforming technology allows to intensively transmit the signal to the directions of the other wireless connected terminals, improving the using-efficiency of the bandwidth and reducing the dead spots and the surrounding unnecessary RF interference.
• USB port supports to share your files easily and charge your other devices.
• Full gigabit ports offers a larger capability for data streaming via cable connection.
• Supports DHCP, Static IP, PPPoE, PPTP and L2TP connection mode.
• Provides 64/128-bit WEP, WPA, and WPA2 encryption.
• QoS function allows to change the bandwidth for different terminals via IP address.
• Supports IP address filtering, port filtering, MAC filtering, URL filtering and port forwarding.
• Multiple SSIDs allows to create different SSIDs for different groups, better for Internet access management.
• Smart UI design is easy for the users to finish the basic configuration with their cellphones.

Black wireless router with four external antennas (no visible text or symbols)

Black wireless router with three external antennas (no visible text or symbols)

Front view of a black wireless router with four Ethernet ports and three external antennas (no visible text or labels)

1167Mbps Super-fast Speed Wi-Fi

A3002RU_V2 complies with the IEEE802.11ac Wi-Fi standard, working on 2.4GHz and 5GHz simultaneously and delivering speeds up to 1167Mbps.

867Mbps
300Mbps

5GHz
Less Interference
2.4GHz
High Compatibility

Beamforming Technology

for Wi-Fi Focus

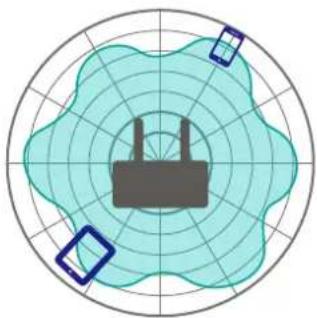

The Beamforming technology allows to intensively transmit the signal to the directions of the other wireless connected terminals, such as cellphones, tablets and laptops, thus to improve the using-efficiency of the bandwidth and reduce the dead spots and the surrounding unnecessary RF interference.

Diagram of a wireless router with three antennas and a central hub, set against a circular grid background (no text or symbols)

Circular diagram with concentric rings and a central shaded region, no text or symbols present

Regular RouterA3002RU With Bea

MU-MIMO Technology

Latest MU-MIMO technology supports to connect with multiple devices at the same time and each device enjoys high internet speed separately.

Diagram of a wireless router with four connected devices (no text or symbols)

Icon of a router with four connected devices (no text or symbols)

Multi-User MIMO Single-User MIMO

IPTV Function

IPTV is one of the most useful features in A3002RU_V2, which allows to enjoy online movies at home, greatly improving the users' experience on Multi-media.

Specification

Hardware

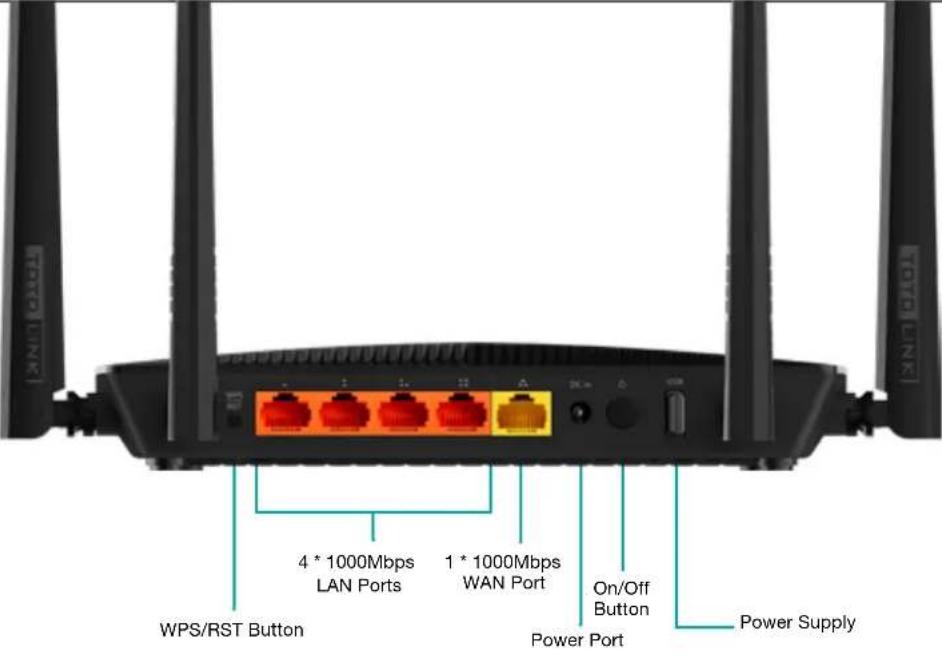

Interface	- 4 * 1000Mbps LAN Adaptive Ports- 1 * 1000Mbps WAN Adaptive Port- USB 2.0 Port
Power Supply	- 12VDC / 2A
Button	- 1 *RST/WPS Button, 1* Power On/Off Button
LED Indicator	- 1 *SYS, 1 *2.4G, 1 *5G, 1 *WAN, 4 *LAN, 1 *USB
Antenna	- 2 * 2.4GHz fixed antennas(5dBi)- 2 * 5GHz fixed antennas(5dBi)
Dimensions (L x W x H)	- 210 x 120 x 40mm (not including antennas)

Wireless

Standards	- IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
RF Frequency	- 2.4GHz/5GHz
Data Rate	- 2.4GHz: Up to 300Mbps
	- 5GHz: Up to 867Mbps
EIRP	- 2.4GHz < 20dBm
	- 5GHz < 20dBm
Wireless Security	- 64/128-bit WEP, WPA and WPA2
Reception Sensitivity	- 2.4G:11b 11M: -81dBm@8% PER
	11g 54M: -68dBm@10% PER
	11n HT20 MCS7: -65dBm@10% PER HT40 MCS7: -62dBm@10% PER
	- 5G: 11a 54M: -68dBm@10% PER
	11n HT20 MCS7: -65dBm@10% PER HT40 MCS7: -62dBm@10% PER
	11ac VHT80 MCS9: -51dBm@10% PER

Specification

Software

Operation Mode	- Gateway Mode - Repeater Mode
	- AP Mode - WISP Mode
Status	- WAN - Wireless - LAN
	- System Information
Network	- WAN Setting - LAN Setting - IPTV Setting
	- DHCP&ARP Tables - Static Route - Routing Table
WAN Type	- Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP
IPv6 Protocol	- DHCP/Static IP/PPPoE
Wireless	- Basic Settings - Multiple SSID1 - Multiple SSID2
	- Multiple SSID3 - Multiple SSID4 - Advanced Settings
	- Access Control - WDS Settings - WPS Settings
	- Wireless Schedule - Band Steering
QoS	- Up/Down speed control on WAN, Bandwidth control based on IP address
Firewall	- MAC Filtering - IP/Port Filtering - Virtual Server(Port Forwarding)
	- URL Filtering - DMZ
USB functional	- DLNA - Samba - FTP
System	- Upgrade Firmware - Save/Reload Settings - Time Zone Settings
	- DDNS - Denial-of-Service - TR-069 Config
	- Password Settings - Reboot Schedule - System Log
	- Statistics - Run Command - Logout

Others

Package Contents	- A3002RU_V2 Wireless Router *1- Power Adapter *1- Ethernet Cable *1- Quick Installation Guide *1
Environment	- Operating Temperature: 0°C~50°C (32°F~122°F)- Storage Temperature: -40°C~70°C (-40°F~158°F)- Operating Humidity: 10%~90% non-condensing- Storage Humidity: 5%~95% non-condensing
