Product Type	Refrigerator
Brand	Char-Broil
Model	Medallion 463641419
Temperature Range	34°F to 43°F (1°C to 6°C)
Defrost Type	Auto-cycle defrost
Refrigerant	R600a (flammable)
Interior Light	LED, adjustable via touch control
Door Lock	Yes, with key
Shelves	Removable, with plastic posts to prevent falling
Ventilation	Front breathing – do not block front vent
Installation	Free-standing, built-in or recessed; indoor or outdoor use
Clearance Requirements	5 inches (127mm) rear and sides for free-standing; 1/4 inch (6.35mm) each side and top for built-in
Power Supply	120V, grounded outlet; 15A circuit recommended
Control Panel	Touch controls: power, temperature up/down, light, °F/°C toggle
Door Reversal	Reversible, left-hand hinge kit included
Adjustable Legs	Yes, for leveling
Warranty	1 year parts from date of purchase
Cleaning Instructions	Warm water with baking soda or mild detergent; avoid abrasive cleaners
Safety Features	Child entrapment warning, ground plug, flammable refrigerant caution
Weight	Approximately 100 lbs (estimated based on typical unit)
Dimensions (HxWxD)	Approximately 33 x 24 x 24 inches (estimated)

Frequently Asked Questions - Medallion 463641419 Char-Broil

Why is my refrigerator not running?

Check that the unit is plugged in and the power is turned on. Also verify that the circuit breaker or fuse has not tripped. If it still doesn't run, contact customer service.

Why is the refrigerator not cold enough?

Ensure the temperature control is set correctly (34-43°F). Also check for frequent door openings, improper door closure, or a damaged door gasket. High ambient temperatures may require a lower setting.

Why does the refrigerator turn on and off frequently?

This can happen if the door is opened often, not closed completely, or if the temperature control is set incorrectly. Also check the door gasket for proper sealing.

Why is the interior light not working?

Check if the unit is plugged in and the circuit breaker is not tripped. Make sure the light switch is turned on (touch the light symbol on the control panel). If still off, the LED bulb may need service.

Why is the refrigerator making noise?

Normal sounds include gurgling from refrigerant flow, clicking from the compressor, and popping from temperature changes. Ensure the unit is level to reduce vibrations.

Why won't the door close properly?

Check if the refrigerator is level using the adjustable legs. Also ensure the door was not reversed incorrectly, the gasket is clean, and the shelves are in the correct position.

What does the 'EL' or 'EH' error code on the display mean?

These codes indicate a failure of the air temperature sensor. Contact customer service for repair.

How do I lock the refrigerator door?

Use the key provided to turn the lock clockwise to lock, counterclockwise to unlock. Make sure the metal pin engages completely.

How should I clean the refrigerator?

Turn off and unplug the appliance. Remove all items and shelves. Wash interior with a solution of 2 tablespoons baking soda per quart of warm water. Wash shelves with mild detergent. Wipe dry.

Can I reverse the door hinge?

Yes, the refrigerator has reversible doors. A left-hand hinge kit is included. Follow the instructions in the manual, ensuring the door seals properly after reversal.

USER MANUAL Medallion 463641419 Char-Broil

Front view of a white rectangular appliance with ventilation grilles and a control panel (no text or symbols visible)

MODEL 463641419 MODELO

ENGLISH....2 SPANISH....8

SERIAL NUMBER NÚMERO DE SERIE

DATE PURCHASED FECHA DE COMPRA

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY AND OPERATING INSTRUCTIONS.

IMPORTANT SAFETY INFORMATION

SAFETY SYMBOLS

DANGER, WARNING, and CAUTION statements are used throughout this Owner's Manual to emphasize critical and important information. Read and follow these statements to help ensure safety and prevent property damage.

The statements are defined below.

CAUTION

CAUTION: Indicates a potentially hazardous situation or unsafe practice which, if not avoided, may result in minor or moderate injury.

WARNING

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

WARNING

ELECTRIC SHOCK POSSIBLE

IMPORTANT SAFETY INSTRUCTIONS:

To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

Read all instructions before using the Refrigerator.
- Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous even if they will “just sit in the garage a few days”. Remove refrigerator door prior to disposal.
Before you throw away your old Refrigerator: Take off the door. Leave the shelves in place so that children may not easily climb inside.
- Never allow children to play with, or crawl inside the appliance.
- Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.
- Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- Do not use mechanical devices or other means to accelerate

the defrosting process, other than those recommended by the manufacturer.

• To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are the type recommended by the manufacturer.

- The refrigerant of this appliance is R600a. Flammable and explosive articles should not be put in or near the Refrigerator to avoid fire or explosion.

- Keep flammable material and vapors such as gasoline away from the refrigerator. Only use nonflammable cleaner.

- Disposal of this appliance should be in accordance with federal and local regulation.

- Children should be supervised to ensure that they do not play with the appliance.

- SAVE THESE INSTRUCTIONS -

Installation Safety Precautions

- This product is safety certified for use in the United States and/or Canada only. Do not modify for use in any other location. Modification will result in a safety hazard

CARE AND USE:

Please read and follow all safety rules and operating instructions.

• The appliance must be positioned so that the plug is accessible.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person to avoid hazard.
• Do not operate for any use other than intended.
• To protect against electric shock, do not immerse cord or plug in water or other liquids.
• Do not connect or disconnect the electric plug when your hands are wet.
• Do not operate with a damaged cord or plug.
• Unplug cord from outlet when not in use and before cleaning.

INSTALLATION INSTRUCTIONS BEFORE USING YOUR REFRIGERATOR

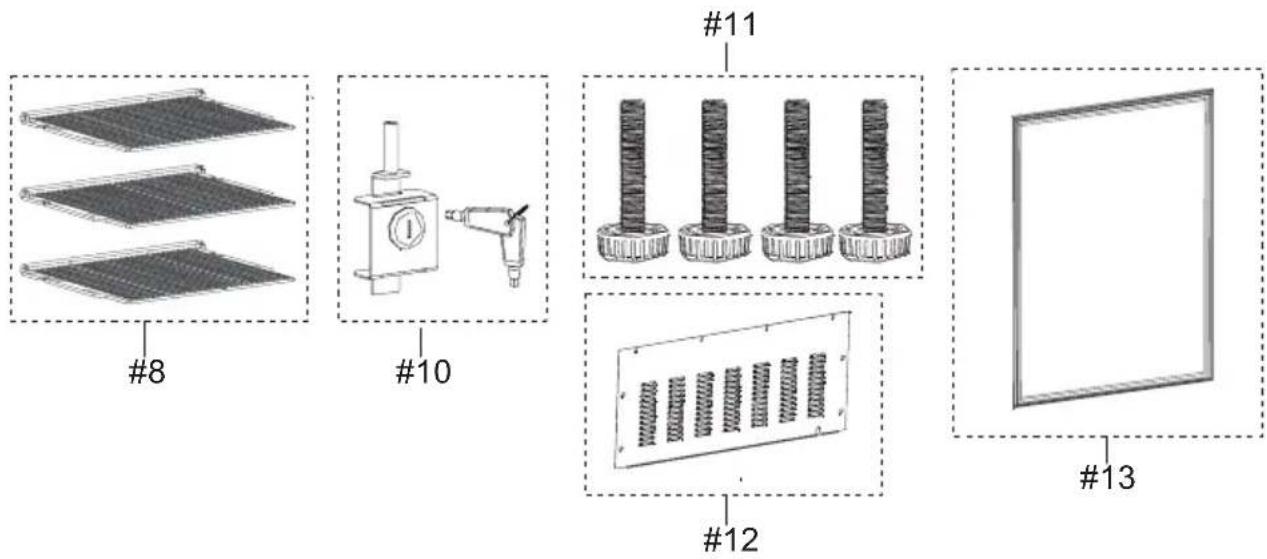

• Remove the exterior and interior packing.
• Before connecting the Refrigerator to the power source, let it stand upright for approximately 24 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.

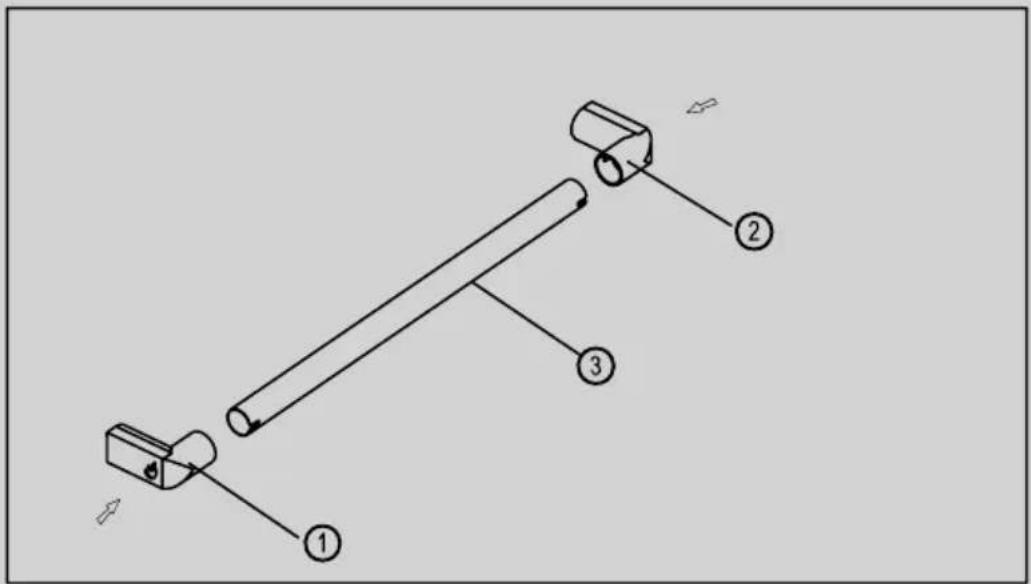

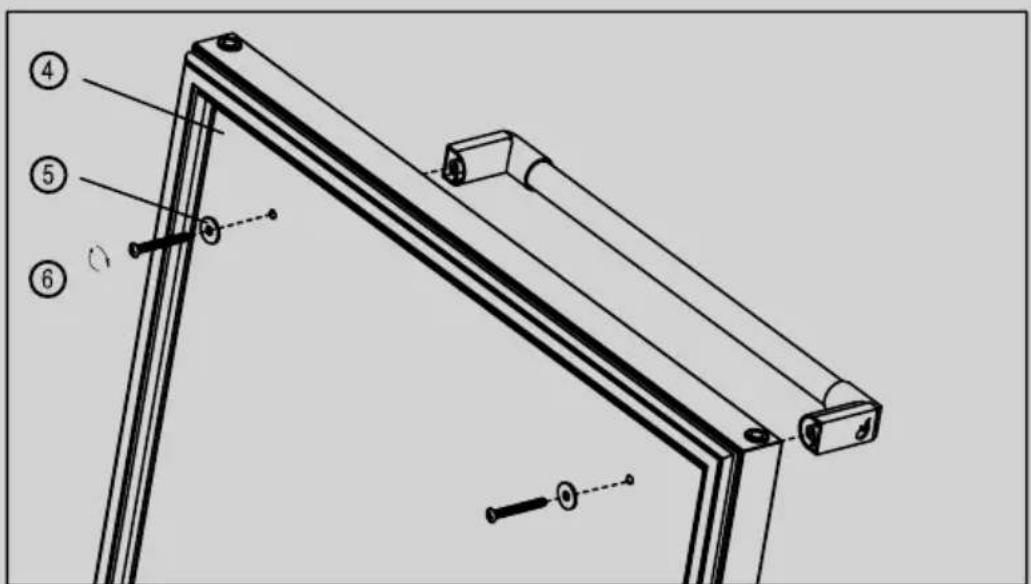

• Install the handle on the door.

INSTALLATION OF YOUR REFRIGERATOR

• The appliance is designed for built-in or recessed or free standing installation for indoor or outdoor use.
• For free standing installation, 5 inches (127mm) of space between the back and sides of the unit are suggested, which allows the proper air circulation to cool the compressor and condenser. Even for built-in installation, it is a must to keep 14 " (6.35mm) space on each side and at the top. Take care that the air vent at the front of the appliance is never covered or blocked in any way.
• Avoid locating the unit in moist areas.
• CAUTION: This appliance is not designed for the storage of medicine or other medical products.
• Two people should be used when moving the appliance.
• Place your Refrigerator on a floor that is strong enough to support it when it is fully loaded.
• This appliance uses flammable refrigerant. Take precaution to avoid damaging coolant pipe work during movement. Locate the Refrigerator away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.
• Plug the Refrigerator into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed to a certified electrician or call 1-800-448-2177 for general product assistance
• Warning! If you must use an extension cord, for your safety:
• Use only outdoor type with 3 prong grounding plug, rated for 15 amperes or more, approved by UL, marked with a W-A and a tag stating “Suitable for Use with Outdoor Appliance”.
• Use the shortest length extension cord required. A 12-gauge extension cord of 50 ft. or less is acceptable.
• Keep connections dry and off ground.
• Do not let cord hang over edge of table top or other items where it can be pulled by children or tripped over.

AMBIENT TEMPERATURE LIMITS

• Do not install in a location where temperature will fall below 44°F or go above 106°F. For best performance, do not install the Refrigerator behind a cabinet door or block the base grille.
• It is recommended you install the appliance in a place where the ambient temperature is between 44° and 106°F (7°C-41°C). If the ambient temperature is above or below the recommended temperatures, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate. The range of 34° - 43°F (1° - 6°C) may not be reached.

FRONT VENT

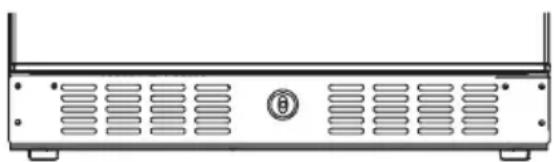

- This appliance is front breathing. Do not block the front air vent as this will result in high operating temperatures, higher energy usage and possible system overheating and failure.

Front view of a computer monitor rear panel with ventilation grilles and a circular button (no text or symbols)

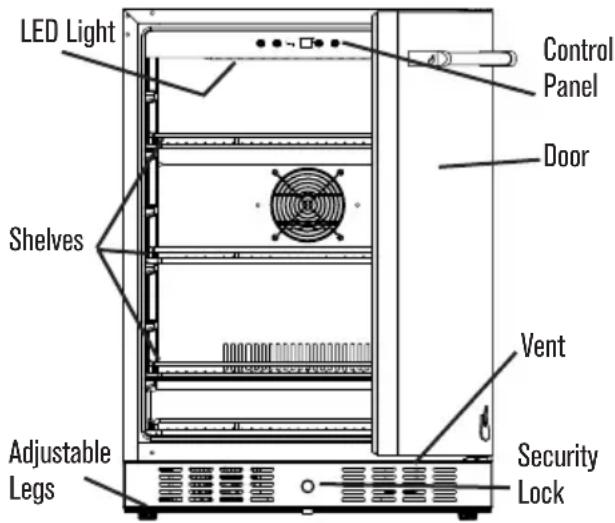

CONTROL PANEL

ON/OFF Power

- To turn the appliance ON or OFF, touch the symbol and hold for 5 seconds.

Setting the Temperature Control

• You can choose between Fahrenheit and Celsius for the temperature display by touching the “Lighting” symbol and hold for around 5-10 seconds. A Fahrenheit or Celsius degree indicator will appear next to the temperature display window

• The temperature you are setting will increase by one degree each time you touch the UP symbol, and will decrease by one degree each time you touch the DOWN symbol.

• The range of the temperature control is from 34 °F to 43°F.

• To view the set temperature at any time, touch the UP or DOWN symbol. The set temperature will flash in the display window for 5 seconds. After 5 seconds, the temperature inside the unit will reappear in blue in the display window.
• If the unit is unplugged, or power is lost or turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the unit will not start.
• When you use the unit for the first time or restart the unit after it has been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. This is normal and is due to the length of the activation time. There should not be a problem once the unit has been running for a few hours.

Interior Light

- The unit is equipped with an interior LED light which can be turned ON or OFF by touching the symbol.

Door Lock

• Your unit is provided with a lock and key combination.
• The keys are located inside the plastic bag that contains the Owner's Manual. Insert the key into the lock and turn it counterclockwise to unlock the door. To lock the door, do the reverse operation, making sure the metal pin is engaged completely. Remove the key and put it in a secure place for safekeeping.

Shelves

• To prevent damaging the door gasket, make sure to have the door all the way open when pulling the shelves out of the rail compartment.
• For easy access to the stored content, you can pull the shelf approximately halfway out of the rail compartment. However this unit was designed with a plastic post on each side of the shelf track to prevent shelf contents from falling.
• When removing the shelf from the inner rails, make sure to remove all shelf contents first. Then move the shelf to the position where the notches in the shelf are exactly aligned with the plastic posts and lift the shelf. In order to replace the shelf, repeat this procedure in reverse.

Defrosting

- Your Refrigerator is designed with “Auto-cycle” defrost system. During the “Off-cycle,” the refrigerated surfaces of the Refrigerator defrost automatically. Defrost water from the Refrigerator storage compartment drains automatically and part of it goes into a drainage container, which is located at the back of the Refrigerator above the compressor. The heat is transferred from the compressor and evaporates any condensation that has collected in the pan. Part of the remaining water is collected within the Refrigerator for humidity purposes.

Operating Noise

- To reach the desired temperature settings, the Refrigerator

CAUTION

• Do not overfill the Refrigerator as this may prevent air circulation.
• Do not open the door unless necessary.
• Do not cover shelves with aluminum foil or any other shelf material which may prevent air circulation.
• Clean the Refrigerator before storing for long periods of Time. Leave the Refrigerator door ajar to allow air to circulate inside, and to avoid possible formation of condensation, mold or odors.

operates with compressors and fans, and may produce the following types of noises. These noises are normal and may occur as follows:

• Gurgling sound - caused by the refrigerant flowing through the appliance's coils.
• Cracking/popping sounds - resulting from the contraction and expansion of the refrigerant gas to cool the appliance.
• Fan operating sound - to circulate the air within the Refrigerator.

Shelf Instructions

• Do not cover shelves with aluminum foil or any other material as this will impede air flow inside the cabinet and can adversely affect the interior cabinet temperature.
• To remove a shelf, tilt one side up and pull the shelf outward.
• To replace a shelf, ensure the shelf is resting securely on the support brackets and push inward until it locks into place.

Cleaning Your Refrigerator

• Turn off the power, unplug the appliance, and remove all items including the shelves.
• Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
• Wash the shelves with a mild detergent solution.
• Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.
• Wash the exterior cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.

Power Failure

- Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.

Vacation Time

- Short vacations: Leave the Refrigerator operating during vacations of less than three weeks.

- Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary.

Moving Your Refrigerator

• Remove all items.
• Securely tape down all loose items (shelves) inside your appliance.
• Turn the adjustable legs up to the base to avoid damage.
• Tape the door shut.
• Be sure the appliance stays secure in the upright position during transportation. Protect outside of appliance with a blanket, or similar item.

Energy Saving Tip

- The Refrigerator should be located in the shade where possible, and away from heat producing appliances.

LIMITED WARRANTY

This warranty only applies to units purchased from an authorized retailer. Manufacturer warrants to the original consumer-purchaser only that this product shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase*. The manufacturer reserves the right to require that defective parts be returned, postage and or freight pre-paid by the consumer for review and examination.

SCOPE OF COVERAGE PERIOD OF COVERAGE TYPE OF FAILURE COVERAGE
All Parts 1 year from date of purchase* PERFORATION	MANUFACTURING, AND	MATERIAL DEFECTS ONLY

\*Note: A dated sales receipt WILL be required for warranty service.

The original consumer-purchaser will be responsible for all shipping charges for parts replaced under the terms of this limited warranty. This limited warranty is applicable in the United States and Canada only, is only available to the original owner of the product and is not transferable. Manufacturer requires proof of your date of purchase. Therefore, you should retain your sales slip or invoice. Registering your product is not a substitute for proof of purchase and the manufacturer is not responsible for or required to retain proof of purchase records.

This limited warranty applies to the functionality of the product ONLY and does not cover cosmetic issues such as scratches, dents, corrosions or discoloring by heat, abrasive and chemical cleaners or any tools used in the assembly or installation of the appliance, surface rust, or the discoloration of stainless steel surfaces. Paint is not warranted and will require touch up. RUST is not considered a manufacturing or materials defect.

This limited warranty will not reimburse you for the cost of any inconvenience, food, personal injury or property damage. ITEMS MANUFACTURER WILL NOT PAY FOR:

1. Shipping cost, standard or expedited, for warranty and replacement parts.
2. Service calls to your home.
3. Repairs when your product is used for other than normal, single-family household or residential use.
4. Damage, failures, or operating difficulties resulting from accident, alteration, careless handling, misuse, abuse, fire, flood, acts of God, improper installation or maintenance, installation not in accordance with electrical or plumbing codes, or use of products not approved by the manufacturer.
5. Any food loss due to product failures or operating difficulties.
6. Replacement parts or repair labor costs for units operated outside the United States or Canada.
7. Pickup and delivery of your product.
8. Repairs to parts or systems resulting from unauthorized modifications made to the product.
9. The removal and/or reinstallation of your product.

DISCLAIMER OF IMPLIED WARRANTIES and LIMITATION OF REMEDIES

Repair or replacement of defective parts is your exclusive remedy under the terms of this limited warranty. In the event of parts availability issues, the manufacturer reserves the right to substitute like or similar parts that are equally functional.

Manufacturer will not be responsible for any consequential or incidental damages arising from the breach of either this limited warranty or any applicable implied warranty, or for failure or damage resulting from acts of God, improper care and maintenance, grease fire, accident, alteration, replacement of parts by anyone other than Manufacturer, misuse, transportation, commercial use, abuse, hostile environments (inclement weather, acts of nature, animal tampering), improper installation or installation not in accordance with local codes or printed manufacturer instructions. THIS LIMITED WARRANTY IS THE SOLE EXPRESS WARRANTY GIVEN BY THE MANUFACTURER. NO PRODUCT PERFORMANCE SPECIFICATION OR DESCRIPTION WHEREVER APPEARING IS WARRANTED BY MANUFACTURER EXCEPT TO THE EXTENT SET FORTH IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTY PROTECTION ARISING UNDER THE LAWS OF ANY STATE, INCLUDING IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE, IS HEREBY LIMITED IN DURATION TO THE DURATION OF THIS LIMITED WARRANTY.

Neither dealers nor the retail establishment selling this product has any authority to make any additional warranties or to promise remedies in addition to or inconsistent with those stated above. Manufacturer's maximum liability, in any event, shall not exceed the purchase price of the product paid by the original consumer.

NOTE: Some states do not allow an exclusion or limitation of incidental or consequential damages, so some of the above limitations or exclusions may not apply to you. This limited warranty gives you specific legal rights as set forth herein. You may also have other rights which vary from state to state. In the state of California only, if refinishing or replacement of the product is not commercially practicable, the retailer selling this product or the Manufacturer will refund the purchase price paid for the product, less the amount directly attributable to use by the original consumer-purchaser prior to discovery of the nonconformity. In addition, in the state of California only, you may take the product to the retail establishment selling this product in order to obtain performance under this limited warranty.

If you wish to obtain performance of any obligation under this limited warranty, you should write to:

Consumer Relations

P. O. Box 1240

Columbus, GA 31902-1240

Consumer returns will not be accepted unless a valid Return Authorization is first acquired. Authorized returns are clearly marked on the outside of the package with an RA number and the package is shipped freight/postage pre-paid. Consumer returns that do not meet these standards will be refused.

Troubleshooting

You can solve many common problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling a service technician.

PROBLEM POSSIBLE CAUSE
The unit does not operate.▪ Not plugged in.	▪ The appliance is turned off.▪ Tripped circuit breaker or blown fuse.
The unit is not cold enough.	▪ Check the temperature control setting.▪ External environment may require a high-er setting. The door is opened too often.▪ The door is not closed completely.▪ The door Gasket does not seal properly.▪ The ambient temperature is warmer than normal.▪ A large amount of contents has been added to the unit.
Turns on and off frequently.▪ The door is opened too often.	▪ The door is not closed completely.▪ The temperature control is not set correctly.▪ The door gasket does not seal properly.
The light does not work.	▪ Not plugged in.▪ Tripped circuit breaker or blown fuse.▪ The light switch is “OFF”.
Vibrations	▪ Check to assure that the appliance is level.
The unit seems to make too much noise.▪ A rattling noise may come from the flow of the refrigerant, which is normal.▪ As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your unit.▪ Contraction and expansion of the inside walls may cause popping and crackling noises.▪ The appliance is not level.
The door will not close properly.	▪ The appliance is not level.▪ The door was reversed and not properly re-installed. The gasket is dirty.▪ The shelves are out of position.
Display shows “EL” or “EH”.	▪ The air temperature sensor has failed.
If you’ve checked the table above and find that you still need help with your appliance, call our Customer Service facility at 1-800-448-2177 between 9:00AM and 5:00PM ET.

Front view of a server rack with ventilation grilles and a circular button (no text or symbols)

PANEL DE CONTROL

Encendido/apagado

1. Handle base (Left) 4. Door
2. Handle base (right) 5. Washer
3. Handle tube 6. Screw

Step 1: Combine the handle base (left and right) with handle tube (the direction of flame should be upward) Step 2: Install the handle securely as shown with two screws and lock washers provided. (Do not over tighten as this will cause damage to the handle assembly and stainless steel surface of the door)

• This appliance has reversible doors but is delivered with a right hinged door. The left-hand hinge kit comes with the unit (in the box), should you wish to reverse the hinge on your unit.
• If the appliance is placed on its back or side for any length of time during this process, it must be allowed to remain upright for 24 hours before plugging it in to avoid damage to the internal components.

• Refer to the figures on the next page when performing these steps:

• Open the door to 90 degrees and remove the hole plug item 4 from the door top.

• Remove two screws item 1 from the door bottom hinge item 2, slide door off hinge and pull door down to free it from the top hinge pin item 5. Remove hinge item 2 and relocated it to the left side.

• Remove three screws from the top hinge item 5. NOTE: this top right hinge will be replaced by a top left hinge item 7 located in the warranty bag. Keep top right hinge in a known location for future door reversal.

• Remove the three screw hole covers item 6 from the top left.

• Install the three screw hole covers item 6 at the top right where the original right hinge was removed.

• Install top left hinge item 7 with the three screws removed from the top right hinge.

• Install the door by sliding it onto the top hinge pin, then secure the bottom the bottom hinge pin item 2 using the screws item 1 removed in step 2.

• Install the hole plug item 4 into the top right hinge hole.

- Ensure the top of the door properly aligned with the top of the cabinet and that the rubber gasket makes a good seal with the cabinet all the way around.

WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
