USER MANUAL AT-OME-RX11 Atlona

Version Release Date Notes

6 Nov 2023 Added notes for internal USB hubs in specification table.

Sales, Marketing, and Customer Support

Main Office

Atlona Incorporated

70 Daggett Drive

San Jose, CA 95134

United States

Office: +1.408.962.0515

Sales and Customer Service Hours

Monday - Friday: 6:00 a.m. - 4:30 p.m. (PST)

https://atlona.com/

International Headquarters

Atlona International AG

Tödistrasse 18

8002 Zürich

Switzerland

Office: +41.43.508.4321

Sales and Customer Service Hours

Monday - Friday: 09:00 - 17:00 (UTC +1)

Operating Notes

Atlona AT-OME-RX11 - Operating Notes - 1

IMPORTANT: Visit https://atlona.com/product/ome-ms42/ for the latest firmware updates and User Manual.

Warranty

QR code image containing encoded data, no visible human-readable text

To view the product warranty, use the following link or QR code:

https://atlona.com/warranty/

Safety and Certification

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCT THE RISK OF

ELECTRIC SHOCK

DO NOT OPEN ENCLOSURE OR EXPOSE

TO RAIN OR MOISTURE.

NO USER-SERVICEABLE PARTS

INSIDE REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

Atlona AT-OME-RX11 - CAUTION - 1

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the product.

Atlona AT-OME-RX11 - CAUTION - 2

The information bubble is intended to alert the user to helpful or optional operational instructions in the literature accompanying the product.

  1. Read these instructions.
  2. Keep these instructions.
  3. Heed all warnings.
  4. Follow all instructions.
  5. Do not use this product near water.
  6. Clean only with a dry cloth.
  7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

  8. Do not install or place this product near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

  9. Do not defeat the safety purpose of a polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

  10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
  11. Only use attachments/accessories specified by Atlona.
  12. To reduce the risk of electric shock and/or damage to this product, never handle or touch this unit or power cord if your hands are wet or damp. Do not expose this product to rain or moisture.
  13. Unplug this product during lightning storms or when unused for long periods of time.
  14. Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the product, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.

Atlona AT-OME-RX11 - CAUTION - 3

Atlona AT-OME-RX11 - CAUTION - 4

Atlona AT-OME-RX11 - CAUTION - 5

Atlona AT-OME-RX11 - CAUTION - 6

Atlona AT-OME-RX11 - CAUTION - 7

Atlona AT-OME-RX11 - CAUTION - 8

Atlona AT-OME-RX11 - CAUTION - 9

FCC Compliance

FCC Compliance and Advisory Statement: This hardware device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the receiver is connected; 4) consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations.

© 2022 Atlona Inc. All rights reserved. "Atlona" and the Atlona logo are registered trademarks of Atlona Inc. Pricing, specifications and availability subject to change without notice. Actual products, product images, and online product images may vary from images shown here.

Atlona AT-OME-RX11 - Copyright, Trademark, and Registration - 1

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI licensing Administrator, Inc.

All other trademark(s), copyright(s), and registered technologies mentioned in this document are the properties of their respective owner(s).

Table of Contents

Introduction 7

Features 7

Package Contents 7

Panel Description 8

Front Panel 8

Rear Panel 9

Installation 10

Audio 10

RS-232 10

Connection Instructions 11

Connection Diagram 12

IP Configuration 13

Switching the IP Mode Using the Front Panel 13

Setting the IP Address using the Web Server 13

Displaying the IP Address 13

Control 14

CEC 14

RS-232 14

TCP Proxy 14

TCP/IP 14

Web Server 14

Device Operation 15

LED Indicators 15

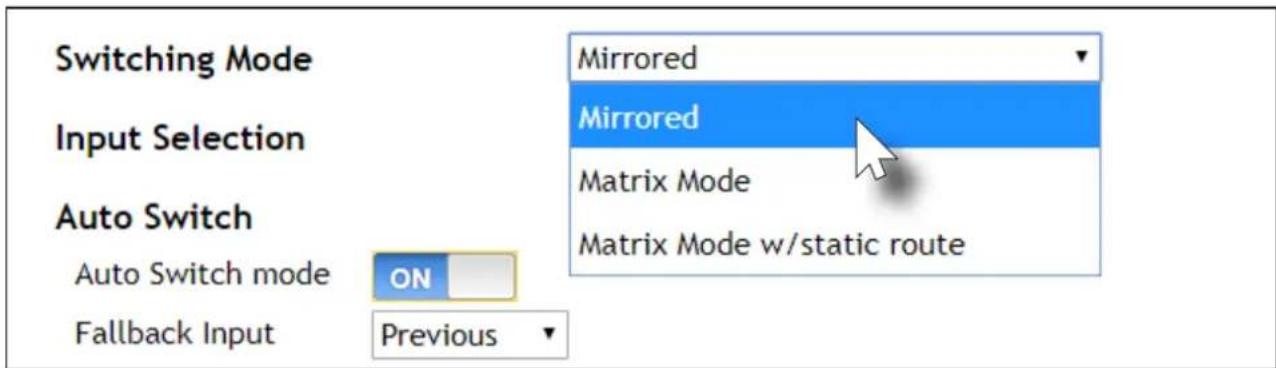

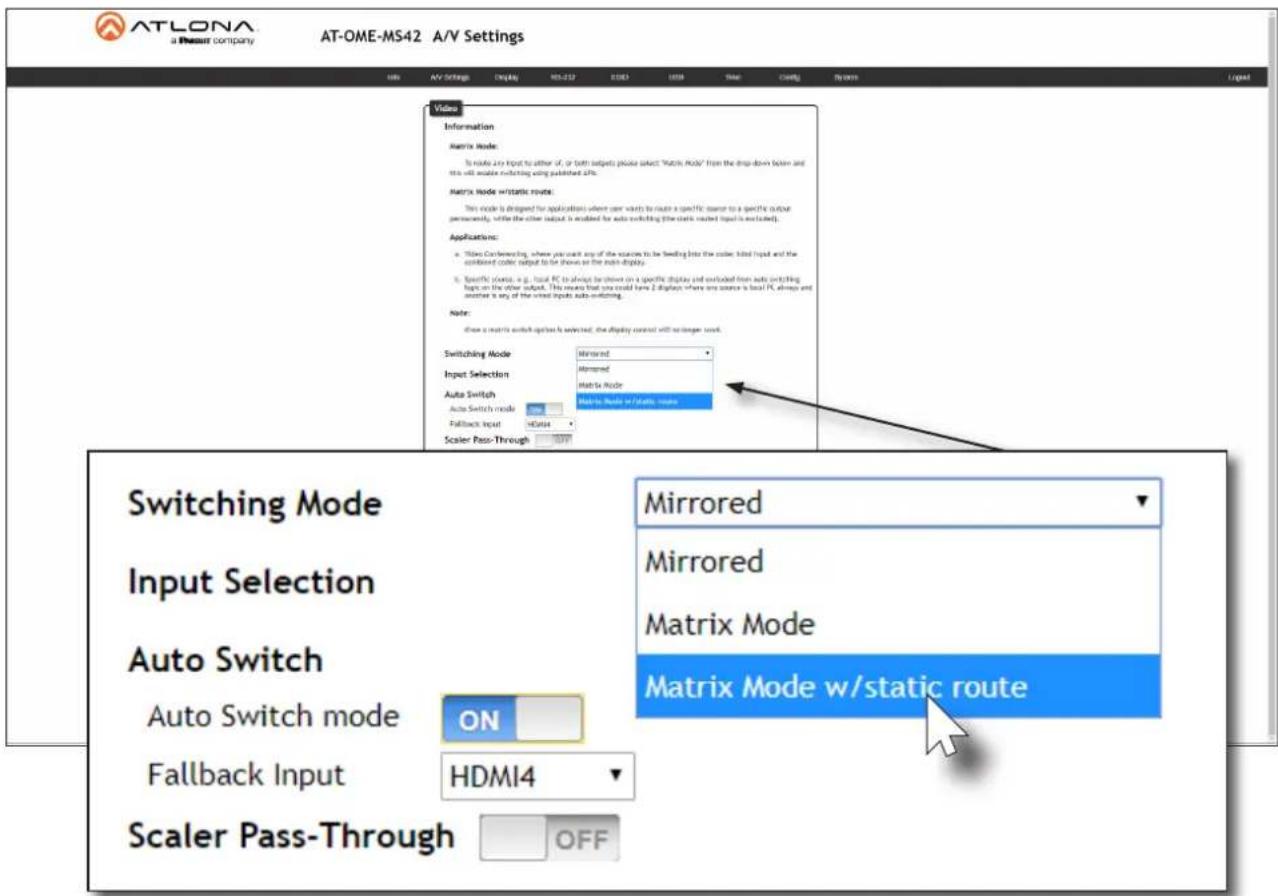

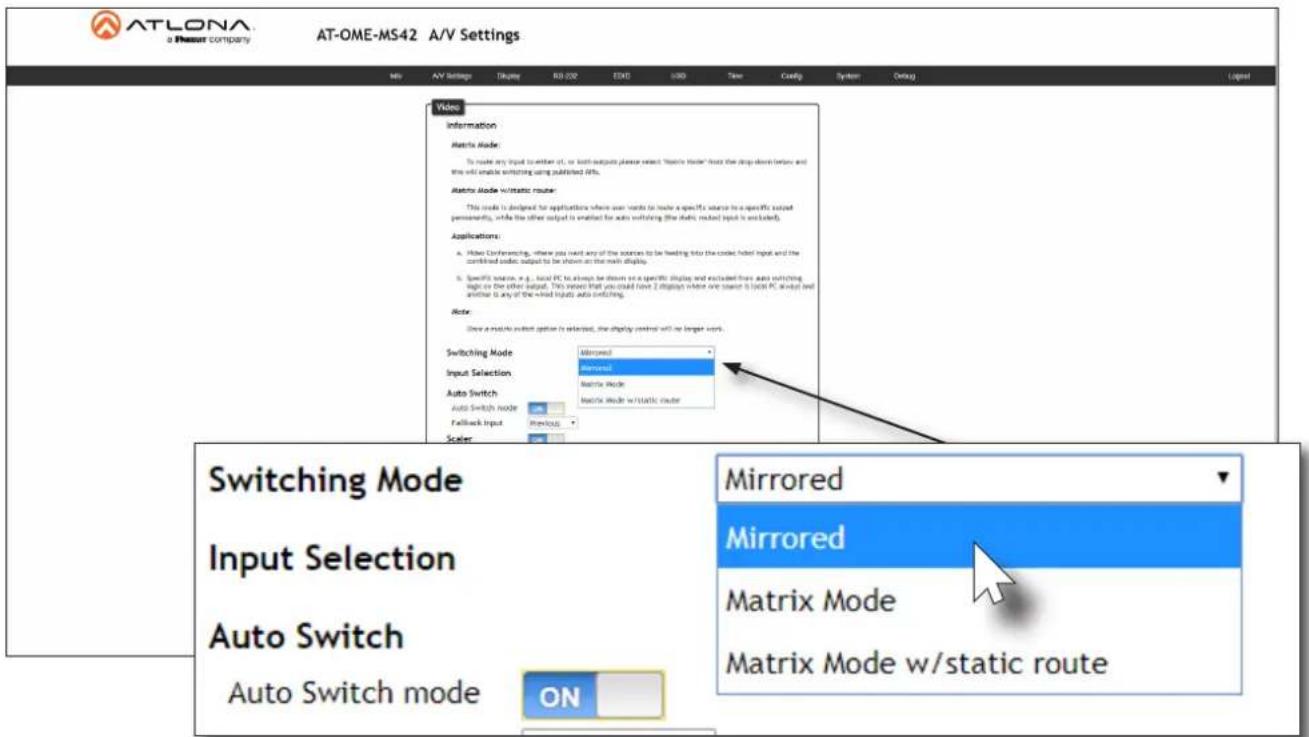

Switching Modes 16

Mirrored Mode 16

Matrix Mode 17

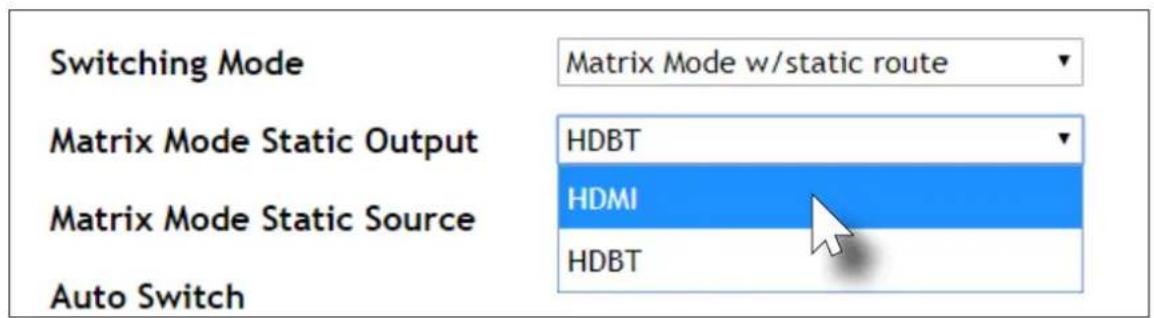

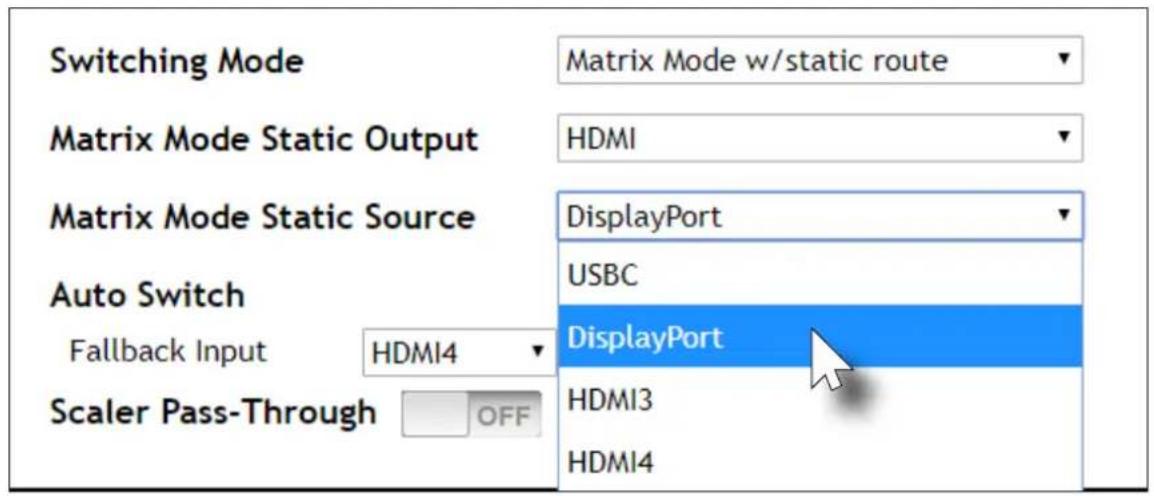

Matrix Mode w/ Static Route 19

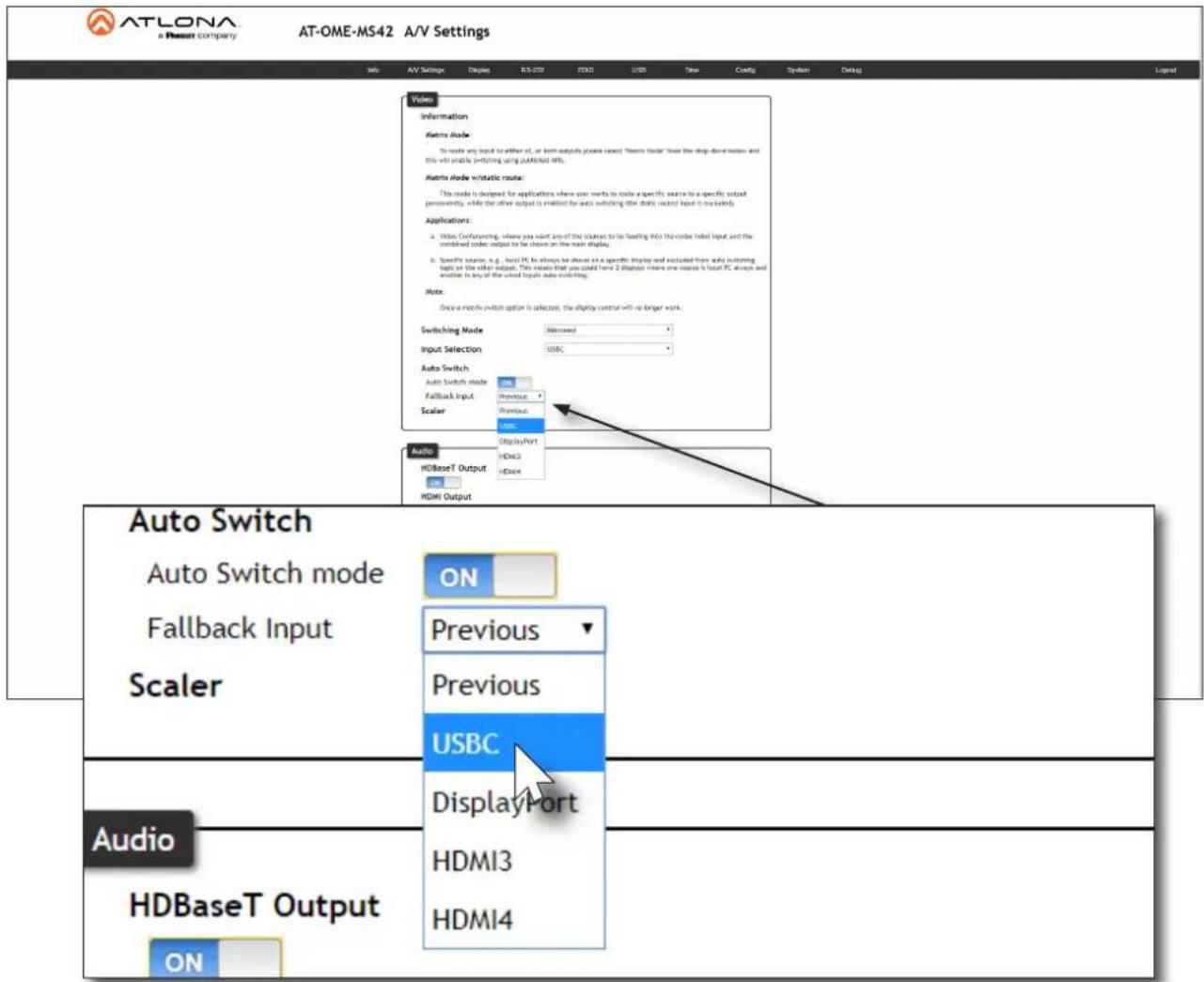

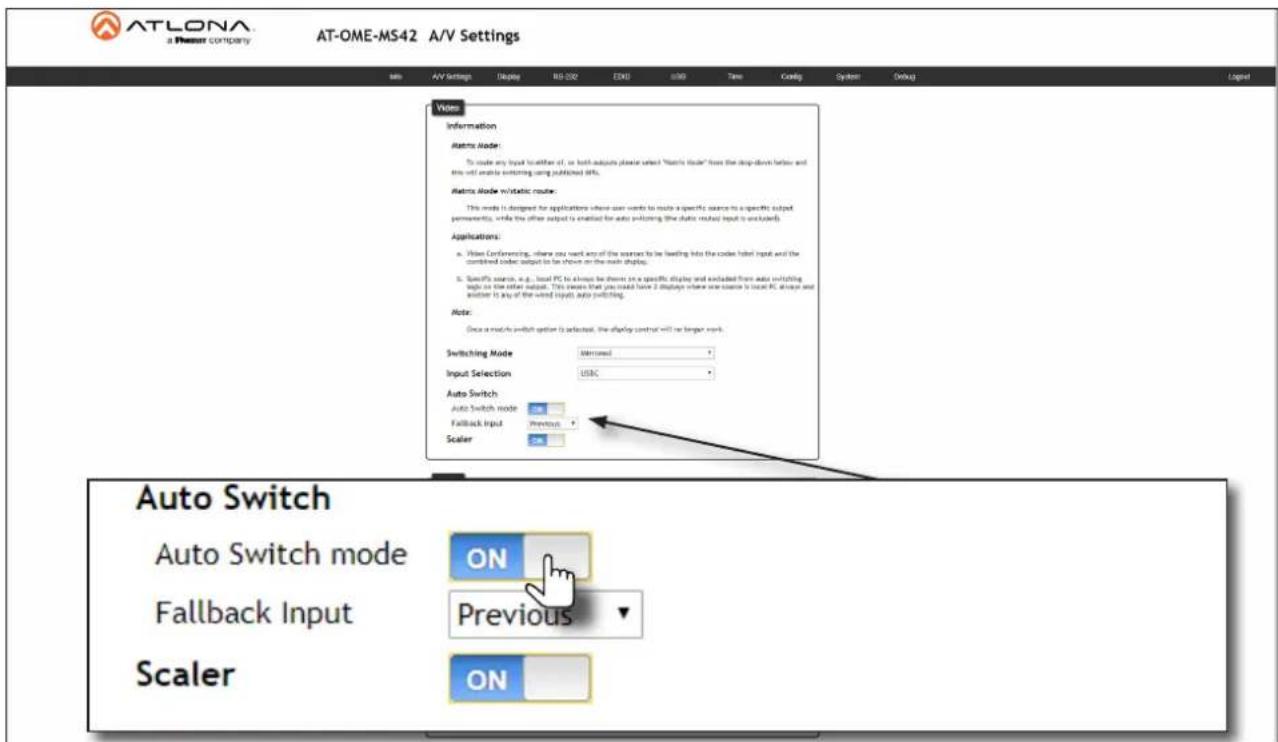

Auto-Switching 21

Enabling / Disabling Auto Switching 21

Setting the Fallback Input 22

Scaler Pass-Through 23

Notes on Scaling 24

Audio Management 25

Audio Output Muting 25

De-embedding Audio 25

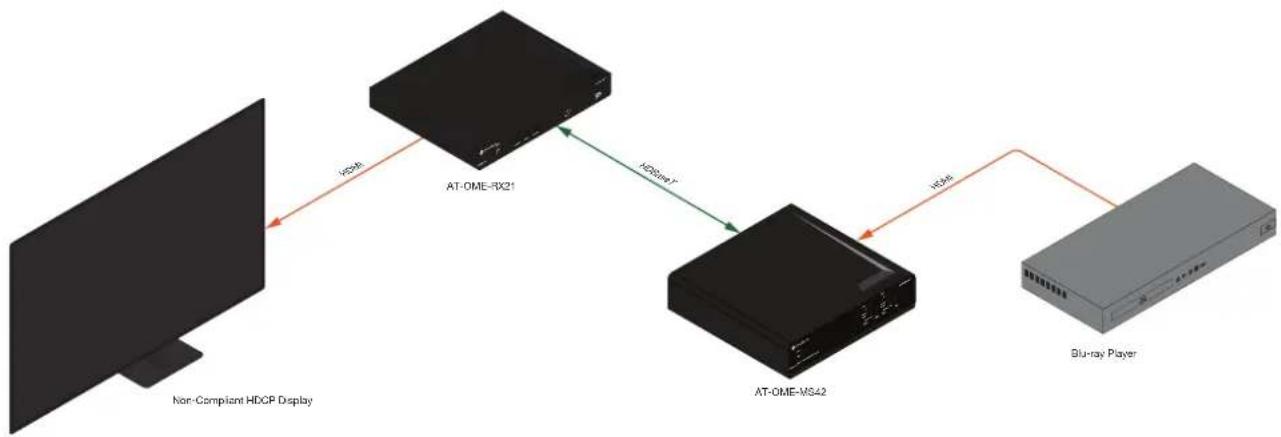

HDCP Content 26

EDID Management 27

Using the Downstream EDID 27

EDID Presets 28

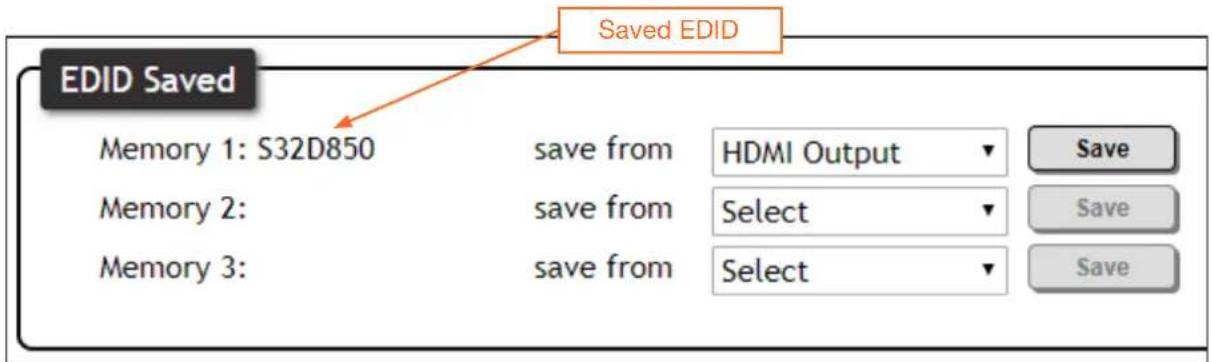

Storing EDID Data 29

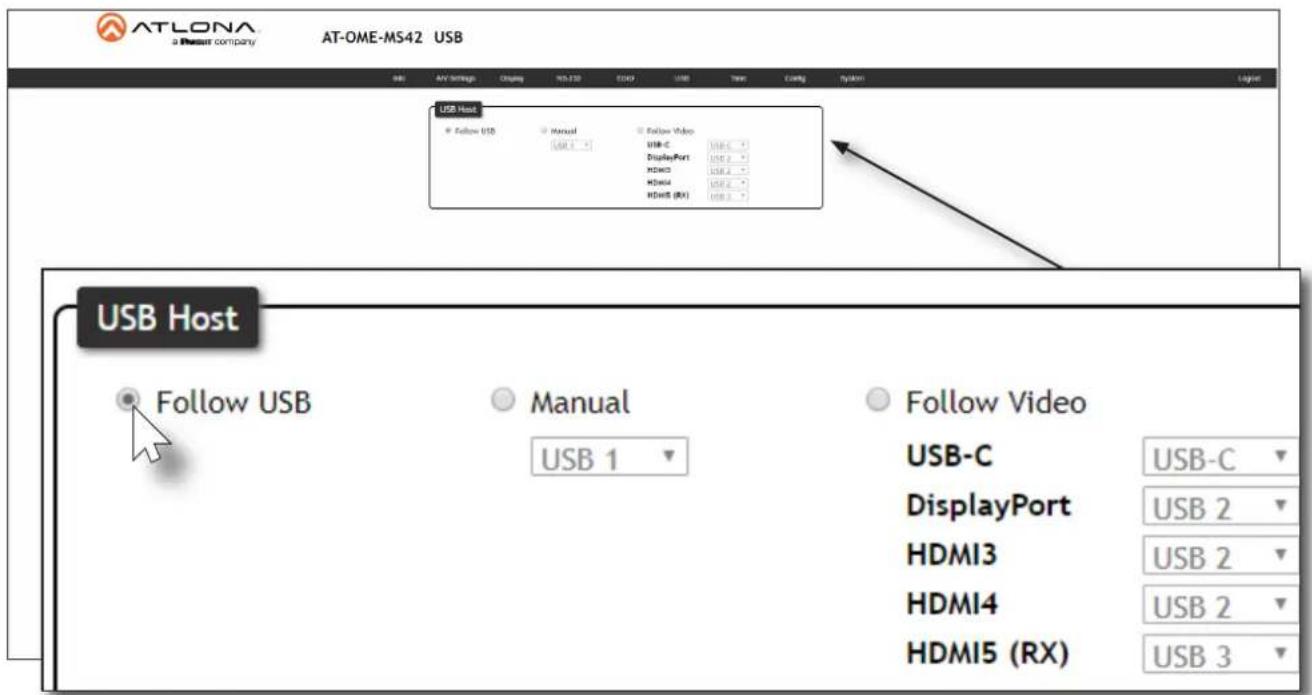

USB Modes 32

Follow USB 32

Manual 33

Follow Video 34

Setting the System Date and Time 37

Setting Local Time 37

Using an NTP Server 38

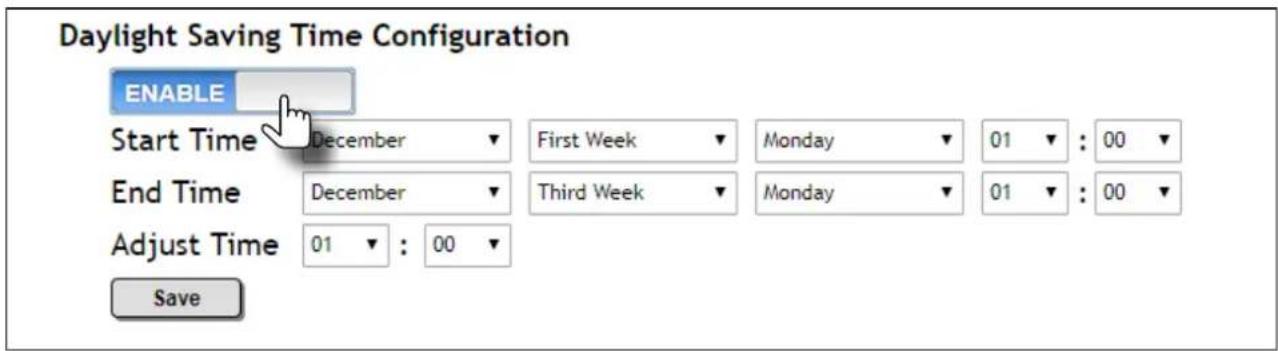

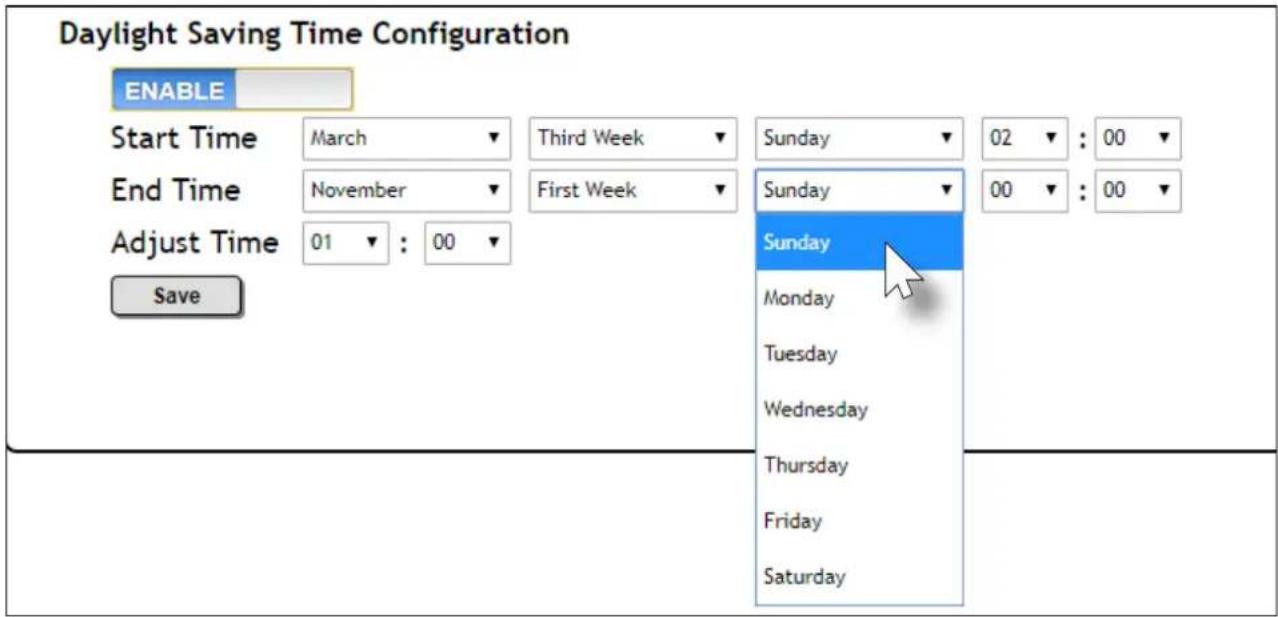

Daylight Saving Time (DST) 38

Password Management 40

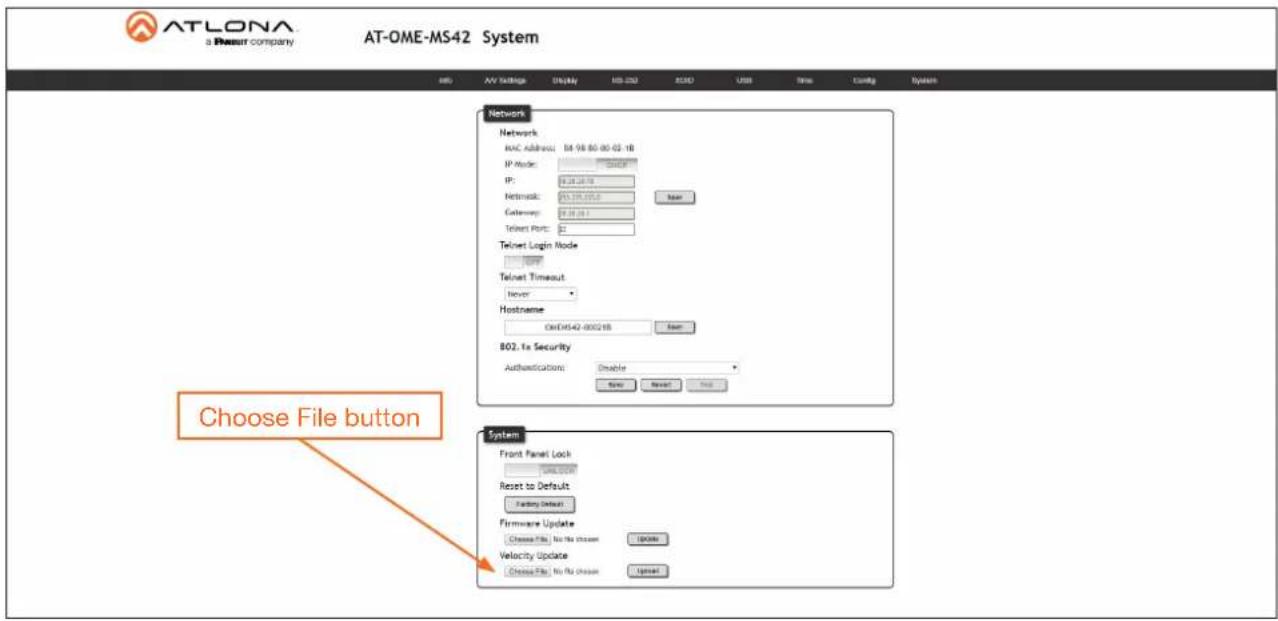

System Configuration 41

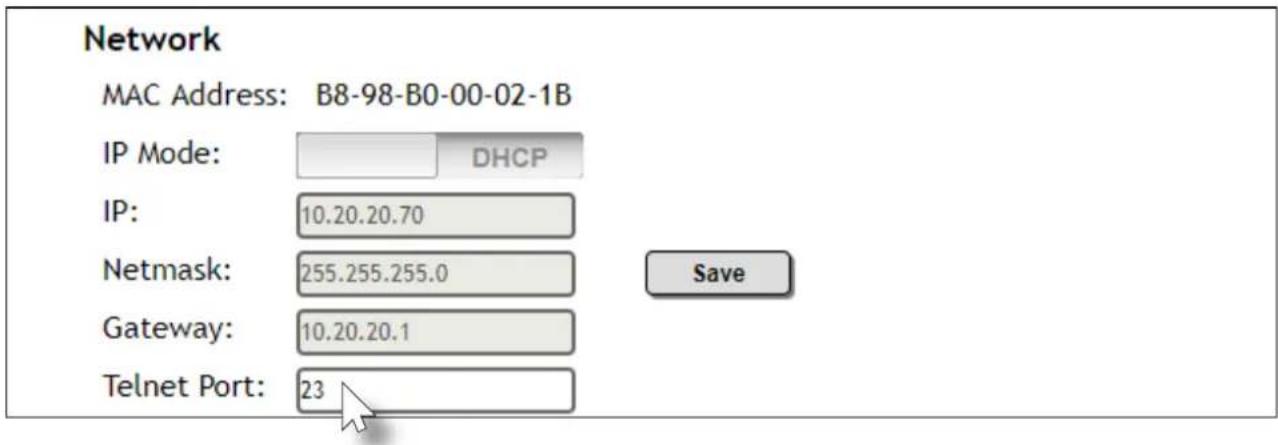

Getting the MAC Address 41

Changing the Network IP Mode 41

Changing the Telnet Port 42

Telnet Login Mode 43

Adjusting Telnet Timeout 44

Table of Contents

Setting the Host Name 45

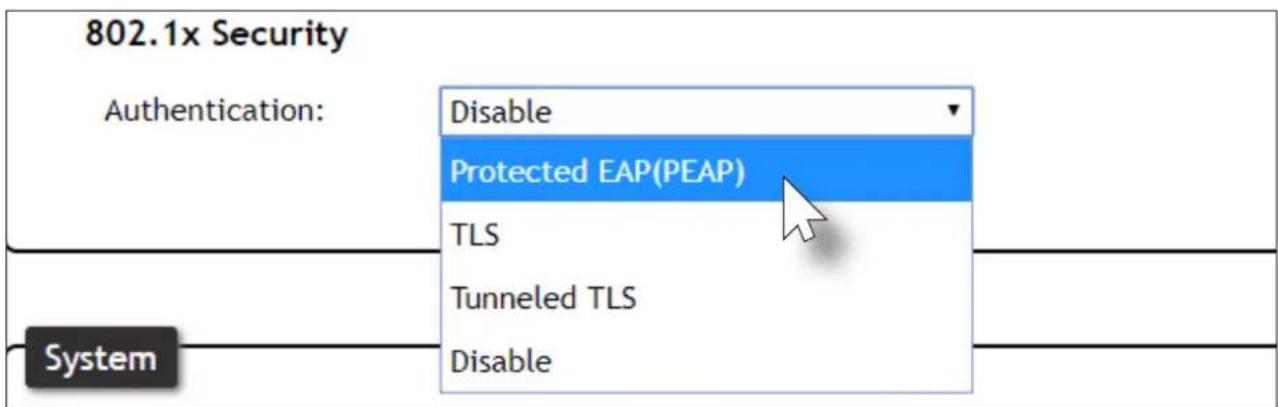

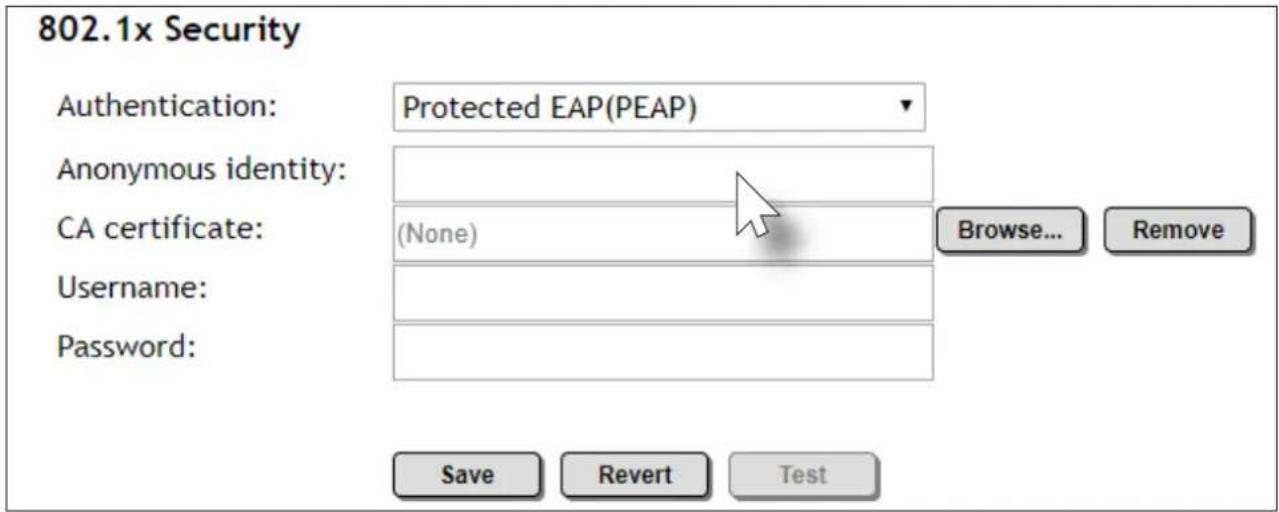

802.1X Security 46

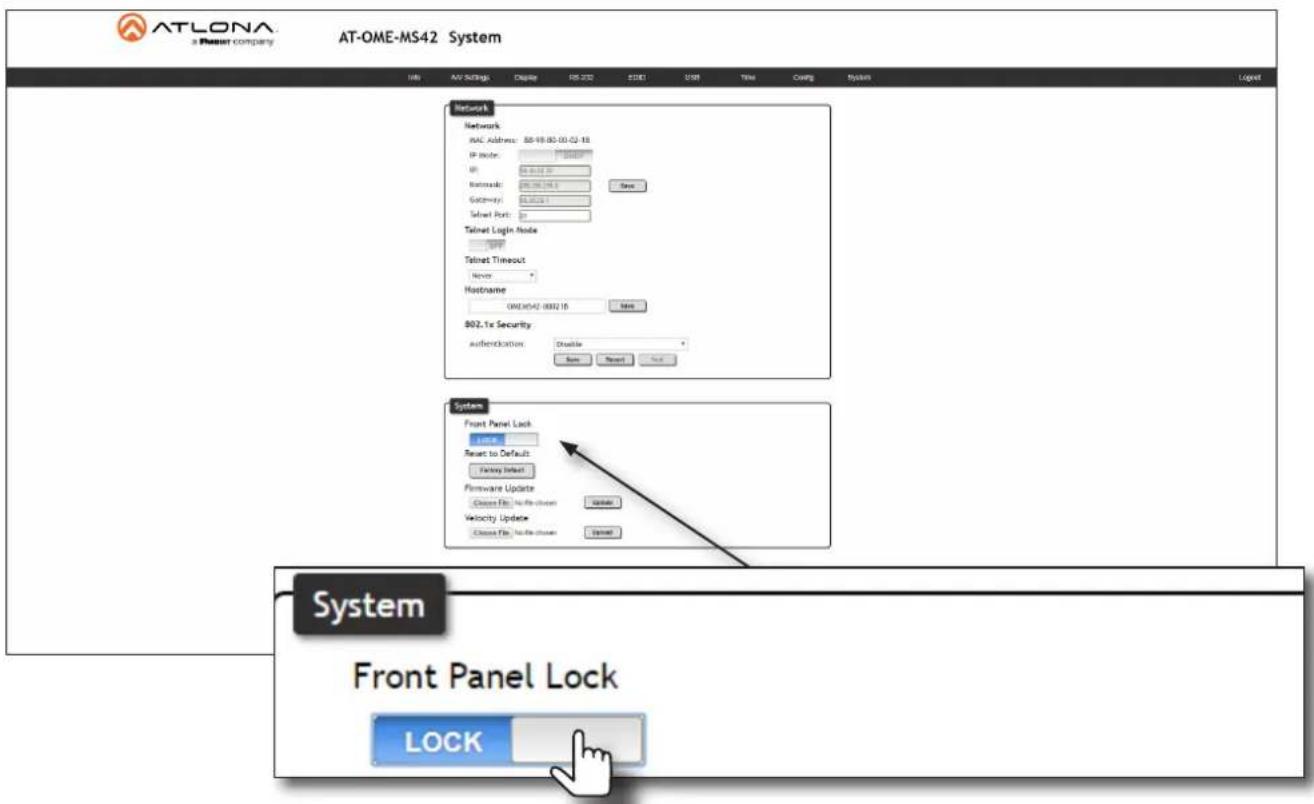

Locking / Unlocking the Front Panel 48

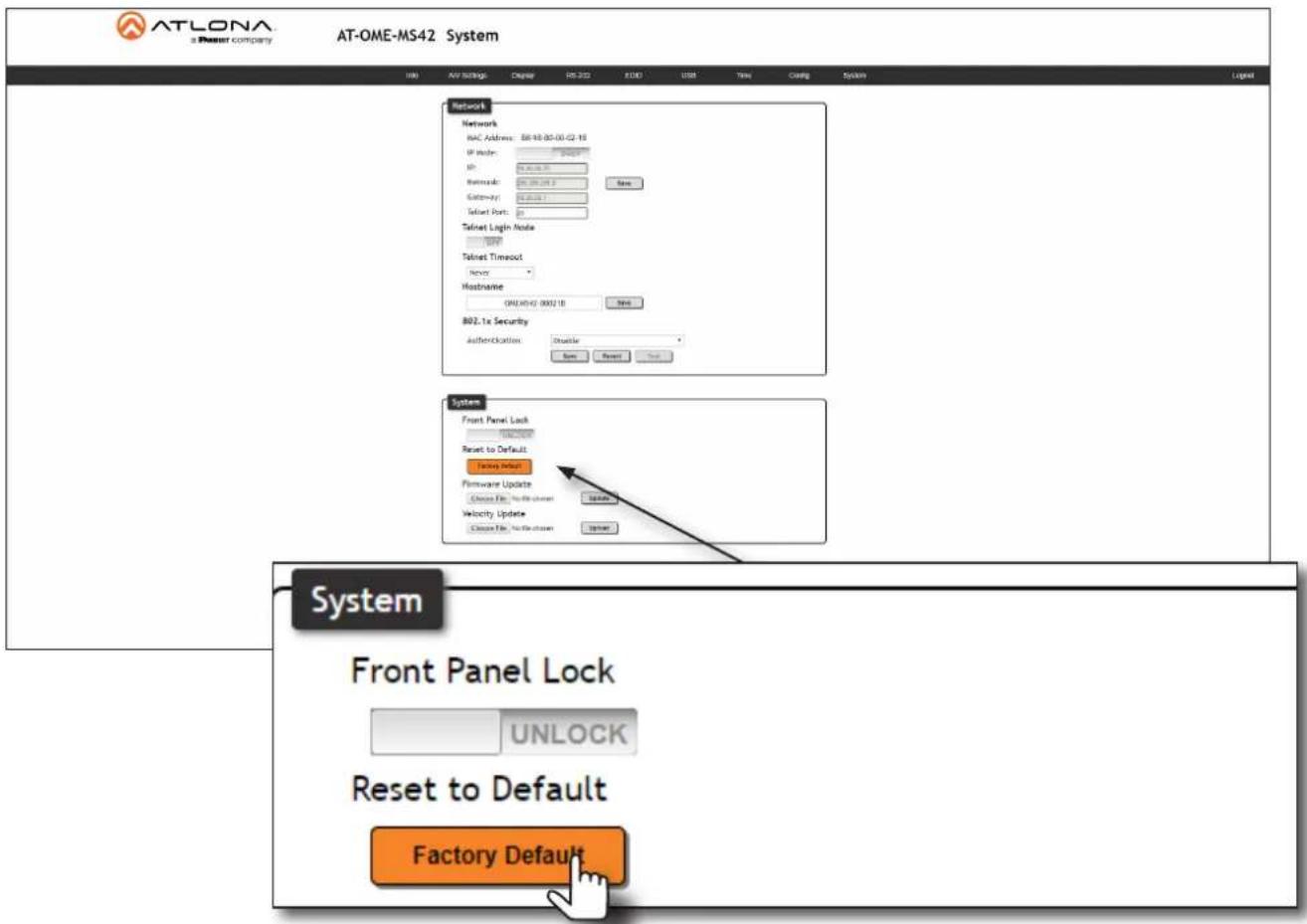

Resetting to Factory-Default Settings 49

Configuration and Management Interfaces 50

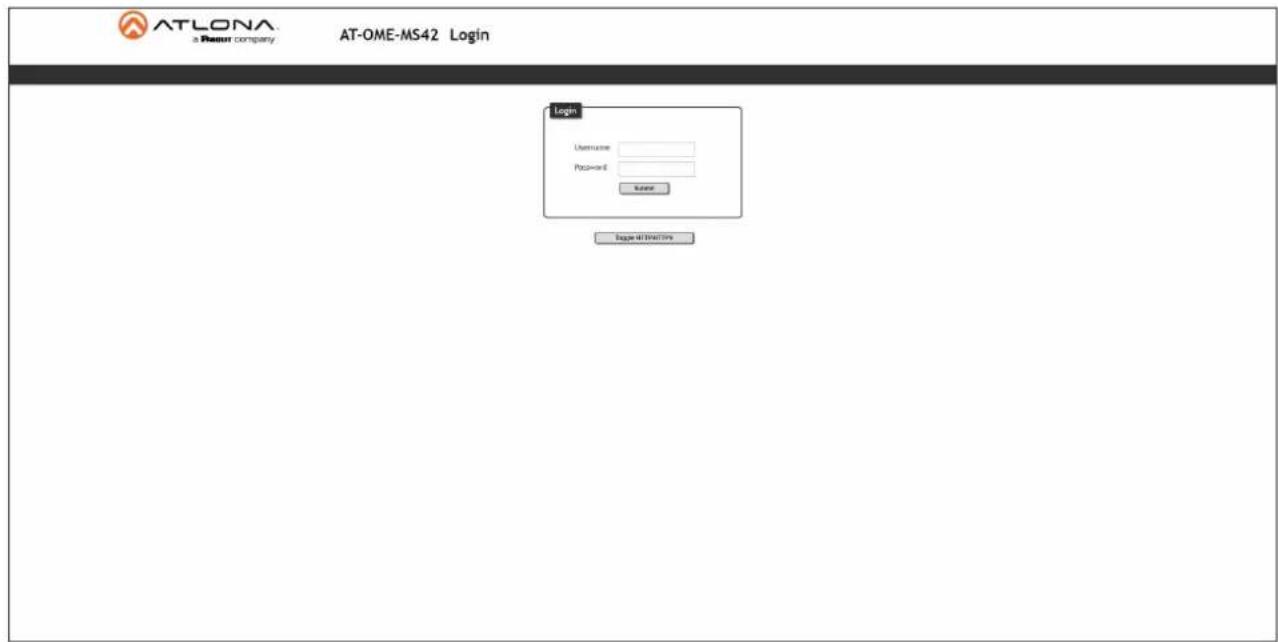

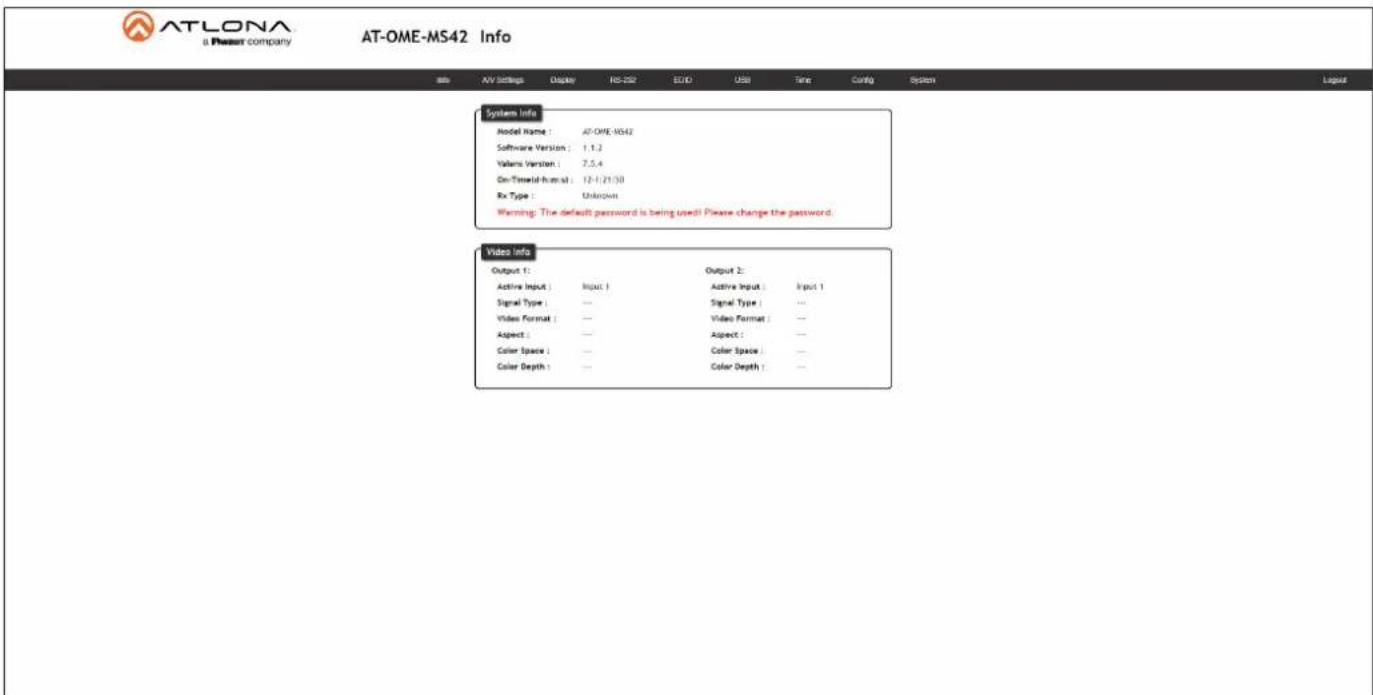

Introduction to the Web Server 50

Info Page 51

A/V Settings Page 52

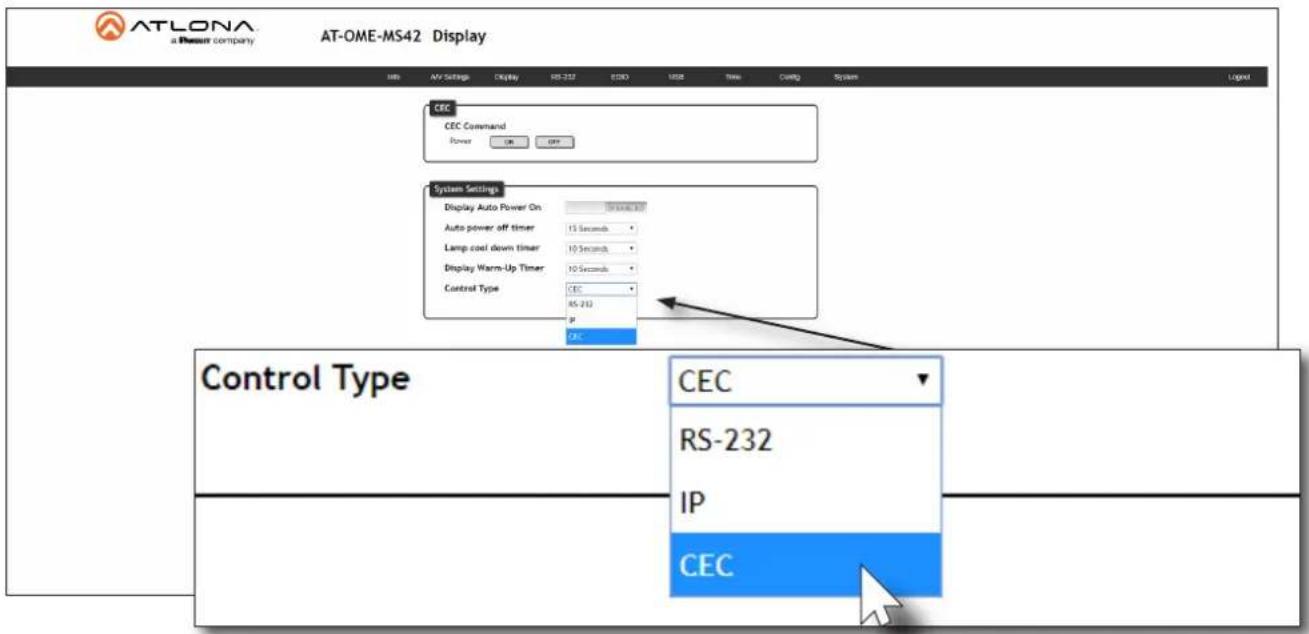

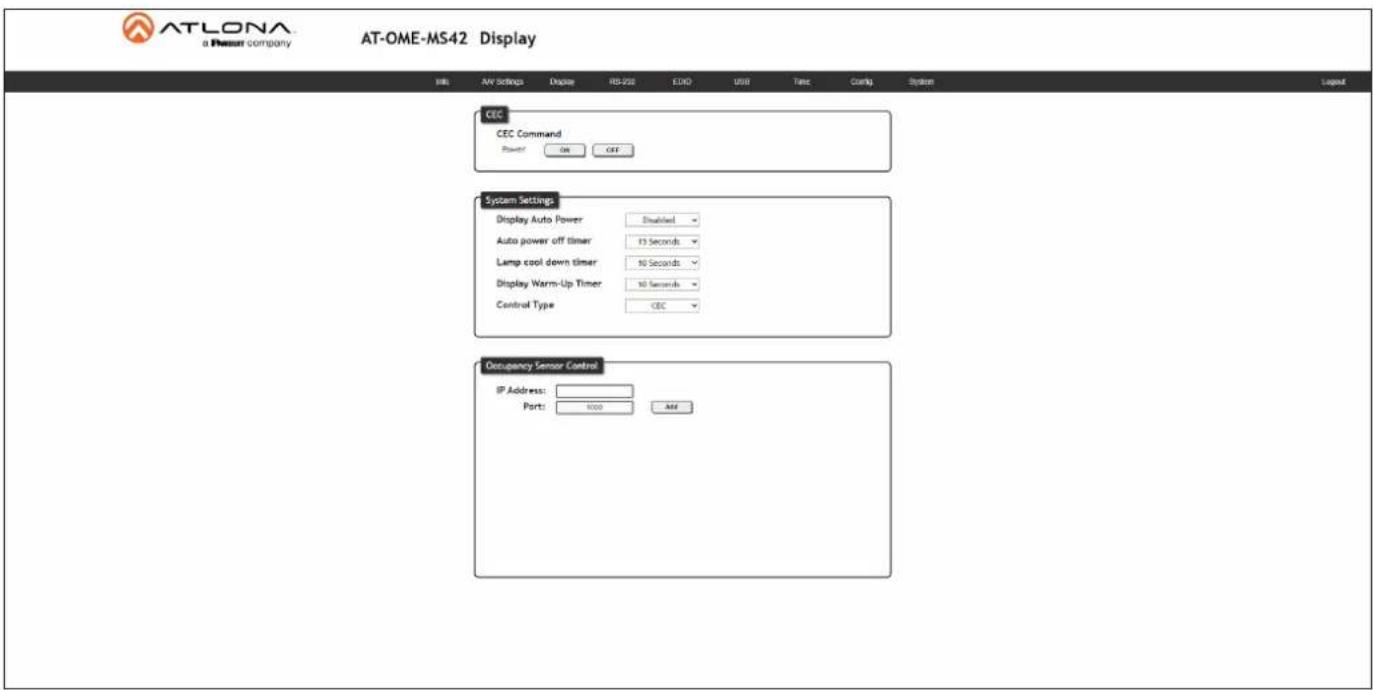

Display Page 55

RS-232 Page 57

EDID Page 58

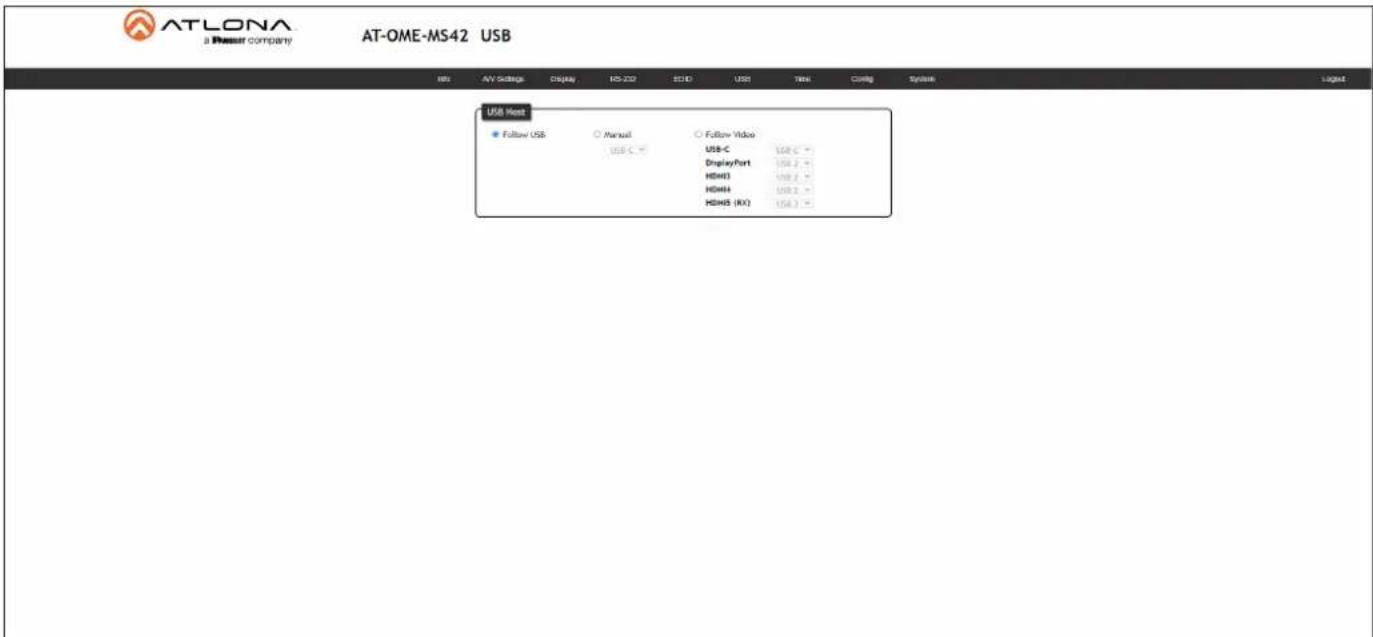

USB Page 59

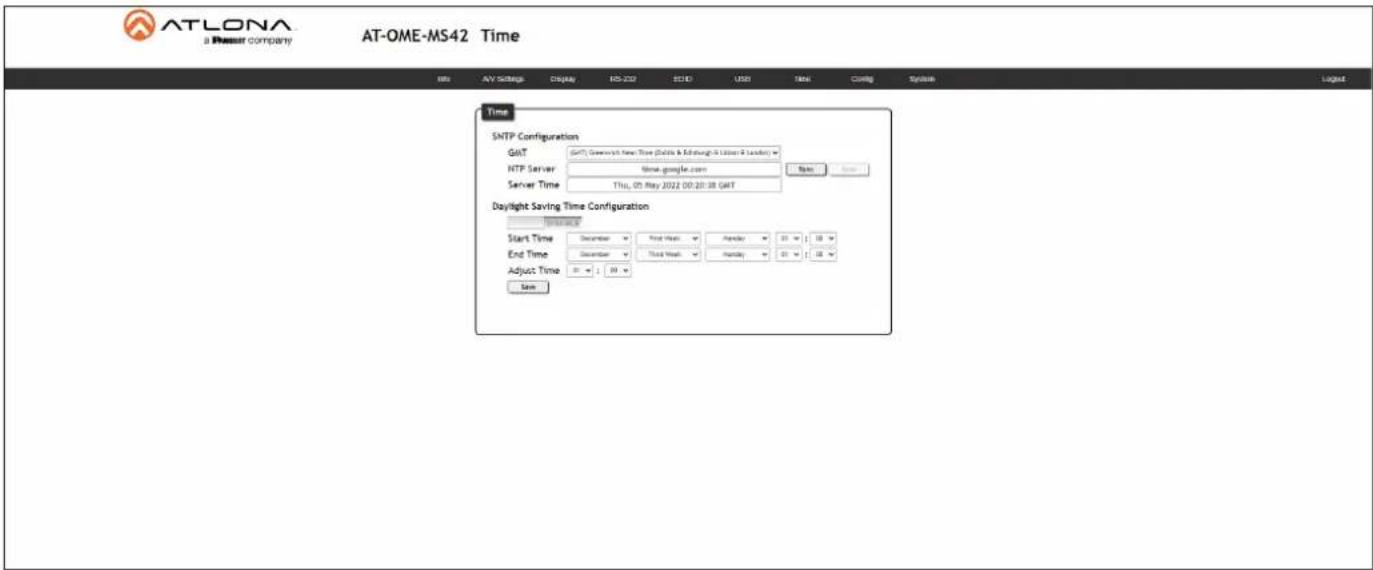

Time Page 60

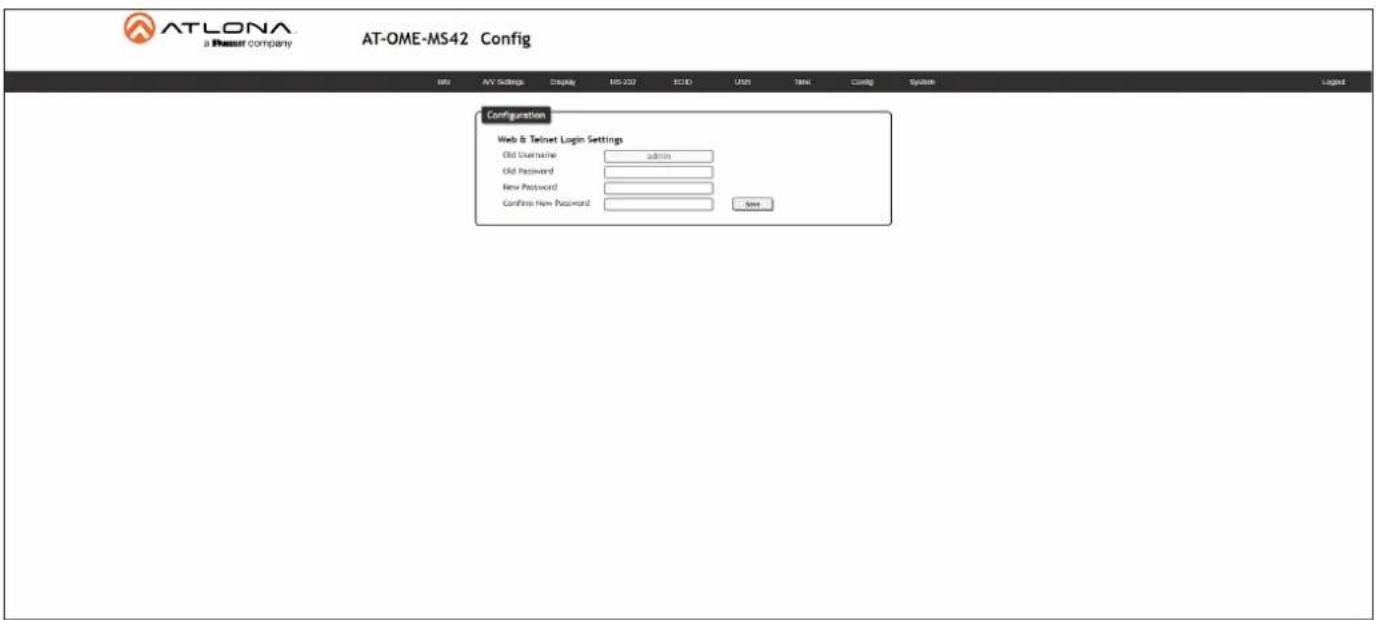

Config Page 61

System Page 62

Solution Setup and Configuration Guide 64

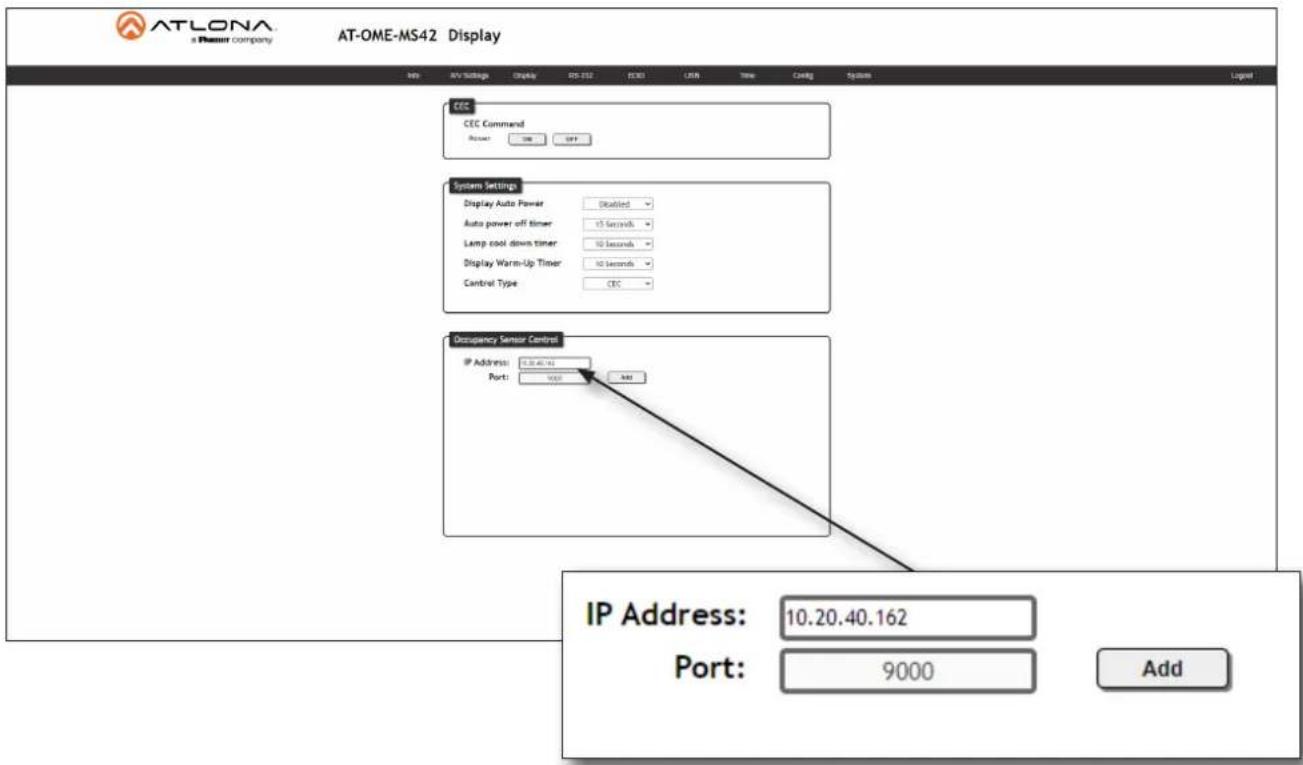

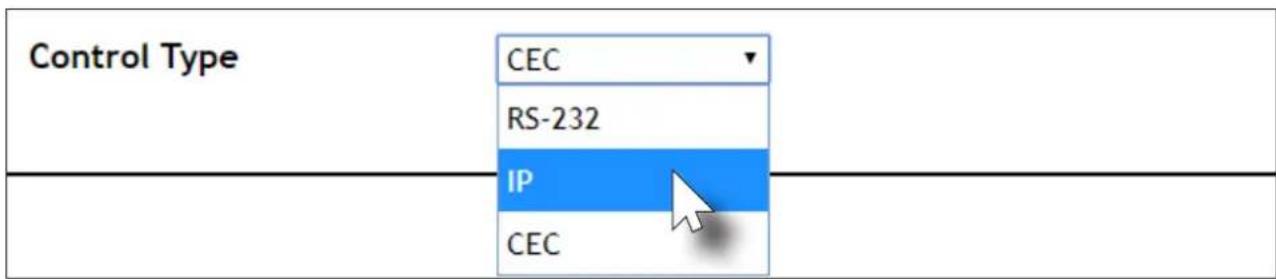

Display Control 64

CEC Control 64

Using RS-232 67

Using IP 70

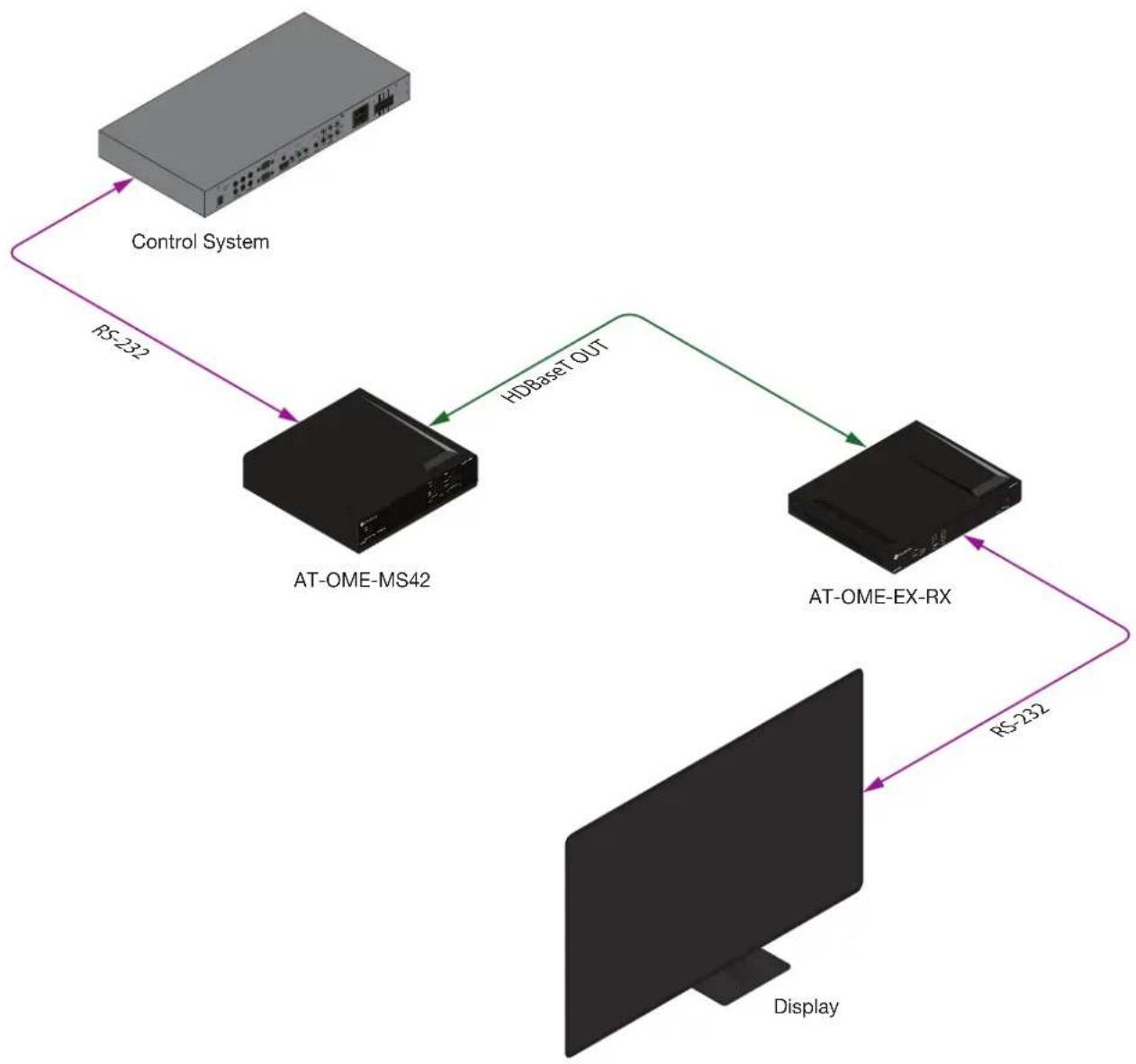

Pass-through mode 74

Control mode 76

Integration with the AT-OCS-900N 77

Appendix 79

Updating the Firmware 79

Using the Web Server 79

Using USB 81

Mounting Instructions 83

Single Unit Rack Installation 83

Dual Unit Rack Installation 84

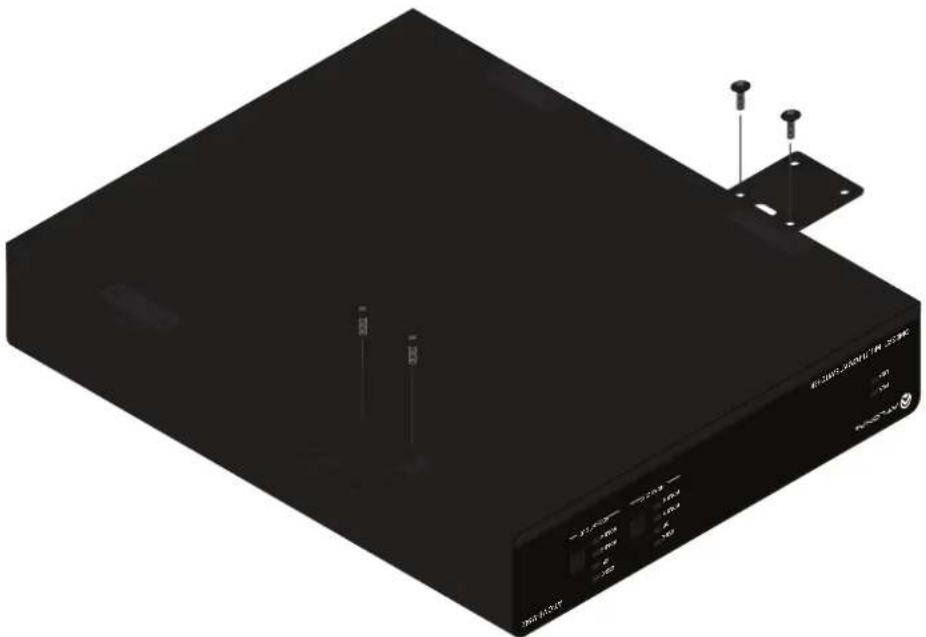

Flat Surface 85

Specifications 86

Introduction

The Atlona AT-OME-MS42 is a 4x2 matrix switcher with HDMI, USB-C, and DisplayPort inputs, plus HDMI and HDBaseT outputs. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-MS42 is HDCP 2.2 compliant and features HDBaseT extension for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). All inputs and the local HDMI output support 4K HDR and 4K/60 4:4:4 at HDMI data rates up to 18 Gbps. Additionally, 4K downscaling to 1080p @ 60, 30, or 24 Hz is available for the HDMI output when connected to an HD sink. The integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-MS42 includes USB 2.0 and USB-C interfaces for three host PCs, plus two peripheral devices such as a camera, microphone, speakerphone, or keyboard and mouse. It is ideal for video conferencing and many other 4K presentation applications with the OME-EX-RX receiver and OME-SR21 scaling receiver.

Features

  • 4×2 AV matrix switcher with HDMI, DisplayPort, and USB-C inputs
    • USB-C input for AV, data, and device charging (1)
  • HDBaseT and HDMI outputs with selectable AV switching modes
    • Supports TCP Proxy for IP to RS-232 conversion, enabling RS-232 control from a TCP/IP control system.
    • USB 2.0 interfacing and extension (2) over HDBaseT
  • Selectable 4K to 1080p downscaling
  • Remote powering using HDBaseT or local powering
    • Audio de-embedding
    • Automatic display control
  • Award-winning 10 year limited product warranty

Package Contents

1 x AT-OME-MS42
1 x Captive screw connector, 5-pin
1 x Captive screw connector, 3-pin
1 x USB-C cable
2 x Mounting plate
4 x Mounting screw
1 x Long rack ear
1 x Short rack ear
4 x Feet w/rubber grips
1 x 24 V DC power supply
1 x IEC power cord
1 x Installation Guide

(1) Device charging available when used with included AT-PS-245-D4 power supply.
(2) Maximum 120 Mbps data rate supported over HDBaseT.

Panel Description

Front Panel

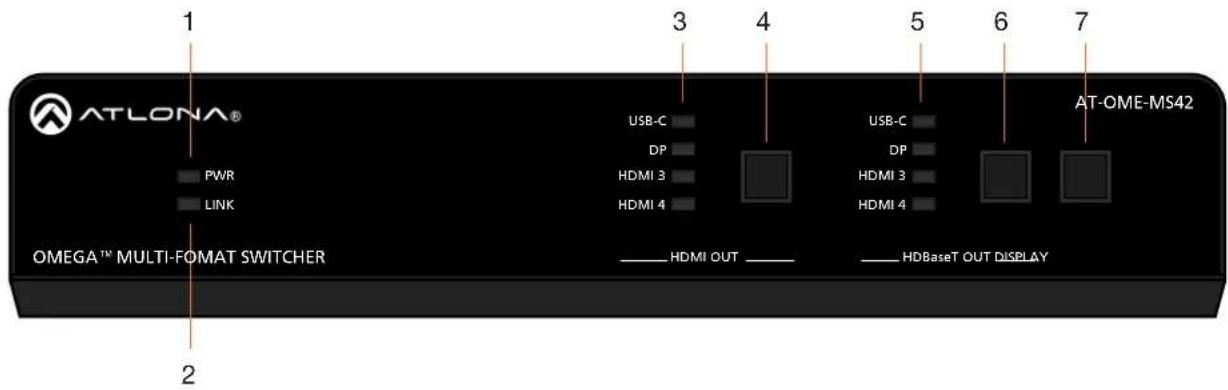

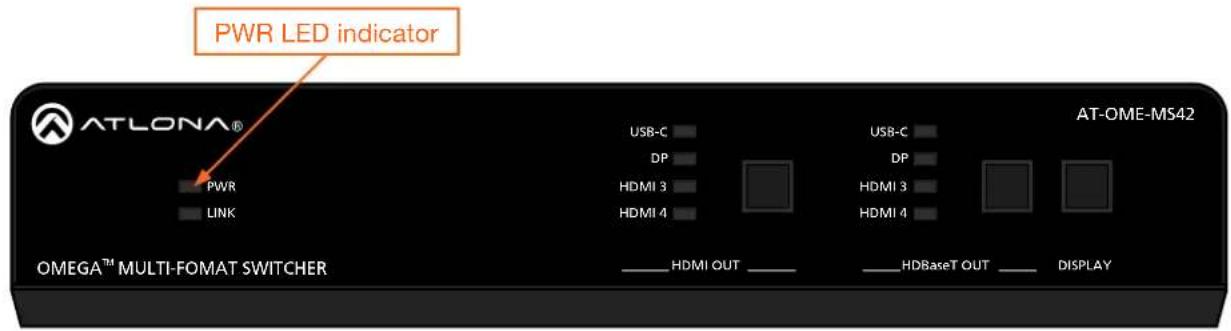

ATLONA® PWR LINK OMEGA™ MULTI-FOMAT SWITCHER 1 2 3 4 5 6 7 USB-C DP HDMI 3 HDMI 4 USB-C DP HDMI 3 HDMI 4 AT-OME-MS42 —— HDMI OUT ——— —— HDBaseT OUT DISPLAY

1 PWR

This LED indicator glows solid green when the unit is powered.

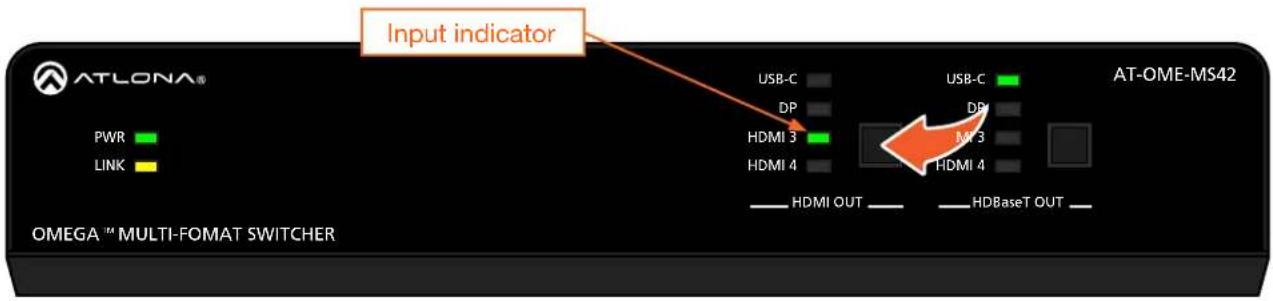

This LED indicator glows solid yellow when an HDBaseT link is established, between the AT-OME-MS42 and a receiver.

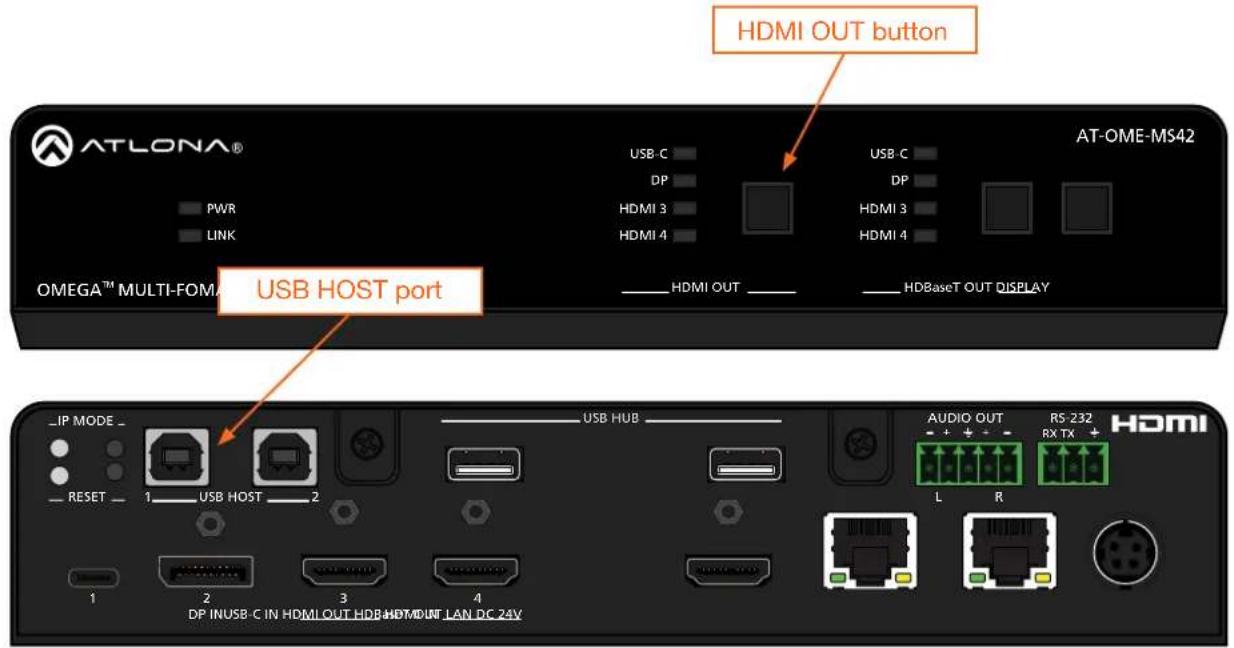

3 HDMI OUT: Input LED Indicators

These LED indicators display which input is routed to the HDMI OUT port. A solid blue indicator represents the active input being used.

4 HDMI OUT: Input Selection

Press and release this button to change the input.

5 HDBaseT OUT: Input LED Indicators

These LED indicators display which input is routed to the HDBaseT OUT port. A solid blue indicator represents the active input being used.

6 HDBaseT OUT: Input Selection

Press and release this button to change the input.

7 DISPLAY

Press this button to toggle the power state of the desired display. Refer to Display Control (page 64) for more information.

Rear Panel

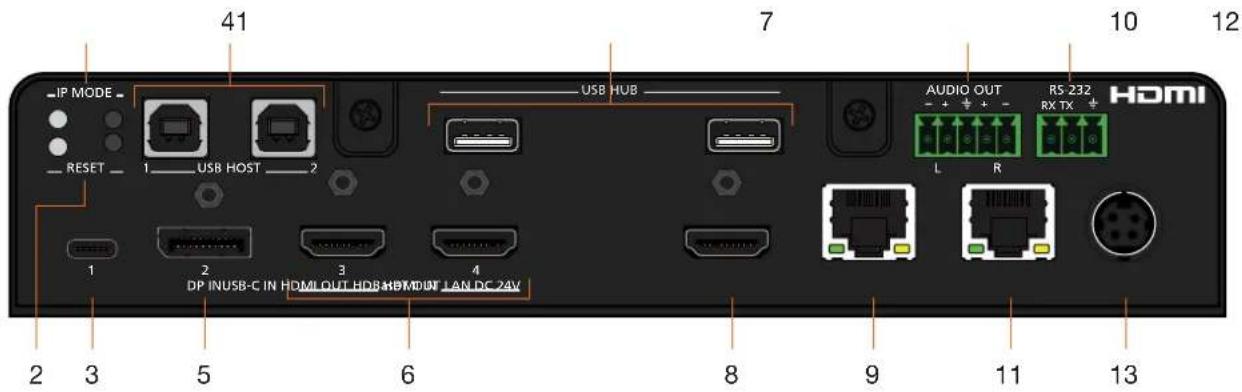

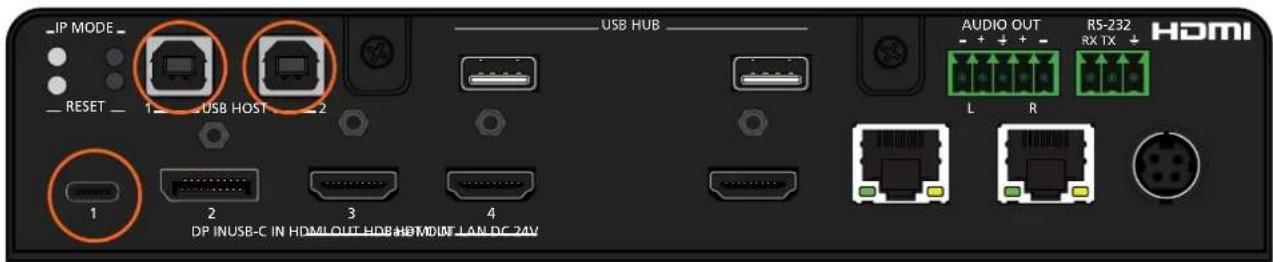

41 7 10 12 IP MODE - USB HUB AUDIO OUT RS 232 HDMI RESET - 1 USB HOST - 2 L R 1 2 3 4 HDMI OUT HDB HDMOUT LAN DC 24V 2 3 5 6 8 9 11 13 DP INUSB-C IN HDMI OUT HDB HDMOUT LAN DC 24V

1 IP MODE

Press and release this button to set the IP mode or display the current IP address on the display connected to the HDMI OUT port. Refer to IP Configuration (page 13) for more information.

2 RESET

Press and release this button to reset the unit to factory-default settings. Refer to Resetting to Factory-Default Settings (page 49) for more information.

3 USB-C IN

Connect a USB-C cable between from this port to a USB-C source.

4 USB HOST

Connect a USB cable from each of these ports to USB host devices.

5 DP IN

Connect a DisplayPort cable from this port to a DisplayPort source.

6 HDMI IN

Connect an HDMI cable from each of these ports to HDMI sources.

7 USB HUB

Connect USB devices to these USB ports.

8 HDMI OUT

Connect an HDMI cable from this port to a display or other sink device.

9 HDBaseT OUT

Connect a category cable from this port to a compatible receiver unit. Recommended receivers are the AT-OME-SR21 or AT-OME-EX-RX.

10 AUDIO OUT

Connect an audio output device to this port using the included captive screw block. Refer to Audio (page 10) for information on wiring.

11 LAN

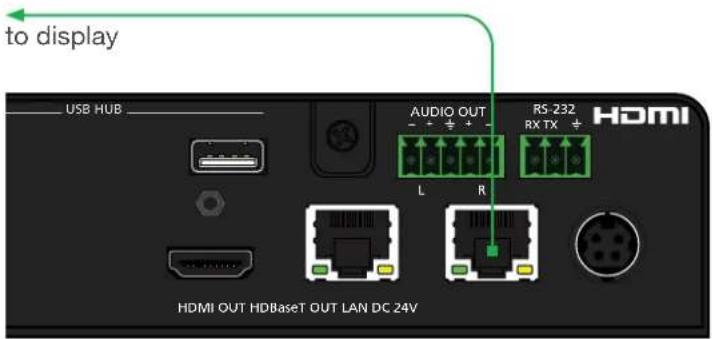

Connect an Ethernet cable from this port to the Local Area Network (LAN). The AT-OME-MS42 includes a built-in web server, which can be used to manage and configure the product.

12 RS-232

Connect the included 3-pin captive screw connector block to this port.

13 DC 24V

Connect the included 24 V DC power supply from this power receptacle to an available AC electrical outlet.

Installation

Audio

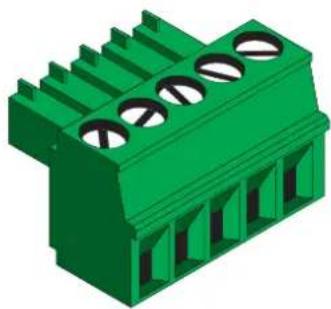

The AUDIO OUT connector on the AT-OME-MS42 provides a separate output for balanced audio using XLR connectors. Use the included 5-pin captive-screw terminal block. Balanced audio connections use two signal wires and a ground to minimize interference in audio signals. Unbalanced output audio is not recommended and may require additional equipment.

Atlona AT-OME-RX11 - Audio - 1

natural_image Green 3D model of a mechanical connector or terminal block with multiple slots and mounting holes (no text or symbols visible)

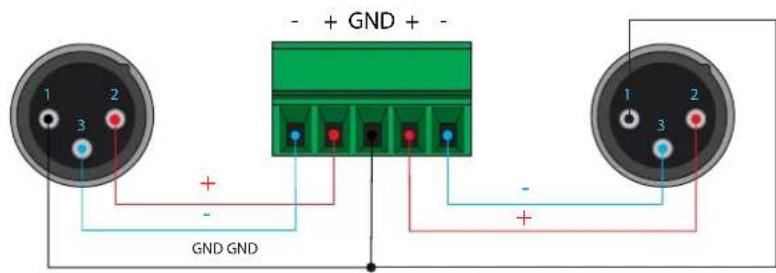

- + GND + - 1 2 3 + - GND GND - + -

RS-232

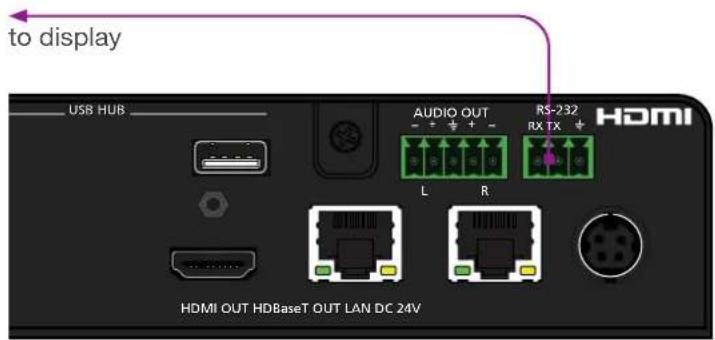

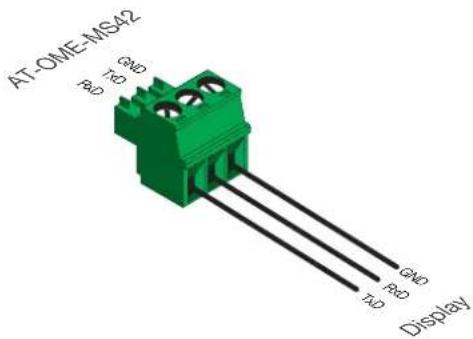

The AT-OME-MS42 provides an RS-232 port which can be used to control a display connected to the HDMI output. Atlona recommends controlling the AT-OME-MS42 using IP and reserving the RS-232 port for local display control.

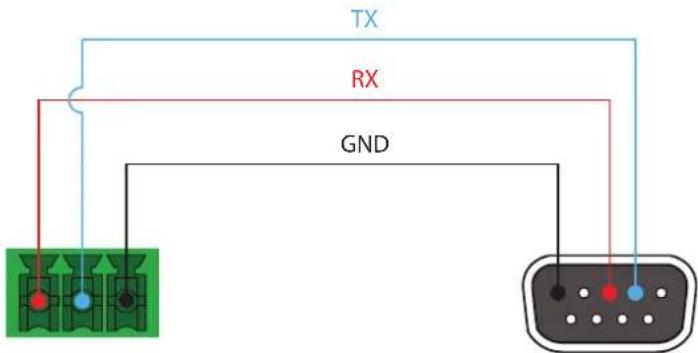

  1. Use wire strippers to remove a portion of the cable jacket.
  2. Remove at least 3/16" (5 mm) of insulation from each of the wires.
  3. Insert the wires into correct terminal using the included 3-pin captive screw connector.
  4. Attach the 3-pin connector block to the RS-232 port on the AT-OME-MS42.

Atlona AT-OME-RX11 - RS-232 - 1

natural_image Green 3D model of a mechanical connector or terminal block (no text or symbols visible)

TX RX GND

Installation

Connection Instructions

  1. Connect a high-quality USB-C cable from a source to the USB-C (1) port.
  2. Connect a DisplayPort cable from a source to the DP IN (2) port.
  3. Connect up to two UHD/HD sources, using HDMI cables, to the HDMI IN (3) and HDMI IN (4) ports.
  4. Connect an HDMI cable from the HDMI OUT port to a UHD/HD display.
  5. Connect a category cable (CAT-5e or better) from the HDBaseT OUT port to a compatible receiver.

Refer to the tables below for recommended cabling when using Altona products with HDBaseT technology. The green bars indicate the signal quality when using each type of cable. Higher-quality signals are represented by more bars. These tables are for guidance, only. Performance may vary, based on environmental factors.

CoreShieldingCAT5eCAT6CAT6aCAT7
SolidUTP (unshielded)N/A
STP (shielded)
CableMax. Distance @ 4KMax. Distance @ 1080p
CAT5e295 feet (90 meters)330 feet (100 meters)
CAT6a / CAT6a / CAT7330 feet (100 meters)330 feet (100 meters)

Atlona AT-OME-RX11 - Connection Instructions - 1

IMPORTANT: Stranded or patch cable is not recommended due to performance issues. Sheilded cables are strongly recommended to minimize signal noise and interference.

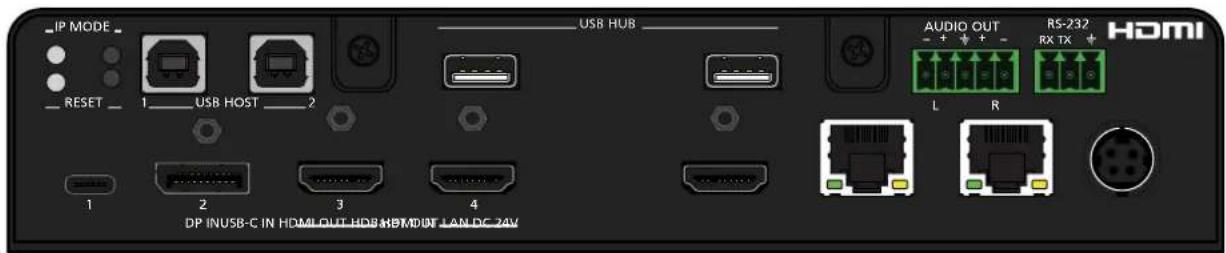

_IP MODE _ _ RESET _ 1___USB HOST ___2 1 2 3 4 USB HUSB AUDIO OUT + + - L R RS-232 RX TX HDMI DP INUSB-C IN HOMEOUT-HDS HBMOUT LANDC 24V

  1. Connect up to two USB host devices to the USB HOST ports. Refer to Connection Diagram (page 12) for an example application.
  2. Connect USB devices to the USB HUB ports. Refer to Refer to Connection Diagram (page 12) for an example application for an example application.
  3. Connect an Ethernet cable from the LAN port to the Local Area Network (LAN).
  4. OPTIONAL: Connect the included 5-pin captive screw connector to the AUDIO OUT connector.
  5. OPTIONAL: Connect the included 3-pin captive screw block to the RS-232 port. Refer to Solution Setup and Configuration Guide (page 64) for information.
  6. Connect the included power supply to the DC 24V connector and connect the power cord to an available electrical outlet.

Installation

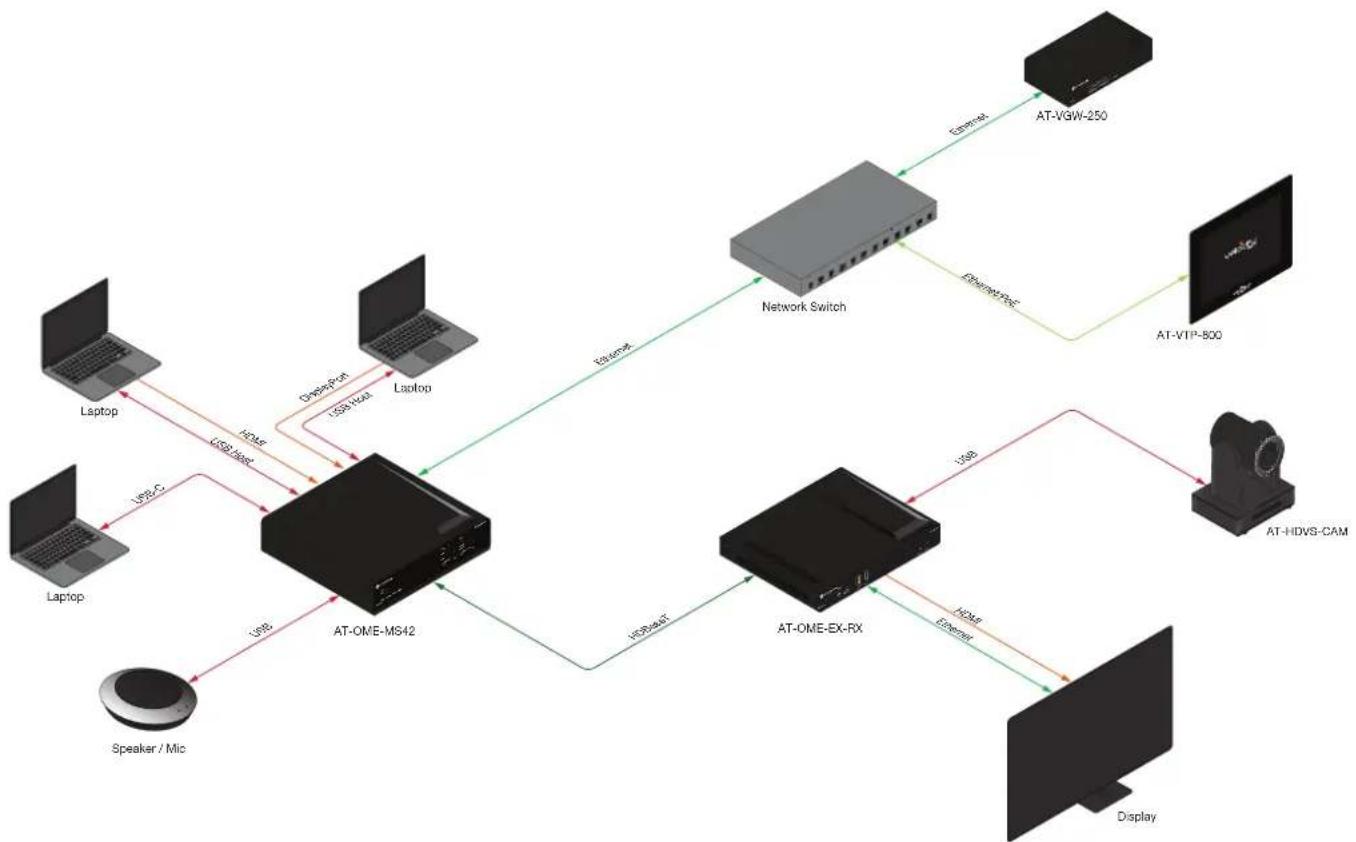

Connection Diagram
Atlona AT-OME-RX11 - Installation - 1

IP Configuration

The AT-OME-MS42 is shipped with DHCP enabled. Once connected to a network, the DHCP server (if available), will automatically assign an IP address to the unit. If the AT-OME-MS42 is unable to detect a DHCP server within 15 seconds, then the unit will use a self-assigned IP address within the range of 169.254.xxx.xxx.

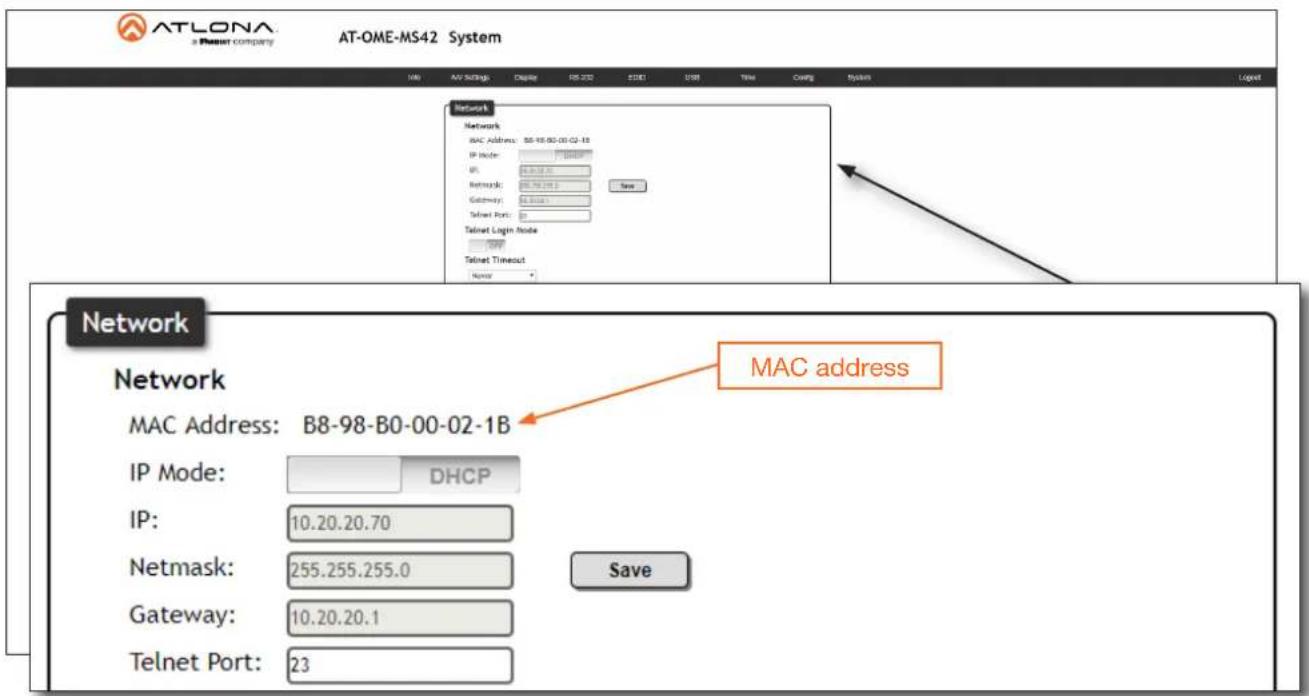

Use an IP scanner, along with the MAC address on the bottom of the unit, to identify the unit on the network. If a static IP address is desired, the unit can be switched to static IP mode. The default static IP address is 192.168.1.254.

Switching the IP Mode Using the Front Panel

  1. Make sure the AT-OME-MS42 is powered by connecting the included power supply.

  2. Press and hold the IP MODE button, on the rear of the unit.

  3. Release the button once the LED indicator, next to the IP MODE button, begins to flash green. The number of flashes will indicate the currently selected IP mode.

PWR LED flashes Description
Four DHCP mode
Two Factory Static IP mode (IP address set to 192.168.1.254)

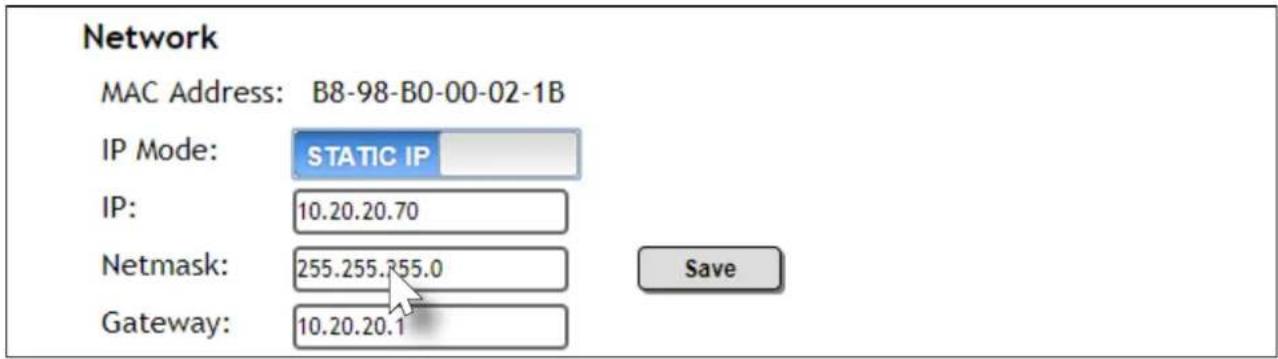

Setting the IP Address using the Web Server

Refer to the Changing the Network IP Mode (page 41) in the built-in web server, to set the AT-OME-MS42 to either DHCP or static IP mode. In order to access the web server, the IP address of the AT-OME-MS42 must be known. By default, the AT-OME-MS42 is set to DHCP mode and will automatically be assigned an IP address by a DHCP server.

Displaying the IP Address

Press and release the IP MODE button to display the IP address of the AT-OME-MS42 on the display connected to the HDMI OUT port. The IP address will be displayed in the upper-left corner of the display.

Control

CEC

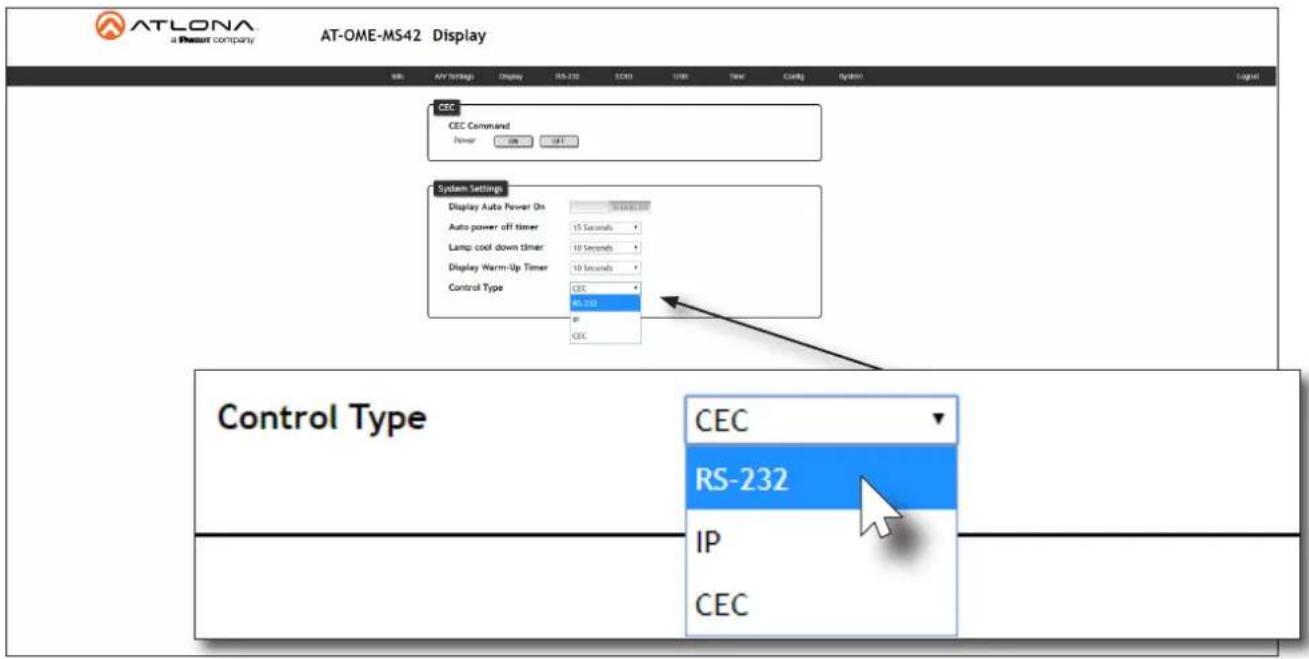

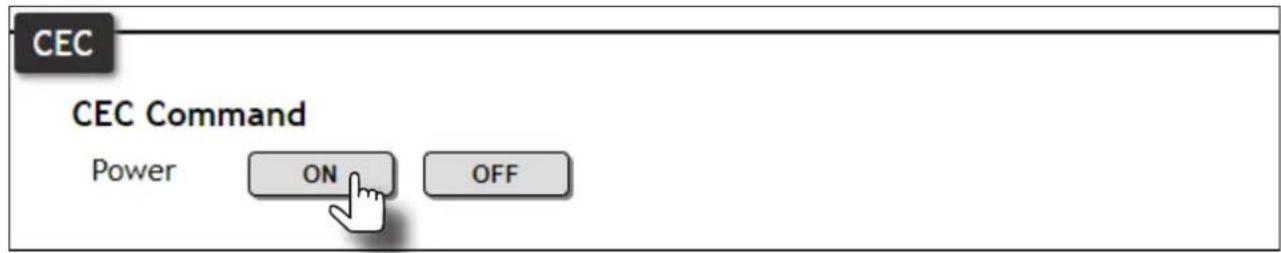

CEC is available for trigger through RS-232, TCP/IP, and built-in web server. The trigger commands for RS-232 and TCP/IP can be found within the API at https://atlona.com/pdf/AT-OME-MS42_API.pdf.

RS-232

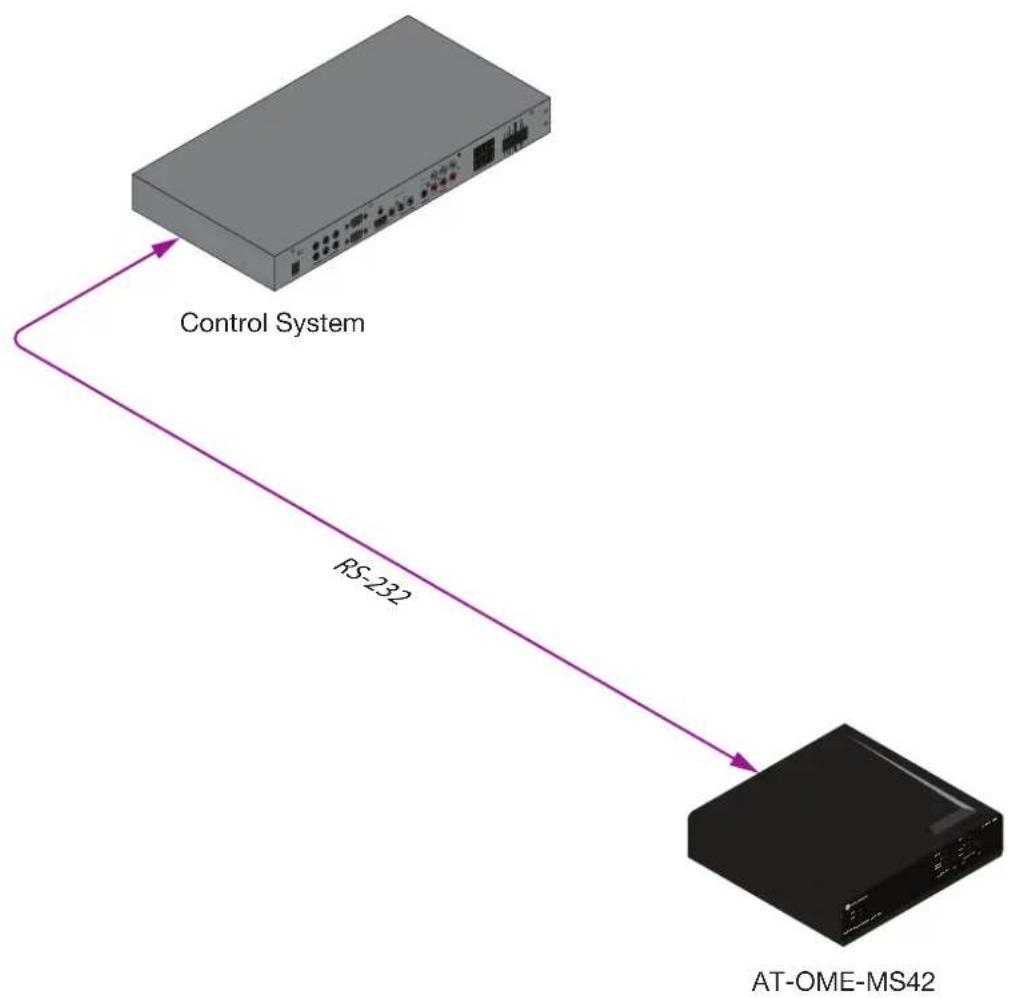

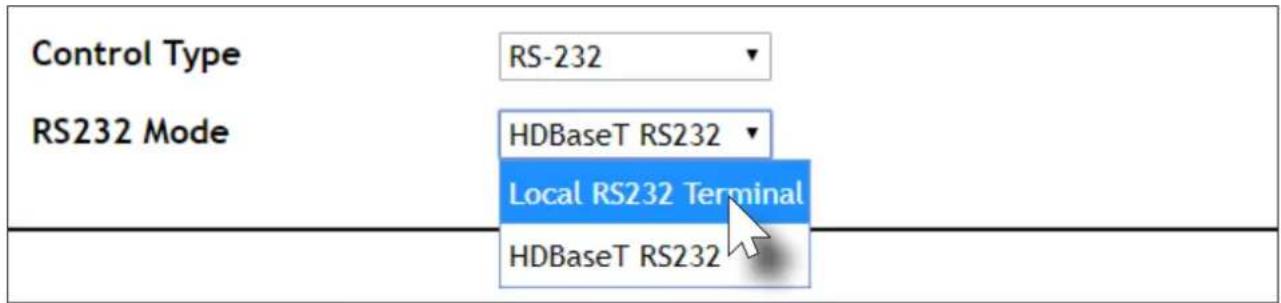

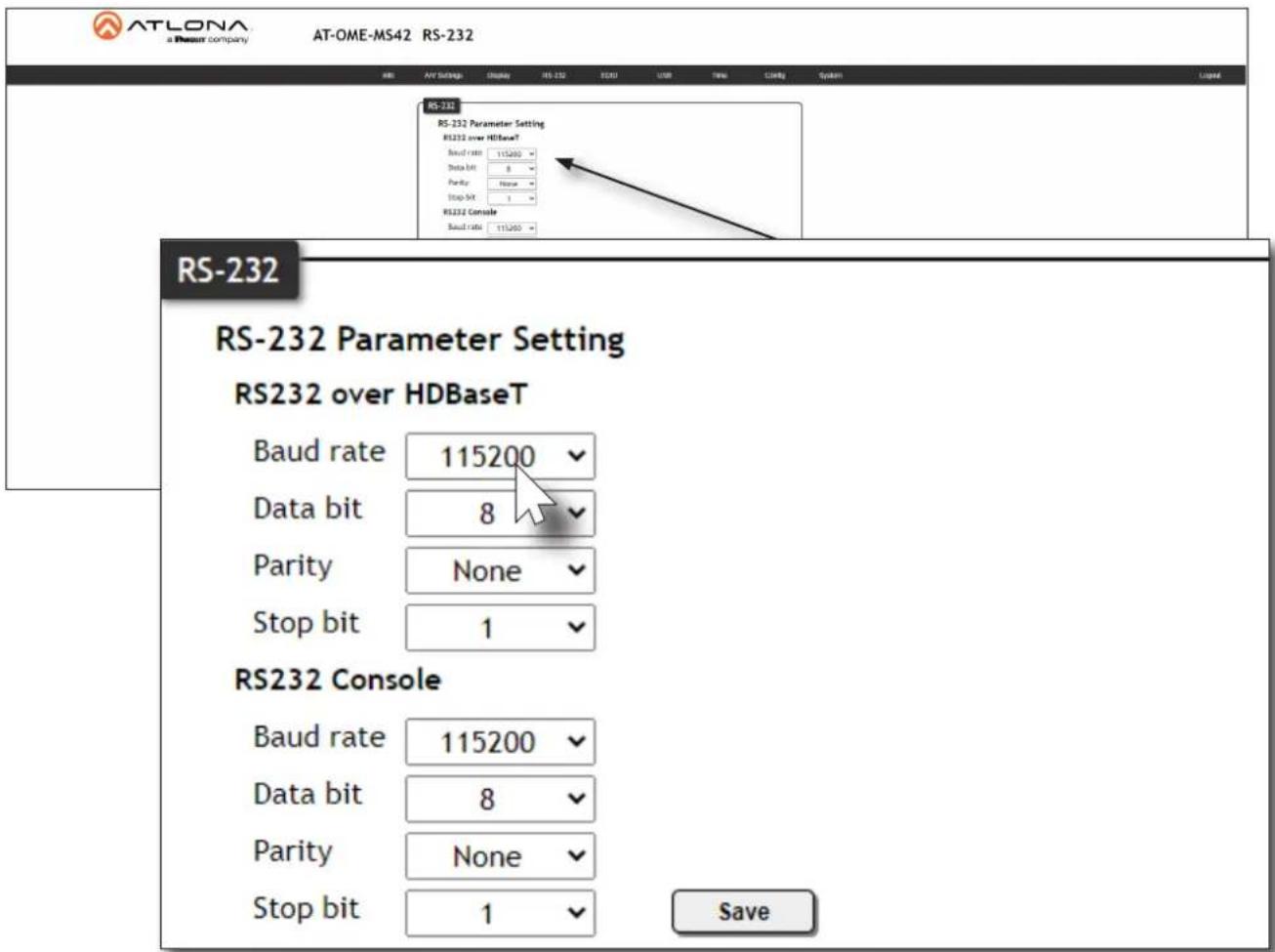

RS-232 control for connected devices and the unit are available through the RS-232 captive screw connection. The commands can be found within the API at https://atlona.com/pdf/AT-OME-MS42_API.pdf.

TCP Proxy

This unit has the ability to translate IP data to RS-232 through ports 9000+. This enables control of devices through TCP/IP that only have RS-232 ports. The unit will take the commands sent to port 9000, 9001, and 9002 and send them to the corresponding ports. More information and commands can be found within the API at https://atlona.com/pdf/AT-OME-MS42_API.pdf.

TCP/IP

TCP/IP control for connected devices and the unit are available through the LAN connection. The commands can be found within the API at https://atlona.com/pdf/AT-OME-MS42_API.pdf.

Web Server

The unit has a built in web server that will allow for unit configuration and device control. Refer to the web server section for more information.

Device Operation

LED Indicators

The LED indicators on both the front and rear of the unit provide basic information on the current status of the AT-OME-MS42.

LED Description
PWR Solid greenUnit is powered using the included 24 V DC power supply.
Off Unit is not powered.
LINK Solid yellowAn HDBaseT link is established between the transmitter and the receiver.
Off The link integrity between the AT-OME-MS42 and the HDBaseT receiver is compromised.Check the HDBaseT connections and/or try a different cable.
USB-C DP HDMI 3 HDMI 4Solid green The input is the currently selected (active) input.
Off The input is not active.
IP MODEFlash green (4x) Atlona AT-OME-RX11 - LED Indicators - 1Flashes four times to indicate that the unit is being set to DHCP mode. Refer to IP Configuration (page 13) for more information.
Flash green (2x) Flashes twice to indicate that the unit is being set to static IP mode and will be assigned the IP address of 192.168.1.254.
Off Normal operating mode.
RESETFlash green (3x) Atlona AT-OME-RX11 - LED Indicators - 2Unit is being set to factory-default settings. Refer to Resetting to Factory-Default Settings (page 49) for more information.
Off Normal operating mode.

Switching Modes

The AT-OME-MS42 features three switching modes: Mirrored, Matrix Mode, and Matrix Mode with static route. Each of these modes will be covered in the following section. Switching modes can be configured using the built-in web server.

Mirrored Mode

This is the default mode. Once video is detected on any of the input ports, the output signal will be displayed on both the HDMI OUT and HDBaseT OUT ports. The active input will be identified on the front panel HDMI LED input indicators. An active input will be displayed as a solid green LED. Auto-Switching (page 21) can also be enabled, if desired, to allow the AT-OME-MS42 to automatically switch between inputs, if a new source is connected or an existing source is disconnected.

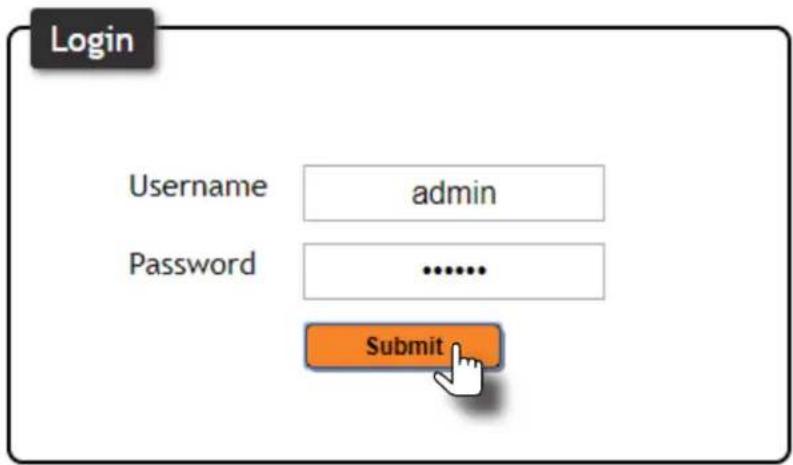

  1. Login to the web server. Refer to Introduction to the Web Server (page 50) for more information.
  2. Click A/V Settings in the menu bar.

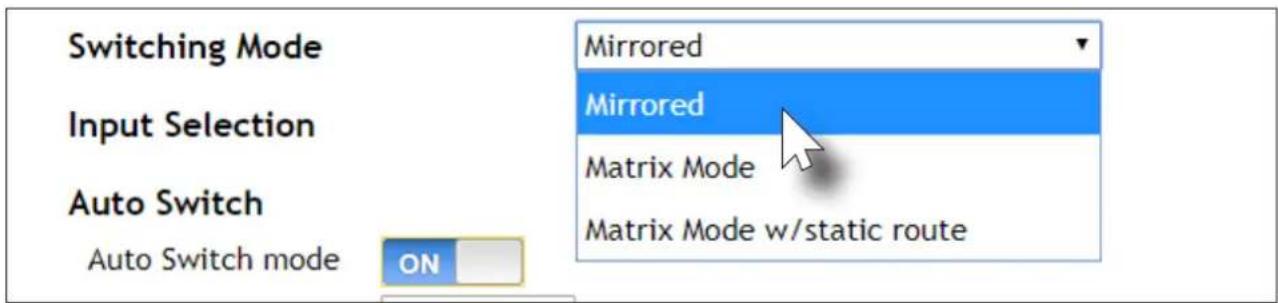

  3. Click the Switching Mode drop-down list and select Mirrored.

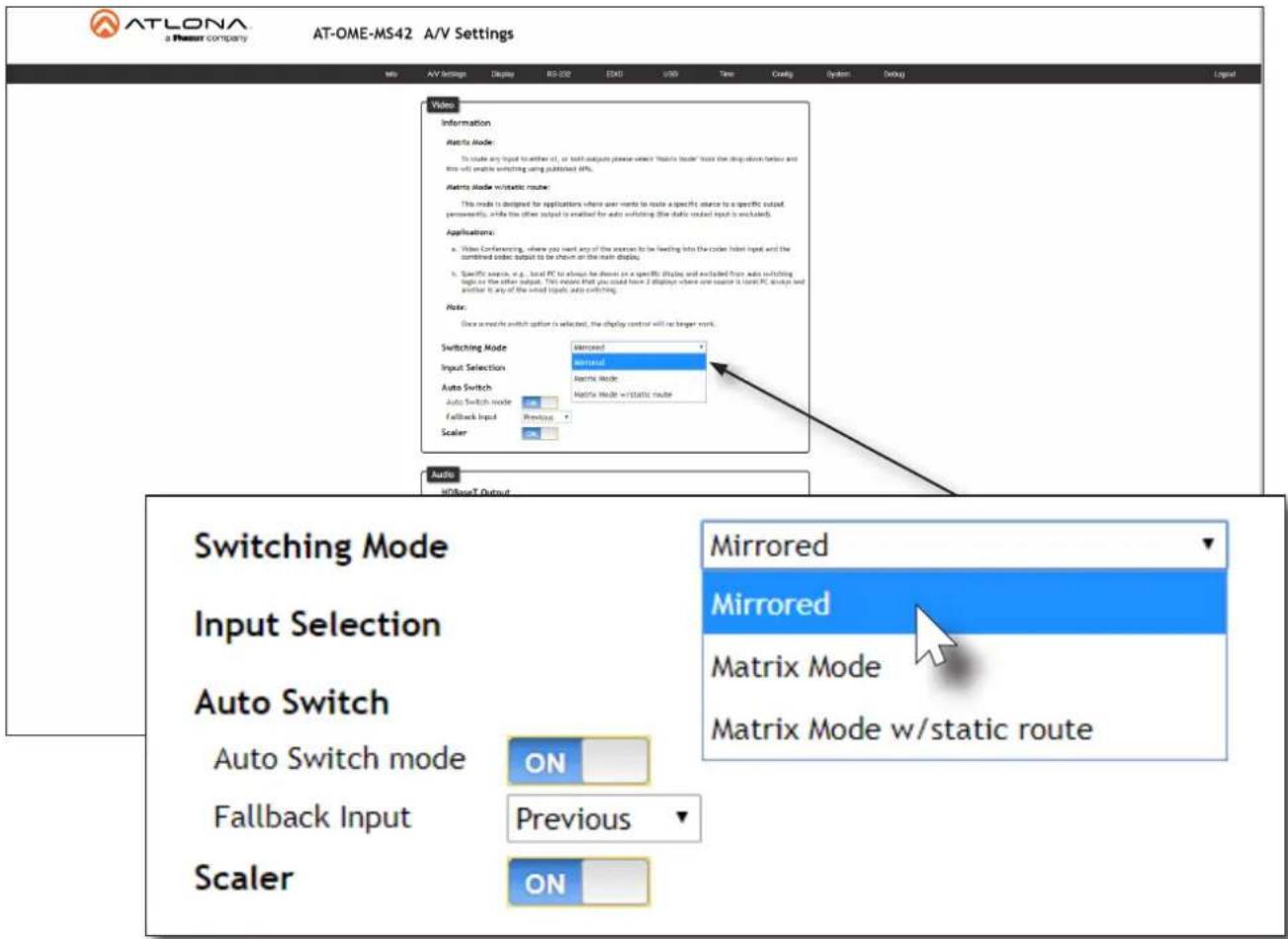

ATLONA a Phosset COMPANY AT-OME-MS42 A/V Settings Info AV Settings Display RD-032 EKG USD Time Config System Debug Logical Video Information Matrix Mode: To make any input to either of, or both output please select "Matrix Mode" from the drop-off frontbox and this will enable switching using published WiFi. Matrix Mode w/static route: This mode is designed for applications where user wants to route a specific source to a specific output, permanently, while the other output is enabled for auto switching (the static output input is excluded). Applications: a. Video Conferencing, where you need any of the sources to be feeding into the code label input and the combined node output to be shown on the main display; b. Specific source, e.g., local PC to almost be shown on a specific display and excluded from auto switching plus on the other output. This model that you could have 2 displays where one source is local PC output and another it any of the window input, auto switching. Note: Once a matrix switch option is selected, the display control will be target mark. Switching Mode Mirrored Input Selection Mirrored Auto Switch Matrix Mode Auto Switch mode Matrix Mode w/static route Fallback Input Scaler Audio HIDoseT Output Switching Mode Input Selection Auto Switch Auto Switch mode ON Fallback Input Previous Scaler ON Mirrored Mirrored Matrix Mode Matrix Mode w/static route

  1. Mirrored configuration is complete.

Matrix Mode

This mode allows the AT-OME-MS42 to independently switch between any input to any output. Auto-switching is disabled in Matrix Mode.

  1. Login to the web server. Refer to Introduction to the Web Server (page 50) for more information.
  2. Click A/V Settings in the menu bar.

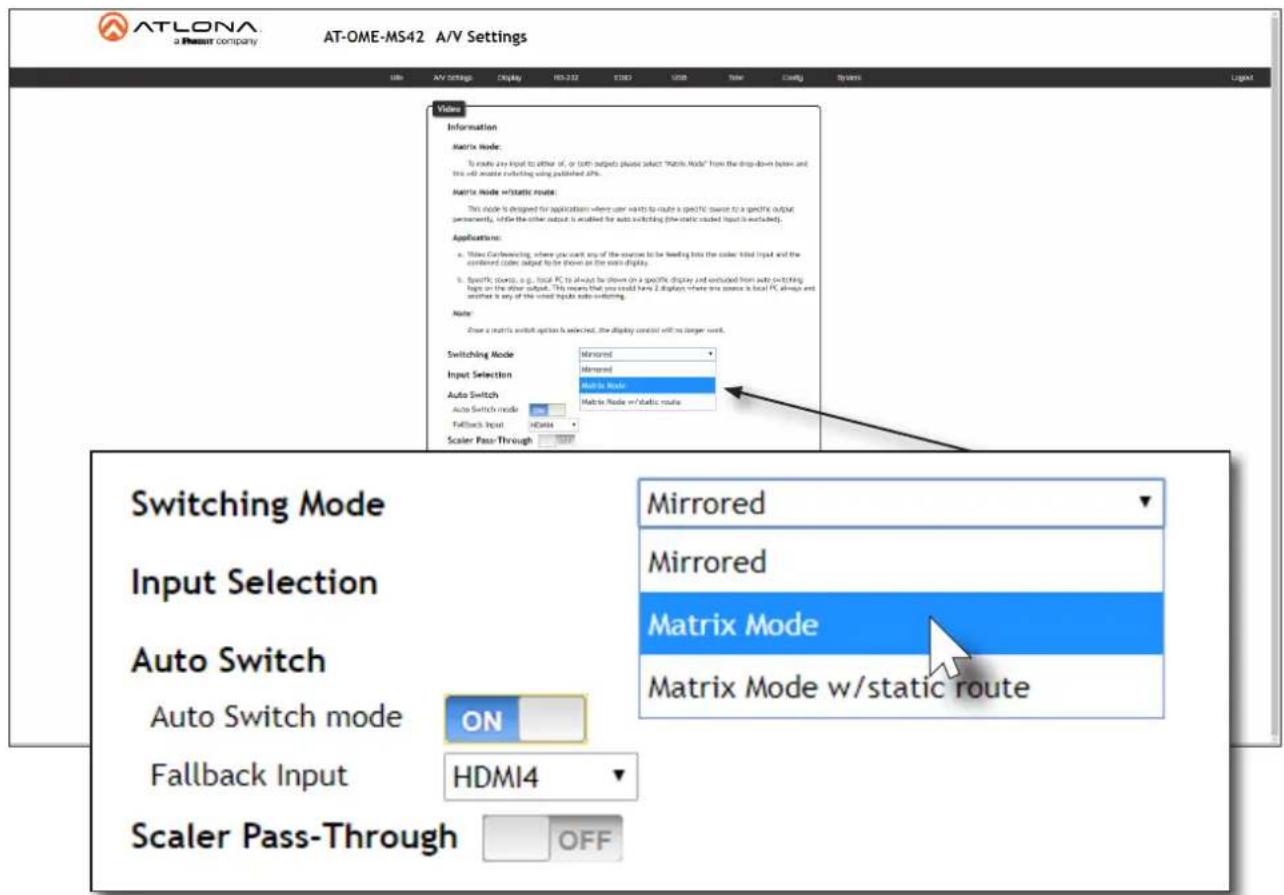

  3. Click the Switching Mode drop-down list and select Matrix Mode.

Atlona AT-OME-RX11 - Matrix Mode - 1

IMPORTANT: When the AT-OME-MS42 is set to Matrix Mode, both auto-switching and display control will be disabled.

ATLONA a Resour company AT-OME-MS42 A/V Settings View Information Matrix Mode: To route any input to either of, or both outputs please select "Matrix Mode" from the drop-down below and this will arrive reflecting using published ASPs. Matrix Mode w/static route: This mode is designed for applications where user needs to route a specific source to a specific output personally, while the other output is enabled for auto switching (the static output is excluded). Applications: a. Write Confinancing, where you want any of the sources to be feeding into the code, tied Input and the combined code output to be shown on the write display. b. Specific objects, e.g., local PC to always be shown on a specific display and connected from auto switching inputs on the other output. This means that you could have 2 displays where one source is local PC, always and another is any of the write inputs auto-switching. Note: Close a matrix switch option is selected, the display control will no longer work. Switching Mode Input Selection Auto Switch Auto Switch mode Fallback Input HDMI4 Scaler Pass-Through Mirrored Mirrored Matrix Mode Matrix Mode w/static route Switching Mode Input Selection Auto Switch Auto Switch mode ON Fallback Input HDMI4 Scaler Pass-Through OFF Mirrored Mirrored Matrix Mode Matrix Mode w/static route

  1. The following message will appear near the top of the screen. Click the OK button to dismiss the message.

10.20.20.70 says

Warning!

Display control disabled due to switch mode - Matrix Mode.

Please change display mode to Mirrored or Static Matrix to re-enable display control.

Atlona AT-OME-RX11 - says - 1

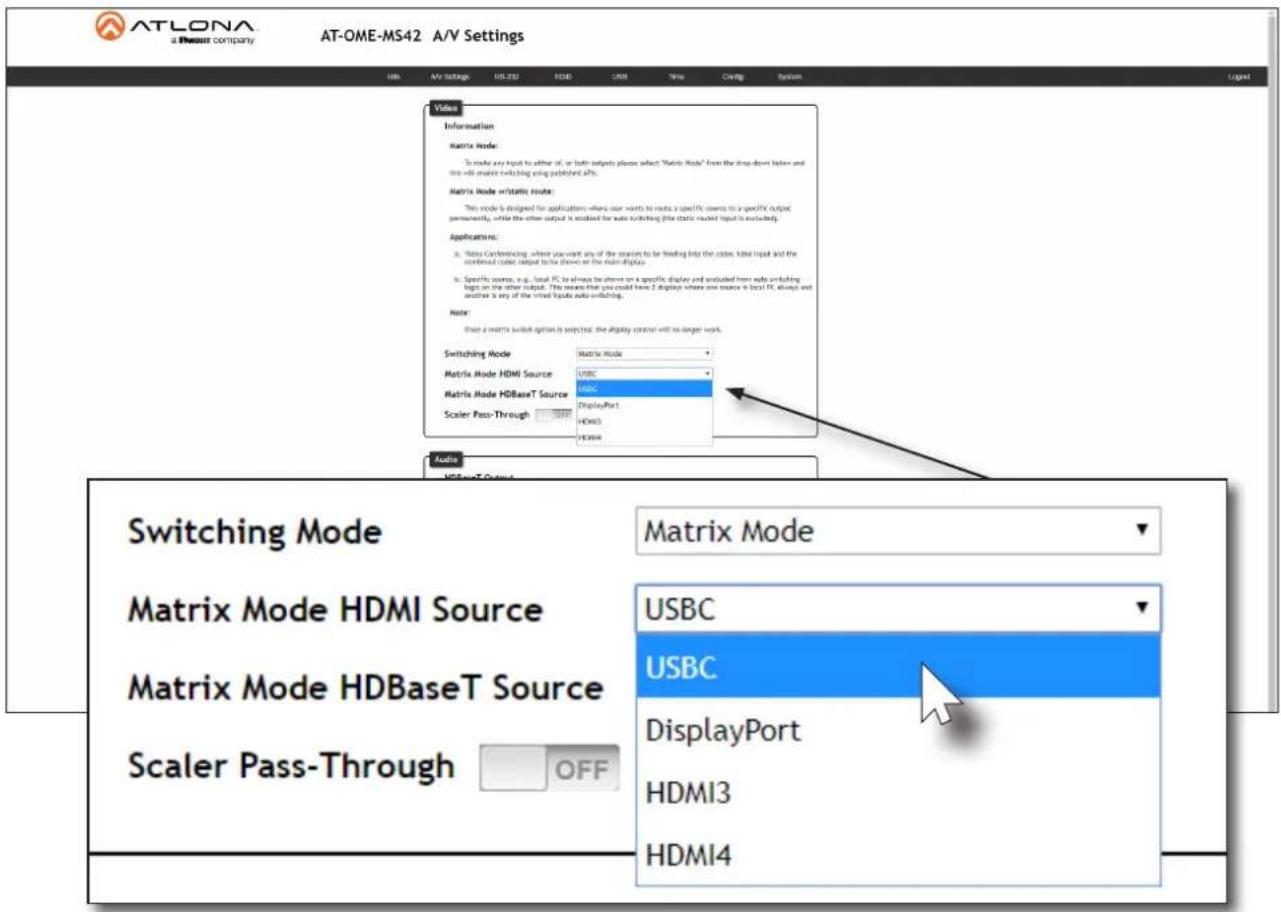

  1. Click the Matrix Mode HDMI Source drop-down list and select the input to be routed to the HDMI OUT port.

ATLONA a Pheasant COMPANY AT-OME-MS42 A/V Settings File AV Settings DIS/232 RGB LSB Time Coding System Video Information Matrix Mode: To mode any input to either set, or both outputs please select "Matrix Mode" from the drop-down below and then will make switching using published afts. Matrix Mode in static route: This mode is designed for applications where user wants to route a specific server to a specific output permanently, while the other output is enabled for audio switching (the static output is excluded). Applications: a. Audio Converhcing, where you want any of the stations to be finding into the radio label signal and the wireless audio output to be shown on the main display. b. Specific source, e.g., local PC to always be shown on a specific display and excluded from audio switching logic on the other output. This means that you could have 2 displays where one source is local PC, always and another is any of the vinyl inputs audio-switching. Note: Show a matrix switch option is selected: the display control will no target work. Switching Mode Matrix Mode Matrix Mode HDMI Source USBC Matrix Mode HDBaseT Source ABC Scaler Pass-Through DisplayPort HDMI3 HDMI4 Audio Switching Mode Matrix Mode Matrix Mode HDMI Source USBC Matrix Mode HDBaseT Source USBC Scaler Pass-Through DisplayPort HDMI3 HDMI4 Matrix Mode USBC USBC DisplayPort HDMI3 HDMI4

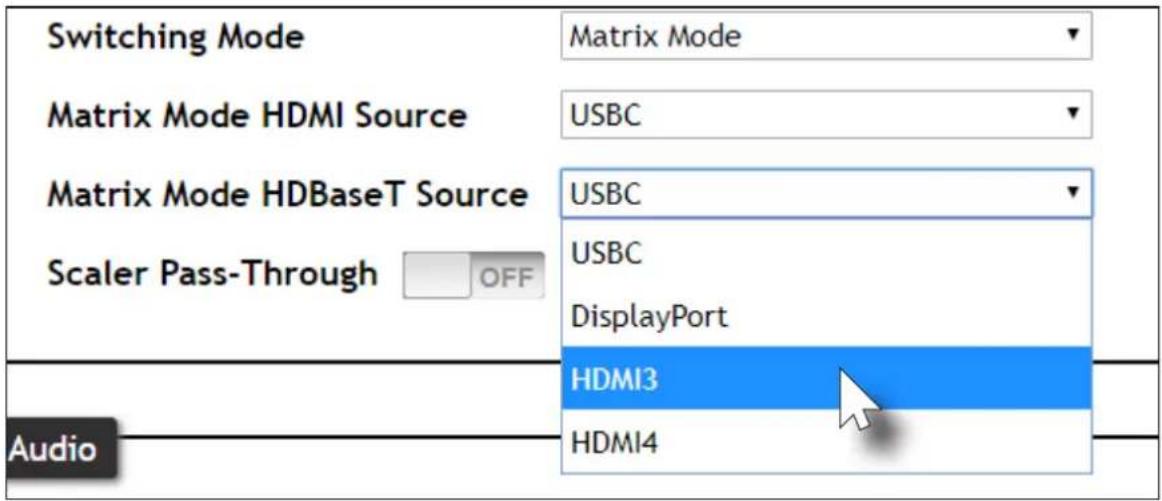

  1. Click the Matrix Mode HDBaseT Source drop-down list and select the input to be routed to the HDBaseT OUT port.
  2. Matrix Mode configuration is complete.

Switching Mode Matrix Mode HDMI Source USBC Matrix Mode HDBaseT Source USBC USBC DisplayPort HDMI3 HDMI4 Audio

Atlona AT-OME-RX11 - says - 4

NOTE: If the input (source) for the HDBaseT output is not selected, then the input that was selected for the Matrix Mode HDMI Source will be also output on the HDBaseT OUT port.

Device Operation

Matrix Mode w/ Static Route

This mode is desirable when integrating the AT-OME-MS42 with a video conference system. In this mode, both static input and output routing are specified. Auto-Switching (page 21) must be enabled. However, the specified static input will be removed from the auto-switching pool. For example, if the HDMI IN 3 port is specified as a static input, then auto-switching will "skip" this port when auto-switching.

  1. Login to the web server. Refer to Introduction to the Web Server (page 50).
  2. Click A/V Settings in the menu bar.
  3. Click the Switching Mode drop-down list and select Matrix Mode w/ static route.

ATLONA a Therant company AT-OME-MS42 A/V Settings Info AV Settings Display MS-232 D103 L019 Mode Config Systems Video Information Matrix Mode: To route any input to either of, or both outputs please select "Matrix Mode" from the drop-down below and this will enable switching using published dPs. Matrix Mode w/static route: This mode is designed for applications where user wants to route a specific source to a specific output permanently, while the other output is enabled for auto switching (the static output is excluded). Applications: • Timo Conferencing, where you want any of the sources to be heading into the color, hilt input and the combined color output to be shown on the main display. • Specific ports, e.g., local PC to always be shown on a specific display and outlined from auto switching tops on the other output. This means that you could have 2 displays where one source is local PC always and outside a way of the wired inputs auto switching. Note: Show a matrix switch option is selected, the display control will not longer look. Switching Mode Mirrored Input Selection Mirrored Auto Switch Matrix Mode Auto Switch mode matrix mode w/static route Fallback Input HMI4 Scaler Pass-Through OFF Switching Mode Input Selection Auto Switch Auto Switch mode ON Fallback Input HDMI4 Matrix Mode w/static route Mirrored Mirrored Matrix Mode Matrix Mode w/static route Scaler Pass-Through OFF

  1. Click the Matrix Mode Static Output drop-down list and select the output that will be "static". This is the output that will not change.

Switching Mode Matrix Mode w/static route Matrix Mode Static Output HDBT Matrix Mode Static Source HDMI Auto Switch HDBT

Device Operation

  1. Click the Matrix Mode Static Source drop-down to select the source that will be assigned as a "static" source. This source will be routed to the output selected in the Matrix Mode Static Output drop-down list.

In this example, the source connected to the DisplayPort input (DP IN), will be output to the HDMI OUT port. The DP IN port is the static source and the HDMI OUT port is the static output. This particular configuration will allow the USB-C and both HDMI IN ports to be routed to the HDBaseT OUT port, as needed.

Switching Mode Matrix Mode w/static route Matrix Mode Static Output HDMI Matrix Mode Static Source DisplayPort Auto Switch Fallback Input HDMI4 USBC DisplayPort HDMI3 HDMI4 Scaler Pass-Through OFF

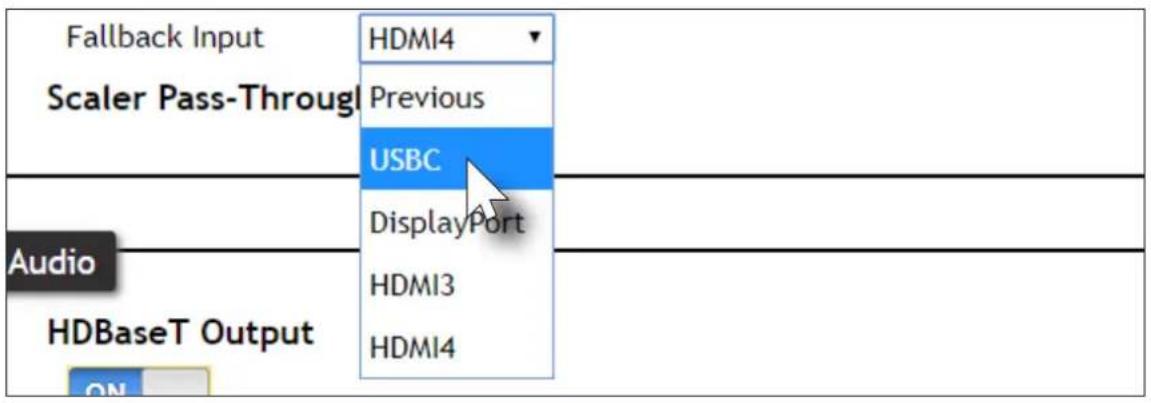

  1. Click the Fallback Input drop-down list and select the desired fallback port, if desired. The default setting is Previous.

Fallback Input HDMI4 Previous USBC DisplayPort Audio HDBaseT Output HDMI3 HDMI4

  1. Matrix with static route configuration is complete.

Auto-Switching

The AT-OME-MS42 provides auto-switching capability, which is enabled by default. This feature will automatically switch the input to the most recently-connected source. If a source is disconnected, then the input will automatically be switched to the previously-connected source. If no sources are found, the AT-OME-MS42 will initiate a five-minute countdown timer. If no activity takes place within this time interval, the unit will automatically power-off.

Atlona AT-OME-RX11 - Auto-Switching - 1

IMPORTANT: The auto-switching feature is only available when the Switching Mode is set to Mirrored or Matrix mode with static route. Refer to Switching Modes (page 16) for more information.

Enabling / Disabling Auto Switching

By default, auto-switching is enabled on the AT-OME-MS42, allowing the unit to automatically switch between inputs when sources are connected or disconnected. Auto-switching is enabled when set to Matrix mode with static route and cannot be disabled.

  1. Login to the web server. Refer to Introduction to the Web Server (page 50).
  2. Click A/V Settings in the menu bar.
  3. Verify that the Switching Mode is set to Mirrored.
  4. Click the Auto Switch mode toggle switch to the ON position to enable auto-switching. This is the default setting. If auto-switching is not desired, click this toggle switch to the OFF position. Note that if the previously active input is no longer available that it will fallback to any available input.

Atlona AT-OME-RX11 - Enabling / Disabling Auto Switching - 1

NOTE: The AT-OME-MS42 retains the currently selected input, even after the unit is powered-off then powered-on. The system should re-evaluate the auto switching logic after power on and select an input.

ATLONA a Power company AT-OME-MS42 A/V Settings Info AV Settings Display MS 002 EXO USD Time Config System Debug Logset Notes Information Matrix Mode: To make any input to offset it, we both adjust please select "Matrix Mode" from the drop-down button and this will enable switching using published MRS. Matrix Mode w/static route: This mode is designed for applications where user needs to make a specific source to a specific output permanently, while the other output is enabled for auto-punching (the static output is excluded). Applications: a. When Conferencing, where you want any of the sources to be leading into the code label input and the combined order output to be shown on the main display. b. Specific orders, e.g., local PC to always be themes in a specific display and excluded from auto switching, begin on the other subset. This means that you could have 2 displays where one source is local PC, instead and another is any of the wind inputs auto-punching. Note: Once a module switch option is selected, the display control will not longer work. Switching Mode Micronel Input Selection USDC Auto Switch Auto Switch mode Fallback Input Previous Scaler Auto Switch Auto Switch mode ON Fallback Input Previous Scaler ON

  1. Auto switching configuration is complete.

Setting the Fallback Input

The default fallback port is set to Previous. This means if multiple sources are connected, then disconnected, the AT-OME-MS42 will automatically return to last-connected port. If desired, the fallback port can be set to another input.

Atlona AT-OME-RX11 - Setting the Fallback Input - 1

IMPORTANT: The fallback feature is only available when the Switching Mode is set to either Mirrored or Matrix Mode w/ static route. Refer to Switching Modes (page 16) for more information.

  1. Login to the web server. Refer to Introduction to the Web Server (page 50).
  2. Click A/V Settings in the menu bar.
  3. Verify that the Switching Mode is set to either Mirrored or Matrix Mode w/ static route.
  4. Click the Fallback Input drop-down list to select the desired fallback input. The default fallback input is Previous.

If Previous is selected, then the switcher will return to the last-connected input. If no input is found, then it will attempt to switch to any available input.

ATLONA a Resort company AT-OME-MS42 A/V Settings Info AV Settings Display RS-202 ETRD UTR Time Config System Debug Video Information Matrix Mode: To make any input to either set, or form output plane select "Matrix mode" have the drop down window and this will enable switching using published WiFi. Matrix Mode v/static route: This mode is designed for applications where user works to make a specific source to a specific output presented, while the other output is enabled for auto switching the static mode input in the next step. Applications: a. Video Conforming, where you want one of the sources to be floating into the code named input and the combined code output to be shown on the main display. b. Specific source, e.g., local PC, its always be shown as a specific display and excluded from auto switching inputs on the other output. This means that you could have 2 displays where one source is local PC always and another is any of the used inputs auto switching. Note: Since a model switch option is selected, the apply control will no longer work. Switching Mode Input Selection 10000 Auto Switch Auto Switch mode Fallback Input Scaler Previous Previous Audio HDBaseT Output HDMI4 DisplayPort HDMI3 HDMI4 Auto Switch Auto Switch mode Fallback Input Scaler ON Previous Previous USBC DisplayPort Audio HDBaseT Output ON

  1. Fallback port configuration is complete.

Scaler Pass-Through

Click this toggle switch to enable or disable the scaler pass-through feature. When set to the ON position, 4K content will be down-scaled to 1080p. When set to the OFF position, the output resolution / timing will be the same as the input source. The default setting is ON.

Atlona AT-OME-RX11 - Scaler Pass-Through - 1

IMPORTANT: The scaler will only downscale the image resolution and does not support frame rate scaling/conversion such as 60 Hz to 30 Hz. The frame rate of the source must be supported by the display device.

  1. Login to the web server. Refer to Introduction to the Web Server (page 50).
  2. Click A/V Settings in the menu bar.

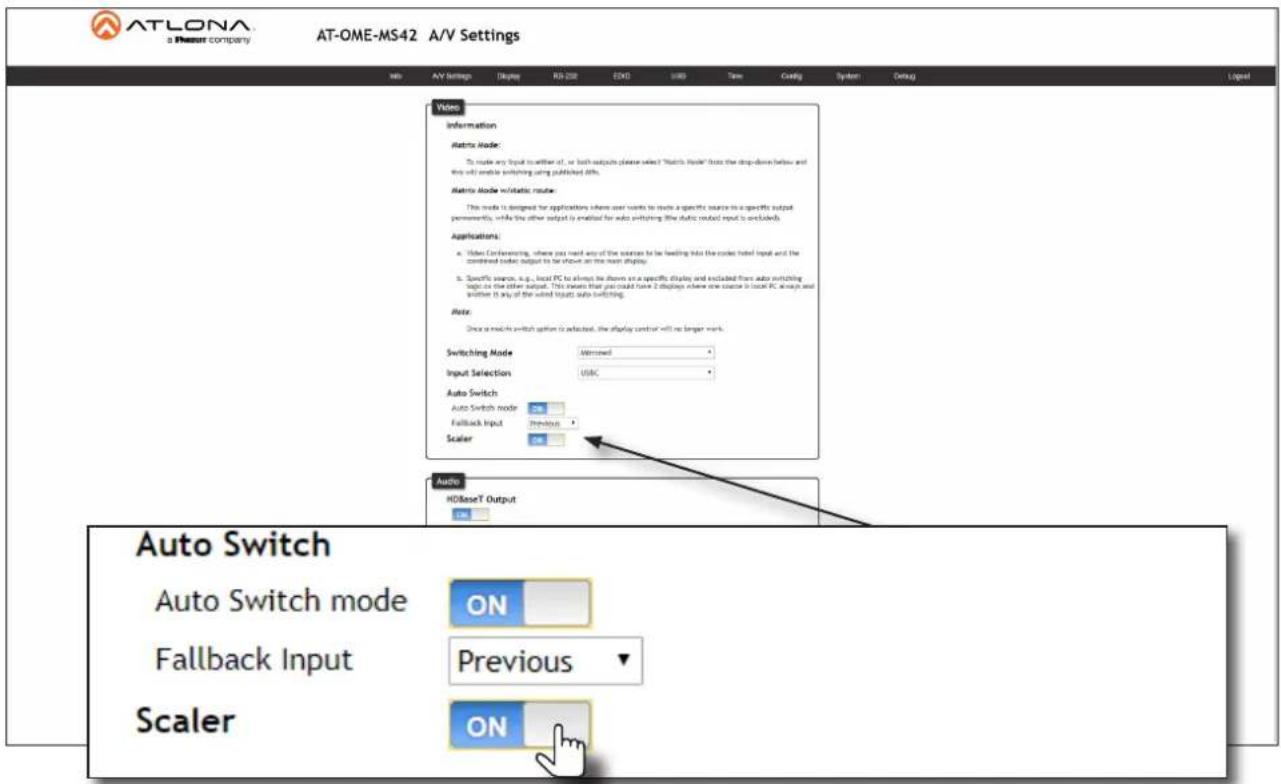

  3. Click the Scaler toggle switch.

ATLONA a Resort company AT-OME-MS42 A/V Settings Info A/V Settings Display R0 200 EXE USB Time Coding System Debug Video Information Matrix Mode: To make any input to either of, or both outputs please select "Matrix Mode" (see the drop-down below and this will enable switching using published skills. Matrix Mode w/dastic mode: This mode is designed for applications where user wants to make a specific source in a specific output permanently, while the other output is enabled for auto switching. The static mode input is excluded. Applications: a. Video Confinancing, where you need any of the sources for the loading into the code tested input and the combined mode output to be shown on the main display b. Specific source, e.g., local PC to always be shown on a specific display and excluded from auto switching topic or the other output. This means that you could have 2 displays where one source in local PC always and another in any of the wired input auto switching. Auto: Show a mode in switch option is adjusted, the display control will no longer work. Switching Mode Altered Input Selection USBC Auto Switch Auto Switch mode Fallback Input Previous Scaler Audio HDBaseT Output Auto Switch Auto Switch mode ON Fallback Input Previous Scaler ON

  1. The following message box will be displayed. Click OK to dismiss the message box.
  2. The Scaler toggle switch will be set to the ON state.
  3. Click the toggle switch again, to return the Scaler toggle to the ON (default) position.

10.20.20.70 says

Frame rate of the source must be accepted by the scaled display. The scaler will only downscale resolution and not framerate. If you experience black screen this may be due to the frame rate not being supported

Atlona AT-OME-RX11 - says - 1

Device Operation

Notes on Scaling

The following section provides important information about how the AT-OME-MS42 processes 4K (UHD) video signals.

• The HDMI OUTPUT port supports up to 4K @ 60 Hz, 12-bit, with HDR.
- If the source is 4K, and the HDMI OUTPUT port is connected to a 1080p (not 4K-capable) display, then the output will be down-scaled as follows:

Input Output
4K @ 24 Hz 1080p @ 24 Hz
4K @ 30 Hz 1080p @ 30 Hz
4K @ 60 Hz, 4:2:0 1080p @ 60 Hz, YUV/RGB 4:4:4

• HDR / Dolby Vision / HLG formats cannot be down-scaled to 1080p.
- The internal scaler will be bypassed if the connected display supports the resolution and timing information from the source device.
• The HDBaseT OUTPUT port supports up to 4K @ 60 Hz. However, HDR is only supported at lower resolutions.
- The HDBaseT OUTPUT port will down-sample to 4:2:0, if the source is 4K @ 60 Hz, 4:4:4, 8-bit. However, the HDMI OUTPUT will remain at 4K @ 60 Hz, 4:4:4, 8-bit, if the output is connected to a 4K-capable display.

Audio Management

The AT-OME-MS42 provides control over audio muting on HDMI OUT, HDBaseT OUT, and ANALOG OUT outputs.

Audio Output Muting

  1. Login to the web server. Refer to Introduction to the Web Server (page 50).
  2. Click A/V Settings in the menu bar.

  3. Locate the Audio section.

  4. Click the toggle switch for the desired output. For example, to mute the audio output on the HDBaseT Output, click this toggle switch to the OFF position. To re-enable the audio for that output, set the toggle switch to the ON position.

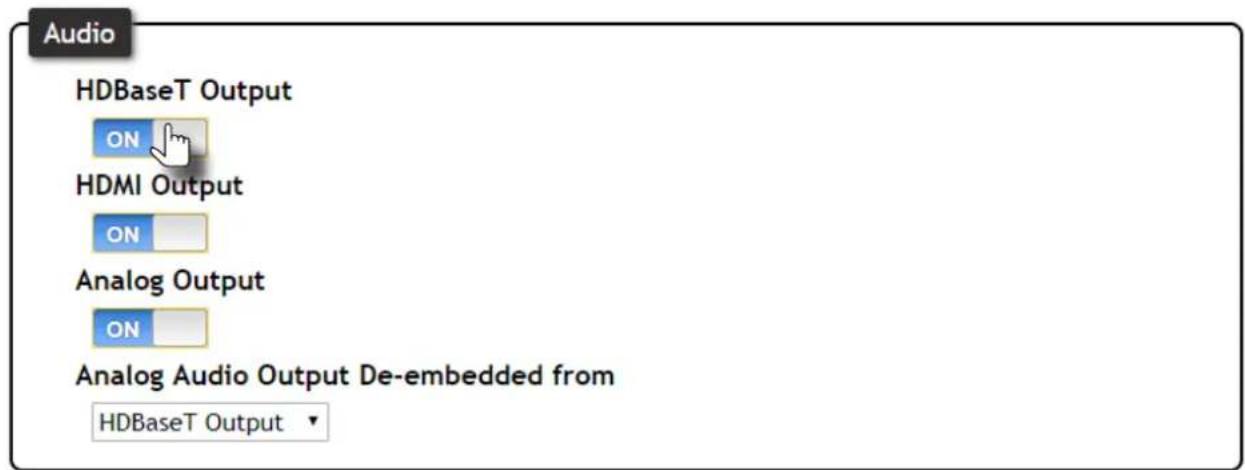

Audio HDBaseT Output ON HDMI Output ON Analog Output ON Analog Audio Output De-embedded from HDBaseT Output ▼

De-embedding Audio

Audio can be de-embedded from the HDMI OUT or HDBaseT OUT ports and output to the AUDIO OUT port. De-embedded audio is limited to PCM two-channel audio. Lossy and lossless audio formats such as Dolby Digital, Dolby True HD, DTS, and DTS-HD Master Audio formats cannot be de-embedded.

  1. Login to the web server. Refer to Introduction to the Web Server (page 50).
  2. Click A/V Settings in the menu bar.
  3. Locate the Audio section.
  4. Click the Analog Audio Output De-embedded from drop-down list to select the desired output.
Settings Description
HDBaseT Output De-embeds audio from the HDBaseT output
HDMI Output De-embedsaudio from the HDMI output

HDCP Content

Normally, if a source is transmitting HDCP content to a display that is not HDCP-compatible, then the resulting image on the display can be "snow", image flickering, or no picture. For example, in the illustration below, a laptop source is connected to the AT-OME-MS42. A non-compliant display is connected to a receiver, which is connected to the AT-OME-RX21 using HDBaseT.

Atlona AT-OME-RX11 - HDCP Content - 1

IMPORTANT: Not all source devices are capable of transmitting non-HDCP content. For example, Sony PlayStation® gaming consoles and Mac® computers always transmit HDCP-encrypted content.

Atlona AT-OME-RX11 - HDCP Content - 2

By default, the laptop may transmit HDCP content. However, when connected to a display that does not support HDCP, the laptop must be instructed to send non-HDCP content, in order for the content to be displayed.

  1. Login to the web server. Refer to Introduction to the Web Server (page 50).
  2. Click A/V Settings in the menu bar.
  3. Locate the HDCP section.
  4. Click the toggle switch next to the desired input. In this example, clicking the USBC toggle switch and setting it to the OFF position will instruct the source device to send non-HDCP content, if possible. If the display is unable to receive HDCP content, then a green splash screen will appear on the connected display, with the following message:

HDCP INCOMPATIBILITY

HDCP

HDCP Settings

USBC

DisplayPort

HDMI3

HDMI4

Atlona AT-OME-RX11 - HDCP Settings - 1

Atlona AT-OME-RX11 - HDCP Settings - 2

Atlona AT-OME-RX11 - HDCP Settings - 3

EDID Management

Before a source can send picture and sound to a display device, the source reads the EDID (Extended Display Identification Data) stored in the display. The EDID contains information about what type of video and audio formats are supported by the display. The AT-OME-MS42 can use either the downstream EDID (from the display/sink) or use a built-in EDID preset. EDID data can also be stored in any of three EDID presets. This section will cover each of the following topics:

• Using the Downstream EDID

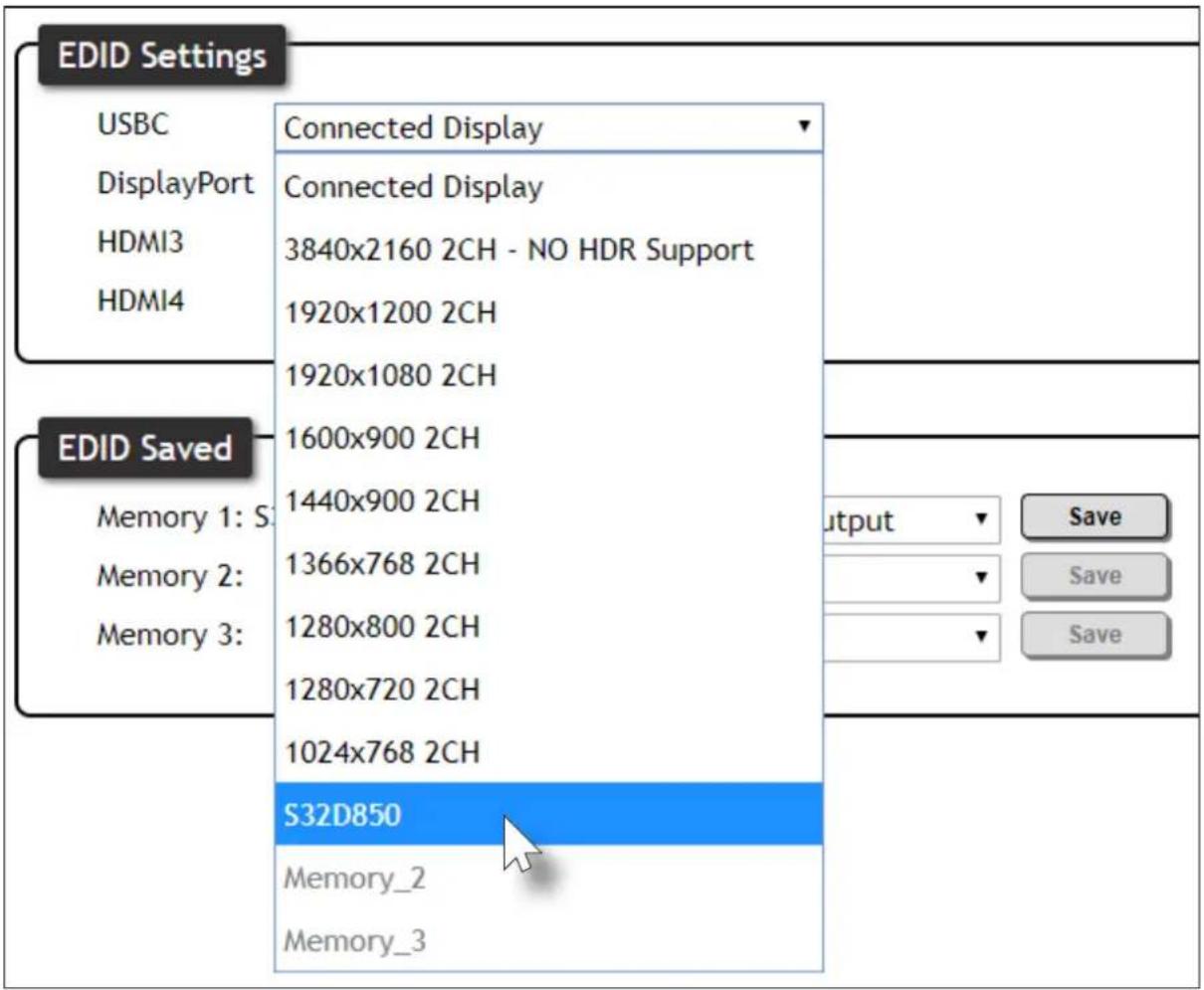

• EDID Presets

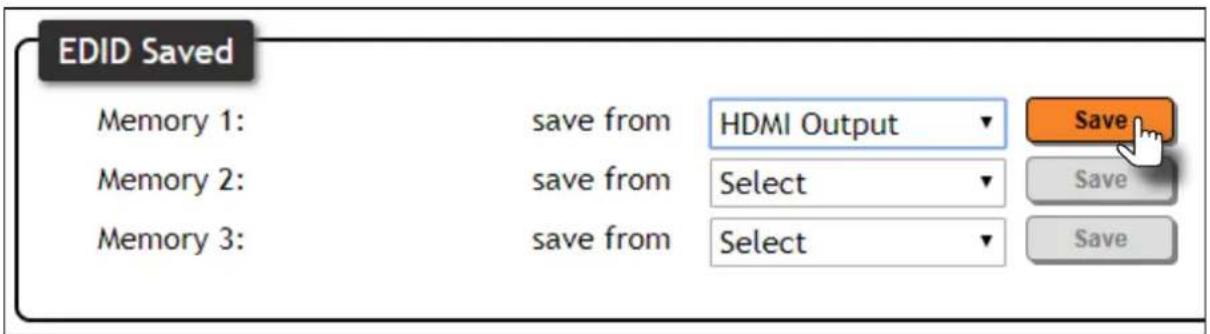

- Storing EDID Data

Using the Downstream EDID

By default, the AT-OME-MS42 will read the EDID from the display device. The term “downstream” is used to describe any device that receives a signal from another device. For example, if a Blu-ray player is connected to a display, the display is said to be “downstream” of the Blu-ray player.

  1. Login to the web server. Refer to Introduction to the Web Server (page 50).

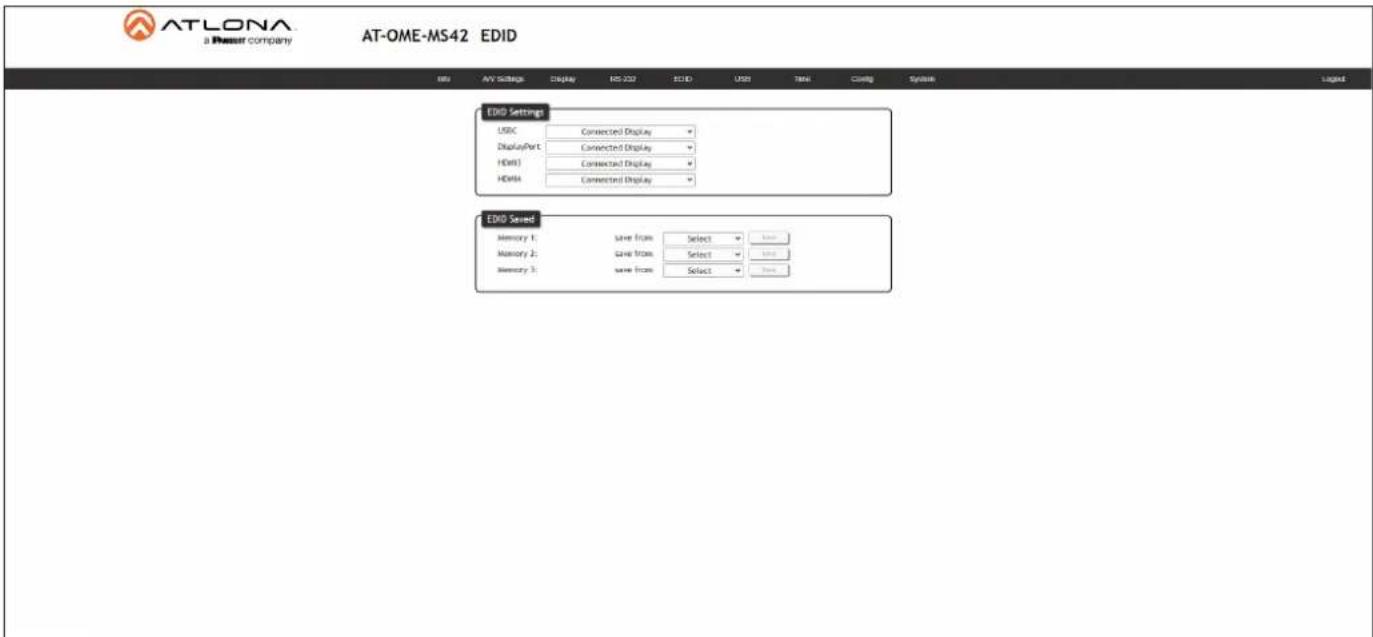

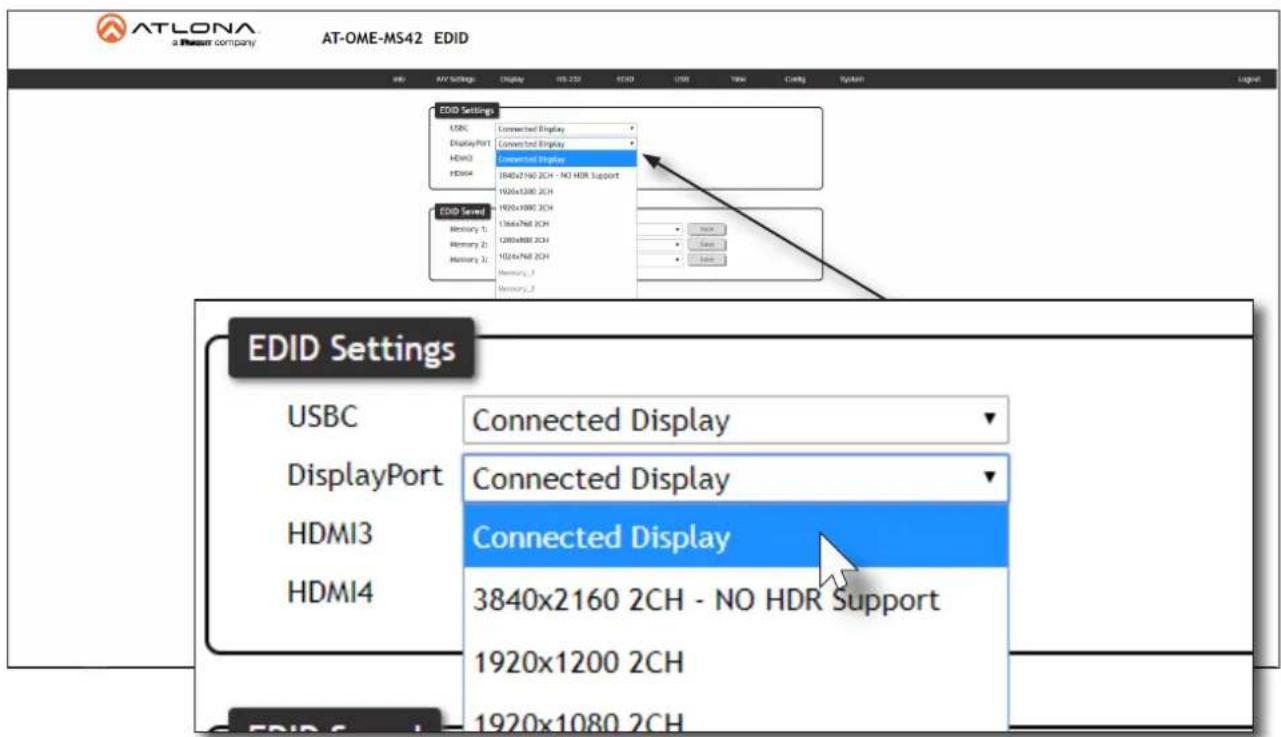

  2. Click EDID in the menu bar.
  3. Locate the EDID Settings section.

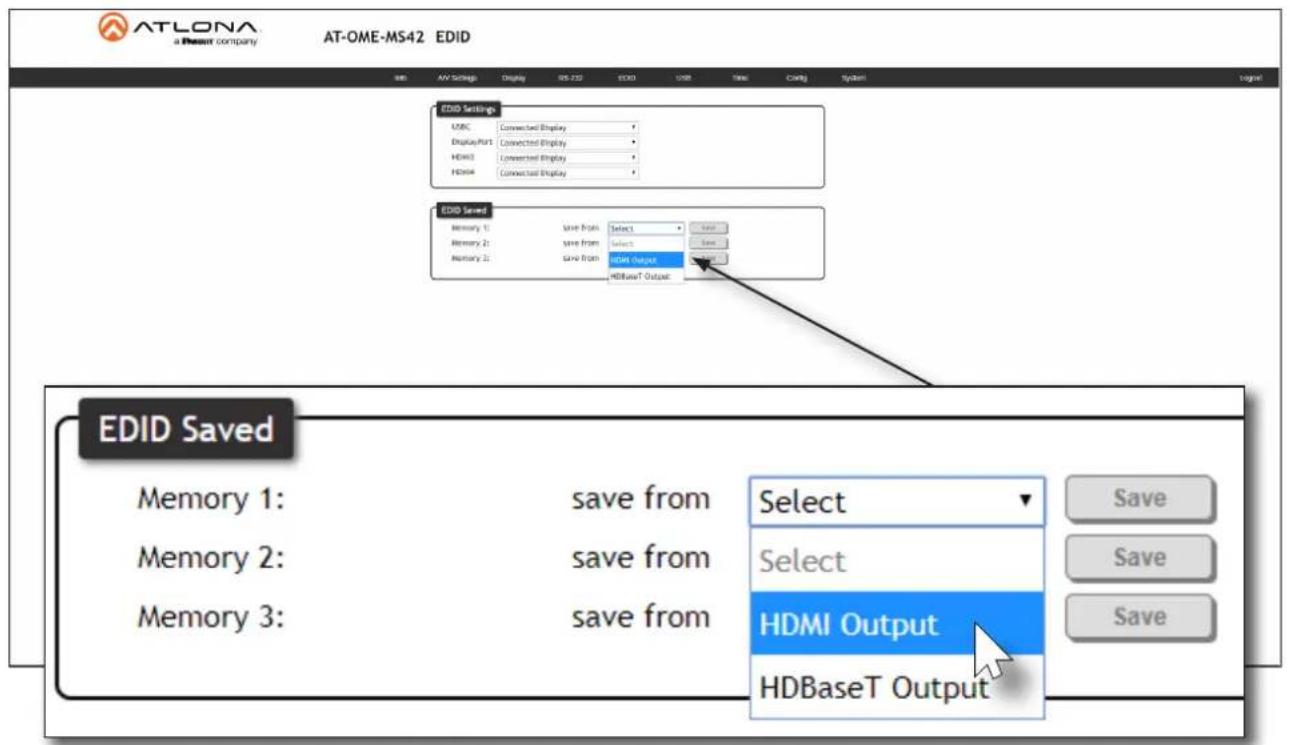

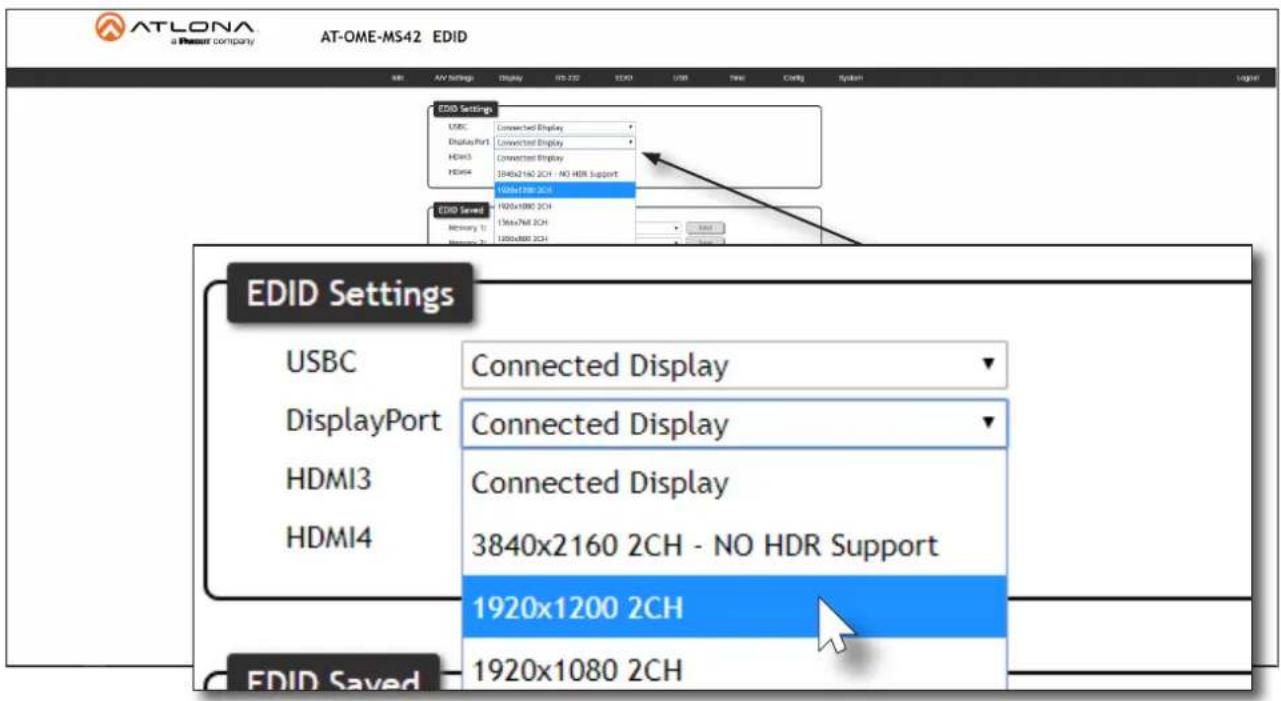

  4. Click the drop-down list, next to the output that is connected to the display device, and select Connected Display. For example, if the DP IN port is connected to a display, click the DisplayPort drop-down list.

ATLONA a Present company AT-OME-MS42 EDID File AV Settings Display PS-250 ECD USB View Catalog System EDID Settings USB Connected Display DisplayPort Connected Display HDMI Connected Display 1940x2160 2CH - NO HDR Support 1920x3300 2CH EDID Saved History 1: History 2: History 3: History 4: History 5: History 6: History 7: History 8: History 9: History 10: History 11: History 12: History 13: History 14: History 15: History 16: History 17: History 18: History 19: History 20: History 21: History 22: History 23: History 24: History 25: History 26: History 27: History 28: History 29: History 30: History 31: History 32: History 33: History 34: History 35: History 36: History 37: History 38: History 39: History 40: History 41: History 42: History 43: History 44: History 45: History 46: History 47: History 48: History 49: History 50: History 51: History 52: History 53: History 54: History 55: History 56: History 57: History 58: History 59: History 60: History 61: History 62: History 63: History 64: History 65: History 66: History 67: History 68: History 69: History 70: History 71: History 72: History 73: History 74: History 75: History 76: History 77: History 78: History 79: History 80: History 81: History 82: History 83: History 84: History 85: History 86: History 87: History 88: History 89: History 90: History 91: History 92: History 93: History 94: History 95: History 96: History 97: History 98: History 99: History 100: No HDR Support EDID Settings USBC Connected Display DisplayPort Connected Display HDMI3 Connected Display HDMI4 3840x2160 2CH - NO HDR Support 1920x1200 2CH 1920x1080 2CH

  1. Downstream EDID configuration is complete.

EDID Presets

The AT-OME-MS42 provides the option of selecting a preset EDID. The following presets are available. For information on Memory_1, Memory_2, and Memory_3 settings, refer to Storing EDID Data (page 29).

Atlona AT-OME-RX11 - EDID Presets - 1

IMPORTANT: If problems are encountered when using an EDID preset, try using the default setting of Connected Display.

EDID Preset
Connected Display The default setting.Refer to the previous page details.
3840x2160 2CH - NO HDR Support 3840 x 2160 @ 60 Hz with two-channel audio support.
1920x1200 2CH 1920 x 1200 @ 60 Hz with two-channel audio support.
1920x1080 2CH 1920 x 1080 @ 60 Hz with two-channel audio support.
1366x768 2CH 1366 x 768 @ 60 Hz with two-channel audio support.
1280x800 2CH 1280 x 800 @ 60 Hz with two-channel audio support.
1024x768 2CH 1024 x 768 @ 60 Hz with two-channel audio support.
Memory_1 EDID memory storage 1.
Memory_2 EDID memory storage 2.
Memory_3 EDID memory storage 3.
  1. Login to the web server. Refer to Introduction to the Web Server (page 50).
  2. Click EDID in the menu bar.
  3. Locate the EDID Settings section.
  4. Click the drop-down list, next to the port that is connected to the display device, and select the desired EDID preset. For example, if the DP IN port is connected to a display, click the DisplayPort drop-down list.

ATLONA a Pheaur company AT-OME-MS42 EDID SET AV settings Display F3.250 EDD USB New Config System EDID Settings USB: Connected Display DisplayPort: Connected Display HDMI3: Connected Display HDMI4: 3840x160 2CH - NO HDR Support 1920x180 2CH EDID Saved H20x1080 2CH Memory 1: 196x768 2CH 1980x880 2CH EDID Settings USBC Connected Display DisplayPort Connected Display HDMI3 Connected Display HDMI4 3840x2160 2CH - NO HDR Support 1920x1200 2CH EDID Saved 1920x1080 2CH

  1. EDID preset selection is complete.

Device Operation

Storing EDID Data

The AT-OME-MS42 provide three memory locations which can be used to store EDID data. Any downstream EDID can be captured and stored in these locations. Each memory location is non-volatile and captured EDID data is stored after power is disconnected from the unit.

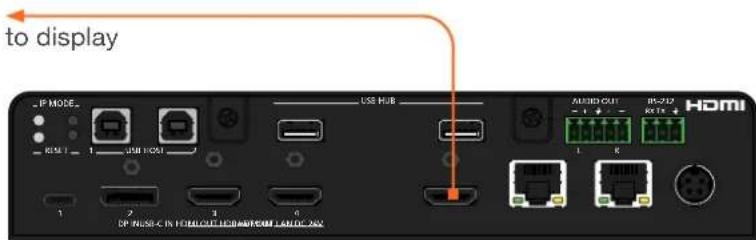

  1. Connect an HDMI cable from the HDMI OUT port on the AT-OME-MS42 to the HDMI input on the display, containing the EDID to be stored.
  2. Login to the web server. Refer to Introduction to the Web Server (page 50).

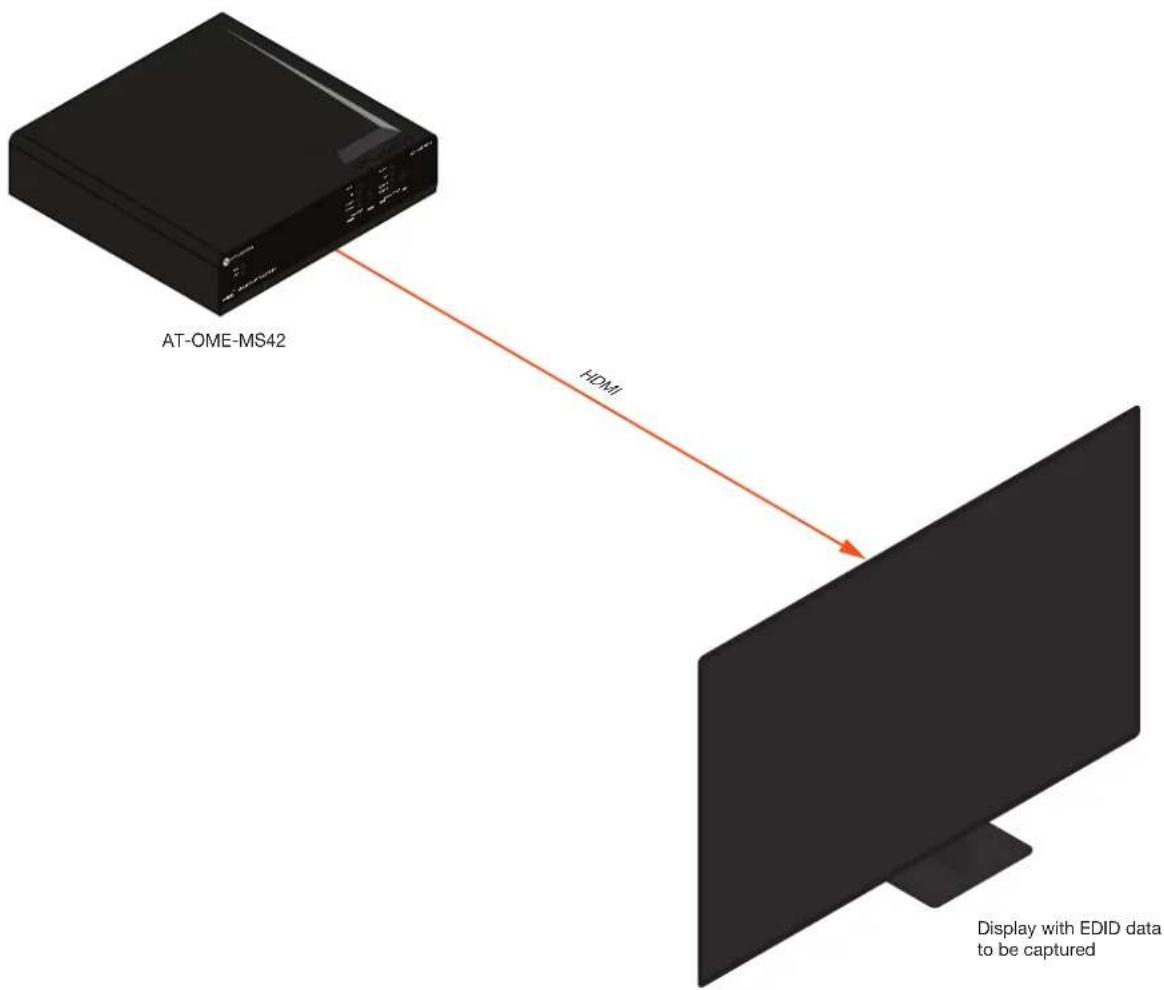

AT-OME-MS42 HDMI Display with EDID data to be captured

  1. Click EDID in the menu bar.

  2. Locate the EDID Saved section.

  3. Click the drop-down list, next to the memory location to be used, and select the output which will be used to fetch the EDID. Refer to the next page for more information.

In this example, since the display is connected to the HDMI OUT port on the AT-OME-MS42, the HDMI Output option is selected. Here, the EDID will be stored in Memory 1.

ATLONA a Resort company AT-OME-MS42 EDID File AV Settings Display RS 220 EDD Code New Config System EDID Settings USB Connection Display Display Port Connection Display HDMI Connection Display HDMI Connection Display EDID Saved Memory 1: Save From Select Save Memory 2: Save From Select Save Memory 3: Save From HDMI Output HDBaseT Output EDID Saved Memory 1: save from Select Memory 2: save from Select Memory 3: save from HDMI Output Select Select HDMI Output HDBaseT Output Save Save Save

  1. Click the Save button next to the drop-down list for the memory location.

EDID Saved Memory 1: save from HDMI Output Memory 2: save from Select Memory 3: save from Select Save Save Save

  1. The saved EDID will appear next to the memory location, as shown below.

EDID Saved Save EDID Memory 1: S32D850 save from HDMI Output Save Memory 2: save from Select Save Memory 3: save from Select Save

  1. Click any of the input drop-down list boxes. Note that the stored EDID appears as an available EDID preset for each available input on the AT-OME-MS42.

EDID Settings USBC DisplayPort HDMI3 HDMI4 Connected Display Connected Display 3840x2160 2CH - NO HDR Support 1920x1200 2CH 1920x1080 2CH 1600x900 2CH 1440x900 2CH 1366x768 2CH 1280x800 2CH 1280x720 2CH 1024x768 2CH S32D850 Memory_2 Memory_3

  1. The EDID storing procedure is completed.

Atlona AT-OME-RX11 - Storing EDID Data - 6

NOTE: Once an EDID is written to a memory location, it can be overwritten with a different EDID, when desired. To overwrite an EDID with a different EDID, repeat steps 5 through 7, above.

USB Modes

The AT-OME-MS42 provides three different USB modes: Follow USB, Manual, and Follow Video. Each mode provides different method of controlling USB, based on how the system is connected. All three modes will be covered in this section.

Follow USB

This is the default mode and functions similar to auto-switching for video. In this mode, the AT-OME-MS42 will detect which USB ports are connected to a host device. If both USB host ports are connected to host devices, then the AT-OME-MS42 will set the last-connected USB host device as the "active" USB host. Use the procedure below to enable Follow USB mode.

  1. Connect the host computers to the USB host ports, as desired. Note that it is not required that both USB host ports be connected to host devices.

IP MODE RESET 1 USB HOST 2 USB HUB 1 2 3 4 AUDIO OUT L R RS-232 RX TX HDMI DP INUSB-C IN HDMI/OUT/HDB/HDMI/NT LAN/DC 2AV

  1. Login to the web server. Refer to Introduction to the Web Server (page 50).
  2. Click USB in the menu bar.
  3. The Follow USB radio button should already be enabled. If not, click this radio button to enable Follow Video mode.

ATLONA a Pessuit company AT-OME-MS42 USB USB Host Follow USB Manual Follow Video USB-C DisplayPort HDMI3 HDMI4 HDMI5 (RX) USB-C USB 2 USB 2 USB 2 USB 3 USB Host Follow USB Manual USB 1 Follow Video USB-C DisplayPort HDMI3 HDMI4 HDMI5 (RX)

Device Operation

Once set to Follow USB mode, the AT-OME-MS42 will exhibit the following behavior:

  • If only one USB host port is connected, then the AT-OME-MS42 will use the USB host device connected to that port.
  • If an another USB host device is connected to the vacant USB host port, then the AT-OME-MS42 will automatically switch to that USB host device.
  • If both USB 1 and USB 2 host ports are connected, then the AT-OME-MS42 will switch to the USB port that was connected last.

  • If both USB 1 and USB 2 host ports are connected, and one USB host port is disconnected, then the ATOME-MS42 will automatically switch to the opposite USB host port.

  • Follow USB configuration is complete.

Manual

This mode provides manual selection of the USB host port to be used.

  1. Connect the host computers to the USB host ports, as desired. Note that it is not required that both USB host ports be connected to host devices.
  2. Login to the web server. Refer to Introduction to the Web Server (page 50).
  3. Click USB in the menu bar.
  4. Click the Manual radio button.

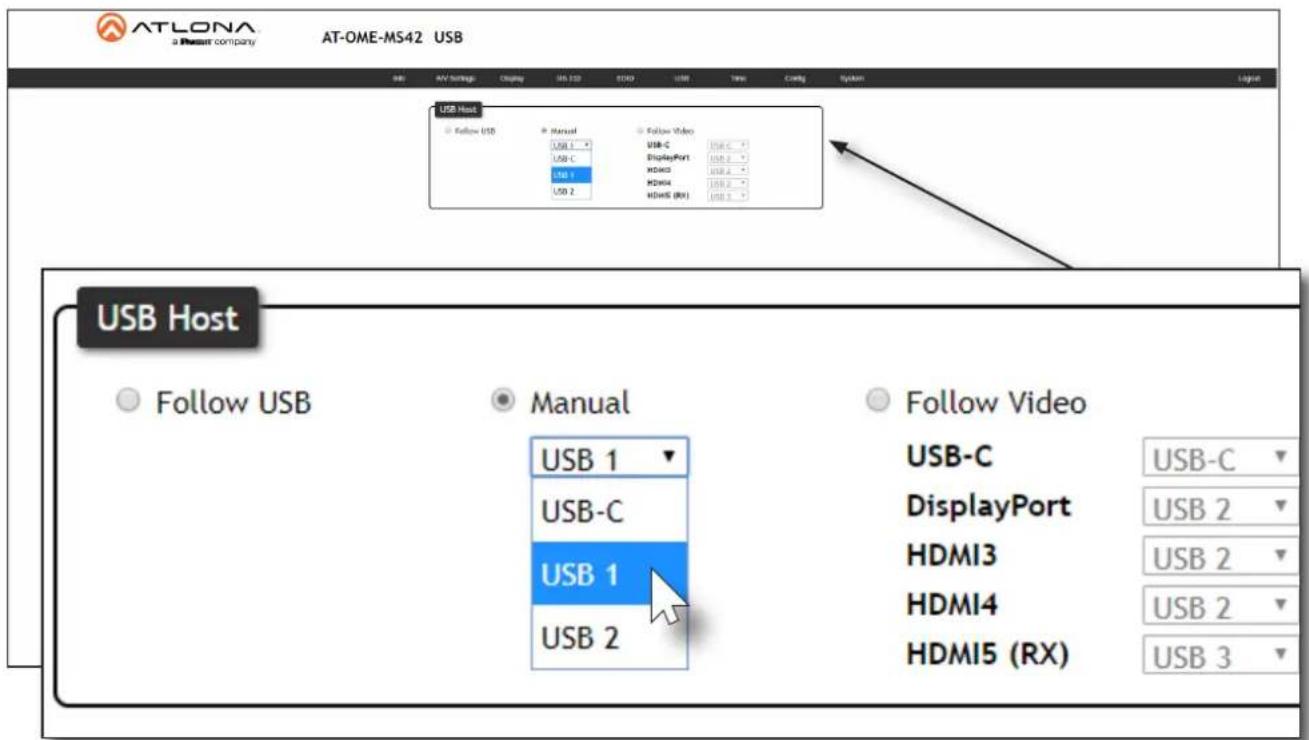

  5. Click the drop-down list, under the Manual radio button, to select the desired USB port.
  6. Manual USB configuration is complete.

ATLONA a Present company AT-OME-MS42 USB USB AV Settings Display MS SSD ECD USB Time Config System USB Host Follow USB Manual Follow Video USB 1 USB C USB 1 USB 2 USB-C DisplayPort HDMI3 HDMI4 HDMI5 (RV) USB C USB E USB B USB B USB B USB B USB B USB B USB B USB B USB B USB B USB B USB B USB B USB B USB B USB B USB B USB B USB B USB B USB B USB B USB B USB B USB B USB B USB B USB B USB B USB B USB B USB B USB B USB B

Follow Video

In this mode, each video input can be assigned to either USB 1 or USB 2 host ports. This mode locks the USB host device to the desired video input. Each host device will have access to the same USB devices, when video switching occurs.

Atlona AT-OME-RX11 - Follow Video - 1

IMPORTANT: Follow Video mode is not available when the AT-OME-MS42 is set to either Matrix Mode or Matrix Mode w/ Static Route. Refer to Matrix Mode (page 17) or Matrix Mode w/ Static Route (page 19) for more information.

  1. Connect the host computers to the USB host ports. Note that it is not required that both USB host ports be connected to host devices.
  2. Login to the web server. Refer to Introduction to the Web Server (page 50).
  3. Click USB in the menu bar.

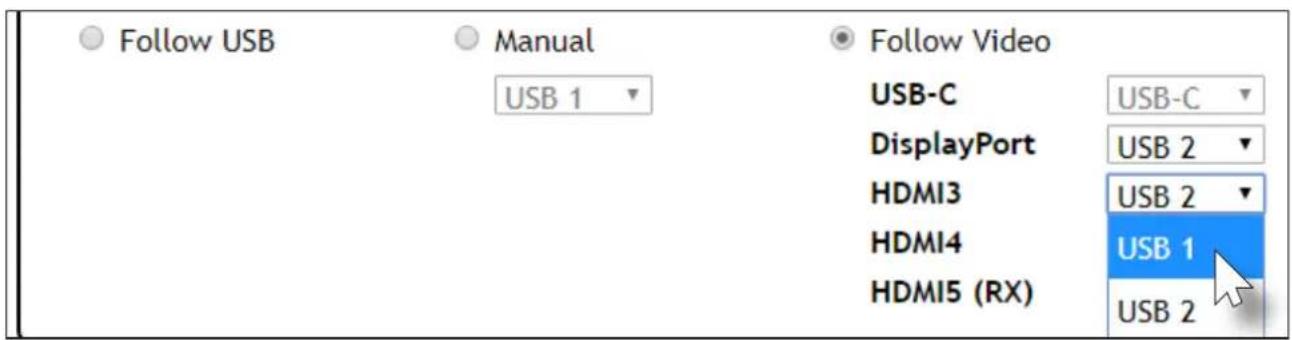

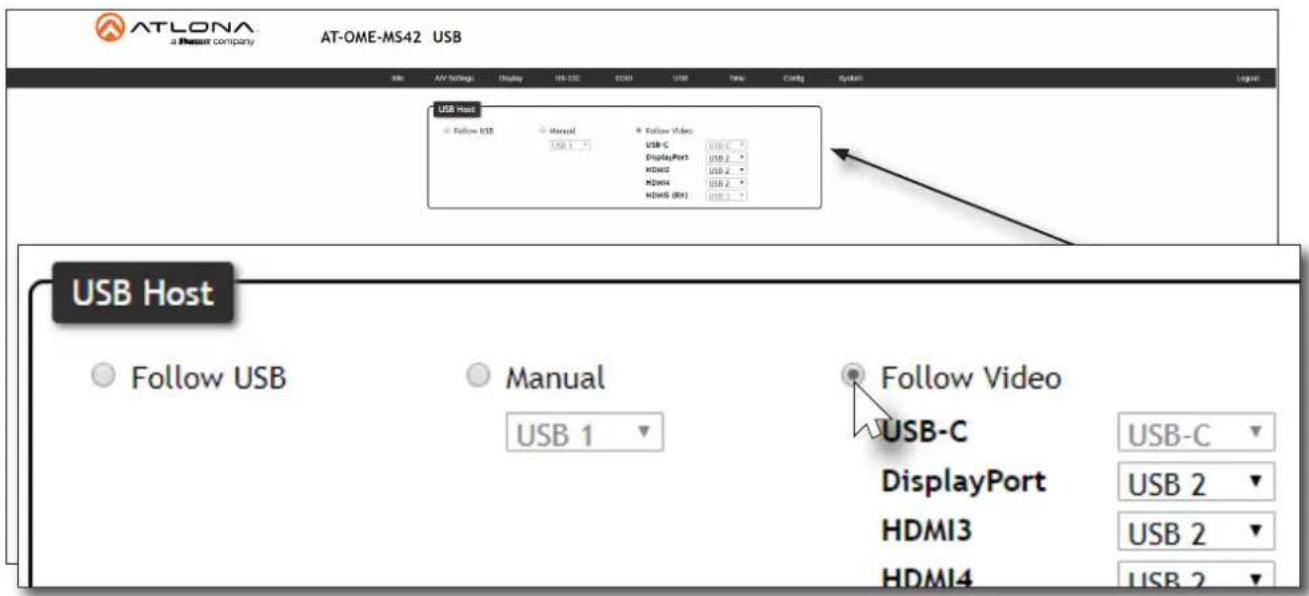

  4. Click the Follow Video radio button. The factory-default USB Host assignments for Input 1 through Input 4 are shown in the illustration below.

Atlona AT-OME-RX11 - Follow Video - 2

NOTE: Refer to the HDMI5 (RX) port, in the dialog box, below. Although the AT-OME-MS42 has four physical video inputs, a receiver with an HDMI input is considered a fifth input. Also note the presence of a third USB port.

ATLONA a Resour company AT-OME-MS42 USB USB AV Settings Display HS-352 ECD USB Time Config System USB Host Follow USB Manual Follow video USB 1 USB-C DisplayPort USB 2 HDMS USB 2 HDMS USB 2 HDMS (80) USB 1 USB-C USB 2 HDMI3 USB 2 HDMI4 USB 2 USB 1 USB Host Follow USB Manual USB 1 Follow Video USB-C DisplayPort USB 2 HDMI3 USB 2 HDMI4 USB 2

  1. Click the drop-down list, next to the input, to assign the desired USB host port to the input. In the example below, HDMI IN (3) is being assigned to USB 1. HDMI IN (4) will be assigned to USB 2.

Follow USB Manual USB 1 Follow Video USB-C DisplayPort HDMI3 HDMI4 HDMI5 (RX) USB-C USB 2 USB 2 USB 1 USB 2

  1. Press the HDMI OUT input selection button on the front panel and select HDMI 3.

ATLONA® PWR LINK Input indicator USB-C DP HDMI 3 HDMI 4 USB-C DP MV 3 HDMI 4 AT-OME-MS42 HDMI OUT HDBaseT OUT OMEGA TM MULTI-FOMAT SWITCHER

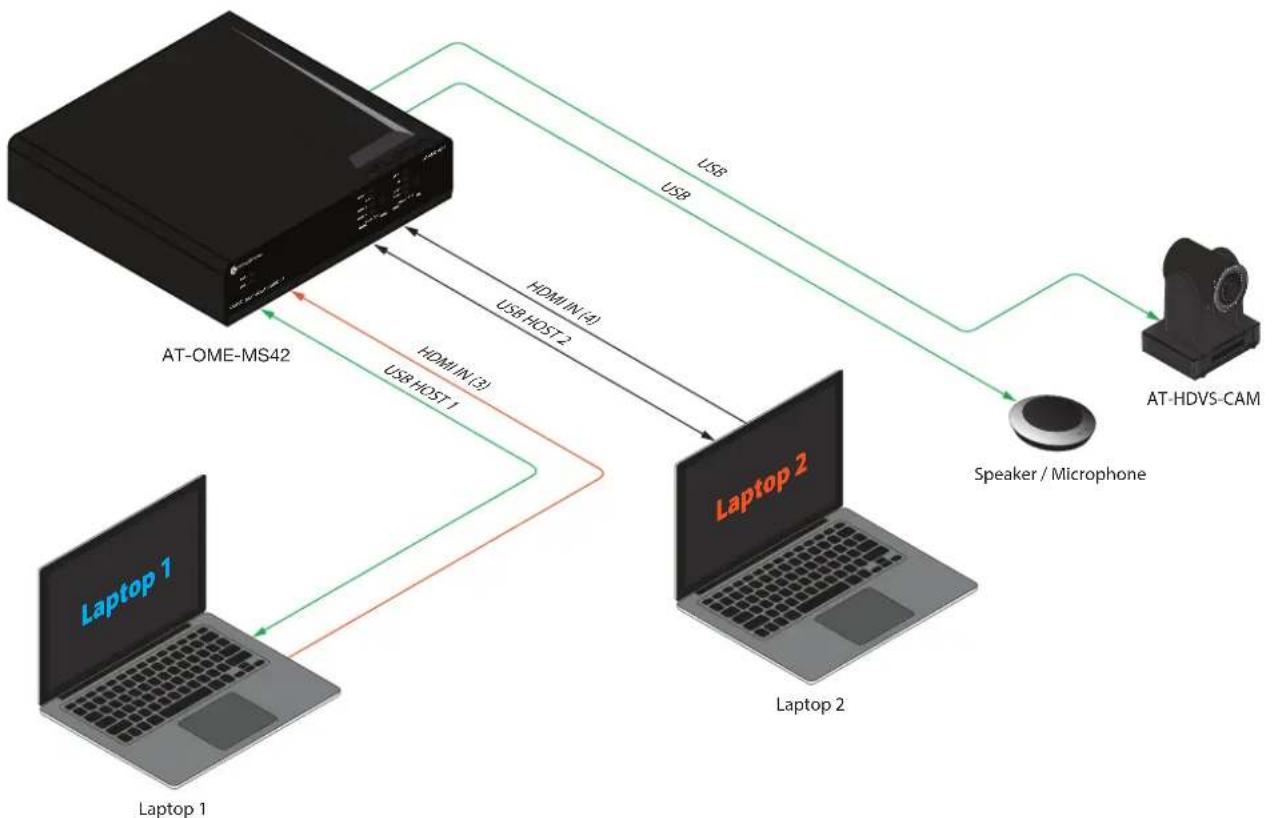

Figure 1.1 - HDMI 3 is selected as the active video input and Laptop 1 has access to the speaker/mic and the AT-HDVS-CAM. Black signal lines indicate that the AT-OME-MS42 is not switched to that input.

Atlona AT-OME-RX11 - Follow Video - 6
  1. Press the HDMI OUT input selection button on the front panel and select HDMI 4.

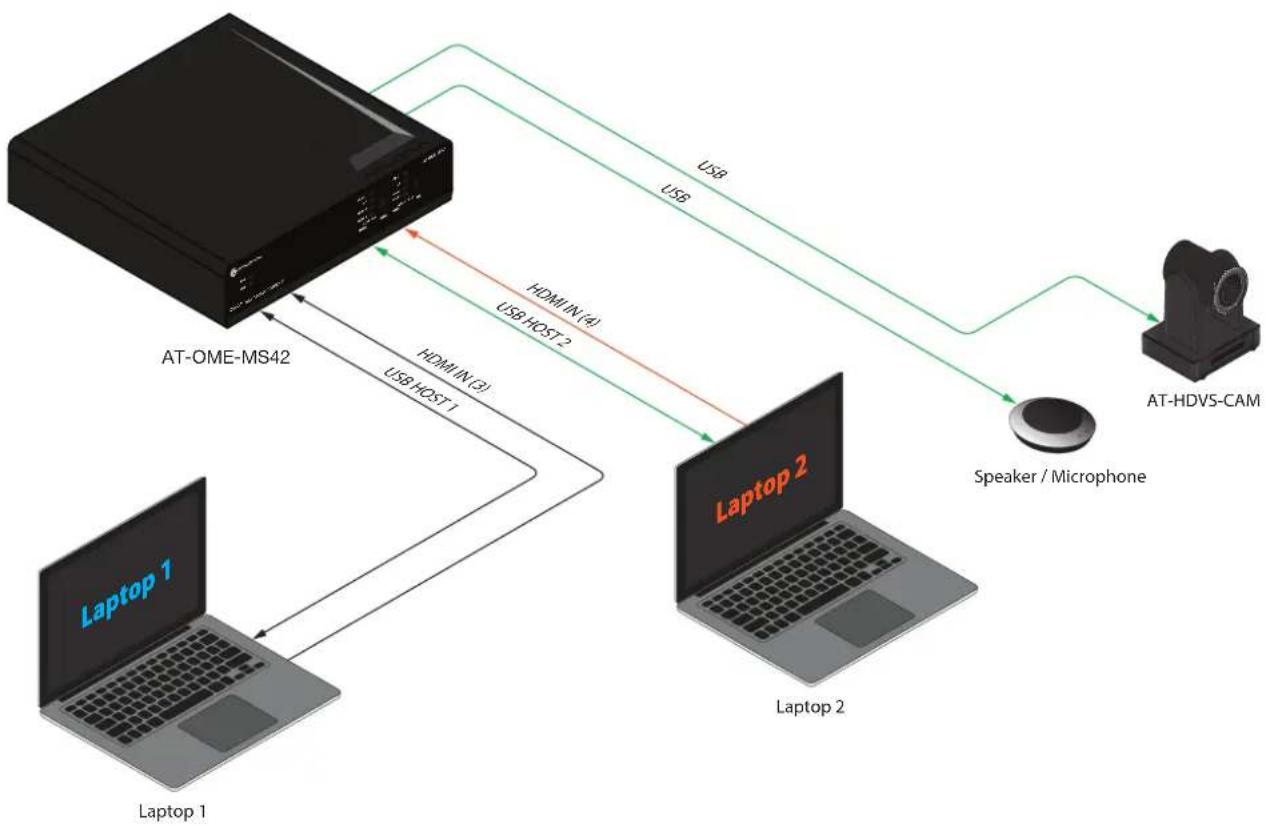

Figure 1.2 - In step 5, HDMI 4 was assigned to USB host port 2. HDMI 4 is now the active video input and Laptop 2 has access to the speaker/mic and the AT-HDVS-CAM. Black signal lines indicate that the AT-OME-MS42 is not switched to that input.
Atlona AT-OME-RX11 - Follow Video - 7

Setting the System Date and Time

The AT-OME-MS42 uses the internal clock to store the current date and time. Time can be set using either local time or by assigning a Network Time Protocol (NTP) server.

Setting Local Time

  1. Login to the web server. Refer to Introduction to the Web Server (page 50).
  2. Click Time in the menu bar.
  3. Click the GMT drop-down list and select the time for the current region.

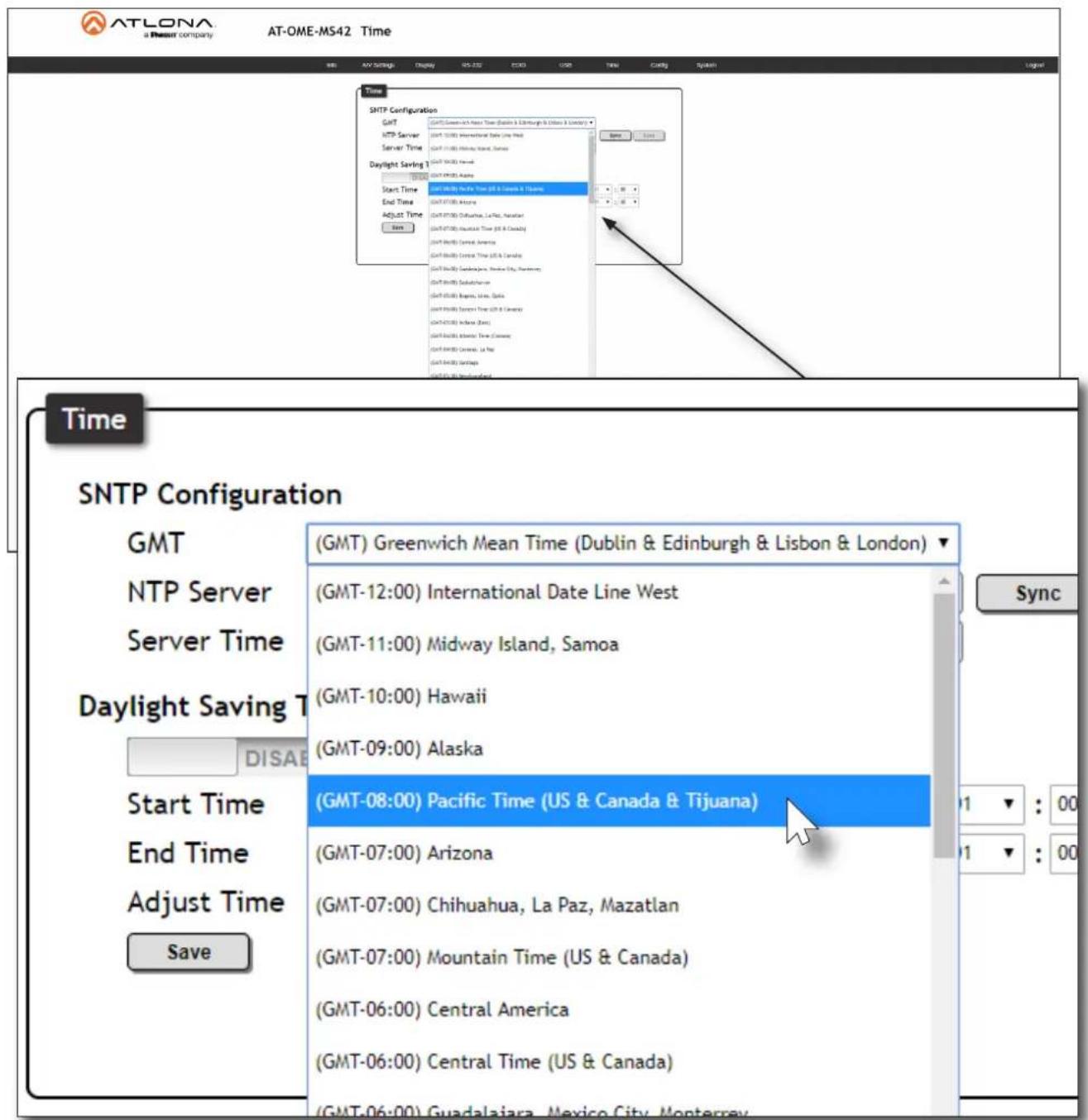

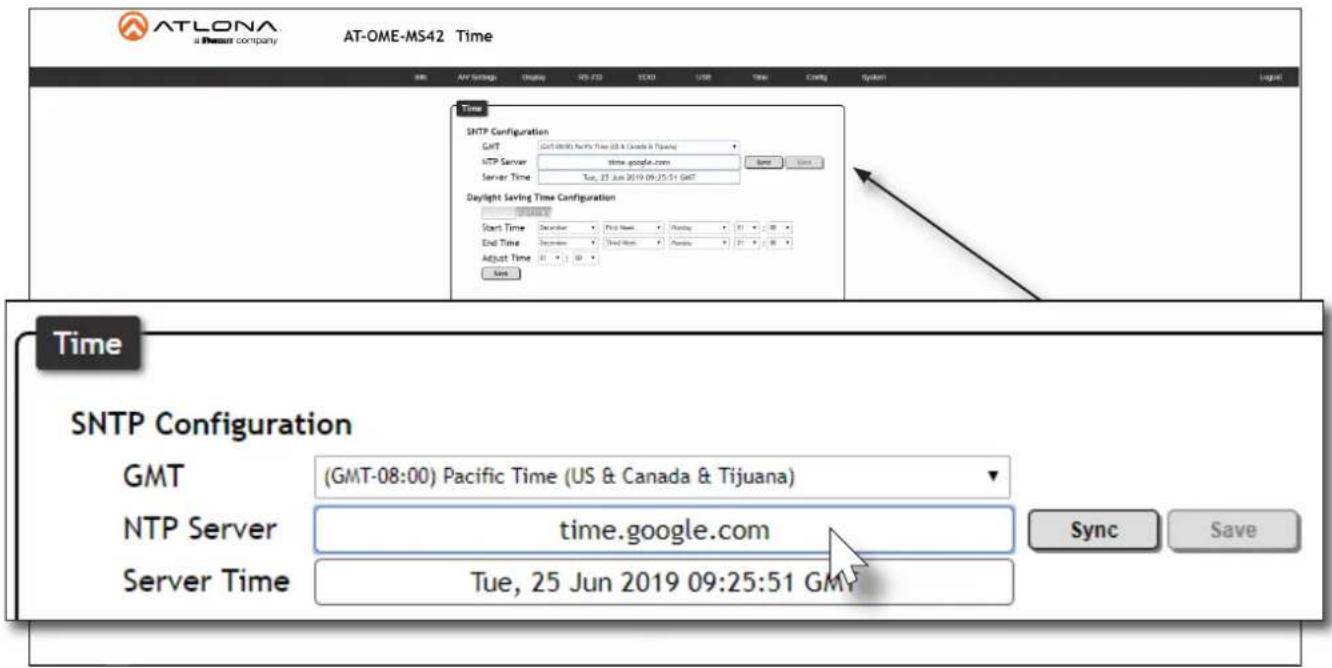

ATLONA a Pineset company AT-OME-MS42 Time SNTP Configuration GMT NTP Server Server Time Daylight Saving T Start Time End Time Adjust Time Save (GMT) Greenwich Mean Time (Dublin & Edinburgh & Lisbon & London) (GMT-12:00) International Date Line West (GMT-11:00) Midway Island, Samoa (GMT-10:00) Hawaii (GMT-09:00) Alaska (GMT-08:00) Pacific Time (US & Canada & Tijuana) (GMT-07:00) Arizona (GMT-07:00) Chihuahua, La Paz, Mazatlan (GMT-07:00) Mountain Time (US & Canada) (GMT-06:00) Central America (GMT-06:00) Central Time (US & Canada) Time SNTP Configuration GMT NTP Server Server Time Daylight Saving T Start Time End Time Adjust Time Save Sync 1 : 00 1 : 00

Device Operation

Using an NTP Server

  1. Login to the web server. Refer to Introduction to the Web Server (page 50).
  2. Click Time in the menu bar.
  3. Click the NTP Server field. The default NTP server is set to time.google.com.
  4. Delete the contents of this field and enter the desired NTP server.
  5. Click the Sync button to synchronize the AT-OME-MS42 clock with the NTP server time.
  6. Click the Save button to commit changes.

ATLONA a Plesur company AT-OME-MS42 Time Time SNTP Configuration GMT GMT-08:00 Pacific Time (US & Canada & Tijuana) NTP Server time.google.com Server Time Tue, 25 Jun 2019 09:25:51 GMT Daylight Saving Time Configuration GMT-08:00 Start Time Description First Start Helping 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 Time SNTP Configuration GMT (GMT-08:00) Pacific Time (US & Canada & Tijuana) NTP Server time.google.com Server Time Tue, 25 Jun 2019 09:25:51 GMT Sync Save

Daylight Saving Time (DST)

The AT-OME-MS42 provides the option to adjust the internal clock to compensate for Daylight Saving Time, depending on the region. Daylight Saving Time is disabled, by default.

  1. Login to the web server. Refer to Introduction to the Web Server (page 50).
  2. Click Time in the menu bar.
  3. Under Daylight Saving Time Configuration, click the toggle switch to the ENABLE position.

Daylight Saving Time Configuration ENABLE Start Time December First Week Monday 01 : 00 End Time December Third Week Monday 01 : 00 Adjust Time 01 : 00 Save

Device Operation

  1. In the Start Time row, set the DST starting time by clicking the drop-down lists for month, week, day, hour, and minute.
  2. Repeat the same procedure for the End Time row.
  3. In the Adjust Time row, set the offset time. This time is the number of hours which Daylight Saving Time affects the local time.
  4. Click the Save button to commit changes.

Daylight Saving Time Configuration ENABLE Start Time March Third Week Sunday 02 : 00 End Time November First Week Sunday 00 : 00 Adjust Time 01 : 00 Save Sunday Monday Tuesday Wednesday Thursday Friday Saturday

Password Management

The AT-OME-MS42 allows the administrator password to be changed. The password applies to both the web server and Telnet sessions. Note that the Username cannot be changed.

  1. Login to the web server. Refer to Introduction to the Web Server (page 50).
  2. Click Config in the menu bar.

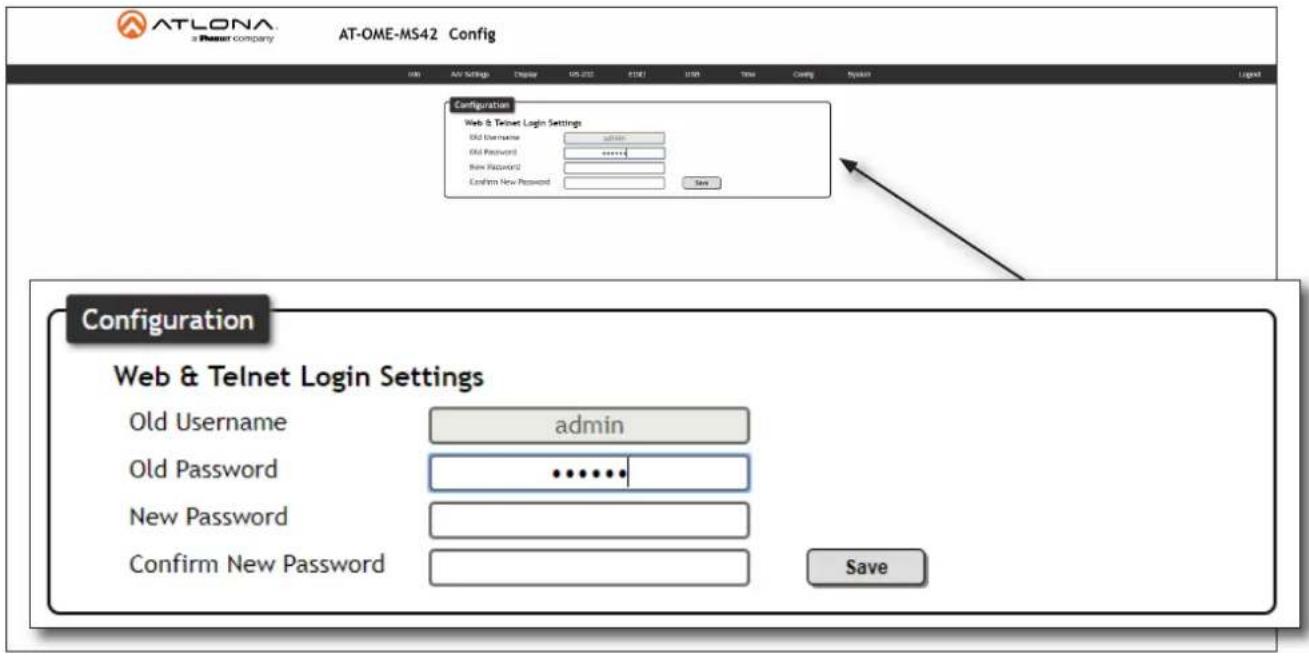

  3. Click the Old Password field and enter the current password.

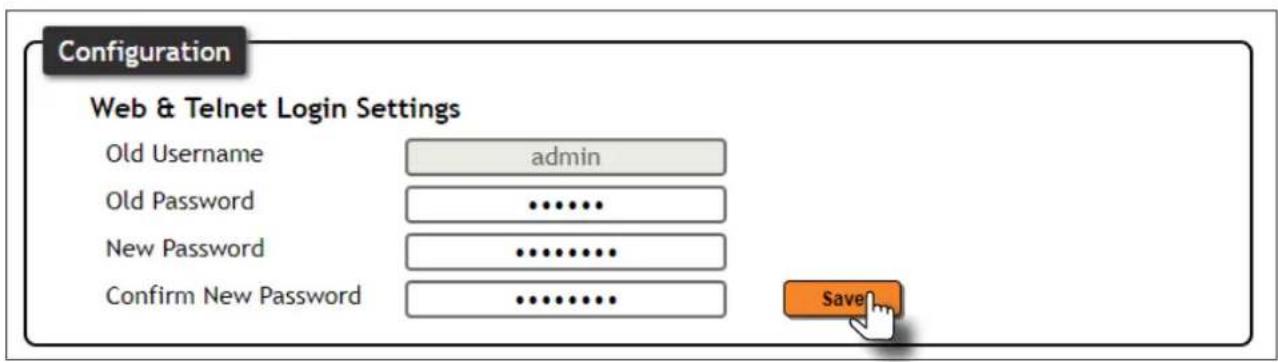

ATLONA a Petron company AT-OME-MS42 Config Configuration Web & Telnet Login Settings Old Username admin Old Password ****** New Password Confirm New Password Save Configuration Web & Telnet Login Settings Old Username admin Old Password ****** New Password Confirm New Password Save

  1. Enter the new password in the New Password field.
  2. Retype the new password in the Confirm New Password field.
  3. Click the Save button to commit changes. To login with the new username, click Logout in the upper-right corner of the screen, then enter the new password on the Login page.

Atlona AT-OME-RX11 - Password Management - 2

NOTE: Password fields will always be masked for security purposes.

Configuration Web & Telnet Login Settings Old Username admin Old Password .......... New Password .......... Confirm New Password .......... Save

System Configuration

The AT-OME-MS42 provides easy access to system configuration through the built-in web server, and is the recommended method to adjust network settings.

Getting the MAC Address

  1. Login to the web server. Refer to Introduction to the Web Server (page 50).
  2. Click System in the menu bar.
  3. Locate the MAC address field, as shown below. This is the hardware address of the AT-OME-MS42.

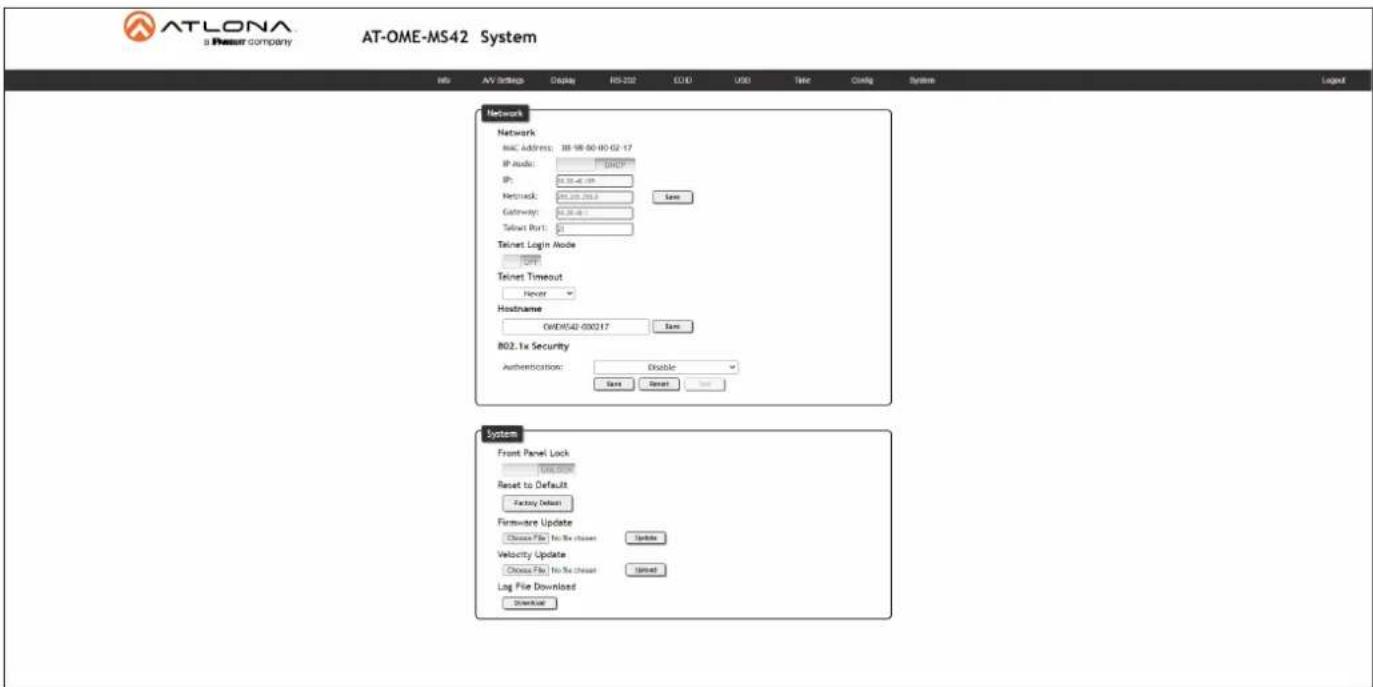

ATLONA a Resort company AT-OME-MS42 System Network Network MAC Address: B8-98-00-02-1B IP Mode: IP: Network: 56.76.255.0 Gateway: 56.76.255.0 Telnet Port: 0 Telnet Login Mode: New Telnet Timeout: New Network Network MAC Address: B8-98-B0-00-02-1B IP Mode: DHCP IP: 10.20.20.70 Netmask: 255.255.255.0 Gateway: 10.20.20.1 Telnet Port: 23 Save MAC address

Changing the Network IP Mode

By default, the AT-OME-MS42 is set to DHCP mode. Once connected to a network, and if a DHCP server is found (or available), the AT-OME-MS42 will be assigned an IP address on the network, and no further network configuration is required. However, if the AT-OME-MS42 is unable to detect a DHCP server within 15 seconds, then the unit will use a self-assigned IP address within the range of 169.254.xxx.xxx. The instructions below will focus on setting the AT-OME-MS42 to static IP mode.

Atlona AT-OME-RX11 - Changing the Network IP Mode - 1

IMPORTANT: Before assigning a static IP address to the AT-OME-MS42, it is recommended to consult with the network or system administrator and obtain a available IP address. If the AT-OME-MS42 is assigned an IP address which is already in use by another device, it may cause either network issues and/or the AT-OME-MS42 will be not accessible.

  1. Login to the web server. Refer to Introduction to the Web Server (page 50).
  2. Click System in the menu bar.

Device Operation

  1. Locate the IP Mode toggle switch. The default setting of this toggle switch is DHCP.
  2. Click this toggle switch to set it to STATIC IP.
  3. Enter the desired IP address for the AT-OME-MS42 in the IP field.
  4. Enter the subnet mask and gateway address in the Netmask and Gateway fields, respectively.
  5. Click the Save button to commit changes. Changes will take effect immediately.

Network MAC Address: B8-98-B0-00-02-1B IP Mode: STATIC IP IP: 10.20.20.70 Netmask: 255.255.255.0 Gateway: 10.20.20.1 Save

Changing the Telnet Port

Typically, the Telnet service is assigned to TCP port 23. This is the default setting for the AT-OME-MS42. However, depending upon the network environment, the default Telnet port can be changed.

  1. Login to the web server. Refer to Introduction to the Web Server (page 50).
  2. Click System in the menu bar.
  3. Locate the Telnet Port field and enter the desired port in the field.
  4. Click Save to commit changes.

Network MAC Address: B8-98-B0-00-02-1B IP Mode: DHCP IP: 10.20.20.70 Netmask: 255.255.255.0 Gateway: 10.20.20.1 Telnet Port: 23 Save

Device Operation

Telnet Login Mode

When a Telnet session is request, the AT-OME-MS42 provides the option to prompt for user credentials or bypass authentication before the Telnet session begins. This credentials prompt option can be enabled or disabled. When prompting for user credentials, use the same login information required by the built-in web server.

  1. Login to the web server. Refer to Introduction to the Web Server (page 50).
  2. Click System in the menu bar.

  3. Click the Telnet Login Mode toggle switch.

  4. Set this toggle switch to ON to prompt for user credentials.

  5. Set this toggle switch to OFF to bypass user credentials request.

  6. Click Save to commit changes.

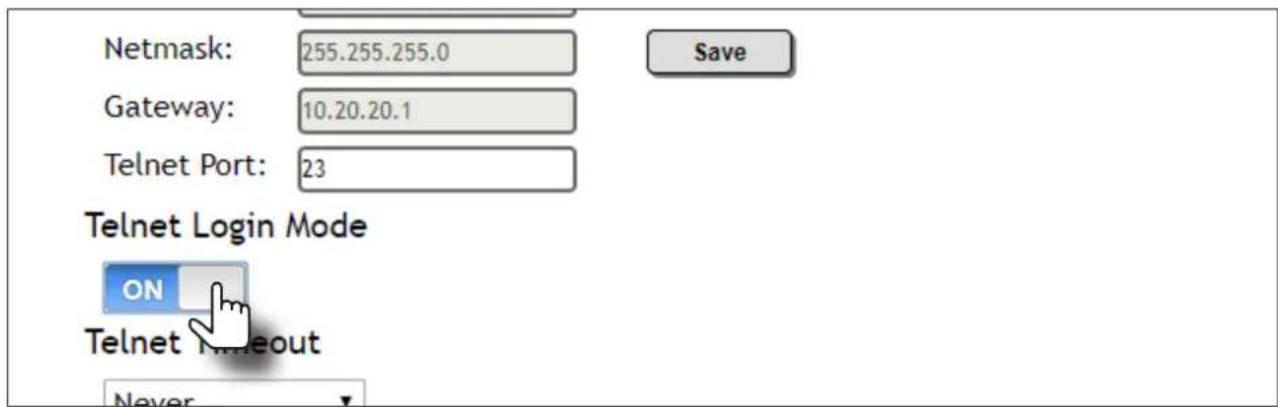

Netmask: 255.255.255.0 Gateway: 10.20.20.1 Telnet Port: 23 Telnet Login Mode ON Telnet Timeout Never Save

Device Operation

Adjusting Telnet Timeout

When a Telnet session is active, the AT-OME-MS42 can be set to monitor Telnet activity. If there is no activity within the specified time interval, the Telnet session will automatically be terminated, adding a measure of security.

  1. Login to the web server. Refer to Introduction to the Web Server (page 50).
  2. Click System in the menu bar.
  3. Click the Telnet Timeout drop-down list and select the desired time-out interval. Values from 1 to 10000 seconds (\~166 minutes / 2.76 hours) can be selected.

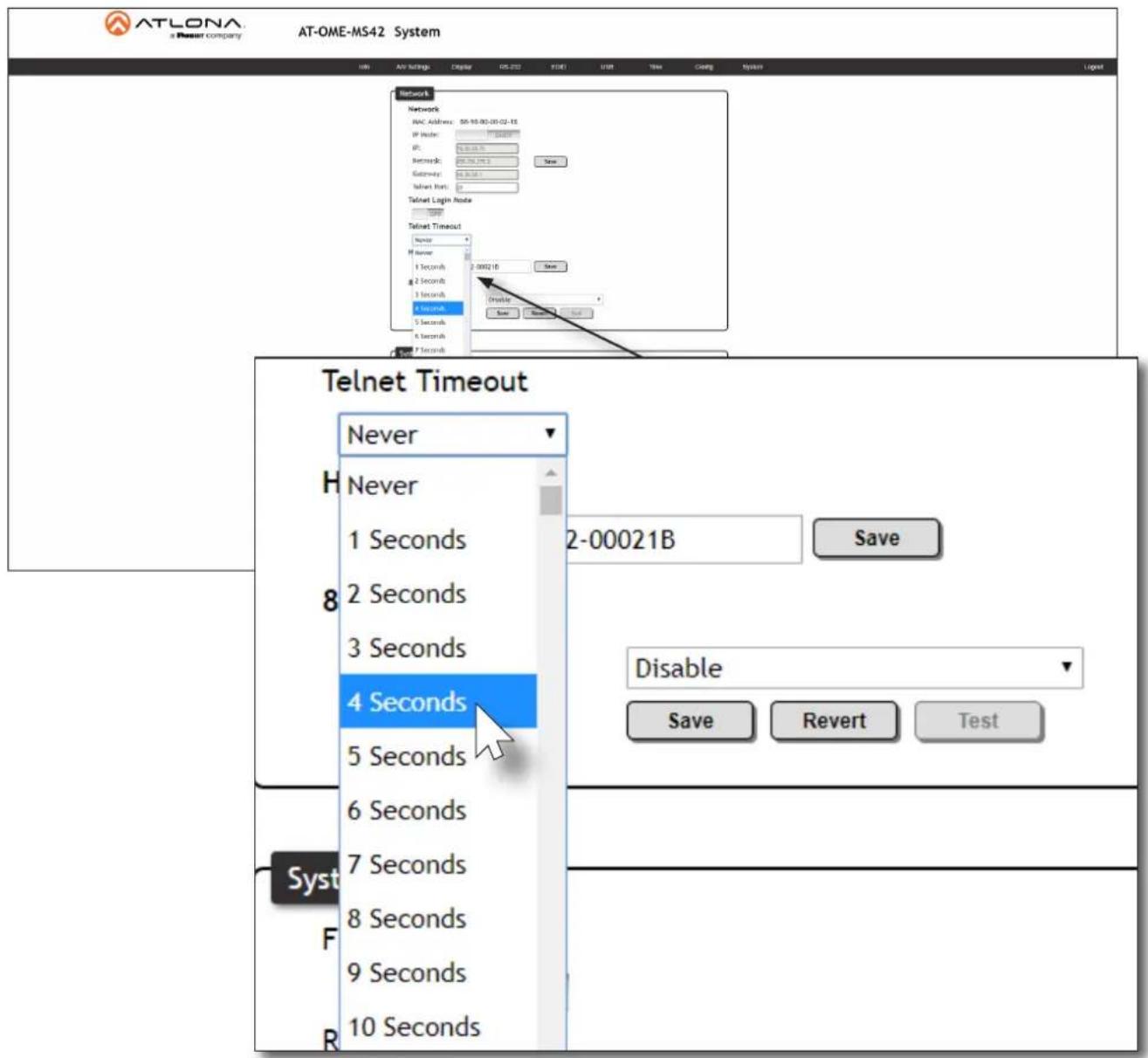

Atlona AT-OME-RX11 - Adjusting Telnet Timeout - 1

IMPORTANT: If Never is selected, then the Telnet port will stay open until the Telnet session is manually terminated.

  1. Click Save to commit changes.

ATLONA at Pressort company AT-OME-MS42 System Iain AT Holdings Display 05.0702 TIME1 USB New Coating System1 Lognet Network Network: MAC Address: 50-10.00-03-02-18 IP Header: 1000000000000000000000000000000000000000000000000000000000000000 IP: Network: 16.794.274.274.274.274.274.274.274.274.274.274.274.274.274.274.274.274.274.274.274.274.274.274.274.274.274.2 Gateway: 16.794.274.274.274.274.274.274.274.274.274.274.274.274.274.274.274.2 Telnet Login Node Telnet Timeout Never 1 Second 2 Second 3 Second 4 Second 5 Second 6 Second 7 Second 8 Second 9 Second 10 Second Telnet Timeout Never H Never 1 Seconds 2 Seconds 3 Seconds 4 Seconds 5 Seconds 6 Seconds 7 Seconds 8 Seconds 9 Seconds 10 Seconds 2-00021B Save Disable Save Revert Test Syst F R

Device Operation

Setting the Host Name

By default, the AT-OME-MS42 is assigned a hostname, which is constructed as follows:

OMEMS42-[last six digits of MAC address]

For example, a default hostname might look like this: OMEMS42-00021B. This value can be changed to easily identify the AT-OME-MS42 within the Atlona Management System (AMS) or a network. If using a custom hostname, it must meet the hostname standards, defined here: https://tools.ietf.org/html/rfc1123

  1. Login to the web server. Refer to Introduction to the Web Server (page 50).
  2. Click System in the menu bar.
  3. Click the Hostname field and enter the desired name.
  4. Click Save to commit changes.

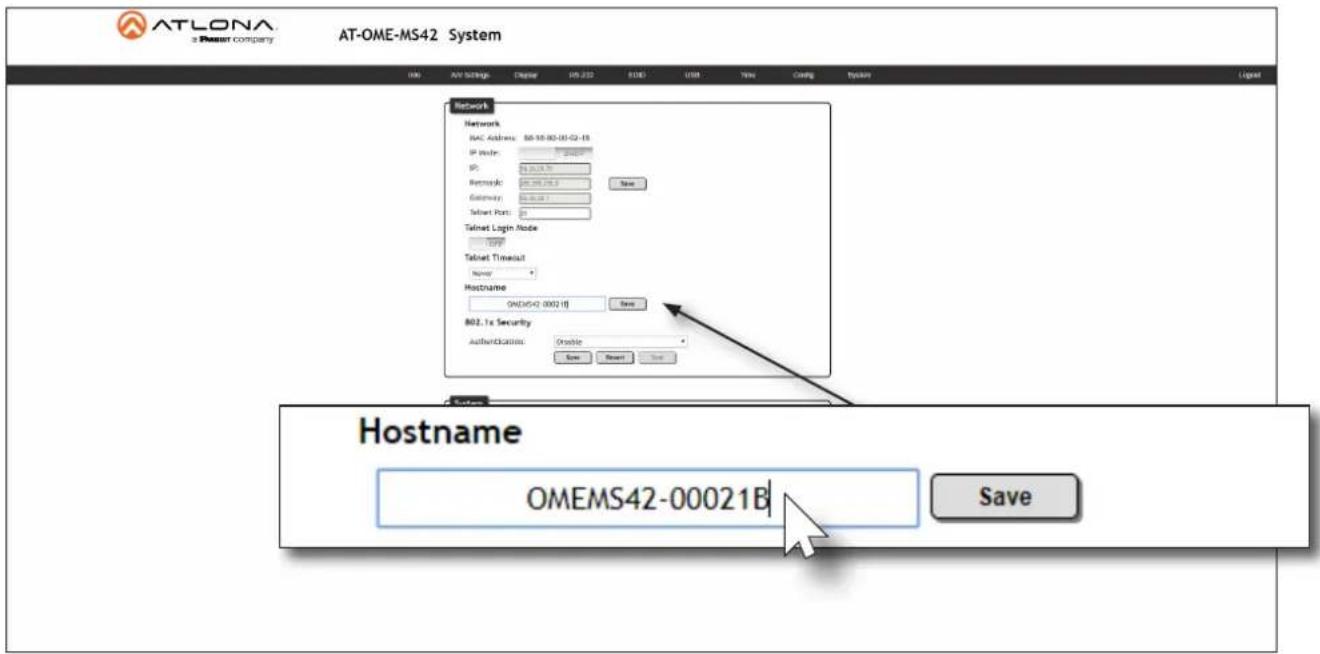

ATLONA Power company AT-OME-MS42 System File Edit Settings Adapter MS-232 SDB USB New Config System Network Network MAC Address: 08-10-00-01-G2-18 IP Node: 000000 IP: 96.26.27.75 Network: 08.18.24.3 Gateway: 08.18.24.1 Subset Port: 00 Talnet Login Mode Talset Timeout Name: Hostname: 00(05+2 0002.19) Save B02.1x Security Authorization: Enable Save Cancel Help Hostname OMEMS42-00021B Save Save

Device Operation

802.1X Security

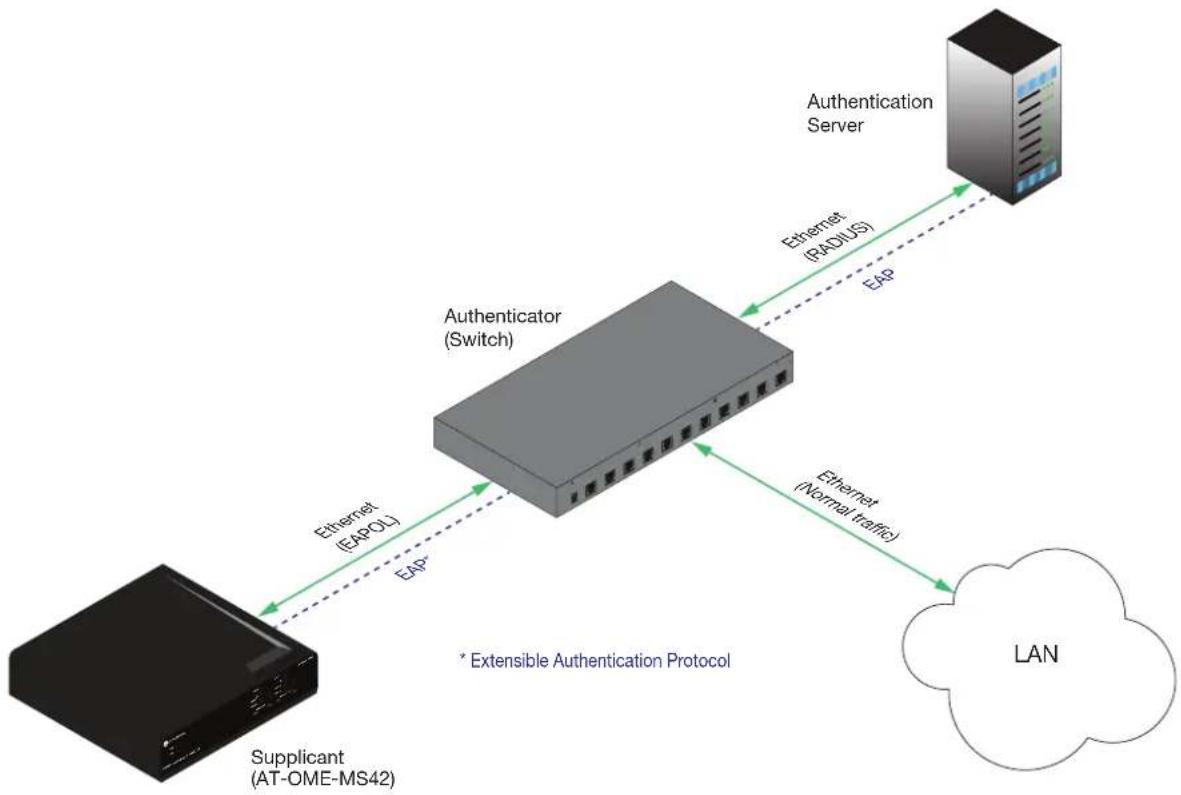

802.1X is a server-based port authentication protocol which restricts unauthorized (rogue) clients from connecting to a Local Area Network through a public port. In its simplest form, 802.1X usually involves three parties: supplicant (client device), authenticator (Ethernet switch), and an authentication server. Before the device is permitted on the network, port communication is restricted to Extensible Authentication Protocol over LAN (EAPOL) traffic.

If the device passes the authentication process, then the authentication server notifies the switch, allowing the client to access the LAN. A full explanation of the 802.1X protocol is beyond the scope of this manual. However, the illustration below shows the basic architecture.

Atlona AT-OME-RX11 - 802.1X Security - 1
  1. Login to the web server. Refer to Introduction to the Web Server (page 50).
  2. Click System in the menu bar.
  3. Under 802.x1 Security, click the Authentication drop-down list and select the desired authentication method. In the example below, Protected EAP (PEAP) is selected.

802.1x Security Authentication: Disable Protected EAP(PEAP) TLS Tunneled TLS Disable System

Device Operation

  1. Once a method is selected, the required fields for that method will be displayed. Enter the required information in each field. For the Protected EAP (PEAP) option, the fields are described as follows:

- Anonymous identity

Enter the identity of the authentication server in this field. EAP uses this field to identify the correct authentication server which will process the credentials. For example, if foo@authserv.com is entered, then this identifies AUTHSERV as the RADIUS (authentication) server.

- CA certificate

Click the Browse... button to select the certification authority (CA) certificate. To remove a certificate, click the Remove button.

- Username

Enter the username in this field

- Password

Enter the password in this field.

802.1x Security Authentication: Protected EAP(PEAP) Anonymous identity: CA certificate: (None) Browse... Username: Password: Save Revert Test

  1. Click Save to commit changes. Click Test to verify the authentication process with the RADIUS server.
  2. Refer to the table below for a list of available authentication methods. An orange dot indicates that this field will be displayed as part of the method.
Auth. MethodIdentityUser CertificateAnonymous IdentityCA CertificateUsernamePasswordPrivate KeyPrivate Password
Protected EAP (PEAP)
TLS
Tunneled TLS
  1. To disable 802.1x authentication, click the Authentication drop-down list and select Disable.

Device Operation

Locking / Unlocking the Front Panel

To prevent accidental pressing of the front panel buttons, the front panel buttons can be locked. This may be desirable if, for example, the AT-OME-MS42 is installed in a rack environment. By default, the front panel buttons are unlocked.

  1. Login to the web server. Refer to Introduction to the Web Server (page 50).
  2. Click System in the menu bar.
  3. Click the Front Panel Lock toggle switch to lock the buttons on the front panel. When the front panel is locked, the toggle switch will display the LOCK setting.

ATLONA a Resort company AT-OME-MS42 System Web AV Settings Deplate RS-332 S101 S98 Time Comg System Network Network MAC Address: 88-98-85-00-02-18 IP Node: 1000000 IP: 6.0.0.1.20 Network: 88.0.0.1.20 Gateway: 88.0.0.1.20 Select Port: 0 Talnet Login Node Talnet Timeout Navex Hostname ONCE/SAU 0002.10 S02.1c Security Authentication: Disable Save Cancel Help System Front Panel Lock Reset to Default Parkey Select Hardware Update Closest File: No file chosen Save Velocity Update Closest File: No file chosen Save System Front Panel Lock LOCK

  1. To unlock the front panel, click the Front Panel Lock toggle switch again to set it to UNLOCK.

Device Operation

Resetting to Factory-Default Settings

The following procedure will reset the AT-OME-MS42 to factory-default settings. The network IP mode will be set to DHCP mode.

  1. Login to the web server. Refer to Introduction to the Web Server (page 50).
  2. Click System in the menu bar.
  3. Click the Factory Default button.

ATLONA a Power company AT-OME-MS42 System Network Network MAC Address: 88-10-00-00-G2-10 IP Mode: 99.000000 IP: 99.000000 Remode: 99.000000 Gateway: 99.000000 Select Port: 99 Talnet Login Node 100 Talnet Timeout None Hostname (99.000000) 18 Base B02.1x Security Authentication: Disable Save Reset Help System Front Panel Lock Reset to Default Setup Update Firmware Update Choose File, No Connection Velocity Update Choose File, No Connection Setup System Front Panel Lock UNLOCK Reset to Default Factory Default

  1. The following message will be displayed at the top of the screen. Click OK to continue with the factory-default reset procedure. Click Cancel to abort the process.

10.20.20.70 says

Are you Sure want to Reset Device to manufacture default?

Atlona AT-OME-RX11 - Resetting to Factory-Default Settings - 2

  1. Once the factory-default process is complete, the web server Login screen will be displayed.
  2. The reset process is complete.

Configuration and Management Interfaces

Introduction to the Web Server

The AT-OME-MS42 includes a built-in web server. Atlona recommends that the web server be used to set up the AT-OME-MS42, as it provides intuitive management of all features. Follow the instructions below to access the webGUI.

  1. Make sure that an Ethernet cable is connected between the LAN port on the AT-OME-MS42 and the network.
  2. Launch a web browser and enter the IP address of the unit. If the default static IP address is being used, enter 192.168.1.254.

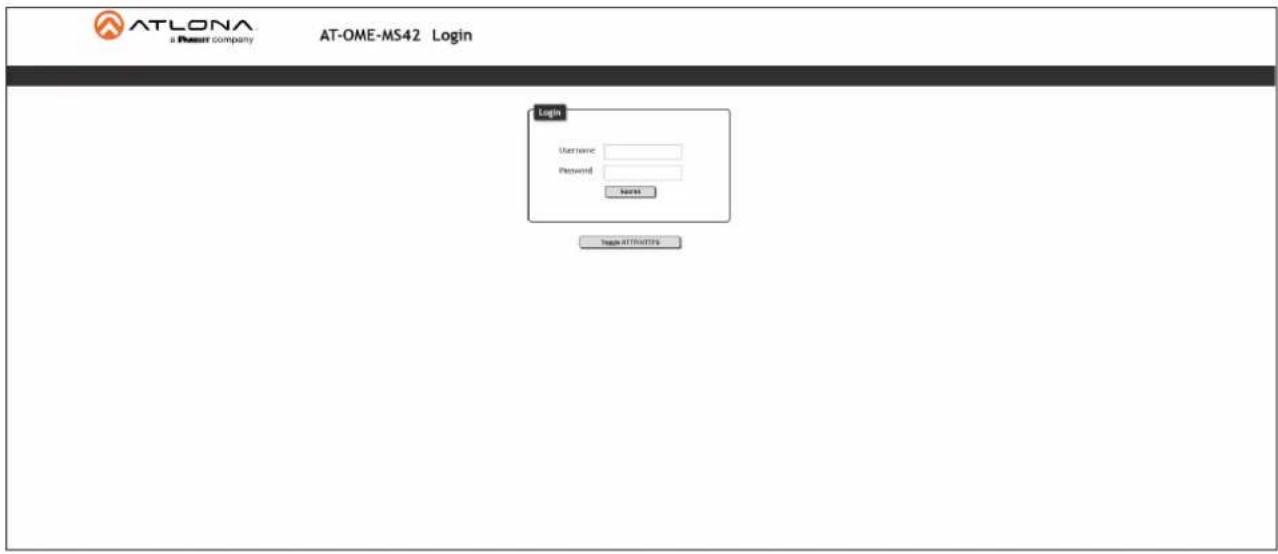

  3. The AT-OME-MS42 Login page will be displayed.

ATLONA a Press company AT-OME-MS42 Login Login Username: Password: Name: Login AUTHORITY:

  1. Type admin, using lower-case characters, in the Username field.
  2. Type Atlona in the Password field. This is the default password. The password field is case-sensitive. When the password is entered, it will be masked.
  3. Click the Submit button or press the ENTER key on the keyboard.

Login Username admin Password .......... Submit

Configuration and Management Interfaces

Info Page

The Info page provides various information about the AT-OME-MS42, including software version and video information.

ATLONA a Plesse company AT-OME-MS42 Info File AV Settings Display RS-252 EVID USB Time Config System Layout System Info Model Name: AT-OME-MS42 Software Version: 1.1.2 Values Version: 7.5.4 On-Timeed-formal: 12-1/21/30 Rx Type: Unknown Warning: The default password is being used! Please change the password. Video Info Output 1: Output 2: Active Input: Input Active Input: Input 1 Signal Type: — Signal Type: — Video Format: — Video Format: — Aspect: — Aspect: — Color Space: — Color Space: — Color Depth: — Color Depth: —

System Info Video Info

Model Name

The model SKU of this product.

Software Version

The version of firmware that the AT-OME-MS42 is running. Always make sure to check the AT-OME-MS42 product page, on the Atlona web site, for the latest version of firmware.

Valens Version

The version of firmware used by the Valens chipset. Always make sure to check the AT-OME-MS42 product page, on the Atlona web site, for the latest version of firmware.

On-Time(d-h:m:s)

Displays how long the system has been powered since the last reboot/reset.

Rx Type

If a receiver is connected to the AT-OME-MS42, then it will be displayed in this field. Otherwise, "Unknown" will be displayed if no receiver is connected.

Active Input

The currently selected (active) input.

Signal Type

The type of input signal.

Video Format

The input resolution of the source device.

Aspect

Aspect ratio of the input signal.

Color Space

Displays the color space and chroma sub-sampling of the input signal.

Color Depth

The color depth of the input signal.

Configuration and Management Interfaces

A/V Settings Page

The A/V Settings page is divided into three sections: Video, Audio, and HDCP. The Video section provides controls for switching modes and input selection. The Audio section provides options to control the output audio volume and de-embedding. The HDCP section controls whether or not HDCP content is allowed to pass.

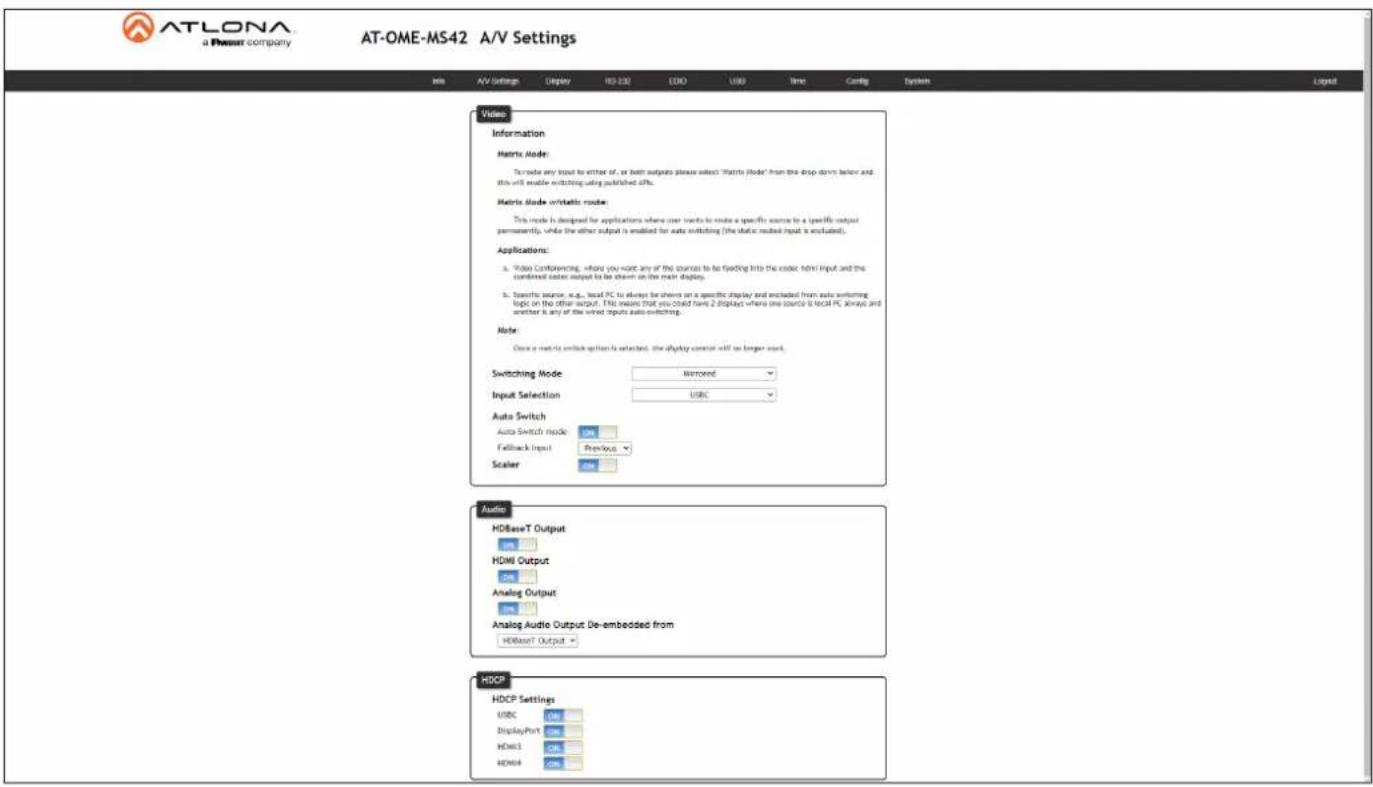

ATLONA a Press company AT-OME-MS42 A/V Settings Info AV Settings Display RD 230 EDD USD Time Config Systems Layout Video Information Matrix Mode: To mode any input to either of, or both outputs please select 'Matrix Mode' from the drop-down below and this will enable switching using published OFFs. Matrix Mode w/static route: This mode is designed for applications where user needs to make a specific source to a specific output permanently, while the other output is enabled for auto switching (the static nusled input is excluded). Applications: a. Video Confinancing, where you want any of the sources to be finding into the codec html Input and the combined codec output to be shown on the main display. b. Specific source, e.g., local PC to always be shown on a specific display and excluded from auto switching logic on the other output. This means that you could have 2 Displays where one source is local PC Xinyo and another is any of the wiret inputs auto switching. Note: Once a net-to-switch option is selected, the alpine control will be longer used. Switching Mode Mismatch Input Selection USBC Auto Switch Auto Switch mode 100 Fallback Input Previous Scaler New Audio HDBaseT Output USB HDMI Output USB Analog Output USB Analog Audio Output De-embedded from HDBaseT Output = HDCP HDCP Settings USBC 100 DisplayPort 100 HDMI3 100 HDMI4 100

Video

Switching Mode

Click this drop-down list to manually select the switching mode. Refer to Switching Modes (page 16) for more information.

Modes Description
Mirrored This is the default switching mode. Once video is detected on any of the input ports, the output signal will be displayed on both the HDMI OUT and HDBaseT OUT ports.
Matrix Mode This mode allows the AT-OME-MS42 to independently switch between any input to any output.
Matrix Mode w/ Static Route Use this mode when integrating the AT-OME-MS42 with a video conference system.

Input Selection

Click this drop-down list to manually select the desired input.

Input Description
USBC Sets USBC as the active input.
DisplayPort Sets DP IN as the active input.
HDMI3 Sets HDMI IN 4 as the active input.
HDMI4 Sets HDMI IN 4 as the active input.

Configuration and Management Interfaces

Auto Switch

Three controls are available under the Auto Switch feature.

Atlona AT-OME-RX11 - Auto Switch - 1

NOTE: Auto-switching is only available when the Switching Mode is set to Mirrored or Matrix Mode w/ static route. The Fallback Input option is only available when the Switching Mode is set to Mirrored or Matrix Mode w/ static route.

- Auto Switch

Click this toggle switch to enable or disable auto-switching. When enabled, the AT-OME-MS42 will automatically switch to the another input, if the signal is disrupted on the currently active input. The port to be switched to, is defined in the Fallback Input drop-down list. The default fallback port is Previous.

- Fallback Input

Click this drop-down list to select the fallback input. If the source is disconnected from the active input, then the switcher can be configured to automatically switch to the desired port.

Input Description
Previous Automatically switches to the input that was connected last.
USBC Switches to USB-C IN.
DisplayPort Switches to DP IN.
HDMI3 Switches to HDMI IN 3.
HDMI4 Switches to HDMI IN 4.

Scaler

Click this toggle switch to enable or disable the scaler pass-through feature. When set to the ON position, 4K content will be down-scaled to 1080p. When set to the OFF position, the output resolution / timing will be the same as the input source. The default setting is ON.

Audio

Manages audio settings for inputs and outputs

- HDBaseT Output

Set this toggle to the OFF position to mute the audio on the HDBaseT OUTPUT port. The default setting is ON.

- HDMI Output

Set this toggle to the OFF position to mute the audio on the HDMI OUTPUT port. The default setting is ON.

- Analog Output

Set this toggle to the OFF position to mute analog on the AUDIO OUT port. The default settings is ON.

- Analog Audio Output De-embedded from

Click this drop-down list to select the output from which audio will be de-embedded and output to the AUDIO OUT port. Available options are HDMI Output or HDBaseT Output. The default setting is HDBaseT Output.

Configuration and Management Interfaces

HDCP

Each input provides control of how HDCP content is handled. Some source devices will send HDCP content if an HDCP-compliant display (sink) is detected. However, there may be applications where sending HDCP content is not desired. Setting the port to the OFF position, will instruct the source to send non-HDCP content to the display. Note that not all sources have this capability.

Atlona AT-OME-RX11 - HDCP - 1

NOTE: Setting this feature to OFF, for any source, does not provide decryption of HDCP content to non-HDCP compliant sink devices. Sources such as Mac® computers and the Sony PlayStation® will always transmit HDCP content.

• ON

When set to ON, the source will have the ability to transmit HDCP content to the AT-OME-MS42.

• OFF

When set to OFF, non-HDCP content will be transmitted (if possible) to the AT-OME-MS42.

Configuration and Management Interfaces

Display Page

This page provides controls for CEC, device timers, and configuration for controlling external devices.

Atlona AT-OME-RX11 - Display Page - 1

NOTE: This page is not available when Switching Mode is set to Matrix Mode. Display control is disabled when matrix mode is active.

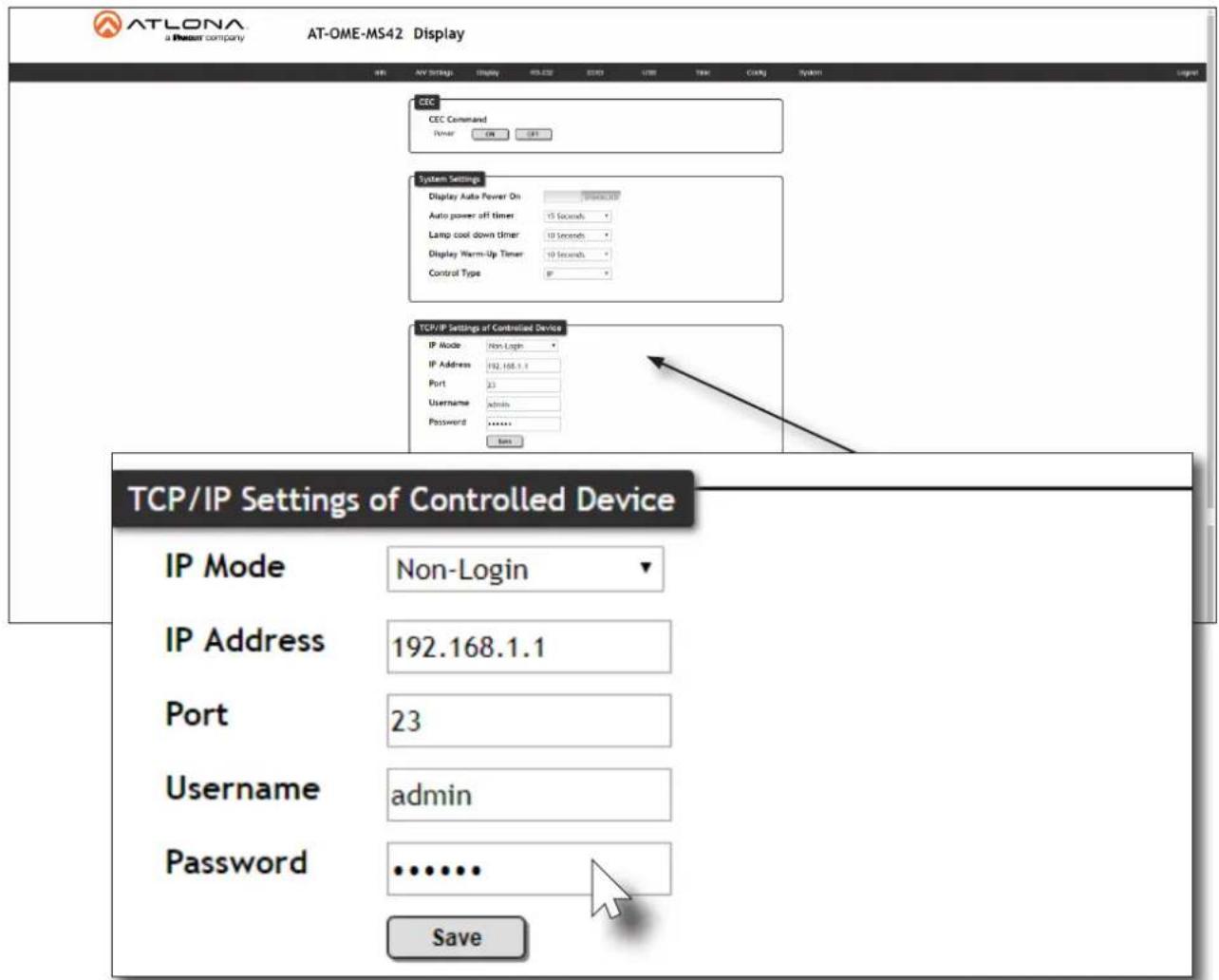

ATLONA a Paser company AT-OME-MS42 Display MB AV Settings Displer RS-250 EIO USB Time Curis System CEC CEC Command Power ON CEC System Settings Display Auto Power Disabled Auto power off timer F3 Seconds Lamp cool down timer 10 Seconds Display Warm-Up Timer 10 Seconds Control Type CEC Occupancy Sensor Control IP Address: Port: 1000 AM

CEC

CEC Command

Click the ON button to send the power-on command to the display device. Click the OFF button to toggle the power state to off.

Consumer Electronics Control (CEC): Atlona has confirmed proper CEC functionality with several current models of Samsung, Panasonic, and Sony displays. However, it is not guaranteed that CEC will work with all displays. Many manufacturers do not support the CEC "off" command, and older displays use proprietary commands. Atlona only supports displays that use the CEC command structure defined in HDMI 1.2a. It is recommended that dealers request an evaluation product from Atlona, before designing a system using the CEC protocol. If this is not possible, then other control methods will need to be considered, in order to control displays using Atlona products.

System Settings

Display Auto Power On

Select ENABLED from this drop-down list to allow the AT-OME-MS42 to send the power-on command to the display when an A/V signal is detected. When the AV signal is no longer present, the AT-OME-MS42 will send the power-off command to the display. If this feature is not desired, then set to DISABLED. This feature is DISABLED by default.

Auto power off timer

Sets the time interval before the command to power-off the display is sent, when an A/V signal is no longer present. The default value is 15 seconds. Available values are 15 seconds to 15 minutes.

Lamp cool down timer

Sets the projector lamp cool-down timer, in seconds. This value specifies the time interval that must elapse, after the display control "off" command is sent, before the display "power on" command can be sent. This feature is used to prevent the projector from missing a "power on" command while the lamps are cooling. Available values are 10 seconds to 15 minutes. The default setting is 10 seconds.

Configuration and Management Interfaces

Display Warm-Up Timer

Sets the projector lamp warm-up timer, in seconds. During the warm-up interval, the AT-OME-MS42 will not start the auto power-off timer. This value specifies the time interval that must elapse, after the display control “on” command is sent, before the display “power off” command can be sent. This feature is used to prevent a “power off” command from being sent while the lamps are warming up. Available values are 10 seconds to 300 seconds. The default value is 10 seconds.

Control Type

Sets the control protocol for the connected display. Click this drop-down to select the control type. Available settings are CEC, IP, and RS-232. By default, CEC is selected for control of the display. IP and RS-232 can also be selected. When IP or RS-232 are selected, more fields are available. Refer to Solution Setup and Configuration Guide (page 64) for more information.

Occupancy Sensor Control

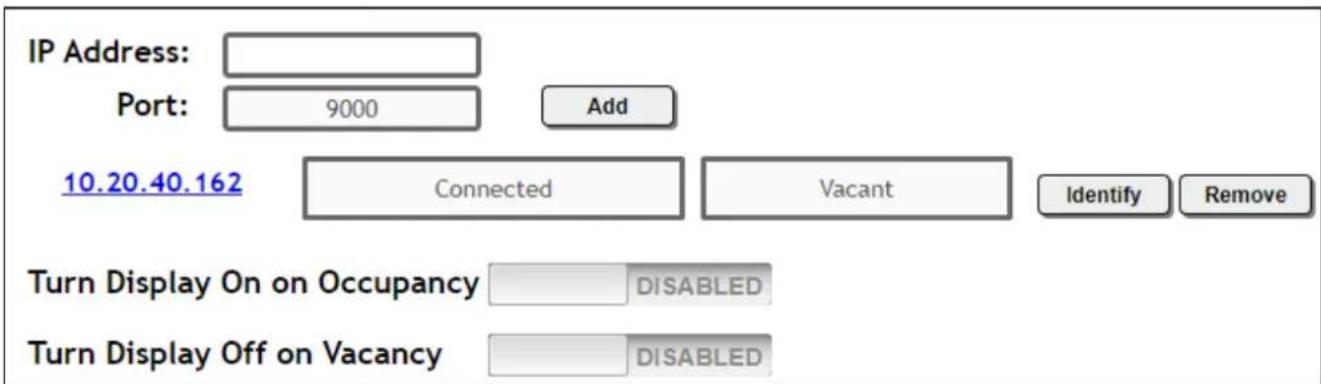

The AT-OME-MS42 supports the AT-OCS-900N occupancy sensor. This feature is supported on firmware version 1.1.2 and greater. Refer to Integration with the AT-OCS-900N (page 77) for instructions on connecting to the occupancy sensor.

IP Address

Enter the IP address of the AT-OCS-900N in this field.

Port

The port number used to communicate with the AT-OCS-900N.

Add

Click this button to add the AT-OCS-900N to the AT-OME-MS42. Up to three occupancy sensors are supported.

Configuration and Management Interfaces

RS-232 Page

This page provides settings for both local and HDBaseT RS-232 control.

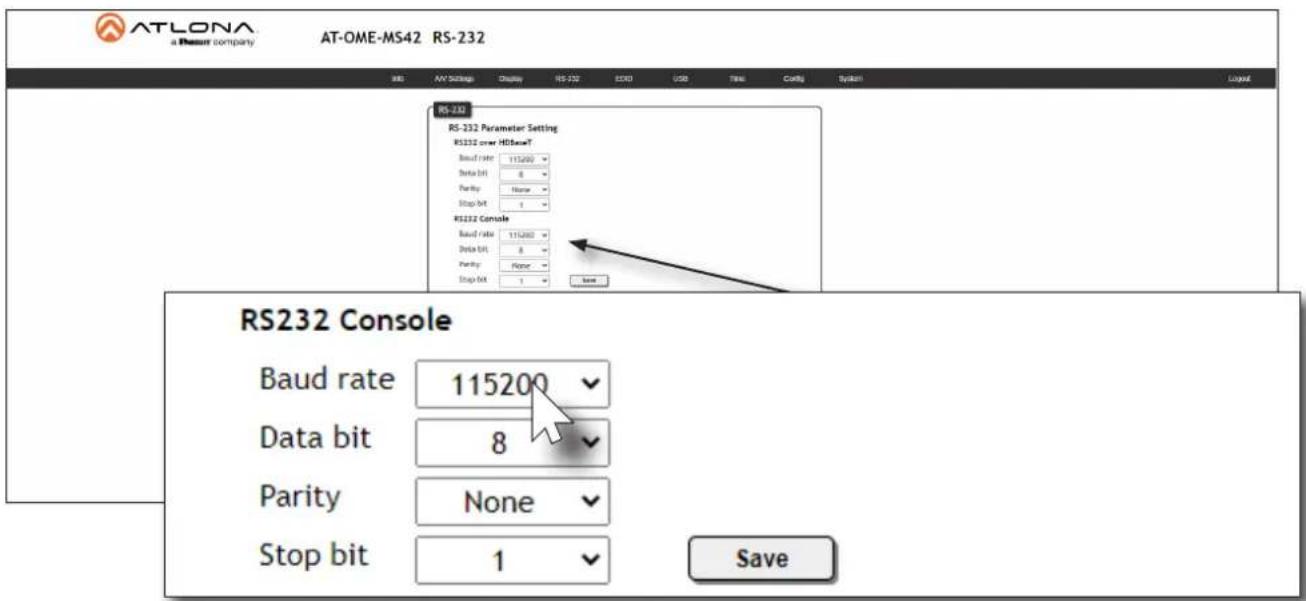

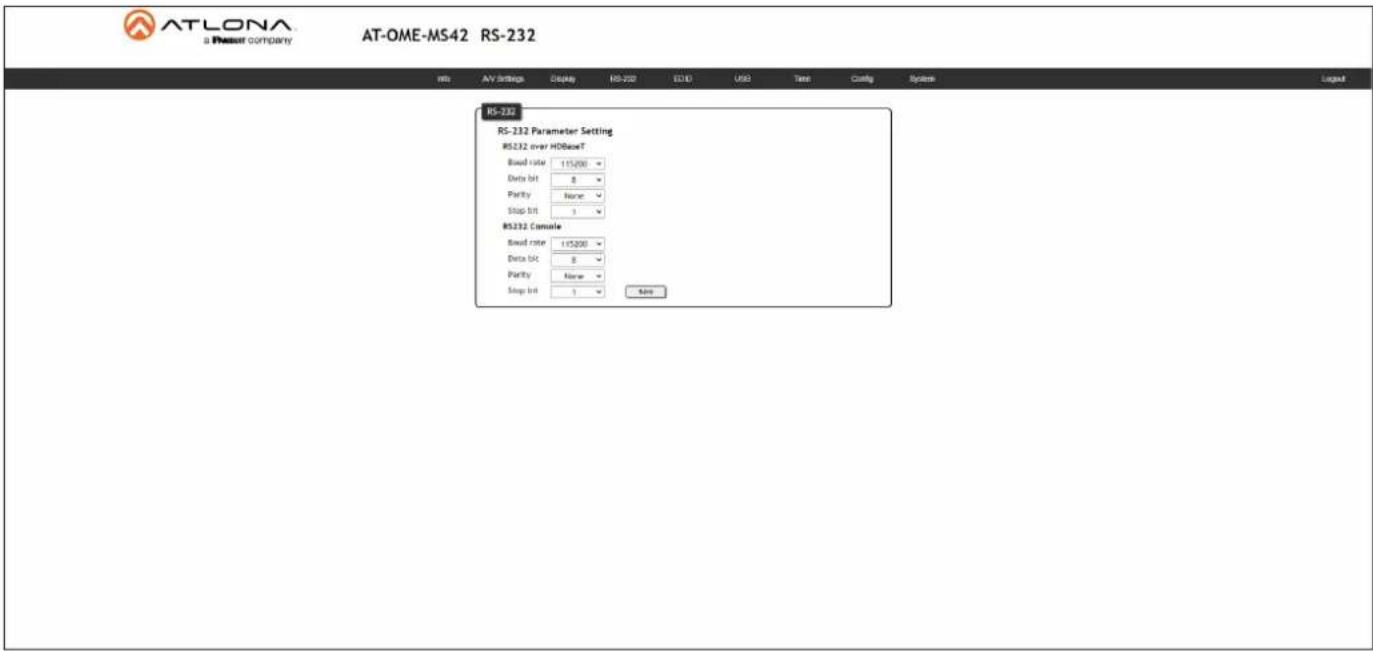

ATLONA a ProusiR company AT-OME-MS42 RS-232 RS-232 RS-232 Parameter Setting RS232 over HDBowT Band rate 115/200 Data bit 8 Parity None Stop bit 3 RS232 Console Band rate 115/200 Data bit 8 Parity None Stop bit 1 New

RS-232

RS-232 Parameter Setting

RS-232 settings for local or HDBaseT RS-232 control.

• RS232 over HDBaseT

If the AT-OME-MS42 is connected to a device such as the AT-OME-EX-RX, the drop-down list boxes will be disabled and the HDBaseT baud rate will be locked at 115200. If the AT-OME-MS42 is connected to another HDBaseT device, such as the AT-UHD-CLSO-824, each of these drop-down list boxes can be set to the baud rate of the HDBaseT RS-232 settings on the corresponding device. Refer to Solution Setup and Configuration Guide (page 64) for more information.

- RS232 Console

Sets the RS-232 port settings used for local control by a third-party control system.

Setting Description
Baud rate Sets the baud rateThe following options are available: 2400, 9600, 19200, 38400, 56000, 57600, 115200.
Data bit Sets the number ofdata bits used to represent each character of data. The following options are available: 7 or 8.
Parity Sets the parity bit, which can be included with each character to detect errors during the transmission of data. The following options are available: None, Odd, or Even.
Stop bit Sets the stop bit.Stop bits are sent at the end of each character, allowing the client to detect the end of a character stream. The following options are available: 1 or 2.

- Save

Click this button to commit all changes.

Configuration and Management Interfaces

EDID Page

This page provides controls for selecting and storing EDID data. Refer to EDID Management (page 27) for more information.

ATLONA a Resour company AT-OME-MS42 EDID EDID Settings USIC Connected Display DisplayPort Connected Display HDI1 Connected Display HDI3 Connected Display EDID Saved Memory 1: save from Select Save Memory 2: save from Select Save Memory 3: save from Select Save

EDID Settings

Click these drop-down lists to select the desired EDID to be used for each input. The following EDID presets are available. When selecting an EDID, make sure that the display/sink device is capable of supporting the resolution/timing. If the sink device is not able to support a feature, then the source will not be displayed. Selecting the Connected Display EDID will provide the most compatible settings for most displays. In addition, three memory locations are available for storing captured EDID data. If an EDID is stored in a memory location, it will also be added to the list available EDID selections.

EDID listing
Connected Display 1280x800 2CH
3840x2160 2CH - NO HDR Support 1024x768 2CH
1920x1200 2CH Memory_1
1920x1080 2CH Memory_2
1366x768 2CH Memory_3

EDID Saved

The AT-OME-MS42 provides three memory locations used for storing captured EDID data. Click these drop-down lists to select and store the external EDID.

Configuration and Management Interfaces

USB Page

This page provides controls for setting the behavior of USB host switching. Refer to USB Modes (page 32) for more information.

ATLONA a Power company AT-OME-MS42 USB USB Host Follow USB ○ Manual ○ Follow Video USB C - USB C - DisplayPort 100.2 - HDWH 100.2 - HDWH 100.2 - HDHS (IX) 100.2 -

USB Host

Follow USB

This is the default mode and functions similar to auto-switching for video. In this mode, the AT-OME-MS42 will detect which USB ports are connected to a host device. If both USB host ports are connected to host devices, then the AT-OME-MS42 will set the last-connected USB host device as the "active" USB host.

Manual

This mode provides manual selection of the USB host port to be used.

Follow Video

In this mode, each video input can be assigned to either USB 1 or USB 2 host ports. This mode locks the USB host device to the desired video input. Each host device will have access to the same USB devices, when video switching occurs.

Configuration and Management Interfaces

Time Page

This page provides controls for setting the internal clock of the AT-OME-MS42. Refer to Setting the System Date and Time (page 37) for more information.

ATLONA a Resour company AT-OME-MS42 Time Time SNTP Configuration GNT (GNT) Greenworth New Time (Mobile & Edinburgh & London & London) NTP Server New geogstar.com Server Time This, 01 May 2022 00:20:38 GMT Daylight Saving Time Configuration Start Time December Final Time Thursday 01 1 10 End Time December Third Time Thursday 01 1 10 Adjust Time 01 1 09 Save

Time

SNTP Configuration

Simple Network Time Protocol (SNTP) is a simplified version of the Network Time Protocol (NTP), and can be used to set the time for the unit. SNTP is used to receive time services from other servers. However, it cannot be used to provide time servers to other systems.

• GMT

Click this drop-down list to select the Greenwich Mean Time (GMT) for the current location.

- NTP Server

Enter the desired NTP server address in this field. After entering the NTP server address, click the Sync button.

- Sync button

Click this button to sync with the server, after entering the desired NTP server address.

- Save button

Click this button to commit changes to the NTP Server field. If a save is not performed, then the NTP server address will not be saved.

- Server Time

This field will display the current time.

Daylight Saving Time Configuration

Click the toggle switch button to ENABLE or DISABLE Daylight Saving Time (DST). This feature is disabled by default.

- Start Time

Click each of these drop-down lists to select the month, week, day, and time (HH:MM) when DST begins.

- End Time

Click each of these drop-down lists to select the month, week, day, and time (HH:MM) when DST ends.

- Adjust Time

Click these drop-down lists to set the hour and minute to adjust the clock for DST.

- Save

Click this button to commit all changes.

Configuration and Management Interfaces

Config Page

The Config page provides management of the administrator password. The administrator username ("admin") cannot be changed. Refer to Password Management (page 40) for more information.

ATLONA a Passer company AT-OME-MS42 Config Configuration Web & Telnet Login Settings Old Username: admin Old Password: New Password: Confirm New Password: None Next

Configuration

Old Username

This field cannot be changed. "admin" is the administrator user.

Old Password

Enter the current password for the "admin" username in this field. The default password is "Atlona".

New Password

Enter the new password for the "admin" username in this field.

Confirm New Password

Verify the new password by retyping it in this field.

Save

Click this button to commit all changes.

Configuration and Management Interfaces

System Page

The System page is divided into two sections: Network and System. The Network section allows configuration of the IP settings of the AT-OME-MS42. The System section provides controls for resetting the AT-OME-MS42 to factory-default settings and updating the firmware.

ATLONA a Pessur company AT-OME-MS42 System Info AV Settings Display RS-232 COLD USD Tsc Config System Network Network MAC Address: 38-18-00-00-G2-17 IP Audio: DHCP IP: 9.35-4.199 Network: 268,202,203.0 Save Gateway: 9.35-4.199 Telnet Port: 0 Telnet Login Mode TCP Telnet Timeout Never Hostname OWEMU42-00X217 Save B02.1x Security Authentication: Disable Save Cancel System Front Panel Lock 104.0000 Reset to Default Factory Delete Firmware Update Choose File: No 3x Chaser Update Velocity Update Choose File: No 3x Chaser Update Log File Download Download

Network

MAC Address

This field displays the MAC address of the AT-OME-MS42.

IP Mode

Click this toggle switch to set the AT-OME-MS42 to DHCP or STATIC IP mode. The default setting is DHCP mode. Refer to Changing the Network IP Mode (page 41) for more information.

• IP

Enter the IP address of the AT-OME-MS42 in this field. This field will only be available when IP Mode is set to STATIC IP. The default static IP address of the AT-OME-MS42 is 192.168.1.254.

- Netmask

Enter the subnet mask of the AT-OME-MS42 in this field. This field will only be available when IP Mode is set to STATIC IP.

- Gateway

Enter the gateway (router) IP address in this field. This field will only be available when IP Mode is set to STATIC IP.

- Telnet Port

Enter the desired Telnet port (for Telnet sessions) in this field. The default port is 23. Refer to Changing the Telnet Port (page 42) for more information.

Configuration and Management Interfaces

Telnet Login Mode

Click this toggle switch to set the Telnet Login Mode to ON or OFF. If set to ON, then login credentials (same as web server) will be required when starting a Telnet session.

Telnet Timeout

Click this drop-down list to select the timeout interval, in seconds. Range is: 1 to 10000 seconds, or Never. Refer to Adjusting Telnet Timeout (page 44) for more information.

Hostname

Displays the hostname of the AT-OME-MS42, as it would appear on a network. To change the hostname, type the new hostname in this field and click the Save button. Refer to Setting the Host Name (page 45) for more information.

Authentication

Click this drop-down list to select the authentication method when using the 802.1x security protocol. Refer to 802.1X Security (page 46) for more information.

System

Front Panel Lock

Click this toggle switch to LOCK or UNLOCK the AT-OME-MS42. Refer to Locking / Unlocking the Front Panel (page 48) for more information.

Reset to Default

Click the Factory Default button to reset the AT-OME-MS42 to factory-default settings. Refer to Resetting to Factory-Default Settings (page 49) for more information.

Firmware Update

Click the Choose File button to begin the firmware update procedure. Refer to Updating the Firmware (page 79) for more information.

Velocity Update

Click the Choose File button to upgrade the Velocity database in the AT-OME-MS42.

Log File Download

Click the Download button to download the log to the local computer. This log can be used by technical support engineers to assist in troubleshooting any issues.

Solution Setup and Configuration Guide

The following sections provide step-by-step instructions for the following topics:

  • Display Control
  • Control Mode

Display Control

The AT-OME-MS42 provides various methods for display control: CEC, IP, and RS-232. No external control system is required. Each of these methods will be covered in this section.

Atlona AT-OME-RX11 - Display Control - 1

IMPORTANT: The AT-OME-MS42 Switching Mode must be set to either Mirrored or Matrix Mode w/ static route. Display control is not supported under Matrix Mode. Refer to Switching Modes (page 16) for more information.

CEC Control

Consumer Electronics Control (CEC) is the simplest method when working with a display. The DISPLAY button, on the front panel of the AT-OME-MS42, can be programmed to toggle power on the display, allowing for convenient remote control of the display device. Note that the display must have CEC enabled to receive CEC messages.

Consumer Electronics Control (CEC): Atlona has confirmed proper CEC functionality with several current models of Samsung, Panasonic, and Sony displays. However, it is not guaranteed that CEC will work with all displays. Many manufacturers do not support the CEC “off” command, and older displays use proprietary commands. Atlona only supports displays that use the CEC command structure defined in HDMI 1.2a. It is recommended that dealers request an evaluation product from Atlona, before designing a system using the CEC protocol. If this is not possible, then other control methods will need to be considered, in order to control displays using Atlona products.

  1. Connect an HDMI cable from the HDMI OUT port on the AT-OME-MS42 to an HDMI input on the display device.

to display IP MODE USB I USB OUT USB HUB A380101 IP-012 HDMI 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90

  1. Enable CEC on the display device. Refer to the documentation for the display device. It should be noted that different manufacturers will identify CEC with their own brand name. Refer to the table below.
ManufacturerCEC Designation
HitachiHDMI-CEC
LGSIMPLINK
PhilipsEasyLink
SamsungAnyNet+
SonyBRAVIA Sync
ToshibaCE Link / REGZA Link
VisioHDMI-CEC

Solution Setup and Configuration Guide

  1. Login to the web server. Refer to Introduction to the Web Server (page 50).
  2. Click A/V Settings in the menu bar.
  3. Verify that the Switching Mode is set to Mirrored. Display control is not supported under Matrix Mode.

ATLONA a Resource COMPANY AT-OME-MS42 A/V Settings Info AV Settings Display RGB 250 EXCEL USD Time Control System Debug Video Information Matrix Mode: To make any input to another set, or both output please select "Matrix Mode" based the drop-off below and this will enable switching using published data. Matrix Mode w/static router This mode is designed for applications where user needs to locate a specific source to a specific output personality, while the other output is enabled for auto switching (the matrix mode) input is available. Applications: a. Video Conferencing, where you want any of the sources to be leading into the code-based input and the combined code output to be shown on the main display. b. Specific source, e.g., local PC to always be shown on a specific display and excluded from auto switching page on the other output. This requires that you could have 2 images within one channel to lock PC, always and another is any of the wind links auto switching. Note: Show a module output option is selected, the display control will be larger work. Switching Mode Mirrored Input Selection Mirrored Auto Switch Matrix Mode Auto Switch mode Matrix mode w/static router Feedback Input Previous Scaler Mirrored Mirrored Matrix Mode Matrix Mode w/static route Switching Mode Input Selection Auto Switch Auto Switch mode ON

  1. Click Display in the menu bar.
  2. Under System Settings, click the Control Type drop-down list and select CEC. This is the default control method.

ATLONA a Resour company AT-OME-MS42 Display File AV Settings Display MS-232 ECHO USB Time Config System CEC CEC Command Power OK OFF System Settings Display Auto Power On Auto power off timer 15 Seconds Lamp coal down timer 10 Seconds Display Warm-Up Timer 10 Seconds Control Type CEC RS-232 IP CEC Control Type CEC RS-232 IP CEC

Solution Setup and Configuration Guide

  1. Under the CEC section, near the top of the page, test the power-on and power-off commands by clicking the ON and OFF buttons, respectively. The display should power-on and power-off when clicking these buttons.

CEC CEC Command Power ON OFF

If the display does not respond, check the following:

  • Verify that CEC is enabled on the display device.
  • Verify the integrity of the HDMI cable. Try connecting a different HDMI cable between the AT-OME-MS42 and the display device.
  • Try connecting the HDMI cable to a different HDMI input on the display device.

Solution Setup and Configuration Guide

Using RS-232

  1. Connect a serial cable from the RS-232 port on the AT-OME-MS42, to the RS-232 port on the display. The included 3-pin captive screw connector should be wired as shown.

to display USB HUB AUDIO OUT RS-232 RX TX HDMI L R HDMI OUT HDBaseT OUT LAN DC 24V

AT-OME-MS42 GPIO GPIO GPIO Display

  1. Login to the web server. Refer to Introduction to the Web Server (page 50).
  2. Click A/V Settings in the menu bar.
  3. Verify that the Switching Mode is set to Mirrored. Display control is not supported under Matrix Mode.

Switching Mode Input Selection Auto Switch Auto Switch mode ON Mirrored Mirrored Matrix Mode Matrix Mode w/static route

  1. Click RS-232 in the menu bar.
  2. Set the RS-232 settings for the display (sink) device, under the RS232 Console section. These settings must match the device settings for the display. Refer to the User Manual of the display device for more information.

ATLONA a Treasur company AT-OME-MS42 RS-232 RS-232 RS-232 Parameter Setting RS232 over HDSameT Baud rate 115200 Data bit 6 Parity None Stop bit 1 RS232 Console Baud rate 115200 Data bit 8 Parity None Stop bit 1 Save RS232 Console Baud rate 115200 Data bit 8 Parity None Stop bit 1 Save Data bit 8 Parity None Stop bit 1 Save Data bit 8 Parity None Stop bit 1 Save Data bit 8 Parity None Stop bit 1 Save

Solution Setup and Configuration Guide

  1. Click Display in the menu bar.
  2. Click the Control Type drop-down list and select RS-232.

ATLONA a Pssent company AT-OME-MS42 Display OK AV Settings Display RS-232 ECO USB Timer Config System CEC CEC Command Power ON OFF System Settings Display Auto Power On 10 Seconds Auto power off timer 15 Seconds Lamp cool down timer 10 Seconds Display Warm-Up Timer 10 Seconds Control Type CEC RS-232 P CEC Control Type CEC RS-232 IP CEC

  1. Click the RS232 Mode drop-down list and select Local RS232 Terminal.

Control Type RS-232 RS232 Mode HDBaseT RS232 Local RS232 Terminal HDBaseT RS232

  1. Scroll down to the bottom of the page and locate the RS-232 / IP commands section.
  2. Click the Manufacturer drop-down list and select the manufacturer of the device that is being controlled. In the example below, Samsung is selected.

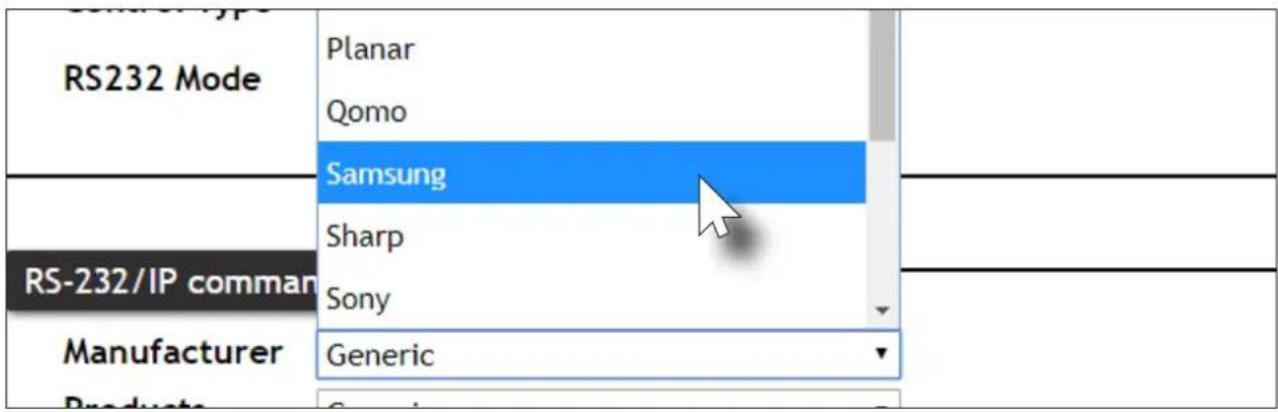

RS232 Mode Planar Qomo Samsung Sharp Sony RS-232/IP comman Manufacturer Generic

Solution Setup and Configuration Guide

Atlona AT-OME-RX11 - Solution Setup and Configuration Guide - 1

NOTE: If the manufacturer is not listed in the drop-down list, then select Generic. When Generic is selected, the Products and Model drop-down lists will only list Generic.

  1. Continue fine-tuning the device selection by clicking the Products and Model drop-down lists. Once all fields have been set to the proper values, the AT-OME-MS42 will populate the command fields with the proper values, based on the selected device.

  2. Some devices may require that the command be sent multiple times before an acknowledge message is sent back to the AT-OME-MS42. Refer to the User Manual for the display device for more information. If the command must be repeated, continue with the following steps. Otherwise, skip to step 14.

a. Under Repeat Command, click the Status toggle switch to the ENABLE position.

b. Click the Times drop-down list and select the number of times which the command must be sent to the device, before an acknowledge message is returned. The available values are 2, 3, and 4.

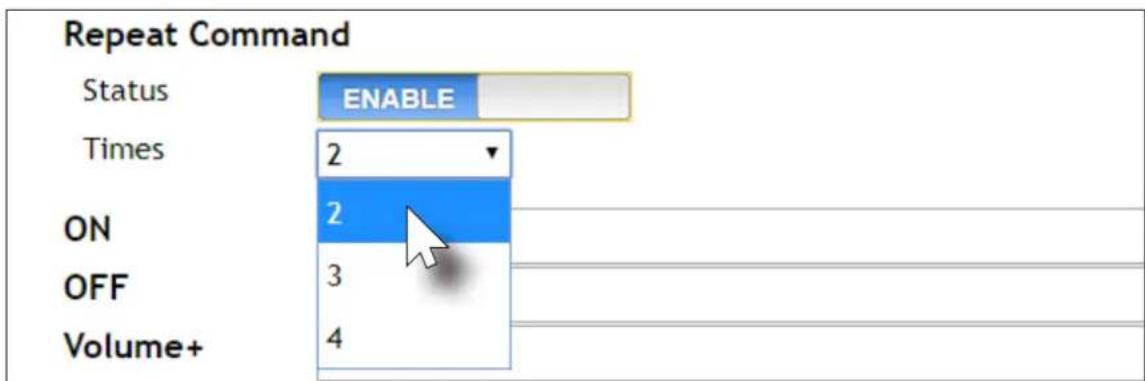

Repeat Command Status ENABLE Times 2 ON 2 OFF 3 Volume+ 4

  1. If Generic was selected as the manufacturer, in step 11, then manually enter the required strings for each operation. Refer to the following for information on formatting command strings.

HEX Command Strings

a. Enter the hexadecimal command string is the correct field. An example power-on command for a display might be:

\xBE\xEF\x03\x06\x00\xBA\xD2\x01\x00\x00\x60\x01\x00\x0D

This command would be entered under the Set command field, under ON. Consult the documentation for the display for the correct command strings.

b. Make sure the command string is terminated correctly. In most cases, a CR (carriage return) should be specified. In the example above, "\x0D" is the hexadecimal value for a carriage return.

ASCII Command Strings

a. Enter the ASCII command string is the correct field. An example power-on command for a display might be: PWON

This command would be entered under the Set command field, under ON. Consult the documentation for the display for the correct command strings.

  1. Click the Send button to verify that each command works properly. If not, check the values entered for each command.
  2. Click the Save button to commit all changes.

Solution Setup and Configuration Guide

Using IP

Instead of using a serial cable to send commands, this method uses an Ethernet cable to send commands from the AT-OME-MS42 to the display device over IP network.

  1. Connect an Ethernet cable from the LAN port on the AT-OME-MS42, to the LAN port on the display.

to display USB HUB AUDIO OUT RS 232 RX TX HDMI L R HDMI OUT HDBaset OUT LAN DC 24V

  1. Login to the web server. Refer to Introduction to the Web Server (page 50).
  2. Click A/V Settings in the menu bar.
  3. Verify that the Switching Mode is set to Mirrored. Display control is not supported under Matrix Mode.

Switching Mode Input Selection Auto Switch Auto Switch mode ON Fallback Input Previous Mirrored Mirrored Matrix Mode Matrix Mode w/static route

  1. Click Display in the menu bar.
  2. Under System Settings, click the Control Type drop-down list and select IP.

Control Type CEC RS-232 IP CEC

Solution Setup and Configuration Guide

  1. Click the IP Mode drop-down list to select the login mode for the display device.

  2. If set to Login, then a username and password will be required to access the Telnet session.
    • If set to Non-Login, then no credentials will be required for the Telnet session.

  3. Locate the TCP/IP Settings of Controlled Device section and enter the following information:

a. IP Address

Enter the IP address of the device to be controlled.

b. Port

Enter the port in this field.

c. Username

This field is only required if IP Mode is set to Login. Enter the username in this field.

d. Password

This field is only required if IP Mode is set to Login. Enter the required password in this field.

ATLONA a Theater company AT-OME-MS42 Display CEC CEC Command Power ON Cancel System Settings Display Auto Power On Auto power off timer 15 seconds Lamp cool down timer 10 seconds Display Warm-Up Timer 10 seconds Control Type IP TCP/IP Settings of Controlled Device IP Mode Non-Login IP Address 192.168.1.1 Port 33 Username admin Password ****** Bats TCP/IP Settings of Controlled Device IP Mode IP Address Port Username Password Non-Login IP Address 192.168.1.1 Port 33 Username admin Password ****** Save

Solution Setup and Configuration Guide

  1. Scroll down to the bottom of the page and locate the RS-232 / IP commands section.

  2. Click the Manufacturer drop-down list and select the manufacturer of the device that is being controlled. In the example below, Samsung is selected.

RS232 Mode Planar Qomo Samsung Sharp Sony RS-232/IP comman Manufacturer Generic

Atlona AT-OME-RX11 - Solution Setup and Configuration Guide - 2

NOTE: If the manufacturer is not listed in the drop-down list, then select Generic. When Generic is selected, the Products and Model drop-down lists will only list Generic.

  1. Continue fine-tuning the device selection by clicking the Products and Model drop-down lists. Once all fields have been set to the proper values, the AT-OME-MS42 will populate the command fields with the proper values, based on the selected device.
  2. Some devices may require that the command be sent multiple times before an acknowledge message is sent back to the AT-OME-MS42. Refer to the User Manual for the display device for more information. If the command must be repeated, continue with the following steps. Otherwise, skip to step 13.

a. Under Repeat Command, click the Status toggle switch to the ENABLE position.
b. Click the Times drop-down list and select the number of times which the command must be sent to the device, before an acknowledge message is returned. The available values are 2, 3, and 4.

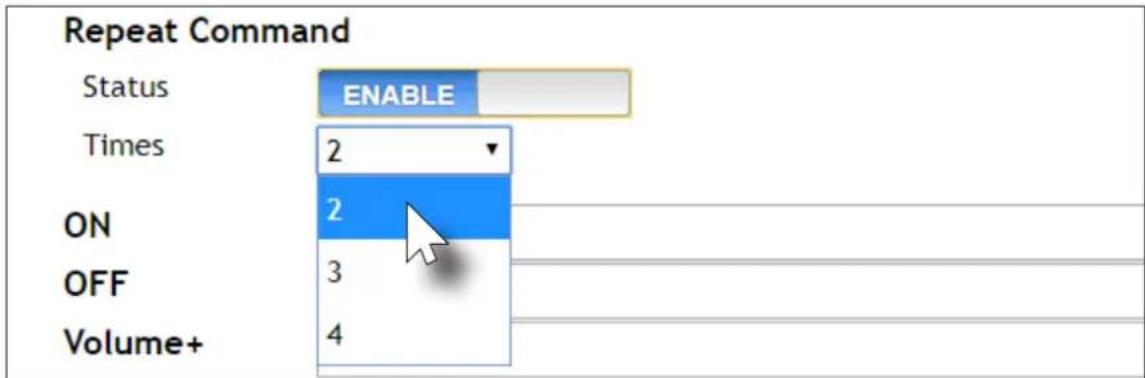

Repeat Command Status ENABLE Times 2 ON 2 OFF 3 Volume+ 4

  1. If Generic was selected as the manufacture, in step 10, then manually enter the required strings for each operation. Refer to the following for information on formatting command strings on the next page.

Solution Setup and Configuration Guide

HEX Command Strings

a. Enter the hexadecimal command string is the correct field. An example power-on command for a display might be:

xBExEFx03x06x00xBAxD2x01x00x00x60x01x00x0D

This command would be entered under the Set command field, under ON. Consult the documentation for the display for the correct command strings.

b. Make sure the command string is terminated correctly. In most cases, a CR (carriage return) should be specified. In the example above, × 0 is the hexadecimal value for a carriage return.

ASCII Command Strings

a. Enter the ASCII command string is the correct field. An example power-on command for a display might be: PWON

This command would be entered under the Set command field, under ON. Consult the documentation for the display for the correct command strings.

  1. Click the Send button to verify that each command works properly. If not, check the values entered for each command.
  2. Click the Save button to commit all changes.

Solution Setup and Configuration Guide

Pass-through mode

In pass-through mode, RS-232 commands are sent to the AT-OME-MS42 from a control system, transmitted over HDBaseT to the receiver unit, and then to the display (sink) device.

  1. Connect the RS-232 cable between the control system and the AT-OME-MS42.
  2. Connect an Ethernet cable from the HDBaseT OUT port to a receiver.
  3. Connect an RS-232 cable between the display (sink) and the receiver.
  4. Refer to the AT-OME-MS42 Applications Programming Interface for a list of available commands.

Atlona AT-OME-RX11 - Pass-through mode - 1

Solution Setup and Configuration Guide

  1. Login to the web server. Refer to Introduction to the Web Server (page 50).
  2. Click RS-232 in the menu bar.
  3. Set the RS-232 settings for the display (sink) device, under the RS232 over HDBaseT section. These settings must match the device settings for the display. Refer to the User Manual of the display device for more information.

ATLONA a Pheasant company AT-OME-MS42 RS-232 RS-232 RS-232 Parameter Setting RS232 over HDBaseT Baud rate 115200 Data bit 8 Parity None Stop bit 1 RS232 Console Baud rate 115200 RS-232 RS-232 Parameter Setting RS232 over HDBaseT Baud rate 115200 Data bit 8 Parity None Stop bit 1 RS232 Console Baud rate 115200 Data bit 8 Parity None Stop bit 1 Save

  1. Click the Save button to commit changes.
  2. RS-232 pass-through configuration is complete. The control system can now be used to send commands to the connected display device. Use the following API command to send a command to the display (sink) device, where display_command is the command data to send:

RS232Zone[display_command\x0d]

\x0d (carriage return) should only be added to end of the string if the sink device is expecting this character.

Solution Setup and Configuration Guide

Control mode

In control mode, RS-232 commands are sent from a computer or control system (DTE) to the AT-OME-MS42 (DCE). This method allows direct control of the switch for routing, IP configuration, powering-on / powering-off and other functions.

Atlona AT-OME-RX11 - Control mode - 1

IMPORTANT: Both the RS-232 port on the AT-OME-MS42 and on the control system must be set to the same baud rate, in order to communicate properly.

  1. Connect the RS-232 cable between the control system and the AT-OME-MS42.
  2. Set the baud rate of the computer/control system to the same baud rate. If the AT-OME-MS42 and the control system are not set to the same baud rate, then the AT-OME-MS42 will not respond to RS-232 commands.
  3. Refer to the AT-OME-MS42 Applications Programming Interface for a list of available commands.

Atlona AT-OME-RX11 - Control mode - 2

Solution Setup and Configuration Guide

Integration with the AT-OCS-900N

Atlona AT-OME-RX11 - Integration with the AT-OCS-900N - 1

NOTE: The AT-OME-MS42 supports a maximum of three AT-OCS-900N devices.

The following provides instructions on adding the AT-OCS-900N occupancy sensor as a device. The AutoSwitch feature on the AT-OME-MS42 does not need to be enabled for this to work.

Atlona AT-OME-RX11 - Integration with the AT-OCS-900N - 2

IMPORTANT: A username and password must be configured on the AT-OCS-900N before using the device with the AT-OME-MS42.

  1. Connect the AT-OCS-900N to the same network as the AT-OME-MS42. Refer to the AT-OCS-900N User Manual for more information.
  2. Login to the web server of the AT-OME-MS42.
  3. Click Display in the top menu bar.
  4. Under the Occupancy Sensor Control section, enter the IP address of the AT-OCS-900N in the IP Address field.

ATLONA e Resour company AT-OME-MS42 Display File Alt Settings Display MS-MS42 ECD3 USB Time Coding Systems CEC CEC Command Power: OFF System Settings Display Auto Power Disabled Auto power off timer 15 Seconds Lamp cool down timer 10 Seconds Display Warm-Up Timer 10 Seconds Control Type CEC Occupancy Sensor Control IP Address: 10.20.40.162 Port: 9000 IP Address: 10.20.40.162 Port: 9000 Add

  1. Click the Add button. If the correct IP address was entered and the AT-OCS-900N is found, additional information will be displayed under the Occupancy Sensor Control section, as shown on the next page.

Solution Setup and Configuration Guide

IP Address: Port: 9000 Add 10.20.40.162 Connected Vacant Identify Remove Turn Display On on Occupancy DISABLED Turn Display Off on Vacancy DISABLED

  1. Click the Turn Display On on Occupancy toggle to enable or disable this feature. When enabled, the toggle switch will display as ENABLED and the occupancy sensor will power-on the display when the room is occupied.
  2. Click the Turn Display Off on Vacancy toggle to enable or disable this feature. When enabled, the toggle will display as ENABLED and the occupancy sensor will power-off the display when the room is no longer occupied.
  3. Click the Identify button to identify the occupancy sensor. This feature is useful when multiple sensors are connected.

Atlona AT-OME-RX11 - Solution Setup and Configuration Guide - 2

IMPORTANT: When adding an occupancy sensor, it is recommended that a static IP address is assigned to the occupancy sensor. DHCP is not recommended.

  1. Click the Remove button to delete a sensor from the Sensors list.
  2. Setup is complete.

Appendix

Updating the Firmware

Using the Web Server

Requirements:

  • AT-OME-MS42

  • Firmware file
    • Computer on the same network as the AT-OME-MS42

  • Download the firmware file from atlona.com and extract the contents of the .zip file to a folder on the computer desktop.

  • Connect an Ethernet cable from the computer, containing the firmware, to the same network where the AT-OME-MS42 is connected.

  • Login to the web server. Refer to Introduction to the Web Server (page 50).

  • Click System in the menu bar.

ATLONA a Resour company AT-OME-MS42 System AV Settings Display MS-250 ISO/1 USB Time Coding System Network Network MAC Address: 88.98.80.00.03.1B IP Mode: 161007 IP: 88.98.80.1B Network: 88.98.80.2 Gateway: 88.98.80.3 Telnet Port: 2 Telnet Login Mode Telnet Timeout Never Hostname On/OIS42-00021B Base BO2.1x Security Authentication: Disable Save Cancel Help System Front Panel Lock ON/OIS42-00021B Reset to Default Carryer Default Firmware Update Choose File for the chosen 100% Velocity Update Choose File for the chosen 100%

  1. Click the Choose File button, under the Firmware Update section.
  2. Browse to the location of the firmware file, select it, and click the Open button.
  3. Click the Update button, under the Firmware Update section. The following message box will be displayed.

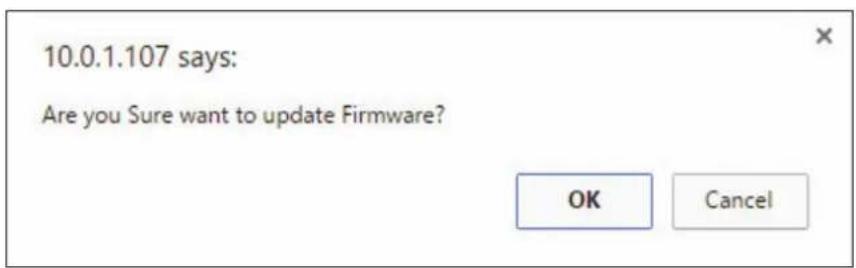

10.0.1.107 says: Are you Sure want to update Firmware?

Appendix

  1. Click the OK button to begin the firmware update process. Click the Cancel button to cancel the process.
  2. After the firmware update process is complete, the Login screen will be displayed.

ATLONA a Resort company. AT-OME-MS42 Login Login Username: Password: Server Login ID: 01361785

Appendix

Using USB

Requirements:

  • AT-OME-MS42

  • Firmware file
    • USB-A to USB-B cable

  • Download the firmware file from atlona.com and extract the contents of the .zip file to a folder on the computer desktop.

  • Power on the AT-OME-MS42.
  • Connect a USB-A to USB-B cable to the PC that contains the firmware file.
  • Press and hold the HDMI OUT button while connecting the USB cable from the PC, to the USB HOST port on the AT-OME-MS42.

HDMI OUT button ATLONA® USB C DP HDMI 3 HDMI 4 USB C DP HDMI 3 HDMI 4 AT-OME-MS42 PWR LINK OMEGA™ MULTI-FOMA USB HOST port ——— HDMI OUT ———— HDBaseT OUT DISPLAY ——— IP MODE — ——— RESET —— 1——— USB HOST —— 2 ——— ——— USB HUB ———— AUDIO OUT + + + - R5 232 RX TX + L R HDMI 1 2 3 4 DP INUSB C IN HDMI OUT HDB HDMOUNT LAN DC 24V

  1. Release the HDMI OUT button when the USB UPDATE folder is displayed on the PC.

If this folder is not displayed, automatically, select the USB UPDATE drive from Windows Explorer.

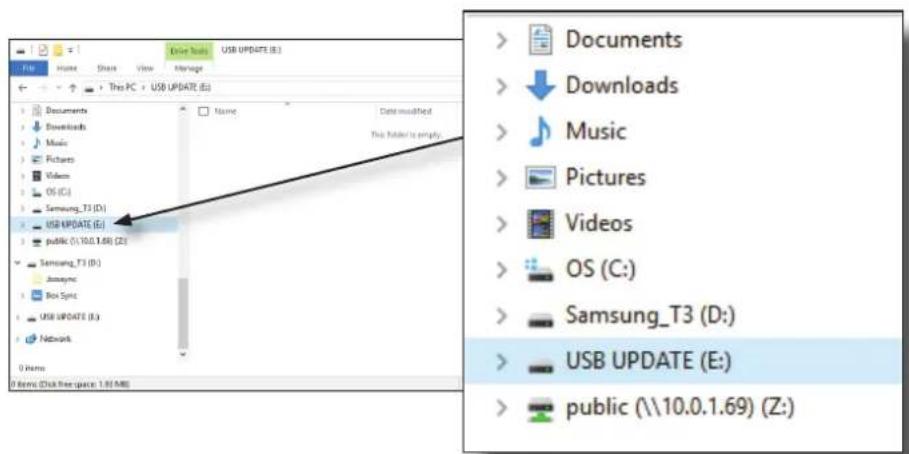

Screenshot of a file explorer window showing USB UPDATE files with a context menu listing categories like Documents, Downloads, Music, and Public.

Appendix

  1. Delete all files from the USB UPDATE drive, if any are present, then drag-and-drop the firmware file to the drive. During the firmware update process, the PWR LED indicator on the front panel of the AT-OME-MS42 will flash green.

PWR LED indicator ATLONA® PWR LINK USB-C DP HDMI 3 HDMI 4 USB-C DP HDMI 3 HDMI 4 AT-OME-MS42 OMEGA™ MULTI-FOMAT SWITCHER —— HDMI OUT ——— —— HDBaseT OUT ——— DISPLAY

  1. Once the firmware update process has completed, the AT-OME-MS42 will automatically reboot.

Appendix

Mounting Instructions

The AT-OME-MS42 includes two mounting brackets, which can be used to attach the unit to any flat surface. Use the two enclosure screws, on the sides of the unit to attach the mounting brackets.

Single Unit Rack Installation

  1. Attach the included small rack ear to one side of the AT-OME-MS42, using the included screws.
  2. Attach the included longer rack ear to the opposite side of the AT-OME-MS42 using the included screws.

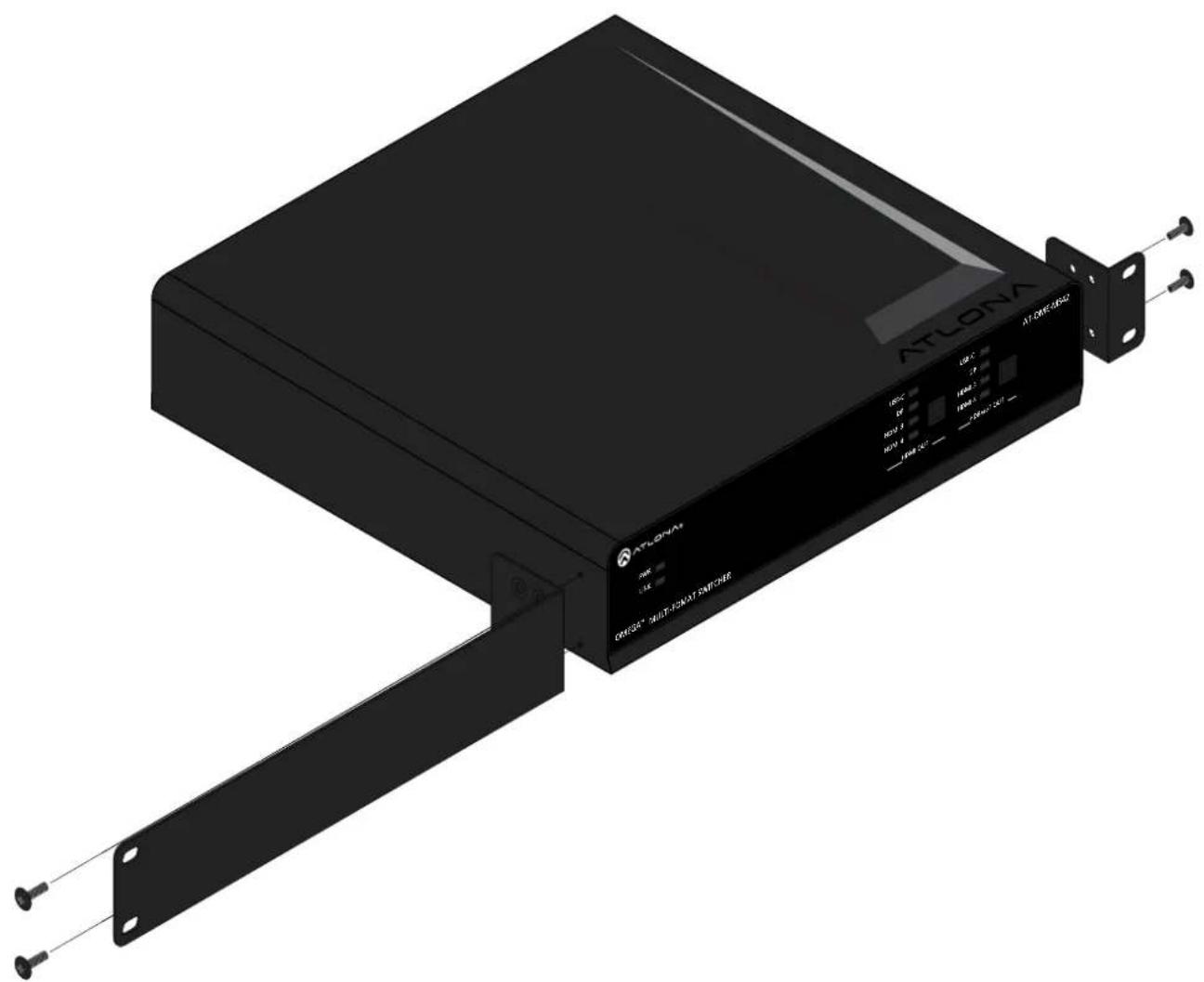

Atlona AT-OME-RX11 - Single Unit Rack Installation - 1

natural_image Exterior view of a ATLONA wireless device with attached circuit board (no readable text or symbols)

Appendix

Dual Unit Rack Installation

  1. Turn both units upside-down on a flat surface, next to each other, as shown.
  2. Position the included mounting plate over the pre-drilled holes on the bottom of the enclosure. When attaching the mounting plate, the countersink bevels on the mounting plate should face upward.

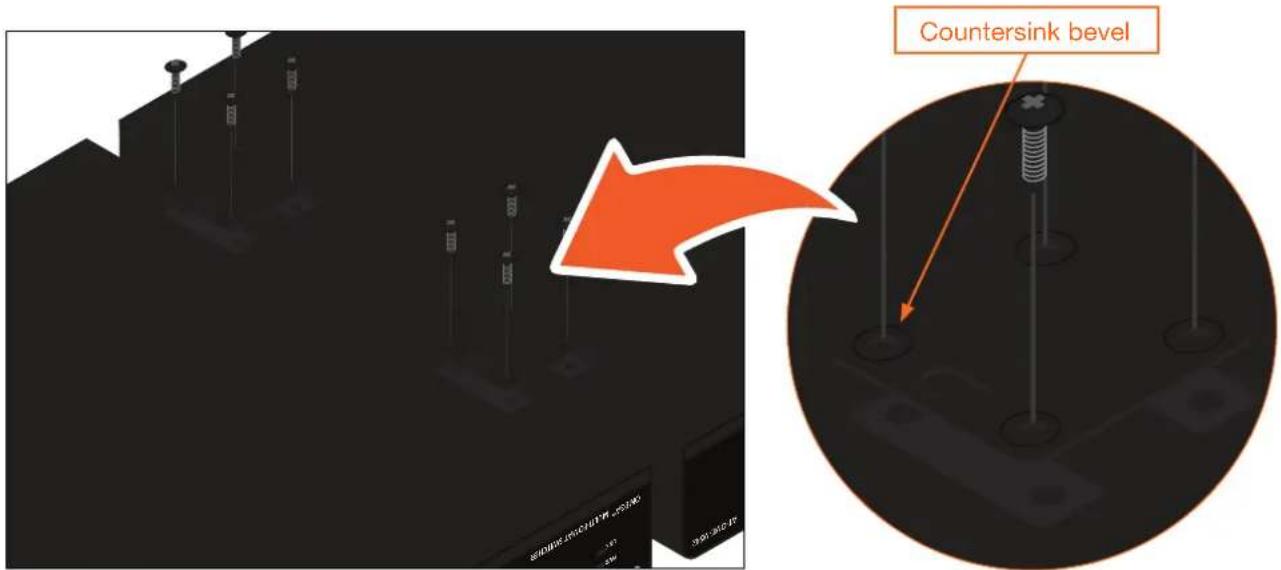

Countersink bevel SUNSHIN MOUNTING 0.50 2.50 3.50/100%

  1. Turn the attached units over and install the rack ears (sold separately) to one side of each enclosure using the included screws.

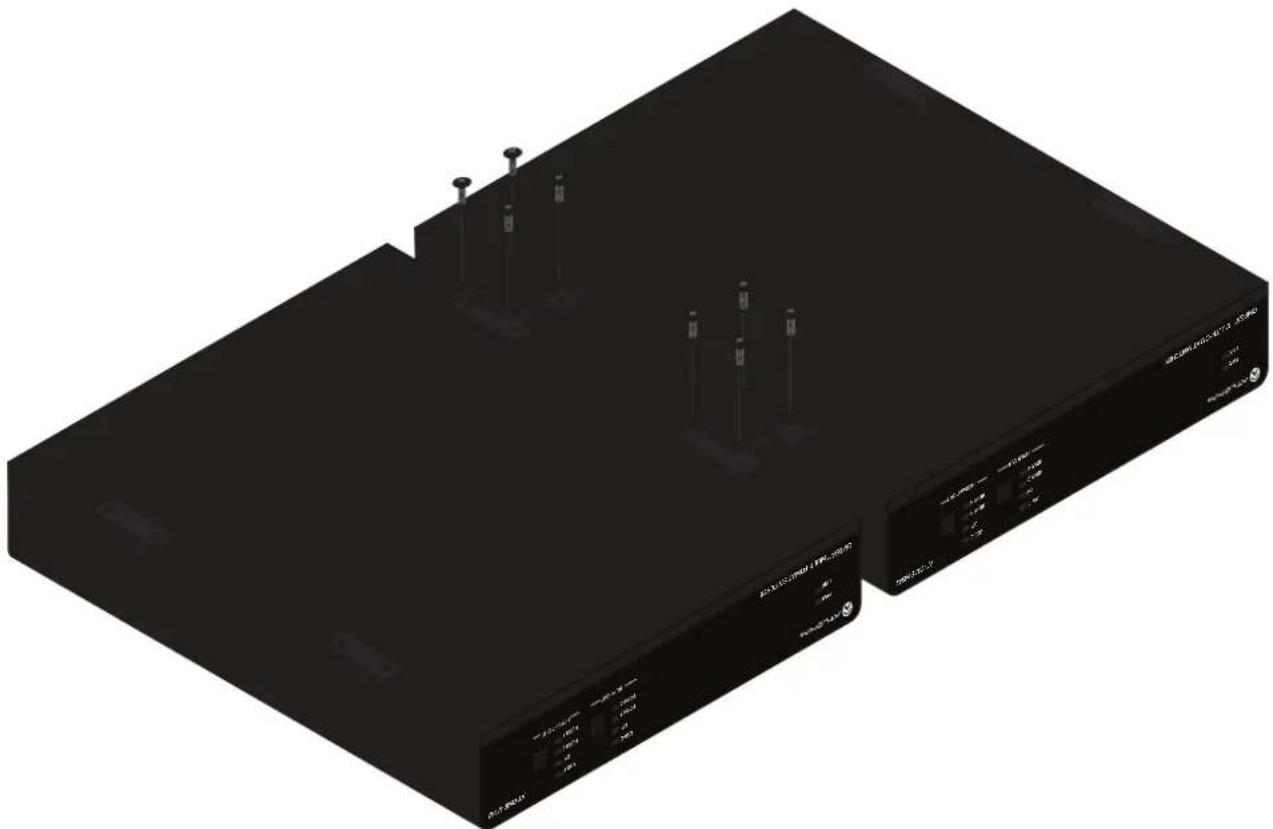

Atlona AT-OME-RX11 - Dual Unit Rack Installation - 2

natural_image Exterior view of a black electronic device with ports and connectors (no visible text or symbols)

Appendix

Flat Surface

  1. Turn the unit upside down, on a flat surface.

  2. Position the included mounting plates over the pre-drilled holes on the bottom of the enclosure. When attaching mounting plates, the countersink bevels on the mounting plates should face upward.

Atlona AT-OME-RX11 - Flat Surface - 1

natural_image Black electronic device with ports and connectors, no visible text or symbols on the main body
  1. Mount the unit using the circular holes, on each mounting plate. If using a drywall surface, a #6 drywall screw is recommended. Mounting screws are not included.

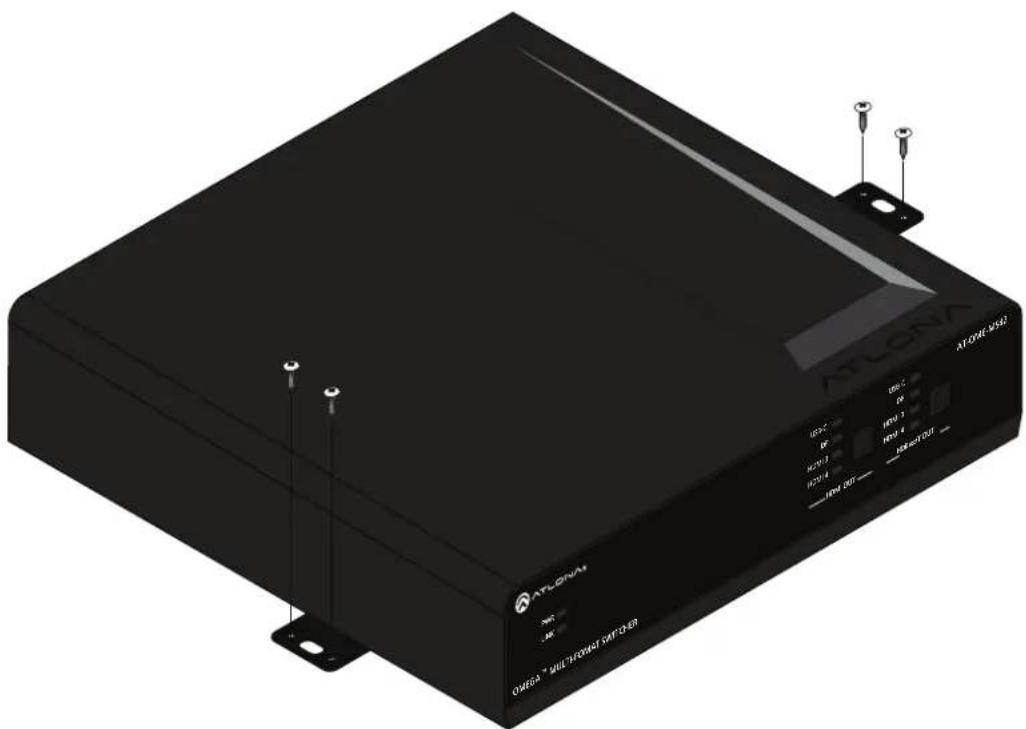

Atlona AT-OME-RX11 - Flat Surface - 2

natural_image Exterior view of a black ATLONA wireless device with labeled ports and connectors (no readable text beyond branding)

Atlona AT-OME-RX11 - Flat Surface - 3

NOTE: The unit can also be mounted under a flat surface, such as a table, by turning the unit upside down.

Specifications

Video
HDMI 2.0 (1.4 when downscaled)
HDCP 2.2 (will downscale reporting to match connected devices – does not downscale HDCP signal)
UHD/HD 4096×2160 @ 60 ^(1) /50/30/25/24 Hz3840×2160 @60 ^(1) /50/30/25/24 Hz1920×1080p @60/59.9/50/30/29.97/25/24/23.98 Hz1920×1080i @ 30/29.97/25Hz1280×720p @ 60/59.94/50Hz720×576p @ 50 Hz720×576i @ 50 Hz640×480p @ 60/59.96 Hz640×480i @ 30 Hz
VESA 2560×1600 @ 60 Hz2048×1536 @ 60 Hz1920×1200 @ 60 Hz1680×1050 @ 60 Hz1600×1200 @ 60 Hz1440×900 @ 60 Hz1400×1050 @ 60 Hz1280×1024 @ 60 Hz1280×800 @ 60 Hz1366×768 @ 60 Hz1360×768 @ 60 Hz1152×864 @ 60 Hz1024×768 @ 60 Hz800×600 @ 60 Hz640×480 @ 60 Hz
Scaler^(2) IN OUT
4K @ 24 Hz4K @ 30 Hz4K @ 60 Hz, 4:2:01080p @ 24 Hz1080p @ 30 Hz1080p @ 60 Hz (YUV/RGB, 4:4:4)
USB-C Up to 4K/UHD @ 60Hz
Color Space YUV, RGB
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Color Depth 8-bit, 10-bit, 12-bit
HDR^(3) HDR10, Hybrid-Log Gamma (HLG), and Dolby® VisionTM @ 60Hz
Audio
HDMI / HDBaseT Pass-Through FormatsLPCM 2.0Dolby Digital, DTS^® Digital SurroundTM
LPCM 5.1Dolby Digital PlusTM DTS-HD Master AudioTM
LPCM 7.1Dolby TrueHD DTS:X^®
Dolby Atmos®
Bit Rate 24 Mbits/s max
Analog Audio
Format 2-channel stereo
Balanced Output +4 dBu, nominal gain; +20 dBu headroom
Frequency Response 20 Hz to 20 kHz, ±0.5 dB
THD + N < 0.004% @ 20 Hz to 20 kHz
SNR>105 dB @ 1 kHz, zero clipping @ 0 dBFS, unweighted
Sample Rate32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Protocols
AddressingDHCP, static
ManagementHTTPS, HTTP, Telnet, SSH, mDNS
AuthenticationIEEE 802.1x: PEAP/MSCHAPv2 or EAP-TLS

Appendix

USB
Signal2.0
Maximum Data Rate120 Mbps
USB-CSupports Audio, Video, device and host data, and up to 60W power charging
Internal Hubs1 USB hub when connected to USB type B host port, 2 cascaded USB hubs when connected to USB-C port
Control
RS-232 Device control and configuration
Bidirectional pass-through from control system over HDBaseT Supported baud rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
IPProtocols: HTTP, HTTPS, Telnet, SSH Modes: DHCP, Static – selectable through front panel and webGUI
CECYes
Resolution / Distance4K/UHD - Feet / Meters1080p - Feet / Meters
HDMI IN/OUT155 3010
CAT5e/6 29590330100
CAT6a/7 330100330100
Connectors, Controls, and Indicators
HDMI IN 2 – Type A, 19-pin female
DP IN 1 – DisplayPort, female
USB-C IN 1 – USB Type-C v3.1, 24-pin female, AV input (Alternate Mode)
HDMI OUT 1 – RJ45, female
HDBaseT OUT^(4) 2 - USB Type B, 4-pin, female
USB HUB 2 2 – Type A, 4-pin female
USB HOST 2 – Type B, female
AUDIO OUT 1 – 5-pin captive screw, balanced / unbalanced 2-channel
RS-232 1 – 3-pin captive screw (bidirectional)
LAN 1 – RJ45, 100Base-T
PWR 1 - 4-pin DIN, locking
Control Buttons:
HDMI OUT, HDBaseT OUT , DISPLAY3 – momentary, tact-type
2 – momentary, recessed
IP MODE, RESET
Function Indicators:
INPUT8 – LED, blue
PWR, LINK, IP MODE, RESET4 – LED, blue
Temperature Fahrenheit Celsius
Operating 32 to 113 0 to 45
Storage Temperature-4 to 140-20 to 60
Operating Humidity (RH)20% to 90%, non-condensing
Power
ConsumptionUnit only: 8.6 WFull load: 104 W (while powering USB-C device up to 60 W, HDBaseT PoE devices up to 30 W each, and USB type A devices up to 2.5 W each)
External Power Supply100 - 240 V AC, 50/60 HzOutput: 24 V / 5 A DC
Dimensions Inches Millimeters
Device (H x W x D) 1.73 x 8.64 x 10 44 x 219.5 x 254
Weight Pounds Kilograms
Device 3.46 1.57
Compliance
NDAA-899 Yes
Warranty
Device 3-year limited

(1) 4K/UHD p60 4:4:4 supported on input/output HDMI and USB-C input ports, 4K/UHD p60 4:2:0 is supported on HDBaseT output.
(2) Scaler does not support frame rate conversion.
(3) HDR support is restricted to HDMI, USB-C, and DisplayPort. HDBaseT does not support HDR formats.
(4) Maximum limit of 6 USB hubs when traversing an HDBaseT link.

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Atlona

Model : AT-OME-RX11

Category : Switch
