Product Type	Wireless Router (802.11n, up to 150 Mbps)
Model	ENCORE ENHWI-N3 / N150
Dimensions	Approximately 150 x 120 x 30 mm (5.9 x 4.7 x 1.2 in)
Weight	Approximately 200 g (7 oz)
Power Supply	DC 12V, 1A (included adapter)
Wireless Standards	IEEE 802.11b/g/n, backward compatible
Antenna	1x 2 dBi 2.4 GHz SMA upgradeable antenna
Ports	4x 10/100 Mbps LAN, 1x 10/100 Mbps WAN (RJ-45 with Auto-Crossover)
Buttons	Reset (factory default), WPS
LED Indicators	Power (red), WLAN (green), LAN 1-4 (green), WAN (green)
Operating Modes	AP Router, Repeater (WDS), AP with WDS
Security	WEP, WPA/WPA2 (TKIP/AES), 802.1x, MAC filtering, SPI firewall, DoS protection
Advanced Features	DHCP server, QoS, Port forwarding, DMZ, VPN pass-through, UPnP, DDNS, multiple SSID (up to 4)
Configuration	Web-based GUI (192.168.0.1), Smart Wizard CD
Compliance	FCC Part 15 Class B, IC RSS-210
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Humidity	10% to 90% non-condensing
Maintenance	Keep clean, avoid liquids; no user-serviceable parts inside
Safety	Place away from heat sources, ensure ventilation; keep 20 cm distance from body
Spare Parts	Antenna upgradeable; power adapter included; no other spare parts listed
Reparability	Not intended for repair by user; contact support for issues

Frequently Asked Questions - N150 ENCORE

What is the default IP address and login for the ENCORE N150 router?

The default IP address is 192.168.0.1 and the default username and password are both admin.

How do I reset the router to factory defaults?

Press and hold the Reset button on the rear panel for about 10 seconds while the router is powered on. The Power LED will blink, then release.

Does the ENCORE N150 support WPS?

Yes, it supports Wi-Fi Protected Setup (WPS) via both Push Button and PIN code. Use the WPS button on the rear or configure it in the web interface.

Can I use this router as a wireless repeater?

Yes, the ENCORE N150 supports Repeater Mode. In the web interface, change the operation mode to AP Repeater and use Site Survey to connect to an existing wireless network.

What security encryption options are available?

It supports WEP, WPA (TKIP), WPA2 (AES), and WPA2 Mixed modes. Also supports 802.1x authentication with a RADIUS server.

How many LAN ports does the router have?

It has four 10/100 Mbps Fast Ethernet LAN ports and one WAN port, all with Auto-Crossover.

What is the maximum wireless speed?

The theoretical maximum is 150 Mbps under 802.11n. Actual throughput may vary due to network conditions and interference.

How do I update the firmware?

Go to Tools > Firmware in the web interface. Download the latest firmware from the ENCORE website, browse to select the file, and click Upload. Do not power off during the update.

Can I block specific websites on this router?

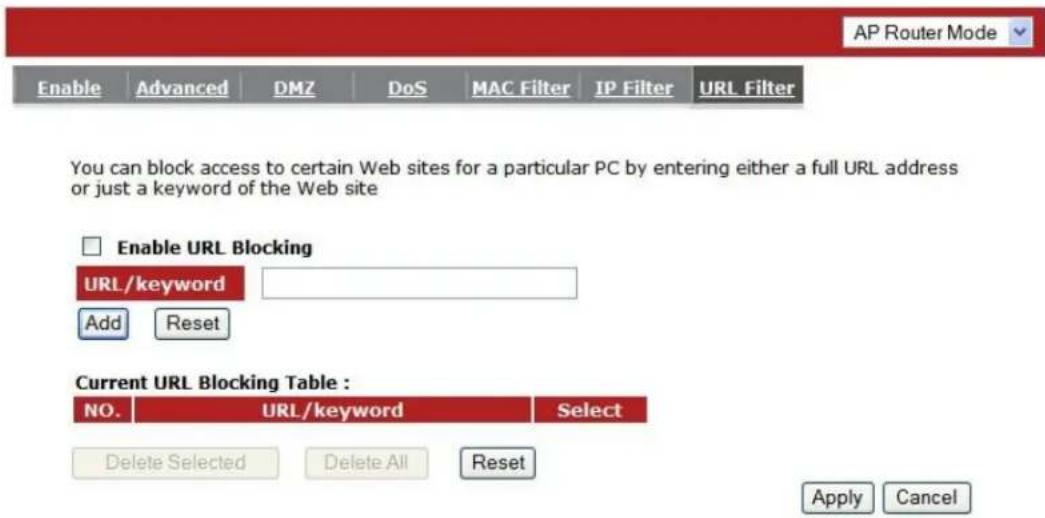

Yes, use the URL Filter under Firewall settings. You can add full URLs or keywords to block access to those sites.

What should I do if I forget the router password?

Perform a factory reset by holding the Reset button for 10 seconds. This will restore the default admin/admin credentials, but all settings will be lost.

USER MANUAL N150 ENCORE

Red and white abstract logo design with diagonal stripes (no text or symbols)

ENCORE

ELECTRONICS

ENHWI-N3

802.11n Wireless Router

White wireless router with antenna and control buttons (no visible text or symbols)

User Manual

TABLE OF CONTENTS

1 INTRODUCTION ....3
2 KEY FEATURES....4
3 PACKAGE CONTENTS....5
4 PRODUCT LAYOUT....6
5 NETWORK + SYSTEM REQUIREMENTS....8
6 ENHWI-N3 PLACEMENT....8
7 SETUP LAN, WAN....9
8 PC NETWORK ADAPTER SETUP (WINDOWS XP)....10
9 BRING UP ENHWI-N3....12
10 SMART WIZARD ....12
11 INITIAL SETUP ENHWI-N3....26
12 AP ROUTER MODE....27
13 REPEATER MODE....84

APPENDIX A - FCC INTERFERENCE STATEMENT....96

APPENDIX B - IC INTERFERENCE STATEMENT ......97

I - Introduction

Congratulations on your purchase of ENHWI-N3 802.11n Wireless Router. ENHWI-N3 is backward compatible with wireless devices running under the 802.11g and 802.11b technologies. ENHWI-N3 is not only a Wireless Access Point, but also a wireless Repeater that extends your wireless coverage when used as a Repeater Mode in a established Local Area Networking or LAN, as well as 4-port 10/100 Mbps full-duplex Switch that connects your wired Ethernet LAN devices together at incredible speed.

At 150 Mbps wireless transmission rate, the Access Point built into the router uses advanced MIMO (Multi-Input, Multi-Output) technology to transmit multiple streams of data into a single wireless channel providing a seamless access to multimedia contents. Its robust RF signal travels farther, eliminates dead spots and extends network range. For data protection, wireless security and privacy, the ENHWI-N3 encodes all wireless transmissions with WEP, WPA, and WPA2 data encryptions.

With built-in DHCP Server & a powerful SPI firewall, the ENHWI-N3 protects your computers against intruders and known Internet attacks, and still provides safe and secured VPN pass-through. With data rate at incredible speed and QoS function, the ENHWI-N3 is ideal for media-centric applications such as streaming video, internet gaming, and VoIP telephony to run multiple media-intense data streams through the network at the same time, with no degradation in performance.

II - Key Features

Features Advantages
Incredible Data Rate up to 150 Mbps**	Easily handled heavy data loads such as MPEG audio / video streaming,
IEEE 802.11b/g/n Compliant	Fully Interoperable with IEEE 802.11b/g/n compliant devices with legacy protection
Four 10/100 Mbps Fast Switch RJ-45 Ports (with Auto-Crossover)	Scalability. Extend your network computers.
Firewall supports, DMZ, MAC Filter, IP Filter, URL Filter, ICMP Blocking, SPI, Port Mapping, Port Forwarding, Port Trigger	Use to prevent attacks from hackers or viruses from the internet
Support 802.1x Authenticator, 802.11i (WPA/WPA2, AES), VPN pass-through	Provide mutual authentication (Client and dynamic encryption keys to enhance security)
WDS (Wireless Distribution System)	Make Wireless AP and Bridge mode simultaneously as a wireless repeater

** Theoretical wireless signal rate based on IEEE standard of 802.11a, b, g, n chipset used. Actual throughput may vary. Network conditions and environmental factors lower actual throughput rate. All specifications are subject to change without notice.

III - Package Contents

Check and make sure that none of the items listed below are missing. Do not discard the packing materials, in case of return; the unit must be shipped back in its original packaging.

1. ENHWI-N3 Wireless 802.11n Router
2. 100V\~240V Power Adapter (Use only the supplied power adapter)
3. One piece 2 dBi 2.4 GHz SMA Upgradeable Antenna
4. Quick Installation Guide
5. CD-ROM (Smart Install and User's Manual)

IV - Product Layout

1

2

3

4

Front Panel View

LED Lights Description
	POWER	Lights up in Red when powered ON. Blinks on TEST/RESET
	WLAN	Lights up in Green when Wireless LAN is enabled. Blinks on traffic
	1 to 4	Blinks in Green on data traffic
	WAN	Lights up in Green when WAN port is use

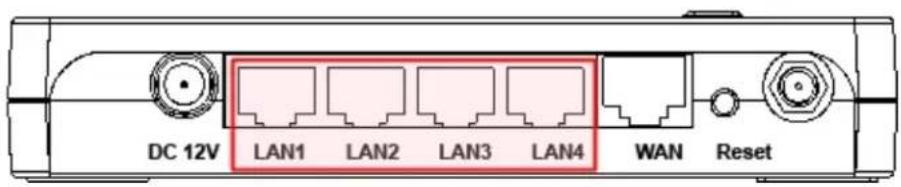

Rear View

Item Description
Reset	Press and release this button to reboot the device.Press and hold this button for 10 seconds to load the factory default settings of the system.
WPS^TM	Click this button to start WPS^TM function.
DC 12V	Power connector, connects to DC 12V 1As Power Adapter
LAN1 ~ LAN4	Ports 1 to 4 Local Area Network (LAN)10/100 Mbps RJ-45 ports
WAN	Wide Area Network (WAN) port or Internet Port. Connects to xDSL or Cable Modem

V - Network + System Requirements

To begin using the ENHWI-N3, make sure you meet the following as minimum requirements:

▶ PC / Notebook Computer
Operating System - Microsoft™ Windows® 98SE/ME/XP/2000/Windows Vista™
▶ 1 Free Ethernet port
▶ Wi-Fi adapter card – optional.
External xDSL (ADSL) or Cable modem with an Ethernet port (RJ-45).
▶ A Web Browser (Internet Explorer, Safari, Firefox, Opera etc.)
▶ Few Ethernet compatible CAT5 or better cables.

VI - ENHWI-N3 - Where to place

You can place ENHWI-N3 on a desk or other flat surface, or you can mount it on a wall. For optimal performance, place your ENHWI-N3 Wireless Router in the center of your office (or your home) in a location that is away from any potential source of interference, such as a metal wall or microwave oven. This location must be close to a power connection and your ADSL/Cable modem. If the antennas are not positioned correctly, performance loss can occur.

LAN connection:

Connect Ethernet cable between your PC/Notebook LAN port & one of the 4 available LAN ports on ENHWI-N3.

WAN connection:

Connect Ethernet cable between WAN port of your ADSL/CABLE modem & WAN port of ENHWI-N3. Make sure your ADSL/CABLE modem is already setup and working well. Contact your ISP (Internet Service Provider) if you have any questions.

VIII - PC Network Adapter Setup (Windows XP)

- Assuming your PC or Laptop is equipped with a Network Interface Card. Click on START → select "Control panel" → From the Control Panel Window select "Network Connections"

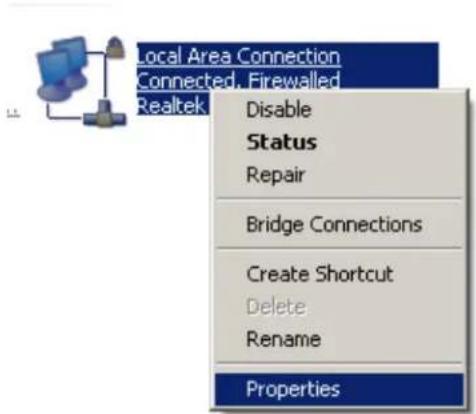

- Right-click (Use the right button of your mouse) the "Local Area Connection" icon then select and click "Properties"

- Click to Highlight the "Internet Protocol (TCP/IP)" then click "Properties" button

- Select the "General" tab.

a. ENHWI-N3 supports the DHCP function, please select both "Obtain an IP address automatically" and "Obtain DNS server address automatically"

IX - Power up the ENHWI-N3

Connect the supplied power-adapter to the power port and connect it to a wall power outlet. The ENHWI-N3 automatically enters and run the self-test phase. The Power LED will light a steady red light indicating that the ENHWI-N3 is ready for operation.

X - Smart Wizard

Before you start the ENHWI-N3 router's Smart Wizard check for the followings:

• Internet connection should be setup & ready to use (ADSL or cable modem).
• Modem must provide an RJ-45 port to connect with a ENHWI-N3 Router
• Microsoft Windows compatible PC/Notebook with UPnP enabled Network Interface Card adapter. (This can be found in your network cards advanced properties within MS Windows)
• CAT 5 network cable(s), RJ-45 port on PC/Notebook.

Step 1: Connect ENHWI-N3 “WAN” port & your Modem’s LAN port with RJ45 cable.

Step 2: Power-up the ENHWI-N3. The red power LED in the front the panel should light up & stay on to indicate that the router is ready

Step 3: Connect one of the four available LAN ports to the PC/Notebook RJ-45 NIC port with a CAT 5 RJ-45 network cable.

Step 4: Insert the ENHWI-N3 CD into your CDROM drive and the “SMART WIZARD” should run automatically after just a few seconds. If not, open the Windows Explorer, go to the root directory of the CD. Double click on the Wizard.exe file.

ENCORE® ELECTRONICS

Making Connections Easy

Copyright@2009 Encore Electronics Inc.

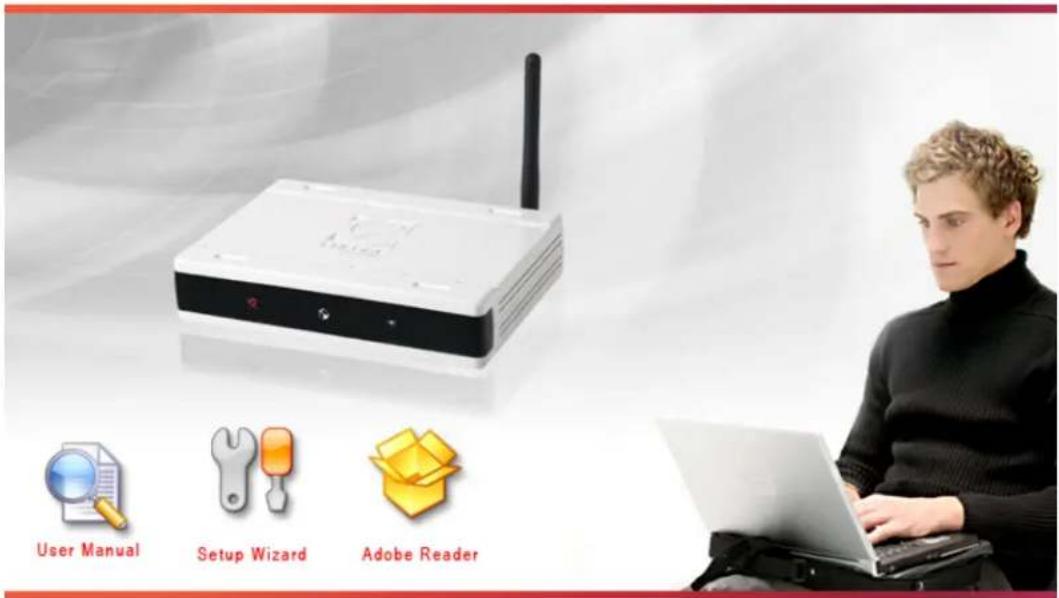

A welcome screen will pop up a few seconds and then will disappear.

Copyright©2009 Encore Electronics Inc.

NOTE: The product picture may be different from what you have

Click Setup Wizard to run basic setup settings of your ENHWI-N3.

Click User Manual to open the user manual.

Click Adobe Reader to install Adobe Acrobat reader on your PC/Notebook.

Click EXIT when finish or anytime you want to abort.

Setup Wizard

Click Next to proceed. Click to abort.

Make sure your DSL/CABLE modem is setup and working prior to this installation procedures. If not, call your Internet Service Provider and have them check and help you in setting up your DSL/Cable modem.

Click Next to proceed.

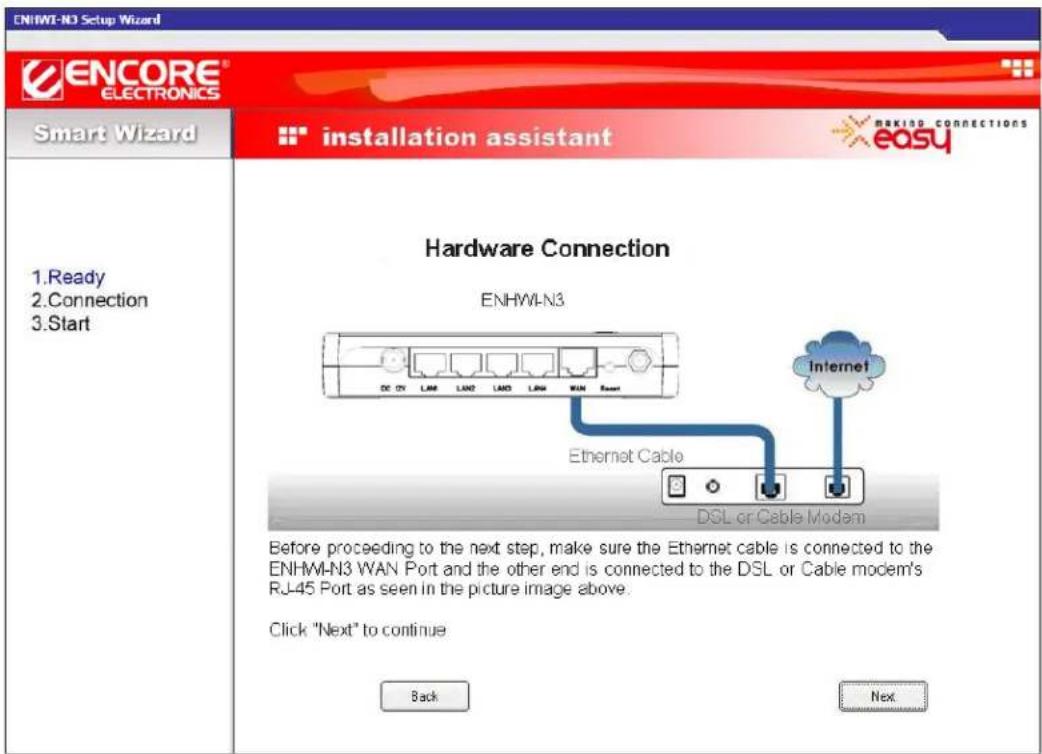

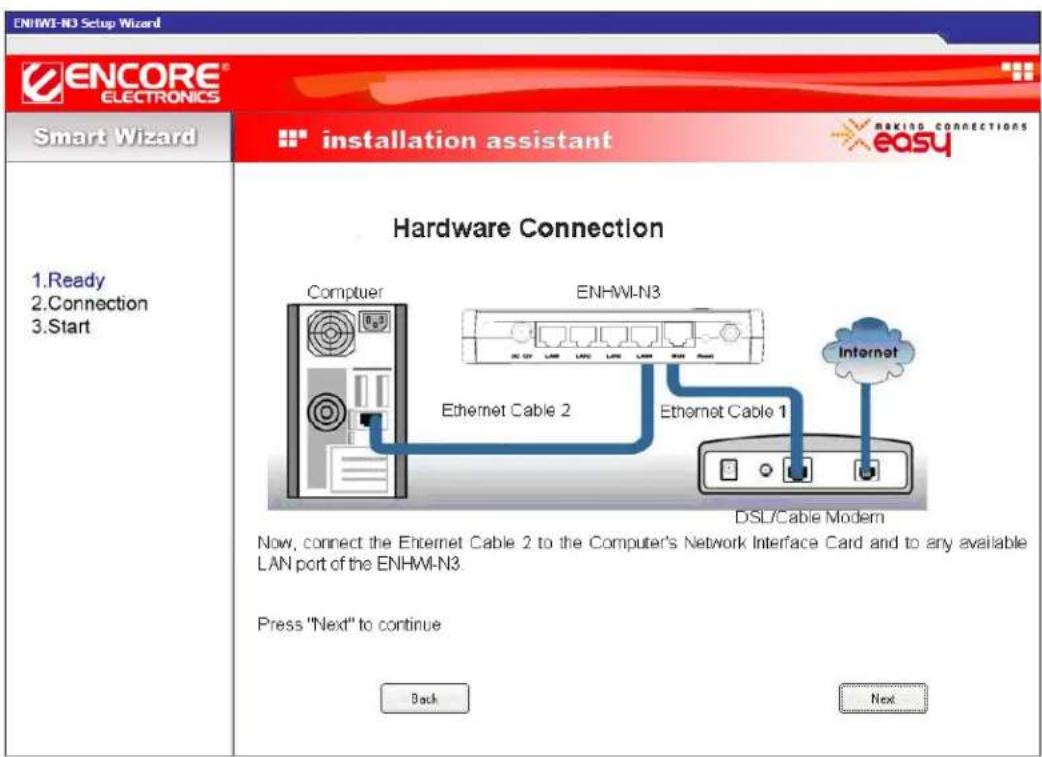

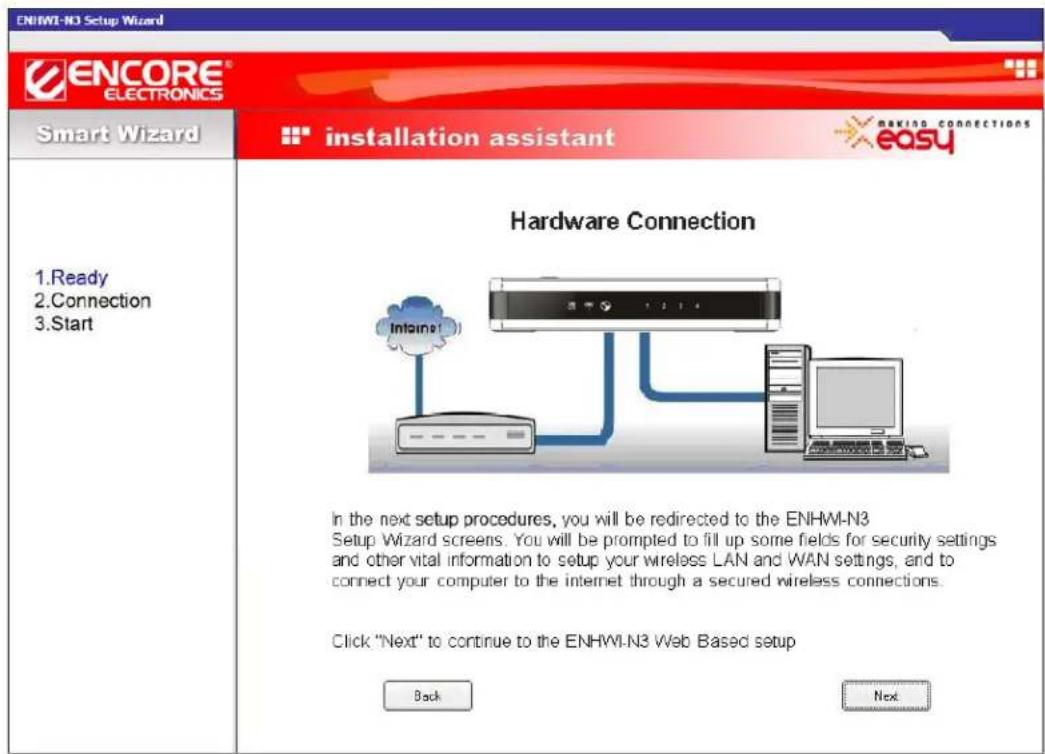

Check the MODEM and ENHWI-N3 connection. It should be as shown below.

Check power connection for modem as well as ENHWI-N3.

Make sure the antenna is connected to rear panel of ENHWI-N3.

Click to proceed.

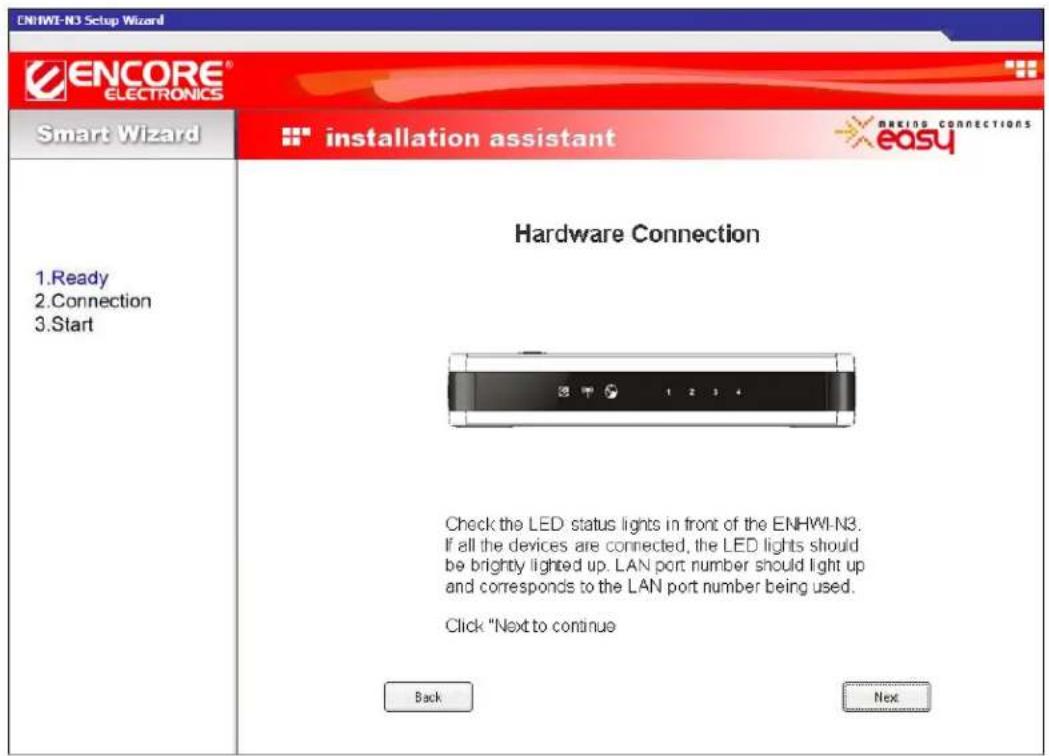

Notice the LED will light up at this stage. If not, check your procedures again.

Click Next to configure WAN & Wireless settings.

Enter the factory default username is admin and password is also admin. Click

LOGIN to continue. Your default browser screen will connect to the ENHWI-N3 User Interface screen using the factory default address http://192.168.0.1 .

Click Next to enter the mode selection screen.

Select the mode your ENHWI-N3 is going to use. The Setup Wizard will skip the WAN configuration under AP Repeater Mode.

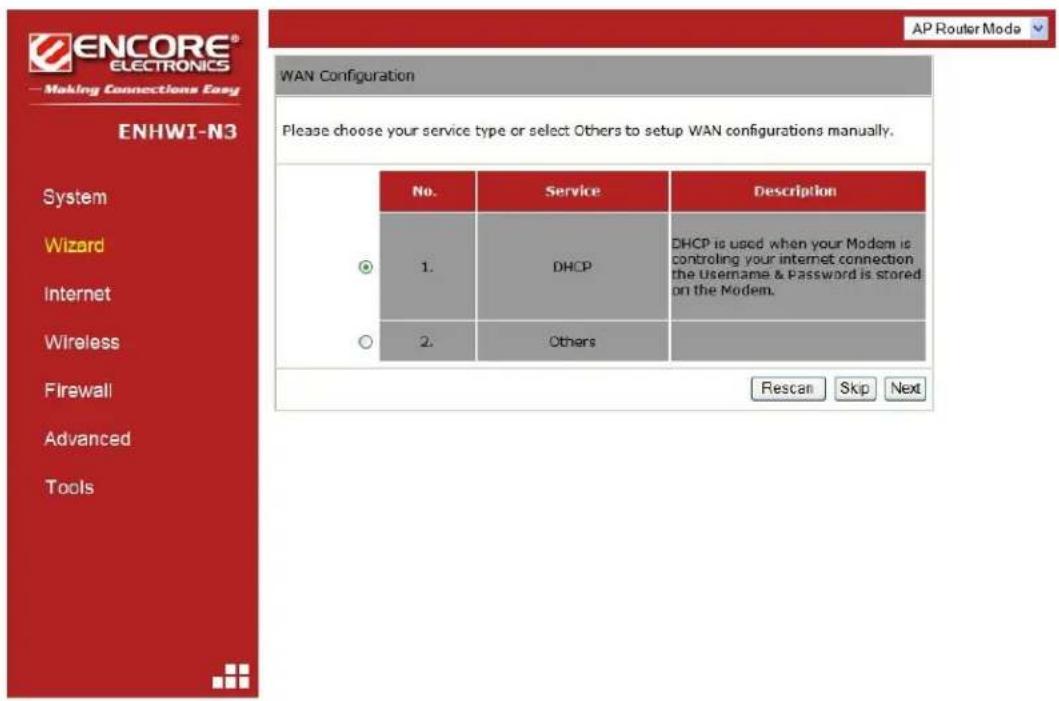

Click Next and your ENHWI-N3 will automatically detect your "Internet" Network settings.

The Smart Wizard will detect the DHCP and PPPoE connections automatically. In the picture above it shows that the Smart Wizard detected a DHCP server. You can choose the detected service type or select “Others” to setup the WAN settings manually.

Here, you can configure the host name and MAC address of the ENHWI-N3. The

"Clone MAC Address" button clones the MAC address of your PC and use it as the MAC address of your ENHWI-N3 router instead of the real MAC address of the router.

The Smart Wizard has finished setting up the WAN Configuration portion. Click

Next

to proceed to other portions.

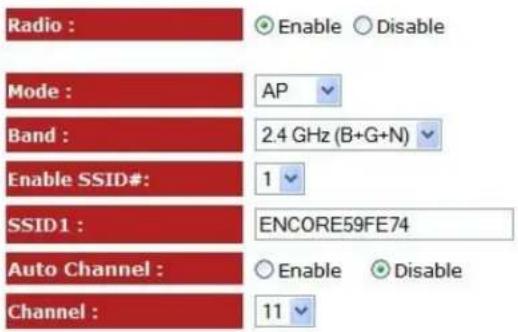

Setting up Wireless LAN

Enter the name for your wireless network SSID (the default is ENCORE59FE74) and security key (default is 1234567890). Move and point your mouse over to the security level blocks from the weakest (red block) to the strongest (green block), and click on the selected block to select the level of security you desired. The "Key" type will depend on the wireless security you selected. If you choose WEP as the wireless security you will be prompted whether an ASCII or Hexadecimal is your preferred key type. Hexadecimal requires 10 character digits on the KEY: field.

Click Next to proceed

To save configuration changes click Reboot

NOTE:

After the Wireless settings are saved and the ENHWI-N3 is rebooted, you need to reconnect your WLAN client using the new security settings you just changed. You will need to reenter the new wireless security key for the client and the ENHWI-N3 reestablish wireless connections.

XI – How to login to the ENHWI-N3 web based Graphical User Interface

The ENHWI-N3 use a web based user interface for setting up your router's configuration, it can be access through your web browser such as Internet Explorer or Mozilla Firefox.

ENHWI-N3 web based user interface login procedure

1. OPEN your browser (Example: Internet Explorer, Mozilla, Netscape, etc).
2. Type-in http://192.168.0.1 exactly in address field and hit the [Enter] key on your keyboard.

1. Type-in the ENHWI-N3 Username and Password (the factory default is admin and admin)
2. Click LOGIN to navigate into the ENHWI-N3 configuration home page.
3. You will see the configuration home page of the ENHWI-N3 as follows.

ENHW-N3 Home Page Screen

XII - The AP Router Mode

■ SYSTEM

Shows the Uptime, Hardware information, Serial number as well as the Firmware version information and other vital information

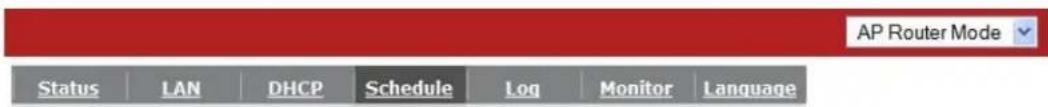

- Status Tab

This page allows you to monitor the status of your router.

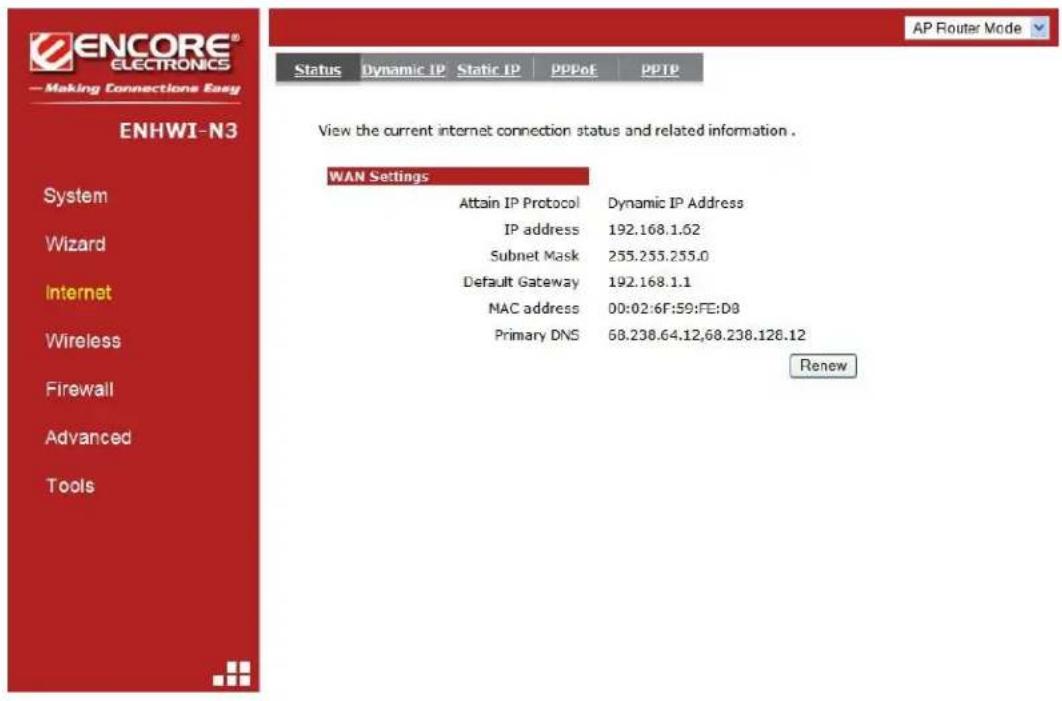

1. WAN Settings: Scroll down to see the full information. This section displays whether the WAN port is connected to a Cable / DSL modem. It also displays the router's WAN IP address, Subnet Mask, ISP Gateway, MAC address and the Primary DNS.

WAN Settings

Attain IP Protocol	Dynamic IP Address
Authentication Mode	---
Subnet Mask	---
Default Gateway	---
MAC address	00:02:6F:59:FE:D8
Primary DNS	---

1. LAN Settings: Scroll down to see this section. Displays the ENHWI-N3 Router LAN port's current information. It also shows whether the DHCP Server is enabled or disabled.

LAN Settings

IP address 192.168.0.1 Subnet Mask 255.255.255.0 DHCP Server Enabled MAC address 00:02:6F:59:FE:74

1. WLAN Settings: Scroll down to see this section. This section displays the current WLAN configuration settings. The wireless configuration details such as the SSID, Security settings, ESSID, BSSID, Channel number and wireless clients connected info are briefly shown.

WLAN Settings
Channel	11
SSID_1
ESSID	ENCORE59FE74
Security	WPA2 pre-shared key
BSSID	00:02:6F:59:FE:74
Associated Clients	0

● LAN Tab

The LAN Tab is where LAN settings can be change. If you are an entry level user, after hooking up the cables, try to access the internet from your computer. If you can open a website with no problem, leave the settings as it is. If changes were made, click the Apply button to save the changed configurations.

LAN IP

IP address: 192.168.0.1 is the router's LAN manufacturers default IP address (this will also be the "Default Gateway" IP address of your LAN clients). It can be change based on your LAN design and configurations. Typical designs don't need to change this IP address.

IP Subnet Mask: 255.255.255.0 specifies the Subnet Mask address for your LAN segment. This is based on the IP address range used.

802.1d Spanning Tree: This is disabled by default. If 802.1d Spanning Tree function is enabled, this router will use the spanning tree protocol to prevent network loops.

DHCP Server

DHCP Server: This can be enabled or disabled, "Enabled" by default.

Lease time: Lease time assigned to all IP address by the DHCP server.

Start IP: This is the first IP address in the IP pool range in which are being assigned and leased to DHCP clients.

End IP: This is the end of the IP address pool range

Domain Name: The Domain Name for the existing or customized network.

• DHCP Tab


This is where to view the current LAN clients that have assigned or leased IP address by the DHCP server. This screen also shows all the DHCP clients that are currently connected to your network. The table shows the assigned or leased IP address, MAC address and the lease expiration data for each DHCP clients. Use

the button to update the available information. Click the button to get the updated table.

You can click to put a check mark on "Enable Static DHCP IP". It is possible to add more static DHCP IP addresses. They are listed in the table "Current Static DHCP Table". IP address can be deleted if wanted to.

Click the button to save the changes made to the configuration.

- Schedule Tab

This page allows users to set up a scheduled function for the Firewall and Power Saving features of the ENHWI-N3 router.

You can use the Schedule page to Start/Stop the Services regularly. The Schedule will start to run, when it get GMT Time from Time Server. Please set up the Time Server correctly in Toolbox. The services will start at the time in the following Schedule Table or it will stop.

Edit the scheduled function to allow configuration for firewall or power savings services. Fill in the schedule and select type of service you desired. Click to save the

settings.

You can use the Schedule page to Start/Stop the Services regularly. The services will start at the time in the following Schedule Table or it will stop.

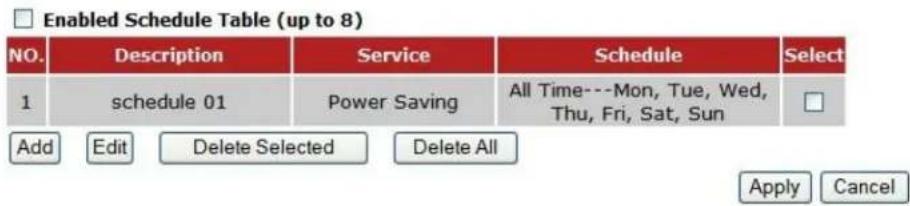

The "Schedule" table screen lists the pre-scheduled services. Select any of the schedules by using the check box located on the right side of each line to edit or Delete selected schedule line.

● Event Log Tab

On this "Event Log" screen, it displays all events and events information occurred after the start-up. Scroll down to see more. The Event Log can be saved to the local file-storage device such as hard disc drive by using the button, or the Event Log can be emptied using the button. Use the button to reset the Event Log and to get the most updated information. When the router is powered OFF, the Event Log will be wiped out and will come up empty. The saved logs can be uploaded and viewed again.

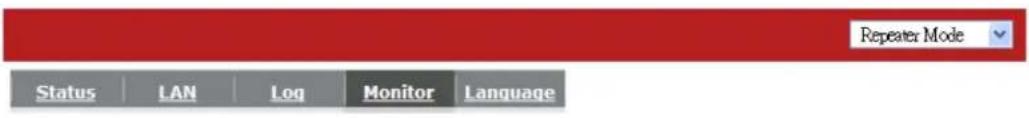

● Monitor Tab

This screen shows the histogram of the network connection on WAN, LAN & WLAN. Auto refresh keeps information updated frequently.

You can monitor the bandwidth in different interface. This page will refresh in every five seconds.

● Language Tab

This is where you select preferred language.

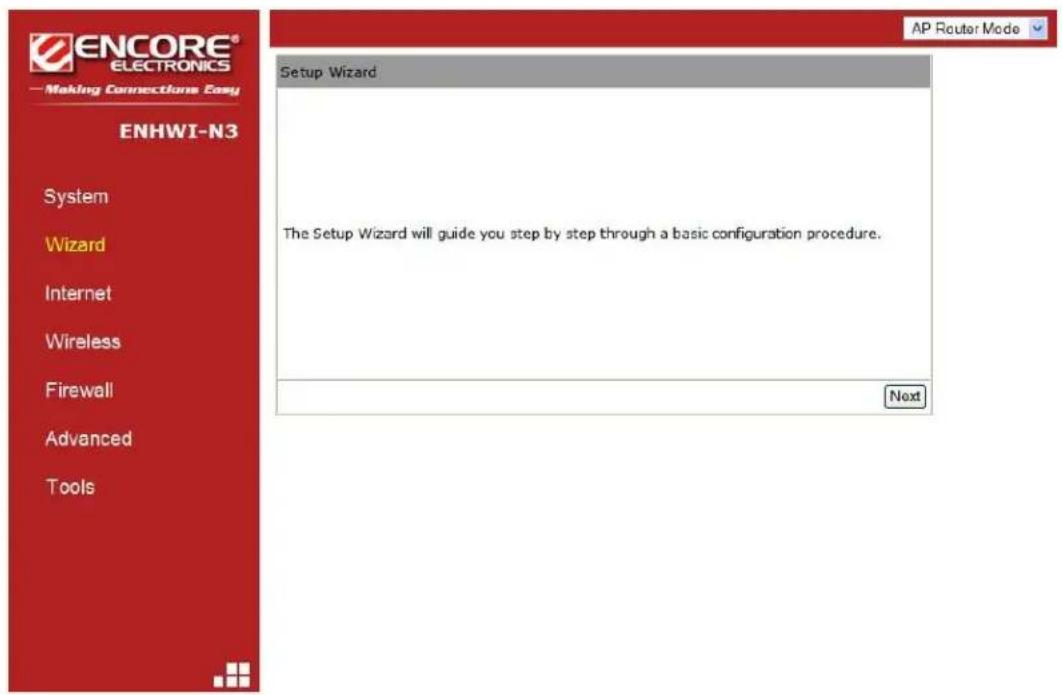

WIZARD

Click Wizard to configure the basic functionalities of the ENHWI-N3 Router. A popup Setup Wizard Window will be immediately displayed. If the popup window for Setup Wizard failed to appear check your Popup Settings and make sure popup is allowed at least temporarily for this purpose. Before you continue, check all the needed cables if they are properly hooked up. Check your DSL or Cable Modem if working properly and is connected to your ISP and then click . Refer to the Smart Wizard section for more details.

INTERNET

- Status

This page shows the current Internet connection type and status

- Dynamic IP

Use the MAC address when registering for the Internet service, and do not change it unless required by your ISP. If your ISP use the MAC address of the Ethernet card as an identifier, connect only the PC with the registered MAC address to the broadband router and click the button. This will replace the current MAC address with the already registered Ethernet card MAC address.

Host Name: This is optional.

MAC address: The default value is set to the WAN's physical address or MAC of the broadband router.

- Static IP

If your ISP Provider has assigned a fixed public IP address for you to use, enter the assigned IP address, Subnet Mask, Default Gateway IP address, Primary and Secondary DNS (if available) of your ISP provider.

• Point-to-Point Protocol over Ethernet(PPPoE)


Login / Password: Enter the PPPoE username and password assigned by your ISP Provider.

Service Name: This is optional.

Maximum Transmission Unit (MTU): This is the maximum size of the packets.

Type: Keep Connection - will stay connected to the Internet

Automatic Connection - automatically connects to the Internet when an application needs it, and drops the connection after the designated idle time period.

Manual Connection – manually connect and disconnect to the internet by the user

Idle Timeout (available only under Automatic Connection): This is a maximum period of time for which the Internet connection is maintained during inactivity. If the application is inactive for certain time designated here the internet connection will be automatically dropped.

- Point-to-Point Tunneling Protocol (PPTP)

PPTP allows the secure connection over the Internet by simply dialing in to a local point provided by your ISP provider. The image screen allows client PCs to establish a normal PPTP session and provides hassle-free configuration of the PPTP client on each client PC.

Click to save configuration and connect to ISP provider.

■ WIRELESS

- Basic

In basic setting page, you can set wireless Radio, Mode, Band, SSID, and Channel.

This page allows you to define SSID, and Channel for the wireless connection. These parameters are used for the wireless stations to connect to the Access Point.

Apply Cancel

Radio: You can turn on/off wireless radio. If wireless Radio is turned off, the ENHWI-N3 will not take wireless connections.

Mode: Three operation modes for selections, the AP router and AP router with WDS. If you choose AP Router Mode, there will be two selections under it, the AP or WDS function in the drop-down menu.

Band: You can select the wireless standards running on your network environment such as the following:

2.4 GHz(B): If all your clients are using 802.11b

2.4 GHz(N): If all your clients are using 802.11n

2.4 GHz(B+G): If both 802.11b or a 802.11g

2.4 GHz(G): If all your clients are using 802.11g

2.4 GHz(B+G+N): If your clients are mixed using 802.11b, 802.11g, or 802.11n

Enable ESSID: ENHWI-N3 supports up to 4 SSID. Use the down arrow to select the number of SSID you wanted to have in your wireless LAN. Once established you can set the security policy settings for each. See "Policy" section for more details.

ESSID1 to ESSID4: ESSID is the name of your wireless network. It is recommended to use a unique name to identify your wireless device in the LAN. This is case sensitive and up to 32 printable characters.

Auto Channel: Disable by default. If Enabled will automatically search all channels and automatically change to the clearest channel detected. Different items are visible below the Auto Channel.

Channel: Channel 11 by default. This is visible only when the Auto Channel is disabled. You can enter your preferred channel number here for the ENHWI-N3 wireless LAN.

Check Channel Time: This menu is visible only when the Auto Channel is enabled. Selections are from One Hour to One Week. This is the duration of when will the ENHWI-N3 check for and use the clearest channel in the area automatically.

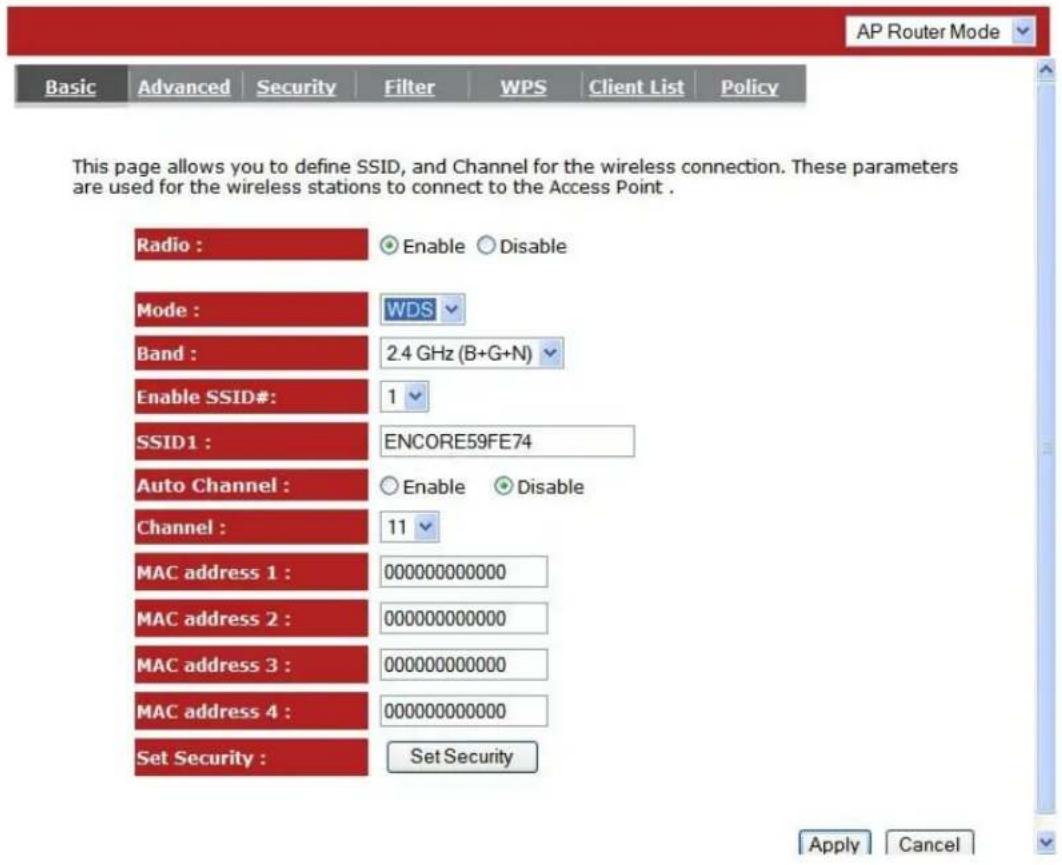

- WDS with AP Router

Wireless Distribution System. The WDS is a way of interconnecting wireless routers and allow an extended wireless network coverage using multiple wireless routers without the use of a wired backbone. Each WDS AP requires the same channel and encryption type to work.

MAC address 1\~4: Please enter the MAC address(es) of the neighboring APs that participates in the WDS. A maximum of 4 devices are allowed.

Set Security: WDS Security depends on your AP security settings. Note: It does not support mixed mode such as WPA-PSK/WPA2-PSK Mixed mode.

- Advanced

On this tab you can set the advanced wireless settings. If you're in doubt what to enter or use here, leave these settings as it is. This is for advance users only. Wrong parameters can make the router un-operational.

Fragment Threshold: Default value is 2346. Specifies the maximum size of a packet during the fragmentation of data to be transmitted. If you set this value too low, it will result in a bad performance.

RTS Threshold: Default value is 2347. When the packet size is smaller than the RTS threshold, the wireless router will not use the RTS/CTS mechanism to send this packet.

Beacon Interval: Default value is 100. This is the interval of time that this wireless router broadcasts a beacon. A Beacon is used to synchronize the wireless network.

DTIM Period: Default value is 1. Enter a value between 1 and 255 for the Delivery Traffic Indication Message (DTIM). A DTIM is a countdown informing clients of the next window for listening to broadcast and multicast messages.

Data Rate: The "Data Rate" is the rate that this access point uses to transmit data packets. The access point will use the highest possible selected transmission rate to transmit the data packets.

N Data Rate: The "Data Rate" is the rate that this access point uses to transmit data packets for N compliant wireless nodes. Highest to lowest data rate can be fixed.

Channel Bandwidth: This is the range of frequencies that will be used.

Preamble Type: The “Long Preamble” can provide better wireless LAN compatibility while the “Short Preamble” can provide better wireless LAN performance.

CTS Protection: It is recommended to enable the protection mechanism. This mechanism can decrease the rate of data collision between 802.11b and 802.11g wireless stations. When the protection mode is enabled, the throughput of the AP will be a lower due to an increase of data frame transmission.

TX Power: 10% to 100%. Default value is 100%.

- Security

ENHWI-N3 provides complete wireless LAN security types. Selections are WEP, IEEE 802.1x, IEEE 802.1x with WEP, WPA with pre-shared key or PSK and WPA with RADIUS. With these wireless securities, unauthorized access can be prevented. Make sure all other wireless stations use the same security type, and were setup with the same security key.

ESSID Selection: ENHWI-N3 router supports multiple ESSID, you can name your wireless ESSID here.

Broadcast ESSID: If you enabled “Broadcast ESSID”, every wireless station located within the coverage of this Router can see this ESSID. If you are building a public wireless network, enabling this feature is recommended. Disabling “Broadcast ESSID” can provide better security.

WMM: Wi-Fi Multi Media if enabled supports QoS to dedicate line and other resource for better audio, video and voice streaming to a particular station and applications.

Encryption: If set to Disable, the router will have no protection against uninvited wireless guests, your LAN will be prone to hackers. It is highly recommended to Enable this function and set your own wireless security.

Enable 802.1x Authentication

IEEE 802.1x is an authentication protocol using RADIUS server. When this is Enabled, every LAN user must use an account to login to this Access Point before accessing the wireless LAN. The authentication is processed by a RADIUS server. This mode only authenticates users by IEEE 802.1x, but it does not encrypt the data during communication.

WEP Encryption

When you select 64-bit or 128-bit WEP key, you have to enter WEP keys to encrypt data. You can generate the key by yourself. You can enter up to four WEP keys and select one of them as a default key. The AP can receive any packet encrypted by one of the four keys.

Authentication Type: There are two authentication types: "Open System" and "Shared Key". Both AP and wireless client must be configured with the same authentication type.

Key Length: You can select the WEP key length for encryption, 64-bit or 128-bit. The larger the key will be the higher level of security is used, but the throughput will be lower.

Key Type: You may select ASCII Characters (alphanumeric format) or Hexadecimal Digits (in the "A-F", "a-f" and "0-9" range) to be the WEP Key.

Default Key: It's the key used to encrypt data.

Key1 - Key4: The WEP keys are used to encrypt data transmitted in the wireless network. Use the following rules to setup a WEP key on the device.

64-bit WEP: input 10-digits Hex values (in the "A-F", "a-f" and "0-9" range) or 5-digit ASCII character as the encryption keys.

128-bit WEP: input 26-digit Hex values (in the "A-F", "a-f" and "0-9" range) or 13-digit ASCII characters as the encryption keys.

Click at the bottom of the screen to save the above configurations.

WPA Pre-Shared Key Encryption

Wi-Fi Protected Access (WPA) is an advanced security standard. You can use a pre-shared key to authenticate wireless stations and encrypt data during communication. It uses TKIP or CCMP (AES) to change the encryption key frequently. The encryption key is not easy to be cracked by hackers. This is the best security available.

WPA-RADIUS Encryption

Wi-Fi Protected Access (WPA) is an advanced security standard. You can use an external RADIUS server to authenticate wireless stations and provide the session key to encrypt data during communication.

It uses TKIP or CCMP (AES) to change the encryption key frequently. Press button when you are done.

- MAC Address Filtering

This wireless router supports MAC Address Control, which prevents unauthorized clients from accessing your wireless network.

Enable wireless access control: Enable the wireless access control function

Adding an address into the list

Enter the "MAC Address" and "Description" of the wireless station to be added and then click . The wireless station will now be added into the "MAC Address Filtering Table" below. If you are having any difficulties filling in the fields, just click "Reset" and both "MAC Address" and "Description" fields will be cleared.

Remove an address from the list

If you want to remove a MAC address from the "MAC Address Filtering Table", select the MAC address that you want to remove in the list and then click "Delete Selected". If you want to remove all the MAC addresses from the list, just click the button. Click will clear your current selections.

Click at the bottom of the screen to save the above configurations.

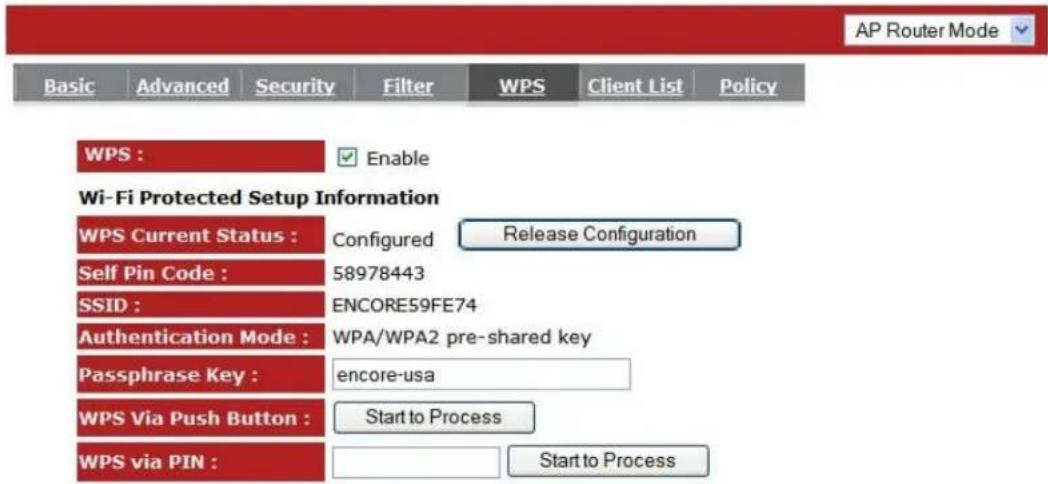

- Wi-Fi Protected Setup™ (WPS™)

WPS™ is the simplest way to establish a connection between the wireless clients and the wireless router. You don't have to select the encryption mode and fill in a long encryption passphrase every time when you try to setup a wireless connection. You only need to press a button on both wireless client and wireless router, and the WPS will do the rest for you.

The wireless router supports two types of WPS, the WPS via Push Button and WPS via PIN code. If you want to use the Push Button, you have to push a specific button on the wireless client or in the utility of the wireless client to start the WPS mode, and switch the wireless router to WPS mode. You can simply push the WPS button of the wireless router, or click the 'Start to Process' button in the web configuration interface. If you want to use the PIN code, you have to know the PIN code of the wireless client and switch it to WPS mode, then fill-in the PIN code of the wireless client through the web configuration interface of the wireless router.

WPS: Check the box to enable WPS function and uncheck it to disable the WPS function.

WPS Current Status: If the wireless security (encryption) function of this wireless router is properly set, you'll see a 'Configured' message here. Otherwise, you'll see 'UnConfigured'. Click the "Release Configuration" can clear the security settings of the 1^st SSID.

Self Pin Code: This is the WPS PIN code of the wireless router. You may need this information when connecting to other WPS-enabled wireless devices.

SSID: This is the network broadcast name (SSID) of the router.

Authentication Mode: It shows the active authentication mode for the wireless connection.

Passphrase Key: It shows the passphrase key that is randomly generated by the wireless router during the WPS process. You may need this information when using a device which doesn't support WPS.

Interface: If device is set to repeater mode, you can choose "Client" interface to connect with other AP by using WPS, otherwise you may choose "AP" interface to do WPS with other clients.

WPS via Push Button: Press the button to start the WPS process. The router will wait for the WPS request from the wireless devices within 2 minutes.

WPS via PIN: You can fill-in the PIN code of the wireless device and press the button to start the WPS process. The router will wait for the WPS request from the wireless device within 2 minutes.

- Client List

WLAN Client Table shows the Wireless clients associated to this Wireless Router.

- Policy

The Broadband router can allow you to set up the Wireless Access Policy up to 4 SSID's.

FIREWALL

The Broadband router provides extensive firewall protection by restricting connection parameters, thus limiting the risk of hacker attacks, and defending against a wide array of common Internet attacks. However, for applications that require unrestricted access to the Internet, you can configure a specific client/server as a Demilitarized Zone (DMZ).

Firewall automatically detects and blocks Denial of Service (DoS) attacks. URL blocking, packet filtering and SPI (Stateful Packet Inspection) are also supported. The hackers attack will be recorded associated with timestamp in the security logging area.

Firewall : ☑ Enable ○ Disable

Apply

Note:

To enable the Firewall settings select Enable and click Apply

- Advanced

You can allow the VPN packets to pass through this Broadband router.

- Demilitarized Zone (DMZ)

If you have a client PC that cannot run an Internet application (e.g. Games) properly behind the NAT firewall, then you can open up the firewall restrictions to unrestricted two-way Internet access by defining a DMZ Host. The DMZ function allows you to re-direct all packets going to your WAN port IP address to a particular IP address in your LAN. The difference between the virtual server and the DMZ function is that the virtual server re-directs a particular service/Internet application (e.g. FTP, websites) to a particular LAN client/server, whereas DMZ re-directs all packets (regardless of services) from your WAN IP address to a particular LAN client/server.

If you have a local client PC that cannot run an Internet application properly from behind the NAT firewall, you can open unrestricted two-way Internet access for this client by defining a Virtual DMZ Host.

Enable DMZ: Enable / Disable DMZ

LAN IP Address: Fill-in the IP address of a particular host in your LAN Network or select a PC from the list on the right that will receive all the packets originally from the WAN port/Public IP address.

Click at the bottom of the screen to save the above configurations.

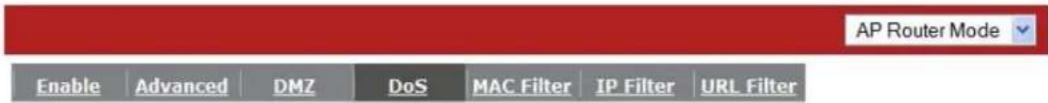

- Denial of Service (DoS)

The Broadband router's firewall can block common hacker attacks, including Denial of Service, Ping of Death, Port Scan and Sync Flood. If Internet attacks occur the router can log the events.

The Firewall can detect and block DOS attacks, DOS (Denial of Service) attacks can flood your Internet Connection with invalid packets and connection requests, using so much bandwidth and so many resourcest that Internet access becomes unavailable.

Block DoS : ☑ Enable ○ Disable

Apply Cancel

Flood: Protects the router from Sync Flood attack.

- MAC Filter

If you want to restrict users from accessing certain Internet applications / services (e.g. Internet websites, email, FTP etc.), and then this is the place to set that configuration. MAC Filter allows users to define the traffic type permitted in your LAN. You can control which PC client can have access to these services.

MAC Filters are used to deny or allow LAN computers from accessing the Internet.

□ Enable MAC filtering

Deny all clients with MAC address listed below to access the network
○ Allow all clients with MAC address listed below to access the network

MAC Filtering table :

Enable MAC Filtering: Check to enable or disable MAC Filtering.

Deny: If you select "Deny" then all clients will be allowed to access Internet except the clients in the list below.

Allow: If you select "Allow" then all clients will be denied to access Internet except the PCs in the list below.

Add PC MAC Address

Fill in "LAN MAC Address" and of the PC that is allowed / denied to access the Internet, and then click . If you find any typo before adding it and want to retype again, just click and the fields will be cleared.

Remove PC MAC Address

If you want to remove some PC from the "MAC Filtering Table", select the PC you want to remove in the table and then click . If you want to remove all PCs from the table, just click the button. If you want to clear the selection and re-select again, just click .

Click at the bottom of the screen to save the above configurations.

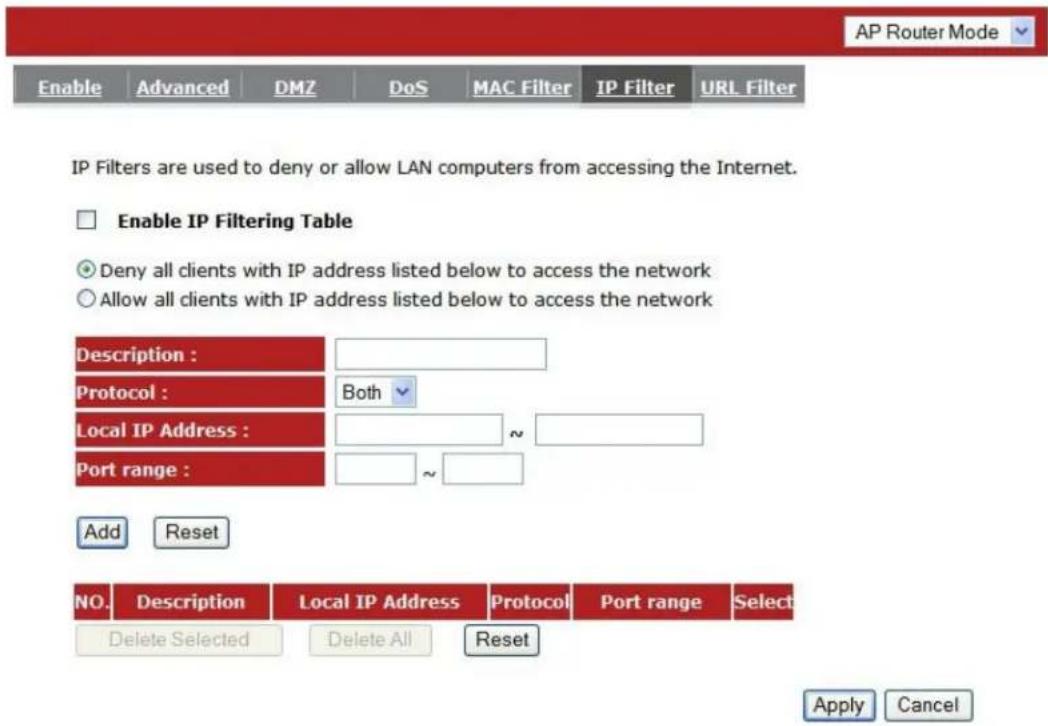

- IP Filter

Enable IP Filtering: Check to enable or uncheck to disable IP Filtering.

Deny: If you select "Deny" then all clients will be allowed to access Internet except for the clients in the list below.

Allow: If you select "Allow" then all clients will be denied to access Internet except for the PCs in the list below.

Add PC IP Address

You can click PC to add an access control rule for users by an IP address or IP address range.

Remove PC IP Address

If you want to remove some PC IP from the ,

select the PC you want to remove in the table and then click . If you want to remove all PCs from the table, just click the button.

Click at the bottom of the screen to save the above configurations.

- URL Filter

You can block access to some Web sites from particular PCs by entering a full URL address or just keywords of the Web site.

Enable URL Blocking: Enable or disable URL Blocking

Add a URL Keyword

Fill-in the "URL/Keyword" field with your ur l/ keyword, and then click . You can enter the full URL address or the keyword of the web site you want to block. If you happen to make a mistake and want to retype again, just click "Reset" and the field will be cleared.

Remove URL Keyword

If you want to remove some URL keywords from the "Current URL Blocking Table", select the URL keyword you want to remove in the table and then click . If you want remove all URL keywords from the table, click button. If you want to clear the selection and re-select again, just click . Click to save the above configurations

■ ADVANCED

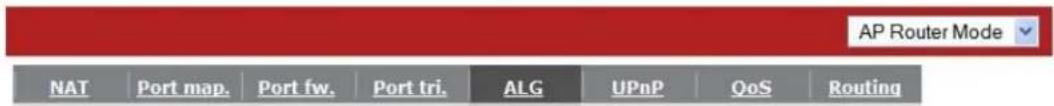

- Network Address Translation (NAT)

Network Address Translation (NAT) allows multiple users at your local LAN site to access the Internet using a single Public IP Address or multiple Public IP Addresses. NAT provides Firewall protection from hacker attacks and has the flexibility to allow you to map Private IP Addresses to Public IP Addresses for key services such as Websites and FTP. Select Disable to disable the NAT function.

NAT(Network Address Translation) involves re-writing the source and/or destination addresses of IP packets as they pass though a Router or firewall, NAT enable multiple hosts on a private network to access the Internet using a single public IP address.

NAT : ☑ Enable ○ Disable

Apply

- Port Mapping

Port Mapping allows you to re-direct a particular range of service port numbers (from the Internet / WAN Port) to a particular LAN IP address. It helps you to host servers behind the router NAT firewall.

Entries in this table allow you to automatically redirect common network services to a specific PC behind the NAT firewall. These settings are only necessary if you wish to host some sort of server like a web server or mail server on the local network.

Enable Port Mapping

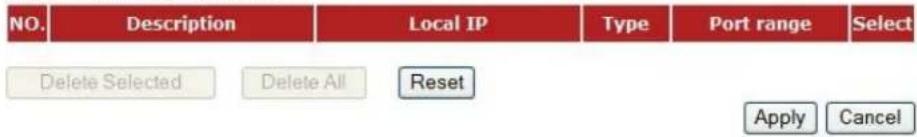

Current Port Mapping Table :

Enable Port Mapping: Enable or disable port mapping function.

Description: description of this setting.

Local IP: This is the local IP of the server behind the NAT firewall.

Protocol: This is the protocol type to be forwarded. You can choose to forward "TCP" or "UDP" packets only, or select "BOTH" to forward both "TCP" and "UDP" packets.

Port Range: The range of ports to be forward to the private IP.

Add Port Mapping

Fill in the "Local IP", "Protocol", "Port Range" and "Description" of the setting to be added and then click "Add". Then this Port Mapping setting will be added into the "Current Port Mapping Table" below. If you find any typo before adding it and want to retype again, just click and the fields will be cleared.

Remove Port Mapping

If you want to remove a Port Mapping setting from the "Current Port Mapping Table", select the Port Mapping setting that you want to remove in the table and then click D. If you want to remove all Port Mapping settings from the table, click button. Click will clear your current selections.

Click at the bottom of the screen to save the above configurations.

- Port Forwarding (Virtual Server)

Use the Port Forwarding (Virtual Server) function when you want different servers/clients in your LAN to handle different service/Internet application type (e.g. Email, FTP, Web server etc.) from the Internet. Computers use numbers called port numbers to recognize a particular service/Internet application type. The Virtual Server allows you to re-direct a particular service port number (from the Internet/WAN Port) to a particular LAN private IP address (See Glossary for an explanation on Port number).

You can configure the router as a Virtual Server allowing remote users to access services such as Web or FTP at your local PC. Depending on the requested service (TCP/UDP) port number, the router will redirect the external service request to the appropriate internal server (located at one of your local PCs).

Enable Port Forwarding

Current Port Forwarding Table :

Enable Port Forwarding: Enable or disable Port Forwarding.

Description: The description of this setting.

Local IP / Local Port: This is the LAN Client/Host IP address and Port number that the Public Port number packet will be sent to.

Protocol: Select the port number protocol type (TCP, UDP or both). If you are unsure, then leave it to the default "both" setting. Public Port enters the service (service/Internet application) port number from the Internet that will be re-directed to the above Private IP address host in your LAN Network.

Public Port: Port number will be changed to Local Port when the packet enters your LAN Network.

Add Port Forwarding

Fill in the "Description", "Local IP", "Local Port", "Protocol" and "Public Port" of the setting to be added and then click button. Then this Virtual Server setting will be added into the "Current Port Forwarding Table" below. If you find any typo before adding it and want to retype again, just click and the fields will be cleared.

Remove Port Forwarding

If you want to remove Port Forwarding settings from the "Current Port Forwarding Table", select the Port Forwarding settings you want to remove in the table and then click "Delete Selected". If you want to remove all Port Forwarding settings from the table, just click the button. Click will clear your current selections.

Click at the bottom of the screen to save the above configurations.

- Port Triggering (Special Applications)

Some applications require multiple connections, such as Internet games, video Conferencing, Internet telephony and others. In this section you can configure the router to support multiple connections for these types of applications.

Port Triggering, also called Special Applications allows you to use Internet applications which normally do not function when used behind a firewall.

√ Enable Trigger Port

Current Trigger-Port Table :

Enable Trigger Port: Enable or disable the Port Trigger function.

Trigger Port: This is the outgoing (Outbound) range of port numbers for this particular application.

Trigger Type: Select whether the outbound port protocol is "TCP", "UDP" or "BOTH".

Public Port: Enter the In-coming (Inbound) port or port range for this type of application (e.g. 2300-2400, 47624)

Public Type: Select the Inbound port protocol type: "TCP", "UDP" or "BOTH"

Popular Applications: This section lists the more popular applications that require multiple connections. Select an application from the Popular Applications selection. Once you have selected an application, select a location (1-5) in the "Add" selection box and then click the button. This will automatically list the Public Ports required for this popular application in the location (1-5) you specified.

Add Port Triggering

Fill in the "Trigger Port", "Trigger Type", "Public Port", "Public Type", "Public Port" and "Description" of the setting to be added and then Click . The Port Triggering setting will be added into the "Current Trigger-Port Table" below. If you happen to make a mistake, just click and the fields will be cleared.

Remove Port Triggering

If you want to remove Special Application settings from the "Current Trigger-Port Table", select the Port Triggering settings you want to remove in the table and then click . If you want remove all Port Triggering settings from the table, just click the button. Click will clear your current selections.

- Application Layer Gateway (ALG)

You can select applications that need ALG support. The router will let the selected application to correctly pass through the NAT gateway.

The ALG (Application Layer Gateway) serves the purpose of a window between correspondent application processes so that they may exchange information on the open environment.

Description	Select
H323
MMS
TFTP
Egg
IRC
Amanda
Quake3
Talk
IPsec
FTP

Apply Cancel

- UPNP

With UPnP, all PCs in you Intranet will discover this router automatically. So, you don't have to configure your PC and it can easily access the Internet through this router.

Universal Plug and Play is designed to support zero-configuration, "invisible" networking, and automatic discovery for a range of device from a wide range of vendors. With UPnP, a device can dynamically join a network, obtain an IP address and learn about the presence and capabilities of other devices all automatically. Devices can subsequently communicate with each other directly.

√ Enable the Universal Plug and Play (UPnP) Feature
☐ Allow users to make port forwarding changes through UPnP

Apply

Enable / Disable UPnP: You can enable or Disable the UPnP feature here.

After you enabled the UPnP feature, all client systems that support UPnP, like Windows XP, can discover this router automatically and access the Internet through this router without having to configure anything. The NAT Traversal function provided by UPnP can let applications that support UPnP connect to the internet without having to configure the virtual server sections.

- Quality of Service (QoS)

QoS can let you classify Internet application traffic by source/destination IP address and port number. You can assign priority for each type of application and reserve bandwidth for it. The packets of applications with higher priority will always go first. Lower priority applications will get bandwidth after higher priority applications get enough bandwidth. This can let you have a better experience in using critical real time services like Internet phone, video conference ...etc. All the applications not specified by you are classified as rule “Others”.

Priority Queue

This can put the packets of specific protocols in High/Low Queue. The packets in High Queue will process first.

Quality of Service (QoS) refers to the capability of a network to provide better service to selected network traffic. The primary goal of QoS is to provide priority including dedicated bandwidth, controlled jitter and latency (required by some real-time and interactive traffic), and improved loss characteristics. Also important is making sure that providing priority for one or more flows does not make other flows fail.

QoS :

Priority Queue ○ Bandwidth Allocation ○ Disabled

Unlimited Priority Queue

Local IP Address	Description
	The IP address will not be bounded in the QoS limitation

High/Low Priority Queue

Protocol		High Priority	Low Priority	Specific Port
FTP		○	◎	20,21
HTTP		○	◎	80
TELNET		○	◎	23
SMTP		○	◎	25
POP3		○	◎	110
Name:		○	◎	Both √ ~
Name:		○	◎	Both √ ~

Unlimited Priority Queue: The LAN IP address will not be bounded in the QoS limitation.

High/Low Priority Queue: This can put the packets in the protocol and port range to High/Low QoS Queue.

Bandwidth Allocation:

This can reserve / limit the throughput of specific protocols and port range. You can set the upper bound and Lower bound.

Type: Specify the direction of packets. Upload / Download or both.

IP range: Specify the IP address range. You could also fill one IP address

Protocol: Specify the packet type. The default ALL will put all packets in the QoS priority Queue.

Port range: Specify the Port range. You could also fill one Port.

Policy: Specify the policy of QoS, Min option will reserve the selected data rate in QoS queue. Max option will limit the selected data rate in QoS queue.

Rate: The data rate of QoS queue.

Disabled: This turn off QoS Service.

Quality of Service (QoS) refers to the capability of a network to provide better service to selected network traffic. The primary goal of QoS is to provide priority including dedicated bandwidth, controlled jitter and latency (required by some real-time and interactive traffic), and improved loss characteristics. Also important is making sure that providing priority for one or more flows does not make other flows fail.

QoS : ○ Priority Queue ○ Bandwidth Allocation ● Disabled

Apply Cancel

- Routing

You can set Enable Static Routing to let the router forward packets using your routing policy.

You can enable Static Routing to turn off the NAT function of the router and let the router forward packets by your routing policy.

To take Static Route effect, please disable NAT function.

Current Static Routing Table :

Destination LAN IP: Specify the destination LAN IP address of static routing rule.

Subnet Mask: Specify the Subnet Mask of static routing rule.

Default Gateway: Specify the default gateway of static routing rule.

Hops: Specify the Max Hops number of static routing rule.

Interface: Specify the Interface of static routing rule.

■ TOOLS

- Admin

You can change the password required to log into the broadband router's system web-based management. By default, the password is: admin. Passwords can contain 0 to 12 alphanumeric characters, and are case sensitive.

You can change the password that you use to access the router, this is not your ISP account password.

Remote management allows the router to be configured from the Internet by a web browser, A username and password is still required to access the Web-Management interface.

Host Address	port	Enable
	8080

Apply Reset

Old Password: Fill in the current password to allow changing to a new password.

New Password: Enter your new password and type it again in Repeat New Password for verification purposes

Remote management

Allows you to designate a host in the Internet. The ability to configure the Broadband router from a remote site. Enter the designated host IP Address in the Host IP Address field.

Host Address: This is the IP address of the host in the Internet that will have management/configuration access to the Broadband router from a remote site. If the Host Address is left 0.0.0.0 this means anyone can access the router's web-based configuration from a remote location, providing they know the password.

Port: The port number of the remote management web interface.

Enabled: Check to enable the remote management function.

Click at the bottom of the screen to save the above configurations.

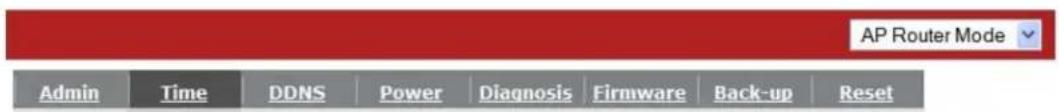

- Time

The Time Zone allows your router to refer or base its time on the settings configured here, which will affect functions such as Log entries and Firewall settings.

Setting Up Time:

Synchronize with the NTP server

The Router reads the correct time from NTP servers on the Internet and sets its system clock accordingly. The Daylight Savings option merely advances the system clock by one hour. The time zone setting is used by the system clock when displaying the correct time in schedule and the log files.

Time Zone: Select the time zone of the country you are currently located. The router will set its time based on your selection.

NTP Time Server: The router can be set up to use external NTP Time Server.

Daylight Savings: The router can also be set to automatically adjust to the Daylight Savings changes. If you wish to use this function, you must select the Daylight Savings Time period and put a checkmark on the Enable box to enable your daylight savings time configuration.

Click at the bottom of the screen to save the above configurations.

Synchronize with your PC

You could synchronize timer with your computers time.

The Router reads the correct time from NTP servers on the Internet and sets its system clock accordingly. The Daylight Savings option merely advances the system clock by one hour. The time zone setting is used by the system clock when displaying the correct time in schedule and the log files.

PC Date and Time: This field would display your computer's date and time.

Daylight Savings: The router can also take Daylight Savings into account. If you wish to use this function, you must select the Daylight Savings Time period and check/tick the enable box to enable your daylight saving configuration.

Click at the bottom of the screen to save the above configurations.

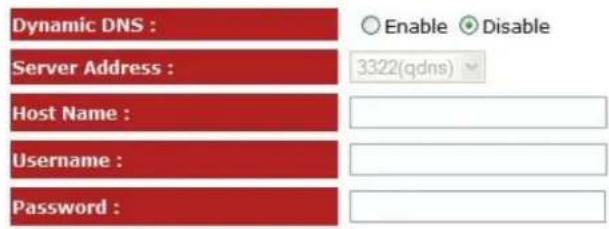

- DDNS

DDNS allows you to map the static domain name to a dynamic IP address. You must register to a DDNS services and to get an account, password and your static domain name from the DDNS service providers. This router supports DynDNS, TZO and other common DDNS service providers.

DDNS allows users to map a static domain name to a dynamic IP address. You must get an account, password and your static domain name from the DDNS service provider.

Apply Cancel

Enable/Disable DDNS: Enable or disable the DDNS function of this router

Server Address: Select a DDNS service provider

Host Name: Fill in your static domain name that uses DDNS.

Username: The account that your DDNS service provider assigned to you.

Password: The password you set for the DDNS service account above.

Click at the bottom of the screen to save the above configurations.

- Power

Saving power in WLAN mode can be enabled / disabled in this page.

You can use the power page to save energy for WLAN interfaces.

Power Saving Mode :

WLAN:

Enable

Disable

Apply

Cancel

- Diagnosis

In this page lets you run diagnosis to your network status.

This page can diagnose the current network status

- Firmware

This page allows you to upgrade the router's firmware. To upgrade the firmware of your Broadband router, you need to download the firmware file to your local hard disk, and enter that file name and path in the appropriate field on this page. You can also use the Browse button to find the firmware file in your PC.

You can upgrade the firmware of the router in this page. Ensure, the firmware you want to use is on the local hard drive of your computer. Click on Browse to browse and locate the firmware to be used for your update.

Once you've selected the new firmware file, click at the bottom of the screen to start the upgrade process

- Back-up

This page allows you to save the current router configurations. When you save the configurations, you also can restore the saved configurations into the router through the Restore Settings. If extreme problems occur you can use the Restore to Factory Defaults to set all configurations to its original default settings. Warning: You will loose any saved data and settings when you set back to the manufacturer's default settings, but you can re-enter your previous settings manually.

Use BACKUP to save the routers current configuration to a file named config.dlf. You can use RESTORE to restore the saved configuration. Alternatively, you can use RESTORE TO FACTORY DEFAULT to force the router to restore the factory default settings.

Backup Settings: This can save the current Broadband router configuration to a file named "config.bin" on your PC. You can also use the button to restore the saved configuration to the Broadband router. Alternatively, you can use the "Restore to Factory Defaults" tool to force the Broadband router to perform a power reset and restore the original factory settings.

- Reset

You can reset the broadband router when system stops responding correctly or stop functions.

In the event the system stops responding correctly or stops functioning, you can perform a reset. Your settings will not be changed. To perform the reset, click on the APPLY button. You will be asked to confirm your decision. The reset will be completed when the LED Power light stops blinking.

Apply Cancel

XIII - Repeater Mode

Repeater mode has limited settings compared to the AP mode. Choose "Repeater mode" on the top right corner of the configuration page.

System restarts and connects to the IP address http://192.168..0.1

You will see the configuration homepage under "REPEATER" mode now.

■ System

- Status

System status section allows you to monitor the current status of your router.

You can see the Uptime, hardware information, serial number as well as firmware version information.

LAN Settings: This page displays the Broadband router LAN port's current LAN information.

WLAN Settings: Wireless configuration details such as SSID, Status(Connected/Disconnected), Security and Channel are briefly shown.

- LAN

The LAN Tabs shows LAN settings. LAN settings can be change as needed. If you are an entry level user, try opening a website from your computer. If you're successful and able to connect and browse the web site you opened without any problem, do not change any of the settings.

Click at the bottom of this screen to save the changed configurations.

IP address: This is the router's LAN IP address (Your LAN clients default gateway IP address). It can be changed based on your network architecture.

IP Subnet Mask: Specify a Subnet Mask IP address for your LAN segment.

802.1d Spanning Tree: This is disabled by default. If 802.1d Spanning Tree function is enabled, this router will use the spanning tree protocol to prevent network loops.

- Event Log

View operations log of the ENHWI-N3. This page shows the current system log of the ENHWI-N3 router. It displays any event occurred after system start up. Use the scroll bar to go down to the bottom of the page, the system log can be saved to a local file for future use or the system log can be cleared or it can be refreshed to get the most updated information. When the system is powered down, the system log will disappear if not saved to a local file.

- Monitor

The Monitor Tab shows the bandwidth monitoring feature of each network interface of the ENHWI-N3 router, wireless or wired and of the network packet histogram for the network connection on WLAN. Auto refresh keeps information updated frequently.

You can monitor the bandwidth in different interface. This page will refresh in every five seconds.

- Language

This Wireless Router supports multiple languages for user interface. Select your preferred language.

■ Wireless

- Basic

You can set parameters use by the wireless stations to connect to this router. The parameter includes Mode, ESSID, Channel Number and Associated Client.

This page allows you to define SSID, and Channel for the wireless connection. These parameters are used for the wireless stations to connect to the Access Point.

Radio: Enable or Disable Wireless function

Band: Allows you to set the frequency band of the router. Fix at 802.11b, 802.11g or 802.11n modes. You can also select B+G mode to allow 802.11b and 802.11g clients at the same time.

Enable ESSID: You can specify the maximum ESSID number.

ESSID1\~3: Allow you to specify ESSID of WLAN.

Site Survey: Click this button to scan the available wireless routers that can be set as this router's parent router. By doing so this ENHWI-N3 router will become a wireless extender / repeater of the selected parent router. Select one router from the list for that router to become this router's parent router.

Site Survey

NO.	Select	Channel	SSID	BSSID	Encryption	Auth	Signal(%)	Mode
1	○	1	Encore	00:02:6F:4F:5A:7F	TKIPAES	WPAPSKWPA2PSK	5	11b/g
2	○	1	SENAOWL	00:02:6F:53:0C:9B	WEP	AUTOWEP	55	11b/g
3	○	11	SQA_ADSL	00:0C:F6:47:C0:4C	TKIPAES	WPAPSKWPA2PSK	100	11b/g/n
4	○	3	SNADSL	00:02:6F:48:0D:8F	WEP	AUTOWEP	20	11b/g
5	○	4	SQA7750B	00:02:6F:5D:16:E8	NONE	OPEN	100	11b/g/n

- Client List

This WLAN Client Table shows the Wireless client associated to this Wireless Router.

WLAN Client Table :

This WLAN Client Table shows client MAC address associate to this Broadband Router

Interface	MAC Address	Signal (%)	Idle Time
ENCORE59FE74	00:23:4D:36:D7:BE	100	0 secs

- Policy

The Broadband router allows you to set up the Wireless Access Policy. If multiple SSID is created, this is the place to set the policy for each SSID.

Communication between Wireless clients:

This function is to allow other Wireless Client to communicate with another Wireless Client on the LAN connected on the same SSID.

Communication between Wireless clients and wired clients:

This function allows the Wireless Client to communicate with other Wireless Client in the LAN on specific SSID as well as the Wired Client connected to the switch portion of this router.

SSID 1 Connection Control Policy

Apply Cancel

■ Tools

- Admin

You can change the password that is required to log into the broadband router's system web-based management. By default, the password is: admin. Passwords can contain 0 to 12 alphanumeric characters, and are case sensitive.

Old Password: Fill-in the current password to be replaced. This is required to allow changing to a new password.

New Password: Enter your new password and again in Repeat New Password for verification purpose

Click at the bottom of the screen to save the above configurations

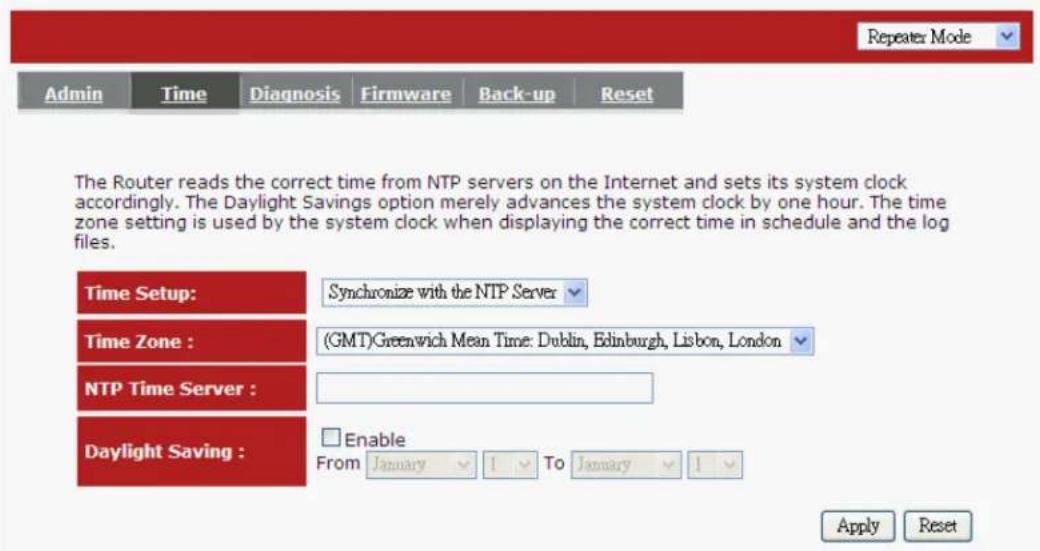

- Time

The Time Zone allows your router to use external source to time synchronizations. This affects other functions such as Event Log entries and Schedule settings that use time to do its tasks.

How to Set up Time:

Synchronize with the NTP server

Time Zone: Select the time zone of the country you are located. The router will set its time based on your selection.

NTP Time Server: Enter the NTP Time Server address or URL here. This also accepts local the IP address if the NTP Time Server is on the same LAN.

Daylight Savings: The router can also setup to automatically adjust the Daylight Savings Time changes each time DST changes. To use this feature, click to put a checkmark on the Enable box then enter the dates the DST would starts and ends.

Click at the bottom of the screen to save the above configurations

Synchronize and use your computer's clock

The ENHWI-N3 can be synchronized the time to your computer's time.

PC Date and Time: This field would display the user computers date and time.

Daylight Savings: The router can also setup to automatically adjust the Daylight Savings Time changes each time DST changes. To use this feature, click to put a checkmark on the Enable box then enter the dates the DST would starts and ends.

Click at the bottom of the screen to save the above configurations.

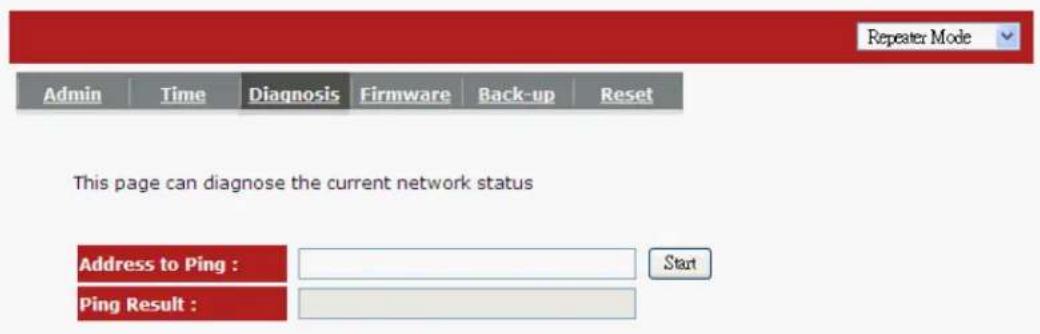

- Diagnosis

This page lets you diagnose the connection problem and the network status by executing the Ping function. The result tells you whether the connection is broken or successful.

- Firmware

This page allows you to upgrade the router's firmware. To upgrade the firmware of your Broadband router, you need to download the firmware file to your local hard disk, and enter that file name and path in the appropriate field on this page. You can also use the Browse button to find the firmware file on your PC.

Once you've selected the new firmware file, click at the bottom of the screen to start the upgrade process. Warning: Once the loading of the new firmware started, do not power down the router.

- Back-up

The page allows you to save (Backup) the router's current configuration settings.

The saved backup can be restored again if needed by sing the Restore Settings selection and browse the saved backup file to restore back to the expected settings. If restore is not an option the Restore to Factory Default may be the only way to recover the router from damage. Using Restore to Factory Default will reset all configurations and settings to its original factory default settings (e.g. when you first purchased the router).

Use BACKUP to save the routers current configuration to a file named config.dlf. You can use RESTORE to restore the saved configuration. Alternatively, you can use RESTORE TO FACTORY DEFAULT to force the router to restore the factory default settings.

Backup Settings: Use this function to save the router's current settings and configuration to a file named "config.bin" to your computer. You can also use the button to restore the saved configuration to the router. Alternatively, you can use the "Restore to Factory Defaults" to force the Broadband router to perform a power reset and restore the original factory settings.

- Reset

You can software reset the broadband router when system stops responding or stop working. This is different from the hardware reset that can reset the settings by physically pressing the button.

In the event the system stops responding correctly or stops functioning, you can perform a reset. Your settings will not be changed. To perform the reset, click on the APPLY button. You will be asked to confirm your decision. The reset will be completed when the LED Power light stops blinking.

Apply Cancel

Appendix A – FCC Interference Statement

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

● Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

We declare that the product is limited in CH1\~CH11 by specified firmware controlled in the USA. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Appendix B – IC Interference Statement

Industry Canada statement:

This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE:

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

This device has been designed to operate with an antenna having a maximum gain of 2 dBi. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms.
